Improving Flexibility and Energy Efficiency of Post-Combustion CO_{2} Capture Plants Using Economic Model Predictive Control

^{*}

## Abstract

**:**

## 1. Introduction

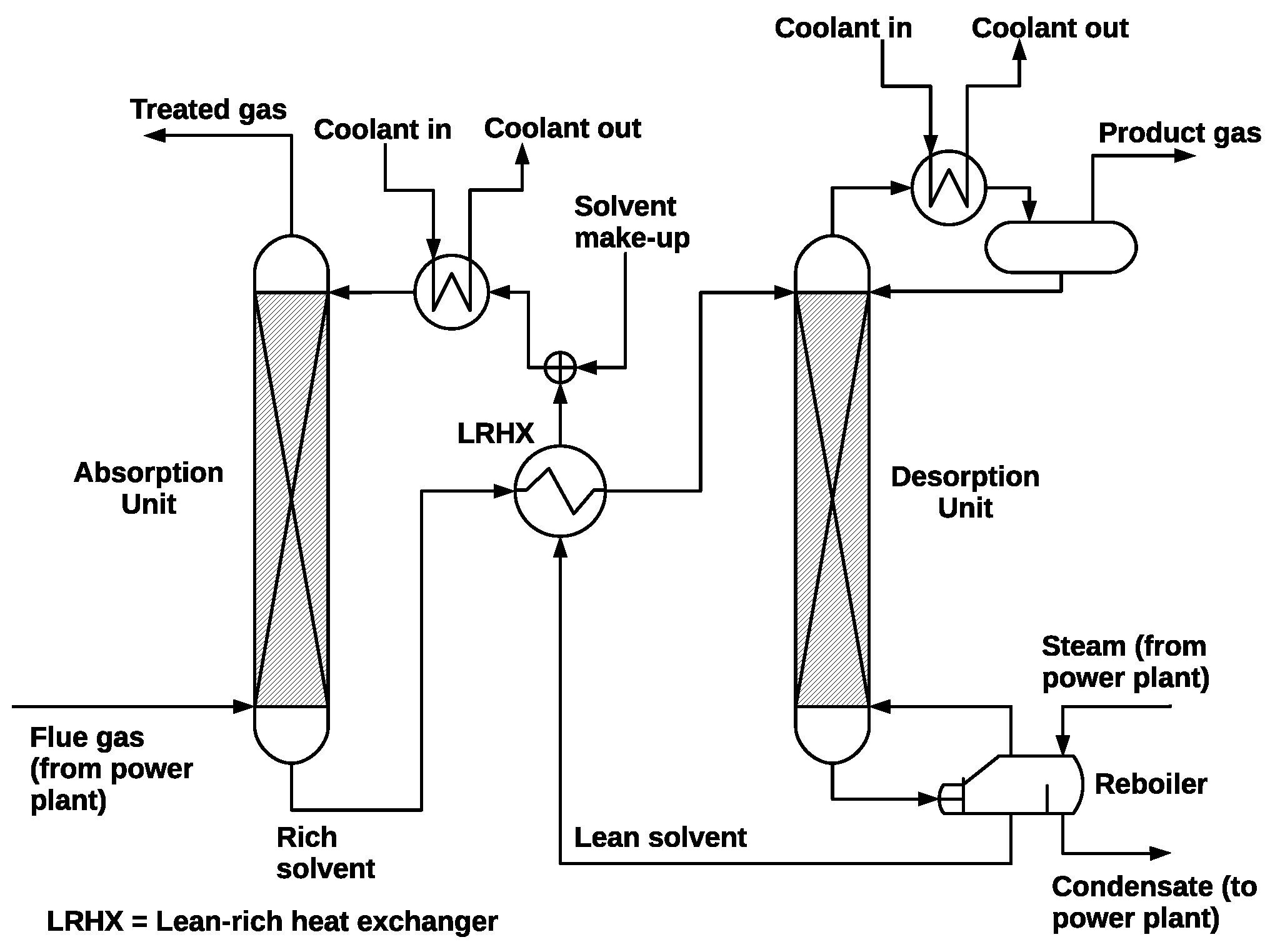

## 2. Model Development

#### 2.1. Absorption and Desorption Units

#### 2.1.1. Modeling Assumptions

- Well mixed bulk and liquid phases. Each stage therefore behaves like a continuously stirred tank reactor (CSTR) with no spacial variation in properties.
- Reactions occur only in the liquid film and the influence of the reaction on mass transfer is described using enhancement factor.
- Mass and heat transfer are described by the two film theory [21].
- Pressure drop in the two columns is linear.
- No heat losses to the surrounding area.

#### 2.1.2. Balance Equations

#### 2.1.3. Heat and Mass Transfer Rates

#### 2.2. Heat Exchanger Model

#### 2.2.1. Energy Balance

#### 2.3. Reboiler Model

#### 2.3.1. Material Balance

#### 2.3.2. Energy Balance

#### 2.4. Physical and Chemical Properties

#### 2.5. Model Discretization

## 3. Control Problem Formulation and Design

#### 3.1. Conventional Set-Point Tracking MPC

**Optimization problem 1.**Steady-state optimization problem

**Optimization problem 2.**Tracking MPC optimization problem

#### 3.2. Economic Model Predictive Control

**Optimization problem 3.**EMPC optimization problem

#### 3.3. Implementation

- The continuous time differential and algebraic model equations are discretized by approximating the state and control profiles by a family of polynomials on finite elements. This involves dividing the control horizon into a number of finite elements with the size of each element corresponding to one sampling time. Within each element, the state and input profiles are approximated by a family of polynomials. In this work, Radau orthogonal polynomials in Lagrange form is used.
- The dynamic optimization problem is then formulated as a large scale nonlinear programming (NLP) problem.
- The NLP problem is solved using a computationally efficient solver that exploits the sparsity in the resulting matrix.

**Optimization problem 4.**Reformulated optimization problem.

## 4. Simulations, Results and Discussion

#### 4.1. Simulation Setup

#### 4.1.1. Time-Varying Steam Price and Flue Gas Flow Rate

#### 4.1.2. Tracking MPC Parameter Tuning

#### 4.2. MPC Set-Point Update Strategy

#### 4.3. Operation under Different Carbon Tax Policies

#### 4.3.1. Carbon Tax with Tax-Free Emission Limit

#### 4.3.2. Carbon Tax without Tax-Free Emission Limit

#### 4.4. Operation under Uncertainty

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

CCS | Carbon Capture and Storage |

CSTR | Continuously Stirred Tank Reactor |

EMPC | Economic Model Predictive Control |

eNTRL | electrolyte Non-Random Two Liquids |

DAEs | Differential Algebriac Equations |

MEA | Monoethanolamine |

MPC | Model Predictive Control |

NLP | Nonlinear Programming |

ODEs | Ordinary Differential Equations |

PCC | Post-combustion CO${}_{2}$ Capture |

PDEs | Partial Differential Equations |

SSO | Steady-State Optimization |

ZOH | Zero-Order Hold |

## References

- Miller, B.G. Fossil Fuel Emission Control Technologies: Stationary Heat and Power Systems, 1st ed.; Elsevier: Waltham, MA, USA, 2015. [Google Scholar]
- Metz, B.; Intergovernmental Panel on Climate Change (Eds.) IPCC Special Report on Carbon Dioxide Capture and Storage; Cambridge University Press: Cambridge, UK, 2005. [Google Scholar]
- Davison, J.; Mancuso, L.; Ferrari, N. Costs of CO
_{2}Capture Technologies in Coal Fired Power and Hydrogen Plants. Energy Procedia**2014**, 63, 7598–7607. [Google Scholar] [CrossRef] - Ziaii, S.; Rochelle, G.T.; Edgar, T.F. Dynamic Modeling to Minimize Energy Use for CO
_{2}Capture in Power Plants by Aqueous Monoethanolamine. Ind. Eng. Chem. Res.**2009**, 48, 6105–6111. [Google Scholar] [CrossRef] - Lin, Y.J.; Wong, D.S.H.; Jang, S.S.; Ou, J.J. Control Strategies for Flexible Operation of Power Plant with CO
_{2}Capture Plant. AIChE J.**2012**, 58, 2697–2704. [Google Scholar] [CrossRef] - Bedelbayev, A.; Greer, T.; Lie, B. Model Based Control of Absorption Tower for CO
_{2}Capturing. In Proceedings of the 49th International Conference of Scandinavian Simulation Society (SIMS 2008), Oslo, Norway, 7–8 October 2008. [Google Scholar] - Panahi, M.; Skogestad, S. Economically Efficient Operation of CO
_{2}Capturing Process Part I: Self-Optimizing Procedure for Selecting the Best Controlled Variables. Chem. Eng. Process.**2011**, 50, 247–253. [Google Scholar] [CrossRef] - Panahi, M.; Skogestad, S. Economically Efficient Operation of CO
_{2}Capturing Process. Part II. Design of Control Layer. Chem. Eng. Process.**2012**, 52, 112–124. [Google Scholar] [CrossRef] - He, Z.; Sahraei, M.H.; Ricardez-Sandoval, L.A. Flexible Operation and Simultaneous Scheduling and Control of a CO
_{2}Capture Plant Using Model Predictive Control. Int. J. Greenh. Gas Control**2016**, 48, 300–311. [Google Scholar] [CrossRef] - Bankole, T.; Jones, D.; Bhattacharyya, D.; Turton, R.; Zitney, S.E. Optimal Scheduling and Its Lyapunov Stability for Advanced Load-Following Energy Plants with CO
_{2}Capture. Comput. Chem. Eng.**2018**, 109, 30–47. [Google Scholar] [CrossRef] - Mac Dowell, N.; Shah, N. The Multi-Period Optimisation of an Amine-Based CO
_{2}Capture Process Integrated with a Super-Critical Coal-Fired Power Station for Flexible Operation. Comput. Chem. Eng.**2015**, 74, 169–183. [Google Scholar] [CrossRef] - Ellis, M.; Durand, H.; Christofides, P.D. A Tutorial Review of Economic Model Predictive Control Methods. J. Process Control
**2014**, 24, 1156–1178. [Google Scholar] [CrossRef] - Angeli, D.; Amrit, R.; Rawlings, J.B. On Average Performance and Stability of Economic Model Predictive Control. IEEE Trans. Autom. Control
**2012**, 57, 1615–1626. [Google Scholar] [CrossRef][Green Version] - Liu, S.; Liu, J. Economic Model Predictive Control with Extended Horizon. Automatica
**2016**, 73, 180–192. [Google Scholar] [CrossRef] - Zeng, J.; Liu, J. Economic Model Predictive Control of Wastewater Treatment Processes. Ind. Eng. Chem. Res.
**2015**, 54, 5710–5721. [Google Scholar] [CrossRef] - Liu, S.; Zhang, J.; Liu, J. Economic MPC with Terminal Cost and Application to an Oilsand Primary Separation Vessel. Chem. Eng. Sci.
**2015**, 136, 27–37. [Google Scholar] [CrossRef] - Idris, E.A.; Engell, S. Economics-Based NMPC Strategies for the Operation and Control of a Continuous Catalytic Distillation Process. J. Process Control
**2012**, 22, 1832–1843. [Google Scholar] [CrossRef] - Mendoza-Serrano, D.I.; Chmielewski, D.J. Smart Grid Coordination in Building HVAC Systems: EMPC and the Impact of Forecasting. J. Process Control
**2014**, 24, 1301–1310. [Google Scholar] [CrossRef] - Touretzky, C.R.; Baldea, M. Integrating Scheduling and Control for Economic MPC of Buildings with Energy Storage. J. Process Control
**2014**, 24, 1292–1300. [Google Scholar] [CrossRef] - Harun, N.; Nittaya, T.; Douglas, P.L.; Croiset, E.; Ricardez-Sandoval, L.A. Dynamic Simulation of MEA Absorption Process for CO
_{2}Capture from Power Plants. Int. J. Greenh. Gas Control**2012**, 10, 295–309. [Google Scholar] [CrossRef] - Whitman, W.G. The Two Film Theory of Gas Absorption. Int. J. Heat Mass Trans.
**1962**, 5, 429–433. [Google Scholar] [CrossRef] - Onda, K.; Takeuchi, H.; Okumoto, Y. Mass Transfer Coefficients between Gas and Liquid Phases in Packed Columns. J. Chem. Eng. Jpn.
**1968**, 1, 56–62. [Google Scholar] [CrossRef] - Danckwerts, P. The Reaction of CO
_{2}with Ethanolamines. Chem. Eng. Sci.**1979**, 34, 443–446. [Google Scholar] [CrossRef] - Tobiesen, F.A.; Juliussen, O.; Svendsen, H.F. Experimental Validation of a Rigorous Desorber Model for CO
_{2}Post-Combustion Capture. Chem. Eng. Sci.**2008**, 63, 2641–2656. [Google Scholar] [CrossRef] - Chilton, T.H.; Colburn, A.P. Mass Transfer (Absorption) Coefficients Prediction from Data on Heat Transfer and Fluid Friction. Ind. Eng. Chem.
**1934**, 26, 1183–1187. [Google Scholar] [CrossRef] - Harun, N. Dynamic Simulation of MEA Absorption Process for CO
_{2}Capture from Power Plants. Ph.D. Thesis, University of Waterloo, Waterloo, ON, USA, 2012. [Google Scholar] - Amrit, R.; Rawlings, J.B.; Biegler, L.T. Optimizing Process Economics Online Using Model Predictive Control. Comput. Chem. Eng.
**2013**, 58, 334–343. [Google Scholar] [CrossRef] - Biegler, L.T. Nonlinear Programming: Concepts, Algorithms, and Applications to Chemical Processes; Society for Industrial and Applied Mathematics: Philadelphia, PA, USA, 2010. [Google Scholar]
- Andersson, J.A.E.; Gillis, J.; Horn, G.; Rawlings, J.B.; Diehl, M. CasADi—ASoftware Framework for Nonlinear Optimization and Optimal Control. Math. Program. Comput.
**2018**. [Google Scholar] [CrossRef] - Wächter, A.; Biegler, L.T. On the Implementation of an Interior-Point Filter Line-Search Algorithm for Large-Scale Nonlinear Programming. Math. Program.
**2006**, 106, 25–57. [Google Scholar] [CrossRef]

**Figure 3.**Scaled hourly changes in steam price (Nominal value: $0.01$/\mathrm{kg}$) and flue gas flow rate (Nominal value: 0.0832 ${\mathrm{m}}^{3}/\mathrm{s}$). Price (red), Flue gas flow (blue).

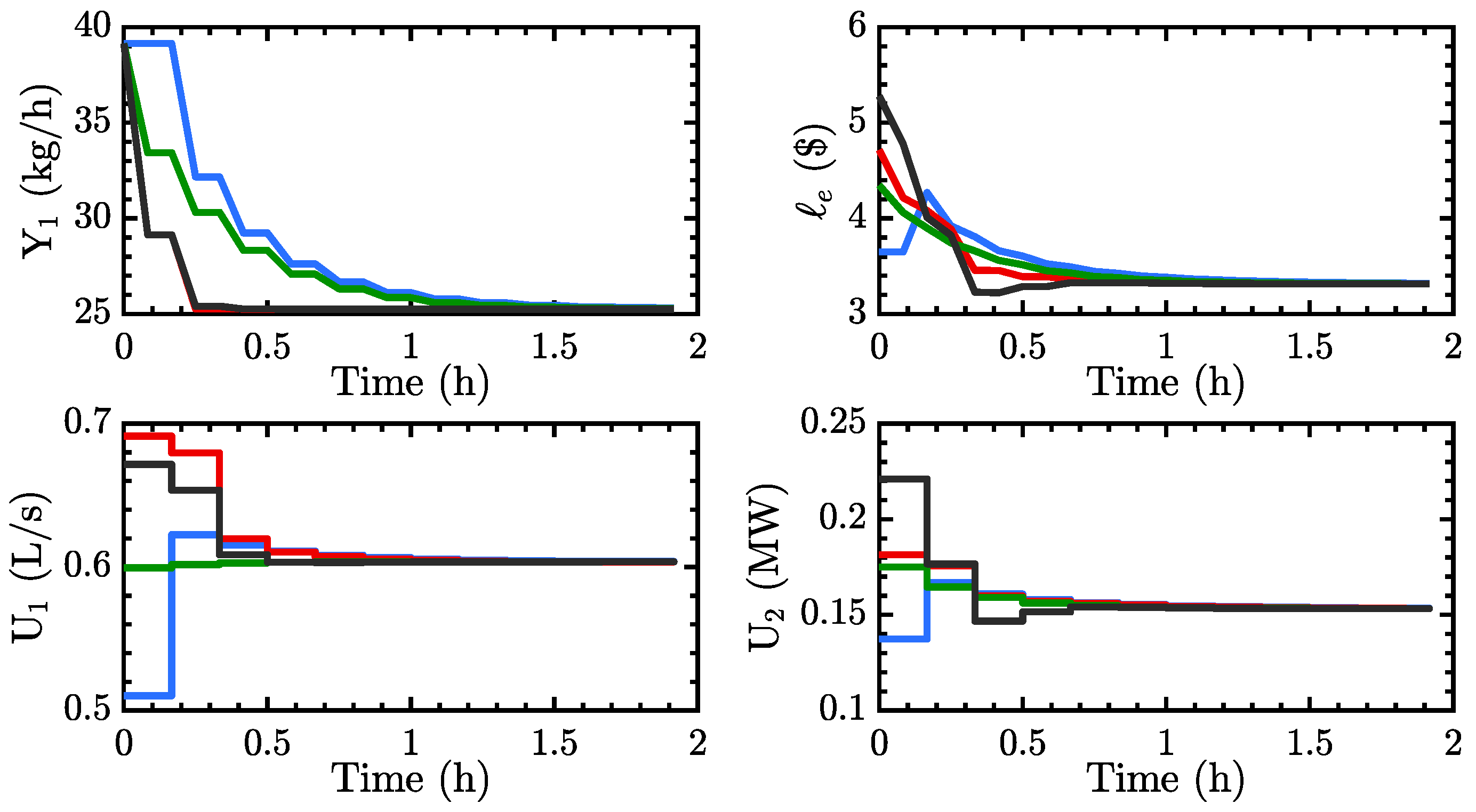

**Figure 4.**Closed-loop trajectories of EMPC and different MPC tuning parameters starting from a higher economic cost to a lower one. EMPC (blue), MPC I (red), MPC II (green), MPC III (black). The average economic performances are 4.700, 4.768, 4.713, 4.692 for EMPC, MPC I, MPC II, MPC III, respectively; (

**top-left**) mass flow rate of CO${}_{2}$ in the treated flue gas; (

**top-right**) economic performance of controller; (

**bottom-left**) volumetric flow rate of solvent; (

**bottom-right**) heat input to reboiler. EMPC: Economic Model Predictive Control

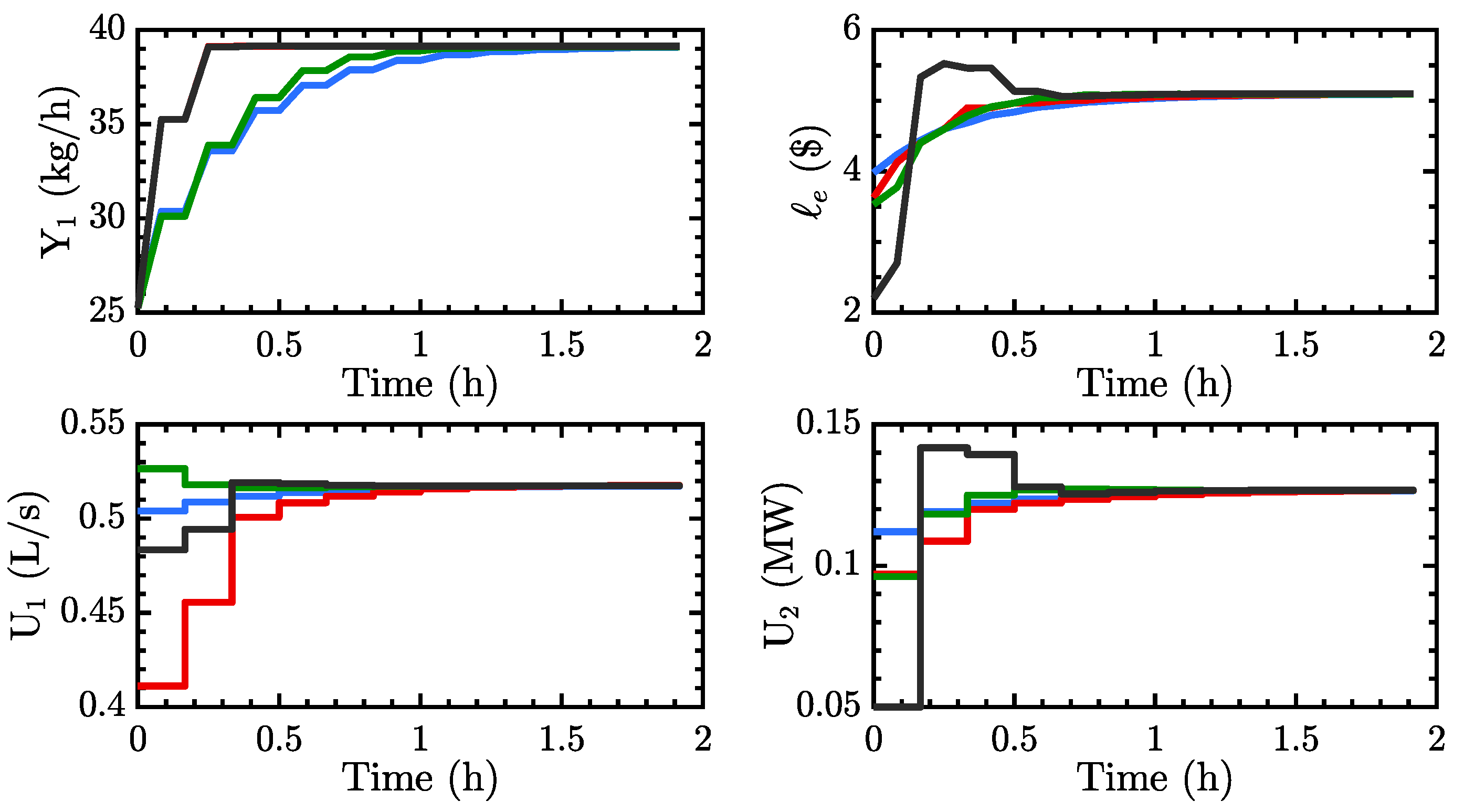

**Figure 5.**Closed-loop trajectories of EMPC and different MPC tuning parameters starting from a lower economic cost to a higher one. EMPC (blue), MPC I (red), MPC II (green), MPC III (black). The average economic performances are 3.654, 3.668, 3.650, 3.685 for EMPC, MPC I, MPC II, MPC III, respectively; (

**top-left**) mass flow rate of CO${}_{2}$ in the treated flue gas; (

**top-right**) economic performance of controller; (

**bottom-left**) volumetric flow rate of solvent; (

**bottom-right**) heat input to reboiler.

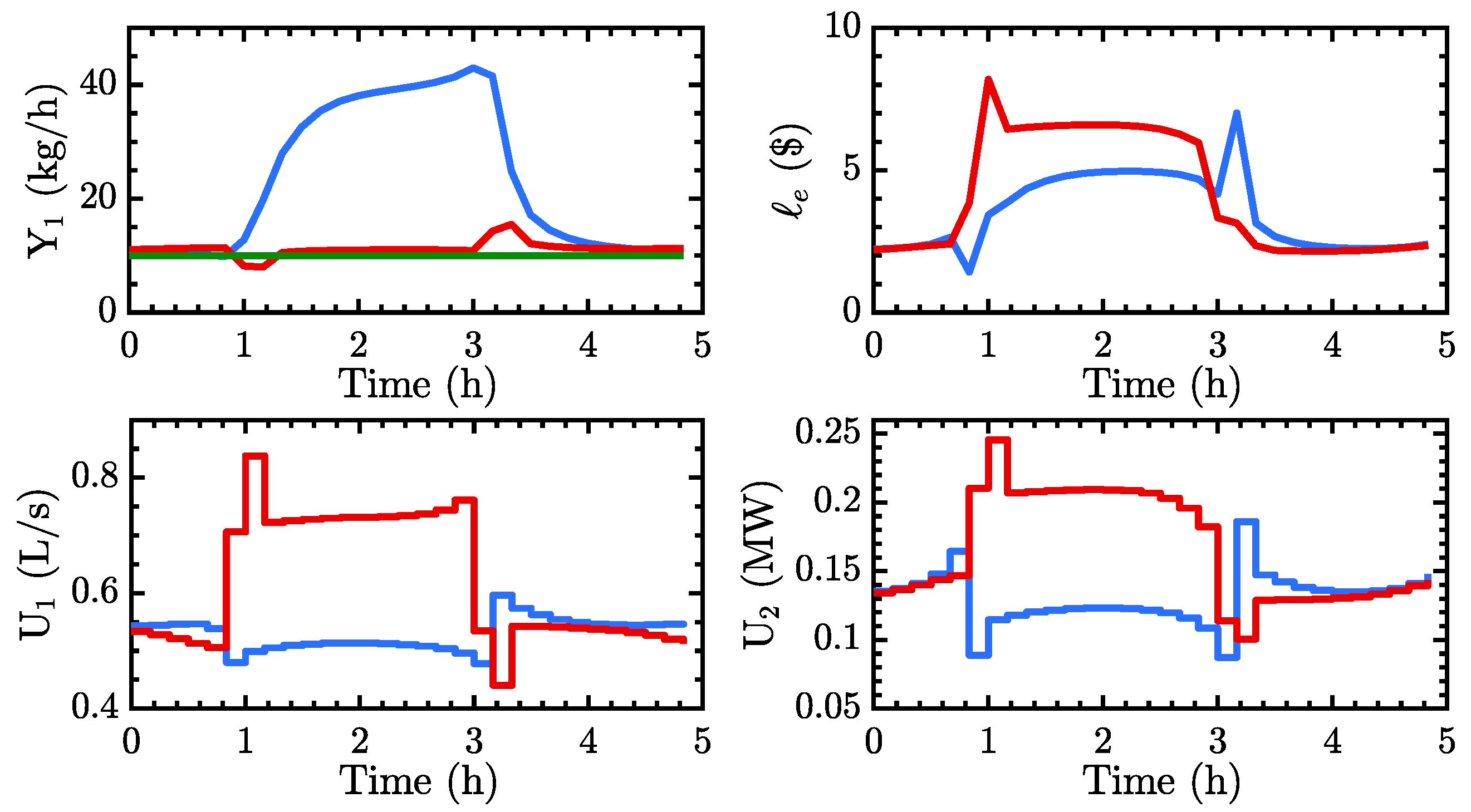

**Figure 6.**CO${}_{2}$ emission, input and economic cost trajectories of the PCC plant with carbon tax set at $50.00 per tonne CO${}_{2}$. The set-point of MPC is not updated. EMPC (blue), MPC (red), Emission limit (green); (

**top-left**) mass flow rate of CO${}_{2}$ in the treated flue gas; (

**top-right**) economic performance of controller; (

**bottom-left**) volumetric flow rate of solvent; (

**bottom-right**) heat input to reboiler. PCC: Post-combustion CO${}_{2}$ Capture.

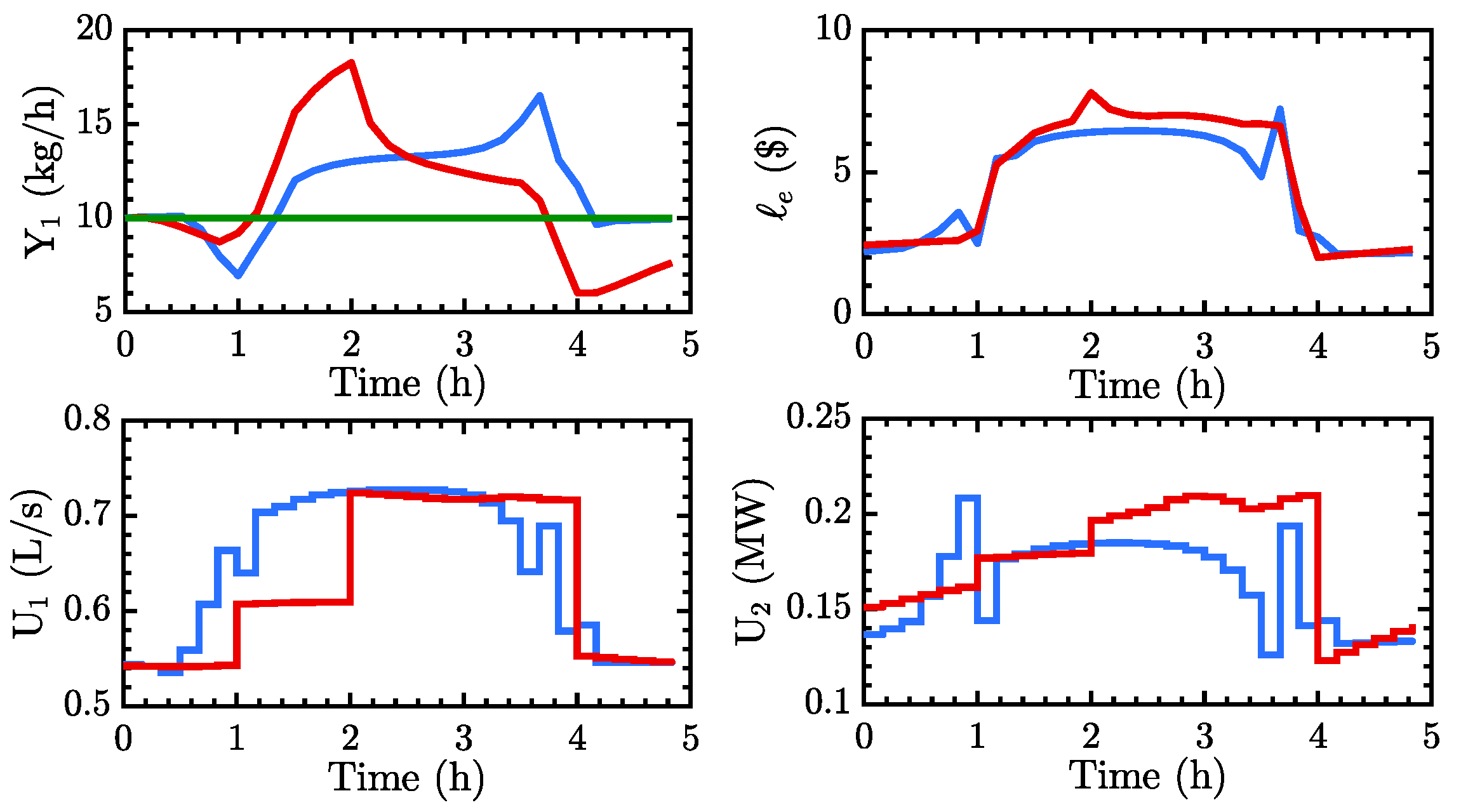

**Figure 7.**CO${}_{2}$ emission, input and economic cost trajectories of the PCC plant for scenario 1 with carbon tax set at $50.00 per tonne CO${}_{2}$. EMPC (blue), MPC (red), Emission limit (green); (

**top-left**) mass flow rate of CO${}_{2}$ in the treated flue gas; (

**top-right**) economic performance of controller; (

**bottom-left**) volumetric flow rate of solvent; (

**bottom-right**) heat input to reboiler.

**Figure 8.**CO${}_{2}$ emission, input and economic cost trajectories of the PCC plant for scenario 1 with carbon tax set at $200.00 per tonne CO${}_{2}$. EMPC (blue), MPC (red), Emission limit (green); (

**top-left**) mass flow rate of CO${}_{2}$ in the treated flue gas; (

**top-right**) economic performance of controller; (

**bottom-left**) volumetric flow rate of solvent; (

**bottom-right**) heat input to reboiler.

**Figure 9.**Average economic performance of the controllers under scenario 1 at different CO${}_{2}$ prices. EMPC (blue), MPC (red).

**Figure 10.**Average heat duty of the controllers under scenario 1 at different CO${}_{2}$ prices. EMPC (blue), MPC (red).

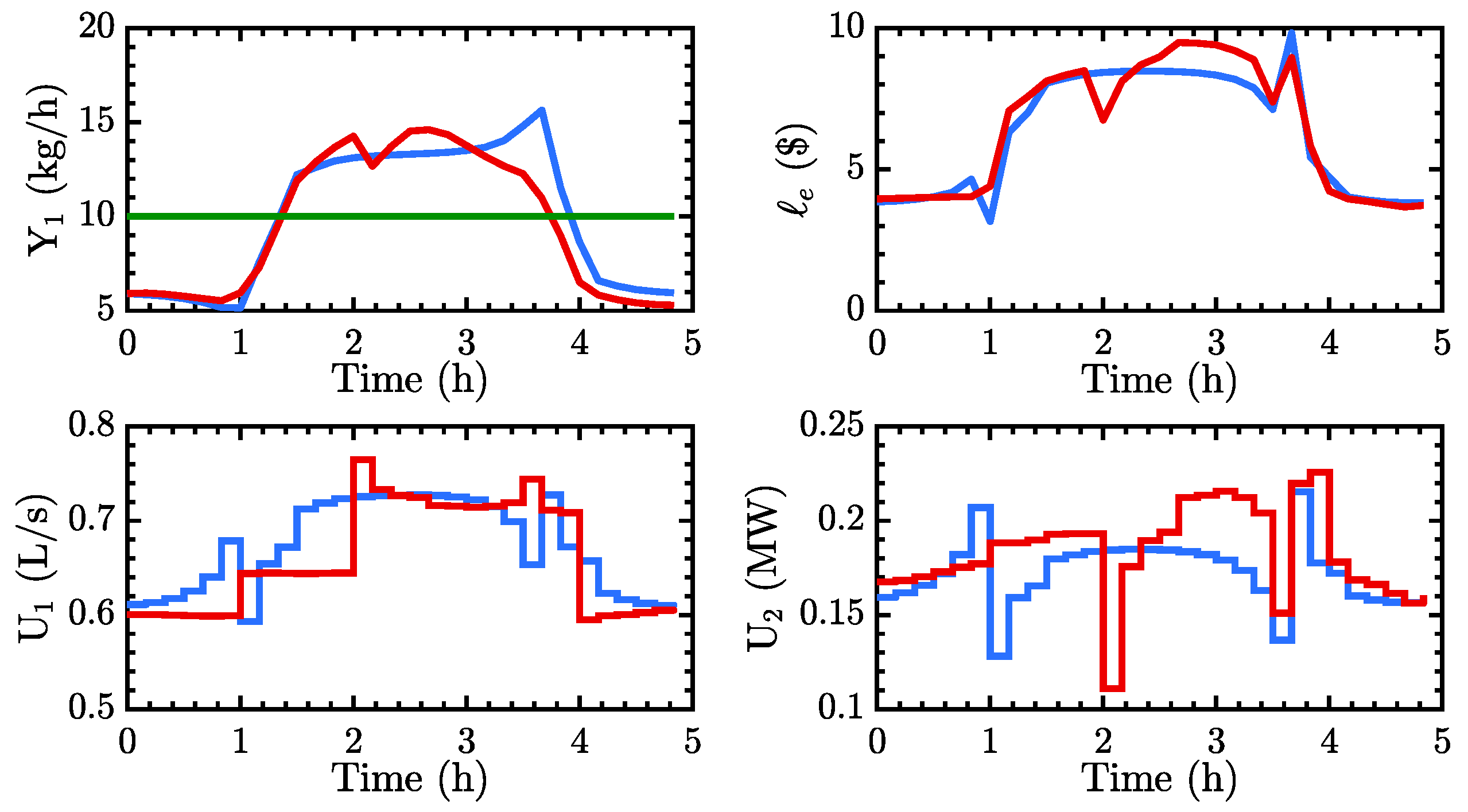

**Figure 11.**CO${}_{2}$ emission, input and economic cost trajectories of the PCC plant for scenario 2 with carbon tax set at $50.00 per tonne CO${}_{2}$. EMPC (blue), MPC (red), Emission limit (green); (

**top-left**) mass flow rate of CO${}_{2}$ in the treated flue gas; (

**top-right**) economic performance of controller; (

**bottom-left**) volumetric flow rate of solvent; (

**bottom-right**) heat input to reboiler.

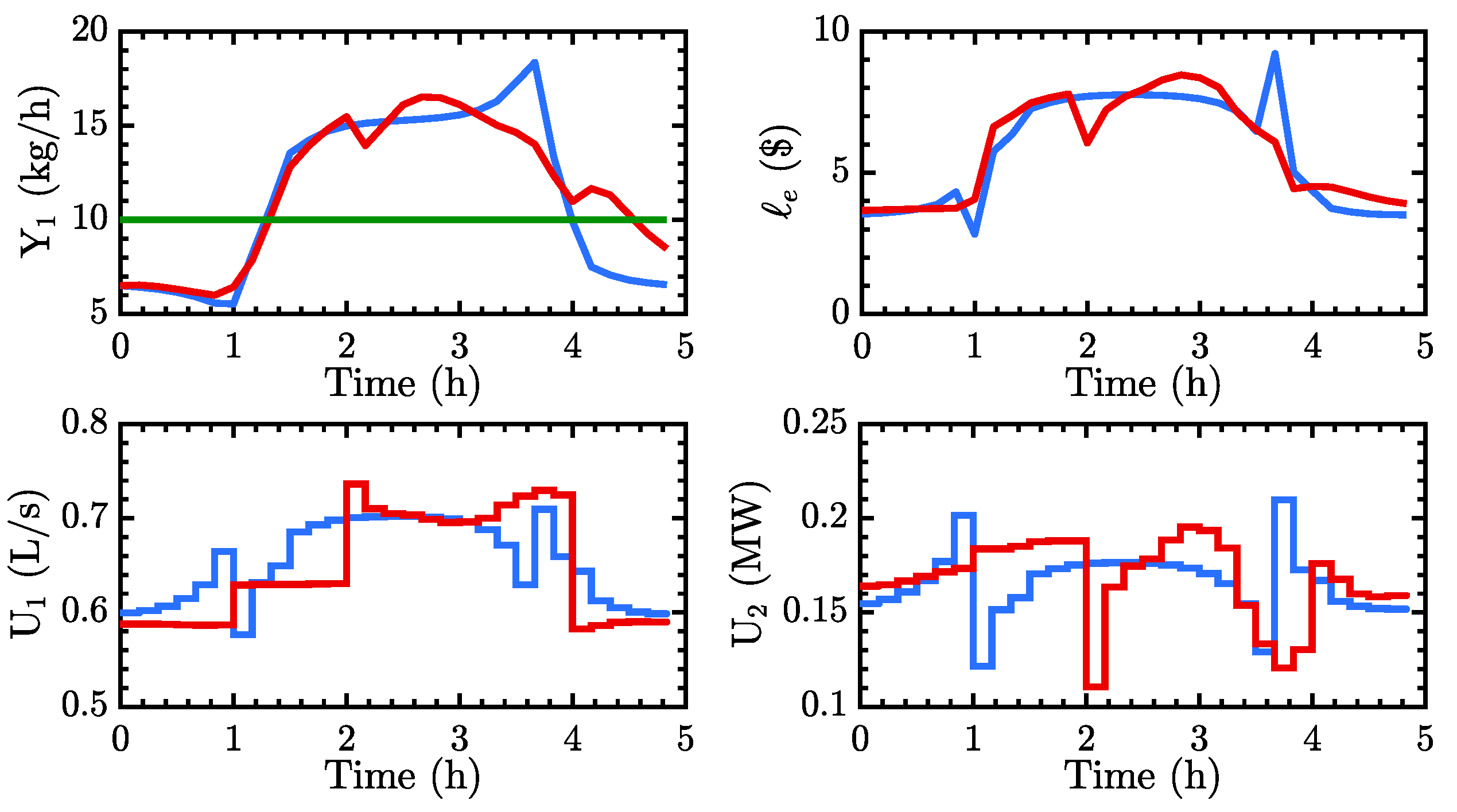

**Figure 12.**CO${}_{2}$ emission, input and economic cost trajectories of the PCC plant for scenario 2 with carbon tax set at $200.00 per tonne CO${}_{2}$. EMPC (blue), MPC (red), Emission limit (green); (

**top-left**) mass flow rate of CO${}_{2}$ in the treated flue gas; (

**top-right**) economic performance of controller; (

**bottom-left**) volumetric flow rate of solvent; (

**bottom-right**) heat input to reboiler.

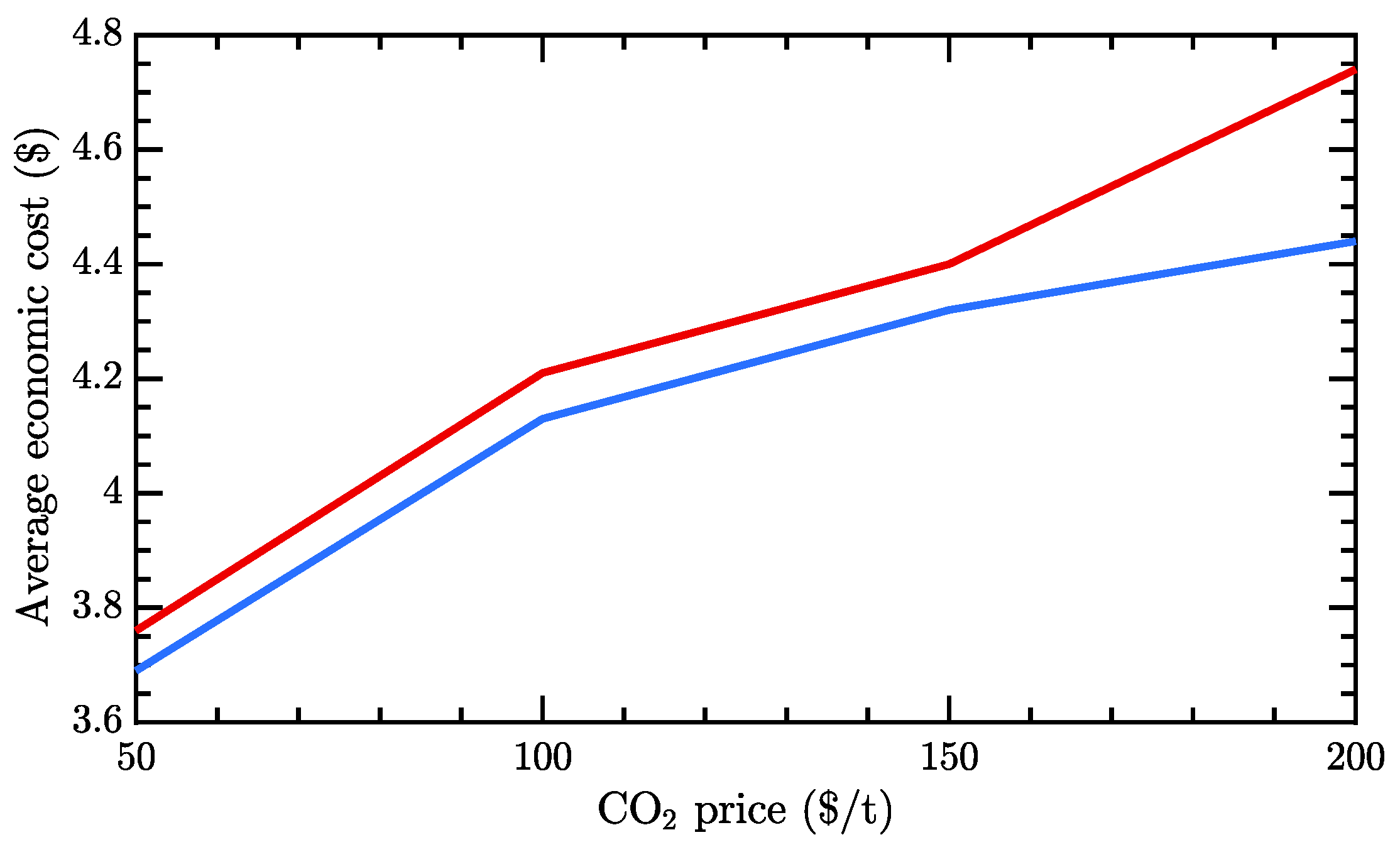

**Figure 13.**Average economic performance of the controllers under scenario 2 at different CO${}_{2}$ prices. EMPC (blue), MPC (red).

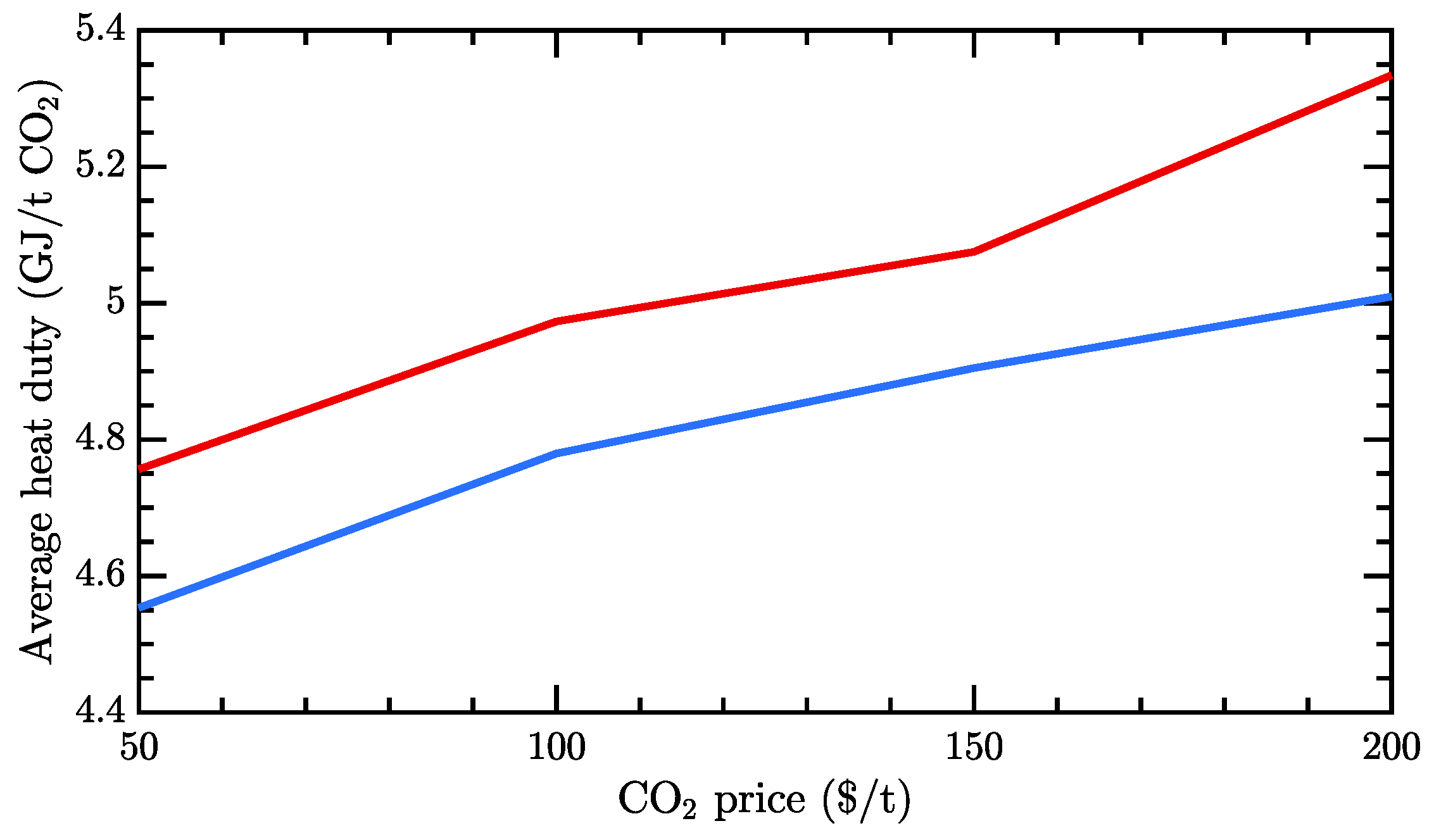

**Figure 14.**Average heat duty of the controllers under scenario 2 at different CO${}_{2}$ prices. EMPC (blue), MPC (red).

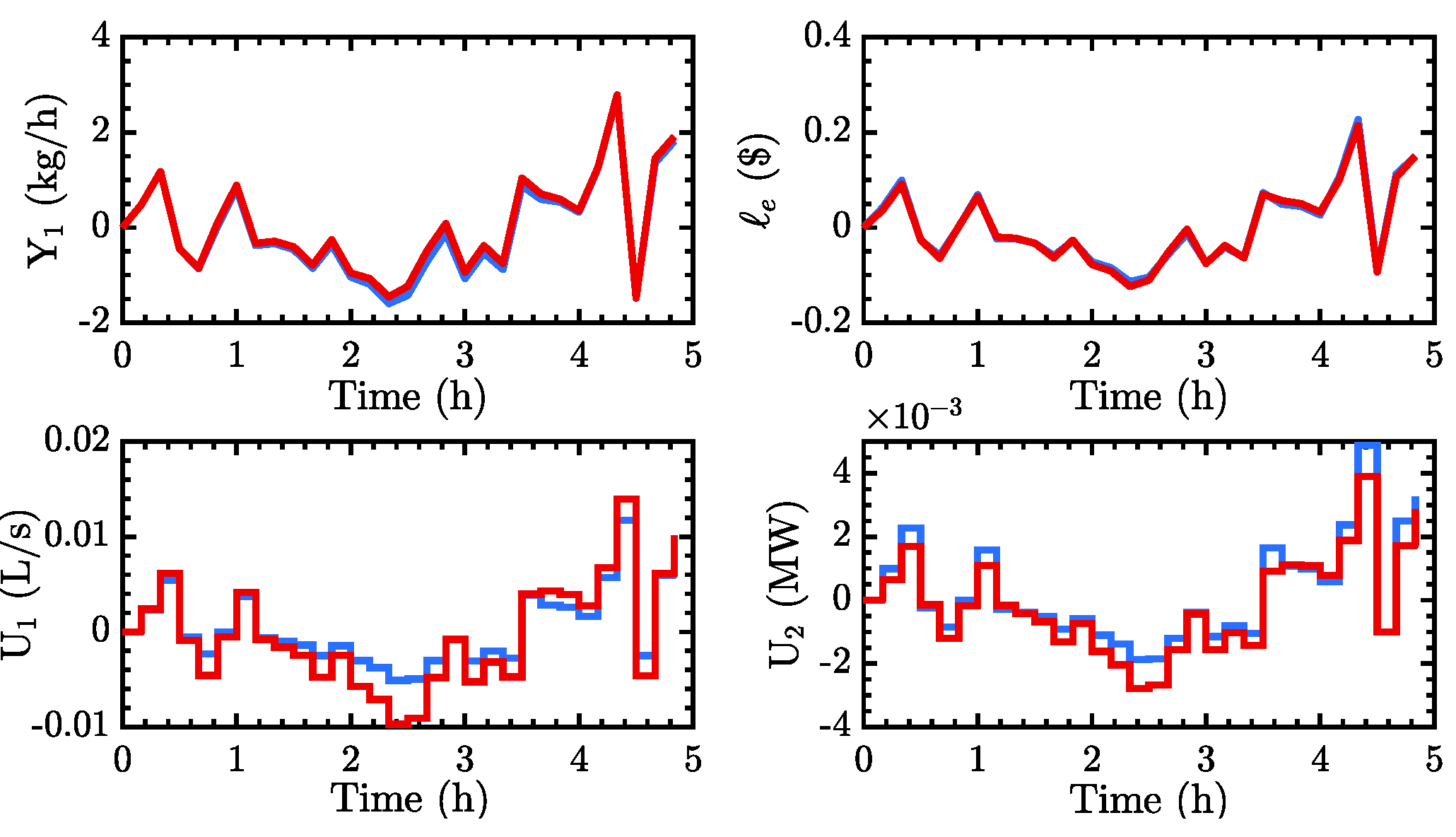

**Figure 15.**CO${}_{2}$ emission, inputs and economic cost trajectories of the PCC plant under uncertainty in flue gas flow rate. Nominal value =1.0. Uncertainty generated by adding Gaussian white noise with zero mean and standard deviation $\sigma $ = 0.1, to the flue gas flow rate. EMPC (blue), MPC (red); (

**top-left**) mass flow rate of CO${}_{2}$ in the treated flue gas; (

**top-right**) economic performance of controller; (

**bottom-left**) volumetric flow rate of solvent; (

**bottom-right**) heat input to reboiler.

**Figure 16.**CO${}_{2}$ emission, inputs and economic cost trajectories of the PCC plant under uncertainty in flue gas CO${}_{2}$ concentration. Uncertainty generated by adding Gaussian white noise with zero mean and standard deviation $\sigma $ = 0.06, to the flue gas CO${}_{2}$ concentration. EMPC (blue), MPC (red); (

**top-left**) mass flow rate of CO${}_{2}$ in the treated flue gas; (

**top-right**) economic performance of controller; (

**bottom-left**) volumetric flow rate of solvent; (

**bottom-right**) heat input to reboiler.

**Table 1.**PCC plant configuration and flue gas condition. Adapted from [20]. PCC: Post-combustion CO${}_{2}$ Capture.

Property | Value |
---|---|

Packing properties (Absorber and desorber) | |

Column internal diameter $\mathrm{m}$), ${D}_{c}$ | 0.43 |

Packing height ($\mathrm{m}$) | 6.1 |

Packing type | IMTP #40 |

Nominal packing size ($\mathrm{m}$) | 0.038 |

Specific packing area (${\mathrm{m}}^{2}/{\mathrm{m}}^{3}$) | 143.9 |

Flue gas condition | |

Temperature ($\mathrm{K}$) | 319.7 |

Volumetric flow rate (${\mathrm{m}}^{3}/\mathrm{s}$) | 0.0832 |

CO${}_{2}$ mole fraction | 0.15 |

N${}_{2}$ mole fraction | 0.80 |

MEA mole fraction | 0.00 |

H${}_{2}$O mole fraction | 0.05 |

Lean-rich heat exchanger | |

Volume of tube side (${\mathrm{m}}^{3}$), ${V}_{tube}$ | 0.016 |

Volume of shell side (${\mathrm{m}}^{3}$), ${V}_{shell}$ | 0.205 |

Overall heat transfer coefficient ($\mathrm{J}/\mathrm{Ks}$), $UA$ | 1899.949 |

MPC | a | b | c | d |
---|---|---|---|---|

I | 0.0001 | 0.01 | 0 | 0 |

II | 0.0001 | 0.01 | 0.05 | 0.05 |

III | 1.0 | 0.01 | 0.05 | 0.05 |

**Table 3.**Different MPC set-point update strategies and percent decrease in economics and heat duty. Heat duty is defined as the ratio of the amount of reboiler heat input to the mass of CO${}_{2}$ absorbed.

Strategy | Description | Avg. Cost (%) | Avg. Heat Duty (%) |
---|---|---|---|

1 | No update/Fixed operating point | 5.83 | 6.52 |

2 | Update every hour | 2.02 | 4.27 |

3 | Update every 30 min | 0.79 | 2.99 |

4 | Update every 10 min (sampling time) | 0.03 | 2.32 |
