Conceptual Design of an Operator Training Simulator for a Bio-Ethanol Plant

by
Inga Gerlach
1,
Volker C. Hass
2 and
Carl-Fredrik Mandenius
1,*
1
Biotechnology/IFM, Linköping University, Linköping SE-58183, Sweden
2
Hochschule Furtwangen, University of Applied Sciences Furtwangen, Villingen-Schwenningen D-78054, Germany
*
Author to whom correspondence should be addressed.
Processes 2015, 3(3), 664-683; https://doi.org/10.3390/pr3030664
Submission received: 3 July 2015 / Accepted: 31 August 2015 / Published: 9 September 2015
Browse Figures
Versions Notes

Abstract

:
Conceptual design methodology for the configuration and procedural training with an operating training simulator (OTS) in a large-scale plant for commercial bio-ethanol production is described. The aim of the study is to show how the methodology provides a powerful way for finding the best configuration and training structure of the OTS before constructing and implementing the software of the OTS. The OTS principle, i.e., to use a computer-based virtual representation of the real process plant intended for efficient training of process operators, has long since been applied in aviation and process industries for more efficient and flawless operations. By using the conceptual design methodology (sometimes referred to as bio-mechatronics) a variety of OTS configurations with this capacity was generated. The systematic approach of for targeting the users’ (i.e., the plant management and process operators) needs resulted in better understanding and efficiency in training of hands-on skills in operating the plant. The training included general standard operating procedures for running the plant under normal operation conditions with different starch materials, handling of typical frequent disturbances as well as acting in situations not described in the standard operation procedures and applying trouble-shooting.

1. Introduction

Operating training simulators (OTSs) are computer-based tools for training of operators in process industries or other human activities [1,2,3]. Well-known examples are OTSs for monitoring and control in the process industry [4,5,6], navigation of airplanes and ships [7,8,9], performing medical surgery [10,11,12] and military training [13,14,15,16]. The OTSs simulate the performance of the applied system based on established mathematical models and procedures. The typical OTS has one or more graphical user interfaces that visualize the system allowing the trainee to interact with the simulator through emulated tools and gears such as pumps, valves and controllers. By that, the OTS provides a number of opportunities for training operators by virtually visualizing different process situations, trying alternative operator actions, solving technical problems, changing controller settings and following prescribed standard procedures for a plant.
Previous studies by us have demonstrated the potential of using OTSs for operator training in the bioprocess industry. For example, we have shown the applicability of OTSs for operating biogas digestion [17], small-scale bioreactor fermentation [18], recombinant protein production [19] and downstream bioprocessing [20]. These studies were all performed at laboratory-scale; experience of using OTSs at large-scale industrial bioprocess plants are so far lacking, either by us or by others. However, a number of benefits from applying OTSs at large-scale can be expected:
  • OTSs have the potential to significantly enhance the operators’ understanding and skills of the complexity of a bio-plant
  • Training of new operators can by that be shortened and good operator performance can be reached faster with potentially favorable effects on production costs
  • The access to OTS tools in the plant environment allows repetitive and accelerated training leading to refinement of operator skills
  • The OTS training can be an important integral part of the quality system of the bio-plant as required by several regulatory authorities [21].
Conceptual design methodology was recently developed for application to biotechnological products and systems by Mandenius and colleagues [22,23]. In a number of concrete examples, it has been shown how the methodology can structure and improve the design work at the same time as the work is facilitated and speeded up. Examples where the methodology have been applied are the design of upstream and downstream equipment, biosensors, biochips, diagnostic devices and whole bioprocess systems [22,23,24]. So far, however, the methodology has not been applied in the designing of OTSs.
One of the critical aspects in the design of an OTS for a specific process is to identify the actual training needs in that process from the industrial user perspective. Based on these needs the best OTS configuration should be selected for subsequent prototyping.
The study shows how the conceptual design approach leads to such successful OTS designs by showing how conceptualization and systematic assessment of various configurations towards identified training needs at a large-scale plant for bio-ethanol production. The bio-ethanol plant that is used as object of study in this article may serve as a model frame for other OTS applications with similar types of bioprocesses.

2. Method, Object and Software

2.1. Conceptual Design Methodology

The fundamentals and methodological principles of conceptual design are comprehensively described elsewhere [25,26,27]. Figure 1 illuminates the cornerstones of the methodology as applied to biotechnology products and systems [22]:
  • to precisely define and specify the needs and target metrics of the user or customer
  • to clearly define the expected transformation process of the product or process and those systems that must interact with that process to carry it out efficiently
  • to consider all functional elements that must be present for this
  • to configure (or permute) these in a variety of more or less appealing alternatives
  • to compare and assess these alternatives in order to screening for the ones that best cope with the original user targets
Processes 03 00664 g001 1024
Figure 1. The generalized steps in the conceptual design methodology as applied to biotechnology products and systems (adapted from [22]). It should be underscored that the sequence of steps is iterative over extensive period of design work.
Figure 1. The generalized steps in the conceptual design methodology as applied to biotechnology products and systems (adapted from [22]). It should be underscored that the sequence of steps is iterative over extensive period of design work.
Processes 03 00664 g001

2.2. The Object of Study—The Bio-Ethanol Plant

The object of study in this work was a large-scale commercial bio-ethanol plant (Lantmännen Reppe AB, Lidköping, Sweden). The plant is constructed and operated based on the Biostil ethanol process (Chematur Engineering AB, Karlskoga, Sweden) [28]. A team of five to ten process operators is responsible for control and operation. Each operator acts both as control-room operator, i.e., controlling the plant from the control-room software, and as field operator, i.e., carrying out action directly in the plant such as adjusting valves and collecting samples. Raw materials, yeast strains and enzymes used in the plant are from internal and commercial suppliers. Detailed information on brands and suppliers has no implications on the result of this study and are therefore not accounted for here. An overview of the continuously operated plant is shown in Figure 2, depicting the pre-treatment, liquefaction, saccharification, fermentation, separation and distillation sections. The volumes of bioreactor units are each in the range of 30 to 280 m3.
Processes 03 00664 g002 1024
Figure 2. The process flow diagram of the plant showing the enzymatic conversion of starch and flour by liquefaction and saccharification, followed by fermentation, filtration, centrifugation and two-stage distillation. The effluents from the centrifuges and mash column are recycled to the fermentation stage, thereby enhancing high yield of ethanol from the raw materials stream (*: storage tanks).
Figure 2. The process flow diagram of the plant showing the enzymatic conversion of starch and flour by liquefaction and saccharification, followed by fermentation, filtration, centrifugation and two-stage distillation. The effluents from the centrifuges and mash column are recycled to the fermentation stage, thereby enhancing high yield of ethanol from the raw materials stream (*: storage tanks).
Processes 03 00664 g002

2.3. Software Platform

Prototyping design work for the OTS was carried out using the commercial process control and automation system WinErs (version 6.3.A, Ingenieurbüro Schoop GmbH, Hamburg, Germany) [29]. WinErs is a software for development of process control and automation and includes features for visualization, data monitoring, control and simulation of industrial processes. WinErs was used here for designing the graphical user interfaces (GUIs), control schemes and functions of the OTS, thereby providing the runtime environment for the simulator. A PC with 4 GB RAM and a dual- or quad-core CPU is required for running the applications in WinErs. Mathematical models describing the process sections were programmed in C++ and implemented as dynamic-link libraries (DLL) into the simulator. The in- and outputs of the models were connected to the GUIs to visualize the actual state variables in data tables and history diagrams. By that, the OTS mimics the real plant with models that simulate cause-and-effect relationships in the virtual environment of the OTS. WinErs allows simulations in the OTS in real-time as well as in accelerated time (up to 20-fold).

3. Results and Discussion

3.1. Objectives and General Needs of an OTS for the Bio-Ethanol Plant

The objectives of the OTS were worked out cooperatively with the plant management (Lantmännen Reppe AB). It was agreed that training of plant operators would benefit from a state-of-the-art IT-based solution where a training simulator should be used to make training and education of plant personnel time- and cost-efficient. The means for achieving this should be through the use of a virtual simulation tool, representing the plant and that could allow interaction in real or accelerated time under realistic conditions. It was unanimously agreed that the OTS should be designed using conceptual design principles and that these should render a design solution adaptable to changes in the plant such as other process equipment units or other brands of yeast or enzymes and allow easy adjustment of process model parameters. In addition, the OTS design may possibly serve as a frame for other similar bio-plants.
In particular the OTS shall allow training of
  • Continuous operation
  • Shut-down operation procedures
  • Start-up operation procedures
In the conceptual design methodology (Figure 1) a so-called Hubka-Eder representation [26] is used for analyzing and mapping the interdependencies of the intrinsic functions of the process. Figure 3 depicts such a map of the virtual OTS training in the plant.
The main feature of the OTS in the Hubka-Eder map is the transformation process (TrP). The TrP shows the training process and not the real bioprocess. Thus, the in- and outputs of the TrP of the OTS are distinctively different from the plant process.
In the transformation process, untrained operators become trained and more experienced. The training procedure includes specific training scenarios, such as start-up and shut-down of process units, adjusting conditions and performing diverse incidental actions. The training procedure can be divided into (1) preparation for training, mainly to get acquainted with the virtual environment of the training simulator, (2) performing procedural actions, and (3) finishing the training, e.g. by providing a report for evaluation by the trainer/tutor. Transfer-of-training [30], i.e., the acquired capability of the operator due to the simulation training, is the critical metrics of a successfully applied TrP.
In the transformative training process, a set of functional systems are involved that are necessary for carrying out the TrP [31,32]. These systems should encompass all kinds of functionalities that must interact with the TrP or with each other for a successful performance of the process. The functions of the biological systems (ΣBioS) cover the enzymatic conversion of the starch raw materials to fermentable saccharides and the subsequent fermentation of these by yeast to ethanol. In addition, the raw materials are included in the ΣBioS due to their biological origin as biopolymers in flour and starch. Thus, these functions are pivotal in the OTS representation of the process and key objects for the training.
Processes 03 00664 g003 1024
Figure 3. Hubka-Eder map representing the operator training of the bio-ethanol plant. The map shows both the systems involved in the plant as well as the systems for the OTS.
Figure 3. Hubka-Eder map representing the operator training of the bio-ethanol plant. The map shows both the systems involved in the plant as well as the systems for the OTS.
Processes 03 00664 g003
The technical systems (ΣTS) include both the real bioprocess and the virtual representation in the OTS. They provide the spatial and temporal functions for the conversion by the biological systems of the raw material streams under defined physical and chemical conditions. Here, the components of the biological conversion are separated and concentrated by grinding, gravity, transport, vaporization and partitioning [32,33]. The ΣTS also include the software functions that allow mathematical models to be computed in real time in the OTS as well as a function for accelerating the simulation. Typically, the functions of the technical systems can be realized with well-known technical equipment units such as bioreactors, continuous centrifuges, filters, heat exchangers and distillation columns as well as with computers and software of adequate capacity. Notably, the Hubka-Eder map is a functional diagram that has the purpose of identifying the functions needed for the transformation process, before making any decision on what particular technical solutions that should be chosen for realizing the functions.
The functions of the information systems (ΣIS) transform data from the technical and biological systems in formats useful for further interpretation and process control [34]. The management and goal systems (ΣM&GS) provide instructions for the OTS training, e.g. standard operation procedures (SOPs) and incident operation procedures (IOPs), control setpoint values and other goals related to production. The human systems (ΣHS) represent all those individuals that are involved in the training and the production process, i.e. the untrained operators, the trainer, experienced operators or plant engineers, the plant manager, the service teams of the OTS and of the plant itself—all providers of critical functions in the OTS training process.
In the Hubka-Eder map, an additional symbol, referred to as the active environment, has the function of introducing into the map those events that inevitably happen but to large extent are unpredictable [25]. This could be variation of the biological systems due to unknown oscillations of bioactivity, unwanted infections that have penetrated the sterile barriers of the equipment, variation of the raw materials and chemicals added to the process due to diverse suppliers, or power breakdowns in the plant.
The interactions of the systems and functions and how we understand the relationship between them are key design considerations [26]. For example, how do the characters of the hydrolytic enzymes influence the design of the unit operations of the technical systems in terms of allowed physical ranges of states and parameters? How do the operating conditions of the units affect the choices of the information systems devices?
Special attention should be paid to the interaction between the systems and the active environment. What can happen due to the environment and how are the systems able to cope with that? And in particular, how do these activities set new objectives for the training?
Therefore, we emphasize the importance of distinguishing between functional representations, such as containment and cellular conversion, and physical or biological objects, such as reactors and cells. This is evident in the more detailed “zoom-in” maps of the functional systems (see Figures S1–S3 in the Supplementary File). Figure S1 details the ΣTS of the OTS. These include the virtual representations of the plant units, the connections between units, meters and display functions, actuators, control loops, model functions of the process implemented in the software and the accelerator function for time. The subsystems shown interact with each other and provide information of the process and its response to operator actions as the ΣIS notify the operator about. Figure S2 shows a zoom-in of the ΣBioS and indicates how functions and subsystems interact within and across systems. Figure S3 does the same for the ΣM&GS.

3.2. Specific Needs of Training of Plant Personnel

The general aims of the operator training were defined and constrained above. Based on these premises plant engineers and other responsible personnel were interrogated and encouraged to express needs, requirements and targets for training. Table 1 compiles a first tier of needs as collected from the interrogations with the experienced plant expertise.
All needs were categorized into (1) training of the standard procedures, (2) incident training, (3) limited training of parts, (4) how to act to quality control (QC) data, (5) plant start-up and shut-down, (6) continuous mode of operation, (7) maintenance work, (8) interpreting control display data in relation to malfunctions, (9) training newly employed operator and continuing training. The objective of each need was converted to a target quantity in order to concretely specify the need.
However, in order to reach a precise fit of the conceptual design to the user’s demands and expectations on the OTS, more detailed descriptions and definitions of the needs are necessary as well as tighter specifications of the targets [27]. This is provided in Table S1, where complementary needs with target metrics are added in a second tier. These included the additional performance qualities of the training (reducing learning time of newly employed operators to 50%, decreasing mistakes after training, reducing requirement of using parallel operators), cost of training (investment, run time), needs of incidental training (start/stop plant due to maintenance, adjusting pH, dosage enzymes, power breakdown, change in feeding raw materials), trainer adaption (selection of incidences), continuing training, fidelity of real plant, and integrating manual actions in plant. The target metrics were expressed in terms of time, quality of training, degree of correct actions, time to working alone, amount of costs and level of detailed process description.
Table
Table 1. First tier of training needs of plant operators 1.
Table 1. First tier of training needs of plant operators 1.
Need category/needTarget
Training objectives-
Shorter training period of new-employed operatorsTraining period is reduced by half
Reduced number of faulty actionsFaults are reduced by half
Shorter time to independenceNew operator can work alone after 4 months
Advanced training for more experienced operatorsThe experienced operators shall meet increasing challenges that further improve operator skill
Improved understanding of the plant A good understanding of the interdependences of flow and transformations
Training manual interaction with plant hardwareThe direct interaction with valves out in the plant shall be trained virtually
Training sampling and actions from theseThe operator shall become fully aware of when manual sampling/analysis is required
Technical features of OTS-
OTS interfaces shall be very similar to real control system interfaces80% of the process flow charts on the plant’s own control shall be included
OTS shall deliver messages to the traineeAlarm messages of events or change of values on OTS interface shall alert trainee realistically
Allowing training of standard proceduresThe standard procedures for regular operation of the plant shall be included in the OTS
Allowing training of incidencesUp to ten common deviations and corrective actions shall be included in the OTS
Repetitive training possibleThe acquired training shall be repeated at any time when it is desired
OTS shall be available for own use by operatorThe operator shall be able to access and start up the OTS independently
OTS shall be possible to run in accelerated modeThe run time of the OTS shall be possible to accelerate up to 20-fold faster than real-time
Management of OTS-
Plant manager/chief operator shall be able to handle and supervise the OTS trainingThe plant manager shall be able to monitor the trainees actions and adjust level of training
OTS software shall be adaptable and easy to updateThe OTS shall be provided with update procedures that the plant engineers can maintain
Cost for OTS shall be modestInvestment shall not exceed other similar software
Standard PC shall be able to run the softwareThe computer hardware needed for the OTS shall require additional/items/communication cards
1 A detailed specification is provided in Table S1 (Supplementary File)
Importantly, the need and target tables should be considered as “active” documents and may be expanded and modified based on growing knowledge and experiences of training. For example, emerging incidents can be added once such are considered necessary for training.

3.3. Functional Design Elements and Permutations

Required functional design elements for realizing an OTS according to the targets were derived from the systems in the Hubka-Eder map (Figure 4 and Figure S4).
Processes 03 00664 g004 1024

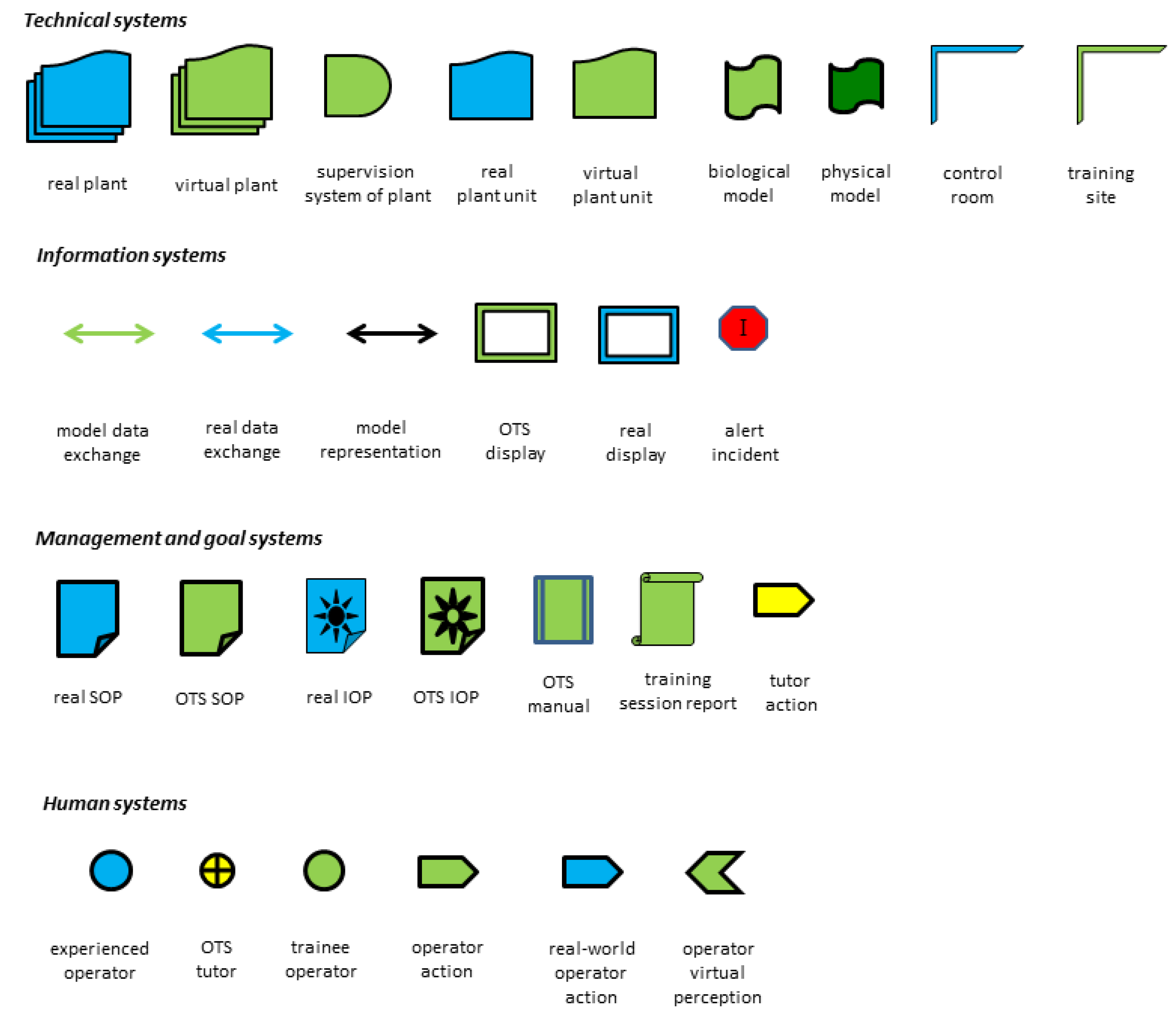

Figure 4. Functional elements of the training using the OTS of the bio-ethanol plant. These elements are to be used for considering diverse alternative configurations by permuting the elements. The elements are grouped according to the system they belong to in the Hubka-Eder representation.
Figure 4. Functional elements of the training using the OTS of the bio-ethanol plant. These elements are to be used for considering diverse alternative configurations by permuting the elements. The elements are grouped according to the system they belong to in the Hubka-Eder representation.
Processes 03 00664 g004
Obviously, the ΣTS will generate the majority of the elements. These included the real bio-ethanol plant itself with its units, the real operator control system, the containments of the plant, the control room and its software, laboratories, the QC functions (e.g. laboratory, instruments), the software for the OTS, the training room/facility, the trainer room/facility, and the computer hardware. In addition, the humans involved represent a key category of functions in the Hubka-Eder representation, i.e., the trainees/operators to be trained, experienced operators, the responsible trainer and plant manager. The ΣIS include the information content per se transduced through the OTS to the operators on process events, analytical data from the QC lab, the operator interfaces in the bio-ethanol plant, and the display functions of the OTS (the graphical and data information of the OTS, the presentation of events, the action devices). The ΣM&GS include the SOP of the plant, the IOP, the training manual that instructs the operators how to carry out the training with the OTS, and the tutor’s training manual for running the operator training.
Processes 03 00664 g005 1024
Figure 5. A selection of four configurations using elements from Figure 4 (a complete collection of configurations are found in Figure S5). In Configuration 2 (from Category I) all training takes place in the control room of the plant. An un-supervised set-up where the control room been extended with several screens. OTS model is provided with an accelerator function to reduce training time. In Configuration 10 (from Category II) training takes place partly in the plant hall. Real incident occurs in real process and trainer reproduces this in the OTS interface for the trainee to act upon. In Configuration 13 (from Category III) training is carried out in a room aside the control room and the plant, here with a more advance training with models. In configuration 16 (from Category IV) a distributed simulator setup is configured from existing software programs with extended modeling and simulation capacity for selected parts of the plant. Independent unsupervised training in takes place in the plant hall.
Figure 5. A selection of four configurations using elements from Figure 4 (a complete collection of configurations are found in Figure S5). In Configuration 2 (from Category I) all training takes place in the control room of the plant. An un-supervised set-up where the control room been extended with several screens. OTS model is provided with an accelerator function to reduce training time. In Configuration 10 (from Category II) training takes place partly in the plant hall. Real incident occurs in real process and trainer reproduces this in the OTS interface for the trainee to act upon. In Configuration 13 (from Category III) training is carried out in a room aside the control room and the plant, here with a more advance training with models. In configuration 16 (from Category IV) a distributed simulator setup is configured from existing software programs with extended modeling and simulation capacity for selected parts of the plant. Independent unsupervised training in takes place in the plant hall.
Processes 03 00664 g005
The active environment is a key function for representing unplanned and non-procedural events in the process during the training. As already mentioned, it spans from malfunctions of equipment, unanticipated variation in raw materials and biological activities, power breakdown, computer failures, etc.
Functional elements are either real or virtual—the real elements refer to the units in real large-scale bioprocess such as bioreactors and pumps, and the virtual elements to the OTS representations of these, such as digital objects for these units on the GUIs. Some of the elements may fall into more than one category but are shown here for only one of them. A critical feature of the OTS is its ability of establishing adequate and realistic virtual elements that represent the real functions.
Relationships between the functions and elements and their combinations were investigated in the design team by generating diverse configurations. By permuting the elements, a multitude of configurations are possible to set up. This part of the work depended much on the experience of the team. In addition, it was important to iteratively compare the configuration with the specified needs. Many of the theoretically possible configurations were obviously not matching and could directly be discarded.
Twenty variants of configurations were seemingly realistic to further analyze and compare towards the target needs (Figure S5). These configurations fall into four main categories: configurations (I) where the OTS training takes place in the plant control room adjacent to the plant control system, (II) where the training is extended to also take place inside the real plant facility with additional site screens and controller units, (III) where the training takes place in a separate training room where the OTS and trainee are placed, and (IV) where the training is carried out with an OTS setup based on one or several standard simulation software on stand-alone PCs for each simulator application/plant unit.
Four configurations collected from the twenty configurations in Figure S5 are displayed in Figure 5. Each configuration represents one of the four categories (Configuration No 2 from category I, Configuration No 10 from category II, Configuration No 13 from category III and Configuration No 16 from category IV).

3.4. Evaluation versus Targets

The configurations were compared with the targets specified in user need tables. As recommended in the methodology [22] the configuration alternatives are ranked versus the needs’ target metrics (Table 1). This screening is qualitative, i.e., applies a course grading of how well the configurations meet the ambitions of the target metrics, or, if they even negates the purpose of the targets. It is up to the ingenuity of the design engineers to set up an evaluation team with the necessary experience and knowledge of the actual process. Importantly, the providers of the targeted needs should have a role in this, thereby representing accumulated knowledge of the plant. Table 2 shows the outcome of the screening, here assessed at four levels; from no effect to high effect (-, ●, ●●, ●●●). The assessment depends much on the experiences and expertise involved and is an iterative process in the expert team. This is a crucial part in the design work that may need consultation by additional experts, comparison of various grading and check of robustness and sensitivity assessments. Summing up the marks shows that Configuration 10 best meets the training needs. By scrutinizing the score marks it becomes apparent what are decisive for the outcome of the alternatives.
Table
Table 2. Screening configurations versus training needs
Table 2. Screening configurations versus training needs
Need category/needConfiguration
2101316
Training objectives-
Shorter training period of new-employed operators●●●●●●●●●●●●
Reduced number of faulty actions-●●●●●-
Shorter time to independence●●●●●●●●
Advanced training for more experienced operators●●●●●●●●●
Improved understanding of the plant ●●●●●●●●●●●●
Training manual interaction with plant hardware-●●●--
Training sampling and actions from these----
Technical features of OTS-
OTS interfaces shall be very similar to control interfaces●●●●
OTS shall deliver messages to the trainee-●●●--
Allow training of standard procedures●●●●●●●●●●●●
Allow training of incidences-●●●--
Repetitive training possible●●●-●●●-
Adjustment of plant floor valves and meters-●●●--
OTS shall be available for own use by operator●●●●●●●●●-
OTS shall be possible to run in accelerated mode-●●●●●●●
Management of OTS-
Plant manager shall handle and supervise OTS training----
OTS software shall be adaptable and easy to update●●●●●●●●●●
Cost for OTS shall be modest●●●●●●●●●●
Standard PCs shall be able to run the software●●●●●●●●●●●
Total score29443519
For example, Configurations 10 and 13 are assumed to be more successful in reducing inadequate operator actions than Configurations 2 and 16. This assessment is based on the use of SOPs and IOPs in the training with defined description for incident actions. The trainee shall follow the written as well as oral instructions from an experienced operator that improves the quality of a training. Moreover, incident alerts expand the training complexity and prepare the trainee more efficiently to react to common and uncommon incidents correctly. In addition, the integration of the OTS system within the real control room allows better communication between the experienced operator and trainee. Shorter time to independence might be achieved with high effect applying Configuration 13 when the trainee is supposed to use the OTS and subsequently transfer learned skills to the real operational training under supervision. Configuration 10 also shows higher effects for technical features of the OTS where alarm messages, incident training and the integration of virtual and plant floor training are provided. In the shown configurations, there is no interaction with the plant manager, thus, the training is handled and supervised mainly by a senior operator. Configuration 16 represents a training set-up where plant data are directly transferred to the models of the OTS system and computed in a training session. Each plant unit is linked to an OTS where experienced operators are able to analyze and train process interactions that might be useful for process optimization. However, this configuration may require extensive, which might exceed the budget available for the OTS.
A more thorough scoring may be justified and could be done by involving additional target needs. By including the second tiers of needs and weighing the importance of these needs the outcome of the assessment was refined. Here, the scoring was set from 0 to 3 (-, ●, ●●, ●●●) and the weight-factor was either 1 or 2 or 3. All the twenty configuration alternatives, as shown in Figure S5, were included in the scoring. The outcome of different scorings is shown in Tables S2-S4. Obviously, the criteria for scoring are decisive. If certain needs are weighed differently, the score of a configuration may change its priority.
In Tables S2–S4, three examples of weight-factor sets are shown: one where all needs are weighed equal, one where cost of training is more essential, and one where process understanding is more essential. In these cases, the scoring outcome is not changed and the assessment appears robust. Clearly, the developers have this choice in their hands and can decide according to their priorities. Therefore, it is advisable at this stage to consult the customers’ views again. What are their preferences? Priorities in the starting phase with general specifications may in the more concrete final phase have changed.
In addition, other preferences were noted. The preferred OTS design should have a high degree of self-management by the trainee, can be switched on for shorter training, is placed close to but not in the control room, and can be adapted by a local tutor password protecting the list of incidents.
Table
Table 3. Operational procedures as part of an OTS training manual.
Table 3. Operational procedures as part of an OTS training manual.
NumberProcedural stepPurpose/Details
1Define training aimTraining procedures clearly defined and adapted to the trainee’s knowledge (apprentice, experienced)
2Starting the OTSSetting configurations of the OTS including training starting point (starting a new batch, continuous processing, incident training), incident definition and the time when a certain incident should occur
3Setting acceleration of simulation speedDegree of acceleration mode is set based on trainee’s capability to control the process
4Sequential steps in running a production process unitThe sequence of operational steps for each process unit are described and instructions for what actions should be taken are given
5Sporadic acceleration An acceleration feature allows sporadic acceleration of an already defined acceleration mode in order to allow e.g. a faster filling and heating of a tank during a start-up procedure
6Performance reportsProcedures for displaying and compiling reports
7Tutor settingsTutor can evaluate the trainee’s performance
8Transfer-of-trainingLearned experiences are transferred to the real system and the training progress is assessed
9Repetitive trainingTraining procedures can be repeated when it is required
Importantly, the training should be performed by using a training manual where the trainee is taken through the sequence of actions stepwise through written instructions, e.g. with procedures for start-up, shut-down and continuous operation of the plant (Table 3). The GUI of the OTS should present messages to the trainee that inform about process events, incidents and other required actions. Sometimes the events should be inferred by the trainee without specific commands, sometimes they are inevitably imperative such as a defect pump. All these training procedures are documented in the training manual for repeated use. The trainee can use these instructions independently or as advised by an experienced operator or plant training manager.
The actions and performance of the trainee should be recorded by the OTS in a report to the tutor. The software allows a variety of technical solutions to be implemented for this purpose. From that report the tutor can continuously adapt the training based on learning progress. Reports might be the process history diagrams in combination with an action-log, showing e.g. manual adjustments of pump rates that are available after a training.
Based on the preferred OTS configuration the actual physical structural form, of it is constructed and implemented. The particular software used has here not been included as a critical design criteria as the programming modules are alike in most commercial software.

3.5. Remarks on the Subsequent Implementation for Realizing the Conceptual Design of the OTS

The main tool for realizing the conceptual design is the software platform. Examples of such platform alternatives are the ASPEN software (Aspen Technology, Inc., Bedford, MA, USA), Wonderware (Schneider Electric Software, Lake Forest, CA, USA), G2 (Gensym, Burlington, MA, USA), SIMATIC PCS 7 (Siemens AG, Munich, Germany), LabVIEW [35,36,37,38] and WinErs (Schoop GmbH, Hamburg, Germany). Applications with bio-ethanol production plants have previously been reported for these software [see e.g. 38]. In this study, the WinErs software was used [29].
Concerning computer hardware details, such as capacity of the processors of the hardware necessary for the size of the OTS application and its display functions (screen size, resolution, display devices, e.g. desktop, lab-top or portable tablet variants) must also be compared.
In principle, the technical specifications of the computer software and hardware can be compared in order to rank their capacity in complying with the OTS functions and the user targets. This has, however, not been included in this study.
The OTS software and model description will be detailed in other reports by us as it is a wide issue per se and therefore not discussed in this article [39]. Presently, the OTS software is validated at the Reppe bio-ethanol plant.
Figure 6 and Figure 7 show examples of the implementation of the GUIs for the designed OTS hydrolysis and fermentation sections of the bio-ethanol plant. The control and measurement points in in these figures mimic accurately the DCS of the real plant. Identical control sub-windows can be opened in the OTS in order to change control setpoints as well as automation (A) and manual control (M) modes.
Processes 03 00664 g006 1024

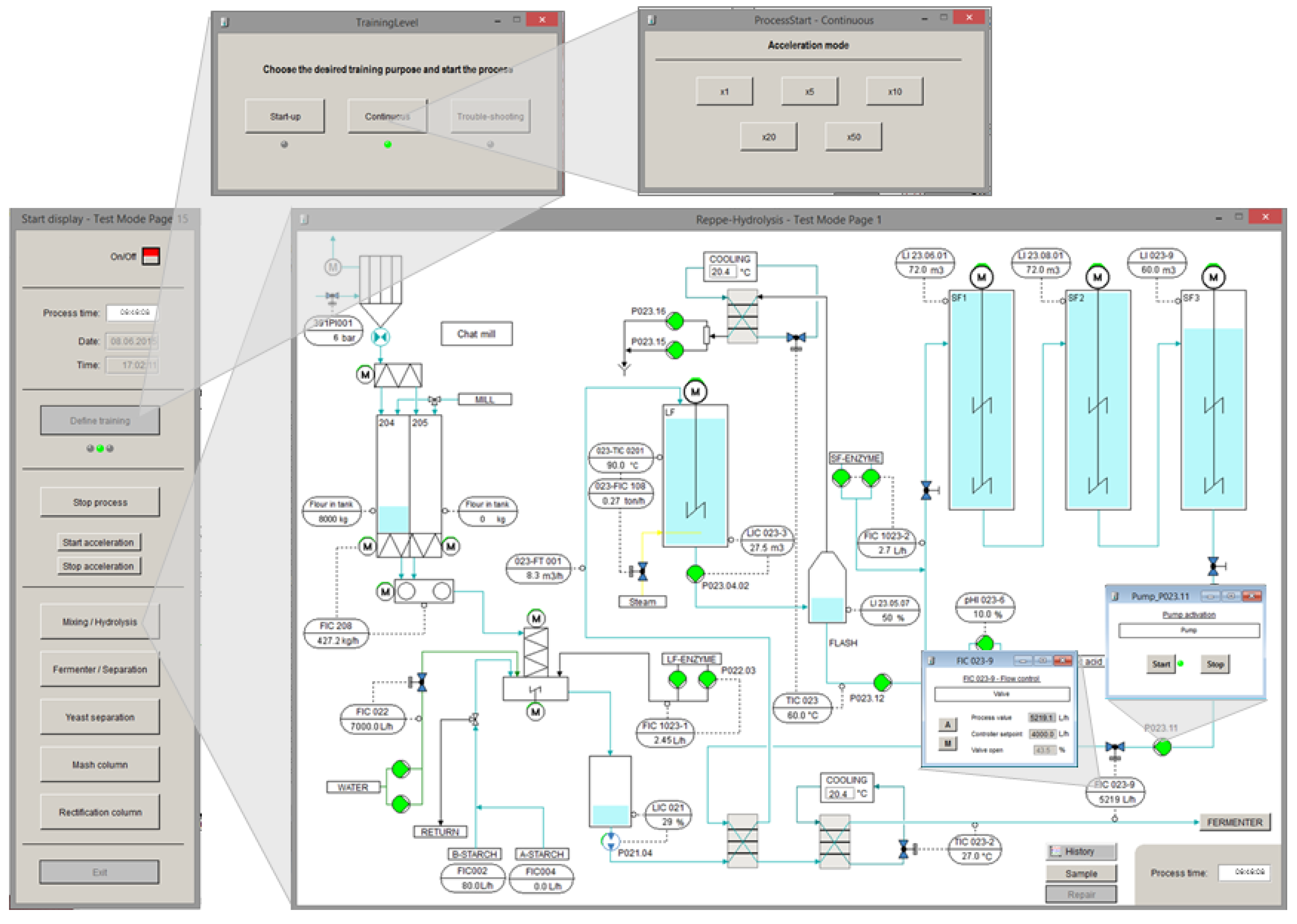

Figure 6. Example of GUIs of the OTS as designed from the conceptual design premises. The figures shows the hydrolysis process section of the virtual plant with sub-windows (above and inside main window) for start/stop, settings of valves and pumps that are comparable to the real DCS. An additional start-window (left) displays key features of the OTS including the visualization of the virtual process time. Via different buttons the user can define the training configuration and the acceleration mode, as well as open additional GUIs, e.g. for changing the acceleration.
Figure 6. Example of GUIs of the OTS as designed from the conceptual design premises. The figures shows the hydrolysis process section of the virtual plant with sub-windows (above and inside main window) for start/stop, settings of valves and pumps that are comparable to the real DCS. An additional start-window (left) displays key features of the OTS including the visualization of the virtual process time. Via different buttons the user can define the training configuration and the acceleration mode, as well as open additional GUIs, e.g. for changing the acceleration.
Processes 03 00664 g006
Processes 03 00664 g007 1024
Figure 7. Additional example of a GUI of the OTS as designed from the conceptual design premises. The figure shows the fermentation process section of the virtual plant with a controller sub-window for cooling of the broth. Sampling for off-line analysis can be initiated via the button “Sample”. The analytical results are then displayed in a data table window for e.g. pH and concentrations of glucose and dry mass (not shown in figure).
Figure 7. Additional example of a GUI of the OTS as designed from the conceptual design premises. The figure shows the fermentation process section of the virtual plant with a controller sub-window for cooling of the broth. Sampling for off-line analysis can be initiated via the button “Sample”. The analytical results are then displayed in a data table window for e.g. pH and concentrations of glucose and dry mass (not shown in figure).
Processes 03 00664 g007

3.6. Experiences of Using the OTS in the Bio-Ethanol Plant

The developed pre-prototype of the OTS was initially tested by and discussed with experienced operators of the plant where malfunctions and other shortcomings were adjusted or reshaped. The testing was performed in the plant environment close to the process control facilities. The GUIs of the OTS were compared with the GUIs of the plant and further adapted to real conditions.
Long-term evaluation of the OTS with new operators under training is required in order to fully appreciate its benefits. Due to the flexibility of the OTS it is likely that the plant operators and manager themselves can adapt the training procedure with minor adjustments.

4. General Discussion

The aim of this study is to demonstrate how the design of an OTS system can be supported by conceptual design methodology. The systematic approach of applying the methodology results in a ranking of OTS design alternatives. The approach starts with collecting and scrutinizing the users’ needs, then analyzing the functions required in the OTS and identifying the functional elements necessary for accomplishing this need-driven design. Subsequently, it is investigated how these elements can be configured (or permuted) versus the specified user needs. By following this methodology a platform for the construction stage of the OTS is provided in a time-efficient way that significantly facilitate the work in the design team. In a forthcoming publication [39] the construction of the OTS based on the preferences in the conceptual design analysis will be covered. This will include the formulation of the mathematical models for the mass balances, kinetics and parameter sets that govern the processes in the plant, the model structure that is embedded in the OTS and the interactive GUIs of the OTS.
Thus, an OTS construction based on the conceptual analysis and where robust models of the bio-ethanol plant allowing dynamic simulations with tuned parameters and reproduction of typical behavior of the plant’s unit operations ensues the conclusions from the Table 2 and Tables S2 to S4 are fulfilled. With the virtual representations available via interactive GUIs, as briefly exemplified in Figure 6 and Figure 7, training procedures as accounted for in Table 3 can be realized.
Doubtlessly, the conceptual methodology may result in a variety of outcomes depending on user preferences and expert views when screening and scoring the alternative configurations. Access to correct and relevant information of the plant and the process conditions is therefore crucial and determines the quality and usefulness of the design decisions.
The layout of the conceptual analysis may tend to bias the scoring due to the number and formulation of the users’ preferences. The sensitivity for such effects can partly be noted and handled by varying weights on needs and comparing how that influence the outcome of the analysis. The examples shown here (Tables S2–S4) indicate, however, a certain degree of robustness to varying preferences, e.g. economic considerations.
The OTS construction based on the conceptual design methodology must necessarily be tested and evaluated over extended periods with different operator. A comprehensive validation of an OTS system with its embedded models and its devised training procedures requires long-term running and use of the system.
This has been commenced with the OTS for the bio-ethanol plant designed in this study. Preliminary results indicate that experienced as well as unexperienced operators easily understand the idea of the OTS, can apply it according to instructions given in a well-written manual (Table 3) and can by that gain operational skills. This is also supported by previous findings by us when using OTSs at laboratory-scale [18,19,20].
Adaptability of the OTS to operational changes, such as use of different raw materials, enzymes and strain or when exchanging of unit operation equipment extends the applicability of the OTS. A robust model structure can allow this.
More substantial changes of the plant structure would require reshuffling of GUI layouts and reconfiguration of model connections or even exchange of models. Use of other production organisms may even require modifications of the structural models but could also prosper on the same compartmentalized model principles, e.g. by consulting other previous experiences as shown in [18,19,20]. All such modifications would require re-parameterization of the models based on supporting laboratory or plant experiments.

5. Conclusions

The study has shown that a conceptual design approach is useful for structuring and configuring OTSs and the training procedure with these. The methodology allows adaption of the OTS to critical training needs in a plant.
A primary conclusion is that the operator training should be done at a plant very close to the production units and its control room facility allowing trained operators to recurrently check and compare with the real environment. However, the virtual reality of the OTS should, be distinctly separated from the real plant and constitute an environment of its own in order to enhance transfer-of-training and avoid mix-ups of realities.
The final outcome of training with the OTS at the bio-ethanol plant with operator trainees would require more long-term use of the OTS to be able to fully evaluate its operational and economic benefits. However, the generality of applying the methodology in the designing of the OTS is basically demonstrated. In addition, the basic principle of how to carry out the OTS training as shown here is applicable to any bio-plant, either for pharmaceutics, food or chemicals and biologics. It is, therefore, assumed that also other large-scale industrial bio-plants would benefit substantially from using OTSs.

Supplementary Files

Supplementary File 1

Acknowledgments

The study was financially supported by a grant from Lantmännen Research Foundation. Valuable advice and collaborative support were provided by Lantmännen Reppe AB, Lidköping, Sweden.

Author Contributions

Inga Gerlach and Carl-Fredrik Mandenius planned and carried the study at the bio-ethanol plant. Inga Gerlach, Volker C. Hass and Carl-Fredrik Mandenius provided critical and decisive inputs on the OTS design. Carl-Fredrik Mandenius wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Patle, D.S.; Ahmad, Z.; Rangaiah, G.P. Operator training simulators in the chemical industry: Review, issues, and future directions. Rev. Chem. Eng. 2014, 30, 199–216. [Google Scholar] [CrossRef]
  2. Brambilla, S.; Manca, D. Recommended features of an industrial accident simulator for training of operators. J. Loss Prev. Process Ind. 2011, 24, 344–355. [Google Scholar] [CrossRef]
  3. Reinig, G.; Winter, P.; Linge, V.; Nägler, K. Training simulators: Engineering and use. Chem. Eng. Technol. 1998, 21, 711–716. [Google Scholar] [CrossRef]
  4. Balaton, M.G.; Nagy, L.; Szeifert, F. Operator training simulator process model implementation of a batch processing unit in a packaged simulation software. Comp. Chem. Eng. 2013, 48, 335–344. [Google Scholar] [CrossRef]
  5. Manca, D.; Brambilla, S.; Colombo, S. Bridging between virtual reality and accident simulation for training of process-industry operators. Adv. Eng. Softw. 2013, 55, 1–9. [Google Scholar] [CrossRef]
  6. Díaz, M.; Garrido, D.; Romero, S.; Rubio, B.; Soler, E.; Troya, J.M. Experiences with component-oriented technologies in nuclear power plant simulators. Softw. Pract. Exper. 2006, 36, 1489–1512. [Google Scholar] [CrossRef]
  7. Lee, A. Flight simulationvirtual environment in aviation. Aviat. Space Environ. Med. 2006, 77, 164. [Google Scholar]
  8. Ki, J.S. Interactive training simulator for aerial working platform in a virtual environment. Comput. Appl. Eng. Educ. 2009, 19, 733–738. [Google Scholar] [CrossRef]
  9. Murai, K.; Okazaki, T.; Hayashi, Y. A few comments in visual systems of a ship handling simulator for sea pilot training: training for entering a port. Electron. Commun. Jpn. 2011, 94, 10–17. [Google Scholar] [CrossRef]
  10. Rosen, K.R. The history of medical simulation. J. Critical Care 2008, 23, 157–166. [Google Scholar] [CrossRef] [PubMed]
  11. Kneebone, R. Simulation in surgical training: Educational issues and practical implications. Med. Educ. 2003, 37, 267–277. [Google Scholar] [CrossRef] [PubMed]
  12. Michael, M.; Ker, J.; Khan, M.S.; Dasgupta, P.; Ahmed, K. Performance of technology-driven simulators for medical students. J. Surg. Res. 2014, 192, 531–543. [Google Scholar] [CrossRef] [PubMed]
  13. Fletcher, J.D. Education and training technology in the military. Science 2009, 323, 72–75. [Google Scholar] [CrossRef] [PubMed]
  14. Vogel-Walcutt, J.J.; Logan Fiorella, L.; Malone, N. Instructional strategies framework for military training systems. Comput. Hum. Behav. 2013, 29, 1490–1498. [Google Scholar] [CrossRef]
  15. Bell, H.H.; Waag, W.L. Evaluating the effectiveness of flight simulators for training combat skills: A review. Int. J. Avia. Psychol. 1998, 8, 223–242. [Google Scholar] [CrossRef]
  16. Jeppsson, T. Applications of artillery command training simulator systems. Artill. J. (Sweden). 1972, 1, 86–89. (In Swedish) [Google Scholar]
  17. Blesgen, A.; Hass, V.C. Efficient biogas production through process simulation. Energy Fuels 2010, 24, 4721–4727. [Google Scholar] [CrossRef]
  18. Gerlach, I.; Hass, V.C.; Brüning, S.; Mandenius, C.F. Virtual bioreactor cultivation for operator training and simulation: Application to ethanol and protein production. J. Chem. Technol. Biotechnol. 2013, 88, 2159–2168. [Google Scholar] [CrossRef]
  19. Gerlach, I.; Brüning, S.; Gustavsson, R.; Mandenius, C.F.; Hass, V.C. An operator training simulator for recombinant protein expression dynamics. J. Biotechnol. 2014, 177, 53–59. [Google Scholar]
  20. Gerlach, I.; Mandenius, C.F.; Hass, V.C. Operator training simulation for integrating cultivation and homogenisation in protein production. Biotechnol. Rep. 2015, 6, 91–99. [Google Scholar] [CrossRef]
  21. FDA Quality System Regulation 820.25. Available online: http://www.accessdata.fda.gov/scripts/cdrh/cfdocs/cfcfr/CFRSearch.cfm?fr=820.25 (accessed on 2 September 2015).
  22. Mandenius, C.F.; Björkman, M. Mechatronic design principles for biotechnology product development. Trends Biotechnol. 2010, 28, 230–236. [Google Scholar] [CrossRef] [PubMed]
  23. Mandenius, C.F.; Björkman, M. Biomechatronic Design in Biotechnology: A Methodology for Development of Biotechnology Products; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2011. [Google Scholar]
  24. Derelöv, M.; Detterfelt, J.; Björkman, M.; Mandenius, C.F. Engineering design methodology for bio-mechatronic products. Biotechnol. Progr. 2008, 24, 232–244. [Google Scholar]
  25. Hubka, V.; Eder, W.E. Design Science: Introduction to the Needs, Scope and Organization of Engineering Design Knowledge, 1st ed.; Springer Verlag: Berlin, Germany, 1996. [Google Scholar]
  26. Pahl, G.; Beitz, W. Engineering Design: A Systematic Approach, 3rd ed.; Springer Verlag: Berlin, Germany, 2007. [Google Scholar]
  27. Ulrich, K.T.; Eppinger, S.D. Product Design and Development, 3rd ed.; McGraw-Hill: New York, NY, USA, 2007. [Google Scholar]
  28. Biostil/Ethanol—Chematur Engineering AB. Available online: http://chematur.se/process-areas/bio-chemicals/biostil-ethanol (accessed on 30 June 2015).
  29. WinErs. Available online: www.schoop.de/en/software/winers (accessed on 30 June 2015).
  30. Taylor, H.L.; Lintern, G.; Hulin, C.L.; Talleur, D.A.; Emanuel, T.W.; Phillips, S.I. Transfer of training effectiveness of a personal computer aviation training device. Int. J. Aviat. Psychol. 1999, 9, 319–335. [Google Scholar] [CrossRef]
  31. Mandenius, C.F. Biomechatronics for designing bioprocess monitoring and control systems: Application to stem cell production. J. Biotechnol. 2012, 162, 430–440. [Google Scholar] [CrossRef] [PubMed]
  32. Darkins, C.L.; Mandenius, C.F. Design of large-scale manufacturing of induced pluripotent stem cell derived cardiomyocytes. Chem. Eng. Res. Des. 2014, 92, 1142–1152. [Google Scholar] [CrossRef]
  33. Mandenius, C.F. Design of monitoring and sensor systems for bioprocesses using biomechatronic principles. Chem. Eng. Technol 2012, 35, 1412–1420. [Google Scholar] [CrossRef]
  34. Mandenius, C.F.; Björkman, M. Scale-up of bioreactors using biomechantronic design methodology. Biotechnol. J. 2012, 7, 1026–1039. [Google Scholar] [CrossRef] [PubMed]
  35. Hass, V.H. Operator training simulators for bioreactors. In Bioreactors: Design, Operation And Novel Applications; Mandenius, C.F., Ed.; Wiley-VCH: Weinheim, Germany, 2015; in press. [Google Scholar]
  36. Kuprijanov, A.; Schaepe, S.; Aehle, M.; Simutis, R.; Lübbert, A. Improving cultivation processes for recombinant protein production. Bioproc. Biosys. Eng. 2012, 35, 333–340. [Google Scholar] [CrossRef] [PubMed]
  37. Cimander, C.; Bachinger, T.; Mandenius, C.F. Integration of distributed multi-analyzer monitoring and control in bioprocessing based on a real-time expert system. J. Biotechnol. 2003, 103, 237–248. [Google Scholar] [CrossRef]
  38. Polakovic, M.; Mandenius, C.F. Simulation of a complex biotechnological process using an object-oriented knowledge-based system. In Computer and Information Science Applications in Bioprocess Engineering; Moreira, A.R., Wallace, K.K., Eds.; Nato ASI Series; Kluwer Academic Publishers: Dordrecht, The Netherlands, 1996; Volume 305. [Google Scholar]
  39. Gerlach, I.; Tholin, S.; Hass, V.C.; Mandenius, C.F. Modelling and implementation of an operator training simulator for an industrial bio-ethanol plant. Comput. Chem. Eng. Submitted for publication.

Share and Cite

MDPI and ACS Style

Gerlach, I.; Hass, V.C.; Mandenius, C.-F. Conceptual Design of an Operator Training Simulator for a Bio-Ethanol Plant. Processes 2015, 3, 664-683. https://doi.org/10.3390/pr3030664

AMA Style

Gerlach I, Hass VC, Mandenius C-F. Conceptual Design of an Operator Training Simulator for a Bio-Ethanol Plant. Processes. 2015; 3(3):664-683. https://doi.org/10.3390/pr3030664

Chicago/Turabian Style

Gerlach, Inga, Volker C. Hass, and Carl-Fredrik Mandenius. 2015. "Conceptual Design of an Operator Training Simulator for a Bio-Ethanol Plant" Processes 3, no. 3: 664-683. https://doi.org/10.3390/pr3030664

Article Metrics

Back to TopTop
