# Residence Time Section Evaluation and Feasibility Studies for One-Column Simulated Moving Bed Processes (1-SMB)

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Chromatography Columns, Buffers and Feed

^{®}SI 60 material (15–25 µm, Merck KGaA, Darmstadt, Germany) using Superformance

^{®}600-16 columns (Götec-Labortechnik GmbH, Bickenbach, Germany) with a 12.5 cm bed length. All the chromatography runs were isocratic, with 85% (v/v) hexane (LiChrosolv

^{®}, Merck KGaA) and 15% (v/v) ethyl acetate (LiChrosolv

^{®}, Merck KGaA). A mixture of cyclopentanone (purity 99%) and cycloheptanone (purity 98%) from Alfa Aesar (Haverhill, MA, USA) was used as a test substance. For the overloaded conditions, a selectivity α of 1.29 and a resolution R

_{s}of 0.46 were found, which were calculated with Equations (1) and (2):

#### 2.2. Chromatography Modeling

#### 2.2.1. General Rate Model

#### 2.2.2. Mass Balance of Mobile Phase

#### 2.2.3. Mass Balance of Stationary Phase

_{p,I}, and surface diffusion, D

_{S,i}[23,26]:

_{eff}[26,27]:

#### 2.2.4. Adsorption Equilibrium

_{i}. However, it is possible to convert between these different notations using the following equation:

#### 2.3. Model Parameter Determination

#### 2.3.1. Fluid Dynamics

#### 2.3.2. Adsorption Equilibrium

^{®}SI 60 material to determine the isotherms of the cyclopentanone/cycloheptanone mixture. A mixture of 85 vol.-% hexane and 15 vol.-% ethyl acetate was used as the eluent at a flow rate of 12.5 mL/min. The adsorbent was packed in Götec glass columns with an inner diameter of 1.6 cm and a length of 10 cm.

#### 2.3.3. Mass Transport

#### 2.3.4. Model Validation

#### 2.4. Triangle Theory

#### 2.5. Axial Dispersion Coefficient for Residence Time Sections

## 3. Results and Discussion

#### 3.1. Simulated Moving Bed Design

#### 3.2. Simulation Studies

^{−4}cm

^{2}/s to 100 cm

^{2}/s.

^{−4}cm

^{2}/s and 1 cm

^{2}/s. Higher axial dispersion coefficients result in a significant mass loss in the retention sections because the concentration profiles spread too much. The front of the profiles does not remain in the retention section but is pushed beyond it into the waste. This mass loss results in lower concentrations and, therefore, accounts for the differences in the concentration profiles, as can be seen in Figure 5A. This mass loss also takes place for the lower dispersion coefficients, hence the deviation in the concentrations there but to a much smaller extent.

_{ax}values < 1 and then decreases gradually to 99.7. The column yield is calculated as the amount of product leaving the column divided by the amount of product entering the column.

_{ax}= 10

^{−4}cm

^{2}/s and decreases to 20% for the highest axial dispersion, compared to 100% for the 4-SMB. The overall yield is calculated as the amount of product gained entirely divided by the amount of product entering the whole setup.

_{ax}of 1 m

^{2}/s. The process yield, however, is roughly 10% less and decreases with increasing axial dispersion.

^{2}/s. Thus, a brief evaluation of different residence time devices is needed.

#### 3.3. Retention Time Device Concepts

#### 3.3.1. Coiled Flow Inverter (CFI)

^{2}/s, and the simulation-based estimation provided 42 cm

^{2}/s. Saxena and Nigam found a correlation in 1984 [51]:

#### 3.3.2. Packed Bed Columns

_{ax}= 10

^{−4}cm

^{2}/s. Additionally, columns packed with 0.5 mm glass beads were tested. These had a measured D

_{ax}of 0.016 cm

^{2}/s. The model estimate was 0.022 cm

^{2}/s and a correlation of Chung and Wen ([53], Equation (24)) would yield 0.077 cm

^{2}/s.

#### 3.3.3. Tank Cascades or Sequential Setups

^{2}/s.

#### 3.3.4. Eluate Recycling Device

## 4. Conclusions

^{2}/s. No changes in performance data were observed between D

_{ax}= 10

^{−4}cm

^{2}/s and 10

^{−1}. At a D

_{ax}of 1 cm

^{2}/s, the yield and productivity decrease slightly. With a further increase, the trend intensifies significantly.

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

α | Selectivity | |

${c}_{i}$ | (g/L) | Concentration of component i |

${c}_{p,i}$ | (g/L) | Concentration of component i inside the pores |

${D}_{ax}$ | (cm^{2}/s) | Axial dispersion coefficient |

D_{eff} | (cm^{2}/s) | Effective diffusion coefficient |

${d}_{p}$ | (cm) | Particle diameter |

D_{p,i} | (cm^{2}/s) | Pore diffusion coefficient |

D_{S,i} | (cm^{2}/s) | Surface diffusion coefficient |

${\epsilon}_{p,i}$ | (-) | Porosity |

${\epsilon}_{s}$ | (-) | Voidage |

${\epsilon}_{t}$ | (-) | Total porosity |

H_{i} | (-) | Henry coefficient of component i |

K_{i} | (L/g) | Langmuir coefficient of component i |

${k}_{eff}$ | (cm/s) | Effective mass transport coefficient |

k_{f} | (cm/s) | Mass transport coefficient |

l | (cm) | Length |

m_{j} | Mass flow ratio of zone j | |

n | Number of bends | |

PAT | Process analytical technology | |

q_{i} | (g/L) | Loading of component i |

q_{max,i} | (g/L) | Maximum loading capacity of component i |

r | (cm) | Radius |

Re | (-) | Reynolds number |

${R}_{p}$ | (cm) | Particle radius |

R_{s} | Resolution | |

t | (s); (min) | Time |

t_{0} | (s); (min) | Dead time |

t_{R}_{1} | (s); (min) | Retention time peak 1 |

t_{R}_{2} | (s); (min) | Retention time peak 2 |

$\overline{{t}_{i}}$ | (s); (min) | Mean residence time |

${u}_{int}$ | (cm/s) | Interstitial velocity |

v | (cm/s) | Velocity |

$\dot{V}$ | (mL/min) | Volumetric flow |

${V}_{column}$ | (mL) | Volume of column |

$\eta $ | (mg/cm*s) | Dynamic viscosity |

$\rho $ | (g/L) | Density |

${\sigma}^{2}$ | (s^{2}) | Variance |

${\omega}_{i}$ | Mass fraction of component i | |

w_{b}_{1} | (s); (min) | Peak width peak 1 |

w_{b}_{2} | (s); (min) | Peak width peak 1 |

## References

- Strube, J. Technische Chromatographie: Auslegung, Optimierung, Betrieb und Wirtschaftlichkeit; Shaker: Aachen, Germany, 2000; ISBN 3826568974. [Google Scholar]
- Guiochon, G.; Felinger, A.; Shirazi, D.G.; Katti, A.M. Fundamentals of Preparative and Nonlinear Chromatography, 2nd ed.; Elsevier: Amsterdam, The Netherlands, 2006. [Google Scholar]
- Rodrigues, A. Simulated Moving Bed Technology: Principles, Design and Process Applications; Elsevier Science: Burlington, NJ, USA, 2015; ISBN 9780128020241. [Google Scholar]
- Zobel-Roos, S. Entwicklung, Modellierung und Validierung von Integrierten Kontinuierlichen Gegenstrom-Chromatographie-Prozessen, 1. Auflage; Shaker: Herzogenrath, Germany, 2018; ISBN 3844061878. [Google Scholar]
- Abunasser, N.; Wankat, P.C.; Kim, Y.-S.; Koo, Y.M. One-Column Chromatograph with Recycle Analogous to a Four-Zone Simulated Moving Bed. Ind. Eng. Chem. Res.
**2003**, 42, 5268–5279. [Google Scholar] [CrossRef] - Mota, J.P.B.; Araújo, J.M.M. Single-column simulated-moving-bed process with recycle lag. AIChE J.
**2005**, 51, 1641–1653. [Google Scholar] [CrossRef] - Zobel, S.; Helling, C.; Ditz, R.; Strube, J. Design and Operation of Continuous Countercurrent Chromatography in Biotechnological Production. Ind. Eng. Chem. Res.
**2014**, 53, 9169–9185. [Google Scholar] [CrossRef] - Seidel-Morgenstern, A. Mathematische Modellierung der Präparativen Flüssigchromatographie; Deutscher Universitäts-Verlag: Wiesbaden, Germany, 1995; ISBN 3824420643. [Google Scholar]
- Abunasser, N.; Wankat, P. Ternary Separations with One-Column Analogs to SMB. Sep. Sci. Technol.
**2005**, 40, 3239–3259. [Google Scholar] [CrossRef] - Abunasser, N.; Wankat, P.C. Improving the performance of one column analogs to SMBs. AIChE J.
**2006**, 52, 2461–2472. [Google Scholar] [CrossRef] - de Araújo, J.M.; Rodrigues, R.C.; Silva, R.; Mota, J. Single-Column Simulated Moving-Bed Process with Recycle Lag: Analysis and Applications. Adsorpt. Sci. Technol.
**2007**, 25, 647–659. [Google Scholar] [CrossRef] - Chibério, A.S.; Policarpo, G.F.; Antunes, J.C.; Santos, T.P.; Ribeiro, R.P.; Mota, J.P. Batch chromatography with recycle lag. II—Physical realization and experimental validation. J. Chromatogr. A
**2020**, 1623, 461211. [Google Scholar] [CrossRef] - Chibério, A.S.; Santos, T.P.; Ribeiro, R.P.; Mota, J.P. Batch chromatography with recycle lag. I—Concept and design. J. Chromatogr. A
**2020**, 1623, 461199. [Google Scholar] [CrossRef] - Juza, M. Development of a high-performance liquid chromatographic simulated moving bed separation from an industrial perspective. J. Chromatogr. A
**1999**, 865, 35–49. [Google Scholar] [CrossRef] - Mazzotti, M. Equilibrium theory based design of simulated moving bed processes for a generalized Langmuir isotherm. J. Chromatogr. A
**2006**, 1126, 311–322. [Google Scholar] [CrossRef] - Mazzotti, M.; Storti, G.; Morbidelli, M. Robust design of countercurrent adsorption separation processes: 2. Multicomponent systems. AIChE J.
**1994**, 40, 1825–1842. [Google Scholar] [CrossRef] - Mazzotti, M.; Storti, G.; Morbidelli, M. Robust design of countercurrent adsorption separation: 3. Nonstoichiometric systems. AIChE J.
**1996**, 42, 2784–2796. [Google Scholar] [CrossRef] - Mazzotti, M.; Storti, G.; Morbidelli, M. Optimal operation of simulated moving bed units for nonlinear chromatographic separations. J. Chromatogr. A
**1997**, 769, 3–24. [Google Scholar] [CrossRef] - Mazzotti, M.; Storti, G.; Morbidelli, M. Robust design of countercurrent adsorption separation processes: 4. Desorbent in the feed. AIChE J.
**1997**, 43, 64–72. [Google Scholar] [CrossRef] - Storti, G.; Baciocchi, R.; Mazzotti, M.; Morbidelli, M. Design of Optimal Operating Conditions of Simulated Moving Bed Adsorptive Separation Units. Ind. Eng. Chem. Res.
**1995**, 34, 288–301. [Google Scholar] [CrossRef] - Storti, G.; Mazzotti, M.; Morbidelli, M.; Carrà, S. Robust design of binary countercurrent adsorption separation processes. AIChE J.
**1993**, 39, 471–492. [Google Scholar] [CrossRef] - Zobel-Roos, S.; Mouellef, M.; Ditz, R.; Strube, J. Distinct and Quantitative Validation Method for Predictive Process Modelling in Preparative Chromatography of Synthetic and Bio-Based Feed Mixtures following a Quality-by-Design (QbD) Approach. Processes
**2019**, 7, 580. [Google Scholar] [CrossRef] - Kaczmarski, K.; Cavazzini, A.; Szabelski, P.; Zhou, D.; Liu, X.; Guiochon, G. Application of the general rate model and the generalized Maxwell–Stefan equation to the study of the mass transfer kinetics of a pair of enantiomers. J. Chromatogr. A
**2002**, 962, 57–67. [Google Scholar] [CrossRef] - Kaczmarski, K.; Gubernak, M.; Zhou, D.; Guiochon, G. Application of the general rate model with the Maxwell–Stefan equations for the prediction of the band profiles of the 1-indanol enantiomers. Chem. Eng. Sci.
**2003**, 58, 2325–2338. [Google Scholar] [CrossRef] - Felinger, A.; Guiochon, G. Comparison of the Kinetic Models of Linear Chromatography. Chromatographia
**2004**, 60, S175–S180. [Google Scholar] [CrossRef] - Piątkowski, W.; Antos, D.; Kaczmarski, K. Modeling of preparative chromatography processes with slow intraparticle mass transport kinetics. J. Chromatogr. A
**2003**, 988, 219–231. [Google Scholar] [CrossRef] - Carta, G.; Jungbauer, A. Protein Chromatography: Process Development and Scale-Up; WILEY-VCH: Weinheim, Germany, 2010; ISBN 978-3-527-31819-3. [Google Scholar]
- Seidel-Morgenstern, A. Experimental determination of single solute and competitive adsorption isotherms. J. Chromatogr. A
**2004**, 1037, 255–272. [Google Scholar] [CrossRef] - Asnin, L. Adsorption models in chiral chromatography. J. Chromatogr. A
**2012**, 1269, 3–25. [Google Scholar] [CrossRef] [PubMed] - Blümel, C.; Kniep, H.; Seidel-Morgenstern, A. Measuring adsorption isotherms using a closed-loop perturbation method to minimize sample consumption. In 6th International Conference of Fundamentals of Adsorption—FOA 6; Elsevier: Amsterdam, The Netherlands, 1998; pp. 449–454. [Google Scholar]
- Cavazzini, A.; Felinger, A.; Guiochon, G. Comparison between adsorption isotherm determination techniques and overloaded band profiles on four batches of monolithic columns. J. Chromatogr. A
**2003**, 1012, 139–149. [Google Scholar] [CrossRef] [PubMed] - Ching, C.B.; Chu, K.H.; Ruthven, D.M. A study of multicomponent adsorption equilibria by liquid chromatography. AIChE J.
**1990**, 36, 275–281. [Google Scholar] [CrossRef] - Gamba, G.; Rota, R.; Storti, G.; Carra, S.; Morbidelli, M. Absorbed solution theory models for multicomponent adsorption equilibria. AIChE J.
**1989**, 35, 959–966. [Google Scholar] [CrossRef] - Hu, X.; Do, D.D. Comparing various multicomponent adsorption equilibrium models. AIChE J.
**1995**, 41, 1585–1592. [Google Scholar] [CrossRef] - Heinonen, J.; Landa, H.O.R.; Sainio, T.; Seidel-Morgenstern, A. Use of Adsorbed Solution theory to model competitive and co-operative sorption on elastic ion exchange resins. Sep. Purif. Technol.
**2012**, 95, 235–247. [Google Scholar] [CrossRef] - Emerton, D.A. Profitability in the Biosimilars Market: Can You Translate Scientific Excellence into a Healthy Commercial Return? BioProcess Int.
**2013**, 11, 6–23. [Google Scholar] - Erto, A.; Lancia, A.; Musmarra, D. A modelling analysis of PCE/TCE mixture adsorption based on Ideal Adsorbed Solution Theory. Sep. Purif. Technol.
**2011**, 80, 140–147. [Google Scholar] [CrossRef] - Myers, A.L.; Prausnitz, J.M. Thermodynamics of mixed-gas adsorption. AIChE J.
**1965**, 11, 121–127. [Google Scholar] [CrossRef] - Costa, E.; Calleja, G.; Marron, C.; Jimenez, A.; Pau, J. Equilibrium adsorption of methane, ethane, ethylene, and propylene and their mixtures on activated carbon. J. Chem. Eng. Data
**1989**, 34, 156–160. [Google Scholar] [CrossRef] - Brooks, C.A.; Cramer, S.M. Steric mass-action ion exchange: Displacement profiles and induced salt gradients. AIChE J.
**1992**, 38, 1969–1978. [Google Scholar] [CrossRef] - Langmuir, I. The adsorption of gases on plane surfaces of glass, mica and platinum. J. Am. Chem. Soc.
**1918**, 40, 1361–1403. [Google Scholar] [CrossRef] - Zobel-Roos, S.; Schmidt, A.; Mestmäcker, F.; Mouellef, M.; Huter, M.; Uhlenbrock, L.; Kornecki, M.; Lohmann, L.; Ditz, R.; Strube, J. Accelerating Biologics Manufacturing by Modeling or: Is Approval under the QbD and PAT Approaches Demanded by Authorities Acceptable without a Digital-Twin? Processes
**2019**, 7, 94. [Google Scholar] [CrossRef] - Zobel-Roos, S.; Schmidt, A.; Uhlenbrock, L.; Ditz, R.; Köster, D.; Strube, J. Digital Twins in Biomanufacturing. In Digital Twins: Tools and Concepts for Smart Biomanufacturing; Herwig, C., Pörtner, R., Möller, J., Eds.; Springer: Cham, Switzerland, 2021; pp. 181–262. ISBN 978-3-030-71660-8. [Google Scholar]
- Levenspiel, O. Chemical Reaction Engineering, 3rd ed.; John Wiley & Sons: New York, NY, USA, 1998; ISBN 978-0471254249. [Google Scholar]
- Rhee, H.-K.; Aris, R.; Amundson, N.R. Multicomponent adsorption in continuous countercurrent exchangers. Philos. Trans. R. Soc. Lond. Ser. A Math. Phys. Sci.
**1971**, 269, 187–215. [Google Scholar] [CrossRef] - Fanali, S. Editorial on “Simulated moving bed chromatography for the separation of enantiomers” by A. Rajendran, G. Paredes and M. Mazzotti. J. Chromatogr. A
**2009**, 1216, 708. [Google Scholar] [CrossRef] [PubMed] - Storti, G.; Masi, M.; Carrà, S.; Morbidelli, M. Optimal design of multicomponent countercurrent adsorption separation processes involving nonlinear equilibria. Chem. Eng. Sci.
**1989**, 44, 1329–1345. [Google Scholar] [CrossRef] - Kaspereit, M.; Seidel-Morgenstern, A. Auslegung der Regenerationszonen des SMB-Verfahrens. Chem. Ing. Tech.
**2002**, 74, 591–592. [Google Scholar] [CrossRef] - Kaspereit, M.; Neupert, B. Vereinfachte Auslegung der simulierten Gegenstromchromatographie mittels des Hodographenraums. Chem. Ing. Tech.
**2016**, 88, 1628–1642. [Google Scholar] [CrossRef] - Kaspereit, M.; Jandera, P.; Škavrada, M.; Seidel-Morgenstern, A. Impact of adsorption isotherm parameters on the performance of enantioseparation using simulated moving bed chromatography. J. Chromatogr. A
**2001**, 944, 249–262. [Google Scholar] [CrossRef] [PubMed] - Saxena, A.K.; Nigam, K.D.P. Coiled configuration for flow inversion and its effect on residence time distribution. AIChE J.
**1984**, 30, 363–368. [Google Scholar] [CrossRef] - Kumar, V.; Nigam, K. Numerical simulation of steady flow fields in coiled flow inverter. Int. J. Heat Mass Transf.
**2005**, 48, 4811–4828. [Google Scholar] [CrossRef] - Chung, S.F.; Wen, C.Y. Longitudinal dispersion of liquid flowing through fixed and fluidized beds. AIChE J.
**1968**, 14, 857–866. [Google Scholar] [CrossRef]

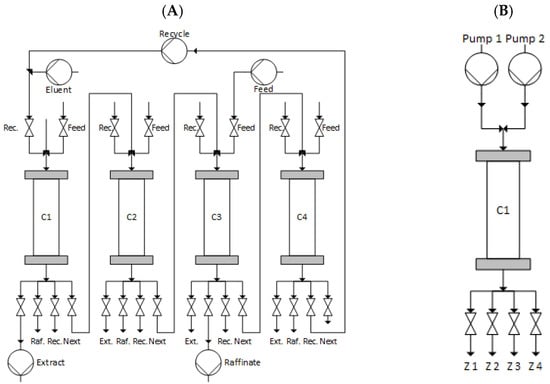

**Figure 1.**(

**A**) Simplified process flow diagram of a 4-SMB with 5 pumps. (

**B**) Simplified process flow diagram of a 1-SMB with 2 pumps.

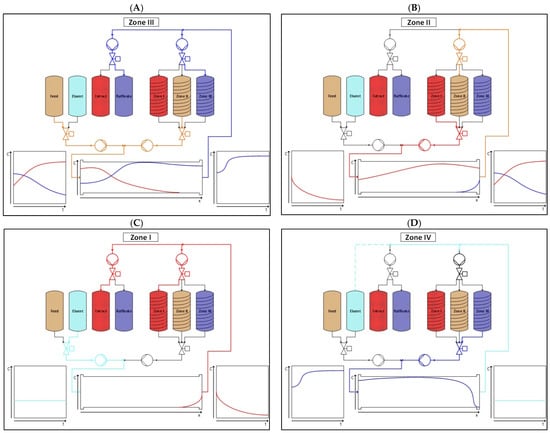

**Figure 2.**Process flow charts of one cycle of a 1-SMB. Depicted is the end of the cycle just before switching to the next zone.

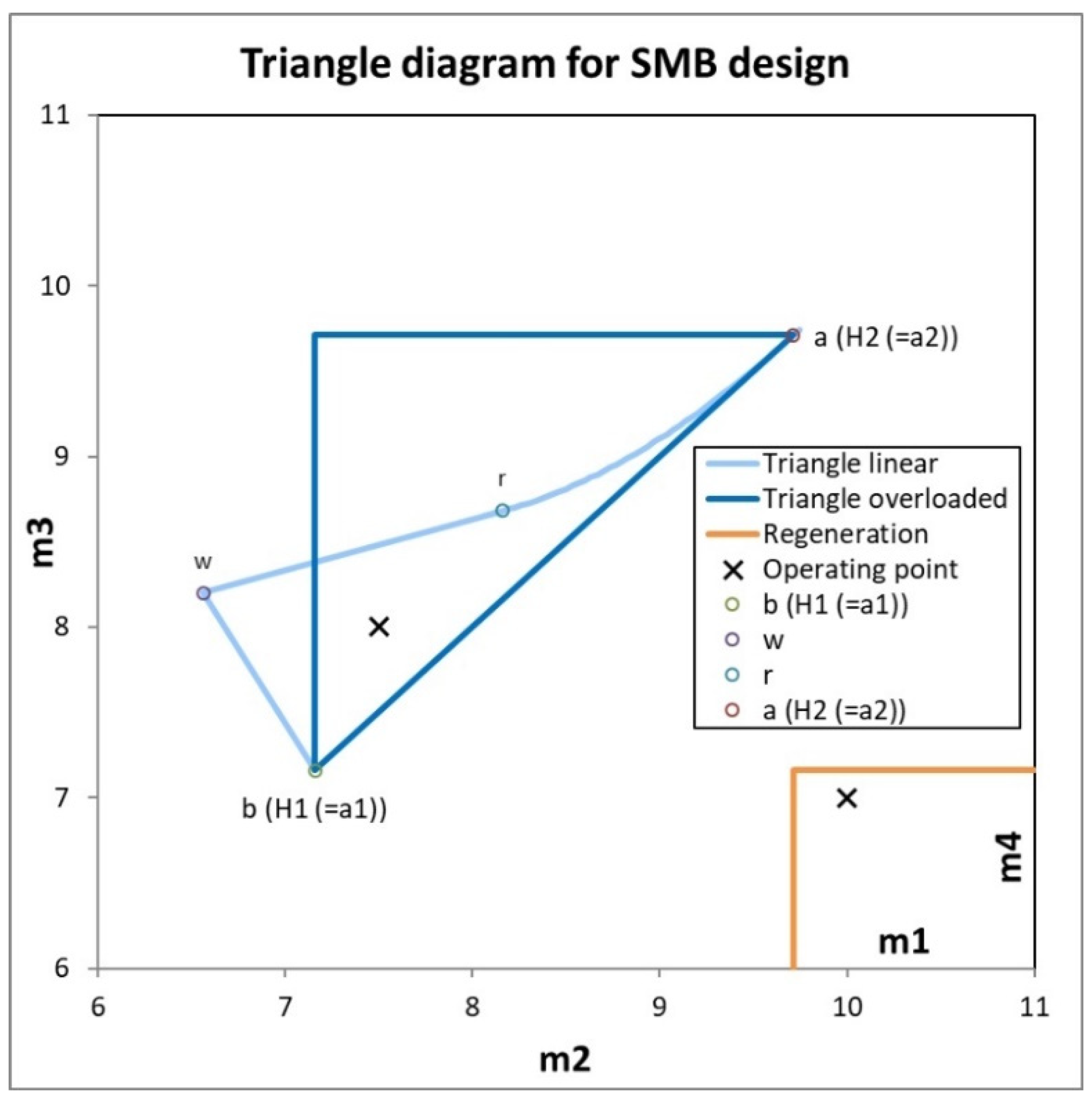

**Figure 3.**Triangle diagram for cyclopentanone/cycloheptanone. The dark blue triangle is valid for low concentrations representing the linear region of the Langmuir isotherm. For higher concentrations, the triangle shifts to the right, as depicted with the light blue lines. The orange triangle represents the working condition for Zones I and IV.

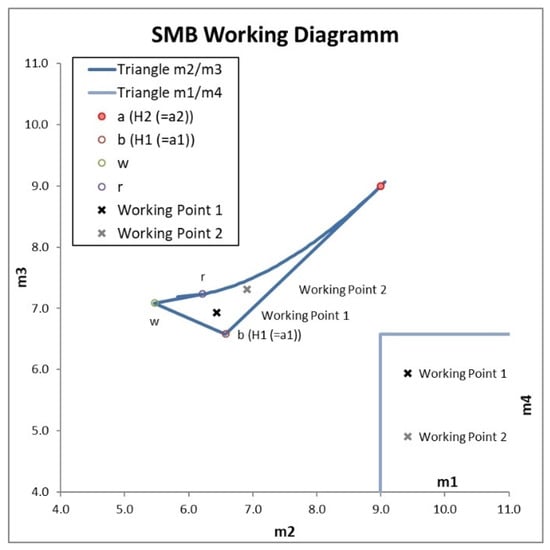

**Figure 4.**Working diagram for the test mixture cyclopentanone/cycloheptanone with 5 g/L feed concentration.

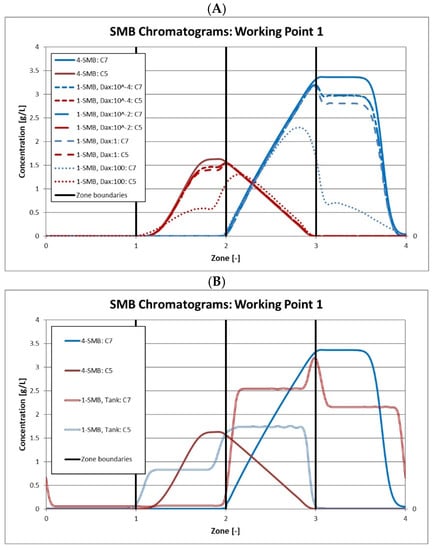

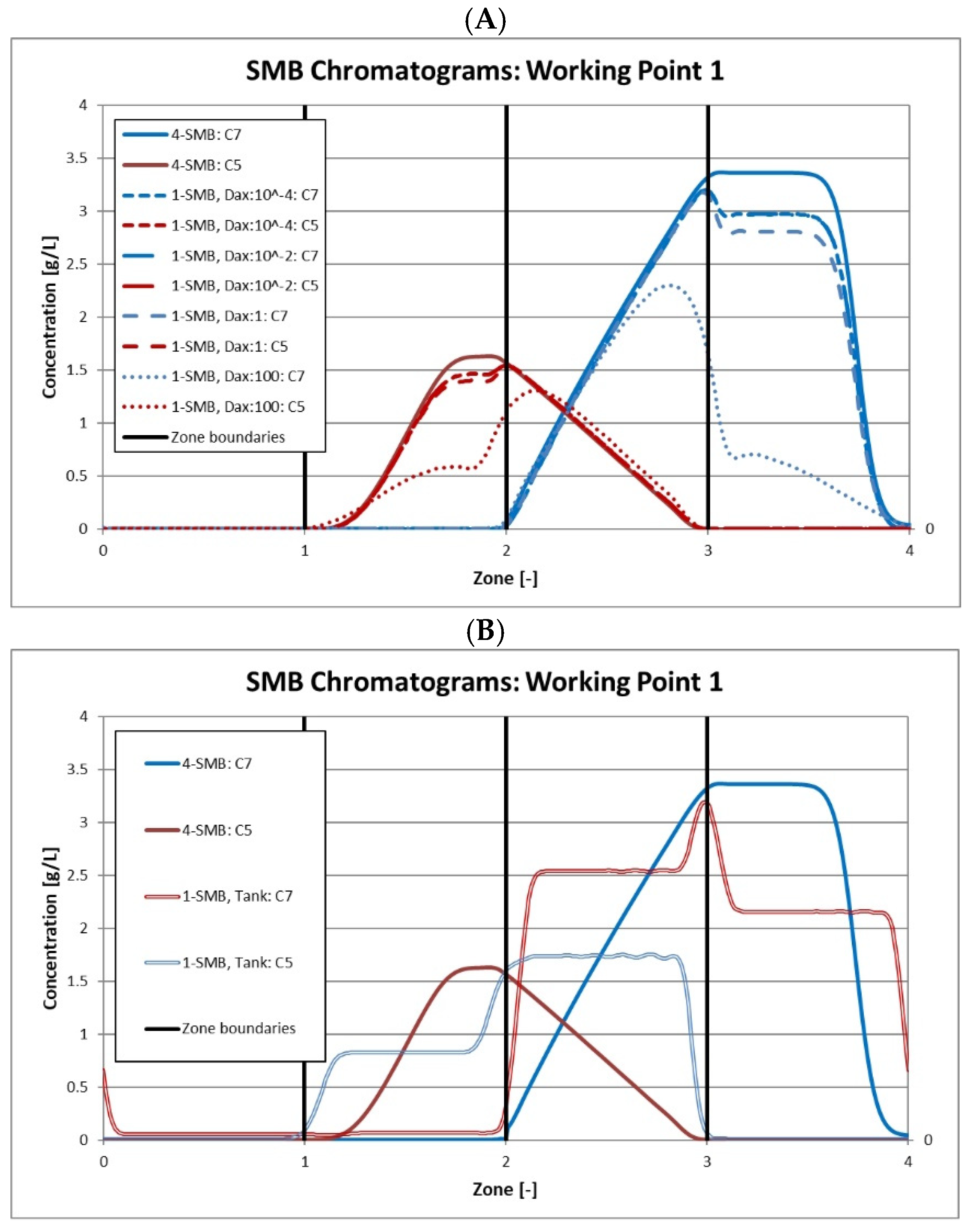

**Figure 5.**SMB chromatograms for working point 1. The signal is measured at the column outlet. The red lines indicate the extract, the blue lines indicate raffinate. (

**A**): 1-SMB with plug flow with varying axial dispersion. The solid lines represent the classical 4-column SMB, the dashed lines represent 1-SMB with pipes. (

**B**) 1-SMB with tanks (double lines).

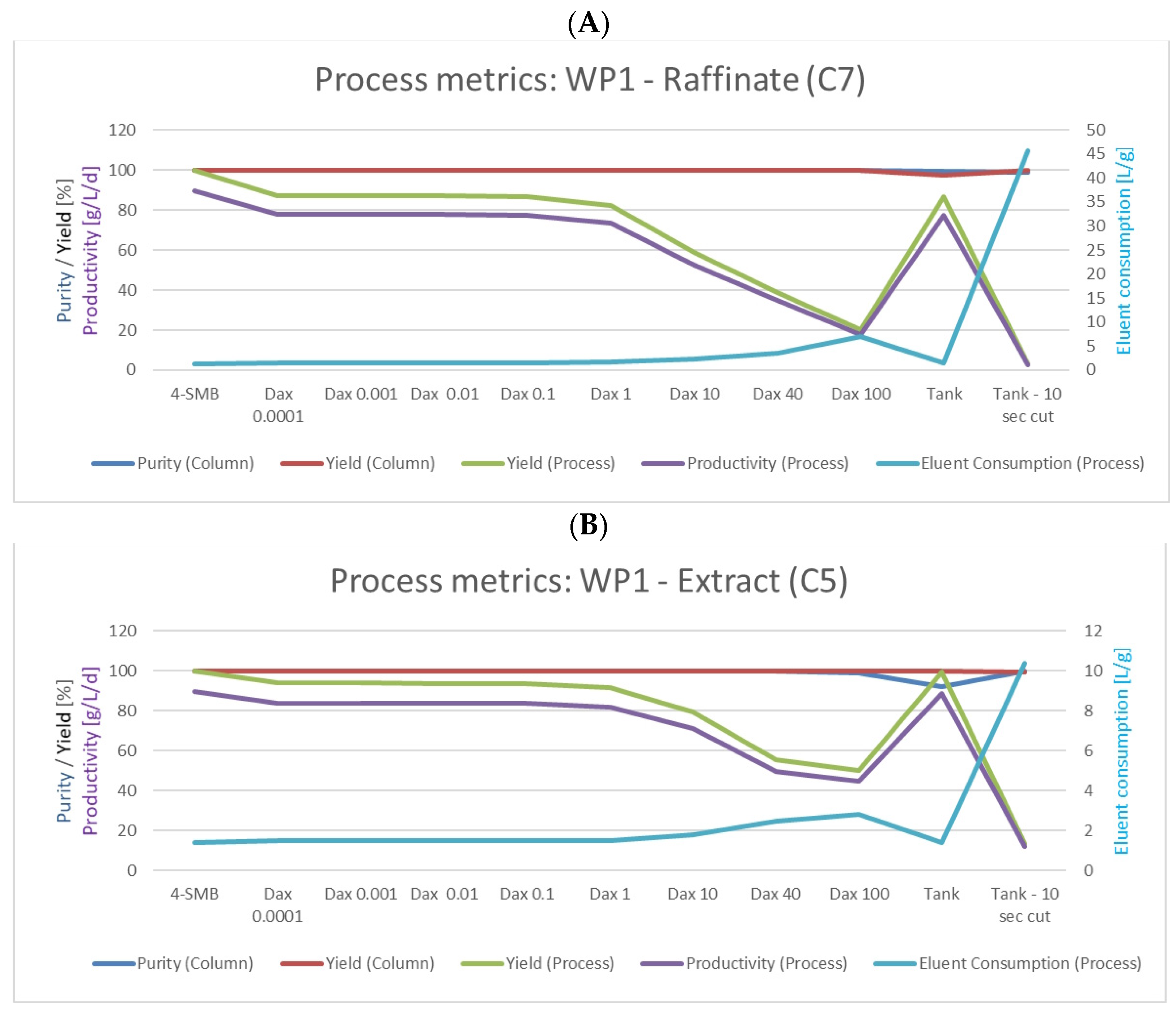

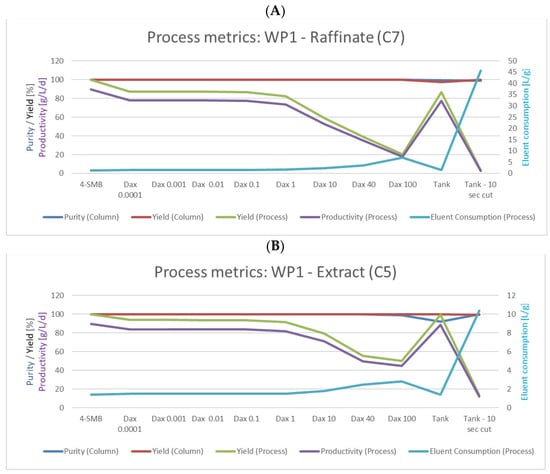

**Figure 6.**Process metrics for working point 1. (

**A**) for raffinate/cycloheptanone (C7) and (

**B**) for extract/cyclopentanone (C5). On the primary axis: purity (%, blue), yield (%, red for column yield, green for process yield) and productivity (g/L/d, purple). On the secondary axis: eluent consumption (L/g, turquoise).

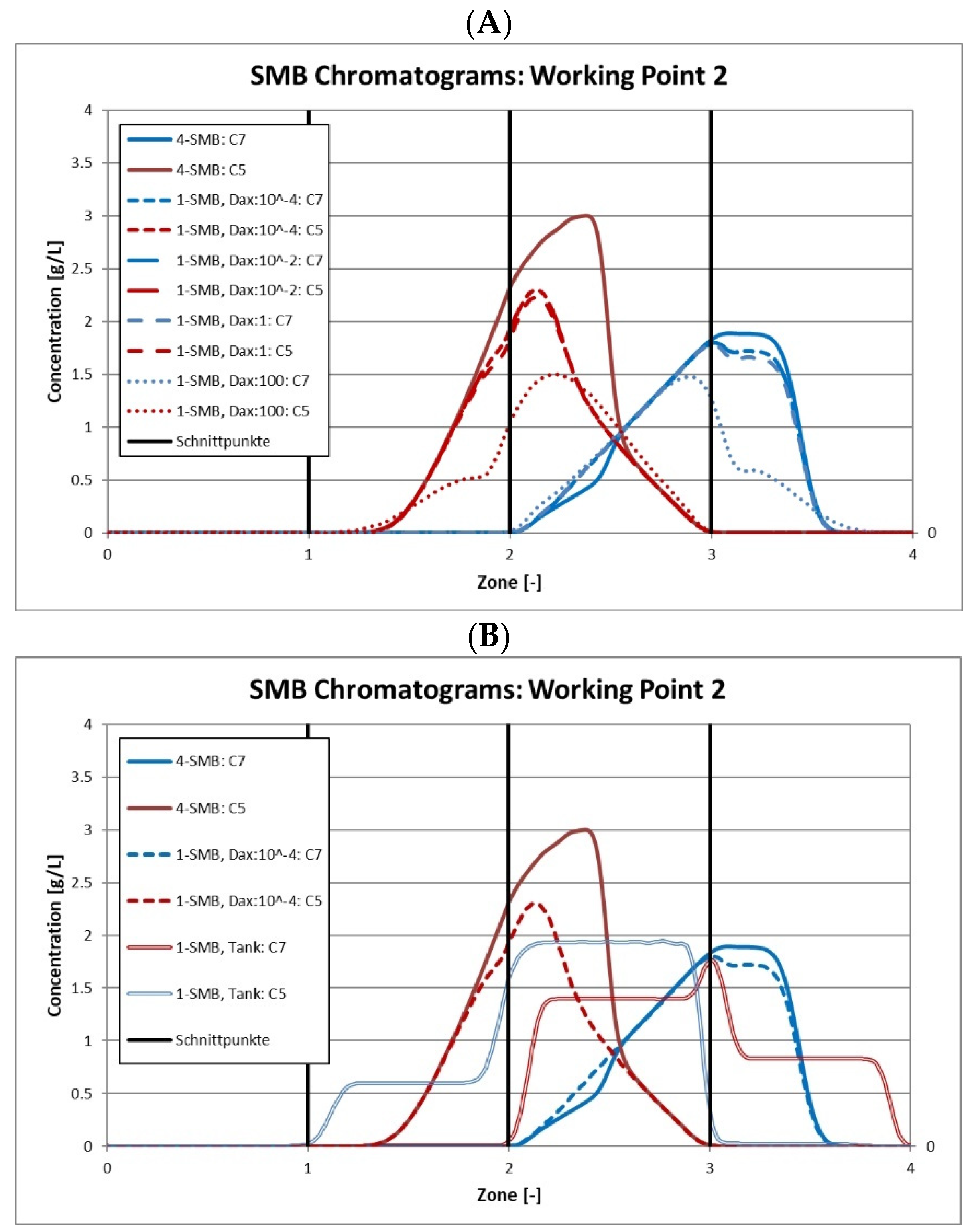

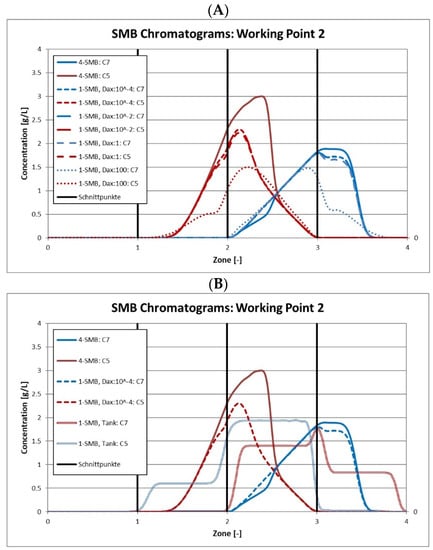

**Figure 7.**SMB Chromatograms for working point 2. The signal is measured at the column outlet. The red lines indicate the extract, the blue lines indicate raffinate. (

**A**) 1-SMB with plug flow with varying axial dispersion. The solid lines represent the classical 4-column SMB, the dashed lines represent 1-SMB with pipes. (

**B**) 1-SMB with tanks (double lines).

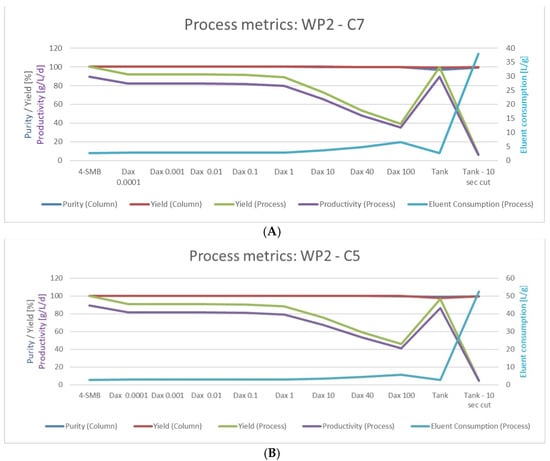

**Figure 8.**Process metrics for working point 2. (

**A**) for raffinate/cycloheptanone (C7) and (

**B**) for extract/cyclopentanone (C5). On the primary axis: purity (%, blue), yield (%, red for column yield, green for process yield) and productivity (g/L/d, purple). On the secondary axis: eluent consumption (L/g, turquoise).

Point | m2 | m3 |
---|---|---|

a | ${H}_{2}$ | ${H}_{2}$ |

b | ${H}_{1}$ | ${H}_{1}$ |

r | $\frac{{\omega}_{2}{}^{2}}{{H}_{2}}$ | $\frac{{\omega}_{2}\xb7\left[{\omega}_{2}\xb7\left({H}_{1}-{\omega}_{1}\right)+{\omega}_{1}\xb7\left({H}_{2}-{H}_{1}\right)\right]}{{H}_{1}\xb7\left({H}_{2}-{\omega}_{1}\right)}$ |

w | $\frac{{\omega}_{2}\xb7{H}_{1}}{{H}_{2}}$ | $\frac{{\omega}_{2}\xb7\left[{H}_{1}\xb7\left({H}_{1}-{\omega}_{1}\right)+{\omega}_{1}\xb7\left({H}_{2}-{H}_{1}\right)\right]}{{H}_{1}\xb7\left({H}_{2}-{\omega}_{1}\right)}$ |

Working Point 1 | Working Point 2 | |
---|---|---|

m1 | 9.4 | 10.1 |

m2 | 6.4 | 6.9 |

m3 | 6.9 | 7.3 |

m4 | 5.9 | 4.9 |

Purity | Yield Column | Yield Process | Productivity | Eluent Consumption | ||||||
---|---|---|---|---|---|---|---|---|---|---|

C5 | C7 | C5 | C7 | C5 | C7 | C5 | C7 | C5 | C7 | |

4-SMB | 100 | 100 | 100 | 100 | 100 | 100 | 89.5 | 89.5 | 1.4 | 1.4 |

D_{ax} 0.0001 | 99.9 | 100.0 | 100.0 | 100.0 | 93.9 | 87.1 | 84.0 | 78.0 | 1.5 | 1.6 |

D_{ax} 0.001 | 99.9 | 100.0 | 100.0 | 100.0 | 93.9 | 87.1 | 84.0 | 78.0 | 1.5 | 1.6 |

D_{ax} 0.01 | 99.9 | 100.0 | 100.0 | 100.0 | 93.8 | 87.0 | 84.0 | 77.9 | 1.5 | 1.6 |

D_{ax} 0.1 | 99.9 | 100.0 | 100.0 | 100.0 | 93.6 | 86.5 | 83.8 | 77.4 | 1.5 | 1.6 |

D_{ax} 1 | 99.9 | 100.0 | 100.0 | 100.0 | 91.5 | 82.0 | 81.9 | 73.4 | 1.5 | 1.7 |

D_{ax} 10 | 99.9 | 100.0 | 100.0 | 99.9 | 79.4 | 58.7 | 71.1 | 52.5 | 1.8 | 2.4 |

D_{ax} 40 | 99.9 | 100.0 | 100.0 | 99.9 | 55.5 | 38.7 | 49.7 | 34.7 | 2.5 | 3.6 |

D_{ax} 100 | 99.1 | 100.0 | 100.0 | 99.7 | 50.0 | 20.0 | 44.7 | 17.9 | 2.8 | 7.0 |

Tank | 92.1 | 99.4 | 99.8 | 97.4 | 99.3 | 86.5 | 88.9 | 77.5 | 1.4 | 1.6 |

Tank—10 sec cut | 99.9 | 98.9 | 99.6 | 100 | 13.5 | 3.1 | 12.1 | 2.7 | 10.4 | 45.7 |

Purity | Yield Column | Yield Process | Productivity | Eluent Consumption | ||||||
---|---|---|---|---|---|---|---|---|---|---|

C5 | C7 | C5 | C7 | C5 | C7 | C5 | C7 | C5 | C7 | |

4-SMB | 100 | 100 | 100 | 100 | 100 | 100 | 89.5 | 89.5 | 2.6 | 2.6 |

D_{ax} 0.0001 | 100 | 100 | 100 | 100 | 90.9 | 91.8 | 81.4 | 82.2 | 2.9 | 2.8 |

D_{ax} 0.001 | 100 | 100 | 100 | 100 | 90.9 | 91.8 | 81.4 | 82.2 | 2.9 | 2.8 |

D_{ax} 0.01 | 100 | 100 | 100 | 100 | 90.9 | 91.8 | 81.4 | 82.2 | 2.9 | 2.8 |

D_{ax} 0.1 | 100 | 100 | 100 | 100 | 90.6 | 91.5 | 81.1 | 81.9 | 2.9 | 2.8 |

D_{ax} 1 | 100 | 100 | 100 | 100 | 88.4 | 88.8 | 79.2 | 79.5 | 2.9 | 2.9 |

D_{ax} 10 | 100 | 99.9 | 100 | 100 | 75.5 | 73.1 | 67.6 | 65.5 | 3.4 | 3.6 |

D_{ax} 40 | 99.9 | 99.9 | 99.9 | 99.9 | 59.3 | 53.6 | 53.1 | 48 | 4.4 | 4.8 |

D_{ax} 100 | 99.8 | 99.8 | 99.9 | 99.8 | 46.1 | 39.2 | 41.3 | 35.1 | 5.6 | 6.6 |

Tank | 99.4 | 96.8 | 97.6 | 99.5 | 96.6 | 99.8 | 86.5 | 89.4 | 2.7 | 2.6 |

Tank—10 sec cut | 99.8 | 99.4 | 99.6 | 99.9 | 5 | 6.8 | 4.4 | 6.1 | 52.4 | 38 |

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Zobel-Roos, S.; Vetter, F.; Strube, J.
Residence Time Section Evaluation and Feasibility Studies for One-Column Simulated Moving Bed Processes (1-SMB). *Processes* **2023**, *11*, 1634.
https://doi.org/10.3390/pr11061634

**AMA Style**

Zobel-Roos S, Vetter F, Strube J.
Residence Time Section Evaluation and Feasibility Studies for One-Column Simulated Moving Bed Processes (1-SMB). *Processes*. 2023; 11(6):1634.
https://doi.org/10.3390/pr11061634

**Chicago/Turabian Style**

Zobel-Roos, Steffen, Florian Vetter, and Jochen Strube.
2023. "Residence Time Section Evaluation and Feasibility Studies for One-Column Simulated Moving Bed Processes (1-SMB)" *Processes* 11, no. 6: 1634.
https://doi.org/10.3390/pr11061634
