Influence of Compound Additives on Sulfur Fixing Performance of Sorbent Based on Steel Slag at High Temperatures

Abstract

Steel slag is modified with additives to improve its high-temperature sulfur-fixing performance. The effects of sodium lignosulfonate, NaCl, KNO₃ and MnO₂ on the sulfur fixing performance of steel slag were explored after the ideal calcium–sulfur ratio of steel slag was established to be 2.5. An orthogonal experiment was used to explore the primary and secondary impacts of different additives on the sulfur fixing efficiency. The optimal factor level combination was identified to be 8% sodium lignosulfonate, 1% NaCl, 5% MnO₂, and 7% KNO₃, with a maximum sulfur fixing efficiency of 70.81%. According to XRF analysis, the sulfur-fixing effect of steel slag with additives was clearly superior to that of steel slag without additives. According to an XRD analysis, the diffraction peak of sulfur-fixing products of steel slag with additives was significantly improved, resulting in a high-temperature resistant phase that prevented sulfur-fixing products from degrading. According to SEM research, the steel slag with additives produced an interface that was conducive to gas–solid interaction in the sulfur fixation process, and sulfur fixed ash of modified steel slag exhibited the surface morphology of a high temperature resistant phase.

1. Introduction

Coal is used in large quantities, releasing nitrogen oxides and sulfur oxides in the power, building materials, iron and steel, and chemical industries. With the shift in economic development mode and the promotion of energy conservation and emission reduction, demand for coal has slowed, but pollution from coal-consuming companies remains severe [1]. The use of sulfur fixing agents [2] is a key coal combustion technique for controlling SO₂ emissions [3]. The development of low-cost and efficient sulfur-fixing agents for coal combustion is an important research area in clean coal technology.

Commonly used sulfur fixing agents [4,5] are CaCO₃ [6,7], Ca(OH)₂ and CaO [8], and non-calcium-based sulfur fixing agents have limited application in coal combustion sulfur fixing due to high prices. Calcium-containing solid waste, such as calcium carbide slag, red mud [9], white mud, fly ash, steel slag, etc. as sulfur fixing agents, is an effective way to utilize the resource of solid waste [10], and the development of alkali-based industrial solid waste [11] as a sulfur fixing agent can reduce the cost of sulfur fixing agent and reduce the land occupation of waste and environmental pollution [12]. Calcium-based sulfur fixing agents and solid waste used directly as a sulfur fixing agent, due to high temperature sintering and the decomposition of sulfur fixing products, lead to a low calcium utilization rate.

Auxiliary agents can increase the surface characteristics and pore structure of sulfur-fixing agents, as well as delay and limit the decomposition of sulfur-fixing products [13]. They can also catalyze sulfur-fixing reactions and combustion. Sulfur-fixing additives such as NaCl and Na₂CO₃ are frequently used to modify sulfur-fixing agents [14], and sodium salts can form a low eutectic with calcium-based sulfur-fixing agents to promote ionic diffusion of reactants, which facilitates the formation of high surface area pores and improves sulfur-fixing agent reaction activity. Metal oxides, such as CeO₂, TiO₂, MnO₂, CuO and others [15], are used as additives in calcium-based sulfur-fixing agents in the coal combustion sulfur-fixing reaction process, not only to promote the sulfur-fixing reaction but also to improve fuel efficiency [16].

Steel slag is a type of industrial solid waste produced during the manufacturing of steel. Steel slag, as a solid waste, depletes land resources and pollutes the environment [17,18]. Steel slag is primarily used in road construction, building materials [19], cement production [20], and agriculture. Steel slag is used as an aggregate in asphalt mixtures for road construction, and steel slag powder is used as a hot melt in ceramic products and water treatment agents [21], and also as a soil conditioner [22,23]. Steel slag consumption has steadily shifted from crude to fine resource use in recent years, indicating a trend [24,25].

Steel slag is primarily composed of CaO, SiO₂, MgO, Al₂O₃, FeO, MnO, and other elements [26,27]. Steel slag is high in CaO and MgO, and finely ground steel slag powder slurry has a high alkalinity and is commonly used as a wet flue gas desulfurization absorber [28]. To increase the sulfur-fixing efficiency and reactivity, as well as to limit the sintering and decomposition of sulfur-fixing products in the high temperature sulfur-fixing process, the use of steel slag as a sulfur-fixing agent for coal combustion requires additive modification. In this paper, the use of additive-modified steel slag as a coal-fired sulfur-fixing agent to enhance the chemical activity of steel slag provides a new utilization value for steel slag, replacing traditional calcium-based sulfur-fixing agents such as limestone and thus saving mineral resources. This paper uses orthogonal experimental design to optimize the additive ratio and determine the maximum sulfur fixing efficiency and examines the high-temperature sulfur-fixing efficiency of steel slag and the sulfur-fixing mechanism of modified steel slag.

2. Materials and Methods

2.1. Sulfur Fixation Experiment

The experimental coal samples were chosen from Taiyuan coal, and the proximate analysis of coal samples is presented in

Table 1. Proximate and heating value analysis of samples.

Sample	Proximate Analysis wad/%				Sulfur Analysis wad/%	BCV/MJ·Kg−1
	M	A	V	FC *	St	Qb,ad
Taiyuan coal	1.38	36.42	25.99	36.26	2.50	20.188

Note: M—moisture; V—volatile; A—ash; FC—fixed carbon; BCV—bomb calorific value; ad—air dry basis; *—by difference.

. The coal samples were ground to less than 75 µm and left aside; the steel slag was ground to less than 75 µm and set aside (

Table 2. Chemical composition analysis of steel slag.

Composition	CaO	Fe2O3	SiO2	MgO	MnO	Al2O3	P2O5	TiO2
Content/%	42.83	25.34	16.79	3.52	3.44	3.15	1.87	1.40
Composition	Cr2O3	Na2O	BaO	K2O	SrO	WO3	Ag2O	ZnO
Content/%	0.486	0.199	0.119	0.0775	0.0473	0.0266	0.0237	0.0219

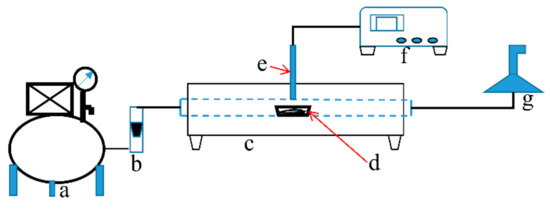

). As sulfur-fixing additives, KNO₃, NaCl, MnO₂, and sodium lignosulfonate were used. A certain amount of sulfur-fixing additives and steel slag was ground and mixed, and then according to a certain calcium–sulfur mole ratio, the Taiyuan coal was ground and mixed and put into a porcelain boat in a tube furnace and was rapidly heated to 1000 °C. The air compressor was started to pass a 2.5 L·min⁻¹ flow of air, and was pushed into the combustion boat with the mixed coal samples, heated for 20 min, then taken out of the combustion boat for cooling. The sulfur fixation experiments were completed and the sulfur fixation ash was obtained. The sulfur fixation process is shown in Figure 1.

2.2. Determination of Sulfur-Fixing Efficiency

The determination of sulfur in ash was performed using the GB/T215-2003 methodology to investigate sulfate sulfur concentration. The exact procedure for determining the mass of BaSO₄ was as follows: the ash was wetted and mixed with a certain concentration of concentrated hydrochloric acid and then boiled before being filtered to obtain the filtrate. The filtrate was transformed into barium sulfate precipitate, and was then filtered to obtain the filter paper with the precipitate. The filter paper was put in the muffle furnace to obtain the BaSO₄ precipitate; the mass of BaSO₄ was then weighed and calculated. The sulfur-fixing efficiency was calculated by dividing the mass of sulfur in the ash by the mass of sulfur in the matching coal sample, using the formula below:

$$\mathsf{\eta }=\frac{{\mathrm{m}}_1\times {\mathrm{w}}_1}{{\mathrm{m}}_0\times {\mathrm{w}}_{\mathrm{s}}}\times 100,$$

(1)

where, η is the sulfur fixation efficiency, %; m₁ is the mass of BaSO₄ precipitation measured, g; m₀ is the mass of raw coal, g; w₁ is the mass fraction of sulfur in BaSO₄, %; w_S is the sulfur content of raw coal, %.

2.3. Instruments for Experimentation and Analysis

A silent oil-free air compressor (TYW-1), a high temperature combustion tube furnace (SRJK-2-13), a muffle furnace (SX2), an electronic analytical balance (BSA124S), an industrial analyzer (MAC-400), and other items were made available.

X-ray fluorescence spectroscopy was used to determine the major elemental compositions of steel slag and tempered modified steel slag sulfur-fixing ash (XRF, PFX-235, Thermo, USA). X-ray diffraction (XRD, X’Pert Pro, PANalytical B.V., Holland) was used to study the primary crystalline phases found in steel slag and sulfur fixation ash. Scanning electron microscopy was used to examine the microscopic morphology of steel slag and sulfur-fixing ash (SEM, S-4800, Hitachi, Japan).

3. Results and Discussion

3.1. Determination of Calcium-Sulfur Mole Ratio

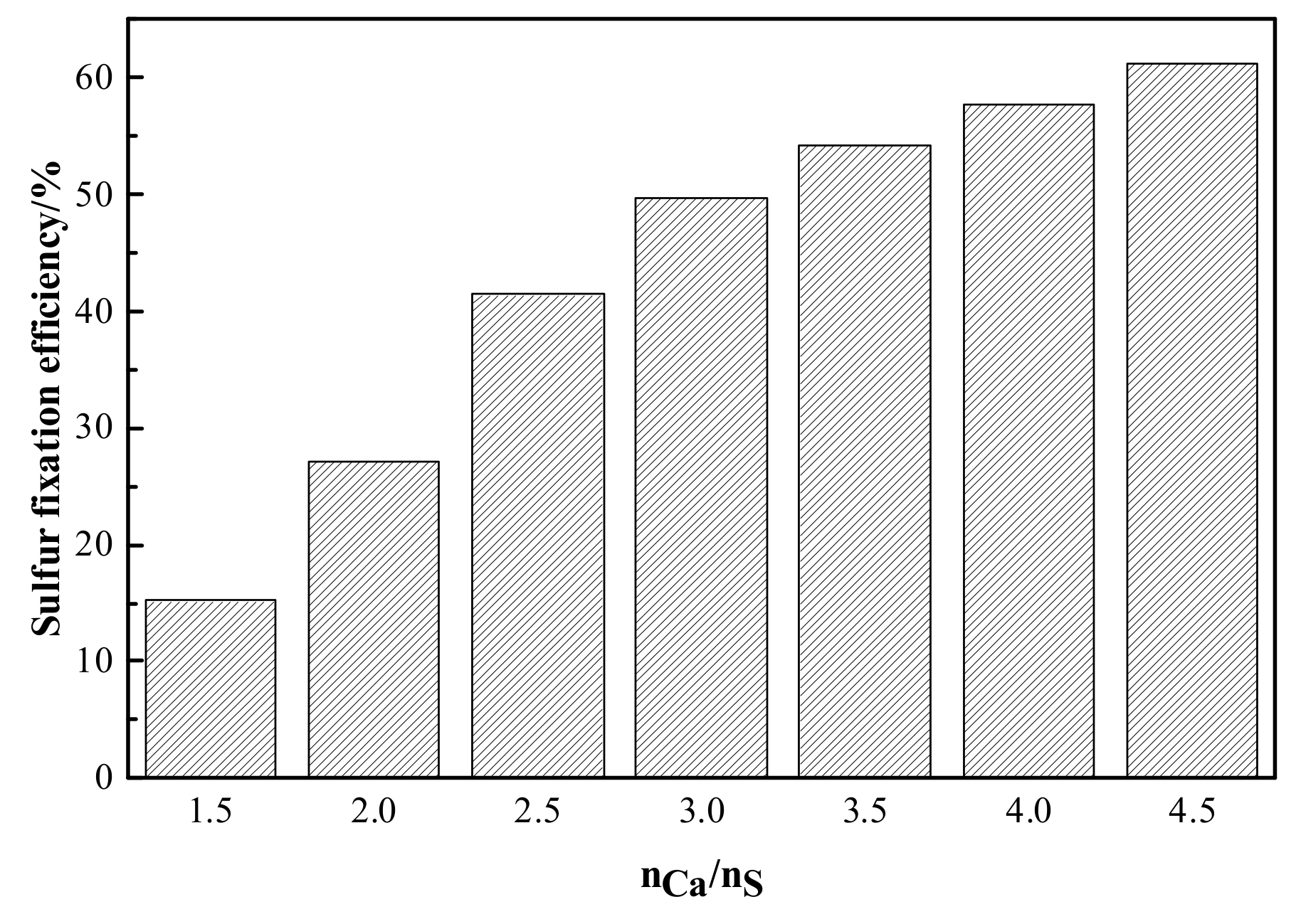

The impact of the calcium–sulfur mole ratio on the sulfur-fixing efficiency of steel slag is shown in Figure 2. Figure 2 shows that the sulfur fixation efficiency rises as the calcium–sulfur ratio grows, that the sulfur fixation efficiency of steel slag is the first to develop more quickly and then tends to level out, and that the calcium–sulfur mole ratio is 2.5 after the sulfur fixation efficiency increases and slows down. Sulfur fixation efficiency attained 28% at a calcium–sulfur mole ratio of 2, and the sulfur fixation efficiency attained 43% at a calcium–sulfur mole ratio of 2.5. At a calcium–sulfur mole ratio of 4.5 sulfur fixation efficiency attained 61%. Because the calcium content of steel slag is relatively low when compared to calcium carbide slag and limestone, adding more steel slag to the coal combustion process will produce a certain amount of ash and reduce the calcium utilization rate; thus, a calcium–sulfur ratio of 2.5 was chosen for this experiment.

3.2. Effect of Single-Factor Additive

The effect of additives on the sulfur fixation performance of steel slag was explored, and the sulfur fixation performance of alkali metal oxides and salts as additives was studied, and it was discovered that sodium lignosulfonate, NaCl, KNO₃, and MnO₂ made a good contribution to the improvement of the sulfur fixation efficiency of steel slag. Figure 2 depicts the impact of the four additions on the slag sulfur fixing efficiency.

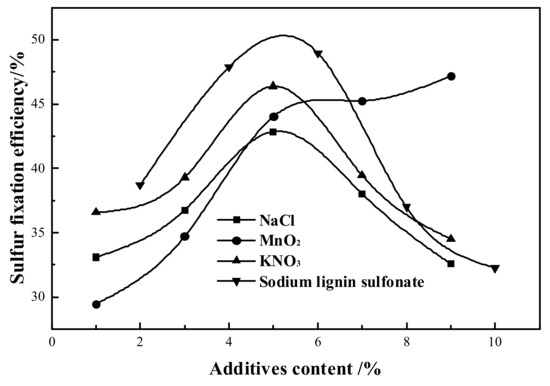

Figure 3 depicts the trend of numerous sulfur fixation additives on the sulfur fixation efficiency. The sulfur fixation of steel slag grows first and then drops as the concentration of KNO₃, NaCl, and sodium lignosulfonate increases, while the sulfur fixation efficiency of steel slag increases more quickly and then tends to level out when the content of MnO₂ increases. After high temperature melting, sodium ions in the sulfur-fixing agent surface made a eutectic formation, and the sulfur fixing agent surface ion migration and diffusion ability increased, so as to weaken and improve the sulfur-fixing agent’s high temperature sintering. This means that the sulfur-fixing agent surface lattice structure changes and the pore structure increases so that the sulfur-fixing products are not easily blocked by the pores. However, the decomposition temperature of KNO₃ after heating is lower than that of NaCl, which produces oxidation fuel and provides the reactive oxygen required for the sulfur fixation reaction, and the sulfur fixation reaction is carried out in an oxygen-rich atmosphere to further oxidize the intermediate products CaS, CaSO₃, etc. to sulfate. The K⁺ in it has the same effect as NaCl, and a certain amount of K⁺ also changes MnO₂, which decomposes into Mn₂O₃ and Mn₃O₄ during the sulfur fixation reaction [29]; this plays a catalytic function in the sulfur fixation reaction and creates a tiny quantity of Mn₃O₄. Sodium lignosulfonate is put with steel slag to make its particle surface negatively charged, which provides a repulsive attraction between particles, weakening aggregation and delaying sintering, reducing the loss of specific surface area and porosity and facilitating SO₂ absorption.

3.3. Optimization with Orthogonal Experiments

Steel slag was used as the sulfur-fixing agent, and sodium lignosulfonate, KNO₃, NaCl, and MnO₂ were used as four factors (

Table 3. Factors and levels of orthogonal experiments.

Level	w (Sls)/% (A)	w (NaCl)/% (B)	w (MnO2)/% (C)	w (KNO3)/% (D)
1	4	1	1	1
2	6	3	3	3
3	8	5	5	5
4	10	7	7	7

Note: Sls—Sodium lignin sulfonate.

), with four levels of each factor used to design orthogonal experiments with the sulfur fixation efficiency as the experimental index; the experimental protocol and results analysis are shown in

Table 4. Orthogonal experiments plan and experiment results analysis.

Experiment No.	A	B	C	D	Sulfur Fixation Efficiency/%
1	1	1	1	1	48.78
2	1	2	2	2	50.05
3	1	3	3	3	45.25
4	1	4	4	4	50.69
5	2	1	2	3	53.46
6	2	2	1	4	55.45
7	2	3	4	1	59.01
8	2	4	3	2	59.25
9	3	1	3	4	70.71
10	3	2	4	3	55.48
11	3	3	1	2	64.56
12	3	4	2	1	53.41
13	4	1	4	2	54.54
14	4	2	3	1	54.47
15	4	3	2	4	52.21
16	4	4	1	3	51.62
k1	48.692	56.872	55.103	53.917
k2	56.792	53.862	52.282	57.100
k3	61.040	55.258	57.420	51.453
k4	53.210	53.742	54.930	57.265
R	12.348	3.130	5.138	5.812
Sequence		A > D > C > B
Best scheme		A3B1C3D4

.

A greater value of the extreme difference R indicates a greater influence of the factor on the experimental results, and vice versa for smaller values. It can be seen from the analysis of the value of the extreme difference R that the order of the factors is A > D > C > B, indicating that the influence of each factor on the performance of the steel slag is A > D > C > B. The most important is sodium lignosulfonate, followed by sodium nitrate, manganese oxide, and sodium chloride, which is rather weak. The greater the average response value k for the same factor, the higher the corresponding level number. According to the order of the influencing factors and the k value, the optimal solution is A₃B₁C₃D₄, which is 8% sodium lignosulfonate, 1% NaCl, 5% MnO₂, and 7% KNO₃, and the maximum value of sulfur fixation efficiency from the table of experimental solutions is 70.71%.

Three parallel coal-fired sulfur fixation verification tests were conducted using the optimum scheme of the aforementioned additive ratios, yielding an average sulfur fixation efficiency of 70.81% (70.76%, 71.03%, and 70.64%) for the modified steel slag.

3.4. Characterization and Analysis

3.4.1. XRF

The composition of the ash was determined using X-ray fluorescence analysis (XRF) on raw coal ash (F₁), sulfur fixation ash of steel slag (F₂), and sulfur fixation ash of modified steel slag (F₃). F₁, F₂, and F₃ are the ashes produced under the same combustion circumstances, and the calcium–sulfur ratios of F₂ and F₃ prior to burning are the same.

Table 5. XRF analysis on coal ash.

Ash Sample	w (SiO2)/%	w (Al2O3)/%	w (Fe2O3)/%	w (CaO)/%	w (K2O)/%	w (TiO2)/%	w (SO3)/ %	w (MgO)/%	w (Na2O)/%	w (MnO)/%
F1	52.63	30.62	9.20	2.15	1.64	1.29	0.886	0.801	0.231	0.0418
F2	34.55	20.33	17.73	18.05	0.945	1.25	2.93	1.27	0.296	1.46
F3	30.82	17.63	17.31	18.95	2.46	1.21	4.83	1.47	1.41	3.75

Note: w—Mass fraction.

shows how the primary metal components in the sulfur-fixing ash altered with various sulfur-fixing agents and additives, as well as the sulfur concentration of F₁ F₂ F₃. Due to its own sulfur-fixing effect, F₁ contained a small amount of sulfur, and the increased sulfur content of F₂ indicated a stronger sulfur-fixing effect of the slag, and the sulfur content of F₃ was greater than that of F₂, indicating that the additives modified the slag with a stronger sulfur fixation effect.

The mineral composition of the ash is indicated in the form of oxides in the XRF detection analysis findings. The change in CaO concentration in coal ash is significant, and when paired with the SO₃ content analysis, more CaSO₄ of sulfur fixation products are found in F₂ and F₃. The greatest percentage of SiO₂ and Al₂O₃ is compatible with the findings of XRD analysis (Figure 4) with greater diffraction peaks in raw coal and the results of CaAl₂Si₂O₈ formed during the sulfur fixation process. In F₁, F₂, and F₃, K₂O and Na₂O as alkali metal oxides have some ionic diffusion influence on the surface crystalline structure of the sulfur fixing agent during the sulfur fixing process, weakening the sintering of the sulfur fixing agent.

3.4.2. XRD

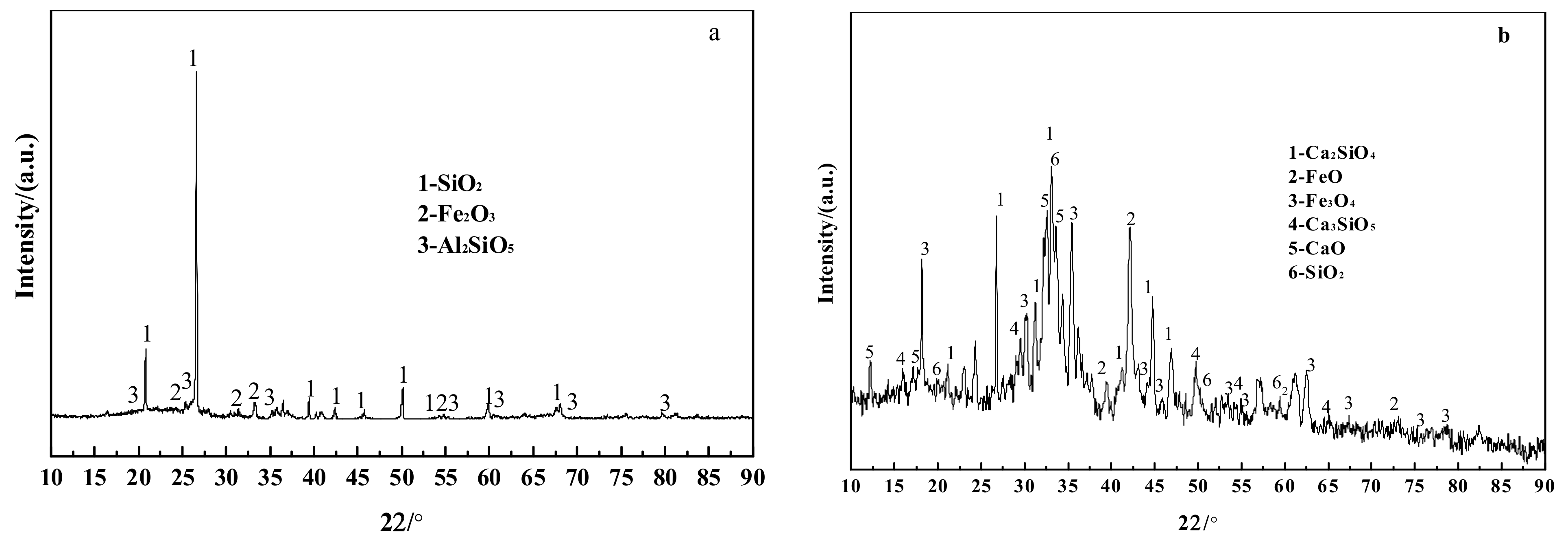

Figure 4 shows the results of the XRD investigation of F₁, F₂, F₃, and steel slag. F₁ contains more SiO₂, Al₂SiO₅, and Fe₂O₃, and the other alkaline oxides have less content without obvious characteristic peaks, as shown in Figure 4a. Combined with an XRF analysis, the ash is seen to contain a small amount of CaSO₄, which is the coal’s weak sulfur fixation property, but the products are less. There were no noticeable distinguishing peaks. The steel slag includes more Ca₂SiO₄, Ca₃SiO₅, and iron oxides, as shown in Figure 4b. In combination with the study of steel slag composition in Table 2, a higher amount of CaO in steel slag occurs in the form of Ca₂SiO₄ and Ca₃SiO₅, and only a tiny fraction exists as free CaO. The sulfur fixation reaction of steel slag differs from that of a conventional calcium-based sulfur-fixing agent, and Guo [30] concluded that the sulfur-fixing activity of calcium–silicon sulfur-fixing agent is higher than that of a conventional calcium-based sulfur-fixing agent, and that the sulfur-fixing reaction rate of calcium–silicon sulfur-fixing agent is lower than that of calcium carbonate in the chemical control phase and increases rapidly in the diffusion co-efficient phase.

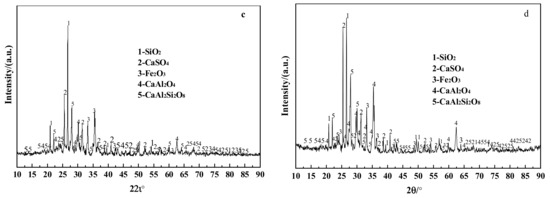

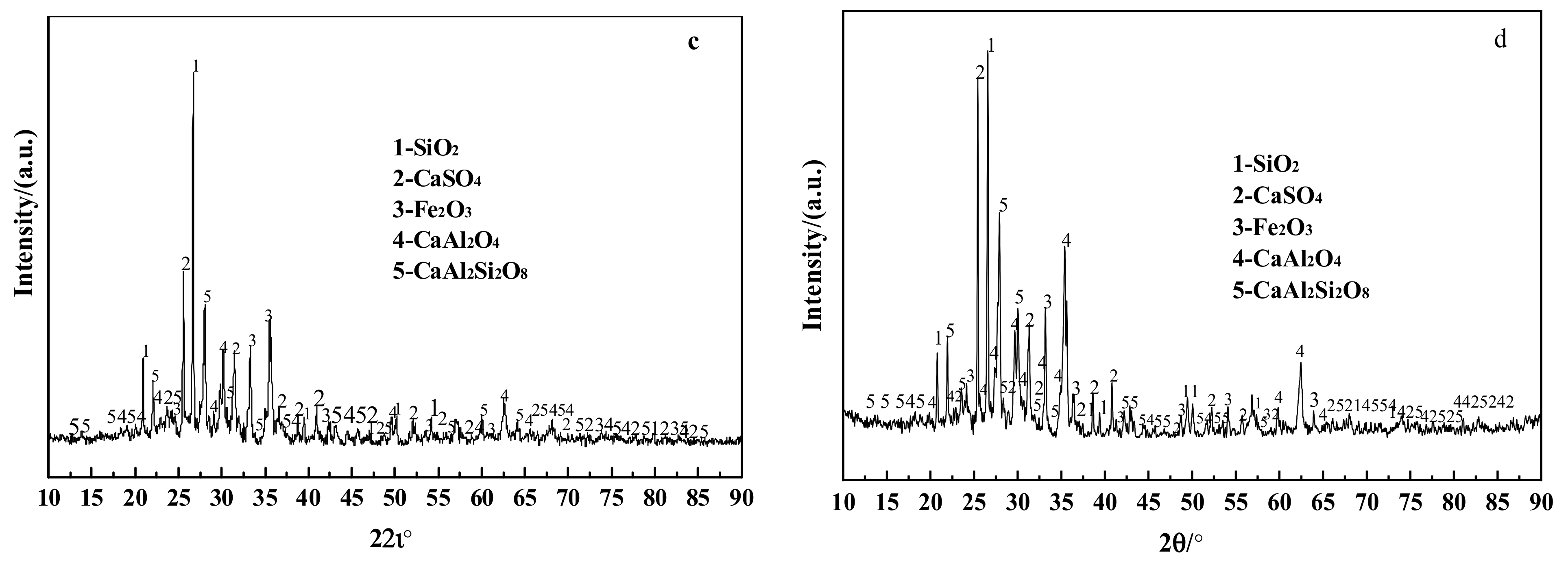

When comparing Figure 4c,d, the diffraction peaks of CaSO₄, a sulfur fixation product, are greatly increased in F₃, indicating that the auxiliary modified steel slag has better sulfur fixation ability. CaAl₂Si₂O₈ diffraction peaks are also greatly increased, and more CaAl₂Si₂O₈ phase may block sulfur fixation product breakdown and boost sulfur fixing rate. CaO in steel slag and coal ash may readily produce CaAl₂Si₂O₈ with Al₂SiO₅ and SiO₂ to avoid CaSO₄ breakdown on solid sulfur products at high temperatures. The considerable quantity of CaAl₂O₄ mixed with SiO₂ may readily generate high-temperature resistant silica-aluminate products to prevent sulfur-fixing compounds from decomposing. In the high-temperature molten system of sulfur-fixing ash and coal ash, Al₂SiO₅, CaAl₂O₄, CaAl₂Si₂O₈, CaSO₄, and CaO readily produce sulfoaluminate minerals (CaO·Al₂O₃·CaSO₄), which are high-temperature resistant phases. Spectra include more SiO₂ and Fe₂O₃, and Wu et al. [31]. pointed out that SiO₂ and Fe₂O₃ play a catalytic function in the sulfur fixation process, limiting the high-temperature breakdown of CaSO₄, a sulfur fixation product.

3.4.3. SEM

Figure 5 depicts SEM images of F₁, F₂, F₃, steel slag, calcined steel slag, and calcined modified steel slag, revealing their surface morphology and microstructure. In combination with XRD and XRF analysis, Figure 5a depicts the microscopic surface morphology of raw coal ash, which is primarily a mixture of silica and alkali metal oxides, and the coal forms a characteristic loose structure due to gas release and colloidal melting during pyrolysis and combustion. Figure 5b shows a steel slag powder with many dense particles of varied sizes created by various mineral phase crystals formed by the slag during the steelmaking process. In comparison, Figure 5b,c depicts the microscopic surface morphology of steel slag created by high-temperature calcination, and it can be observed that the alkali metal oxides are redistributed on the surface with a greater specific surface area. Figure 5d shows that, following calcination, the modified steel slag extends its specific surface area even more and has a sharp crystal structure connected to the micropores, which may facilitate the sulfur fixation process’ reaction.

Figure 4e compares the ash slag formed by the steel slag after sulfur fixation to Figure 4f—the difference is not obvious, but the ash forms a smoother ablative surface similar to the hot melt at a high temperature, indicating that the steel slag with additives can redistribute the hot melt on the surface of the sulfur-fixing agent during the sulfur fixation process, which can be considered a positive effect. Rather than producing a smooth surface, Figure 4d produces a high specific surface with a sharp, porous, rough structure to promote the sulfur fixation reaction, implying that the addition of additives produced a reaction interface to aid the sulfur fixation process. According to the combined analysis of Figure 4d–f, the addition of additives to the slag provides a good gas–solid reaction interface during the high-temperature sulfur fixation reaction, and the sulfur fixation process proceeds at the interface, forming a new high-temperature resistant phase to inhibit and prevent the decomposition of the sulfur fixation products.

3.5. Mechanism of Sulfur Fixation

The steel slag sulfur-fixing agent undergoes the following reactions during coal combustion.

$$\mathrm{Ca}+{\mathrm{SO}}_2\to {\mathrm{CaSO}}_3$$

(2)

$${\mathrm{CaSO}}_3+1/2{\mathrm{O}}_2\to {\mathrm{CaSO}}_4$$

(3)

$${\mathrm{Ca}}_2{\mathrm{SiO}}_4+2{\mathrm{SO}}_2+{\mathrm{O}}_2\to 2{\mathrm{CaSO}}_4+{\mathrm{SiO}}_2$$

(4)

$${\mathrm{Ca}}_3{\mathrm{SiO}}_5+3{\mathrm{SO}}_2+3/2{\mathrm{O}}_2\to 3{\mathrm{CaSO}}_4+{\mathrm{SiO}}_2$$

(5)

$$\mathrm{CaO}+{\mathrm{Al}}_2{\mathrm{O}}_3\to {\mathrm{CaAl}}_2{\mathrm{O}}_4$$

(6)

$$\mathrm{CaO}+{\mathrm{Al}}_2{\mathrm{O}}_3+2{\mathrm{SiO}}_2\to {\mathrm{CaAl}}_2{\mathrm{Si}}_2{\mathrm{O}}_8.$$

(7)

Steel slag is calcined at high temperatures during coal combustion to form a microscopic structure conducive to SO₂ adsorption, resulting in a certain porosity and specific surface area. The release rate and concentration of SO₂, and the high temperature decomposition of sulfur fixing products, among other factors, determine the sulfur-fixing efficiency. The composite additives promote ion migration and diffusion on the steel slag surface during high temperature calcination, weaken the pore structure of the slag surface sintering at high temperature, change the crystal structure of the slag surface so that SO₂ is easily adsorbed, and promote the generation of a variety of high-temperature resistant substances to coat the sulfur-fixing products and prevent high temperature decomposition. The catalytic impact of the composite additives, on the other hand, lowers the activation energy of the gas–solid interaction, making the sulfur fixation process easier to complete, and the oxidant component in the composite additives promotes complete combustion. The above analysis of the chemical reaction mechanism of sulfur fixation is a reasonable hypothesis.

4. Conclusions and Prospects

(1)

The additives have a catalytic effect on the sulfur-fixing reaction of steel slag, as well as forming a microscopic surface structure that promotes the gas–solid reaction and aids in the production of substances that inhibit the decomposition of sulfur-fixing products;

(2)

The sulfur fixation efficiency of composite additives modified steel slag is significantly increased, and the optimal amount of additives added at a 1000 °C high temperature is 8% sodium lignosulfonate, 1% NaCl, 5% MnO₂, 7% KNO₃, and the maximum sulfur fixation efficiency of modified steel slag can reach 70.81%;

(3)

The XRF, XRD, and SEM investigations revealed that the additive-modified steel slag had higher sulfur fixation performances than the unmodified steel slag and created a material phase that hindered sulfur fixation product breakdown at high temperatures. The surface of the modified steel slag developed morphological characteristics and a microstructure that favored gas–solid interaction;

(4)

Because the reaction activity of steel slag is low, future research should focus on finding efficient additives that can increase the sulfur fixation efficiency at low calcium–sulfur ratios. In addition, tempering steel slag and compounding steel slag with other alkali-based solid wastes should be investigated further to lower the cost of sulfur-fixing agents and increase the efficiency of sulfur fixation, allowing steel slag sulfur-fixing agents to be used in a wider range of applications.
