MOF-Based Materials for Glucose Detection

Abstract

Metal–organic frameworks (MOFs), constructed by coordination between metal-containing nodes and organic linkers, are widely used in various fields due to the advantages of tunable pores, diverse functional sites, stable structure, and multi-functionality. It should be noted that MOF-based materials play a major role in glucose detection, serving as a signal transducer or functional substrate for embedding nanoparticles/enzymes. Diabetes is one of the most common and fast-growing diseases worldwide, whose main clinical manifestation is high blood sugar levels. Therefore, accurate, sensitive, and point-of-care glucose detection is necessary. This review orderly introduces general synthetic strategies of MOF-based materials (pristine MOF, nanoparticles, or enzymes-modified MOF and MOF-derived materials) and detection methods (electrochemical and optical methods) for glucose detection. Then, the review refers to the novel MOF-based glucose detection devices (flexible wearable devices and microfluidic chips), which enable non-invasive continuous glucose monitoring or low-cost microscale detection. On the basis of describing the development of glucose sensors based on MOF materials in the past five years, the review presents merits, demerits, and possible improvements of various detection methods.

1. Introduction

Glucose is an indispensable small molecule for human life, which not only provides energy for the human body but also controls cell activities by regulating the intracellular glucose level. For example, one of the important methods to treat cancer is blocking intracellular glucose uptake, which can effectively inhibit the activity of cancer cells [1,2]. Meanwhile, glucose is also an important intermediate of metabolism. When the blood glucose level deviates from the normal range, serious damage to the human body may be caused, including tissue damage, stroke, renal, heart attack, etc. [3]. Moreover, diabetes, a common metabolic disease, is mainly characterized by high blood glucose levels. The blood glucose disorder also occurs in pancreatic exocrine (pancreatitis, cystic fibrosis, etc.) and endocrine diseases (Cushing syndrome, acromegaly, etc.) [4]. Nowadays, the self-monitoring of blood glucose levels is the most efficient way for the management of diabetes and other related disease [5]. Except for the above-mentioned applications, glucose detection is also applied in artificial taste sensors and quality control of food and drinks [6].

The glucose sensors on the market quantify the glucose by measuring the biochemical reaction products generated from glucose with the catalysis of enzymes, including glucose oxidase-peroxidase (GOD-POD), glucose dehydrogenase (GDH), and hexokinase (HK) [7]. The GOD-POD method is usually utilized in portable glucose meters (finger-prick blood testing) and self-monitoring blood glucose meters (interstitial fluid detection), which are based on the product (H₂O₂) and the electron transfer during the glucose oxidation reaction [8]. The HK method is highly accurate and precise but needs large and expensive equipment, which is commonly used in hospital and laboratory research. In the HK method, the phosphorylation product of glucose catalyzed by hexokinase can react with nicotinamide adenine dinucleotide phosphate (NADP⁺) under the cascade catalysis of glucose phosphate dehydrogenase (G6PDH) and generate a chemiluminescence signal [9]. Although these methods are widely reported and even commercialized, their sensitivity, stability, and non-invasion detection are still challenged. Consequently, an accurate, selective, stable, and non-invasive glucose detection method is highly demanded. With the advancements in material science, emerging functional materials with superior glucose detection performance have been increasingly reported.

Due to the tunable pores, diverse functional site, high specific surface area, and stable structure, metal–organic frameworks (MOFs), constructed by connecting metal-containing nodes with organic linkers through coordination bonds, have received extensive attention in various detections, especially in glucose detection (Figure 1) [10,11,12,13,14]. MOF-based materials in glucose sensors can be divided into three types, including pristine MOF, modified MOF, and MOF-derived material. Pristine MOF with inherent redox properties that catalyze the reaction of glucose is mostly utilized in non-enzymatic glucose detection. The desired detection properties can be obtained from appropriate ligands and metal ions, and it is also related to the degree of conjugation and coordination of MOF. The modification of MOF with nanoparticles and enzymes can also endow MOF-based materials with catalytic properties and improved detection ability. In addition, after the thermal or solvent treatment, the MOF-derived materials can achieve novel pore structure and detection properties. The detection mechanism of MOF-based glucose sensors can be divided into electrochemical and optical methods based on the types of output signals. The electrochemical detection is based on the redox reaction between glucose with MOF or the modified materials. The optical methods utilize the optical signal produced by the interaction with the glucose and the modified fluorescent probe, enzymes, or MOFs. The preparation strategy (pristine MOF, nanoparticles in/on MOF, enzymes in/on MOF, and MOF-derived materials) and detection mechanism (electrochemical and optical detection) of MOF-based sensors are also inseparable; therefore, this review will introduce MOF-based materials for glucose detection mainly from these two aspects: the preparation strategies and the detection methods.

2. Synthesis Strategy of MOF-Based Materials

2.1. Pristine MOF

The pristine MOF with a large specific surface area and structural diversity is commonly utilized in nonenzymatic electrochemical detection, which avoids restricting detection and storage requirements [26]. In electrochemical detection, the valence of metal ions in pristine MOF is changed, resulting in a redox reaction. The MOF-based electrodes not only have excellent electrocatalytic performance for glucose but also have remarkable selectivity and stability. The pristine MOF used in glucose detection can be divided into single metallic MOF, like Fe [26,27], Co [28], Cu [29,30], and Ni-MOF [31,32], and bimetallic or multivalent metallic MOF. Due to the different ligand coordination abilities, valence states, and ionic radii of the two metals, the substitution of the second metal to the host metal happens, and the crystal structure, morphology, and catalytic properties are changed. On the one hand, the addition of the second metal could improve the catalytic ability and bring other unique properties. On the other hand, the extensive substitution of the second metal may lead to crystal distortion and structural collapse. The synergism and competition between the two metals improve the bimetallic MOF electrodes and increase the number of structure defects, which endow the electrodes with more binding sites and stronger electrocatalytic performance [33]. Ma et al. synthesized a novel stylophora coral-like furan-based Ni/Co-MOF (Ni/Co-FAMOF) through the simple solvothermal method [34]. Ni/Co-FAMOF, combined with bimetal Ni/Co and furan dicarboxylic acid ligand, has a high specific capacitance, capacity retention rate, and good electrochemical glucose detection performance. The excellent performance of the Ni/Co-FAMOF electrode derived from (1) ligand with rigid furan ring skeleton, which has high molecular stacking properties; (2) bimetal-containing nodes, which combine the high electrocatalytic activity of Ni and oxygen adsorption ability of Co; and (3) unique stylophora coral-like morphology, which greatly increases the active sites on the surface.

2.1.1. Hydrothermal/Solvothermal Synthesis

Hydrothermal/solvothermal synthesis is one of the most commonly employed methods to synthesize pristine MOF for glucose detection. Hydrothermal/solvothermal synthesis typically reacts the metal salts and organic ligands in a closed system, such as a Teflon-lined steel autoclave, with water or organic solvent at a relatively high temperature (100–1000 °C) and pressure (1 MPa–1 GPa). The medium provides a favorable reaction environment to promote the generation of desired products, which inhibits the formation of undesirable products. Therefore, hydrothermal/solvothermal synthesis has the advantages of high purity of products, efficiency, simplicity, versatility, and large-scale preparation [35].

The mechanisms of crystal growth by hydrothermal/solvothermal growth are dissolve crystallization and in situ crystallization (Table 1). Dissolve crystallization: the dissolved precursor mixture reaches a subcritical or supercritical state under high temperature and pressure and converts to the final product for the different solubility between product and precursor [36]. Ramaprabhu et al. synthesized copper-terephthalate (CuBDC) MOF by solvothermal method with different time durations [37]. When the reaction time exceeded 6 h, Cu-BDC started agglomerating, and the morphology changed from flat, rod-shaped into a cuboidal solid block-shape with stacked layers, which completely changed after 48 h. The changes in the morphology greatly increased the specific surface area and active sites, which further improved the detection performance in glucose detection.

In situ crystallization: in the presence of precursors (such as graphene, carbon cloth, metal nanoparticles, etc.), MOF crystals are promoted to in situ grown at active sites formed by the dehydration of precursors [38]. As shown in Figure 2A, Yang et al. used the in situ growth method to prepare NiCo-BTC nanosheets on the surface of the precursor carbon cloth (CC) with oxygen-containing functional groups [39]. The application of CC not only improved the distribution of NiCo-BTC and avoided aggregation but also increased the active site to oxidize glucose. The electrochemical performance for glucose detection was further improved, attributing to the positive synergistic effect of bimetal. Wang et al. successfully in situ grew bimetallic CuCo-MOF on nickel foam (NF) through a facile one-pot hydrothermal treatment [40]. With the positive synergistic effect of Co and Cu, CuCo-MOF obtained enhanced sensitivity of electrodes from Co and broadened linear range from Cu. The microflower-like morphological structure further improved electrochemical glucose detection properties.

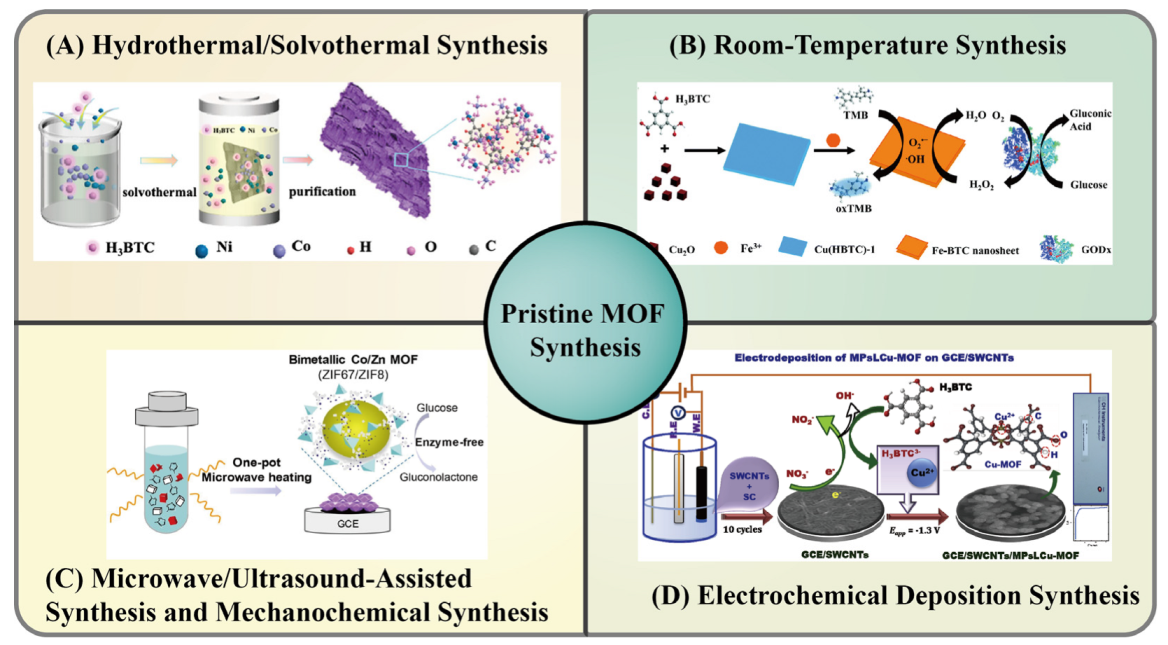

Figure 2. Synthesis methods of the pristine MOF. (A) Solvothermal synthesis of NiCo-BTC/CC (reproduced with permission from [39], copyright © 2022, American Chemical Society). (B) Room-temperature synthesis of 2D Fe-BTC (reproduced with permission from [41], copyright © 2013, Royal Society of Chemistry). (C) Microwave-assisted synthesis of ZIF-67/8 (reproduced with permission from [16], copyright © 2022, Elsevier). (D) Electrochemical deposition synthesis of Cu-BTC on SWCNTs/GCE (reproduced with permission from [42], copyright © 2020, Elsevier).

Figure 2. Synthesis methods of the pristine MOF. (A) Solvothermal synthesis of NiCo-BTC/CC (reproduced with permission from [39], copyright © 2022, American Chemical Society). (B) Room-temperature synthesis of 2D Fe-BTC (reproduced with permission from [41], copyright © 2013, Royal Society of Chemistry). (C) Microwave-assisted synthesis of ZIF-67/8 (reproduced with permission from [16], copyright © 2022, Elsevier). (D) Electrochemical deposition synthesis of Cu-BTC on SWCNTs/GCE (reproduced with permission from [42], copyright © 2020, Elsevier).

Table 1. MOF synthesized by hydrothermal/solvothermal synthesis for glucose detection.

Sample	Solvent	Method	Morphology	Ref
Ni/Co-FAMOF	H2O	Dissolve crystallization	Stylophora coral-like	[34]
Co-MOF	ChCl	Dissolve crystallization	Nanoparticles	[43]
Co-BTC	DMF, Ethanol	Dissolve crystallization	Cuboid	[44]
NiCu-MOF	DMF	Dissolve crystallization	Nanosheets	[45]
NiCo-BTC/CC	Ethanol	In situ crystallization	Nanosheets	[39]
Co/Cu-MOF/NF	H2O	In situ crystallization	Microflowers	[40]
Ni/Co(HHTP)MOF/CC	H2O	In situ crystallization	Thick rods	[46]
CuCo-MOF/CFP	DMF	In situ crystallization	Book-like	[47]

BTC: benzene-1,3,5-tricarboxylate. DMF: N, N-Dimethylformamide. HHTP: triphenylene-2,3,6,7,10,11-hexaol. CFP: carbon fiber paper.

Table 1. MOF synthesized by hydrothermal/solvothermal synthesis for glucose detection.

Sample	Solvent	Method	Morphology	Ref
Ni/Co-FAMOF	H2O	Dissolve crystallization	Stylophora coral-like	[34]
Co-MOF	ChCl	Dissolve crystallization	Nanoparticles	[43]
Co-BTC	DMF, Ethanol	Dissolve crystallization	Cuboid	[44]
NiCu-MOF	DMF	Dissolve crystallization	Nanosheets	[45]
NiCo-BTC/CC	Ethanol	In situ crystallization	Nanosheets	[39]
Co/Cu-MOF/NF	H2O	In situ crystallization	Microflowers	[40]
Ni/Co(HHTP)MOF/CC	H2O	In situ crystallization	Thick rods	[46]
CuCo-MOF/CFP	DMF	In situ crystallization	Book-like	[47]

BTC: benzene-1,3,5-tricarboxylate. DMF: N, N-Dimethylformamide. HHTP: triphenylene-2,3,6,7,10,11-hexaol. CFP: carbon fiber paper.

In addition to solvothermal/hydrothermal synthesis, ionothermal synthesis was also applied to synthesize MOFs for glucose detection. Compared with solvothermal/hydrothermal synthesis, which uses water or an organic solution as a solvent, ionothermal synthesis uses ionic liquids as reactants, which could also act as structure-guiding agents and charge-balancing agents. The ionic liquids, which have unique ionic composition, low freezing point, strong solubility, and good electrical conductivity, incubate the ionothermal synthesis with high safety and green environmental protection. Jiao et al. utilized the deep eutectic solvent choline chloride (ChCl) as a solvent to synthesize Co-MOF, [Ch]₂[Co₃(BDC)₃Cl₂] [43]. The detection performance of the synthesized [Ch]₂[Co₃(BDC)₃Cl₂] electrode towards glucose is excellent, with a rapid response.

2.1.2. Room-Temperature Synthesis

The room-temperature synthesis strategy, which reacts under room temperature and mild conditions, is simple and facile. Moreover, room-temperature synthesis is suitable for industrial large-scale production to eliminate unstable factors, including the heating and pressurization process [48]. Wang et al. prepared an electrode with Co-MOF on CC, which was fabricated by the room-temperature liquid-phase deposition strategy [49]. The room-temperature liquid-phase deposition strategy avoided post-coating procedures with polymeric binders that inevitably reduced the active surface area and the rate of charge transfer. Furthermore, the ultrathin two-dimensional (2D) Co-MOF nanosheets with well-aligned open-shelled MOF nanoarrays on CC promoted the penetration of electrolytes and the diffusion of small molecules and improved the oxidation efficiency of glucose, which endowed the electrode with excellent catalytic performance. As shown in Figure 2B, Huang et al. synthesized Cu(HBTC) using the room-temperature synthesis strategy, and Fe³⁺ ions were added to replace the Cu²⁺, obtaining Fe-BTC with peroxidase activity. The 2D nanosheets of Fe-BTC offered higher diffusion efficiency and more active sites than three-dimensional (3D) bulk crystals, which improved the glucose detection performance [41]. Additionally, NiCo-MOF [50,51], Cu-MOF [52,53,54], ZIF-67 [55], and other MOFs were also synthesized using the room-temperature synthesis strategy to detect glucose.

2.1.3. Microwave/Ultrasound-Assisted Synthesis and Mechanochemical Synthesis

With the assistance of high-energy ultrasonic and electromagnetic waves to increase the reaction energy, respectively, microwave/ultrasound-assisted synthesis has the advantages of high efficiency, rapid reaction, uniform particle morphology, and high phase purity. In microwave-assisted synthesis, the interaction between the electromagnetic field of the microwave and electrons, the precursors which receive the energy from the microwave, are heated uniformly and rapidly to accelerate nucleation and crystal growth [56]. The ultrasound-assisted synthesis is based on the effect of the acoustic cavitation; the bubbles are continuously generated, grown, and collapsed in a hot spot, where the temperature reaches 5000 ℃, the pressure is 1000 atm, and the heating/cooling rate is above 1010 K/s, inducing local heating and pressurization. The high temperature and pressure promote the growth of the surrounding crystal nucleus [57]. Compared with traditional hydrothermal/solvothermal synthesis, microwave/ultrasound-assisted synthesis greatly reduces the reaction time, even just in a few minutes. As shown in Figure 2C, Ni et al. used a one-pot, rapid microwave-assisted method to synthesize bimetallic ZIF-67/8 that only needs 20 min [16]. The same method was also used to synthesize Ni-MOF by Sargazi et al. [58]. The synthesized Ni-MOF electrode with a high surface area of 1381 m²/g had high sensitivity and accuracy in glucose detection.

Except for microwave/ultrasound-assisted synthesis, mechanochemical synthesis is also used to synthesize MOF-based materials in glucose detection. After applying appropriate mechanical force, the fluidity at the molecular level of the reactants is increased, which results in the breaking of intramolecular bonds and accelerating the chemical reaction [59]. Moreover, mechanochemical synthesis requires no external heat, which is simple, green, and rapid. Lee et al. introduced an innovative rapid agitation-induced synthesis route to synthesize Ni-MOF at 10,000 rpm, which only needs 5 min [60]. The synthesized 2D ultrathin Ni-MOF nanosheet has a good electrocatalytic activity for glucose detection.

2.1.4. Electrochemical Deposition Synthesis

The electrochemical deposition method, which deposits MOF directly on the conductive substrates, effectively eliminates the decrease of charge transfer efficiency caused by the use of adhesives, such as Nafion. This strategy has the advantages of mild reaction and easy treatment, which also can effectively eliminate the influence of countering ions [61,62]. Meanwhile, changing the electrolyte and current density can effectively control the shape, size, and distribution of MOF. As shown in Figure 2D, Tominaga et al. electrodeposited three-dimensional (3D) nucleated microparticles like Cu-BTC directly on glassy carbon electrode (GCE) with single-walled carbon nanotubes (SWNTs) [42]. Hosseini et al. formed a crystalline rectangular bar-shape Co-BTC on rGO/GCE by depositing nano-flake Co(OH)₂ intermediates on rGO/GCE and rapidly conversing Co(OH)₂ to Co-BTC [63]. Compared with the one-step electrochemical deposition method, the multi-step electrochemical deposition method, intermediate deposition, and conversion can more effectively control the growth and distribution of MOF and improve the adhesion of MOF to the electrode.

2.2. Nanoparticles-Modified MOF

Compared with pristine MOF, MOF modified with other materials, including nanoparticles (NPs) and enzymes, can achieve diverse functions and properties for glucose detection (Table 2). Most pristine MOF was applied in electrochemical detection, and the choice of metal in MOF is limited to redox metals, such as Fe, Co, Cu, and Ni. Excitingly, the modified MOF broadened the choice of metals, ligands, and detection methods [64]. Because of the pore osmotic adsorption of porous MOF materials and the interaction between functional groups on MOF and NPs (van der Waals force, hydrogen bonding, electrostatic adsorption, etc.), nanoparticles can be stably and uniformly dispersed in the pores of MOF and prevent the aggregation [65]. Hereafter, the synthesis of two types of NP/MOF composites for glucose detection was reviewed (Figure 3).

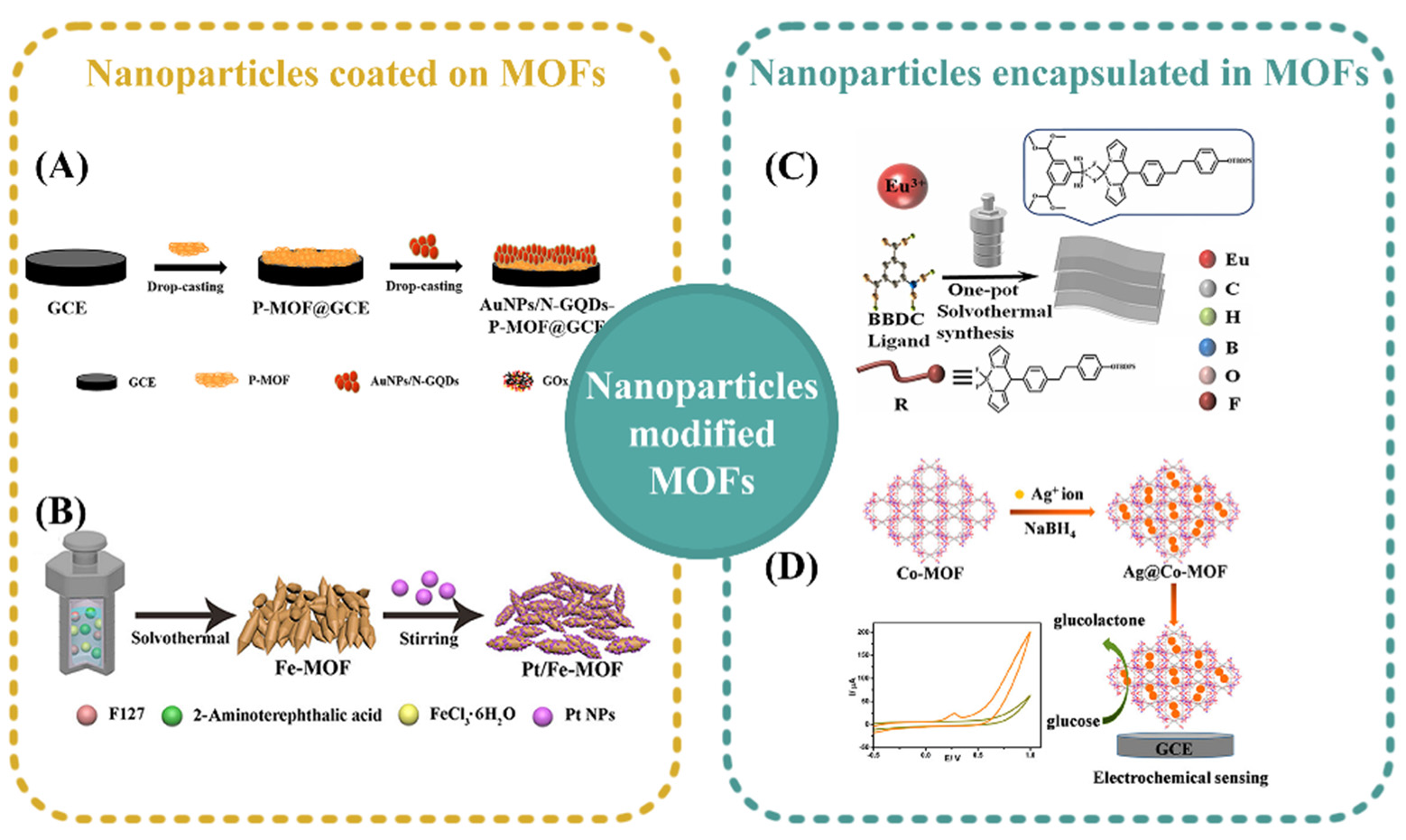

Figure 3. The synthesis of NPs-modified MOFs. NPs coated on MOFs: (A) AuNPs/N-GQDs coated on P-MOF as a substrate (reproduced with permission from [66], copyright © 2022, Elsevier); (B) PtNPs coated on Fe-MOF as a catalyst (reproduced with permission from [18], copyright © 2021, Springer Nature). NPs encapsulated in MOFs: (C) BODIPY encapsulated in Eu-MOF by one-pot synthesis (reproduced with permission from [67], copyright © 2022, Elsevier); (D) AgNPs encapsulated in Co-MOF by in situ growth (reproduced with permission from [68], copyright © 2019, American Chemical Society).

Figure 3. The synthesis of NPs-modified MOFs. NPs coated on MOFs: (A) AuNPs/N-GQDs coated on P-MOF as a substrate (reproduced with permission from [66], copyright © 2022, Elsevier); (B) PtNPs coated on Fe-MOF as a catalyst (reproduced with permission from [18], copyright © 2021, Springer Nature). NPs encapsulated in MOFs: (C) BODIPY encapsulated in Eu-MOF by one-pot synthesis (reproduced with permission from [67], copyright © 2022, Elsevier); (D) AgNPs encapsulated in Co-MOF by in situ growth (reproduced with permission from [68], copyright © 2019, American Chemical Society).

2.2.1. NPs Coated on MOFs

NPs, including noble metal nanoparticles, metal oxides, quantum dots, etc., were usually used to modify MOFs to improve detection performance [69]. According to the role played by MOFs, NPs-coated MOFs can be divided into two categories: (1) MOFs were applied as substrates to immobilize NPs with catalytic properties. (2) MOFs were used as catalytic materials, and the coated nanoparticles interacted with MOFs to improve the catalytic performance.

MOFs as Substrates

The NPs can be absorbed in the pores or on the surface of MOFs, which prevents the aggregation and reduction of the catalyst activity. Meanwhile, MOFs also can promote contact between the active site and the substrate, which is very suitable to be used as the substrate of NPs. As shown in Figure 3A, Wu et al. used the PEI functionalized MOF as the substrate to physically absorb AuNPs/N-GQDs on the surface [66]. PEI-functionalized Fe-MOF provides a large specific surface area for AuNPs/N-GQDs and facilitates the contact between uniformly dispersed active sites and the electrode surface. The enzyme-linked reaction of AuNPs/N-GQDs with peroxidase mimics (AuNPs) and nitrogen-doped graphene quantum dots (N-GQDs) realized the glucose detection.

MOFs as Catalyst

Besides simply being a substrate, MOFs also possess diverse properties, especially catalytic activities, including peroxidase activity, electrocatalytic activity, etc. Thus, MOFs can also be used in glucose detection and the detection performance as catalysts to further improve the detection performance. Lu et al. utilized the coordination between PtNPs and Fe-MOF to stabilize PtNPs on the surface of Fe-MOF (Figure 3B) [18]. The electrons on PtNPs can induct to transfer to Fe, which accelerates the redox cycle of Fe³⁺/Fe^2+, which significantly improves the efficiency of the peroxidase reaction of Fe-MOF. There are many NPs on MOFs synthesized by similar methods, such as N-Co-MOF@PDA-AgNPs [70], α-CD-rGO/Ni-MOF [71], RhB-CDs@MOF-808 [72], etc.

2.2.2. Nanoparticles Encapsulated in MOFs

Except for coating NPs on the surface of MOFs, encapsulating NPs in MOFs also can be used for glucose detection, including in situ encapsulation and in situ growth [65].

As for the in situ encapsulation method, the NPs are encapsulated in MOFs by adding the pre-synthesized NPs into the mother solutions of MOF, and the MOF crystalizes around the NPs, which act as crystal nuclei [64]. For instance, Bagheri et al. synthesized CeO₂@NH₂-MIL-88B by a room-temperature one-pot strategy to form a colorimetric detection system for glucose detection [25]. The CeO₂ enhanced the peroxidase activity of NH₂-MIL-88B, exhibiting faster response speed and stronger colorimetric signal compared to horseradish peroxidase (HRP).

The in situ growth method requires two or more steps for preparation. First, the precursors of NPs, such as metal salts and polymer monomers, are encapsulated or immersed into the pores of MOF. Next, NPs are formed in situ by polymerization or redox reaction [69], generating relatively small NPs with homogeneous distribution and improved stability. Lu et al. in situ polymerized polypyrrole (PPy) in Co-Ni(Fe)-MOF nanosheets to fabricate the Co-Ni(Fe)-MOF/PPy electrode [73]. The Fe³⁺ catalyzed the in situ polymerization of PPy, avoiding the addition of additional oxidants and improving the conductivity and electrocatalytic performance of composite electrodes. Wang et al. used the in situ growth method to embed highly conductive and biocompatible AgNPs into Co-MOF (Figure 3D) [68]. The encapsulation of AgNPs enhanced the conductivity and electrocatalytic activity of the Ag@Co-MOF electrode.

Table 2. MOFs modified with NPs for glucose detection.

Sample	NPs	Function	Method	Ref
P-MOF	AuNPs/N-GODs	Substrate	Physical adsorption	[66]
UiO-66-NH2	PPG@Ru	Substrate	EDC/NHS	[72]
Fe-MOF	PtNPs	Improve performance	Coordinate bonds	[18]
N-Co-MOF@PDA	AgNPs	Improve performance	Surface growth	[70]
Ni-MOF	αCD-rGO	Improve performance	Surface electrodeposition	[71]
Eu-MOF	BODIPY	Improve performance	In situ encapsulation	[67]
NH2-MIL-88B	CeO2	Improve performance	In situ encapsulation	[25]
ZIF-67	Ag@TiO2	Improve performance	In situ encapsulation	[74]
CoNi(Fe)-MOF	PPy	Improve performance	In situ polymerization	[73]
ZIF-67	AgNPs	Improve performance	In situ generation	[17]
Cu-TCPP(Fe).	AuNPs	Improve performance	In situ generation	[75]
Co-MOF	CuNPs	Improve performance	In situ generation	[76]

PPG: poly (N-phenylglycine). EDC/NHS: cross-linker. PDA: polydopamine. αCD-rGO: α-cyclodextrin functionalized reduced graphene oxide. BODIPY: boron-dipyrromethene. TCPP: Fe(III) tetra(4-carboxyphenyl)porphyrin.

Table 2. MOFs modified with NPs for glucose detection.

Sample	NPs	Function	Method	Ref
P-MOF	AuNPs/N-GODs	Substrate	Physical adsorption	[66]
UiO-66-NH2	PPG@Ru	Substrate	EDC/NHS	[72]
Fe-MOF	PtNPs	Improve performance	Coordinate bonds	[18]
N-Co-MOF@PDA	AgNPs	Improve performance	Surface growth	[70]
Ni-MOF	αCD-rGO	Improve performance	Surface electrodeposition	[71]
Eu-MOF	BODIPY	Improve performance	In situ encapsulation	[67]
NH2-MIL-88B	CeO2	Improve performance	In situ encapsulation	[25]
ZIF-67	Ag@TiO2	Improve performance	In situ encapsulation	[74]
CoNi(Fe)-MOF	PPy	Improve performance	In situ polymerization	[73]
ZIF-67	AgNPs	Improve performance	In situ generation	[17]
Cu-TCPP(Fe).	AuNPs	Improve performance	In situ generation	[75]
Co-MOF	CuNPs	Improve performance	In situ generation	[76]

PPG: poly (N-phenylglycine). EDC/NHS: cross-linker. PDA: polydopamine. αCD-rGO: α-cyclodextrin functionalized reduced graphene oxide. BODIPY: boron-dipyrromethene. TCPP: Fe(III) tetra(4-carboxyphenyl)porphyrin.

2.3. Enzymes-Modified MOFs

Compared with nanozymes, nature enzymes have the advantages of high catalytic efficiency and selectivity. However, natural enzymes are easily denaturalized by high temperatures, acid or alkali environments, and organic solvents, which limits their practical application. As shown in Figure 4, MOFs with a high specific surface area and stability are ideal substrates for the immobilization of enzymes, and they can not only protect the structure of enzymes from adverse conditions but also improve the selectivity of enzymes to the substrate through pore confinement [77,78]. The Immobilization methods of enzymes on MOFs are summarized in Table 3. Moreover, the fluorescence, magnetism, catalysis, and selective adsorption properties of MOFs can be combined with enzymes to achieve abundant expansive functions.

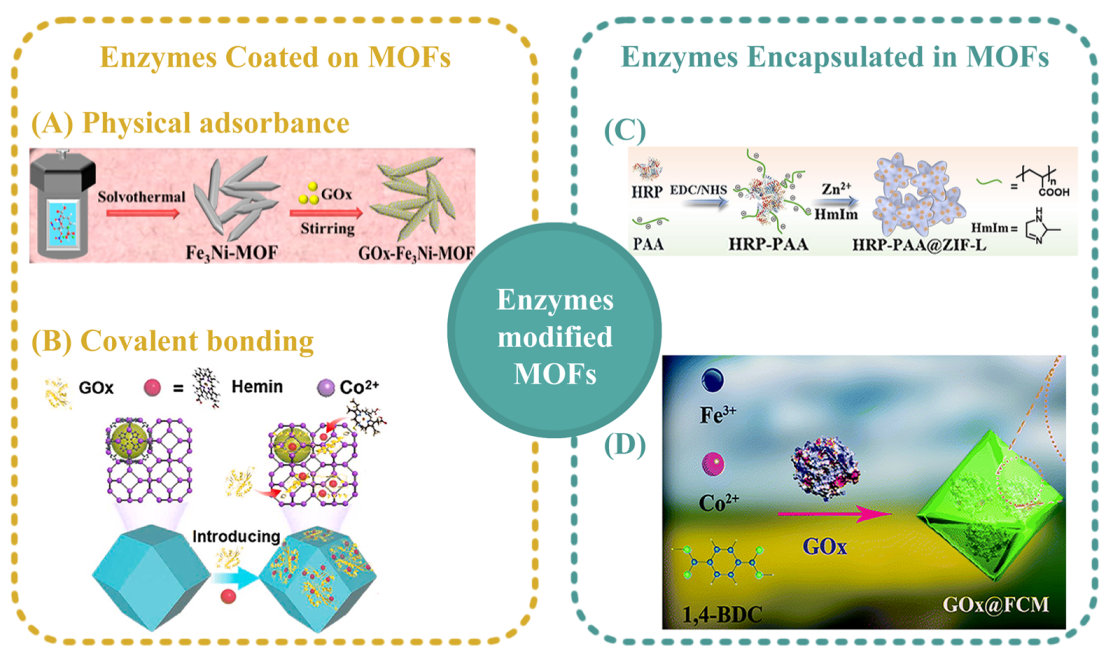

Figure 4. The synthesis of enzymes-modified MOFs. Enzymes coated on MOFs: (A) GOx-Fe₃Ni-MOF by physical adsorption (reproduced with permission from [79], copyright © 2022, American Chemical Society); (B) GOx&Hemin-ZIF-67 by the coordination between the Co²⁺ and the carbonyl group of the proteins (reproduced with permission from [24], copyright © 2022, Elsevier). Enzymes encapsulated in MOFs: (C) HRP-PAA@ZIF-L (reproduced with permission from [80], copyright © 2022, Elsevier); (D) GOx@FCM (reproduced with permission from [81], copyright © 2012, Royal Society of Chemistry).

Figure 4. The synthesis of enzymes-modified MOFs. Enzymes coated on MOFs: (A) GOx-Fe₃Ni-MOF by physical adsorption (reproduced with permission from [79], copyright © 2022, American Chemical Society); (B) GOx&Hemin-ZIF-67 by the coordination between the Co²⁺ and the carbonyl group of the proteins (reproduced with permission from [24], copyright © 2022, Elsevier). Enzymes encapsulated in MOFs: (C) HRP-PAA@ZIF-L (reproduced with permission from [80], copyright © 2022, Elsevier); (D) GOx@FCM (reproduced with permission from [81], copyright © 2012, Royal Society of Chemistry).

2.3.1. Enzymes Coated on MOFs

Similar to the modification of NPs on the surface of MOFs, enzymes can also be modified on MOFs by physical adsorption and covalent bonding [82]. Wang et al. prepared bimetallic Fe₃Ni-MOFs by solvothermal synthesis, and glucose oxidase (GOx) was coated on the surface of MOF by simple physical adsorption (Figure 4A) [79]. Fe₃Ni-MOF can not only protect GOx and improve its stability but also has excellent peroxidase activity, benefiting from the bimetal sites. Zhang et al. also coated hierarchically porous HPPCN-222(Fe) with GOx by physical adsorption [83].

In addition, MOF with abundant functional groups on the surface and pores can also bond with biomolecules through covalent bonding and hydrogen bonding. Kim et al. made use of the pore adsorption of Co-MOF and hydrogen bonding, which formed between the carboxyl functional groups of the enzyme and the imine group of the ligand, 2-methylimidazole (2-MIM), to load GOx on Co-MOF successfully [84].

2.3.2. Enzymes Encapsulated in MOFs

In situ encapsulation, by which the enzyme encapsulation and MOF crystallization occur at the same time, requires mild synthesis conditions to maintain the activity of the enzymes [85]. Meanwhile, the selection of MOFs with hydrophilic skeletons and the creation of a suitable enzymatic microenvironment are more beneficial to improve the activity and loading efficiency of the enzyme during in situ encapsulation. Yang et al. enhanced the hydrophilicity of the enzyme microenvironment in ZIF-L by grafting short-chain polyacrylic acid (PAA) onto GOx (Figure 4C) [80]. PAA not only promoted the diffusion of substances by forming mesopores in ZIF-L through competitive coordination but also reduced the influence of interfacial interaction on enzyme conformation.

MOFs with peroxidase activity can also be utilized to construct enzyme-linked reaction systems with GOx, which can reduce the types of encapsulated enzymes and simplify the synthesis. Yu et al. in situ encapsulated GOx in FeCo-MOF with peroxidase activity. The layered structure of MOF, treated with tannic acid, not only protected GOx but also reduced its hindrance to material diffusion (Figure 4D) [81].

Table 3. MOFs modified with enzymes for glucose detection.

Sample	Enzymes	Function	Method	Ref
Fe3Ni-MOF	GOx	Protection, Nanozyme	Physical adsorption	[79]
HPPCN-222	GOx	Protection, Nanozyme	Physical adsorption	[83]
ZIF-8	GOx, BHb	Protection	MIP	[86]
UiO-66-NH2	GOx	Protection	Glutaraldehyde fixation	[72]
NiCu-MOF	GOx	Protection, Nanozyme	Glutaraldehyde fixation	[87]
Co-MOF	GOx	Protection, Nanozyme	Hydrogen bond	[84]
HP-MIL-88B-BA	GOx	Protection, Nanozyme	Specific identification	[88]
Fe-MOF	GOx	Protection, Nanozyme	EDC/NHS	[89]
Co-TCPP(Fe)	GOx	Protection, Nanozyme	EDC/NHS	[90]
dZIF-8	GOx, HRP	Protection	In situ encapsulation	[91]
ZIF-L	PAA-GOx	Protection	In situ encapsulation	[80]
Fe/Co-MOF	GOx	Protection, Nanozyme	In situ encapsulation	[81]
ZIF-67	GOx, HRP	Protection, Nanozyme	In situ encapsulation	[19]

BHb: bovine hemoglobin. MIP: molecular imprinting polymers. HP: hierarchically porous. BA: boronic acid.

Table 3. MOFs modified with enzymes for glucose detection.

Sample	Enzymes	Function	Method	Ref
Fe3Ni-MOF	GOx	Protection, Nanozyme	Physical adsorption	[79]
HPPCN-222	GOx	Protection, Nanozyme	Physical adsorption	[83]
ZIF-8	GOx, BHb	Protection	MIP	[86]
UiO-66-NH2	GOx	Protection	Glutaraldehyde fixation	[72]
NiCu-MOF	GOx	Protection, Nanozyme	Glutaraldehyde fixation	[87]
Co-MOF	GOx	Protection, Nanozyme	Hydrogen bond	[84]
HP-MIL-88B-BA	GOx	Protection, Nanozyme	Specific identification	[88]
Fe-MOF	GOx	Protection, Nanozyme	EDC/NHS	[89]
Co-TCPP(Fe)	GOx	Protection, Nanozyme	EDC/NHS	[90]
dZIF-8	GOx, HRP	Protection	In situ encapsulation	[91]
ZIF-L	PAA-GOx	Protection	In situ encapsulation	[80]
Fe/Co-MOF	GOx	Protection, Nanozyme	In situ encapsulation	[81]
ZIF-67	GOx, HRP	Protection, Nanozyme	In situ encapsulation	[19]

BHb: bovine hemoglobin. MIP: molecular imprinting polymers. HP: hierarchically porous. BA: boronic acid.

2.4. MOF-Derived Materials

In order to increase the catalytic rate of the catalyst, MOF-derived materials with large pore structures are synthesized. MOF-derived materials with different functions can be obtained through different treatments (thermal treatment, solvent treatment, etc.), such as metal and metal ox-ide/hydroxide (pyrolysis), metal sulfide (sulfurization) and metal oxide/carbon composites (carbonization), and so on. The recent related studies were listed out in the Table 4. Due to their outstanding catalytic properties, metal and metallic oxide are widely utilized in glucose detection [92,93]. Nowadays, the traditional synthesis method, including hydrothermal synthesis and electrodeposition, are very sophisticated, but the properties of the synthesized materials still remain to be improved [94]. The metallic materials derived from MOFs can not only retain the morphological and structural characteristics of MOFs precursors but also have the advantages of large specific surface area, abundant active sites, and high porosity [95]. Moreover, MOF-derived materials can obtain additional properties from doped non-metallic elements and effectively avoid the aggregation of particles [96]. In addition, MOF-derived materials have higher stability and response ability than the original neat MOFs by creating atomically active sites, exposing more oxygen vacancy, and increasing the mobility of molecules at the solid/liquid interface, resulting in enhanced glucose detection performance.

2.4.1. Thermal Treatment

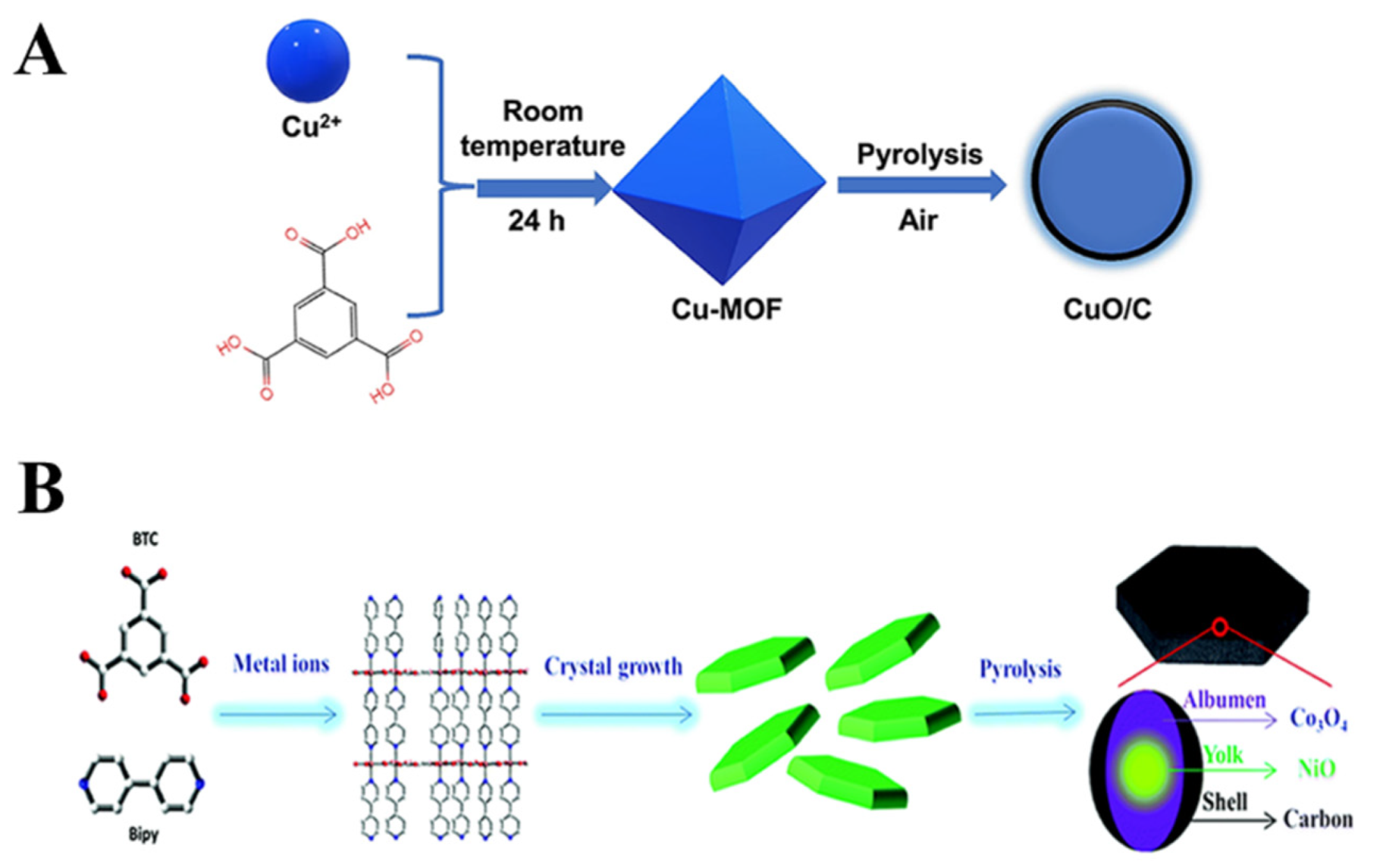

MOFs contain both inorganic metal-containing nodes and organic ligands; therefore, they possess not only metallic elements but also various non-metallic elements, such as C, H, N, O, P, S, etc. In order to obtain the desired MOF-derived materials, the undesired element components should be removed by post-processing. One of the most commonly used methods is thermal treatment at a specific temperature and atmosphere [97]. As shown in Figure 5A, Qin et al. synthesized CuO/C core-shell nanoparticles by calcinating Cu-MOF as sacrificial templates at 400 °C in air [98]. The interaction between the carbon shell and CuO core increased the charge transfer efficiency and the oxygen vacancy content, which endowed the catalytic oxidation capacity of CuO/C for glucose. Fransaer et al. formed Co₃O₄-NiO/C composites with a “yolk-albumen-shell” structure (YASNiCo@C) by carbonization of bimetallic CoNi-MOF (Figure 5B) [99]. Furthermore, MOF-derived materials synthesized by pyrolysis also include CuO/NiO-C (Cu/Ni-MOF) [100], CuO (CuBTC) [101], and NiFe₂O₄ (NiFe-MOF) [102], etc.

2.4.2. Solvent Treatment

In addition to pyrolysis, MOF-derived materials can also be obtained by solvent treatments, i.e., reacting MOFs with specific etching solutions and obtaining doped metal compounds with special morphology and structure. Jiang et al. prepared nanorod-like porous nickel phosphate NiPO derived from spherical Ni-MOF [103]. The addition of nickel ion controlled the etching degree of Ni-MOF, and the construction of nickel phosphate conversed to flower-like, rod-like, and ribbon-like. Liu et al. formed hydrophilic hierarchically-porous nanoflowers (HHNs) by etching hydrophobic ZIF-8 with an organic weak acid, gallic acid (GA) [104]. The synergistic effect of GA with a conjugate rigid plane and free protons combined with nitrogen atoms of ZIF-8 resulted in partial damage of ZIF-8. Therefore, the HNNs kept a 3D hierarchically porous structure consisting of a 2D sheet-like structure and exposed more active sites. With the incorporation of CuNPs into the pores of HHNs, the Cu@HHNs-based electrode obtained superior catalytic activities for glucose electrocatalytic oxidation in glucose detection.

Table 4. MOF-derived materials for glucose detection.

Derivative	MOFs	Method	Ref
CuO/NiO-C	Cu/Ni-MOF	Carbonization (430 °C, N2)	[100]
Co/MnO@HC	MnCo-MOF-74	Carbonization (900 °C, N2)	[105]
NiO/Co3O4/C	NiCo-MOF	Carbonization (500 °C, Ar2)	[106]
Ni/NCNs	Ni-MOF	Pyrolysis (500 °C, N2)	[107]
Fe3O4	Fe-BDC	Pyrolysis (500 °C, N2)	[108]
NiO	MOF-74 (Ni)	Pyrolysis (400 °C, N2)	[109]
ZnCo2O4	ZnCo-MOF	Pyrolysis (400 °C, air)	[110]
Ni3S2@NCNT	Ni-MOF	Carbonization (700 °C, H2/Ar2), Sulfurization (Solvothermal)	[111]
E-CuO	Cu-MOF	Etch, Pyrolysis (550 °C, air)	[112]
HHN	ZIF-8	Etch (gallic acid)	[104]
Co-CuS	Cu-Co MOF	Sulfurization (Solvothermal)	[113]
Ni-HHTP	Ni-MOF	Etch (Solvothermal)	[114]

HC: hierarchical carbon. NCNs: nanoporous carbon nanorods. BDC: benzene-1,4-dicarboxylic acid. NCNT: N-doped carbon nanotube. HHTP: 2,3,6,7,10,11-hexahydroxytriphenylene.

Table 4. MOF-derived materials for glucose detection.

Derivative	MOFs	Method	Ref
CuO/NiO-C	Cu/Ni-MOF	Carbonization (430 °C, N2)	[100]
Co/MnO@HC	MnCo-MOF-74	Carbonization (900 °C, N2)	[105]
NiO/Co3O4/C	NiCo-MOF	Carbonization (500 °C, Ar2)	[106]
Ni/NCNs	Ni-MOF	Pyrolysis (500 °C, N2)	[107]
Fe3O4	Fe-BDC	Pyrolysis (500 °C, N2)	[108]
NiO	MOF-74 (Ni)	Pyrolysis (400 °C, N2)	[109]
ZnCo2O4	ZnCo-MOF	Pyrolysis (400 °C, air)	[110]
Ni3S2@NCNT	Ni-MOF	Carbonization (700 °C, H2/Ar2), Sulfurization (Solvothermal)	[111]
E-CuO	Cu-MOF	Etch, Pyrolysis (550 °C, air)	[112]
HHN	ZIF-8	Etch (gallic acid)	[104]
Co-CuS	Cu-Co MOF	Sulfurization (Solvothermal)	[113]
Ni-HHTP	Ni-MOF	Etch (Solvothermal)	[114]

HC: hierarchical carbon. NCNs: nanoporous carbon nanorods. BDC: benzene-1,4-dicarboxylic acid. NCNT: N-doped carbon nanotube. HHTP: 2,3,6,7,10,11-hexahydroxytriphenylene.

3. Detection Mechanisms for MOF-Based Glucose Sensors

The previous section introduced four kinds of MOF-based materials for glucose detection. Different types of materials have different functions, and the response signals to glucose are also diverse. Depending on the type of response signal, detection methods can be divided into electrochemical and optical methods. The electrochemical methods include chronoamperometry (CA), linear sweep voltammetry (LSV), cyclic voltammetry (CV), differential pulse voltammetry (DPV), amperometry (AMP), etc. Optical methods include colorimetry, fluorescence (FL), chemiluminescence (CL), surface-enhanced Raman scattering (SERS), etc. In this section, the recent progress on MOF-based electrochemical and optical glucose sensors was reviewed and discussed.

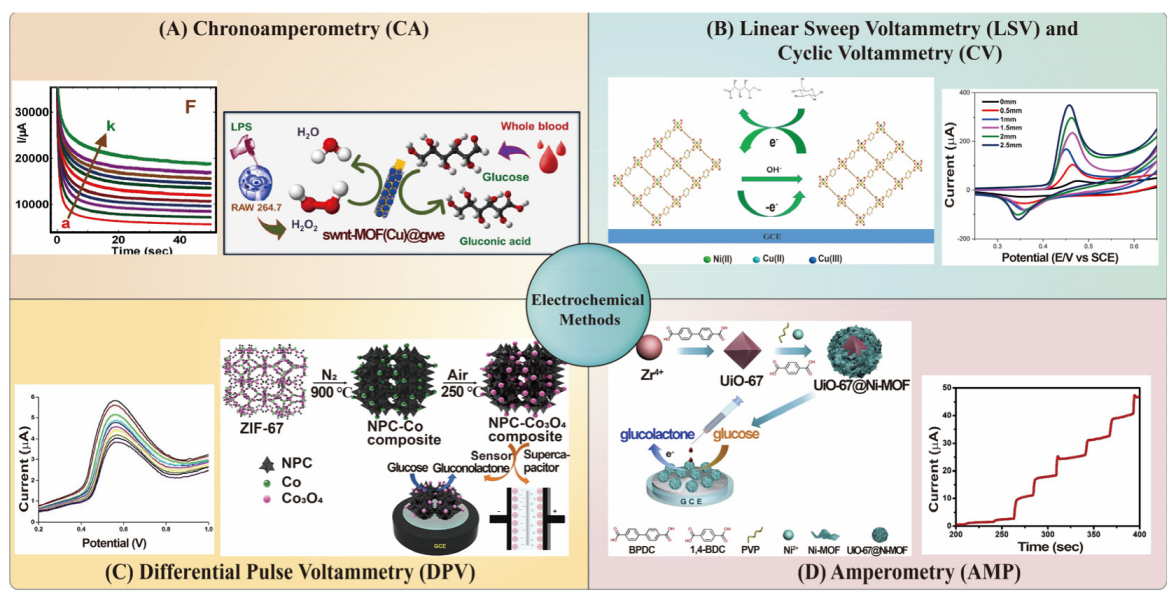

3.1. Electrochemical Methods

Electrochemical detection is a redox-based method where an electric potential is applied between the working and reference electrodes, driving an electrochemical reaction on the surface of the working electrode [115]. This method has gained significant popularity in analytical science due to its high sensitivity, low cost, and ease of operation, making it a powerful tool for various applications [116]. In the following sections, we will discuss recent research advances in electrochemical glucose sensors based on different electrochemical detection methods.

3.1.1. Chronoamperometry

The CA method is a commonly used electrochemical method in which the electric potential of the working electrode is stepped [117]. One of the applications of CA is controlled-potential chronoamperometry. During this process, a constant potential tested from CV measurement is applied to the working electrode, and the current is monitored over time, accompanied by the oxidation or reduction of electrochemically active substances in a solution [118]. Huang et al. successfully electrodeposited MOF (Cu) onto a single-walled carbon nanotube (swnt)-modified gold wire electrode (gwe) to form a composite electrode named swnt-MOF(Cu)@gwe, which has good electrical conductivity (Figure 6A) [119]. Using the chronoamperometric technique to determine glucose, the linear range of modified electrodes was from 1 μM to 3 mM and the limit of detection (LOD) was down to 0.16 µM (S/N = 3).

Although noble metals and their alloys offer a high catalytic activity for glucose oxidation, their high cost and limited availability hinder their widespread use. In contrast, transition metal materials (e.g., Mn, Fe, Co, Ni, and Cu) are more affordable and abundantly available on Earth [122]. In recent years, bimetallic transition materials have received increasing attention due to their unique properties, including versatility, efficient catalytic activity, selectivity, and stability, which often exceed monometallic materials in various applications [123]. Muthurasu et al. used bimetallic MOF to detect glucose. Due to the synergistic effects between metals, bimetallic materials often exhibit enhanced catalytic activity compared to their monometallic counterparts [124]. Finally, they obtained a bimetallic nitrogen-doped carbon nanotube (NCNT) MOF CoCu nanostructure through high-temperature calcination. The CA study demonstrates that the bimetallic NCNT MOF CoCu nanostructure substantially increases the catalytic activity towards glucose. This sensor provides a linear range from 0.05 to 2.5 mM, a sensitivity of 1027 μA·mM⁻¹·cm⁻², and a LOD of 0.15 μM (S/N = 3). The same group also constructed a bimetallic Cu@Ni organic framework electrode, which also used the CA method for sensitive and selective detection of glucose [123]. CA provides a better signal-to-noise ratio in comparison to other amperometric techniques [125], but it shows a relatively slow measurement speed that requires 10 s or longer [126].

3.1.2. Linear Sweep Voltammetry and Cyclic Voltammetry

When the potential changes with time, the analyte in a solution will generate a current due to an oxidation or reduction reaction on the electrode surface at the characteristic potential. If a scanning potential changes linearly, it is called LSV; if a scanning potential changes linearly and reverses at a certain time, it is called CV.

Ozacar et al. synthesized a MOF-based composite named GOx-reduced graphene oxide (rGO)/Pt NPs@Zn-MOF-74, where rGO/Pt NPs were deposited on Zn-MOF-74 through π−π interactions, and GOx was immobilized on rGO/Pt NPs@Zn-MOF-74 via hydrogen bonds [127]. The porous structure of GOx-rGO/Pt NPs@Zn-MOF-74 allowed the substrate to be easily accessible to GOx, improving the electrochemical response. LSV curves of the electrodes indicated that the modified electrode lowered the detection potential for H₂O₂ compared to the bare glassy carbon electrode, which oxidized H₂O₂ only above 0.8 V. Kuang et al. grew the GOx@Cu-MOF packaging structure on the surface of a 3D porous conducting copper foam (CF) electrode by a one-step electrochemically assisted biomimetic mineralization method [128]. In the GOx@Cu-MOF/CF electrode, the embedded GOx catalyzes the conversion of glucose into gluconate and H₂O₂, and the H₂O₂ is immediately electrocatalytically reduced by Cu-MOF, resulting in an increase in the reduction current that is measured by CV. A clear linear relationship can be established between the reduction current and the glucose concentration in the concentration range of 0–6 mM. Zhao et al. successfully prepared a nickel-modified Cu-based MOF nanocomposite electrode (Ni@Cu-MOF) as an electrochemical detector for glucose (Figure 6B), with a sensitivity of 1703.33 μA mM⁻¹ cm⁻², a linear range between 5 and 2500 μM, and a LOD of 1.67 μM (S/N = 3) [120]. However, CV is not an ideal technique for quantitative analysis because the limits of detection and quantification are higher than those of other types of voltammetry [129].

3.1.3. Differential Pulse Voltammetry

DPV is a technique involving the application of an amplitude potential pulse to a linear ramp potential [130]. The current is measured before the potential pulse and at the end of the pulse, and the difference between the two currents is recorded as the response [117]. Generally, pulsed techniques (e.g., DPV) are more responsive than linear scanning methods because the capacitive current is minimized, and CV is more commonly used for exploratory analysis [130].

Han et al. developed the nanoporous carbon and cobalt oxide (NPC-Co₃O₄) composite through the heat treatment of a MOF precursor, ZIF-67 (Figure 6C) [22]. DPV analysis of NPC-Co₃O₄/GCE with different glucose concentrations was performed at a scan rate of 0.1 V s⁻¹ and a given potential range of 0.2–1.0 V in 0.1 M KOH. The differential pulse voltammetry response of NPC-Co₃O₄/GCE has a linear relationship with the glucose concentration. The sensor enables glucose detection in the concentration range from 5 × 10⁻¹² to 2.05 × 10⁻¹⁰ M and a LOD of 2 pM (S/N = 3). It is worth noting that the sensitivity reaches up to 0.14 μA pM⁻¹ cm⁻².

Wang et al. grew Cu-trimesic acid (Cu-BTC) MOFs on 3D-macroporous carbon (KSCs) electrodeposited Au NPs on the integrated electrode and then fixed GOx by a Au-S bond. GOD/AuNPs/Cu-BTC MOFs/3D-KSCs were obtained to construct a proportional electrochemical glucose biosensor [131]. Cu-BTC MOF can catalyze glucose oxidation and convert Cu(II) to Cu(I), which enhances the reduction peak of Cu(I) when glucose is added. The DPV response of the O₂ reduction peak current also decreases with the addition of glucose. In order to obtain good selectivity and reproducibility, j_O2/j_Cu-BTC was used as the response signal. The sensor enables glucose detection in the concentration range from 44.9 μM to 19 mM and a LOD of 14.77 μM (S/N = 3). Ramaprabhu et al. fabricated a copper terephthalate (CuBDC) MOF-modified GCE to construct a non-enzymatic glucose biosensor with a sensitivity of 37.09 μA μM⁻¹ cm⁻² and a LOD of 0.077 μM (S/N = 3) [37]. Compared with the CV technique, the DPV technique displays lower signal background and better sensitivity, resulting in higher resolution at lower concentrations of an analyte [84].

3.1.4. Amperometry

AMP has become a commonly used detection method. In 1956, Clark developed the first bio-amperometric sensor for measuring dissolved O₂ in the blood consumed in an enzymatic reaction catalyzed by GOx [132]. AMP involves applying a constant reduction or oxidation potential on the working electrode and then measuring the resulting steady-state current [133].

ZIF-67-derived materials are currently used as efficient catalysts for sensors such as glucose, 4-nitrophenol (4-NP) [134], acetaminophen [2], SO₂ [135], and so on. Ruan et al. synthesized a novel N-doped carbon dodecahedron embedded with Co nanoparticles (Co@NCD) by pyrolyzing ZIF-67 in a reductive atmosphere [136]. ZIF-67-derived electro-catalysts obtained from high-temperature carbonization have improved conductivity, large surface area, and active non-precious Co and N-doped carbon heterojunctions. By using Co@NCD/GCE to detect glucose, two linear ranges were obtained from current–time curves; one was 0.0002–1.0 mM with a sensitivity of 125 μA mM⁻¹ cm⁻² and the other was 1.0–12.0 mM with a sensitivity of 23 μA mM⁻¹ cm⁻². The LOD was calculated to be 0.11 μM (S/N = 3). Aside from that, Yin et al. prepared Au@NiCo LDH via etching ZIF-67 and reducing HAuCl₄ at a high temperature to construct glucose-sensing electrodes with a sensitivity of 864.7 μA mM⁻¹ cm⁻² and a LOD of 0.028 μM (S/N = 3) [137].

The use of core-shell MOF@MOF materials offers several advantages by combining the chemical, physical, and structural properties of both MOFs, leading to unexpected synergistic effects [138]. Wang et al. first synthesized the core-shell UiO-67@Ni-MOF material [121]. The composite material was synthesized by an internal extended growth method under polyvinylpyrrolidone (PVP) regulation. The pre-prepared UiO-67 was used as the growth core of shell Ni-MOF (Figure 6D). In this study, UiO-67 was selected for its expansive specific surface area and good conductivity, which facilitated efficient electron transfer within the UiO-67@Ni-MOF composite. On the other hand, Ni-MOF exhibited excellent electrochemical activity for glucose oxidation, rendering it an ideal electrocatalytic material. The findings demonstrated that the UiO-67@Ni-MOF composites displayed significantly enhanced electrocatalytic activity for glucose oxidation compared to the individual UiO-67 and Ni-MOF structures. Ni²⁺ from Ni-MOF is oxidized to Ni³⁺ in the −0.43 V alkaline electrolyte. Ni³⁺ then oxidizes glucose molecules at a voltage of 0.5 V and produces glucolactone. AMP curves show that the sensor has a fast response (<5 s), wide linear range (5 μM–3.9 mM), and low LOD (0.98 μM, S/N = 3). It has good reproducibility (RSD = 1.1%), repeatability (RSD = 1.9%), and long-term stability. It should be noted that the sensitivity and selectivity of the amperometry method are influenced by many factors, such as electrode material, electrolyte solution, temperature, oxygen, etc., and therefore need to be optimized and controlled according to the actual situation.

In addition to being classified by the electrochemical detection method, common electrochemical glucose sensors can also be divided into two types: enzymatic and non-enzymatic sensors (Table 5 and

Table 6. MOF-based enzymatic electrochemical glucose sensors.

Electrode Material	Electrochemical Method	Mechanism	pH	Linear Range (μM)	LOD (μM)	Sensitivity (μA mM−1 cm−2)	Ref
PDA-GOx-HKUST-1-MWCNTs/Pt/Au	AMP	electrooxidation of H2O2	7.0	5–7050	0.12	178	[151]
GOD-GA-Ni/Cu-MOFs-FET	AMP	electrooxidation of H2O2	7.4	1–100	0.51	26.05	[87]
rGO/Pt NPs@Zn-MOF-74	LSV	electrooxidation of H2O2	7.4	6–6000	1.8	64.51	[127]
GOX-AuNPs/N-GQDs-P-MOF@GCE	AMP	electroreduction of H2O2	4.0	2–10, 20–3000	0.7	1512.4	[66]
GOx/Hemin@NC-ZIF	AMP	oxidation of H2O2 by peroxidase	7.2	0–20,000	10	−	[24]
GOx@Cu-MOF/CF	CV	electroreduction of H2O2	7.4	0–6000	−	−	[128]
GOD/AuNPs/Cu-BTC/3D-KSCs	DPV	O2 depletion monitoring	7.0	44.9–4000, 4000–19,000	14.77	−	[131]

MWCNTs: multi-walled carbon nanotubes. GA: glutaraldehyde. FET: field-effect transistor.

). The glucose biosensor based on enzyme promotion is based on the specific reaction between glucose and active enzymes, which causes the change of an electrical signal so as to realize the detection of glucose. The electrical signals in enzymatic sensors can be generated through various processes, including O₂ consumption, electrooxidation of H₂O₂, electroreduction of H₂O₂, and oxidation of H₂O₂ by peroxidase [139]. However, enzymatic sensors may be affected by several factors, such as pH, temperature, and the presence of detergents [140]. Enzyme-free electrochemical sensors, in contrast to active enzyme-based sensors, utilize substances with glucose catalytic activity directly at the electrode to oxidize glucose. MOF-based materials have been shown to exhibit high electrocatalytic activity [141]. The presence of OH⁻ ions on the electrode surface increases the local pH, creating an alkaline microenvironment that enhances glucose oxidation [37]. This process involves the catalytic oxidation of glucose to gluconolactone, followed by further hydrolysis to gluconic acid. The porous structures and large active surface area of MOF-based materials significantly enhance their analytical performance [137]. Moreover, unique morphologies of MOF-based materials expose more active sites, thereby increasing the contact area with glucose and facilitating faster charge transfer. Additionally, incorporating mixed-valence metal ions or organic ligands into the MOF structure can further enhance the conductivity, catalytic activity, and, therefore, the detection performance of MOF-based materials [142].

Table 5. MOF-based non-enzymatic electrochemical glucose sensors.

Electrode Material	Electrochemical Method	Electrolyte	Linear Range (μM)	LOD (μM)	Sensitivity (μA mM−1 cm−2)	Ref
Ni-MOF	CA	0.1 M NaOH	10–2000	1.16	3.03	[143]
Ni3(HITP)2 MOF	CV	0.1 M KOH	0–10,000	−	−	[144]
Ni-MOFN	AMP	0.1 M KOH	25–3150	0.6	402.3	[60]
r-NiPO	AMP	0.1 M NaOH	1–3	1	3169	[103]
NiO/Co3O4/C	AMP	0.1 M NaOH	0.2–10,000	0.045	2820	[106]
Ni/Co-FAMOF	AMP	1 M KOH	6–1004	2	366	[34]
Ni/Co(HHTP)MOF/CC	AMP	0.1 M NaOH	0.3–2312	0.1	3250	[46]
CC@MOF-74(NiO)@NiCo LDH	AMP	1 M KOH	10–1100, 1500–9000	0.278	1699	[109]
NiCu-MOF-6	AMP	0.1 M NaOH	20–4930	15	1832	[45]
Ni@Cu-MOF	CV	0.1 M NaOH	5–2500	1.67	1703.33	[120]
NiCoBP-Br	AMP	0.1 M NaOH	0.5–6065.5	0.0665	1755.51	[47]
Ni-Co MOF/Ag/rGO/PU	AMP	0.1 M NaOH	10–660	3.28	425.9	[140]
YASNiCo@C	AMP	0.1 M NaOH	5–5000	0.75	1964	[99]
bimetallic Cu@Ni organic framework	CA	0.1 M NaOH	0–5000	0.4	496	[123]
UiO-67@Ni-MOF	AMP	0.1 M NaOH	5–3900	0.98	−	[121]
Cu-MOF	DPV	0.01 M NaOH	0.06–5000	0.01	89	[145]
CuBDC12E	DPV	0.02 M PBS (pH 7.4)	0–2000	0.077	37,090	[37]
Cu-MOF/CF	AMP	0.1 M NaOH	1–950	0.076	30,030	[146]
CuO nanorod	CA	0.1 M NaOH	up to 1250	1	1523.5	[147]
swnt-MOF(Cu)@gwe	CA	0.1 M NaOH	1–3000	0.16	−	[119]
CuO/C	AMP	0.1 M NaOH	5–25,325	1	244.71	[98]
Cu2(NDC)2/PDHP	AMP	electrolyte-simulated sweat	5–1775	2	1690	[148]
CuO polyhedrons/CC	AMP	0.1 M NaOH	0.5–800	0.46	13,575	[15]
Cu@Co-MOF	AMP	0.01 M NaOH	5–400	1.6	282.89	[76]
bimetallic NCNT MOF CoCu nanostructure	CA	0.1 M NaOH	50–2500	0.15	1027	[124]
E-NiCo-BTC MOF	AMP	0.1 M NaOH	1–1780	0.187	1789	[149]
NPC-Co3O4	DPV	0.1 M KOH	5 × 10−6–2.05 × 10−4	2 × 10−6	0.14 μA pM−1 cm−2	[22]
Co-MOF	CA	0.01 M NaOH	5–900	1.6	169	[150]
Co@NCD	AMP	0.1 M NaOH	0.2–12,000	0.11	125,23	[136]
Au@NiCo LDH	AMP	1.0 M NaOH	5–12,000	0.028	864.7	[137]
Co/MnO@HC	AMP	0.1 M NaOH	50–900, 1900–6900	1.31	233.8	[105]

HITP: (2,3,6,7,10,11-hexaiminotriphenylene)₂. MOFNs: MOF nanosheets. r-NiPO: nanorod-like nickel phosphate. LDH: layered double hydroxides. BP: 4-bromopyridine. NDC: naphthalenedicarboxylic. PDHP: pencil drawing hydrophobic paper. E-NiCo-BTC: nickel–cobalt–benzene tricarboxylic acid.

Table 5. MOF-based non-enzymatic electrochemical glucose sensors.

Electrode Material	Electrochemical Method	Electrolyte	Linear Range (μM)	LOD (μM)	Sensitivity (μA mM−1 cm−2)	Ref
Ni-MOF	CA	0.1 M NaOH	10–2000	1.16	3.03	[143]
Ni3(HITP)2 MOF	CV	0.1 M KOH	0–10,000	−	−	[144]
Ni-MOFN	AMP	0.1 M KOH	25–3150	0.6	402.3	[60]
r-NiPO	AMP	0.1 M NaOH	1–3	1	3169	[103]
NiO/Co3O4/C	AMP	0.1 M NaOH	0.2–10,000	0.045	2820	[106]
Ni/Co-FAMOF	AMP	1 M KOH	6–1004	2	366	[34]
Ni/Co(HHTP)MOF/CC	AMP	0.1 M NaOH	0.3–2312	0.1	3250	[46]
CC@MOF-74(NiO)@NiCo LDH	AMP	1 M KOH	10–1100, 1500–9000	0.278	1699	[109]
NiCu-MOF-6	AMP	0.1 M NaOH	20–4930	15	1832	[45]
Ni@Cu-MOF	CV	0.1 M NaOH	5–2500	1.67	1703.33	[120]
NiCoBP-Br	AMP	0.1 M NaOH	0.5–6065.5	0.0665	1755.51	[47]
Ni-Co MOF/Ag/rGO/PU	AMP	0.1 M NaOH	10–660	3.28	425.9	[140]
YASNiCo@C	AMP	0.1 M NaOH	5–5000	0.75	1964	[99]
bimetallic Cu@Ni organic framework	CA	0.1 M NaOH	0–5000	0.4	496	[123]
UiO-67@Ni-MOF	AMP	0.1 M NaOH	5–3900	0.98	−	[121]
Cu-MOF	DPV	0.01 M NaOH	0.06–5000	0.01	89	[145]
CuBDC12E	DPV	0.02 M PBS (pH 7.4)	0–2000	0.077	37,090	[37]
Cu-MOF/CF	AMP	0.1 M NaOH	1–950	0.076	30,030	[146]
CuO nanorod	CA	0.1 M NaOH	up to 1250	1	1523.5	[147]
swnt-MOF(Cu)@gwe	CA	0.1 M NaOH	1–3000	0.16	−	[119]
CuO/C	AMP	0.1 M NaOH	5–25,325	1	244.71	[98]
Cu2(NDC)2/PDHP	AMP	electrolyte-simulated sweat	5–1775	2	1690	[148]
CuO polyhedrons/CC	AMP	0.1 M NaOH	0.5–800	0.46	13,575	[15]
Cu@Co-MOF	AMP	0.01 M NaOH	5–400	1.6	282.89	[76]
bimetallic NCNT MOF CoCu nanostructure	CA	0.1 M NaOH	50–2500	0.15	1027	[124]
E-NiCo-BTC MOF	AMP	0.1 M NaOH	1–1780	0.187	1789	[149]
NPC-Co3O4	DPV	0.1 M KOH	5 × 10−6–2.05 × 10−4	2 × 10−6	0.14 μA pM−1 cm−2	[22]
Co-MOF	CA	0.01 M NaOH	5–900	1.6	169	[150]
Co@NCD	AMP	0.1 M NaOH	0.2–12,000	0.11	125,23	[136]
Au@NiCo LDH	AMP	1.0 M NaOH	5–12,000	0.028	864.7	[137]
Co/MnO@HC	AMP	0.1 M NaOH	50–900, 1900–6900	1.31	233.8	[105]

HITP: (2,3,6,7,10,11-hexaiminotriphenylene)₂. MOFNs: MOF nanosheets. r-NiPO: nanorod-like nickel phosphate. LDH: layered double hydroxides. BP: 4-bromopyridine. NDC: naphthalenedicarboxylic. PDHP: pencil drawing hydrophobic paper. E-NiCo-BTC: nickel–cobalt–benzene tricarboxylic acid.

3.2. Optical Methods

Optical methods for sensing glucose have been extensively studied and developed, such as colorimetry, FL, CL, SERS, etc. The optical glucose sensors based on MOF-based materials provide a visualized and cost-effective way to measure glucose concentrations compared to electrochemical glucose sensors that need relatively expensive and complicated instruments, as well as being prone to interferences [152]. However, the long-term stability and reusability of MOF-based optical glucose sensors are the major challenges for future applications. Hereafter, some typical and important optical glucose sensors are introduced and classified into colorimetry, FL, CL, and SERS-based methods (

Table 7. MOF-based optical glucose sensors.

Materials	Detection Method	Linear Range (μM)	LOD (μM)	Ref
dZIF-8 BH	colorimetry	50–4000	−	[91]
G&L@ZIF@Paper	colorimetry	200–2000	120	[19]
GOx/Hemin@NC-ZIF	colorimetry	1000–20,000	10	[24]
Aga/GOD@Cu-hemin MOF/TMB	colorimetry	30–800	10	[49]
GOx@FCM-TA	colorimetry	5–750	0.94	[81]
Fe3Ni-MOF	colorimetry	2–1000	1	[79]
5R@Eu-MOF	FL	0–6	0.00692	[67]
Ni-MOF	FL	8–30	4	[153]
Pt/Fe-MOF	colorimetry	3900–6400	2.3	[18]
MOF@GOx@BHb-MIPs	colorimetry	0.5–20	0.4	[86]
GOx@MOF-545(Fe)	colorimetry	0.5–20	0.28	[154]
GOx@MAF-2	CL	20–200, 500–30,000	1.4	[23]
Cu(bpy)2(OTf)2 nanosheets	FL	10–1000	0.41	[155]
In-aip nanosheets	FL	0–160	0.87	[156]
boric-acid Eu-MOF	FL	0.1–4	0.0643	[157]
Co-TCPP(Fe)@Luminol@GOD	CL	0.177–30.53	0.0592	[90]
Co-MOF	CL	0.04–8	0.012	[158]
AuNPs/Cu-TCPP(Fe)	SERS	160–8000	3.9	[75]
MBs@MIL-100(Fe)@Ag	SERS	20–1000	15.95	[159]
Ag NPs/UiO-66-NH2	FL	1–200	0.5	[160]
MOF-235/β-CD	CL	0.01–3	0.01	[23]
ficin@MOF	colorimetry	1–140	0.12	[161]
GOx@Zr-PCN-222 (Fe)	colorimetry	0–5000	250	[162]
CeO2@NH2-MIL-88B(Fe)	colorimetry	200–15,000	80	[25]

Aga: agarose hydrogels. FCM: Fe/Co-MOF. R: BODIPY. bpy: 4,4-bipyridine. OTf: trifluoromethanesulfonate. aip: aminoisophthalic.

).

3.2.1. Colorimetry

Colorimetry is a fast and effective method for analyzing colored solutions or any colored substances. It is usually measured using a spectrophotometer. The need for point-of-care tests (POCT) has led to the invention of paper-based colorimetric methods, smartphone-based analyses, etc., in the last two decades [163]. The advantages of colorimetry are the convenience of use, high sensitivity, and satisfactory repeatability.

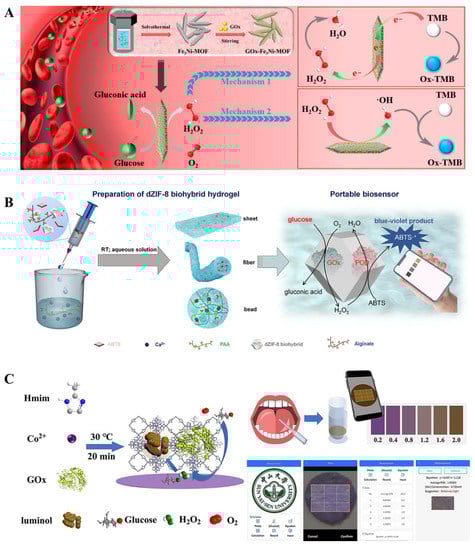

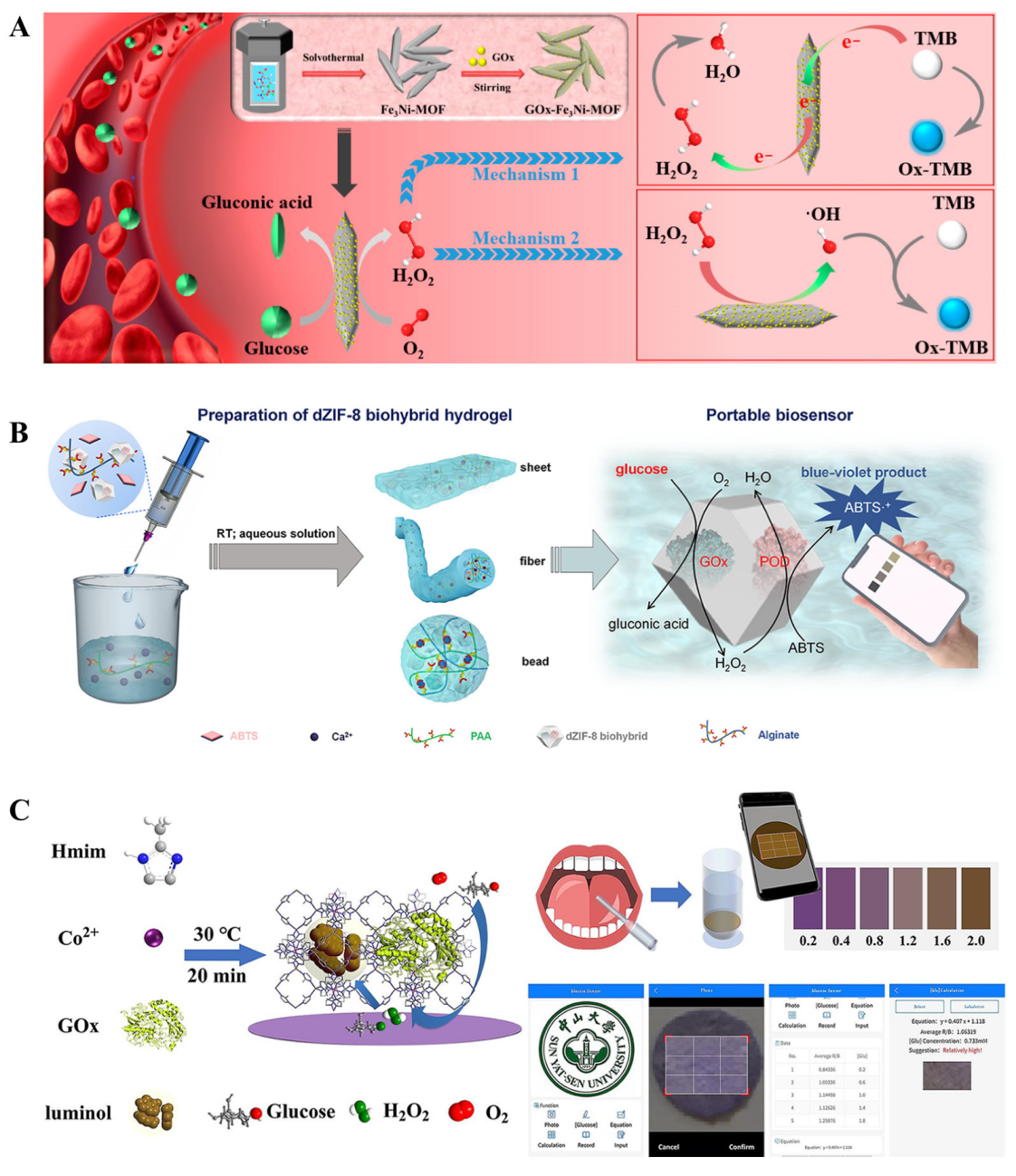

Wang et al. focused on the development of bimetal–organic frameworks (Fe_xNi_y-MOF) as catalysts with peroxidase-like activity (Figure 7A) [79]. By introducing nickel (Ni) into the framework, they achieved enhanced redox capacity and accelerated electron transfer between TMB and H₂O₂. The improved conversion efficiency between Fe³⁺ and Fe²⁺ ions, coupled with the promotion of ·OH generation, led to a significant increase in peroxidase-like activity. Based on the excellent activity of Fe₃Ni-MOF, one-step colorimetric detection of glucose is achieved by immobilizing GOx on Fe₃Ni-MOF through physical adsorption. The linear range of the glucose biosensor is 2–1000 μM, and the detection limit is 1 μM (S/N = 3).

Moving on to Chen et al.’s work, they presented a biohybrid hydrogel system encapsulating GOx and HRP in a morphology-adjusted defective ZIF biohybrid hydrogel (dZIF-8 BH) [91]. This unique system utilized the biocatalytic cascade involving the conversion of glucose into gluconic acid and H₂O₂ by GOx. The generated H₂O₂ further oxidized ABTS (single molecule 2,2’-azino-azinobis(3-ethylbenzothiazoline-6-sulfonic acid)) into ABTS·+ through the peroxidase-like activity of HRP (Figure 7B). The encapsulation within the hydrogel not only provided a stable and confined microenvironment for enzymatic reactions but also facilitated the accumulation of catalytic products, resulting in a stronger color signal for glucose detection. Moreover, the integration of a smartphone with the biosensor opens up the possibility of point-of-care diagnostics and remote monitoring of glucose levels. The dZIF-8 BH portable biosensor provides a glucose detection range from 0.05 to 4 mM. Further, Song et al. developed an integrated agarose-based hydrogel film (Aga/GOD@Cu-hemin MOF/TMB) with a linear range from 30 μM to 0.8 mM and a LOD of 0.01 mM (S/N = 3) [49]. Liu et al. encapsulated GOx and luminol in ZIF-67 to form the GOx&luminol@ZIF-67@Paper (G&L@ZIF@Paper) chip (Figure 7C) [19]. The G&L@ZIF@Paper could achieve highly sensitive and specific measurements for glucose with a linear range from 0.2 to 2 mM and a limit of detection of 0.12 mM (S/N = 3). The combination of one-pot synthesis and one-pot detection greatly improved the convenience of detection and the possibility of subsequent industrialization. Besides these advantages, the unevenness of color, susceptibility to interference, and relatively low sensitivity of the colorimetric method still need to be improved in order to achieve sensitive and accurate quantification detection of glucose.

3.2.2. Fluorescence and Chemiluminescence

Fluorescence (FL), a form of photoluminescence (PL), widely exists in gas, liquid, and solid chemical systems. This method involves the absorption and re-emission of photons by materials, where electrons absorb photons, transition to higher energy levels, and return to the ground state while emitting photons [164]. The FL method has emerged as a powerful tool in qualitative and quantitative analysis due to its rapid detection, reproducibility, high sensitivity, and selectivity.

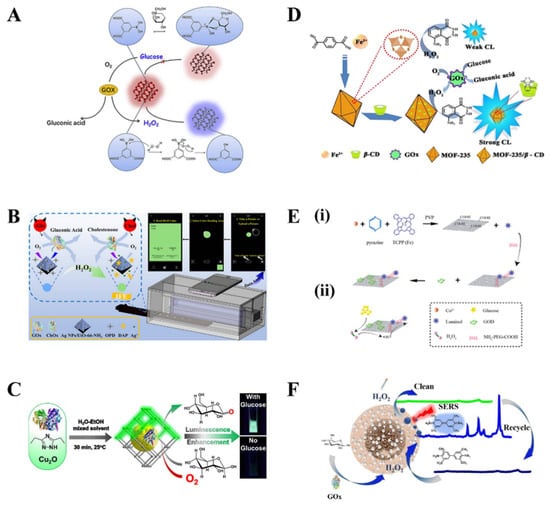

Among FL sensors, single-emission fluorescence probes encounter challenges related to probe concentration changes, sample light scattering, excitation light fluctuations, and emission collection efficiency [165]. To address these limitations, researchers have turned to dual-emission ratio fluorescence probes, offering higher resolution and improved visualization. For example, Yin et al. developed a ratiometric fluorescence probe using Eu-MOF hollow spheres, exhibiting dual emissions at 370 nm and 623 nm, respectively (Figure 8A) [157]. This probe showed sensitive responses to glucose concentration changes through interactions with the boric acid group and H₂O₂, enabling glucose detection within the range from 0.1 μM to 4 μM with a LOD of 0.0643 μM (S/N = 3). In addition, an increase (on) of one signal (354 nm) and a decrease (off) of the other (624 nm) caused the solution color to change from bright red to blue. Similarly, Ke et al. crafted a ratiometric fluorescence sensor by grafting an R photosensitizer on Eu-MOFs, enabling the detection of F^-, H₂O₂, and glucose in water solutions and living cells [67].

Despite the potential of MOF-based FL sensors, their limited water stability has hindered widespread use. To overcome this challenge, Wang et al. utilized UiO-66-NH₂, known for its excellent stability in water and organic solvents, to design a dual-emission ratiometric fluorescence probe based on the inner filter effect (IFE) for glucose and cholesterol detection (Figure 8B) [160]. In the presence of GOx, glucose is converted to H₂O₂, which etches Ag NPs into silver ions (Ag⁺), leading to fluorescent 2,3-diaminophenazine (DAP) generation from o-Phenylenediamine (OPD). The emission spectrum of Ag NPs/UiO-66-NH₂ and the excitation spectrum of DAP produce an effective overlap. The fluorescence intensity ratio (F_{555 nm}/F_{425 nm}) increases with the target concentration, and the color of the solution changes from blue to yellow-green, enabling higher resolution color variance and better visualization. Furthermore, the reaction reagent is integrated into filter paper, creating a user-friendly test paper that reads RGB values using a smartphone-based portable platform.

Dai et al. introduced a novel concept by combining a responsive MOF with a MOF-enzyme composite, creating a multifunctional “all-in-one” particle that incorporates both catalytic and luminescence capabilities [23]. They successfully encapsulated GOx molecules within the O₂-sensitive, luminescent Cu^I triazolate MOF (MAF-2), named GOx@MAF-2 (Figure 8C). This innovative composite offers a noble metal-free solution and provides a single particle with diverse functionalities. The increasing concentration of glucose accelerated the consumption of dissolved oxygen, resulting in the enhancive luminescence intensity of GOx@MAF-2 suspension. The luminescence intensity of the suspension shows good linearity with the logarithmic concentration of glucose in the ranges of 20–200 and 500–30,000 μM, and the detection limit is approximately 1.4 μM (S/N = 3).

The difference between CL and FL is that CL is a luminescence phenomenon in which the outer electrons of a molecule absorb the energy of a chemical reaction and are in an excited state, and return to the ground state by a radiative leap [166]. CL reaction involves two key steps, namely chemical excitation and luminescence. The CL reaction between luminol and H₂O₂ is generally slow and inefficient, but the reaction rate can be greatly enhanced when there are certain catalysts. CL analysis possesses the advantage of high sensitivity, fast responsibility, easy operation, inexpensive instrumentation, low background signal, and so on [158].

In 2018, Huang et al. successfully prepared β-Cyclodextrin functionalization of the metal–organic framework MOF-235 [23]. Due to the synergistic interaction between β-CD and MOF-235, the MOF-235/β-CD hybrid exhibited high catalytic activity on the luminol-H₂O₂ system. Compared to the luminol-H₂O₂ system, the CL response of the system using MOFs was enhanced more than 30 times, resulting in much lower detection limits for H₂O₂ and glucose (5 nM and 10 nM, respectively) (Figure 8D). Following in 2019, Zhang et al. synthesized a 2D-MOF nanosheet with peroxidase activity and sequentially labeled luminol and GOx on the 2D-MOF nanosheet to obtain a simple CL-functionalized glucose sensor (Co-TCPP(Fe)@Luminol@GOD) (Figure 8E) [90]. When GOx oxidizes glucose to produce gluconic acid and H₂O₂, 2D-MOF can catalyze the decomposition of H₂O₂, further oxidize luminol to generate a strong CL response, and finally realize the rapid detection of glucose with a LOD of 10.667 μg/L (~0.0592 μM).

All in all, future research is likely to focus on enhancing the water stability, dispersibility in solvents, and fluorescence performance of MOF-based FL and CL sensors under real-time environments (pressure, temperature, and mechanical stress) through improved synthetic strategies.

3.2.3. Surface-Enhanced Raman Scattering

SERS is a sensitive analytical technique that can significantly enhance the Raman signal of molecules adsorbed on the surface of precious metal nanomaterials by either electromagnetic enhancement (EM) or chemical enhancement (CM) mechanisms [167]. By introducing MOFs, there are two main factors that improve the stability of the SERS substrates: firstly, the large specific surface area of MOFs provides an abundance of sites to capture target analytes; secondly, the MOFs shell protects the NPs from oxidation and corrosion [168]. Thus, the research on the synthesis of SERS substrates based on MOFs has become more and more active in recent times.

Yang et al. modified AuNPs on the 2D metalloporphyrinic MOF (Cu-tetra(4-carboxyphenyl)porphyrin chloride(Fe(III)), Cu-TCPP(Fe)) in situ, named Au NPs/Cu-TCPP(Fe) [75]. Au NPs converted glucose in saliva to H₂O_2, and then H₂O₂ can be catalyzed by Cu-TCPP(Fe) nanosheets to oxidize leucomalachite green (LMG) into the malachite green (MG), which is a Raman-active molecule. Subsequently, the detection of MG could be performed using SERS. SERS activity is also enhanced in the presence of Au NPs. The linear range of glucose detection is 0.16–8 mM, and the LOD is 3.9 μM (S/N = 3) without interference from fructose, lactose, and maltose in saliva.

Cui et al. developed a highly sensitive SERS probe named MBs@MIL-100(Fe)@Ag(MMA) (Figure 8F) [159]. This probe demonstrated excellent SERS activity and peroxidase-like catalytic activity, making it ideal for glucose detection. The probe utilized the catalytic cascade reaction between MMA and GOx using TMB molecules enriched by MMA as Raman beacons, resulting in remarkable sensitivity in detecting glucose. Based on the enrichment and size screening capabilities of MIL-100(Fe), MMA has excellent anti-interference properties, allowing it to specifically enrich indicator molecules even in non-ferrous beverages or complex biological fluids (saliva) while excluding the influence of other impurities (dyes, proteins, etc.). In addition, the self-cleaning properties of MMA permitted the recycling of the probe for detection, which reduced the cost of the solution and provided a new versatile strategy for the accurate detection of glucose in complex samples such as biofluids and food and beverages.

The preparation process of MOF-based SERS substrates is simpler than the conventional SERS substrate preparation process. However, the SERS-enhanced mechanism of MOF-based substrates is still unclear. Further research is needed regarding practicality, portability, and commercialization.

4. Novel MOF-Based Glucose Detection Devices

4.1. Flexible Wearable Devices for Glucose Detection

Compared to traditional glucose sensors, flexible wearable devices have emerged as highly promising tools for in situ biomarker analysis in body fluids, such as sweat and interstitial fluids, providing a means to monitor blood glucose levels [169]. Sweat glucose has shown a qualitative correlation with blood glucose levels [170], and the integration of flexible electrodes with printed circuit boards (PCBs) has enabled the development of complete wearable devices. When coupled with mobile devices using wireless communication technology, these wearables allow for real-time data collection, transmission, and analysis [171]. It has been reported that there are about 450 million cases of diabetes worldwide, and the number may reach 700 million by 2045 [172]. Compared to traditional glucose testers, flexible wearable glucose-sensing devices offer the advantages of portability, comfort, and real-time monitoring, making them highly desirable for the growing number of diabetes cases worldwide [163].

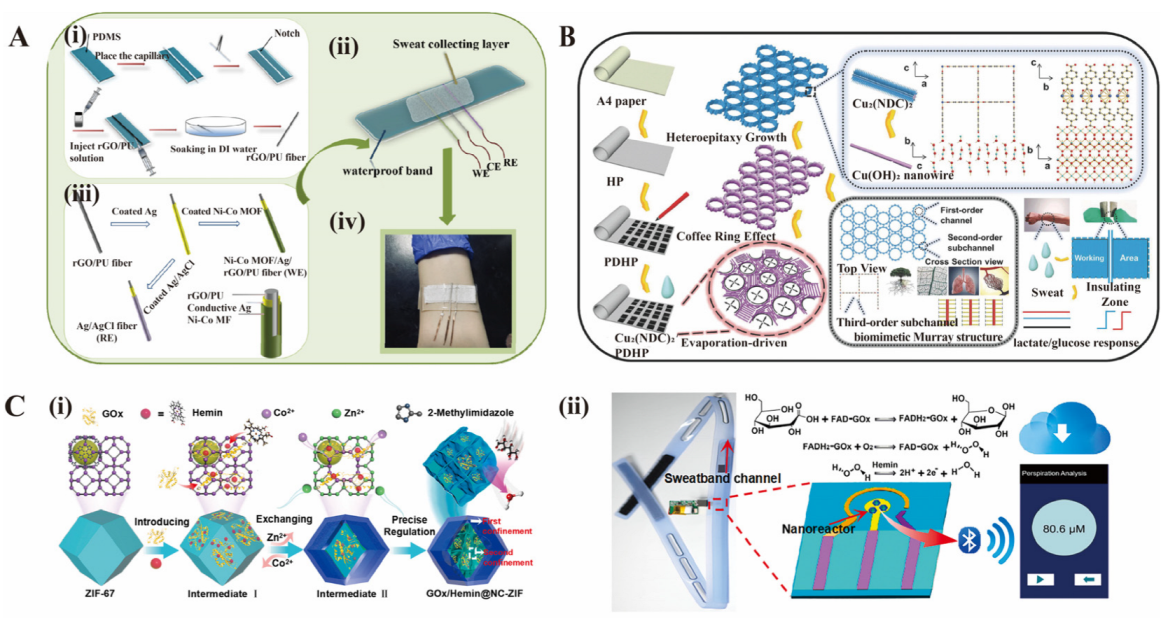

Hu et al. developed a highly stretchable wearable electrochemical sensor called NCGP fiber for tracking glucose levels in sweat [140]. The sensor was based on a Ni-Co metal–organic framework/Ag/reduced graphene oxide/polyurethane (Ni-Co MOF/Ag/rGO/PU) composite, which was prepared using an improved wet spinning technique. The Ni-Co MOF nanosheets were coated onto the surface of reduced graphene oxide/polyurethane fiber (rGO/PU), along with conductive Ag glue (Figure 9A). This NCGP fiber sensor exhibited excellent electrocatalytic performance for glucose detection, with a linear range from 10 μM to 0.66 mM, a sensitivity of 425.9 μA mM⁻¹ cm⁻², and a low limit of detection (LOD) of 3.28 μM (S/N = 3). Similarly, Liu et al. successfully manufactured a MOF film using a “coffee ring”-inspired approach, creating a hierarchical and oriented pore structure for improved electron transport efficiency (Figure 9B) [148]. The resulting MOF film-based sweat sensor demonstrated a linear range from 5 μM to 1775 μM, a sensitivity of 1.69 mA mM⁻¹ cm⁻², and a LOD of 2 μM (S/N = 3). These innovative approaches offer promising solutions for non-invasive glucose monitoring, showcasing the potential of MOF-based materials in wearable sensing devices.

Wu et al. developed a multi-enzyme system by immobilizing highly loaded enzymes in a nanocage-based zeolite imidazole framework (NC-ZIF) using a dual restriction strategy to obtain GOx/Hemin@NC-ZIF [24]. The enzyme protection has two lines of defense, the outer shell of NC-ZIF and the inner nanocage of NC-ZIF. In addition to preventing enzyme leakage, the commodious internal space refrains from disrupting enzyme primitive conformation. The resulting GOx/Hemin@NC-ZIF multi-enzyme system exhibits 8.3- and 16-fold higher catalytic cascade activity than free enzymes in a solution in colorimetric and electrochemical sensors for glucose detection, and it also demonstrates long-term stability, excellent selectivity, and reusability (Figure 9C). At an applied potential of 0.6 V, the system showed a good linear range of 50–600 μM and a LOD of 2 μM (S/N = 3). Continuous glucose monitoring of sweat was successfully achieved by integrating an enzyme@NC-ZIF-based sensor and PCB into the sweatband and connecting it to a smartphone via Bluetooth.

In addition to detecting glucose in sweat, a MOF-based mouthguard sensor can also be developed to detect glucose in saliva. Moreover, MOFs and their carbon derivatives possess excellent electron-capture capacities and multifunctional structures, making them ideal as active electrode materials for triboelectric nanogenerators (TENG) [173]. By incorporating MOF-based TENG into the design of flexible wearable devices, the potential of self-powered, environmentally friendly, and powerful wearable glucose-monitoring devices becomes promising [174]. Another avenue for improvement lies in refining the wearable device from the software side. By combining flexible wearable devices with deep learning algorithms, meaningful information can be extracted from the collected data to predict subsequent blood glucose levels with greater accuracy and efficiency [175,176].

4.2. Microfluidic Chips for Glucose Detection

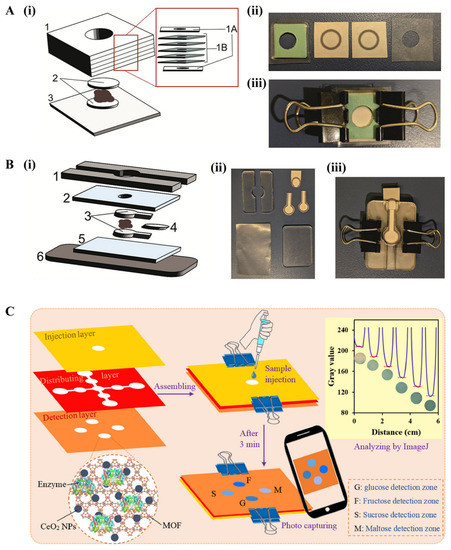

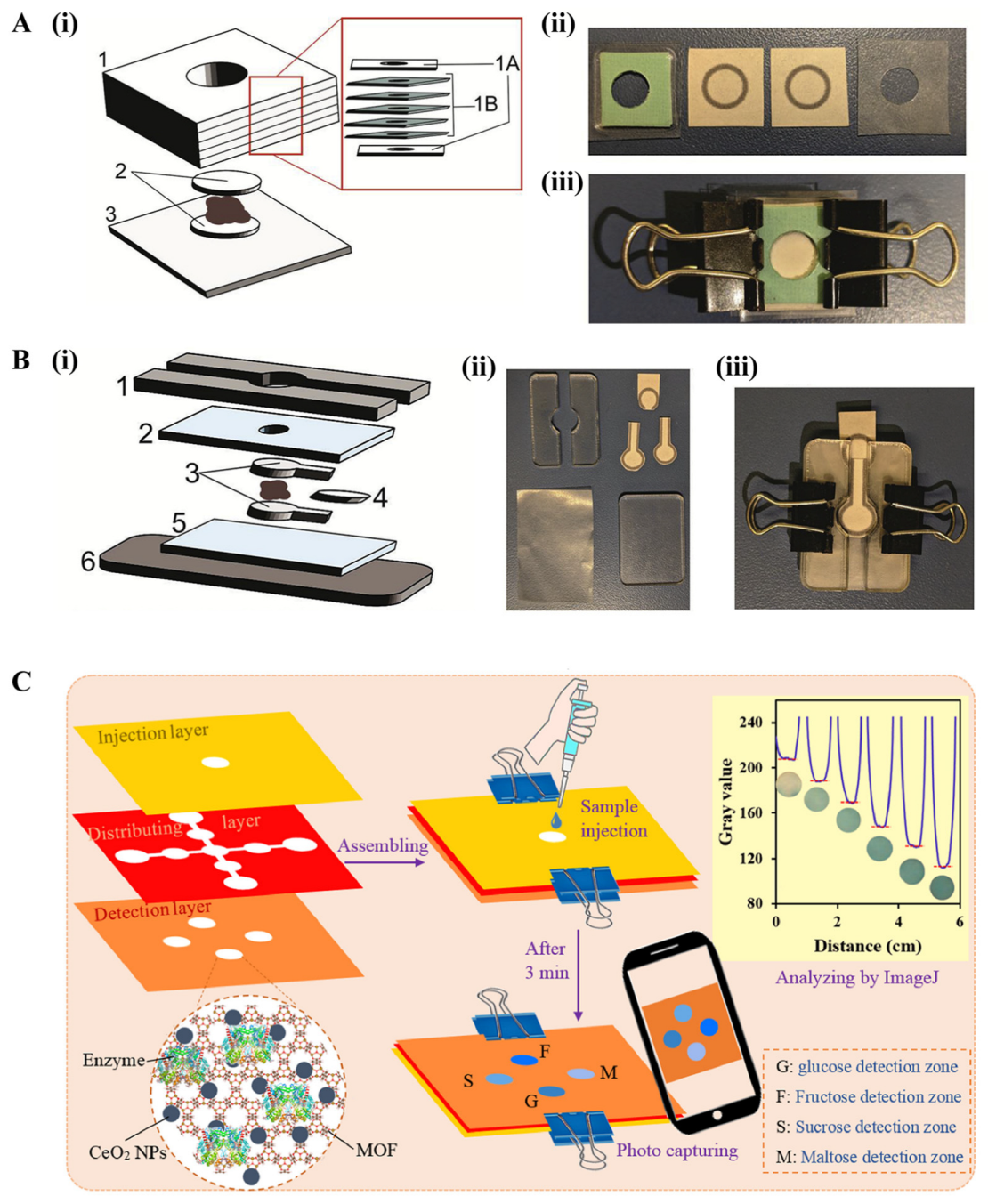

The miniaturized total analytical system (μTAS), sometimes called lab-on-chip (LOC), integrates the operations of chemistry and/or biology experiments (e.g., sample handling, separation, reaction, testing, etc.) on a small chip for fast and accurate analyses of a handful of samples [177]. The first microfluidic paper-based analytical device (μPAD) was proposed by Whitesides et al. in 2007, and since then, μPADs have become one of the most popular POCT platforms [178]. A μPAD is typically made of paper with a liquid channel and a reaction zone that allows a sample to be injected into the paper and moved to the reaction zone for analysis through capillary force and absorption by the paper fibers. Moreover, it is cost-effective and easy to read [179]. In the POCT process, the analyte is sensed by the functionalized paper, and then the color signal is reported [163]. Gomez et al. utilized Fe-centered porphyrinic Zr-PCN-222(Fe) MOF for encapsulating GOx to make well-based and lateral-flow assay (LFA)-based μPADs [162]. Employing the peroxidase-like activity of Zr-PCN-222(Fe), MOF can achieve colorimetric detection of glucose on these purpose-made μPADs (Figure 10A,B). The well-based μPAD, where reaction, mixing, and analysis are all conducted in a single “well”, prevents sample loss and has a lower detection limit compared to the LFA-based μPAD. However, well-based and LFA-based μPADs take too long to detect glucose, 3.5 and 2 h, respectively, and there is subjective uncertainty in the assessment of color by the naked eye. As traditional spectrometers struggle to identify paper colors, many people tend to use mobile apps. Al Lawati et al. designed a disposable 3D μPAD that can use a smartphone to record the color of a paper chip after sample injection within 3–40 min (Figure 10C) [25]. The CeO₂ NPs@NH₂-MIL-88B(Fe)/TMB/specific enzyme complex was loaded in each detection zone. Simultaneous quantification of glucose, fructose, sucrose, and maltose in food and biological samples was successfully achieved by using a distribution layer to disperse samples from the sample injection layer to the four detection zones of the detection layer.

Thin, soft, skin-compatible microfluidic systems have rocketed to popularity in recent years, which are composed of inlet/outlet ports, microfluidic channels, microreservoirs, and colorimetric sensors to collect, capture, store, and analyze sweat [180]. Apart from the paper base, combining skin-interfaced microfluidic systems with MOF-based colorimetric devices may also be a good solution for glucose detection.

5. Conclusions

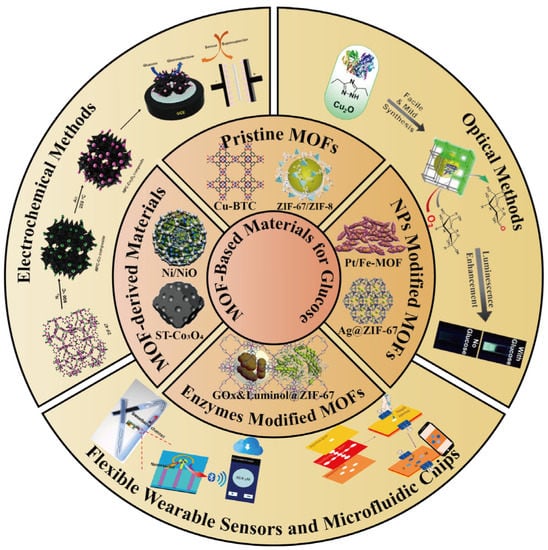

In this review, we summarized the various preparation strategies for four types of MOF-based materials utilized in glucose detection: pristine MOFs, nano-particles in/on MOFs, enzymes in/on MOFs, and MOF-derived materials. We have also explored the two primary mechanisms for MOF-based glucose sensors: electrochemical and optical methods. Notably, this review highlights the significant advancements in flexible wearable sensors and microfluidic chips for glucose sensing. The exceptional properties of MOF materials, such as their large specific surface area, tunable pores, abundant active sites, and diverse capabilities (including catalysis and fluorescence), play crucial roles in the development of glucose sensors. For instance, for electrochemical-based glucose sensors, the large specific surface area of MOFs aids in the immobilization of GOx or promotes the conductivity of modified electrodes. On the other hand, optical-based glucose sensors benefit from the enzyme-like activities or fluorescence properties of MOFs, enabling a more visualized and convenient glucose-detection process. As we move forward, the potential of MOF-based electrochemical flexible wearable devices, such as sweatbands and mouthguards, along with optical skin-like biosensors and skin-compatible microfluidic systems, appears highly promising for the future of glucose and other biological analyte detection.
