Review

N-Doped Graphene and Its Derivatives as Resistive Gas Sensors: An Overview

1
Department of Materials Science and Engineering, Shiraz University of Technology, Shiraz 71557-13876, Iran
2
Division of Materials Science and Engineering, Hanyang University, Seoul 04763, Republic of Korea
3
Department of Materials Science and Engineering, Inha University, Incheon 22212, Republic of Korea
4
The Research Institute of Industrial Science, Hanyang University, Seoul 04763, Republic of Korea
*
Authors to whom correspondence should be addressed.
Chemosensors 2023, 11(6), 334; https://doi.org/10.3390/chemosensors11060334
Submission received: 25 April 2023 / Revised: 30 May 2023 / Accepted: 1 June 2023 / Published: 5 June 2023
(This article belongs to the Special Issue Carbon Nanomaterials and Related Materials for Sensing Applications)

Abstract

:
Today, resistance gas sensors which are mainly realized from metal oxides are among the most used sensing devices. However, generally, their sensing temperature is high and other materials with a lower operating temperature can be an alternative to them. Graphene and its derivatives with a 2D structure are among the most encouraging materials for gas-sensing purposes, because a 2D lattice with high surface area can maximize the interaction between the surface and gas, and a small variation in the carrier concentration of graphene can cause a notable modulation of electrical conductivity in graphene. However, they show weak sensing performance in pristine form. Hence, doping, and in particular N doping, can be one of the most promising strategies to enhance the gas-sensing features of graphene-based sensors. Herein, we discuss the gas-sensing properties of N-doped graphene and its derivatives. N doping can induce a band gap inside of graphene, generate defects, and enhance the conductivity of graphene, all factors which are beneficial for sensing studies. Additionally, not only is experimental research reviewed in this review paper, but theoretical works about N-doped graphene are also discussed.

1. Introduction

Gases are found everywhere and we cannot imagine life without them. However, some gases and organic volatile compounds (VOCs) such as NO2, CO, C6H6, and C7H8 are highly hazardous and their emission into the air leads to air pollution and subsequent problems related to human health. Today, due to the presence of many industries and plants and a large amount of car traffic, access to clean air is difficult; more than 90% of people live in cities with air pollution and, inevitably, they suffer from polluted air. Indeed, air pollution is one of the causes of premature death and sickness globally, and in total, it causes 16% of deaths in the world [1]. While the presence of some gases contributes to air pollution and health problems, some other gases such as H2S are considered biomarkers for the diagnosis of some diseases such as halitosis and Down syndrome [2].

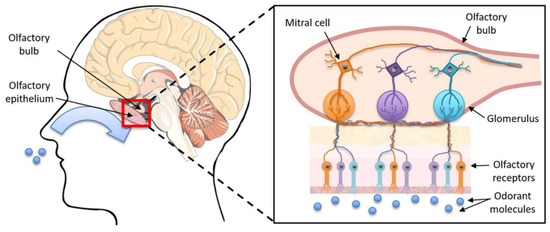

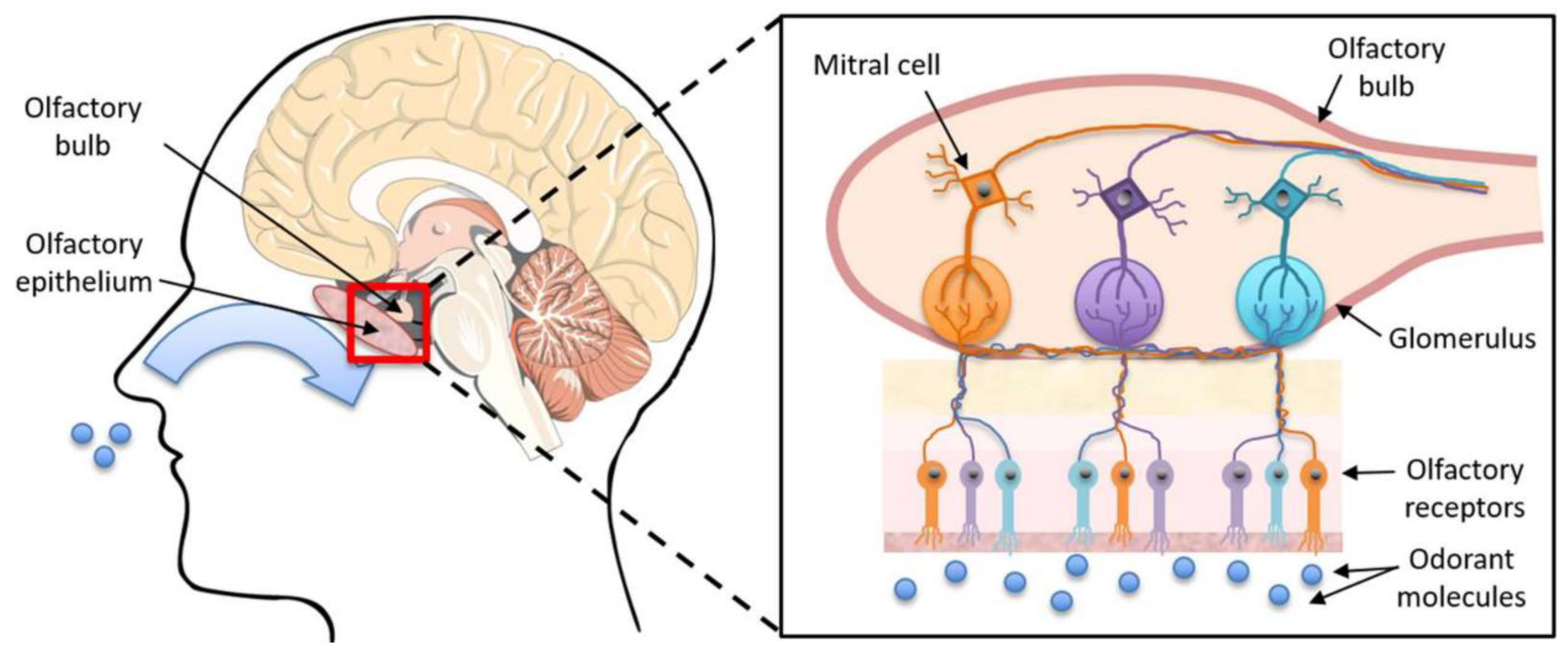

Humans have a sophisticated olfactory system which is constructed from millions of receptor cells (Figure 1). When odorant molecules come into contact with olfactory receptors through the glomerulus, mitral cells send a signal to the brain which will be detected. Hence, we are able to sense hundreds of smells easily and instantly. We can even instantaneously sense very low concentrations of odorants. For instance, we can detect methanethiol in 1 in 2.5 billion units of air [3].
However, in the case of odorless gases and substances such as CO, or extremely low concentrations of gases, we are unable to detect them. Moreover, people cannot be present everywhere. Standardized techniques for the detection of gases such as high-performance gas chromatography and ion chromatography need complex preparation, expensive and large equipment, and cannot provide fast results [5]. Hence, the realization of fast dynamics and stable gas sensors to detect low amounts of gases is of importance [6]. Considering these factors, various gas and humidity [7,8] sensors have been introduced which are fabricated from different materials with different sensing principles.
In general, gas sensors are electronic devices which can sense the presence of a target gas in their surrounding atmosphere and generate an electronic signal based on the nature and concentration of the target gas. Resistance or resistive sensors are, nowadays, highly well-liked thanks to their low cost, simple operation, ease of fabrication and measurement, high response, high stability, ease of integration, etc. [9]. In [10], Bradeen and Bradeen were the first to discover the effect of the surrounding atmosphere on the electrical properties of germanium [11]. Later, gas explosions in Japan inspired scientists to develop high-sensitivity gas sensors, and Seiyama et al. [12] introduced the first resistance gas sensor using ZnO for the detection of C7H8, CO2, and propane gases. Additionally, Taguchi significantly worked on the development of resistive gas sensors and, finally, he commercialized the first resistive gas sensor based on SnO2.

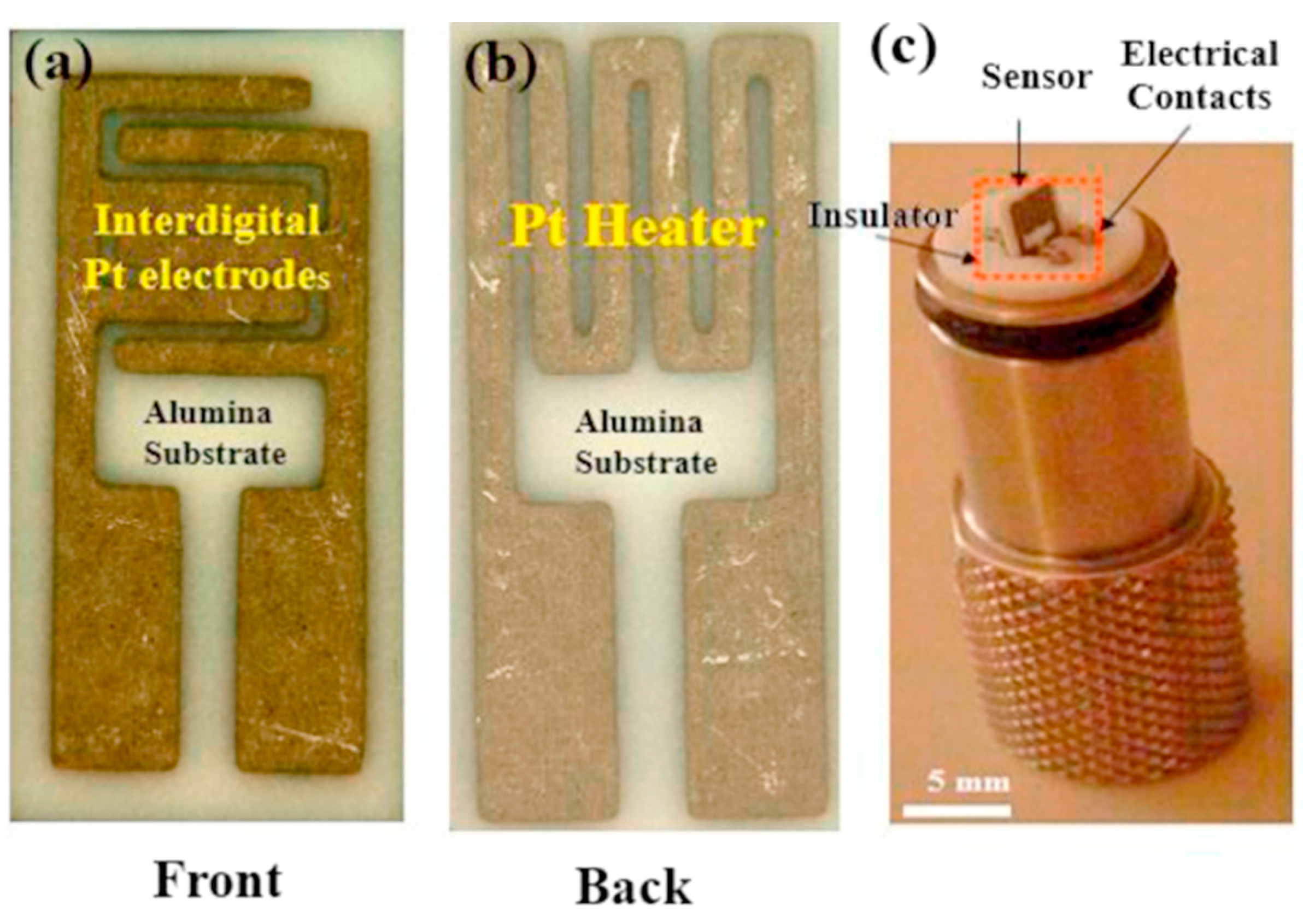

Mostly, resistive gas sensors are fabricated from semiconducting metal oxides. Nonetheless, they generally show unacceptable selectivity and should be heated to high temperatures to offer their best performance, especially when they are in pure form [13]. Thus, other materials such as conducting polymers (CPs) [14], carbon-based materials [15], MXenes [16], and metal chalcogenides [17] have also been employed for the realization of gas-sensing devices. Most of these materials can work at low or room temperature, which is a great advantage as it can remarkably decrease the power consumption of fabricated gas sensors. Generally, there are two common configurations for resistive gas sensors: planar and tubular. In both configurations, the sensing layer is deposited on the sensor substrate which is an insulating material, such as alumina equipped with conductive electrodes such as Au and Pt. Additionally, to provide temperature to the gas sensor, a heater is attached on back of the sensor for planar gas sensors (Figure 2), while for tubular gas sensors, generally, heater wire is put inside of the tube and by applying voltage to it, heat is generated via the Joule heating effect.

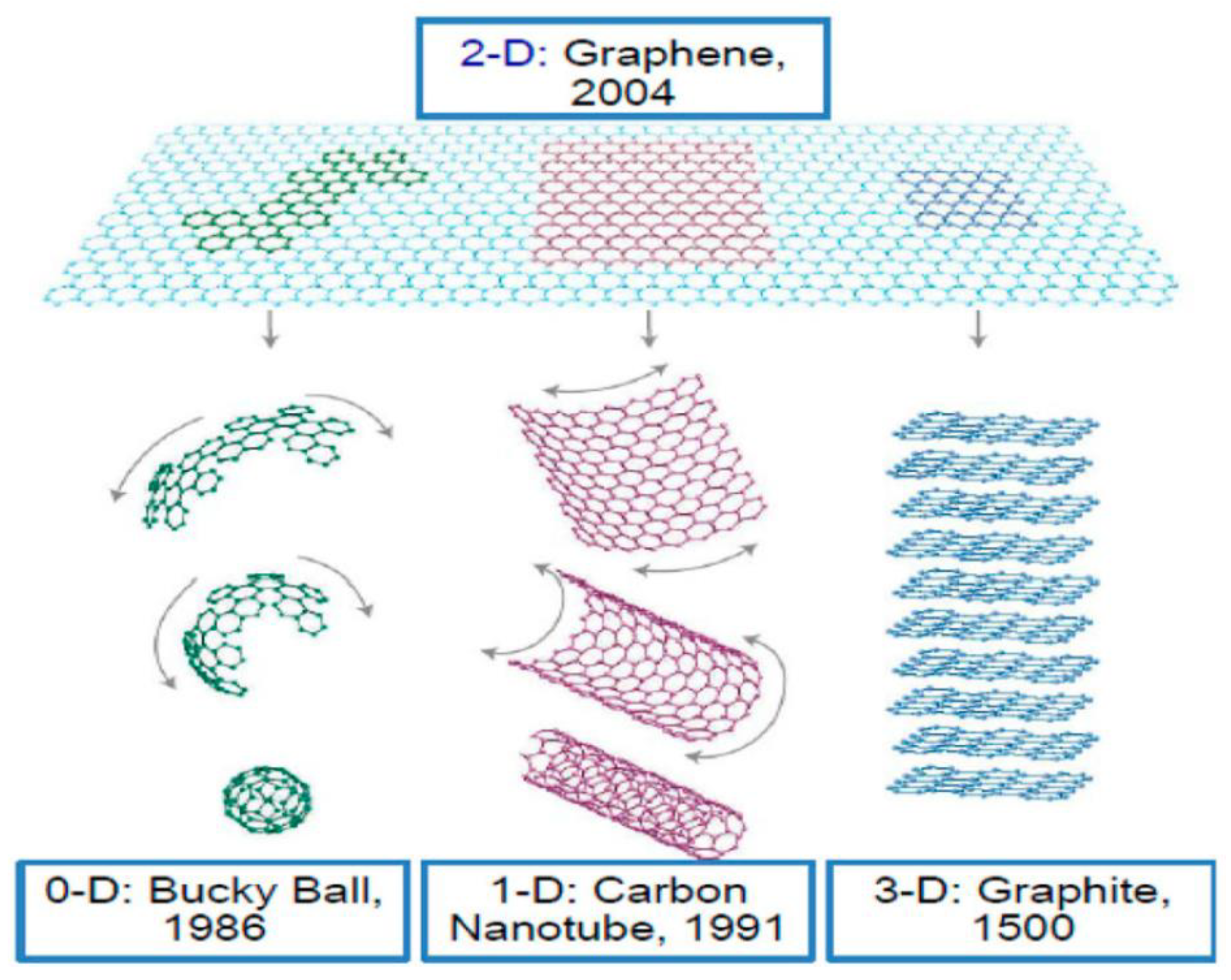

Thanks to the outstanding progress in the synthesis and discovery of new materials, nowadays, there are many engineering materials with unique features. Among them, carbon-based materials have high potential for sensing studies thanks to their good conductivity, high mechanical properties, relatively low prices, numerous varieties, and high chemical stability [19]. Among the different carbon allotropes, graphene with a 2-dimensional (2D) morphology, which was isolated from graphite in 2004 [20], is one of the most fascinating materials. Graphene refers to a single layer of “C” atoms which are arranged into a 2D honeycomb structure, and it is regarded as a basic building block for graphite (3D), carbon nanotubes (1D), and fullerenes (0D) [21] (Figure 3).
Nowadays, graphene can be easily synthesized; however, it is easily agglomerated due to Van der Waals interactions. Unfortunately, graphene suffers from the lack of band gap, which limits its application as a gas sensor, especially in pristine form. Furthermore, it has poor water solubility. Hence, it can be partially oxidized by powerful oxidants and, in this way, graphene oxide (GO) is synthesized and different functional groups such as epoxy groups on its surface lead to water solubility. Due to the presence of carboxyl, carbonyl, and epoxide groups on the surface of GO, it is an electrical insulator because of the disruption of its sp2 bonding networks [23,24]. Therefore, it has limited potential for gas-sensing purposes.
Reduced graphene oxide (rGO), a reduced from of graphene oxide (GO), can also be considered as promising material for gas-sensing applications, mainly thanks to having many functional groups and defects on it [25]. However, even though an exact comparison between N-doped graphene and rGO is difficult, rGO has no band gap, whereas N-doped graphene has a small band gap. Additionally, N-doped graphene has greater electron mobility than rGO. Furthermore, N-doped graphene may provide more active sites for gas molecules than rGO. In both materials, however, there are more defects than pristine graphene [26,27].

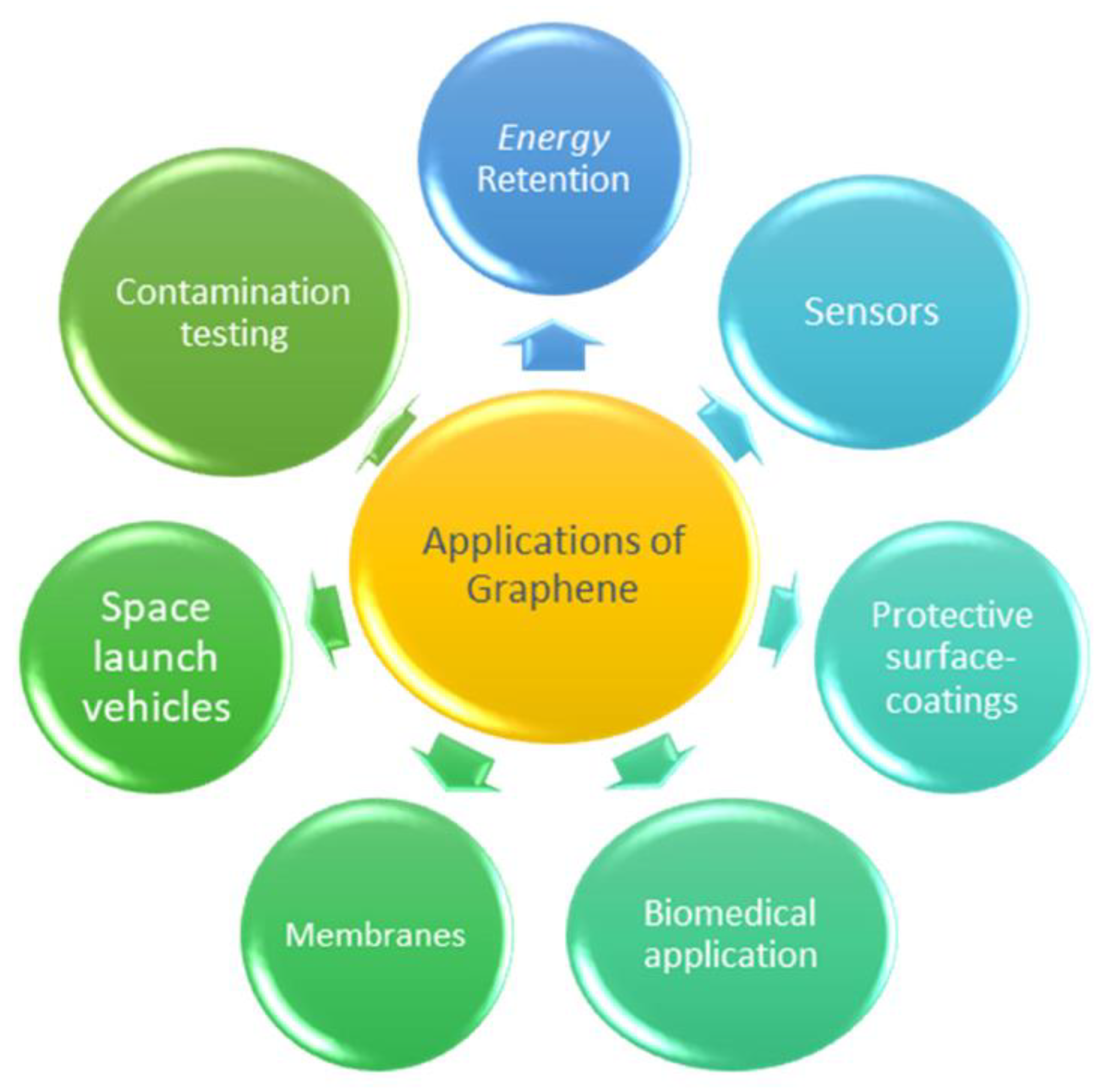

Referring back to graphene, it has been considered for different applications (Figure 4) thanks to its nontoxicity, high transparency, high mechanical properties, high electrical and thermal conductance, and high carrier mobility at room temperature [28]. Accordingly, it has been used in different areas such as gas sensors [29].
Generally, doping is a good technique to modify the features of different materials [31]. There are two types of doping in graphene. Metallic-cluster-induced doping, gate-controlled doping, or substrate-induced doping are known as electrical doping. Indeed, this type of doping does not affect the composition of graphene. Another type of doping, namely chemical doping, tunes the lattice structure via chemical routes such as substitution with foreign atoms [32].
Chemical doping can be distinguished as: (i) surface transfer doping, which happens when functionalized groups on the graphene surface are added; (ii) substitutional doping where the “C’ atoms in graphene are replaced with another atom. N-type and p-type conductivity in graphene can be realized by substitutions of the atoms with more and fewer valence electrons than “C” atom, respectively. The presence of dopant leads to the opening of a band gap, converting graphene into a semiconductor. Moreover, depending on the type and amount of dopant, the position of Fermi level shifts, leads to a modulation of electrical conductivity [33]. Opening the band gap and changing the conductivity through dopants are feasible strategies to control the electrical characteristics of graphene [34].

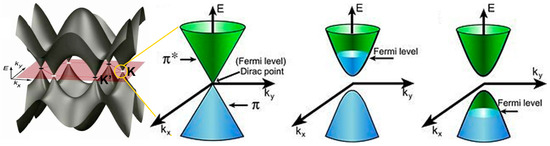

In particular, substitutional doping leads to the disruption of the sp2 hybridization of the “C” atoms, resulting in a remarkable modulation of electrical properties [32]. For pristine graphene, since bonding (π) and antibonding (π*) orbitals touch at Brillouin zone corners, no band gap is observed in it (Figure 5). In fact, delocalized π electrons contribute to the conductivity of graphene; therefore, the dopant and defect sites will change its electrical features. Through the addition of dopant atoms, its original lattice symmetry will be broken, leading to the formation of a gap (Figure 5). The band gap is proportional to the dopant concentration, and in this way, the band gap can be tuned. Pristine graphene is chemically inert because its unpaired electrons are firmly bound and passivated in its delocalized π system. Although, some weak interactions and adsorption via a π-π, π–CH, or π-cation interactions are possible. The introduction of a dopant atom can lead to the generation of highly abundant active sites in graphene. Indeed, a dopant atom with a different electronegativity than “C” breaks the electroneutrality in graphene and forms unbalanced locally charged areas, where they play the role of active sites in graphene. Additionally, unpaired electrons in dopants lead to a localized distribution of molecular orbitals, inducing more chemical reactivity in graphene. Furthermore, active sites can be viewed as structural defects, which are formed due to the size difference and resultant lattice strain in graphene [33]. Therefore, doping in graphene can alter its electrical properties, induce structural defects, and increase its reactivity. This has led to the application of doped graphene in the gas-sensing area [35,36].
The B and N atoms have similar sizes to the “C” atom and are the main dopants in graphene. Their incorporation in graphene leads to hole acceptor and electron donor characteristics, respectively [37]. In particular, the “N” atom has an atomic radius of 0.70 Å, which is close to that of the “C” atom (0.77 Å). Furthermore, “N” has a higher electronegativity (3.04) than “C” (2.55). Moreover, “N” can form strong bonds with “C” atoms [38,39]. In this way, a more stable structure can form [40]. N doping in graphene not only enhances charge carrier mobility, but also makes it more hydrophilic as well as generating more active sites [38]. Additionally, N doping can remarkably improve the conductivity [41] and can enhance the biocompatibility of graphene [42]. Accordingly, N-doped graphene or its derivatives are used in electromagnetic wave absorption [43], electrochemical sensors [44], biosensors [45,46], gas sensors [47], electrocatalysts [48,49], solar cells [50], supercapacitors [51], energy conversion [52], and energy storage [53].
Until now, many attempts have been conducted for the controllable synthesis of N-doped graphene. In general, three N species as dopants can be discriminated in graphene. Figure 6: (i) graphitic N in which N atoms are substituted in the hexagonal shape on the internal parts of graphene, and (ii) pyridinic (iii) and pyrrolic, in which both types exist at edge defects [54].
To achieve the improved electrical properties, the “N” atom should be in the graphitic state. Anyway, other configurations of “N” as a dopant are also almost always present. Therefore, their presence and concentrations can also affect the physicochemical properties of doped graphene. Thereby, during the synthesis of N-doped graphene, the goal is having more graphitic “N” and less pyridinic and pyrrolic “N”. When “N” is in the graphitic position, n-type doping is observed, while pyridinic and pyrrolic configurations will result in the p-type doping of graphene [55].

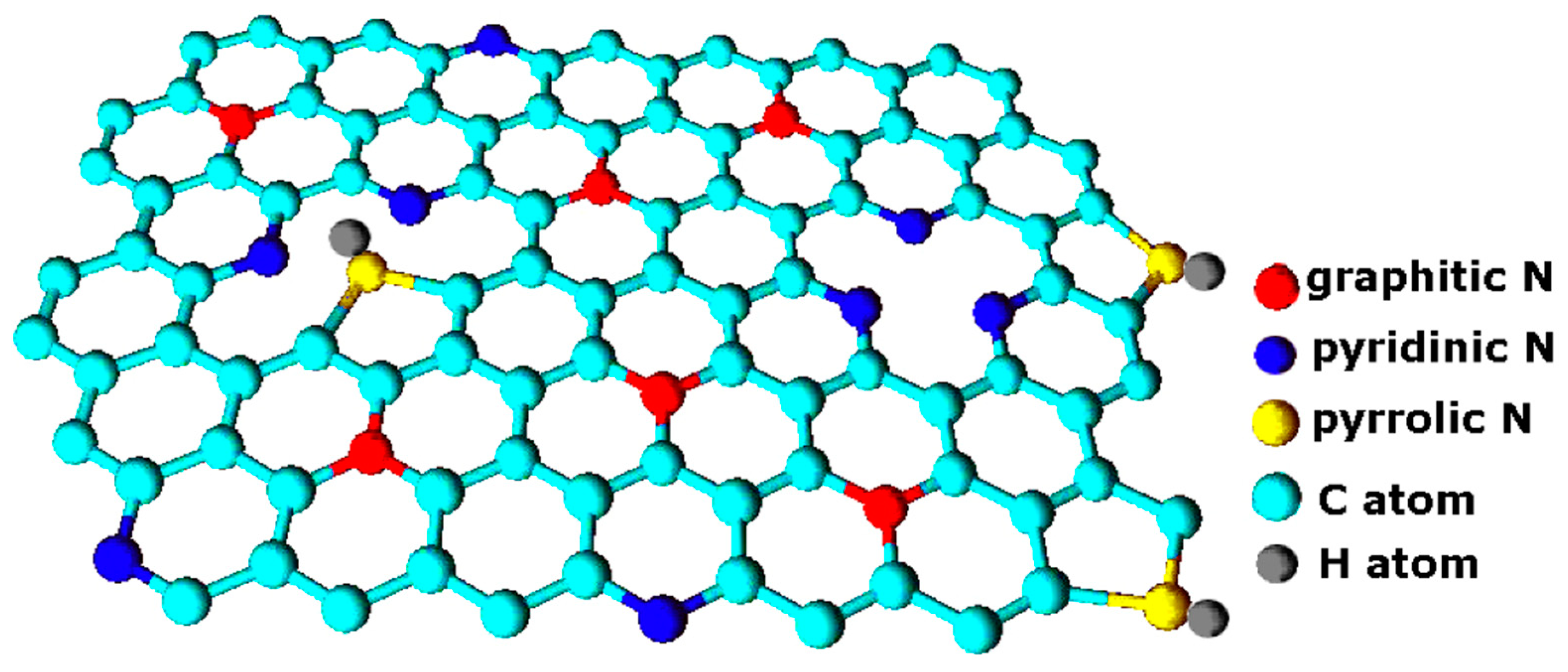

In the graphitic configuration, graphitic N is bonded to three other adjacent C atoms in the hexagonal ring and the excess valence electrons of N is delocalized, thus leading to an n-type doping effect. In the pyridinic N, two electrons fill σ-bonds with “C” neighbors, two electrons form a lone pair in the graphene plane, and the remaining electron occupies the N π-state. Hence, it has the equivalent occupation of a nominal “C” in graphene, but a π-electron is missing because of the vacancy site so the system is p-doped. In a similar way, pyrrolic N forms one σ-bond with its “C” neighbor and also forms σ-bonds to two H atoms. Two electrons go into the π-network, but similar to the pyridinic N case, the missing π-electrons from the divacancy sites accommodate this type of dopant, resulting in overall p-type doping [56,57].

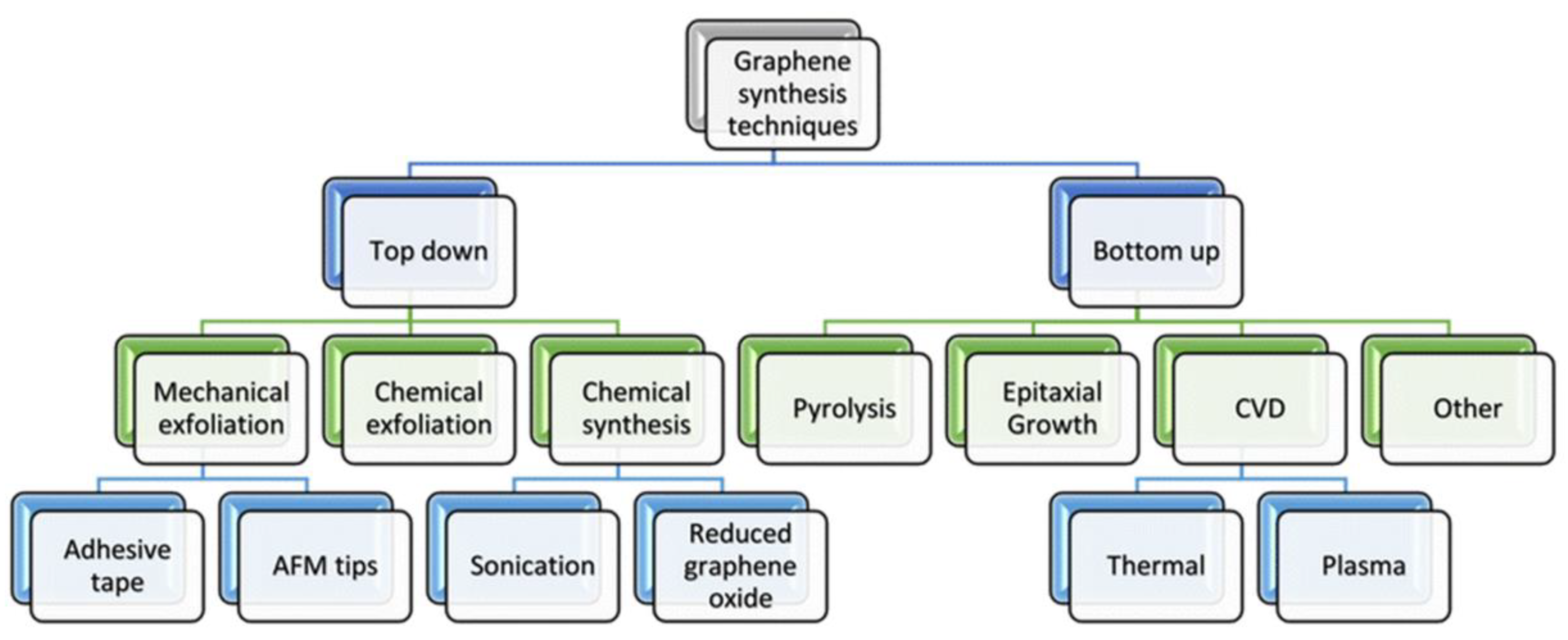

There are various synthesis methods for the preparation of graphene (Figure 7) and most of them can be applied to synthesising N-doped graphene and its derivatives.
Arc discharge [59], chemical vapor deposition (CVD) [60], the hydrothermal route [61], sonochemistry [62], ball milling [63], plasma treatment [64], thermal annealing [65], pyrolysis [66], and the hydrazine hydrate (N2H4) method [67] are among the most widely used approaches. These methods produce N-doped graphene with different configurations and different numbers of graphene sheets. The costs of the precursors, the thickness of the graphene sheets, the amounts and types of defects, ease of fabrication in terms of synthesis temperature and time, reproducibility, and production scale [68] are the main factors for the selection of a synthesis method. For example, CVD is one of the most promising methods for the fabrication of high-quality and large-scale graphene. Nonetheless, the required temperature for growth is high (~1000 °C) [69]. Details of the synthesis methods are beyond this review paper and interested readers can refer to a recent review by Yadav et al. [70] about the synthesis methods of N-doped graphene. Additionally, the characterization techniques for graphene and N-doped graphene are presented in detail in [40,71,72].

2. N-Doped Graphene and Its Derivatives as Resistive Gas Sensors: Theoretical Studies

With the progressive advancement of computational power and the availability of better supercomputers, theoretical studies of materials have become more feasible. Since gas sensor reactions include chemical reactions in which bonds are formed or broken and often result in a transfer of charge, the first principle (ab initio) or a quantum approach is preferred over a classical mechanics method. Quantum approach methods are useful for studying gas–surface interactions owing to their ability to model the adsorption mechanisms, the adsorption energy, charge transfer, electronic modification after gas adsorption, the structural changes, and the electronic properties involved. In this regard, density functional theory (DFT) calculations are considered a powerful technique to carry out many simulations, including the gas-sensing capability of different materials, without any side effects. DFT calculations are required for understanding experimental results at the molecular level, or as a predictive tool for the design of new sensing materials [73,74,75].
The adsorption of some gases, namely CO, NO, O2, and NO2, on defective graphene and N-doped graphene was investigated through DFT calculations. It was theoretically revealed that all CO, NO, and O2 gases were chemisorbed on the defective graphene with large charge transfers. This can lead to the poor selectivity of CO in the presence of other gases. In contrast, only CO molecule with a large charge transfer was chemisorbed on the N-doped graphene, while other gases were only weakly adsorbed on it, reflecting good selectivity for CO gas sensing. Hence, through DFT calculations, it was shown that with a simple doping of “N” in a graphene lattice, it is possible to improve the selectivity to CO gas [76].
Based on DFT studies, the adsorption of CO molecules on pristine, N-doped, as well as Al-doped graphene was studied. The results showed that the most stable adsorption configuration was on top of a carbon (N or Al) atom of graphene sheets. The adsorption energies of CO molecules on pristine, N-doped, and Al-doped graphene were −0.01 eV, −0.03 eV, and −2.69 eV, respectively. In fact, the adsorption of CO molecules on pristine and N-doped graphene was physical adsorption, while it was chemisorbed on the Al-doped graphene. Moreover, calculations on band structure, density of states (DOS), and differential charge density showed that the adsorption of CO on Al-doped graphene was remarkably different from other materials in their study [77]. In another work, the adsorption of HCHO on Si-, Al-, Cr-, B-, N-, Au-, and Mn-doped graphene was studied using DFT calculations. It was reported that the HCHO molecule was weakly adsorbed on B- and N-doped graphene, while HCHO chemisorption was predicted on Si-, Al-, Cr-, Mn-, and Au-doped graphene. Additionally, based on adsorption geometries, charge transfers, adsorption energies, and density of states, it was found that Al and Mn dopants are the best ones for sensing enhancement towards HCHO gas [78]. The next work was related to an adsorption study of CO2 on the P-, N-, B-, and Al- doped monovacancy graphene through DFT calculations. The band gap was changed from 0.004 to 0.478 eV and the electrical conductivity was changed from metallic to semiconducting when a monovacancy was created in graphene. Furthermore, the doped graphene had a larger band gap relative to its undoped counterpart. The authors reported that Al-doped monovacancy graphene was better than other gas sensors for CO2 gas sensing due to the suitable adsorption strength and band gap. Before the adsorption of CO2 gas, the band gaps of N-doped monovacancy graphene and P-doped monovacancy graphene had no change, but those of B-doped monovacancy graphene and Al-doped monovacancy graphene changed. The band gap of Al-doped monovacancy graphene changed from almost 0 to 0.229 eV [79]. Hence, the electrical features were significantly changed, showing the high potential of Al-doped monovacancy graphene for CO2 gas-sensing application.
BF3 and BCl3 are colorless gases and useful reagents in organic synthesis [80]. The energetic and electronic properties of pristine and N-doped graphene upon the adsorption of BC13, B(OCH3)3, and BF3 gases were studied using DFT calculations. The computed dipole moment revealed that the amount of change in dielectric of the sensing material depends on the type of molecule. Furthermore, it was reported that N-doped graphene had much higher adsorption energy and higher net charge transfer relative to pristine graphene thanks to Lewis acid–base interactions between these gases and the sensing material. Additionally, the Lewis acidity increased as follows: BF3 < BC13 < B(OCH3)3 with adsorption energies of −8.7, −18.3, and −26.5 kJ/mol, respectively, revealing better adsorption of the B(OCH3)3 on the N-doped graphene. Furthermore, very low adsorption energies were calculated on pristine graphene, suggesting a poor sensing response of pristine graphene to these gases [81].
The interactions of graphene and H2 gas molecules can be controlled by adding dopant atoms. In this regard, Zhang et al. [82] explored the effect of Ti, Zn, Zr, Al, and N dopant atoms on the H2 molecule adsorption of graphene through DFT calculations. It was indicated that the Ti-doped graphene had the highest interaction energy with the H2 molecules (−0.299 eV), while those for Zn-doped and Al-doped graphene were −0.294 eV and −0.13 eV, respectively. However, the adsorption energy of H2 molecules on N-doped graphene was much lower, namely −0.074 eV. Therefore, the N dopant did not enhance the hydrogen molecule response. Additionally, the comparison of the isosurface of the total electron density of the samples (Figure 8a–f) indicated that the interaction of the H2 molecule with Ti-doped graphene had the largest isosurface area. Interestingly, the doped N atom did not affect the electronic features of graphene. Indeed, no electron accumulation was seen on the N-doped graphene, while the Ti-doped one exhibited the highest electron loss upon interaction with H2 gas (Figure 9a–f).

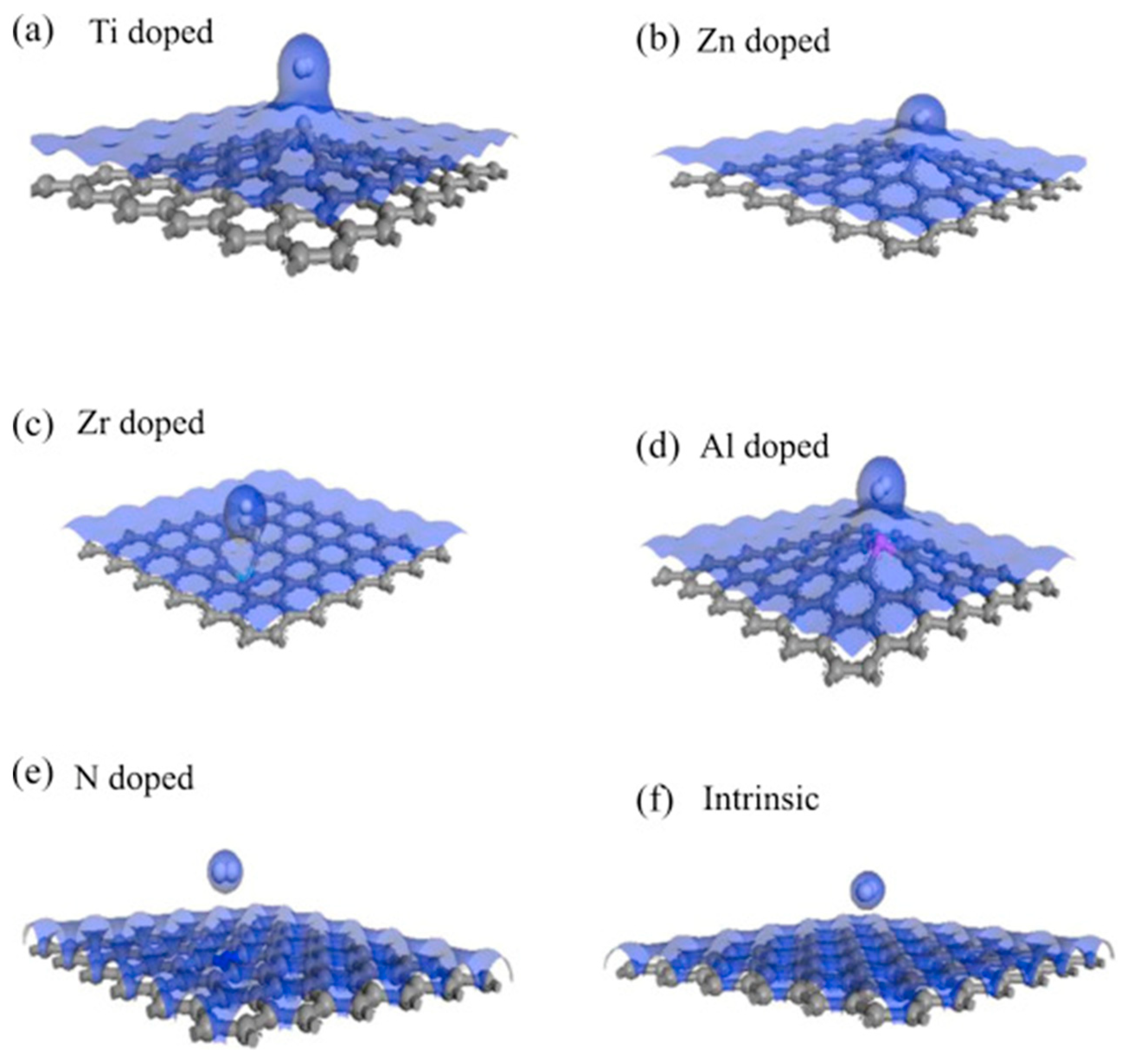

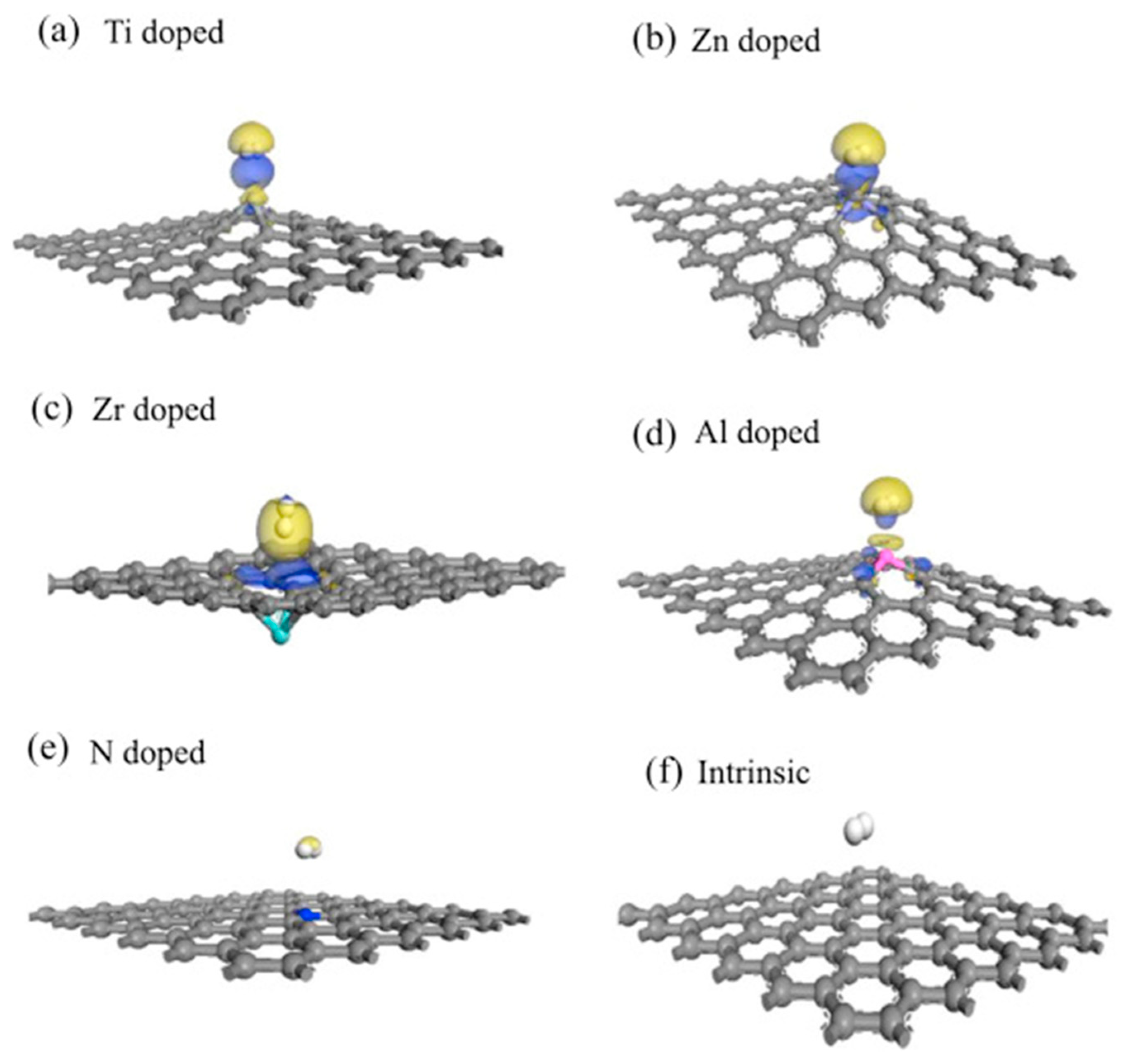

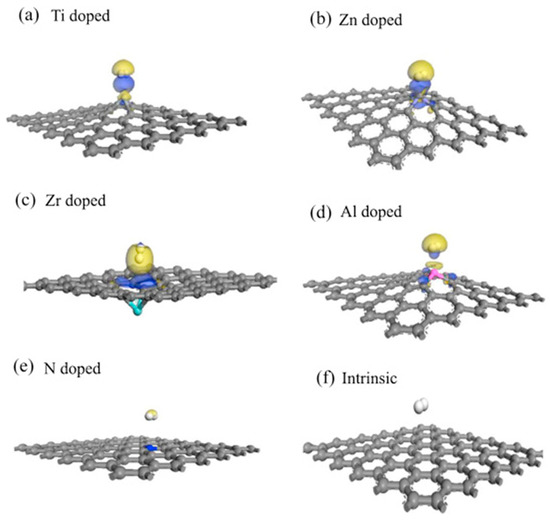

In an interesting work, Zhang et al. [83] reported the effects of doped Ti or N atoms on the interaction of CO, NO, SO2, and HCHO gases with graphene through DFT calculations. The adsorption energy, electron density difference, and density of state studies exhibited that the Ti dopant could improve the interaction of gases with graphene. By contrast, the interaction energy between the gas molecules and the N-doped graphene was weaker relative to the Ti-doped graphene. Additionally, the Ti-doped one showed a stronger interaction with SO2 gas and the weakest interaction with CO gas, suggesting good potential for Ti dopant in graphene for SO2-sensing studies. Wang et al. [84] studied the adsorption of NO2, NO, and NH3 molecules on B-doped and N-doped graphene through a DFT study. They built their models by putting these gases on three different high-symmetry adsorption sites. It was indicated that NO/NO2 gases had more stability on B-doped graphene than those on N-doped graphene. Additionally, the detection of a NH3 molecule on B- or N-doped graphene was rather weak, suggesting that this gas cannot effectively adsorb on the surface of these sensing materials. As a pollutant, chloroform (CHCl3) has strong volatility and is carcinogenic. Furthermore, it can lead to water pollution [85]. Tian et al. investigated the adsorption of chloroform on N-doped and Al-doped graphene using DFT studies [86]. The configurations of pristine and N-doped graphene did not change, while the adsorption of CHCl3 caused a structure change in Al-doped graphene. It was revealed that there is more charge transfer, a smaller adsorption distance, and larger adsorption energy upon the adsorption of CHCl3 on Al-doped graphene relative to adsorptions on pristine graphene and N-doped graphene.
Shokuhi Rad et al. [87] investigated the adsorption of SO2 and SO3 gases on graphene and N-doped graphene by means of DFT calculations. SO2 and SO3 molecules were physically and chemically adsorbed on the surface of N-doped graphene, respectively, whereas almost no adsorption was generated on the pristine graphene. This suggests the possibility of using N-doped graphene for SO3 sensing in real applications. Zhang et al. [88] investigated the adsorption of NO2, NO, and O2 gases on Ti- or N-doped graphene using the DFT method. The results revealed that the interactions between the above gases and Ti- or N-doped graphene were unaffected by the size of the graphene. The Ti doping improved the interactions between the gases, while the N doping had no significant effect on the interactions. In particular, the Ti doping of graphene significantly enhanced the adsorption of NO2 gas relative to pristine graphene. Additionally, the role of noble metal decoration on the adsorption of gases on graphene was investigated. Pd is a noble metal with good catalytic activity and a lower price than Pt [89]. Tang et al. [90] investigated the formation geometries and gas adsorption of a single Pd atom supported on divacancy graphene (555-777-graphene-Pd) and Nx-doped graphene (Nx-graphene-Pd, x = 1, 2, 3) through DFT calculations. The Nx graphene-Pd configurations had the smallest formation energies and among them, the N3-graphene-Pd was easily formed. Additionally, the N3-graphene-Pd exhibited better adsorption properties for NO2 gas relative to 555-777-graphene-Pd. Additionally, the adsorption energy of NO2 gas was larger than CO and O2 gases.
Using vibrational spectroscopy, Carraro et al. [91] demonstrated that, upon “N” doping in graphene on Ni (111), two CO adsorptions are possible. The dominant one had a CO stretch frequency (256 meV) close to that (260 meV) for the pristine graphene/Ni (111) sample, while it had the same desorption energy. In contrast, the second species had a CO stretch frequency of 238 meV and ∼50% larger desorption energy. It was related to CO-adsorbed molecules close to the N-doped sites of pyridinic and/or pyrrolic nature. Their work demonstrated the potential of N doping for the adsorption of CO with graphene on Ni (111).
Based on the DFT calculation results, it can be concluded that, overall, N doping can enhance the adsorption of gas molecules on graphene or rGO, relative to pristine (undoped) graphene or rGO. However, it should be also mentioned that, in comparison to metallic dopants such as Al, Ti, or even B dopant, generally, N-doped graphene shows weaker adsorption of the target gas molecules. However, the adsorption behavior of codoped graphene such as Ti/N, and codoping in graphene in general, need to be further explored using DFT calculations.

3. N-Doped Graphene and Its Derivatives as Resistive Gas Sensors: Experimental Studies

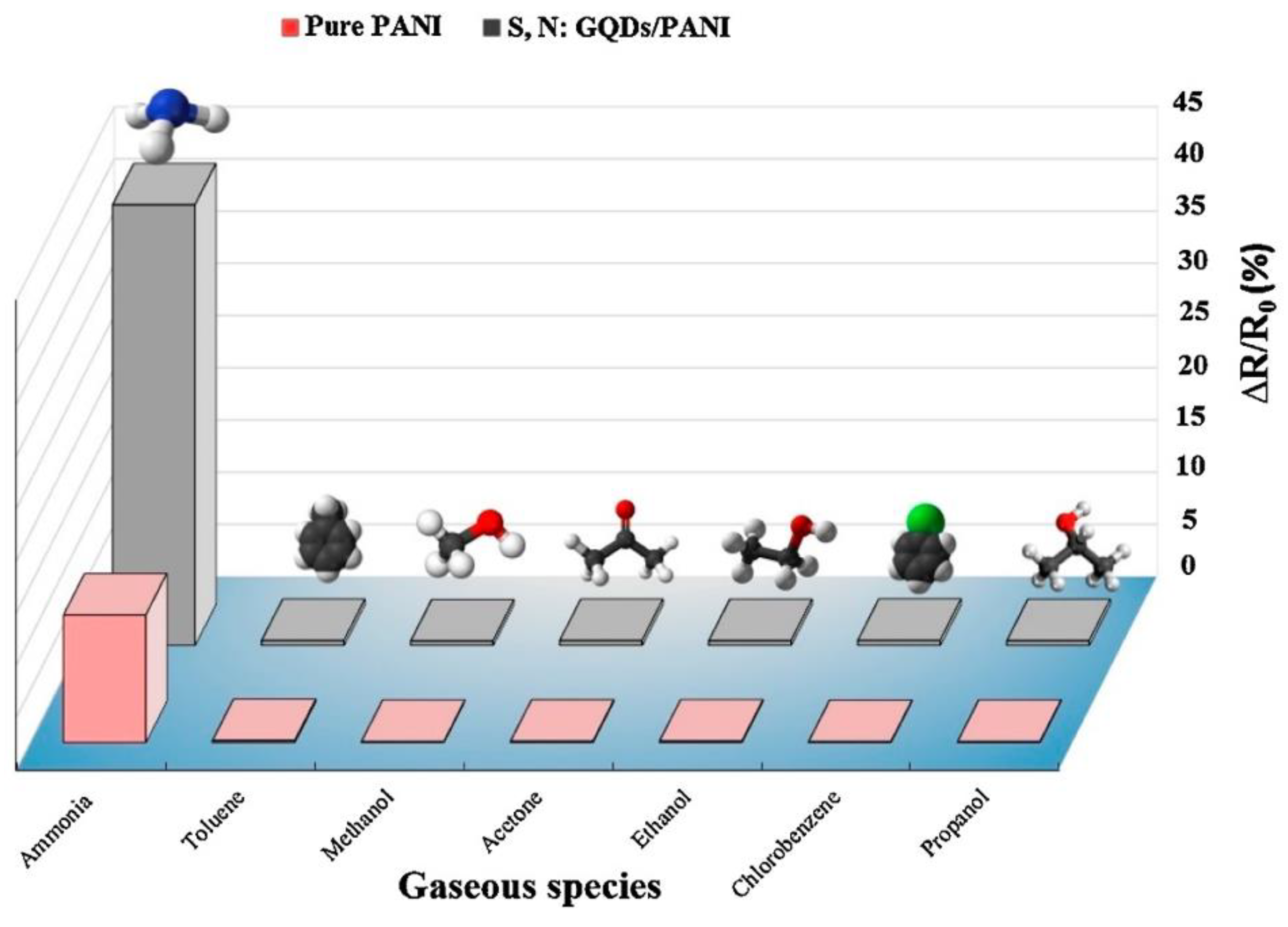

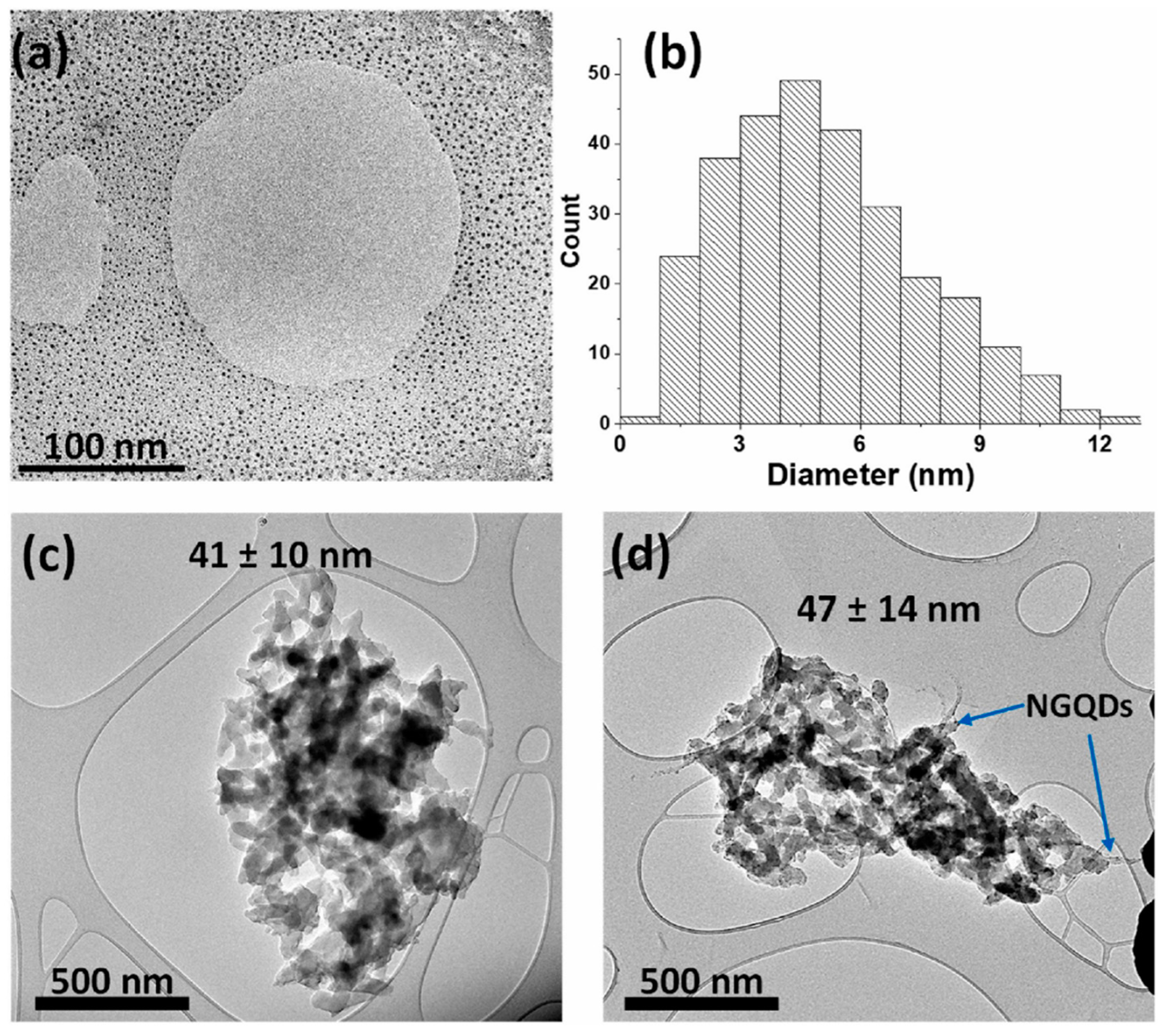

Graphene quantum dots (GQDs) have lateral dimensions smaller than 10 nm and the combination of QDs and graphene characteristics in these materials leads to revealing enhanced features such as low toxicity, chemical stability, high strength, tunable energy band gaps, outstanding optical properties, and excellent microelectronic properties [92]. In this regard, Masemola et al. [87] prepared a N-doped GQDs/PANI composite for ethanol-sensing studies (Figure 10).

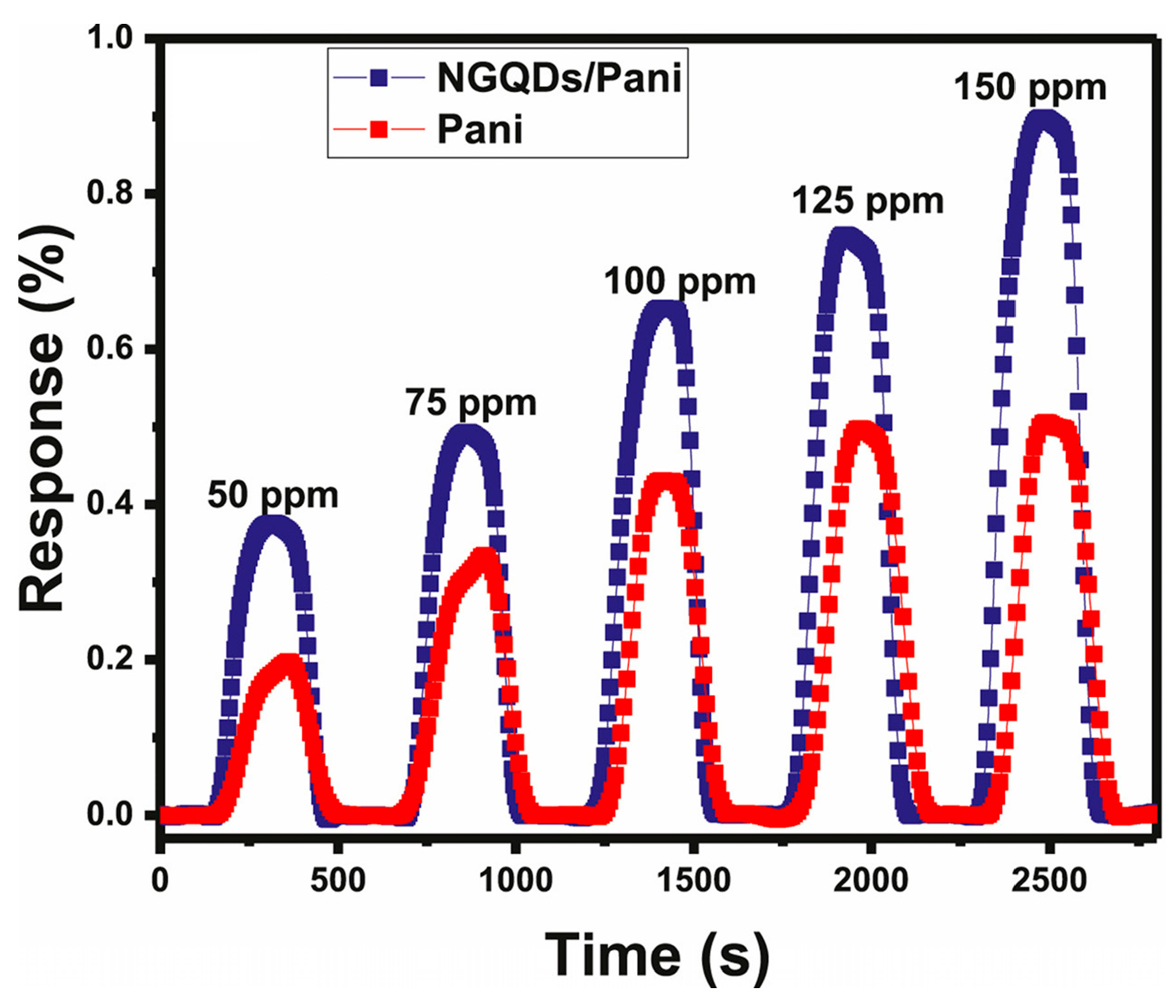

The NGQDs/PANI sensor revealed a better response compared to that of pristine PANI (Figure 11) along with a faster response time and recovery time of 85 s and 62 s, respectively, to 100 ppm ethanol vapor at 25 °C. The enhanced response of the composite sensor was related to the incorporation of N in the GQDs. It was related to the enhanced conductive pathways between the PANI and N-doped GQDs, which induced conductive pathways created by strong synergetic effects through interchain π interactions between the NGQDs and PANI. Furthermore, the surface area of the composite sensor (41.0 m2 g−1) was higher than that of bare PANI (31.2 m2 g−1), leading to higher adsorption of ethanol molecules on the composite sensor.
CPs are used in gas sensors due their tunable properties, low cost, and room-temperature operation [94]. In another study, Gavgani et al. [95] realized VOC gas sensors based on pristine N-doped GQDs, poly (3,4 ethylenedioxythiophene)-poly(styrenesulfonate) (PEDOT-PSS), and N-doped GQDs/PEDOT-PSS nanocomposites. The fabricated sensors at room temperature were exposed to 100 ppm acetone, toluene, propanol, chlorobenzene, methanol, ethanol, and water. It was reported that the N-doped GQDs/PEDOT-PSS nanocomposite gas sensor showed a good response to methanol, whereas it revealed almost no response to other gases. The response of the optimal sensor to 100 ppm methanol was 154.4%, which was 12 times as high as that of the PEDOT-PSS sensor. The sensing mechanism of the optimal sensor was described using the following reasons: (i) The swelling of CPs due to the diffusion of methanol into the CPs. In this case, the interchain distance of CPs increases and the electron hopping process becomes more difficult. (ii) N-doped GQDs integrated into the CP matrix acted as conductive paths, favoring the electron hopping. Therefore, a combination of the above two processes leads to the modulation of the electrical resistance in the presence of methanol gas.
Nitrogen dioxide (NO2), with a highly toxic nature, emits from fossil fuels and can damage the human respiratory system [96]. In this regard, a series of N-doped GQD 3-dimensional ordered macroporous (3DOM) In2O3 composites were synthesized for NO2 gas-sensing studies. The results showed that the sensor exhibited a better response to NO2 gas with fast and recovery times and a low working temperature (100 °C), relative to pristine In2O3 and rGO/3DOM In2O3 sensors. Furthermore, it showed good selectivity and high long-term stability. The conductivity enhancement due to the presence of N-doped GQDs and the generation of heterojunctions between In2O3 and N-GQDs, as well as the presence of macrospores, accounted for the enhanced response to NO2 gas [97].
P-type rGO and N-doped rGO were explored for NO gas detection at 25 °C. The response of the N-rGO sensor to 1000 ppb NO (1.7) was higher than that of the rGO sensor (0.012) and it was even able to detect 0.4 ppm NO gas. The increase in the NO gas-sensing performance was related to N doping. First, the N doping produced polarization in the sp2 carbon network and further affected the physical and the electrical properties of the sensor. Second, the improved gas response was related to the improved active sites of pyridinic N and/or pyrrolic N. In particular, pyridinic N, where the N atom is bonded to two C atoms and donates one p-electron to the aromatic π system, modified the band structure of carbon and lowered the work function. Additionally, the electron density on the neighboring C atom decreased, which resulted in the transfer of electrons from the C to N atoms, and N back-donate electrons to the neighboring C pz orbitals. These processes facilitated the dissociation of oxygen molecules on the C atoms and helped to form a strong bond between O and C atoms [98].

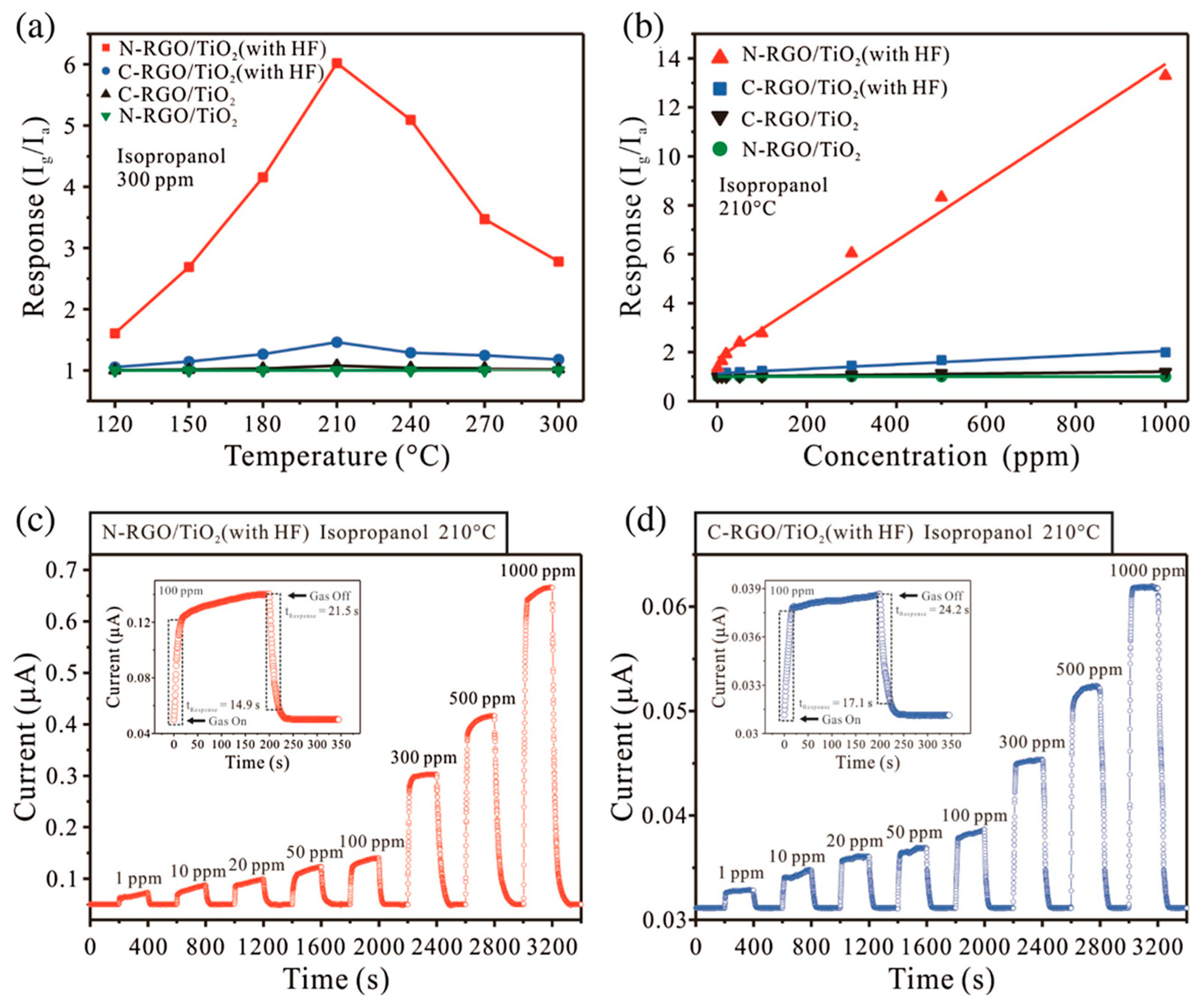

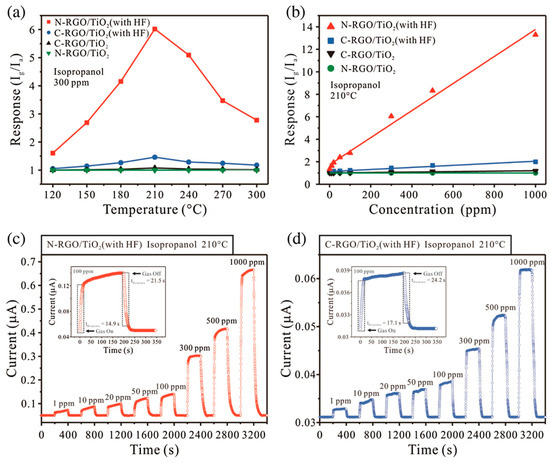

TiO2 is an n-type semiconductor which offers high chemical stability and excellent electronic properties. Yan et al. [99] investigated the sensing properties of C- and N-doped rGO/TiO2 composites with special exposed facets synthesized via a hydrothermal method at 180 °C using HF. The gas-sensing performance of the N-doped rGO/TiO2 sensor was better than that of the C-doped rGO/TiO2. The N-doped rGO/TiO2 sensor exhibited the highest response to isopropanol, ethanol, and acetone gases at 210, 240, and 270 °C, respectively. The N-doped rGO/TiO2 sensor exhibited the highest response to 100 ppm acetone with a response of 14.12, while its responses to ethanol and isopropanol were 5.85 and 3.47, respectively. Figure 12a–d present the sensing performance of the sensors towards isopropanol. The N dopant led to a narrowing of the band gap of the composite and an improvement in the binding between N-doped rGO and TiO2, which was useful for charge separation, more carrier concentration, and electron mobility. The TiO2 in the composite generated electron–hole pairs, and the N-doped rGO inhibited the electron–hole pair recombination owing to the 2D planar π-conjugation. Hence, a prolonged lifetime of the charge carriers occurred and generated electron–hole pairs, which reduced oxygen to form radicals with a strong oxidation capability to react with gases. Additionally, rGO, with good electrical properties, led to the fast diffusion, capture, and release of electrons. Moreover, the presence of defects and functional groups in the N-doped rGO facilitated the gas adsorption.

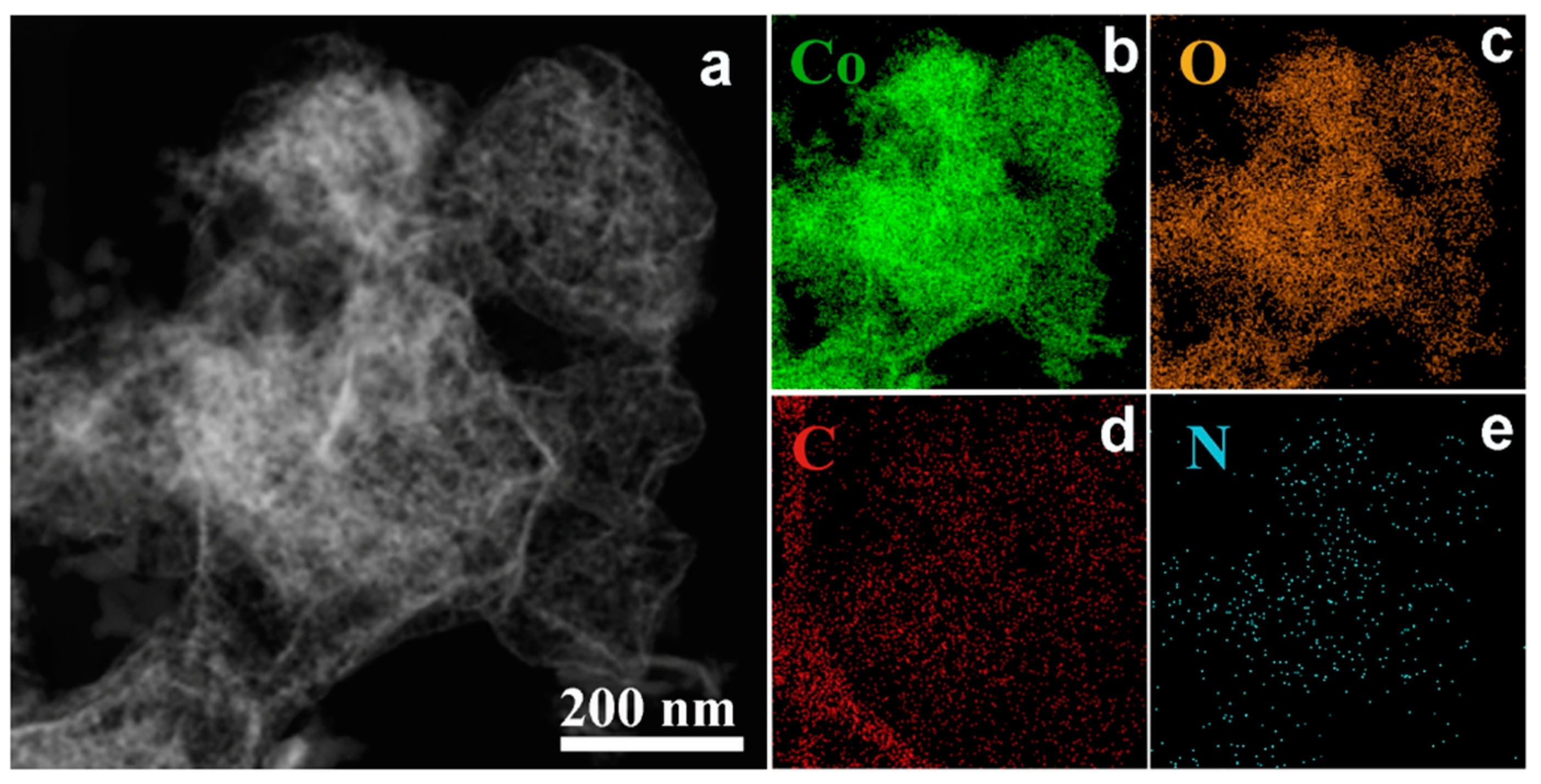

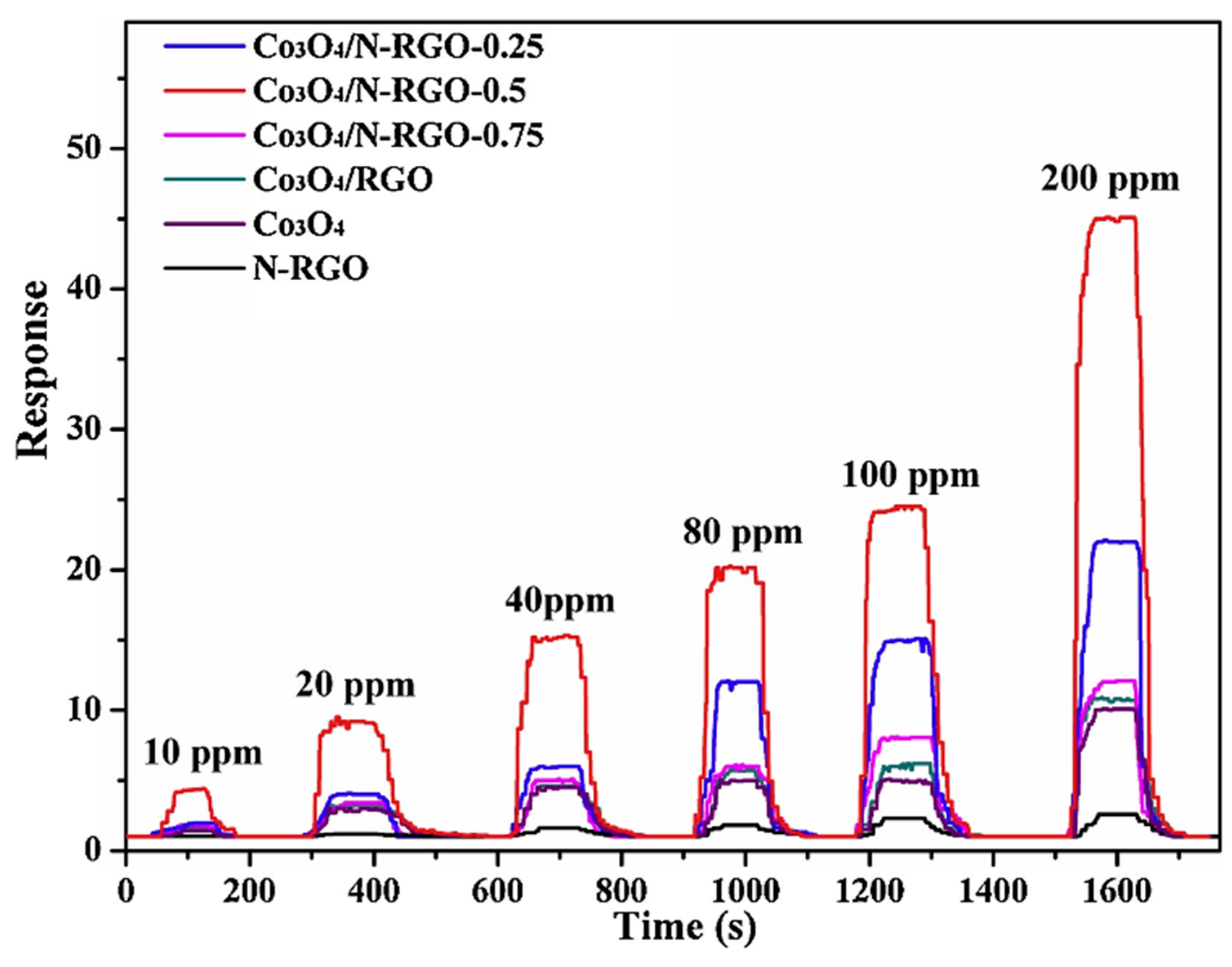

Lin et al. [100] fabricated mesoporous p-type Co3O4/N-doped rGO nanocomposites via a metal–organic framework (MOF) template. Elemental mapping revealed the uniform distribution of Co, O, C, and N elements in the sample (Figure 13). The effect of initial rGO concentration on the gas-sensing characteristics of the composite sensor was studied. It was found the Co3O4/N-doped rGO-0.5 (rGO mass = 0.5 mg) nanocomposite sensor had a better response to ethanol than other sensors, and a response of 44.5 to 200 ppm ethanol at 200 °C was obtained (Figure 14). The enhanced sensing response was related to the presence of rGO with high electron mobility, which facilitated the migration of carriers in the sensing process, leading to improved sensing performance. Furthermore, the coupling effect between Co3O4 and N-doped rGO enhanced the oxygen reduction ability in the gas-sensing process and increased the transfer rate of charge carriers. In addition, the sensor had a high specific surface area, and so provided more effective active sites during ethanol adsorption than the other samples. The N atoms were mainly bonded with rGO as pyridine-N. They were bonded with the “C” atoms of the rGO sheets, which provided lone pair electrons to increase the electronic partial density of states near the Fermi level. The higher density of states facilitated the electron flow during the sensing reactions.

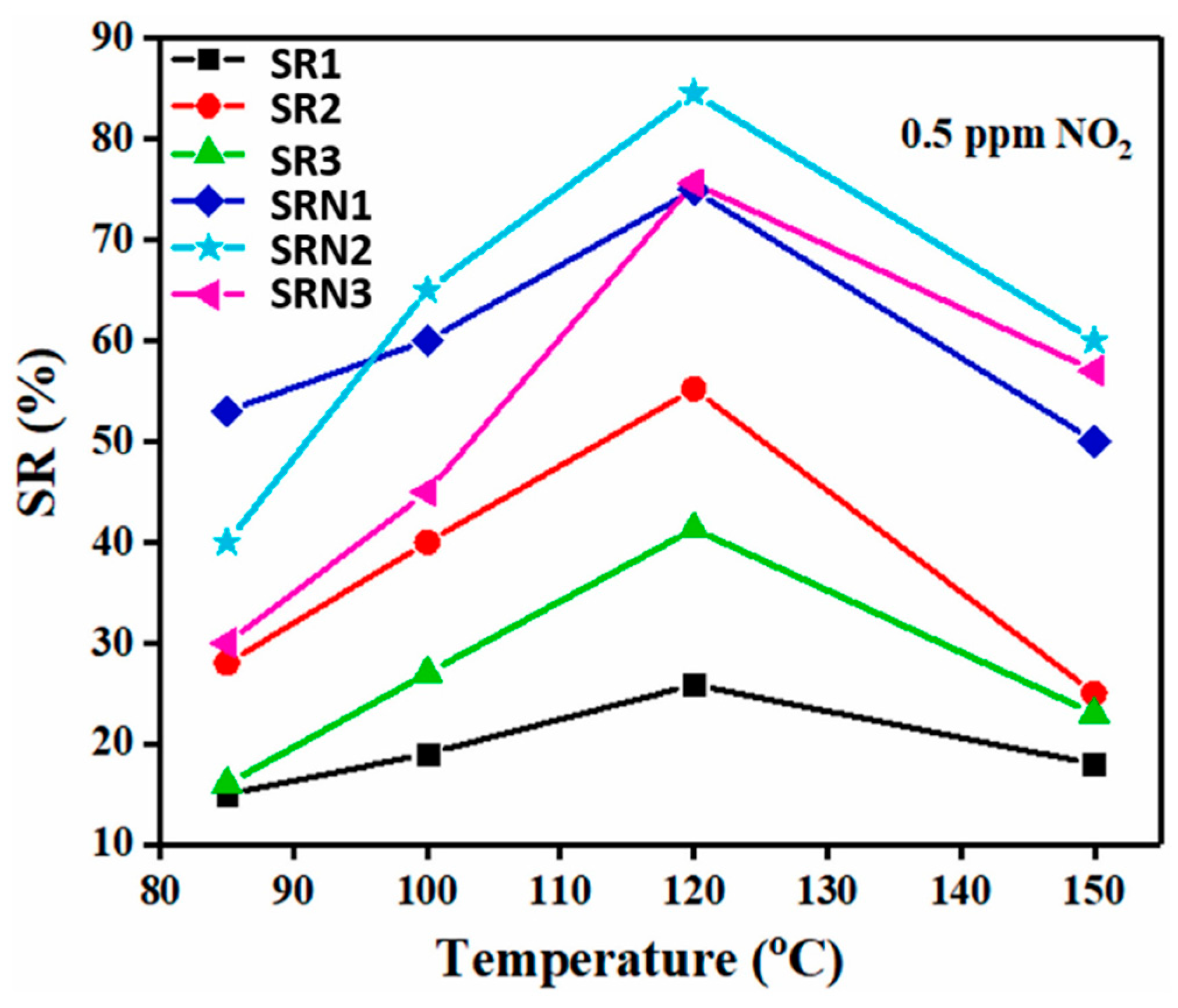

Modak et al. [101] introduced NO2 gas sensors using a SnO2-N-doped rGO composite for NO2 sensing. SnO2-rGO composites with three amounts of SnO2 (low, medium, and high) were synthesized via a hydrothermal reaction. The samples were coded as SR1, SR2, and SR3. For N-doped rGO, urea was used as a source of N atoms. They were coded as SRN1, SRN2, and SRN3 based on 0.09, 0.18, and 0.27 mg of urea, respectively. Figure 15 presents the responses of different sensors at different temperatures to 0.5 ppm NO2 gas, where the SRN2 sensor revealed the highest response to NO2 gas at 120 °C. Additionally, the doping of N atoms into rGO increased the sensor response to NO2. However, high doping led to a decrease in the sensor response.
N doping led to the generation of more active sites which were beneficial for NO2 adsorption. Additionally, the higher surface area and higher pore volume of the SRN2 sensor facilitated a higher response to NO2 gas. Furthermore, the large number of defects and oxygen vacancies in SRN2 enhanced the gas response. Indeed, N-doped rGO had a greater number of defects in the rGO sheets, which acted as adsorption sites for the NO2 gas. Additionally, the SRN2 sensor had higher conductivity compared to SR sensors, owing to the presence of a lone pair of electrons on the N atom.

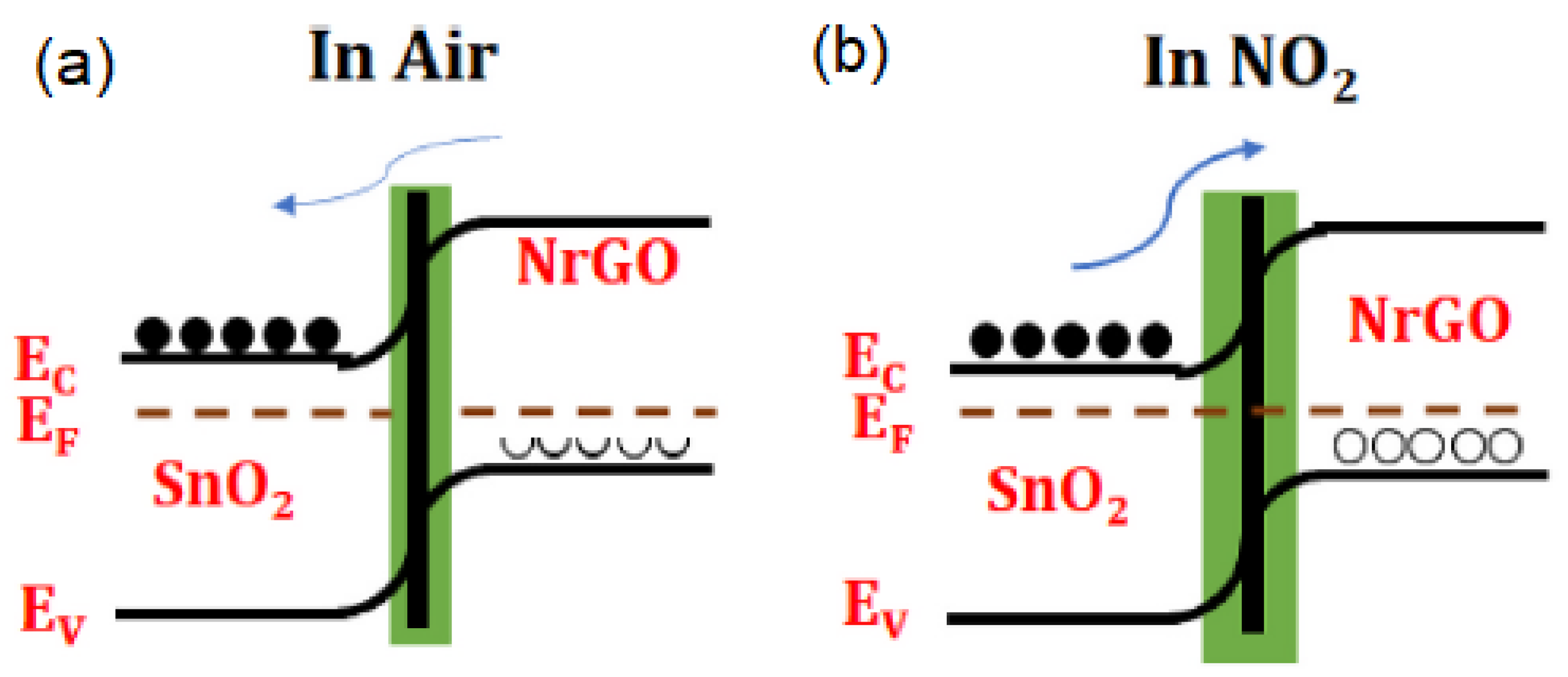

As shown in Figure 16, due to the work function difference between SnO2 (3.6 eV) and rGO (4.56 eV), the electrons moved from SnO2 to N-doped rGO; thus, potential barriers were formed at the interfaces between SnO2 and rGO in air (Figure 16a). rGO provided an electron conduction path owing to its high mobility of charge carriers. In NO2 atmosphere, due to the abstraction of electrons by NO2 gas, the height of the potential barrier increased (Figure 16b), contributing to the resistance change and appearance of a sensing signal.
Nie et al. [102] synthesized N- and Si-codoped (N/Si-doped) graphene. The N atoms acted as the active sites for the NO2 adsorption, whereas the Si atoms remarkably modified the electronic features of the graphene. The N/Si-doped graphene exhibited p-type conductivity, indicating that the hole doping from Si atoms overcame the electron doping from N atoms. The sensor was able to detect NO2 gas at 25 °C.
NH3, as a toxic gas, is an irritant to the eyes, skin, and respiratory system [103]. Among different CPs, PANI is popular thanks to merits such as the ease of synthesis, low cost, stability, and good response to NH3. Nevertheless, in pristine form, it has a response [104]. Therefore, it is often used in composite form. In this regard, Gavgani and coworkers [105] introduced a flexible NH3 sensor using a S/N-codoped GQDs/PANI composite. The response of the S/N-codoped GQDs/PANI sensor to 100 ppm NH3 was 5-fold higher than that of the PANI sensor, with a faster response time and recovery time. Additionally, the S/N-doped GQDs/PANI hybrid gas sensor showed better selectivity to NH3 gas relative to the PANI sensor (Figure 17).
The increased NH3-sensing features were attributed to the swelling of the PANI in the presence of NH3, as well as the reversible acid–base doping/dedoping of the PANI in the presence of NH3 gas, which changed it from a conductive state to an insulating state, leading to an increase in the resistance and formation of heterojunctions between the PANI and the S/N-codoped GQDs.
In another study, an NH3 gas sensor based on a combination of PANI and different amounts of N-doped GQDs was fabricated and Ag or Al was used for the electrodes. The sensor with Ag and Al contact showed Ohmic and Schottky behaviors, respectively. The sensor with a Ag electrode had a much higher response to NH3 than that of the sensor with an Al electrode. The (50 wt%) N-GQDs/PANI sensor with a Ag electrode displayed a high response of 110.92 to 1500 ppm NH3 at room temperature, which was around 30% higher than that of the Al electrode [106].
In another study, the sensing response of a PEDOT-PSS sensor to 1500 ppm NH3 at room temperature increased from 30.13% to 212.32% with 50 wt% N-doped GQDs. Furthermore, the sensor with N-GQD showed faster dynamics and higher stability [107]. Purbia et al. reported N-doped GQDs/SnO2 nanocomposites for the detection of NO2 gas at 150 °C. The response to 100 ppb NO2 gas was 292 with a response time of ~3 min. Furthermore, it revealed good selectivity to NO2 gas. The formation of SnO2-N-doped GQDs, the presence of defects, and the high surface area of the gas sensor led to a better response in the composite sensor relative to the bare SnO2 gas sensor [108].
As far as we know, unfortunately, no paper discussing the effect of humidity on the gas-sensing properties of N-doped graphene has been published. However, for resistive gas sensors, it is generally accepted that the presence of water vapor decreases the sensing performance. In fact, since the sensor signal depends on the adsorption of the gases on the surface of the sensor, in a humid environment, some of the adsorption sites are occupied by water molecules, leading to a decrease in the sensing performance. However, specifically for N-doped graphene and its derivations, some studies on this aspect are necessary.
In Table 1, we summarize the gas-sensing properties of N-doped-graphene-based gas sensors. N-doped graphene or N-doped rGO, mostly in composites with metal oxides and CPs, have been used for sensing studies. Additionally, mostly NH3 and NO2 gases and VOCs such as ethanol, methanol, and isopropanol have been used as the target gases. With some exceptions, generally, the sensing temperature is low or at room temperature, and in comparison with other resistive-based gas sensors such as metal-oxide-based sensors, this is an advantage. However, the response time and recovery times are relatively long. In comparison with metal oxide gas sensors, the response values are generally lower. However, in some cases, very high responses have been reported.

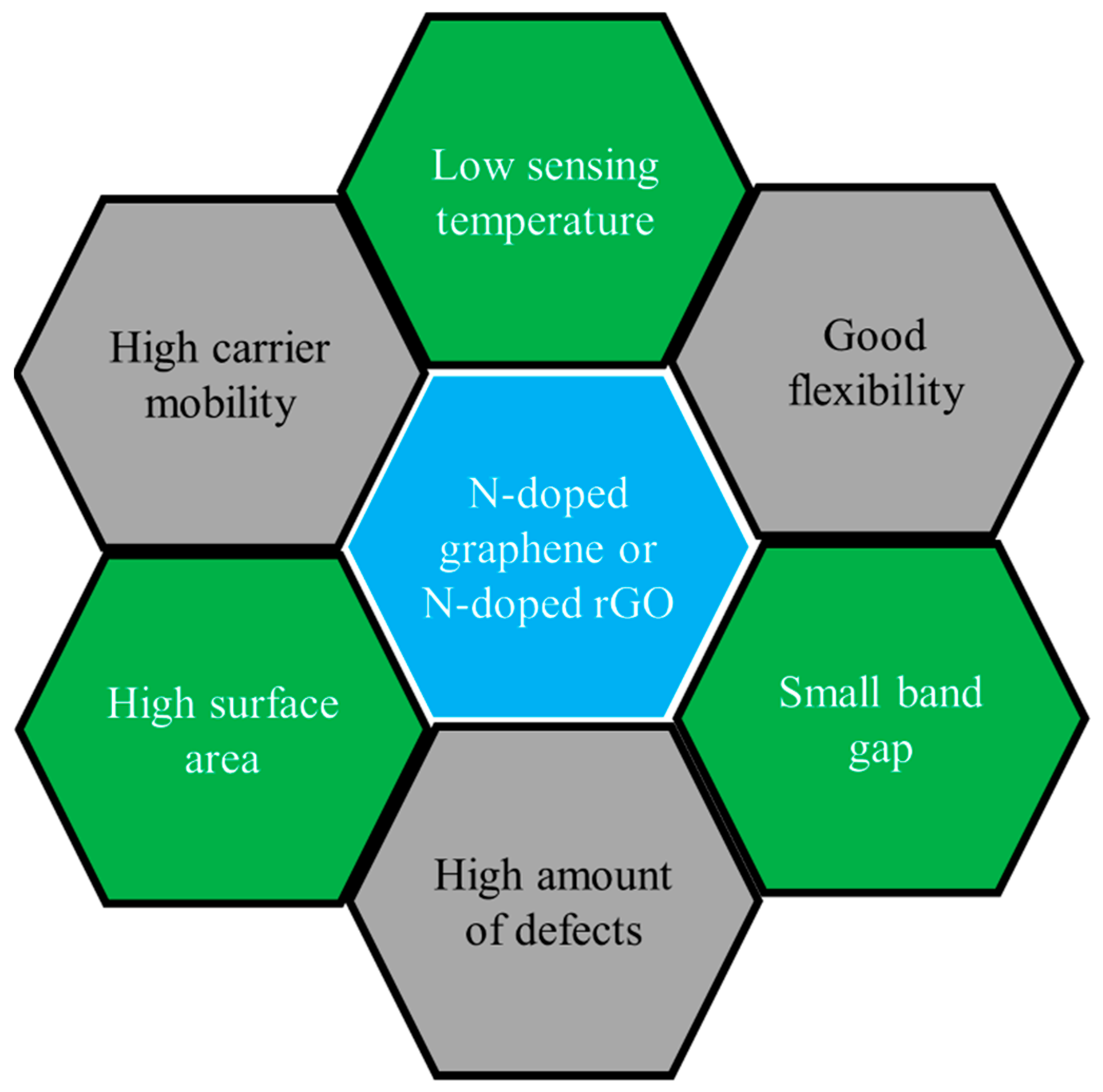

Additionally, in Figure 18, we schematically represent the main features of N-doped graphene and N-doped rGO as gas sensors.

4. Conclusions and Outlooks

We reviewed the gas-sensing characteristics of N-doped graphene and rGO resistance gas sensors. There are various methods to fabricate N-doped graphene or rGO. N doping in graphene and rGO can not only induce defects, but can also increase the electrical conductivity and induce n-type conductivity in graphene. Through N doping, it is feasible to tune the band gap of graphene and rGO. Furthermore, N dopants are cheaper than noble metals such as Au, Pt, and Pd.
Generally, N doping causes an enhanced gas response relative to pristine graphene and rGO. However, it seems that more studies are necessary in this context. Even though there are good examples from the literature of DFT calculation studies of N-doped graphene, they need parallel experiments to be verified. Additionally, as far as we know, no or only a few studies have been devoted to N doping in GO for sensing studies, and in this aspect, more experimental works are needed.
There are some experimental works that have studied N-doped graphene or rGO in composite form for gas-sensing studies. However, often, no optimization of the amount of N doping is reported and this aspect should also be considered. Additionally, there are only a few studies related to noble metal decoration on N-doped graphene or rGO. For example, Au or Pd loading on N-doped graphene or its derivatives is expected to improve the gas-sensing performance. It seems that the synergetic effect of N doping and noble metal decoration can significantly promote the sensing performance. In future studies, it seems that the following directions in this area are necessary:
(i)
Optimization of the amount of N doping in graphene and rGO: Only a few papers mentioned the optimization of N doping in rGO. Generally, there is a volcano-shape dependency of the sensing response with respect to the amount of N doping. Therefore, at very low and very high amounts of doping, the sensing performance decreases. Hence, it is important to find the optimal value of N doping, where the maximum sensing response can be achieved.
(ii)
The study of N-doping effect in GO for gas-sensing studies: As far as we know, there is no study about the effect of N doping on the gas response of GO gas sensors. Hence, we think that this aspect needs some studies. In fact, N doping will increase the conductivity of GO, and in this way, it is expected that the gas-sensing performance will be increased after N doping in GO.
(iii)
Noble metal decoration on N-doped graphene and rGO: Noble metals such as Au [109], Pt [110], Pd [111], Ag [112], and Rh [113] are commonly used for the decoration of metal oxide gas sensors. They have catalytic activity towards some gases and can facilitate the adsorption and dissociation of gases on the surface of N-doped graphene. Furthermore, due to having a different work function than N-doped graphene or N-doped rGO, upon intimate contact, they will form heterojunctions with N-doped graphene or N-doped rGO with potential barriers to the flow of charge carriers. In the presence of target gases, due to related reactions and the release of abstraction of electrons on the sensor surface, the height of potential barriers changes, leading to a resistance modulation of the gas senor. In this way, it is expected that the overall response of the sensor will increase after noble metal decoration.
(iv)
Investigation of the effect of high-energy irradiation on the sensing properties of N-doped graphene or rGO: Generally, high-energy ion beams such as electron beams [114], laser irradiation [115], and gamma rays [116] cause the breaking of bonds and the formation of structural defects within the regions near the surface of the host material. These formed defects are favorable sites for the adsorption of gases, and it is expected that more gases will be adsorbed on the sensor after high-energy irradiation. However, it should be noted that, generally, there is an optimal dosage of irradiation where the maximum response is observed [117]. Hence, the effect of high-energy irradiation on the response of N-doped graphene or N-doped rGO should be investigated.
(v)
Hybrids of CPs with N-doped graphene for gas-sensing studies: Even though some works in this aspect have been reported, it seems that more studies are necessary. Generally, CPs such as graphene can work at low or room temperature, and some of them have a good sensing response to some gases such as NH3 [118]. Hence, hybrids of CPs with N-doped graphene or N-doped rGO can enhance the overall sensing performance.
(vi)
Hybrids of MXenes with N-doped graphene for gas-sensing studies: MXenes are a new family of 2D materials. They are synthesized via the etching of the MAX phase, and the resultant accordion-like morphology with open channels is very promising for the diffusion of gases [119]. Furthermore, they can work at low or room temperature [120]. Hence, hybrids of MXenes with N-doped graphene or N-doped rGO can work at room temperature; with a high surface area and good conductivity, all are beneficial for sensing applications.

Author Contributions

Conceptualization, A.M., H.W.K. and S.S.K.; investigation, A.M., S.P.B., J.-Y.K. and K.K.P.; writing—original draft preparation, A.M., H.W.K. and S.S.K.; writing—review and editing, A.M., H.W.K. and S.S.K.; supervision, H.W.K. and S.S.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Korea Polar Research Institute (KOPRI) grant funded by the Ministry of Oceans and Fisheries (KOPRI project No. PE22900) and a National Research Foundation of Korea (NRF) grant funded by the Korean government (MSIT) (No. 2021R1A2C1009790). This work was also supported by the Technology Innovation Program (1415178807, Development of Industrial Intelligent Technology for Manufacturing, Process, and Logistics) funded by the Ministry of Trade, Industry & Energy (MOTIE, Korea).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available upon request.

Conflicts of Interest

The authors declare no conflict of interest.
