Systematic Review

Development, Application, and Performance of Artificial Intelligence in Cephalometric Landmark Identification and Diagnosis: A Systematic Review

Department of Prosthodontics, Altamash Institute of Dental Medicine, Karachi 75500, Pakistan
Prosthodontics Unit, School of Dental Sciences, Health Campus, University Sains Malaysia, Kota Bharu 16150, Malaysia
Department of Prosthodontics, College of Dentistry, King Khalid University, Abha 61421, Saudi Arabia
Department of Oral Pathology, Bahria University Dental College, Karachi 74400, Pakistan
Department of Orthodontics, Faculty of Dentistry, University of Puthisastra, Phnom Penh 12211, Cambodia
Department of Preventive Dentistry, College of Dentistry, Jouf University, Sakaka 72345, Saudi Arabia
Center for Transdisciplinary Research (CFTR), Saveetha Institute of Medical and Technical Sciences, Saveetha Dental College, Saveetha University, Chennai 602105, India
Department of Public Health, Faculty of Allied Health Sciences, Daffodil International University, Dhaka 1341, Bangladesh
Department of Prosthodontics, Faculty of Stomatology, Yerevan State Medical University after Mkhitar Heratsi, Str. Koryun 2, Yerevan 0025, Armenia
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Healthcare 2022, 10(12), 2454;
Received: 26 October 2022 / Revised: 26 November 2022 / Accepted: 30 November 2022 / Published: 5 December 2022
(This article belongs to the Section Artificial Intelligence in Medicine)


This study aimed to analyze the existing literature on how artificial intelligence is being used to support the identification of cephalometric landmarks. The systematic analysis of literature was carried out by performing an extensive search in PubMed/MEDLINE, Google Scholar, Cochrane, Scopus, and Science Direct databases. Articles published in the last ten years were selected after applying the inclusion and exclusion criteria. A total of 17 full-text articles were systematically appraised. The Cochrane Handbook for Systematic Reviews of Interventions (CHSRI) and Newcastle-Ottawa quality assessment scale (NOS) were adopted for quality analysis of the included studies. The artificial intelligence systems were mainly based on deep learning-based convolutional neural networks (CNNs) in the included studies. The majority of the studies proposed that AI-based automatic cephalometric analyses provide clinically acceptable diagnostic performance. They have worked remarkably well, with accuracy and precision similar to the trained orthodontist. Moreover, they can simplify cephalometric analysis and provide a quick outcome in practice. Therefore, they are of great benefit to orthodontists, as with these systems they can perform tasks more efficiently.

1. Introduction

Artificial Intelligence (AI) is a term used to refer to neural networks of computers that imitate human intelligence. The AI’s key concepts are machine learning, representational learning, and deep learning (DL). Machine learning (ML) models include genetic algorithms, artificial neural networks, and fuzzy logic. These models can analyze data to perform various functions [1]. Representational learning and deep learning are subsets of ML in which the former requires a computer algorithm that analyzes the features required for classifying any data. The latter subset consists of artificial neural networks that mimic the human brain’s neural network, which is capable of deciphering features in a given model, such as a radiograph or an ultrasound [2]. The most demanding class of DL algorithms is the artificial neural network (ANN), which has the convolutional neural network (CNN) as its most popular subclass [3].
AI is becoming more prevalent in medicine and has reduced the need for humans to perform many tasks. Its applications in dentistry have also significantly evolved over the years [3]. AI algorithms support therapeutic decisions by assisting dentists in analyzing medical imaging and treatment planning. For example, it can be useful in identifying teeth and anatomical structures, detecting carious lesions, periapical lesions, and root fractures, and predicting the viability of dental pulp and the success of retreatment procedures [4]. Moreover, it has proven to be vital in the process of diagnosing head and neck cancer lesions, which is crucial in dental practice since early detection can greatly improve prognosis [5]. Briefly, it can be used to perform simple tasks in dental clinics without the involvement of a large numbers of dentists, resulting in accurate and comparable results. In addition, it is also widely used in dental laboratories and plays a significant role in dental education [3,4,5].
AI is advancing in the field of orthodontics. It is increasingly being used to interpret cephalometric radiographs and identify landmarks which help with the diagnosis and treatment planning of dentoskeletal discrepancies [6]. The most common types of AI architecture in orthodontics are ANN, CNN, and regression algorithms [6,7]. In addition, 3D scans and virtual models are beneficial in analyzing craniofacial or dental abnormalities. Aligners can be printed with 3D scan to formulate a data algorithm, which helps in providing and standardizing a specific treatment plan for the patients [4,7]. In machine learning-based studies, datasets are split into training and test sub-datasets, where the former is used to train the model and the latter is used to evaluate its performance on unseen data. In dentistry, there are different types of datasets; patient history, restorative and periodontal charts, results of diagnostic tests, radiographs, and oral images. These datasets can be inputted into models to generate outputs such as image interpretation, diagnosis, and future disease predictions [5,7].
The cephalometric landmarks are readily recognizable points representing hard or soft tissue anatomical structures. The structures are used as reference points for the identification of various cephalometric angles and cephalometric measurements [7]. The various cephalometric landmarks S (Sella), Po (porion), Pog (pogonion), Gn (gnathion), Go (Gonion), N (nasion), and Me (menton) are the most common hard tissue points. Whereas, A (most posterior tegmental point of the curvature of the maxillary sulcus) and B (the most anterior measure point of the mandibular apical base), P (pronasale), G (glabella) Sn (subnasale), Col (columella), LLA (lower lip anterior), and ULA (upper lip anterior) are common soft tissue points used in cephalometric analysis [8]. Several methods have been used to automatically identify these landmarks for a very long time. The approaches that have been tried and tested include pixel intensity, knowledge-based methods, and template matching [5,6]. However, the results were not always satisfactory. In recent years, deep learning algorithms (AI) have been widely introduced to detect landmarks automatically and accurately on lateral cephalograms [7]. Recent studies on automatic cephalometric landmark identification using deep learning methods demonstrated improved detection accuracy when compared with other machine learning methods [7,8,9]. Monill-González et al. conducted a study to compare the performance of one of the deep learning methods, You-Only-Look-Once (YOLO v3), with human examiners and found promising results. YOLO is known to take a shorter amount of time to identify landmarks. Ji-Hoon Park compared YOLOv3 and Single Shot Multi-Box Detector (SSD) and found YOLOv3 to be the more promising method for identifying automated cephalometric landmarks [8]. Despite this, only few studies on the AI performance of cephalometric analysis have proven beneficial to dentists. A large number of skeletal and soft tissue landmarks are required to evaluate and predict the outcome of a disease [9]. For a better understanding of the application of these methods in clinical orthodontics, more results of cephalometric analysis need to be obtained. While landmark identification is an essential part of the diagnostic process, image-related errors and expert bias can influence the results. It is therefore required to design a study to assess whether AI can achieve similar results to clinicians in cephalometric landmark detection upon repeated detection trials. One might expect improved performance with a substantial amount of learning data, but manually detecting multiple landmarks would be challenging [10].
This study aimed to provide an overview of the existing literature on how far artificial intelligence is being used to support the identification of cephalometric landmarks. It is hypothesized in this study that AI accurately identifies cephalometric landmarks compared with human examiners and other machine learning methods.

2. Materials and Methods

2.1. Focused Question

This systematic review was conducted using PRISMA-DTA (Preferred Reported Items for Systematic Review and Meta-Analysis-Diagnostic Test Accuracy) guidelines [11]. Our intended question was “Does AI play a significant role in measuring cephalometric landmarks accurately as compared to the human examiner?” The question was constructed according to the Participants Intervention Comparison Outcome and Study (PICOS) strategy [12].

2.1.1. Population

Patients’ lateral cephalometric radiographs, three-dimensional (3D), were taken using OrthoCeph® OC100 (GE Healthcare, Finland), Carestream CS 9000 3D unit, PA-cephalograms were synthesized from cone-beam-computed tomography scans (CBCT-PA) taken with a Planmeca (Prolin XC) X-ray unit, and digital images (computed radiography) of the cephalometric radiographs were taken using CEFBOT (an artificial intelligence (AI)-based cephalometric software) (RadioMemory Ltd., Belo Horizonte, Brazil).

2.1.2. Intervention

AI techniques (machine learning; deep learning, CNN, ANN, PANN) were applied in orthodontics concerning the cephalometric analysis, and the modifications were made with commercial cephalometric analysis software (V-Ceph version 8).

2.1.3. Comparison

The comparison was made based on automatic algorithm architects, testing models, lateral cephalometric radiograph analysis, rater opinions, machine-to-orthodontist comparison, success detection rate (SDR), Single Shot Multibox Detector (SSD), and Landmark error (LE) value calculation.

2.1.4. Outcome

For the association between AI and human findings, bland Altman plots were used to measure outcomes such as sensitivity, specificity, and intraclass correlation coefficient (ICC).

2.1.5. Study Design Type

For this review, we considered clinical trial-based studies published in English.

2.2. Eligibility Criteria

Two examiners evaluated the articles (N.J and N.K) according to the following inclusion criteria:
  • Articles with AI-based cephalometric analysis for landmark identification,
  • Clinical trials,
  • English language articles.
Review articles, letters to editors, gray literature, case reports, incomplete articles which showed only the abstract without a definitive comparison between AI and human examiners, articles in which there was no comparison of AI with human examiners, AI not related to orthodontics, AI in orthodontics not related to cephalometry and non-deep-learning methods (e.g., knowledge- or atlas-based articles or those involving shallow machine learning) were excluded.

2.3. Search Methodology

An electronic search was carried out with PubMed/MEDLINE, Google Scholar, Cochrane, Scopus, Science Direct, and research databases. The medical subject heading (MeSH) and other keywords used in the articles were “intelligence, machine”, “machine intelligence”, “artificial intelligence”, “computational intelligence”, “classification”, “orthodontics”, “cephalometry”, “learning, deep”, “algorithms”, “neural networks, computer”, and “expert systems”. The articles published in the last decade (2010 to 2021) were included. The last search was performed in October 2021. Two well-calibrated reviewers (N.J. and N.K.) performed the search. Consensus resolved disagreements, and a third examiner (N.A.) was consulted. All the titles and abstracts were read thoroughly from the articles searched primarily, and irrelevant studies were excluded. The relevant articles were listed and scrutinized for any similar studies that matched our inclusion criteria. We read the full texts of the included studies to obtain appropriate results, and the findings were recorded.

2.4. Quality Assessment of Included Studies

The quality assessment was conducted according to the parameters described in the Cochrane Handbook for Systematic Reviews of Interventions [13]. The quality of each study was classified into low, medium, and high risk of biasness. The same 2 review authors autonomously sort out the search to amplify the number of studies recovered. The reviewers surveyed each selected article according to the inclusion criteria and directed unbiased evaluation, and any ambiguity was settled by consultation with a third reviewer (N.A.).
Furthermore, the Newcastle–Ottawa quality assessment scale (NOS) was used for the analysis of the included articles [14]. The analysis was based on the three core quality analysis parameters: case and group (definition, selection, and representativeness), comparability (comparison of case and control groups; analysis and control of confounding variable), and exposure (use of a universal assessment method for both control and case groups; dropout rate of patients in the included studies). A star system was implemented for rating the included studies. The quality of each study was classified into low, moderate, or high risk of biasness.

3. Results

3.1. Search Results

The title search yielded 100 articles from 2010 to 2021, from which we removed 28 duplicates, and 36 entries that did not analyze AI. Thirty-six articles were selected for full-text reading, which lead to a further exclusion of 19 articles based on the inclusion criteria. A total of 17 full-text articles were included in this systematic review, as shown in Figure 1.

3.2. General Analysis and AI with Human Comparison in Included Studies

All 17 included studies [15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31] were clinical trial-based studies. The deep learning-based AI technology was used for assessment in all 17 studies included, with YOLO version 3 (n = 2) and CNN (n = 12), Res Net 50 (n = 1), and FALA (n = 1), and PANN (n = 1) being the most common algorithms adopted. Moreover, human examiners were included for comparative analysis in all included studies. The lateral cephalography was used to identify landmarks by human examiners and AI machines in all included studies. The control group for the reference test was recognized by 2 orthodontists in 10 studies, 12 orthodontists in 1 study, 1 orthodontic expert in 3 studies, and 3 orthodontists in 1 study. Additionally, 14 studies [15,16,17,18,21,22,23,24,25,26,27,29,30,31] proposed that AI-based automatic cephalometric analyses provide clinically acceptable diagnostic performance, whereas 3 studies [19,20,28] reported that there is no difference between human gold standard techniques and the AI’s predictions. Overall, the AI algorithm architecture (CNN, ANN) showed promising results in cephalometric landmark detection and analysis compared with human subjects, as shown in Table 1. Moreover, 19 articles [5,6,8,9,10,32,33,34,35,36,37,38,39,40,41,42,43,44,45] were excluded from this review, as shown in Supplementary Table S1.

3.3. Quality Assessment Outcomes

According to CHSRI, 14 studies mentioned choosing their patients randomly and 2 mentioned blinding their participants or assessors. Eight studies mentioned the withdrawal/dropout of their participants. All 17 studies repeated the measurement of their variables. Likewise, two studies carried out sample size estimation. All included studies reported their outcomes and examiner reliability.
Furthermore, twelve studies were categorized as having a “moderate” risk of bias and five studies were categorized as “low” risk of bias (Table 2).
In accordance with NOS, the included studies scored in the range of 5 to 9 points, with a mean score of 6.52. Fourteen studies reported a “moderate” risk of bias, while two studies a high risk of bias and one study showed low risk of bias (Table 3).

4. Discussion

AI technologies are radically transforming various aspects of dentistry. The use of AI in orthodontics has also grown significantly in the last decade with improvement in diagnostic accuracy, treatment planning, and prognosis prediction. This systematic review was carried out to evaluate the performance of AI for the detection of cephalometric landmarks with an accuracy and precision similar to an orthodontist [1,2].
Cephalometric analysis is carried out to identify various landmarks or points on the radiograph that helps in establishing various relationships and planes, which in turn aids in establishing the diagnosis and treatment plan. Manual analysis is time-consuming and accompanied by a possibility of significant inter-observer variability. Over the past 40 years, researchers have introduced and suggested various methods of AI for cephalometric landmark identification. Initially, they did not seem to be accurate enough for use. However, with time, newer algorithms were introduced with which the increased computational power provided enhanced accuracy, reliability, and efficiency [3,4,10].
Previously, knowledge-based techniques or image-based learning systems were used to automate landmark identification. However, recent studies have focused on deep learning AI systems. In this systematic review, the majority of the included studies created an automated cephalometric analysis using a specialized CNN-based algorithm [15,17,18,19,20,21,22,23,24,25,27,28,31]. Among these, few studies demonstrated conflicting results as certain landmarks and analyses were not accurately identified by the AI system, i.e., saddle angle, Mx In–NA line, Mn In-NB line [15], lower incisor root tip [21], SN-MeGo [19], porion, orbitale, PNS, and gonion [21]. It could be because certain landmarks, such as porion, orbitale, and PNS, are hard to detect due to surrounding superimposing anatomical structures. Moreover, as some other landmarks exist bilaterally, they might cause errors in the process of determining the midpoint of those bilateral structures [18]. Kim MJ et al. [22] further added that AI prediction is affected by the expert examiner’s identification pattern. If the examiner shows difficulties in some areas, the AI predictions will reflect these difficulties as the CNN model emulates the human examiner’s landmark identification pattern and performs prediction.
Moon et al., [18], Hwang et al., [20], and Hwang et al., [21] compared YOLO v3, a real-time object detection algorithm, with human readings, and found that AI can identify cephalometric landmarks as accurately the human examiners. Mario et al. [16] also found equivalent results as compared to human experts, although their work was based on PANN. Similarly, Kim YH et al. [17] found that the deep learning method achieved better results than the examiners for the detection of some cephalometric landmarks, especially those that are located anatomically on curves. These landmarks are sensitive to identification errors because of reduced human-induced variability, which, in turn, is a result of certain factors including the overall knowledge of the examiners about the subject and the quality of cephalometric images. Moreover, according to Moon et al. [18] and Kunz et al. [19], an adequate amount and quality of data are needed to create an accurate and clinically applicable AI. Moon et al. [18] further reported that if we take the inter-examiner difference of 1.50 mm between human examiners into consideration, the estimated quantity of learning data seemed to be at least 2300 data sets. Similar thoughts were shared by Song et al. as well [24]. He added that human beings’ skeletal anatomies are so different that if sufficient data is not included in the training dataset, the results might be rambling. Strikingly, the minimum amount of learning data calculated by Moon et al. [18] far outnumbered the learning data (40–1000) that were included in previous studies, thus reporting conflicting results [22,23,24,25,27,28,29,30,31].
Moreover, the quality of the data also plays an important role. Lee et al. [23] used a public database and it was observed that even though the overall landmarks were located within acceptable margins from ground truth, the detected landmarks and ground truth did not adequately match, which could be owing to the following reasons: (1) the input images were scaled from 1935 × 2400 pixels to 64 × 64 pixels so that the fine error in the scaled images grew rapidly as the images were enlarged to the original size, and (2) the regression systems were trained without proper use of deep learning-related techniques. Furthermore, certain studies used the datasets presented in the “International Symposium on Biomedical Imaging (ISBI) 2014 and 2015 grand challenges in dental x-ray image” [23,24,27,30,31]. This dataset was somewhat flawed as it used a smaller sample size with a wide age range (six to 60 years). Moreover, the mean intra-observer variability of the two experts was 1.73 and 0.90 mm, respectively, which is very high. Thus, there were chances of unnecessary bias in the trained model, which suggests uncertainty with the clinical applicability of this dataset.
Unlike others, Kunz et al. [19] used high-quality cephalometric radiographs that had been generated on an approved X-ray unit and not collected from the public domain. The radiographs were not selected beforehand so that a vast variety of different skeletal and dental problems were included, which is a prerequisite for reliable AI learning. In addition, only experienced practitioners were asked to perform landmark identification and tracing, which resulted in a very high intra-rater and inter-rater reliability. Kunz et al. [19] also showed that the measurements are in good agreement concerning the Bland–Altman plots.
Lastly, the literature shows that the recent deep learning-based techniques have outperformed the conventional machine learning-based techniques in terms of accurate tracing of cephalometric landmarks. Kim H et al. [26] achieved a maximum accuracy of 96.79%. In addition, Kim YH et al. [17] found that the deep learning method achieved better results than the examiners for the detection of some cephalometric landmarks. With such promising results it would not be wrong to say that, with the continuous development and advancements, AI could shortly exceed manual markings performed by clinical experts, consequently saving labor, time, and effort.
The review had a few shortcomings; some of the included studies suffered from a range of risks of bias and few studies utilized similar datasets. There were several studies in which there was no clarification on how the human annotator labels led to test datasets. Certain studies employed the use of only a single expert, which could have affected the results because of variations in landmark identification. Additionally, there were very few studies that employed the use of independent datasets. Studies conducted in the future should consider using wider outcome sets and aim at testing deep-learning applications across different settings.

5. Conclusions

The results from the various articles analyzed in this systematic review suggest that the applications of artificial intelligence systems are promising and reliable in cephalometric analysis. Despite the limitations, almost all of the studies agreed that AI-based automated algorithms have worked remarkably well, with accuracy and precision similar to trained orthodontists. It can simplify cephalometric analysis and provide a quick outcome in practice, which can save practitioners time and enhance their performance. Additionally, it can be of greater benefit and used as an ancillary support for orthodontists and clinicians with lesser experience.

Supplementary Materials

The following supporting information can be downloaded at:, Table S1 Methodological list of studies excluded from this review and reasons for exclusion (n= 19).

Author Contributions

Conceptualization, N.J., N.K., A.M. (Afsheen Maqsood), N.A., M.S.A., G.D., A.R.A., A.M. (Anand Marya), M.K.A. and A.H; Methodology, A.M. (Afsheen Maqsood), N.A., N.J., N.K. and M.S.A.; Software, A.M. (Anand Marya), G.D., M.K.A. and N.A.; Validation, N.K., M.S.A., A.M. (Anand Marya) and A.R.A.; Formal analysis, N.A. and A.M. (Anand Marya); Investigation, N.J., M.K.A., A.M. (Afsheen Maqsood), N.K. and N.A.; Writing—orlginal draft preparation, N.J., N.K., A.M. (Afsheen Maqsood) and N.A.; Writing—review and editing, A.H., M.K.A., A.M. (Anand Marya), G.D., N.A. and M.K.A.; Funding acquisition, G.D., M.K.A. and A.R.A. All authors have read and agreed to the published version of the manuscript.


The authors extend their appreciation to the Deanship of Scientific Research at King Khalid University for funding this work through Small Groups project under grant number (RGP.1/184/43).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data related to the study can be provided by the authors on reasonable request.


The authors extend their appreciation to the Deanship of Scientific Research at King Khalid University for funding this work through Small Groups project under grant number (RGP.1/184/43).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Hamet, P.; Tremblay, J. Artificial intelligence in medicine. Metabolism 2017, 69, S36–S40. [Google Scholar] [CrossRef] [PubMed]
  2. Ramesh, A.N.; Kambhampati, C.; Monson, J.R.T.; Drew, P.J. Artificial intelligence in medicine. Ann. R Coll. Surg. Engl. 2004, 86, 334–338. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Ahmed, N.; Abbasi, M.S.; Zuberi, F.; Qamar, W.; Bin Halim, M.S.; Maqsood, A.; Alam, M.K. Artificial Intelligence Techniques: Analysis, Application, and Outcome in Dentistry—A Systematic Review. BioMed Res. Int. 2021, 2021, 9751564. [Google Scholar] [CrossRef]
  4. Nguyen, T.T.; Larrivée, N.; Lee, A.; Bilaniuk, O.; Durand, R. Use of artificial intelligence in dentistry: Current clinical trends and research advances. J. Can. Dent. Assoc. 2021, 87, 1488–2159. [Google Scholar]
  5. Wang, C.W.; Huang, C.T.; Hsieh, M.C.; Li, C.H.; Chang, S.W.; Li, W.C.; Vandaele, R.; Marée, R.; Jodogne, S.; Geurts, P.; et al. Evaluation and Comparison of Anatomical Landmark Detection Methods for Cephalometric X-Ray Images: A Grand Challenge. IEEE Trans. Med. Imaging 2015, 34, 1890–1900. [Google Scholar] [CrossRef]
  6. Shahidi, S.; Oshagh, M.; Gozin, F.; Salehi, P.; Danaei, S.M. Accuracy of computerized automatic identification of cephalometric landmarks by a designed software. Dentomaxillofacial Radiol. 2013, 42, 20110187. [Google Scholar] [CrossRef] [PubMed][Green Version]
  7. Li, P.; Kong, D.; Tang, T.; Su, D.; Yang, P.; Wang, H.; Zhao, Z.; Liu, Y. Orthodontic Treatment Planning based on Artificial Neural Networks. Sci. Rep. 2019, 9, 2037. [Google Scholar] [CrossRef][Green Version]
  8. Park, J.-H.; Hwang, H.-W.; Moon, J.-H.; Yu, Y.; Kim, H.; Her, S.-B.; Srinivasan, G.; Aljanabi, M.N.A.; Donatelli, R.E.; Lee, S.-J. Auto-mated identification of cephalometric landmarks: Part 1—Comparisons between the latest deep-learning methods YOLOV3 and SSD. Angle Orthod. 2019, 89, 903–909. [Google Scholar] [CrossRef][Green Version]
  9. Monill-González, A.; Rovira-Calatayud, L.; D’Oliveira, N.G.; Ustrell-Torrent, J.M. Artificial intelligence in orthodontics: Where are we now? A scoping review. Orthod. Craniofacial Res. 2021, 24 (Suppl. 2), 6–15. [Google Scholar] [CrossRef] [PubMed]
  10. Juneja, M.; Garg, P.; Kaur, R.; Manocha, P.; Batra, S.; Singh, P.; Singh, S.; Jindal, P. A review on cephalometric landmark detection techniques. Biomed. Signal Process. Control 2021, 66, 102486. [Google Scholar] [CrossRef]
  11. Moher, D.; Liberati, A.; Tetzlaff, J.; Altman, D.G.; PRISMA Group. Preferred Reporting Items for Systematic Reviews and Meta-Analyses: The PRISMA Statement. Ann. Intern. Med. 2009, 151, 264–269. [Google Scholar] [CrossRef] [PubMed]
  12. Richardson, W.S.; Wilson, M.C.; Nishikawa, J.; Hayward, R.S. The well-built clinical question: A key to evidence-based decisions. ACP J. Club 1995, 123, A12–A13. [Google Scholar] [CrossRef] [PubMed]
  13. Higgins, J.P.; Thomas, J.; Chandler, J.; Cumpston, M.; Li, T.; Page, M.J.; Welch, V.A. (Eds.) Cochrane Handbook for Systematic Reviews of Interventions; John Wiley & Sons: Hoboken, NJ, USA, 2019. [Google Scholar]
  14. Wells, G.A.; Shea, B.; O’Connell, D.; Peterson, J.; Welch, V.; Losos, M.; Tugwell, P. The Newcastle-Ottawa Scale (NOS) for Assessing the Quality of Nonrandomized Studies in Meta-Analyses; Ottawa Hospital Research Institute: Ottawa, ON, Canada, 2011. [Google Scholar]
  15. Jeon, S.; Lee, K.C. Comparison of cephalometric measurements between conventional and automatic cephalometric analysis using convolutional neural network. Prog. Orthod. 2021, 22, 14. [Google Scholar] [CrossRef] [PubMed]
  16. Mario, M.C.; Abe, J.M.; Ortega, N.R.; Del Santo, M., Jr. Paraconsistent Artificial Neural Network as Auxiliary in Cephalometric Diagnosis. Artif. Organs 2010, 34, E215–E221. [Google Scholar] [CrossRef]
  17. Kim, Y.H.; Lee, C.; Ha, E.-G.; Choi, Y.J.; Han, S.-S. A fully deep learning model for the automatic identification of cephalometric landmarks. Imaging Sci. Dent. 2021, 51, 299–306. [Google Scholar] [CrossRef]
  18. Moon, J.-H.; Hwang, H.-W.; Yu, Y.; Kim, M.-G.; Donatelli, R.E.; Lee, S.-J. How much deep learning is enough for automatic identification to be reliable? Angle Orthod. 2020, 90, 823–830. [Google Scholar] [CrossRef]
  19. Kunz, F.; Stellzig-Eisenhauer, A.; Zeman, F.; Boldt, J. Artificial intelligence in orthodontics. J. Orofac. Orthop. 2020, 81, 52–68. [Google Scholar] [CrossRef]
  20. Hwang, H.-W.; Moon, J.-H.; Kim, M.-G.; Donatelli, R.E.; Lee, S.-J. Evaluation of automated cephalometric analysis based on the latest deep learning method. Angle Orthod. 2021, 91, 329–335. [Google Scholar] [CrossRef]
  21. Hwang, H.-W.; Park, J.-H.; Moon, J.-H.; Yu, Y.; Kim, H.; Her, S.-B.; Srinivasan, G.; Aljanabi, M.N.A.; Donatelli, R.E.; Lee, S.-J. Automated Identification of Cephalometric Landmarks: Part 2- Might It Be Better Than human? Angle Orthod. 2020, 90, 69–76. [Google Scholar] [CrossRef][Green Version]
  22. Kim, M.-J.; Liu, Y.; Oh, S.H.; Ahn, H.-W.; Kim, S.-H.; Nelson, G. Evaluation of a multi-stage convolutional neural network-based fully automated landmark identification system using cone-beam computed tomographysynthesized posteroanterior cephalometric images. Korean J. Orthod. 2021, 51, 77–85. [Google Scholar] [CrossRef]
  23. Lee, H.; Park, M.; Kim, J. Cephalometric landmark detection in dental x-ray images using convolutional neural networks. Proc. SPIE Med. Imaging 2017, 3, 494–499. [Google Scholar] [CrossRef]
  24. Song, Y.; Qiao, X.; Iwamoto, Y.; Chen, Y.-W.; Chen, Y. An Efficient Deep Learning Based Coarse-to-Fine Cephalometric Landmark Detection Method. IEICE Trans. Inf. Syst. 2021, E104.D, 1359–1366. [Google Scholar] [CrossRef]
  25. Arik, S.; Ibragimov, B.; Xing, L. Fully automated quantitative cephalometry using convolutional neural networks. J. Med. Imaging 2017, 4, 014501. [Google Scholar] [CrossRef] [PubMed]
  26. Kim, H.; Shim, E.; Park, J.; Kim, Y.-J.; Lee, U.; Kim, Y. Web-based fully automated cephalometric analysis by deep learning. Comput. Methods Programs Biomed. 2020, 194, 105513. [Google Scholar] [CrossRef] [PubMed]
  27. Lee, J.-H.; Yu, H.-J.; Kim, M.-J.; Kim, J.-W.; Choi, J. Automated cephalometric landmark detection with confidence regions using Bayesian convolutional neural networks. BMC Oral Health 2020, 20, 270. [Google Scholar] [CrossRef] [PubMed]
  28. Nishimoto, S.; Sotsuka, Y.; Kawai, K.; Ishise, H.; Kakibuchi, M. Personal Computer-Based Cephalometric Landmark Detection With Deep Learning, Using Cephalograms on the Internet. J. Craniofacial Surg. 2019, 30, 91–95. [Google Scholar] [CrossRef]
  29. Lindner, C.; Wang, C.-W.; Huang, C.-T.; Li, C.-H.; Chang, S.-W.; Cootes, T.F. Fully Automatic System for Accurate Localisation and Analysis of Cephalometric Landmarks in Lateral Cephalograms. Sci. Rep. 2016, 6, 33581. [Google Scholar] [CrossRef]
  30. Wang, S.; Li, H.; Li, J.; Zhang, Y.; Zou, B. Automatic Analysis of Lateral Cephalograms Based on Multiresolution Decision Tree Regression Voting. J. Health Eng. 2018, 2018, 1797502. [Google Scholar] [CrossRef]
  31. Oh, K.; Oh, I.-S.; Le, V.N.T.; Lee, D.-W. Deep Anatomical Context Feature Learning for Cephalometric Landmark Detection. IEEE J. Biomed. Health Inform. 2021, 25, 806–817. [Google Scholar] [CrossRef]
  32. Schwendicke, F.; Chaurasia, A.; Arsiwala, L.; Lee, J.-H.; Elhennawy, K.; Jost-Brinkmann, P.-G.; Demarco, F.; Krois, J. Deep learning for cephalometric landmark detection: Systematic review and meta-analysis. Clin. Oral Investig. 2021, 25, 4299–4309. [Google Scholar] [CrossRef]
  33. Khanagar, S.B.; Vishwanathaiah, S.; Naik, S.; Al-Kheraif, A.A.; Divakar, D.D.; Sarode, S.C.; Bhandi, S.; Patil, S. Application and performance of artificial intelligence technology in forensic odontology—A systematic review. Leg. Med. 2021, 48, 101826. [Google Scholar] [CrossRef]
  34. Khanagar, S.B.; Al-Ehaideb, A.; Maganur, P.C.; Vishwanathaiah, S.; Patil, S.; Baeshen, H.A.; Sarode, S.C.; Bhandi, S. Developments, application, and performance of artificial intelligence in dentistry—A systematic review. J. Dent. Sci. 2021, 16, 508–522. [Google Scholar] [CrossRef] [PubMed]
  35. Hung, K.; Montalvao, C.; Tanaka, R.; Kawai, T.; Bornstein, M.M. The use and performance of artificial intelligence applications in dental and maxillofacial radiology: A systematic review. Dentomaxillofacial Radiol. 2020, 49, 20190107. [Google Scholar] [CrossRef] [PubMed]
  36. Bichu, Y.M.; Hansa, I.; Bichu, A.Y.; Premjani, P.; Flores-Mir, C.; Vaid, N.R. Applications of artificial intelligence and machine learning in orthodontics: A scoping review. Prog. Orthod. 2021, 22, 18. [Google Scholar] [CrossRef]
  37. Silva, T.P.; Hughes, M.M.; Menezes, L.D.S.; Melo, M.D.F.B.D.; de Freitas, P.H.L.; Takeshita, W.M. Artificial intelligence-based cephalometric landmark annotation and measurements according to Arnett’s analysis: Can we trust a bot to do that? Dentomaxillofacial Radiol. 2022, 51, 20200548. [Google Scholar] [CrossRef] [PubMed]
  38. Alqahtani, H. Evaluation of an online website-based platform for cephalometric analysis. J. Stomatol. Oral Maxillofac. Surg. 2020, 121, 53–57. [Google Scholar] [CrossRef] [PubMed]
  39. Leonardi, R.; Giordano, D.; Maiorana, F.; Spampinato, C. Automatic Cephalometric Analysis. Angle Orthod. 2008, 78, 145–151. [Google Scholar] [CrossRef][Green Version]
  40. Hong, M.; Kim, I.; Cho, J.-H.; Kang, K.-H.; Kim, M.; Kim, S.-J.; Kim, Y.-J.; Sung, S.-J.; Kim, Y.H.; Lim, S.-H.; et al. Accuracy of artificial intelligence-assisted landmark identification in serial lateral cephalograms of Class III patients who underwent orthodontic treatment and two-jaw orthognathic surgery. Korean J. Orthod. 2022, 52, 287–297. [Google Scholar] [CrossRef] [PubMed]
  41. Mani, S.; Manerikar, R.; Mani, A.; Sachdeva, S.; Arimbur, A.P.; Mishra, S. Automated Cephalometric Landmarking Using Artificial Intelligence-A Systematic Review. Ann. Rom. Soc. Cell Biol. 2020, 30, 901–913. [Google Scholar]
  42. Akdeniz, S.; Tosun, M.E. A review of the use of artificial intelligence in orthodontics. J. Exp. Clin. Med. 2021, 38, 157–162. [Google Scholar] [CrossRef]
  43. Shin, W.; Yeom, H.G.; Lee, G.H.; Yun, J.P.; Jeong, S.H.; Lee, J.H.; Kim, H.K.; Kim, B.C. Deep learning based prediction of necessity for orthognathic surgery of skeletal malocclusion using cepha-logram in Korean individuals. BMC Oral Health 2021, 21, 130. [Google Scholar] [CrossRef] [PubMed]
  44. Faure, J.; Oueiss, A.; Treil, J.; Chen, S.; Wong, V.; Inglese, J.M. 3D cephalometry and artificial intelligence. J. Dentofac. Anom. Orthod. 2016, 19, 409. [Google Scholar] [CrossRef]
  45. Yu, H.; Cho, S.; Kim, M.; Kim, W.; Kim, J.; Choi, J. Automated Skeletal Classification with Lateral Cephalometry Based on Artificial Intelligence. J. Dent. Res. 2020, 99, 249–256. [Google Scholar] [CrossRef] [PubMed]

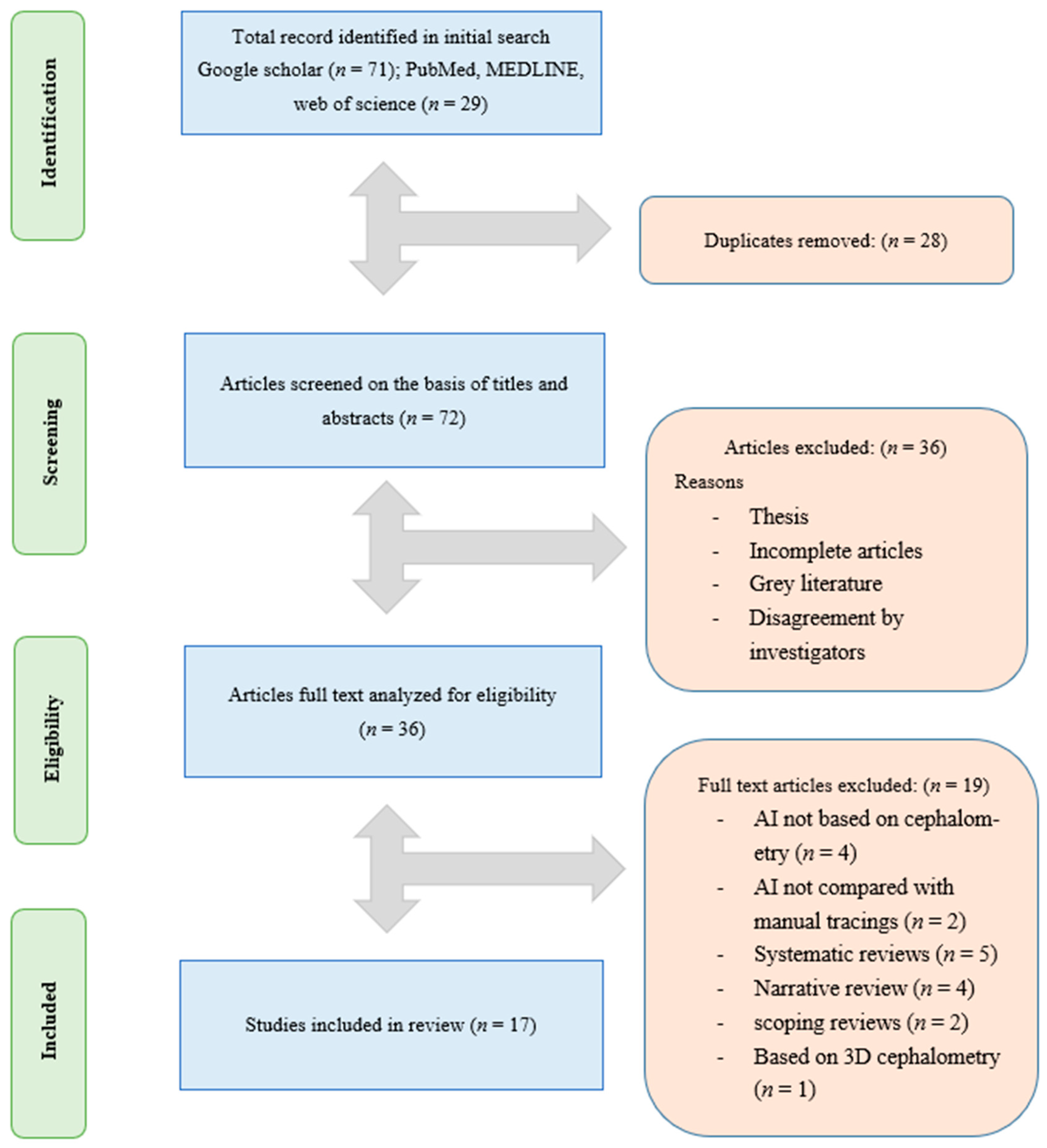

Figure 1. The PRISMA flow diagram for the literature search performed in this study.

Figure 1. The PRISMA flow diagram for the literature search performed in this study.
Healthcare 10 02454 g001
Table 1. Characteristics of the selected studies (n = 17).
Table 1. Characteristics of the selected studies (n = 17).
Author and
GroupsAssessment MethodStudies
OutcomeRecommendations and
Sangmin Jeon
2021 [15]
Retrospective study/clinical trialAutomatic cephalometric analysis using CNNOrthodontist with over 7 years of experienceThe measurements from 35 patients obtained through a conventional and Ceph-X (AI program) were analyzed with the help of paired t-tests and Bland–Altman plotsThere was a difference in dental and skeletal measurementsCNN-based AI diagnostic analysis was clinically acceptableIt was recommended that the dental measurement needs manual adjustments for precision and adequate performance
Mario et al., 2010 [16]Clinical TrialParaconsistent artificial neural network (PANN)Three orthodontistsThe cephalometric analysis was carried out with AI-based system (PANN) and three expert orthodontistsThe accuracy was carried out with the kappa index, which revealed a moderate to perfect agreementThe AI-based analysis provided equal outcomes to expert orthodontistsPANN was endorsed as a promising tool in cephalometric analysis
Kim et al., 2021 [17]Clinical TrialAutomatic cephalometric analysis using CNNTwo trained orthodontistsThree skeletal landmark analyses were performed on 950 cephalographs through CNN and trained orthodontists’ opinionsCNN-based SDR values ranged from 47.3% to 66.7%, whereas the SDR value for orthodontists was in the range of 3.35% to 7.3%The CNN deep learning showed promising results compared with human examinersIn future studies, the examiner variability analysis should be considered for clinical applicability
Moon et al., 2020 [18]Clinical TrialDeep-learning method, a modified you-only-look-once version 3 algorithm1 Orthodontist examiner2200 images were first used to train AI machines on about 80 anatomical landmarks, out of 2400 cephalography images. The remaining 200 images were used for comparisons with human examinersNMThe accuracy of AI was accurate compared with human opinionsIt was proposed that at least 2300 images are needed to train AI machines accurately for future applications
Kunz et al., 2019 [19]Clinical trialCNN deep learning algorithm12 experienced orthodontistsThe AI machine was trained with 1792 images of 18 cephalometric landmarks. Later, 12 orthodontic landmarks on 50 images were analyzedThe Pearson correlation (r > 0.864; p < 0.001) was found between the AI system and orthodontist opinionThe accuracy of AI and orthodontist opinion was found similar The presented analysis can be expanded either by new geometrical calculations using the already existing landmarks or by retraining the AI algorithm with new ones
Hye et al., 2021 [20]Clinical trialAI-based on the YOLO version 3 algorithm2 certified orthodontists The AI detected 19 landmarks were compared with orthodontists’ identified landmarksThe value of SDR in AI with 2 mm of error was observed to be 75.5% and the SCR value was 81.5% it was similar to the values obtained from orthodontistsThe orthodontists and AI showed similar findingsIt is proposed that AI can sustain and improve its efficiency under the supervision of orthodontists
Hye et al., 2019 [21]Clinical trialAI-based on YOLOv32 orthodontistsThe comparison was performed on 80 anatomical landmarks in 283 images between orthodontists and AI machineThe detection of landmarks identification error was less with AI in a range of 0.9 to 1.2 mmThe accuracy of landmark identification was slightly more with the AI system compared to orthodontistsAI systems should be used as a supplementary tool along with orthodontist expertise in the diagnostic process to improve reliability
Kim et al., 2021 [22]Clinical trialCNN1 OrthodontistThe cephalometric landmarks findings of orthodontists from 85 CBCT images were compared with AI readingThe AI system accuracy was MRE 2.23 ± 2.02 and SDR = 60.88%, compared to human recordingThe CNN model showed better consistency than orthodontist experts after repetitive landmark identification roundsThe repetitive manner of application AI might work superior to human examiners
Hansang et al., 2017 [23] A CNN-based landmark detection system2 orthodontistsThe data on 19 landmarks were first manually marked by an orthodontist, for AI 150 images were used for training and testingThe overall landmark accuracy was considered within margins from the human findings without heavy outliersThe CNN showed adequate performance and successfully locates the landmarks with substantial marginsFuture works can include further improvement by using deeper network structures and extension of our framework to other landmark detection problems
Song et al., 2021 [24]Clinical trialA CNN-based landmark detection system2 orthodontistsThe ROI patches were first cropped from training images, and then the CNN-based ResNet 50 system was used to detect landmarks from the patches.Performance with CNN was good in landmarks While the accuracy was low in other landmarksThe SDR and SCR values of CNN were better than the benchmark identifiedA global context information should be utilized in the future to identify the performance of AI
Arık et al., 2017 [25]Clinical trialDeep learning CNN2 orthodontic expertsThe CNN architect was used for the identification of landmarks on 250 images after training the AI system on 150 images. The findings were then compared with manual orthodontist recordingsThe overall SDR accuracy within a range of 2 mm error was 67.68 to 75.58%The study revealed a high success detection rate compared with the benchmark values in the literatureFuture outcomes could be improved by increasing the size and diversity of AI machine training sessions
Kim et al., 2020 [26]Clinical trialDeep learning web-based application2 expert orthodontistsThe 2075 cephalographs from two institutes were analyzed for 23 landmarks. The AI machine was first trained with a stacked hourglass deep learning model for landmark detection in images.The SDR of the deep learning model was 1.37 ± 1.79 mmThe automated cephalometric landmark detection with a web-based application approach is promising. It saves time and effort compared to manual markingNM
Lee et al., 2020 [27]Clinical trialCNN2 orthodontic expertsThe AI algorithm analysis was based on a region of interest (ROI) patch extracted from cephalometric images obtained from ISBI 2015 grand challengeThe CNN architect showed: Mean (LE) = 1.53  ±  1.74 mm and SDR value of 82.11 to 95.95%The CNN architect provides adequate landmark detection outcomes and can be utilized clinically as a computer-aided detection tool and a means of educationIn the future, various medical centers, races, and regions are recommended for use to develop an AI model that has a wider application
Nishimoto et al., 2019 [28]Clinical trialCNN1 orthodontistThe AI-based CNN model was trained first on 153 images, and then testing of ten skeletal landmarks was performed on 66 images; later on, the outcome was compared with orthodontist recordingsThe landmark error was 16.22 to 17.02 pixels. The average SSR was similar to manual readingsThe CNN model utilizing web-based cephalogram images is an ideal approach for skeletal landmark detectionThe approach adopted in this study is recommended for the detection of other skeletal landmarks in the face in dentistry
Lindner et al., 2016 [29]Clinical trialRandom forest, machine learning2 orthodontistsThe AI-based FALA system was used to identify 19 skeletal landmarks on 400 cephalograms before comparison with orthodontists’ finding The skeletal landmarks were identified with an SDR value of 84.7% with a landmark error of 1.2 mm pixels The clinically acceptable precision range was 2 mm. The FALA model identifies skeletal cephalometric landmarks accurately and rapidly; this system can improve the diagnosis of orthodontic patients NM
Wang et al., 2018 [30]Clinical trialMachine learning; CNN, Decision tree regression2 orthodontistsThe AI machine was used to detect landmarks on 300 images from the 2015 ISBI challenge and separate 165 images from the clinical database of the instituteAI detects landmarks up to an SDR value of 72% with a landmark error of 2 mmThe CNN-based machine learning performed exceptionally well in landmark detectionThe method complexity was greater, which needs to be further evaluated to ease the procedure for the masses
Oh K et al., 2020 [31]Clinical trialCNN2 orthodontistsAI system was used to detect landmarks on 400 images. The AI model was first trained with 150 images, then the outcome was validated on further 150 images, and, finally, the test was carried out on 100 radiographs before comparison with the orthodontist readingsThe EDR value of the CNN model was in the range of 13.80% to 24.11% with a LE value of 2 mm in various tested datasets The CNN model was accurate in landmark detection in normal and distorted cephalogram imagesNM
NA: Not applicable, NM: Not mentioned, AI: Artificial Intelligence, ICC: intraclass correlation coefficient, CNN: Convolutional neural networks, ANN: Artificial neural networks, PANN: Paraconsistent artificial neural network, 3D: three Dimensional, 2D: Two-dimensional, DL: Deep learning, CAD/CAM: Computer added design computer added manufacturing, PA: Periapical radiograph, CBCT: Cone-beam computerized tomography, ML: Multiple landmarks, SDR: success detection rate, SSD: Single Shot Multibox Detector, YOLOv3: You-Only-Look-Once version 3, T1: image taken at the first visit, T2: after the observation period, FALA: fully automatic landmark annotation, NM: not mentioned, LE: landmark error, EDR: Endpoint detection and response.
Table 2. Methodological quality assessment results of the included studies (n = 17).
Table 2. Methodological quality assessment results of the included studies (n = 17).
Author and YearRandomizationBlindingWithdrawal/Dropout MentionedVariables Measured Many TimesSample Size EstimationSelection Criteria ClearExaminer Reliability TestedExpected Outcomes PrespecifiedQuality of Study/Bias Risk
Sangmin Jeon
2021 [15]
Mario et al., 2010 [16]YUCYYNUCYYModerate
Kim et al., 2021 [17]YYYYYUCYYLow
Moon et al., 2020 [18]YUCYYUCYYYLow
Kunz et al., 2019 [19]YUCYYUCYYYLow
Hye et al., 2021 [20]UCUCYYNYYYModerate
Hye et al., 2019 [21]UCUCNYNYYYModerate
Kim et al., 2021 [22]YUCYYYYYYLow
Hansang et al., 2017 [23]YNNYUCYYYModerate
Song et al., 2021 [24]YNYYNNYYModerate
Arık et al., 2017 [25]YNNYNUCYYModerate
Kim et al., 2020 [26]YNNYNYYYModerate
Lee et al., 2020 [27]YNYYNYYYLow
Nishimoto et al., 2019 [28]YYNYNUCYYModerate
Lindner et al., 2016 [29]YNUCYNYYYModerate
Wang et al., 2018 [30]YNUCYNNYYModerate
Oh K et al., 2020 [31]NNUCYUCNYYModerate
A study was graded to have a low risk of bias if it yielded six or more “yes” answers to the nine questions, moderate risk if it yielded three to five “yes” answers, and high risk if it yielded two “yes” answers or less; Y: yes, N: no, UC: unclear.
Table 3. Newcastle–Ottawa scale-based quality assessment of the selected studies (n = 17).
Table 3. Newcastle–Ottawa scale-based quality assessment of the selected studies (n = 17).
Author and YearSelectionComparabilityExposureNewcastle–
Ottawa Quality (Total)
Sangmin Jeon 2021 [15]*********Low
Mario et al., 2010 [16]********Moderate
Kim et al., 2021 [17]*******Moderate
Moon et al., 2020 [18]******Moderate
Kunz et al., 2019 [19]*******Moderate
Hye et al., 2021 [20]******Moderate
Hye et al., 2019 [21]*****High
Kim et al., 2021 [22]********Moderate
Hansang et al., 2017 [23]*******Moderate
Song et al., 2021 [24]*******Moderate
Arık et al., 2017 [25]*******Moderate
Kim et al., 2020 [26]*******Moderate
Lee et al., 2020 [27]*******Moderate
Nishimoto et al., 2019 [28]*******Moderate
Lindner et al., 2016 [29]*******Moderate
Wang et al., 2018 [30]*******Moderate
Oh K et al., 2020 [31]*****High
A total of nine stars can be awarded to a study. Any study with the maximum stars was rated as having a low risk of bias. A study with six to eight stars was declared as having moderate bias, whereas a study with five stars or less was considered as having a high risk of bias.
