A Pipeline for Rapid Post-Crisis Twitter Data Acquisition, Filtering and Visualization

Abstract

Due to instant availability of data on social media platforms like Twitter, and advances in machine learning and data management technology, real-time crisis informatics has emerged as a prolific research area in the last decade. Although several benchmarks are now available, especially on portals like CrisisLex, an important, practical problem that has not been addressed thus far is the rapid acquisition, benchmarking and visual exploration of data from free, publicly available streams like the Twitter API in the immediate aftermath of a crisis. In this paper, we present such a pipeline for facilitating immediate post-crisis data collection, curation and relevance filtering from the Twitter API. The pipeline is minimally supervised, alleviating the need for feature engineering by including a judicious mix of data preprocessing and fast text embeddings, along with an active learning framework. We illustrate the utility of the pipeline by describing a recent case study wherein it was used to collect and analyze millions of tweets in the immediate aftermath of the Las Vegas shootings in 2017.

1. Introduction

In recent years, crisis informatics has emerged as a field unto its own due to a growing recognition that technology, especially intelligent systems, can be used to better mobilize resources and provide valuable, rapid insights to field operators and analysts in the aftermath of a crisis [1]. Crises include not just natural disasters, but also human-mediated disasters caused by e.g., certain incidents involving shootings. An important reason that technology can help in such situations is the availability of data in real-time from social media platforms like Twitter. In recent years, several efforts, such as CrisisLex [2] and EPIC Analyze [3], have confirmed that useful crisis data is available on Twitter. While these benchmark collections can be used for detailed posthoc analyses, as well as pre-training machine learning systems, an open research problem in the crisis informatics literature is the rapid acquisition, preprocessing and, potentially, analysis and visualization, of a crisis-specific dataset in the aftermath of a new crisis. One example is the Twitter public API, which is available for free and can be used to collect data up to a reasonable limit set by Twitter.

Unfortunately, although the stream can be used to acquire a relatively high-recall dataset by optimistically specifying keywords and hashtags in the query, a dataset acquired in this way is not high-precision. Namely, there are many tweets in the acquired dataset that are irrelevant and only contribute noise to the overall corpus. As a running example, consider the crisis of the Las Vegas shootings, which occurred (on the night of 1 October 2017) in the vicinity of the Mandalay Bay resort where the gunman had a room. To achieve sufficient recall, one would have to use keywords like ‘las vegas’ and ‘mandalay bay’ in the Twitter API, but either keyword can (and does) lead to tweets that have nothing to do with the shooting. The problem is further compounded when one considers data acquisition over time. In the immediate aftermath of the Las Vegas shootings, for example, it is much more likely for a ‘las vegas’ tweet to be relevant to the shooting than several days later. Thus, precision declines over time, making the acquisition of a high-quality, relevant dataset over a non-trivial time period even more challenging than usual. If such a dataset can be acquired and analyzed in near real-time, it would significantly aid practitioners and field operators looking to obtain situational awareness into the crisis as it is unfolding [4].

Practical applications of such situational awareness include flagging tweets to first responders expressing urgent needs for help, as well as presence of dangers (‘hotspots’). For the press and policy analysts, a more medium-term application is understanding and defusing the potential for the spread of malicious news, such as non-existent conspiracy theories stoking anxiety, mistrust and even panic. As subsequently shown, conspiracy theories are quick to emerge in the aftermath of incidents such as the Las Vegas shooting.

In this article, we present ongoing work on an end-to-end data acquisition pipeline that can be used to collect a crisis-specific dataset from the Twitter public API using minimal human supervision. The pipeline includes key steps such as data preprocessing and filtering, but does not require a user to engineer features or label thousands of tweets before delivering meaningful results. Instead, a judicious combination of unsupervised text embeddings and active learning is leveraged to acquire the dataset with minimal human engineering. Labeling effort is restricted to only tens of samples, in addition to interactively specifying keywords and hashtags to obtain an initial data corpus from Twitter when the crisis first strikes. The auxiliary outputs of the pipeline, such as the embedded input vectors, can further be used to visualize and explore the data in a system called HashViz, also proposed in this paper.

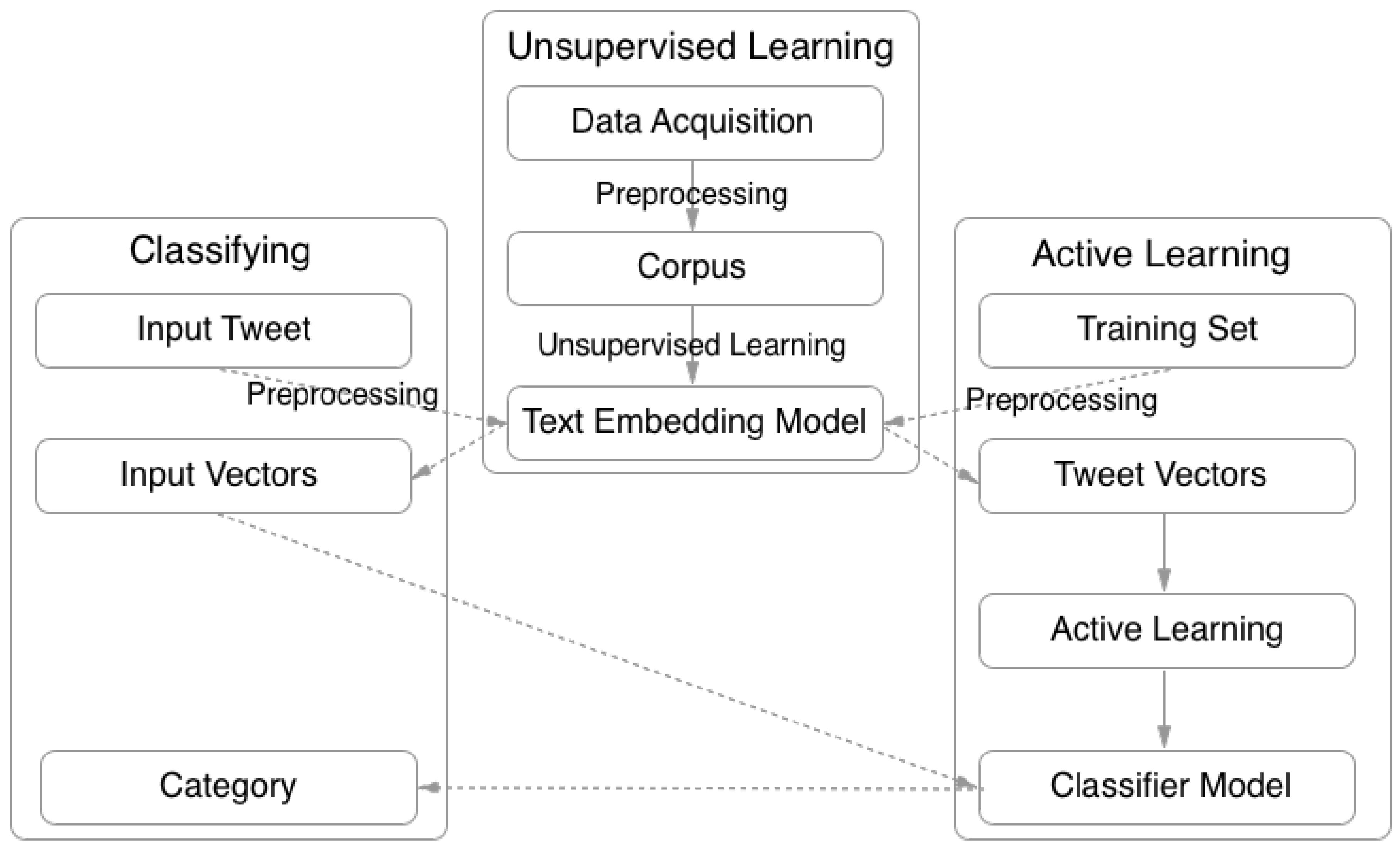

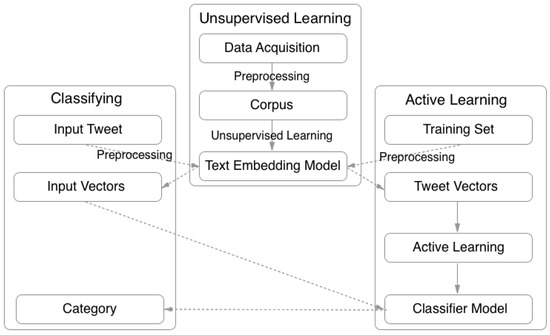

Figure 1 illustrates an operationalized workflow of these ideas. First, intuitive inputs such as simple keywords are used to acquire data (‘corpus’) from the Twitter API with high recall. By high recall, what we mean is that the corpus contains many relevant tweets that can be used for gaining situational insight into the crisis, but there are likely many irrelevant tweets as well. Next, the corpus undergoes preprocessing, followed by unsupervised learning, which yields a text embedding for the corpus. This text embedding model is both important and innovative in the context of this application, since prior work such as CrisisLex and Project EPIC (see Related Work) have not been able to successfully leverage embeddings with more classic machine learning techniques for acquiring relevant data that is both high-precision and high-recall.

Once the text embedding model has been learned, we use active learning to train a classifier from a small seed training set that is labeled with relevant and irrelevant tweets. This corpus can be extremely small, as we show subsequently in the evaluation section. By using active learning, we ensure that the classifier converges quickly compared to a model that uses randomly selected and labeled data. Although active learning is a ‘classic’ technique, we show that (when combined with text embeddings) it can be highly effective in the crisis informatics domain and should be a method of choice when acquiring training data in the face of an arbitrary disaster.

Finally, the trained classifier model can be deployed on novel, incoming tweets from the data acquisition phase to filter out irrelevant tweets and retain only relevant tweets. Our case study shows that a good classifier model can be trained and deployed using just a few hundred tweets. In contrast, in real disasters in countries that use social media, thousands (if not millions) of tweets are output within just the first hour of the disaster striking. Manually labeling a few hundred tweets is also not time-consuming (in our experiments, it took less than 1–2 h). In effect, using conservative estimates, the proposed data acquisition and filtering system can be deployed within 3–4 h, allowing analysts to mobilize rescue efforts and put a stop to negative news artifacts (like conspiracy theories and fake news) in the immediate aftermath of the disaster. In that sense, the training and use of the system is real-time and yields good performance, which distinguishes it from systems that require lots of data or effort before being applicable (and are thus more suitable for studying a disaster posthoc, rather than mobilizing effort in real time), or systems that are designed for a particular type of disaster (like earthquakes) and not easily generalizable to new regions or disaster types. Our proposed system is also lightweight, easy-to-use and uses open-source components, which makes it particularly amenable to customization, further development and uptake without investments in infrastructure or technical expertise.

Key contributions are described as follows. First, ongoing work is presented on a simple and scalable end-to-end pipeline that ingests data from the Twitter streaming API and uses a combination of unsupervised neural text embeddings and limited-label active learning to construct a crisis-specific training set. Second, a validation case study is presented around the Las Vegas shooting massacre that occurred on the night of 1 October 2017 to illustrate the significance and scale of the approach. Compared to a baseline control, active learning is found to converge faster in the text embedding space. Text embeddings are found to yield intuitive results, illustrating the combined robustness of data collection and preprocessing. Third, a simple, quickly deployable visualization system called HashViz is presented to enable rapid visualization and exploration of the raw tweet corpus. HashViz does not require any labels at all, or large infrastructure and setup. All work based on this article is based on open-source technology that can be distributed to agencies and first-responders free of charge. Key elements of the pipeline are already being integrated into the THOR project funded under the DARPA LORELEI program and featured in DARPA’s 60th anniversary.

The structure of the remaining article is as follows. Section 2 covers relevant related work, while Section 3 describes the key components in Figure 1. Section 4 presents a brief but significant set of empirical results using a case study, namely the Las Vegas shootings. Section 5 presents the HashViz system and shows that it can be used to explore raw crisis tweet corpora, and detect emergence of conspiracy theories. Section 6 presents promising avenues for future work and Section 7 concludes the paper.

2. Related Work

Crisis informatics is emerging as an important field for both data scientists and policy analysts. A good introduction to the field was provided in a recent Science policy forum article [1]. The field draws on interdisciplinary strands of research, especially with respect to collecting, processing and analyzing real-world data. We cover some relevant work below.

2.1. Social Media and Crisis Informatics

Social media platforms like Twitter have emerged as important channels (‘social sensors’ [5]) for situation awareness in socially consequential domains like crisis informatics. While the initial primary focus was on earthquakes [6,7], the focus has diversified in recent years to disasters as diverse as floods, fire, and hurricanes [4,8]. We note that Twitter is by far the most monitored social media platform during crises [9] due to the availability of the published data and its real-time nature. Increasingly sophisticated approaches have been presented for data collection, including dynamic lexicons [2]. For free use of streaming Twitter data, the public API is the single point of query access. Since data collection in this paper focuses on a single disaster, we assume that a user has access to some keywords that she would use to input initial queries to the API. An advantage of our approach is that, because we aim to improve precision subsequently, the user can afford to be liberal and optimistic in her choice of query keywords and hashtags.

Another example of extracting situational awareness from Twitter using NLP methods was presented by Verma et al. [10]. Another important line of work is in analyzing events other than natural disasters (such as mass convergence and disruption events), but still relevant to crisis informatics. For example Stabird et al. presented a collaborative filtering system for identifying on-the-ground ‘Twitterers’ during mass disruptions [11]. Similar techniques could be employed to further supplement the work in this paper.

More generally, projects like CrisisLex and EPIC (Empowering the Public with Information in Crisis) have emerged as major efforts in the crisis informatics space due to two reasons: first, the abundance and fine granularity of social media data implies that mining such data during crises can lead to robust, real-time responses; second, the recognition that any technology that is thus developed must also address the inherent challenges (including problems of noise, scale and irrelevance) in working with such datasets. CrisisLex provides a repository of crisis-related social media data and tools, including collections of crisis data and lexicons of crisis terms [2]. It also includes tools to help users create their own collections and lexicons. In contrast, Project EPIC, launched in 2009 and supported by a US National Science Foundation grant, is a multi-disciplinary effort involving several universities and languages with the goal of utilizing behavioral and technical knowledge of computer mediated communication for better crisis study and emergency response. Since its founding, Project EPIC has led to several advances in the crisis informatics space; see for example [12,13,14,15,16]. The work presented in this article is intended to be compatible with these efforts.

2.2. Data Preprocessing

Social media content and text is generally heterogeneous, with unusual spellings and language models. Systems that have been found to work well for Twitter have employed a variety of preprocessing steps [17,18,19]. The system in this paper also employs some preprocessing steps.

2.3. Data Filtering and Curation

An important initial step when dealing with heterogeneous information sources is to separate relevant (i.e., crisis-related) and irrelevant documents [20]. This allows the filtering of documents that may have used a crisis-related term or hashtag, but does not contain information that is relevant to a particular crisis event. Important filtering methods have been covered by a range of papers, such as [21,22,23]. Importantly, the filtering in this paper assumes little domain knowledge and minimal labeling effort from the user. A user is also not required to program a machine learning system or devise inventive features. This enables benchmarks to be quickly collected in a matter of hours rather than days or weeks, and could potentially be leveraged by efforts like CrisisLex to significantly expand their current benchmark collection.

2.4. Data Analysis

Although the primary focus of this paper is on data acquisition, preprocessing and relevance filtering, the ultimate goal of acquiring such a dataset is to conduct analysis. Many such analyses require the underlying dataset to be composed of relevant documents, though some methods are more robust to noise than others. Analysis tasks include (1) event detection (both extraction and co-reference) [24,25,26], for which a variety of machine learning techniques have been proposed [27,28,29], and that was surveyed in [30]; (2) data classification, which concerns identifying the type of information expressed in a document (e.g., donations and volunteering, infrastructure and utilities, affected individuals) [20], since such knowledge can be used by responders to provide actionable information that is generally missing from general event categories. Deep learning methods have recently shown a lot of promise in automatically identifying such information [21,22]; (3) named entity recognition, especially for entity-centric querying (e.g., to answer questions such as what are the sentiments associated with the UN in Ghana?) to acquire finer-grained situational awareness [31,32,33]; (4) visualization, which is an important part of any human-centric system that is attempting to make sense of a large amount of information. Several good crisis informatics platforms that provide visualizations include [34,35,36,37,38,39,40,41].

We present preliminary results on visualization, which is the most important component of a forward-facing crisis informatics system that necessarily involves humans in the loop. The visualization is generated in an unsupervised fashion, has a simple, interactive component that summarizes the corpus using hashtags as visual units, and is freshly rendered for every new disaster. In other words, it does not require pre-customization or extensive set-up.

2.5. Embeddings and Representation Learning

Research into embedding words, and more broadly, documents, sentences and paragraphs into dense, real-valued and low-dimensional vector spaces precedes the current renaissance of neural networks [42], but has become more popular due to the advent of neural models like skip-gram. Recent work has used such embeddings in numerous NLP and graph-theoretic applications [43], including information extraction [44], named entity recognition [45] and entity linking [46]. The most well-known example is word2vec (for words) [47], followed by similar models like paragraph2vec (for multi-word text) and fasttext [48,49], the last two being most relevant for the work in this paper. For a recent evaluation study on representation learning for text, including potential problems, we refer the reader to [50].

2.6. Minimally Supervised Machine Learning

Machine learning where there are few, and in the case of zero-shot learning [51,52], no observed instances for a label has been a popular research agenda for many years [53,54]. In addition to weak supervision approaches [54], of which Snorkel is an example [55], both semi-supervised and active learning have also been studied in great depth, with surveys provided by [56,57]. However, to the best of our knowledge, a successful systems-level conjunction of active learning, visualization and representation learning has not been illustrated in the crisis informatics domain. An important experimental contribution of this work is to explore how such a conjunction can be successfully achieved in practice.

3. Approach

The overall approach is illustrated in Figure 1 and is quite simple. We assume that the crisis has just struck, and the user has obtained some clues from an external source (e.g., a local breaking news, or privileged first responder information). As a first step, the user has to specify some inputs so that the Twitter API can start retrieving and storing a corpus in real-time from the stream. Details on this search service may be found on the social media’s developer website; details on the API are also available. there We serialize the real-time streaming inputs by storing the tweets in the raw JSON format in which they stream, on disk, while isolating the text component and storing it in an external text file for labeling and text embedding. The former setting (storing the raw tweets) is optional in low-resource settings, where limited computational power or storage is available.

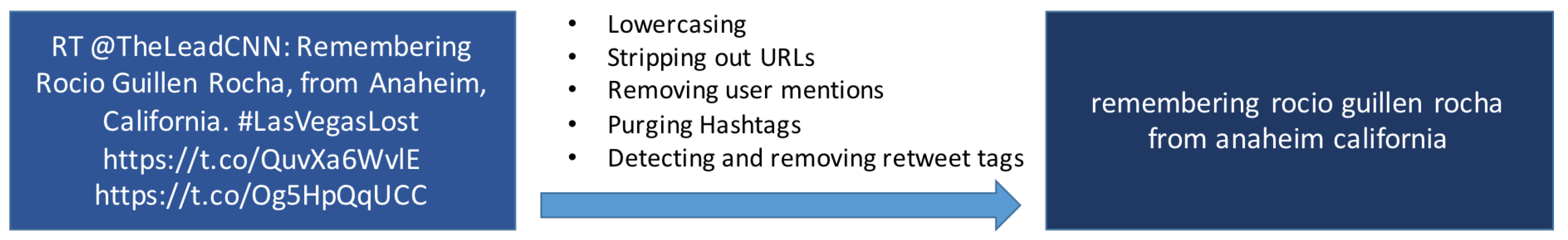

Next, we preprocess each tweet by converting all characters in the tweet to lowercase, and stripping out URLs, user mentions and hashtags. The preprocessing can also be done on a per-tweet basis in real-time. A real-world example of tweet preprocessing is expressed in Figure 2.

Currently, the next few steps take place in batch mode, but online options for many of these algorithms are available in the literature and are in the process of being integrated into the pipeline. We assume that a preprocessed corpus, serialized as text files, is available on disk. We execute the unsupervised fastText word embedding package on this corpus to obtain a semantic embedding model for the corpus vocabulary [49]. The fastText embedding has some notable advantages which make it suited for Twitter data. First, as the name suggests, the model is very fast, and is well-suited for millions of tweets and documents. Second, the model offers convenient modeling and querying command line APIs. Finally, and most importantly, the model is robust, and can be used to deduce vectors for words that were not seen during training. Since Twitter language has high variance and can be quite irregular, we believe that this facility is paramount to inferring good text embeddings.

Thus far, all steps were completely unsupervised. In order to acquire the benchmark and jumpstart the active learning process, we assume a set of a high-precision heuristics (e.g., a hashtag like ‘lasvegasmassacre’) to sample and manually label a small set (say, 50) of tweets as positive, and another small set of tweets as negative, with positive indicating that the tweet is related in some way to the specific crisis. Using this small ‘initial pool’, we train a machine learning classifier using the text embeddings as features, and bypassing the feature engineering process.

We now adopt the following active learning framework, assuming that the total user labeling budget is X i.e., the user wants to label X more data points. To ensure the pipeline is minimally supervised, we do not experiment with X higher than a few hundred tweets, although convergence starts happening at only a few tens. Also assumed is a single hyperparameter p, which is the number of samples that the user will label in each active learning iteration, leading to $X/p$ iterations. In the first iteration, we apply the classifier to the unlabeled pool of data, and select the data that the classifier determines as most uncertain (Figure 3). The empirical advantages of using active learning in this way for benchmark construction, as opposed to a baseline control that randomly samples from the unlabeled pool in each iteration, will be illustrated in Section 4; other studies have found similar benefits [58].

4. Experimental Case Study: Las Vegas Shootings

The Las Vegas shooting incident was a major recent tragedy in the city of Las Vegas (we condense the description provided by the news report detailed by CBS News and accessed at [59]). Some of the statistics may change over time based on updates received. On the night of 1 October 2017, a gunman (64-year-old Stephen Paddock of Mesquite, Nevada) fired more than 1100 rounds (from his suite on the 32nd floor of the nearby Mandalay Bay hotel) on a crowd of over 22,000 concertgoers at the Route 91 Harvest music festival on the Las Vegas Strip in Nevada, leaving 58 people dead and 546 injured. About an hour after the attack, he was found dead in his room from a self-inflicted gunshot wound. At the time of writing (more than a year after the incident), the motive is controversial, although it has been discovered that he possessed an arsenal of weapons.

According to Wikipedia [60], the incident is the deadliest mass shooting committed by an individual in the United States. The shooting reignited the debate about gun laws in the U.S., with attention focused on bump fire stocks, which Paddock used to allow his semi-automatic rifles to fire at a rate similar to that of a fully automatic weapon.

We chose this case study for our analysis because the prototypical pipeline described herein was developed shortly before this shooting took place, and we deployed it shortly after to test its capabilities ‘in the wild’. The tragedy is also fairly recent, and ‘unusual’ and unpredictable in contrast to more weather-related disasters.

4.1. Initial Corpus

We collected real-time data from the Twitter public API on 3 October 2017 (i.e., on the second date following the Las Vegas shooting) and terminated data collection on October 9. We used a small set of manually specified keyword phrases such as ‘las vegas shooting’. We were able to make about 450 requests in every 15 min window, obtaining roughly 1000 tweets per 15 min window. The total number of tweets collected over the temporal span of October 3–9 is about 1.35 million, a significant number not amenable to manual perusal.

For future development and experiments supporting a second case study briefly described at the end, we similarly collected about 237,480 tweets describing hurricanes, including hurricane disasters that various places in the US (e.g., Houston) were still recovering from in late 2017, as well as hurricanes that had just struck in other places in the world at that time. Using the facility offered by the Twitter API, we also randomly sampled 1.014 million tweets from the API in the date range of 7–9 October to provide a more unbiased negative data sample for both case studies (i.e., not intentionally describing either the Las Vegas shootings or the hurricanes). The full corpus is thus a union of three ‘datasets’ (Las Vegas + Hurricane + Random) and contains more than 2.6 million tweets (

Table 1. Datasets collected for case studies.

Name	Number of Tweets	Description
Las Vegas	1.35 million	Collected in the aftermath of the Las Vegas shootings in 2017 between the temporal span of October 3–9. Primary dataset for the case study described in this article.
Hurricane	237,480	Hurricane disasters that various places in the US (e.g., Houston) were still recovering from in late 2017, as well as hurricanes that had just struck in other places in the world at that time.
Random	1.014 million	Collected in the date range of October 7–9 to provide an unbiased negative data sample for disaster-related case studies. The Twitter sampling facility was used, but it is not certain if this yields truly random data. The majority of (but not all) tweets in this corpus can be assumed to be non-disaster related.

). The unsupervised fastText embedding was trained over the entire corpus. An important point to note is that, other than supporting a potential second case study, the Hurricane dataset also provides a ‘non-trivial’ negative sample for the LasVegas case study experiment, since it is a disaster dataset but is irrelevant, unlike Random, which is (mostly) non-disaster to begin with.

4.2. Evaluation Dataset Details

For evaluation purposes, we acquired a manually labeled ground truth of 600 tweets (200 from each of the three corpora i.e., Las Vegas, Hurricane and Random) using one of three class labels (Las Vegas Shooting, Hurricane and Non-Disaster). For the currently described case study, Hurricane and Non-Disaster were both treated as negatively labeled data. The evaluation set is ‘featurized’ by using the preprocessing steps described earlier, and querying for the sentence vector. Note that the fastText API uses an averaging technique to derive such a sentence vector using the trained word embedding model. We used the unsupervised fastText embedding model trained over the full corpus (of about 2.6 million tweets).

4.3. Experimental Protocol

For the fastText text embedding model, we use default parameters for the preliminary experiment and set embedding dimensionality to 100. We use the evaluation set to test the effectiveness of the proposed active learning against the non-active learning baseline. Using Logistic Regression for supervised classification, we set up both the active learning (AL) and the baseline control as follows. First, we do stratified sampling of 60% of the evaluation set, with the positive class comprising Las Vegas shooting-related tweets, and the negative class comprising a union of the other two classes. We use this 60% for training, and the other 40% for testing. We further split the training set into a 10–50% partition, with the initial 10% (called the initial pool) used for training the base classifier (both for AL and the baseline) and the other 50% used as the labeling pool. For the AL experiment, in each iteration, the 5 most uncertain data points (according to the probabilities output by the current AL classifier) are sampled and merged into the current labeled pool, followed by re-training the classifier. For the baseline control, the protocol is exactly the same, except we randomly sample the 5 points from the labeling pool, rather than consider the uncertainty of points when querying.

For evaluating performance, we use precision and recall. Precision is computed as the ratio of true positives to the sum of true and false positives, while recall is the ratio of true positives to the sum of true positives and false negatives. We compute each of these two metrics at every iteration, both to measure the the performance of the current AL, as well as the baseline classifier (‘control’) on the test set (the other 40% of the labeled data, which is not used by either classifier at any stage for learning). Because we followed this protocol, the results of the baseline and the AL classifier will coincide both at the beginning and at the end. In practice, both the size of the training set, as well as the relative scale of base training and pooling, can both be tuned during evaluation.

4.4. Active Learning Results

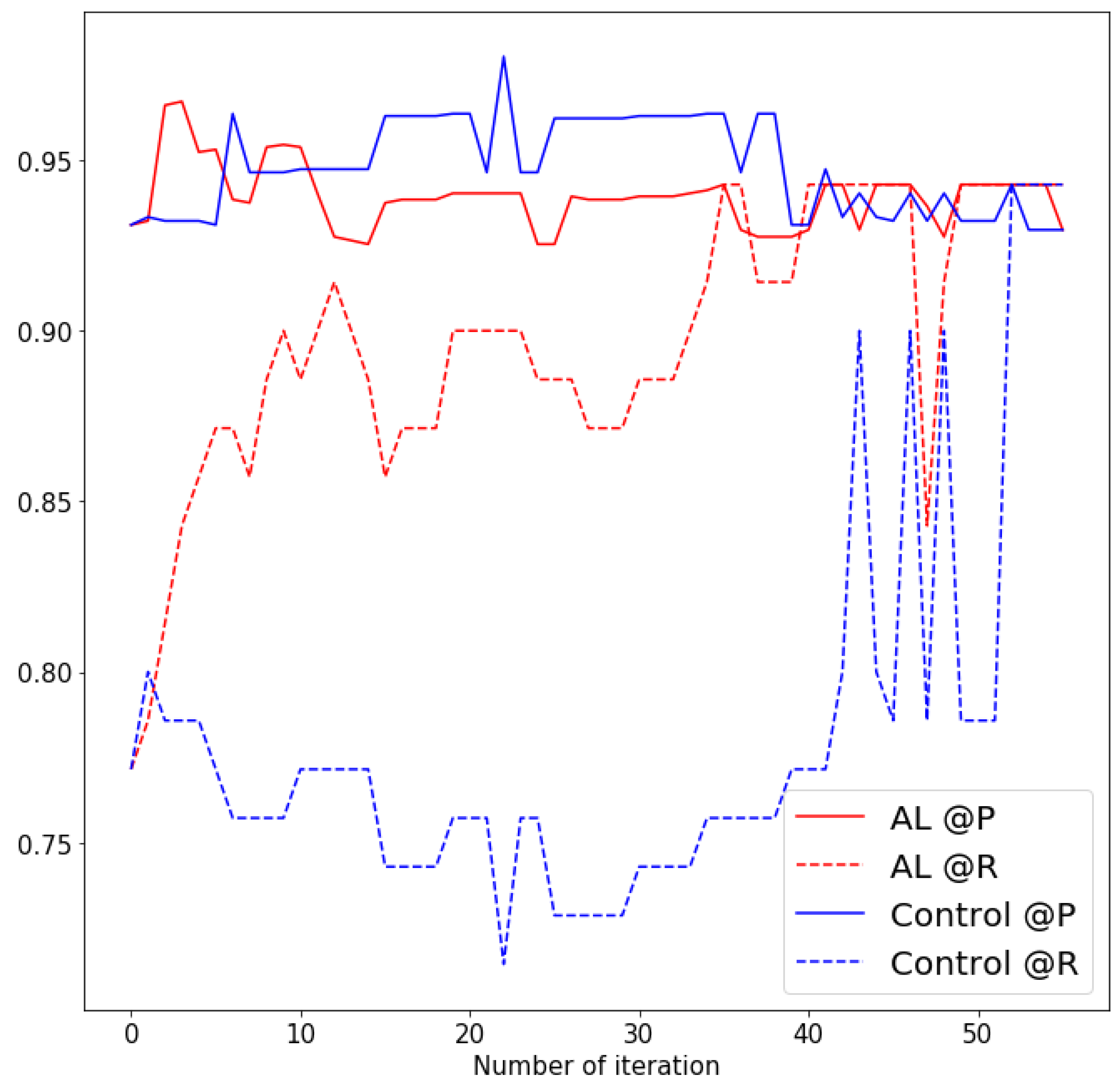

Figure 4 illustrates the results of active learning. In the figure, we use red lines for the active learning and blue lines for the baseline. The solid lines plot precision vs. iterations and dashed lines plot recall vs. iterations. The result is significant because the recall converges much faster than the control group (reaching a stable value just after 10 iterations while the green line is low), without much decline in precision (compared to control) that continues to be maintained at stable levels as well. This implies that we can use active learning to rapidly acquire a diverse set of data without necessarily sacrificing precision or requiring large-scale training set construction.

4.5. Discussion

Being a classic machine learning technique, active learning has long been recognized as a technique for achieving faster convergence of a classifier without requiring nearly as much data as ordinary supervised learning. However, what the results in Figure 4 illustrate is that the difference can arise (at least in the context of the current application) due to recall rather than precision. Both AL and Control in Figure 4 achieve roughly the same level of precision throughout, without significant improvement from the initial starting point (about 0.95). In fact, AL precision is even slightly lower than the Control precision for many iterations. One reason why we might be observing this is because precision is already high. If precision were lower, we may have observed trends different from the ones in Figure 4. This is a result that we intend to explore further in future work.

On the recall (and consequently, F-measure) metric, however, the story is very different, since there is a 10% gap in favor of AL compared to Control. In other words, active learning is helping the classifier to achieve higher recall faster, without corresponding degradation in precision. At its peak, the classifier manages to achieve F-measure close to 95%, compared to less than 90% for the original classifier. Overall, this illustrates the clear and overwhelming benefits of active learning in the current application and framework.

5. HashViz: Interactive Hashtag Visualization and Exploration

In social media like Twitter, hashtags carry a lot of semantic information and can be easily distinguished from the main text. Exploring and visualizing the space of hashtags in a meaningful way can offer important insights into a dataset, especially in crisis situations. Ultimately, such insights can stop a crisis from becoming worse e.g., by disseminating important information before a conspiracy theory spins out of control on social media.

We have developed a functioning prototype, HashViz, that ingests the vectorized corpus of tweets collected in the aftermath of a crisis situation (such as the Las Vegas shootings described earlier), with the vectors obtained using an algorithm like fastText, and embeds words and hashtags into a vector space. To address the dimensionality problem, HashViz uses t-Distributed Stochastic Neighbor Embedding [61] for dimensionality reduction (to 2) of hashtag vectors and visualization in 2D space. Similar hashtags will aggregate (implicitly) into clusters, with relative distance in 2D space providing a rough estimate of semantic relatedness.

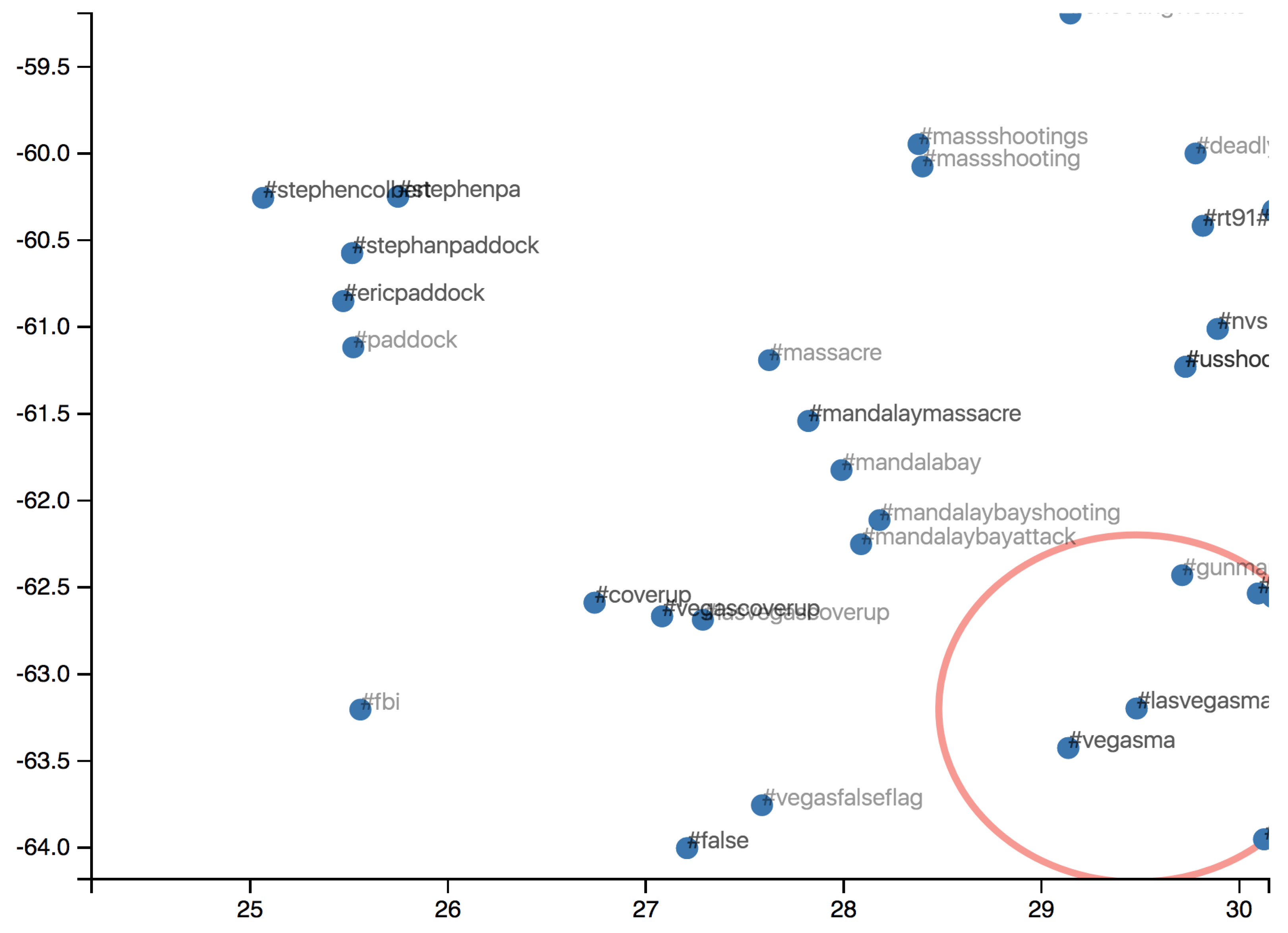

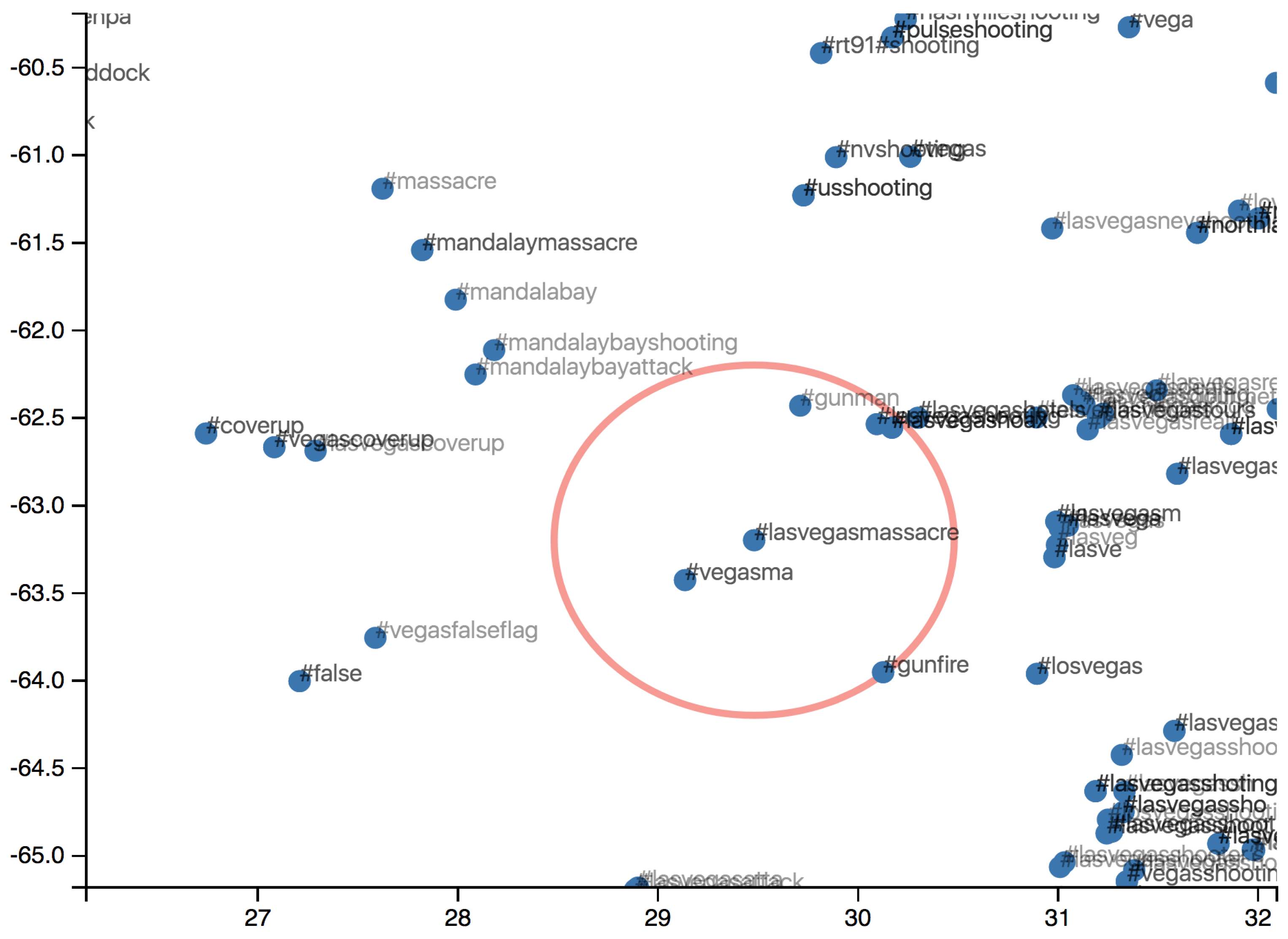

Returning to the case study, an example using ‘lasvegasmassacre’ as the query is shown in Figure 5. In the scatter plot, the hashtag is encircled in red, and one can intuitively note the similarities between that hashtag and other hashtags in the corpus. Similar hashtags, in the text embedding space (which uses the context to determine similarity) tend to be closer together, even when they share little in common in terms of the raw string. For example, when the user draws a bounding box around ‘lasvegasmassacre’ and zooms in, #lasvegasmassacre and #mandalaybayattack appear relatively close, even though they share no terms in common. This has been achieved without any manual supervision or labeling.

In general, the user can also scroll around the ‘hashtag space’ to gain situational awareness and insight that she might not fully be aware of otherwise. If we go a little bit further, in Figure 6 for example, we gain an additional piece of information (the name of the shooter i.e., Stephen Paddock). By ‘accident’ or otherwise, we also start to see the emergence of conspiracy theories through hashtags such as #coverup, #vegascoverup etc. These hashtags are also clustered close together. Currently, we are attempting to enrich the HashViz so that the hashtags are clickable, allowing the user to collect more information about such hashtags by aggregating information (such as posting users and timelines) from the underlying tweets.

Another important aspect of HashViz is that, by virtue of using the fastText embeddings, results will be retrieved even when there is no hashtag that exactly matches the user’s query. In such cases, fastText will revert to a sub-word embedding and attempt to locate embeddings of similar spellings.

The visualization can be restarted simply by entering another query. The system is currently deployed on a cloud server and is completely unsupervised. Users can interact with the plot using a combination of zooming, scrolling and querying, allowing them to explore a topic that is of interest to them.

Although multiple Twitter visualization platforms exist, HashViz is distinguished by being simple, scalable, interactive and portable enough to be deployed on a server for million-tweet corpora collected in the aftermath of arbitrary disasters, without special-purpose installation, technical expertise, manual supervision or costly software or infrastructure investment. Although simple, we use the Las Vegas dataset to show that HashViz offers an intuitive way to summarize, and gain insight into, a developing crisis situation. HashViz is also completely unsupervised, requiring no manual inputs to go from a raw corpus to a visualization and search interface. HashViz is lightweight since it is deployed using only a web browser on the client side.

6. Future Work

The experimental results in this article raise some interesting questions and potential avenues for research that we intend to pursue in the near future. First, as illustrated in the context of the case study experiments, active learning seems to be having a disproportionate effect on one metric (recall) compared to other metrics (precision). One hypothesis that we floated was that precision was already high on the sampled evaluation dataset, which means that further improvements cannot be readily observed. However, there is always the possibility that active learning inherently has a higher impact on recall in such low-supervision, embedding-based settings than precision. We intend to investigate this phenomenon further in future work.

The other improvements that can be made to the system are with respect to the embeddings. Although we used the fastText model in this article, more advanced embeddings have since emerged, including graph embeddings and hybrid graph-text embeddings. It remains to be seen whether changing the embedding model will lead to faster convergence of the active learning or otherwise better performance on various metrics.

Lastly, we intend to improve the HashViz visualization interface so that it can jointly illustrate both hashtags and users, and allows for richer navigation and interaction facilities. Visualization is a core component of any situational awareness system since it allows ordinary users to interact with the data in intuitive and insightful ways. Thus, we are also looking to add more facets and views to the HashViz interface.

7. Conclusions

This paper presented a pipeline for rapid acquisition and visualization of a crisis-specific dataset in the immediate aftermath of a crisis. The pipeline uses a small number of interactively labeled samples in an active learning framework, coupled with unsupervised fastText text embeddings, to obtain a relevant corpus without extensive labeling or feature engineering effort. Using the unsupervised, interactive and lightweight HashViz system, hashtags in such a corpus, which contains millions of unlabeled tweets, can be visualized in 2D to gain situational awareness into the crisis from the social media comments and posts of the average citizen. The significance of the system and its potential for assisting in future crises was illustrated using the Las Vegas massacre, arguably one of the most tragic shootings in recent US history. The prototype is being actively developed and validated via other carefully designed case, large-scale benchmarking, and user, studies.
