Enhanced Air Stability of Perovskite Quantum Dots by Manganese Passivation

Abstract

Organic-inorganic perovskite quantum dots (PeQDs) have attracted attention due to their excellent optical properties, e.g., high photoluminescence quantum yields (PLQYs; >70%), a narrow full width at half maximum (FWHM; 25 nm or less), and color tunability adjusted by the halide components in an entire tunability (from 450 nm to 730 nm). On the other hand, PeQD stability against air, humidity, and thermal conditions has still not been enough, which disturbs their application. To overcome these issues, with just a focus on the air stability, Mn²⁺ ion passivated perovskite quantum dots (Mn/MAPbBr₃ QDs) were prepared. Mn²⁺ could be expected to contract the passivating layer against the air condition because the Mn²⁺ ion was changed to the oxidized Mn on PeQDs under the air conditions. In this research, Mn/MAPbBr₃ QDs were successfully prepared by ligand-assisted reprecipitation (LARP) methods. Surprisingly, Mn/MAPbBr₃ QD films showed more than double PLQY stability over 4 months compared with pure MAPbBr₃ ones against the air, which suggested that oxidized Mn worked as a passivating layer. Improving the PeQD stability is significantly critical for their application.

1. Introduction

Organic-inorganic hybrid lead halide perovskite ABX₃ (A = MA; methylammonium, FA; formamidinium, B = Pb, X = Cl, Br, I) quantum dots (PeQDs) have greatly attracted attention as a light source for optoelectrical applications carrying the next generation such as displays for remote medicine [1], photodetectors [2], and photovoltaics [3]. This is due to their excellent optical properties such as high photoluminescence quantum yields (PLQYs; over 70%), a narrow full width at half maximum (FWHM; 25 nm or less), and color tunability adjusted by the halide components in an entire tunability (from 450 nm to 730 nm) [4,5,6,7]. The major preparation method of PeQDs is hot injection [8,9] as follows: this approach is based on the rapid injection of a precursor into a hot solution of the precursors, ligands, and a high boiling solvent. The strongest feature of the prepared PeQDs by hot injection methods is a high mono-dispersity and size uniformity on the nanometer order due to the high temperature and N₂ atmosphere. However, this method has several demerits such as a high temperature of over 100 degrees Celsius and a lot of N₂ gas due to the high cost of fixating on the uniformity of the PeQD particle size, resulting in the disturbance of the development of the flow process. Therefore, in recent years, the ligand-assisted reprecipitation (LARP) method has attracted attention due to the simple method to prepare the PeQD colloidal solution through mixing the polar solvent (=perovskite precursor solution) and non-polar solvent at room temperature under air [10,11,12]. Similar to the hot injection method, PeQDs prepared by the LARP method could be achieved with mono-dispersion and size uniformity, which means it is superior to the hot injection method in the point of its condition.

By using the LARP method, green-emissive PeQDs have especially improved their PLQYs by over 90% by filling their surface defects using alkyl ligands with certain chain lengths [13] and the surface passivation with metal halides [14]. In addition, by establishing the ligand exchanging and washing conditions of PeQDs to decrease the insulator components, the PeQD carrier mobility (=electron injection) was drastically improved, and green-emissive PeQDs with a champion external quantum efficiency (EQE) of 23.4% prepared by the LARP method were successfully obtained [15,16,17]. This means the prepared PeQDs have almost the same performance compared with the one prepared by the hot injection method [18]. On the other hand, the PeQD stability against air, humidity, and thermal conditions has not been enough [19], which has disturbed the application of PeQDs [20,21,22]. To solve these issues, establishing a strategy to enhance the stability of PeQDs against each condition is extremely significant.

Herein, our research group focused on the PeQD stability under the air condition. Here, “air” means under the conditions at 25 degrees Celsius and 25% relative humidity (RH). Our strategy is to construct a passivated layer on the surface of PeQDs using an Mn²⁺ ion, which can possibly protect against the air [23]. The reason to choose an Mn²⁺ ion is to be superior to a Pb²⁺ ion in the point of the ion tendency. In detail, an Mn²⁺ ion is more easily oxidized compared with a Pb²⁺ ion due to the high ion tendency. With adding MnBr₂ when preparing PeQDs, an Mn²⁺ ion was selectively attached to the PeQD surface, and it transformed from an Mn²⁺ ion to oxidized Mn due to oxidation. Therefore, the oxidized Mn on PeQDs was expected to work as a blocking layer against the air, resulting in improving the PL stability of PeQDs under the air condition. This mechanism could not be achieved by the hot injection method because there is no oxygen to promote the oxidization of an Mn²⁺ ion when preparing PeQDs. Therefore, the LARP method is the unique method to prepare PeQDs with a passivated layer using one-pot synthesis. From this background, we aimed to prepare PeQDs with high air stability by LARP methods for their application.

2. Materials and Methods

2.1. Materials

For preparing PeQDs, lead (II) bromide (PbBr₂, TCI from Tokyo, Japan), methylamine (40% in methanol, Wako from Osaka, Japan), manganese (II) bromide (MnBr₂, Wako, Osaka, Japan), hydrobromic acid (HBr, 48% w/w, Wako, Osaka, Japan), diethyl ether (99.5%, Wako, Osaka, Japan), ethanol (99.5%, Wako, Osaka, Japan), 1-methyl-2-pyrrolidone (NMP, ≥99.0% Wako, Osaka, Japan), ethyl acetate (99.5%, Wako, Osaka, Japan), toluene (99.5%, Wako), octylamine (OcAm, 99%, Sigma-Aldrich from St. Louis, MO, USA), and oleic acid (OlAc, ≥90%, Sigma-Aldrich, St. Louis, MO, USA) were used as received without further purification.

2.2. Synthesis of Methylammonium Bromide (CH₃NH₂ HBr; MABr)

MABr were synthesized as following the previous report with modification [9]. In detail, 7 mL of HBr solution was reacted with 30 mL of methylamine in a 250 mL round-bottom flask, and the solution was left under a slow stir for 2 h at 0 °C. Then, the solution was evaporated, and after that, white crystals were collected. These crystals were then washed with diethyl ether and recrystallized a third time in ethanol. Finally, the product was dried overnight in a vacuum oven at 40 °C.

2.3. Synthesis of MAPbBr₃ and Mn/MAPbBr₃ QD Dispersion

MAPbBr₃ QD dispersion was fabricated following the LARP method with modification (Figure 1) [13]. In detail, 0.225 mmol of MABr, 0.28 mmol of PbBr₂, and several molar ratios (from 0 to 4 mol%) of MnBr₂ vs. that of PbBr₂ were dissolved in 7 mL of 1-methyl-2-pyrrolidone as a polar solvent with 0.02 mmol of octylamine and 0.1 mmol of oleic acid, resulting in obtaining a MAPbBr₃ or Mn/MAPbBr₃ QD precursor solution. A volume of 7 mL of MAPbBr₃ or Mn/MAPbBr₃ QD precursor solution was dropped into 25 mL of vigorously stirring chlorobenzene as a non-polar solvent and stirred for about 1 min. After stirring, as-synthesized MAPbBr₃ or Mn/MAPbBr₃ QD dispersions were centrifuged at 9000 rpm for 10 min and removed from the supernatants. Adding the same volume amount of ethyl acetate, it was centrifuged at 12,000 rpm for 10 min, and then the supernatant was discarded to remove excess ligands. After that, the precipitation was redispersed in toluene and centrifuged at 12,000 rpm for 5 min, and then a purified MAPbBr₃ or Mn/MAPbBr₃ QD dispersion was obtained.

2.4. Fabrication of MAPbBr₃ and Mn/MAPbBr₃ QD Thin Film

MAPbBr₃ and Mn/MAPbBr₃ QD dispersion was adjusted to a concentration of 10 mg mL⁻¹. By using purified MAPbBr₃ and Mn/MAPbBr₃ QD dispersion, MAPbBr₃ and Mn/MAPbBr₃ QD thin films were spin-coated at 2000 rpm for 30 s onto a glass substrate with a size of 2.5 × 1.5 cm² (Figure 1) [13].

2.5. Characterization

The morphologies of MAPbBr₃ and Mn/MAPbBr₃ QDs were observed by a JEOL JEM-2100F transmission electron microscope (TEM) (accelerating voltage of 200 kV). X-ray diffraction (XRD) patterns of MAPbBr₃ and Mn/MAPbBr₃ QDs were obtained from out-of-plane diffraction using membrane filters on a Rigaku Smart Lab using Cu Kα radiation at 45 kV and 200 mA. Visible absorption (UV) spectra of MAPbBr₃ and Mn/MAPbBr₃ QDs were obtained on a JASCO V-670 spectrophotometer (detecting wavelength range from 400 to 600 nm). Photoluminescence (PL) spectra and PLQYs were measured with JASCO FP-8600 to clarify the optical properties of MAPbBr₃ and Mn/MAPbBr₃ QDs. MAPbBr₃ and Mn/MAPbBr₃ QD thin films were stored in the temperature and humidity chamber (ESPEC CORP., bench-top type temperature & humidity chamber SH-222) under the condition of 25 degrees Celsius and 25% RH, and they were evaluated by PL spectra and PLQYs.

3. Results

3.1. Morphologies of Prepared MAPbBr₃ and Mn/MAPbBr₃ QDs

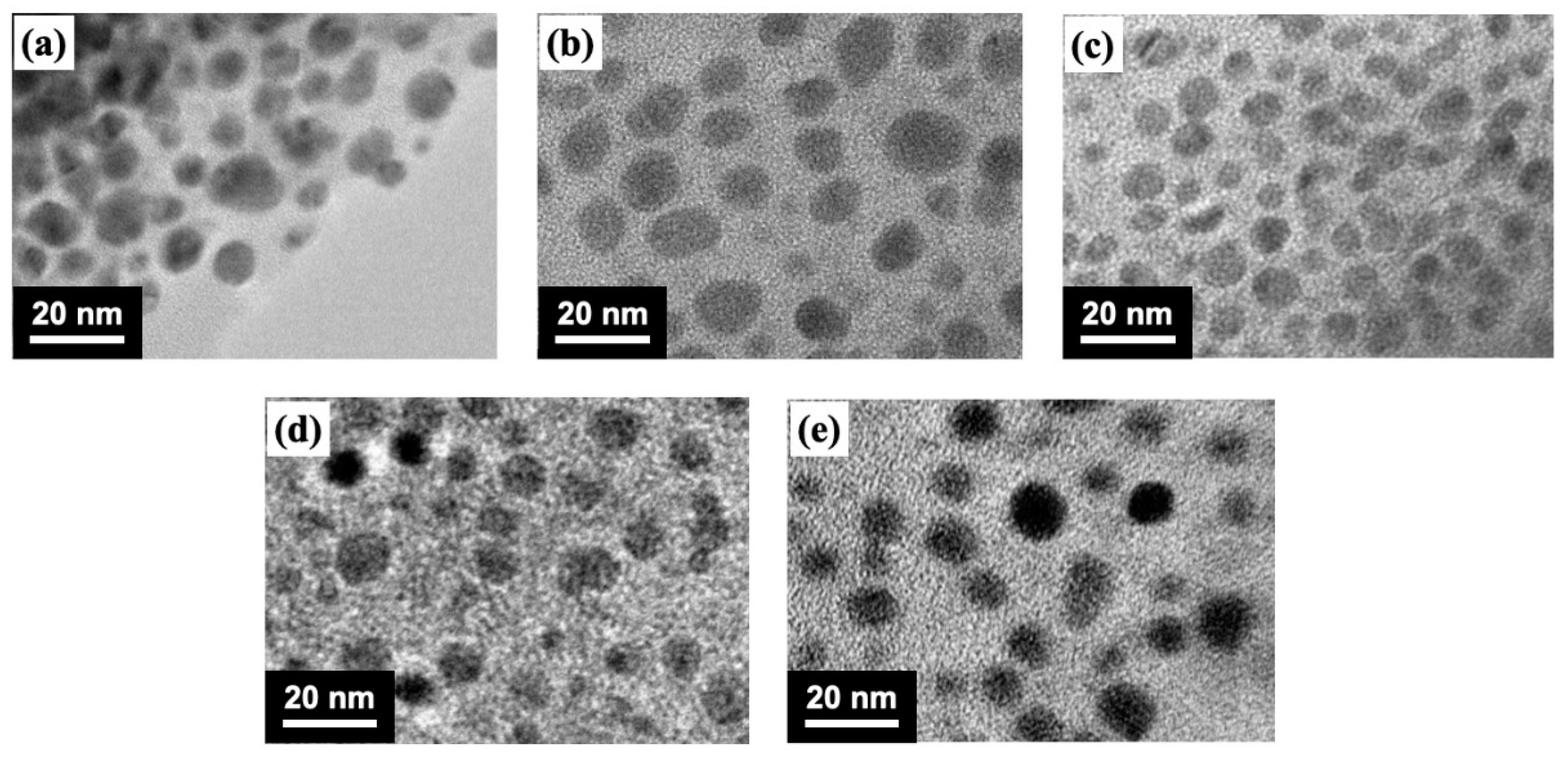

To investigate the difference in the morphologies between MAPbBr₃ and Mn/MAPbBr₃ QDs, they were measured by TEM and XRD analysis. Figure 2 shows the TEM images of (a) MAPbBr₃ or (b)–(e) Mn/MAPbBr₃ QDs with different molar ratios of the Mn component. From the TEM images, all prepared MAPbBr₃ or Mn/MAPbBr₃ QDs showed the mono-dispersity and dot-like shape. This indicated that there are no effects to Mn/MAPbBr₃ QD shape after containing an Mn component, resulting in successfully prepared Mn/MAPbBr₃ QDs. From XRD patterns, all prepared MAPbBr₃ and Mn/MAPbBr₃ QDs showed the diffraction peaks of (100), (110), (200), and (210) phase, which is attributed to the perovskite structure (Figure 3). Notably, focusing on the diffraction peaks, those of Mn/MAPbBr₃ with over 4 mol% of Mn component were drastically low angle-shifted, which implied that Mn was doped in the B site of the perovskite structure. An Mn²⁺ ion could insert into the B site owing to its ion radius and tolerance factor which is the certain index of the PeQD structure stability. On the other hand, Mn/MAPbBr₃ with less than 4 mol% of Mn components (1–3 mol%) could not achieve their surface passivation on MAPbBr₃ because the diffraction peaks of the XRD patterns were not changed compared with that of MAPbBr₃ [24].

3.2. Optical Properties of MAPbBr₃ and Mn/MAPbBr₃ QDs

To clarify the optical properties of MAPbBr₃ or Mn/MAPbBr₃ QD dispersion, their purified dispersion was evaluated. All prepared MAPbBr₃ and Mn/MAPbBr₃ QDs showed a bright green emission under 365 nm of ultraviolet irradiation (

Table 1. Images of MAPbBr₃ and Mn/MAPbBr₃ QD dispersion.

	Mn 0%	Mn 1%	Mn 2%	Mn 3%	Mn 4%
Room light
UV irradiation

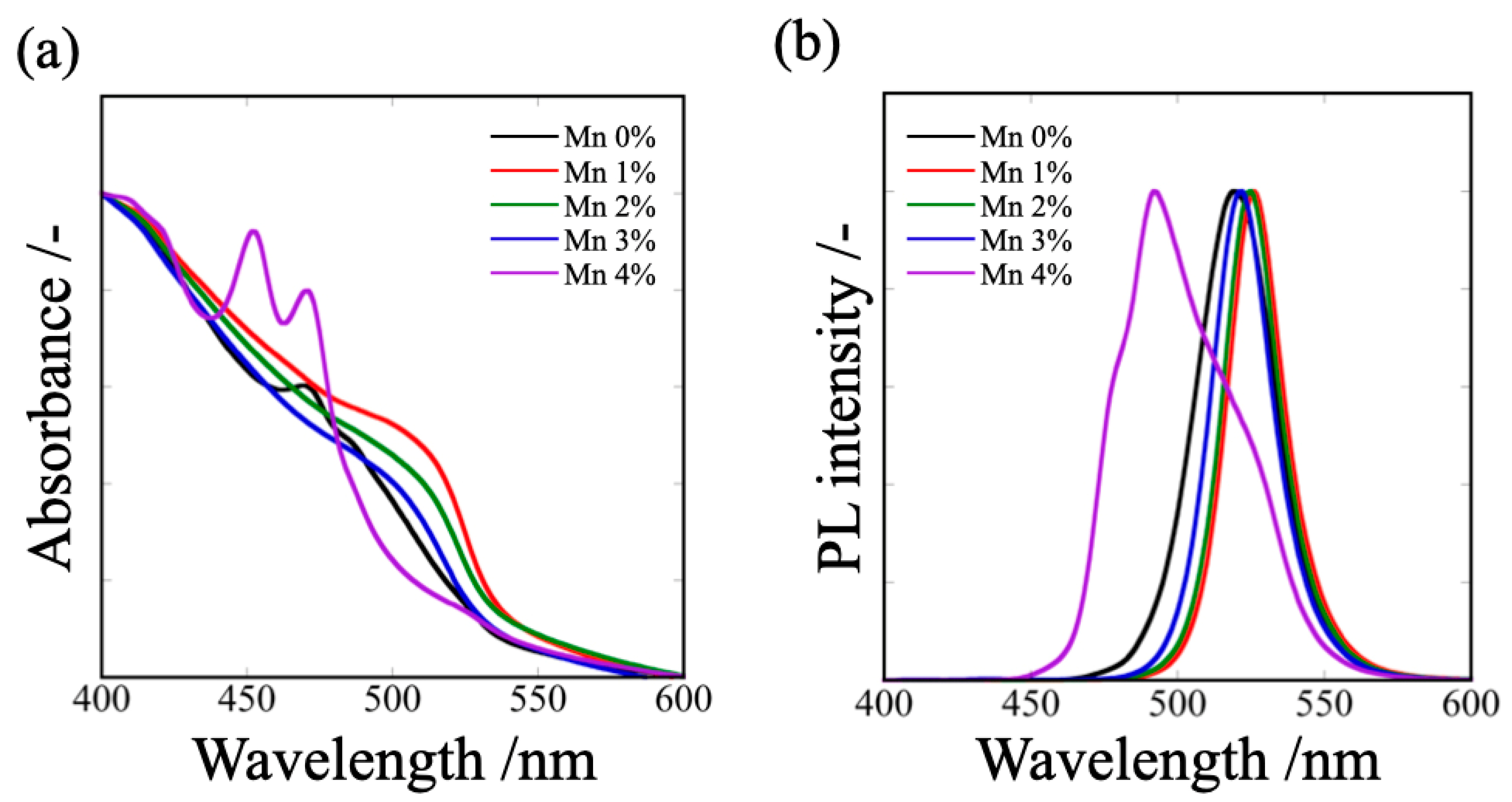

), and they showed specific absorbance attributed to PeQDs (Figure 4a) [25]. According to the PL spectra, with increasing the amount of Mn components from 1 to 4 mol% on Mn/MAPbBr₃ QDs, there was a gradually wider FWHM. In particular, the PL spectrum of 4 mol% Mn/MAPbBr₃ QDs was divided (Figure 4b). In the case of doping Mn into the B site on the perovskite structure, the crystal lattice is distorted because of the different ion radius between Pb (1.19 Å) and Mn (about 0.7–0.9 Å) at the B site. With increasing the ratio of distortion on the Mn/MAPbBr₃ structure, the B-X bonding state was generally changed, which is decided by the bandgap energy on PeQDs. As a result, the 4 mol% Mn/MAPbBr₃ QD emission wavelength was blue-shifted because the bandgap was wider, and the PL spectrum was divided, attributed to the crystal lattice distortion of Mn/MAPbBr₃ QDs [26]. In addition, MAPbBr₃ and Mn/MAPbBr₃ QD dispersion and film samples except for 4 mol% Mn/MAPbBr₃ QDs showed high PLQYs (Table S1). Dividing the bandgap caused the decrease of PLQYs because the different bandgaps generated by another B site worked as a trap site of electronic excitation. Moreover, focusing on the tolerance factor, Mn/MAPbBr₃ QD structure stability is expected to be lower with an increase in the presence of an Mn component at the B site on them owing to being an ion radius smaller [27]. Therefore, considering Mn/MAPbBr₃ QD structure stability and the B-X bonding state decreasing the PLQYs from 84 to 53% with increasing the Mn component is the correct result, which means the proof Mn presence into PeQDs in the case of the 4 mol% of Mn components.

3.3. Air Stability of MAPbBr₃ and Mn/MAPbBr₃ QDs

To prove whether the presence of the Mn leads to improved air stability of Mn/MAPbBr₃ QDs, their changing over time of the PLQY stability under the air condition was evaluated. MAPbBr₃ and Mn/MAPbBr₃ QD thin film were prepared by spin coating at 2000 rpm for 30 s to use 10 mg/mL of their purified dispersion and stored in the temperature and humidity chamber under the conditions of 25 degrees Celsius and 25% RH for 4 months. All the prepared films showed bright green emission under 365 nm ultraviolet irradiation (

Table 2. Images of pure MAPbBr₃ and Mn/MAPbBr₃ QD films.

	Mn 0%	Mn 1%	Mn 2%	Mn 3%	Mn 4%
UV irradiation

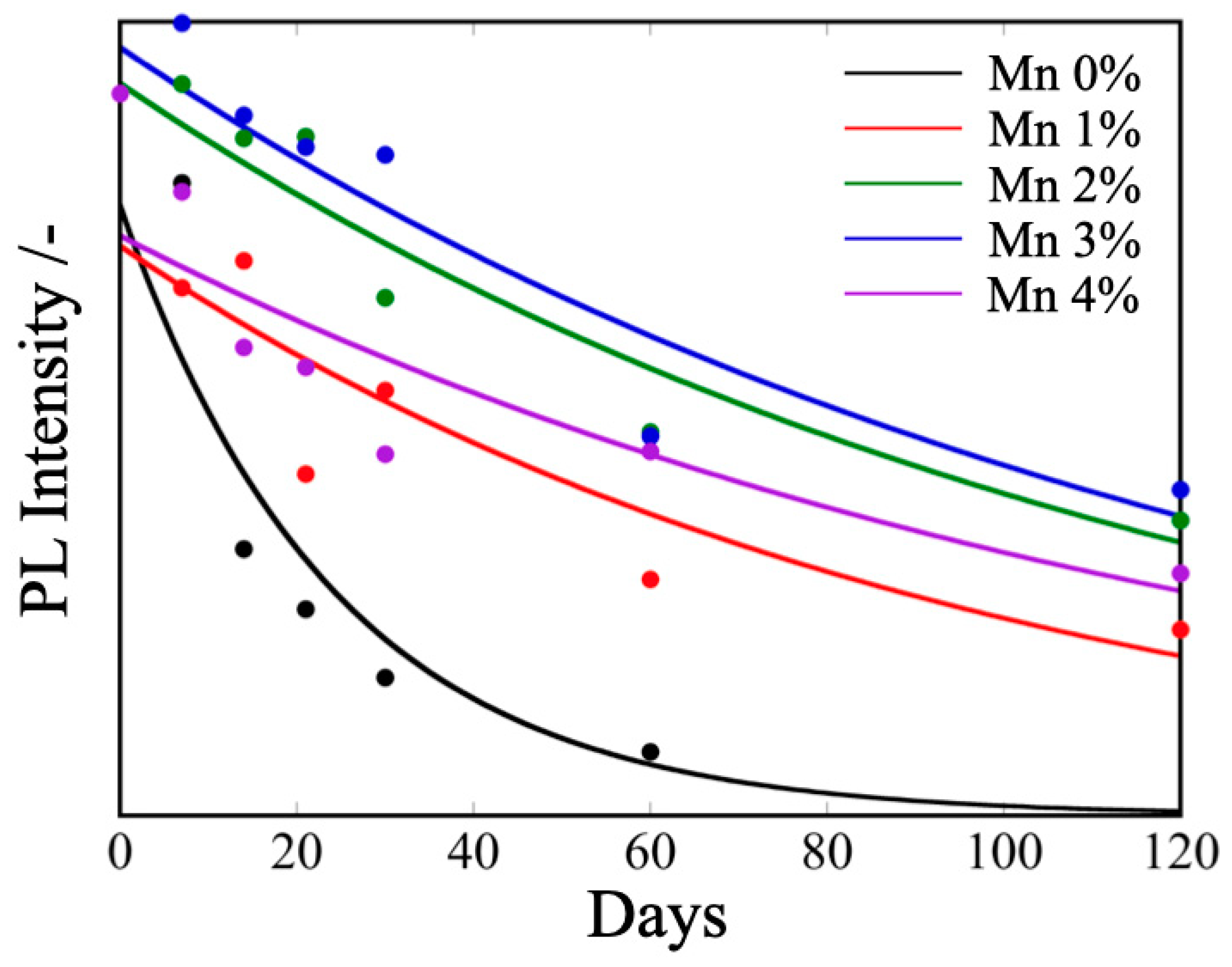

). Table S2 shows the images of the film changing over time. Surprisingly, Mn/MAPbBr₃ QDs have achieved higher air stability than that of the pure MAPbBr₃ QDs (Figure 5, Table S3). In detail, pure MAPbBr₃ thin film was quenched under 10% of PLQYs within 2 months (Figure 5 and Figure S1). In contrast, Mn/MAPbBr₃ QD thin film which contained an Mn component of 1–4 mol% could maintain over 4 months. Considering the ionization tendency, Mn is more easily oxidized compared with Pb. Therefore, with selectively passivating Mn on the surface of PeQDs, it is possible to rapidly form the passivation layer composed of oxidized Mn under an air atmosphere. As a result, an Mn/MAPbBr₃ QD thin film that endured the air atmosphere and humidity was successfully prepared.

4. Conclusions

In summary, 1 to 4 mol% Mn/MAPbBr₃ QDs which are composed of passivated Mn were successfully prepared by LARP methods. They were uniform, dot-like shapes and constructed the perovskite structure. In addition, 1 to 4 mol% Mn/MAPbBr₃ QDs showed excellent optical properties. In particular, the changes over time of their PLQY stability under the air condition were significantly improved because of the presence of the oxidized Mn. These results suggested that the air stability of PeQDs was extremely improved with just only Mn passivation on MAPbBr₃ QDs. As conducted in this work, improving each PeQD stability promotes their longer life, which connects the development of optoelectrical applications.
