Analysis of Auxin-Encoding Gene Family in Vigna radiata and It’s Cross-Species Expression Modulating Waterlogging Tolerance in Wild Vigna umbellata

by
Chandra Mohan Singh
1,†,
Shalini Purwar
2,†,
Akhilesh Kumar Singh
3,
Bhupendra Kumar Singh
4,
Mukul Kumar
1,
Hitesh Kumar
1,
Aditya Pratap
5,
Awdhesh Kumar Mishra
6,* and
Kwang-Hyun Baek
6,*
1
Department of Genetics and Plant Breeding, Banda University of Agriculture and Technology, Banda 210 001, India
2
Department of Basic and Social Sciences, Banda University of Agriculture and Technology, Banda 210 001, India
3
Department of Plant Protection, Banda University of Agriculture and Technology, Banda 210 001, India
4
Department of Entomology, Banda University of Agriculture and Technology, Banda 210 001, India
5
Crop Improvement Division, ICAR-Indian Institute of Pulses Research, Kanpur 208 024, India
6
Department of Biotechnology, Yeungnam University, Gyeongsan 38541, Republic of Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2023, 12(22), 3858; https://doi.org/10.3390/plants12223858
Submission received: 20 September 2023 / Revised: 6 November 2023 / Accepted: 7 November 2023 / Published: 15 November 2023
(This article belongs to the Section Plant Genetics, Genomics and Biotechnology)
Browse Figures
Versions Notes

Abstract

:
Mungbean is known to be susceptible to waterlogging (WL) stress. Some of the wild species have the potential to tolerate this through various physiological and molecular mechanisms. Auxin Response Factor (ARF) and Auxin/Indole Acetic Acid (AUX/IAA), an early responsive gene family, has multiple functions in growth, development, and stress tolerance. Here, we report the first comprehensive analysis of the ARF and AUX/IAA gene family in mungbean. A total of 26 ARF and 19 AUX/IAA genes were identified from the mungbean genome. The ARF and AUX/IAA candidates were clearly grouped into two major clades. Further, the subgrouping within the major clades indicated the presence of significant diversity. The gene structure, motif analysis, and protein characterization provided the clue for further fundamental research. Out of the10 selected candidate genes, VrARF-5, VrARF-11, VrARF-25, and VrAUX/IAA-9 were found to significantly multiple-fold gene expression in the hypocotyl region of WL-tolerant wild relatives (PRR 2008-2) provides new insight into a role in the induction of lateral root formation under WL stress. The analysis provides an insight into the structural diversity of ARF and AUX/IAA genes in mungbean. These results increase our understanding of ARF and AUX/IAA genes and therefore offer robust information for functional investigations, which can be taken up in the future and will form a foundation for improving tolerance against waterlogging stress.

1. Introduction

The genus Vigna is known as a diverse group of crops [1]; among them, mungbean is an important warm-season crop. It is a short-duration contingent crop that has high nutritious value including protein and other micro-nutrients. It also improves soil health due to a symbiotic association that improves soil fertility. Considering the acknowledged importance of this crop, its productivity is hampered by various biotic and abiotic stresses [2,3]. However, it is the main crop of the rainy season; therefore, crop growth and productivity are affected by high moisture and waterlogging stress. Waterlogging creates an anaerobic situation and inhibits root development and establishment, which leads to a reduction in the biomass of the plant. The induction of lateral roots is one of the basic adaptive mechanisms to cope with the effect of waterlogging [4]. Auxin has long been recognized as an important phytohormone, which has a diverse role in plant growth and development and stress responses [5,6]. It is widely distributed in higher plants. It has been suggested by earlier findings that the interaction of Aux/IAA with auxin response factor (ARF) has an important function in auxin signaling. The activity of ARF protein is inhibited by dimerization with Aux/IAA under low auxin concentration [7,8]. Enhanced auxin concentration leads to the release of ARF from a repressor heterodimer by promoting the degradation of Aux/IAA proteins through the TIR1 (ubiquitin-proteasome protein) pathway [9]. The ARF, in turn, binds to auxin response elements (AuxREs) on the promoters of these genes and regulates the expression of other primary/early auxin response genes [10]. A typical ARF protein comprises a conserved “N-terminal B3-like DNA-binding domain (DBD)” that regulates the expression of auxin-responsive candidates, a “C-terminal dimerization domain (CTD)” resembling domains III and IV of Aux/IAA proteins, and a variable middle region (MR) [11]. Aux/IAA proteins have been reported to generally have four functional domains, viz., I, II, III, and IV [12]. Domain I, an “N-terminal RD” represented by an “LxLxL” motif [13], can interact with the TOPLESS co-repressor. Domains III and IV, the C-terminal domains, repress the function of ARF and subsequently repress auxin signaling transduction through the dimerization of ARF [14,15,16]. Functional identification and characterization of ARF genes revealed that these genes have important functions in plant developmental stages. In Arabidopsis, leaf senescence and floral organ abscission were reported to be regulated by AtARF1 and AtARF2 [17], whereas AtARF2 was reported to act as a transcriptional repressor involved in the auxin-mediated control of leaf longevity [18]. Another gene, IAA28, was reported as a promoter of lateral root initiation in response to auxin signals as a transcription repressor [19]. Furthermore, two genes, NPH4/ARF7 and ARF19, were involved in leaf expansion and lateral root formation by auxin induction [20]. In rice, OsARF12 regulates root elongation; in tomato, three ARF genes including SlARF4, SlARF7, and SlARF10, and an Aux/ IAA gene, i.e., SlIAA9, were found to be involved in different functions of fruit development [21,22,23]. The above reports indicated that ARF genes are involved in multiple functions related to growth, development, and stress response. The genome-wide analysis indicated that in crop plants such as Zea mays, Arabidopsis thaliana, Sorghum bicolor, Oryza sativa, Glycine max, Brassica rapa, Vitis vinifera, Medicago truncatula, Populus trichocarpa, Gossypium raimondii, etc., the ARF and AUX/ IAA are encoded by relatively large gene families [16,24,25,26,27,28,29,30,31]. However, the systematic analysis of auxin-encoding genes in mungbean is still lagging. In light of these facts, the present study was conducted with the objective of the comprehensive analysis of the ARF and AUX/IAA gene family in mungbean and their expression in root tissues under waterlogging stress.

2. Results

2.1. Identification and Characterization of Auxin-Responsive Proteins in Vigna radiata

A total of 45 auxin-encoding protein sequences, i.e., VrARF (26) and VrAUX/IAA (19), have been identified in the Vigna radiata genome. These sequences are designated as VrARF-1 to VrARF-26 and VrAUX/IAA-1 to VrAUX/IAA-19 (Table S1). The lengths of VrARF and VrAUX/IAA proteins exhibited a range from 283 amino acids (VrARF-7) to 1142 amino acids (VrARF-14) in the case of VrARF, and from 183 amino acids (VrAUX/IAA-4) to 880 amino acids (VrAUX/IAA-2) in the case of VrAUX/IAA. Correspondingly, their molecular weights spanned from 31.83 to 126.85 kDa for VrARF and 20.14 to 95.8 kDa for VrAUX/IAA. The isoelectric points (pI) ranged between 5.12 (VrARF-5) and 8.88 (VrARF-26) for VrARF, and from 5.23 (VrAUX/IAA-5) to 8.46 (VrAUX/IAA-8) for VrAUX/IAA. Analysis of the coding sequence (CDS) lengths showed substantial structural diversity, varying from 841 to 4328 bp in VrARF and from 429 to 2813 bp in VrAUX/IAA. Subcellular localization prediction using the WoLF PSORT program indicated that the majority of VrARF and VrAUX/IAA proteins were primarily situated in the outer membrane, extracellular space, and periplasm, as detailed in Table S1.

2.2. Evolutionary Tree, Gene Structure, Domain Architectures, and Motif Analyses

To investigate the evolutionary relationship of VrARF and VrAUX/IAA genes, a tree was constructed by including 65 protein sequences of At_ARF and At_AUX/IAA from Arabidopsis (AtSBT), as shown in Figure 1a. The evolutionary tree is divided into three major groups. Notably, all three groups contain a mixture of both ARF and ARF-IAA genes. In group 1, there are 26 genes including 4 VrARF genes, 9 AtAUX/IAA genes, and 13 AtARF genes. Group 2 comprises 14 VrARF genes, 5 AtAUX/IAA genes, and 7 AtARF genes. Group III primarily consists of 19 VrAUX/IAA genes, 26 AtAUX/IAA genes, 4 VrARF genes, and 3 AtARF genes. It is worth noting that AtARF and VrARF genes are found in close association with each other, while AtAUX/IAA genes and VrAUX/IAA genes also tend to cluster together.
Further, the relationship between VrARF and VrAUX/IAA genes was assessed by constructing an evolutionary tree using 45 protein sequences of both genes (Figure 1b). The VrARF genes were categorized into major two subgroups—subgroup-A and subgroup-B, where the VrARF were grouped in one subgroup, while the VrAUX/IAA were grouped into another subgroup. The subgroupings within the major clades were also noted as A1, A2, and A3. In contrast, the VrAUX/IAA were grouped into eight subgroups: B1, B2, B3, B4, B5, B6, B7, and B8. The inter and group similarity is represented in Table S2.
Regarding gene structure, most of the VrARF and VrAUX/IAA genes consisted of a single exon, although there were exceptions in VrAUX/IAA 2 and VrAUX/IAA 14, which contained two and three exons, respectively. While the genes within the same subgroup exhibited similar gene structures and exon numbers, variability in intron length was observed. This conservation in gene structure within each VrARF and VrAUX/IAA group underscored their high sequence similarity (Figure 2). Analysis of the domain architectures (Figure 3) revealed that both VrARF and VrAUX/IAA shared the Auxin_IAA, also known as the CTD superfamily domain, at the C-terminal. Additionally, VrARF carried supplementary domains such as the Auxin_resp, known as an MR superfamily, at the middle region, and the N-terminal B3 domain superfamily known as DBD (Bfill_c_EcoRII_N_B3 superfamily). It shows that all VrARFs/VrAUX/IAA contained the Auxin_response superfamily as an intermediate domain. All VrARF proteins contained a complete Auxin_IAA structure except class II of VrARFs, like VrARF5, VrARF6, VrARF7, VrARF9, VrARF13, VrARF22, and VrARF25. Similarly, DBD existed in all VrARF proteins except VrARF26 and VrARF15. The “B3 domain superfamily” is known as the housing DNA-binding domain found in various transcription factors (TFs) and regulatory proteins (RPs). These domains play pivotal roles in DNA binding and gene expression regulation controlling diverse cellular processes like development, stress responses, and signaling pathways. Notably, VrARF 4 featured the PAT1 domain, implicated in mRNA translation and degradation regulation, and often linked with cytoplasmic P-bodies involved in mRNA storage, degradation, and translational repression.
The basic units of protein structures are protein motifs that directly determine the function of given proteins (Figure 4). To explain the diversification of VrARF and VrAUX/IAA proteins, the conserved and diverged motifs were further identified. A typical Aux/IAA gene is composed of four structure motifs (I, II, III, and IVs) [32]. Most of the VrARF/VrAUX/IAA members contained four motifs. Seven members (VrARF5, VrARF6, VrARF7, VrARF9, VrARF13, VrARF22, and VrARF25) contained three motifs, while two members (VrARF26 and VrARF15) contained only two domains. In the VrARF/VrAUX/IAA, a total of 10 conserved motifs were identified. The B3 domain corresponded to motifs 1, 2, and 5; likewise, the ARF domain consisted of motifs 6, 7, and 9; and the CTD domain was formed by motifs 4 and 8. Furthermore, the B3 domain and the ARF domain constituted a conserved DBD structure. There were 17 ARF members (VrARF 1, 2, 3, 4, 8, 10, 11, 12, 14, 16, 17, 18, 19, 20, 21, and 23), which contained all of the three domains, whereas VrARF 15 contained only the ARF domain, and the rest of the 19 VrAUX/IAA contained only the CTD domain.

2.3. Chromosome Distribution and Synteny Analysis

A total of 26 VrARF and 19 VrAUX/IAA genes were identified in the mungbean genome (Figure 5). Among these, seven VrARF genes were situated on specific scaffolds, while two scaffolds contained VrAUX/IAA genes. The remaining VrARF and VrAUX/IAA genes were mapped onto different chromosomes. Notably, all the chromosomes carried VrARF/VrAUX/IAA genes except for chromosomes 4 and 6, which exclusively harbored VrARF genes, and chromosomes 9 and 11, which lacked VrARF genes. Chromosome 7 stood out with the highest number (7) of VrARF/VrAUX/IAA genes, whereas chromosome 1 had the fewest (2) genes.
To understand the synteny of VrARF/VrAUX/IAA genes across genomes, we conducted an analysis involving Arabidopsis thaliana, M. truncatula, and Vigna unguiculata (Figure 6 and Tables S3–S5). We compared the entire genomes of V. radiata and Arabidopsis thaliana, resulting in 34 gene pairs exhibiting synteny. Impressively, more than 60 gene pairs displayed collinear relationships between V. radiata and M. truncatula, and around 70 gene pairs were noted between V. radiata and Vigna unguiculata. The complexity of collinear relationships between V. radiata and V. unguiculata, as well as M. truncatula, surpassed that observed between M. truncatula and Arabidopsis thaliana. These findings collectively imply that V. radiata and Arabidopsis thaliana are relatively distantly related, while they show closer affinities with M. truncatula and V. unguiculata. Furthermore, within the same gene family, V. radiata genes share a closer relationship with those of V. unguiculata compared to Arabidopsis thaliana.

2.4. Prediction of VrARF and VrAUX/IAA Family Interaction Networks

Using the STRING (https://string-db.org/) software [33] (accessed on 5 September 2023), we predicted a protein–protein interaction network between VrARF and VrAUX/IAA. This network revealed interactions among 18 VrAUX/IAAs and 21 VrARFs forming a complex web of protein interactions (Figure 7). Our findings indicated that certain VrARF proteins had the ability to interact with multiple VrAUX/IAAs, and conversely, some VrAUX/IAAs exhibited interactions with multiple VrARFs. Notably, we observed that eight VrARF proteins (VrARF-1, VrARF-2, VrARF-7, VrARF-10, VrARF-14, VrARF-18, VrARF-25, and VrARF-26) which function as activators, displayed strong interactions with a majority of VrAUX/IAA proteins. Additionally, we found that VrAUX/IAA-11 interacted not only with VrAUX/IAA-14 but also with several VrARFs, indicating its central role in mediating interactions within this network. Moreover, we identified co-expression correlations among many VrARF genes, suggesting their involvement in shared regulatory pathways. For instance, VrAUX/IAA-9 displayed high co-expression levels with 15 VrARFs, as well as with VrAUX/IAA-2. Similarly, VrAUX/IAA-8 exhibited co-expression with 10 VrARFs. These findings suggest that VrAUX/IAA-9, VrAUX/IAA-2, and VrAUX/IAA-8 might serve as key regulators among the 45 VrARFs present in this network. This predictive protein–protein interaction network and the co-expression patterns uncovered in our study offer valuable insights into the intricate regulatory mechanisms involving VrAUX/IAA and VrARF proteins, shedding light on their potential roles in various cellular processes.

2.5. Expression Profiling

Five VrARF and five VrAUX/IAA genes selected based on the presence of different domains were used for expression profiling in the hypocotyl region of one waterlogging-susceptible (WS), IPM 2-3, and waterlogging-tolerant (WT), PRR 2008-2 (Figure 8 and Figure 9). The VrARF-1 exhibited a significant increase (about 3.2-fold) in the WT genotype 3 days after waterlogging stress (3-DAWS), whereas it was upregulated about 4.1-fold at 6 DAWS. In WS, it was upregulated but expression was very low, about 1.2–1.8-fold only. A similar pattern was noticed with the VrARF-5, 11, and 22, but the extent of expression was higher at 6 DAWS, at about 5.9-, 7.1-, and 3.9-fold, respectively. The candidate gene VrARF-25 showed the maximum expression of about 83-fold at 3 DAWS in the WT genotype with very lower up-regulation in WS. The relative expression of VrAUX/IAA-2 was found to decrease at all the day points under waterlogging stress in both the WS and WT genotypes. VrAUX/IAA-7, VrAUX/IAA-9, and VrAUX/IAA-15 were found upregulated in WT genotypes upon waterlogging stress, whereas a significant decrease was noticed in the WS genotype upon waterlogging stress.

3. Discussion

Auxin, a plant hormone, is crucial for controlling different aspects of growth and development in plants. Two important components in auxin signaling are IAA and ARF, which play important roles in regulating downstream processes [34]. The quantities of IAA and ARF components vary among different plant species. For instance, Arabidopsis thaliana contains 29 AtIAAs and 23 AtARFs, rice contains 31 AtIAAs and 25 AtARFs, M. truncatula contains 25 MtIAAs and 40 MtARFs, and soybean contains 63 GmIAAs and 55 GmARFs [16,35,36,37,38,39]. In the present study, we focused on V. radiata and identified 26 VrARF genes and 19 VrAUX/IAA genes using updated genome data. These genes exhibited variations in their predicted molecular weight (MW) and isoelectric point (pI), similar to observations in rice IAAs and Brachypodium distachyon ARF [16,40]. These variations suggest that the diverse VrARF/VrAUX/IAA proteins might serve different functions based on their microenvironment. During the evolutionary processes of genes, changes have been made in their structure, which has led to the addition or reduction of exons/introns. In addition, it was reported that the induction speed of a gene is influenced by the intron number, and genes with fewer introns might be quickly induced [41,42,43]. Interestingly, all VrARF and VrAUX/IAA genes consist of a single exon. This is distinct from some other plants like Brachypodium distachyon, Oryza sativa, and Prunus mume, which have multiple exons. In cases where genes within the same subgroup have a similar number of exons and introns, it often suggests similar functions. However, exceptions have been noted in Arabidopsis, chickpeas, rice, and tobacco, where the number of exons and introns differs despite being in the same subfamily [37,44]. This variation in gene structure within a subfamily may arise from the genes evolving diverse functions over time. An Aux/IAA protein usually comprises four specific sections named I, II, III, and IV, known as domains [9,45]. Among the total of 26 VrARF and 19 VrAUX/IAA proteins, most contained all four domains. However, some proteins, such as VrARF5, VrARF6, VrARF7, VrARF9, VrARF13, VrARF22, and VrARF25, were missing at least one domain. The absence of domain I in proteins like 7 suggested a possible loss in their ability to engage TOPLESS (TPL) co-repressors. Consequently, they might lose their function as repressors in auxin signaling. Moreover, proteins like VrARF26 and VrARF15, along with their counterparts in Arabidopsis thaliana [34], lacked domain II. This indicated that these proteins wouldn’t degrade under higher levels of auxin. Recent research has revealed that, instead of TIR1/AFB-mediated degradation, non-canonical Aux/IAA proteins are stabilized by auxin-triggered phosphorylation via upstream protein kinases. This stabilization plays a role in gene expression through ARF transcription factors, which in turn influences differential growth during certain developmental processes. It is also possible that some of the deduced protein sequences could be pseudogenes or have low expression levels. The expression of genes without domain II was notably low in root tissues, which aligned with findings in other plant species like Brassica napus. Similarly, certain VrIAA genes, such as VrAUX/IAA26 and VrAUX/IAA15, had lost both domains I and II. As observed in other plants, various truncated Aux/IAA proteins exist, each associated with distinct functions within the auxin signaling pathway. To put it simply, Aux/IAA proteins are composed of four segments. Some VrARF and VrAUX/IAA proteins lack certain segments, affecting their role in auxin signaling. These variations in segments are linked to the different functions that Aux/IAA proteins perform in the auxin signaling process across various plants.
An ARF protein typically consists of three distinct sections: DBD, MR, and CTD [46]. These components serve specific functions within the protein. The DBD is responsible for binding to auxin response elements located in the promoters of genes responsive to auxin signals [47]. The MR region’s amino acid composition determines whether it acts as an activator or repressor [26]. On the other hand, the CTD takes part in interactions between different ARF proteins [48]. Among the VrARF proteins, 15 have complete domains, whereas VrARF15 is missing both the DBD and CTD domains. The rest of the VrARF proteins lack only the CTD domain. This observation suggests that some VrARF proteins may operate in a manner not dependent on auxin signals. Similar to this, AtARF3, which is without the CTD domain, doesn’t interact with elements of the standard TIR1/AFB signaling pathway. Instead, it functions independently of the TIR1/AFB receptor [49]. We conducted a synteny analysis of IAA and ARF genes in various plant species including V. radiata, M. truncatula, A. thaliana, and Vigna unguiculata using the TBtools software (https://github.com/CJ-Chen/TBtools/releases accessed on 5 September 2023). This analysis revealed a total of 34 instances of shared VrARF/VrAUX/IAA-AtARF/IAA genes within the Aux/IAA family. Furthermore, we identified 60 pairs of VrARF/VrAUX/IAA and MtARF/IAA genes, as well as 73 pairs of VrARF/VrAUX/IAA and VuARF/IAA genes within the ARF family. These findings strengthen the notion that V. radiata is more closely related to V. unguiculata and Medicago truncatula ARF/AUX/IAA genes than to Arabidopsis thaliana in terms of evolutionary relationships.
Protein–protein interactions play a pivotal role in numerous biological processes, including signal transduction, as well as the regulation of gene expression. One critical aspect of these interactions involves the mediation of auxin responses through the interplay between ARF (Auxin Response Factor) and Aux/IAA proteins [13]. Therefore, investigating the interaction between IAA and ARF in V. radiata has significant importance. In our study, we constructed protein–protein interaction networks that unveiled 192 unique interaction combinations involving 18 VrAUX/IAA and 21 VrARFs. In contrast, we observed 161 specific interactions among 18 MtIAAs and 24 MtARFs in M. truncatula, whereas Arabidopsis thaliana displayed a large number (213) of specific interactions involving 19 ARFs and 29 Aux/IAAs. Remarkably, our data highlighted that up to 84% of ARFs interacted with Aux/IAA factors, a finding substantiated by the successful integration of the co-expression maps with the protein–protein interaction data [50]. Additionally, our observations illustrated that a single ARF protein in V. radiata could interact with multiple Aux/IAA proteins, and conversely, the reverse also held true. For instance, VrARF 1, 2, 14, 18, 25, and 26 exhibited interactions with 18 VrAUX/IAA. VrAUX/IAA-11 exhibited interactions not only with VrARF-16 but also with VrAUX/IAA-16 proteins. This pattern of interactions parallels the findings in tomato plants, where SlARF2A has been reported to interact with five SlIAAs, and SlARF6A with at least 11 SlIAAs [51]. Likewise, in M. truncatula, MtARF29 displayed interactions with MtIAA12 and MtIAA21, along with numerous MtARFs [32]. Similarly, key transcriptional activators such as AtARF5, AtARF6, AtARF7, AtARF8, and AtARF19 were observed to interact with almost all the Aux/IAA proteins in the case of Arabidopsis thaliana [50]. The predictive interaction networks, as well as the co-expression network generated through our study, offer valuable insights for further exploration into the regulation of VrAux/IAA-VrARF interactions and their influence on growth and development, in addition to an adaptation to environmental stresses in V. radiata.
Crop wild relatives (CWRs) are known for their potential for stress tolerance against various biotic and abiotic stresses [2,3,52,53]. Kumari et al. [54] explored the endemic wild Vigna species and identified some of the potential sources of resistance to yellow mosaic disease. Sahu et al. [55] screened the cultivated wild Vigna gene pool and identified potential sources of bruchid resistance. Purwar et al. [56] performed the expression of R genes in two wild Vigna species, and their comparative study with mungbean, and found the higher expression in wild species. Likewise, Tripathi et al. [57] noticed a higher basal and induced expression of four R gene wild two Vigna accessions. These indicated the potential of wild species. The expression analysis of WS and WT genotypes indicated that the VrARF-5, VrARF-11, VrARF-25, VrAUX/IAA-9, and VrAUX/IAA-15 play an important role in waterlogging stress tolerance in the WT Vigna genotype, PRR 2008-2. Therefore, the results of the present study pave the way for further investigation on the functional characterization of ARF and AUX/IAA proteins and their further potential use toward genetic amelioration of mungbean for waterlogging stress tolerance.

4. Materials and Methods

4.1. Identification and Characterization of VrARF and VrAUX/IAA Protein Sequences

The Hidden Markov Model (HMM) of VrARF and VrAUX/IAA was obtained from the Pfam PF06507 and PF 02309 database as a query to search against the Vigna radiata genome database of the legume information system (https://www.legumeinfo.org/ (accessed on 1 June 2023). Further, each of the selected candidates was examined for the conserved structure domain using NCBI-CDD [58]. ExPAsy was used to estimate the molecular weight (MW) and isoelectric points (pI) of the MaSBTs [59]. The sub-cellular localization and signal peptide were predicted by using the online software CELLO life, WoLF PSort (http://cello.life.nctu.edu.tw/ (accessed on 5 September 2023), https://wolfpsort.hgc.jp/ (accessed on 5 September 2023)), and SignalP (https://services.healthtech.dtu.dk/service.php?SignalP-5.0 (accessed on 5 September 2023), respectively [60,61,62].

4.2. Evolutionary Tree, Domain, Gene Structure and Motif Analyses

The identified VrARF and VrAUX/IAA protein sequences were aligned using Clustal Omega with the default parameters. The evolutionary trees were prepared by using MEGA 11 using the maximum likelihood (ML) method based on the Jones–Taylor–Thornton (JTT) matrix-based model > 1000 replications bootstrap [63]. VrARF and VrAUX/IAA genes were checked for intron and exon structure using GSDS software V. 2.0. The gene structure characteristics and exon–intron organizations of the VrARF and VrAUX/IAA were exhibited using the TBtools program, based on the comparison among the full-length genome sequences and the protein-coding sequences of the given genes [64]. The VrARF (26) and VrAUX/IAA (19) protein domains and active motif functions were analyzed in the Pfam database (pfan.xfam.org). The web-based motif identification servers, MEME-Suit (Multiple Em for Motif Elicitation, meme-suite.org/meme/), were used to detect potential motifs with the following parameters: motif width < 50, motifs < 20, and e-value < 1 × 10−5 [65].

4.3. Chromosomal Distribution and Synteny Analyses

The physical position of all the identified VrARF and VrAUX/IAA genes were obtained from the legume information system (https://www.legumeinfo.org/ accessed on 5 September 2023) and genes from short arm to long arm were mapped on to their corresponding chromosomes in ascending order using MapChart 2.32 (http://www.joinmap.nl accessed on 5 September 2023). The syntenic blocks of VrARF and VrAUX/IAA, AtARF /AUX/IAA, MtARF/IAA, and VuARF/IAA were visualized by Mcscan [66].

4.4. Plant Materials and Stress Treatment

The plant material for the present study comprised one waterlogging-susceptible (WS, IPM 2-3) and one waterlogging-tolerant (WT, PRR 2008-2) Vigna accessions belonging to V. radiata and V. umbellata. Two sets of experiments were conducted under a non-stressed environment (control) and a stressed environment (WL). Each set of experiments was laid out in a completely randomized block design (CRD) with three replications. Ten seeds from each accession were grown in seedling bags. The 7-day-old seedlings were subjected to WL (2 cm WL from the soil surface) for up to 6 days.

4.5. RNA Extraction and cDNA Synthesis

The 100 mg of frozen hypocotyl samples in the liquid nitrogen were homogenized using tissue lyser-II (Qiagen, Hilden, Germany). This was followed by RNA extraction using the plant RNA extraction kit (RNeasy Mini Kit, Qiagen) as per the manufacturer’s instructions. Subsequently, the RNA was subjected to DNase treatment to remove the DNA contaminants, and 1 µg of RNA was reverse-transcribed by using the Revert Aid First Strand cDNA Synthesis Kit (Thermo Fisher Scientific, Waltham, MA, USA). The quantification of cDNA was conducted on a micro-volume spectrophotometer (QIAExpert, Qiagen) and normalized by 100 ng/µL for qRT-PCR analysis.

4.6. Quantitative Real-Time PCR Analysis

Ten gene-specific primers were designed for expression analysis (Table S6). The PCR reactions comprised 10 µL of 2 × SYBR green q-PCR master mix (Thermo Fisher Scientific), 1 µL of 10 pmol each of forward and reverse primers (Eurofins, India), 6 µL of nuclease-free water, and 2 µL of cDNA. The fast cycling approach was adopted, with 2 min initial denaturation at 96 °C, 40 cycles of 20 s denaturation at 96 °C, and 45 s annealing and extension at 60 °C. The Actin gene was used as an internal control. qRT-PCR analysis was carried out using a Rotor Gene Q-6000 RealTime PCR machine (Qiagen). Three biological replicates were taken, and two technical replicates were used for expression analysis. The relative expression levels of the genes were calculated via the delta-delta CT method [67].

4.7. Predicted Protein Interaction Network and Co-Expression Network Construction

The interacting networks of VrARF and VrAUX/IAA proteins were integrated into the STRING [68] (https://www.string-db.org/ (accessed on 5 September 2023) software, followed by an export of the co-expression network data from STRING, which was further calculated using Microsoft Excel 2019.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants12223858/s1, Table S1. Characterization of VrARF and VrAUX/IAA candidates identified in mungbean (Vigna radiata) genome. Table S2: Estimates of average evolutionary divergence over sequence pairs within (intra) and between (inter) the groups. Table S3: Synteny analysis of VrAUX-IAA and VrARF genes with Vigna radiata genome. Table S4: Synteny analysis of VrAUX-IAA and VrARF genes with Medicago truncatula. Table S5: Synteny analysis of VrAUX-IAA and VrARF genes with Arabidopsis thaliana. Table S6: Primers used in the expression profiling.

Author Contributions

C.M.S., A.K.M. and B.K.S. conceived the idea and planned the work; A.K.S., S.P., M.K. and H.K. retrieved the data from the database; C.M.S. and S.P. analyzed the data; S.P. drafted the manuscript, A.P. and K.-H.B. edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

The present work was financially supported by the Ministry of Agriculture, Agriculture Education and Research, Govt. of Uttar Pradesh, under the projects “Center of Excellence in Dryland Agriculture (CEDA/2018-23)” and “Establishment of Central Laboratory Facility under RKVY (1132/12-3-2020-100(09)/2018TC)”.

Data Availability Statement

All the data generated in this experiment were presented in the manuscript and its Supplementary Files.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Singh, C.M.; Pratap, A.; Kumar, H.; Singh, S.; Singh, B.K.; Prasad, D.; Dhaliwal, I.; Kumar, M. Recent advances in omics approaches for mungbean improvement. In Technologies in Plant Biotechnology and Breeding of Field Crops; Springer: Berlin/Heidelberg, Germany, 2022; pp. 181–200. [Google Scholar]
  2. Singh, C.M.; Singh, P.; Tiwari, C.; Purwar, S.; Kumar, M.; Pratap, A.; Singh, S.; Chugh, V.; Mishra, A.K. Improving drought tolerance in Mungbean (Vigna radiata L. Wilczek): Morpho-physiological, biochemical and molecular Perspectives. Agronomy 2021, 11, 1534. [Google Scholar] [CrossRef]
  3. Singh, C.M.; Singh, P.; Pratap, A.; Pandey, R.; Purwar, S.; Douglas, C.A.; Baek, K.-H.; Mishra, A.K. Breeding for enhancing Legumovirus resistance in mungbean: Current understanding and future directions. Agronomy 2019, 9, 622. [Google Scholar] [CrossRef]
  4. Sreeratree, J.; Butsayawarapat, P.; Chaisan, T.; Somta, P.; Juntawong, P. RNA-Seq reveals waterlogging-triggered root plasticity in mungbean associated with ethylene and jasmonic acid signal integrators for root regeneration. Plants 2022, 11, 930. [Google Scholar] [CrossRef] [PubMed]
  5. Singh, V.K.; Rajkumar, M.S.; Garg, R.; Jain, M. Genome-wide identification and co-expression network analysis provide insights into the roles of auxin response factor gene family in chickpea. Sci. Rep. 2017, 7, 10895. [Google Scholar] [CrossRef] [PubMed]
  6. Li, S.-B.; Xie, Z.-Z.; Hu, C.-G.; Zhang, J.-Z. A review of auxin response factors (ARFs) in plants. Front. Plant Sci. 2016, 7, 47. [Google Scholar] [CrossRef] [PubMed]
  7. Hagen, G.; Guilfoyle, T. Auxin-responsive gene expression: Genes, promoters and regulatory factors. Plant Mol. Biol. 2002, 49, 373–385. [Google Scholar] [CrossRef]
  8. Ulmasov, T.; Hagen, G.; Guilfoyle, T.J. ARF1, a transcription factor that binds to auxin response elements. Science 1997, 276, 1865–1868. [Google Scholar] [CrossRef]
  9. Guilfoyle, T.J.; Hagen, G. Auxin response factors. Curr. Opin. Plant Biol. 2007, 10, 453–460. [Google Scholar] [CrossRef]
  10. Berleth, T.; Krogan, N.T.; Scarpella, E. Auxin signals—Turning genes on and turning cells around. Curr. Opin. Plant Biol. 2004, 7, 553–563. [Google Scholar] [CrossRef]
  11. Tiwari, S.B.; Wang, X.-J.; Hagen, G.; Guilfoyle, T.J. AUX/IAA proteins are active repressors, and their stability and activity are modulated by auxin. Plant Cell 2001, 13, 2809–2822. [Google Scholar] [CrossRef]
  12. Tiwari, S.B.; Hagen, G.; Guilfoyle, T.J. Aux/IAA proteins contain a potent transcriptional repression domain. Plant Cell 2004, 16, 533–543. [Google Scholar] [CrossRef] [PubMed]
  13. Szemenyei, H.; Hannon, M.; Long, J.A. TOPLESS mediates auxin-dependent transcriptional repression during Arabidopsis embryogenesis. Science 2008, 319, 1384–1386. [Google Scholar] [CrossRef]
  14. Tiwari, S.B.; Hagen, G.; Guilfoyle, T. The roles of auxin response factor domains in auxin-responsive transcription. Plant Cell 2003, 15, 533–543. [Google Scholar] [CrossRef] [PubMed]
  15. Ouellet, F.; Overvoorde, P.J.; Theologis, A. IAA17/AXR3: Biochemical insight into an auxin mutant phenotype. Plant Cell 2001, 13, 829–841. [Google Scholar] [CrossRef] [PubMed]
  16. Jain, M.; Kaur, N.; Garg, R.; Thakur, J.K.; Tyagi, A.K.; Khurana, J.P. Structure and expression analysis of early auxin-responsive Aux/IAA gene family in rice (Oryza sativa). Funct. Integr. Genom. 2006, 6, 47–59. [Google Scholar] [CrossRef]
  17. Lim, P.O.; Lee, I.C.; Kim, J.; Kim, H.J.; Ryu, J.S.; Woo, H.R.; Nam, H.G. Auxin response factor 2 (ARF2) plays a major role in regulating auxin-mediated leaf longevity. J. Exp. Bot. 2010, 61, 1419–1430. [Google Scholar] [CrossRef]
  18. Rogg, L.E.; Lasswell, J.; Bartel, B. A gain-of-function mutation in IAA28 suppresses lateral root development. Plant Cell 2001, 13, 465–480. [Google Scholar] [CrossRef]
  19. Qi, Y.; Wang, S.; Shen, C.; Zhang, S.; Chen, Y.; Xu, Y.; Liu, Y.; Wu, Y.; Jiang, D. OsARF12, a transcription activator on auxin response gene, regulates root elongation and affects iron accumulation in rice (Oryza sativa). New Phytol. 2012, 193, 109–120. [Google Scholar] [CrossRef]
  20. Wilmoth, J.C.; Wang, S.; Tiwari, S.B.; Joshi, A.D.; Hagen, G.; Guilfoyle, T.J.; Alonso, J.M.; Ecker, J.R.; Reed, J.W. NPH4/ARF7 and ARF19 promote leaf expansion and auxin-induced lateral root formation. Plant J. 2005, 43, 118–130. [Google Scholar] [CrossRef]
  21. Guillon, F.; Philippe, S.; Bouchet, B.; Devaux, M.-F.; Frasse, P.; Jones, B.; Bouzayen, M.; Lahaye, M. Down-regulation of an Auxin Response Factor in the tomato induces modification of fine pectin structure and tissue architecture. J. Exp. Bot. 2008, 59, 273–288. [Google Scholar] [CrossRef]
  22. De Jong, M.; Wolters-Arts, M.; Feron, R.; Mariani, C.; Vriezen, W.H. The Solanum lycopersicum auxin response factor 7 (SlARF7) regulates auxin signaling during tomato fruit set and development. Plant J. 2009, 57, 160–170. [Google Scholar] [CrossRef]
  23. Hendelman, A.; Buxdorf, K.; Stav, R.; Kravchik, M.; Arazi, T. Inhibition of lamina outgrowth following Solanum lycopersicum AUXIN RESPONSE FACTOR 10 (SlARF10) derepression. Plant Mol. Biol. 2012, 78, 561–576. [Google Scholar] [CrossRef] [PubMed]
  24. Kalluri, U.C.; DiFazio, S.P.; Brunner, A.M.; Tuskan, G.A. Genome-wide analysis of Aux/IAA and ARF gene families in Populus trichocarpa. BMC Plant Biol. 2007, 7, 59. [Google Scholar] [CrossRef]
  25. Wang, Y.; Deng, D.; Bian, Y.; Lv, Y.; Xie, Q. Genome-wide analysis of primary auxin-responsive Aux/IAA gene family in maize (Zea mays. L.). Mol. Biol. Rep. 2010, 37, 3991–4001. [Google Scholar] [CrossRef] [PubMed]
  26. Shen, C.; Yue, R.; Sun, T.; Zhang, L.; Xu, L.; Tie, S.; Wang, H.; Yang, Y. Genome-wide identification and expression analysis of auxin response factor gene family in Medicago truncatula. Front. Plant Sci. 2015, 6, 73. [Google Scholar] [CrossRef] [PubMed]
  27. Wan, S.; Li, W.; Zhu, Y.; Liu, Z.; Huang, W.; Zhan, J. Genome-wide identification, characterization and expression analysis of the auxin response factor gene family in Vitis vinifera. Plant Cell Rep. 2014, 33, 1365–1375. [Google Scholar] [CrossRef]
  28. Wu, J.; Wang, F.; Cheng, L.; Kong, F.; Peng, Z.; Liu, S.; Yu, X.; Lu, G. Identification, isolation and expression analysis of auxin response factor (ARF) genes in Solanum lycopersicum. Plant Cell Rep. 2011, 30, 2059–2073. [Google Scholar] [CrossRef]
  29. Wu, J.; Peng, Z.; Liu, S.; He, Y.; Cheng, L.; Kong, F.; Wang, J.; Lu, G. Genome-wide analysis of Aux/IAA gene family in Solanaceae species using tomato as a model. Mol. Genet. Genom. 2012, 287, 295–311. [Google Scholar] [CrossRef]
  30. Ellis, C.M.; Nagpal, P.; Young, J.C.; Hagen, G.; Guilfoyle, T.J.; Reed, J.W. AUXIN RESPONSE FACTOR1 and AUXIN RESPONSE FACTOR2 regulate senescence and floral organ abscission in Arabidopsis thaliana. Development 2005, 132, 4563–4574. [Google Scholar] [CrossRef]
  31. Mun, J.-H.; Yu, H.-J.; Shin, J.Y.; Oh, M.; Hwang, H.-J.; Chung, H. Auxin response factor gene family in Brassica rapa: Genomic organization, divergence, expression, and evolution. Mol. Genet. Genom. 2012, 287, 765–784. [Google Scholar] [CrossRef]
  32. Liu, R.; Guo, Z.; Lu, S. Genome-wide identification and expression analysis of the Aux/IAA and auxin response factor gene family in Medicago truncatula. Int. J. Mol. Sci. 2021, 22, 10494. [Google Scholar] [CrossRef] [PubMed]
  33. Szklarczyk, D.; Gable, A.L.; Lyon, D.; Junge, A.; Wyder, S.; Huerta-Cepas, J.; Simonovic, M.; Doncheva, N.T.; Morris, J.H.; Bork, P.; et al. STRING v11: Protein–protein association networks with increased coverage, supporting functional discovery in genome-wide experimental datasets. Nucleic Acids Res. 2019, 47, D607–D613. [Google Scholar] [CrossRef] [PubMed]
  34. Dreher, K.A.; Brown, J.; Saw, R.E.; Callis, J. The Arabidopsis Aux/IAA protein family has diversified in degradation and auxin responsiveness. Plant Cell 2006, 18, 699–714. [Google Scholar] [CrossRef]
  35. Cheng, W.; Zhang, M.; Cheng, T.; Wang, J.; Zhang, Q. Genome-wide identification of Aux/IAA gene family and their expression analysis in Prunus mume. Front. Genet. 2022, 13, 1013822. [Google Scholar] [CrossRef] [PubMed]
  36. Overvoorde, P.J.; Okushima, Y.; Alonso, J.M.; Chan, A.; Chang, C.; Ecker, J.R.; Hughes, B.; Liu, A.; Onodera, C.; Quach, H. Functional genomic analysis of the AUXIN/INDOLE-3-ACETIC ACID gene family members in Arabidopsis thaliana. Plant Cell 2005, 17, 3282–3300. [Google Scholar] [CrossRef]
  37. Okushima, Y.; Overvoorde, P.J.; Arima, K.; Alonso, J.M.; Chan, A.; Chang, C.; Ecker, J.R.; Hughes, B.; Lui, A.; Nguyen, D. Functional genomic analysis of the AUXIN RESPONSE FACTOR gene family members in Arabidopsis thaliana: Unique and overlapping functions of ARF7 and ARF19. Plant Cell 2005, 17, 444–463. [Google Scholar] [CrossRef]
  38. Shen, C.; Wang, S.; Bai, Y.; Wu, Y.; Zhang, S.; Chen, M.; Guilfoyle, T.J.; Wu, P.; Qi, Y. Functional analysis of the structural domain of ARF proteins in rice (Oryza sativa L.). J. Exp. Bot. 2010, 61, 3971–3981. [Google Scholar] [CrossRef]
  39. Singh, V.K.; Jain, M. Genome-wide survey and comprehensive expression profiling of Aux/IAA gene family in chickpea and soybean. Front. Plant Sci. 2015, 6, 918. [Google Scholar] [CrossRef]
  40. Zhou, X.; Wu, X.; Li, T.; Jia, M.; Liu, X.; Zou, Y.; Liu, Z.; Wen, F. Identification, characterization, and expression analysis of auxin response factor (ARF) gene family in Brachypodium distachyon. Funct. Integr. Genom. 2018, 18, 709–724. [Google Scholar] [CrossRef]
  41. Faraji, S.; Ahmadizadeh, M.; Heidari, P. Genome-wide comparative analysis of Mg transporter gene family between Triticum turgidum and Camelina sativa. BioMetals 2021, 34, 639–660. [Google Scholar] [CrossRef]
  42. Yaghobi, M.; Heidari, P. Genome-wide analysis of aquaporin gene family in Triticum turgidum and its expression profile in response to salt stress. Genes 2023, 14, 202. [Google Scholar] [CrossRef] [PubMed]
  43. Hashemipetroudi, S.H.; Arab, M.; Heidari, P.; Kuhlmann, M. Genome-wide analysis of the laccase (LAC) gene family in Aeluropus littoralis: A focus on identification, evolution and expression patterns in response to abiotic stresses and ABA treatment. Front. Plant Sci. 2023, 14, 1112354. [Google Scholar] [CrossRef]
  44. Wang, D.; Pei, K.; Fu, Y.; Sun, Z.; Li, S.; Liu, H.; Tang, K.; Han, B.; Tao, Y. Genome-wide analysis of the auxin response factors (ARF) gene family in rice (Oryza sativa). Gene 2007, 394, 13–24. [Google Scholar] [CrossRef] [PubMed]
  45. Li, H.; Wang, B.; Zhang, Q.; Wang, J.; King, G.J.; Liu, K. Genome-wide analysis of the auxin/indoleacetic acid (Aux/IAA) gene family in allotetraploid rapeseed (Brassica napus L.). BMC Plant Biol. 2017, 17, 204. [Google Scholar] [CrossRef]
  46. Le, B.; Nawaz, M.A.; Rehman, H.M.; Le, T.; Yang, S.H.; Golokhvast, K.S.; Son, E.; Chung, G. Genome-wide characterization and expression pattern of auxin response factor (ARF) gene family in soybean and common bean. Genes Genom. 2016, 38, 1165–1178. [Google Scholar] [CrossRef]
  47. Chandler, J.W. Auxin response factors. Plant. Cell Environ. 2016, 39, 1014–1028. [Google Scholar] [CrossRef]
  48. Roosjen, M.; Paque, S.; Weijers, D. Auxin response factors: Output control in auxin biology. J. Exp. Bot. 2018, 69, 179–188. [Google Scholar] [CrossRef]
  49. Kubeš, M.; Napier, R. Non-canonical auxin signalling: Fast and curious. J. Exp. Bot. 2019, 70, 2609–2614. [Google Scholar] [CrossRef]
  50. Piya, S.; Shrestha, S.K.; Binder, B.; Stewart Jr, C.N.; Hewezi, T. Protein-protein interaction and gene co-expression maps of ARFs and Aux/IAAs in Arabidopsis. Front. Plant Sci. 2014, 5, 744. [Google Scholar] [CrossRef]
  51. Kumar, R.; Agarwal, P.; Pareek, A.; Tyagi, A.K.; Sharma, A.K. Genomic survey, gene expression, and interaction analysis suggest diverse roles of ARF and Aux/IAA proteins in Solanaceae. Plant Mol. Biol. Rep. 2015, 33, 1552–1572. [Google Scholar] [CrossRef]
  52. Pratap, A.; Douglas, C.; Prajapati, U.; Kumari, G.; War, A.R.; Tomar, R.; Pandey, A.K.; Dubey, S. Breeding Progress and Future Challenges: Biotic Stresses; Springer: Cham, Switzerland, 2020; pp. 55–80. [Google Scholar] [CrossRef]
  53. Nair, R.M.; Pandey, A.K.; War, A.R.; Hanumantharao, B.; Shwe, T.; Alam, A.; Pratap, A.; Malik, S.R.; Karimi, R.; Mbeyagala, E.K. Biotic and abiotic constraints in mungbean production—Progress in genetic improvement. Front. Plant Sci. 2019, 10, 1340. [Google Scholar] [CrossRef] [PubMed]
  54. Kumari, G.; Pratap, A.; Lavanya, R.G.; Akram, M.; Rathore, M.; Madhavan, L.; Singh, Y.; Singh, N.P. Potential resistant donors for yellow mosaic disease identified from endemic wild Vigna species. J. Food Legum. 2021, 34, 10–16. [Google Scholar]
  55. Sahu, P.; Singh, M.; Pandey, R.; Mishra, M.K.; Singh, A.K.; Singh, B.K.; Singh, S.K.; Rai, A.; Chugh, V.; Shukla, G. Screening of Comprehensive Panel of Cultivated and Wild Vigna Species for Resistance to Pulse Beetle, Callosobruchus chinensis L. Biology 2023, 12, 781. [Google Scholar] [CrossRef]
  56. Purwar, S.; Singh, C.M.; Kumar, M.; Singh, A.K.; Pratap, A.; Singh, P.; Gore, P.G.; Singh, N.P. Genome-wide identification and analysis of NBS-LRR-encoding genes in mungbean (Vigna radiata L. Wilczek) and their expression in two wild non-progenitors reveal their role in MYMIV resistance. J. Plant Growth Regul. 2023, 42, 6667–6680. [Google Scholar] [CrossRef]
  57. Tripathi, A.; Singh, C.M.; Kumar, M.; Purwar, S.; Mishra, A.; Kumar, D.; Singh, A.K.; Kumar, S.; Singh, S.; Singh, N.P. Identification of potential sources of mungbean yellow mosaic India virus resistance in black gram (Vigna mungo) and expression of antioxidants and R-genes modulating resistance response in cultivated and its two wild relatives. Plant Breed. 2023, 142, 668–681. [Google Scholar] [CrossRef]
  58. Marchler-Bauer, A.; Lu, S.; Anderson, J.B.; Chitsaz, F.; Derbyshire, M.K.; DeWeese-Scott, C.; Fong, J.H.; Geer, L.Y.; Geer, R.C.; Gonzales, N.R. CDD: A Conserved Domain Database for the functional annotation of proteins. Nucleic Acids Res. 2010, 39, D225–D229. [Google Scholar] [CrossRef] [PubMed]
  59. Wilkins, M.R.; Gasteiger, E.; Gooley, A.A.; Herbert, B.R.; Molloy, M.P.; Binz, P.-A.; Ou, K.; Sanchez, J.-C.; Bairoch, A.; Williams, K.L. High-throughput mass spectrometric discovery of protein post-translational modifications. J. Mol. Biol. 1999, 289, 645–657. [Google Scholar] [CrossRef]
  60. Horton, P.; Park, K.-J.; Obayashi, T.; Fujita, N.; Harada, H.; Adams-Collier, C.J.; Nakai, K. WoLF PSORT: Protein localization predictor. Nucleic Acids Res. 2007, 35, W585–W587. [Google Scholar] [CrossRef] [PubMed]
  61. Teufel, F.; Almagro Armenteros, J.J.; Johansen, A.R.; Gíslason, M.H.; Pihl, S.I.; Tsirigos, K.D.; Winther, O.; Brunak, S.; von Heijne, G.; Nielsen, H. SignalP 6.0 predicts all five types of signal peptides using protein language models. Nat. Biotechnol. 2022, 40, 1023–1025. [Google Scholar] [CrossRef]
  62. Yu, C.; Chen, Y.; Lu, C.; Hwang, J. Prediction of protein subcellular localization. Proteins Struct. Funct. Bioinform. 2006, 64, 643–651. [Google Scholar] [CrossRef]
  63. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular evolutionary genetics analysis version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef]
  64. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  65. Granziol, D.; Ru, B.; Zohren, S.; Dong, X.; Osborne, M.; Roberts, S. MEMe: An accurate maximum entropy method for efficient approximations in large-scale machine learning. Entropy 2019, 21, 551. [Google Scholar] [CrossRef]
  66. Krzywinski, M.; Schein, J.; Birol, I.; Connors, J.; Gascoyne, R.; Horsman, D.; Jones, S.J.; Marra, M.A. Circos: An information aesthetic for comparative genomics. Genome Res. 2009, 19, 1639–1645. [Google Scholar] [CrossRef]
  67. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  68. von Mering, C.; Jensen, L.J.; Snel, B.; Hooper, S.D.; Krupp, M.; Foglierini, M.; Jouffre, N.; Huynen, M.A.; Bork, P. STRING: Known and predicted protein–protein associations, integrated and transferred across organisms. Nucleic Acids Res. 2005, 33, D433–D437. [Google Scholar] [CrossRef]
Plants 12 03858 g001aPlants 12 03858 g001b

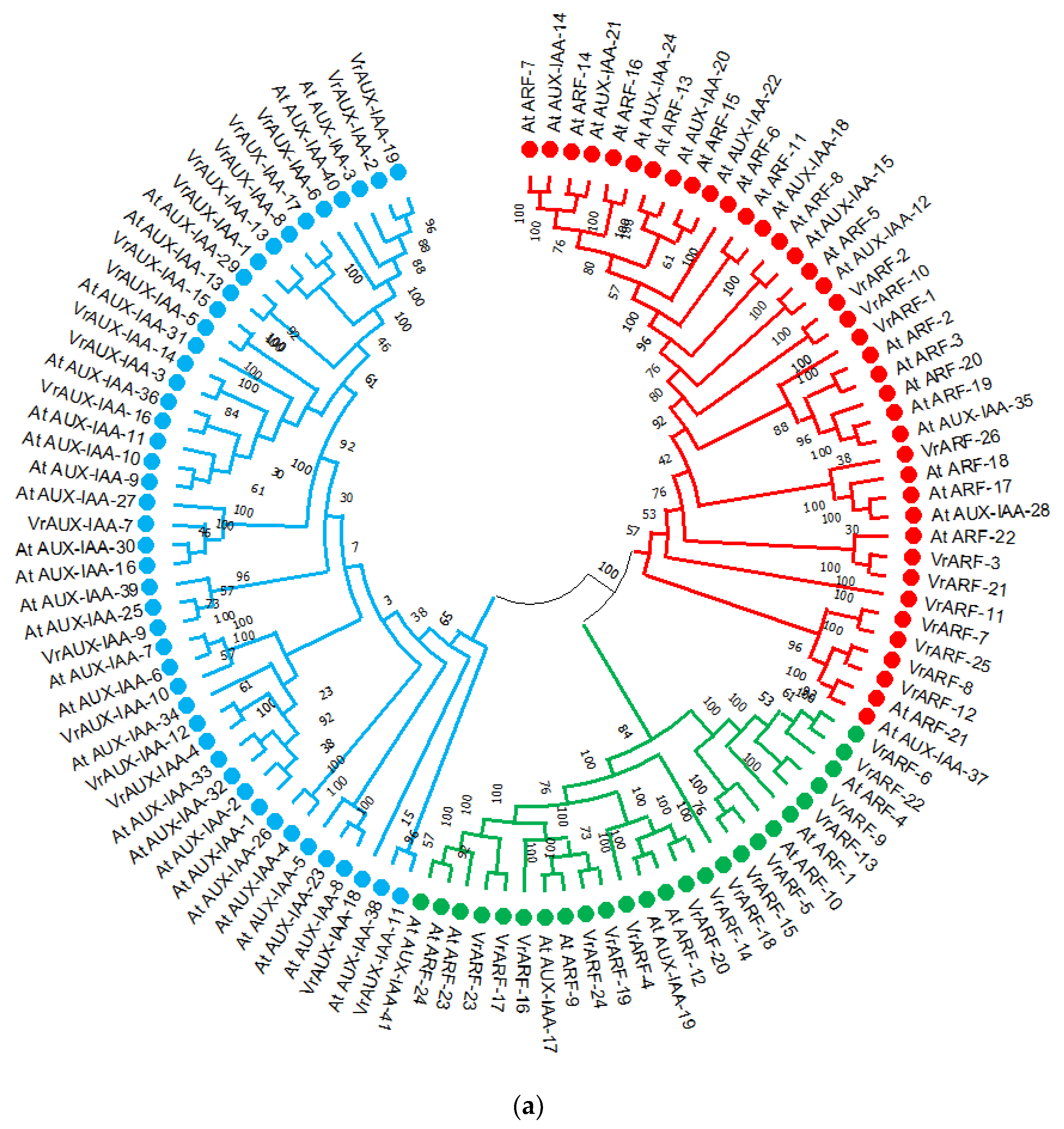

Figure 1. (a) Evolutionary tree of ARF and AUX/IAA genes in Vigna radiata and Arabidopsis thaliana. The VrARF and VrAUX/IAA protein sequences from Vigna radiata and Arabidopsis thaliana were used to construct the tree using MEGA 11 with the ML method. Subgroups 1, 2, and 3 are indicated by red, green, and blue colors, respectively. (b) Evolutionary relationship of VrARF and VrAUX/IAA genes. The VrARF and VrAUX/IAA protein sequences from Vigna radiata were used to construct the tree using MEGA 11 with the ML method.
Figure 1. (a) Evolutionary tree of ARF and AUX/IAA genes in Vigna radiata and Arabidopsis thaliana. The VrARF and VrAUX/IAA protein sequences from Vigna radiata and Arabidopsis thaliana were used to construct the tree using MEGA 11 with the ML method. Subgroups 1, 2, and 3 are indicated by red, green, and blue colors, respectively. (b) Evolutionary relationship of VrARF and VrAUX/IAA genes. The VrARF and VrAUX/IAA protein sequences from Vigna radiata were used to construct the tree using MEGA 11 with the ML method.
Plants 12 03858 g001aPlants 12 03858 g001b
Plants 12 03858 g002

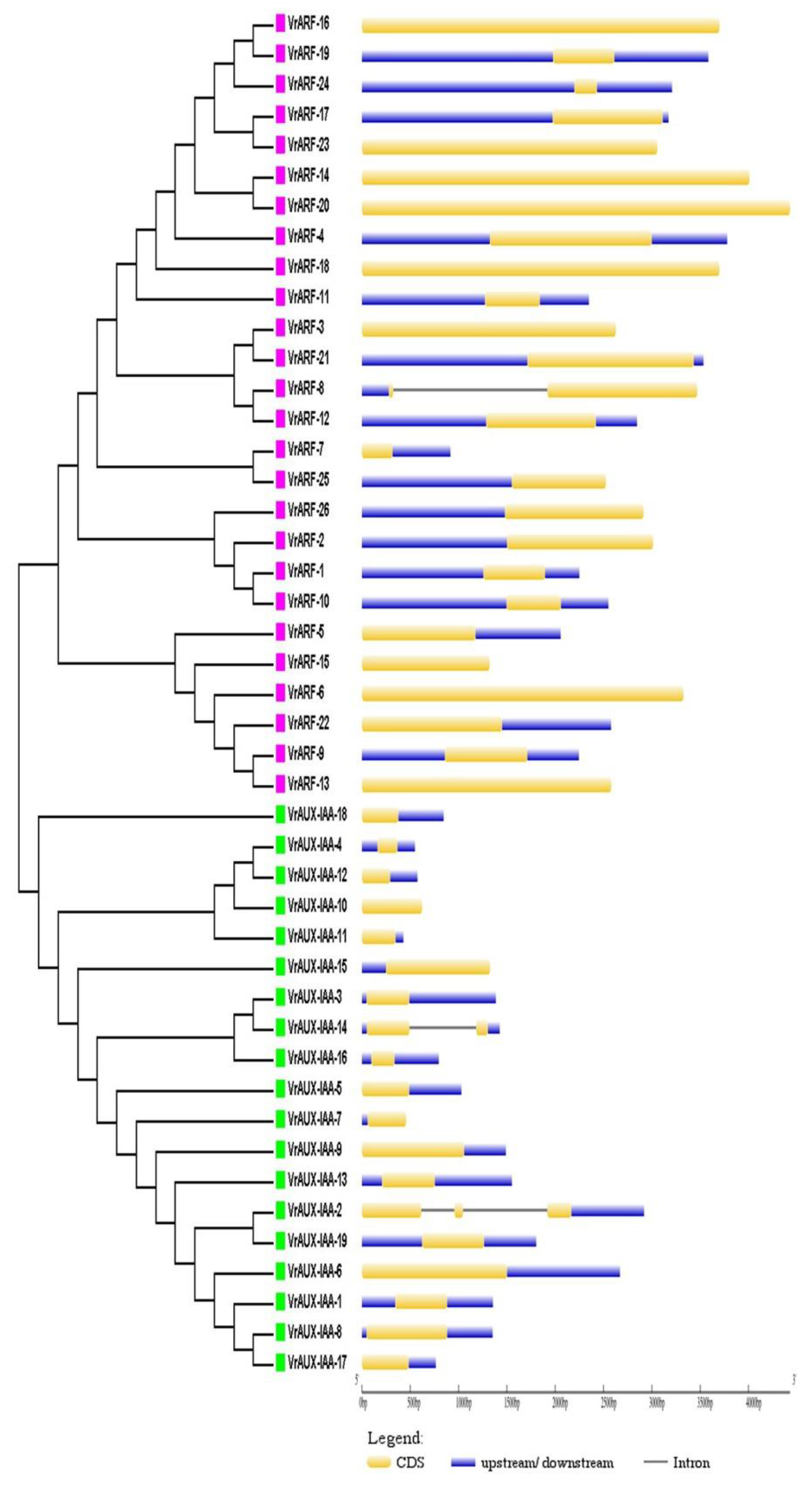

Figure 2. Intron–exon gene structure analysis of VrARF and VrAUX/IAA genes. The yellow color shows the CDS region, the black line indicates introns, and the blue color indicates up and down regulatory sequences.
Figure 2. Intron–exon gene structure analysis of VrARF and VrAUX/IAA genes. The yellow color shows the CDS region, the black line indicates introns, and the blue color indicates up and down regulatory sequences.
Plants 12 03858 g002
Plants 12 03858 g003

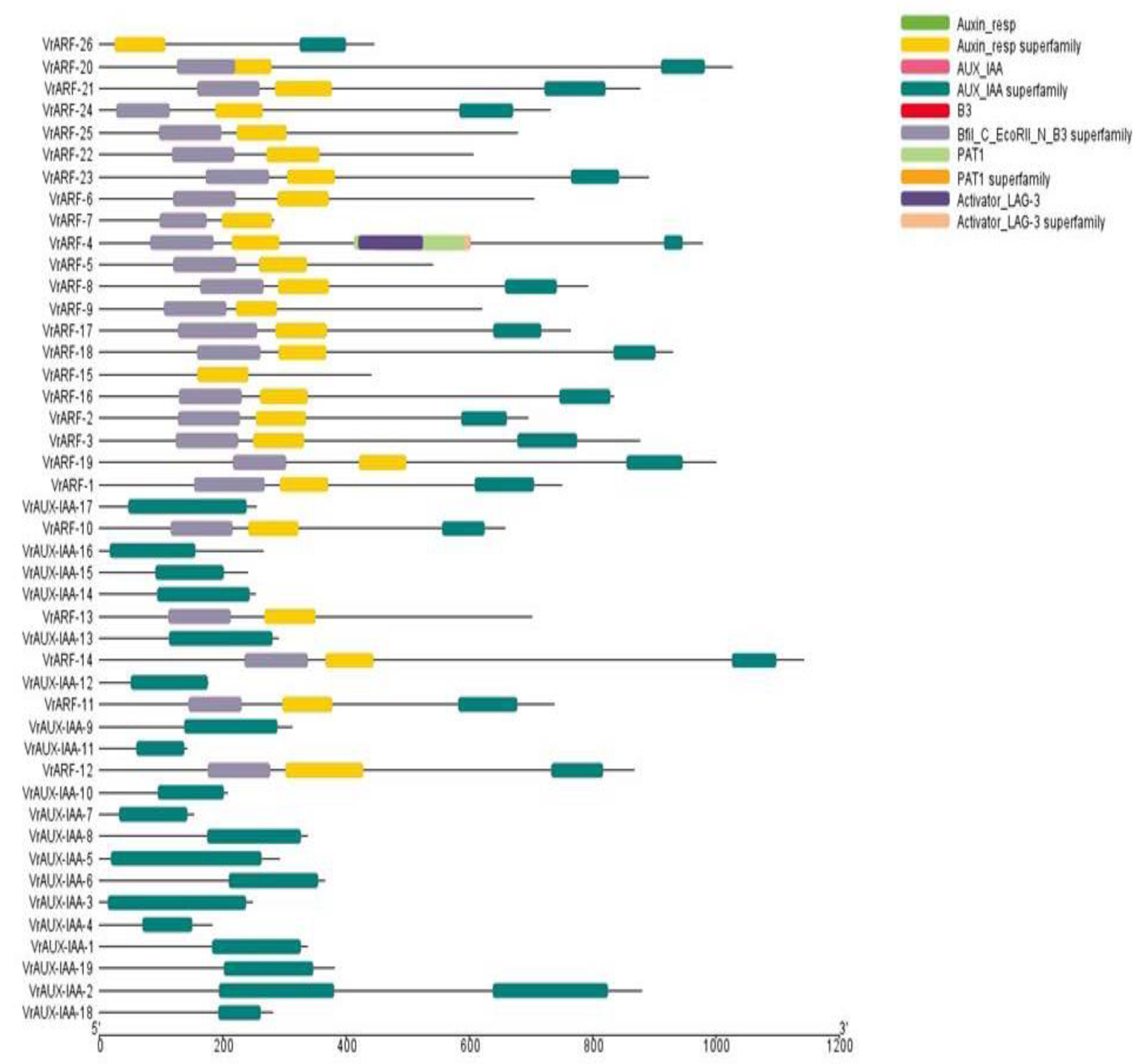

Figure 3. Characterization of VrARF and VrAUX-IAA protein structures by domain distribution.
Figure 3. Characterization of VrARF and VrAUX-IAA protein structures by domain distribution.
Plants 12 03858 g003
Plants 12 03858 g004

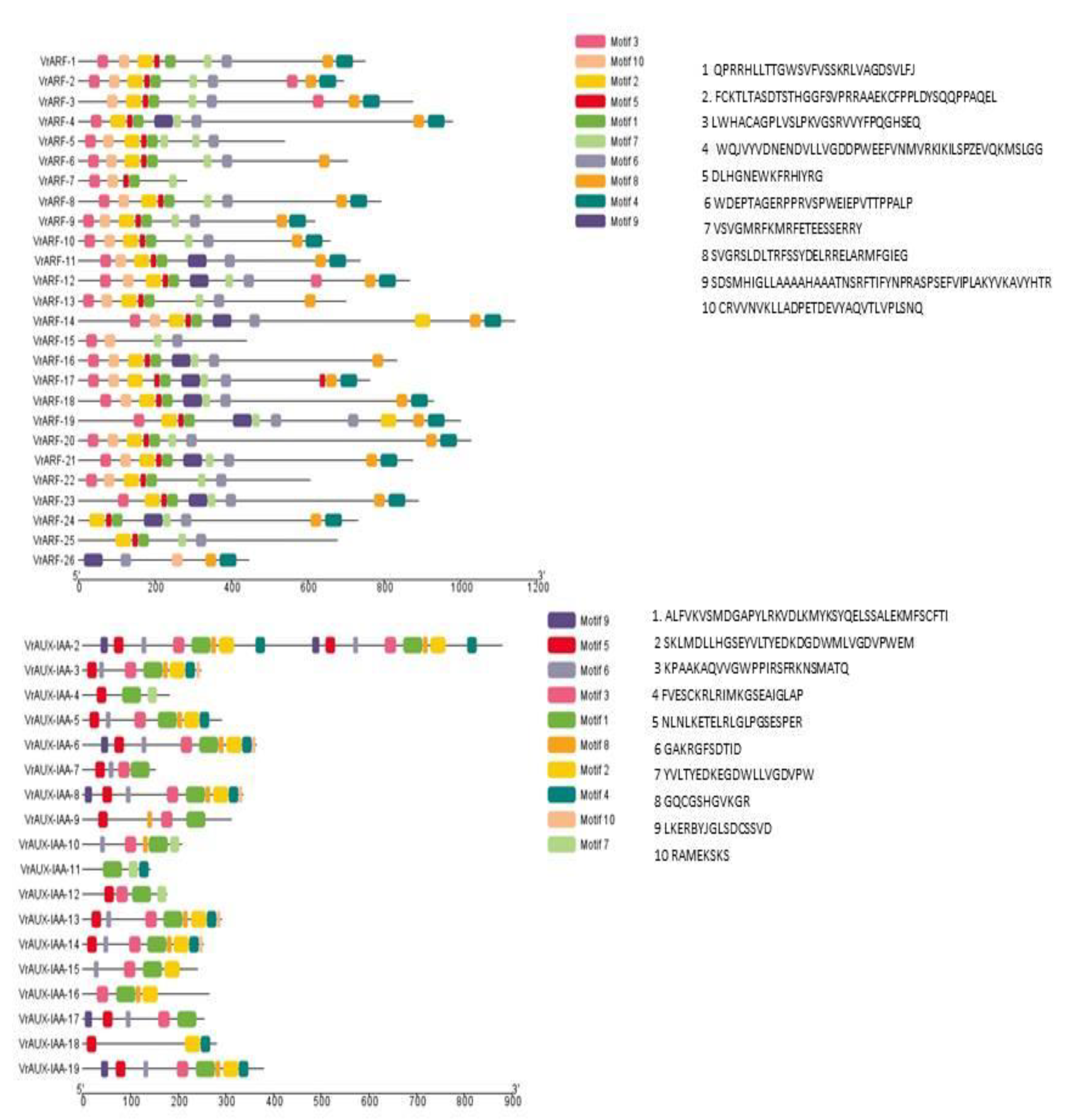

Figure 4. Characterization of VrARF and VrAUX-IAA protein structures by protein motif distribution.
Figure 4. Characterization of VrARF and VrAUX-IAA protein structures by protein motif distribution.
Plants 12 03858 g004
Plants 12 03858 g005

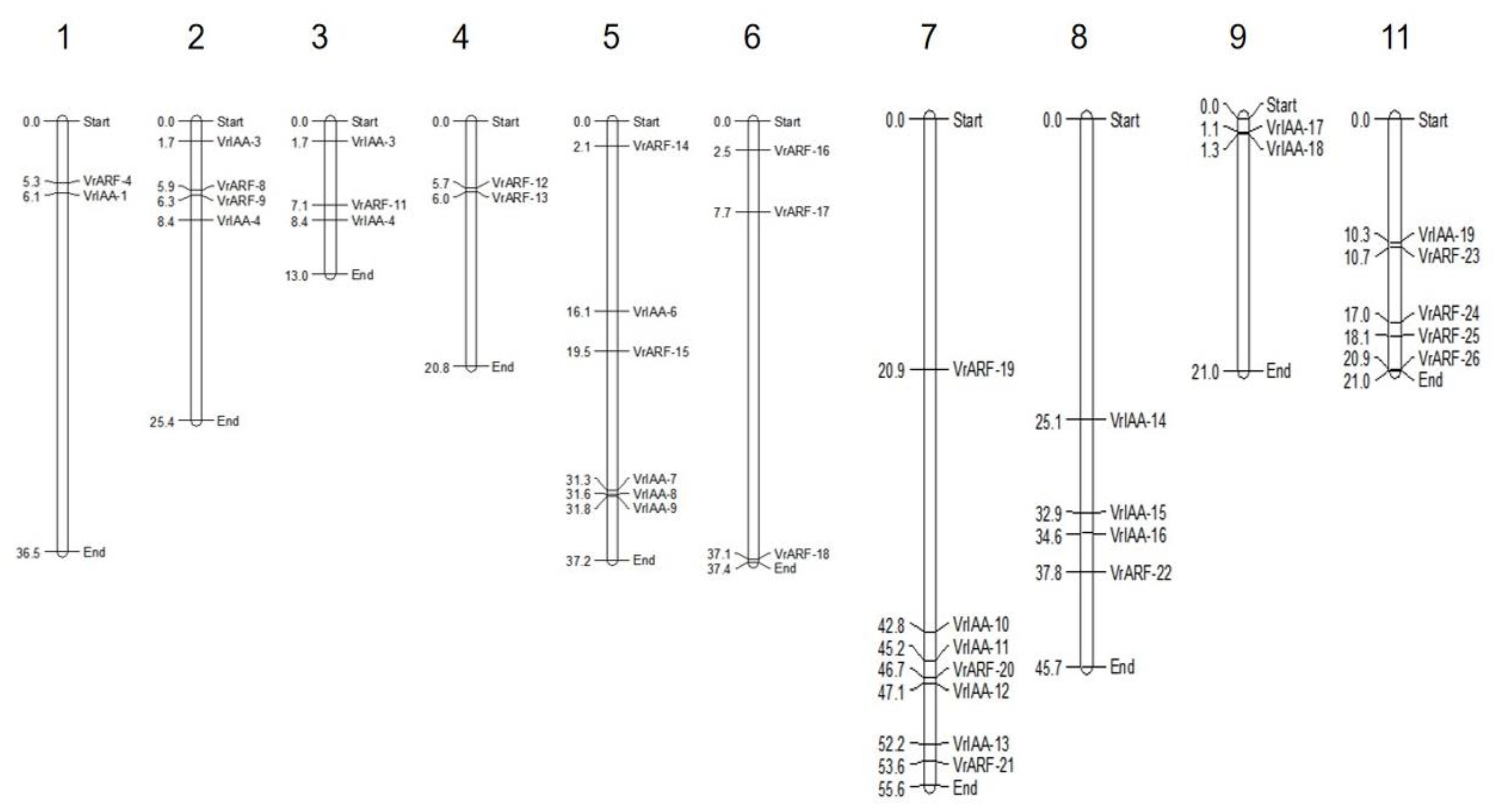

Figure 5. Chromosomal distribution of ARF and AUX/IAA genes on mungbean (V. radiata) genome. The chromosome size is indicated by its relative length using the information from LIS. The scale (in megabase) on the left depicts the relative lengths of the different chromosomes in mungbean. The genes are depicted on the right side of each chromosome corresponding to the position of each gene. The linkage groups are given on the top. The figure was constructed using the MapChart program v 2.32.
Figure 5. Chromosomal distribution of ARF and AUX/IAA genes on mungbean (V. radiata) genome. The chromosome size is indicated by its relative length using the information from LIS. The scale (in megabase) on the left depicts the relative lengths of the different chromosomes in mungbean. The genes are depicted on the right side of each chromosome corresponding to the position of each gene. The linkage groups are given on the top. The figure was constructed using the MapChart program v 2.32.
Plants 12 03858 g005
Plants 12 03858 g006

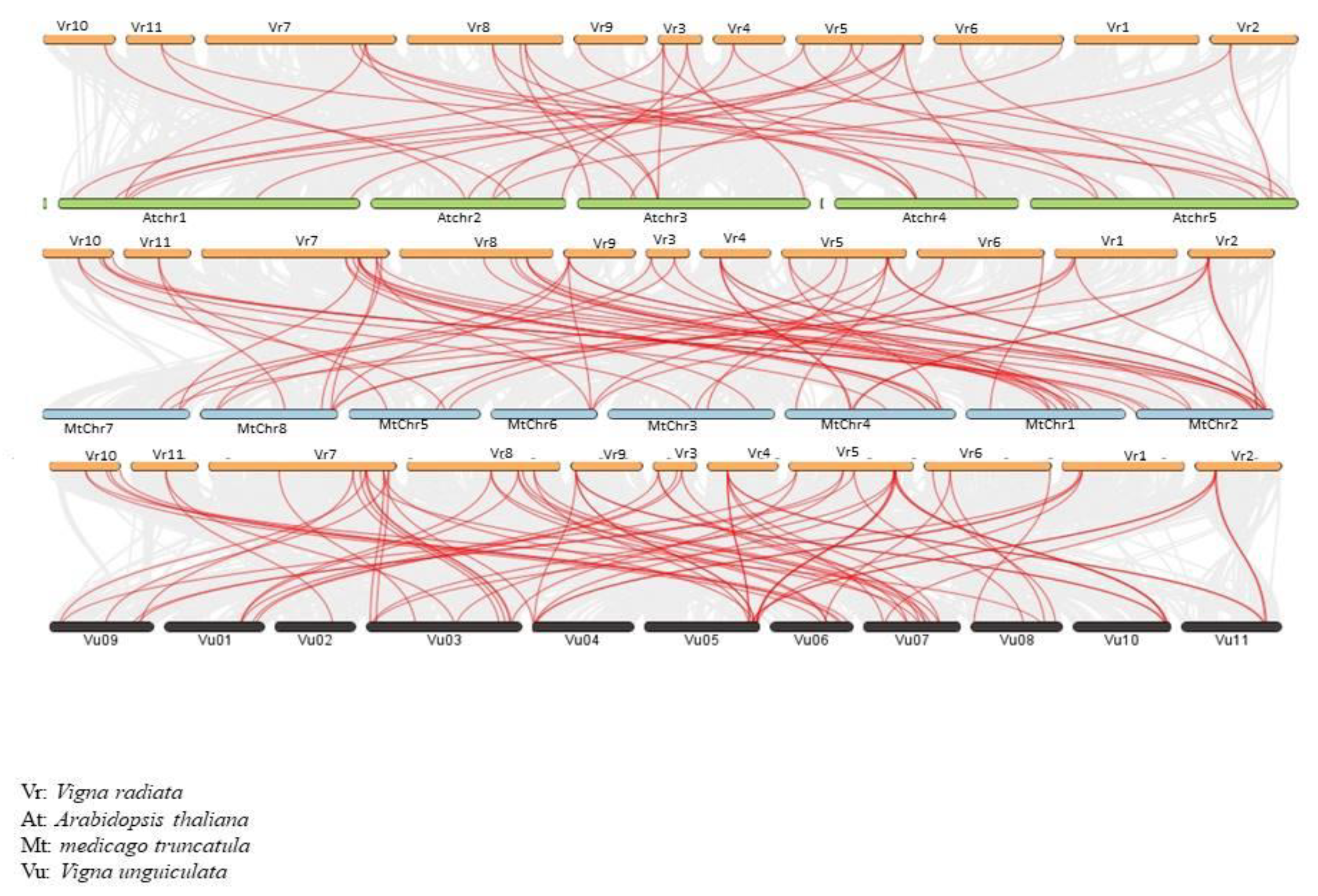

Figure 6. Synteny analysis of IAA and ARF genes in the genomes of Medicago truncatula, Arabidopsis thaliana, and V. ungiculata. Orange, green, blue, and black marks represent the V. radiata, Arabidopsis thaliana, Medicago trucatula, and Vigna ungiculata chromosomes.
Figure 6. Synteny analysis of IAA and ARF genes in the genomes of Medicago truncatula, Arabidopsis thaliana, and V. ungiculata. Orange, green, blue, and black marks represent the V. radiata, Arabidopsis thaliana, Medicago trucatula, and Vigna ungiculata chromosomes.
Plants 12 03858 g006
Plants 12 03858 g007

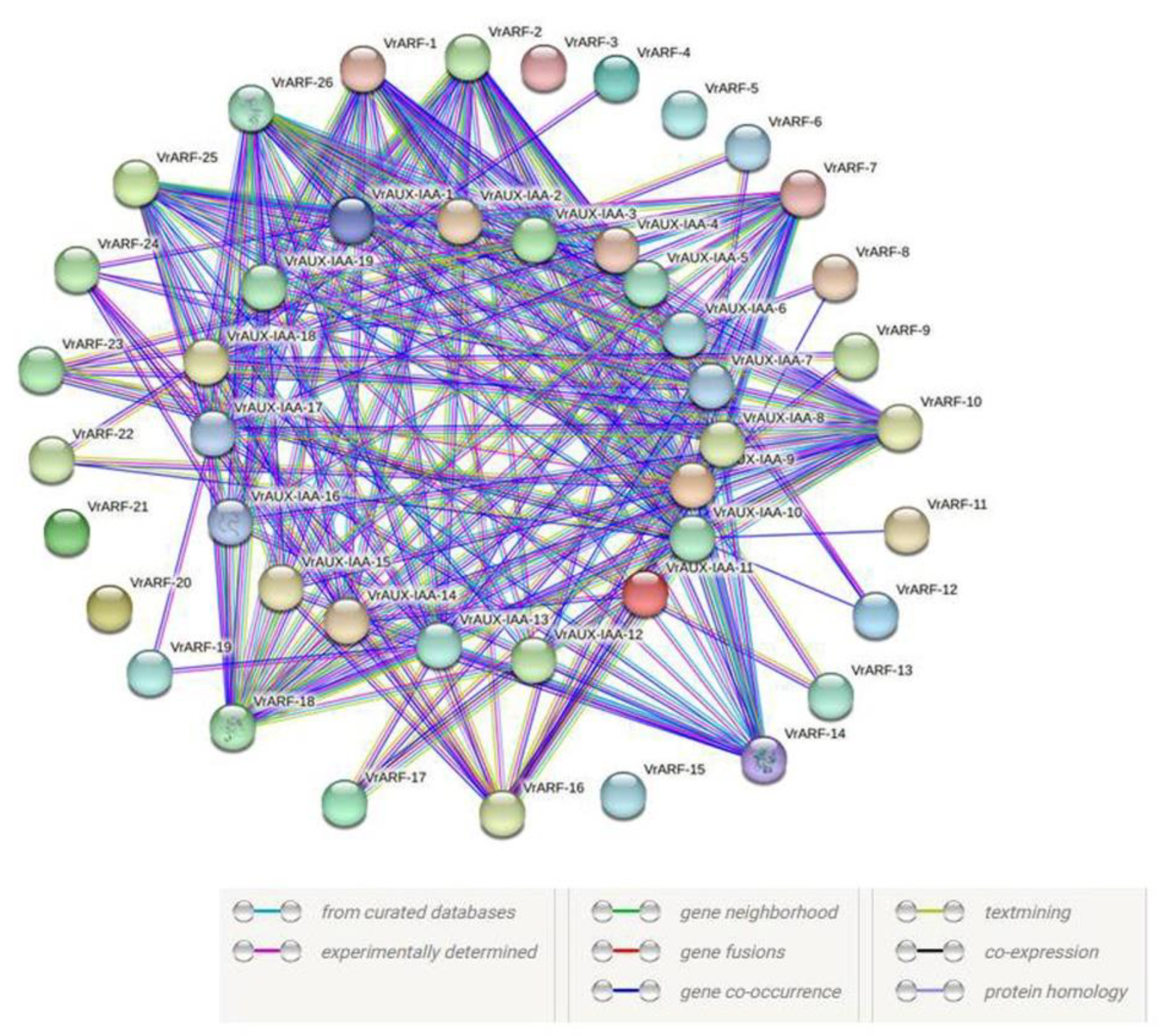

Figure 7. Predicted protein–protein interaction network of VrARFs and VrAUX/IAA. The network contains 39 nodes (18 VrAUX/IAAs and 21 VrARFs).
Figure 7. Predicted protein–protein interaction network of VrARFs and VrAUX/IAA. The network contains 39 nodes (18 VrAUX/IAAs and 21 VrARFs).
Plants 12 03858 g007
Plants 12 03858 g008

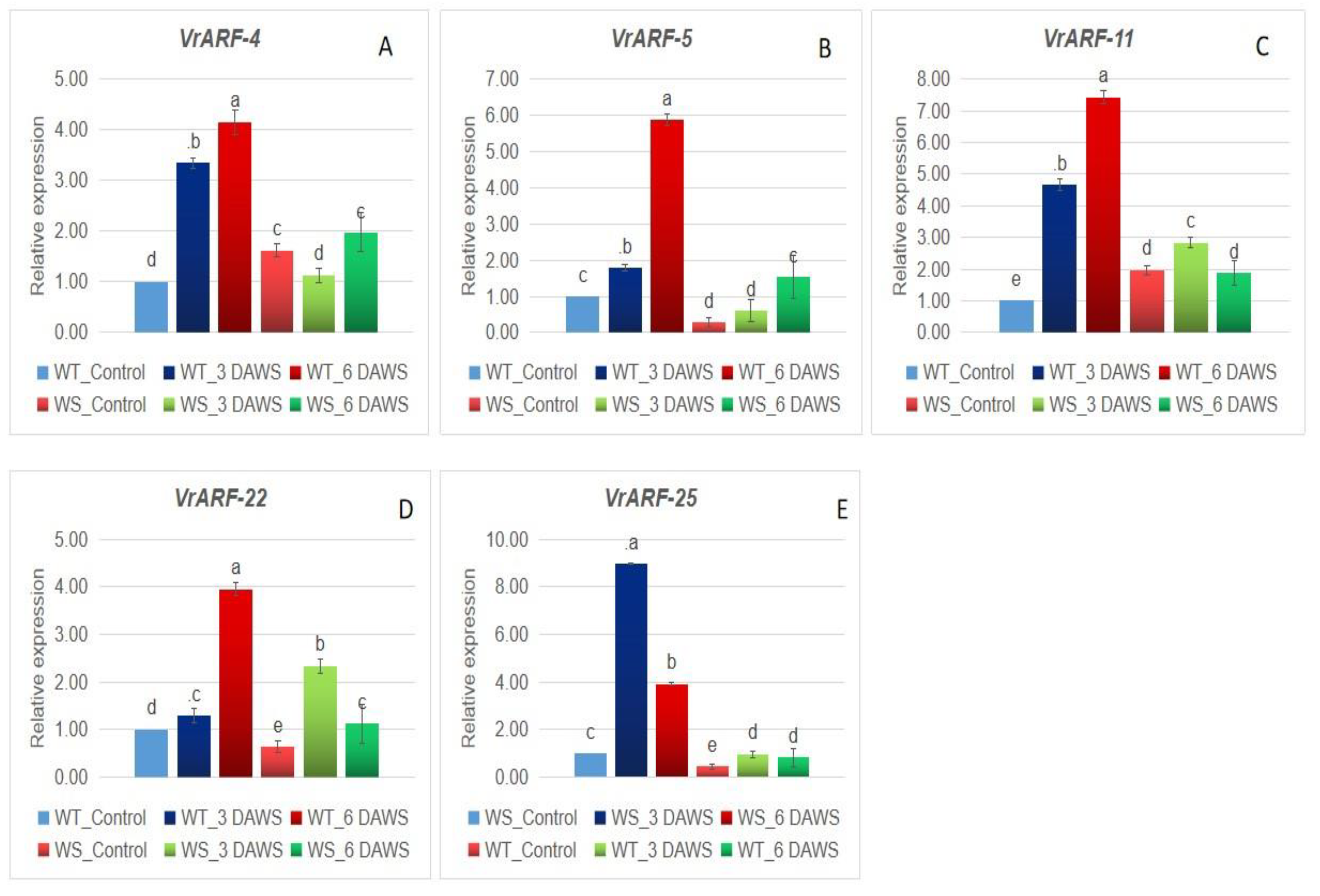

Figure 8. qRT-PCR analysis of selected VrARF candidate genes (A) VrARF-4, (B) VrARF-5, (C) VrARF-11, (D) VrARF-22, (E) VrARF-25 on WT-V. umbellata (PRR 2008-2) and WS-.V. radiata (IPM 2-3) under waterlogging stress. The same letter shows non-significant differences, whereas different letters show significant differences.
Figure 8. qRT-PCR analysis of selected VrARF candidate genes (A) VrARF-4, (B) VrARF-5, (C) VrARF-11, (D) VrARF-22, (E) VrARF-25 on WT-V. umbellata (PRR 2008-2) and WS-.V. radiata (IPM 2-3) under waterlogging stress. The same letter shows non-significant differences, whereas different letters show significant differences.
Plants 12 03858 g008
Plants 12 03858 g009

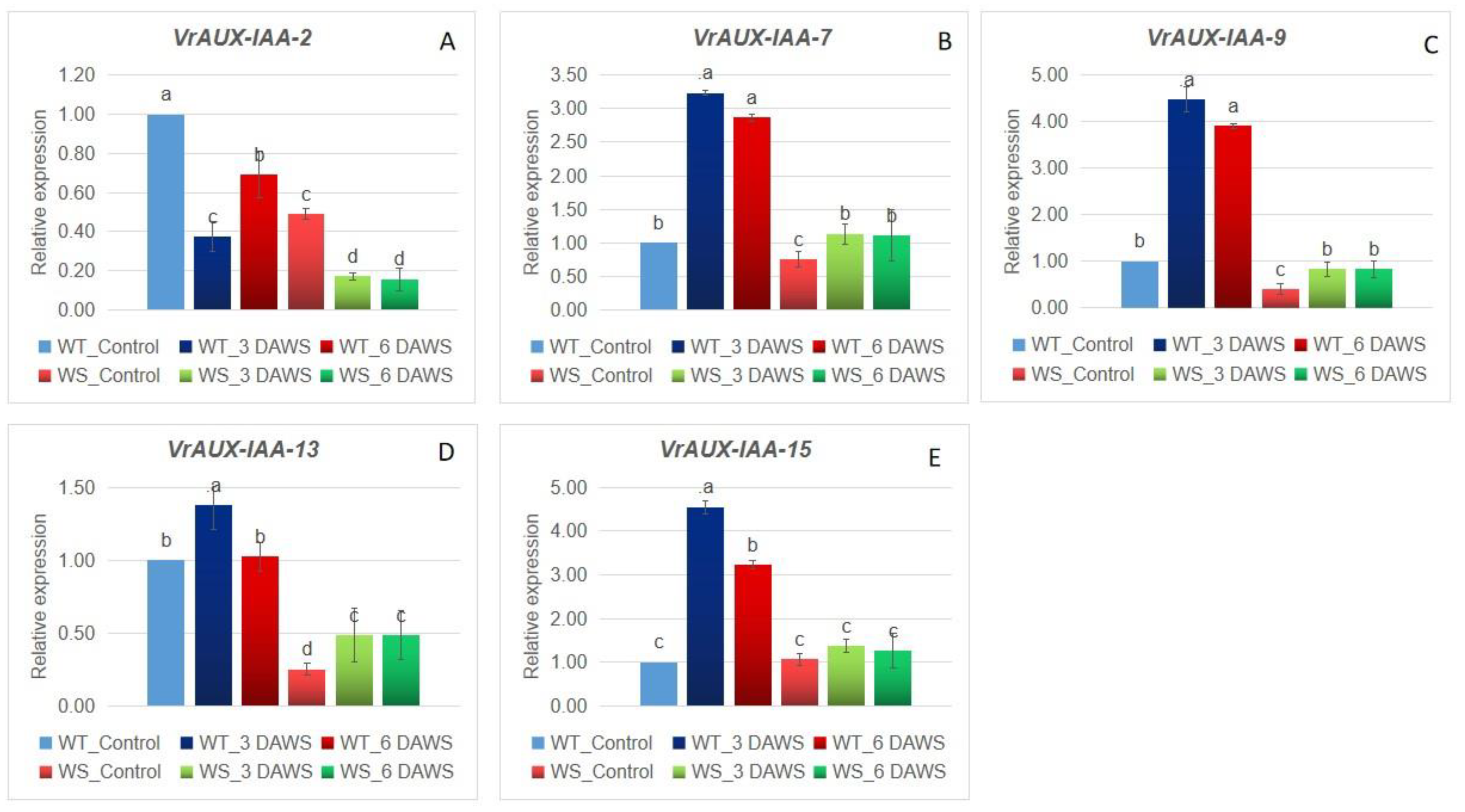

Figure 9. qRT-PCR analysis of selected VrAUX/IAA candidate genes (A) VrAUX/IAA-2, (B) VrAUX/IAA-7, (C) VrAUX/IAA-9, (D) VrUX/IAA-13, (E) VrAUX/IAA-15 on WT-V. umbellata (PRR 2008-2) and WS-.V. radiata (IPM 2-3) under waterlogging stress. The same letter shows non-significant differences, whereas different letters show significant differences.
Figure 9. qRT-PCR analysis of selected VrAUX/IAA candidate genes (A) VrAUX/IAA-2, (B) VrAUX/IAA-7, (C) VrAUX/IAA-9, (D) VrUX/IAA-13, (E) VrAUX/IAA-15 on WT-V. umbellata (PRR 2008-2) and WS-.V. radiata (IPM 2-3) under waterlogging stress. The same letter shows non-significant differences, whereas different letters show significant differences.
Plants 12 03858 g009
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Singh, C.M.; Purwar, S.; Singh, A.K.; Singh, B.K.; Kumar, M.; Kumar, H.; Pratap, A.; Mishra, A.K.; Baek, K.-H. Analysis of Auxin-Encoding Gene Family in Vigna radiata and It’s Cross-Species Expression Modulating Waterlogging Tolerance in Wild Vigna umbellata. Plants 2023, 12, 3858. https://doi.org/10.3390/plants12223858

AMA Style

Singh CM, Purwar S, Singh AK, Singh BK, Kumar M, Kumar H, Pratap A, Mishra AK, Baek K-H. Analysis of Auxin-Encoding Gene Family in Vigna radiata and It’s Cross-Species Expression Modulating Waterlogging Tolerance in Wild Vigna umbellata. Plants. 2023; 12(22):3858. https://doi.org/10.3390/plants12223858

Chicago/Turabian Style

Singh, Chandra Mohan, Shalini Purwar, Akhilesh Kumar Singh, Bhupendra Kumar Singh, Mukul Kumar, Hitesh Kumar, Aditya Pratap, Awdhesh Kumar Mishra, and Kwang-Hyun Baek. 2023. "Analysis of Auxin-Encoding Gene Family in Vigna radiata and It’s Cross-Species Expression Modulating Waterlogging Tolerance in Wild Vigna umbellata" Plants 12, no. 22: 3858. https://doi.org/10.3390/plants12223858

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
