Article

Variation in Leaf Volatile Emissions in Potato (Solanum tuberosum) Cultivars with Different Late Blight Resistance

by
C. A. Agho
1,*,
E. Runno-Paurson
1,
T. Tähtjärv
2,
E. Kaurilind
1 and
Ü. Niinemets
1,3
1
Institute of Agricultural and Environmental Sciences, Estonian University of Life Sciences, Kreutzwaldi 1, 51006 Tartu, Estonia
2
The Centre of Estonian Rural Research and Knowledge, J. Aamisepa 1, 48309 Jõgeva, Estonia
3
Estonian Academy of Sciences, Kohtu 6, 10130 Tallinn, Estonia
*
Author to whom correspondence should be addressed.
Plants 2023, 12(11), 2100; https://doi.org/10.3390/plants12112100
Submission received: 23 March 2023 / Revised: 28 April 2023 / Accepted: 19 May 2023 / Published: 25 May 2023
(This article belongs to the Special Issue Plant Volatile Emissions: From Constitutive to Stress-Induced)
Browse Figures
Versions Notes

Abstract

:
Volatile organic compounds (VOCs) play key roles in plant abiotic and biotic stress resistance, but even for widespread crops, there is limited information on variations in the magnitude and composition of constitutive VOC emissions among cultivars with varying stress resistance. The foliage VOC emissions from nine local and commercial potato cultivars (Alouette, Sarme, Kuras, Ando, Anti, Jõgeva Kollane, Teele, 1681-11, and Reet) with medium to late maturities and varying Phytophthora infestans (the causative agent of late blight disease) resistance backgrounds were analyzed to gain an insight into the genetic diversity of constitutive VOC emissions and to test the hypothesis that cultivars more resistant to Phytophthora infestans have greater VOC emissions and different VOC fingerprints. Forty-six VOCs were identified in the emission blends of potato leaves. The majority of the VOCs were sesquiterpenes (50% of the total number of compounds and 0.5–36.9% of the total emissions) and monoterpenes (30.4% of the total number of compounds and 57.8–92.5% of the total VOC emissions). Qualitative differences in leaf volatiles, mainly in sesquiterpenes, were related to the potato genotype background. Among the volatile groups, the monoterpenes α-pinene, β-pinene, Δ3-carene, limonene, and p-cymene, the sesquiterpenes (E)-β-caryophyllene and α-copaene, and green leaf volatile hexanal were the major volatiles in all cultivars. A higher share of VOCs known to have antimicrobial activities was observed. Interestingly, the cultivars were grouped into high and low resistance categories based on the VOC profiles, and the total terpenoid and total constitutive VOC emission scale positively with resistance. To support and expedite advances in breeding for resistance to diseases such as late blight disease, the plant research community must develop a fast and precise approach to measure disease resistance. We conclude that the blend of emitted volatiles is a fast, non-invasive, and promising indicator to identify cultivars resistant to potato late blight disease.

1. Introduction

Potato (Solanum tuberosum L.) is the world’s third most important food crop, after rice and wheat, and it is produced on all continents except Antarctica [1]. Potato production has increased dramatically, especially in developing countries, with a global 21% increase in the past two decades, indicating its growing importance as a staple food source. For more than 160 years, potato late blight, caused by the oomycete pathogen Phytophthora infestans (P. infestans), has remained the most devastating potato disease worldwide [2,3] and other plants in the family Solanaceae [2,4]. Under favorable conditions, P. infestans can easily spread from plant to plant and can destroy entire fields [4]. The damage cost due to yield loss and disease control of the pathogen has been estimated to be over 1 billion Euros per year in Europe [5].
The application of fungicides has been implemented as one of the control strategies for late blight in potatoes. However, the constant application of fungicides has created selective pressure on the pathogen, resulting in the emergence of fungicide-resistant isolates which are becoming an important part of the pathogen populations in many countries [6]. Moreover, fungicide use has led to a high level of toxic residues in plants, which threaten both the environment and human health [7]. Thus, an environmentally sound alternative to control the pathogen is needed. Among other measures, the use of late blight-resistant potato cultivars is still considered an important aspect in the control of this disease [8]. The method requires no actions from potato growers and its use poses no harm to the environment [9]. Moreover, this approach is usually compatible with other disease management techniques [9,10]. The use of resistant varieties alone could be sufficient in managing the disease or help in reducing disease development to a tolerant level [11]. Thus, the evaluation of potato cultivars for late blight resistance is considered important in breeding for late blight resistance. Based on the intensity of symptoms, potato genotypes can differ in their levels of resistance to late blight and vary from susceptible and moderate to highly resistant genotypes [12,13]. Evaluation of foliar late blight resistance among potato genotypes has mainly been estimated using the conventional method area under the disease progress curve (AUDPC) and the relative area under the disease progress curve (RAUDPC) [14,15]. However, there are concerns about the precision of these methods [16]. Moreover, the methods are also time-consuming as a series of evaluations over time is necessary to obtain the final area value for the pathosystem [17]. The methodology also has several assumptions that make its application to the potato pathosystem difficult [18,19]. As a result, there is a renewed interest in more consistent, less time-consuming, and accurate methods for phenotyping late blight disease resistance in potatoes.
Plants exchange a huge number of volatile metabolites with their environment both aboveground and belowground [20,21]. Among plants and between varieties, the analysis of volatiles has revealed qualitative as well as quantitative variation [22]. The majority of volatile organic compounds (VOCs) known to be produced and released by plants are lipoxygenase (LOX) pathway products, phenolic compounds (methyl salicylate and benzenoids), indole, and mono-, homo-, and sesquiterpenes [23,24]. The LOX compounds are produced via the lipoxygenase pathway from free fatty acids released from plant membranes. Under different abiotic and biotic stresses, plants produce arrays of VOC that are involved both in direct and indirect defenses [23,25]. However, the VOC blend depends on the type and intensity of stress [23], and the inherent capacity of the plant to produce these [26]. By changing the volatile components and their blend ratios, plants use VOCs to stimulate plant defenses for induced and associational resistance to pathogens [27]. Several investigations have shown that some VOCs possess antimicrobial activity that inhibits pathogens’ growth and mobility within tissues and can thus act as a direct defense response [24,27,28,29,30,31,32]. It has been stated that VOC emissions not only reflect environmental suitability but also the genotypic component of the plant [33,34,35,36,37,38].
Many studies have exploited the inherent variability of constitutive VOC emissions among genotypes under natural conditions [20,39], indicating differences in specific VOC abundance between resistant and susceptible genotypes [24]. Volatile emissions are also qualitatively and quantitatively related to the level of plant resistance to biotic stress, as differences in VOC emissions exist between susceptible and resistant plant genotypes [24,40]. However, the links between genetic variations in potatoes for late blight disease resistance and constitutive volatile emission profiles remain elusive. Moreover, it is not known how VOC classes influence the genetic variation and response patterns among potato genotypes with different resistance levels to late blight disease in the field. We hypothesize that cultivars more resistant to P. infestans have greater VOC emissions and different VOC fingerprints. In other words, there is a response pattern between the constitutive VOC profile and late blight disease resistance. Answers to these questions would provide a platform to develop phenotypic markers for selecting late-blight-resistant potato varieties. In recent years, several pilot studies on potatoes have proven the potential usefulness of VOC monitoring but have also revealed limitations and obstacles to overcome [41]. One important consideration for a successful application is a thorough understanding of the inherent variability of VOC release under natural conditions [20]. However, establishing an accurate reference baseline of VOC emissions is not straightforward, as the quantity and composition of VOCs may vary among cultivars [20]. To gain insight into the potential of using VOC emissions to identify potato cultivars resistant to late blight and provide a benchmark for further studies, we investigated the pattern of variability of constitutive VOC emissions among potato cultivars with variations in late blight resistance.

2. Materials and Methods

2.1. Study Location and Plant Material

The experiment was carried out in the field in 2018 at the Centre of Estonian Rural Research and Knowledge (METK) in Jõgeva, Estonia, located in north-eastern Europe (58°45′ N, 26°24′ E) on clay loam (40–50% of clay classified as Calcaric Cambic Phaeozem (Loamic) soil [42]. The preceding crop in the trial area was red clover (Trifolium pratense L.). Seed potato tubers were planted on 21 May. The research evaluated nine (9) cultivars with different levels of resistance to late blight (Ando, Anti, Jõgeva kollane, Reet, Sarme, and Teele from METK and Alouette and Kuras from the Dutch breeding company Agrico) and one promising breeding line 1681-11 from METK. Thus, one of the main targets for the cultivar selection process was the higher field resistance to potato late blight pathogen P. infestans. These cultivars are listed in Table 1 along with their resistance background and cultivar maturity. The trial was laid out in a randomized block design with three replications. The spacing was maintained at 60 cm between rows and 25 cm between plants, with a total of 40 plants per row and 2 rows per plot, and a row length of 10 m. Before planting, the field was fertilized with the organic fertilizer Black Pearl (BIOCAT G), norm 300 kg ha−1 (30 kg N ha−1, 15 K kg ha−1, 25.5 S kg ha−1). No pesticides were used according to EU regulations on organic production (Council Regulation N0. 843/2007).

2.2. Volatile Collection and Gas Chromatography-Mass Spectrometry Analyses

Volatile organic compounds were collected from the leaves of nine potato cultivars under late-blight-free conditions on 16 August 2018 under natural temperature conditions in full sunlight (photosynthetic photon flux density of 1000–1400 μmol m−2 s−1). A total of 27 plants (three per cultivar representing biological replicates) were used for volatile sample collection. One mature healthy leaf per plant was carefully inserted in a Tedlar bag and closed around the petiole [43]. To trap all volatiles in the C3–C17 range, stainless steel cartridges filled with three different carbon-based adsorbents Carbotrap C 20/40 mesh, Carbopack B 40/60 mesh, and Carbotrap X 20/40 adsorbents (Supelco, Bellefonte, PA, USA) were used for VOC collection [44]. Two air sample pumps (210–1003 MTX, SKC Inc., Houston, TX, USA) were affixed to the air outlet and inlet port of the Tedlar bag. Initially, the air was pumped through a VOC collection cartridge for 10 min to minimize the effect of VOC emissions from the surrounding environment. Subsequently, a second air pump was activated to collect leaf VOCs at a constant flow rate of 0.2 L min−1 for 20 min on adsorbent cartridges. The method was optimized using in-vivo-grown potato plants before conducting the field experiment. The volatile samples in the cartridges were desorbed with a Shimadzu TD-20 automated cartridge desorber and analyzed with a Shimadzu 2010 Plus gas chromatography–mass spectrometer (GC–MS; Shimadzu, Kyoto, Japan) with a Zebron ZB-624 fused silica capillary column (0.32 mm i.d., 60 m length, 1.8 μm film thickness, Phenomenex, Torrance, CA, USA) according to the protocol described in [44]. Each compound was identified based on mass spectra of pure standards (Sigma-Aldrich, St. Louis, MO, USA) and NIST 14 spectral library with a 95% probability (National Institute of Standards and Technology), and the peaks were integrated with the open-access program OpenChrom ver. 1.2.0 (Alder) [45]. The emission rates were calculated as in [43].

2.3. Estimation of Leaf Dry Mass Per Unit Area

After VOC sampling, the leaves were harvested, and the fresh mass and area were estimated immediately. For the leaf area, the leaves were photographed, and the area was calculated with ImageJ software (National Institute of Health, Bethesda, MD, USA). The leaves were dried at 70 °C for 48 h in a drying oven, and their dry mass was determined. Leaf dry mass per unit area (LMA) was calculated [43]. Variation in leaf dry mass per unit area was small among the cultivars, from 18.1 ± 2.3 g m−2 in Anti to 24.4 ± 4.6 g m−2 in Kuras (Table 1), and thus, the differences in the emission rates among the cultivars are similar (p > 0.05) when the emissions were expressed per unit dry mass (Table 1).

2.4. Statistical Analyses

Three biological replicates were used for all quantifications, and the data of the study’s findings were expressed as the average of those replicates. Data for the VOCs and LMA were tested for normality (Shapiro–Wilk test) and equality of variances (Levene’s test) before analysis. Ln-transformation was applied when necessary to improve the distribution of data and/or variances. One-way ANOVA was used to test the differences among the cultivars for VOCs and LMA. The Kruskal–Wallis test was also used. Principal component analysis (PCA) and hierarchical cluster analysis were applied to analyze the differentiation of genotypes according to the VOC profiles. PCA can detect the data structure and determine the relationships between samples (in this case potato cultivars) and original variables (volatile profiles). Here, new variables, called principal components, are calculated as a linear combination of the original variables such that the first component takes up higher amounts of the variances of the original variables [46]. With PCA, we can reduce the dimension of the VOC profiles to a linear combination of variables (principal components) and also group genotypes based on the studied traits [39,40,46,47]. The technique has a wide domain of applications including use in VOC studies [39,40,46,47,48,49]. The output of the analysis is expressed in terms of principal components (PC), their % variance, and loading of the variables. All statistical tests were considered significant at p < 0.05. The R version 4.2.0 statistical program [50] was used for all statistical analyses and visualizations.

3. Results

3.1. Constitutive VOC Emission Rates in Leaves of Potato Cultivars with Different Late Blight Resistance Backgrounds

Forty-six VOCs (Table 2) were identified in constitutive emission blends of nine potato cultivars in the field. The compounds emitted were lipoxygenase (LOX) pathway volatiles (a classic green leaf volatile), long-chained saturated-fatty-acid-derived (FAD) compounds, terpenoids (isoprene, monoterpene, and sesquiterpene), geranylgeranyl diphosphate pathway (GGDP) volatiles, and acetaldehyde. Most of the detected volatiles were terpenoids (monoterpenes and sesquiterpenes) and depending on the cultivar, they represented between 57.8–92.5% for monoterpenes and between 0.5–36.9% for sesquiterpenes of the total emissions (Table 2, Figure 1). The variation in the total VOC emissions rate was moderate, with the highest average ± SE value of 1916 ± 765 pmol m−2 s−1 in Kuras and the lowest value of 888 ± 97.6 pmol m−2s−1 in Teele (Table 2). There were no significant differences in the total emission rates among the cultivars (Table 2).
However, the share of the VOCs among different compound classes varied among the cultivars, implying unique cultivar-specific VOC blends. Significant differences (p < 0.05) in monoterpene emissions among the cultivars were only observed in tricyclene and α-terpinene, and overall, there were no significant differences in total monoterpene emissions among the cultivars. For the sesquiterpenes, the emission rates of most of the individual volatiles and total emission rates differed among the cultivars (Table 2). The variation in the emission rates of terpenoids was moderate with the lowest value of 829 ± 73.1 pmol m−2 s−1 in Teele, while Kuras had the highest value of 1860 ± 753 pmol m−2 s−1, with a variation of between 91.3 to 97.1% of the total emission rate among the cultivars (Figure 1). Among the monoterpenes, α-pinene (55.8–61.6%), Δ3-carene (17.5–20.3%), β-pinene (5.8–7.2%), and limonene (7.4–9.0%) dominated the monoterpene emissions (Table 2). All of the cultivars released the same monoterpenes except the cultivar Reet which also emitted α-terpinene (Table 2). All of the cultivars emitted three sesquiterpenes, (E)-β-caryophyllene, longifolene, and α-copaene, that together accounted for 14.2–76.7% and 0.4–22.2% of the total sesquiterpenes and total VOC emissions, respectively (Table 2). All of the cultivars, except Teele, also emitted (E)-β-farnesene and β-elemene (Table 2). The emissions of the other sesquiterpenes, β-gurjunene, α-gurjunene, α-ylangene, δ-cadinene, β-cedrene, α-cubebene, α-humulene, β-santalene, α-caryophyllene, β-bergamotene, γ-muurolene, α-muurolene, γ-cadinene, etc., were highly cultivar dependent (Table 2).
The emission rate of long-chained saturated-fatty-acid-derived (FAD) compounds varied from 6.8 ± 5.5 pmol m−2 s−1 in Teele to 39.1 ± 5.0 pmol m−2 s−1 in Alouette (Table 2). The emission rate of classic green leaf volatiles (also called LOXs; hexanal and hexanol) varied from 9.6 ± 7.5 pmol m−2 s−1 in Teele to 53.2 ± 16.7 pmol m−2 s−1 in Alouette. In total, the LOXs and FAD emission rates constituted between 1.1–3.0%, and 0.7–2.2% of the total VOC emissions, respectively (Figure 1). In the VOC emissions, hexanal dominated the LOXs. All of the cultivars emitted the same set of LOXs and FAD compounds (Table 2). The total emissions of geranylgeranyl diphosphate (GGDP-pathway volatile) 6-methyl-5-hepten-2-one (carotenoid breakdown products) were low overall (4.7 ± 0.4 pmol m−2 s−1–10.2 ± 1.1 pmol m−2 s−1), with an average of 6.6 ± 0.6 pmol m−2 s−1, and there were no significant differences among the cultivars (Table 2). The cultivars did not differ significantly for isoprene emissions.

3.2. Cultivar Differences in the Blend of Emitted Volatiles

Principal component analysis (PCA) was used to determine which characteristics contributed to the overall diversity among the cultivars. The forty-six VOC variables were reduced to only seven principal components (PCs), having eigenvalues greater than 1 (Table S1). For clarity of presentation, only four PCs are shown (Table 3). The four principal components (PCs) had a cumulative variance level of 71.2%, representing PC1 (23.3%), PC2 (19.5%), PC3 (15.5%), and PC4 (13.0%). The first two PCs accounted for 42.7% of the total variation among the cultivars. The compounds mainly associated with the first component (PC1) were linked to monoterpenes that dominated PC1 and could thus be termed the monoterpene component. The second component (PC2) was strongly associated with LOXs (classic green leaf volatile) and long-chained saturated-fatty-acid-derived (FAD) compounds, which accounted for 19.5% of the total variation among the cultivars. Sesquiterpenes were widely distributed across the PC components.
Thus, monoterpenes on the one hand, and FAD compounds (including LOXs) which mainly constitute the first and second principal components, respectively, accounted for greater variation among the cultivars. Overall, the results revealed the importance of LOXs, FAD compounds, and monoterpenes in the variation among the potato cultivars based on the VOC profiles. The clustering pattern according to the principal components biplot for all the VOCs combined tends to delineate the cultivars according to their resistance categories (Figure 2). The highly resistant cultivars Ando, Anti, and Sarme were grouped into the same quadrant, while Alouette and Kuras were in a separate quadrant. Thus, the biplot using the VOC profile can also identify sub-groups within resistant cultivars. The low-resistance cultivars Reet, Teele, and Jõgeva Kollane were grouped into the same quadrant, separate from the highly resistant cultivars. Based on the PC axis, the highly resistant cultivars Sarme, Ando, Kuras, and Anti can also be observed to be clustered on the negative side of the PC2 axis, while the low-resistance cultivars were on the positive side of the PC2 axis, except Alouette, the high resistance cultivar that was in the same cluster as 1681-11. This disparity can occur as the biplot can only capture two components, and thus, this explained not all but some portion (42.8%) of the variation.
A separate clustering based on each individual VOC group (Figure S1): FAD, including LOXs (Figure S1a), monoterpenes (Figure S1b), and sesquiterpenes (Figure S1c), did not delineate the cultivars according to the resistance categories. In the biplot (Figure S1a), the LOXs tend to be more closely correlated, likewise for the FAD compounds. However, the biplot based on the terpenoids (monoterpenes, sesquiterpenes, and isoprene combined) shows some extent of clustering of the cultivars according to their resistance categories (Figure S1d). The low-resistance cultivars Reet, Teele, Jõgeva Kollane, and 1681-11 were all clustered on the negative axis of PC2, where Reet, Teele, and Jõgeva Kollane were in a separate quadrant. On the other hand, the highly resistant cultivars Ando, Sarme, Anti, and Kuras were grouped on the positive PC2 axis. The biplot based on the terpenoids accounted for 54.6% of the variation. As shown in the heatmap (Figure 3), there was a significant correlation between cultivar resistance and total VOC emissions.
Individual pathway groups also tend to exist separately and are uncorrelated with other pathway groups (Figure 3). However, the FAD and LOXs were positively correlated (p < 0.001). In a separate analysis, resistance also scales positively with terpenoids (isoprene, monoterpenes, and sesquiterpenes combined) (p < 0.05). A heatmap was constructed to visualize the share of the VOC classes to the total VOC emissions (% relative to the total VOC emissions) among the cultivars (Figure 4).
Two major clusters that did not correspond to the highly resistant and low-resistance cultivars can be noticed. However, sub-clusters containing highly resistant cultivars such as Ando, Anti, and Sarme that were grouped together, as well as the low-resistance cultivars 1681-11 and Teele that also form a sub-cluster, can be noticed, while the cultivar Reet tend to form a singleton. On the other hand, Jõgeva kollane tended to share some unique profiles with the highly resistant cultivars Alouette and Kuras. Except for isoprene, there were no significant correlations between the shares of the VOCs classes with resistance (Figure 5).

4. Discussion

4.1. Diversity of Volatile Profiles Compared with Other Commercial Potato Genotypes (Solanum tuberosum) and Solanum spp.

In the temperate zone, potato (Solanum tuberosum) is among the commonly cultivated commercial plants [46] and an important food source in many parts of the world [51]. It is an important crop in many countries, including Estonia. At the constitutive level, plants including Solanum spp. emit a huge number of volatile metabolites [20,46,51], and most of the VOCs have defensive and attractive roles [23,25,51]. VOC fingerprints tend to be unique among different plants and varieties [22]. However, the results obtained here are consistent with previous research on scattered varieties of Solanum spp., as the identified compounds in these studies overlapped heavily with those identified in other studies of VOCs in the foliage of Solanum spp. [22,46,52,53]. Sesquiterpenes and monoterpenes were the dominant volatiles, as is common in potatoes [22,51]. Similar to other studies in Solanum tuberosum foliage [46], the composition of sesquiterpenes was cultivar specific. As observed in other studies, β-caryophyllene common to all cultivars was among the dominant sesquiterpenes in the foliage of the studied cultivars and also constitutes a quantitative marker for differentiation of potato cultivars [46]. Similarly, α-cubebene and δ-cadinene were also present in small quantities. These qualitative and quantitative differences in sesquiterpenes can constitute a marker for varietal classification and characterization [46].

4.2. Quantitative and Qualitative Differences in Constitutive VOC Emissions among the Cultivars

There is evidence that different plant cultivars of given crop species might produce different suites of volatiles [20,39,41,47,48]. The inherent variability of constitutive VOC emissions among plant genotypes has been studied and differences in specific VOC abundance between resistant and susceptible genotypes has been observed [24,40]. Constitutive VOC emissions have been involved in defense against pathogen attacks without the time delay that is involved in the production of inducible defenses [54]. This encouraging evidence inspired us to characterize constitutive VOC emissions among potato cultivars with varying resistance to P. infestans.
We observed that the various volatile pathways largely operate independently and are uncorrelated with other pathway groups. This may be due to the independent regulation of different metabolic pathways in plants that could arise from specific transcription factors that control the expression of the genes involved in a specific pathway or as a result of different regulations by the key pathway flux-controlling enzymes [49]. Metabolites formed via a common pathway or originating from a common precursor tend to have a close relationship with each other [38,49]. Strong correlations among the VOCs indicated as clusters for the factor loadings of the PCA may mostly reflect common biosynthetic pathways among the volatiles concerned [38]. Cultivars differ in VOC emission composition, and significant differences were observed for total sesquiterpenes emissions among the cultivars. Differences in emission rates also exist among some of the individual compounds, with higher emissions in some of the highly resistant cultivars. Differences in specific VOCs that belong to aldehyde, monoterpene, and sesquiterpenes were also observed in more tolerant (to huanglongbing) citrus varieties [40]. Classic LOXs were emitted in low quantities similarly in all cultivars and this might reflect mild chronic stress in the field that might often remain unnoticed. In tomato foliage, the concentration of classic green volatiles was relatively low. However, during damage, the concentration increased drastically [53]. These LOX products are produced by the oxidation of lipid components of damaged cells in green vegetables to form lipid hydroperoxides, which rapidly break down to form many compounds, including C6 aldehydes and alcohols [23,55]. Cultivar resistance scaled positively with total LOX products and FAD compound emissions and may be related to their inhibitory properties against pathogens. Aldehydes from LOX products are highly reactive and can diffuse from sites of production to extracellular targets, due to longevity [56], and they have inhibitory properties against pathogens [57,58,59,60,61,62,63,64].
The emitted VOCs were dominated by terpenoids, (monoterpenes or sesquiterpenes). The constitutive emission of GDP-pathway compounds is common in several plant species [65], including Solanum spp. such as tomato (S. lycopersicum) [20], potato [22,46], and citrus varieties [39], etc. Terpenes are important in biological processes related to plant defense against biotic and abiotic stresses [66] and constitute the largest class of plant compounds among the plant secondary metabolites. They can provide defense against pathogens whether in constitutive or induced emission [54,67]. Terpenoids from the root extract of different cultivars of Chrysanthemum Morifolium have shown significant inhibition in the growth of fungal pathogens, and variation exists in terpenoid emissions and inhibition ability among the cultivars [68]. Interestingly, we observed that cultivar resistance scales positively with total terpenoid emissions. In Chrysanthemum Morifolium, the root extracts from cultivars with the highest terpenoid emissions did not always correspond to the highest inhibitory effect [68]. On the other hand, in Pinus thunbergii, the expression of terpene synthesis genes was higher in the resistant (to pine wilt disease) genotype compared to the susceptible one, and there was significantly more induced terpenoids in the resistant genotype [69]. It is tempting to speculate that the individual terpenoids or their blend ratios may play a greater role in pathogen inhibition, rather than the total terpenoid emissions. However, if we consider the indirect effect such that the induction of terpenoids triggers defense signaling pathways, it makes sense to relate increased terpenoids with higher resistance in addition to their direct inhibitory effect. Moreover, volatile terpenes are known to constitute part of the direct or indirect plant defense against pathogens [70,71]. Under disease conditions, grapevines with a lower infection rate (for Plasmopara viticola) have also been shown to emit a relatively higher quantity of total terpenes [70]. Striking differences were found in the composition of the sesquiterpenes among the potato cultivars. Only three sesquiterpenes, (E)-β-caryophyllene, longifolene, and α-copaene, were emitted by all of the cultivars, irrespective of the genetic background. α-cubebene, α-humulene, and α-bergamotene were present in the highly resistant cultivars Alouette, Kuras, and Sarme but absent in the low-resistance cultivars Teele and 1681-11. Likewise, γ-muurolene was present in Alouette and Kuras but absent in the low-resistance cultivars Teele, Reet, and 1681-11. The qualitative and quantitative differences in sesquiterpenes emissions among the cultivars may reflect the presence of specific enzymes and the activities of the cytosolic mevalonate pathway that might have resulted in the differences in the VOC fingerprint [49]. This cultivar specificity in sesquiterpene emissions is not only common to potatoes but has also been observed among Tristeza-virus-tolerant and susceptible citrus varieties [39] and even in the roots of Chrysanthemum morifolium cultivars [68]. Sesquiterpenes are involved in defense response to pathogens through JA signaling [72]. Higher emissions of some of these individual sesquiterpenes may have a direct effect on pathogens even before the activation of inducible defenses [54]. Constitutive expression of the sesquiterpene (E)-β-caryophyllene reduces Pseudomonas syringae infection in Arabidopsis thaliana, and when muted, the plant experiences increased growth of the pathogen [54].
The observed qualitative differences indicate that specific VOC fingerprints may characterize different potato cultivars even according to resistance categories against P. infestans. Constitutive monoterpene synthesis occurs in plastids where the terminal enzymes and monoterpene synthases are located [73,74]. These constitutive monoterpene emissions could arise from specialized storage tissues [75]. The synthesis of isoprene and monoterpene depends on the same precursor dimethylallyl pyrophosphate (DMADP) and is enzymatically synthesized via the MEP/DOXP pathway in plastids [74,76]. In the current study, isoprene emissions were relatively low and was not correlated with monoterpene emissions. Isoprene is emitted from many plant species at trace levels and these emissions could be non-enzymatic or reflect the mixed substrate activity of some terpene synthases [77]. Fatty-acid-derived compounds, including LOXs contributed to a greater percentage of variation among the cultivars, followed by monoterpenes indicating that the LOX and MEP/DOXP pathways that are involved in the production of these compounds may behave differently among the cultivars. The compounds more positively correlated with the first component for the total VOC emissions were mainly linked to monoterpenes as also observed among citrus varieties with varying resistance to Tristeza virus [39]. Moreover, higher emissions of some of the individual monoterpenes such as limonene, α-pinene, β-pinene, and Δ3-carene in all the cultivars may suggest a possible role of these volatiles as a direct defense. These compounds are well known for their antimicrobial activities [27,78,79,80,81,82,83,84]. α-pinene was only detected in moderately and highly resistant Pinus massoniana to pine wilt disease, and α-pinene and β-pinene were among the main VOCs in the emission profile [85]. Higher emissions of limonene, and α -pinene have been observed in citrus varieties tolerant to the Tristeza virus [39].

4.3. Are Constitutive Volatile Organic Compounds Emissions Associated with Cultivar Resistance to Potato Late Blight?

Volatile organic compounds (VOCs) emitted by plants can reveal information about plant defense processes and are known to have a strong genetic component and are often related to multiple plant phenotypic traits [25,86]. Hence, they can be a good phenotyping marker [86]. Estimation of a plant’s chemical phenotype by monitoring its VOC profile is a fast and non-invasive method, and the key question is whether the chemical phenotype is associated with plant disease resistance and/or stress tolerance. The study of constitutive plant secondary metabolite profiles of late-blight-susceptible and tolerant potato cultivars could provide insight into the potential role of key metabolites in late blight resistance [25,39]. Interestingly, cultivar resistance scales positively with total VOC emissions. Thus, constitutive VOC emissions in potato genotypes may show promise as a phenotypic marker for late blight resistance. The relatively higher emission rate and variation in some individual VOC compounds among the cultivar could indicate their direct role in defense response, even before inducible defenses are activated [54]. Constitutive plant volatiles have shown promise in the differentiation of citrus varieties for resistance to Huanglongbing [40], where tolerant cultivars contain a higher amount of total VOCs. VOC emissions have also shown potential in characterizing pea cultivars based on resistance categories [86]. Under disease conditions, higher VOC emissions in grapevine correlate with lower disease severity [70]. However, induced emissions under pathogen attack might be differently elicited among potato cultivars. Hence, future work should look at induced emissions. The results of the study may help in the understanding of the mechanism of potato tolerance against late blight disease and provide useful information on their secondary metabolism. This will also open the possibility to exploit the phenomenon of pathogen-induced volatile emissions for the control of late blight by breeding varieties with enhanced induced VOC emissions. Apart from leaves, oospores can survive in the soil until the next potato crop and infect potato plants through the root. Thus, the root VOCs can play an important role in disease resistance [68], acting either directly by repelling biotic stressors or through molecular recognition and signaling leading to effective resistance. To fill these gaps, our future studies will investigate the intraspecific variability of the below-ground emissions of VOCs among potato cultivars under both stress and stress-free condition related to P. infestans to know whether VOCs from above and below ground are partially interconnected. This will improve our understanding of the role of VOCs in plant–pathogen interaction. Our future work will also address issues concerning the number of cultivars with a larger study to further this research.

5. Conclusions and Outlook

The complex mixture of constitutive volatile emissions in potato leaves spans a large number of volatile products, including LOX products, FAD compounds, monoterpenes, sesquiterpenes, GGDP pathway products, and oxygenated volatile organic compounds. The emission blend of the cultivars was rich in volatiles that have been known to have anti-microbial activities. This study identifies the specific characteristics of the chemical composition of the volatile compounds for nine potato cultivars with different levels of late blight resistance and suggests that constitutive VOC emissions can be a promising marker to phenotype potato cultivars for late blight resistance. The findings could also contribute to a better understanding of the diversity of the chemical profiles of Solanum tuberosum foliage.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants12112100/s1. Figure S1: Biplot of the first two principal components of the different VOC classes showing the distribution of different potato cultivars. (a) long-chained saturated-fatty-acid-derived compounds, including classic green leaf volatile, (b) monoterpenes, (c) sesquiterpenes, (d) terpenoids. Refer to Table 2 for numbers assigned to each VOC. Table S1: Principal component analysis (PCA) based on the volatile organic compound emissions by nine potato cultivars with different late blight resistance, eigenvalues, and percentage of total variation explained by PCA axes, followed by heatmap scale of PCA loadings, highlighted green represents positive loadings and red represents negative loadings.

Author Contributions

C.A.A. conceptualized the study concept and its design, completed the method development, analyzed and interpreted the data, wrote the original draft of the manuscript, and critically revised and edited the manuscript for important intellectual content. E.K. conceptualized the experimental design, the study concept, and its design, completed the method development, participated in the VOC analysis, and reviewed and edited the manuscript. E.R.-P. and T.T. conceptualized the experimental design, the study concept, and its design, completed the method development, and reviewed and edited the manuscript. Ü.N. coordinated and supervised the research, completed the method development, conceptualized the experimental design and study concept, interpreted the data, guided the discussion of the outcomes, and helped in the drafting and revision of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by grants from the European Regional Development Fund (Centre of Excellence EcolChange: natural and managed ecosystems (Grant ID 8F160018PKTF), and the Estonian University of Life Sciences project (base funding P190259PKTT). The equipment used in the study was partly purchased from funding by the EU Regional Development Fund (the project “AnaEE Estonia”, 2014-2020.4.01.20-0285, and the project “Plant Biology Infrastructure—TAIM”, 2014-2020.4.01.20-0282) and by the Estonian Research Council (“Plant Biology Infrastructure—TAIM”, TT5).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Birch, P.R.; Bryan, G.; Fenton, B.; Gilroy, E.M.; Hein, I.; Jones, J.T.; Prashar, A.; Taylor, M.A.; Torrance, L.; Toth, I.K. Crops that feed the world 8: Potato: Are the trends of increased global production sustainable? Food Secur. 2012, 4, 477–508. [Google Scholar] [CrossRef]
  2. Fry, W.E.; Birch, P.R.J.; Judelson, H.S.; Grünwald, N.J.; Danies, G.; Everts, K.L.; Gevens, A.J.; Gugino, B.K.; Johnson, D.A.; Johnson, S.B.; et al. Five reasons to consider Phytophthora infestans a reemerging pathogen. Phytopathology 2015, 105, 966–981. [Google Scholar] [CrossRef] [PubMed]
  3. Runno-Paurson, E.; Hansen, M.; Kotkas, K.; Williams, I.H.; Niinemets, Ü.; Einola, A. Evaluation of late blight foliar resistance of potato cultivars in northern Baltic conditions. Zemdirbyste 2019, 106, 45–52. [Google Scholar] [CrossRef] [PubMed]
  4. Fry, W. Phytophthora infestans: The plant (and R gene) destroyer. Mol. Plant Pathol. 2008, 9, 385–402. [Google Scholar] [CrossRef]
  5. Haverkort, A.J.; Boonekamp, P.M.; Hutten, R.C.B.; Jacobsen, E.; Lotz, L.A.P.; Kessel, G.J.T.; Visser, R.G.F.; Van der Vossen, E.A.G. Societal costs of late blight in potato and prospects of durable resistance through cisgenic modification. Potato Res. 2008, 51, 47–57. [Google Scholar] [CrossRef]
  6. Gisi, U.; Cohen, Y. Resistance to phenylamide fungicides: A case study with Phytophthora infestans involving mating type and race structure. Annu. Rev. Phytopathol. 1996, 34, 549–572. [Google Scholar] [CrossRef]
  7. Ons, L.; Bylemans, D.; Thevissen, K.; Cammue, B.P. Combining biocontrol agents with chemical fungicides for integrated plant fungal disease control. Microorganisms 2020, 8, 1930. [Google Scholar] [CrossRef]
  8. Pacilly, F.C.; Groot, J.C.; Hofstede, G.J.; Schaap, B.F.; van Bueren, E.T.L. Analysing potato late blight control as a social-ecological system using fuzzy cognitive mapping. Agron. Sustain. Dev. 2016, 36, 35. [Google Scholar] [CrossRef]
  9. Kuznetsova, M.A.; Spiglazova, S.Y.; Rogozhin, A.N.; Smetanina, T.I.; Filippov, A.V. Late blight assessment of potato cultivars using a new express method. В сбoрнике Agrosym 2013, 2013, 601. [Google Scholar]
  10. Bengtsson, T.; Holefors, A.; Witzell, J.; Andreasson, E.; Liljeroth, E. Activation of defence responses to Phytophthora infestans in potato by BABA. Plant Pathol. 2014, 63, 193–202. [Google Scholar] [CrossRef]
  11. Fry, W. Principles of Plant Disease Management; Academic Press Inc.: New York, NY, USA, 1982. [Google Scholar]
  12. Ros, B.; Thümmler, F.; Wenzel, G. Comparative analysis of Phytophthora infestans induced gene expression in potato cultivars with different levels of resistance. Plant Biol. 2005, 7, 686–693. [Google Scholar] [CrossRef] [PubMed]
  13. Tomczyńska, I.; Stefańczyk, E.; Chmielarz, M.; Karasiewicz, B.; Kamiński, P.; Jones, J.D.; Lees, A.K.; Śliwka, J. A locus conferring effective late blight resistance in potato cultivar Sárpo Mira maps to chromosome XI. Theor. Appl. Genet. 2014, 127, 647–657. [Google Scholar] [CrossRef] [PubMed]
  14. Shaner, G.; Finney, R.E. The effect of nitrogen fertilization on the expression of slow-mildewing resistance in Knox wheat. Phytopathology 1977, 67, 1051–1056. [Google Scholar] [CrossRef]
  15. Fry, W.E. Quantification of general resistance of potato cultivars and fungicide effects for integrated control of potato late blight. Phytopathology 1978, 68, 1650–1655. [Google Scholar] [CrossRef]
  16. Hansen, J.G.; Koppel, M.; Valskyte, A.; Turka, I.; Kapsa, J. Evaluation of foliar resistance in potato to Phytophthora infestans based on an international field trial network. Plant Pathol. 2005, 54, 169–179. [Google Scholar] [CrossRef]
  17. Alves, D.P.; Tomaz, R.S.; Laurindo, B.S.; Laurindo, R.D.F.; Silva, F.F.; Cruz, C.D.; Nick, C.; Silva, D.J.H.D. Artificial neural network for prediction of the area under the disease progress curve of tomato late blight. Sci. Agric. 2017, 74, 51–59. [Google Scholar] [CrossRef]
  18. Jeger, M.J.; Viljanen-Rollinson, S.L.H. The use of the area under the disease-progress curve (AUDPC) to assess quantitative disease resistance in crop cultivars. Theor. Appl. Genet. 2001, 102, 32–40. [Google Scholar] [CrossRef]
  19. Mukherjee, A.K.; Mohapatra, N.K.; Nayak, P. Estimation of area under the disease progress curves in a rice-blast pathosystem from two data points. Eur. J. Plant Pathol. 2010, 127, 33–39. [Google Scholar] [CrossRef]
  20. Dehimeche, N.; Buatois, B.; Bertin, N.; Staudt, M. Insights into the intraspecific variability of the above and belowground emissions of volatile organic compounds in tomato. Molecules 2021, 26, 237. [Google Scholar] [CrossRef]
  21. Dudareva, N.; Klempien, A.; Muhlemann, J.K.; Kaplan, I. Biosynthesis, function and metabolic engineering of plant volatile organic compounds. New Phytol. 2013, 198, 16–32. [Google Scholar] [CrossRef]
  22. Szafranek, B.; Szafranek, J. Volatiles of Solanum spp.: Analysis, composition and ecological significance. Fruit Veg. Cereal Sci. Biotechnol. 2008, 2, 145–155. [Google Scholar]
  23. Niinemets, Ü.; Kännaste, A.; Copolovici, L. Quantitative patterns between plant volatile emissions induced by biotic stresses and the degree of damage. Front. Plant Sci. 2013, 4, 262. [Google Scholar] [CrossRef] [PubMed]
  24. Lazazzara, V.; Bueschl, C.; Parich, A.; Pertot, I.; Schuhmacher, R.; Perazzolli, M. Downy mildew symptoms on grapevines can be reduced by volatile organic compounds of resistant genotypes. Sci. Rep. 2018, 8, 1–14. [Google Scholar] [CrossRef] [PubMed]
  25. Niederbacher, B.; Winkler, J.B.; Schnitzler, J.P. Volatile organic compounds as non-invasive markers for plant phenotyping. J. Exp. Bot. 2015, 66, 5403–5416. [Google Scholar] [CrossRef]
  26. Staudt, M.; Jackson, B.; El-Aouni, H.; Buatois, B.; Lacroze, J.P.; Poëssel, J.L.; Sauge, M.H. Volatile organic compound emissions induced by the aphid Myzus persicae differ among resistant and susceptible peach cultivars and a wild relative. Tree Physiol. 2010, 30, 1320–1334. [Google Scholar] [CrossRef]
  27. Quintana-Rodriguez, E.; Morales-Vargas, A.T.; Molina-Torres, J.; Ádame-Alvarez, R.M.; Acosta-Gallegos, J.A.; Heil, M. Plant volatiles cause direct, induced and associational resistance in common bean to the fungal pathogen Colletotrichum lindemuthianum. J. Ecol. 2015, 103, 250–260. [Google Scholar] [CrossRef]
  28. Kaddes, A.; Parisi, O.; Berhal, C.; Ben Kaab, S.; Fauconnier, M.L.; Nasraoui, B.; Jijakli, M.H.; Massart, S.; De Clerck, C. Evaluation of the effect of two volatile organic compounds on barley pathogens. Molecules 2016, 21, 1124. [Google Scholar] [CrossRef]
  29. Hunziker, L.; Bönisch, D.; Groenhagen, U.; Bailly, A.; Schulz, S.; Weisskopf, L. Pseudomonas strains naturally associated with potato plants produce volatiles with high potential for inhibition of Phytophthora infestans. Appl. Environ. Microbiol. 2015, 81, 821–830. [Google Scholar] [CrossRef]
  30. Chaurasia, B.; Pandey, A.; Palni, L.M.S.; Trivedi, P.; Kumar, B.; Colvin, N. Diffusible and volatile compounds produced by an antagonistic Bacillus subtilis strain cause structural deformations in pathogenic fungi in vitro. Microbiol. Res. 2005, 160, 75–81. [Google Scholar] [CrossRef]
  31. Fauguel, C.M.; Campos Bermudez, V.A.; Iglesias, J.; Fernandez, M.; Farroni, A.; Andreo, C.S.; Presello, D.A. Volatile compounds released by maize grains and silks in response to infection by Fusarium verticillioides and its association with pathogen resistance. Plant Pathol. 2017, 66, 1128–1138. [Google Scholar] [CrossRef]
  32. Deng, W.; Hamilton-Kemp, T.R.; Nielsen, M.T.; Andersen, R.A.; Collins, G.B.; Hildebrand, D.F. Effects of six-carbon aldehydes and alcohols on bacterial proliferation. J. Agric. Food Chem. 1993, 41, 506–510. [Google Scholar] [CrossRef]
  33. Gouinguené, S.; Degen, T.; Turlings, T.C. Variability in herbivore-induced odour emissions among maize cultivars and their wild ancestors (teosinte). Chemoecology 2001, 11, 9–16. [Google Scholar] [CrossRef]
  34. Snoeren, T.A.; Kappers, I.F.; Broekgaarden, C.; Mumm, R.; Dicke, M.; Bouwmeester, H.J. Natural variation in herbivore-induced volatiles in Arabidopsis thaliana. J. Exp. Bot. 2010, 61, 3041–3056. [Google Scholar] [CrossRef]
  35. Niinemets, Ü.; Arneth, A.; Kuhn, U.; Monson, R.K.; Peñuelas, J.; Staudt, M. The emission factor of volatile isoprenoids: Stress, acclimation, and developmental responses. Biogeosciences 2010, 7, 2203–2223. [Google Scholar] [CrossRef]
  36. Wason, E.L.; Hunter, M.D. Genetic variation in plant volatile emission does not result in differential attraction of natural enemies in the field. Oecologia 2014, 174, 479–491. [Google Scholar] [CrossRef]
  37. Splivallo, R.; Valdez, N.; Kirchhoff, N.; Ona, M.C.; Schmidt, J.P.; Feussner, I.; Karlovsky, P. Intraspecific genotypic variability determines concentrations of key truffle volatiles. New Phytol. 2012, 194, 823–835. [Google Scholar] [CrossRef] [PubMed]
  38. Degen, T.; Dillmann, C.; Marion-Poll, F.; Turlings, T.C. High genetic variability of herbivore-induced volatile emission within a broad range of maize inbred lines. Plant Physiol. 2004, 135, 1928–1938. [Google Scholar] [CrossRef] [PubMed]
  39. Guarino, S.; Abbate, L.; Mercati, F.; Fatta Del Bosco, S.; Motisi, A.; Arif, M.A.; Cencetti, G.; Palagano, E.; Michelozzi, M. Citrus varieties with different tolerance grades to Tristeza virus show dissimilar volatile terpene profiles. Agronomy 2021, 11, 1120. [Google Scholar] [CrossRef]
  40. Hijaz, F.; Nehela, Y.; Killiny, N. Possible role of plant volatiles in tolerance against huanglongbing in Citrus. Plant Signal. Behav. 2016, 11, e1138193. [Google Scholar] [CrossRef] [PubMed]
  41. Laothawornkitkul, J.; Jansen, R.M.C.; Smid, H.M.; Bouwmeester, H.J.; Muller, J.; Van Bruggen, A.H.C. Volatile organic compounds as a diagnostic marker of late blight infected potato plants: A pilot study. Crop Prot. 2010, 29, 872–878. [Google Scholar] [CrossRef]
  42. IUSS Working Group WRB. World Reference Base for Soil Resources 2014; International Soil Classification System for Naming Soils and Creating Legends for Soil Maps; World Soil Resources Reports No. 106; FAO: Rome, Italy, 2015. [Google Scholar]
  43. Niinemets, Ü.; Kuhn, U.; Harley, P.C.; Staudt, M.; Arneth, A.; Cescatti, A.; Ciccioli, P.; Copolovici, L.; Geron, C.; Guenther, A.; et al. Estimations of isoprenoid emission capacity from enclosure studies: Measurements, data processing, quality and standardized measurement protocols. Biogeosciences 2011, 8, 2209–2246. [Google Scholar] [CrossRef]
  44. Kännaste, A.; Copolovici, L.; Niinemets, Ü. Gas chromatography– mass spectrometry method for determination of biogenic volatile organic compounds emitted by plants. In Plant Isoprenoids: Methods and Protocols; Rodríguez-Concepción, M., Ed.; Springer: New York, NY, USA, 2014; pp. 161–169. [Google Scholar]
  45. Wenig, P.; Odermatt, J. OpenChrom: A cross-platform open source software for the mass spectrometric analysis of chromatographic data. BMC Bioinform. 2010, 11, 405. [Google Scholar] [CrossRef] [PubMed]
  46. Szafranek, B.; Chrapkowska, K.; Pawińska, M.; Szafranek, J. Analysis of leaf surface sesquiterpenes in potato varieties. J. Agric. Food Chem. 2005, 53, 2817–2822. [Google Scholar] [CrossRef]
  47. Pagès-Hélary, S.; Dujourdy, L.; Cayot, N. Identification of volatile compounds in blackcurrant berries: Differences among cultivars. Molecules 2021, 26, 6254. [Google Scholar] [CrossRef]
  48. Fauziah, F.; Permana, A.D.; Faizal, A. Characterization of volatile compounds from tea plants (Camellia sinensis (L.) Kuntze) and the effect of identified compounds on Empoasca flavescens behavior. Horticulturae 2022, 8, 623. [Google Scholar] [CrossRef]
  49. Liu, Y.; Zhang, H.; Umashankar, S.; Liang, X.; Lee, H.W.; Swarup, S.; Ong, C.N. Characterization of plant volatiles reveals distinct metabolic profiles and pathways among 12 Brassicaceae vegetables. Metabolites 2018, 8, 94. [Google Scholar] [CrossRef]
  50. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2022; Available online: https://www.R-project.org/ (accessed on 9 January 2023).
  51. Szafranek, B.; Chrapkowska, K.; Waligóra, D.; Palavinskas, R.; Banach, A.; Szafranek, J. Leaf surface sesquiterpene alcohols of the potato (Solanum tuberosum) and their influence on Colorado beetle (Leptinotarsa decemlineata Say) feeding. J. Agric. Food Chem. 2006, 54, 7729–7734. [Google Scholar] [CrossRef] [PubMed]
  52. Andersson, B.A.; Holman, R.T.; Lundgren, L.; Stenhagen, G. Capillary gas chromatograms of leaf volatiles. A possible aid to breeders for pest and disease resistance. J. Agric. Food Chem. 1980, 5, 985–989. [Google Scholar] [CrossRef]
  53. Buttery, R.G.; Ling, L.C.; Light, D.M. Tomato leaf volatile aroma components. J. Agric. Food Chem. 1987, 35, 1039–1042. [Google Scholar] [CrossRef]
  54. Huang, M.; Sanchez-Moreiras, A.M.; Abel, C.; Sohrabi, R.; Lee, S.; Gershenzon, J.; Tholl, D. The major volatile organic compound emitted from Arabidopsis thaliana flowers, the sesquiterpene (E)-β-caryophyllene, is a defense against a bacterial pathogen. New Phytol. 2012, 193, 997–1008. [Google Scholar] [CrossRef]
  55. Gigot, C.; Ongena, M.; Fauconnier, M.L.; Wathelet, J.P.; Du Jardin, P.; Thonart, P. The lipoxygenase metabolic pathway in plants: Potential for industrial production of natural green leaf volatiles. Biotechnol. Agron. Soc. Environ. 2010, 14, 451–460. [Google Scholar]
  56. Esterbauer, H.; Schaur, R.J.; Zollner, H. Chemistry and biochemistry of 4-hydroxynonenal, malonaldehyde and related aldehydes. Free Radic. Biol. Med. 1991, 11, 81–128. [Google Scholar] [CrossRef] [PubMed]
  57. Hamilton-Kemp, T.R.; McCracken, C.T.; Loughrin, J.H.; Andersen, R.A.; Hildebrand, D.F. Effects of some natural volatile compounds on the pathogenic fungi Alternaria alternata and Botrytis cinerea. J. Chem. Ecol. 1992, 18, 1083–1091. [Google Scholar] [CrossRef] [PubMed]
  58. Vaughn, S.F.; Gardner, H.W. Lipoxygenase-derived aldehydes inhibit fungi pathogenic on soybean. J. Chem. Ecol. 1993, 19, 2337–2345. [Google Scholar] [CrossRef]
  59. Kishimoto, K.; Matsui, K.; Ozawa, R.; Takabayashi, J. Components of C6-aldehyde-induced resistance in Arabidopsis thaliana against a necrotrophic fungal pathogen, Botrytis cinerea. Plant Sci. 2006, 170, 715–723. [Google Scholar] [CrossRef]
  60. Song, J.; Leepipattanawit, R.; Deng, W.; Beaudry, R.M. Hexanal vapor is a natural, metabolizable fungicide: Inhibition of fungal activity and enhancement of aroma biosynthesis in apple slices. J. Am. Soc. Hortic. Sci. 1996, 121, 937–942. [Google Scholar] [CrossRef]
  61. Dhakshinamoorthy, D.; Sundaresan, S.; Iyadurai, A.; Subramanian, K.S.; Janavi, G.J.; Paliyath, G.; Subramanian, J. Hexanal vapor induced resistance against major postharvest pathogens of banana (Musa acuminata L.). Plant Pathol. J. 2020, 36, 133. [Google Scholar] [CrossRef]
  62. Doehlert, D.C.; Wicklow, D.T.; Gardner, H.W. Evidence implicating the lipoxygenase pathway in providing resistance to soybeans against Aspergillus flavus. Phytopathology 1993, 83, 1473–1477. [Google Scholar] [CrossRef]
  63. Zeringue, H.J., Jr.; Bhatnagar, D. Effects of neem leaf volatiles on submerged cultures of aflatoxigenic Aspergillus parasiticus. Appl. Environ. Microbiol. 1994, 60, 3543–3547. [Google Scholar] [CrossRef]
  64. Boué, S.M.; Shih, B.Y.; Carter-Wientjes, C.H.; Cleveland, T.E. Effect of soybean lipoxygenase on volatile generation and inhibition of Aspergillus flavus mycelial growth. J. Agric. Food Chem. 2005, 53, 4778–4783. [Google Scholar] [CrossRef]
  65. Kask, K. The Effects of Heat Stress Severity on Photosynthesis and Volatile Organic Compound Emissions in Black Mustard and Tobacco. Ph.D. Thesis, Estonian University of Life Sciences, Tartu, Estonia, 2020. Available online: https://dspace.emu.ee/bitstream/handle/10492/5561/Kask_Kaia.pdf?sequence=4&isAllowed=y (accessed on 15 January 2023).
  66. Singh, B.; Sharma, R.A. Plant terpenes: Defense responses, phylogenetic analysis, regulation and clinical applications. 3 Biotech 2015, 5, 129–151. [Google Scholar] [CrossRef] [PubMed]
  67. Boncan, D.A.T.; Tsang, S.S.; Li, C.; Lee, I.H.; Lam, H.M.; Chan, T.F.; Hui, J.H. Terpenes and terpenoids in plants: Interactions with environment and insects. Int. J. Mol. Sci. 2020, 21, 7382. [Google Scholar] [CrossRef] [PubMed]
  68. Zhang, K.; Jiang, Y.; Zhao, H.; Köllner, T.G.; Chen, S.; Chen, F.; Chen, F. Diverse terpenoids and their associated antifungal properties from roots of different cultivars of Chrysanthemum morifolium Ramat. Molecules 2020, 25, 2083. [Google Scholar] [CrossRef] [PubMed]
  69. Wang, X.Y.; Wu, X.Q.; Wen, T.Y.; Feng, Y.Q.; Zhang, Y. Terpene Production Varies in Pinus thunbergii Parl. with Different Levels of Resistance, with Potential Effects on Pinewood Nematode Behavior. Forests 2022, 13, 1140. [Google Scholar] [CrossRef]
  70. Chalal, M.; Winkler, J.B.; Gourrat, K.; Trouvelot, S.; Adrian, M.; Schnitzler, J.P.; Jamois, F.; Daire, X. Sesquiterpene volatile organic compounds (VOCs) are markers of elicitation by sulfated laminarine in grapevine. Front. Plant Sci. 2015, 6, 350. [Google Scholar] [CrossRef]
  71. Kishimoto, K.; Matsui, K.; Ozawa, R.; Takabayashi, J. Analysis of defensive responses activated by volatile allo-ocimene treatment in Arabidopsis thaliana. Phytochemistry 2006, 67, 1520–1529. [Google Scholar] [CrossRef]
  72. Taniguchi, S.; Miyoshi, S.; Tamaoki, D.; Yamada, S.; Tanaka, K.; Uji, Y.; Tanaka, S.; Akimitsu, K.; Gomi, K. Isolation of jasmonate-induced sesquiterpene synthase of rice: Product of which has an antifungal activity against Magnaporthe oryzae. J. Plant Physiol. 2014, 171, 625–632. [Google Scholar] [CrossRef]
  73. Chen, F.; Tholl, D.; Bohlmann, J.; Pichersky, E. The family of terpene synthases in plants: A mid-size family of genes for specialized metabolism that is highly diversified throughout the kingdom. Plant J. 2011, 66, 212–229. [Google Scholar] [CrossRef]
  74. Memari, H.R.; Pazouki, L.; Niinemets, Ü. The Biochemistry and Molecular Biology of Volatile Messengers in Trees. In Biology, Controls and Models of Tree Volatile Organic Compound Emissions; Niinemets, Ü., Monson, R.K., Eds.; Springer: Dordrecht, The Netherlands, 2013; pp. 47–93. ISBN 9789400766068. [Google Scholar]
  75. Grote, R.; Monson, R.K.; Niinemets, Ü. Leaf-level models of constitutive and stress-driven volatile organic compound emissions. In Biology, Controls and Models of Tree Volatile Organic Compound Emissions; Niinemets, Ü., Monson, R.K., Eds.; Springer: Dordrecht, The Netherlands, 2013; pp. 315–355. [Google Scholar]
  76. Li, Z.; Sharkey, T.D. Metabolic profiling of the methylerythritol phosphate pathway reveals the source of post-illumination isoprene burst from leaves. Plant Cell Environ. 2013, 36, 429–437. [Google Scholar] [CrossRef]
  77. Pazouki, L.; Niinemets, Ü. Multi-substrate terpene synthases: Their occurrence and physiological significance. Front. Plant Sci. 2016, 7, 1019. [Google Scholar] [CrossRef]
  78. Feng, X.Z.; Xiao, Z.; Zhang, L.; Liao, S.; Chen, S.; Luo, H.; He, L.; Fan, G.; Wang, Z. Antifungal activity of β-pinene-based hydronopyl quaternary ammonium salts against phytopathogenic fungi. Nat. Prod. Commun. 2020, 15, 1934578X20948365. [Google Scholar] [CrossRef]
  79. Shu, H.; Chen, H.; Wang, X.; Hu, Y.; Yun, Y.; Zhong, Q.; Chen, W.; Chen, W. Antimicrobial activity and proposed action mechanism of 3-Carene against Brochothrix thermosphacta and Pseudomonas fluorescens. Molecules 2019, 24, 3246. [Google Scholar] [CrossRef] [PubMed]
  80. Deba, F.; Xuan, T.D.; Yasuda, M.; Tawata, S. Chemical composition and antioxidant, antibacterial and antifungal activities of the essential oils from Bidens pilosa Linn. var. Radiata. Food Control 2008, 19, 346–352. [Google Scholar] [CrossRef]
  81. Chee, H.Y.; Mm, H.; Lee, M.H. In vitro antifungal activity of limonene against Trichophyton rubrum. Mycobiology 2009, 37, 243–246. [Google Scholar] [CrossRef]
  82. Simas, D.L.; de Amorim, S.H.; Goulart, F.R.; Alviano, C.S.; Alviano, D.S.; da Silva, A.J.R. Citrus species essential oils and their components can inhibit or stimulate fungal growth in fruit. Ind. Crops Prod. 2017, 98, 108–115. [Google Scholar] [CrossRef]
  83. Yamasaki, Y.; Kunoh, H.; Yamamoto, H.; Akimitsu, K. Biological roles of monoterpene volatiles derived from rough lemon (Citrus jambhiri Lush) in citrus defense. J. Gen. Plant Pathol. 2007, 73, 168–179. [Google Scholar] [CrossRef]
  84. Fujioka, K.; Gotoh, H.; Noumi, T.; Yoshida, A.; Noutoshi, Y.; Inagaki, Y.; Yamamoto, M.; Ichinose, Y.; Shiraishi, T.; Toyoda, K. Protection induced by volatile limonene against anthracnose disease in Arabidopsis thaliana. J. Gen. Plant Pathol. 2015, 81, 415–419. [Google Scholar] [CrossRef]
  85. Dong, G.P.; Yang, L. Preliminary report on the correlation between volatile odor components of Pinus massoniana and its resistance to PWD. Anhui For. Sci. Technol. 2015, 41, 12–14. [Google Scholar]
  86. Marzougui, A.; Rajendran, A.; Mattinson, D.S.; Ma, Y.; McGee, R.J.; Garcia-Perez, M.; Ficklin, S.P.; Sankaran, S. Evaluation of biogenic markers-based phenotyping for resistance to Aphanomyces root rot in field pea. Inf. Process. Agric. 2022, 9, 1–10. [Google Scholar] [CrossRef]
Plants 12 02100 g001 550

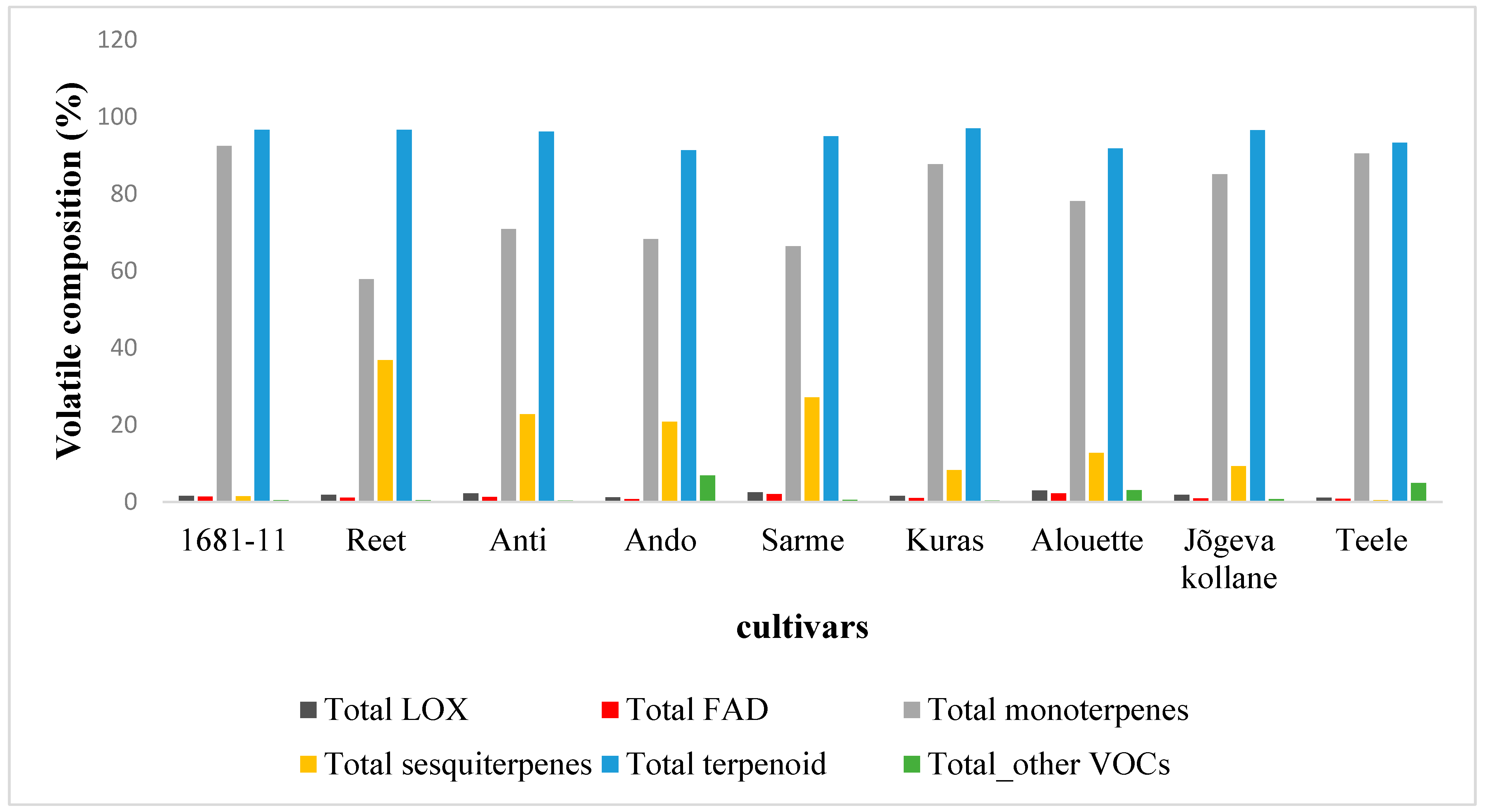

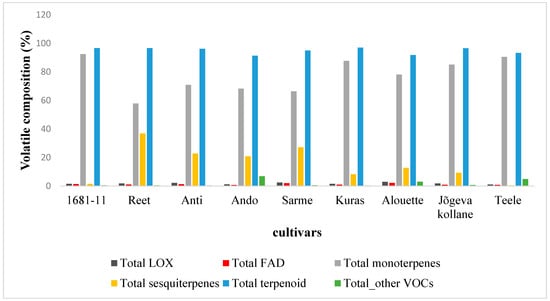

Figure 1. Volatile profile composition (relative proportion) across nine potato cultivars with varying resistance levels (see Table 1). FAD: long-chained saturated-fatty-acid-derived compounds; LOX: classic green leaf volatiles; terpenoid (monoterpenes, sesquiterpenes, and isoprene); others: sum of all other emitted VOC.
Figure 1. Volatile profile composition (relative proportion) across nine potato cultivars with varying resistance levels (see Table 1). FAD: long-chained saturated-fatty-acid-derived compounds; LOX: classic green leaf volatiles; terpenoid (monoterpenes, sesquiterpenes, and isoprene); others: sum of all other emitted VOC.
Plants 12 02100 g001
Plants 12 02100 g002 550

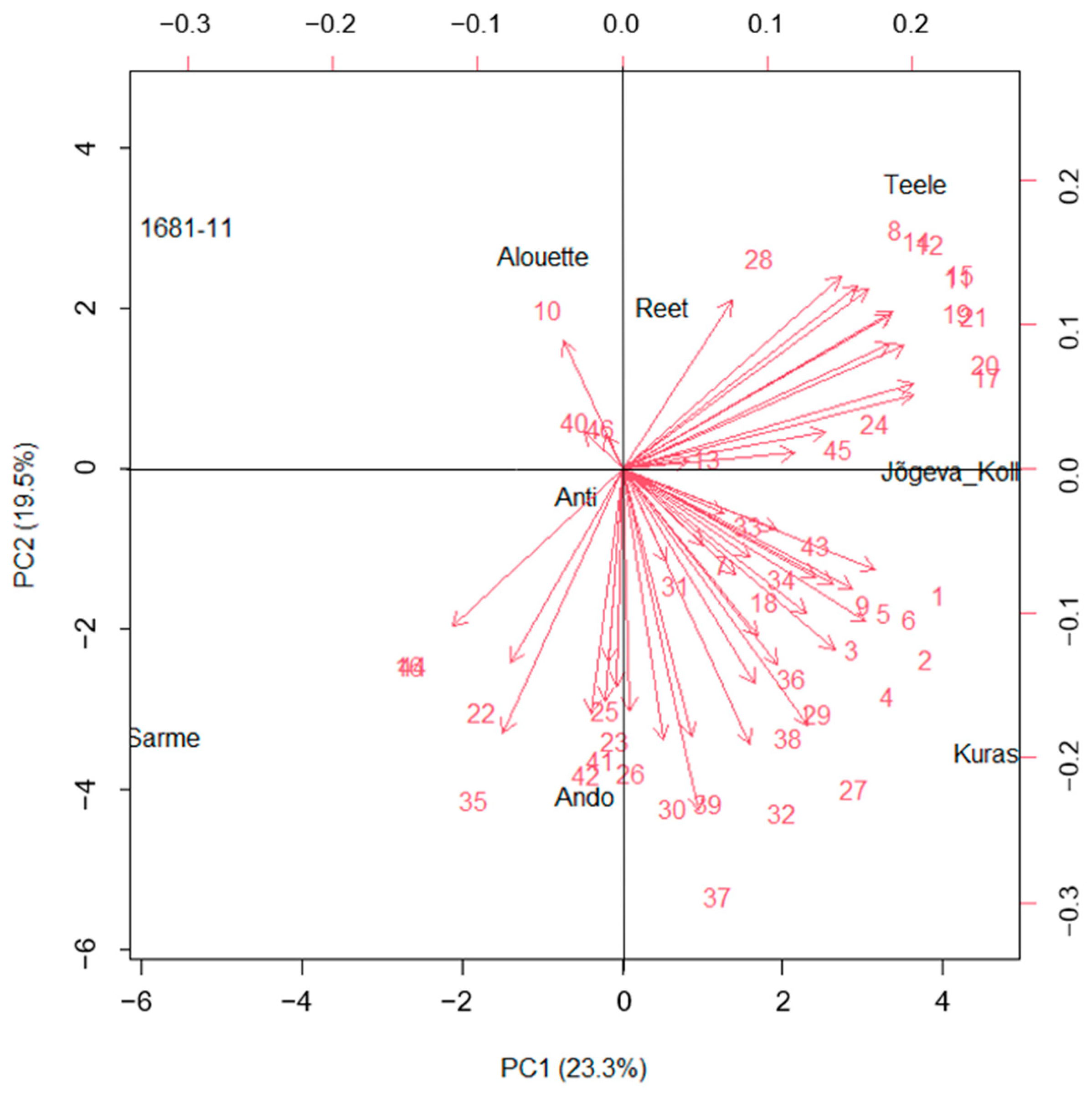

Figure 2. Biplot of the first two principal components of the emitted VOCs showing the distribution of different potato cultivars. Refer to Table 2 for the numbers assigned to each VOC.
Figure 2. Biplot of the first two principal components of the emitted VOCs showing the distribution of different potato cultivars. Refer to Table 2 for the numbers assigned to each VOC.
Plants 12 02100 g002
Plants 12 02100 g003 550

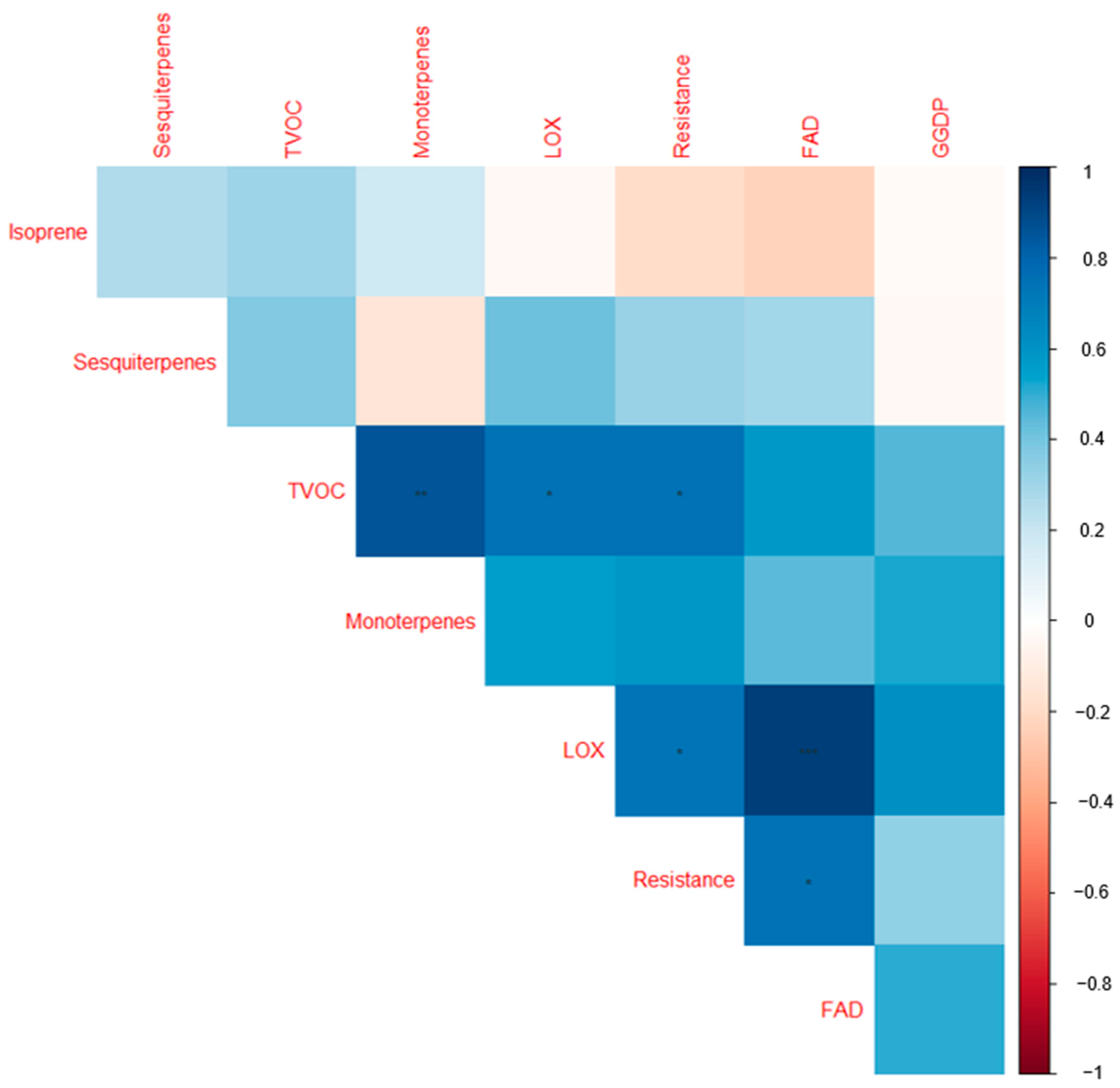

Figure 3. Correlogram visualizing correlations among the volatile organic compound groups and the cultivar resistance scores for the nine cultivars studied. The colors are proportional to the correlation coefficients. The positive and negative correlations are indicated in blue and red. A greater correlation coefficient is reflected by a color of higher intensity. * = significant at 0.05; ** = significant at 0.01; *** = significant at 0.001. FAD: long-chained saturated-fatty-acid-derived compounds; LOX: classic green leaf volatiles; geranylgeranyl diphosphate (GGDP): 6-methyl-5-hepten-2-one; TVOC: total volatile organic compound emissions; resistance: late blight resistance scores in the nine cultivars studied (Table 1). Table 2 provides the full list of compounds observed in the current study.
Figure 3. Correlogram visualizing correlations among the volatile organic compound groups and the cultivar resistance scores for the nine cultivars studied. The colors are proportional to the correlation coefficients. The positive and negative correlations are indicated in blue and red. A greater correlation coefficient is reflected by a color of higher intensity. * = significant at 0.05; ** = significant at 0.01; *** = significant at 0.001. FAD: long-chained saturated-fatty-acid-derived compounds; LOX: classic green leaf volatiles; geranylgeranyl diphosphate (GGDP): 6-methyl-5-hepten-2-one; TVOC: total volatile organic compound emissions; resistance: late blight resistance scores in the nine cultivars studied (Table 1). Table 2 provides the full list of compounds observed in the current study.
Plants 12 02100 g003
Plants 12 02100 g004 550

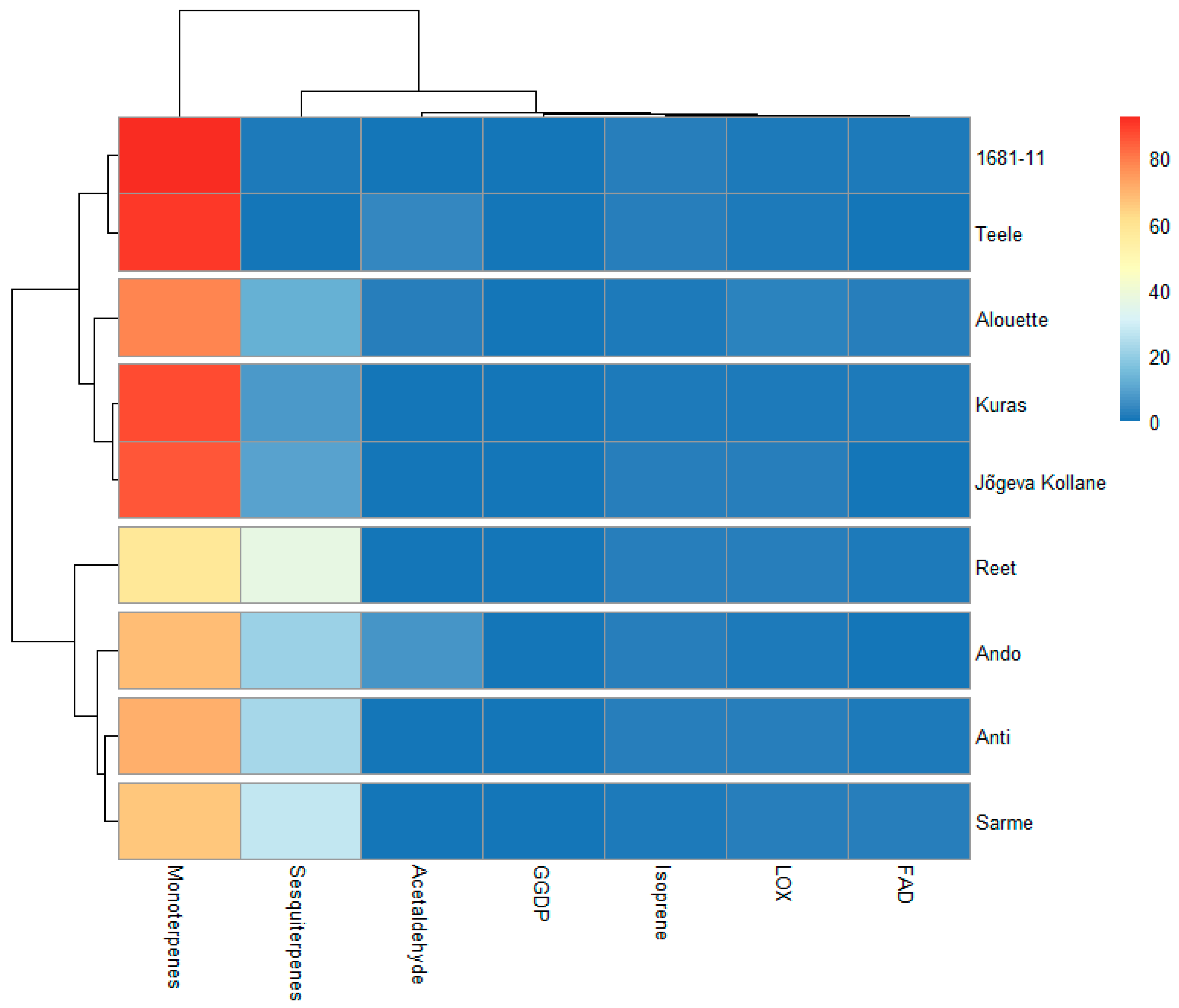

Figure 4. Heatmap with a dendrogram illustrating the groupings of the studied potato cultivars with different late blight resistance backgrounds (Table 1 for the studied cultivars) based on the quantities of the plant secondary metabolites (% relative to the total VOCs) emitted from the leaves. The colors indicate relative amounts of the compounds. Blue and red represent the lowest and highest levels, respectively. FAD: long-chained saturated-fatty-acid-derived compounds; LOX: classic green leaf volatiles; geranylgeranyl diphosphate (GGDP): 6-methyl-5-hepten-2-one.
Figure 4. Heatmap with a dendrogram illustrating the groupings of the studied potato cultivars with different late blight resistance backgrounds (Table 1 for the studied cultivars) based on the quantities of the plant secondary metabolites (% relative to the total VOCs) emitted from the leaves. The colors indicate relative amounts of the compounds. Blue and red represent the lowest and highest levels, respectively. FAD: long-chained saturated-fatty-acid-derived compounds; LOX: classic green leaf volatiles; geranylgeranyl diphosphate (GGDP): 6-methyl-5-hepten-2-one.
Plants 12 02100 g004
Plants 12 02100 g005 550

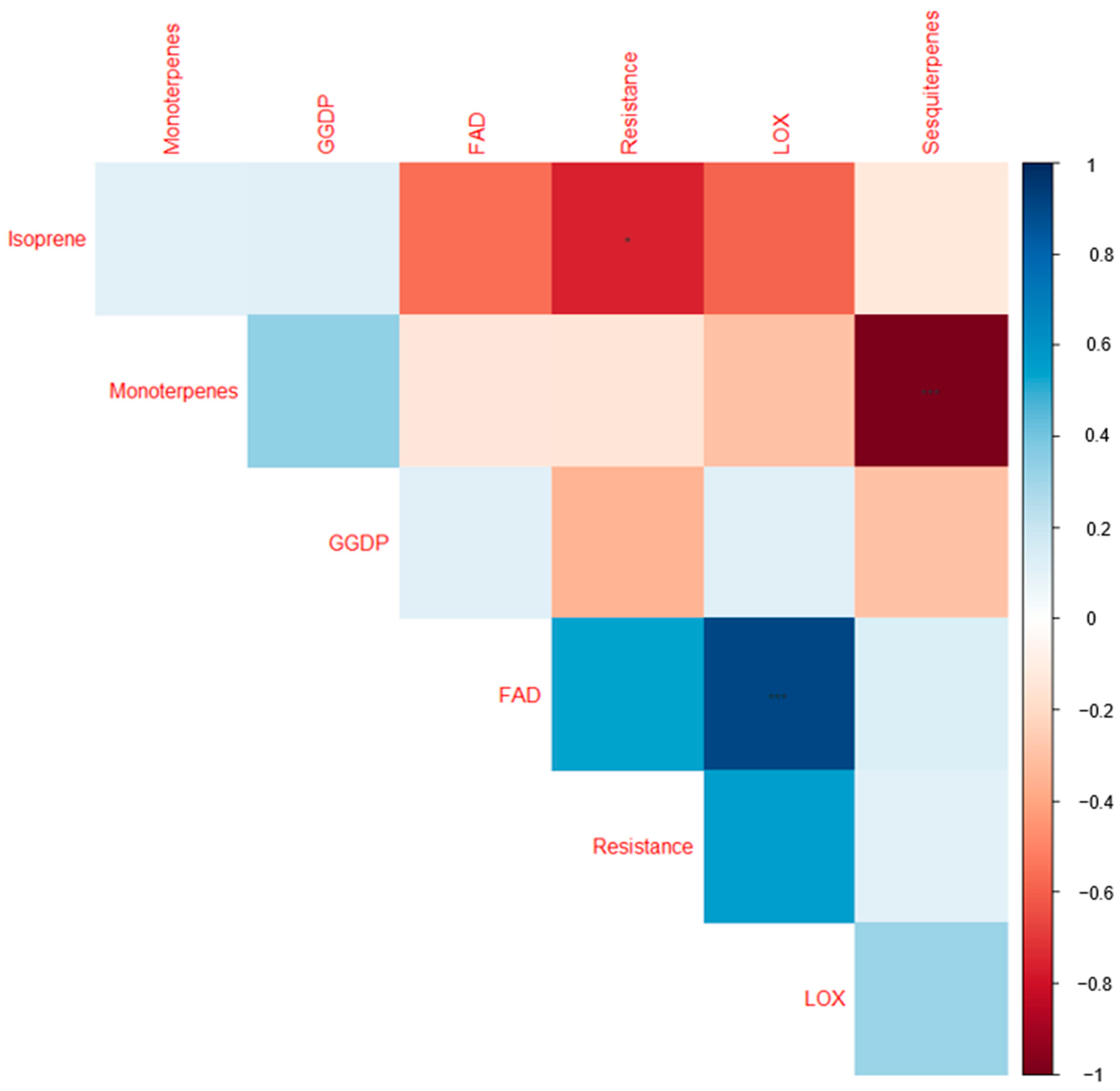

Figure 5. Correlogram visualizing the correlations between the share of secondary metabolites (% relative to the total VOCs) and cultivar resistance. The colors are proportional to the correlation coefficients. The positive and negative correlations are indicated by blue and red, respectively. A greater correlation coefficient is reflected by a color of higher intensity. * = significant at 0.05; *** = significant at 0.001. FAD: long-chained saturated-fatty-acid-derived compounds; LOX: classic green leaf volatiles; geranylgeranyl diphosphate (GGDP): 6-methyl-5-hepten-2-one.
Figure 5. Correlogram visualizing the correlations between the share of secondary metabolites (% relative to the total VOCs) and cultivar resistance. The colors are proportional to the correlation coefficients. The positive and negative correlations are indicated by blue and red, respectively. A greater correlation coefficient is reflected by a color of higher intensity. * = significant at 0.05; *** = significant at 0.001. FAD: long-chained saturated-fatty-acid-derived compounds; LOX: classic green leaf volatiles; geranylgeranyl diphosphate (GGDP): 6-methyl-5-hepten-2-one.
Plants 12 02100 g005
Table
Table 1. List of potato cultivars studied, cultivar maturity, foliar resistance to the late blight pathogen, leaf dry mass per unit area, and total emission rate per unit dry mass.
Table 1. List of potato cultivars studied, cultivar maturity, foliar resistance to the late blight pathogen, leaf dry mass per unit area, and total emission rate per unit dry mass.
Cultivar *MaturityFoliar Resistance to Late Blight (P. infestans)Leaf Dry Mass Per Unit Area (g m−2) #Total Emission Rate Per Unit Dry Mass (pmol g−1 s−1)
Alouettemedium920.7 ± 0.3112.9 ± 75.3
Sarmelate819.2 ± 1.991.4 ± 24.9
Kuraslate824.4 ± 4.688.3 ± 31.2
Andolate720.3 ± 0.493.9 ± 42.4
Antilate718.1 ± 2.3121.2 ± 54.6
Jõgeva kollanelate522.6 ± 1.176.6 ± 15.3
Teelemedium518.4 ± 1.849 ± 2.7
1681-11medium422.0 ± 0.455.2 ± 25.4
Reetmedium420.3 ± 0.766.7 ± 17.2
p-value––0.2840.675
* 1681-11 is a promising breeding line for organic farming. The resistance to Phytophthora infestans is a rank value defined as 1—very low, 2—very low to low, 3—low, 4—low to medium, 5—medium, 6—medium to high, 7—high, 8—high to very high, and 9—very high (European Cultivated Potato Database https://www.europotato.org/; accessed on 5 May 2022), and the breeder information is from the Centre of Estonian Rural Research and Knowledge (METK). p-value: Significance of variation among the cultivars. # The leaf dry mass per unit area was estimated for three replicate leaves. Data are given as the averages ± SE. The average dry mass per unit area was 20.5 ± 0.6 g m−2, and there were no significant differences among the cultivars (p > 0.05).
Table
Table 2. Mean (±SE, n = 3) emission rates (pmol m−2s−1) of volatile organic compounds (VOCs) among the nine potato cultivars with different late blight resistance backgrounds.
Table 2. Mean (±SE, n = 3) emission rates (pmol m−2s−1) of volatile organic compounds (VOCs) among the nine potato cultivars with different late blight resistance backgrounds.
CompoundsCultivar
Lipoxygenase Pathways (LOX) Volatiles1681-11ReetAntiAndoSarmeKurasAlouetteJõgeva KollaneTeelep-Value
11-hexanol1.7 ± 0.51.8 ± 0.43.1 ± 1.01.7 ± 0.52.2 ± 1.72.6 ± 0.54.3 ± 0.82.2 ± 0.91.0 ± 1.00.366
2hexanal17.5 ± 5.619.5 ± 5.238.9 ± 22.917.2 ± 4.733.2 ± 19.627.8 ± 10.448.9 ± 16.026.1 ± 7.68.6 ± 8.60.429
Total LOX compounds19.2 ± 6.121.3 ± 5.642.0 ± 24.018.9 ± 5.135.4 ± 21.330.4 ± 11.053.2 ± 16.728.3 ± 8.29.6 ± 7.50.422
Long-chained saturated-fatty-acid-derived (FAD) compounds
3decanal2.6 ± 1.02.4 ± 1.24.1 ± 4.42.0 ± 0.26.1 ± 1.83.4 ± 0.88.5 ± 1.02.3 ± 1.91.1 ± 1.00.281
4heptanal2.4 ± 0.72.0 ± 0.53.8 ± 1.72.2 ± 1.14.8 ± 0.42.9 ± 0.65.2 ± 0.52.4 ± 0.91.1 ± 1.20.137
5nonanal8.1 ± 3.15.0 ± 2.110 ± 6.13.6 ± 0.311.1 ± 3.17.8 ± 2.516.5 ± 2.75.3 ± 5.72.5 ± 2.10.415
6octanal3.9 ± 1.13.0 ± 0.85.9 ± 2.63.2 ± 0.96.4 ± 1.55.0 ± 1.68.9 ± 1.03.9 ± 1.82.1 ± 2.30.232
Total FAD compounds 17 ± 5.412.4 ± 4.623.8 ± 14.811.0 ± 2.428.4 ± 6.319.1 ± 5.439.1 ± 5.013.9 ± 10.36.8 ± 5.50.292
7Isoprene32.8 ± 1.822.7 ± 7.546.7 ± 25.037.2 ± 15.221.8 ± 4.921.8 ± 6.916.8 ± 1.232.9 ± 5.620.5 ± 3.30.268
Monoterpenes
8camphene16.4 ± 2.510.4 ± 1.018.9 ± 7.019.5 ± 8.112.9 ± 7.226.7 ± 9.817.4 ± 5.119.6 ± 7.313.4 ± 0.80.578
9camphor2.3 ± 1.11.4 ± 0.42.8 ± 1.41.8 ± 0.21.1 ± 1.31.3 ± 1.32.1 ± 0.81.6 ± 0.61.0 ± 0.30.385
10eucalyptol1.3 ± 0.91.0 ± 0.21.3 ± 0.41.0 ± 0.31.5 ± 0.71.3 ± 0.51.3 ± 0.31.3 ± 0.12.1 ± 0.70.861
11limonene94.3 ± 18.252.3 ± 3.0112.9 ± 44.198.4 ± 38.070.6 ± 65.7142.8 ± 59.5123.9 ± 40.8116.4 ± 15.163.9 ± 13.80.662
12p-cymene29.9 ± 4.516.7 ± 0.634.6 ± 11.633.2 ± 26.826.8 ± 20.045.4 ± 17.033.9 ± 12.036.7 ± 9.624.9 ± 2.10.693
13tricyclene3.3 ± 0.512 ± 11.414.2 ± 5.129.1 ± 21.92.5 ± 1.022.9 ± 12.44.2 ± 1.37.6 ± 2.33.2 ± 0.10.005
14α-fenchene5.7 ± 0.82.8 ± 0.26.4 ± 1.75.7 ± 2.35.0 ± 2.68.5 ± 2.76.0 ± 2.07.7 ± 1.04.2 ± 0.20.387
15α-pinene677.6 ± 119.7382.4 ± 2.5771 ± 270.6625.3 ± 232.7572.1 ± 344.1982.5 ± 357.8807.6 ± 295.8757.4 ± 133.9495.1 ± 24.50.620
16α-terpinenend1.9 ± 0.3ndndndndndndnd0.001
17α-thujene1.7 ± 0.31.0 ± 0.11.9 ± 0.71.4 ± 0.61.5 ± 1.02.0 ± 0.82.1 ± 0.81.7 ± 0.21.0 ± 0.10.576
18β-myrcene6.8 ± 2.110.0 ± 6.413.2 ± 6.521.2 ± 15.27.6 ± 5.211.1 ± 6.611.8 ± 5.87.5 ± 0.13.8 ± 1.10.303
19β-phellandrene6.8 ± 2.03.6 ± 0.27.1 ± 4.56.8 ± 3.35.1 ± 5.59.5 ± 5.79.9 ± 4.16.5 ± 0.84.2 ± 1.00.778
20β-pinene77.3 ± 17.343.4 ± 3.896.1 ± 234.967.9 ± 27.664.4 ± 49.2107.7 ± 43.097.4 ± 36.579.2 ± 4.546.5 ± 9.50.639
21Δ3-carene221.2 ± 46.6126.6 ± 3.4261.6 ± 100.6208.9 ± 74.3178.8 ± 139.0317.8 ± 135.8283.7 ± 108.6247.6 ± 35.7140.6 ± 24.30.664
Total monoterpenes1144.6 ± 215.4665.5 ± 22.81342 ± 485.81120.2 ± 433.0949.9 ± 639.21679.5 ± 650.71401.3 ± 512.61290.8 ± 207.0803.9 ± 75.10.465
Sesquiterpenes
22(E)-β caryophyllene6.8 ± 4.3242.6 ± 177.753.5 ± 53.0111.4 ± 76.633.6 ± 33.250.2 ± 46.743.0 ± 35.926.7 ± 6.81.0 ± 1.00.000
23(E)-β -farnesene2.2 ± 0.912.5 ± 7.311.0 ± 10.444.0 ± 34.763.0 ± 17.411.0 ± 7.45.1 ± 1.74.8 ± 0.8nd0.016
24longifolene2.6 ± 1.91.9 ± 0.63.1 ± 1.81.7 ± 1.11.9 ± 1.33.2 ± 1.12.1 ± 0.51.9 ± 0.51.3 ± 0.80.737
25thujopsenendndndnd13.1 ± 4.4ndndndnd0.029
26valencenend3.4 ± 1.24.7 ± 1.0ndndndndndnd0.001
27α -bergamotenend15.4 ± 5.265.0 ± 21.728.1 ± 23.932.7 ± 12.47.7 ± 7.754.4 ± 42.16.1 ± 1.5nd0.029
28α- caryophyllenendndndndnd10.4 ± 3.5ndndnd0.000
29α-copaene 3.9 ± 1.010.6 ± 3.968.6 ± 47.918.8 ± 14.519.6 ± 6.515.9 ± 4.65.9 ± 1.120.8 ± 6.91 ± 10.026
30α-cubebenend5.0 ± 3.56.0 ± 2.73.5 ± 2.811.6 ± 2.54.2 ± 1.61.1 ± 0.94.5 ± 1.8nd0.018
31α-gurjunenend11.7 ± 8.58.6 ± 2.619.8 ± 12.1ndnd15.2 ± 6.714.5 ± 4.8nd0.010
32α-himachalene1.8 ± 1.83.9 ± 2.118.4 ± 6.19.6 ± 7.111.4 ± 7.54.4 ± 0.83.2 ± 3.3ndnd0.030
33α-humulenend9.0 ± 6.51.9 ± 1.52.3 ± 2.31.0 ± 1.03.0 ± 1.032.0 ± 28.61.0 ± 0.2nd0.005
34α-muurolenendnd5.6 ± 2.9ndndndnd3.8 ± 1.0nd0.001
35α-ylangenend10.0 ± 3.3ndnd13.6 ± 3.7ndndndnd0.007
36β-bergamotenendnd13.2 ± 6.1ndndndndndnd0.001
37β-bourbonenend58.3 ± 43.3108.2 ± 103.051.4 ± 52.7116.8 ± 67.625.9 ± 23.931.2 ± 26.934.2 ± 6.61.0 ± 1.00.032
38β-cedrenendnd30.9 ± 7.2nd30.0 ± 16.713.9 ± 4.6ndndnd0.003
39β-elemene1.2 ± 1.017.2 ± 10.512.0 ± 11.818.9 ± 16.326.3 ± 4.73.4 ± 2.430.2 ± 25.33.7 ± 1.4nd0.014
40β-gurjunenend2.5 ± 1.7nd6.0 ± 1.0ndndnd8.9 ± 3.0nd0.008
41β-santalenend5.0 ± 2.16.2 ± 2.213.0 ± 8.913.7 ± 4.6ndnd7.9 ± 1.6nd0.011
42γ-cadinenend5 ± 14 ± 1ndndndndndnd0.090
43γ-muurolenendnd10.2 ± 2.312.9 ± 9.5nd4.9 ± 2.03.8 ± 3.72.2 ± 0.4nd0.014
44δ-cadinenend10.2 ± 0.7ndndndndndndnd0.007
Total sesquiterpenes18.5 ± 6.3424.2 ± 268.7431.1 ± 229.0341.4 ± 258.2388.3 ± 155.7158.1 ± 103.8227.2 ± 186.7141 ± 26.84.3 ± 1.60.000
Total terpenoids1195.9 ± 220.51112.4 ± 289.01819.8 ± 722.91498.8 ± 701.01360 ± 506.91859.4 ± 752.51645.3 ± 698.11464.7 ± 232.5828.7 ± 73.10.713
Geranylgeranyl diphosphate (GGDP) pathway products
456-methyl-5-hepten-2-one5.7 ± 3.14.8 ± 1.06.8 ± 5.44.7 ± 1.87.7 ± 6.06.9 ± 1.78.1 ± 3.210.2 ± 1.14.7 ± 0.40.823
Short-chained oxygenated volatiles (OVOC)
46acetaldehydendndnd107.9 ± 36.0ndnd46.7 ± 15.6nd38.6 ± 2.80.000
Total VOCs1237.8 ± 233.11150.9 ± 295.21892.4 ± 765.31641.3 ± 737.71431.5 ± 537.81915.8 ± 764.81792.4 ± 731.71517.1 ± 213.4888.4 ± 97.60.721
nd: non-detected (equated to zero in the Kruskal–Wallis test). p-value (considered significant at p < 0.05).
Table
Table 3. Principal component analysis (PCA) based on the volatile organic compound emissions of nine potato cultivars with different late blight resistance: individual component loadings and percentage of total variation explained by PCA axes, followed by a heatmap scale of PCA loadings; the areas highlighted in green represent positive loadings and those in red represent negative loadings.
Table 3. Principal component analysis (PCA) based on the volatile organic compound emissions of nine potato cultivars with different late blight resistance: individual component loadings and percentage of total variation explained by PCA axes, followed by a heatmap scale of PCA loadings; the areas highlighted in green represent positive loadings and those in red represent negative loadings.
PC1PC2PC3PC4
Eigenvalues10.718.967.115.98
% variation23.2719.4715.4713
commulative%23.2742.7458.2171.21
Loading
Lipoxygenase pathways (LOX) volatiles
11-hexanol0.4230950.8739320.183125−0.02479
2hexanal0.3251180.8897220.2461820.148981
Long-chained saturated fatty acid-derived (FAD) compounds
3decanal0.1169490.964819−0.068450.19238
4heptanal0.193790.8959350.1017920.36117
5nonanal0.2078710.9421180.0653610.066343
6octanal0.2839180.9355510.0626050.152954
7Isoprene0.140161−0.275860.8194930.014697
Monoterpenes
8camphene0.961397−0.080330.037266−0.08403
9camphor0.1544660.394250.672138−0.3839
10eucalyptol−0.18351−0.19783−0.08726−0.02872
11limonene0.9147020.2667270.091243−0.18888
12p-cymene0.9460210.0613770.04605−0.0309
13tricyclene0.467093−0.319730.1023380.121303
14α-fenchene0.936410.022690.062651−0.01463
15α-pinene0.9378040.2553740.076056−0.10775
16α-terpinene−0.44437−0.08688−0.04666−0.03485
17α-thujene0.7807680.4971050.178233−0.03042
18β-myrcene0.2395720.1321580.1953930.12115
19β-phellandrene0.7854540.513017−0.05613−0.23451
20β-pinene0.8663420.4164210.21344−0.09975
21Δ3-carene0.9036930.3597930.119169−0.13791
Sesquiterpenes
22(E)-β caryophyllene−0.29777−0.048120.0120090.090055
23(E)-β-farnesene−0.156990.083463−0.117480.89168
24longifolene0.7217810.0935350.431241−0.06346
25thujopsene−0.223490.222433−0.163370.866308
26valencene−0.197770.0455870.797613−0.00057
27α-bergamotene0.0001580.730730.5557910.18202
28α-caryophyllene0.806852−0.18564−0.269370.077299
29α-copaene 0.2291220.072330.9164470.283393
30α-cubebene0.0038610.1305980.1916920.94465
31α-gurjunene−0.068960.2521430.115276−0.16672
32α-himachalene0.0447490.2110.7105160.537144
33α-humulene−0.028240.850289−0.24035−0.35799
34α-muurolene0.211352−0.011580.8541130.000106
35α-ylangene−0.47280.135766−0.169610.720814
36β-bergamotene0.0989330.117820.9669030.025226
37β-bourbonene−0.116450.3016940.5157120.77391
38β-cedrene0.1893650.1929380.5291190.695526
39β-elemene−0.259460.77921−0.093610.393419
40β-gurjunene0.057422−0.33093−0.046960.033654
41β-santalene−0.20411−0.069070.1543520.785958
42γ-cadinene−0.269910.0200380.678889−0.00825
43γ-muurolene0.3529840.017010.4622270.049684
44δ-cadinene−0.44437−0.08688−0.04666−0.03485
GGDP pathway products
456-methyl-5-hepten-2-one0.4401360.4107750.0218370.175131
Short-chained oxygenated volatiles (OVOC)
46acetaldehyde−0.162190.008224−0.22616−0.13996
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Agho, C.A.; Runno-Paurson, E.; Tähtjärv, T.; Kaurilind, E.; Niinemets, Ü. Variation in Leaf Volatile Emissions in Potato (Solanum tuberosum) Cultivars with Different Late Blight Resistance. Plants 2023, 12, 2100. https://doi.org/10.3390/plants12112100

AMA Style

Agho CA, Runno-Paurson E, Tähtjärv T, Kaurilind E, Niinemets Ü. Variation in Leaf Volatile Emissions in Potato (Solanum tuberosum) Cultivars with Different Late Blight Resistance. Plants. 2023; 12(11):2100. https://doi.org/10.3390/plants12112100

Chicago/Turabian Style

Agho, C. A., E. Runno-Paurson, T. Tähtjärv, E. Kaurilind, and Ü. Niinemets. 2023. "Variation in Leaf Volatile Emissions in Potato (Solanum tuberosum) Cultivars with Different Late Blight Resistance" Plants 12, no. 11: 2100. https://doi.org/10.3390/plants12112100

APA Style

Agho, C. A., Runno-Paurson, E., Tähtjärv, T., Kaurilind, E., & Niinemets, Ü. (2023). Variation in Leaf Volatile Emissions in Potato (Solanum tuberosum) Cultivars with Different Late Blight Resistance. Plants, 12(11), 2100. https://doi.org/10.3390/plants12112100

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
