Article

The Chloroplast Phylogenomics and Systematics of Zoysia (Poaceae)

Division of Life Sciences, Korea University, Seoul 02841, Korea
*
Author to whom correspondence should be addressed.
Plants 2021, 10(8), 1517; https://doi.org/10.3390/plants10081517
Submission received: 8 June 2021 / Revised: 13 July 2021 / Accepted: 22 July 2021 / Published: 24 July 2021
(This article belongs to the Special Issue Plant Evolution, Systematics, and Chloroplast Genome)

Abstract

:
The genus Zoysia Willd. (Chloridoideae) is widely distributed from the temperate regions of Northeast Asia—including China, Japan, and Korea—to the tropical regions of Southeast Asia. Among these, four species—Zoysia japonica Steud., Zoysia sinica Hance, Zoysia tenuifolia Thiele, and Zoysia macrostachya Franch. & Sav.—are naturally distributed in the Korean Peninsula. In this study, we report the complete plastome sequences of these Korean Zoysia species (NCBI acc. nos. MF953592, MF967579~MF967581). The length of Zoysia plastomes ranges from 135,854 to 135,904 bp, and the plastomes have a typical quadripartite structure, which consists of a pair of inverted repeat regions (20,962~20,966 bp) separated by a large (81,348~81,392 bp) and a small (12,582~12,586 bp) single-copy region. In terms of gene order and structure, Zoysia plastomes are similar to the typical plastomes of Poaceae. The plastomes encode 110 genes, of which 76 are protein-coding genes, 30 are tRNA genes, and four are rRNA genes. Fourteen genes contain single introns and one gene has two introns. Three evolutionary hotspot spacer regions—atpB~rbcL, rps16~rps3, and rpl32~trnL-UAG—were recognized among six analyzed Zoysia species. The high divergences in the atpB~rbcL spacer and rpl16~rpl3 region are primarily due to the differences in base substitutions and indels. In contrast, the high divergence between rpl32~trnL-UAG spacers is due to a small inversion with a pair of 22 bp stem and an 11 bp loop. Simple sequence repeats (SSRs) were identified in 59 different locations in Z. japonica, 63 in Z. sinica, 62 in Z. macrostachya, and 63 in Z. tenuifolia plastomes. Phylogenetic analysis showed that the Zoysia (Zoysiinae) forms a monophyletic group, which is sister to Sporobolus (Sporobolinae), with 100% bootstrap support. Within the Zoysia clade, the relationship of (Z. sinica, Z japonica), (Z. tenuifolia, Z. matrella), (Z. macrostachya, Z. macrantha) was suggested.

1. Introduction

The plant family Poaceae (grasses) consists of 768 genera and 12,074 species [1]. It is a major source of staple foods, making it the most important flowering plant family. Numerous commercial crops are developed from wild species of grasses, such as wheat (Triticum aestivum), rice (Oryza sativa), maize (Zea mays), barley, millet, oats, ryes, etc. In addition to food crops, numerous ornamental and foraging grasses are also cultivated worldwide. Grasses are dominant in agricultural landscapes and in many natural ecosystems around the world [2,3,4,5].
The old classification system of Poaceae recognized two subfamilies: Festucoideae and Panicoideae [6]. However, molecular systematic studies over the last three decades have radically changed its infrafamilial classification system. The current phylogenetic classification system of Poaceae recognizes 12 monophyletic subfamilies and 51 tribes [7,8,9].
The Grass Phylogeny Working Group determined the phylogeny of Poaceae using three chloroplast and three nuclear marker genes. The results revealed that Poaceae is composed of two major clades, one containing the three subfamilies Bambusoideae, Oryzoideae, and Pooideae (BOP clade), and the other containing the six subfamilies Panicoideae, Arundinoideae, Chloridoideae, Micrairoideae, Aristidoideae, and Danthonioideae (PACMAD clade) [2,3,5,10]. The relationships were later clarified to recognize three basal subfamilies—Anomochlooideae, Pharoideae, and Puelioideae [3,9].
The genus Zoysia Willd. belongs to the tribe Zoysieae of subfamily Chloridoideae. Subfamilies Chloridoideae and Danthonioideae within the PACMAD clade were found to be a sister group. The subfamily Chloridoideae comprises more than 1,420 species in approximately 140 genera [4,11] and is further classified into five tribes: Centropodieae, Triraphideae, Eragrostideae, Zoysieae, and Cynodonteae [3]. The tribe Zoysieae is sister to tribe Cynodonteae within the subfamily Chloridoideae. The tribe Zoysieae is further divided into two subtribes, Zoysiinae and Sporobolinae [3,12], the former of which is represented by two genera: Zoysia and Urochondra C.E. Hubb [3].
The genus Zoysia consists of 15–18 species, some of which are widely used to create lawns in temperate climates because they can tolerate wide variations in temperature, humidity, salinity, and sunlight [13]. They are also very popular in golf courses, public lawns, burial grounds, and open slopes of mountains owing to their tendency to form dense mats and notably strong tolerances to disease and drought [14]. Several Zoysia cultivars have previously been developed through hybridization and selection, and are available commercially as sod or strip. Two popular species—Z. japonica and Z. tenuifolia—are commonly known as Korean lawn grass, Japanese lawn grass, or oriental lawn grass. Species of Zoysia are widely distributed from the temperate regions of Northeast Asia—including Korea, Japan, and China—to the tropical regions of Southeast Asia. Among these, four species—Z. japonica Steud., Z. sinica Hance, Z. tenuifolia Thiele, and Z. macrostachya Franch. & Sav.—are naturally distributed in the Korean Peninsula [14].
This study determined the plastome sequences and genome structures of the aforementioned Korean Zoysia species, two of which—Z. japonica and Z. tenuifolia—are used commercially as Zoysia grasses, and Z. sinica and Z. macrostachya are known to be salt-tolerant species [13,14]. Comparative analysis was performed on these four Zoysia species and two others, i.e., Z. matrella [15] and Z. macrantha, for which plastome sequences were previously published. Additionally, phylogenetic analysis using complete gene sequences was performed to establish the relationships between Zoysia (Zoysiinae) and other lineages of Poaceae. This study provides genetic information on a useful horticultural plant and will contribute to our understanding of plastome evolution and phylogenetic relationships within the PACMAD clade.

2. Results

2.1. Chloroplast Genome Structure

NGS sequencing of Z. tenuifolia generated 5,385,995 total reads with an average read length of 257.3 bp. A total of 172,448 plastid reads was collected and used for plastid contig assembly. A single plastid contig covering 100% of the plastome was recovered. The complete plastomes of Zoysia species were 135,854~135,904 bp long, with an LSC region (81,348~81,392 bp), an SSC region (12,582~12,586 bp), and two IR regions (20,962~20,966 bp). The overall AT base content of the sequences was 61.6% in all four species (Table 1).
The plastomes encoded 110 unique genes (76 protein-coding genes, 30 tRNA genes, 4 rRNA genes). Fourteen genes contained single introns and one (ycf3) had two introns (Figure 1 and Table 2). Unlike in typical angiosperms, the accD, ycf1, and ycf2 genes and introns in the clpP and rpoC1 genes were absent.
The plastome maps of the four Zoysia species are shown in Figure 1. The structural organizations, gene and intron contents, gene order, and AT contents of the plastomes are similar to those of two published Zoysia plastomes (Z. matrella and Z. macrantha) and of typical poaceous plants such as Sporobolus maritima [17], O. sativa [18], and Z. mays [19]. Three plastome sequences from Chlorioideae (Sporobolus maritima, Cynodon dactylon, and Eragrostis minor) and one plastome sequence from Danthonioideae (Danthonia calyfornica) were selected, and detailed comparisons of their IR/SC boundaries are presented in Figure 2. Only minor length variations were observed because all species are phylogenetically closely related to each other. The ndhF pseudogene at the IR/SSC boundary ranged from 19 to 29 bp long. In addition, the ndhH gene and the ndhF pseudogene overlapped by 1 bp in the plastomes of Zoysia and Sporobolus. The IR/LSC boundary is located between rps19 and rpl22 in all species. The lengths from the IR/LSC boundary to the rps19 gene ranged from 35 to 59 bp, depending on the species.

2.2. Sequence Divergence in the Zoysia Chloroplast Genomes

The plastomes of five Zoysia species (Z. tenuifolia, Z. sinica, and Z. macrostachya from this study, and Z. matrella and Z. macrantha from published GenBank sequences) were plotted using the plastome of Z. japonica as a reference (Figure S1). The results showed that most of the sequences have high similarity and that the regions of low similarity between Z. japonica and the other Zoysia plastomes are mainly distributed in the spacer regions of SC regions. Within the LSC region, an intergenic spacer (IGS) between trnG-UCC and trnT-GGU, the rpoC2 gene, the IGS from atpB to rbcL, and the region from the intron of rpl16 to the rps3 gene showed notable differences. In the IR and SSC regions, the IGS from rpl32 to trnL-UAG also showed notable differences.
Six Zoysia plastomes (Z. japonica, Z. tenuifolia, Z. sinica, and Z. macrostachya from this study, and Z. matrella and Z. macrantha from published GenBank sequences) were subjected to sliding window analysis (Figure 3). Overall, the percentage of variable characters was observed to be less than 1%, although relatively high values were obtained in three areas. For example, the two parts of the LSC region, atpB~rbcL and rpl16~rpl3 areas, and one part of the SSC region, rpl32~trnL-UAG spacer. These three parts showed more than 2% sequence divergences among the six species. The high divergences in the atpB~rbcL spacer and rpl16~rpl3 region are primarily due to the differences in base substitutions and indels. In contrast, the high divergence between rpl32~trnL-UAG spacers is due to a small inversion (Figure 4).

2.3. Simple Sequence Repeats

Simple sequence repeats (SSRs), also known as microsatellites, which are made up of the same nucleotide sequence or sequence units repeating over a region greater than 10 bp, were analyzed. SSRs were identified in 59 different locations in Z. japonica, 63 in Z. sinica, 62 in Z. macrostachya, and 63 in Z. tenuifolia plastomes (Table 3). The major SSR types were homopolymers (Z. japonica (50/59), Z. sinica (54/63), Z. macrostachya (53/62), and Z. tenuifolia (54/63)), whereas there were eight dipolymers and one tripolymer in the four Zoysia species. Among the homopolymers, two were composed of G or C bases and the rest comprised multiple A or T bases. Dipolymers were composed of AT, GA, TA, or TC units, whereas the single tripolymer was AAT.

2.4. Phylogenetic Analysis

To estimate the phylogenetic relationships in Zoysia, an ML tree was constructed from 26 complete plastomes of the subfamily Chloridoideae and one outgroup. Danthonia californica of the subfamily Danthonioideae was selected as an outgroup because the two subfamilies are sister groups [20]. The aligned length of 76 protein-coding genes and 4 rRNA genes was 61,097 bp. The ML tree was constructed with an ML optimization likelihood value of −ln = −142,175.088555. The bootstrap support percentages and Bayesian posterior probability values were also given at all internal nodes (Figure 5). The tree recognized five tribes within the subfamily Chloridoideae: Centropodieae, Triraphideae, Eragrostideae, Zoysieae, and Cynodonteae. Two monophyletic subtribes—Zoysiinae and Sporobolinae—were identified in the tribe Zoysieae and formed a sister group. The monophyly of five tribes within the subfamily Chloridoideae, and two subtribes within the tribe Zoysieae were supported by 100 bootstrap percentages and 1.0 Bayesian posterior probability values. All six species of Zoysia formed an independent monophyletic group, as did all three species of Sporobolus. Within the genus Zoysia, three sister species pairs—Z. sinica—Z. japonica, Z. tenuifolia—Z. matrella, and Z. macrostachya—Z. macrantha—were supported by 96%, 96%, and 32% bootstrap support, respectively. The first two species pairs were monophyletic, with 94% bootstrap support. Therefore, the relationships were as follows: (Z. sinica, Z. japonica), (Z. tenuifolia, Z. matrella), (Z. macrostachya, Z. macrantha).

3. Discussion

The longest plastome in Zoysia—belonging to Z. macrostachya—is only 82 bp longer than the shortest, Z. matrella (Table 1). This small range of difference is due to sporadic indels at some IGS regions (Figure S1). With the exception of small size differences, there are no noticeable differences among the plastomes of Zoysia (Figure 1).
Unlike the genomes of typical angiosperms [21,22,23,24], those of Zoysia lack the genes accD, ycf1, and ycf2 and introns in the clpP and rpoC1 genes, which is a pattern observed in most grasses [25,26,27]. The loss of two introns in the clpP gene has been reported independently in different angiosperm families, including Poaceae [28,29,30], the IR-lacking clade of Leguminosae [31], Oleaceae (opposite-leaved Jasminum and Menodora) [32], and Onagraceae (Oenothera) [33].
Similar to the chloroplast genomes of other grasses, the IR regions in Zoysia species extend to the rps19 gene region (Figure 2). The IR regions of the Zoysia plastomes are also extended to duplicate a part of the 5′ end of the ndhF gene, a feature that is similar to other poaceous plastomes [19,34,35,36]. Our results indicate that this extension of the IR into the ndhF gene is characteristic of the PACMAD clade but not the BOP clade. In BOP clade species, such as those in the genera Oryza, Agrostis, Hordeum, and Bambusa, the IR is extended into a part of the ndhH gene, rather than the ndhF gene; this is a specific feature of BOP clade members [36,37,38]. Our results also show that Zoysia has all the same types of missense mutations and insertions in rpl16, rpl32, rpoC1 as Neyraudia [39].
It is well known that noncoding regions exhibit a higher level of sequence divergence than do coding regions, and in the present study, we detected relatively high sequence divergences within the noncoding regions of Zoysia plastomes (Figure 3). Three noncoding regions—the atpB~rbcL spacer, rps16 intron, and rpl21~trnL-UAG spacer—show more than 2% sequence differences, making them good candidates for plastome markers to differentiate Zoysia species. As described above, the atpB~rbcL spacer and rps16 intron/spacer regions have high divergences due to the indels and base substitutions, while the high divergence of the rpl21~trnL-UAG spacer region is primarily due to a small inversion (Figure 4). A small inversion between the 22 bp stem region generated 11 bp differences in the loop region. The orientation of this loop region in three species of Zoysia (Z. japonica, Z. sinica, and Z. macrostachya) is different from that of three other species (Z. tenuifolia, Z. matrella, and Z. macrantha). This kind of small inversion is also reported in Poaceae and other flowering plant families [24,35,40].
In addition to the genome research described earlier [15,39], there have been some systematic studies of Zoysia using molecular-based markers, such as restriction fragment length polymorphisms (RFLP) [41] and simple sequence repeats (SSR) [42,43]. In the present study, we conducted maximum likelihood analysis based on 76 protein-coding genes and 4 rRNAs using the complete chloroplast genomes and revealed that five tribes—Centropodieae, Triraphideae, Eragrostideae, Zoysieae, and Cynodonteae—are monophyletic groups in the subfamily Chloridoideae. In addition, the tribes Cynodonteae and Zoysieae are sister groups. These relationships are consistent with those established in previous studies [3,11,12,44,45]. Our tree indicates that the subtribe Sporobolinae is sister to the subtribe Zoysiinae (Figure 5). This relationship is also supported by other studies, even though the previous studies only used one representative species of Zoysia [44]. We used the six Zoysia species to construct the tree, but the same tree topology was generated regarding the sister group relationship of two subtribes. The subtribe Zoysiinae consists of two genera, Zoysia and Urochondria [3], but plastome sequences are not available from Urochondria. The monophyly of genus Zoysia was supported by 100% bootstrap support and 1.00 Bayesian posterior probability (BP). The three species pairs—Z. macrostachya–Z. macrantha, Z. tenuifolia–Z. matrella, and Z. japonica–Z. sinica—are all sister in our ML tree, with 32% (0.43 BP), 96% (1.00 BP), and 96% (1.00 BP) bootstrap support, respectively. In addition, the monophyly of the Z. tenuifolia–Z. matrella and Z. japonica–Z. sinica pairs is also supported by 94% (1.00 BP) bootstrap support. These results are different from those of a previous systematic study [43], in which Z. matrella and Z. japonica form a monophyly with 68.2% support, and Z. tenuifolia is sister to this clade with 100% support. Accordingly, we will need to analyze more complete plastomes to resolve these differences. Whole-genome sequences will provide more convincing evidence for the relationships among the species of Zoysia that show low levels of plastome sequence divergence.

4. Materials and Methods

4.1. Plant Materials, DNA Extraction, and Sequencing

The leaves of Zoysia tenuifolia were collected from a greenhouse at the Korea University, where the authors grow plants originally collected from natural habitats in Korea. The leaves of Z. japonica, Z. sinica, and Z. macrostachya were collected directly from plants growing in natural habitats in Korea. Voucher specimens of each species were deposited in the Korea University Herbarium (Z. tenuifolia: KUS2017-0002, Z. japonica: KUS2013-0161, Z. sinica: KUS2010-1956, and Z. macrostachya: KUS2013-0307). Fresh leaves were ground into powder in liquid nitrogen, and total genomic DNAs were extracted using the CTAB method [46]. The DNA was purified using CsCl/EtBr gradient ultra-centrifugation [47], then further purified by dialysis [48]. The genomic and chloroplast DNAs were deposited into the Plant DNA Bank in Korea (PDBK) under the accession numbers PDBK2017-0002, PDBK2013-0161, PDBK2010-1956, and PDBK2013-0307.
Approximately 100 ng of Z. tenuifolia DNA was used for NGS sequencing using an Ion Torrent PGM™ sequencer (Thermo Fisher Scientific, Waltham, MA, USA). The library was fabricated as pair ends through an Ion Plus fragment library kit (Thermo Fisher Scientific, Waltham, MA, USA). The target library size was 300 base reads, and fragmentation was performed using a Bioruptor® UCD-600 NGS Sonication system (Diagenode, Denville, NJ, USA). The library size selection was performed using E-gel® size select™ 2% Agarose gel (Thermo Fisher), and Bioanalyzer® instrument analysis; 2100 Bioanalyzer (Agilent Technologies Inc., Santa Clara, CA, USA) was used for library normalization/quantification. Ion PGM™ Sequencing 400 Kit and Ion 318™ Chip v2 (Thermo Fisher Scientific) were used for sequencing. The raw sequenced NGS data were uploaded to the National Center for Biotechnology Information (NCBI) Sequence Read Archive (SRA; acc. No. PRJNA548200).
NGS sequencing was performed on Z. tenuifolia and PCR sequencing was performed on the other three—Z. japonica, Z. sinica, and Z. macrostachya. Purified total DNAs of Z. japonica, Z. sinica, and Z. macrostachya were amplified using a series of primer sets developed from the Z. tenuifolia, Z. matrella, and Panicum virgatum [49] plastomes. The primers used to sequence the three Zoysia species are listed in Tables S2–S4. Continuous sequencing was performed on PCR products using primer walking for whole-plastome sequencing [50]. The PCR products were purified using a MEGAquick-spin Total Fragment DNA purification Kit (iNtRON Biotechnology, Seongnam, Korea), and the cleaned products were sequenced in both directions using an ABI 3730xl DNA analyzer (Thermo Fisher Scientific, Waltham, MA, USA).

4.2. Chloroplast Genome Assembly and Annotation

All of the generated raw reads were trimmed using a basic application in Geneious version 8.1.9 [51] with an error probability limit = 0.05. We assembled the trimmed raw reads with Z. matrella as the reference. After mapping the reads to the plastome of Z. matrella, low-coverage regions were removed. Trimmed reads were then mapped again to the obtained contigs to form longer contigs. After removing the low-coverage regions again, the contigs with overlapping regions were merged to create larger contigs. This process was repeated for the entire plastome sequence.
Initial annotations of the four chloroplast genomes were generated by DOGMA [52]. To complement the out-of-date DOGMA database, these annotations were manually edited by comparing them to published Poaceae chloroplast genomes (Table S1) using BLAST. When a discrepancy was found, the annotation was confirmed using the ORF finder program from the National Center for Biotechnology Information (NCBI) and tRNAscan-SE 2.0 [53] for the corresponding parts. Circular chloroplast genome maps were generated using OrganellarGenomeDraw [54].

4.3. Sequence Analysis

Two previously published Zoysia plastome sequences—Z. matrella (GenBank Acc. No.: AP014937) and Z. macrantha (GenBank acc. No. KT168390)—were included in our sequence comparison analysis. To plot sequence divergence among the Zoysia chloroplast genomes, we used mVISTA [55] with default parameter settings. The plastome sequences were aligned using MAFFT [56] and sliding window analysis was performed using DnaSP v6 [57] on the aligned sequence. The window length was set to 300 bp, with a 100 bp step size. Simple sequence repeats (SSRs) were analyzed using the Phobos tandem repeat tool [58] in Geneious v8.1.9 [51] with default parameters.

4.4. Phylogenetic Analysis

We constructed the phylogenetic tree using whole plastid sequences from all available plastome sequences of subfamily Chloridoideae and a member of subfamily Danthenoideae, Danthonia californica. A total of 27 complete chloroplast genomes were used for phylogeny construction (Table S1). The 76 protein-coding gene and four rRNA gene sequences were extracted from each plastome and then aligned using MUSCLE v.3.8.425 [59] with default parameters. We selected the GTR base substitution model based on the Akaike Information Criterion (AIC) through the PAUP modeltest [60]. Maximum likelihood (ML) analysis was conducted using RAxML-HPC BlackBox v.8.2.10 [61] in CIPRES Science Gateway v3.3.3 [62]. Default parameters were used, and the ML bootstrap support values of each internal node were evaluated using 1000 replications. Bayesian posterior probability was conducted using MrBayes v3.2.6 [63] plugin tool in Geneious v8.1.9 [51]. The substitution model was GTR and the rate variation was set to equal. The MCMC chain length was 1,000,000 and the subsampling frequency was 100. The heated chain was set to 4, burn-in length to 2500, and heated chain temperature to 0.2.

5. Conclusions

In this study, we identified four new plastome sequences from species of Zoysia and described the evolutionary features of these genomes. There was no significant difference among these plastomes. In addition, we examined phylogenetic relationships using all the chloroplast genes of six Zoysia species. The genus Zoysia formed a monophyletic group and the tribe Zoysieae consisted of the subtribes Sporobolinae and Zoysiinae. However, analysis of a larger number of plastome sequences will be needed to more accurately determine the phylogenetic relationships among Zoysia species.

Supplementary Materials

Supplementary Materials can be found at https://www.mdpi.com/article/10.3390/plants10081517/s1. Figure S1: mVISTA identity plot comparing Zoysia plastomes. The Z. japonica plastome was used as a reference. The vertical scale indicates the percentage identity, ranging from 50% to 100%. White, blue, and pink regions indicate unmatched, coding, and noncoding regions, respectively, Table S1: The GenBank accession number used in this study, Table S2: The Primer list of sequencing of Zoysia japonica, Table S3: The Primer list of sequencing of Zoysia macrostachya, Table S4: The Primer list of sequencing of Zoysia sinica.

Author Contributions

Conceptualization, K.-J.K.; formal analysis, S.-H.C. and M.-A.W.; investigation, M.-A.W., S.J. and Y.-K.K.; resources, K.-J.K.; data curation, S.-H.C. and K.-J.K.; writing-original draft preparation, S.-H.C. and M.-A.W.; writing-review and editing, K.-J.K.; supervision, K.-J.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) under grant no. NRF-2021R1A2C1013731 and 2020 Korea University Research Fund to o K.-J.K.

Data Availability Statement

The chloroplast sequence data presented in this study are available in GenBank (NCBI acc. nos. MF953592, MF967579~MF967581). The raw sequenced NGS data were uploaded to the National Center for Biotechnology Information (NCBI) Sequence Read Archive (SRA; acc. No. PRJNA548200).

Acknowledgments

We would like to thank the curator of the Korea University Herbarium (KUS) for preparing the voucher specimen. The genomic and chloroplast DNAs are deposited in the Plant DNA Bank in Korea (PDBK). We also thank Noah Last for the English editing of the manuscript.

Conflicts of Interest

The authors declare no competing interests and are independently responsible for the content and writing of the paper.

Abbreviations

LSCLarge Single Copy
SSCSmall Single Copy
IRInverted Repeat
SSRSimple Sequence Repeat
MLMaximum Likelihood

References

  1. Soreng, R.; Davidse, G.; Peterson, P.; Zuloaga, F.; Judziewicz, E.; Filgueiras, T.; Morrone, O.; Romaschenko, K. A World-Wide Phylogenetic Classification of Poaceae (Gramineae). Available online: http://legacy.tropicos.org/projectwebportal.aspx?pagename=ClassificationNWG&projectid=10 (accessed on 20 September 2020).
  2. Clayton, W.D.; Renvoize, S.A. Genera graminum. Grasses of the world. Kew Bull. Addit. Ser. 1986, 13, 1–389. [Google Scholar]
  3. Soreng, R.J.; Peterson, P.M.; Romaschenko, K.; Davidse, G.; Zuloaga, F.O.; Judziewicz, E.J.; Filgueiras, T.S.; Davis, J.I.; Morrone, O. A worldwide phylogenetic classification of the Poaceae (Gramineae). J. Syst. Evol. 2015, 53, 117–137. [Google Scholar] [CrossRef]
  4. Watson, L.; Dallwitz, M.J. The Grass Genera of the World; CAB international: Wallingford, UK, 1992. [Google Scholar]
  5. Wu, Z.-Q.; Ge, S. The phylogeny of the BEP clade in grasses revisited: Evidence from the whole-genome sequences of chloroplasts. Mol. Phylogenet. Evol. 2012, 62, 573–578. [Google Scholar] [CrossRef]
  6. Brown, R. Gramineae. In A Voyage to Terra Australis; Flinders, M., Ed.; W. Bulmer & Company: London, UK, 1814; pp. 5583–5803. [Google Scholar]
  7. Bouchenak-Khelladi, Y.; Salamin, N.; Savolainen, V.; Forest, F.; van der Bank, M.; Chase, M.W.; Hodkinson, T.R. Large multi-gene phylogenetic trees of the grasses (Poaceae): Progress towards complete tribal and generic level sampling. Mol. Phylogenet. Evol. 2008, 47, 488–505. [Google Scholar] [CrossRef] [PubMed]
  8. Bouchenak-Khelladi, Y.; Muasya, A.M.; Linder, H.P. A revised evolutionary history of Poales: Origins and diversification. Bot. J. Linn. Soc. 2014, 175, 4–16. [Google Scholar] [CrossRef] [Green Version]
  9. Grass Phylogeny Working Group II. New grass phylogeny resolves deep evolutionary relationships and discovers C4 origins. New Phytol. 2012, 193, 304–312. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Grass Phylogeny Working Group; Barker, N.P.; Clark, L.G.; Davis, J.I.; Duvall, M.R.; Guala, G.F.; Hsiao, C.; Kellogg, E.A.; Linder, H.P.; Mason-Gamer, R.J. Phylogeny and subfamilial classification of the grasses (Poaceae). Ann. Mo. Bot. Gard. 2001, 88, 373–457. [Google Scholar]
  11. Peterson, P.M.; Romaschenko, K.; Johnson, G. A classification of the Chloridoideae (Poaceae) based on multi-gene phylogenetic trees. Mol. Phylogenet. Evol. 2010, 55, 580–598. [Google Scholar] [CrossRef]
  12. Peterson, P.M.; Romaschenko, K.; Arrieta, Y.H.; Saarela, J.M. A molecular phylogeny and new subgeneric classification of Sporobolus (Poaceae: Chloridoideae: Sporobolinae). Taxon 2014, 63, 1212–1243. [Google Scholar] [CrossRef] [Green Version]
  13. Casler, M.D. Turfgrass Biology, Genetics, and Breeding; John Wiley & Sons: Hoboken, NJ, USA, 2003. [Google Scholar]
  14. Lee, T.B. Coloured Flora of Korea; Hayangmunsa: Seoul, Korea, 2003. [Google Scholar]
  15. Tanaka, H.; Hirakawa, H.; Muguerza, M.; Hashiguchi, M.; Tabata, S.; Akashi, R.; Sato, S. The Complete Chloroplast Genome Sequence of Zoysia matrella (L.) Merr. Crop. Sci. 2016, 56, 1206–1212. [Google Scholar] [CrossRef]
  16. Hajek, T.J., III. Characterization of Microstructural Mutation Events in Plastomes of Chloridoid Grasses (Chloridoideae; Poaceae). Master’s Dissertation, Northern Illinois University, De Kalb, IL, USA, 2016. [Google Scholar]
  17. Rousseau-Gueutin, M.; Bellot, S.; Martin, G.E.; Boutte, J.; Chelaifa, H.; Lima, O.; Michon-Coudouel, S.; Naquin, D.; Salmon, A.; Ainouche, K.; et al. The chloroplast genome of the hexaploid Spartina maritima (Poaceae, Chloridoideae): Comparative analyses and molecular dating. Mol. Phylogenet. Evol. 2015, 93, 5–16. [Google Scholar] [CrossRef]
  18. Wambugu, P.W.; Brozynska, M.; Furtado, A.; Waters, D.L.; Henry, R.J. Relationships of wild and domesticated rices (Oryza AA genome species) based upon whole chloroplast genome sequences. Sci. Rep. 2015, 5, 13957. [Google Scholar] [CrossRef] [Green Version]
  19. Maier, R.M.; Neckermann, K.; Igloi, G.L.; Kössel, H. Complete sequence of the maize chloroplast genome: Gene content, hotspots of divergence and fine tuning of genetic information by transcript editing. J. Mol. Biol. 1995, 251, 614–628. [Google Scholar] [CrossRef]
  20. Cotton, J.L.; Wysocki, W.P.; Clark, L.G.; Kelchner, S.A.; Pires, J.C.; Edger, P.P.; Mayfield-Jones, D.; Duvall, M.R. Resolving deep relationships of PACMAD grasses: A phylogenomic approach. BMC Plant Biol. 2015, 15, 178. [Google Scholar] [CrossRef] [Green Version]
  21. Cheon, S.-H.; Jo, S.; Kim, H.-W.; Kim, Y.-K.; Sohn, J.-Y.; Kim, K.-J. The complete plastome sequence of Durian, Durio zibethinus L. (Malvaceae). Mitochondrial DNA B Resour. 2017, 2, 763–764. [Google Scholar] [CrossRef]
  22. Jo, S.; Kim, H.-W.; Kim, Y.-K.; Cheon, S.-H.; Kim, K.-J. Complete plastome sequence of Averrhoa carambola L. (Oxalidaceae). Mitochondrial DNA B Resour. 2016, 1, 609–611. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Kim, Y.-K.; Kwak, M.H.; Chung, M.G.; Kim, H.-W.; Jo, S.; Sohn, J.-Y.; Cheon, S.-H.; Kim, K.-J. The complete plastome sequence of the endangered orchid Oberonia japonica (Orchidaceae). Mitochondrial DNA B Resour. 2017, 2, 711–713. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Yi, D.-K.; Kim, K.-J. Complete chloroplast genome sequences of important oilseed crop Sesamum indicum L. PLoS ONE 2012, 7, e35872. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Guisinger, M.M.; Chumley, T.W.; Kuehl, J.V.; Boore, J.L.; Jansen, R.K. Implications of the plastid genome sequence of Typha (Typhaceae, Poales) for understanding genome evolution in Poaceae. J. Mol. Evol. 2010, 70, 149–166. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Harris, M.E.; Meyer, G.; Vandergon, T.; Vandergon, V.O. Loss of the acetyl-CoA carboxylase (accD) gene in Poales. Plant Mol. Biol. Report. 2013, 31, 21–31. [Google Scholar] [CrossRef]
  27. Wysocki, W.P.; Burke, S.V.; Swingley, W.D.; Duvall, M.R. The First Complete Plastid Genome from Joinvilleaceae (J. ascendens; Poales) Shows Unique and Unpredicted Rearrangements. PLoS ONE 2016, 11, e0163218. [Google Scholar]
  28. Hiratsuka, J.; Shimada, H.; Whittier, R.; Ishibashi, T.; Sakamoto, M.; Mori, M.; Kondo, C.; Honji, Y.; Sun, C.-R.; Meng, B.-Y. The complete sequence of the rice (Oryza sativa) chloroplast genome: Intermolecular recombination between distinct tRNA genes accounts for a major plastid DNA inversion during the evolution of the cereals. Mol. Gen. Genet. 1989, 217, 185–194. [Google Scholar] [CrossRef]
  29. Huang, Y.-Y.; Cho, S.-T.; Haryono, M.; Kuo, C.-H. Complete chloroplast genome sequence of common bermudagrass (Cynodon dactylon (L.) Pers.) and comparative analysis within the family Poaceae. PLoS ONE 2017, 12, e0179055. [Google Scholar]
  30. Ogihara, Y.; Isono, K.; Kojima, T.; Endo, A.; Hanaoka, M.; Shiina, T.; Terachi, T.; Utsugi, S.; Murata, M.; Mori, N. Structural features of a wheat plastome as revealed by complete sequencing of chloroplast DNA. Mol. Genet. Genom. 2002, 266, 740–746. [Google Scholar] [CrossRef]
  31. Jansen, R.K.; Wojciechowski, M.F.; Sanniyasi, E.; Lee, S.-B.; Daniell, H. Complete plastid genome sequence of the chickpea (Cicer arietinum) and the phylogenetic distribution of rps12 and clpP intron losses among legumes (Leguminosae). Mol. Phylogenet. Evol. 2008, 48, 1204–1217. [Google Scholar] [CrossRef] [Green Version]
  32. Lee, H.-L.; Jansen, R.K.; Chumley, T.W.; Kim, K.-J. Gene relocations within chloroplast genomes of Jasminum and Menodora (Oleaceae) are due to multiple, overlapping inversions. Mol. Biol. Evol. 2007, 24, 1161–1180. [Google Scholar] [CrossRef] [Green Version]
  33. Hupfer, H.; Swiatek, M.; Hornung, S.; Herrmann, R.; Maier, R.; Chiu, W.-L.; Sears, B. Complete nucleotide sequence of the Oenothera elata plastid chromosome, representing plastome I of the five distinguishable Euoenothera plastomes. Mol. Gen. Genet. 2000, 263, 581–585. [Google Scholar] [CrossRef]
  34. Asano, T.; Tsudzuki, T.; Takahashi, S.; Shimada, H.; Kadowaki, K.-i. Complete nucleotide sequence of the sugarcane (Saccharum officinarum) chloroplast genome: A comparative analysis of four monocot chloroplast genomes. DNA Res. 2004, 11, 93–99. [Google Scholar] [CrossRef] [Green Version]
  35. Leseberg, C.H.; Duvall, M.R. The complete chloroplast genome of Coix lacryma-jobi and a comparative molecular evolutionary analysis of plastomes in cereals. J. Mol. Evol. 2009, 69, 311–318. [Google Scholar] [CrossRef]
  36. Saski, C.; Lee, S.-B.; Fjellheim, S.; Guda, C.; Jansen, R.K.; Luo, H.; Tomkins, J.; Rognli, O.A.; Daniell, H.; Clarke, J.L. Complete chloroplast genome sequences of Hordeum vulgare, Sorghum bicolor and Agrostis stolonifera, and comparative analyses with other grass genomes. Theor. Appl. Genet. 2007, 115, 571–590. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Tang, J.; Xia, H.; Cao, M.; Zhang, X.; Zeng, W.; Hu, S.; Tong, W.; Wang, J.; Wang, J.; Yu, J. A comparison of rice chloroplast genomes. Plant Physiol. 2004, 135, 412–420. [Google Scholar] [CrossRef] [Green Version]
  38. Wu, F.-H.; Kan, D.-P.; Lee, S.-B.; Daniell, H.; Lee, Y.-W.; Lin, C.-C.; Lin, N.-S.; Lin, C.-S. Complete nucleotide sequence of Dendrocalamus latiflorus and Bambusa oldhamii chloroplast genomes. Tree Physiol. 2009, 29, 847–856. [Google Scholar] [CrossRef] [Green Version]
  39. Tanaka, H.; Hirakawa, H.; Kosugi, S.; Nakayama, S.; Ono, A.; Watanabe, A.; Hashiguchi, M.; Gondo, T.; Ishigaki, G.; Muguerza, M. Sequencing and comparative analyses of the genomes of zoysiagrasses. DNA Res. 2016, 23, 171–180. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Kim, K.-J.; Lee, H.-L. Widespread occurrence of small inversions in the chloroplast genomes of land plants. Mol. Cells 2005, 19, 104–113. [Google Scholar]
  41. Yaneshita, M.; Nagasawa, R.; Engelke, M.C.; Sasakuma, T. Genetic variation and interspecific hybridization among natural populations of zoysiagrasses detected by RFLP analyses of chloroplast and nuclear DNA. Genes Genet. Syst. 1997, 72, 173–179. [Google Scholar] [CrossRef] [Green Version]
  42. Hashiguchi, M.; Tsuruta, S.; Matsuo, T.; Ebina, M.; Kobayashi, M.; Akamine, H.; Akashi, R. Analysis of genetic resource in Zoysia spp, 2: Evaluation of genetic diversity in zoysiagrass indigenous to southwest islands of Japan based on simple sequence repeat markers. Jpn. J. Grassl. Sci. 2007, 53, 133–137. [Google Scholar]
  43. Tsuruta, S.I.; Hosaka, F.; Otabara, T.; Hashiguchi, M.; Yamamoto, T.; Akashi, R. Genetic diversity of chloroplast DNA in Zoysia and other warm-season turfgrasses. Grassl. Sci. 2008, 54, 151–159. [Google Scholar] [CrossRef]
  44. Saarela, J.M.; Burke, S.V.; Wysocki, W.P.; Barrett, M.D.; Clark, L.G.; Craine, J.M.; Peterson, P.M.; Soreng, R.J.; Vorontsova, M.S.; Duvall, M.R. A 250 plastome phylogeny of the grass family (Poaceae): Topological support under different data partitions. PeerJ 2018, 6, e4299. [Google Scholar] [CrossRef] [PubMed]
  45. Soreng, R.J.; Peterson, P.M.; Romaschenko, K.; Davidse, G.; Teisher, J.K.; Clark, L.G.; Barberá, P.; Gillespie, L.J.; Zuloaga, F.O. A worldwide phylogenetic classification of the Poaceae (Gramineae) II: An update and a comparison of two 2015 classifications. J. Syst. Evol. 2017, 55, 259–290. [Google Scholar] [CrossRef] [Green Version]
  46. Doyle, J.; Doyle, J. A rapid DNA isolation procedure for small quantities of fresh leaf tissue. Phytochem. Bull. 1987, 19, 11–15. [Google Scholar]
  47. Sambrook, J.; Fritsch, E.; Maniatis, T. Molecular Cloning: A Laboratory Manual; Cold Spring Laboratory Press: New York, NY, USA, 1989. [Google Scholar]
  48. Palmer, J.D. Isolation and structural analysis of chloroplast DNA. Methods Enzymol. 1986, 118, 167–186. [Google Scholar]
  49. Young, H.A.; Lanzatella, C.L.; Sarath, G.; Tobias, C.M. Chloroplast genome variation in upland and lowland switchgrass. PLoS ONE 2011, 6, e23980. [Google Scholar] [CrossRef] [Green Version]
  50. Jansen, R.K.; Raubeson, L.A.; Boore, J.L.; Chumley, T.W.; Haberle, R.C.; Wyman, S.K.; Alverson, A.J.; Peery, R.; Herman, S.J.; Fourcade, H.M. Methods for obtaining and analyzing whole chloroplast genome sequences. Methods Enzymol. 2005, 395, 348–384. [Google Scholar]
  51. Kearse, M.; Moir, R.; Wilson, A.; Stones-Havas, S.; Cheung, M.; Sturrock, S.; Buxton, S.; Cooper, A.; Markowitz, S.; Duran, C. Geneious Basic: An integrated and extendable desktop software platform for the organization and analysis of sequence data. Bioinformatics 2012, 28, 1647–1649. [Google Scholar] [CrossRef] [PubMed]
  52. Wyman, S.K.; Jansen, R.K.; Boore, J.L. Automatic annotation of organellar genomes with DOGMA. Bioinformatics 2004, 20, 3252–3255. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Lowe, T.M.; Chan, P.P. tRNAscan-SE On-line: Integrating search and context for analysis of transfer RNA genes. Nucleic Acids Res. 2016, 44, W54–W57. [Google Scholar] [CrossRef] [PubMed]
  54. Lohse, M.; Drechsel, O.; Kahlau, S.; Bock, R. OrganellarGenomeDRAW—A suite of tools for generating physical maps of plastid and mitochondrial genomes and visualizing expression data sets. Nucleic Acids Res. 2013, 41, W575–W581. [Google Scholar] [CrossRef]
  55. Frazer, K.A.; Pachter, L.; Poliakov, A.; Rubin, E.M.; Dubchak, I. VISTA: Computational tools for comparative genomics. Nucleic Acids Res. 2004, 32, W273–W279. [Google Scholar] [CrossRef]
  56. Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef] [Green Version]
  57. Rozas, J.; Ferrer-Mata, A.; Sánchez-Del Barrio, J.C.; Guirao-Rico, S.; Librado, P.; Ramos-Onsins, S.E.; Sánchez-Gracia, A. DnaSP 6: DNA Sequence Polymorphism Analysis of Large Data Sets. Mol. Biol. Evol. 2017, 34, 3299–3302. [Google Scholar] [CrossRef] [PubMed]
  58. Mayer, C.; Leese, F.; Tollrian, R. Genome-wide analysis of tandem repeats in Daphnia pulex-a comparative approach. BMC Genom. 2010, 11, 277. [Google Scholar] [CrossRef] [Green Version]
  59. Edgar, R.C. MUSCLE: Multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004, 32, 1792–1797. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Posada, D.; Crandall, K.A. Modeltest: Testing the model of DNA substitution. Bioinformatics 1998, 14, 817–818. [Google Scholar] [CrossRef] [Green Version]
  61. Stamatakis, A. RAxML version 8: A tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics 2014, 30, 1312–1313. [Google Scholar] [CrossRef] [PubMed]
  62. Miller, M.A.; Pfeiffer, W.; Schwartz, T. Creating the CIPRES Science Gateway for inference of large phylogenetic trees. In Proceedings of the Gateway Computing Environments Workshop (GCE), New Orleans, LA, USA, 14 November 2010; IEEE: Piscataway, NJ, USA; 2010. [Google Scholar]
  63. Huelsenbeck, J.P.; Ronquist, F. MRBAYES: Bayesian inference of phylogenetic trees. Bioinformatics 2001, 17, 754–755. [Google Scholar] [CrossRef] [PubMed] [Green Version]

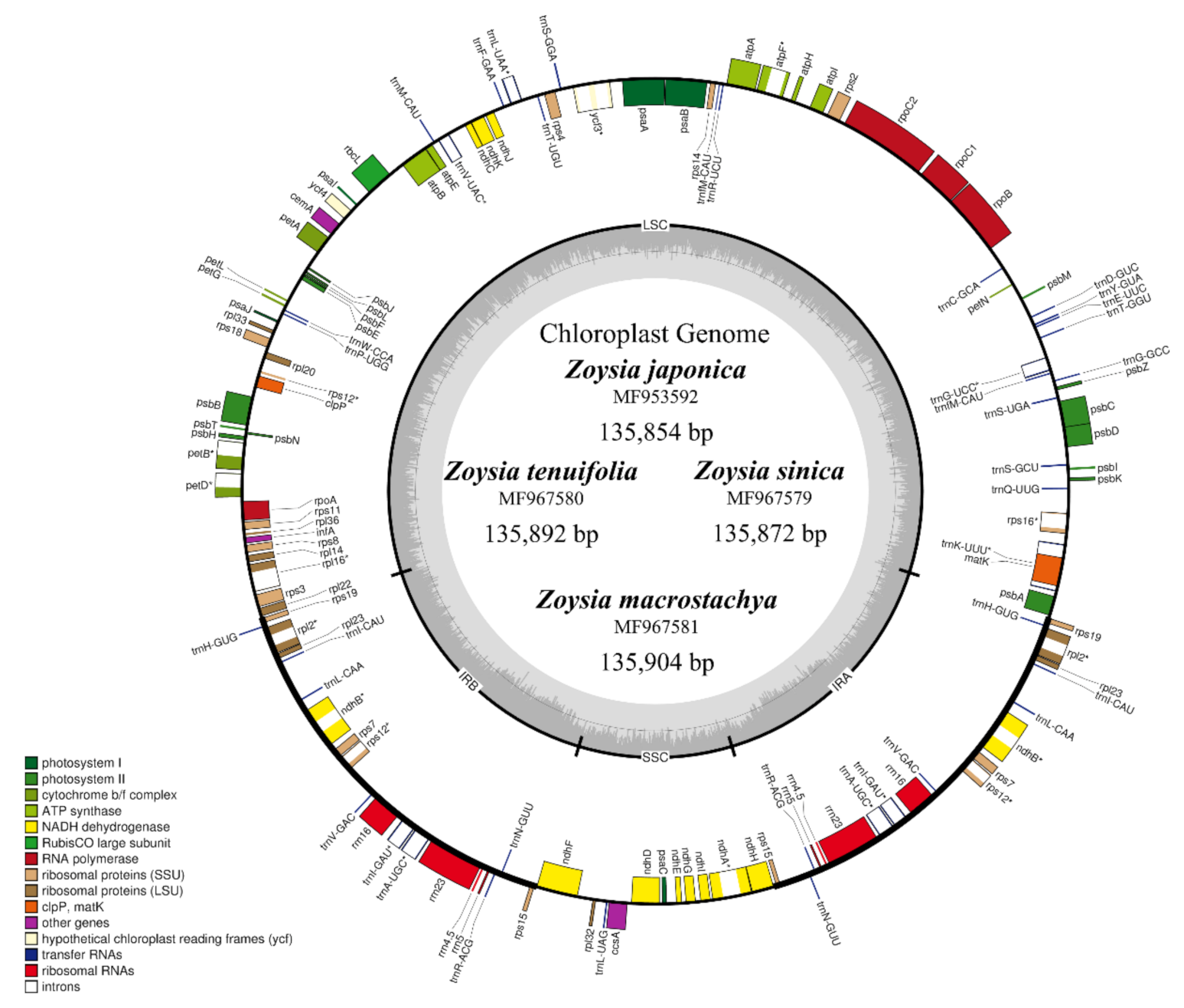

Figure 1. Genome map of the complete chloroplast sequences of Zoysia japonica and three other Zoysia species sequenced in this study. The gene order and structure among Zoysia species are the same. The gray region within the inner circle shows the GC content ratio.
Figure 1. Genome map of the complete chloroplast sequences of Zoysia japonica and three other Zoysia species sequenced in this study. The gene order and structure among Zoysia species are the same. The gray region within the inner circle shows the GC content ratio.
Plants 10 01517 g001
Figure 2. Comparison of the borders of the large single-copy (LSC), small single-copy (SSC), and inverted repeat (IR) regions among the plastomes of five Poaceae species. The IR regions of Zoysia species extend into the ndhF gene, which is characteristic of the PACMAD clade of Poaceae. Four comparative species were selected from closely related genera to Zoysia.
Figure 2. Comparison of the borders of the large single-copy (LSC), small single-copy (SSC), and inverted repeat (IR) regions among the plastomes of five Poaceae species. The IR regions of Zoysia species extend into the ndhF gene, which is characteristic of the PACMAD clade of Poaceae. Four comparative species were selected from closely related genera to Zoysia.
Plants 10 01517 g002
Figure 3. Sliding window analysis of the whole plastomes of six Zoysia species. The x-axis represents the midpoint position of a window, and the y-axis represents the nucleotide diversity of each window. Three noncoding regions (atpB~rbcL, rpl16~rps3, and rpl32~trnL-UAG) show more than 2% sequence divergences among the six Zoysia species.
Figure 3. Sliding window analysis of the whole plastomes of six Zoysia species. The x-axis represents the midpoint position of a window, and the y-axis represents the nucleotide diversity of each window. Three noncoding regions (atpB~rbcL, rpl16~rps3, and rpl32~trnL-UAG) show more than 2% sequence divergences among the six Zoysia species.
Plants 10 01517 g003

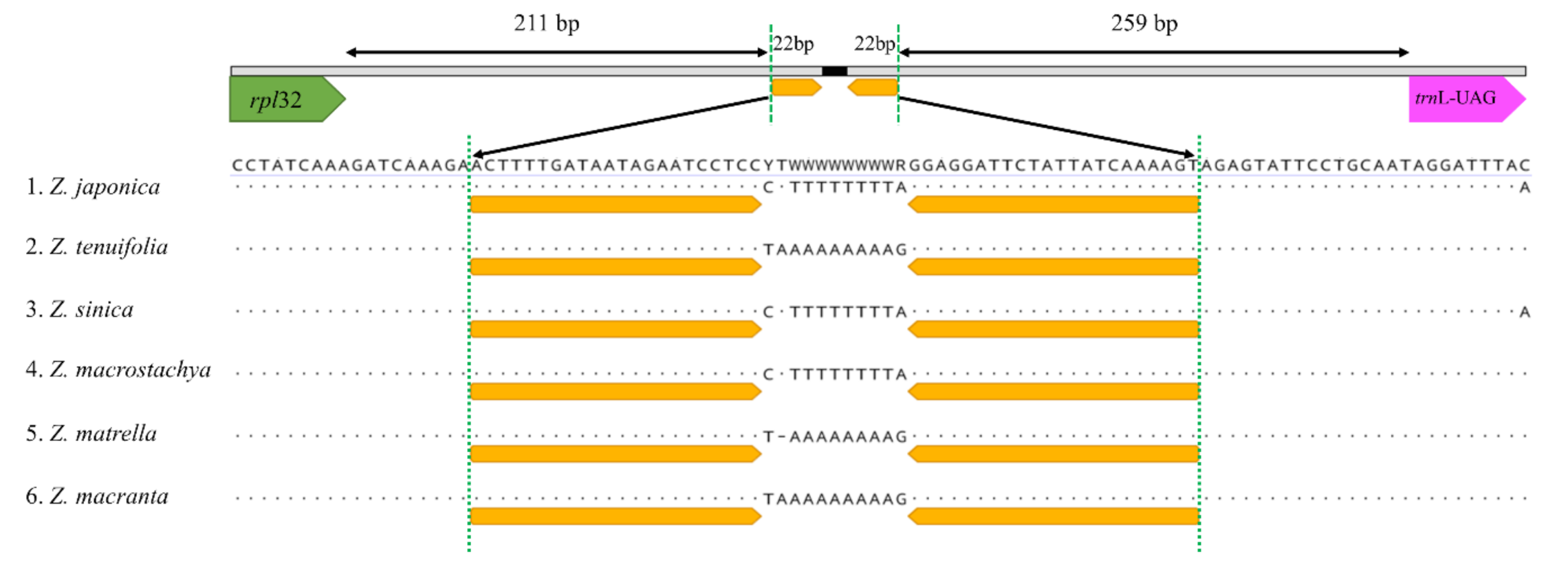

Figure 4. The sequence difference between the rpl32 and trnL-UAG genes among six Zoysia species. All six species of Zoysia have an 11 bp long loop region, but this region has a different orientation in Z. japonica, Z. sinica, and Z. macrostachya compare to that of Z. tenuifolia, Z. matrella, and Z. macrantha. This difference is due to a small inversion at the 22 bp long stem region (orange color).
Figure 4. The sequence difference between the rpl32 and trnL-UAG genes among six Zoysia species. All six species of Zoysia have an 11 bp long loop region, but this region has a different orientation in Z. japonica, Z. sinica, and Z. macrostachya compare to that of Z. tenuifolia, Z. matrella, and Z. macrantha. This difference is due to a small inversion at the 22 bp long stem region (orange color).
Plants 10 01517 g004
Figure 5. A maximum likelihood (ML) tree constructed from the plastomes of 26 species within the subfamily Chloridoideae (Poaceae) with Danthonia californica as an outgroup. The numbers at each node indicate the ML bootstrap values/Bayesian posterior probability. The ML tree was constructed from 76 protein-coding and 4 rRNA genes by RaxML. The newly sequenced species in this study are indicated in red. The short internal nodes among Zoysia species are expanded in the box at the upper left corner.
Figure 5. A maximum likelihood (ML) tree constructed from the plastomes of 26 species within the subfamily Chloridoideae (Poaceae) with Danthonia californica as an outgroup. The numbers at each node indicate the ML bootstrap values/Bayesian posterior probability. The ML tree was constructed from 76 protein-coding and 4 rRNA genes by RaxML. The newly sequenced species in this study are indicated in red. The short internal nodes among Zoysia species are expanded in the box at the upper left corner.
Plants 10 01517 g005
Table 1. The comparative feature of six Zoysia plastomes.
Table 1. The comparative feature of six Zoysia plastomes.
SpeciesZoysia japonicaZoysia tenuifoliaZoysia sinicaZoysia macrostachyaZoysia matrella *Zoysia macrantha *
Accession numberMF953592MF967580MF967579MF967581AP014937KT168390
Genome length (bp)135,854135,892135,872135,904135,810135,845
LSC length (bp)81,34881,37681,36681,39281,30881,352
SSC length (bp)12,58212,58412,58212,58612,58312,576
IR length (bp)20,96220,96620,96220,96320,96020,959
AT content61.6%61.6%61.6%61.6%61.6%61.6%
Total gene contents110110110110110110
* Indicates previously published sequences [15,16] available from the NCBI database.
Table 2. Genes in the Zoysia plastomes. Each species has 110 unique genes.
Table 2. Genes in the Zoysia plastomes. Each species has 110 unique genes.
Genes CategoryGroup of GenesName of Genes
Self-replicationrRNA genesrrn16 (x2), rrn23 (x2), rrn4.5 (x2), rrn5 (x2)
tRNA genes30 trn genes (8 are in IR regions)
Small subunit of ribosomerps2, rps3, rps4, rps7 (x2), rps8, rps11, rps12 * (x2), rps14, rps15 (x2), rps16 *, rps18, rps19 (x2)
Large subunit of ribosomerpl2 * (x2), rpl14, rpl16 *, rpl20, rpl22, rpl23 (x2), rpl32, rpl33, rpl36
DNA dependent RNA polymeraserpoA, rpoB, rpoC1, rpoC2
Genes for photosynthesisSubunits of NADH-dehydrogenasendhA *, ndhB * (x2), ndhC, ndhD, ndhE, ndhF, ndhG, ndhH, ndhI, ndhJ, ndhK
Subunits of photosystem 1psaA, psaB, psaC, psaI, psaJ
Subunits of photosystem 2psbA, psbB, psbC, psbD, psbE, psbF, psbH, psbI, psbJ, psbK, psbL, psbM, psbN, psbT, psbZ
Subunits of cytochrome b/f complexpetA, petB *, petD *, petG, petL, petN
Subunits of ATP synthaseatpA, atpB, atpE, atpF *, atpH, atpI
Large subunit of rubiscorbcL
Other genesMaturasematK
ProteaseclpP
Envelope membrane proteincemA
c-type cytochrome synthesis geneccsA
Translational initiation factorinfA
Genes of unknown functions Open Reading Frames (ORF)ycf3 **, ycf4
* One or ** two asterisk(s) beside the gene name indicate(s) that the gene contain(s) one or two intron(s), respectively. “(x2)” indicates that the gene is located on the IR regions.
Table 3. Distribution of simple sequence repeats (SSRs) among the plastomes of Zoysia japonica, Z. sinica, Z. macrostachya, and Z. tenuifolia.
Table 3. Distribution of simple sequence repeats (SSRs) among the plastomes of Zoysia japonica, Z. sinica, Z. macrostachya, and Z. tenuifolia.
UnitLength
(bp)
Zoysia japonicaZoysia sinicaZoysia macrostachyaZoysia tenuifolia
No. of SSRsNo. of SSRsNo. of SSRsNo. of SSRs
A170100
162113
151001
142301
132233
123363
114466
1010979
C111100
100001
G110001
101120
T221001
170400
160010
140021
133444
127757
115647
1088126
AT121111
103333
GA101111
TA141111
101111
TC101111
AAT121111
Total59636263
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Cheon, S.-H.; Woo, M.-A.; Jo, S.; Kim, Y.-K.; Kim, K.-J. The Chloroplast Phylogenomics and Systematics of Zoysia (Poaceae). Plants 2021, 10, 1517. https://doi.org/10.3390/plants10081517

AMA Style

Cheon S-H, Woo M-A, Jo S, Kim Y-K, Kim K-J. The Chloroplast Phylogenomics and Systematics of Zoysia (Poaceae). Plants. 2021; 10(8):1517. https://doi.org/10.3390/plants10081517

Chicago/Turabian Style

Cheon, Se-Hwan, Min-Ah Woo, Sangjin Jo, Young-Kee Kim, and Ki-Joong Kim. 2021. "The Chloroplast Phylogenomics and Systematics of Zoysia (Poaceae)" Plants 10, no. 8: 1517. https://doi.org/10.3390/plants10081517

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
