The Role of Sonic Hedgehog in Craniofacial Patterning, Morphogenesis and Cranial Neural Crest Survival
1
Department of Medicine, Monash University Central Clinical School, Prahran, Victoria 3004, Australia
2
Department of Physiology, Anatomy and Microbiology, La Trobe University, Melbourne, Victoria 3086, Australia
3
Department of Biochemistry and Genetics, La Trobe Institute for Molecular Science, La Trobe University, Melbourne, Victoria 3086, Australia
4
Department of Surgery, Monash University Central Clinical School, Prahran, Victoria 3004, Australia
*
Author to whom correspondence should be addressed.
Academic Editor: Simon J. Conway
Received: 7 June 2016 / Accepted: 26 July 2016 / Published: 3 August 2016

Abstract

:
Craniofacial defects (CFD) are a significant healthcare problem worldwide. Understanding both the morphogenetic movements which underpin normal facial development, as well as the molecular factors which regulate these processes, forms the cornerstone of future diagnostic, and ultimately, preventative therapies. The soluble morphogen Sonic hedgehog (Shh), a vertebrate orthologue of Drosophila hedgehog, is a key signalling factor in the regulation of craniofacial skeleton development in vertebrates, operating within numerous tissue types in the craniofacial primordia to spatiotemporally regulate the formation of the face and jaws. This review will provide an overview of normal craniofacial skeleton development, and focus specifically on the known roles of Shh in regulating the development and progression of the first pharyngeal arch, which in turn gives rise to both the upper jaw (maxilla) and lower jaw (mandible).
Keywords:
Hedgehog; neural crest; craniofacial; maxilla; mandible; development; cleft palate

1. Introduction—Formation of the Craniofacial Skeleton

The cellular and molecular mechanisms which govern the formation of the vertebrate head and face are remarkably conserved within the entire animal kingdom. Although much of the skull is comprised from mesoderm-derived bone, the majority of anterior craniofacial tissues, including cartilage, bone and musculature are primarily derived from the neural crest cells (NCCs) [1]. NCCs are a population of multipotent, transient migratory cells that are specified at the border of the neural plate and the non-neural ectoderm prior to and during neurulation. In order to form the facial bones, NCCs destined to a craniofacial fate, termed cranial NCCs (CNCCs) migrate ventrally into the frontonasal prominence (FNP), as well as the first, second, third and fourth pharyngeal arches (PA1-4, respectively) [2]. While the forehead and nasal cavities are derived from the FNP, and most facial muscles are formed from PA2, this review will focus exclusively on the first pharyngeal arch, PA1, which primarily gives rise to the maxilla and mandible (upper and lower jaw, respectively), and as such, is a critically important region in the formation of the craniofacial skeleton. Furthermore, this review will focus on the role played by a critical signalling molecule, Sonic Hedgehog (Shh), specifically in the context of first pharyngeal arch formation and neural crest survival, development of the maxilla and palatal clefting, and development of the mandible. Other excellent reviews have recently been published which extensively cover the role of Shh in the development and aetiology of other craniofacial and neural tube defects [3,4], formation and morphogenesis of the vertebrate teeth [5,6,7], as well as the role of Shh partner proteins and pathway components (particularly Patched, Smoothened and the Gli family) in development and disorders of the vertebrate craniofacial complex [8], and as such, these topics will not be covered in this review.

2. Development of the Craniofacial Skeleton—The First Pharyngeal Arch

PA1 is the most rostral of the arches, and forms earliest during embryogenesis (approx. embryonic day [E] 8.25 in mouse). In addition to forming the future maxillae and mandible, PA1 also gives rise to numerous other structures, including the malleus and incus bones of the middle ear, the posterior process of the sphenoid bone, the squamous region of the temporal bone, the Masseter muscle, and the mucous membrane and glands of the anterior tongue [9,10]. Having migrated into PA1, CNCCs are induced to proliferate and differentiate by numerous patterning signals emanating from the surrounding pharyngeal environment [11,12,13]. As growth progresses, PA1 becomes segregated into two separate domains, the maxillary and mandibular prominences, which give rise to the cartilage, bones and connective tissue of the upper and lower jaws, respectively [14]. Both prominences consist of bilateral processes that meet on the midline axis and fuse together to form the jaws (Figure 1). For the mandibular processes, this involves epithelial fusion followed by pressure from growth in the apposed mesenchyme pushing out the intervening epithelium, which is incorporated into the oral epithelium that ultimately covers the mandible [15]. Concomitant to further growth of the maxillary processes is regression of the inferior portion of the FNP, resulting in fusion of both medial nasal prominences to form the midline of the nose, the philtrum of the upper lip and the primary palate [16]. During this period, outgrowths of the maxillary process known as the palatal shelves project on either side of the developing tongue. A transient, non-adherent “covering” for the developing oral epithelium, known as the periderm, prevents the opposing epithelial surfaces of the tongue and palatal shelves from inappropriately adhering [17]. Caudal migration of the tongue in response to growth and expansion of the mandible allows the palatal shelves to grow towards the midline and fuse, forming the secondary palate (Figure 1). Fusion of the primary and secondary palates involves growth of the component tissues, epithelial-mesenchymal transition, cell migration and apoptosis at fusion sites [18,19,20]. Perturbation of any of the above processes can potentially lead to failure of primary and/or secondary palatal fusion, and hence either cleft lip with or without cleft palate (CL/P), or isolated cleft palate (Figure 2). Numerous other defects can also occur, as discussed below.

3. Defects of Craniofacial Development

All congenital anomalies of the craniofacial structures, regardless of the aetiology or phenotype, are recognized clinically under the broad term of craniofacial defects (CFDs). CFDs are widely prevalent, as they account for approximately 75% of human birth defects, and affect 0.1%–0.3% of all births [1]. The severity of CFDs can range from minor cosmetic irregularities to considerable structural malformations that can lead to problems in breathing and feeding, as well as perturbed social and mental development, and in extreme cases, death. Surgical reconstruction of CFDs is complex, often requiring multiple procedures and not routinely available in many healthcare systems. Therefore, understanding the identity, fate and specification of the cells which comprise the craniofacial skeleton is imperative in order to understand the aetiology of disease. In fact, all CFDs result from either cell-intrinsic defects affecting CNCCs, leading to disorders such as Treacher Collins Syndrome [22] and other neurocristopathies (NCC disorders), or signalling aberrations within the pharyngeal environment, leading to disorders such as Di George Syndrome [23], Fraser Syndrome [24] and Van der Woude Syndrome [25]. Together with a concomitant identification of how CNCCs are instructed to perform their functions by specific (pharyngeal-arch derived) signalling molecules, we can begin to prospectively identify therapeutic windows for intervention. Such avenues for therapy are critical, particularly in much of the developing world, where there is disparity in the incidence of CFDs, compounded with a significant lack of trained surgical, post-operative and supportive care available to repair and treat these debilitating facial anomalies.

4. A Key Pharyngeal-Arch Derived Regulator of Craniofacial Development—Sonic Hedgehog (Shh)

Shh is one of three vertebrate homologues of the Drosophila gene hedgehog, first identified in seminal genetic screens by Prof. Christiane Nusslein-Volhard [26], work which culminated in her being awarded the Nobel Prize for Physiology or Medicine in 1995. Along with Indian Hedgehog and Desert Hedgehog, the vertebrate hedgehog homologues, particularly Shh, are among the best-characterised developmental morphogens in vertebrates. First identified in 1993, as a key regulator of polarity, axial development and neural tube floor plate induction [27,28], Shh has since been shown to play a multitude of roles in development and disease [29]. Studies conducted in chicken, mouse and zebrafish, as well as analyses of human patients, showed that the shh gene is expressed in the notochord, the floorplate of the neural tube, the posterior limb buds and the developing gut [27,28,30,31]. In agreement with its expression pattern, shh is important in foregut development [32] and critically involved in patterning of the distal elements of the limbs [28,33,34,35], however, mutations in Shh classically lead to defects in midline structures, particularly the face and eyes, and a lack of hemisphere separation of the brain, a disorder termed holoprosencephaly (HPE) [36,37,38,39].
The involvement of Shh in the aetiology of developmental disorders in human was initially described as the existence of an unknown gene residing within the locus 7q36, a known region implicated in HPE [40]. Patients with HPE also presented with numerous defects of non-neural tube origin, such as ocular hypertelorism, midface hypoplasia, cleft lip only (CLO) and cleft lip/palate [40]. Further studies have shown that a V332A mutation in Shh was implicated in a case of solitary median maxillary central incisor syndrome (SMMCI) [41], a novel Shh missense mutation (C to T) in the coding region (resulting in a Val for Ala substitution; A43V) was found in a patient with severe median cleft lip/mandible [42], and a 14-month-old girl with submucous cleft palate was found to harbour a duplication of the chromosome region located near the Shh gene on 7q36 [43], indicating an important role for Shh in human craniofacial development. Outside the facial skeleton, mutations in Shh also lead to facial defects of the eye such as coloboma (missing eye tissue) and micropthalmia (abnormally small eyes) [40,44], indicating that Shh is a clinically relevant gene in the aetiology of human CFDs.

5. The Role of Shh in the Formation of the First Pharyngeal Arch and Maintaining Neural Crest Cell Fidelity

Craniofacial defects caused by Shh deficiency largely occur even with correct ventralisation and development of the floor plate of the neural tube (where Shh is also expressed) [45], indicating a specific regulatory role for Shh within the pharyngeal arches themselves rather than a secondary consequence of neural tube defects. Shh is a critical factor for development and survival of cells within PA1, specifically neural crest cells which have colonised the facial prominences [45,46,47]. As a result of CNCC death, mice lacking Shh exhibit failure of anterior facial structure formation [48]. Specifically, Shh−/− mice demonstrate normal early patterning of PA1 until E9.5, with no concomitant differences in the expression of markers which definitively demarcate the arch endoderm, mesoderm, ectoderm and neural crest cells (HoxA2, HoxA3, Dlx3 and AP2), as well as markers of pouch identity Pax1 and FGF8 [49]. However, within 24 hours, PA1 is greatly reduced in size [49], indicative of global first arch atrophy. As Shh-mediated craniofacial defects are largely caused by a loss of neural crest cell fidelity and survival within the arches, [45], these data speak to a critical maintenance, rather than inductive role in the establishment of the correct microenvironment to allow subsequent neural crest cell homing, integration and differentiation. This is supported by evidence showing that in addition to the role of Shh in maintaining NCC viability, it also plays an important role in regulating NCC migration [50]. Previous studies implicated Shh in the aetiology of Bardet-Biedl syndrome, characterised by facial dysmorphology due to aberrant NCC homing and localisation [51] and using both in vitro cell culture and in vivo models, recent work has shown that mesencephalic NCC migrate to the ocular region as a chemotactic response to an exogenous concentration gradient of the Shh morphogen [52]. These data point to a holistic regulation of NCC kinetics by Shh within the first pharyngeal arch, subsequent to inductive patterning of the PA1 microenvironment.
However, Shh is expressed widely within the developing PA1, within both the ectodermal and endodermal component, and Shh in both these compartments does appear to have some role in later patterning and development of the pharyngeal apparatus, which may be independent in its trophic role supporting CNCCs. Within the ectoderm, Shh is expressed within the forming frontonasal prominence and maxillary process from E8.5 in mouse, as well as both primary and secondary palate (Figure 3). Removal of Shh-expressing ectoderm (but not adjacent, Shh-negative ectoderm) resulted in craniofacial anomalies analogous to human cleft palate [53], indicating that the production of Shh within the ectoderm must play a critical signalling function, likely operating concurrently with the production of Shh from the endoderm, putatively to establish either paracrine feedback loops or to establish the appropriate concentration gradients to subsequently regulate downstream genetic targets. Within the pharyngeal endoderm of PA1, Shh is first expressed at embryonic day (E) 10.5 in the mouse [54], and has also been characterised at an even earlier developmental stage in the chick (HH 9) [55]. This tissue is a critical source of inductive signals for subsequent arch development, as the role of the endoderm in the formation of the pharyngeal arches, and in subsequent patterning of the craniofacial complex has been well-characterised [56,57,58], and numerous studies have shown that a loss of Shh within the developing foregut endoderm leads to craniofacial anomalies, characterised by a decreased size and density of the developing facial skeleton [48,59]. These data suggest that Shh is important for maintaining overall homeostasis within the developing arch.
In addition to Shh, numerous signals and critical genes expressed emanating from the endoderm have been identified, including fgf3/fgf8 [60,61], vgll2a [62], sphingosine-1-phosphate [63], Tbx1 [23,64,65], FRAS1 [24] and grainyhead-like 3 [66]. It is quite likely that Shh interacts with these factors in the context of craniofacial development, either directly, or through co-operative regulation of survival pathways. For example, the common regulation between Shh and both BMP4 [67,68,69] and the FGF family [70], particularly FGF8 [54], has been well-described, clearly indicative of paracrine feedback loops. Loss of sphingosine-1 phosphate in zebrafish leads to defects in craniofacial skeleton growth, albeit not patterning, defects which are rescued by shh mis-expression, and restoration of fgf8a [63]. Tbx1 mRNA transcripts in the pharyngeal endoderm and mesoderm of Shh−/− mice were significantly down-regulated, even accounting for differences in arch size [71]. Furthermore, Shh appears to act upstream of Tbx1, being sufficient to induce Tbx1 expression following implantation of Shh-soaked beads on the surface of the pharyngeal arch in stage 14 chick embryos [71], and Shh expression is largely unchanged in E10.5 Tbx1−/− mouse embryos [72]. Little is yet known about potential co-operation of Shh with FRAS1, vgll2a or grhl3, however the phenotypes of these morphant/mutant animals (loss of craniofacial structures, primarily due to NCC death or disrupted pharyngeal pouch morphology) suggests that like shh, they regulate critical pro-survival pathways subsequent to correct initial arch patterning and specification.
Lastly, several specific mechanisms by which Shh mediates CNCC survival, production and apoptosis in PA1 have been described. Primarily, Shh regulates palatal mesenchyme proliferation through activation and maintenance of the cell cycle regulators Cyclin D1 and Cyclin D2 [70]. Increased expression of the Shh-receptor CDO (Cell-adhesion molecule-related/Downregulated by Oncogenes; [73]) similarly leads to neural crest cell death within PA1; elegant in ovo electroporation experiments in chick showed that inhibiting CDO (but not another Shh receptor, Patched) rescued NCC death in PA1 following loss of Shh [74]. High doses of retinoic acid are known to inhibit Shh and lead to craniofacial defects [75]. Absence of the apoptosome component Apaf1 leads to altered Shh signalling, mesenchymal hyperproliferation, and delayed skull base ossification [76], indicating that in addition to pro-survival functions, Shh may also specifically act to inhibit apoptosis. Despite these advances, and identification of several interacting factors, future work is needed to dissect the entire functional spectrum by which Shh maintains NCC survival in PA1.

6. Role of Shh in Development and Fusion of the Palate (Maxilla/Upper Jaw) and Mandible (Lower Jaw)

By mouse day E11.5, expression of Shh is visible within the ectoderm-derived nasal pits, as well as within the lateral-most tips of the future palatal shelves, prior to extension form within the MXP [54]. This expression pattern suggests that Shh may be integral to establishing a signalling gradient required for directing subsequent morphogenetic migration of the palatal shelves, and by extension, fusion of the secondary palate. Shh continues to be expressed within the palatal shelf epithelium at E13 [77], and is expressed until the two opposing palatal shelves meet and fuse at the midline epithelial seam (MES), although Shh is not present during the fusion and subsequent MES breakdown [77]. Interestingly, although the Shh receptor Patched is expressed throughout the mesenchyme of PA1, Shh expression remains largely restricted to the epithelium, indicative of paracrine signalling operating within the arch. As palatal elevation, migration and fusion continues, Shh appears to be highly expressed at sites of epithelial thickening within the palate, the segmentation markers, or rugae, suggesting that these are the key sites of Shh production in the context of palatogenesis [77,78]. In fact, seminal experiments in avian embryos, in which Shh-expressing frontonasal prominence ectoderm was ablated led to maxillary clefts; excision of adjacent, Shh-negative ectoderm, did not lead to such defects [79]. These results indicate that Shh is a spatiotemporally-regulated signalling molecule, which acts to pattern and specify the palatal shelves.
Unlike the upper jaw which forms from the fusion of separate tissues, the entire lower jaw develops from the mandibular prominences. Clefting of the mandible is rare compared to clefting of the palate and upper lip. More common developmental defects seen in the human mandible are overdevelopment (hyperplasia), underdevelopment (hypoplasia, agenesis and micrognathia) or mis-positioning (retrognathia and prognathism) [76]. Treatment of chick embryos by injection with anti-Shh antibody and in mouse embryos injected with jervine, a steroid alkaloid known to inhibit Shh signalling significantly disrupts mandibular development [80]. Further mouse models have shown that conditional inactivation of Shh in the pharyngeal endoderm leads to reduced lower jaw size (micrognathia) as a secondary consequence of increased neural crest cell death in the first pharyngeal arch [81]. As mentioned previously, much of the role of Shh in the first pharyngeal arch is mediated by endodermal Shh regulating the expression of FGF8 from within the pharyngeal ectoderm. Loss of either the foregut endoderm [82] or FGF8 within the ectoderm [83] leads to a significant reduction in lower jaw size. Importantly, implantation of Shh-coated beads into the pharyngeal region of endoderm-ablated chick embryos restored both FGF8 expression and mandibular development [80], confirming the importance of the Shh-FGF8 axis in mandibular elongation.
One of the earliest stages in lower jaw development is the condensation, and differentiation into chondrocytes, of CNCCs to form the hyaline Meckel’s cartilage (MC; [84]). MC development initiates as an aggregation of CNCC-derived mesenchymal cells at the molar tooth bud region, and this structure extends both anteriorly and posteriorly to develop the characteristic “wishbone-like” structure of the pre-mandible. Additionally, the MC also ultimately gives rise to the incus and malleus bones of the middle ear [84]. Whereas these two bones are formed through the process of endochondral ossification (the MC “template” is directly replaced by bone), and the mandible in amphibians and reptiles is also generated by endochondral ossification of the MC [85], the mandibular bone in mammals is formed by a process of intramembranous ossification (whereby CNCC-derived mesenchymal progenitors, surrounding the MC as a fibrous sheath, differentiate into osteoblasts, which subsequently ossify and form the mandibular bones [84,85,86]). In mammals, following osteogenesis, cells of the (anterior) MC primarily undergo degradation before birth [87], however the mesenchymal sheath surrounding the (posterior) differentiated chondrocytes of the MC gives rise to the sphenomandibular ligament [88].
The dynamics of MC development and degradation are tightly controlled, as both loss of MC-development or disruption of subsequent MC degeneration (e.g., through inhibition of apoptosis and/or chondrocyte reabsorption) can result in mandibular defects, such as mandibular hypoplasia [84] or a transition to endochondral ossification and subsequent thickening/hyperplasia of the mandible [89]. Therefore, it is clear that any defects affecting CNCC fidelity, both pro- and anti-proliferative, are likely to ultimately impinge on the structural architecture of the lower face, particularly with respect to subsequent patterning and morphogenesis of the mandible.
Following removal of Shh responsiveness specifically in the mouse neural crest cells, Jeong and colleagues discovered that the primary requirement for Shh signalling was in post-migratory craniofacial development, rather than the initial generation and migration of neural crest cells [90]. Given that Shh signalling is essential for ectomesenchymal cell proliferation and survival and that Meckel’s cartilage development is dependent on CNCC-derived cells, these data indicate that the absence of Meckel’s cartilage in Shh null mice is due to an insufficient number of neural crest-derived cells within the mandibular arch, a defect and mechanism highly consistent with the aforementioned roles of Shh in maintaining neural crest cell fidelity in PA1 in the context of palatal development. Thus, following loss of Shh, increased apoptosis results in apparent aplasia of Meckel’s cartilage, an early pathogenic event.
Taken together, these studies indicate that Shh is an important regulator of both maxillary and mandibular development, primarily through its role in maintaining a sufficiently adequate critical mass of CNCC-derived ectomesenchymal cells within the entirety of PA1 to allow for subsequent correct morphogenesis and patterning of the craniofacial skeleton.

7. Conclusions and Future Directions

The strong co-operative and functional interactions between Shh and both retinoic acid and ethanol indicate that embryos with abrogated or hypomorphic Shh signalling may ultimately benefit from modulation of the retinoic acid pathway, and also be highly susceptible to ethanol exposure, as well as potentially other environmental insults. Interestingly, craniofacial defects induced by ethanol share remarkable similarity with those caused by Shh-deficiency, causing significant death of cranial neural crest cells [91] and decreased Shh transcription [92]. Ethanol also severely impacts on the ability of Shh to act as a chemotactic agent in vivo, inhibiting the migration of cranial neural crest cells [52]. It is therefore tempting to speculate that modulation of the Shh pathway may ameliorate the severity of some of these defects [92], providing an extremely promising new avenue for the potential limitation of not only in utero craniofacial defects, but also for decreasing the severity of Fetal Alcohol Spectrum disorders. As alluded to earlier, determining the molecular pathways (primarily cell survival/apoptosis) active in Shh-mediated regulation of CNCC fidelity will prove critical to therapeutic interventions.
Numerous environmental factors are associated with the aetiology of CFD, including exposure to ionising radiation, vitamin deficiency, tobacco smoke and maternal alcohol intake [93]. It is likely that embryos with a genetic predisposition to CFD will suffer much more severe defects from exposure to environmental factors than embryos without any sensitising mutations. Characterising such gene-environment interactions (GEI) is crucial, as genetic mutations could then be accurately used as a pre-natal diagnostic tool to limit the severity of peri-natal birth defects. Limited GEI data is available; predominantly derived from large-scale analyses of human CFD populations [93], and very few animal models of CFD susceptibility to environmental insult currently exist. The identification of genes such as Shh, which both regulate craniofacial development, and are themselves influenced by environmental factors, will therefore significantly shape future therapies of severe pre-natal defects of human development.

Acknowledgments

This work was supported by NHMRC Project Grant #1063837 to SD.

Conflicts of Interest

All authors contributed to writing this manuscript, and the authors declare no conflict of interest. The funding agency had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Cordero, D.R.; Brugmann, S.; Chu, Y.; Bajpai, R.; Jame, M.; Helms, J.A. Cranial neural crest cells on the move: Their roles in craniofacial development. Am. J. Med. Genet. 2011, 155A, 270–279. [Google Scholar] [CrossRef] [PubMed]
  2. Lumsden, A.; Sprawson, N.; Graham, A. Segmental origin and migration of neural crest cells in the hindbrain region of the chick embryo. Development 1991, 113, 1281–1291. [Google Scholar] [PubMed]
  3. Murdoch, J.N.; Copp, A.J. The relationship between sonic hedgehog signaling, cilia, and neural tube defects. Birth Defects Res. Part A Clin. Mol. Teratol. 2010, 88, 633–652. [Google Scholar] [CrossRef] [PubMed]
  4. Gitton, Y.; Heude, E.; Vieux-Rochas, M.; Benouaiche, L.; Fontaine, A.; Sato, T.; Kurihara, Y.; Kurihara, H.; Couly, G.; Levi, G. Evolving maps in craniofacial development. Semin. Cell Dev. Biol. 2010, 21, 301–308. [Google Scholar] [CrossRef] [PubMed]
  5. Cobourne, M.T.; Sharpe, P.T. Sonic hedgehog signaling and the developing tooth. Curr. Top. Dev. Biol. 2005, 65, 255–287. [Google Scholar] [PubMed]
  6. Lan, Y.; Jia, S.; Jiang, R. Molecular patterning of the mammalian dentition. Semin. Cell Dev. Biol. 2014, 25–26, 61–70. [Google Scholar] [CrossRef] [PubMed]
  7. Li, Z.; Yu, M.; Tian, W. An inductive signalling network regulates mammalian tooth morphogenesis with implications for tooth regeneration. Cell Prolif. 2013, 46, 501–508. [Google Scholar] [CrossRef] [PubMed]
  8. Xavier, G.M.; Seppala, M.; Barrell, W.; Birjandi, A.A.; Geoghegan, F.; Cobourne, M.T. Hedgehog receptor function during craniofacial development. Dev. Biol. 2016, 415, 198–215. [Google Scholar] [CrossRef] [PubMed][Green Version]
  9. Johnson, J.M.; Moonis, G.; Green, G.E.; Carmody, R.; Burbank, H.N. Syndromes of the first and second branchial arches, part 1: Embryology and characteristic defects. Am. J. Neuroradiol. 2011, 32, 14–19. [Google Scholar] [CrossRef] [PubMed]
  10. Grevellec, A.; Tucker, A.S. The pharyngeal pouches and clefts: Development, evolution, structure and derivatives. Semin. Cell Dev. Biol. 2010, 21, 325–332. [Google Scholar] [CrossRef] [PubMed]
  11. Cobourne, M.T.; Sharpe, P.T. Tooth and jaw: Molecular mechanisms of patterning in the first branchial arch. Arch. Oral Biol. 2003, 48, 1–14. [Google Scholar] [CrossRef]
  12. Graham, A. The development and evolution of the pharyngeal arches. J. Anat. 2001, 199, 133–141. [Google Scholar] [CrossRef] [PubMed]
  13. Graham, A.; Smith, A. Patterning the pharyngeal arches. BioEssays 2001, 23, 54–61. [Google Scholar] [CrossRef]
  14. Chai, Y.; Maxson, R.E., Jr. Recent advances in craniofacial morphogenesis. Dev. Dyn. 2006, 235, 2353–2375. [Google Scholar] [CrossRef] [PubMed]
  15. Chai, Y.; Sasano, Y.; Bringas, P., Jr.; Mayo, M.; Kaartinen, V.; Heisterkamp, N.; Groffen, J.; Slavkin, H.; Shuler, C. Characterization of the fate of midline epithelial cells during the fusion of mandibular prominences in vivo. Dev. Dyn. 1997, 208, 526–535. [Google Scholar] [CrossRef]
  16. Greene, R.M.; Pisano, M.M. Palate morphogenesis: Current understanding and future directions. Birth Defects Res. C Embryo Today 2010, 90, 133–154. [Google Scholar] [CrossRef] [PubMed]
  17. M’Boneko, V.; Merker, H.J. Development and morphology of the periderm of mouse embryos (days 9–12 of gestation). Acta Anat. 1988, 133, 325–336. [Google Scholar] [CrossRef] [PubMed]
  18. Fitchett, J.E.; Hay, E.D. Medial edge epithelium transforms to mesenchyme after embryonic palatal shelves fuse. Dev. Biol. 1989, 131, 455–474. [Google Scholar] [CrossRef]
  19. Martinez-Alvarez, C.; Blanco, M.J.; Perez, R.; Rabadan, M.A.; Aparicio, M.; Resel, E.; Martinez, T.; Nieto, M.A. Snail family members and cell survival in physiological and pathological cleft palates. Dev. Biol. 2004, 265, 207–218. [Google Scholar] [CrossRef] [PubMed]
  20. Mori, C.; Nakamura, N.; Okamoto, Y.; Osawa, M.; Shiota, K. Cytochemical identification of programmed cell death in the fusing fetal mouse palate by specific labelling of DNA fragmentation. Anat. Embryol. 1994, 190, 21–28. [Google Scholar] [CrossRef] [PubMed]
  21. Duke University School of Medicine. Craniofacial Embryology. Available online: https://web.duke.edu/anatomy/embryology/craniofacial/craniofacial.html (accessed on 27 July 2016).
  22. Jones, N.C.; Lynn, M.L.; Gaudenz, K.; Sakai, D.; Aoto, K.; Rey, J.P.; Glynn, E.F.; Ellington, L.; Du, C.; Dixon, J.; et al. Prevention of the neurocristopathy treacher collins syndrome through inhibition of p53 function. Nat. Med. 2008, 14, 125–133. [Google Scholar] [CrossRef] [PubMed]
  23. Piotrowski, T.; Ahn, D.G.; Schilling, T.F.; Nair, S.; Ruvinsky, I.; Geisler, R.; Rauch, G.J.; Haffter, P.; Zon, L.I.; Zhou, Y.; et al. The zebrafish van gogh mutation disrupts tbx1, which is involved in the digeorge deletion syndrome in humans. Development 2003, 130, 5043–5052. [Google Scholar] [CrossRef] [PubMed]
  24. Talbot, J.C.; Walker, M.B.; Carney, T.J.; Huycke, T.R.; Yan, Y.L.; BreMiller, R.A.; Gai, L.; Delaurier, A.; Postlethwait, J.H.; Hammerschmidt, M.; et al. Fras1 shapes endodermal pouch 1 and stabilizes zebrafish pharyngeal skeletal development. Development 2012, 139, 2804–2813. [Google Scholar] [CrossRef] [PubMed]
  25. Kondo, S.; Schutte, B.C.; Richardson, R.J.; Bjork, B.C.; Knight, A.S.; Watanabe, Y.; Howard, E.; de Lima, R.L.; Daack-Hirsch, S.; Sander, A.; et al. Mutations in irf6 cause van der woude and popliteal pterygium syndromes. Nat. Genet. 2002, 32, 285–289. [Google Scholar] [CrossRef] [PubMed]
  26. Nusslein-Volhard, C.; Wieschaus, E. Mutations affecting segment number and polarity in drosophila. Nature 1980, 287, 795–801. [Google Scholar] [CrossRef] [PubMed]
  27. Echelard, Y.; Epstein, D.J.; St-Jacques, B.; Shen, L.; Mohler, J.; McMahon, J.A.; McMahon, A.P. Sonic hedgehog, a member of a family of putative signaling molecules, is implicated in the regulation of cns polarity. Cell 1993, 75, 1417–1430. [Google Scholar] [CrossRef]
  28. Riddle, R.D.; Johnson, R.L.; Laufer, E.; Tabin, C. Sonic hedgehog mediates the polarizing activity of the zpa. Cell 1993, 75, 1401–1416. [Google Scholar] [CrossRef]
  29. Varjosalo, M.; Taipale, J. Hedgehog: Functions and mechanisms. Gene. Dev. 2008, 22, 2454–2472. [Google Scholar] [CrossRef] [PubMed]
  30. Krauss, S.; Concordet, J.P.; Ingham, P.W. A functionally conserved homolog of the drosophila segment polarity gene hh is expressed in tissues with polarizing activity in zebrafish embryos. Cell 1993, 75, 1431–1444. [Google Scholar] [CrossRef]
  31. Odent, S.; Atti-Bitach, T.; Blayau, M.; Mathieu, M.; Auge, J.; Delezo de, A.L.; Gall, J.Y.; le Marec, B.; Munnich, A.; David, V.; et al. Expression of the sonic hedgehog (shh) gene during early human development and phenotypic expression of new mutations causing holoprosencephaly. Hum. Mol. Genet. 1999, 8, 1683–1689. [Google Scholar] [CrossRef] [PubMed]
  32. Litingtung, Y.; Lei, L.; Westphal, H.; Chiang, C. Sonic hedgehog is essential to foregut development. Nat. Genet. 1998, 20, 58–61. [Google Scholar] [PubMed]
  33. Chang, D.T.; Lopez, A.; von Kessler, D.P.; Chiang, C.; Simandl, B.K.; Zhao, R.; Seldin, M.F.; Fallon, J.F.; Beachy, P.A. Products, genetic linkage and limb patterning activity of a murine hedgehog gene. Development 1994, 120, 3339–3353. [Google Scholar] [PubMed]
  34. Currie, P.D.; Ingham, P.W. Induction of a specific muscle cell type by a hedgehog-like protein in zebrafish. Nature 1996, 382, 452–455. [Google Scholar] [CrossRef] [PubMed]
  35. Marti, E.; Takada, R.; Bumcrot, D.A.; Sasaki, H.; McMahon, A.P. Distribution of sonic hedgehog peptides in the developing chick and mouse embryo. Development 1995, 121, 2537–2547. [Google Scholar] [PubMed]
  36. Belloni, E.; Muenke, M.; Roessler, E.; Traverso, G.; Siegel-Bartelt, J.; Frumkin, A.; Mitchell, H.F.; Donis-Keller, H.; Helms, C.; Hing, A.V.; et al. Identification of sonic hedgehog as a candidate gene responsible for holoprosencephaly. Nat. Genet. 1996, 14, 353–356. [Google Scholar] [CrossRef] [PubMed]
  37. Roessler, E.; Belloni, E.; Gaudenz, K.; Jay, P.; Berta, P.; Scherer, S.W.; Tsui, L.C.; Muenke, M. Mutations in the human sonic hedgehog gene cause holoprosencephaly. Nat. Genet. 1996, 14, 357–360. [Google Scholar] [CrossRef] [PubMed]
  38. Roessler, E.; Belloni, E.; Gaudenz, K.; Vargas, F.; Scherer, S.W.; Tsui, L.C.; Muenke, M. Mutations in the c-terminal domain of sonic hedgehog cause holoprosencephaly. Hum. Mol. Genet. 1997, 6, 1847–1853. [Google Scholar] [CrossRef] [PubMed]
  39. Roessler, E.; Ward, D.E.; Gaudenz, K.; Belloni, E.; Scherer, S.W.; Donnai, D.; Siegel-Bartelt, J.; Tsui, L.C.; Muenke, M. Cytogenetic rearrangements involving the loss of the sonic hedgehog gene at 7q36 cause holoprosencephaly. Hum. Genet. 1997, 100, 172–181. [Google Scholar] [CrossRef] [PubMed]
  40. Muenke, M.; Gurrieri, F.; Bay, C.; Yi, D.H.; Collins, A.L.; Johnson, V.P.; Hennekam, R.C.; Schaefer, G.B.; Weik, L.; Lubinsky, M.S.; et al. Linkage of a human brain malformation, familial holoprosencephaly, to chromosome 7 and evidence for genetic heterogeneity. Proc. Natl. Acad. Sci. USA 1994, 91, 8102–8106. [Google Scholar] [CrossRef] [PubMed]
  41. Garavelli, L.; Zanacca, C.; Caselli, G.; Banchini, G.; Dubourg, C.; David, V.; Odent, S.; Gurrieri, F.; Neri, G. Solitary median maxillary central incisor syndrome: Clinical case with a novel mutation of sonic hedgehog. Am. J. Med. Genet. Part A 2004, 127A, 93–95. [Google Scholar] [CrossRef] [PubMed]
  42. Zhang, Y.; Wang, H.; Kamegai, A.; Hata, T.; Kitamura, N.; Hosoda, M.; Tani, R.; Hayashido, Y.; Toratani, S.; Okamoto, T. Developmental signaling disorders in craniofacial anomalies and cancers. Oral Sci. Int. 2006, 3, 56–63. [Google Scholar] [CrossRef]
  43. Morava, E.; Bartsch, O.; Czako, M.; Frensel, A.; Kalscheuer, V.; Karteszi, J.; Kosztolanyi, G. Small inherited terminal duplication of 7q with hydrocephalus, cleft palate, joint contractures, and severe hypotonia. Clin. Dysmorphol. 2003, 12, 123–127. [Google Scholar] [CrossRef] [PubMed]
  44. Schimmenti, L.A.; de la Cruz, J.; Lewis, R.A.; Karkera, J.D.; Manligas, G.S.; Roessler, E.; Muenke, M. Novel mutation in sonic hedgehog in non-syndromic colobomatous microphthalmia. Am. J. Med. Genet. Part A 2003, 116A, 215–221. [Google Scholar] [CrossRef] [PubMed]
  45. Ahlgren, S.C.; Bronner-Fraser, M. Inhibition of sonic hedgehog signaling in vivo results in craniofacial neural crest cell death. Curr. Biol. 1999, 9, 1304–1314. [Google Scholar] [CrossRef]
  46. Brito, J.M.; Teillet, M.A.; le Douarin, N.M. An early role for sonic hedgehog from foregut endoderm in jaw development: Ensuring neural crest cell survival. Proc. Natl. Acad. Sci. USA 2006, 103, 11607–11612. [Google Scholar] [CrossRef] [PubMed]
  47. Brito, J.M.; Teillet, M.A.; le Douarin, N.M. Induction of mirror-image supernumerary jaws in chicken mandibular mesenchyme by sonic hedgehog-producing cells. Development 2008, 135, 2311–2319. [Google Scholar] [CrossRef] [PubMed]
  48. Chiang, C.; Litingtung, Y.; Lee, E.; Young, K.E.; Corden, J.L.; Westphal, H.; Beachy, P.A. Cyclopia and defective axial patterning in mice lacking sonic hedgehog gene function. Nature 1996, 383, 407–413. [Google Scholar] [CrossRef] [PubMed]
  49. Moore-Scott, B.A.; Manley, N.R. Differential expression of sonic hedgehog along the anterior-posterior axis regulates patterning of pharyngeal pouch endoderm and pharyngeal endoderm-derived organs. Dev. Biol. 2005, 278, 323–335. [Google Scholar] [CrossRef] [PubMed]
  50. Testaz, S.; Jarov, A.; Williams, K.P.; Ling, L.E.; Koteliansky, V.E.; Fournier-Thibault, C.; Duband, J.L. Sonic hedgehog restricts adhesion and migration of neural crest cells independently of the patched-smoothened-gli signaling pathway. Proc. Natl. Acad. Sci. USA 2001, 98, 12521–12526. [Google Scholar] [CrossRef] [PubMed]
  51. Tobin, J.L.; di Franco, M.; Eichers, E.; May-Simera, H.; Garcia, M.; Yan, J.; Quinlan, R.; Justice, M.J.; Hennekam, R.C.; Briscoe, J.; et al. Inhibition of neural crest migration underlies craniofacial dysmorphology and hirschsprung’s disease in bardet-biedl syndrome. Proc. Natl. Acad. Sci. USA 2008, 105, 6714–6719. [Google Scholar] [CrossRef] [PubMed]
  52. Tolosa, E.J.; Fernandez-Zapico, M.E.; Battiato, N.L.; Rovasio, R.A. Sonic hedgehog is a chemotactic neural crest cell guide that is perturbed by ethanol exposure. Eur. J. Cell Biol. 2016, 95, 136–152. [Google Scholar] [CrossRef] [PubMed]
  53. Hu, D.; Helms, J.A. The role of sonic hedgehog in normal and abnormal craniofacial morphogenesis. Development 1999, 126, 4873–4884. [Google Scholar] [PubMed]
  54. Haworth, K.E.; Wilson, J.M.; Grevellec, A.; Cobourne, M.T.; Healy, C.; Helms, J.A.; Sharpe, P.T.; Tucker, A.S. Sonic hedgehog in the pharyngeal endoderm controls arch pattern via regulation of fgf8 in head ectoderm. Dev. Biol. 2007, 303, 244–258. [Google Scholar] [CrossRef] [PubMed]
  55. Marcucio, R.S.; Cordero, D.R.; Hu, D.; Helms, J.A. Molecular interactions coordinating the development of the forebrain and face. Dev. Biol. 2005, 284, 48–61. [Google Scholar] [CrossRef] [PubMed]
  56. Couly, G.; Creuzet, S.; Bennaceur, S.; Vincent, C.; le Douarin, N.M. Interactions between hox-negative cephalic neural crest cells and the foregut endoderm in patterning the facial skeleton in the vertebrate head. Development 2002, 129, 1061–1073. [Google Scholar] [PubMed]
  57. Kikuchi, Y.; Agathon, A.; Alexander, J.; Thisse, C.; Waldron, S.; Yelon, D.; Thisse, B.; Stainier, D.Y. Casanova encodes a novel sox-related protein necessary and sufficient for early endoderm formation in zebrafish. Genes Dev. 2001, 15, 1493–1505. [Google Scholar] [CrossRef] [PubMed]
  58. Kikuchi, Y.; Trinh, L.A.; Reiter, J.F.; Alexander, J.; Yelon, D.; Stainier, D.Y. The zebrafish bonnie and clyde gene encodes a mix family homeodomain protein that regulates the generation of endodermal precursors. Genes Dev. 2000, 14, 1279–1289. [Google Scholar] [PubMed]
  59. Wall, N.A.; Hogan, B.L. Expression of bone morphogenetic protein-4 (bmp-4), bone morphogenetic protein-7 (bmp-7), fibroblast growth factor-8 (fgf-8) and sonic hedgehog (shh) during branchial arch development in the chick. Mech. Dev. 1995, 53, 383–392. [Google Scholar] [CrossRef]
  60. Abu-Issa, R.; Smyth, G.; Smoak, I.; Yamamura, K.; Meyers, E.N. Fgf8 is required for pharyngeal arch and cardiovascular development in the mouse. Development 2002, 129, 4613–4625. [Google Scholar] [PubMed]
  61. Walshe, J.; Mason, I. Fgf signalling is required for formation of cartilage in the head. Dev. Biol. 2003, 264, 522–536. [Google Scholar] [CrossRef] [PubMed]
  62. Johnson, C.W.; Hernandez-Lagunas, L.; Feng, W.; Melvin, V.S.; Williams, T.; Artinger, K.B. Vgll2a is required for neural crest cell survival during zebrafish craniofacial development. Dev. Biol. 2011, 357, 269–281. [Google Scholar] [CrossRef] [PubMed]
  63. Balczerski, B.; Matsutani, M.; Castillo, P.; Osborne, N.; Stainier, D.Y.; Crump, J.G. Analysis of sphingosine-1-phosphate signaling mutants reveals endodermal requirements for the growth but not dorsoventral patterning of jaw skeletal precursors. Dev. Biol. 2012, 362, 230–241. [Google Scholar] [CrossRef] [PubMed]
  64. Arnold, J.S.; Werling, U.; Braunstein, E.M.; Liao, J.; Nowotschin, S.; Edelmann, W.; Hebert, J.M.; Morrow, B.E. Inactivation of tbx1 in the pharyngeal endoderm results in 22q11ds malformations. Development 2006, 133, 977–987. [Google Scholar] [CrossRef] [PubMed]
  65. Piotrowski, T.; Nusslein-Volhard, C. The endoderm plays an important role in patterning the segmented pharyngeal region in zebrafish (danio rerio). Dev. Biol. 2000, 225, 339–356. [Google Scholar] [CrossRef] [PubMed]
  66. Dworkin, S.; Simkin, J.; Darido, C.; Partridge, D.D.; Georgy, S.R.; Caddy, J.; Wilanowski, T.; Lieschke, G.J.; Doggett, K.; Heath, J.K.; et al. Grainyhead-like 3 regulation of endothelin-1 in the pharyngeal endoderm is critical for growth and development of the craniofacial skeleton. Mech. Dev. 2014, 133, 77–90. [Google Scholar] [CrossRef] [PubMed]
  67. Zhang, Y.; Zhang, Z.; Zhao, X.; Yu, X.; Hu, Y.; Geronimo, B.; Fromm, S.H.; Chen, Y.P. A new function of bmp4: Dual role for bmp4 in regulation of sonic hedgehog expression in the mouse tooth germ. Development 2000, 127, 1431–1443. [Google Scholar] [PubMed]
  68. Zhang, Z.; Song, Y.; Zhao, X.; Zhang, X.; Fermin, C.; Chen, Y. Rescue of cleft palate in msx1-deficient mice by transgenic bmp4 reveals a network of bmp and shh signaling in the regulation of mammalian palatogenesis. Development 2002, 129, 4135–4146. [Google Scholar] [PubMed]
  69. Hu, D.; Young, N.M.; Li, X.; Xu, Y.; Hallgrimsson, B.; Marcucio, R.S. A dynamic shh expression pattern, regulated by shh and bmp signaling, coordinates fusion of primordia in the amniote face. Development 2015, 142, 567–574. [Google Scholar] [CrossRef] [PubMed]
  70. Lan, Y.; Jiang, R. Sonic hedgehog signaling regulates reciprocal epithelial-mesenchymal interactions controlling palatal outgrowth. Development 2009, 136, 1387–1396. [Google Scholar] [CrossRef] [PubMed]
  71. Garg, V.; Yamagishi, C.; Hu, T.; Kathiriya, I.S.; Yamagishi, H.; Srivastava, D. Tbx1, a digeorge syndrome candidate gene, is regulated by sonic hedgehog during pharyngeal arch development. Dev. Biol. 2001, 235, 62–73. [Google Scholar] [CrossRef] [PubMed]
  72. Aggarwal, V.S.; Carpenter, C.; Freyer, L.; Liao, J.; Petti, M.; Morrow, B.E. Mesodermal tbx1 is required for patterning the proximal mandible in mice. Dev. Biol. 2010, 344, 669–681. [Google Scholar] [CrossRef] [PubMed]
  73. Zhang, W.; Kang, J.S.; Cole, F.; Yi, M.J.; Krauss, R.S. Cdo functions at multiple points in the sonic hedgehog pathway, and cdo-deficient mice accurately model human holoprosencephaly. Dev. Cell 2006, 10, 657–665. [Google Scholar] [CrossRef] [PubMed]
  74. Delloye-Bourgeois, C.; Rama, N.; Brito, J.; le Douarin, N.; Mehlen, P. Sonic hedgehog promotes the survival of neural crest cells by limiting apoptosis induced by the dependence receptor cdon during branchial arch development. Biochem. Biophys. Res. Commum. 2014, 452, 655–660. [Google Scholar] [CrossRef] [PubMed]
  75. Helms, J.A.; Kim, C.H.; Hu, D.; Minkoff, R.; Thaller, C.; Eichele, G. Sonic hedgehog participates in craniofacial morphogenesis and is down-regulated by teratogenic doses of retinoic acid. Dev. Biol. 1997, 187, 25–35. [Google Scholar] [CrossRef] [PubMed]
  76. Long, A.B.; Kaiser, W.J.; Mocarski, E.S.; Caspary, T. Apaf1 apoptotic function critically limits sonic hedgehog signaling during craniofacial development. Cell Death Differ. 2013, 20, 1510–1520. [Google Scholar] [CrossRef] [PubMed]
  77. Rice, R.; Connor, E.; Rice, D.P. Expression patterns of hedgehog signalling pathway members during mouse palate development. Gene. Expr. Patterns 2006, 6, 206–212. [Google Scholar] [CrossRef] [PubMed]
  78. Cobourne, M.T.; Green, J.B. Hedgehog signalling in development of the secondary palate. Front. Oral Biol. 2012, 16, 52–59. [Google Scholar] [PubMed]
  79. Hu, D.; Marcucio, R.S.; Helms, J.A. A zone of frontonasal ectoderm regulates patterning and growth in the face. Development 2003, 130, 1749–1758. [Google Scholar] [CrossRef] [PubMed]
  80. Melnick, M.; Witcher, D.; Bringas, P., Jr.; Carlsson, P.; Jaskoll, T. Meckel’s cartilage differentiation is dependent on hedgehog signaling. Cells Tissues Organ 2005, 179, 146–157. [Google Scholar] [CrossRef] [PubMed]
  81. Billmyre, K.K.; Klingensmith, J. Sonic hedgehog from pharyngeal arch 1 epithelium is necessary for early mandibular arch cell survival and later cartilage condensation differentiation. Dev. Dyn. 2015, 244, 564–576. [Google Scholar] [CrossRef] [PubMed]
  82. Haworth, K.E.; Healy, C.; Morgan, P.; Sharpe, P.T. Regionalisation of early head ectoderm is regulated by endoderm and prepatterns the orofacial epithelium. Development 2004, 131, 4797–4806. [Google Scholar] [CrossRef] [PubMed]
  83. Trumpp, A.; Depew, M.J.; Rubenstein, J.L.; Bishop, J.M.; Martin, G.R. Cre-mediated gene inactivation demonstrates that fgf8 is required for cell survival and patterning of the first branchial arch. Genes Dev. 1999, 13, 3136–3148. [Google Scholar] [CrossRef] [PubMed]
  84. Parada, C.; Chai, Y. Mandible and tongue development. Curr. Top. Dev. Biol. 2015, 115, 31–58. [Google Scholar] [PubMed]
  85. Amano, O.; Doi, T.; Yamada, T.; Sasaki, A.; Sakiyama, K.; Kanegae, H.; Kindaichi, K. Meckel’s cartilage: Discovery, embryology and evolution—Overview of the specificity of meckel’s cartilage. J. Oral Biosci. 2010, 52, 125–135. [Google Scholar]
  86. Lee, S.K.; Kim, Y.S.; Oh, H.S.; Yang, K.H.; Kim, E.C.; Chi, J.G. Prenatal development of the human mandible. Anat. Rec. 2001, 263, 314–325. [Google Scholar] [CrossRef] [PubMed]
  87. Muhlhauser, J. Resorption of the unmineralized proximal part of meckel’s cartilage in the rat. A light and electron microscopic study. J. Submicrosc. Cytol. 1986, 18, 717–724. [Google Scholar] [PubMed]
  88. Garg, A.; Townsend, G. Anatomical variation of the sphenomandibular ligament. Aust. Endod. J. 2001, 27, 22–24. [Google Scholar] [CrossRef] [PubMed]
  89. Wang, Y.; Zheng, Y.; Chen, D.; Chen, Y. Enhanced bmp signaling prevents degeneration and leads to endochondral ossification of meckel’s cartilage in mice. Dev. Biol. 2013, 381, 301–311. [Google Scholar] [CrossRef] [PubMed]
  90. Jeong, J.; Mao, J.; Tenzen, T.; Kottmann, A.H.; McMahon, A.P. Hedgehog signaling in the neural crest cells regulates the patterning and growth of facial primordia. Genes Dev. 2004, 18, 937–951. [Google Scholar] [CrossRef] [PubMed]
  91. Muralidharan, P.; Sarmah, S.; Zhou, F.C.; Marrs, J.A. Fetal alcohol spectrum disorder (fasd) associated neural defects: Complex mechanisms and potential therapeutic targets. Brain Sci. 2013, 3, 964–991. [Google Scholar] [CrossRef] [PubMed]
  92. Ahlgren, S.C.; Thakur, V.; Bronner-Fraser, M. Sonic hedgehog rescues cranial neural crest from cell death induced by ethanol exposure. Proc. Natl. Acad. Sci. USA 2002, 99, 10476–10481. [Google Scholar] [CrossRef] [PubMed]
  93. Dixon, M.J.; Marazita, M.L.; Beaty, T.H.; Murray, J.C. Cleft lip and palate: Understanding genetic and environmental influences. Nat. Rev. Genet. 2011, 12, 167–178. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Schematic diagram of human facial development. The craniofacial skeleton is predominantly made up of five primordia; the frontonasal prominence (FNP; including the lateral and medial nasal prominences), paired maxillary (MX), and paired mandibular (MD) prominences. These gradually migrate towards the midline, to form the nose, lips and jaws, and are fully integrated by 10 weeks of human embryonic development. The MD processes appose and fuse first (at ~5 weeks of age; (A), followed by fusion of the lateral MX prominences with the medial and lateral nasal processes in the ventrolateral FNP (B). Next, fusion of both medial nasal prominences forms the midline of the nose and the primary palate (C). Two outgrowths of the MXP (the palatal shelves) elevate and migrate towards each other, fusing with each other and the primary palate to form the upper jaw (D). Adapted from [21].
Figure 1. Schematic diagram of human facial development. The craniofacial skeleton is predominantly made up of five primordia; the frontonasal prominence (FNP; including the lateral and medial nasal prominences), paired maxillary (MX), and paired mandibular (MD) prominences. These gradually migrate towards the midline, to form the nose, lips and jaws, and are fully integrated by 10 weeks of human embryonic development. The MD processes appose and fuse first (at ~5 weeks of age; (A), followed by fusion of the lateral MX prominences with the medial and lateral nasal processes in the ventrolateral FNP (B). Next, fusion of both medial nasal prominences forms the midline of the nose and the primary palate (C). Two outgrowths of the MXP (the palatal shelves) elevate and migrate towards each other, fusing with each other and the primary palate to form the upper jaw (D). Adapted from [21].
Jdb 04 00024 g001

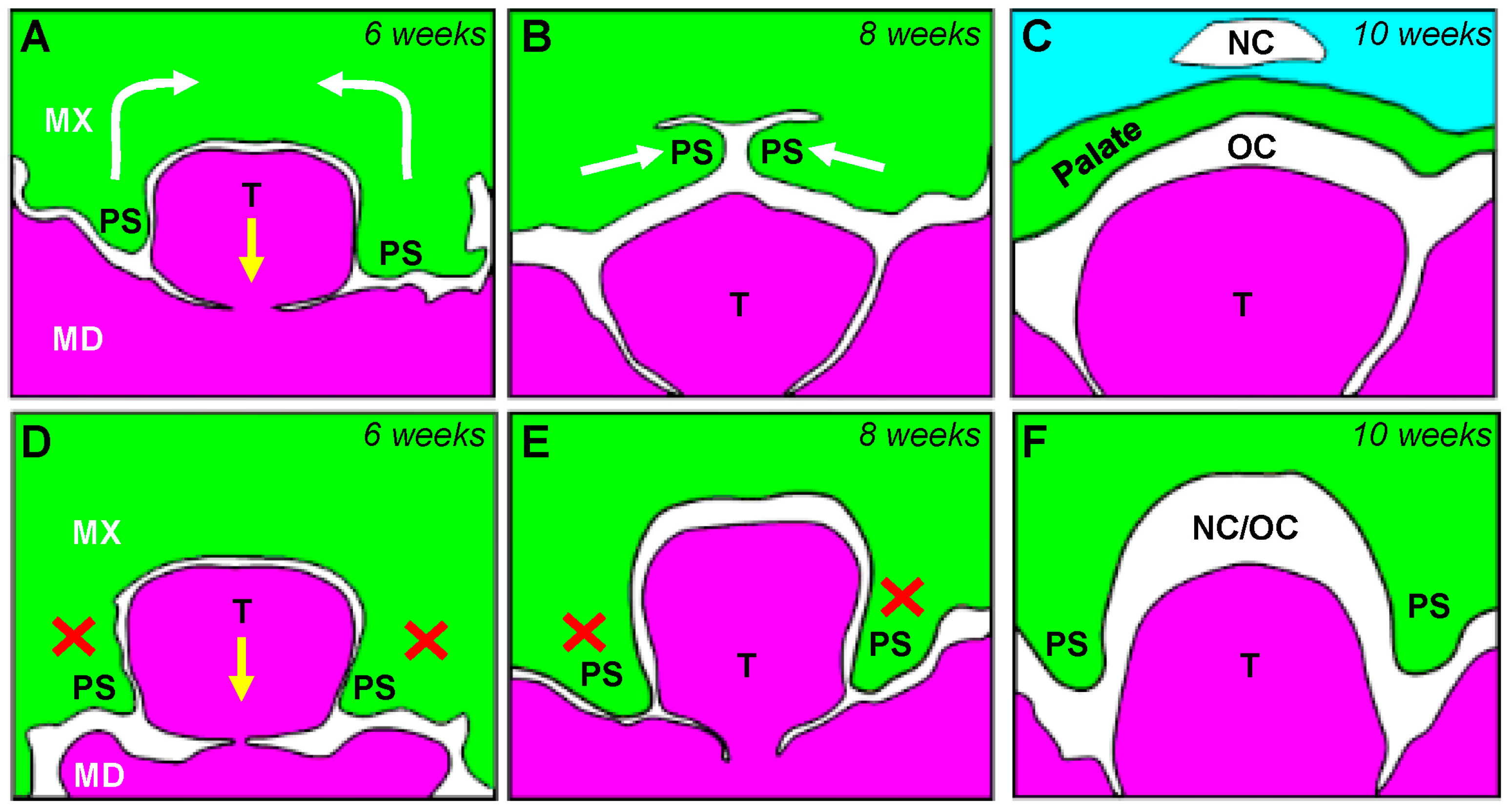

Figure 2. Palatogenesis and development of palatal clefts. The palatal shelves, outgrowths of the maxillary processes, initially form and are directed ventrally, lateral to the developing tongue (A). As the embryo develops, the tongue migrates ventrocaudally and the palatal shelves migrate dorsolaterally (arrows in A). By 8 weeks of human development, the palatal shelves have begun to migrate towards each other (B), and following apposition and fusion, form the secondary palate by 10 weeks, ensuring clear separation between the oral cavity (OC) and, at the anterior end, the nasal cavity (NC; C). Although palatal clefting has numerous diverse aetiologies, mechanistically, the palatal shelves remain similarly oriented ventrally at 6 weeks of development (D), but fail to elevate (crosses in D,E). This ultimately results in a failure of secondary palate formation, and a continuous passage between the oral and nasal cavities (at the anterior portion of the face; F).
