A Needle in a Cosmic Haystack: A Review of FRB Search Techniques

Abstract

Ephemeral Fast Radio Bursts (FRBs) must be powered by some of the most energetic processes in the Universe. That makes them highly interesting in their own right, and as precise probes for estimating cosmological parameters. This field thus poses a unique challenge: FRBs must be detected promptly and immediately localised and studied based only on that single millisecond-duration flash. The problem is that the burst occurrence is highly unpredictable and that their distance strongly suppresses their brightness. Since the discovery of FRBs in single-dish archival data in 2007, detection software has evolved tremendously. Pipelines now detect bursts in real time within a matter of seconds, operate on interferometers, buffer high-time and frequency resolution data, and issue real-time alerts to other observatories for rapid multi-wavelength follow-up. In this paper, we review the components that comprise a FRB search software pipeline, we discuss the proven techniques that were adopted from pulsar searches, we highlight newer, more efficient techniques for detecting FRBs, and we conclude by discussing the proposed novel future methodologies that may power the search for FRBs in the era of big data astronomy.

1. Introduction

The universe has fascinated humans since they first gazed into the sky and started to wonder. The advancements in science and technology have meant that we can now even see the cosmos through previously invisible light such as radio waves. And, while the everyday sky appears mostly static, it turns out to be highly variable and transient at wavelengths our eyes are oblivious to. One such transient phenomenon is Fast Radio Bursts (FRBs). These are bright radio flashes that travel from billions of light years away. The measured fluxes and duration suggest a highly energetic and ephemeral physical process. These attributes make FRBs a key tool for answering outstanding questions in cosmology and probing the most energetic processes in the universe.

FRBs were serendipitously discovered in 2007 when astronomers were mining vast amounts of radio data at the highest time resolution for pulsars, radio-emitting neutron stars [1]. Since the discovery of pulsars in 1967 [2], astronomers have developed various techniques to look for celestial radio pulses. Telescopes find radio pulsars either by a periodicity search or by detecting individual bright radio pulses [3]. By the early 2000s, more than 2000 radio pulsars had been discovered, and an increasing effort was ongoing to find more in our Galaxy and in the Magellanic clouds [4,5]. One the main things to correct for while searching for bright narrow radio pulses is the dispersion of the radio waves by the interstellar medium. This causes radio signals at lower frequencies to reach Earth later than their counterparts at higher frequencies, manifesting itself as a sweep of the pulse across the observing band. The amount of dispersion depends on the total electron column density along the line of sight; this measure thus acts as a proxy for the distance between the source and the observer. Astronomers search for pulses over a range of dispersion values, up to the largest distance they want to cover. Until 2007, no searches were carried out for bright pulses beyond the local Galactic neighbourhood, while searches in nearby galaxies were sporadic [5]. All that was about to change when an extremely bright burst was discovered in 2007, with a dispersion much larger than what was expected from the Milky Way, in archival data from the Murriyang (Parkes) telescope. This seminal event in time-domain astronomy opened up a new parameter space of cosmological radio bursts with tremendous scientific potential [6].

The discovery made the community realise that there are regions on the transient phase space that remain unexplored because (1) they are selected against in our surveys and (2) we did not expect any sources in those regions. Recent discoveries of FRBs and other radio transients have proven point 1 to be true, but point 2 much less so—highlighting the importance of revising our data processing techniques and conducting sensitive searches for fast radio transients with current and future telescopes. In this review, we provide a summary of the past and present techniques used by radio astronomers to find FRBs in time-domain data. We go through the search methodologies and discuss the advantages and the underlying biases. We also discuss some newer techniques that are currently being deployed to expand our horizons within the radio transient phase space and we provide an outlook towards the future of FRB searches with next-generation radio telescopes.

2. Key Steps in a FRB Search Pipeline

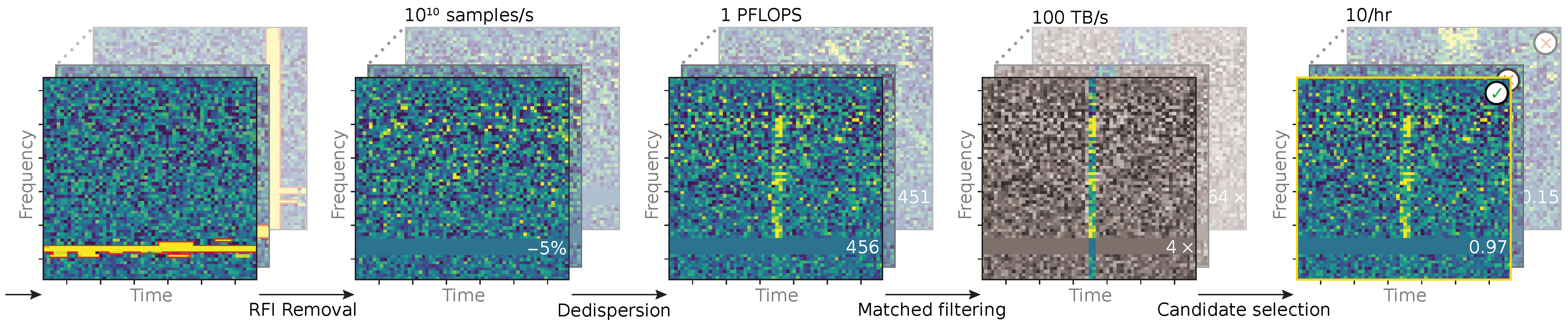

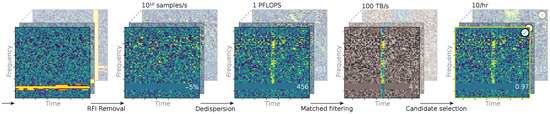

The survey technologies employed at present reduce and analyse roughly ten Exabyte of raw data to find a single FRB (e.g., [7]). This analysis can be thought of as a number of distinct functional steps, even if these are sometimes optimised into one another at deployment. This data analysis pipeline has to process large volumes of data, but has strong constraints on latency, too. To fully utilise the scientific potential of FRBs, it is important to localise the bursts by imaging the radio sky at the time of the FRB and sending alerts to other observatories. This can help constrain any multi-wavelength emission that may be concurrent to the event. This is only possible if both the FRB is detected and the corresponding radio data are saved in real-time. This means that FRB detection software must be extremely efficient and exceedingly fast. This has led to vast developments in making every component within the FRB search methodology highly optimised. We illustrate this sequence in Figure 1 and describe its parts in detail below. We provide a (not exhaustive) list of publicly available software that implements all the steps described below in Appendix A.

This sequence produces and searches an order of ${10}^{12}$ realisations of the data for every FRB that is discovered. It is instructive to compare this stupendous number against the odds of finding the proverbial needle in the haystack. To match the effort required in a FRB search, the grassy pile would need to rival the Great Pyramid of Giza.

2.1. Rejection of Radio Frequency Interference

Whenever astronomers have looked at the cosmos through radio wavelengths, they have been greeted by a large diversity of radio signals created by humanity. These signals, while undoubtedly important for the progress of civilisation, are a nuisance in detecting any faint radio signal from the Universe. This so-called “radio frequency interference” (RFI) can be broadly classified into two distinct categories: broad-band and narrow-band RFI. Broad-band RFI refers to the spurious signals that affect the entire band of observations. Narrow-band RFI is limited in its spectral coverage and can be caused by communications at specific frequencies or any strong periodic signal that is terrestrial in nature. Any signal that is not astrophysical is treated as RFI in radio astronomy. Hence, various tools and techniques have been devised over the last 50 years to reduce the deleterious effects of RFI on fainter signatures from FRBs.

A key feature that differentiates an astrophysical radio signal from a terrestrial one is the dispersion measure (DM). As radio waves travel through the intergalactic and interstellar plasma, they encounter free electrons that act like a refractive material, causing radio waves at lower frequencies to be delayed with respect to the higher frequencies. This manifests itself as a delay at the receiving antenna, observed at a band between ${\nu }_1$ and ${\nu }_2$ as

$$\Delta t=4.15\left({\nu }_1^{-2}-{\nu }_2^{-2}\right)\mathrm{DM}\mathrm{ms},$$

(1)

where,

$$\mathrm{DM}={\int }_0^l{n}_{e}dl.$$

(2)

Here, $n_e$ is the electron density and l is the distance to the source. The DM is a measurable quantity that is proportional to the distance to the source. Astronomers can use this attribute to identify RFI, as any terrestrial or satellite RFI will have a DM of 0 $\mathrm{pc}{\mathrm{cm}}^{-3}$. Below, we list a few of the popular RFI excision techniques used in time-domain radio data, ordered by the level of complexity.

2.1.1. Static Channel Mask

Any radio telescope has a number of persistent, local RFI sources. Some of these sources are always emitting at the same radio frequency with little time variability. In these situations, it is sensible to pre-emptively mask out the relevant frequencies from the telescope data as they will be completely unusable. Hence, astronomers can generate a static frequency channel mask for these known sources of RFI that are always present in the data. One of the main drawbacks of a static mask is that it cannot account for the time variability of RFI, or for the corruption of a new region of the frequency band. Then, the mask needs to be updated. Hence, more sentient RFI flagging algorithms are used for telescopes around the world nowadays.

2.1.2. Zero-DM Filter

The zero-DM filter first de-disperses the time series at a DM of 0 $\mathrm{pc}{\mathrm{cm}}^{-3}$ and then subtracts these values from every frequency channel. Any broadband RFI that exists in the data—which is strongest at a DM of 0 $\mathrm{pc}{\mathrm{cm}}^{-3}$, while any astrophysical signal is expected to have a positive, non-zero DM—is mostly removed. While this recipe is commonly used in standard searches for FRBs [8], there are certain drawbacks. This is especially the case for sources with a high signal-to-noise ratio (S/N), that can be detected in every frequency channel. As we are effectively subtracting the mean of the channels from the time-observing frequency intensity data from the telescope (henceforth called a dynamic spectrum), and these high-S/N cases, one also removes some amount of the true signal. This results in a reduction in the significance of the signal. Secondly, for sources that have very small DMs, the dispersed signal resembles broadband zero-DM RFI and such a subtraction can remove a significant amount of astrophysical signal. But, overall, since FRBs are expected to have very large DMs, and the S/N per channel is usually low, this method is a simple and effective tool for search engines.

2.1.3. Real-Time Thresholding

Typical time-domain surveys contain a sequence of time-frequency data recorded with integration times of a few tens to hundreds of microseconds. At these timescales, the RFI environment at a radio telescope changes rapidly, which makes a static channel mask ineffective for real-time searches for FRBs. FRB surveys require such real-time processing as the high data rates preclude storing the full-resolution observations for a meaningful length of time. This means RFI mitigation needs to occur on-the-fly as well. This is a challenge because (1) the tension between hardware memory limitations and the varying but ever-incoming data stream mean the algorithm has only limited access to the data statistics that change over time and (2) the compute bounds and real-time requirement demand a simple algorithm. In practice, for a multi-beam survey in which ${10}^2$ Gbps of incoming data need to be cleaned of RFI in real-time, as in Figure 1, these requirements translate to computer demands that require ∼1–5% of the overall execution time [7,9], operating on the local statistics of buffered data chunks spanning ∼1 s. The FRB surveys at, e.g., CHIME [10] and Apertif [9] each employed algorithms that identify and remove samples stronger than a defined noise threshold and that adapt dynamically to the noise characteristics of the incoming data. These can act in both time and frequency domain and can be applied iteratively. The RFIm real-time mitigation library [9] that implements this algorithm is open source.

2.1.4. IQRM

A method that more explicitly removes slowly varying trends in the data than the thresholding described above, and detects RFI outliers, is the Inter-Quartile Range Mitigation (IQRM) algorithm. IQRM identifies all the frequency channels affected by narrow-band RFI. The first step is to characterise the entire chunk of data by a single statistical metric per frequency channel and then to determine the channels whose statistical metric does not conform to clean data. IQRM is characterised by two aspects. First, any spectral statistic to decide which channels are contaminated by RFI is acceptable, as long as higher values of the metric indicate a larger contamination of the data by RFI. Second, the threshold beyond which data are rejected is estimated from data which are assumed to vary slowly with the observing frequency.

The algorithm works as follows: for each sample in a frequency channel i, we compute the chosen statistical metric $s_i^{0-N}$. The total number of samples considered are dictated by a radius parameter and a threshold parameter (in units of $\sigma$) that the metric needs to exceed to be considered an outlier. Using these parameters, the algorithm computes the difference, $\Delta s_i^j$, over the radius r such that 0 $\le j\le r$. Finally, all the $\Delta s_i^j$ values are filtered based on the threshold defined by the user. Any values above this threshold will be flagged as RFI by the algorithm.

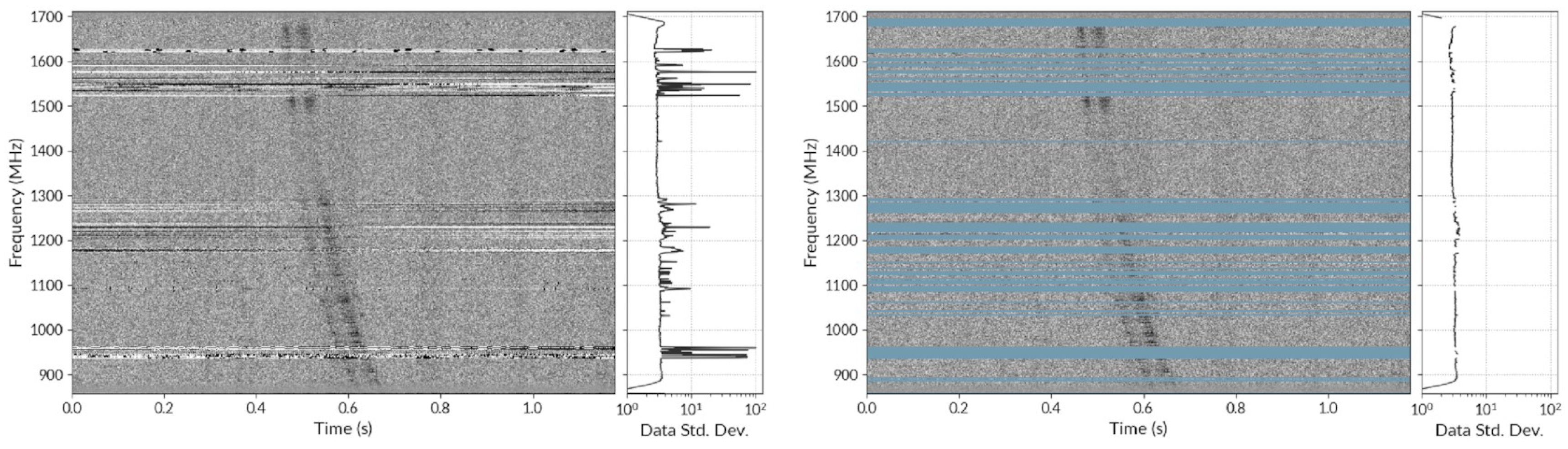

Figure 2 shows an example of data before and after flagging by IQRM. It clearly demonstrates the ability of IQRM to pick out time variable narrow-band RFI. IQRM has been used for various time-domain surveys [11]. Since the algorithm is dependent on a statistical metric that is expected to be robust to RFI, it is bound to be ineffective in cases where RFI affects a significant fraction of the data that is used to compute the statistical metric. Hence, IQRM is not an effective tool against long-term, broad-band RFI.

2.1.5. Z-Dot Filter

The Z-dot filter is an updated zero-DM filter that computes the zero-DM time series similar to the zero-DM filter, but subtracts only the corresponding contribution from each channel. This avoids over-subtraction in channels where there is a real signal and results in improved sensitivity of the search.

Similar to the zero-DM filter, the zero-DM time series is estimated by de-dispersing the original data at zero-DM value. Let the corresponding time series be denoted by ${\mathrm{s}}_{\mathrm{dm}=0}$. One then estimates the contribution per channel by determining the baseline ${\beta }_i$ plus the scale factor ${\alpha }_i$ such that the residuals for fitting the zero-DM contribution are minimised for each channel i. Hence, a reduced-${\chi }^2$ metric is defined such that,

$${\chi }^2={\left({\mathrm{t}}_{\mathrm{i}}-{\alpha }_i{\mathrm{t}}_{\mathrm{dm}=0}-{\beta }_i\right)}^2.$$

(3)

where ${\mathrm{t}}_{\mathrm{i}}$ is the time series of the ith channel and

$${\alpha }_i=\frac{{\mathrm{t}}_{\mathrm{dm}=0}·{\mathrm{t}}_{\mathrm{i}}-\frac{1}{N}{\sum }_0^N{\mathrm{t}}_{\mathrm{i}}{\sum }_0^N{\mathrm{t}}_{\mathrm{dm}=0}}{{\mathrm{t}}_{\mathrm{dm}=0}·{\mathrm{t}}_{\mathrm{dm}-0}-\frac{1}{N}{\sum }_0^N{\mathrm{t}}_{\mathrm{dm}-0}{\sum }_0^N{\mathrm{t}}_{\mathrm{dm}=0}},$$

(4)

where the summation is the sum over N time samples in the time series. The final filtered time series,

$${\mathrm{t}}^{\prime }={\mathrm{t}}_{\mathrm{i}}-{\alpha }_i{\mathrm{t}}_{\mathrm{dm}=0}.$$

(5)

${\beta }_i$ is just the DC offset in this case and does not need to be subtracted during the filtration process. A big advantage of this method is that the samples are subtracted with different weights, which allows the user to still preserve the full astrophysical signal while effectively removing most of the zero-DM RFI. The full recipe for this technique is provided in [12].

2.1.6. Spectral Kurtosis

Tests of statistical moments for a certain distribution can serve as a powerful metric for identifying RFI. Sources in nature typically produce electric fields that are Gaussian, and any extreme non-Gaussianity that rises from observed RFI sources leads to deviations in the statistical properties of radio measurements. Spectral Kurtosis (SK) is a statistical parameter that can be used to differentiate between Gaussian noise and non-Gaussian features in the dataset. Kurtosis is the fourth moment of a normal variable. It characterises the sharpness of the Gaussian distribution [13]. Typically, stationary broadband astrophysical signals have Gaussian-like kurtosis. The presence of RFI will significantly affect the kurtosis of the data, thus providing astronomers with a way to filter RFI without affecting the signal of interest. From the definition of kurtosis, one can derive the spectral kurtosis estimator,

$$\widehat{SK}=\frac{XYc+1}{X-1}\left(\frac{X·A_2}{A_1^2}-1\right),$$

(6)

where X is the number of spectral values that are accumulated, Y is the total number of spectra that are used to estimate this value, c is a shape parameter of the response of the detector that is empirically derived, and

$$\begin{array}{c}\hfill A_1=\sum _{j=1}^X{\left(\sum _{i=1}^Y{I}_i\right)}_j\\ \hfill A_2=\sum _{j=1}^X{\left(\sum _{i=1}^Y{I}_i\right)}_j^2\end{array}$$

(7)

are the first and second statistical moments of the data. For Gaussian noise, the distribution of $\widehat{SK}$ is predictable and any deviations from it can be identified up to a certain threshold and confidence and are removed from the data. Several studies have assessed the effectiveness of spectral kurtosis in searches for radio transients [14,15].

2.1.7. Secondary, Off-Line RFI Mitigation

In buffered or off-line data, more sophisticated methods can be used. With these, FRBs that were detected from the real-time pipeline can be cleaned from RFI to achieve a higher signal-to-noise ratio (S/N). But, these also reduce the S/N down to which new FRBs can be found and studied. Off-line, RFI filters can take multiple passes to, e.g., first assess the noise levels in the entire data set, and next define individual bright outliers as RFI (e.g., [16,17]), or even remove low-level periodic RFI throughout [18].

2.2. Dedispersion

As described in the previous section, radio waves travel from the FRB event to the observer, and traverse cold plasma (in the host galaxy, the inter-galactic medium and the Milky Way). A narrow pulse from a FRB is smeared out over the observing band by an amount depending on the magnitude of the DM, resulting in a sub-optimal detection. Hence, before performing any search for FRBs in radio data, the data have to be corrected for this dispersive delay. This process is known as dedispersion. There is an approximate “incoherent” method and an exact “coherent” method (Section 2.2.3). Since we have no a priori information about the distance of the FRB, the data have to be dedispersed over a range of trial DMs. Below, we describe some of the key dedispersion algorithms.

2.2.1. Brute Force

The direct dedispersion algorithm sums the intensities of a dynamic spectrum over the entire bandwidth, along the quadratic sweep corresponding to the trial dispersion measure. The algorithm calculates a dedispersed time series $t_{\mathrm{D},\mathrm{t},\nu }$ from an input dataset $\mathcal{I}$ where the subscripts indicate a given DM D, time t, and frequency $\nu$. The algorithm is run over a number of frequency channels $N_{\nu }$, number of time samples $N_{\mathrm{t}}$, and a number of DM trials $N_{\mathrm{D}}$. Typically, on modern heterogeneous architectures, the brute force dedispersion algorithm is parallelised over $N_{\mathrm{t}}$ and $N_{\mathrm{D}}$, with the summation over $N_{\nu }$ happening serially. One drawback of the brute force method is that the complexity of this algorithm is very high, $\mathcal{O}(N_{DM},N_t,N_{\nu })$. The other issue with this algorithm is that it requires a large memory bandwidth in the compute hardware and has a very low arithmetic density once the data are loaded to memory. While these challenges appear daunting, three methods are combined in practice to remedy both issues (see, e.g., [7]), allowing us to dedisperse data in real-time. For the first two, an error budget is estimated once, at the start of a survey, based on the intra-channel dispersion that is unavoidable for incoherent dedispersion at higher DMs, and this is encoded in a look-up table. Then, first, for higher DMs, the input data are downsampled such that they remain below this error, reducing $N_{\mathrm{t}}$ without loss. Second, dedispersion takes place using a two-step sub-banding algorithm—i.e., first dividing the entire bandwidth over multiple sub-bands, next dedispersing within these, and finally combining all sub-bands—effectively reducing $N_{\nu }$ (cf. [19]). Finally, memory access is tuned such that the required data can be very rapidly retrieved from the cache (“data re-use” [20]).

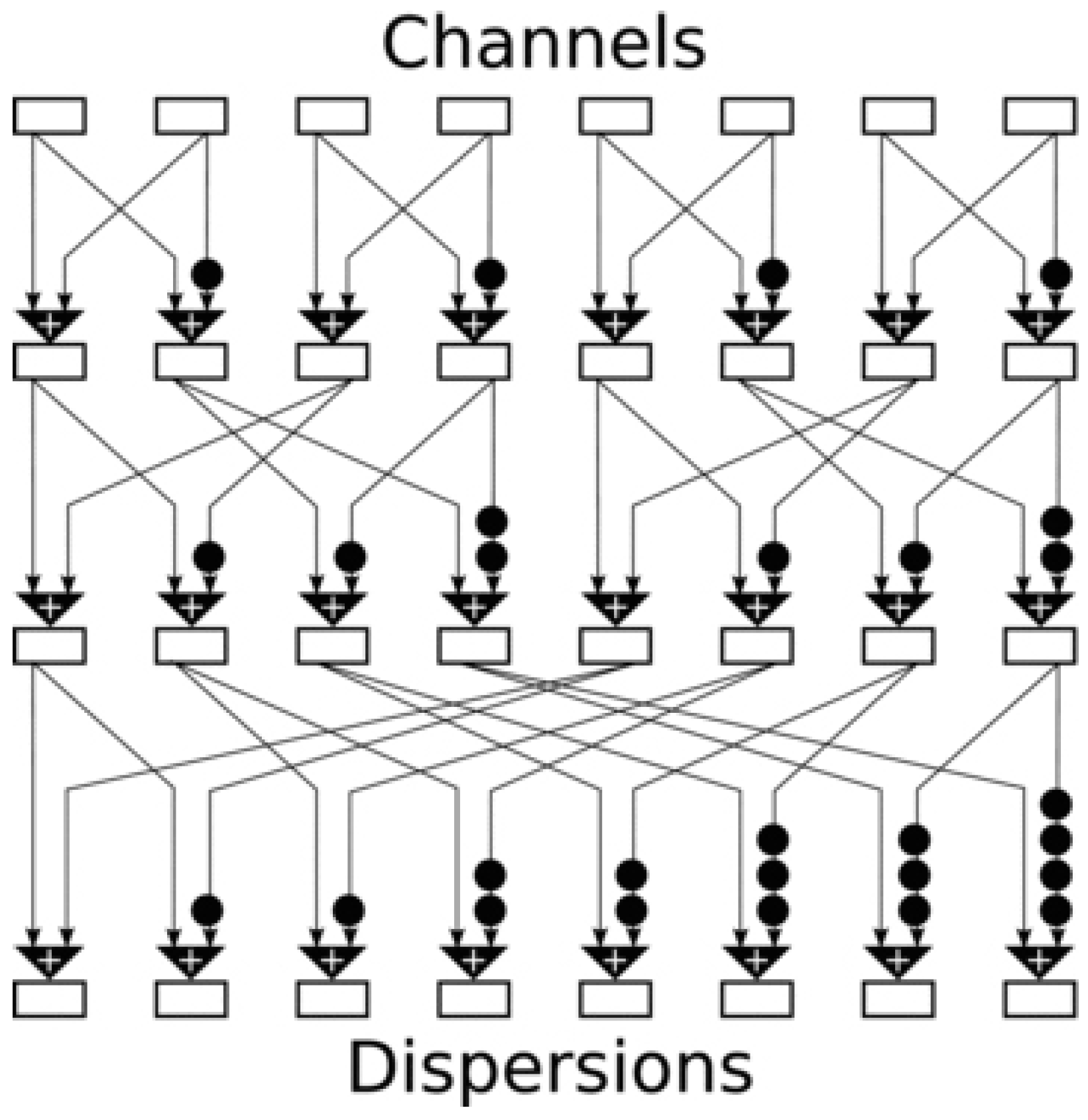

2.2.2. Tree Dedispersion

Brute force dedispersion can get computationally intensive very quickly for modern day FRB surveys given their large data volumes and high number of trial DMs. The tree dedispersion algorithm [21] uses the divide and conquer algorithm (similar to the Fast Fourier Transform [22]) to reduce the complexity of dedispersion. The complexity in this algorithm reduces from $\mathcal{O}\left(N_{\mathrm{t}}{N}_{\mathrm{D}}{N}_{\nu }\right)$ to $\mathcal{O}\left(N_{\mathrm{t}}{N}_{fdm\nu }log\left(N_{\nu }\right)\right)$. This significant speed-up is obtained by first regularising the problem (represent the mathematical problem into a super-position of linear terms) and then eliminating all redundant additions. In spite of the large speed-ups in the calculation, there are overheads involved with the many add operations which still make this algorithm suited for many-core and GPU (Graphics processing unit) architectures. In a mathematical sense, the algorithm computes the following:

$$\mathcal{I}\left(t\right)=\sum _{\nu }^{N_{\nu }}B(\nu ,t+\delta t(d^{\prime },\nu )),$$

(8)

where $\mathcal{I}\left(t\right)$ is the intensity of a given time sample, B is the intensity for a given time sample and observing frequency $\nu$, and

$$\delta t(d^{\prime },\nu )=d^{\prime }\left(\frac{\nu }{N_{\nu }-1}\right),$$

(9)

for a bandwidth with $N_{\nu }$ and a DM trial $d^{\prime }$ in the range 0 ≤ $d^{\prime }$ < $N_{\nu }$. This regularisation produces a delay function $\delta t(d^{\prime },\nu )$ that is a linear function of frequency. Hence, the DM can also be mapped to a linear function of frequency. Due to this regularisation, Equation (8) can be computed for different DMs in $lo{g}_2{N}_{\nu }$ steps using the divide and conquer algorithm (as illustrated in Figure 3). While the algorithm reduces the number of computations, there are several constraints introduced by the method. The two key ones are that the DMs for which the data are dedispersed are not the efficiently distributed DM trial values that produce the most sensitive search, and that the algorithm sums over linear tracks. To overcome these, tree dedispersion can first run within subbands (cf. Section 2.2.1) and next we can combine their outcomes with the same algorithm. That way, tree dedispersion approximates the quadratic DM smear over the entire band while still preserving the efficient computation with regularisation.

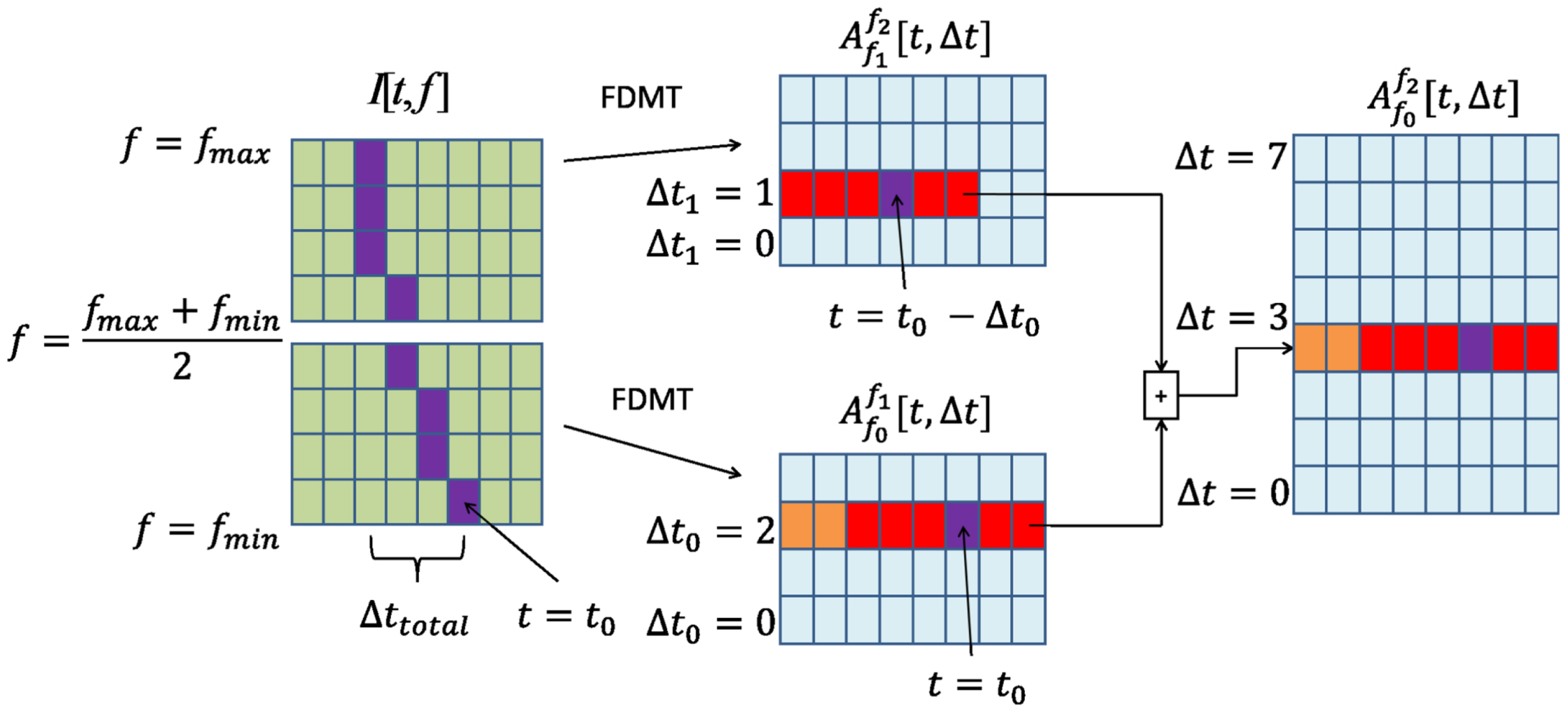

An algorithm that also recursively breaks down the problem, like tree dedispersion, is the fast dispersion measure transform (FDMT; [23]). FDMT (Figure 41) combines a low theoretical complexity as seen in tree dedispersion with the ability to sum over the exact quadratic dispersion curve as featured in brute force dedispersion. The latter is important especially when using high fractional bandwidths, high DMs, and/or low observing frequencies. While brute force dedispersion implementations successfully employ data reuse to allow real-time searching [20], and the problem is thus solved in practice, FDMT is intrinsically more efficient.

2.2.3. Semi-Coherent Dedispersion

Interstellar dispersion can also be thought of as an impulse response of the ISM as the electro-magnetic wave moves through it. If we are able to measure the electric field at the telescope, it can be written as

$$\mathcal{S}\left(t\right)={\mathcal{S}}_{\prime }\left(t\right)\ast \mathcal{H}\left(t\right),$$

(10)

where ∗ denotes a convolution operation and $\mathcal{H}\left(t\right)$ is the impulse response function of the ISM such that

$$\mathcal{F}\left(\mathcal{H}\left(t\right)\right)=e^{-i\frac{2\pi D}{({\nu }_0+{\nu }_d){\nu }_0^2}DM{\nu }_d^2},$$

(11)

where D is a constant, ${\nu }_0$ is the lower edge of the band, ${\nu }_d$ is the deviation from the lower edge, and $\mathcal{F}$ is the Fourier transform. In the frequency domain, the ISM response function adds an additional phase to the signal which can be removed if the DM is known. This removal method, coherent dedispersion, fully corrects for the dispersion with no intra-channel smear. It is implemented by performing a complex multiplication by the inverse of the impulse function in the frequency domain. Typically, searches for FRBs are done by performing incoherent dedispersion over a number of DM trials where the intra-channel dispersion smear reduces the sensitivity of the search. In “semi-coherent dedispersion” one can use coherent dedispersion over a coarse grid of DM trials, and next perform a finer DM search for FRBs incoherently, improving the overall sensitivity [24].

2.2.4. Fourier Domain Dedispersion

Typically, brute force dedispersion is performed on time-domain data, where the dynamic spectrum is shifted in time per frequency channel depending on the DM, to generate a new dynamic spectrum. This algorithm requires a large memory bandwidth for only a minimal number of computations. In the Fourier Domain, a time delay corresponds to a phase rotation. These phase rotations can be represented as dense matrices that can be efficiently solved on the GPU/CPU.

In Fourier Domain dedispersion, one can convert the dynamic spectrum $I(t,\nu )$, where t is time and $\nu$ is the observing frequency, to a Fourier spectrum where k defines the Fourier frequencies. This amounts to $N_{\nu }$ ($N_{\nu }$ is the number of frequency channels across the bandwidth) 1-D Fourier transforms $I(t,\nu )\leftrightarrow \mathcal{I}(t,k)$ that should not be confused with a 2-D Fourier transform of the whole dynamic spectrum. Under this framework, the DM delays in the k space can be represented as phase rotations such that

$$\mathcal{A}(k,\nu ,\mathrm{DM})=e^{-2\pi ik\delta t(\nu ,DM)}.$$

(12)

Hence, the final dedispersion product is

$$I(t,DM)=\sum _0^{N_{\nu }}{\mathcal{F}}^{-1}\left(\mathcal{A}\left(k\right)\mathcal{I}(t,k)\right),$$

(13)

where $\mathcal{F}$ is the inverse Fourier transform operator. Since the Fourier transform is linear, the inverse transform and the summation operations can be swapped, such that one has to perform the inverse transform only once, thus significantly improving the efficiency of the algorithm. Details of this algorithm are provided in [25].

2.3. Matched Filtering

In time-domain signal processing, matched filtering is an effective way of unearthing a non-Gaussian signal from noisy data if the shape of the expected signal is known a priori. In reality, any time series

$$X\left[t\right]=a\left[t\right]+n\left[t\right],$$

(14)

where $a\left[t\right]$ is the signal and $n\left[t\right]$ is the noise at any given time t. Matched filtering involves applying a filter to the time series such that maximum S/N will occur when the impulse response of the filter is equal to the shape of the signal in the time series. Mathematically, this means that the filter is convolved with the time series to detect the signal and determine its physical properties. In time-domain astronomy, this filtering technique is used widely to detect FRBs and single pulses in noisy data, in real-time. In the simplest case, a matched filter is a set of box cars with varying widths which approximates the shape of a single pulse. For any time series produced after dedispersing the data at a given DM, these boxcars of varying widths are convolved with the time series and the result is searched for any points above the signal-to-noise threshold. In reality, any real pulse can be best approximated by a Gaussian pulse. Hence, for a time series $X\left[t\right]$, the maximum S/N is

$$S/N_{\max }=\max \left[X\left[t\right]\ast B[t,w]\right],$$

(15)

where $B\left[t\right]$ is the boxcar function and ∗ denotes a convolution operation. $S/N_{\max }$ will maximise when the width w is closest to the true FRB width. Since this width is unknown a priori, the time series has to be convolved with a large number of boxcar trials, thus increasing the complexity of the search. To optimise this process, boxcar widths are geometrically spaced in powers of 2 to convolve the data. The data themselves are also downsampled for larger widths to reduce the data volume/number of time samples and hence, the time of processing. Typical widths of FRB range from a millisecond to a few tens of ms [26]. Hence, real-time FRB surveys generally only search for transients spanning between an order 0.1 and 100 ms—although recent discoveries have shown the importance of going to larger widths in the search [27,28,29].

2.4. Candidate Classification

All real-life FRB detection pipelines produce many spurious candidates due to various terrestrial sources. These so-called ’false positives’ make an actual detection extremely challenging in high RFI environments. Ever-proliferating cellular network towers, radar stations and satellite constellations emitting intense radiation across the radio-band can generate millions of false FRB candidates in any telescope even after proper RFI excision. Hence, one has to use clever techniques to identify a real astrophysical source from the noise.

2.4.1. Sifting and Clustering

When time-domain data are searched for FRBs, the search is done over a number of DM and width trials, over all the time samples. Typically, candidates generated by RFI will all have DMs close to zero. Similarly, real astrophysical signals of interest do not last for more than 100 ms; hence, any pulse wider than that would most likely have a terrestrial origin. One can thus introduce cut offs on the DM and widths, such that candidates below a certain DM and above a certain width are automatically ignored by the real-time pipeline. Such sifting has proven to be an effective way to reduce the number of spurious hits. Similarly, any strong signal will be detected above the S/N threshold of the pipeline over a number of time samples, DMs and widths. One can use this property to effectively cluster events and relate them to a single source/candidate. Popular clustering algorithms include the friend-of-friends algorithm [30], whereby candidates within a normalised distance threshold in time, DM, and width parameter space from a given candidate are clustered together (left panel of Figure 5).

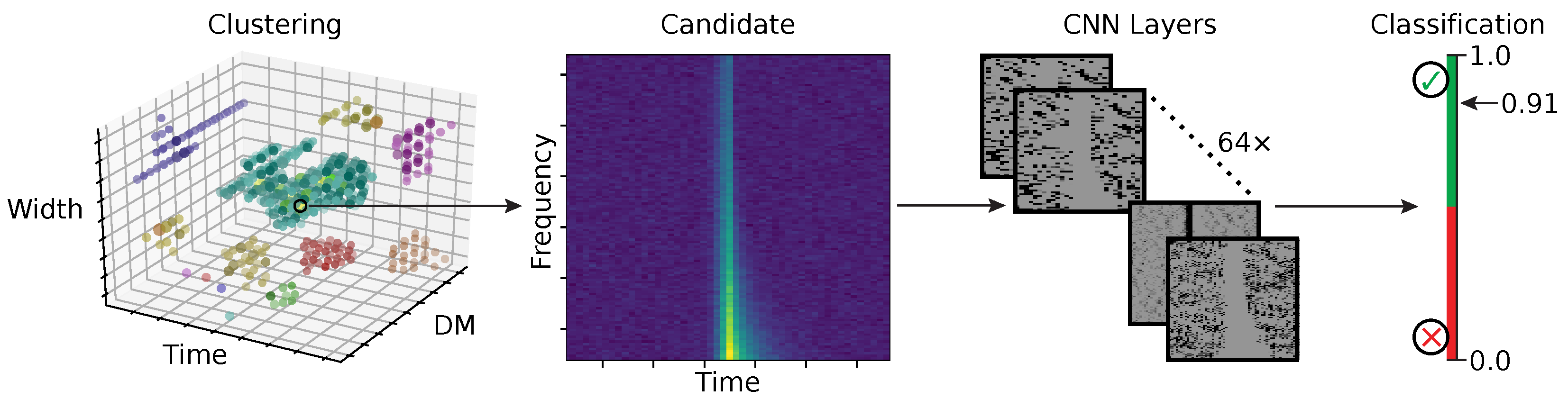

2.4.2. Machine Learning Techniques

Even after employing effective candidate sifting and clustering strategies, strong RFI environments can still result in a large false positive rate, thereby increasing the latency of a real-time FRB detection pipeline. This is crucial as often, in the event of a detection of a FRB by the pipeline, the complex voltage data from the radio telescope are saved to a disk for offline processing (Section 2.5). When the false positive rate is too high, the pipeline latency can be large enough such that it will not save the complex voltage data in time to do any further analysis. Furthermore, too many hits will lead to too many candidates and too much voltage data filling up the storage capacity on the machine. Artificial intelligence is an important tool to rapidly classify real candidates from the spurious ones with excellent precision. Very recently, convolutional neural networks (CNNs) trained over extensive datasets from several radio telescopes have been implemented on FRB search pipelines [31,32,33]. These algorithms are extremely effective in identifying real FRBs among the vast amount of candidates resulting from the detection pipeline.

2.5. Buffering, Triggering, and Alerting

The scientific potential of a detection is maximised if the bursts are localised precisely, i.e., pin-pointed to (sub-)arcsecond precision, enabling identification of the FRB host galaxy. This determination is crucial for a number of reasons. Firstly, it allows one to accurately estimate the redshift of the FRB, thus enabling estimation of the exact electron column depth between us and the source, which is paramount for estimating the baryon content of the Universe [6]. Secondly, it allows further follow-up of the host galaxy and the environs of the FRB, providing insight into the progenitor [34]. In order to do this, FRB search pipelines are often equipped with a mode whereby the discovery of the FRB triggers the buffering of the raw complex voltage data from the telescope. Due to the large amount of space that these data take, only the data around the time of the FRB are saved to the disk. A trigger announcing the discovery of a FRB [35] can further be broadcast over the internet to other radio telescopes (e.g., [36]) and multi-wavelength facilities in order to facilitate prompt follow-up. When using an interferometer, images of the sky can be made from the buffered data to localise the FRB to arc-second precision. The data can also be used to study the radio emission in the FRB at high time resolution, to reveal finer structure and components.

3. FRBs in the Era of SKAO/ngVLA

The radio astronomy landscape will be further transformed in the coming years. On the one hand, new, more advanced radio telescopes—the Square Kilometre Array (SKA) [37], the next-generation Very Large Array (ngVLA) [38], the Deep Synoptic Array (DSA-2000) [39], and the Canadian Hydrogen Observations and Radio-transient Detector (CHORD) [40]—will bring about an exponential increase in the data volume that will need to be processed in order to detect and localise FRBs. Compounding this challenge, on the other hand, is the recent realisation that the parameter space populated by FRBs may be larger than what we have been searching so-far. Some of the existing FRB detection algorithms may not be able to keep up with such high data rates of multiple TBs per second over large ranges of search parameters. In this section we first describe the opportunities for searching outside the existing box and next look at newer, faster, and more efficient algorithms. We note that some of these algorithms have already been tested on a conceptual level and may be deployed on these next-generation telescopes, as their FRB search software stack is not yet set in stone. Here, we look a number of possible alternatives for future FRB searches with next-generation facilities. We note that this by no means is an exhaustive list and describe the ones that we find the most promising.

3.1. Expanding the FRB Parameter Space

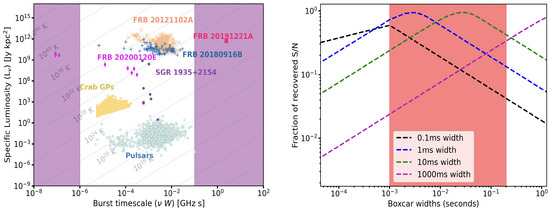

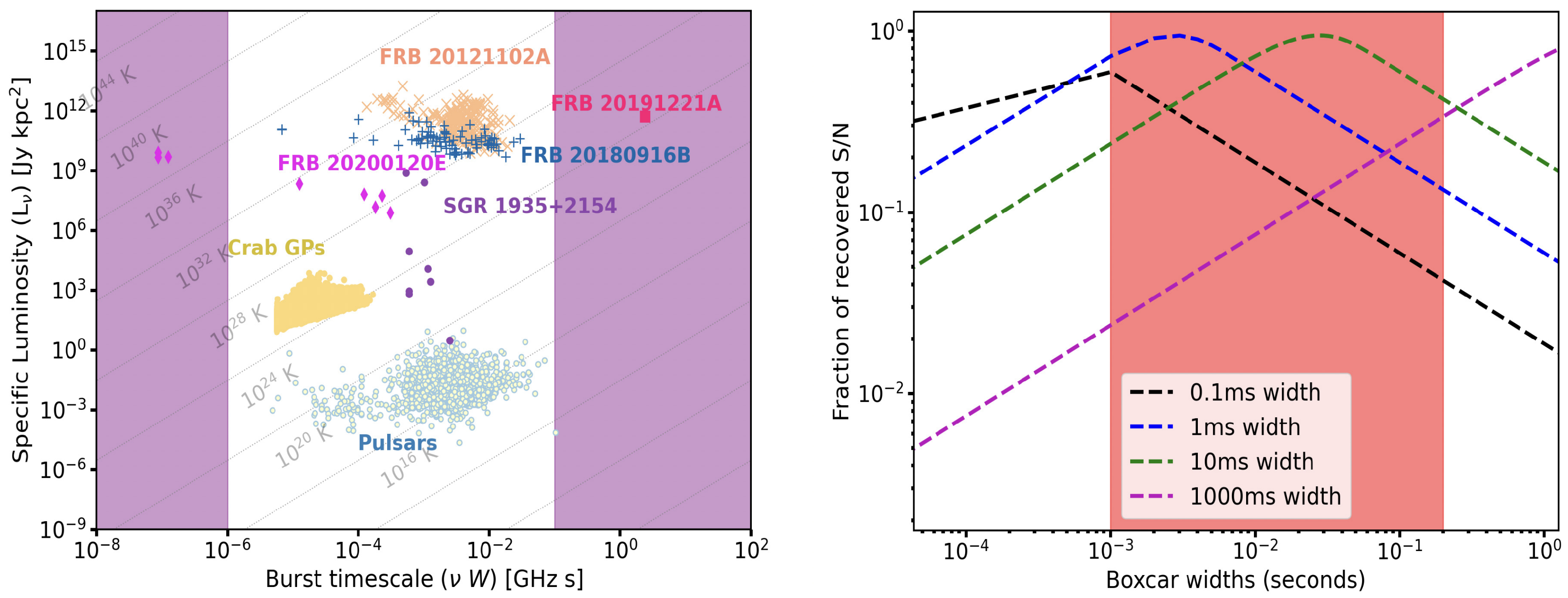

Searches for FRBs and radio pulses from neutron stars are based on the assumption that the pulses are narrow (between 0.1–100 ms). Due to computational constraints, box-car widths used for match filtering never go beyond a few hundred ms. This notion has recently required a fresh new look, thanks to the discovery of the FRB20191221A [41] and its quasi-periodic burst components that span a total duration of as much as 3 seconds. This begs a question: if there is a significant population of wide FRBs, how many do current pipelines miss due to width–search limitations? The right panel of Figure 6 shows that one would miss over 40% of the burst S/N due to overly narrow boxcar widths in matched filtering [42]. On the other side of the spectrum, ref. [43] recently reported the discovery of isolated micro-second duration bursts from FRB20121102A. Such narrow FRBs would be largely averaged out in the data. Together, these recent discoveries have brought to light a selection bias in all current time-domain searches for radio transients. Searches on the short timescales have generally been hampered by the computational limitations; on the long timescales, they have been hampered by the effects of RFI and system stability. Even so, it is important to expand the FRB search parameter space to cover the narrowest and the widest timescales as shown in the left panel Figure 6. Future searches for FRBs with next-generation telescopes should focus on overcoming these limitations and thus eliminating these biases.

3.2. Radon and Hough Transform

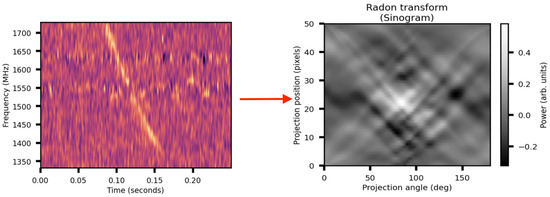

Finding far-away and dim FRBs requires an algorithm that maximises the signal-to-noise ratio of the pulse by integrating the incoming dynamic spectrum along the possible quadratic dispersion curves. Such operations happen over sets of curves form a family of mathematical transformations that include, for example, the Radon transform [44] and Hough transform [45]. Recently, experimental attempts have been made to test the feasibility of such algorithms [46,47]. A key step here is a transformation of the dynamic spectrum from a $t-\nu$ space to $t-\frac{1}{{\nu }^2}$ space. This transformation of the parameter space turns the dispersion framework into a linear problem where the intensity I can be characterised as $I(d,t)$, where d is some function of the DM, and t is the time measure with a certain reference. Then, any search with a number of DM trials can be defined as a family of linear functions in the $d-t$ parameter space, at which point finding a FRB becomes a peak detection problem using these transforms. The advantage here is that finding peaks is more robust and insensitive to any RFI that does not satisfy the ${\nu }^{-2}$ dependence. Below, we briefly describe the Radon transform.

Mathematically, the Radon transform is an integral transform that takes any function and projects it in a 2D space of lines in a plane. This output consists of the line integrals along the paths in a certain direction. Since it is a projection transform, it has found a wide variety of medical applications. Intriguingly, one can also use a Radon transform to convert the received dynamic spectrum from a radio telescope to a projection space where a dispersed FRB can be approximated as a line with some arbitrary slope. We do note that this conversion would require resampling and interpolation of the data which would also consume computational resources. These steps can be made faster with the use of fast interpolation algorithms like the nearest neighbour algorithm. A Radon transform is highly sensitive to any linear features in the parameters space. This means that one can transform the dynamic spectrum (function of time t and frequency $\nu$) to another parameter space (a function of time t and ${\nu }^2$) where any dispersed signal would be a linear function. The position and angle of that function then produce a singular peak, as shown in Figure 7. These Radon transforms can then be used to search for astrophysical signals or could be served to a neural network to classify FRBs.

3.3. Quantum Computing Searches

Recent advances in quantum computing justify a brief look at their potential application in FRB searches, even if these will only be realised in the far future. FRB searches with radio telescopes have two traits that make application of quantum algorithms highly interesting. The first is that, after the receivers record the initial voltages, the subsequent beam forming, dedispersion, and box car searching are inherently highly parallel. This lends itself well to encoding the respective directions, dispersion measures, and pulse widths as entangled states. Then, the very large number of currently required identical classical operations—say, 1000 tied-array beams × 10,000 trial DMs × 10 boxcar widths—can be replaced by single quantum operations. The second trait is that this large amount of data can, in the end, be meaningfully reduced to a binary classification operation: there either is or is not a FRB in the data. Such collapse operations are highly suited for quantum computers. Once detected, the FRB can be characterised fully using the relevant buffer data.

Some initial exploration of quantum computing for parallel radio-telescope operations has recently been performed [48]. Although that work focuses on image-domain data, we see analogies to the time-domain data processing required for FRB searching. While the classification part itself is not computationally expensive, first quantum computing steps have recently been reported for a pulsar dataset [49] where the candidates parameters were still produced classically.

Real-life application will require technology to convert the voltages into qubits, algorithms that can separate the FRBs from RFI, and quantum computers with a much larger qubit number and lower noise than will be available even in the near future. Based on manufacturer road maps these may arguably only materialise in the 2040s.

4. Concluding Remarks

Searches for FRBs have been an important aspect of time-domain radio astronomy in the current decade—and they will continue to be in the upcoming one. Finding and studying ever more FRBs will only accelerate the speed of progress in the field and take us closer to solving key open questions in cosmology. Faster and more efficient search algorithms will allow us to keep up with the ever-increasing data volumes from next-generation radio telescopes. Expanding the FRB search parameter space will reveal new insights into the mysterious physics that creates them. Development of new search tools along with state-of-the art detection systems powered by artificial intelligence will be the backbone of FRB science in the coming years. The future looks bright for FRB science.
