# Performance of the Boost Converter Controlled with ZAD to Regulate DC Signals

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

- The state-space model is presented in a compact form and variable change is performed to depend only on the parameter $\gamma $.
- The ZAD control technique is designed using a new sliding surface, where all the variables of the system are considered.
- It is analytically demonstrated that the piecewise linear approximation of the switching surface $s\left(\mathrm{x}\right(t\left)\right)$ is a good technique because the error can be considerably reduced. In addition, the maximum and minimum errors in the approximation occur precisely at the ends of the sub-intervals.
- It is shown numerically that the system presents good voltage and current regulations and low relative error with respect to the reference signals.

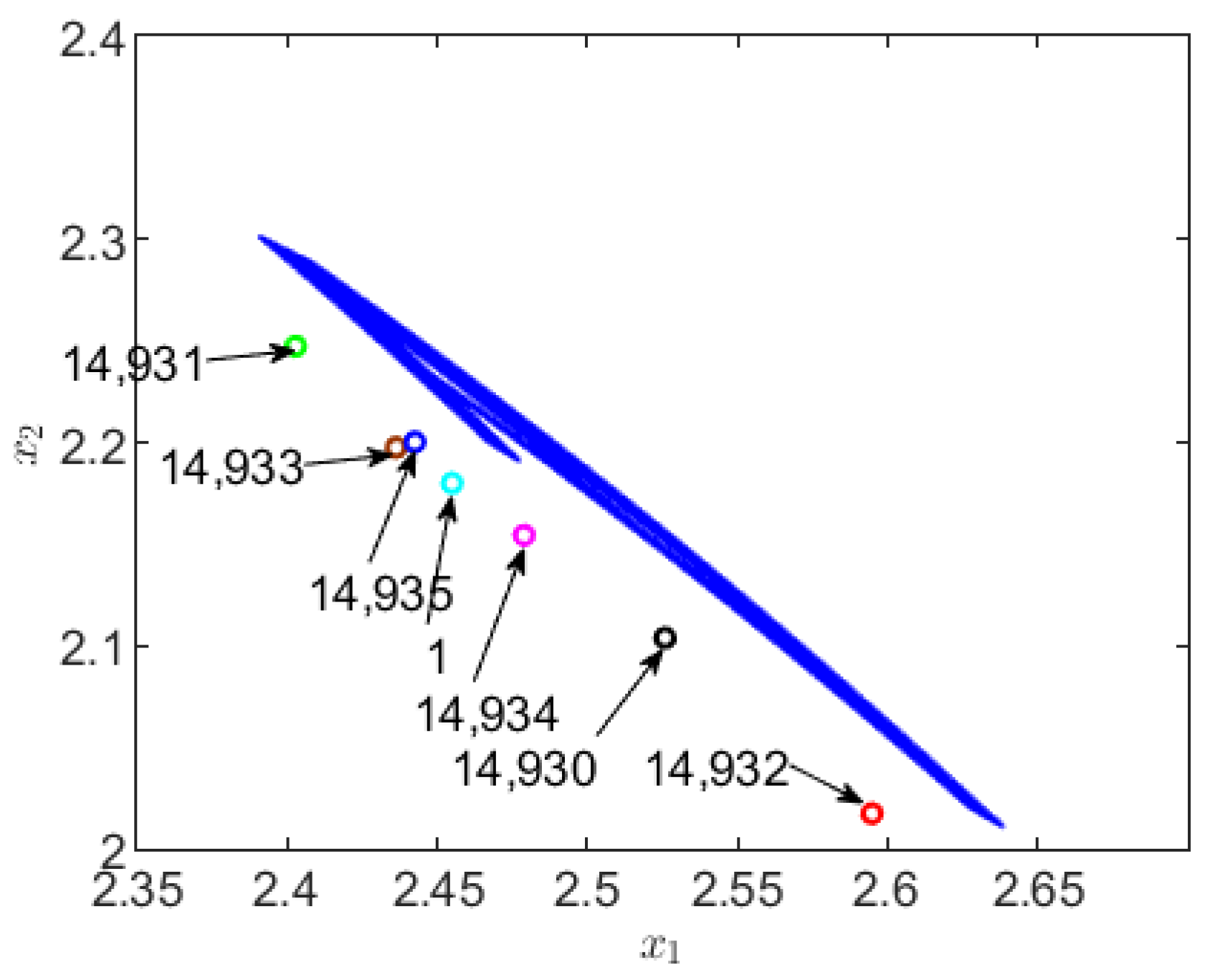

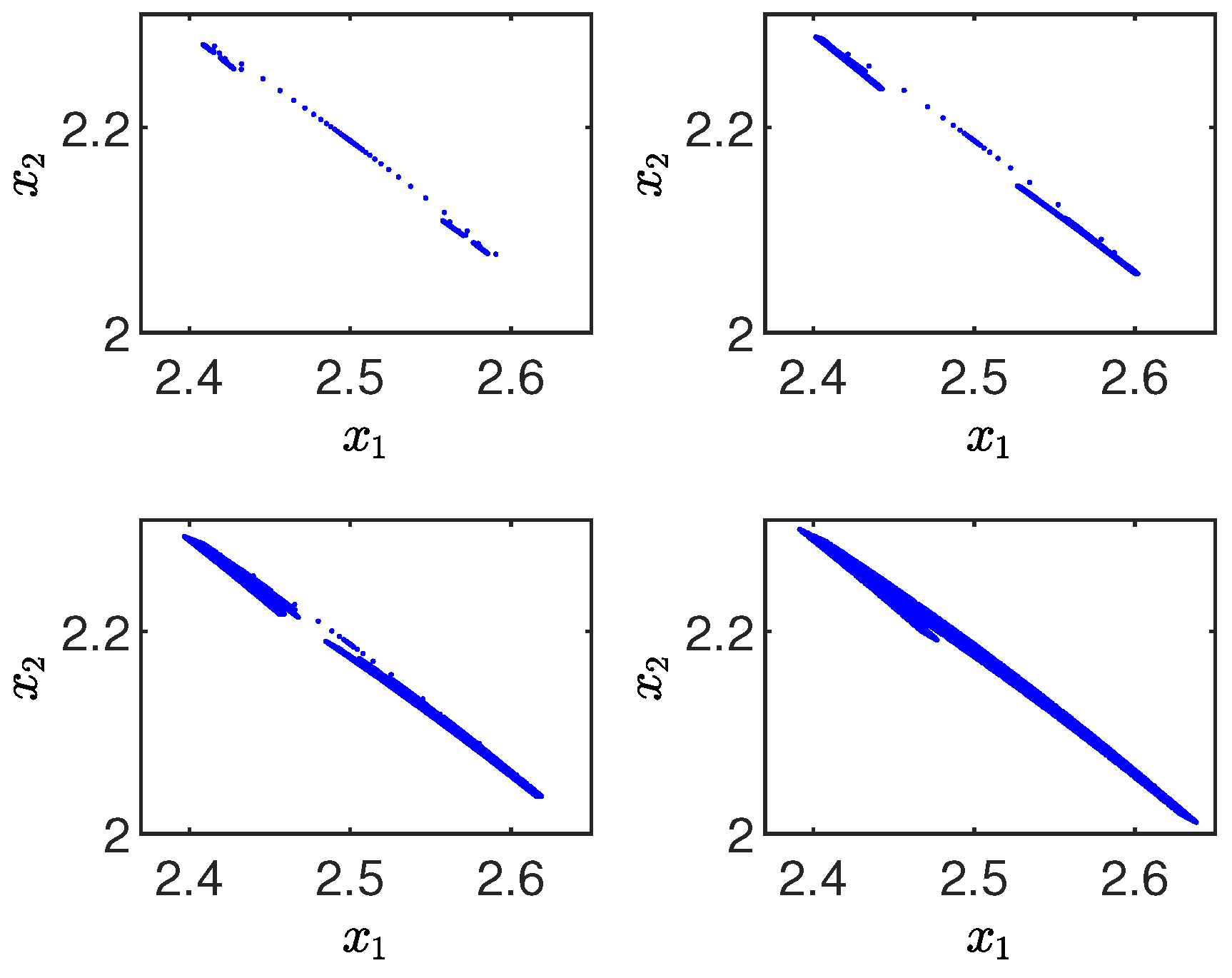

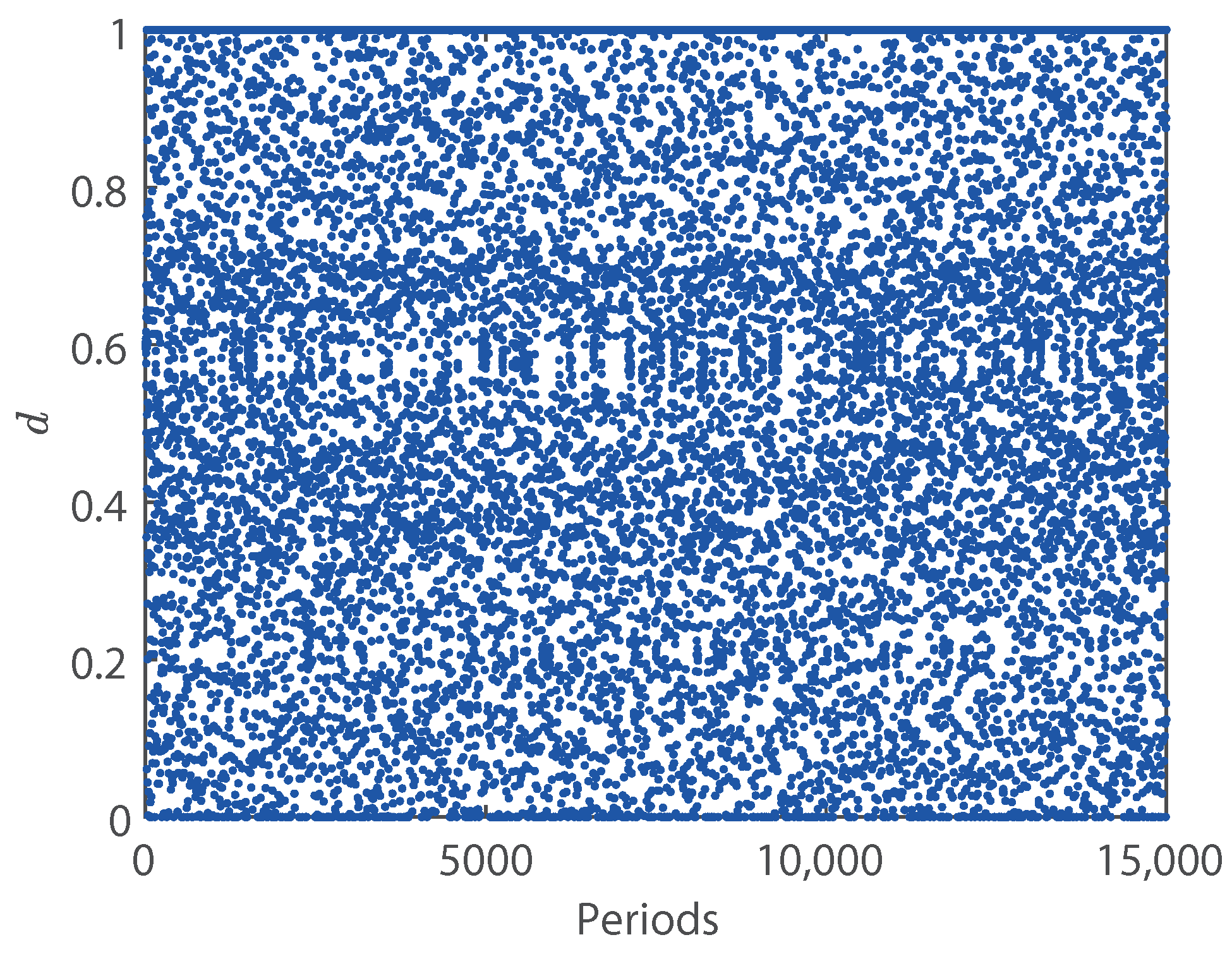

- The existence of the birth of a chaotic attractor is shown numerically for the boost converter controlled with ZAD.

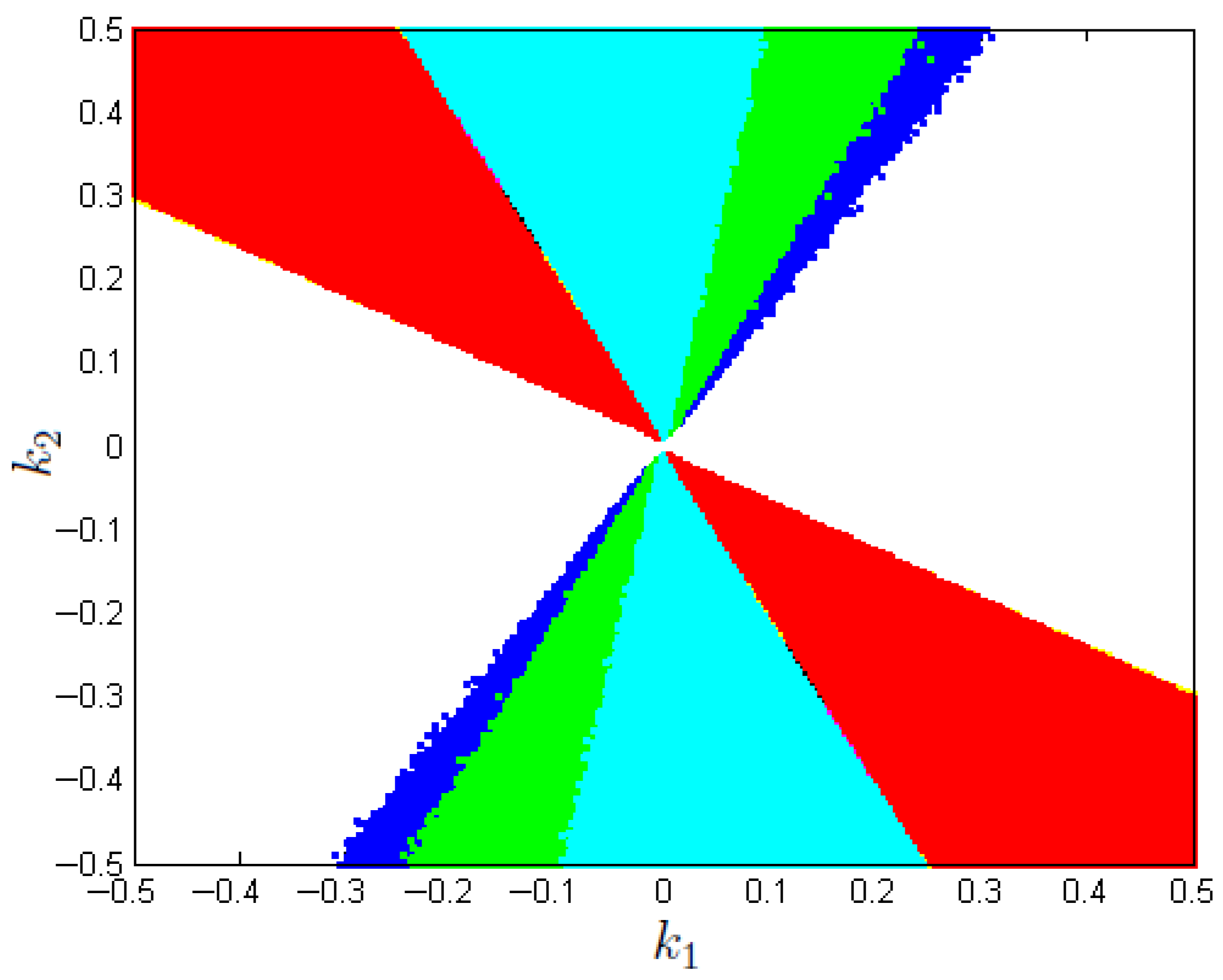

- A large regulation area with low errors is found based on a parametric diagram that depends on ${k}_{1}$ and ${k}_{2}$, confirming the good performance of the boost converter controlled with ZAD.

## 2. Materials and Methods

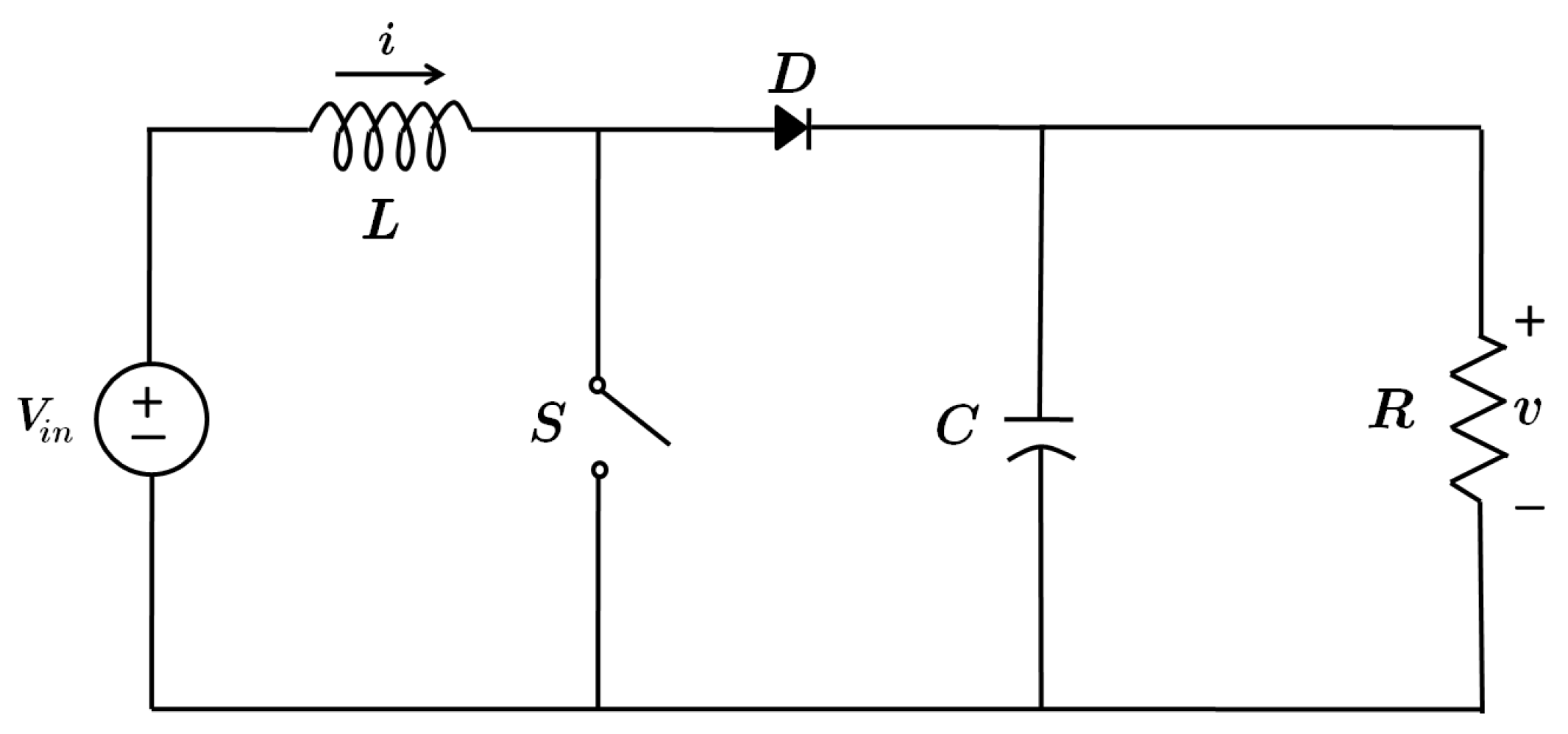

#### 2.1. Boost Converter

- For the topology 1 ($u=1$),$${x}_{1}\left(t\right)={x}_{1}\left({t}_{0}\right){e}^{-\gamma (t-{t}_{0})},$$$${x}_{2}\left(t\right)={x}_{2}\left({t}_{0}\right)+(t-{t}_{0}).$$
- For the topology 2 ($u=0$),$${x}_{1}\left(t\right)={e}^{-\frac{\gamma}{2}(t-{t}_{0})}[\left({x}_{1}\left({t}_{0}\right)-1\right)cos\omega (t-{t}_{0})$$$$-\frac{\gamma}{2\omega}\left({x}_{1}\left({t}_{0}\right)-1-\frac{2}{\gamma}{x}_{2}\left({t}_{0}\right)\right)sin\omega (t-{t}_{0})]+1,$$$${x}_{2}\left(t\right)={e}^{-\frac{\gamma}{2}(t-{t}_{0})}[\left({x}_{2}\left({t}_{0}\right)-\gamma \right)cos\omega (t-{t}_{0})$$$$+\left(\frac{\gamma}{2\omega}\left({x}_{2}\left({t}_{0}\right)-\gamma \right)-\frac{1}{\omega}\left({x}_{1}\left({t}_{0}\right)-1\right)\right)sin\omega (t-{t}_{0})]+\gamma ,$$
- If $i\le 0$, Topology 3 is obtained as follows:$${x}_{1}\left(t\right)={x}_{1}\left({t}_{0}\right){e}^{-\gamma (t-{t}_{0})},$$$${x}_{2}\left(t\right)=0.$$

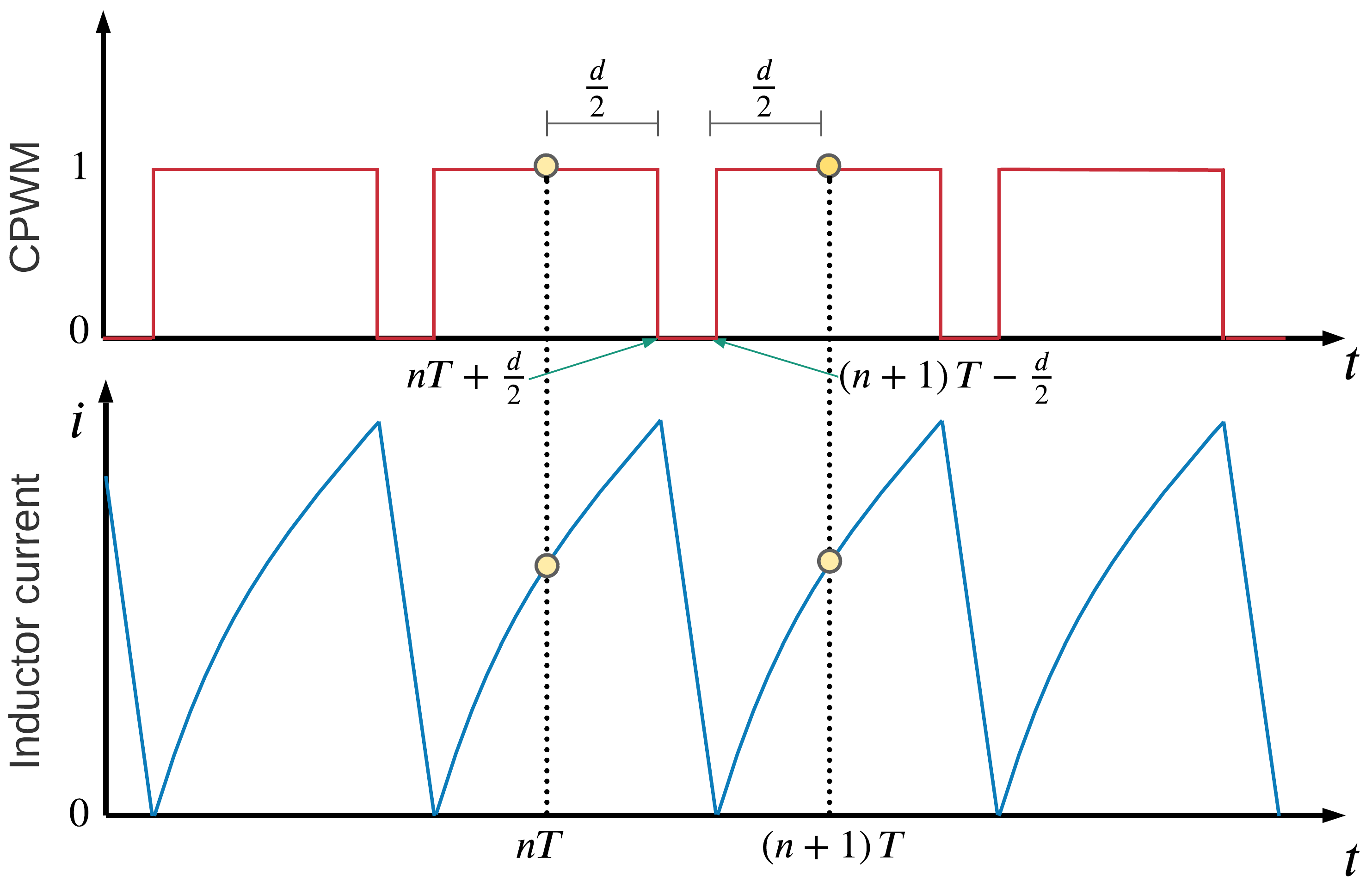

#### 2.2. Pulse-Width Modulation

#### 2.3. Zero Average Dynamics Technique

- Define the switching surface $s\left(\mathrm{x}\left(t\right)\right)={k}_{1}({x}_{1}\left(t\right)-{x}_{1ref})+{k}_{2}({x}_{2}\left(t\right)-{x}_{2ref})$.
- Fix a period T.
- Force s to have zero average in each cycle (ZAD):$${\int}_{nT}^{(n+1)T}s\left(\mathrm{x}\left(t\right)\right)dt=0}.$$

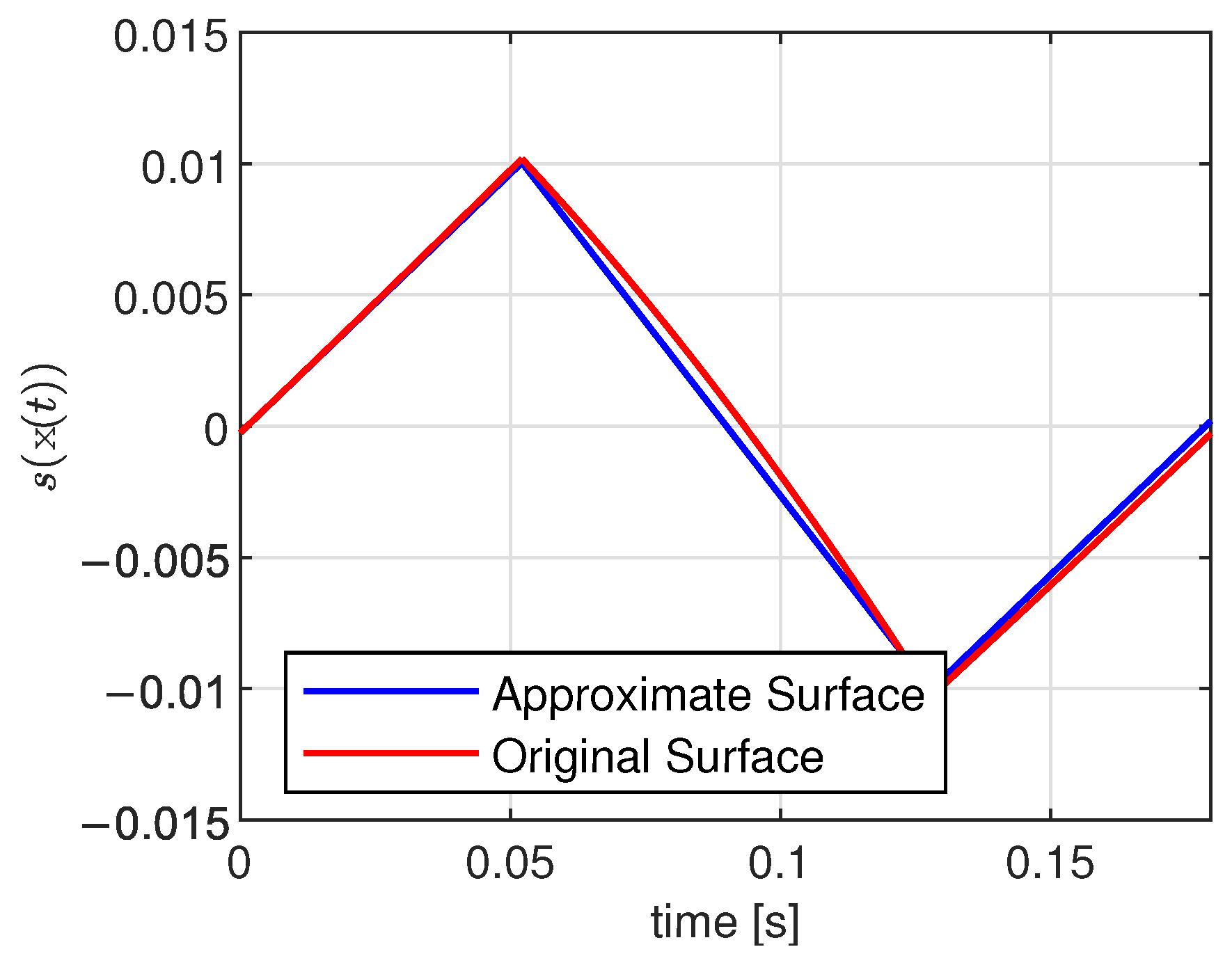

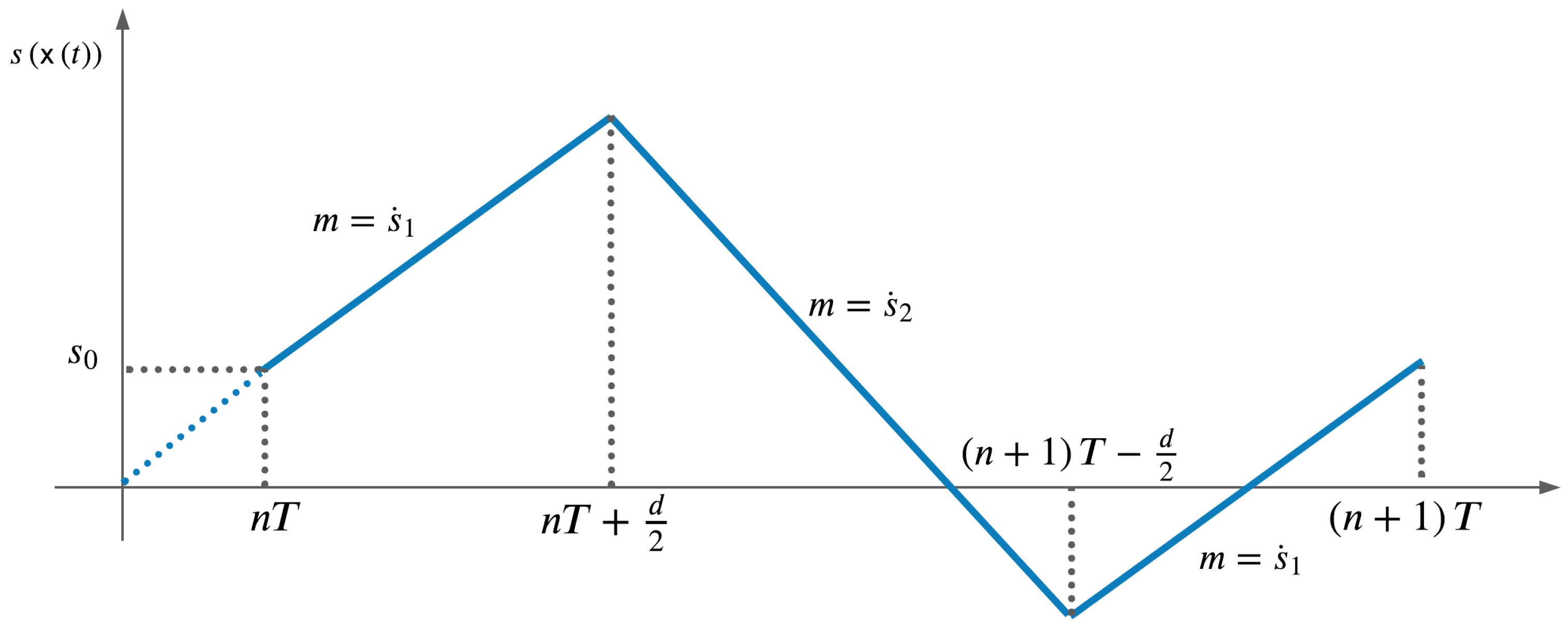

#### 2.4. Piecewise Linear Approximation of the Switching Surface

- The dynamics of the error or switching surface $s\left(\mathrm{x}\right(t\left)\right)$ behaves like a piecewise linear function.
- The slopes of the dynamic error at each section are determined by the slopes calculated at the switching time, assuming that the slope at the beginning of the period, noted as ${\dot{s}}_{1}$, is the same as at the end. That means that in the sections between $[nT,nT+\frac{d}{2}]$ and $[(n+1)T-\frac{d}{2},(n+1)T]$, the slope of $s\left(\mathrm{x}\right(t\left)\right)$ is ${\dot{s}}_{1}$, which corresponds to the derivative of the switching surface with respect to time for the case $u=1$. Furthermore, in the section $[nT+\frac{d}{2},(n+1)T-\frac{d}{2}]$ the slope of $s\left(\mathrm{x}\right(t\left)\right)$ is ${\dot{s}}_{2}$ and corresponds to the derivative of the switching surface with respect to time for the case $u=0$.

- For Topology 1,$$\frac{{d}^{2}}{d{t}^{2}}}s\left(\mathrm{x}\left(t\right)\right)={k}_{1}{\gamma}^{2}{x}_{1}\left(t\right).$$
- For Topology 2,$$\frac{{d}^{2}}{d{t}^{2}}}s\left(\mathrm{x}\left(t\right)\right)=({k}_{1}({\gamma}^{2}-1)+\gamma {k}_{2}){x}_{1}\left(t\right)+(-\gamma {k}_{1}-{k}_{2}){x}_{2}\left(t\right)+{k}_{1}.$$

- For Topology 1, given $\u03f5>0$, if the following expression is chosen:$$t>ln\left({\displaystyle \frac{1}{\sqrt[\gamma ]{\u03f5{\gamma}^{2}\left|{k}_{1}{x}_{1}\left(nT\right){e}^{\gamma nT}\right|}}}\right),$$$$\left|{\displaystyle \frac{{d}^{2}}{d{t}^{2}}}s\left(\mathrm{x}\left(t\right)\right)\right|\hspace{0.17em}<\hspace{0.17em}\u03f5.$$
- For Topology 2, the following holds:$$\frac{{d}^{2}}{d{t}^{2}}}s\left(\mathrm{x}\left(t\right)\right)={e}^{\frac{-\gamma}{2}(t-{t}_{0})}\xb7\left[cos\left(\omega (t-{t}_{0})\right)\xb7a+sin\left(\omega (t-{t}_{0})\right)\xb7b\right],$$$$a\hspace{0.17em}=\hspace{0.17em}\left({k}_{1}({\gamma}^{2}-1)+\gamma {k}_{2}\right)\left({x}_{1}\left({t}_{0}\right)-1\right)-\left(\gamma {k}_{1}+{k}_{2}\right)\left({x}_{2}\left({t}_{0}\right)-\gamma \right),$$$$b=\frac{1}{\omega}\left[\left({k}_{1}(1-{\gamma}^{2})-\gamma {k}_{2}\right)\left({x}_{1}\left({t}_{0}\right)-1\right)\hspace{0.17em}\xb7\hspace{0.17em}\frac{\gamma}{2}\hspace{0.17em}+\hspace{0.17em}\left({x}_{2}\left({t}_{0}\right)-\gamma \right)\hspace{0.17em}\xb7\hspace{0.17em}\left(1-\frac{\gamma}{2}\left(\gamma {k}_{1}+{k}_{2}\right)\right)\right],$$$${t}_{0}=nT+\frac{d}{2}.$$

#### 2.5. Duty Cycle

- If $d<0$, the system is forced to evolve according to Topology 1.
- If $d>T$, the system is forced to evolve according to Topology 2.
- If denominator of Equation (51), defined now as ${k}_{1}{x}_{2}\left(nT\right)-{k}_{2}{x}_{1}\left(nT\right)=0$, is equal to zero, then two possibilities are defined: (a) the system is forced to evolve according to Topology 1 if the numerator $2s\left(\mathrm{x}\left(nT\right)\right)+T{\dot{s}}_{2}\left(\mathrm{x}\left(nT\right)\right)>0$; (b) the system is forced to evolve according to Topology 2 if $2s\left(\mathrm{x}\left(nT\right)\right)+T{\dot{s}}_{2}\left(\mathrm{x}\left(nT\right)\right)<0$.

## 3. Results and Analysis

#### 3.1. ZAD with Piecewise Linear Approximation

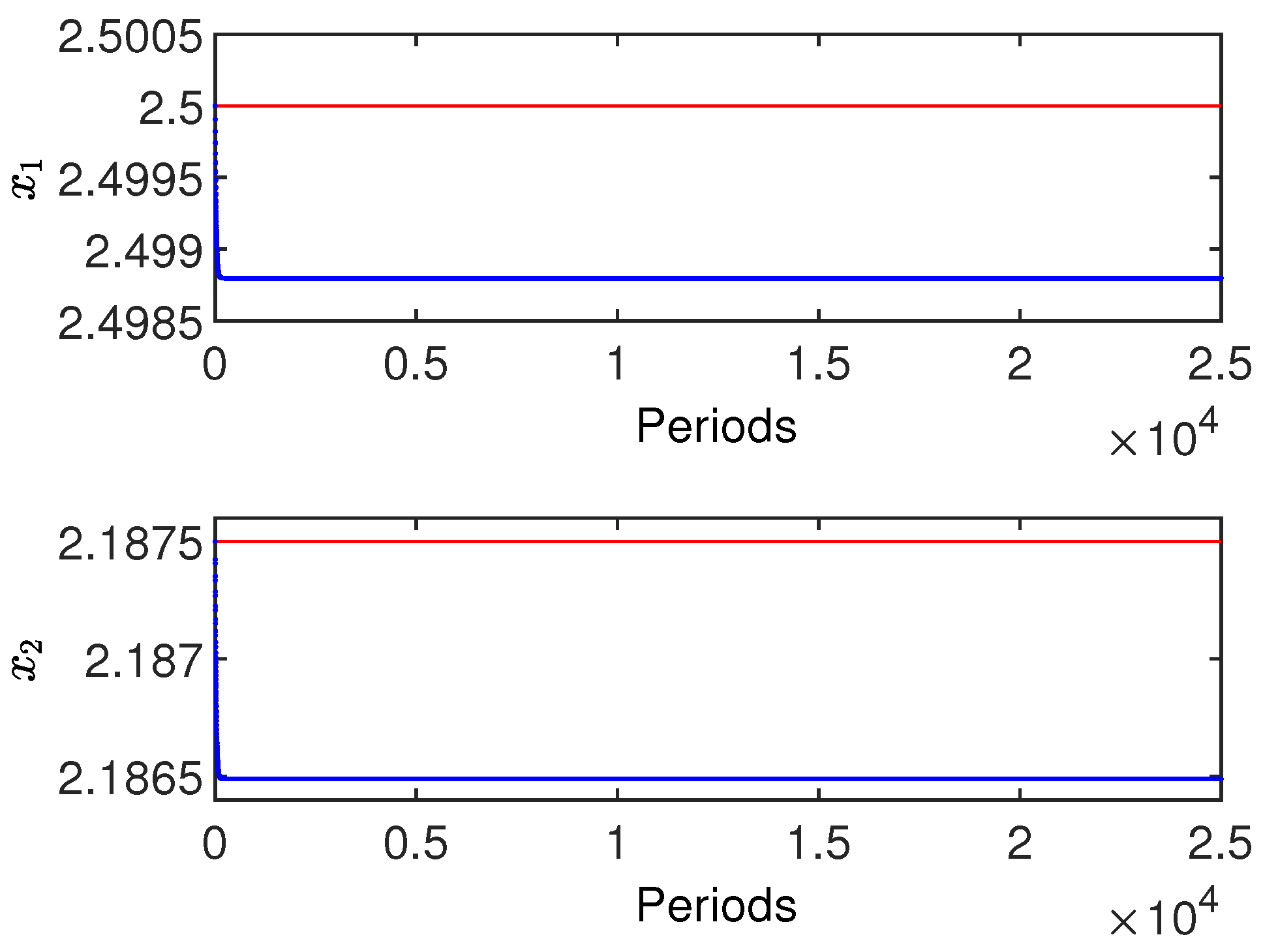

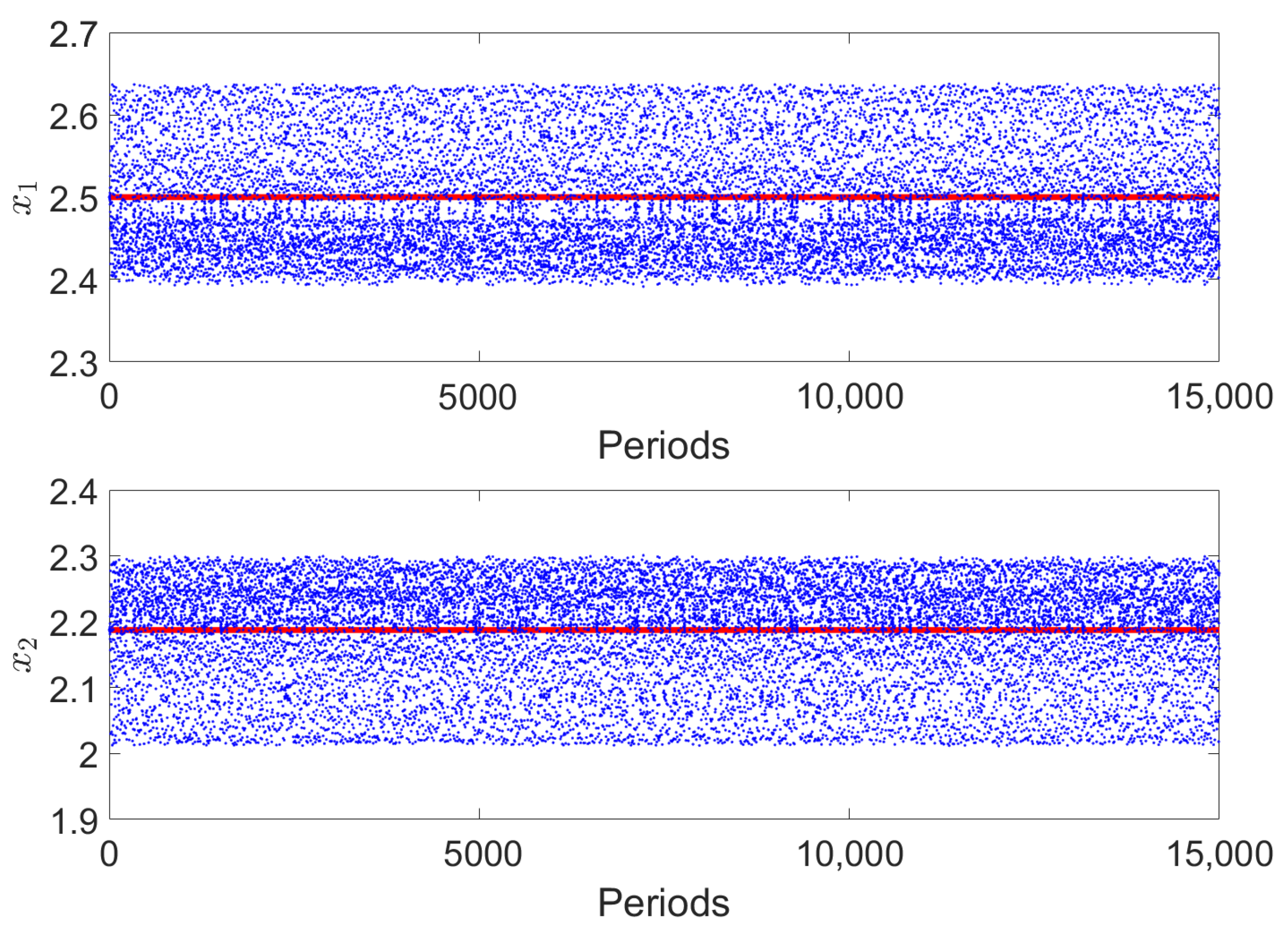

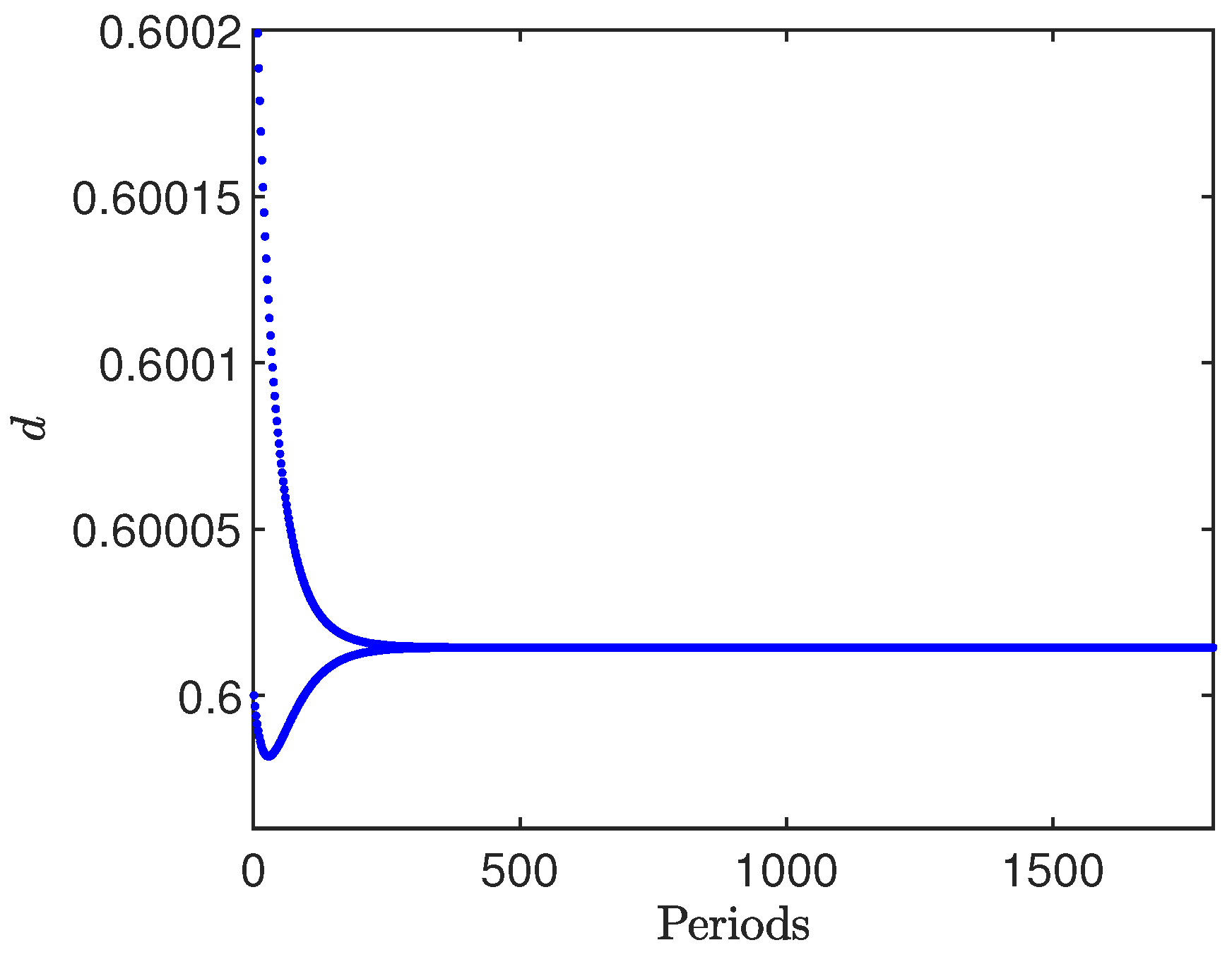

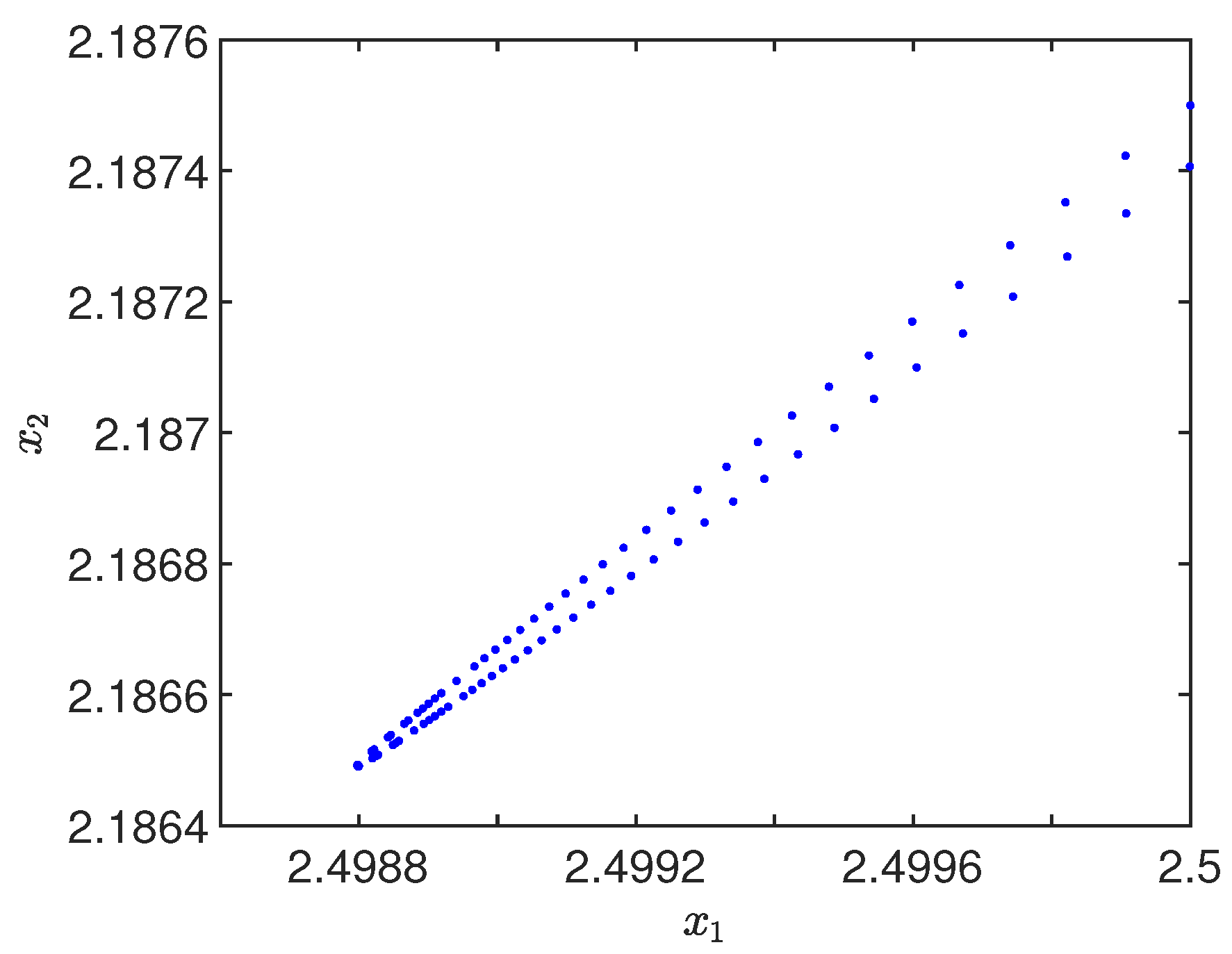

#### 3.2. Regulation

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Buso, S.; Mattavelli, P. Digital Control in Power Electronics; Morgan and Claypool Publishers: San Rafael, CA, USA, 2015. [Google Scholar]
- Forouzesh, M.; Shen, Y.; Yari, K.; Siwakoti, Y.P.; Blaabjerg, F. High-Efficiency High Step-Up DC–DC Converter With Dual Coupled Inductors for Grid-Connected Photovoltaic Systems. IEEE Trans. Power Electron.
**2018**, 33, 5967–5982. [Google Scholar] [CrossRef] - Bilalovic, F.; Music, O.; Sabanovic, A. Buck converter regulator operating in the sliding mode. In Proceedings of the VII International PCI, Orlando, FL, USA, 19–21 April 1983; pp. 331–340. [Google Scholar]
- Carpita, M.; Marchesoni, M.; Oberti, M.; Puglisi, L. Power conditioning system using sliding model control. In Proceedings of the PESC ’88 Record, 19th Annual IEEE Power Electronics Specialists Conference, Kyoto, Japan, 11–14 April 1988; pp. 626–633. [Google Scholar] [CrossRef]
- Fossas, E.; Griño, R.; Biel, D. Quasi-sliding control based on pulse width modulation, zero averaged dynamics and the L2 norm. In Advances in Variable Structure Systems; World Scientific: Singapore, 2000; pp. 335–344. [Google Scholar] [CrossRef]
- Repecho, V.; Biel, D.; Ramos-Lara, R.; Vega, P.G. Fixed-Switching Frequency Interleaved Sliding Mode Eight-Phase Synchronous Buck Converter. IEEE Trans. Power Electron.
**2018**, 33, 676–688. [Google Scholar] [CrossRef] [Green Version] - Hoyos, F.E.; Candelo-Becerra, J.E.; Rincón, A. Zero Average Dynamic Controller for Speed Control of DC Motor. Appl. Sci.
**2021**, 11, 5608. [Google Scholar] [CrossRef] - Hoyos, F.E.; Candelo-Becerra, J.E.; Hoyos Velasco, C.I. Model-Based Quasi-Sliding Mode Control with Loss Estimation Applied to DC–DC Power Converters. Electronics
**2019**, 8, 1086. [Google Scholar] [CrossRef] [Green Version] - Zhou, G.; Mao, S.; Zhou, S.; Wang, Y.; Yan, T. Discrete-Time Modeling and Symmetrical Dynamics of V
^{2}-Controlled Buck Converters With Trailing-Edge and Leading-Edge Modulations. IEEE J. Emerg. Sel. Top. Power Electron.**2020**, 8, 3995–4008. [Google Scholar] [CrossRef] - Singha, A.K.; Kapat, S.; Banerjee, S.; Pal, J. Nonlinear Analysis of Discretization Effects in a Digital Current Mode Controlled Boost Converter. IEEE J. Emerg. Sel. Top. Circuits Syst.
**2015**, 5, 336–344. [Google Scholar] [CrossRef] - Fossas, E.; Olivar, G. Study of chaos in the buck converter. IEEE Trans. Circuits Syst. Fundam. Theory Appl.
**1996**, 43, 13–25. [Google Scholar] [CrossRef] [Green Version] - di Bernardo, M.; Garefalo, F.; Glielmo, L.; Vasca, F. Switchings, bifurcations, and chaos in DC/DC converters. IEEE Trans. Circuits Syst. Fundam. Theory Appl.
**1998**, 45, 133–141. [Google Scholar] [CrossRef] - Hu, W.; Zhang, B.; Yang, R. Bifurcation Mechanism and Stabilization of V
^{2}C Controlled Buck Converter. IEEE Access**2019**, 7, 77174–77182. [Google Scholar] [CrossRef] - Baillieul, J.; Brockett, R.; Washburn, R. Chaotic motion in nonlinear feedback systems. IEEE Trans. Circuits Syst.
**1980**, 27, 990–997. [Google Scholar] [CrossRef] - Zhang, X.; Xu, J.; Bao, B.; Zhou, G. Asynchronous-Switching Map-Based Stability Effects of Circuit Parameters in Fixed Off-Time Controlled Buck Converter. IEEE Trans. Power Electron.
**2016**, 31, 6686–6697. [Google Scholar] [CrossRef] - Deane, J.; Hamill, D. Analysis, simulation and experimental study of chaos in the buck converter. In Proceedings of the 21st Annual IEEE Conference on Power Electronics Specialists, San Antonio, TX, USA, 11–14 June 1990; pp. 491–498. [Google Scholar] [CrossRef]
- Tse, C.K. Complex Behavior of Switching Power Converters (Power Electronics and Applications); CRC Press: New York, NY, USA, 2004; p. 266. [Google Scholar]
- Banerjee, S.; Verghese, G.C. Nonlinear Phenomena in Power Electronics; Wiley-IEEE Press: Hoboken, NJ, USA, 2001; p. 472. [Google Scholar]
- Amador, A.; Casanova, S.; Granada, H.A.; Olivar, G.; Hurtado, J. Codimension-Two Big-Bang Bifurcation in a ZAD-Controlled Boost DC-DC Converter. Int. J. Bifurc. Chaos
**2014**, 24, 1450150. [Google Scholar] [CrossRef] - Vergara Perez, D.D.C.; Trujillo, S.C.; Hoyos Velasco, F.E. Period Addition Phenomenon and Chaos Control in a ZAD Controlled Boost Converter. Int. J. Bifurc. Chaos
**2018**, 28, 1850157. [Google Scholar] [CrossRef] - Perez, D.D.C.V.; Trujillo, S.C.; Hoyos Velasco, F.E. On the dynamic behavior of the current in the condenser of a boost converter controlled with ZAD. TELKOMNIKA (Telecommun. Comput. Electron. Control)
**2020**, 18, 1678. [Google Scholar] [CrossRef] - Munoz, J.; Osorio, G.; Angulo, F. Boost converter control with ZAD for power factor correction based on FPGA. In Proceedings of the 2013 Workshop on Power Electronics and Power Quality Applications (PEPQA), Bogota, Colombia, 6–7 July 2013; pp. 1–5. [Google Scholar] [CrossRef]
- Repecho, V.; Biel, D.; Ramos-Lara, R. Robust ZAD Sliding Mode Control for an 8-Phase Step-Down Converter. IEEE Trans. Power Electron.
**2020**, 35, 2222–2232. [Google Scholar] [CrossRef] - Baumaister, J.; Leitão, A. Introdução à Teoria de Controle e Programação Dinâmica; Instituto Nacional de Matemática Pura e Aplicada: Rio de Janeiro, Brazil, 2014; p. 399. [Google Scholar]
- Doering, C.I.; Lopes, A.O. Equacoes Diferenciais Ordinárias; Instituto Nacional de Matemática Pura e Aplicada: Rio de Janeiro, Brazil, 2016; p. 423. [Google Scholar]
- Angulo García, F. Análisis de la Dinámica de Convertidores Electrónicos de Potencia Usando PWM Basado en Promediado Cero de la Dinámica del Error (ZAD). Ph.D. Thesis, Universitat Polytècnica de Catalunya, Barcelona, Spain, 2004. [Google Scholar]
- Apostol, T.M. Análisis Matemático, 2nd ed.; Editorial Reverté: Barcelona, Spain, 1977; p. 596. [Google Scholar]
- Hoyos Velasco, F.E.; Toro-García, N.; Garcés Gómez, Y.A. Adaptive Control for Buck Power Converter Using Fixed Point Inducting Control and Zero Average Dynamics Strategies. Int. J. Bifurc. Chaos
**2015**, 25, 1550049. [Google Scholar] [CrossRef] - Gulick, D. Encounters With Chaos, 1st ed.; McGraw-Hill College: New York, NY, USA, 1992; p. 244. [Google Scholar]

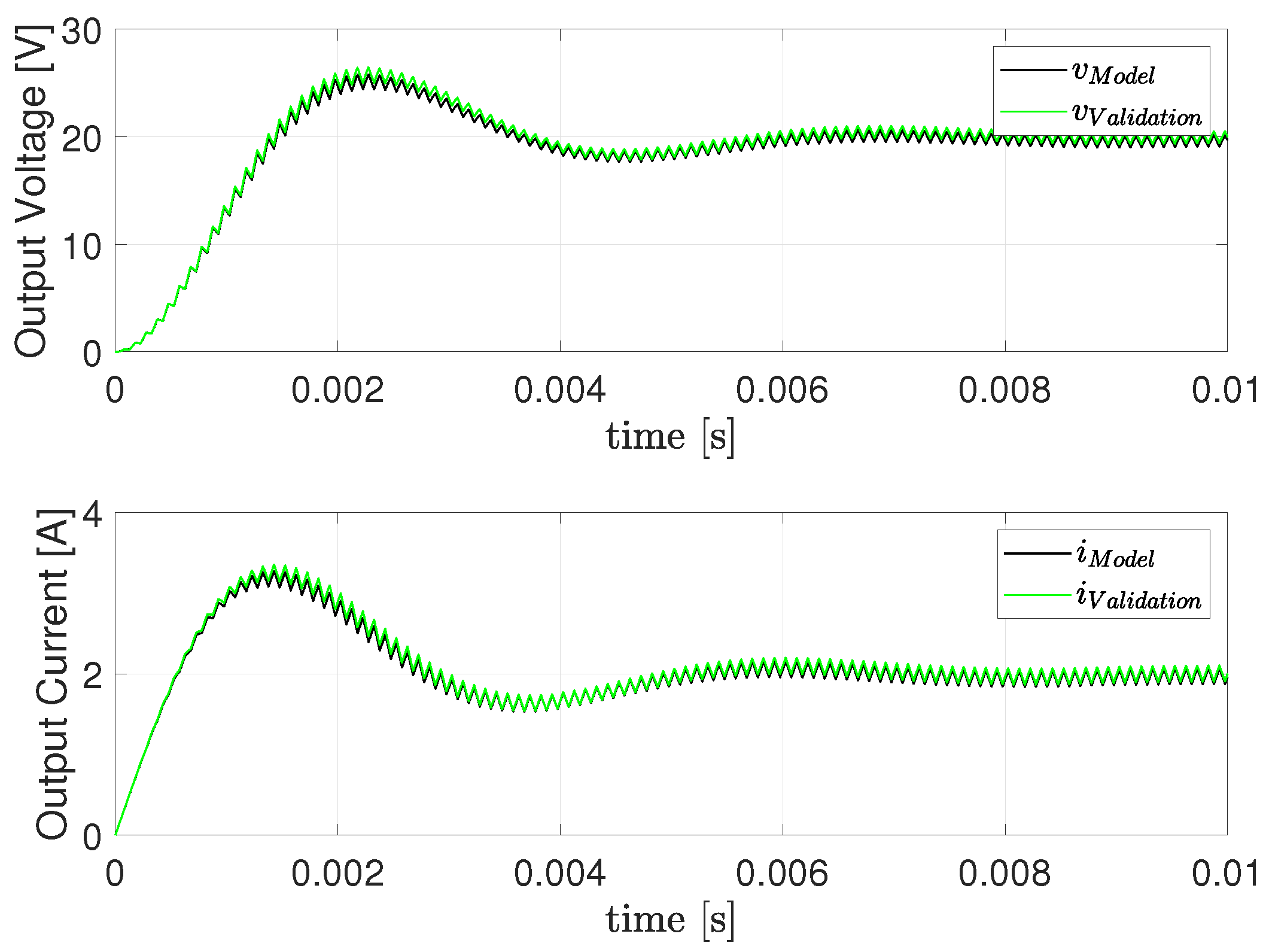

**Figure 2.**Validation of the mathematical model proposed in Equation (15).
