Molecular Simulation of Shale Gas Adsorption and Diffusion in Clay Nanopores

Abstract

The present work aims to study the adsorption behavior and dynamical properties of CH₄ in clay slit pore with or without cation exchange structures at sizes of 1.0 nm–4.0 nm using grand canonical Monte Carlo (GCMC) and molecular dynamics (MD) methods. The adsorption isotherms of CH₄ have been investigated by GCMC simulations at different temperatures and various pore sizes. In the montmorillonite (MMT) clays without a cation exchange structure, from the density profile, we find the molecules preferentially adsorb onto the surface, and only an obvious single layer was observed. The general trend within slit pores is that with increasing pore width, the adsorbed amount will increase. However, the larger pores exhibit lower excess density and the smaller pores exhibit higher excess density. The preloaded water will reduce CH₄ sorption. The in plane self-diffusion coefficient of CH₄ which is investigated by MD simulations combined with Einstein fluid equation increases rapidly with the pore size increasing at low pressure. Under these given conditions, the effect of temperature has little influence on the in-plane self-diffusion coefficient. In the MMT clays with cation exchange structure, cation exchange has little effect on CH₄ adsorption and self-diffusion.

1. Introduction

As unconventional gas resources, shale gas is a hydrocarbon usually found within the source rock of the shale reservoir, with great reserves throughout the world. Due to advances in multi-staged hydraulic fracturing and horizontal drilling technology [1], most shale-gas production worldwide occurs in North America [2], but it is also being extensively explored in other areas in recent years, such as Australia, China and Europe [3]. Even though thousands of shale gas wells are in production around the world, shale gas thermodynamics properties are still poorly understood [4].

As an unconventional reservoir, shale gas reservoirs are very complex and heterogeneous [5], and which are mainly composed of organic matter known as kerogen distributed in inorganic matrix (mainly made of quartz, clays and carbonates) [6]. Kerogen in shale will increase the porosity [7], and the porosity of kerogen can make up to 50% of the total porosity [8]. Research by Ross et al. [9] shows that the organic matter may significantly affect CH₄ storage capacity in reservoirs. There is a strong link between adsorbed CH₄ and the organic matter in organic matter rich shale reservoirs [9,10,11]. The increase in the amount of micropores leads to a higher ratio of CH₄ adsorption in thermally mature kerogen to immature kerogen [7].

The clay mineral and its micro-pore structure will enhance shale gas adsorption [12,13,14], because clay minerals have more micro-pore and meso-pore and its surface area is said to be 10–25 m²/g [15]. For gas adsorption, the amount of gas adsorbed in clay-rich shale could be comparable with total-organic shale [16,17,18]. Also, the shale rocks’ surface area is about 5–50 m²/g [9], which is comparable to the clay minerals’ surface area. It is inaccurate to estimate gas at a location not considering the clay minerals in clay rich shale gas reservoirs. Experiments [19] prove that clay minerals have a large surface area, and their 1–2 nm width pores provide more gas adsorption sites.

Molecular simulations have been extensively conducted to study gas adsorption in clay minerals. Jin et al. [20] used the grand canonical Monte Carlo (GCMC) method with a grand canonical (µVT) ensemble to study the influence of chemical heterogeneity and pore structure on CH₄ and CO₂ adsorption in clay slit pores. The results show the CH₄ sorption is a function of surface area. Charge affects the CO₂ orientation near the wall surface and plays an important role in CO₂ sorption, but its effect on CH₄ orientation and adsorption is very small. Jin et al. [21] also researched the influence of H₂O on CH₄ and CO₂ sorption in clay minerals by GCMC simulations. The results show that H₂O can greatly reduce CH₄ and CO₂ adsorption in clay minerals.

The diffusion mechanism is more complex due to the complexity and heterogeneity of the pore system within the shale gas reservoir [22,23]. Within shale pores, we may, in general, distinguish three fundamentally different types of diffusion mechanisms: Fickian diffusion, Knudsen diffusion and surface diffusion [24]. Comparing experimental approaches [25], molecular simulation methods are more convenient to predict the diffusion coefficient. Molecular dynamics [26] simulation provides a dynamic view of microscopic systems, and is usually performed to study the thermodynamic properties of CH₄ in micropores, such as self-diffusion, flow behavior and displacement processes. Many researchers have investigated pore size, temperature and pressure effect on the self-diffusion coefficient of confined fluid.

Yang and Zhang [27] performed molecular dynamics (MD) simulations to study the dense CO₂ fluid structure and diffusion properties in clay slit pore, and found that the CO₂ confined fluid form obvious layers close to the pore wall. Botan et al. [28] used GCMC and MD simulations to research the dynamical, thermodynamical and structural properties of CO₂ in hydrated sodium montmorillonite pores. Sharma et al. [29] used MD and GCMC methods to research the CH₄ and C₂H₆ structural and dynamical properties in montmorillonite (MMT) pores of different size from 1–3 nm, and they found the pure CH₄ and C₂H₆ adsorption isotherms follow the Langmuir isotherm and the CH₄ and C₂H₆ diffusion coefficient in the pores is up to a magnitude of 10⁻⁶ m²/s. As the pressure increases, the diffusion coefficient will decrease. The composition, structure and pore size of shale affect CH₄ adsorption and storage in shale gas reservoirs [9,30]. The greatest challenges in shale gas reservoirs are well productivity and shale gas storage calculation [31,32].

In this work, GCMC simulations were used to predict the adsorption isotherm for clay slit pores of a given width and temperature. MD was employed to calculate the self-diffusion coefficients of the CH₄-pores system. The aim of this research is to describe the effect of pore width, temperature and pressure on CH₄ adsorption, and the relationships between diffusivity, pressure, temperature and pore size were also studied.

2 Models and Methodology

2.1. Model

In this work, the idealized montmorillonite (MMT) structure, not only because of the inclusion of tetrahedral substitutions but also due to the regularity of the substitutions, was used to model clay minerals with the unit cell formula was Na_0.75(Si_7.75Al_0.25)(Al_3.5Mg_0.5)O₂₀(OH)₄ [33] to investigate CH₄ adsorption and transport properties in clay materials. There were two 32-unit cells forming a clay patch with dimensions of 4.224 nm and 3.656 nm in x and y directions. In order to study the effect of clay on shale gas storage, both MMT without cation exchange structure (strictly speaking, pyrophillite) and MMT with cation exchange structure were considered. For MMT with cation exchange, each of our clay sheets had 16 divalent Mg atoms replacing trivalent Al atoms, eight trivalent Al atoms replacing tetravalent Si atoms, and 24 Na⁺ (with a point charge) were used to compensate valent in the interlayer region, see Figure 1. Table S1 (Supplementary Information) shows the charges and positions of each atom in the unit cell [34]. Several researchers [20,21,27,35] used a similar model to perform molecular simulations to study CH₄, CO₂ and H₂O adsorption and diffusion behavior in clay minerals which can prove its wide application. All models were constructed by amorphous cell modules in Materials Studio (MS) of Biovia Inc., San Diego, CA, USA.

2.2. Grand Canonical Monte Carlo (GCMC)

In this work, GCMC method was performed to study the CH₄ adsorption behavior. The method is carried out by the sorption module in Materials Studio software. For each MC simulation cycle, the moves constituting exchange, conformation, rotation and translation were set as 40%, 20%, 20% and 20%. We completed 500,000 runs for equilibrium and 1,000,000 runs for production in this simulation.

The condensed-phase optimized molecular potential for atomistic simulation studies (COMPASS) force field is adopted in this simulation [36]. This force field enables rigorous parameterization, where parameters are derived from high level first principle calculations to address the compatibility for the considered model. The detailed total potential is described in the Supplementary Information. The Dreiding force field [37] and CLAYFF force field [38] are also commonly used to study clay minerals. We also perform simulations using the two force fields and compared the results to estimate the CH₄ adsorption behavior. The Dreiding force field does not include the parameter for the Mg atom. We assigned Mg the same LJ parameter as Al, and with the charges of +2e. As see in Figure S1, the CH₄ adsorption amounts follow the order Dreiding > CLAYFF > COMPASS in the MMT pores without a cation exchange structure and with a cation exchange structure.

In this work, the vdW interactions are calculated within a cut-off distance of 0.95 nm by the atom-based method, and the electrostatic interactions are described by the Ewald method. In molecular simulations, the fugacity rather than pressure was used for predicting adsorption, densities and other thermodynamics properties. In this work, the Peng–Robinson equation of state [39] was used to calculate the fugacity.

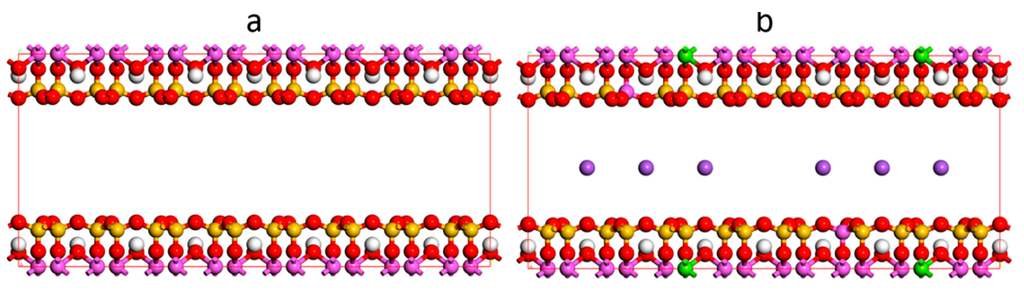

Figure 1. Molecular simulation unit cell. (a) Without cation exchange structure and (b) with cation exchange structure, the red, white, yellow, pink and green spheres are O, H, Si, Al and Mg atoms, respectively, and the purple spheres are Na⁺ ions.

Figure 1. Molecular simulation unit cell. (a) Without cation exchange structure and (b) with cation exchange structure, the red, white, yellow, pink and green spheres are O, H, Si, Al and Mg atoms, respectively, and the purple spheres are Na⁺ ions.

2.3. Molecular Dynamic (MD)

The MD method was performed by the Forcite module in Materials Studio software to study density and diffusion behavior of CH₄ in MMT clay, and partial data were extracted by self-programming. For this work, in the MD simulations, the equilibrium configuration was obtained from GCMC simulations. The COMPASS force field was also adopted in this MD simulation. All the MD simulations were performed under canonical ensemble (NVT) with a dynamics time of 1.0 ns and a time step of 1.0 fs. The Andersen thermostat with a coupling constant of 0.1 ps was applied to control the temperature, in which the first 100 ps was used to balance the structure, and last 900 ps was used for the calculation of material properties. The generated configurations were stored for every 100 steps and used to estimate density profiles and self-diffusion coefficient of CH₄ in montmorillonite pores.

3. Results and Discussions

3.1. Adsorption Isotherm

The GCMC simulations were performed to predict the CH₄ adsorption isotherm at 298 K and the pressure from 0.01 MPa–20 MPa, with 1.0 nm, 2.0 nm, 3.0 nm and 4.0 nm slit pore sizes. Figure 2 shows the CH₄ adsorption isotherms for different MMT pore sizes. It can be found that the isotherms in this work exhibit type-I Langmuir adsorption behavior, which is a typical characteristic of nanoporous materials [40]. As expected, the total CH₄ uptakes increase with the increases in pressure due to the fact that the bigger MMT slit pores having more space can accommodate more CH₄ molecules.

The effect of the two MMT models without a cation exchange structure and with a cation exchange on CH₄ adsorption shows that the MMT structure models without cation exchange can adsorb slightly more CH₄. This means, in MMT slit pores, ions can reduce CH₄ sorption, because ions occupy some space and hinder the CH₄ adsorption. This effect on smaller MMT pores is more obvious. CH₄ is a charge neutral molecule, with a zero dipole moment and zero quadrupole moment, so there is no interaction between the ion and CH₄ molecule, and the interactions between CH₄-clay and CH₄–ion are non-electrostatic interactions. To sum up, the presence of ions will cause CH₄ adsorption to slightly decrease, and the shapes of adsorption isotherms of CH₄ with or without ions are similar.

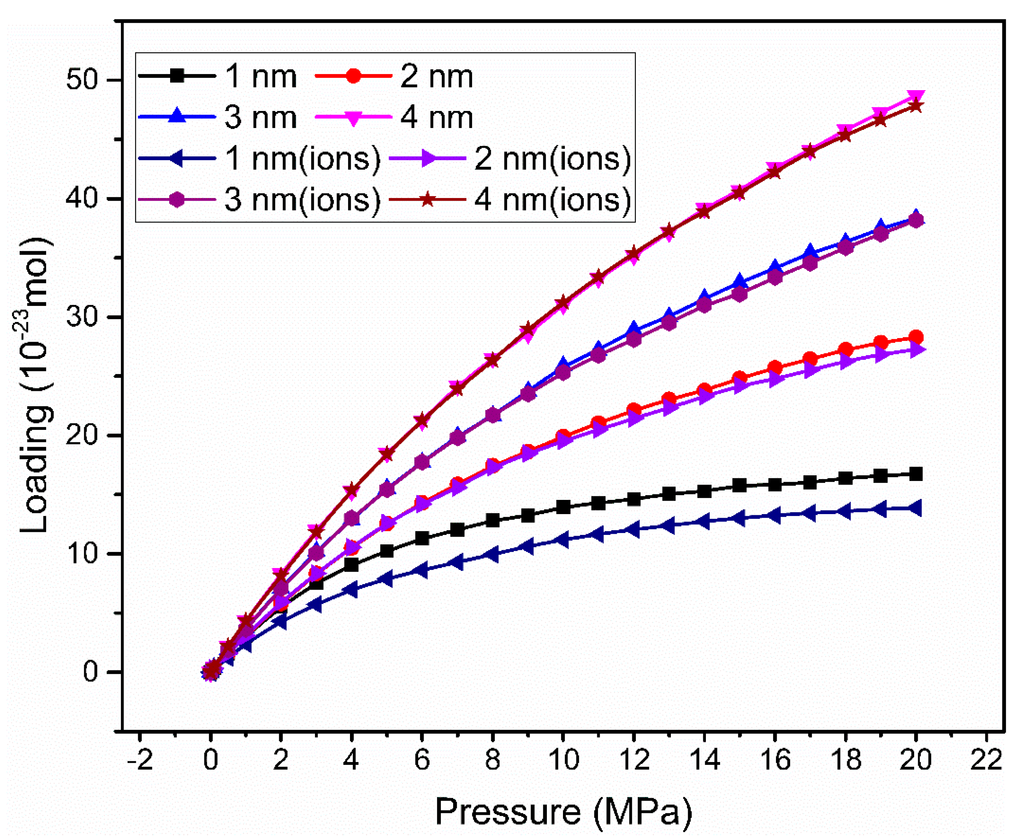

Figure 2. The adsorption isotherm of methane in MMT pores with sizes of 1.0 nm, 2.0 nm, 3.0 nm and 4.0 nm.

Figure 2. The adsorption isotherm of methane in MMT pores with sizes of 1.0 nm, 2.0 nm, 3.0 nm and 4.0 nm.

Figure 3 shows the excess adsorption isotherm of CH₄ in both MMT models with pore sizes of 1.0–4.0 nm. Excess adsorption, derived from total gas content, is used to predict the sorption capacity. All the excess adsorption isotherms in the MMT slit pores show the similar trend, namely the adsorption amount in the MMT slit pores increases as pressure increases, up to a maximum, and then deceases as the pressure continues to increase. There is a maximum adsorption for each pore, which suggests there exists an optimum pressure for maximum CH₄ storage in specific slit pores (see in Table 1). This is of great significance for gas storage. The smaller pores have a dominant peak at low pressure whereas the larger pores’ peak is flatter and indeterminate at higher pressures. Several interesting features and patterns are apparent from these isotherms, under the given conditions: The corresponding curves of all pores are relatively flat, and the larger the slit pores, the flatter the curve. Another feature is that the smaller pores have a larger excess adsorption compared with the bigger pores, this is because the wall effects on the CH₄ will lead to the unit volume having more CH₄ molecules in the smaller MMT pores.

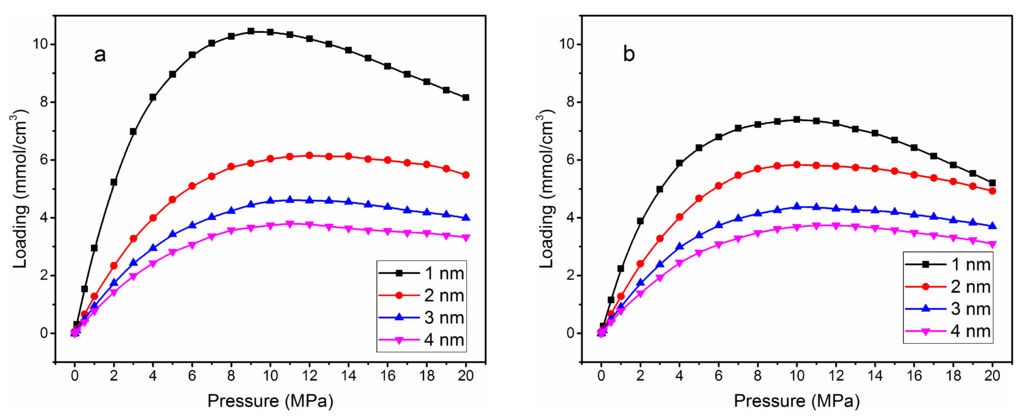

Figure 3. The excess adsorption isotherm of methane in MMT pores with sizes of 1.0 nm, 2.0 nm, 3.0 nm and 4.0 nm. (a) Without cation exchange structure and (b) with cation exchange structure.

Figure 3. The excess adsorption isotherm of methane in MMT pores with sizes of 1.0 nm, 2.0 nm, 3.0 nm and 4.0 nm. (a) Without cation exchange structure and (b) with cation exchange structure.

Table 1. Optimum pressure for maximum methane storage at different pore sizes.

	Without Cation Exchange Structure				With Cation Exchange Structure
Pore size (nm)	1.0	2.0	3.0	4.0	1.0	2.0	3.0	4.0
Loading (mmol/cm3)	10.46	6.15	4.61	3.78	7.40	5.83	4.38	3.73
Pressure (MPa)	8	11	12	13	8	9	10	11

Table 1. Optimum pressure for maximum methane storage at different pore sizes.

	Without Cation Exchange Structure				With Cation Exchange Structure
Pore size (nm)	1.0	2.0	3.0	4.0	1.0	2.0	3.0	4.0
Loading (mmol/cm3)	10.46	6.15	4.61	3.78	7.40	5.83	4.38	3.73
Pressure (MPa)	8	11	12	13	8	9	10	11

3.2. Effect of Temperature

In order to study the temperature effect on CH₄ adsorption in MMT slit pores, the typical pore size H = 2.0 nm without cation exchange structure was chosen and the temperatures 298 K, 340 K and 380 K were used to predict the isotherms of CH₄ adsorption (see in Figure 4). It can be found that, at the same pressures, the higher temperature can reduce total loading of CH₄. The reason is that as the temperature increases, the kinetic energy of the molecules will increase and the distance between the molecules becomes large. The excess adsorption isotherms show some interesting features. For instance, as the pressure increases, the difference in excess loading corresponding to different temperatures will increase, peaking at 9 MPa. With the increase of pressure, the difference will be smaller.

This result proves that, in addition to the effect of the wall, the temperature and pressure have an influence on the adsorption. Moreover, at low pressures, temperature plays a major role in the CH₄ adsorption; when the pressure is high, the pressure effect is more pronounced.

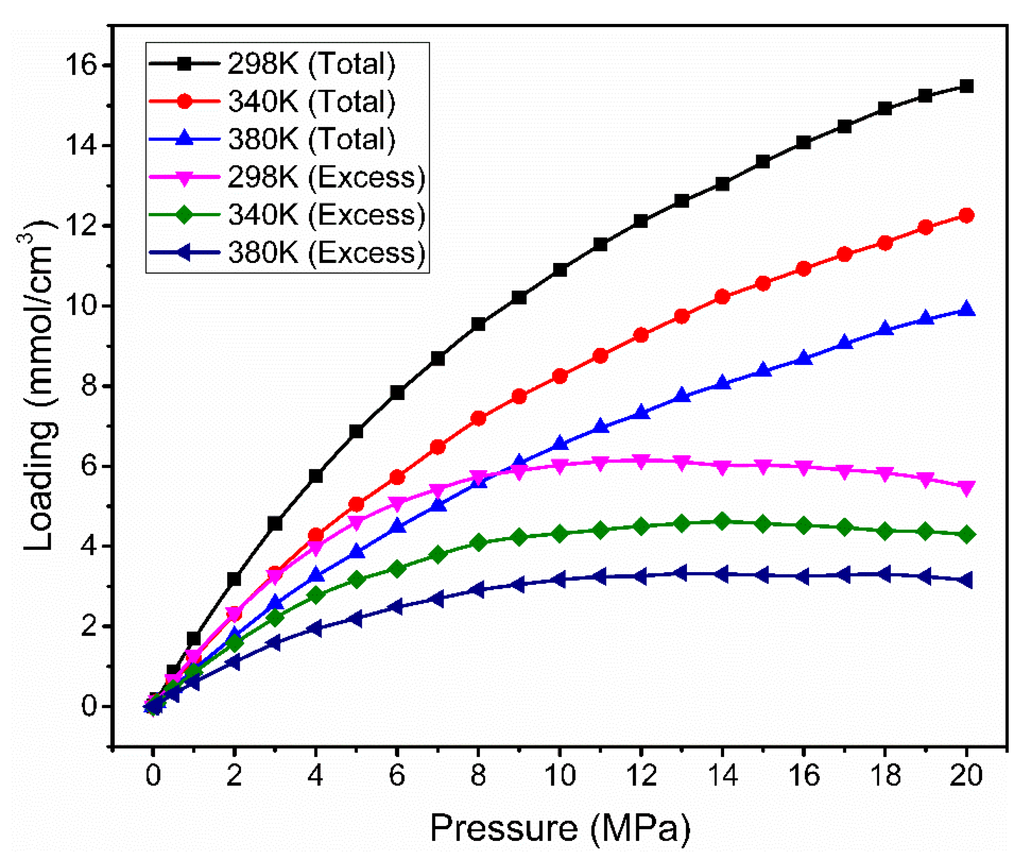

Figure 4. Adsorption isotherms of methane in a 2 nm pore without cation exchange structure at temperatures of 298 K, 340 K and 380 K.

Figure 4. Adsorption isotherms of methane in a 2 nm pore without cation exchange structure at temperatures of 298 K, 340 K and 380 K.

3.3. Density of Methane in Slit Pores

It is difficult to directly examine the CH₄ density in MMT pores by experiments. Molecular dynamics technique can be convenient to observe the CH₄ positions in the given MMT slit pores, as well as recording the density and layers of the CH₄.

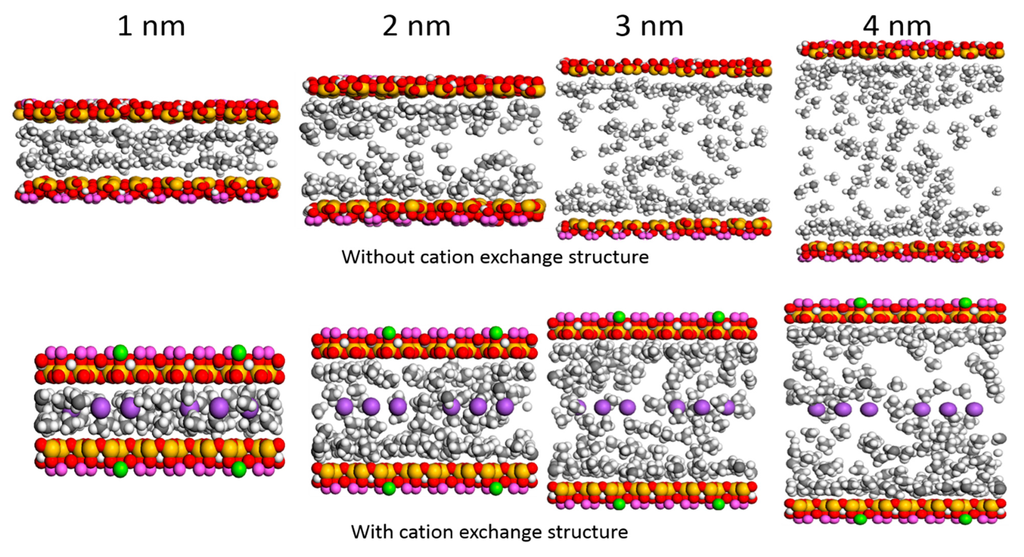

Figure 5. The snapshot of methane in different MMT pore sizes at 8 MPa and 298 K.

Figure 5. The snapshot of methane in different MMT pore sizes at 8 MPa and 298 K.

Figure 5 shows the snapshots and Figure 6 is the corresponding, predicted density profiles for CH₄ confined to nanopores without and with ions at different pores size at 8 MPa. It can be found that the density is not uniform across the pores, and the density profiles in all MMT pores exhibit the obvious peak near the pores’ wall where adsorption takes place, and at a platform region around the center. Maximum density of the adsorbed layer will decrease as pore size increases. This is because in smaller pores, the two walls effect are superimposed and enhances CH₄ sorption. As the pore size increasing, the superimposed effect becomes smaller or vanish, the adsorbed layer density keep a constant and furthermore the CH₄ density in the center of the pores reaches the bulk limit.

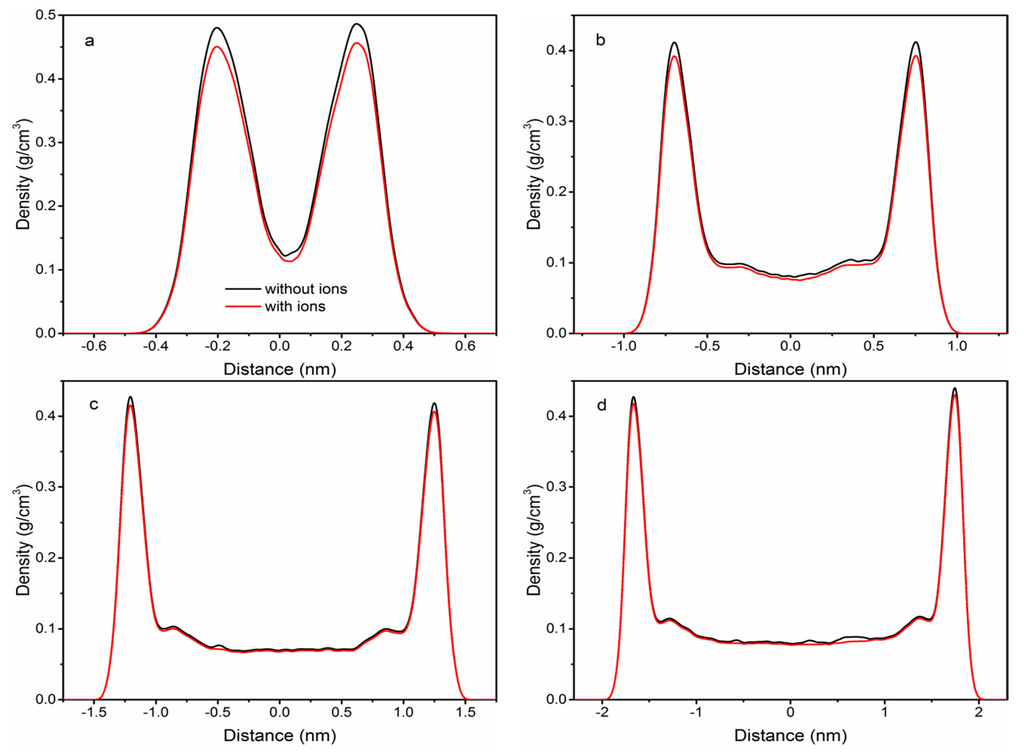

Figure 6. Density profiles of methane at different MMT pore sizes at 8 MPa and 298 K. (a) 1.0 nm, (b) 2.0 nm, (c) 3.0 nm and (d) 4.0 nm.

Figure 6. Density profiles of methane at different MMT pore sizes at 8 MPa and 298 K. (a) 1.0 nm, (b) 2.0 nm, (c) 3.0 nm and (d) 4.0 nm.

3.4. Effect of Water

The effect of water on CH₄ adsorption behavior in clay nanopores for different pore sizes and pressures with varying amounts of preloaded water is studied at 298 K. In this work, there are two (10 mmol/cm³, 20 mmol/cm³) quantities of water molecules preloaded in the MMT pores to research the effect of water on CH₄ adsorption behavior. Figure 7 shows the effect of water on CH₄ adsorption isotherm in MMT pores with or without ions. As seen in Figure 7, CH₄ sorption decreases significantly as the water increases. CH₄ can be reduced ~6, 2, 1.6 and 1.6 times and ~2.2, 1.7, 1.5 and 1.8 times without and with a cation exchange structure for 1.0 nm, 2.0 nm, 3.0 nm and 4.0 nm MMT pores with 20 mmol/cm³ water molecules at 15 MPa. When water content is 10 mmol/cm³, the amount of CH₄ adsorption in MMT with cation exchange structure is higher than that in MMT without cation exchange structure at low pressure (<15 MPa). A similar result was obtained when the water content was 20 mmol/cm³, except in 4.0 nm MMT pores.

Figure 7. The effect of water on methane adsorption isotherm in MMT pores with or without ions at 298 K. (a) 1.0 nm, (b) 2.0 nm, (c) 3.0 nm and (d) 4.0 nm.

Figure 7. The effect of water on methane adsorption isotherm in MMT pores with or without ions at 298 K. (a) 1.0 nm, (b) 2.0 nm, (c) 3.0 nm and (d) 4.0 nm.

The snapshots of MC simulations for configurations of CH₄ molecules in the MMT pores without and with a cation exchange structure for 4.0 nm with 10 mmol/cm³ water molecules is displayed in Figure 8. As shown in Figure 8a, for MMT pores without a cation exchange structure, the water molecules occupy more space and reduce CH₄ sorption, CH₄ is hydrophobic, and CH₄ molecules do not spread within water molecules and the water molecules accumulate together because of water–water interaction. In MMT pores with a cation exchange structure, we found water molecules are adsorbed on the clay surface and accumulate together around Na⁺ ions because water has a strong dipole moment and can be adsorbed to the negatively charged clay sheets and positively charged Na⁺ ions. CH₄ molecules are distribute in other spaces in the pores.

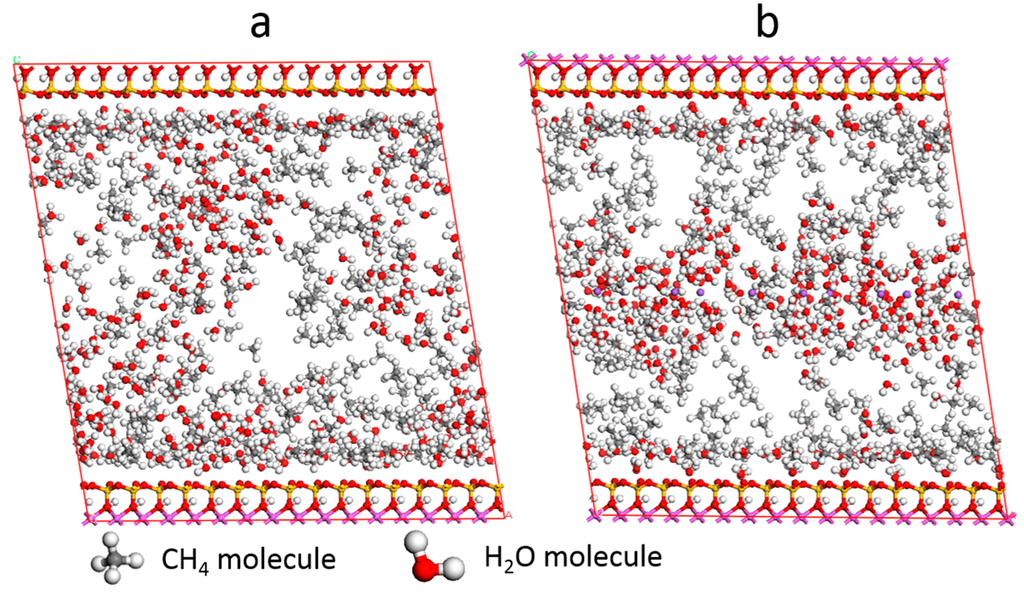

Figure 8. The snapshots of methane molecules in the MMT pores without and with a cation exchange structure for 4.0 nm with 10 mmol/cm³ water molecules. (a) Without cation exchange structure and (b) with cation exchange structure.

Figure 8. The snapshots of methane molecules in the MMT pores without and with a cation exchange structure for 4.0 nm with 10 mmol/cm³ water molecules. (a) Without cation exchange structure and (b) with cation exchange structure.

3.5. Self-Diffusion

The mean square displacement (MSD), which describes an average distance of a given particle traveling in a system, is usually used to depict the alkane molecules’ diffusion behavior. The self-diffusion coefficient, related to the MSD function, can be calculated as follows by the Einstein equation.

$$D=\frac{1}{4}\underset{t\to \infty }{\lim }\frac{d}{dt}{\displaystyle \sum _{i=1}^N\langle {\left|r_i\left(t\right)-r\left(0\right)\right|}^2\rangle }$$

(1)

where D is the self-diffusion coefficient of species i, $\langle {\left|r_i\left(t\right)-r\left(0\right)\right|}^2\rangle$ is the mean square displacement (MSD) of molecules relative to the initial coordinates at time t. r_i and r₀, respectively, representing the spatial position vectors of molecules at time t and initial time. Note that, in this work, we study the two-dimensional diffusion corresponding to this equation, since the diffusion coefficient normal for the pore walls is too small at about zero. The self-diffusion coefficients can be calculated from the slope by MSD which is proportional to the self-diffusivity through the Einstein equation. Figure 9 depicts the MSD of CH₄ at a temperature of 298 K and with different width slit pores from 1.0 nm–4.0 nm. The MSD curves were linear, and the diffusion coefficients were calculated according to Equation (4). With the slit pore size increasing, the slope of the MSD increases and the CH₄ self-diffusion coefficients proportional to the MSD will increase. As the width of the slit pore becomes large, the large space corresponds to the smaller density, despite a large amount of adsorption. Therefore, CH₄ molecules have a larger space to move within, and a greater self-diffusion coefficient. Figure 10 demonstrates the changes over time of MSD of the CH₄ molecules in 2.0 nm slit pores with a specific simulation time at different temperatures. We can find the difference in diffusion coefficients is small at different temperatures in the given conditions. The reason may be that the temperatures of 340 K and 380 K are above the critical temperature of CH₄, and this will affect the CH₄ thermodynamic properties. We will conduct further studies on this matter. The CH₄ self-diffusion coefficients in different nanopores are shown in Table 2.

Figure 9. MSD of methane with different pore sizes at 8 MPa and 298 K.

Figure 9. MSD of methane with different pore sizes at 8 MPa and 298 K.

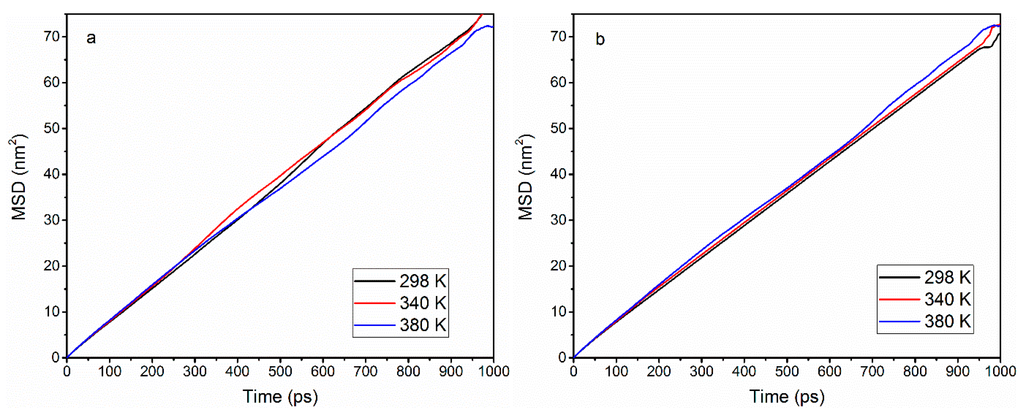

Figure 10. MSD of methane with different temperatures in 2.0 nm pore at 8 MPa. (a) Without cation exchange structure and (b) with cation exchange structure.

Figure 10. MSD of methane with different temperatures in 2.0 nm pore at 8 MPa. (a) Without cation exchange structure and (b) with cation exchange structure.

Table 2. Self-diffusion coefficient of methane with different spacing and temperatures at 8 MPa.

Width	Temperature	Dwithout ions (10−8 m2/s)	Dwith ions (10−8 m2/s)
(nm)	(K)	(8 MPa)	(8 MPa)
1.0	298	0.706	0.710
2.0	298	1.236	1.234
2.0	340	1.264	1.261
2.0	380	1.288	1.284
3.0	298	1.431	1.432
4.0	298	1.638	1.637

Table 2. Self-diffusion coefficient of methane with different spacing and temperatures at 8 MPa.

Width	Temperature	Dwithout ions (10−8 m2/s)	Dwith ions (10−8 m2/s)
(nm)	(K)	(8 MPa)	(8 MPa)
1.0	298	0.706	0.710
2.0	298	1.236	1.234
2.0	340	1.264	1.261
2.0	380	1.288	1.284
3.0	298	1.431	1.432
4.0	298	1.638	1.637

4. Conclusion

It is important study CH₄ adsorption and diffusion behaviors in shale gas reservoirs for shale gas production. In this work, the adsorption and self-diffusion behavior of CH₄ in various clay pores were studied by GCMC and MD simulations. The studies show that the dispersive interactions will determine CH₄ sorption in MMT pores, and the adsorption mainly occurs near the MMT wall. This is because the dispersive interactions are short-ranged. The density of the CH₄ in the pores is not uniform, and the density profiles show the obvious layer near the pore walls due to the walls’ effect, as well as a platform region around the center. Under the given temperatures, higher temperature leads to a lower total loading of CH₄, suggesting that higher temperature will reduce CH₄ loading at the same pressures. The preloaded water will reduce CH₄ sorption, as CH₄ molecules do not spread within water molecules because CH₄ is hydrophobic. MD simulations have been utilized as an effective route to understand the diffusion behavior of a system at a molecular level. We found the self-diffusion coefficient increases rapidly with increases in the pore size. Under these given conditions, the effect of temperature has little influence on the in-plane self-diffusion coefficient. Similar results were obtained in the clay mineral with cation exchange, which will reduce CH₄ adsorption under the same pressure and temperature conditions.
