Article

Avian Cell Line DuckCelt®-T17 Is an Efficient Production System for Live-Attenuated Human Metapneumovirus Vaccine Candidate Metavac®

1
CIRI, Centre International de Recherche en Infectiologie, Team VirPath, Univ Lyon, Inserm, U1111, Université Claude Bernard Lyon 1, CNRS, UMR5308, ENS de Lyon, F-69007 Lyon, France
2
Vaxxel, 43 Boulevard du Onze Novembre 1918, 69100 Villeurbanne, France
3
International Associated Laboratory RespiVir (LIA VirPath-LVMC France-Québec), Université Laval, Québec, QC G1V 4G2, Canada, Université Claude Bernard Lyon 1, Université de Lyon, 69008 Lyon, France
4
VirNext, Faculté de Médecine RTH Laennec, Université Claude Bernard Lyon 1, Université de Lyon, 69008 Lyon, France
5
Centre de Recherche en Infectiologie, Centre Hospitalier Universitaire de Québec, Université Laval, Québec, QC G1V 4G2, Canada
6
Unité de Virologie et Immunologie Moléculaires, UVSQ, INRAE, Université Paris-Saclay, 78350 Jouy-en-Josas, France
7
CIRI, Centre International de Recherche en Infectiologie, Team STAPHPATH, Univ Lyon, Inserm, U1111, Université Claude Bernard Lyon 1, CNRS, UMR5308, ENS de Lyon, F-69007 Lyon, France
*
Authors to whom correspondence should be addressed.
These authors contributed equally.
These authors contributed equally.
Vaccines 2021, 9(10), 1190; https://doi.org/10.3390/vaccines9101190
Received: 13 September 2021 / Revised: 30 September 2021 / Accepted: 6 October 2021 / Published: 16 October 2021
(This article belongs to the Collection Vaccines against Infectious Diseases)

Abstract

:
The development of a live-attenuated vaccine (LAV) for the prevention of human metapneumovirus (HMPV) infection is often hampered by the lack of highly efficient and scalable cell-based production systems that support eventual global vaccine production. Avian cell lines cultivated in suspension compete with traditional cell platforms used for viral vaccine manufacture. We investigated whether the DuckCelt®-T17 avian cell line (Vaxxel), previously described as an efficient production system for several influenza strains, could also be used to produce a new HMPV LAV candidate (Metavac®, SH gene-deleted A1/C-85473 HMPV). To that end, we characterized the operational parameters of MOI, cell density, and trypsin addition to achieve the optimal production of Metavac®, and demonstrated that the DuckCelt®-T17 cell line is permissive and well-adapted to the production of the wild-type A1/C-85473 HMPV and the Metavac® vaccine candidate. Moreover, our results confirmed that the LAV candidate produced in DuckCelt®-T17 cells conserves its advantageous replication properties in LLC-MK2 and 3D-reconstituted human airway epithelium models, and its capacity to induce efficient neutralizing antibodies in a BALB/c mouse model. Our results suggest that the DuckCelt®-T17 avian cell line is a very promising platform for the scalable in-suspension serum-free production of the HMPV-based LAV candidate Metavac®.

1. Introduction

Human pneumoviruses, which include human respiratory syncytial virus (HRSV) and human metapneumovirus (HMPV), are a major global cause of acute respiratory-tract infections, especially among children, older adults, and immunocompromised individuals [1,2,3]. Infections by these two respiratory pathogens share many features and are globally responsible for more than 33 million annual cases among children under 5 years old [3,4,5]. Despite this important clinical burden, there is currently no licensed vaccine or specific antiviral agent against human pneumoviruses. To date, only one humanized monoclonal antibody (palivizumab) was regulatorily approved for passive immunoprophylaxis against severe HRSV infection in high-risk infants and children [6,7].
Throughout the past few decades, several vaccine strategies have been developed in order to prevent disease caused by pneumoviruses, mostly based on recombinant proteins, live-attenuated vaccines (LAVs) [8,9] or more recently mRNA candidates [10,11,12]. LAV strategies are well-adapted to pediatric immunization, and have the advantage of eliciting both humoral and mucosal immunity by mimicking natural viral replication routes, in addition to being delivered without adjuvant [13]. This contrasts with formalin-inactivated pneumovirus-based vaccines, which were responsible for events of vaccine-induced enhanced disease [14]. Some pneumovirus-based LAV candidates led to promising outcomes in in vitro and in vivo experiments, such as M2-2, NS2, and G/SH gene-deleted HRSVs, and G/SH-deleted HMPVs [9,15,16]. Unfortunately, final reports on some of these candidates showed them to be overattenuated and/or ineffective at inducing a protective antibody response in human clinical trials [8,9,17,18]. Only a small number of HMPV LAV candidates showed potential to progress towards clinical evaluation [8,15,19,20]. In this context, we described an engineered SH gene-deleted recombinant virus based on the hyperfusogenic A1/C-85473 HMPV strain (ΔSH-rC-85473) as a promising LAV candidate (Metavac®): it showed efficient replication in a human cell-based system, and protective properties in mice lethally challenged with wild-type HMPV, including the induction of neutralizing antibodies, reduced disease severity, weaker inflammatory responses, and a balanced stimulation of the immune response [15].
On the other hand, the development of LAV-based strategies is often hampered by the limited availability of highly efficient and scalable cell-based production platforms to support the vaccine need. Currently, viral vaccine production is mostly performed using adherent cells such as the Vero and MRC5 cell lines [16,17,18]. These cell lines are well-known and grown in roller bottles or multiplate cell factory systems [17]. However, cost, space, and workforce constraints prevent these technologies from being easily scalable. In this context, serum-free suspension cell lines such as human cell lines PER.C6® (Crucell, Leyde, The Netherlands) [19] and CAP® (CEVEC Pharmaceutical, Köln, Germany) [20] or avian cell lines AGE1.CR® (ProBioGen AG, Berlin, Germany) [21], EB66® (Valneva. Saint-Herblain, France) [22], and QOR/2E11 (Baxter, Deerfield, IL, USA) were developed to ease cell culture and viral amplification steps [16]. These cell lines enable a reduction in footprint and labor intensiveness, as they are cultured in bioreactors without microcarriers. During evaluation into whether these could become versatile viral production platforms, the AGE1.CR® and EB66® avian cell lines efficiently produced several viruses, such as modified vaccinia Ankara (MVA) or influenza viruses [17,21,22,23,24]. In contrast, none of these new-generation cell lines has yet been reported to be permissive or to support production of pneumoviruses. Hence, HRSV is commonly cultured onto anchorage-dependent human Hep-2 cells [25] and HMPV onto adherent nonhuman primate LLC-MK2 cells [26].
Considering potential scalability in the manufacturing process of the Cairina moschata duck embryo-derived DuckCelt®-T17 cell line (Vaxxel, Villeurbanne, France), which we previously described as an efficient platform for the production of human and avian influenza viruses [23], we evaluate its putative permissiveness and capacity to produce C-85473 HMPV-based viruses, notably our new LAV candidate Metavac® [15]. We characterized the main operational parameters for viral production, including multiplicity of infection (MOI), cell density, and trypsin input to achieve optimal production yield. Lastly, using in vitro and in vivo experimental models, we highlighted the conservation of morphological features, replicative capacities, and immunizing properties of the Metavac® virus produced in the in-suspension DuckCelt®-T17 cell line.

2. Materials and Methods

2.1. Cells and Viruses

The DuckCelt®-T17 cell line (ECACC 0907703) was grown in suspension in OptiPRO™ Serum Free Medium (SFM, Gibco, Thermo Fisher Scientific, Waltham, MA, USA) supplemented with 1% penicillin/streptomycin (10,000 U/mL, Gibco, Thermo Fisher Scientific, Waltham, MA, USA), 2% L-glutamin (Gibco, Thermo Fisher Scientific, Waltham, MA, USA), and 0.2% Pluronic F68 (Gibco), as previously described [23]. The culture was performed at 37 °C in a CO2 Kühner incubator (ISF1-X, Kühner, Birsfelden, Switzerland) with 5% CO2 and 85% humidity. Agitation speed depended on the culture scale: 175 rpm for a working volume of 10 mL in TubeSpin® 50 mL (TPP®); 110 rpm from 20 to 500 mL of a working volume in Erlenmeyer shaker flasks (Erlenmeyer flask polycarbonate DuoCAP®, TriForest, Irvine, CA, USA). Cells were passaged every 3 to 4 days at cell concentrations of 0.7 × 106 cell/mL.
LLC-MK2 cells (ATCC CCL-7) were maintained in minimal essential medium (MEM, Life Technologies) supplemented with 10% fetal bovine serum (Wisent, St. Bruno, QC, Canada) and 1% penicillin/streptomycin (10,000 U/mL).
The wild-type (WT) A1/C-85473 strain of HMPV (GenBank accession number: KM408076.1) and two A1/C-85473-derived recombinant viruses were used in this study. Recombinant rC-85473-GFP (green fluorescent protein) virus, which is a GFP-expressing C-85473 WT counterpart virus, and the ΔSH-rC-85473-GFP virus (Metavac®), a recombinant virus from which the viral SH gene sequence is deleted, were generated by reverse genetics as previously described [15,27]. In order to constitute initial working viral stocks, both of these viruses were amplified onto LLC-MK2 monolayers in OptiMEM (Gibco, Thermo Fisher Scientific, Waltham, MA, USA) in the presence of 1% penicillin/streptomycin and acetylated trypsin (T6763, Sigma-Aldrich, Saint Louis, MO, USA) and concentrated by ultracentrifugation as previously described [15,27]. Viral stocks were titrated onto LLC-MK2 cells at 50% tissue culture infectious doses (TCID50)/mL according to the Reed and Muench method [28].

2.2. Infection and HMPV Production in DuckCelt®-T17 Cells

DuckCelt®-T17 cells in a working volume of 10 mL in TubeSpin® 50 mL or 500 mL in 1 L Erlenmeyer shaker flasks were inoculated with HMPV in OptiPRO™ SFM (Gibco, Thermo Fisher Scientific, Waltham, MA, USA) supplemented with 1% penicillin/streptomycin (Gibco, Thermo Fisher Scientific, Waltham, MA, USA), 2% L-glutamin (Gibco, Thermo Fisher Scientific, Waltham, MA, USA), 0.2% Pluronic F68 (Gibco, Thermo Fisher Scientific, Waltham, MA, USA), and acetylated trypsin (T6763, Sigma). Viral production was monitored over a 10-day culture period by cell numeration, viability estimation, fluorescent microscopy (EVOS™ M5000 Cell Imaging System, Invitrogen, Thermo Fisher Scientific, Waltham, MA, USA), infectious TCID50 titre measurement [28], and infectivity quantification by flow cytometry [15]. Briefly, 10 µL of the suspension was diluted in trypan blue and analyzed using a Countess™ II FL Automated Cell Counter. We then harvested and centrifuged a minimal sample of 1 × 106 cells in suspension, supernatants were titrated as TCID50/mL, and pelleted cells were fixed in a 2% formaldehyde solution to be analyzed by flow cytometry (FACS CantoII analyzer, Becton Dickinson). Percentages of infected GFP-positive cells in a minimum of 1 × 104 total cells were measured with FACS Diva software.
To constitute concentrated DuckCelt®-T17-produced viral working stocks, the whole suspension of cells was harvested after 7–8 days of production, clarified by centrifugation at 2000 rpm, and the supernatant was then concentrated by ultracentrifugation as previously described [15,27]. The obtained pellet was resuspended in OptiMEM and stored at −80 °C for further use.

2.3. Transmission Electron Microscopy

DuckCelt®-T17-produced HMPVs were harvested and concentrated by ultracentrifugation as previously described. Viral particles were then resuspended in NaCl (0.9%) and filtered at 0.45 µm. Suspensions were adsorbed on 200-mesh nickel grids coated with formvar-C for 10 min at room temperature. Then, grids with suspensions were colored with Uranyless (Delta Microscopies, Mauressac, France) for 1 min and observed on a transmission electron microscope (Jeol 1400 JEM, Tokyo, Japan) equipped with a Gatan camera (Orius 1000) and Digital Micrograph software.

2.4. In Vitro Replicative Assay

Confluent monolayers of LLC-MK2 cells in 24-well plates were infected with rC-85473-GFP or Metavac® HMPVs produced in DuckCelt®-T17 cells in suspension or in adherent LLC-MK2 cells at an MOI of 0.01 as described previously [27]. Supernatants of infected wells were harvested in triplicate every 24 h for 7 days, and endpoint TCID50/mL titrations were performed on each sample. After harvest, infected cell monolayers were fixed in 2% formaldehyde and colored with crystal violet solution.

2.5. Infection of Reconstituted Human Airway Epithelium

In vitro 3D-reconstituted human airway epithelium (HAE), derived from primary nasal cells from healthy donors (MucilAir™), was purchased from Epithelix (Plan-les-Ouates, Switzerland). Viral inoculum corresponding to an MOI of 0.1 was added onto ciliated cells and incubated for 2 h at 37 °C and 5% CO2. Infections were monitored for 12 days after viral inoculation (days post-infection, dpi); images of infected epithelium were captured by fluorescent microscopy at 5 dpi, and apical washes with warm OptiMEM were performed at 2, 5, and 12 dpi in order to extract viral RNA (QIAamp® Viral RNA kit, Qiagen, Hilden, Germany).

2.6. Real-Time Quantitative Polymerase Chain Reaction (RT-qPCR)

Amplification of the HMPV N gene from viral RNA samples was performed by quantitative RT-PCR using the One-Step SYBR™ GreenER™ EXPRESS kit (Invitrogen, Thermo Fisher Scientific, Waltham, MA, USA) and primers N-Forward 5′-AGAGTCTCAATACACAATAAAAAGAGATGTAGG-3′ and N-Reverse 5′- CCTATCTCTGCAGCATATTTGTAATCAG-3′, as previously described [15]. The calibration of HMPV N copies was assessed by amplification of a plasmid kindly provided by Dr Ab Osterhaus (Erasmus Medical Center, Rotterdam, The Netherlands).

2.7. Animal Studies

Four-to-six-week-old female BALB/c mice (Charles River Laboratories, Wilmington, MA, USA) were randomly housed in groups of five per microisolator cage. Twenty mice were infected by intranasal instillation with 1 × 106 TCID50 of Metavac® viruses produced in LLC-MK2 adherent cells (Metavac® LLC) or in in-suspension DuckCelt®-T17 cells (Metavac® T17). As a control group, mice were mock-infected intranasally with OptiMEM. Animals (n = 10) were monitored on a daily basis over 14 days for weight loss or presence of clinical signs. Mice were euthanized at 5 (n = 4) or 14 dpi (n = 6) using sodium pentobarbital, and lungs were removed for the evaluation of viral titers. For viral titration, lungs were homogenized in 1 mL of phosphate-buffered saline (PBS) before N gene quantification by RT-qPCR.
To evaluate the induction of a neutralizing antibody response, mice were intranasally prime-infected with 5 × 105 TCID50 of the rC-85473-GFP virus. Thirty days after prime infection, mice were intranasally boost-infected with 5 × 105 TCID50 of Metavac® LLC or Metavac® T17 (n = 10 per group). As control groups of immunization, a group of mice was prime-instilled with OptiMEM and boost-infected with 5 × 105 TCID50 of rC-85473-GFP, and another group was prime-infected with 5 × 105 TCID50 of rC-85473-GFP and boost-instilled with OptiMEM. Animals were monitored on a daily basis, and three mice were euthanized on day 5 after boost infection for the evaluation of viral titers in lung homogenates by RT-qPCR. To evaluate the production of neutralizing antibodies, blood samples were harvested by submandibular puncture prior to prime and boost infections (samples from five mice were pooled) and by intracardiac puncture 21 days after boost infection (n = 6). Serial twofold dilutions of sera were then tested for neutralization of homologous rC-85473-GFP viruses produced in DuckCelt®-T17 cells (or in LLC-MK2 adherent cells, supplementary data) or neutralization of the heterologous WT CAN98-75 strain. Reciprocal neutralizing antibody titers were determined by an endpoint dilution assay, as previously described [14].
Animal studies were approved by the SFR Biosciences Ethics Committee (CECCAPP C015 Rhône-Alpes) under protocol number ENS_2017_019 and in accordance with European ethical guidelines 2010/63/UE on animal experimentation.

2.8. Statistical Analysis

All statistical tests were conducted using GraphPad Prism5, comparing results expressed as the mean ± SD for each condition, using two-way ANOVA with Bonferroni post-tests or one-way AVOVA with Dunnett’s post-test.

3. Results

3.1. DuckCelt®-T17 Cell Line Is Permissive to C-85473 HMPV and Appropriate for Viral Production

First, we evaluated the permissiveness of DuckCelt®-T17 cells to the prototype WT C-85473 HMPV and its recombinant GFP-expressing reporter counterpart (rC-85473-GFP) in routine cell culture parameters as previously described [23]. As HMPV F protein cleavage and related viral propagation are trypsin-dependent in adherent cell culture [29], we supplemented the culture medium with acetylated trypsin at the final concentration of 0.5 µg/mL at the time of infection (D0), and 2, 4, and 7 days post-infection (D2, D4, and D7, respectively).
Thanks to the follow-up of reporter GFP gene expression in cells infected by the recombinant HMPV (rC-85473-GFP), we observed efficient viral propagation in the cellular suspension over a 10-day period, hence validating the permissiveness of DuckCelt®-T17 cells to HMPV infection and replication. At an MOI of 0.01, we observed maximal GFP expression by fluorescent microscopy at 7 days post-infection (7 dpi), as illustrated in Figure 1a. Viral kinetics of WT C-85473 and rC-85473-GFP viruses were also characterized by measuring viral production from the culture supernatant. We measured mean maximal viral titers of 9.8 × 106 TCID50/mL at 6 dpi with the WT C-85473 strain and 1.9 × 106 TCID50/mL at 8 dpi with the rC-85473-GFP virus (Figure 1b). Accordingly, DuckCelt®-T17 cells achieved a maximal cell density of 5.5 × 106 cell/mL at 4 dpi or 6.6 × 106 cell/mL at 6 dpi when infected with WT C-85473 or rC-85473-GFP viruses, respectively (Figure 1c). In comparison, mock-infected cell suspension achieved a maximal cell concentration of 8.6 × 106 cell/mL after 8 days of culture (Figure 1c). These results indicate that the DuckCelt®-T17 cell line is permissive to C-85473 HMPV-based viruses and allows for their efficient amplification by 2 log10 compared to the initial inoculum within an 8-day period.

3.2. Identification of Best Operating Parameters for Viral Production of rC-85473-GFP Virus in DuckCelt®-T17 Cell Line

Starting from the standard viral culture parameters mentioned above, we separately evaluated the influence of the MOI, cell density, time, and concentration of trypsin input on the HMPV yield in order to identify key operating parameters for the production process in a 10 mL working volume of DuckCelt®-T17 cells.
First, DuckCelt®-T17 cells were seeded at 1 × 106 cell/mL in supplemented OptiPRO™ SFM and inoculated the same day with rC-85473-GFP HMPV at three different MOI levels (0.1, 0.01, and 0.001). At an MOI of 0.1, viral production flattened between 6 and 10 dpi with mean virus titers of 2.4 × 106 TCID50/mL, while mean virus titers were between 2.08 and 6.58 × 106 TCID50/mL for infection at an MOI of 0.01 at the same time point (Figure 2a). In comparison, when an even lower MOI of 0.001 was used, we measured a maximal viral yield of 0.78 × 106 TCID50/mL after 10 dpi, significantly lower and later than that with an MOI of 0.01 and 0.1 (Figure 2a). Moreover, percentage cell infectivity, determined by quantification of GFP-positive cells by flow cytometry, showed that nearly 100% of DuckCelt®-T17 cells were infected at 6 dpi at an MOI of 0.1, 8 dpi at an MOI of 0.01, and 10 dpi at an MOI of 0.001 (Figure 2b). Hence, despite faster viral replication kinetics in the cellular suspension, the use of a tenfold higher MOI did not significantly increase viral production compared to with MOI 0.01.
We then considered the influence of cell density at the time of viral inoculation. DuckCelt®-T17 cells were centrifuged in order to be seeded at three different cell concentrations: 0.5, 1, and 4 × 106 cells/mL in OptiPRO™ SFM (50% conditioned medium and 50% fresh medium). Cell suspensions were then inoculated with rC-85473-GFP HMPV at an MOI of 0.01 and supplemented with acetylated trypsin at 0.5 µg/mL. Maximal viral yields of 5.26 × 106 and 7.32 × 106 TCID50/mL were achieved at 8 dpi when 0.5 or 1 × 106 cells/mL, respectively, were inoculated (Figure 2c). In contrast, significantly lower mean peak viral titers (0.73 × 106 TCID50/mL) were measured at 8 dpi when using an initial cell concentration of 4 × 106 cells/mL (Figure 2c), in line with the observed significant reduction in the maximal percentage of GFP-positive cells. These results show that increasing cell density above 1 × 106 cells/mL at the time of inoculation results in no benefit for HMPV production (Figure 2d).
Lastly, we looked at the impact of trypsin on viral yield by testing repeated supplementation or increasing its concentration in the cell culture medium. DuckCelt®-T17 cells were seeded at 1 × 106 cell/mL and then inoculated with rC-85473-GFP HMPV at MOI 0.01. The culture medium was supplemented or not at varying time points (D0, D0, and D4, or D0, D4, and D7) with 0.5 µg/mL acetylated trypsin (Figure 2e,f). When comparing cell infectivity and viral titers between experimental conditions, we confirmed that trypsin supplementation is necessary for viral replication in DuckCelt®-T17 cells, as illustrated by the absence of both viral amplification and GFP-positive cells in the cell suspension in the absence of trypsin (Figure 2e,f). Efficient and comparable viral propagation was observed after the addition of trypsin at one, two, or three time points, resulting in nearly 100% of cells being infected at 8 dpi (Figure 2f). However, viral production and release in the culture medium seemed to be impaired when trypsin was only added on D0, as reflected by overall viral yields that were at least tenfold lower between 8 and 10 dpi in comparison with conditions when trypsin was also supplemented at D4 (Figure 2e). A third addition of trypsin at D7 did not increase viral production (Figure 2e).
On the basis of these results, we further evaluated the supplementation of the culture medium with increasing concentrations of trypsin, namely, 0.5, 2, or 4 µg/mL (Figure 2g,h). In accordance with the low percentage of detected infected cells (Figure 2h), while the addition of 4 µg/mL of acetylated trypsin did not result in viral titers higher than 1 × 106 TCID50/mL, the addition of 0.5 or 2 µg/mL trypsin led to a 6.5- or 4.5-fold higher peak of viral production, respectively, at 7 dpi (Figure 2g).
In conclusion, we identified the best operating parameters to amplify the rC-85473-GFP HMPV in a 10 mL working volume of DuckCelt®-T17 cells (1 × 106 cells/mL at the time of inoculation with an MOI of 0.01 and two additions of 0.5µg/mL acetylated trypsin, on D0 and D4), leading to 2 log10 higher production yield in comparison to the initial inoculum.

3.3. Production of Metavac® LAV Candidate in DuckCelt®-T17 Cell Line Using Optimized Operating Parameters

We further aimed to determine if the best operating production parameters identified with the rC-85473-GFP virus in DuckCelt®-T17 cells were well-adapted to the production of our previously described novel LAV candidate Metavac® [15], which is an engineered SH gene-deleted version of the C-85473 strain of HMPV. Therefore, we inoculated 1 × 106 DuckCelt®-T17 cells/mL with Metavac® at MOIs of 0.1, 0.01, or 0.001 in cell culture medium supplemented with 0.5µg/mL of acetylated trypsin on D0 and D4 post-infection. As shown in Figure 3a, the maximal viral production was achieved at 10 dpi with 1.02 × 107 TCID50/mL, 1.94 × 106 TCID50/mL, or 0.62 × 106 TCID50/mL for an MOI of 0.1, 0.01, or 0.001, respectively. When we measured the percentage of infected cells, maximal infectivity was achieved in 6 days at an MOI of 0.1, similar to timings observed with the rC-85473-GFP virus (Figure 2b), whereas 10 days were necessary to infect the whole cell suspension at an MOI of 0.01 (Figure 3b). An MOI of 0.001 was not sufficient to allow for the propagation of the Metavac® virus to more than 36.2 ± 37.7% of cells after 10 days of culture.
To investigate the scalability of the DuckCelt®-T17 production platform, we then performed Metavac® production in a 500 mL working volume in shaker flasks by using the selected best operating parameters and an MOI of 0.01. Similar to obtained results in 10 mL cultures, peak viral production was 2.2 × 106 TCID50/mL at 7 dpi (Figure 3c), which corresponded with the maximal percentage of infected GFP-positive cells (Figure 3d).
Altogether, these results show that the DuckCelt®-T17 cell line was permissive and well-adapted to scalable production of our LAV candidate. However, as Metavac® is an attenuated virus, the duration of the production process could be longer than with the rC-85473-GFP strain, but is expected to reach comparable production yields.

3.4. HMPV Virions Produced in DuckCelt®-T17 Cell Line Conserve Their Morphological Characteristics and Full Replicative Properties in LLC-MK2 Cells and Reconstituted HAE

We further characterized key morphological and functional viral properties of rC-85473-GFP and Metavac® viruses produced in DuckCelt®-T17 cells. Transmission electron microscopy analysis of virions released in the culture medium revealed typical HMPV pleiomorphic viral particles with mean diameters of 174.4 and 183.2 nm for rC-85473-GFP and Metavac®, respectively, presenting abundant glycoproteins at their surface (Figure 4a). Viruses produced in the DuckCelt®-T17 cell line were then assessed for their replicative properties in LLC-MK2 cells over a 7-day period (Figure 4b,d). In line with previous studies using the viral hyperfusogenic C-85473 background [27,30], fluorescence microscopy showed the formation of large syncytia, clearly visible as early as 4 dpi (Figure 4b). Peak viral titers of approximately 4.95 × 105 and 4.15 × 105 TCID50/mL were reached by 5 dpi for rC-85473-GFP and Metavac® viruses, respectively (Figure 4c). Additionally, crystal violet coloration of infected LLC-MK2 monolayers revealed very similar kinetics between both DuckCelt®-T17-produced rC-85473-GFP and Metavac® viruses, and those produced in LLC-MK2 (Figure 4d).
We then evaluated rC-85473-GFP and Metavac® viruses using the MucilairTM 3D-reconstituted HAE in vitro physiological model of infection [15,31]. Both viruses were able to infect and fully spread within the HAE, as shown by their reporter GFP expression pattern at 5 dpi (Figure 5a,b). Moreover, we measured the progeny viral secretion at the HAE apical surface during the time course of infection by quantification of N gene copies (Figure 5c). In line with previous results [15], both DuckCelt®-T17-produced viruses demonstrated high replicative capacity in HAE. Viral amplification occurred mainly between 2 and 5 dpi, but viral persistence was observed until at least 12 dpi. Maximal apical viral titers of 1.07 × 109 and 1.29 × 109 N copies per apical sample were reached at 5 dpi for rC-85473-GFP and Metavac®, respectively (Figure 5c).
Taken together, our results indicate that rC-85473-derived HMPVs produced in the in-suspension avian DuckCelt®-T17 cell platform fully conserved their in vitro phenotype and harbor efficient viral replication in both LLC-MK2 and HAE models.

3.5. Metavac® Vaccine Candidate Produced in DuckCelt®-T17 Cells Conserves Full Immunogenic Properties in Mice

Considering the potential of the Metavac® virus as a HMPV LAV candidate, we further evaluated its capacity to infect, replicate in, and immunize BALB/c mice. We, therefore, intranasally infected BALB/c mice with 1×106 TCID50 of Metavac® produced in either LLC-MK2 or DuckCelt®-T17 cells. In agreement with previous results [15,32], neither weight loss nor clinical signs were observed during the 14-day follow-up in the two Metavac®-infected groups, compared to the non-infected (mock) group (Figure 6b). After 5 and 14 dpi, we quantified viral pulmonary replication by RT-qPCR from lung homogenates (Figure 6a). Metavac® viruses produced in either LLC-MK2 or DuckCelt®-T17 cells efficiently replicated in the lungs of infected mice after 5 dpi and were almost cleared by 14 dpi (Figure 6c), as previously described for LAVs based on a C-85473 strain of HMPV in which the SH gene is deleted [15,32].
Lastly, we investigated the capacity of Metavac® to induce the production of high levels of HMPV-neutralizing antibodies in vivo (Figure 6d). BALB/c mice were prime-infected with 5 × 105 TCID50 of rC-85473-GFP and boost-infected 30 days later via the intranasal route with 5 × 105 TCID50 of Metavac® viruses either produced in LLC-MK2 or DuckCelt®-T17 cells. Blood samples were collected prior to prime and boost, and 21 days post-boost (Figure 6d). As expected, we detected low levels of viral genome in the lungs of all groups that had received prime and boost intranasal infections (1 × 104 to 1 × 105 of N gene copies per lung, see Figure 6e), in contrast with the group prime-instilled with OptiMEM medium and boost-infected with rC-85473-GFP (up to 5 × 108 of N gene copies per lung, Figure 6e).
In line with these results, high levels of neutralizing antibodies were titrated 21 days after boost by both Metavac® viruses, in comparison with control groups that received either prime or boost rC-85473-GFP infections (Figure 6f). Three weeks after the boost, sera from both groups could efficiently neutralize homologous rC-85473-GFP HMPVs produced in DuckCelt®-T17 cells, and the heterologous CAN98-75 strain, whereas no significant HMPV antibody response was measured 29 days after only the prime infection in all groups of mice, as expected. In addition, rC-85473-GFP HMPVs produced in LLC-MK2 cells were similarly neutralized by antibodies induced by both boosts with Metavac® viruses produced in LLC-MK2 or DuckCelt®-T17 cells (Supplementary Table S1).
Altogether, our results indicate that the Metavac® vaccine candidate produced in the in-suspension avian DuckCelt®-T17 cell platform conserves full immunization properties by inducing efficiently neutralizing antibodies against both homologous and heterologous WT patient-derived strains in a murine model.

4. Discussion

Despite the global burden of human pneumoviruses and the effort to develop vaccine strategies, there is still no approved vaccine against HRSV or HMPV. When considering the production of LAV candidates, one of the major obstacles is the deficit of scalable cell lines able to respond to industrial production requirements. In this study, we confirmed that the DuckCelt®-T17 cell line, which we had described for its serum-free suspension cultivation and its ability to efficiently produce influenza viruses [23], can respond to the need for a scalable cell line for the manufacture of HMPV, and more specifically of our LAV candidate Metavac®, derived from the C-85473 strain of HMPV [15]. The DuckCelt®-T17 cell line supported Metavac® replication with high yields in upscalable cultivation conditions, conserving both in vitro replication properties (in LLC-MK2 and 3D-reconstituted HAE models), and the ability to infect and induce a neutralizing antibody response in a mouse model.
Since the first description of HMPV in 2001, a limited number of cell-based production platforms, such as Vero or LLC-MK2 cells, supported HMPV replication. Moreover, in adherent cell lines, pneumoviruses can preferentially spread by different cell-to-cell mechanisms [33]. Given these considerations, it is particularly interesting that the DuckCelt®-T17 cell platform is susceptible to C-85473 HMPV infection and efficiently supports its propagation into the cellular suspension in culture conditions compatible with the in-suspension properties of the DuckCelt®-T17 cell line. Viral particles are directly detected and titrated from the culture medium without requiring mechanical cell lysis and exhibit the expected morphological features. Moreover, in this study, vaccine candidate Metavac® produced in DuckCelt®-T17 cells conserved its replicative properties in experimental in vitro models, infecting mammalian LLC-MK2 cells and cells in the physiological HAE model. In this 3D model mimicking the human nasal mucosa, C-85473-derived HMPVs produced in DuckCelt®-T17 cells can infect and sustain viral propagation over time, demonstrating the conservation of properties required to infect HAE cells. These results show that post-translation modifications and HMPV virion packaging provided by DuckCelt®-T17 avian cells are compatible with the preservation of function and antigenicity of the HMPV F glycoprotein. Indeed, HMPVs produced in DuckCelt®-T17 cells showed full infectivity in LLC-MK2 cells, a HAE model, and mice; this indicates the presence of a full functional F protein, which is crucial for viral attachment and entry into host cells [15]. More importantly, as the HMPV F protein is the major viral antigen [34], our engineered Metavac® LAV candidate produced in the DuckCelt®-T17 cell line could induce a neutralizing antibody response against both homologous and heterologous HMPV strains, in accordance with the already demonstrated cross-protection potential of metapneumoviruses [15]. Murine neutralizing antibodies induced by HMPVs produced in LLC-MK2 cells also efficiently neutralized rC-85473-GFP viruses produced in DuckCelt®-T17 cells (Figure 6f), suggesting that there is a correct folding of the F protein at the virion surface.
From an industrial application perspective, we aimed to identify the best operating parameters that enable high-yield viral production while lowering costs and/or speeding up the product harvest. The used MOI should not be lower than 0.01, and cell density should not be higher than 1 × 106 cell/mL at the time of inoculation to achieve a maximal production yield within a compatible time period with cellular growth kinetics. We previously showed that a metabolic change occurs when the cell density is 3 × 106 cells/mL or higher [23], which could explain the loss of susceptibility to HMPV infection observed in DuckCelt®-T17 cells at higher cell densities. In contrast, infection at a lower cell density (0.5 × 106 cells/mL) shows similar viral amplification kinetics to those seen with an infection at a cell density of 1 × 106 cells/mL, which could be advantageous for upscaling the production process. Given these results, further explorations will be focused on cell metabolism, investigating whether different feeding strategies or a fed-batch approach could enhance or extend viral amplification.
As infection with C-85473 HMPV is trypsin-dependent in adherent cell models because of the impact of trypsin on F protein properties [32,34,35], particular effort was made to identify the optimal trypsin supplementation required to achieve high yield in DuckCelt®-T17 cells. As anticipated, the presence of trypsin in the culture medium was critical for viral infection, with HMPVs basically unable to infect DuckCelt®-T17 cells in the absence of trypsin. Accordingly, adding trypsin twice during the process was sufficient to initiate and sustain viral production, without adverse effects on DuckCelt®-T17 cell viability and growth.
In conclusion, the DuckCelt®-T17 cell line is a promising platform for the manufacture of viral vaccines, and more particularly for our LAV candidate Metavac®, which is efficiently produced while maintaining its full replicative and immunizing properties in a mouse model. Operational parameters determined in this study would be investigated at much larger scales, including single-use bioreactors up to 2 L of working volume, to further development and industrial implementation. Considering the permissiveness of the DuckCelt®-T17 cell line to several influenza strains and vaccine seeds, and its suitability for cultivation in a variety of suspension facilities [23], bioproduction processes based on the DuckCelt®-T17 cell platform would be scalable in order to reach large-scale viral propagation and cost-effective vaccine production in industrial volumes.

5. Patents

The authors declare the following patent applications: patent FR1856801, pending patent concerning the characterization of the new HMPV-derived LAV METAVAC®, applicants: Universite Laval, Centre National de la Recherche Scientifique CNRS, Universite Claude Bernard Lyon 1 UCBL, Institut National de la Sante et de la Recherche Medicale INSERM, Ecole Normale Superieure de Lyon, inventors: Manuel Rosa-Calatrava, Guy Boivin, Julia Dubois, Mario Andres Pizzorno, Olivier Terrier, Marie-Eve Hamelin; patent FR1872957, pending patent concerning the use of the DuckCelt®-T17 cell line for METAVAC® production, applicants: Universite Laval, Centre National de la Recherche Scientifique CNRS, Universite Claude Bernard Lyon 1 UCBL, Institut National de la Sante et de la Recherche Medicale INSERM, Ecole Normale Superieure de Lyon, inventors: Manuel Rosa-Calatrava, Guy Boivin, Julia Dubois, Mario Andres Pizzorno, Olivier Terrier, Aurélien Traversier.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/vaccines9101190/s1. Table S1: induction of neutralizing antibodies against rC-85473-GFP (produced in LLC-MK2 cell line) by Metavac® viruses in mice.

Author Contributions

Conceptualization, J.D., G.B. and M.R.-C.; methodology, J.D., C.C., A.P. and M.R.-C.; validation, J.D., C.C. and A.P.; formal analysis, J.D., C.C. and A.P.; investigation, J.D., C.C., A.P., D.O.-M., A.T., P.B., B.P., E.L., C.M., V.D., T.J. and M.G.; resources, M.R.-C.; writing—original draft preparation, J.D., C.C. and M.R.-C.; writing—review and editing, A.P., O.T., J.-F.E., K.M., M.-E.H., M.R.-C. and G.B.; visualization, J.D., C.C.; supervision, B.L., G.B. and M.R.-C.; project administration, J.D. and M.R.-C.; funding acquisition, G.B. and M.R.-C. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by a grant from Agence National de la Recherche (ANR AAP19 METAVAC-T17) to Manuel Rosa-Calatrava and a grant from Canadian Institutes of Health Research (No. 273261) to Guy Boivin and Université Claude Bernard Lyon 1, Lyon, France. Andres Pizzorno received the support of the Région Auvergne-Rhône-Alpes (grant CMIRA Accueil Pro). Julia Dubois received the support of the Région Auvergne-Rhône-Alpes (grant CMIRA ExploRA’DOC) and of the Consulat Général de France à Québec (Programme Frontenac). Caroline Chupin received the support of the Association Nationale Recherche Technologie (ANRT).

Institutional Review Board Statement

The animal studies were conducted according to the European ethical guidelines 2010/63/UE on animal experimentation, and approved by the SFR Biosciences Ethics Committee (CECCAPP C015 Rhône-Alpes) under protocol number ENS_2017_019.

Data Availability Statement

All data generated or analysed during this study are included in this published article (and its Supplementary Information files).

Acknowledgments

We thank Elisabeth Errazuriz-Cerda for her technical contribution to electron microscopy observations and the microscopy service of the Centre d’Imagerie Quantitative Lyon-Est (CIQLE) in Lyon, the flow cytometry service of Plateforme de Cytométrie en flux at the Centre de Recherche en Cancérologie de Lyon (CRCL), and the animal care services of the Plateau de Biologie Expérimentale de la Souris in Lyon. We thank Fortune Bidossessi for her technical contribution to in vivo experiments (INRAE, UVSQ, VIM, 78350 Jouy-en-Josas, France) and Fanny Salasc for her technical contribution to cell culture and viral production (CIRI, Team VirPath U1111, Lyon, France).

Conflicts of Interest

Manuel Rosa-Calatrava, Guy Boivin, Julia Dubois and Marie-Eve Hamelin are cofounders of Vaxxel SAS. Julia Dubois and Caroline Chupin are currently employees of Vaxxel SAS. The funders of the study had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Van den Hoogen, B.G.; Herfst, S.; Sprong, L.; Cane, P.A.; Forleo-Neto, E.; de Swart, R.L.; Osterhaus, A.D.; Fouchier, R.A. Antigenic and genetic variability of human metapneumoviruses. Emerg. Infect. Dis. 2004, 10, 658–666. [Google Scholar] [CrossRef]
  2. Feuillet, F.; Lina, B.; Rosa-Calatrava, M.; Boivin, G. Ten years of human metapneumovirus research. J. Clin. Virol. 2012, 53, 97–105. [Google Scholar] [CrossRef]
  3. Rima, B.; Collins, P.; Easton, A.; Fouchier, R.; Kurath, G.; Lamb, R.A.; Lee, B.; Maisner, A.; Rota, P.; Wang, L.; et al. ICTV Virus Taxonomy Profile: Pneumoviridae. J. Gen. Virol. 2017, 98, 2912–2913. [Google Scholar] [CrossRef]
  4. Papenburg, J.; Boivin, G. The distinguishing features of human metapneumovirus and respiratory syncytial virus. Rev. Med. Virol. 2010, 20, 245–260. [Google Scholar] [CrossRef] [PubMed]
  5. Shi, T.; McAllister, D.A.; O’Brien, K.L.; Simoes, E.A.F.; Madhi, S.A.; Gessner, B.D.; Polack, F.P.; Balsells, E.; Acacio, S.; Aguayo, C.; et al. Global, regional, and national disease burden estimates of acute lower respiratory infections due to respiratory syncytial virus in young children in 2015: A systematic review and modelling study. Lancet 2017, 390, 946–958. [Google Scholar] [CrossRef][Green Version]
  6. Feltes, T.F.; Cabalka, A.K.; Meissner, H.C.; Piazza, F.M.; Carlin, D.A.; Top, F.H., Jr.; Connor, E.M.; Sondheimer, H.M.; Cardiac Synagis Study, G. Palivizumab prophylaxis reduces hospitalization due to respiratory syncytial virus in young children with hemodynamically significant congenital heart disease. J. Pediatrics 2003, 143, 532–540. [Google Scholar] [CrossRef][Green Version]
  7. Rocca, A.; Biagi, C.; Scarpini, S.; Dondi, A.; Vandini, S.; Pierantoni, L.; Lanari, M. Passive Immunoprophylaxis against Respiratory Syncytial Virus in Children: Where Are We Now? Int. J. Mol. Sci. 2021, 22, 3703. [Google Scholar] [CrossRef]
  8. Marquez-Escobar, V.A. Current developments and prospects on human metapneumovirus vaccines. Expert Rev. Vaccines 2017, 16, 419–431. [Google Scholar] [CrossRef] [PubMed]
  9. Mazur, N.I.; Higgins, D.; Nunes, M.C.; Melero, J.A.; Langedijk, A.C.; Horsley, N.; Buchholz, U.J.; Openshaw, P.J.; McLellan, J.S.; Englund, J.A.; et al. The respiratory syncytial virus vaccine landscape: Lessons from the graveyard and promising candidates. Lancet Infect. Dis. 2018, 18, e295–e311. [Google Scholar] [CrossRef][Green Version]
  10. Aliprantis, A.O.; Shaw, C.A.; Griffin, P.; Farinola, N.; Railkar, R.A.; Cao, X.; Liu, W.; Sachs, J.R.; Swenson, C.J.; Lee, H.; et al. A phase 1, randomized, placebo-controlled study to evaluate the safety and immunogenicity of an mRNA-based RSV prefusion F protein vaccine in healthy younger and older adults. Hum. Vaccines Immunother. 2021, 17, 1248–1261. [Google Scholar] [CrossRef]
  11. Espeseth, A.S.; Cejas, P.J.; Citron, M.P.; Wang, D.; DiStefano, D.J.; Callahan, C.; Donnell, G.O.; Galli, J.D.; Swoyer, R.; Touch, S.; et al. Modified mRNA/lipid nanoparticle-based vaccines expressing respiratory syncytial virus F protein variants are immunogenic and protective in rodent models of RSV infection. NPJ Vaccines 2020, 5, 16. [Google Scholar] [CrossRef] [PubMed][Green Version]
  12. Bloom, K.; van den Berg, F.; Arbuthnot, P. Self-amplifying RNA vaccines for infectious diseases. Gene Ther. 2021, 28, 117–129. [Google Scholar] [CrossRef] [PubMed]
  13. Karron, R.A.; Buchholz, U.J.; Collins, P.L. Live-attenuated respiratory syncytial virus vaccines. Curr. Top. Microbiol. Immunol. 2013, 372, 259–284. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Hamelin, M.E.; Couture, C.; Sackett, M.K.; Boivin, G. Enhanced lung disease and Th2 response following human metapneumovirus infection in mice immunized with the inactivated virus. J. Gen. Virol. 2007, 88, 3391–3400. [Google Scholar] [CrossRef] [PubMed]
  15. Biacchesi, S.; Pham, Q.N.; Skiadopoulos, M.H.; Murphy, B.R.; Collins, P.L.; Buchholz, U.J. Infection of nonhuman primates with recombinant human metapneumovirus lacking the SH, G, or M2-2 protein categorizes each as a nonessential accessory protein and identifies vaccine candidates. J. Virol. 2005, 79, 12608–12613. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Biacchesi, S.; Skiadopoulos, M.H.; Yang, L.; Lamirande, E.W.; Tran, K.C.; Murphy, B.R.; Collins, P.L.; Buchholz, U.J. Recombinant human Metapneumovirus lacking the small hydrophobic SH and/or attachment G glycoprotein: Deletion of G yields a promising vaccine candidate. J. Virol. 2004, 78, 12877–12887. [Google Scholar] [CrossRef][Green Version]
  17. Verdijk, P.; van der Plas, J.L.; van Brummelen, E.M.J.; Jeeninga, R.E.; de Haan, C.A.M.; Roestenberg, M.; Burggraaf, J.; Kamerling, I.M.C. First-in-human administration of a live-attenuated RSV vaccine lacking the G-protein assessing safety, tolerability, shedding and immunogenicity: A randomized controlled trial. Vaccine 2020, 38, 6088–6095. [Google Scholar] [CrossRef]
  18. Cunningham, C.K.; Karron, R.; Muresan, P.; McFarland, E.J.; Perlowski, C.; Libous, J.; Thumar, B.; Gnanashanmugam, D.; Moye, J., Jr.; Schappell, E.; et al. Live-Attenuated Respiratory Syncytial Virus Vaccine With Deletion of RNA Synthesis Regulatory Protein M2-2 and Cold Passage Mutations Is Overattenuated. Open Forum Infect. Dis. 2019, 6, ofz212. [Google Scholar] [CrossRef] [PubMed][Green Version]
  19. Karron, R.A.; San Mateo, J.; Wanionek, K.; Collins, P.L.; Buchholz, U.J. Evaluation of a Live Attenuated Human Metapneumovirus Vaccine in Adults and Children. J. Pediatric Infect. Dis. Soc. 2017, 7, 86–89. [Google Scholar] [CrossRef]
  20. Dubois, J.; Pizzorno, A.; Cavanagh, M.H.; Padey, B.; Nicolas de Lamballerie, C.; Uyar, O.; Venable, M.C.; Carbonneau, J.; Traversier, A.; Julien, T.; et al. Strain-Dependent Impact of G and SH Deletions Provide New Insights for Live-Attenuated HMPV Vaccine Development. Vaccines 2019, 7, 164. [Google Scholar] [CrossRef][Green Version]
  21. Genzel, Y. Designing cell lines for viral vaccine production: Where do we stand? Biotechnol. J. 2015, 10, 728–740. [Google Scholar] [CrossRef]
  22. Aubrit, F.; Perugi, F.; Leon, A.; Guehenneux, F.; Champion-Arnaud, P.; Lahmar, M.; Schwamborn, K. Cell substrates for the production of viral vaccines. Vaccine 2015, 33, 5905–5912. [Google Scholar] [CrossRef] [PubMed]
  23. Rodrigues, A.F.; Soares, H.R.; Guerreiro, M.R.; Alves, P.M.; Coroadinha, A.S. Viral vaccines and their manufacturing cell substrates: New trends and designs in modern vaccinology. Biotechnol. J. 2015, 10, 1329–1344. [Google Scholar] [CrossRef] [PubMed]
  24. Pau, M.G.; Ophorst, C.; Koldijk, M.H.; Schouten, G.; Mehtali, M.; Uytdehaag, F. The human cell line PER.C6 provides a new manufacturing system for the production of influenza vaccines. Vaccine 2001, 19, 2716–2721. [Google Scholar] [CrossRef]
  25. Genzel, Y.; Behrendt, I.; Rodig, J.; Rapp, E.; Kueppers, C.; Kochanek, S.; Schiedner, G.; Reichl, U. CAP, a new human suspension cell line for influenza virus production. Appl. Microbiol. Biotechnol. 2013, 97, 111–122. [Google Scholar] [CrossRef]
  26. Lohr, V.; Rath, A.; Genzel, Y.; Jordan, I.; Sandig, V.; Reichl, U. New avian suspension cell lines provide production of influenza virus and MVA in serum-free media: Studies on growth, metabolism and virus propagation. Vaccine 2009, 27, 4975–4982. [Google Scholar] [CrossRef] [PubMed]
  27. Brown, S.W.; Mehtali, M. The Avian EB66(R) Cell Line, Application to Vaccines, and Therapeutic Protein Production. PDA J. Pharm. Sci. Technol. 2010, 64, 419–425. [Google Scholar]
  28. Petiot, E.; Proust, A.; Traversier, A.; Durous, L.; Dappozze, F.; Gras, M.; Guillard, C.; Balloul, J.M.; Rosa-Calatrava, M. Influenza viruses production: Evaluation of a novel avian cell line DuckCelt(R)-T17. Vaccine 2018, 36, 3101–3111. [Google Scholar] [CrossRef]
  29. Leon, A.; David, A.L.; Madeline, B.; Guianvarc’h, L.; Dureau, E.; Champion-Arnaud, P.; Hebben, M.; Huss, T.; Chatrenet, B.; Schwamborn, K. The EB66(R) cell line as a valuable cell substrate for MVA-based vaccines production. Vaccine 2016, 34, 5878–5885. [Google Scholar] [CrossRef]
  30. Noor, A.; Krilov, L.R. Respiratory syncytial virus vaccine: Where are we now and what comes next? Expert Opin. Biol. Ther. 2018, 18, 1247–1256. [Google Scholar] [CrossRef]
  31. Shafagati, N.; Williams, J. Human metapneumovirus—what we know now. F1000Research 2018, 7, 135. [Google Scholar] [CrossRef] [PubMed][Green Version]
  32. Aerts, L.; Cavanagh, M.H.; Dubois, J.; Carbonneau, J.; Rheaume, C.; Lavigne, S.; Couture, C.; Hamelin, M.E.; Boivin, G. Effect of in vitro syncytium formation on the severity of human metapneumovirus disease in a murine model. PLoS ONE 2015, 10, e0120283. [Google Scholar] [CrossRef] [PubMed]
  33. Hamelin, M.E.; Yim, K.; Kuhn, K.H.; Cragin, R.P.; Boukhvalova, M.; Blanco, J.C.; Prince, G.A.; Boivin, G. Pathogenesis of human metapneumovirus lung infection in BALB/c mice and cotton rats. J. Virol. 2005, 79, 8894–8903. [Google Scholar] [CrossRef][Green Version]
  34. Schowalter, R.M.; Smith, S.E.; Dutch, R.E. Characterization of human metapneumovirus F protein-promoted membrane fusion: Critical roles for proteolytic processing and low pH. J. Virol. 2006, 80, 10931–10941. [Google Scholar] [CrossRef] [PubMed][Green Version]
  35. Dubois, J.; Cavanagh, M.H.; Terrier, O.; Hamelin, M.E.; Lina, B.; Shi, R.; Rosa-Calatrava, M.; Boivin, G. Mutations in the fusion protein heptad repeat domains of human metapneumovirus impact on the formation of syncytia. J. Gen. Virol. 2017, 98, 1174–1180. [Google Scholar] [CrossRef] [PubMed][Green Version]

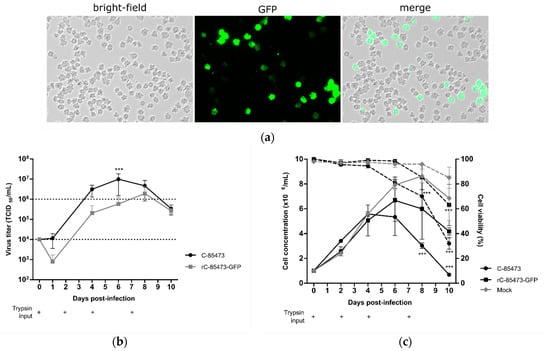

Figure 1. Viral kinetics of wild-type C-85473 HMPV and recombinant rC-85473-GFP HPMV in the DuckCelt®-T17 cell line. Cells seeded at 1 × 106 cell/mL in 10 mL working volume and infected at an MOI of 0.01. Trypsin added at 0.5 µg/mL on Day (D) 0, D2, D4, and D7 (+). (a) Picture of T17 cells infected with rC-85473-GFP at 7 days post-infection (dpi). Each picture was taken in bright field and fluorescent microscopy (20× magnification, scale bars represent 150 µm); (b) viral titers measured from culture medium as 50% tissue culture infectious doses (TCID50)/mL in LLC-MK2 cells; (c) cell growth (solid line) and viability percentage (dotted line) measured with the Countess™ II FL Automated Cell Counter. Results shown as means ± SD and represent duplicates in two independent experiments. *** p < 0.001 when comparing the infected conditions to (b) each other or (c) the mock condition using two-way repeated measures ANOVA.
Figure 1. Viral kinetics of wild-type C-85473 HMPV and recombinant rC-85473-GFP HPMV in the DuckCelt®-T17 cell line. Cells seeded at 1 × 106 cell/mL in 10 mL working volume and infected at an MOI of 0.01. Trypsin added at 0.5 µg/mL on Day (D) 0, D2, D4, and D7 (+). (a) Picture of T17 cells infected with rC-85473-GFP at 7 days post-infection (dpi). Each picture was taken in bright field and fluorescent microscopy (20× magnification, scale bars represent 150 µm); (b) viral titers measured from culture medium as 50% tissue culture infectious doses (TCID50)/mL in LLC-MK2 cells; (c) cell growth (solid line) and viability percentage (dotted line) measured with the Countess™ II FL Automated Cell Counter. Results shown as means ± SD and represent duplicates in two independent experiments. *** p < 0.001 when comparing the infected conditions to (b) each other or (c) the mock condition using two-way repeated measures ANOVA.
Vaccines 09 01190 g001

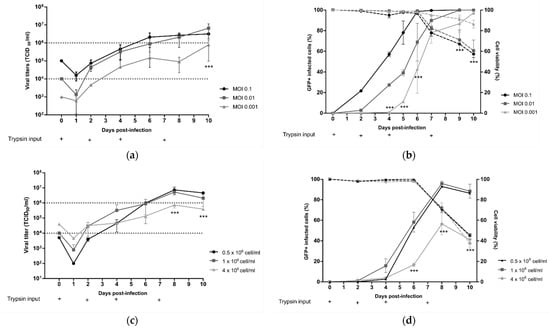

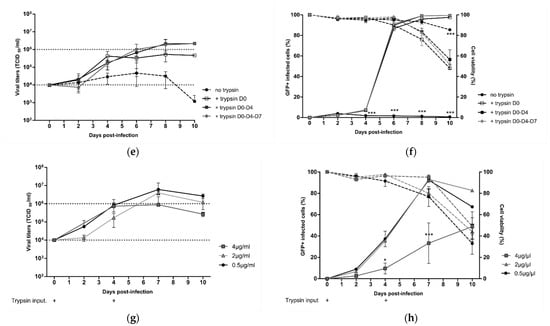

Figure 2. Evaluation of multiplicity of infection (MOI), cell density, trypsin concentration, and optimal timing for trypsin addition on rC-85473-GFP HMPV production kinetics in the DuckCelt®-T17 cell line. Culture parameters in a 10 mL working volume were separately evaluated by (a,c,e,g) viral titration, and ((b,d,f,h) cell viability and infectivity measurement; dotted line for viability, and solid line for infectivity). Viral titers measured from culture medium as TCID50/mL in LLC-MK2 cells. Viability measured with trypan blue using an automated cell counter. Infected GFP-positive cells evaluated with the FACS CantoII. (a,b) Evaluation of MOI of 0.1, 0.01, or 0.001. (c,d) Evaluation of three different cell densities at time of infection: 0.5, 1, or 4 × 106 cell/mL. (e–f) Evaluation of timing of trypsin addition. Trypsin added at 0.5 µg/mL at D0, at D0 and D4, or at D0, D4, and D7, or no trypsin was added. (g,h) Evaluation of trypsin concentration: 0.5, 2, or 4 µg/mL. Results shown as means ± SD and represent duplicates in two independent experiments. * p < 0.05, *** p < 0.001 when comparing infected conditions to each other using a two-way repeated-measures ANOVA.
Figure 2. Evaluation of multiplicity of infection (MOI), cell density, trypsin concentration, and optimal timing for trypsin addition on rC-85473-GFP HMPV production kinetics in the DuckCelt®-T17 cell line. Culture parameters in a 10 mL working volume were separately evaluated by (a,c,e,g) viral titration, and ((b,d,f,h) cell viability and infectivity measurement; dotted line for viability, and solid line for infectivity). Viral titers measured from culture medium as TCID50/mL in LLC-MK2 cells. Viability measured with trypan blue using an automated cell counter. Infected GFP-positive cells evaluated with the FACS CantoII. (a,b) Evaluation of MOI of 0.1, 0.01, or 0.001. (c,d) Evaluation of three different cell densities at time of infection: 0.5, 1, or 4 × 106 cell/mL. (e–f) Evaluation of timing of trypsin addition. Trypsin added at 0.5 µg/mL at D0, at D0 and D4, or at D0, D4, and D7, or no trypsin was added. (g,h) Evaluation of trypsin concentration: 0.5, 2, or 4 µg/mL. Results shown as means ± SD and represent duplicates in two independent experiments. * p < 0.05, *** p < 0.001 when comparing infected conditions to each other using a two-way repeated-measures ANOVA.
Vaccines 09 01190 g002aVaccines 09 01190 g002b

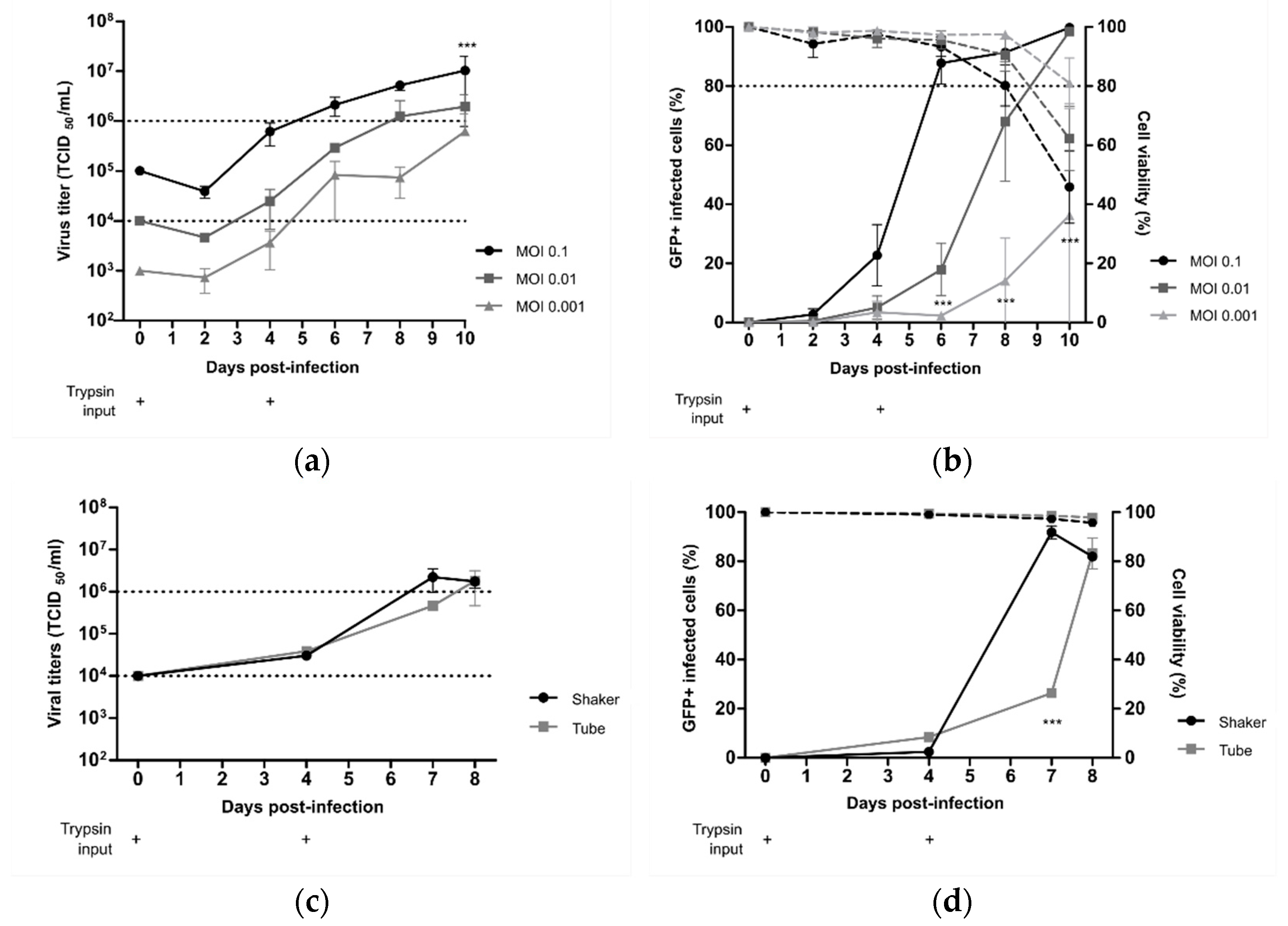

Figure 3. Viral kinetics of live-attenuated vaccine candidate Metavac® in DuckCelt®-T17 cell line. On the basis of identified optimal production parameters, cells were seeded at 1 × 106 cell/mL and infected, and trypsin was added at 0.5 µg/mL on D0 and D4 (+). Culture parameters in a 10 mL working volume were separately evaluated by (a,c) viral titration, and (b,d) viability and infectivity measurement; dotted line for cell viability and solid line for infectivity. (a,b) Evaluation of viral kinetics and cell infectivity for an MOI of 0.1, 0.01, or 0.001 in a 10 mL working volume. (c,d) Evaluation of viral kinetics and cell infectivity when cells were seeded in a 500 mL (shaker) or 10 mL (tube) working volume and infected at an MOI of 0.01. Results shown as means ± SD and represent duplicates in two independent experiments. *** p < 0.001 when comparing infected conditions to each other using a two-way repeated-measures ANOVA.
Figure 3. Viral kinetics of live-attenuated vaccine candidate Metavac® in DuckCelt®-T17 cell line. On the basis of identified optimal production parameters, cells were seeded at 1 × 106 cell/mL and infected, and trypsin was added at 0.5 µg/mL on D0 and D4 (+). Culture parameters in a 10 mL working volume were separately evaluated by (a,c) viral titration, and (b,d) viability and infectivity measurement; dotted line for cell viability and solid line for infectivity. (a,b) Evaluation of viral kinetics and cell infectivity for an MOI of 0.1, 0.01, or 0.001 in a 10 mL working volume. (c,d) Evaluation of viral kinetics and cell infectivity when cells were seeded in a 500 mL (shaker) or 10 mL (tube) working volume and infected at an MOI of 0.01. Results shown as means ± SD and represent duplicates in two independent experiments. *** p < 0.001 when comparing infected conditions to each other using a two-way repeated-measures ANOVA.
Vaccines 09 01190 g003

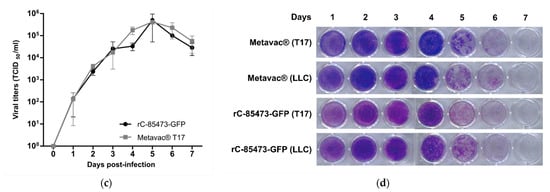

Figure 4. Visualization of T17-produced rC-85473-GFP and Metavac® virus particles, and evaluation of in vitro replicative capacity. (a) Representative negative stain electron microscopy images of rC-85473-GFP and Metavac® virions, obtained from DuckCelt®-T17 culture. Bar represents 100 nm. Enlargements of viral membrane shown as inset, and glycoproteins indicated by white arrowheads; (b,d) LLC-MK2 monolayers in 24-well plates infected with each of the recombinant HMPVs at an MOI of 0.01. (b) Images of representative cytopathic effects of each virus captured after 4 dpi by fluorescent microscopy (10× magnification, scale bars represent 250 µm). (c) Supernatants harvested every 24 h for 7 days, frozen, and subsequently thawed and titrated as TCID50/mL onto LLC-MK2 cells. Growth curves represent mean titers ± SD of 3 biological replicates, titrated at each time point. (d) Infected LLC-MK2 monolayers fixed in formaldehyde after harvest, and images captured after crystal violet coloration.
Figure 4. Visualization of T17-produced rC-85473-GFP and Metavac® virus particles, and evaluation of in vitro replicative capacity. (a) Representative negative stain electron microscopy images of rC-85473-GFP and Metavac® virions, obtained from DuckCelt®-T17 culture. Bar represents 100 nm. Enlargements of viral membrane shown as inset, and glycoproteins indicated by white arrowheads; (b,d) LLC-MK2 monolayers in 24-well plates infected with each of the recombinant HMPVs at an MOI of 0.01. (b) Images of representative cytopathic effects of each virus captured after 4 dpi by fluorescent microscopy (10× magnification, scale bars represent 250 µm). (c) Supernatants harvested every 24 h for 7 days, frozen, and subsequently thawed and titrated as TCID50/mL onto LLC-MK2 cells. Growth curves represent mean titers ± SD of 3 biological replicates, titrated at each time point. (d) Infected LLC-MK2 monolayers fixed in formaldehyde after harvest, and images captured after crystal violet coloration.
Vaccines 09 01190 g004aVaccines 09 01190 g004b

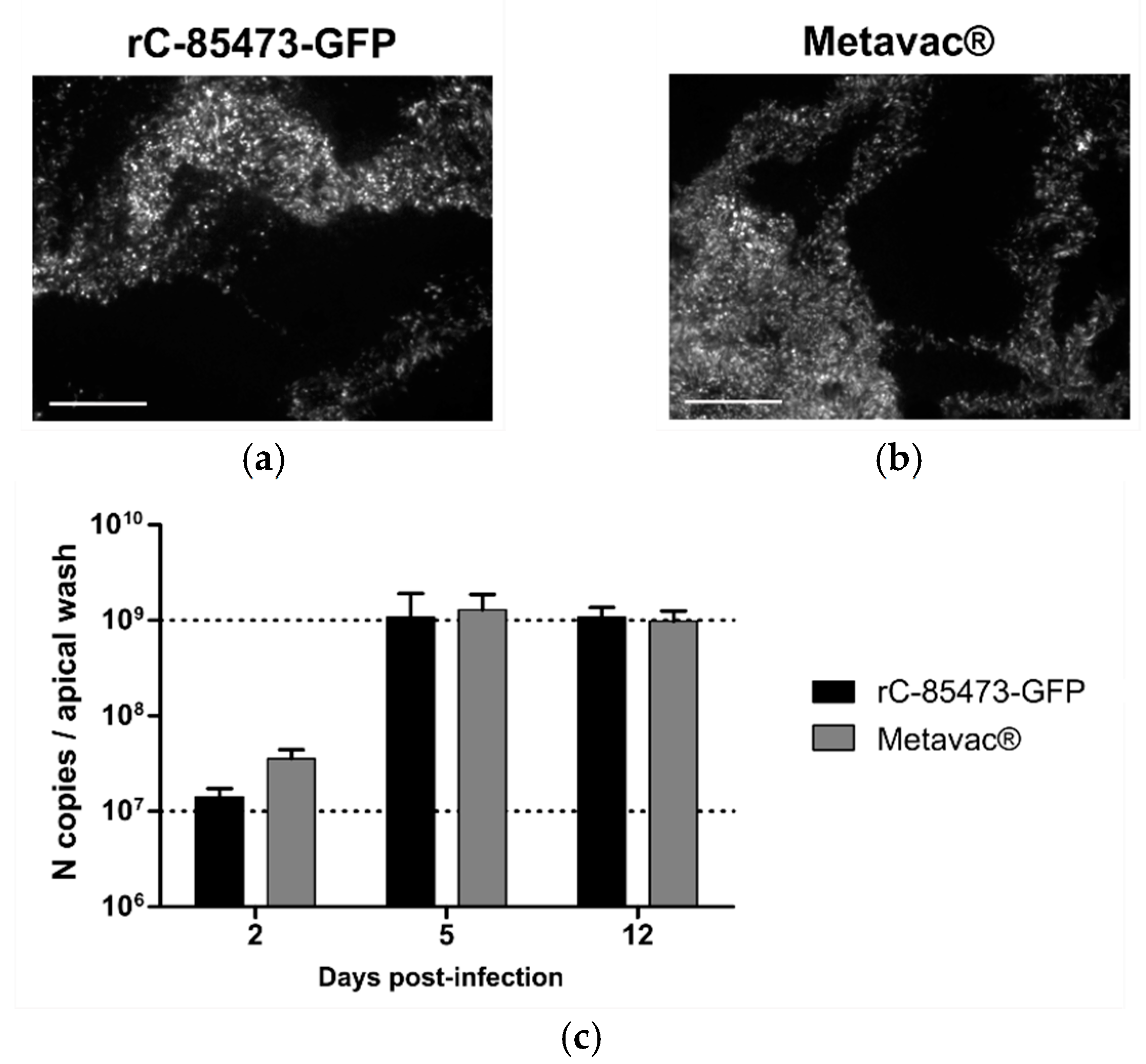

Figure 5. Recombinant HMPVs produced in the DuckCelt®-T17 cell line conserved infectivity and replicative capacity in 3D-reconstituted human airway epithelium (HAE). MucilAir™ epithelia from healthy donors infected with rC-85473-GFP or Metavac® viruses produced in DuckCelt®-T17 cells at an MOI of 0.1 and monitored for 12 days. Viral spread of (a) rC-85473-GFP T17 or (b) Metavac® T17 in HAE at 5 dpi observed by fluorescence microscopy (10× magnification, scale bars represent 250 µm). Viral quantification from (c) epithelium apical washes at 2, 5, and 12 dpi performed by specific RT-qPCR of the N viral gene. Data shown as means ± SD and represent experimental duplicates.
Figure 5. Recombinant HMPVs produced in the DuckCelt®-T17 cell line conserved infectivity and replicative capacity in 3D-reconstituted human airway epithelium (HAE). MucilAir™ epithelia from healthy donors infected with rC-85473-GFP or Metavac® viruses produced in DuckCelt®-T17 cells at an MOI of 0.1 and monitored for 12 days. Viral spread of (a) rC-85473-GFP T17 or (b) Metavac® T17 in HAE at 5 dpi observed by fluorescence microscopy (10× magnification, scale bars represent 250 µm). Viral quantification from (c) epithelium apical washes at 2, 5, and 12 dpi performed by specific RT-qPCR of the N viral gene. Data shown as means ± SD and represent experimental duplicates.
Vaccines 09 01190 g005

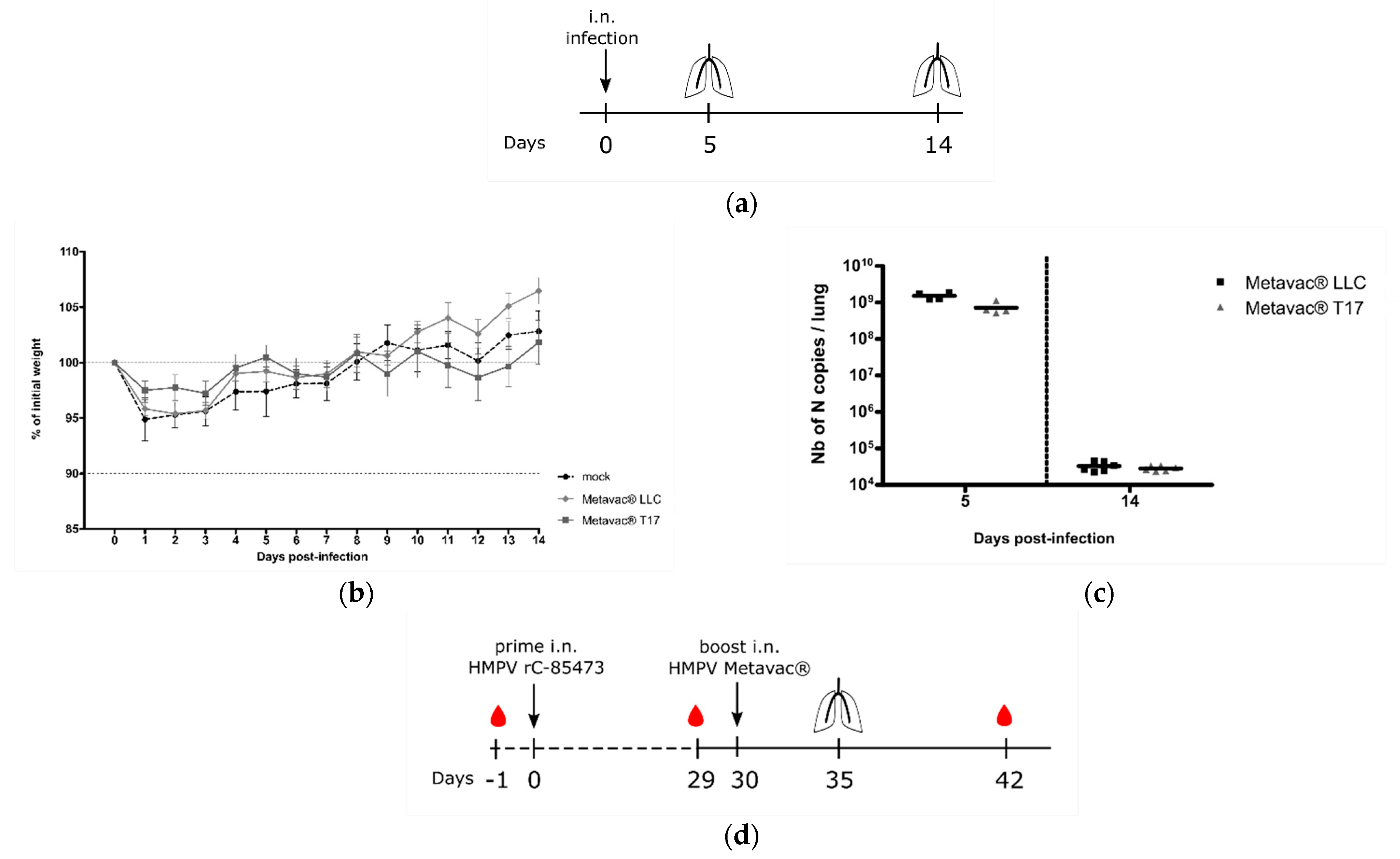

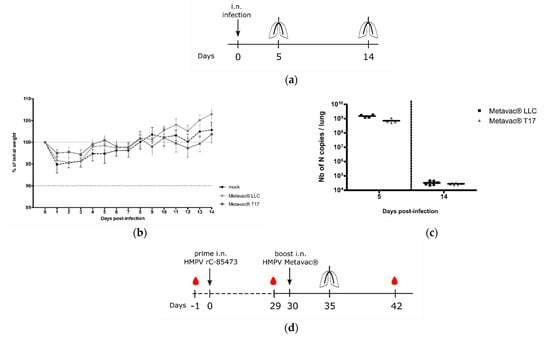

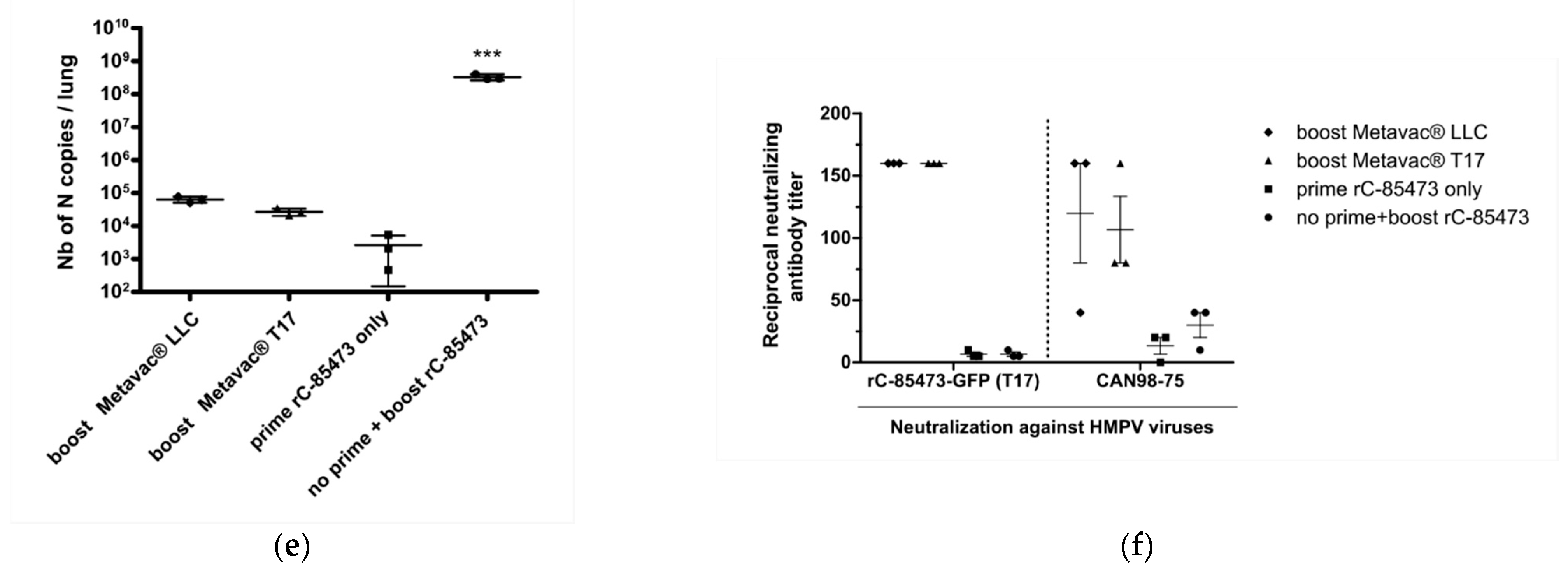

Figure 6. Evaluation of pulmonary replication and immunogenicity in BALB/c mice after prime or boost infection with T17-produced HMPV LAV candidate. (ac) BALB/c mice intranasally infected with 1 × 106 TCID50 of Metavac® viruses and monitored for 14 days after infection (n = 20), as represented in schematic timeline (a), with (b) weight loss (n = 16) and (c) pulmonary viral titers quantified by RT-qPCR from lungs harvested at 5 dpi (n = 4); (d,f) BALB/c mice prime-infected with 5 × 105 TCID50 of the rC-85473-GFP virus and boost-infected after 30 dpi with 5 × 105 TCID50 of the Metavac® LLC or T17 viruses via the intranasal route, and monitoring was performed as presented in (d); (e) pulmonary viral titers quantified by RT-qPCR from lungs harvested at 5 days post-boost (n = 3); (f) induction of neutralizing antibodies by Metavac® viruses in mice 21 days post-boost. Three pools of sera from two mice were tested for neutralization against two WT HMPV strains, the homologous rC-85473-GFP virus produced in DuckCelt®-T17 cells and the heterologous CAN98-75 virus, resulting in three biological replicates per group. One day before prime infection, the naïve status of mice was confirmed by a microneutralization assay from a pool of sera. *** p < 0.001 when comparing each group to the no-boost condition using one-way ANOVA with Dunnett’s post-test. i.n.: intranasal.
Figure 6. Evaluation of pulmonary replication and immunogenicity in BALB/c mice after prime or boost infection with T17-produced HMPV LAV candidate. (ac) BALB/c mice intranasally infected with 1 × 106 TCID50 of Metavac® viruses and monitored for 14 days after infection (n = 20), as represented in schematic timeline (a), with (b) weight loss (n = 16) and (c) pulmonary viral titers quantified by RT-qPCR from lungs harvested at 5 dpi (n = 4); (d,f) BALB/c mice prime-infected with 5 × 105 TCID50 of the rC-85473-GFP virus and boost-infected after 30 dpi with 5 × 105 TCID50 of the Metavac® LLC or T17 viruses via the intranasal route, and monitoring was performed as presented in (d); (e) pulmonary viral titers quantified by RT-qPCR from lungs harvested at 5 days post-boost (n = 3); (f) induction of neutralizing antibodies by Metavac® viruses in mice 21 days post-boost. Three pools of sera from two mice were tested for neutralization against two WT HMPV strains, the homologous rC-85473-GFP virus produced in DuckCelt®-T17 cells and the heterologous CAN98-75 virus, resulting in three biological replicates per group. One day before prime infection, the naïve status of mice was confirmed by a microneutralization assay from a pool of sera. *** p < 0.001 when comparing each group to the no-boost condition using one-way ANOVA with Dunnett’s post-test. i.n.: intranasal.
Vaccines 09 01190 g006aVaccines 09 01190 g006b
