Insight into Heterogeneous Calcite Cementation of Turbidite Channel-Fills from UAV Photogrammetry

Abstract

Diagenesis is a key controlling factor on sandstone porosity and permeability. Understanding type, paragenetic sequence and spatial patterns of cements is thus important for assessing sandstone hydrocarbon reservoir properties. In this study Unmanned Aerial Vehicle (UAV) photogrammetry is used to evaluate the shape and spatial distribution of calcite concretions developed within the sand-prone fill of a turbidite channel. The studied channel-fill is entrenched into hemipelagic marlstones and include a lower conglomeratic sandstone loaded with marlstone rip-ups and an upper fill featuring a range of turbidite bed types, which, up-section and off the channel axis, are progressively finer grained and less amalgamated. Concretion shape analysis highlighted a continuum of equant to oblate shapes with flat-lying major axes and a cumulative volume fraction of ca. 22%. Equant to sub-equant concretions are ubiquitous and occur at different heights within beds, often developing around marlstone rip-ups. Conversely, elongated concretions are either strata-bound concretions or completely cemented beds which become volumetrically dominant up section and off the channel axis. The interparticle pore-space of concretions represents on average ca. 22% and is tightly filled by poikilotopic and blocky calcite cement precipitated near to maximum burial depth, whereas host sandstones lack calcite cements and show smectite clay cement and an average preserved porosity of ca. 15%. The oxygen and carbon isotopes of calcite cements point to the marlstone as the main source of carbonate ions, suggesting concretions developed during burial by either diffusion from rip-ups and mud caps or recrystallization of, matrix micrite. Results suggest that the process by which the carbonate-rich component was eroded from the substrate and trapped within the channel-fill is a key control on spatial distribution of calcite concretions, likely to reflect on spatial variability of reservoir properties.

1. Introduction

A striking feature of most calcite-cemented sandstones is their uneven diagenesis, resulting in tightly cemented concretions embedded in weakly to un- cemented host sands [1]. Because calcite cements fill-in interparticle pore spaces, concretions are typically non-reservoir and fluid tight [2,3,4,5,6,7], which makes understanding their spatial distribution and genesis key to develop predictive models [8].

Calcite concretions in sandstones have been extensively studied in a range of depositional [1,9,10,11,12,13,14,15,16,17] and diagenetic environments [18,19], highlighting several interplaying controls including small-scale permeability variations [1,10,13], presence of carbonate-rich clasts (e.g., shell fragments, lithics and intraformational rip-up clasts) acting as a source and/or nuclei for calcite cement overgrowth [1,2,20,21] and internal architecture of depositional systems [7,17,21,22].

Calcite cement in sandstones has been reported to be selective to bioclast-rich layers of some shallow-marine examples [20,23], forming spheroidal concretions or completely cementing beds through a mechanism of carbonate diffusion. However, there are examples where calcite cement is not associated with carbonate skeletal or lithic fragments [1,11], implying carbonate advection from circulating water and selective precipitation within preferential flow paths.

In deep-water sandstones, carbonate concretions have been documented in both channelized and non-channelized turbidites, reporting contrasting shapes and distribution patterns and volume fractions of up to 30%. In channelized turbidites calcite can massively precipitate aureole-like at the contact with embedding shales and marlstones [2,14], and/or form spheroidal concretions around carbonate-rich clasts [1,2], either intra- (e.g., marlstone rip-ups entrained locally by substrate erosion) or extra-formational (e.g., carbonate skeletal or lithic fragments). Conversely, in non-channelized turbidites (i.e., basin plain lobes and sheets) calcite cementation can completely cement beds or form strata-bound concretions, typically more elongated than observed in channelized turbidites [1]. On the other hand, neither textural (grain size, grading; [1,14]) nor grain composition controls [24] on calcite cementation have been demonstrated to date.

It is intriguing researching into whether this lack of correlation between concretion distribution and sandstone texture, facies and framework grain petrography is factual, or it rather reflects the impracticality of quantifying differential cementation at outcrop. In fact, only a few studies attempted to assess quantitatively the shape and likely spatial distribution of a statistically significant number of concretions in tandem with sedimentary facies distribution [11,13,25].

Recent advances in remote sensing, photogrammetry and unmanned aerial vehicle (UAV) technologies make today possible the acquisition of detailed digital outcrop models, which can be used by geologists to extract scalars associated with geological features such as, for example, bedding and fracture orientation and lithology and sedimentary facies proportions [26,27,28,29,30,31,32].

Using a high-resolution digital outcrop model from UAV photogrammetry, the present contribution aims at assessing the shape, volume fraction and spatial distribution of calcite-cemented concretions within the channelized turbidite sandstones of the Late Oligocene Cappella della Valle Mb. (Gremiasco Formation, Tertiary Piedmont Basin of NW Italy), as well as linking these parameters to facies architecture. Complemented with petrographic and carbon and oxygen stable isotope providing constraints onto cement types and source of CaCO₃, this contribution offers insights into mode and controls of heterogeneous calcite cementation, useful for predicting the poro-permeability complexity of analogue hydrocarbon reservoirs.

Geological Setting

The studied turbidite sandstones crop out in the eastern part of the Tertiary Piedmont Basin (TPB) of NW Italy (Figure 1), an episutural basin formed during the late Cretaceous - late Eocene collision of the European plate and Adria micro-plate [33,34,35]. Prolonged clastic deposition in the TPB resulted in a up to 3000 m-thick late Eocene to early Miocene sedimentary pile (Figure 1) including several turbidite units (Monastero, Gremiasco and Castagnola Fms. [36,37,38,39]).

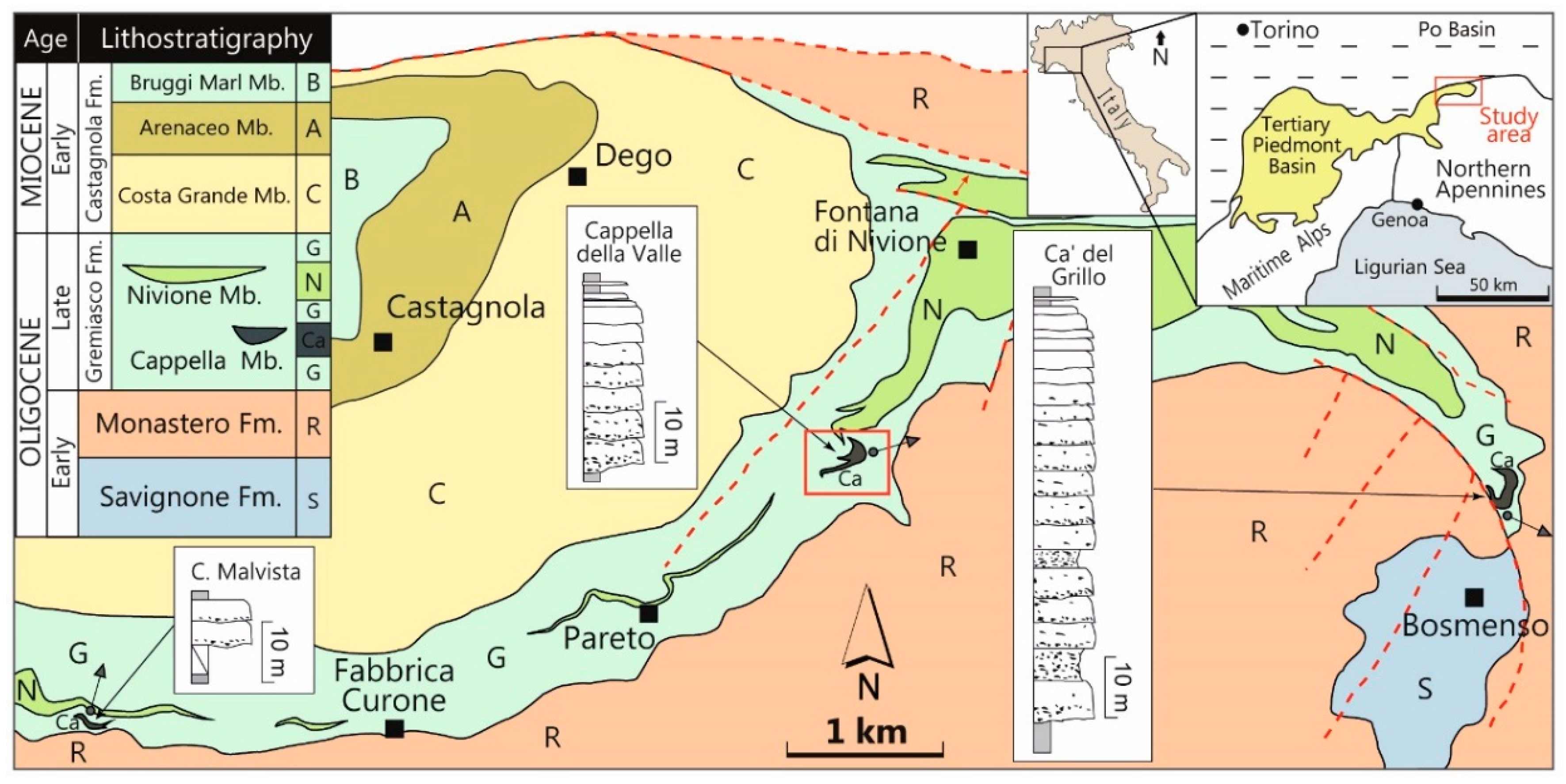

The outcrop detailed in this study (Figure 1) is one of the three outcrops of the Cappella della Valle Mb. (CdV), a channelized turbidite sandstone belonging to the late Oligocene Gremiasco Formation [40,41]. Up to 40 m thick and 200 m across, CdV represents the infill of a turbidite channel [41,42] entrenched into hemipelagic marlstones (cf. with Rigoroso Marls of Bellinzona et al. [43]).

Referred to as part of the Antognola Fm., the studied outcrop has been already object of sedimentologic, petrographic and diagenetic investigations in the 90′s. Cibin et al. [24] described the CdV sandstones as immature litharenites, showing there is no obvious difference in detrital grain composition and heavy mineral assemblage between concretions and host sandstone. These same authors also noted an intergranular volume (IGV) difference between calcite-cemented concretions and host sandstones of up to 5% (with average IGV of 11.6%), suggesting that mechanical compaction of the uncemented host continued after calcite cementation. Mc Bride et al. [1] evaluated the shape, size and spatial distribution of 40 concretions measured on the accessible parts of the outcrop concluding that, except for a few (17%) elongate, bed-parallel concretions, most of them (83%) are sub-equant to equant and there is no evident predictability to their shape and occurrence. Lastly, based on in-depth geochemical and stable isotope investigation of the calcite cements, Milliken et al. [44] indicated that the carbonate ions for cementing the concretions might have been derived from both the carbonate clasts and bioclasts contained in the sandstone and the marlstones surrounding CdV, suggesting ions diffusion and precipitation from deeply circulated meteoric waters at burial depths in the range 1250–1550 m.

2. Materials and Methods

The 3D outcrop model used to make this study was generated with photogrammetry techniques from digital imagery acquired with a SonyA6000 mirrorless camera (Figure 2a) featuring a 16 mm lens and a 24.3 Megapixel CMOS sensor (6000 × 4000 pixels; pixel size of ca. 4 µm).

Before image acquisition, 34 artificial markers (Figure 2b) were deployed on the outcrop to serve as ground control points (GCPs), and their coordinates measured with an integrated total station and GNSS survey. The coordinates of an additional set of 9 points were measured from the sporadic outcrops of the CdV base.

The outcrop morphology required acquiring multiple photogrammetric blocks to achieve full image coverage and the desired detail. These included two nadiral (i.e., downward looking camera) and three oblique (camera tilted by 45° from nadir) aerial blocks (Figure 2c) acquired from the HEXA-PRO multicopter UAV of the University of Pavia (Figure 2a), and a terrestrial block acquired from the road, which collectively yielded more than 1000 images with an average ground sampling distance less than 1 cm.

After undistorting images with the prescribed camera calibration procedure and orienting blocks using GCPs, a dense cloud of 118 million points with (x, y, z) coordinates was extracted using Agisoft Photoscan^TM, with an average point spacing of ca. 1.6 cm, which is well below the typical diameter of the smallest concretions observed at outcrop.

The point cloud covers most of the CdV channel-fill sandstone except for its margins (Figure 2d), whose view was obstructed by numerous trees and the roadway. After tilting the point cloud for restoring bedding to horizontal, a photo-textured mesh was generated and imported into a 3D data visualization and interpretation software (Virtual Reality Geology Studio, VRGS hereafter; [45]) for point-picking the boundaries of a total of c. 1700 concretions and the few detectable bedding surfaces.

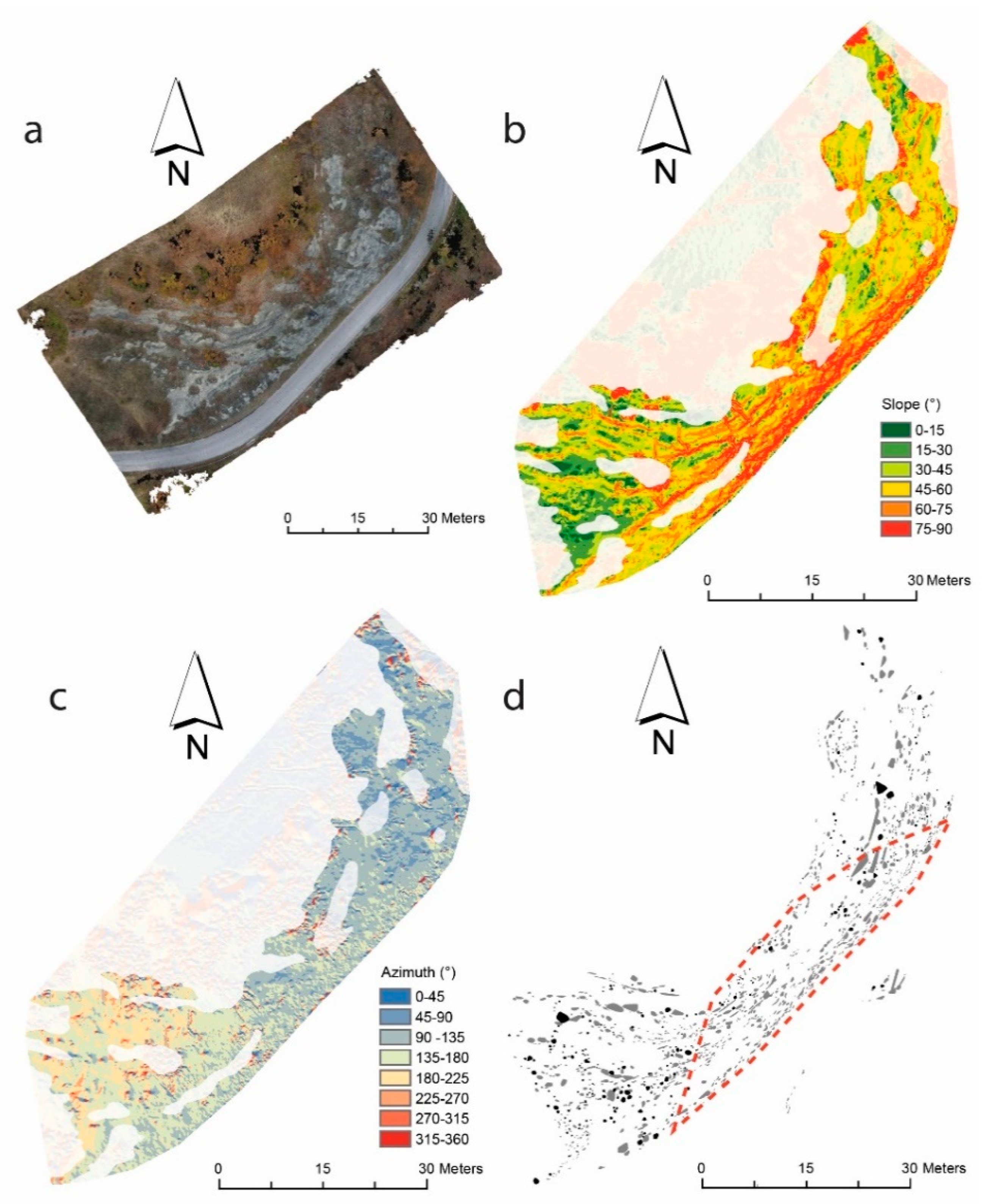

Interpretations made in VRGS were then imported into ArcGIS10.2^® and Petrel 2017™ for assessing lengths, spatial clustering and volume proportion of concretions.

Throughout this manuscript, the terms length (l) and width (w) will be used to refer to the maximum and minimum lengths of the concretion measured along two orthogonal axes resting in the bedding plane. In turn, thickness (t) will be used to refer to the length measured perpendicular to bedding. Ratios between these lengths are used to classify concretions following the convex shape categories after [46] reported in

Table 1. Explanation of convex shape classes after [46]; l, w and t are length (maximum axis), width (intermediate axis) and thickness (minimum axis, perpendicular to bedding), respectively.

Shape Category	Intermediate and Long Axes	Intermediate and Short Axes	Explanation	Example
equant	0.67 < w/l < 1	0.67 < t/w < 1	all dimensions are comparable	ball
oblate 1	0.67 < w/l < 1	t/w < 0.67	thickness is shorter	pancake
prolate	w/l < 0.67	0.67 < t/w < 1	length is much longer	cigar
bladed	w/l < 0.67	t/w < 0.67	all dimensions very different	belt

¹ include sub-equant and elongate shapes after [1].

.

Because most of the outcrop is too steep to be walked out (Figure 2), sedimentary facies description could only be made along three transects (Figure 3). This was accomplished by measuring stratigraphic heights of base and top of turbidite event beds with a Jacob staff and noting lithology (i.e., sandstone vs. mudstone), sedimentary structures and changes in average grain size and sorting. A set of 74 rock samples was collected by using either a hammer or a core drill, targeting both the host sandstones and the concretions of CdV, as well as the marlstone above, below and within (i.e., capping turbidite event beds or forming rip-up clasts) the studied sandstone.

The CdV sandstones and surrounding hemipelagic marlstones were investigated through petrographic analysis of 48 thin sections.

To identify cement and accessory mineral type and composition, 9 polished slabs and a few freshly broken surfaces previously coated with gold and 5 carbon-coated polished thin sections were imaged with a Cambridge Stereoscan 360 scanning electron microscope (SEM) equipped with EDS and operating at a voltage of 20 kV and a distance of 15 nm.

Cathodoluminescence was performed on polished thin sections to evaluate the luminescence of calcite cements and carbonate lithics using a MK 5-2 luminoscope by Cambridge Image Technology Ltd. (beam voltage of 10 to 16 kV; beam current of 200 to 600 μA; vacuum gauge of 50 to 70 millitor).

The bulk mineralogy was determined by X-ray powder diffraction (XRD) of 6 whole-rock powders using a Philips X’Pert MPD high temperature chamber powder diffractometer and the dedicated Panalytical X’Pert High Score software for qualitative analysis of crystalline phases. The mineralogy of detrital and authigenic clay minerals was determined by whole-rock XRD analyses on oriented slides made from the < 2 µm fraction (glycolated and unglycolated; see methods in [47]) and further investigated on two thin sections from the host sandstones by synchrotron analyses on sample spots.

Oxygen and carbon isotope analyses were made on 60 whole-rock powders extracted with a dental microdrill and reacted with phosphoric acid at 70 °C by using a Thermo Fisher Scientific Delta Plus XP continuous flow mass spectrometer, equipped with a Gasbench II on-line gas preparation and introduction system. The carbon and oxygen isotope compositions are expressed in the conventional delta notation against the international standard V-PDB. Standardization was conducted using laboratory calcite standards calibrated against the NBS-18 and IAEA-603 standards. Reproducibility was better than ±0.1‰ for both δ¹³C and δ¹⁸O.

The carbonate content of the hemipelagic marlstones was determined by weight loss upon reaction with 10% HCl. Sandstone porosity was estimated using the open source software ImageJ by determining area percentages of pore space on thin section and SEM photomicrographs.

The same image analysis procedure was used to determine area percentages of calcite cement of 42 cathodoluminescence photomicrographs taken from 12 thin sections of as many concretions.

Except for synchrotron data, which were acquired at the European Synchrotron Radiation Facility (Grenoble, France), petrographic, mineralogical and geochemical laboratory analyses were all conducted at the Earth Sciences Department of the University of Milan (Italy).

3. Results

3.1. Channel-Fill Geometry and Sedimentary Facies

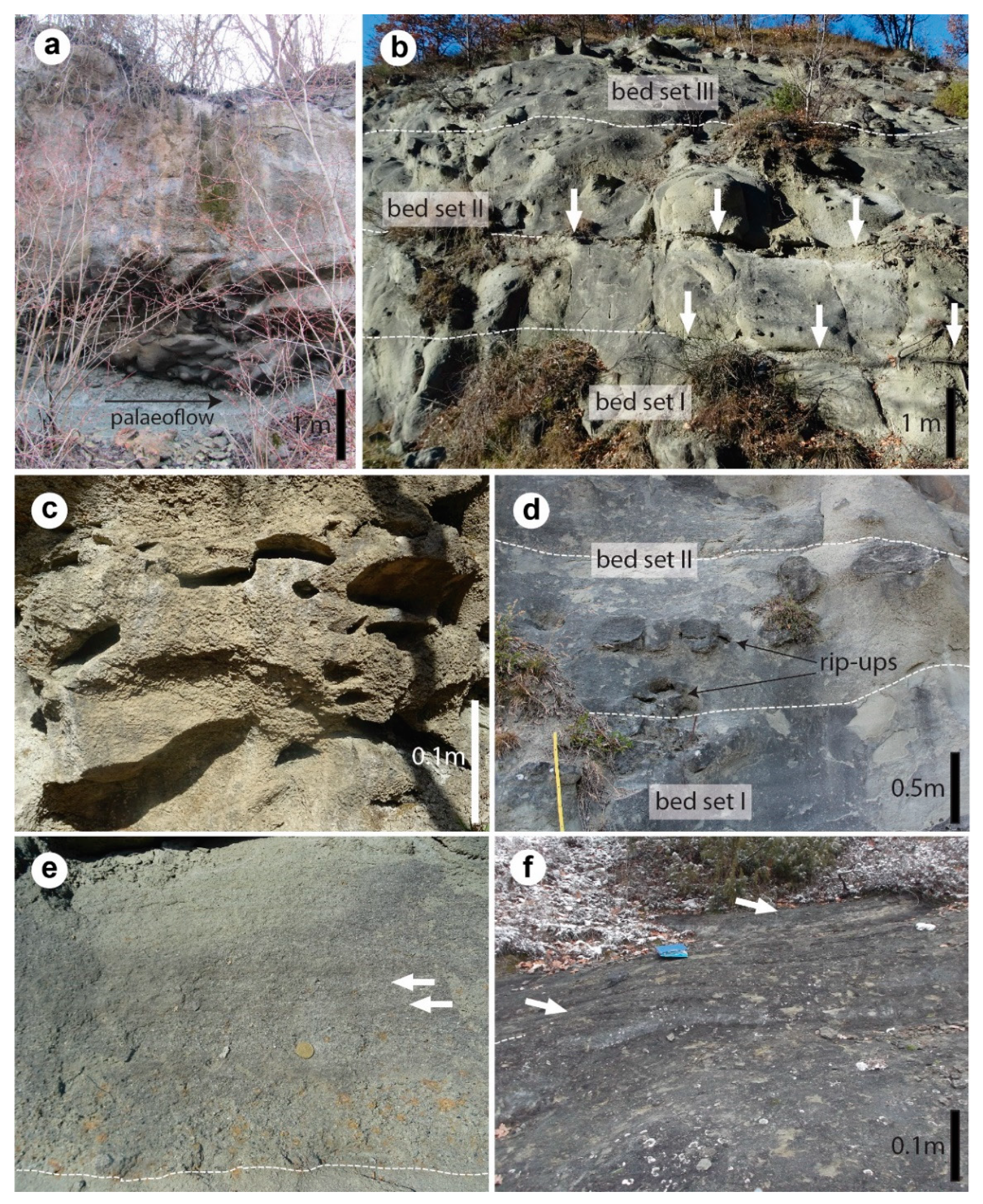

Where stratigraphically deepest, the CdV base is ornamented with large flutes casts up to 15 cm deep witnessing palaeoflow toward the E-NE (mean direction is ca. 70°; Figure 3a–c and Figure 4a) and deep substrate erosion. The few outcrops of the CdV base line up onto a paraboloid cylinder-like surface with axis parallel to mean palaeoflow, suggesting a nearly axis-symmetric cross-section ca. 250-m wide and aspect ratio (thickness/width) of ca. 1:7–1:8 (Figure 3a,b).

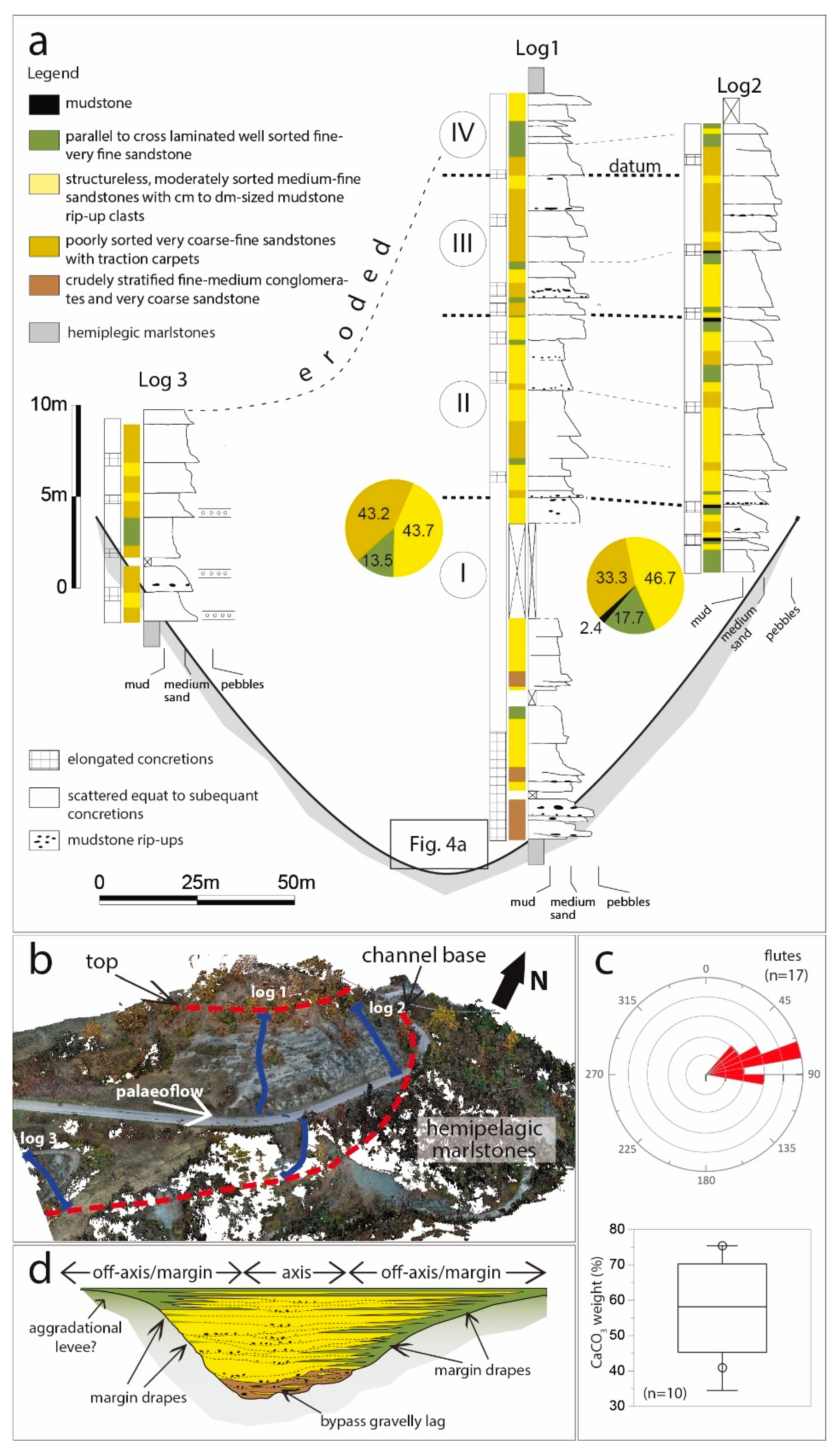

In channel-axis locations (e.g., Log 1 in Figure 3a), the channel-fill is initiated with ca. 5 m of amalgamated normally graded beds of fine-medium conglomerates and sandstones, rich in marlstones rip-ups and well-cemented (Figure 4a). Up-section, CdV is composed of a few amalgamated bedsets with thickness in the range 4–7 m. Typically, these bedsets start with poorly sorted very coarse sandstones with a range of traction carpets and planar-parallel lamination (Figure 4d,e; cf. with facies F7 of Mutti [48]) which may grade upward into normally graded medium sandstones (cf. with facies F8 of Mutti [48] and Ta division of [49]) forming 0.5–3 m-thick event beds with scoured non-planar bases (Figure 4b–e). Because basal scours show depth less than 1 m and cross-flow width of several tens of centimeters and are filled in by coarse-lags typically rich in mudstone rip-ups (Figure 4d), the lower part of bed sets has a highly heterogeneous, seemingly disorganized structure. The common micropaleontological content and XRD composition (see Section 3.4) of the mudstone rip-ups and the marlstones below and above CdV (Figure 3c), along with similar carbonate content variability, suggest the rip-ups were eroded from a marly substrate similar to that exposed at outcrop.

Up-section, basal scouring becomes less severe and rip ups relatively less abundant, resulting in a greater preservation of fine-grained laminated tops and mud caps and, ultimately, a more layered facies architecture (e.g., bed sets III and IV; Figure 3a). Importantly, reaction to HCl suggests turbidite mud caps have marly composition. The same change occurs from axis to off-axis locations (Figure 4b), accompanied by a reduction of average grain size. The CdV top is marked the sharp superimposition of marlstones intercalated with drift-laminated thin bedded fine-grained turbidites and is typically less cemented than the CdV base (Figure 4f), possibly reflecting its finer grained and less porous nature.

Interpretation

The geometrically simple and axis-symmetric channel-form of CdV, as well as its flat top, suggests it represents a relatively short-lived feature resulting from a single phase of incision and infilling. Vertical changes in sedimentary facies would indicate an early by-pass phase with deposition of coarse lags from hyper-concentrated gravelly flows, followed by aggradation and facies backstepping after sedimentation from a range of high to low density, waning turbidity currents. Within amalgamated bed sets, basal scours and the overlying coarse-grained mud-clast rich facies represent individual lowest-rank channel-forms and their fills, respectively, whereas preserved mud caps of off-axis settings constitute intra-channel shales [50], likely to pass laterally to channel-drapes [51]. Overall, CdV is best interpreted as the single-storey fill of a low-sinuosity incisional channel crossing a low-gradient slope [52].

3.2. Concretion Shapes

Because only a few concretions fully emerge from the host sandstones revealing their 3D shape, assessment of concretion shape must proceed studying axes length ratios separately for the horizontal and the vertical planes. This can be done focusing first on the width-to-length ratio of those concretions exposed along the gently sloping parts of the outcrop (corresponding to the dip-slope of turbidite beds, Figure 5a), and then studying concretion thickness along steep outcrop faces (Figure 5).

Plotting the width vs. length of the boundaries of the subset of ca. 270 concretions emerging from the dip slope of beds shows the two measured lengths are positively correlated and well fitted (coefficient of determination R² = 0.98) with a linear regression model (Figure 6a) whose residuals are normally distributed around a mean close to 0 (see insert in Figure 6a). It is noteworthy that the concretion length orientations appear to broadly cluster in the azimuth range 20–135°, i.e., the same orientation range of most of the outcrop (Figure 6b), suggesting the outcrop morphology might have resulted in overestimation of this length. Also, the absence of a well-defined cluster of length orientation indicates concretions are unlikely to possess a preferred orientation. It can be thus concluded that the linear regression of Figure 6a provides an estimate of the characteristic w/l (i.e., the angular coefficient ≈ 0.76) of concretions that, because of a likely overestimation of l, is way conservative (Table 1) for excluding prolate and bladed shapes with their long axis laying in the bedding plane (Figure 6c).

Because concretions do no show a preferred orientation of l, when considering the steep parts of the outcrop there is uncertainty on whether the length of concretion boundaries measured parallel to bedding represented either their l or w. However, since, by definition (Table 1 and Figure 6c), l is equal or greater than w, a cautious assumption can be made that this length represented the maximum possible width (maximum width, hereafter) of concretions.

The histogram of t/w of concretions protruding from the steep parts of the outcrop (Figure 6d) is slightly right-skewed with a mean close to 0, highlighting that nearly 90% of the sample population has thickness smaller than maximum width. When checked on the outcrop, the concretions with t/w > 1 (i.e., the right tail of histogram of Figure 6d) turned out to be mostly of composite nature, resulting from coalescence of smaller variously shaped concretions (Figure 7a–c), and subordinately associated with fracture joints (Figure 7b,c), thus excluding presence of primary prolate shapes with long axis perpendicular to bedding.

The remainder concretions split in similar proportions of equant (46%) and oblate (42%) shapes (Figure 6d) whose volume (Vc) can be estimated assuming an ellipsoidal 3D shape and l ≈ w by calculating:

$$V_c=\frac{4\pi }{3}\times \raisebox{1ex}{$l$}\!\left/ \!\raisebox{-1ex}{$2$}\right.\times \raisebox{1ex}{$w$}\!\left/ \!\raisebox{-1ex}{$2$}\right.\times \raisebox{1ex}{$t$}\!\left/ \!\raisebox{-1ex}{$2$}\right.,$$

(1)

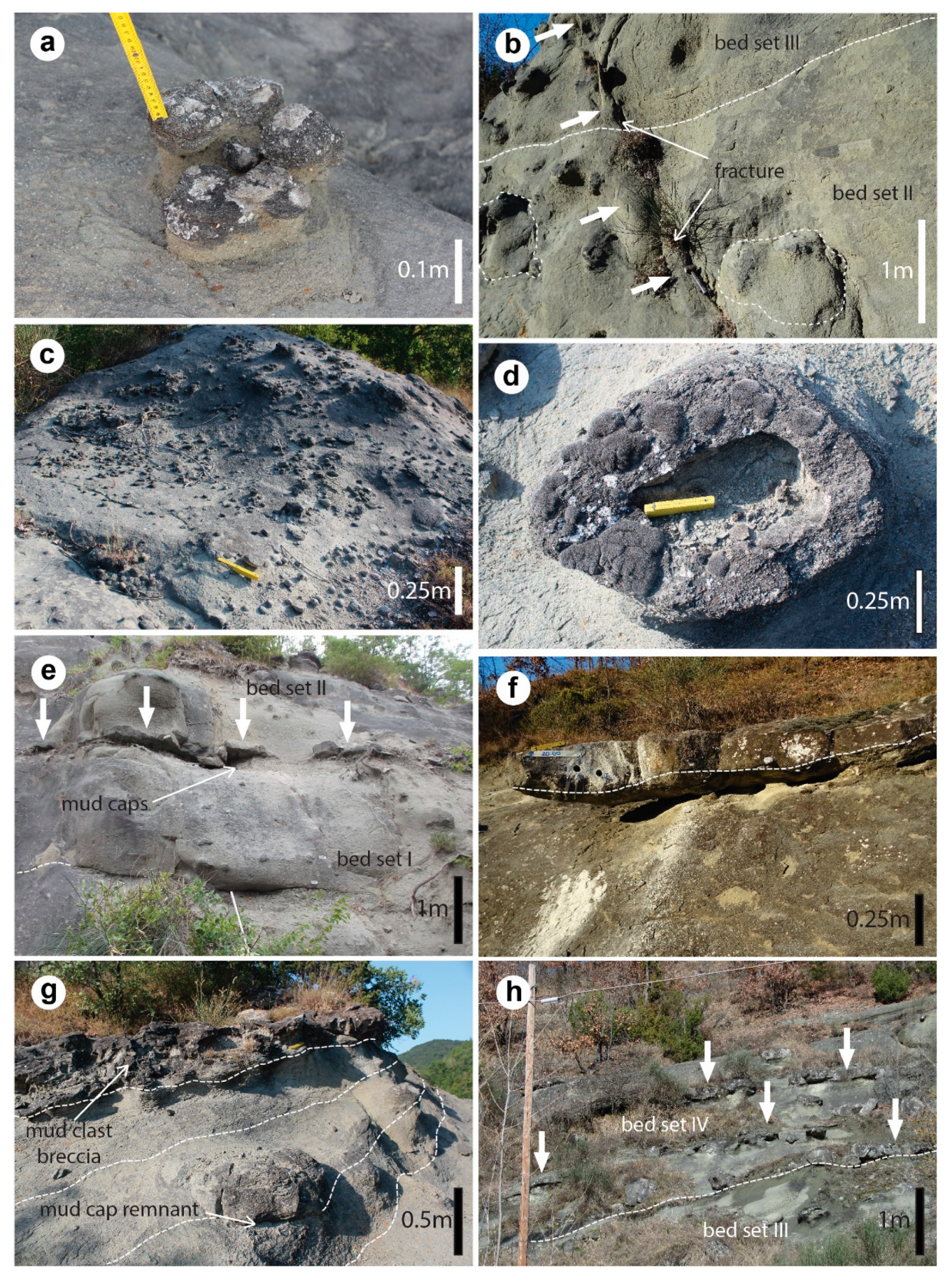

Equant concretions fall in a wide size range, from cm to m-scale (Figure 7a,c,d and Figure 8a,b). Typically, cm-scale equant concretions occur in the upper finer-grained part of beds (Figure 7c). Larger equant concretions are instead found close to bed bases, developed around marlstone rip-ups with medium to high sphericity (Figure 7c).

Following the definition of McBride et al. [1], oblate shapes can be further distinguished into sub-equant and elongated ones for w/t below and above 2.5, respectively (Figure 6d, Figure 7 and Figure 8).

Some sub-equant to elongated concretions possess parallelepipedal marlstone rip-ups at their core, suggesting the shape of these carbonate-rich intraclasts can condition the shape of the associated concretions. Representing the 9% of the sample population (Figure 6d), most of the elongated shapes are strata-bound concretions developed either above turbidite mud caps (Figure 7e) or straddling amalgamation surfaces (Figure 7f).

Elongated shapes often extend over the whole thickness of the containing bed resulting in completely cemented beds (Figure 7f). In one single case, a nearly tabular concretion several meters-long formed within a marlstone clasts breccia bed (Figure 7g). It is worth nothing the tendency of larger concretions (i.e., greater than 1 m³) to be preferentially sub-equant to elongated (Figure 8a), as well as the up-section increase of abundance of oblate shapes, with most of the elongated concretions belonging to the uppermost part of bed set II and bed sets III-IV (Figure 8b).

The exceedance probability plot of Figure 8c shows how subsequent bed sets possess similar statistical distributions of concretion volumes, which are adequately fitted with a lognormal model (see the insert probability-probability plot in the same figure).

Also, it should be noted that that the 50% of the cumulative concretion volume is made by the few of them (23!) having volume greater than 0.82 m³ (Figure 8d), most of which are elongated concretion of completely cemented beds (e.g., Figure 7e–h).

3.3. Concretion Spatial Distribution

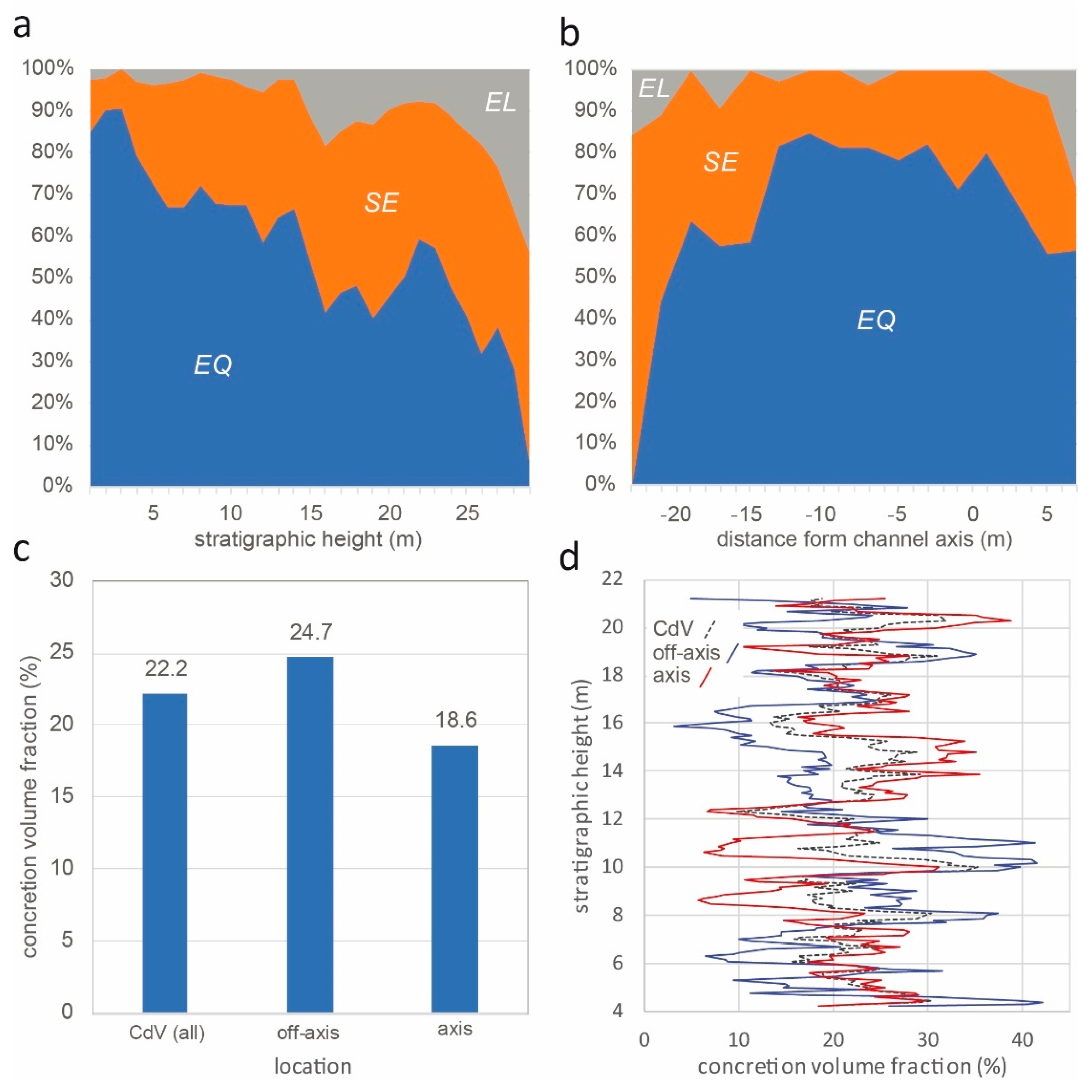

Sub-equant to elongated concretions are few to absent in the lower part of CdV, whereas their frequency becomes appreciable up section (Figure 9a). A similar trend is observed moving from channel-axis to off-axis locations (Figure 9b), seemingly correlating to incomplete bed amalgamation and consequent increased proportion of preserved mud caps (see sedimentary facies pie charts in Figure 3 and Figure 7e–h).

The proportion of concretion vs. host sandstone volume was estimated by upscaling the interpreted concretions to a very fine-scale grid (cell size of 0.1 × 0.1 × 0.1). Although it can be argued that this may result in underestimating cm-scale concretions and thus the cumulative volume of cemented vs. host sandstone, it must be born in mind that concretions smaller than the cell size (i.e., 0.001 m³) represent less than 0.01% of the total volume of the observed concretions (Figure 8d).

While the gross cumulative volume of the CdV concretions is close to ca. 22% of the total investigated volume, comparing the concretion cumulative volume fraction of channel-axis and off-axis to marginal settings suggests calcite cementation had affected slightly greater volumes (ca. 6%) away from the channel axis. Proportion curves of Figure 9d show a clear stratigraphic cyclicity in fraction of cemented vs host sandstone, which mirrors the location of concretion within the containing turbidite beds and, at a larger scale, the bedding pattern. Because of the non-planar erosive contacts between subsequent event beds, comparison of proportion curves calculated in axial and off-axis to marginal locations appear not to correlate at most stratigraphic heights, reflecting the uneven concretion distribution and, ultimately, a poorly layered facies architecture.

The 2-D pattern of concretion spatial distribution was assessed on three test areas devoid of cover from the near vertical face of the studied outcrop (T1 to T3 in Figure 10a) using Average Nearest Neighbour statistics (ANN; [53]), an inferential statistic method testing the hypothesis of complete spatial randomness (null hypothesis, hereafter). ANN measures the distance between each centroid and its nearest neighbour’s location and return the ratio of the average of all measured distances (${\overline{D}}_O$) to the average distance of a randomly distributed point set (${\overline{D}}_E$) of comparable size and extent. If the ratio:

$$ANN=\frac{{\overline{D}}_O}{{\overline{D}}_E},$$

(2)

is less than 1, the pattern exhibits clustering. Conversely, ANN greater than 1 indicates a trend toward dispersion. Yet, the calculated ANN should be interpreted in conjunction with its standard deviation (or z-score) and the linked probability (p-value) that the observed pattern could be the result of random chance. It can be noted how very high or very low (negative) z-scores, associated with very small p-values, are found in the tails of the statistical distribution typifying a random process (Figure 10b), thus indicating the observed pattern is very unlikely (i.e., very small probability) to be the result of random chance. It is important to note that in a random spatial distribution clusters may still be present locally, though being not statistically significant.

Results of ANN are reported in

Table 2. Results of the Average Nearest Neighbour (ANN) statistics. ANN is the index described by Equation (2), the z-score is the ANN standard deviation and the p-value is the significance level of results, i.e., the probability that the null hypothesis (complete spatial randomness) is erroneously rejected. Interpretation assumes a confidence of 95%.

Test Area	${\overline{\mathit{D}}}_{\mathit{O}}$	${\overline{\mathit{D}}}_{\mathit{E}}$	ANN	z-score	p-Value	Area (m2)	n 1 and Density (n/m)	Interpretation
T1	0.72	0.63	1.14	3.01	0.002	195	135; 0.69	Dispersed
T2	0.60	0.54	1.10	2.47	0.01	204	172; 0.84	Dispersed
T3	0.49	0.50	1.00	0.02	0.97	199	200; 1.00	Random

¹ number of concretions present within the test area.

along with interpretation for a confidence level of 0.95 that is, accepting a 5% probability of erroneously rejecting the null hypothesis. Note that, the T1, T2 and T3 test areas have very similar size (ca. 200 m²) but different location, namely middle, upper left and lower right of the near vertical outcrop wall. T1 and T2 returned ANN greater than 1 and p-values of 0.002 and 0.01, respectively, suggesting a concretion pattern of a dispersed type very unlikely (less than 5% probability!) to result from random chance.

Conversely, with a p-value of 0.97, T3 does not appear to be significantly different from random. Though results would show that concretions are not significantly clustered spatially, it should be borne in mind that in ANN neither size and shape of concretions nor their spatially anisotropic distribution are accounted for. This limitation of ANN, common to all methods based on neighbours statistics (e.g., Ripley’s K Function) is evident especially when considering large-size, elongated concretions (Figure 10c), which tend to cluster along bedding (e.g., Figure 7e–h and Figure 10c) resulting in the uneven vertical distribution of cemented sandstones seen in Figure 9d.

3.4. Petrography

The studied CdV sandstones are immature to submature litharenites [54], poorly to moderately sorted with grain size ranging from fine (50–200 µm) to coarse sand (0.5–1 mm), with sparse lithic fragments up to 3 mm and mm- to dm-scale mudstone clasts which, on thin section, can be unambiguously recognized as representing rip-ups eroded from the hemipelagic marlstones below CdV based on similar composition (see below) and micropaleontological content. The texture is grain-supported with variable amount (from absent to 8%) of mixed clay-carbonate matrix, which is most commonly found in those samples collected close to bed bases and marlstone rip-up clasts.

Detrital grains are dominated by lithic fragments from metamorphic rocks (orthogneisses with muscovite and garnet or epidote, micaschists, schists with glaucophane and chloritoid, phyllites) and serpentinites (Figure 11a–f). Other rare to sparse lithic fragments include volcanic rocks, chert fragments, shales, crystalline carbonates, probably marbles (Figure 11c), and marly wackestone/mudstone rip-up clasts.

Mineral detrital grains include common to rare quartz, both mono- and polycrystalline, plagioclase, orthoclase, microcline and micas (muscovite, chlorite and rare biotite). Identified accessory minerals are zircon, epidote, garnet, titanite, rutile, glaucophane and magnetite. The rare skeletal fragments are represented by bivalves and benthic (rotalids, miliolids) and planktonic foraminifers.

The marlstones forming the rip-ups and the beds below and above CdV are mudstone/wackestone with planktonic and buliminid and textularid benthic foraminifers, and sparse bivalve fragments, associated with authigenic framboidal pyrite, silt-grade quartz, plagioclase and mica fragments. These components float in a matrix made of abundant calcareous nannoplankton fragments (coccoliths; Figure 11g,h) and chlorite, illite, muscovite, smectite and serpentine as suggested by XRD.

3.5. Diagenetic Features

The CdV sandstones show evidences of mechanical compaction such as parallel oriented grains, detrital grain breakage and deformation, elongated to concavo-convex and rarely sutured grain contacts (Figure 11a–f and Figure 12a–d).

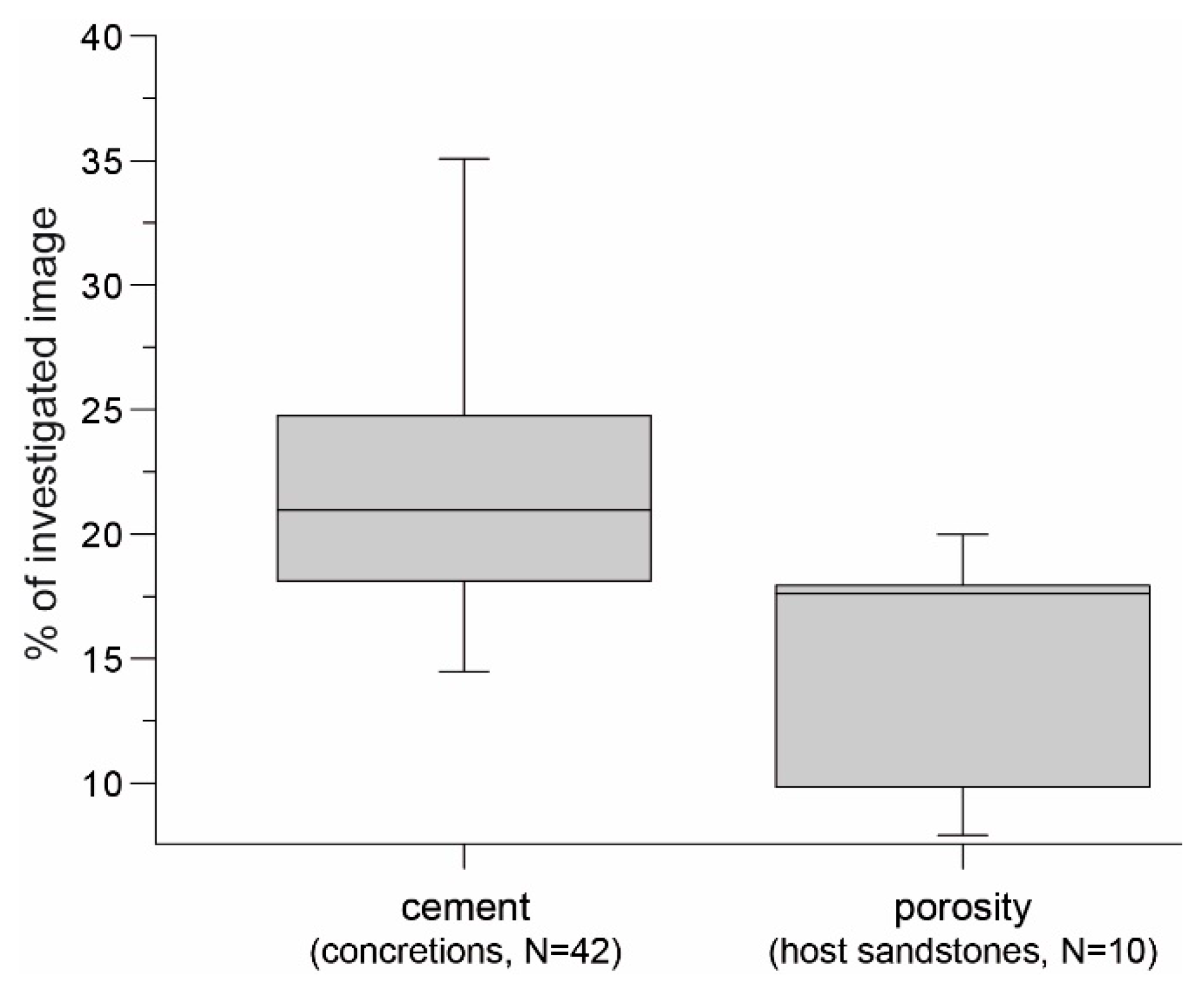

Within concretions, the calcite cement constitutes on average ca. 22% of the analysed thin section area (Figure 13) and there is no petrographically visible porosity (Figure 11a,b and Figure 12a,b).

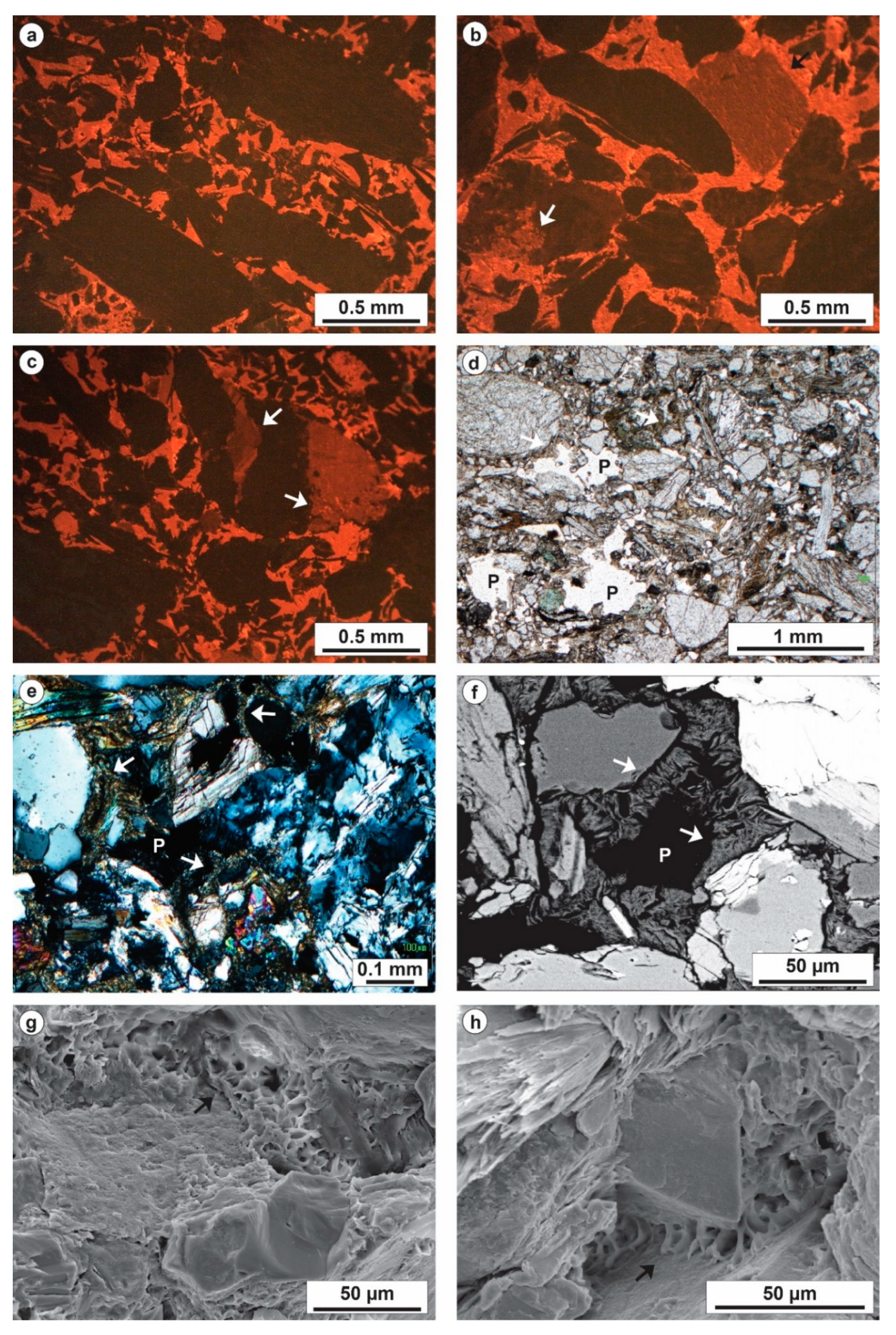

The most common cement fabric is poikilotopic calcite (100 µm to 2 mm in diameter) embedding two to several detrital grains. These include crystalline carbonate rock fragments, which typically lack syntaxial overgrowth of calcite cement (Figure 11a–c).

In samples collected close to bed bases and marlstone rip-ups, the poikilotopic calcite cement is absent to sparse (Figure 11c,d), whereas blocky mosaics of equant sparite (50–200 µm crystal size) to microsparite (20–40 µm crystal size) represent the dominant cement types. These form a non-isopachous calcite cement that lines the grains discontinuously (Figure 11d) and are best interpreted as the product of recrystallization of a carbonate micrite matrix, most likely incorporated by turbidity currents from the hemipelagic marlstones below CdV.

Calcite crystals can also replace some detrital rock fragments and feldspars, developing mosaics of equant sparite (Figure 11e). Cathodoluminescence shows that the poikilotopic calcite cements are uniformly bright orange luminescent, suggesting one single growth phase (Figure 12a–c). Replacive calcite on detrital grains and detrital crystalline carbonate rock fragments appear instead dull, quenched with respect to the poikilotopic calcite cement (Figure 12b). Where the interparticle space is filled by microsparite, this appears dull and quenched with respect to bright luminescent sparite cements.

Fractures are filled by limpid prismatic and equant calcite (Figure 11f) and cut through grain contacts and calcite cements, suggesting their formation and infill postdate mechanical compaction and calcite cementation. Similarly to the interparticle sparite cement, fracture calcite fillings show bright luminescence evolving into quenched dull luminescence.

Samples from the host sandstones display interparticle and vuggy porosity ranging from 8% to 18% (with an average value of ca. 15%; Figure 12d–f and Figure 13) and detrital clay matrix from 0 to 8% of the thin section area (Figure 12d–f). It is worth noting that the average porosity of the host sandstones is ca. 7% less than the pore space filled in by cements in concretions (Figure 13), suggesting the former are comparatively more compacted.

Most of the detrital grains in the host sandstones appear coated by a 10–50 µm-thick clay mineral rim bridging the grains (Figure 12e–h). These clay coatings are ubiquitous in the host sandstones, whereas they seem to be rare to absent in concretions, where the rare clay coatings appear to precede the mechanical compaction and calcite cement precipitation. EDS analyses of these clay mineral coatings indicate a variable composition including Na, Ca, Al, Si, Mg, Fe.

XRD analyses of oriented slides made from the <2 µm fraction of the host sandstone powder, performed before and after treatment with glycolate, show the presence of expandable clay minerals, such as smectite, associated with microcline, serpentine, illite and chlorite. The authigenic clay coatings with an alveolar fabric (Figure 12g–h) might be either a smectite or mixed layer smectite-chlorite cement. This hypothesis is supported the synchrotron analyses on thin sections that indicate the presence of smectites, chlorite and muscovite.

3.6. Stable C and O Isotopes

The results of the carbon and oxygen stable isotope measurements are listed in

Table 3. Results of stable carbon and oxygen isotope measurements made on powders extracted from the concretions, the host sandstones and the marlstones rip-ups of CdV, and the hemipelagic marlstones below and above CdV.

Sample	δ13C (‰ V-PDB)	δ18O (‰ V-PDB)	Sample 1	δ13C (‰ V-PDB)	δ18O (‰ V-PDB)
Concretions (N = 21)			Marlstone rip-ups (N = 161)
α3	−3.0	−7.1	O3	−0.6	−8.6
α3b	−3.0	−6.9	γ1 (58.3%)	−9.7	0.2
ϕ1	−4.1	−6.2	A1	−10.7	−0.5
J1	−3.3	−6.9	A1B	−10.8	−0.4
P2B	−3.9	−6.5	ϕ2 (58.2%)	−9.6	−0.2
V1	−4.1	−8.5	ϕ2b	−9.6	−0.2
V11	−4.5	−6.8	P1 (45.3%)	−7.7	−0.9
V11b	−5.7	−6.6	P1B (45.3%)	−5.8	−1.4
V12	−6.6	−6.6	P2C	−7.3	−1.1
V12b	−6.4	−6.9	P3	−5.7	−3.1
Z4	−0.9	−10.5	Q	−6.8	−1.2
Z6	−1.1	−12.4	T1 (70.4%)	−10.1	−0.3
Z6b	−2.1	−12.7	T1b	−9.9	−0.6
Z7	−1.5	−13.3	W1 (70.3%)	−10.8	−0.9
Ω3	−1.0	−7.2	W3 (61.4%)	−9.8	−1.3
V4	−8.3	−6.5	X1 (34.5%)	−7.6	−0.3
O2 II	−1.8	−7.6	Average	−8.6	−0.9
O2 IIa	−1.9	−6.9	St. Deviation	1.8	0.8
O2 IIb	−1.9	−7.0	Minimum	−10.8	−3.1
O4 II	−9.3	−5.8	Maximum	−5.7	0.2
O4 IIb	−9.4	−5.9
Average	−4.0	−7.9	Calcite in fracture (N = 2)
St. Deviation	2.7	2.3	P2A	−5.4	−5.8
Minimum	−9.4	−13.3	P2Ab	−5.5	−5.7
Maximum	−0.9	−5.8	Average	−5.5	−5.8
			St. Deviation	0.1	0.1
Host Sandstone (N = 12)			Minimum	−5.5	−5.8
K2	−0.6	−8.6	Maximum	−5.4	−5.7
K2b	−0.5	−9.0
K3	−1.0	−9.9	Hemipelagic marlstones (N=9)
K3a	−0.6	−10.2	Ω1 (40.2%)	0.1	−1.4
K3b	−0.7	−9.6	Ω2 (75.4%)	−1.2	−1.6
O1 I	−1.0	−12.0	Ω2b	−1.2	−1.4
O1 Ib	−0.6	−11.5	MR1	0.6	−1.7
S3	−1.3	−11.8	MR2	−0.1	−1.8
V3	−1.1	−12.4	MR3	0.6	−1.8
V3b	−1.9	−10.9	MR3b	0.6	−1.7
V5	−1.0	−7.8	MR4	−1.6	−2.9
V8	−1.4	−12.7	MR5	−0.3	−3.7
Average	−1.0	−10.5	Average	−0.3	−2.0
St. Deviation	0.4	1.6	St. Deviation	0.9	0.8
Minimum	−1.9	−12.7	Minimum	−1.6	−3.7
Maximum	−0.5	−7.8	Maximum	0.6	−1.4

¹ Values reported in brackets are weight percent of carbonate from calcimetry (see Figure 3c).

and graphed in Figure 14. It is assumed that the measured δ¹³C and δ¹⁸O of the CdV concretions largely reflect the isotopic composition of the calcite cement, whereas the δ¹³C and δ¹⁸O values of the host sandstones lacking calcite cement chiefly mirror the isotopic signature of the crystalline carbonate lithic fragments. The 21 concretion measurements show δ¹⁸O mostly between −5.8 and −8.5‰ except for 4 samples with δ¹⁸O between −10.5 and −13.3‰ (more similar to the host sandstones).

The concretion δ¹³C values vary from −0.9 to −9.4‰. The stable isotopic signature of one single sample of calcite cement infilling a fracture (δ¹⁸O −5.8‰; δ¹³C −5.5‰) is close to the average values from concretions (δ¹⁸O −4.0‰; δ¹³C −7.9‰).

Conversely, the host sandstones show δ¹⁸O values ranging from −7.8‰ to −12.7‰ (average −10.5‰) and δ¹³C between −0.5 and −1.9‰. It is assumed that this isotopic signature with fairly uniform δ¹³C values with an average of −1.0‰ and variable, highly ¹⁸O depleted δ¹⁸O values, is characteristic of the detrital crystalline carbonate rock fragments, probably marbles.

The hemipelagic marlstones below and above CdV plot in a different field with heavier average δ¹⁸O and δ¹³C values of −2.0‰ (standard deviation sd 0.8) and −0.3‰ (sd 0.9), respectively. The mudstone rip-up clasts found within the CdV show δ¹⁸O values similar to the hemipelagic marlstones (average δ¹⁸O−0.9‰, sd 0.8) and highly ¹³C depleted values with δ¹³C ranging between −5.7 and −10.8‰.

3.7. Diagenesis Interpretation

Authigenic clay mineral coatings, determined as smectite or less likely mixed smectite-chlorite layers (see Section 3.4), are ubiquitously present in both host sandstones and concretions also along grain contacts. This suggests that they might have formed during the eodiagenesis before burial mechanical compaction and calcite cementation (as reported for authigenic trioctahedral smectites in sediments with volcanic fragments and mafic minerals; [3,7,55]), likely playing a key role in preventing the syntaxial growth of cements around detrital grains [7] and preserving the observed interparticle porosity of the host sandstones, which can be as high as 18%. In addition, the presence of authigenic smectites implies that, during burial, temperature remained sufficiently low (<70 °C;) to prevent complete transformation into chlorite or illite [5,55], which is in agreement with the maximum burial depth and temperature (i.e., 1250–1550 m and 30–36 °C, respectively) proposed by Milliken et al. [44].

Calcite cementation in the concretions is interpreted as a burial diagenetic process following mechanical compaction as confirmed by the poikilotopic fabric and the bright luminescence of the calcite cement, indicative of reducing conditions favoring incorporation of Mn²⁺ within calcite crystals [56,57,58,59]. Though indicated as absent by previous authors [1,24,44], the bright luminescent poikilotopic cement stands out as the dominant cement type, thus providing an additional evidence for concretion forming at or near maximum burial depth.

Grain replacement by calcite was probably time-equivalent to calcite cementation and/or a following process as suggested by the dull quenched luminescence indicative of stronger reducing conditions due to Fe²⁺ incorporation in the calcite crystals [56,59]. Cross-cutting relationships suggest fracture formation and filling by sparite followed mechanical compaction and calcite cementation.

It should be observed that, regardless of the cement type, in calcite cements completely occlude the interparticle space of concretions, representing on average ca. 22% of the analysed thin section area. Such values are higher than the average porosity of the host sandstones (ca. 15%, Figure 12) supporting the idea that concretion formation occurred slightly before maximum burial [24,44] and that compaction of the host sandstones continued after calcite cementation.

The marlstones below and above CdV show δ¹³C and δ¹⁸O close to Oligocene marine values [60] suggestive of a nearly δ¹³C pristine isotopic signature and δ¹⁸O values depleted in ¹⁸O by up to ca. 4‰, whereas the rip-ups display strongly negative δ¹³C values and δ¹⁸O in a similar range as the marlstones. This stable isotope data point to the marlstones rip-ups found at the core of concretions as the local source of dissolved inorganic carbon (DIC) for calcite cement precipitation: in fact, though unambiguously identifiable as eroded from the marlstones below CdV, the rip-ups are depleted in ¹³C with respect to the marlstones, with δ¹³C in the same range as the calcite cement in the concretions. This suggests leaching of rip-ups by a ¹²C-rich fluid, diffusion in the surrounding sands and precipitation of concretion-forming calcite.

The ¹²C-rich fluid vehiculating carbonate ions by diffusion could have been either a deeply circulated meteoric water or a connate fluid or a combination thereof, whose negative δ¹³C would reflect a contribution of ¹²C from organic matter contained in soils or sediments, respectively [44,57,61,62,63].

The δ¹⁸O values of the concretions, highly ¹⁸O-depleted with respect to both the rip-ups and the marlstones below and above CdV, might be interpreted to reflect calcite precipitation at relatively higher temperatures close to maximum burial [44,61,62,63].

Yet, the range of δ¹⁸O of concretions slightly overlap that of the host sandstones, which typically show more ¹⁸O-depleted δ¹⁸O values common to crystalline carbonate lithic fragments (most likely marbles) recrystallized at high temperatures. Such overlap finds explanation in the impracticality of selectively targeting the cement of concretion samples with the drill when preparing powders to be analysed, which might have resulted in unwanted contamination from framework grains.

These results fit well the model proposed by Milliken et al. [44] which explains stable C and O isotope data of the concretions of CdV and similar case studies from the Apennine wedge-top with local dissolution of the carbonate (bioclasts and marlstone rips- ups) by deeply-circulated meteoric waters from nearby thrust-belt mountains. In this model, mixing with residual seawater, together with rock-water interaction processes, might have contribute additional ¹⁸O to the meteoric fluid dissolving ions from the marlstones, explaining the observed δ¹⁸O values. The negative δ13C would reflect oxidation or thermal degradation of organic matter [44].

4. Discussion

4.1. Likely Sedimentary Controls on Concretion Development

CdV concretions have been found to be spatially associated with a carbonate-rich mud-grade component occurring in different forms within different facies (marlstone rip-up, recrystallized detrital micrite matrix, mud-caps), as a result of the ability of parent flow to entrain mud from the substrate and redeposit it within the channel-fill. Carbon and Oxygen stable isotope data identify this carbonate-rich component as the major source of CaCO₃: the marlstone rip-ups and the associated calcite-cemented concretions appear in fact both depleted in ¹³C and ¹⁸O in comparison to the marlstones above and below CdV, suggesting that the carbonate ions were locally brought into solution by a ¹²C- and ¹⁶O-rich fluid originated from mixing of deeply circulated meteoric water and a connate fluid (see e.g., [44]), precipitating the concretion-cementing calcite at relatively higher temperatures near to maximum burial.

Differently from what is reported for similar deposits [2,14], where the sandstone channel-fill is continuously surrounded by a massively cemented rim at the contact with the embedding mudstones, only the base of CdV is massively cemented, whereas CDV top shows a patchy cementation. This suggests that diffusion from a common source of carbonate (i.e., the marlstone above and below CdV) alone cannot explain the diverse cementation pattern of CdV base and top, and that other controls should be invoked. One possibility is that the massive calcite cementation of the lowermost CdV might reflect two main superimposed factors, namely an expectedly higher permeability of the deposit, favorable to carbonate diffusion from the marlstone below, and a higher volumetric proportion of marlstone rip-ups, which provided additional amount of carbonate ions. Oppositely, the uneven cementation of the CdV top would suggest the low permeability of the fine-grained cross-laminated facies prevented extensive diffusion of carbonate ions from the marlstone above but rather focused it along high-permeability pathways [10,15] resulting in development of discrete concretions.

Despite the high-resolution of the photogrammetric outcrop model used in this investigation, distinguishing and extensively mapping sandstone textures was not undertaken because prone to much subjectivity. Though this prevented demonstrating quantitatively the relationship between the uneven calcite cementation and facies, the results presented in Section 3.2 and Section 3.3 show that a correlation between concretion characteristics and the facies architecture exists. In fact, while, equant concretions are ubiquitous and homogeneously dispersed within CdV, the larger highly elongated concretions become more abundant up-section and off the channel axis where they tend to cluster along bedding, associated with a more layered architecture with locally preserved mud caps and higher proportions of finer-grained, better sorted facies.

As noted by McBride et al. [1], larger equant concretions appear to systematically develop around marlstone rip-ups, most frequently in the coarser-grained, rip-up clasts-rich, lower half of turbidite beds, whereas smaller ones are found almost exclusively in finer-grained laminated tops, seemingly neither associated with marlstone rip-ups nor in contact with an overlying mud cap. Conversely, sub-equant to highly elongated concretions are located preferentially at the base of beds, either overlying preserved mud caps or straddling amalgamation surfaces not associated with either marlstone rips ups or mud cap remnants. There are thus examples of both concretion shape end-members that lack an obvious local source of carbonate ions but are still cemented by calcite. This observation can be explained by the presence of the blocky sparite and microsparite cements in some thin sections, interpretable as the product of recrystallization of a carbonate-rich micrite matrix. This detrital micrite matrix was likely present in various proportions in different facies and acted as a more ‘dispersed’ source of carbonate.

These findings highlights that the processes by which mud was eroded from the channel substrate and deposited are key in controlling where and in which form the carbonate-rich component is trapped within the sandstone fill of turbidite channels entrenched into older marly deposits.

4.2. Prediction and Likely Impact on Reservoir Properties

The results of this study allow envisaging a reference framework or model for heterogeneous calcite cementation of turbidite channel-fills, useful for predicting location of tightly cemented non-reservoir zones in subsurface analogues hosting hydrocarbons [2,6,14]. This is underpinned on the observation that shape and size of concretions, as well as their volume fraction changes systematically with CdV (Section 3.2 and Section 3.3) reflecting the type and spatial patter of local source of carbonate ion available for diffusion in the surrounding deposit.

The model would entail an early stage of channel inception and by-pass in which highly erosive flows cut into the underlying marlstone and fill in the channel with a coarse-grained lag charged with large-size rip-ups. This early stage results in a tightly cemented lower interval where the marlstone below and the abundant rip-ups provides carbonate ions to circulating burial diagenetic fluids. In CdV, such a tightly cemented non-reservoir zone is lens-shaped and up to 5 metres-thick in the channel axis, representing less than ca. 20% of the channel-fill cross sectional area.

Above this non-reservoir zone, the model involves a package of amalgamated sandstones with scoured bases and abundant marlstone rips-up clasts, fringing toward channel margins as result of an increased preservation of mud caps (cf. with bed sets I-II in Figure 3a). This sedimentary package reflects deposition by high-density flows capable of eroding both large rip-ups from consolidated mudstones and mud-grade particles from unconsolidated hemipelagites and channel-drapes, which are segregated in the turbulent cloud and redeposited as carbonate-rich mud caps. Though sedimentary facies from this interval might yield relatively high porosity, equant to sub-equant concretions developed around marlstone rip-ups can represent an average volume fraction of up to ca. 20%. However, the arrangement and lateral continuity of these concretions, together with an expectedly high permeability of the uncemented host, should not represent a major issue for connectivity. Yet, the increased fraction of elongated concretions developed adjacent to preserved mud caps may result in a reduction of volume reservoir facies as well as a more layered permeability structure toward channel margins.

The late fill stage of the model appears the most critical by a reservoir perspective, both for the lower permeability of dominant sedimentary facies and a greater average volume and lateral continuity of concretions. Since the erosive ability of the flows transiting the channel is progressively decreasing over time, at this stage the carbonate-rich component is chiefly entrained from the unconsolidated substrate as detrital micrite and trapped in the channel-fill in form of either mud caps or matrix filling the interparticle pore-space of sandstones. During burial diagenesis, carbonate ions diffusion from mud caps and recrystallization of matrix micrite are thought to have both contributed to formation of highly elongated, strata-bound concretions and completely cemented beds (bed sets III-IV). As a result, the late-stage fill channels developed on marly substrates would be comparatively more prone to highly tortuous flow pathways or even compartmentalized due to calcite cementation.

The above model provides probabilistic constraints on spatial distribution of calcite-cemented concretions which can be used, in combination with sedimentary facies, to inform fine-scale geostatistical modelling of poro-permebility properties of hydrocarbon reservoirs hosted in turbidite channel-fill [2,6,14,25,64].

It must be noted that because the underlying concept of this contribution is linking heterogeneous calcite cementation to processes by which the carbonate component is trapped within the channel-fill, the proposed model can be applied to other type of turbidite channel-fills after modifications accounting for different parent flows and sedimentary facies [51,52]. Once defined the lower hierarchy building block of the analogue reservoir, after adaptation the proposed reference model is usable at a range of hierarchical scales, from single-story channels to submarine fan conduit complexes [65].

In conclusion, it is suggested that the discrete nature of concretions makes an object-based approach [66] the best suited technique for stochastically modelling heterogeneous calcite cementation, in which insertion of objects with different shapes and size can be conditioned to statistics from outcrop analogues similar to CdV.

5. Conclusions

The shape, size and spatial distribution of calcite concretions developed within the sand-prone fill of a turbidite incisional channel entrenched into hemipelagic marlstones were evaluated using UAV photogrammetry of a well-exposed outcrop. The controls on heterogeneous cementation were addressed with the combined use of facies, petrography and carbon and oxygen stable isotope analyses. Results are as follows:

• The channel-fill comprises a lower tightly cemented conglomeratic sandstone charged with large rip-ups eroded from the marlstone below, replaced up-section by amalgamated turbidite sandstone
• Turbidites are locally rich in marlstone rip-ups and become progressively finer grained, more laminated and less amalgamated up-section and off the channel axis
• Concretions show a range of equant to oblate shapes with their long axes laying in the bedding plane and volumes ranging from ca. 3*10⁻⁴ to 3 m³
• Equant concretions are ubiquitous and often associated with marlstone rip-ups
• Oblate concretions include highly elongated, strata-bound concretions and completely cemented beds developed above preserved mud caps or straddling surfaces of bed amalgamation
• Up-section and off the channel axis the proportion of elongated concretions increases
• Calcite cement precipitated near to maximum burial depth
• Carbon and oxygen stable isotope data suggest that the marlstone material eroded from the channel substrate and trapped within the channel-fill in different forms (rip-ups, matrix micrite and mud caps) represents the source of carbonate ions for calcite cementation
• The concretion pattern of the studied channel-fill is typified by a tightly cemented lower zone, an intermediate unevenly cemented zone where oblate concretions are dominant and homogenously dispersed, and an upper zone with highly elongated concretions whose lateral continuity can exceed the size of the outcrop
• The results of this contribution find application in prediction and geostatistical modelling of heterogeneous calcite cementation of analogue hydrocarbon reservoirs at a range of scales
