Petrogenesis of Lava from Christmas Island, Northeast Indian Ocean: Implications for the Nature of Recycled Components in Non-Plume Intraplate Settings

Abstract

Lava samples from the Christmas Island Seamount Province (CHRISP) record an extreme range in enriched mantle (EM) type Sr-Nd-Pb-Hf isotope signatures. Here we report osmium isotope data obtained on four samples from the youngest, Pliocene petit-spot phase (Upper Volcanic Series, UVS; ~4.4 Ma), and four samples from the earlier, Eocene (Lower Volcanic Series, LVS; ~40 Ma) shield building phase of Christmas Island. Osmium concentrations are low (5–82 ppt) with initial Os isotopic values (¹⁸⁷Os/¹⁸⁸Os_i) ranging from (0.1230–0.1679). Along with additional new geochemical data (major and trace elements, Sr-Nd-Pb isotopes, olivine δ¹⁸O values), we demonstrate the following: (1) The UVS is consistent with melting of shallow Indian mid-ocean ridge basalt (MORB) mantle enriched with both lower continental crust (LCC) and subcontinental lithospheric mantle (SCLM) components; and (2) The LVS is consistent with recycling of SCLM components related to Gondwana break-up. The SCLM component has FOZO or HIMU like characteristics. One of the LVS samples has less radiogenic Os (γOs –3.4) and provides evidence for the presence of ancient SCLM in the source. The geochemistry of the Christmas Island lava series supports the idea that continental breakup causes shallow recycling of lithospheric and lower crustal components into the ambient MORB mantle.

1. Introduction

A fundamental question concerns the origin of the hundreds of thousands of solitary seamounts and small isolated clusters of such seamounts on the seafloor of the world’s ocean basins (>20,000 at least 1 km high; [1]). Most of them are not directly associated with age-progressive hotspot tracks and are therefore difficult to explain within the classic mantle plume model [2,3,4,5,6,7]. They could be the result of shallow tectonically driven processes, and several models have been proposed (e.g., [8,9,10,11,12,13,14]), or alternatively the result of smaller scale mantle plumes (e.g., [15,16]). To gain a better understanding of magmatism associated with enigmatic non-plume intraplate settings it is essential to provide petrogenetic constraints on the nature of mantle sources and melts in these settings. Christmas Island located in the northeast Indian Ocean (10°29′ S 105°38′ E; Figure 1) is an ideal subject for investigation as it belongs to the extensive but diffuse Christmas Island Seamount Province (CHRISP, Figure 1 and Figure S1; [10]), which shows no relationship to any mantle plume but instead shows complex, irregular age–distance relationships (Figure S1; [10]).

In addition, Christmas Island has a young (lower Pliocene) rejuvenated lava series (the upper volcanic series UVS, [10]) significantly younger than an older (upper Eocene) lava series (the lower volcanic series LVS, [10]). Rejuvenated magmatism is an enigmatic feature of intraplate volcanism in general [18,19,20,21,22,23,24] which is also difficult for a mantle plume model to explain in all cases.

In the case of the rejuvenated lava of Christmas Island, Hoernle et al. [10] proposed that they could be the result of lithospheric plate flexure as the Indian Plate is subducted at the Java Trench [25,26] and therefore has a similar origin to the newly recognized intraplate volcanism referred to as ‘petit-spot’ occurring out board of oceanic trenches at the fore-bulge of the down-going subducting oceanic plate [24,27]. Hoernle et al. [10] demonstrated that the ⁴⁰Ar/³⁰Ar ages and isotopic (Sr-Nd-Hf-Pb) compositions of dredged volcanic rocks from CHRISP were consistent with a petrogenetic model involving near-ridge volcanism and shallow recycling of delaminated continental lithosphere (related to Gondwana supercontinent break-up). One of the aims of this paper is to test whether the model of Hoernle et al. [10] is also applicable to the lava from both the Eocene (LVS) and lower Pliocene (LVS) volcanic series of Christmas Island [10], by determining the osmium isotopic (¹⁸⁷Os/¹⁸⁸Os) values on relatively unaltered (fresh) lavas. The presence of continental lithosphere should be evident in low ¹⁸⁷Os/¹⁸⁸Os and sub-chondritic γOs_i values (γOs_i is the parts per 100 difference between the sample and chondrite–0.12757 [28] calculated at the age of the sample [29]) in the erupted lava [28,30,31,32,33,34,35].

Along with osmium isotopic analyses we present whole rock and mineral geochemistry (major and trace elements, Sr-Nd-Pb isotopes, and olivine phenocryst δ18O values) of the Christmas Island lava series to provide petrogenetic constraints on the nature of mantle sources, and PTX (pressure, temperature, composition) conditions of melt generation. We also present whole rock geochemical and isotopic data for volcanic rocks from two seamounts of the Cretaceous-aged Vening-Meinesz volcanic sub-province (VMP) of CHRISP (Figure 1 and Figure S1) to the southwest of Christmas Island sampled by dredging during voyage FR9_87 of the RV Franklin. In summary, our data supports the model of Hoernle et al. [10] and provides new petrogenetic constraints on the origin of non-plume intraplate magmatism and the nature of enriched DUPAL components in the Indian Oceanic mantle. DUPAL is the name which refers to a large-scale isotope anomaly in the southern hemisphere mantle centered on latitude 30° S [36]. Details on the geology of Christmas Island and our sampling are provided in the Supplementary Discussion.

2. Methods

2.1. ⁴⁰Ar^–39Ar Radiometric Dating

We selected two relatively unaltered lava samples from the LVS and three from the UVS for radiometric dating (

Table 1. ⁴⁰Ar^–39Ar Total Fusion Ages for Christmas Island volcanic rocks.

Sample	OSU Run#	% rad. 40Ar	Measured Age (Ma)	2σ Errors	Locality
Lower Volcanic Series
70452	B3009	47.0	40.10	0.30	The Dales
70480	B3016	73.8	40.70	0.20	Dolly Beach
Upper Volcanic Series
70457	B3011	49.2	5.08	0.30	Winifried Beach
70461	B3012	41.6	4.95	0.06	Winifried Beach
70462	B3013	57.4	3.06	0.14	Winifried Beach

, Figure S2) using the ⁴⁰Ar^–39Ar total fusion method. The least-altered, well-crystallized samples were slabbed to remove surface weathering, crushed and sieved to 0.5–1.0 mm-size fraction, then ultrasonically washed in distilled water. We separated the groundmass fraction from phenocrysts by hand-picking under binocular microscope. The cleaned groundmass chips were loaded into evacuated glass vials and irradiated in a flux of fast neutrons (1 MW power for 6 hr) at the Oregon State University TRIGA reactor. We used FCT-3 biotite standard (28.04 Ma; [37]) to monitor neutron flux. Corrections for interfering reactions involving Ca and K are given in [38]. After the decay of short-lived radionuclides (~3 weeks) we measured the Ar-isotopic composition of the samples using an AEI MS–l0S single-collector mass spectrometer, with RF-induction fusion under vacuum and Ti-getter gas clean-up. We collected 10 sets of Ar-isotopic peak heights and regressed these with time to obtain initial isotopic ratios. We calculated the ages using the corrected Steiger and Jager [39] decay constant of 5.530 ± 0.097 × 10^–10/yr, as reported by [40]. Further analytical details are provided in [41]. All ⁴⁰Ar^–39Ar ages are reported at the 2 s level. Table 1 summarizes the results of our new geochronological data.

2.2. Mineral Chemistry

The mineralogy of representative lava from both the LVS and UVS were analyzed using either EDS (energy dispersive spectroscopy) or WDS (wavelength dispersive spectroscopy) microprobe techniques. The compositions of representative phenocryst and groundmass phases are presented in Table S3. For the three representative primitive lava (LVS samples 70480 and 70470 and UVS sample 70453), olivine and clinopyroxene were hand-picked under binocular microscope and individually mounted in epoxy before analysis (Table S4). EDS analyses (Table S3) were obtained using a Jeol JXA-50A microprobe at the Central Science laboratory, University of Tasmania (UTAS), Hobart (operating conditions 15 kV, 7 × 10^–10 A, calibration was on pure Cu) following the methods outlined by [42]. Internal standard “Delegate Cpx” was used to monitor beam current and analysis quality. WDS analyses of olivine and clinopyroxene (Table S4) were obtained using a Cameca SX100 electron microprobe at the Central Science laboratory, University of Tasmania, Hobart (operating conditions 15 kV and 30ηA and a beam size of 1–2 µm). Each element was calibrated against a relevant oxide standard. Counting times for Mg, Si, Al and Fe was 20 s for the peak and 10 s for the background on both sides of the peak. Counting times for Ca, Cr and Ni were 30 s for the peak and 15 s for the background on both sides of the peak. International standard USNM 111312/444 (San Carlos olivine) was used as primary standard and analyzed throughout analytical sessions. The accuracy of the electron microprobe analyses is ~2% for major elements

2.3. Whole Rock Geochemistry

The geochemistry of rock samples from the FR9_87 RV Franklin voyage (Table S1), the 1987 field season (Table S2) and from [43] were determined either at the University of Tasmania or Becquerel Laboratories Pty Ltd., Sydney, Australia using the following techniques: (1) major elements were determined by XRF (X-ray fluorescence) using an automated Phillips PW1410 spectrometer, and the method of [44]. Accuracy for major elements is generally <1% while for minor elements it is <1–6%; (2) trace element geochemistry was determined by XRF, ICP-MS (inductively coupled plasma mass spectrometry) and INAA (instrumental neutron activation analysis) analyses. XRF analyses were determined on pressed powder pills (10 grams, 32 mm) using a combination of ScMo and Au 3 kW side window X-ray tubes and a Philips PW1480 x-ray spectrometer. Analyses of international and secondary standards and detection limits are presented in Table S5. ICP-MS trace element analyses were obtained using the methods of [45,46]. ICP-MS analyses were performed on duplicate high-pressure HF-HClO₄ digestions. Sub-boiling double distilled acids and ultrapure water were used, as were clean sampler and skimmer cones, ICP torch, spray chamber, nebulizer and sample introduction tubes (including auto-sampler tubing). Prior to sample analysis the instrument was purged for at least 24 h with 5% v/v HNO₃ and 0.05% v/v HF rinse solution. Analyses of standards and detection limits are presented in Table S5. INAA analyses of REE, Th, Ta and Hf were determined by Dr H. Waldron of Becquerel Laboratories Pty Ltd. at Lucas Heights, Sydney, Australia. Detection limits, as assessed from replicate analyses of standard rocks, are as follows: Th, 0.1–0.25 ppm (depending on length of radiation and counting schedule); Ta, 0.2–0.5 ppm (again depending on length of radiation and counting schedule); Hf, 0.5 ppm; La, 0.1 ppm; Ce, 1.5 ppm; Nd, 2.5 ppm; Sm, 0.05 ppm; Eu, 0.2 ppm; Tb, 0.5 ppm; Ho, 0.5 ppm; Yb, 0.1 ppm; Lu, 0.05 ppm. Accuracy is generally better than 5% for Th, Ta and Hf and between 5–10% for the REE. The geochemistry of rock samples from the study of [10] were carried out by Acme Analytical Laboratories Ltd., Vancouver, Canada, using the following techniques:(1) major elements were determined by ICP-ES analysis. A precision of better than 2% was obtained for major elements; and (2) trace elements were determined by ICP-MS. A precision better than 10% was achieved for all elements. Analyses of standard rocks are presented in Table S5.

The measured Sr, Nd, and Pb isotope compositions (

Table 2. Sr, Nd and Pb isotopic composition of volcanic rocks from Christmas Island and dredged by the RV Franklin voyage FR9_87.

Sample	Lava Series	87Sr/86Sr	143Nd/144Nd	206Pb/204Pb	207Pb/204Pb	208Pb/204Pb	Leached
70472	LVS	0.703980	0.512806	19.151	15.675	39.334	Y
70480	LVS	0.703930	0.512724	18.915	15.637	39.071	Y
70480	LVS			18.937	15.615	39.056	N
70452	LVS	0.704090	0.512702	18.955	15.644	39.125	Y
70471	LVS	0.703770	0.512827	18.918	15.577	38.784	Y
70471	LVS			18.852	15.578	38.779	N
70457	UVS	0.705360	0.512544	18.043	15.566	38.128	Y
70453	UVS	0.705420	0.512498	17.846	15.566	38.071	Y
70461	UVS	0.705390	0.512511	17.905	15.573	38.134	Y
70462	UVS	0.705430	0.512460	17.904	15.568	38.118	Y
70488-2	VM-1763m	0.704670	0.512452	17.979	15.639	38.478	Y
70488-5	VM-1763m	0.704640	0.512470	17.960	15.625	38.427	Y

) were determined at both Massachusetts Institute of Technology and Woods Hole Oceanographic Institution following the analytical techniques described in [47,48]. Two sigma precision of the measured isotopic data is 0.0025% for Sr, 0.0020% for Nd and ± 0.05% amu⁻¹ for Pb [49]. The following international standards were used: BCR-1 for neodymium; Eimer and Amend SrCO₃ for strontium and NBS-981 for lead. The isotope data on our new samples were determined solely on leached powders, excepting samples 70480 and 70471, for which both leached and unleached powders were analyzed for Pb isotopes.

2.4. Osmium and Oxygen Isotopes

Osmium isotopes were determined on representative samples from both the LVS and UVS of Christmas Island (

Table 3. Os, Re and O isotopes of Christmas Island volcanic rocks.

Sample No.	Lava Series	Age (Ma)	Os (ppb)	2σ	187Os/188Os	2σ	Re (ppb)	2σ	187Re/188Os	2σ	187Os/188Osi	γ(Osi)	δ 18O
CH7B	UVS	4.4	0.0327	0.0001	0.145560	0.000136	0.0809	0.0012	11.94	0.01	0.144684	13.44	5.30
CH7B	UVS	4.4	0.0178	0.0001	0.145236	0.000085	0.0806	0.0012	21.86	0.01	0.143633	12.62
CH7A	UVS	4.4	0.0052	0.0002	0.159383	0.000572	0.0537	0.0008	50.19	0.18	0.155703	22.08	5.28
CH3	UVS	4.5	0.0278	0.0001	0.169787	0.000100	0.1424	0.0021	24.78	0.02	0.167921	31.66	5.40
CH4	UVS	4.4	0.0150	0.0001	0.162934	0.000213	0.0984	0.0015	31.77	0.04	0.160632	25.94	5.41
CH1B	UVS	4.4											5.40
CH1A	UVS	4.3											5.47
CH9	LVS	37.0	0.0247	0.0001	0.133402	0.000060	0.0864	0.0013	16.88	0.01	0.123004	−3.39	5.31
CH11	LVS	42.6	0.0820	0.0002	0.145955	0.000095	0.2629	0.004	15.49	0.01	0.134960	6.03	5.45
CH13	LVS	43.6	0.0520	0.0001	0.169542	0.000216	0.2948	0.0044	27.44	0.04	0.149601	17.54	5.28
CH12	LVS	43.0	0.0630	0.0002	0.152965	0.000106	0.1183	0.0018	8.93	0.01	0.146563	15.15	5.58

). Samples that were selected did not contain any xenoliths, clumps of olivine or obviously resorbed olivine that may have suggested xenolithic material. Olivine was relatively small and euhedral to subhedral for all samples for which Os was analyzed. Osmium isotopes were determined using the methods outlined in the Supplementary Discussion. Oxygen isotopes were also determined using the methods outlined in [50] on olivine phenocryst separates from the same samples by laser fluorination -MAT253 system at the University of Oregon (Table 3) and normalized to San Carlos olivine standard at 5.25‰ (analytical error 0.07‰).

3. Results

3.1. Radiometric Ages

Our new radiometric ages for Christmas Island are consistent with the previous work [10]. The dated LVS samples are of Eocene age and range from 37.0–43.6 Ma (this study; n = 6; [10]; n = 3; [51]). The dated UVS are of Pliocene age and range from 3.06 ± 0.28 to 4.95 ± 0.12 to 5.08 ± 0.60 Ma (all errors are 2 sigma; this study), 4.31 ± 0.14 to 4.52 ± 0.18 Ma (n = 4; [10]) and 4.32 ± 0.17 [51].

3.2. Petrography and Mineral Chemistry

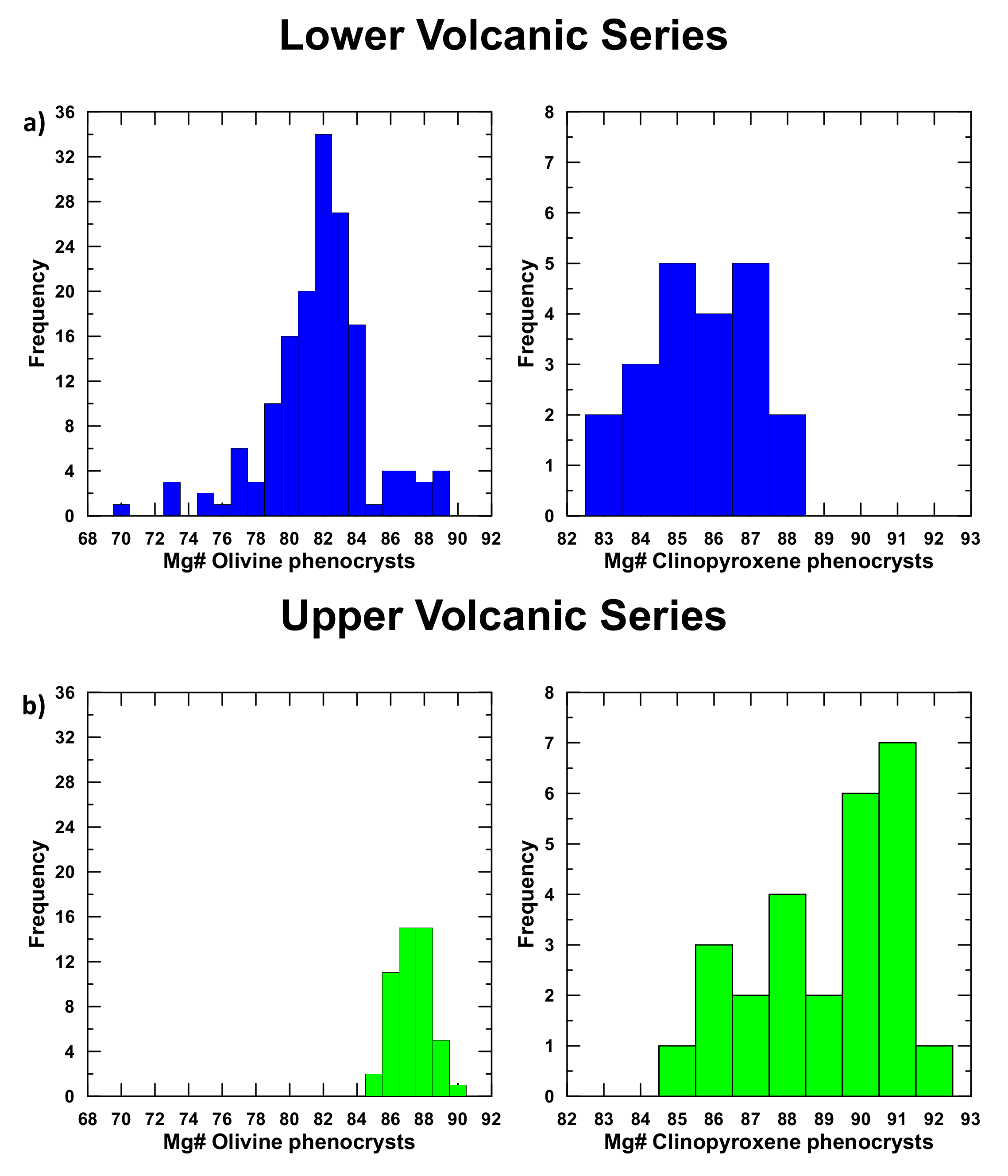

The rocks of the LVS consists of dykes, lava and hyaloclastite breccia. Petrographically they include olivine + clinopyroxene ± plagioclase—phyric basalts, basanites, mugearites, and minor trachytes (Table S5). Smith [52] provides detailed petrographic descriptions of LVS rocks. The mafic volcanics contain euhedral phenocrysts and microphenocrysts of olivine (EDS, Mg# 75.4–89.2; WDS, Mg# 70.3–89.5; Tables S3 and S4, Figure 2 and Figure 3), clinopyroxene (augite; EDS, Mg# 76.8–85.5; WDS Mg# 80.3–85.9, Tables S3 and S4, Figure 2) and plagioclase (EDS, An 55–70). The groundmass consists of plagioclase (EDS, An 8–66) and augite microlites (EDS, Mg# 67–79) which form an intersertal texture with altered glass, ilmenite and titanomagnetite. The olivine + clinopyroxene-phyric basalts also contain groundmass olivine. More evolved volcanic compositions contain microphenocrysts of ilmenite and apatite. Some of the olivine + clinopyroxene-phyric basalts of the LVS are distinctive in containing abundant xenolithic material (e.g., samples 70472, 70469) including ultramafic inclusions (~10–50 mm in size) and xenocrysts apparently derived from disrupted xenolithic material. The ultramafic inclusions are of both cumulate (websterite and wehrlite) and mantle (lherzolite and harzburgite) origin. Cumulates contain olivine (Fo78–87), augite (Mg# 80–85), orthopyroxene (Mg#83–87), Cr-spinel (Cr# 50) and titanomagnetite. The mantle-derived material consists of olivine (Fo91–92), clinopyroxene (endiopside, Mg# 93), orthopyroxene (Mg# 91) and Al-spinel (Falloon unpublished data). The Ni and CaO abundances of the olivine phenocrysts (Figure 3) are typical for OIB plume-related lava [53].

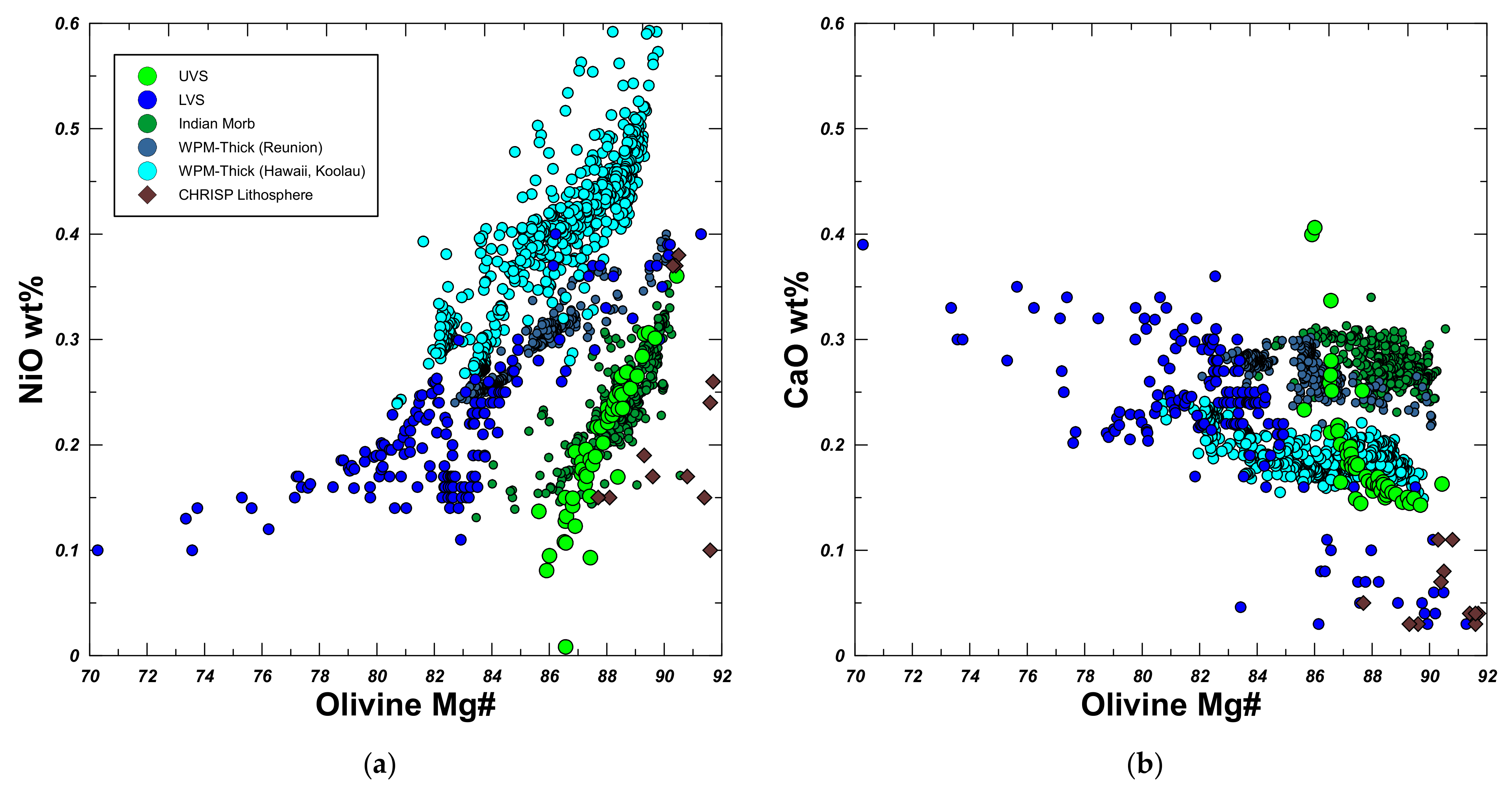

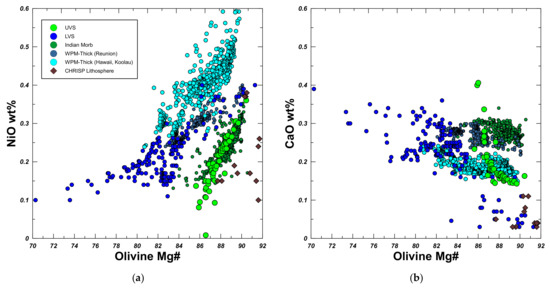

The rocks of the UVS contain euhedral phenocrysts and microphenocrysts of olivine (EDS, Mg# 85.0–89.5; WDS, 85.6–90.4, Tables S3 and S4, Figure 2 and Figure 3) and clinopyroxene (diopside; EDS Mg# 73–86; WDS Mg# 71–86, Tables S3 and S4, Figure 2), set in a groundmass consisting of turbid glass with diopside microlites (Mg# 67–84) and titanomagnetite. Cr-spinel occurs both as inclusions in olivine phenocrysts and as microphenocrysts (Cr# 61–64). Petrographically these rocks are limburgites. The Ni abundances of the olivine phenocrysts (Figure 3) are typical of MORB-related lava [53].

Altered volcanic rocks from “1341 m” and “1763 m” seamounts to the southwest of Christmas Island (Figure 1 and Figure S6, Table S1) have phenocryst assemblages like rocks of the LVS of Christmas Island. The rocks contain pseudomorphs after olivine phenocrysts, now completely replaced by secondary minerals, together with part-resorbed plagioclase, and clinopyroxene phenocrysts set in an altered cryptocrystalline groundmass with plagioclase microlites.

3.3. Whole-Rock Geochemistry

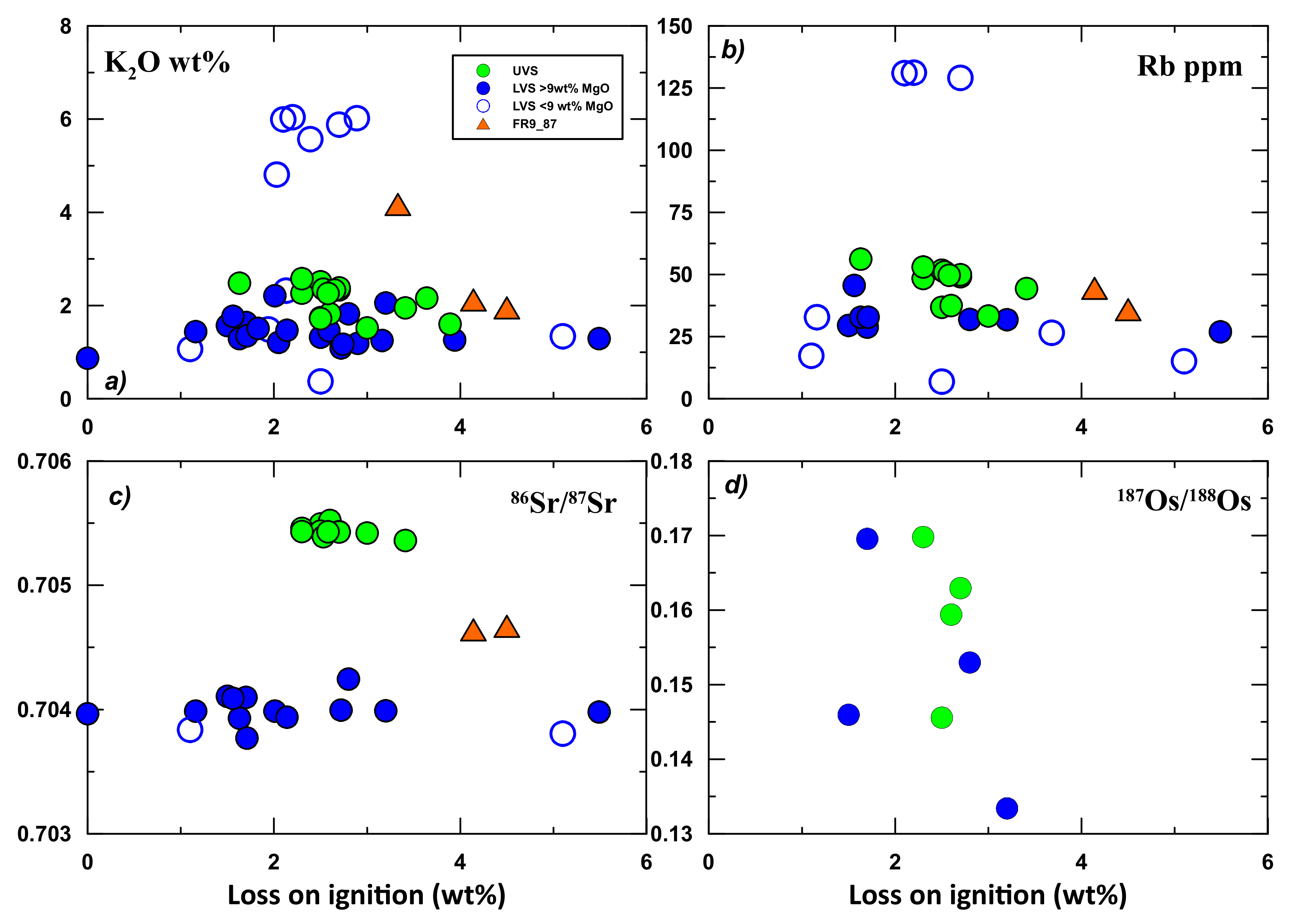

Loss on ignition (LOI) values vary significantly for both the LVS and UVS (Figure 4), consistent with petrographic evidence for alteration. Out of 33 LVS samples, six have elevated LOI of 3.0–5.5 wt.%. Out of 16 UVS samples, four have LOI between 3.0–3.9 wt.%. However, this alteration has not significantly changed the primary geochemical characteristics of the lavas. There are no correlations between LOI with age of sample or any geochemical element or index (Figure 4). Furthermore, mobile incompatible oxides/elements such as K₂O correlate positively with immobile incompatible elements excluding submarine samples for the older LVS series, e.g., TiO₂ (r² = 0.90, excluding one outlier), Zr (r² = 0.95, combining XRF and ICP-MS data) and Nb (r² = 0.92, XRF + ICP-MS data), La (r² = 0.94, ICP-MS data only), Th (r² = 0.95, ICP-MS data), Ta (r² = 0.90, ICP-MS data) and Hf (r² = 0.96, ICP-MS data). Also, mobile oxides/elements correlate well with each other, e.g., K₂O vs. Na₂O (r² = 0.79), U (r² = 0.90, ICP-MS data), Rb (r² = 0.97, XRF + ICP-MS data). Thus, we are confident in using the geochemistry of the lava for rock classification as well as in comparing the major and trace-element data with the lava compositions from other localities. In Figure S7 we demonstrate excellent correlations for trace element abundances determined by different (XRF, ICP-MS and INAA) techniques. We are therefore confident that the trace element abundances reported in this study can be used to develop potential petrogenetic models for Christmas Island magma genesis.

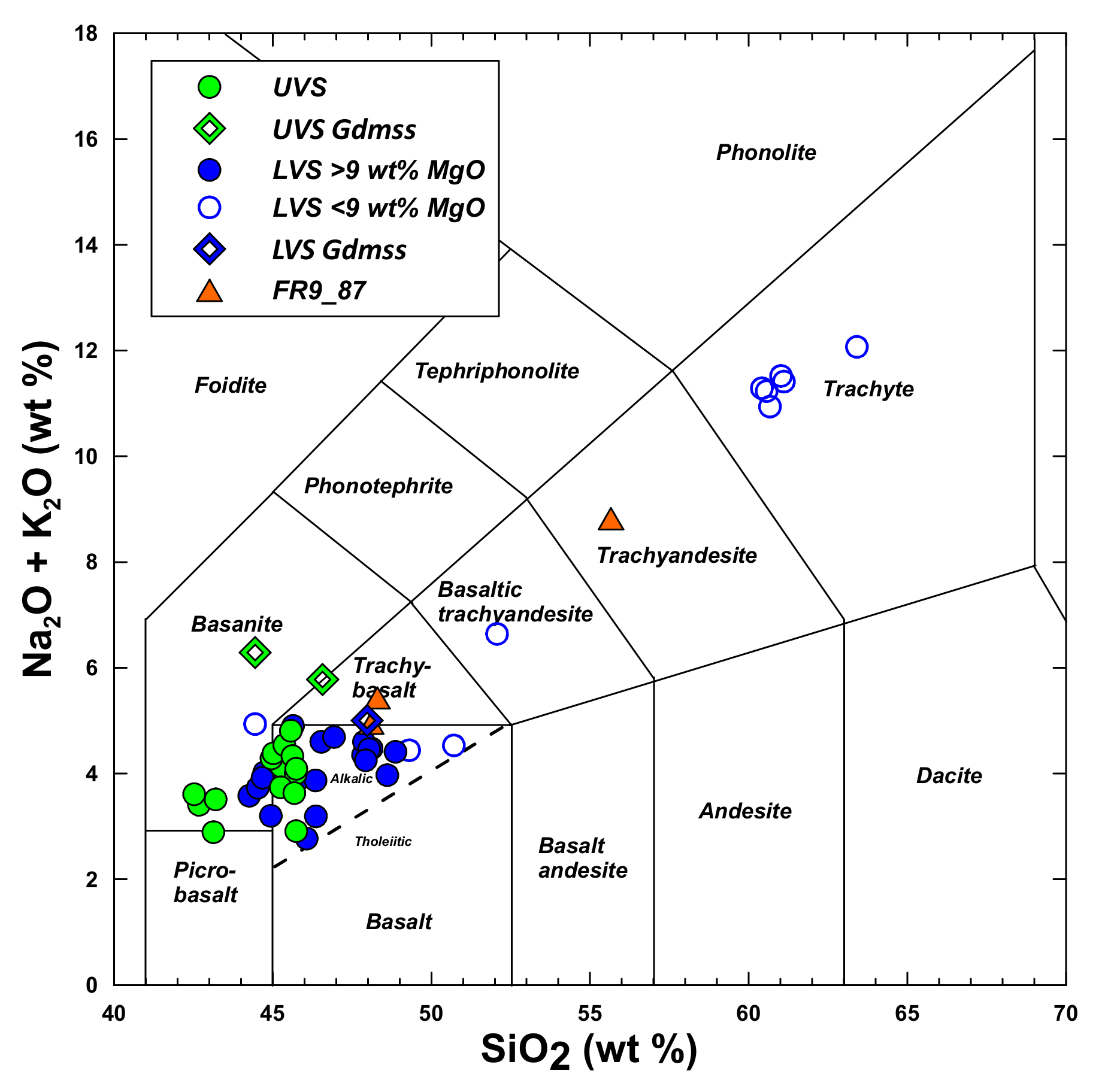

In the TAS (total-alkalis vs. silica) classification plot (Figure 5; [54]) whole rock (Table S5) and scans of unaltered glassy groundmass (Table S3) of the Christmas Island series lava are clearly distinct. The LVS forms a sodic (Na₂O/K₂O~>2) alkaline series (Mg# 71–10) whereas the UVS forms a primitive slightly potassic (Na₂O/K₂O~<0.9) alkaline series (Mg# 72–63). Both series appear to form coherent liquid lines of descent based on the variation of compatible to incompatible trace elements (e.g., Ni vs. Zr; Figure 6) suggesting a limited range in parental magma compositions for each lava series.

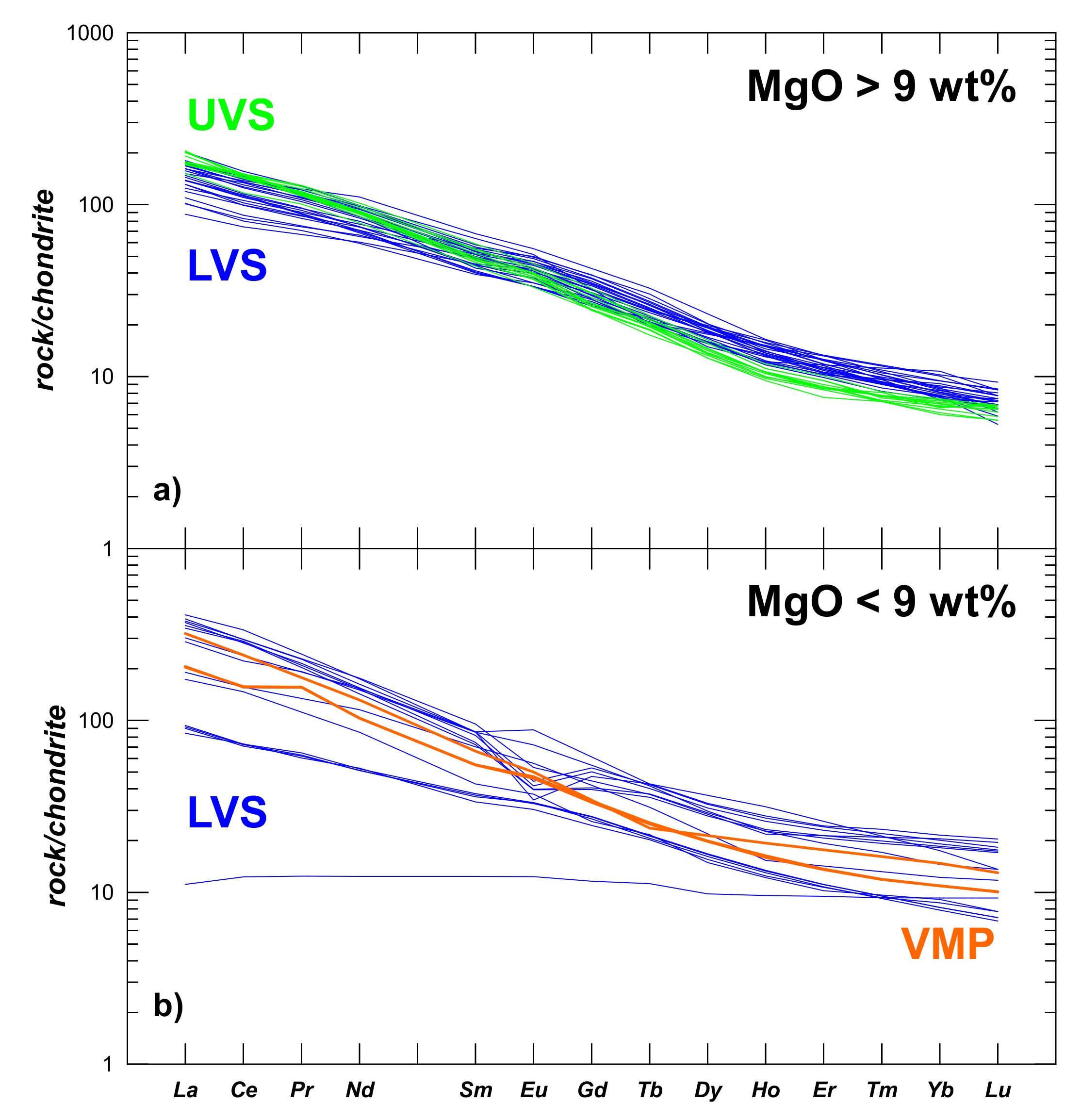

The more primitive rocks from both lava series show a restricted range in REE (Figure 7a) and the two series can be clearly distinguished—with the UVS being more enriched in LREE and have relatively higher (La/Yb)_N values compared to the LVS (22–29 vs. 11–20). This results in crossing REE patterns (Figure 7a), which can be explained by differences in petrogenetic conditions and mantle sources for the two volcanic series (see discussion in Section 4 below). In contrast, rocks with <9 wt% MgO have much more variable patterns and range in abundances (Figure 7b)—this could be due to differences in parental magmas, crystal fractionation and potentially assimilation of depleted mantle lithosphere or crustal components during magma evolution. As we wish to explore the nature of primitive magmatic components in order to constrain the petrogenesis of the two volcanic series on Christmas Island, we restrict our discussion to rocks with MgO values >9 wt% MgO.

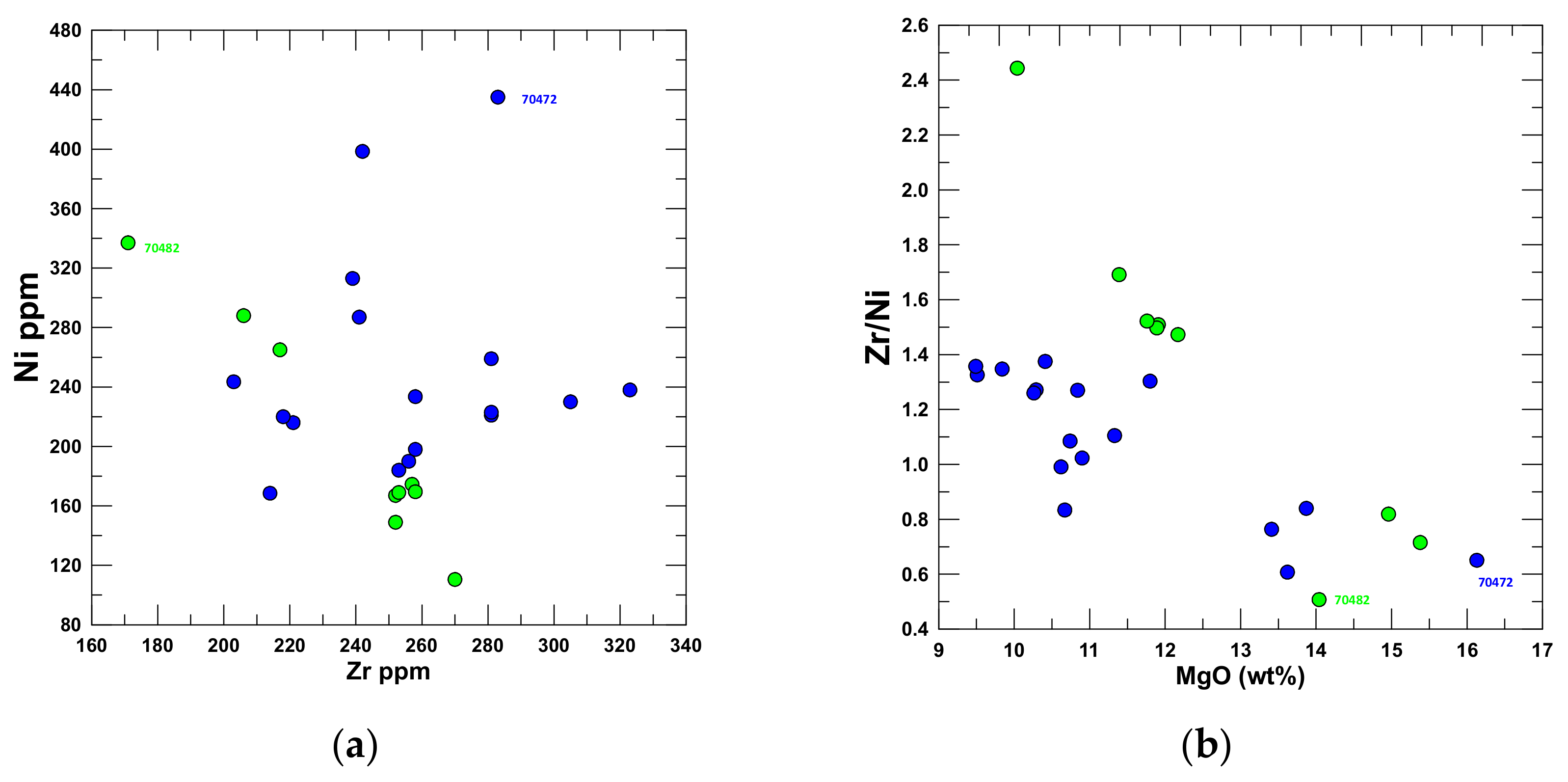

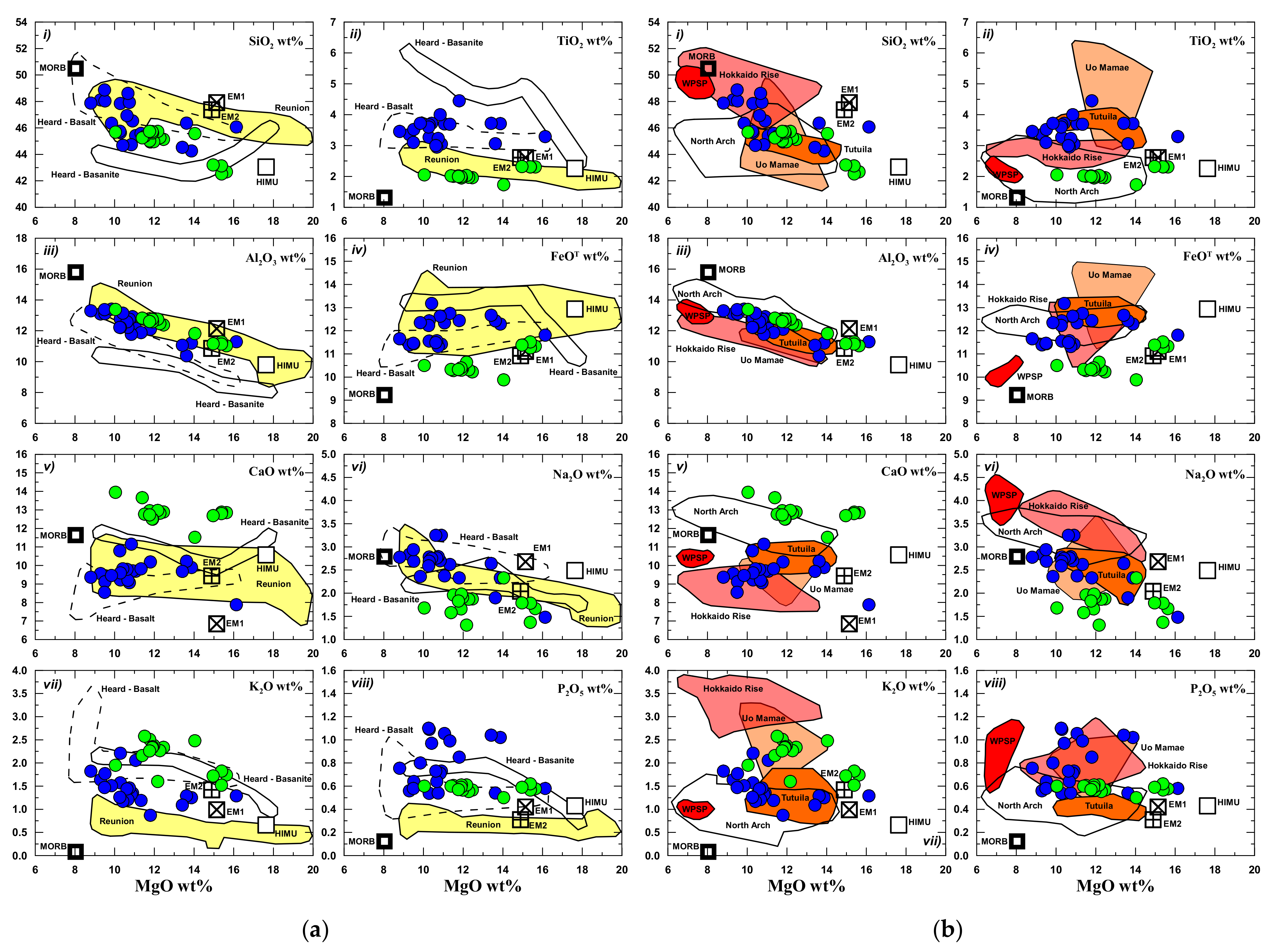

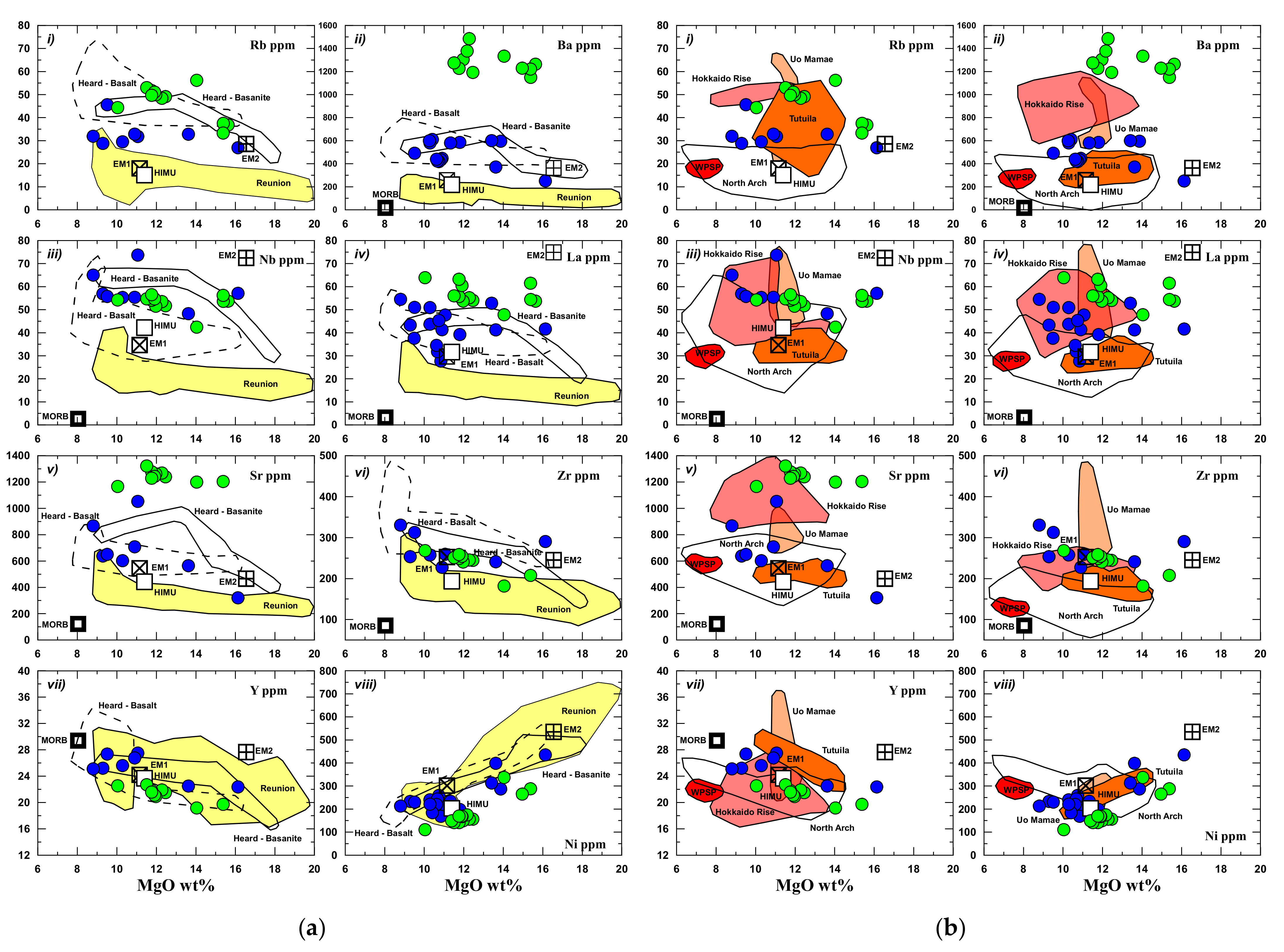

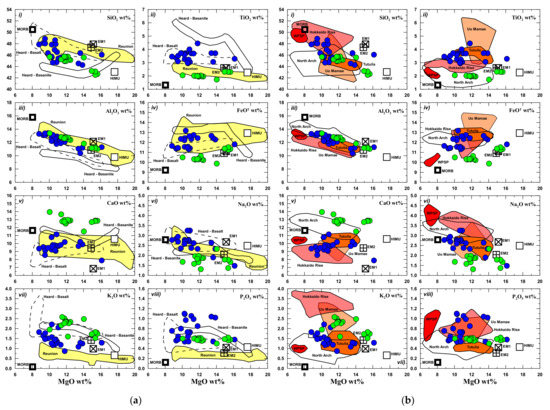

In Figure 8 and Figure 9, the major and trace element abundances of the Christmas Island lava series are plotted against their MgO contents. The two suites can be clearly distinguished on nearly all of the plots, in particular the UVS compared to the LVS have, in general, lower TiO₂, FeO^T, Na₂O, Nb, Y, Ni and higher CaO, K₂O, Rb, Ba, La, Sr abundances (Figure 8 and Figure 9). The primitive mantle normalised abundance patterns (NAPs) of the Christmas Island volcanic series are presented in Figure 10. The NAPs of the UVS are all very similar (Figure 10a)—indicating a limited range of parental compositions. In particular, the NAPs for the UVS all show prominent enrichment anomalies in Ba and Pb. In contrast to the UVS, the NAPs of LVS show more variability (Figure 10b), suggesting a range of parental magmas, they all in general show the same overall relative enrichment in Nb relative to U and K and a depletion in Pb relative to Ce.

The dredged volcanic rocks from two seamounts of the WMP (FR9_87; Table S5) all have high LOI, reflecting seafloor alteration. However, despite this alteration, they display a high degree of geochemical coherence (Figure 4 and Figure 7). In terms of major element geochemistry, the dredged volcanics have relatively low MgO abundances (~<4.5 wt%) and are most similar to the evolved lava of the Christmas Island LVS, which is consistent with their petrographic affinities.

3.4. Sr-Nd-Pb Isotopic Geochemistry

The new isotopic data presented here (Table 2) is completely consistent with the isotopic values obtained previously by [10,43]. The excellent coherence of leached and unleached samples on the various isotope plots (e.g., Figure 11) suggests that there is no significant alteration component which is affecting the isotope data. The new isotope data confirm that the LVS (n = 21, new and published data) and UVS (n = 11, new and published data) have distinct ⁸⁷Sr/⁸⁶Sr, ¹⁴³Nd/¹⁴⁴Nd, ²⁰⁶Pb/²⁰⁴Pb, ²⁰⁷Pb/²⁰⁴Pb and ²⁰⁸Pb/²⁰⁴Pb isotope ratios, in contrast [69] who obtained a similar isotopic composition for their single Pliocene (UVS) sample to the LVS, although the LVS compositions match those of the new and data published elsewhere [10,43].

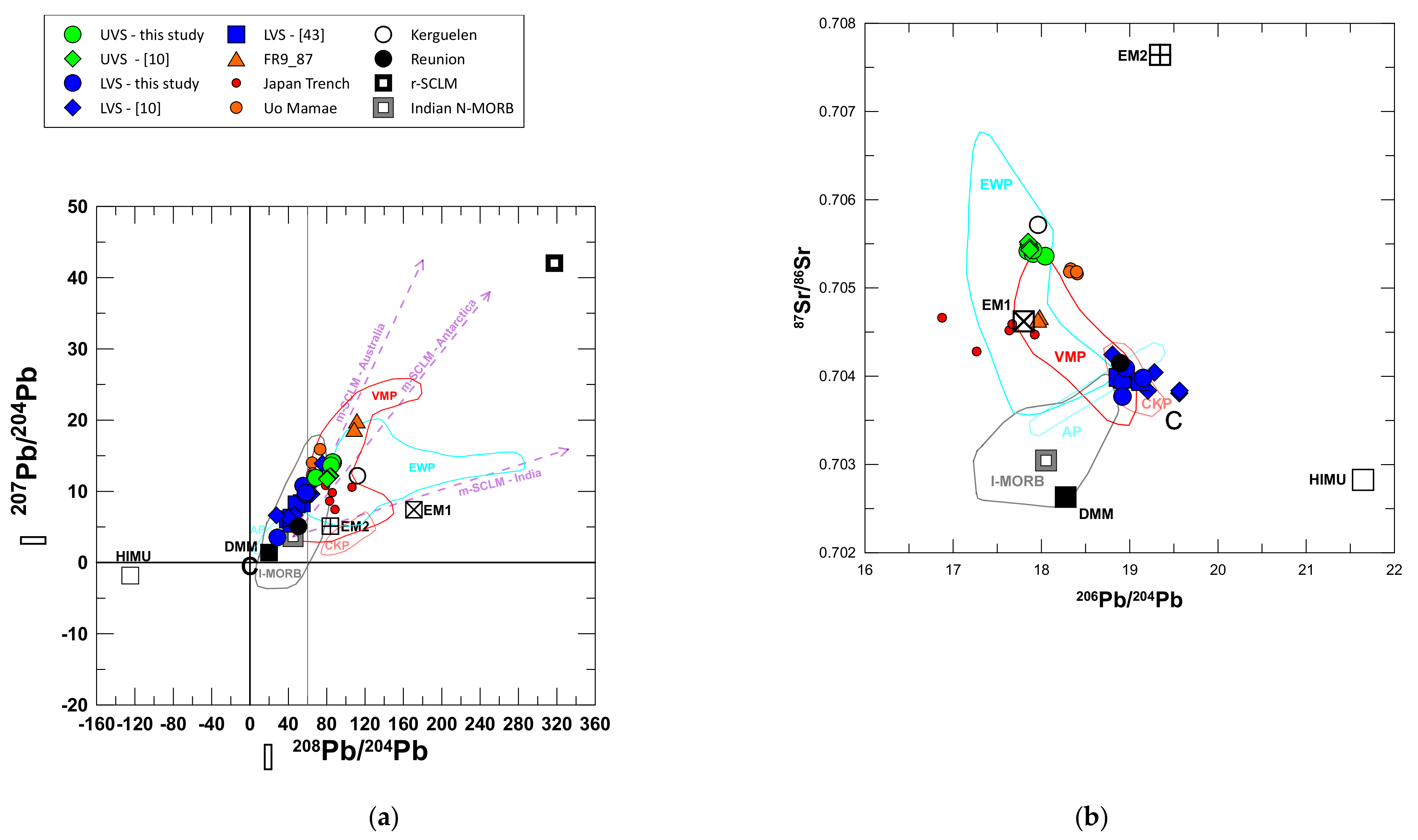

The ∆²⁰⁷Pb/²⁰⁴Pb (∆7/4 Pb) and ∆²⁰⁸Pb/²⁰⁴Pb (∆8/4 Pb) values of the seamount lava dredged during FR9_87 are isotopically distinct from the Christmas Island lava series and plot (Figure 11a) within the field defined by seamounts of the VMP [10]. The Christmas Island lava series almost encompass the entire range of ⁸⁷Sr/⁸⁶Sr and ²⁰⁶Pb/²⁰⁴Pb values (Figure 11b) of the VMP. On all isotope correlation diagrams the LVS could potentially serve as the geochemical end member with FOZO (focus zone)-like composition (radiogenic Pb) for the VMP of CHRISP. The UVS lava however have lower ²⁰⁷Pb/²⁰⁴Pb and higher ¹⁷⁶Hf/¹⁷⁷Hf isotope ratios to serve as the enriched end member with low ²⁰⁶Pb/²⁰⁴Pb isotope ratios (Figure S8; [10]).

3.5. Osmium Isotopes

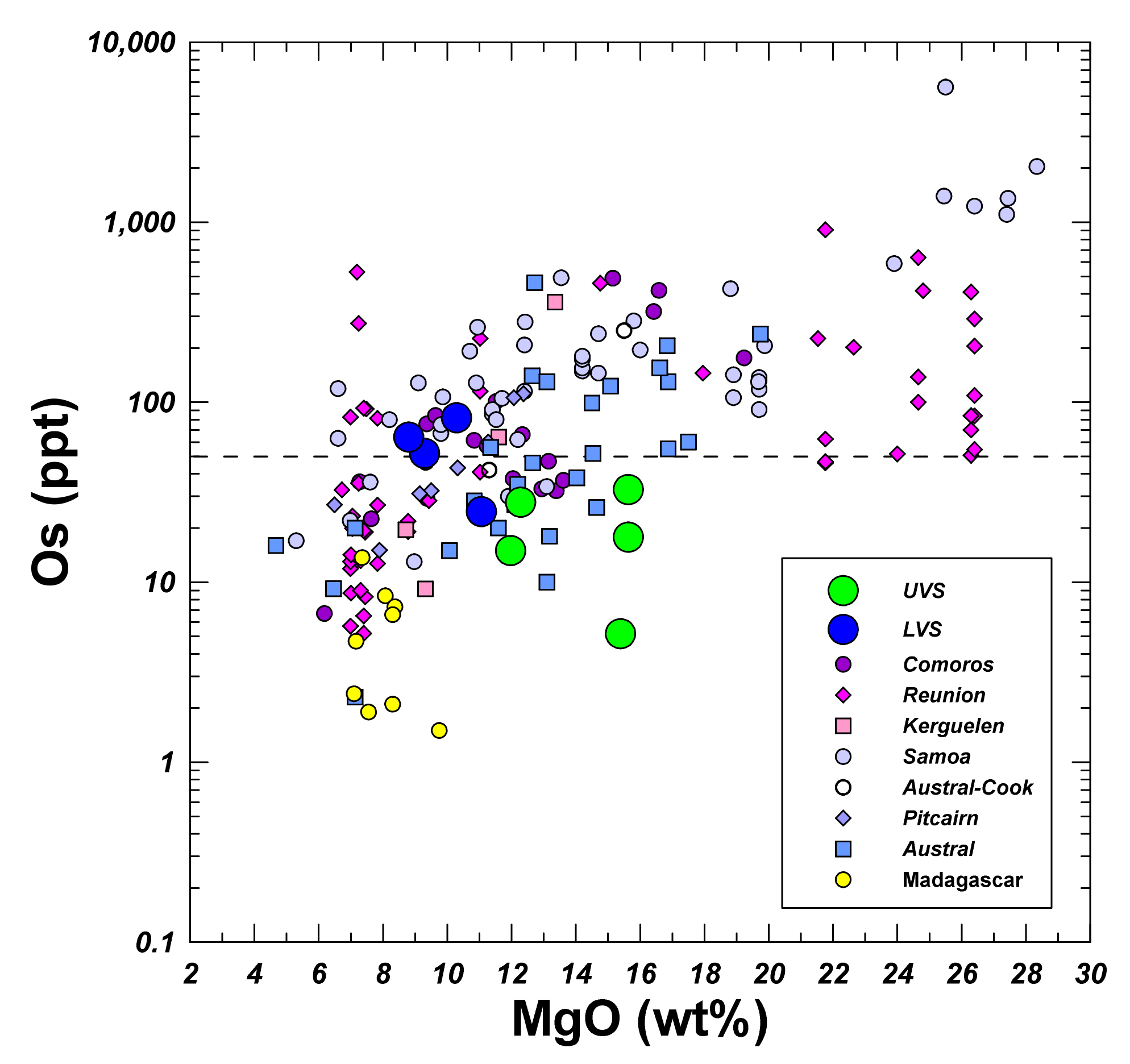

In general, the LVS has slightly higher Os abundances (range ~25–64 ppt, Table 3) compared to UVS (range ~15–33 ppt, Table 3, Figure 12). Although the Os abundances overlap, they can clearly be distinguished when plotted against MgO wt% (Figure 12). Both lava series have similar Os ppt abundances to a range of oceanic and continental intraplate magmatic suites (Figure 12). However, the UVS Os abundances all fall below the recommended value of 50 ppt for uncontaminated lava from the Canary and Madeira Islands [79,80].

The LVS lava have overall lower ¹⁸⁷Os/¹⁸⁸Os_i(initial) isotopic values (0.123–0.150; γOs_i = –3.4 to 17.5; Table 3) than the UVS lava (0.144–0.167; γOs_i = 12.6 to 31.7; Table 3). In Figure 13 ¹⁸⁷Os/¹⁸⁸Os isotopic values are plotted against Os abundances (ppt) at two different scales. In Figure 13a, the Christmas Island lava series plot in the bottom left corner—where we expect to see uncontaminated mantle derived lava (¹⁸⁷Os/¹⁸⁸Os values of ≤ 0.15; [90]). In Figure 13b the data falling inside the shaded rectangle in Figure 13a is shown to illustrate in more detail the relationship of the Christmas Island lava series to potential crustal and lithospheric contamination. As discussed by [91] a significant difficulty in the interpretation of Os isotopic data is the potential problem of (1) crustal contamination or alteration by seawater, especially in evolved magmas with relatively lower Os abundances which can produce anomalously high Os isotopic values at low Os ppt and (2) contamination by the lithospheric mantle either via melt-rock reaction or the incorporation of xenolithic material (especially olivine) resulting in very high Os abundances and low (subchondritic) Os isotopic values [92]. The LVS sample CH9 therefore is of interest as it has initial subchondritic Os isotopic values at relatively low Os abundances (Table 3).

One potential solution to this problem is to apply a filter, for example [79] recommend that only Os isotopic values for lava with greater than ~50 ppt should be used to define uncontaminated magmatic values. Applying such a filter to the Christmas Island lava series would eliminate the majority of the data set (Figure 12). Although suites with low Os and high ¹⁸⁷Os/¹⁸⁸Os values are clearly related to crustal contamination [93], applying a filter would also eliminate a significant number of data sets at low Os ppt which have been demonstrated to not have suffered crustal contamination or seawater alteration [74,80,83,94]. An alternative to applying a filter is to look for correlations between Os isotopic values and other geochemical indicators of crustal contamination. In Figure 4d, Figures S9 and S10 there are no significant correlations between ¹⁸⁷Os/¹⁸⁸Os values and LOI (Figure 4d), Re abundances (Figure S9a), Re/Os values (Figure S9b), Nb/U values (Figure S10a) and Ce/Pb values (Figure S10b). Therefore, we are confident that the Os isotopic data presented in this paper are primary magmatic values and are not the result of either seawater alteration, crustal contamination or lithospheric interaction. We also note that thus far no crustal contamination process has been recognized that can produce subchondritic Os isotope ratios, as observed in LVS sample CH9.

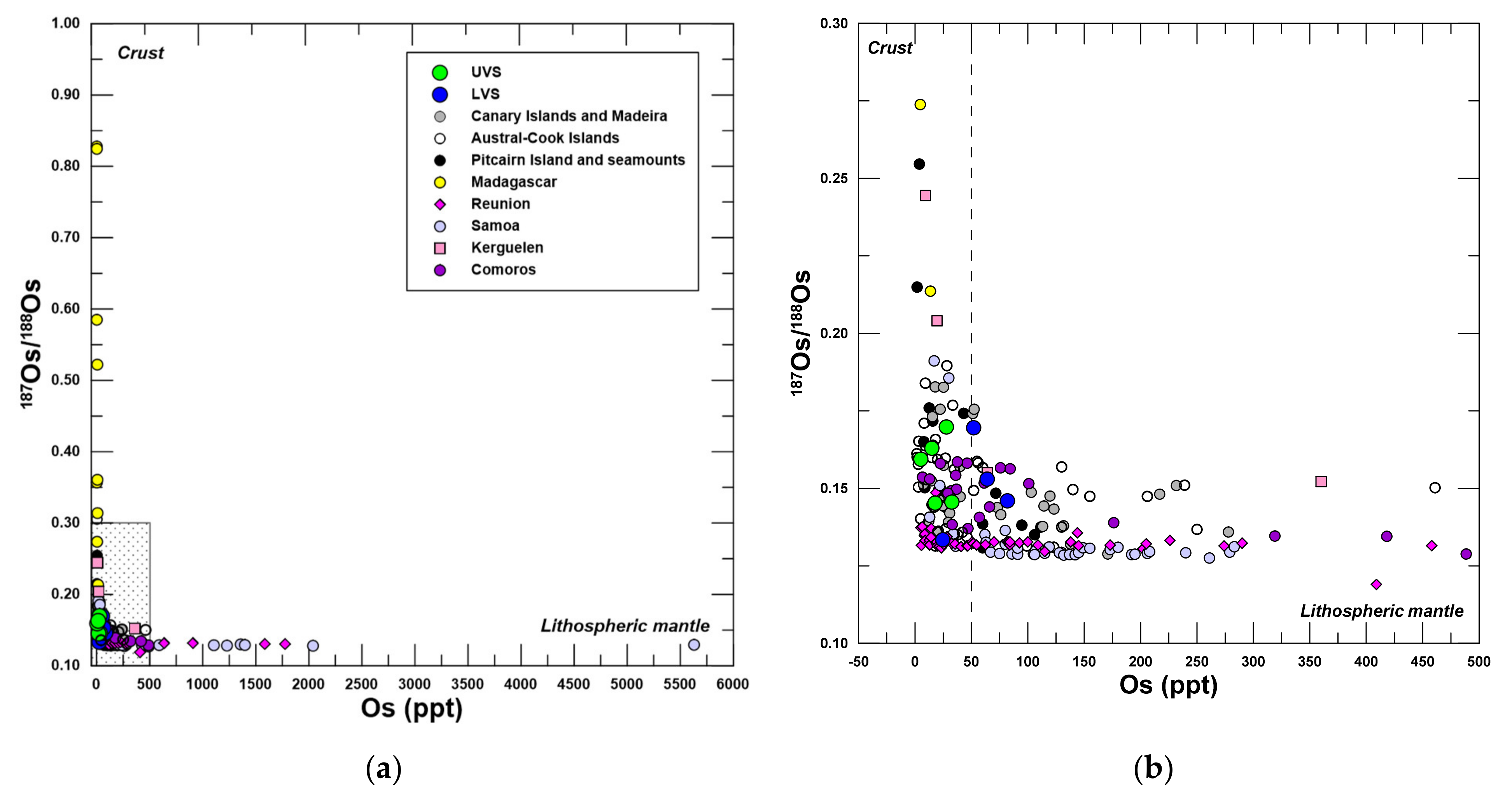

Figure 13. (a) ¹⁸⁷Os/¹⁸⁸Os versus Os (ppt) for the Christmas Island lava series compared to other intraplate lava suites, shaded rectangle is the area shown in (b). Symbols and data sources as for the legend to Figure 12 with the additional data and suites (see legend in (a)) as follows: Canary Islands and Madeira [79]; Pitcairn [91]; Austral-Cook [89,95]. The vertical dotted line in b) at Os 50 ppt is the proposed cut-off filter of [79] to eliminate crustally contaminated lavas. Typical lithospheric mantle ¹⁸⁷Os/¹⁸⁸Os values vary between 0.105–0.135 and Os (ppt) values vary from 500–5000 [35].

Figure 13. (a) ¹⁸⁷Os/¹⁸⁸Os versus Os (ppt) for the Christmas Island lava series compared to other intraplate lava suites, shaded rectangle is the area shown in (b). Symbols and data sources as for the legend to Figure 12 with the additional data and suites (see legend in (a)) as follows: Canary Islands and Madeira [79]; Pitcairn [91]; Austral-Cook [89,95]. The vertical dotted line in b) at Os 50 ppt is the proposed cut-off filter of [79] to eliminate crustally contaminated lavas. Typical lithospheric mantle ¹⁸⁷Os/¹⁸⁸Os values vary between 0.105–0.135 and Os (ppt) values vary from 500–5000 [35].

3.6. Olivine Phenocryst Oxygen Isotopes

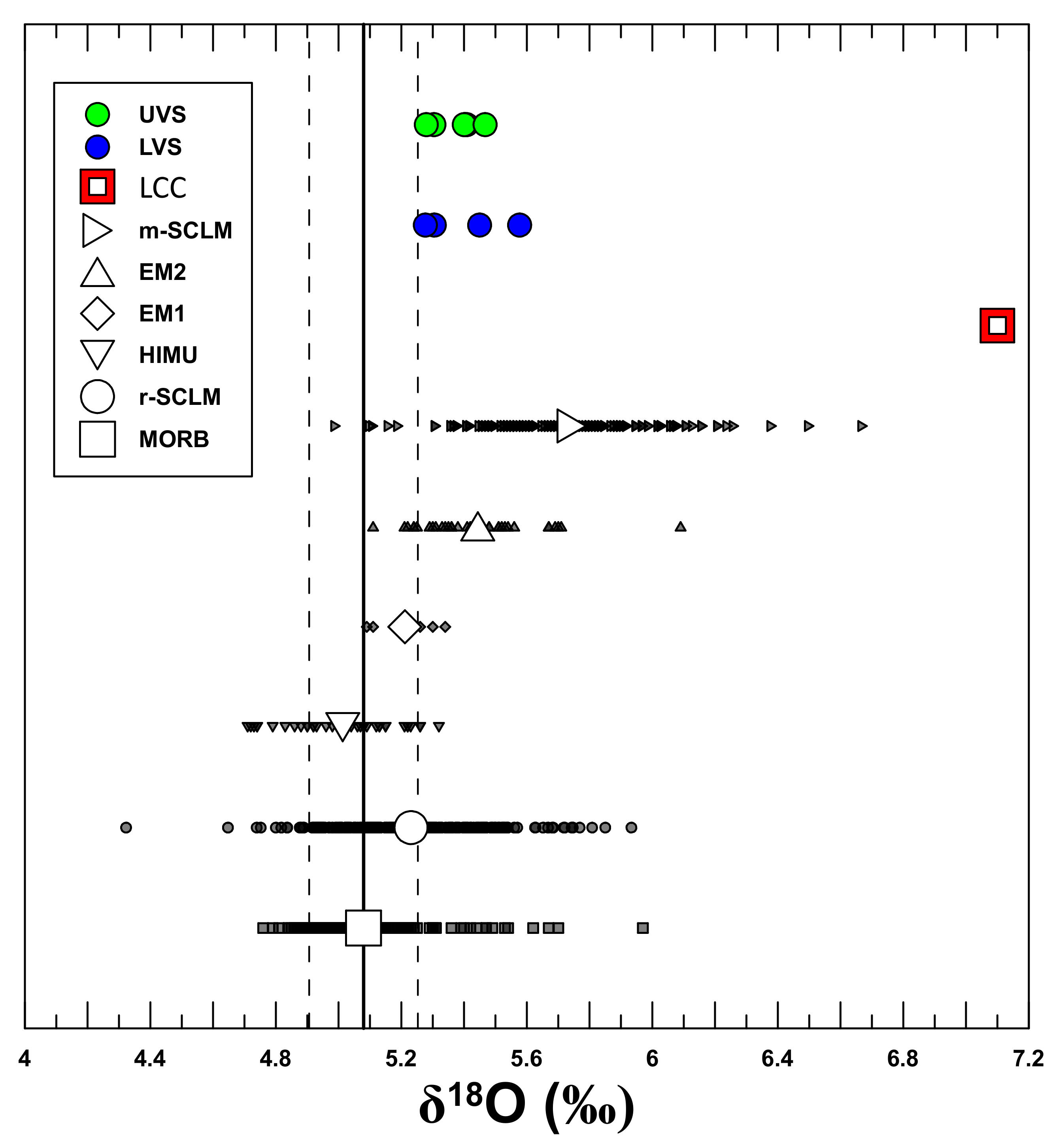

Oxygen isotopes are also a very sensitive indicator of crustal contamination and post-magmatic fluid alteration [50,96,97]. The measured δ¹⁸O_ol(olivine) values of olivine phenocrysts from both the LVS and UVS are almost identical (range in δ¹⁸O_ol values 5.3–5.6) and only extend to slightly higher values than found in mantle peridotites (5.2 ± 0.2; Figure 14). There is no correlation between initial Os isotope ratio and δ¹⁸O_ol as observed in other studies [98,99] and the full range of initial Os isotope ratios is present in samples with mantle type δ¹⁸O_ol. Only two samples from the older LVS have δ¹⁸O_ol above the mantle range. Therefore, the olivine δ¹⁸O_ol data from the Christmas Island lava series indicate that contamination and/or post-magmatic alteration cannot explain the range of Os isotopic values, which therefore must reflect the mantle Os isotopic composition.

4. Discussion

4.1. Are the UVS an Example of Petit-Spot Volcanism?

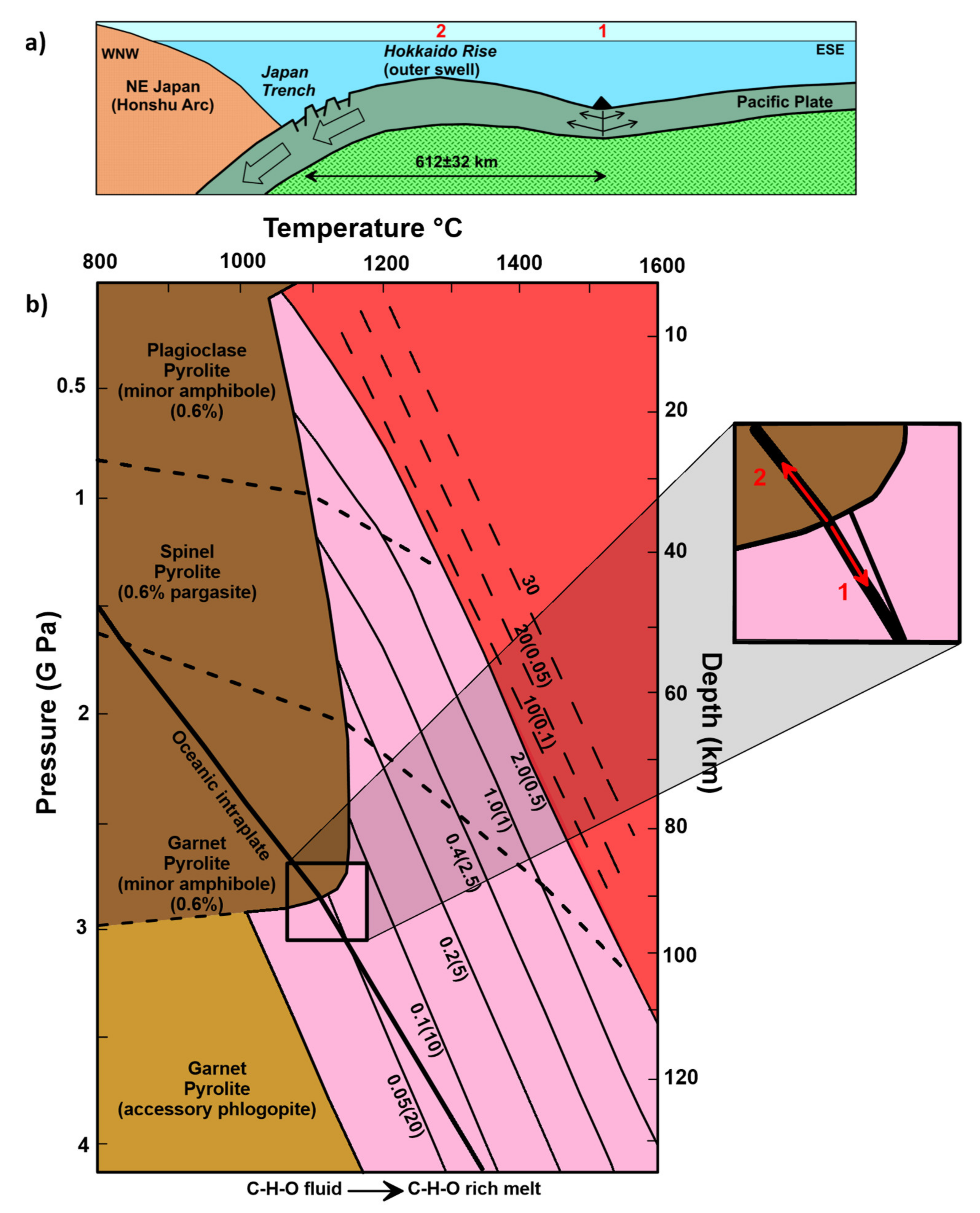

Petit-spot volcanism is a newly recognized form of intraplate volcanic phenomena occurring out board of oceanic trenches at the fore-bulge of the down-going subducting oceanic plate [24,27,27,63,113,114,115,116]. Petit-spot volcanism is believed to be the result of plate-flexure allowing the direct sampling of an underlying asthenosphere melt lying at the lithosphere-asthenosphere boundary (LAB) [117]. Thus petit-spot volcanism gives strong support for the long-standing idea that the LAB is defined and marked by the presence of a melt phase [116,118,119,120,121].

As previously stated by [10] the age of the UVS and occurrence on the outer rise of the down-going Indian plate at the Java Trench, is very similar to what has been reported from the Hokkaido Rise and Japan Trench [24,27] and thus the UVS, although erupted through an older volcanic edifice, appears to be another good example of petit-spot volcanism [10]. In Figure 8 and Figure 9 we compare the major and trace element geochemistry of the UVS with other petit-spot lava (Hokkaido Rise, [27]; Western Pacific Seamount Province, [63]) and as well with lava associated with plate flexure (Samoa—Islands of Tuitila and Uo Mamae; Hawaii—North Arch Volcanic Field, [22,59]). In Figure 8 and Figure 9 there is no uniformity in the geochemical compositions of lava associated with plate flexure, and as a result there is no exact match to the UVS of Christmas Island. For example, compared to the petit-spot lava of the Hokkaido Rise [27], the UVS has lower SiO₂, K₂O TiO₂ Na₂O; higher CaO and Ba abundances. However, in terms of NAPs the average UVS lava composition shows a striking similarity to averages for the Hokkaido Rise and Uo Mamae, especially with regards to peaks in Ba and Pb. Although the UVS has a more pronounced Ba peak compared to Uo Mamae, all three suites have pronounced Pb peaks relative to Ce which is reflected in low Ce/Pb (averages ~13–15) values compared to other suites (Figure 15a). As well the UVS has very similar (Sr-Nd-Pb) isotopic values compared to Uo Mamae and the Hokkaido Rise (Figure 11). So, in summary, despite differences in parental magma compositions reflected in major elements, the UVS are very similar to petit-spot lava and lava associated with plate flexure in terms of NAPs and isotopic composition and most likely reflect similar enriched mantle components.

An important unresolved question concerning petit-spot volcanism is whether the source of the magmas is derived directly from an ambient LAB melt phase [27] or whether petit-spot volcanism requires melt ponding at the LAB [116]. In the case of petit-spot volcanism on the Pacific Plate, outboard of the Chile Trench, Yamamoto et al. [116] suggested melt-ponding with melts derived from the nearby Juan Fernández mantle plume [116]. In Figure 16, we schematically illustrate another potential mechanism to produce melt ponding at the LAB during plate flexure. At position (1) (Figure 16a), lithospheric bending is expected to depress the lithosphere down at the pre-flexure point which might instigate brittle fracturing. As indicated by the arrow (1) (Figure 16b) the lithospheric bending is expected to cause a pressure induced breakdown of amphibole—which perhaps will cause enough melting to allow the production of petit-spot volcanism. As the oceanic plate passes over the bulge (position 2, Figure 16a), melt-freezing should occur as the mantle returns into the stability of amphibole (arrow (2), Figure 16b). This simple model can be tested if we have good constraints on the compositions of parental/primary melts for petit-spot lavas.

If petit-spot lava are derived from the LAB, then their primary melts should be in equilibrium with the mantle at temperatures (~1175 ± 50 °C; [133]) and pressures (appropriate to the age of the lithosphere, 100 Ma = 100 km ~3.0 GPa, 81 Ma = 90 km ~2.7 GPa; [134,135]) appropriate for the LAB. We therefore have used the whole rock and mineral composition of UVS sample 70453 and modelling using software Petrolog3 [136] to calculate a primary petit-spot melt (

Table 4. Model Christmas Island parental liquids and estimates of potential petrogenetic conditions at 3–3.5 GPa.

	UVS	LVS
SiO2	42.92	45.72
TiO2	2.19	2.78
Al2O3	10.57	9.41
Fe2O3	2.14	2.20
FeO	9.48	10.30
MnO	0.20	0.18
MgO	17.00	16.71
CaO	12.16	9.30
Na2O	1.30	1.72
K2O	1.44	1.17
P2O5	0.59	0.49
Mg#	0.726	0.708
H2O	2.38	1.66
CO2	2.83	2.53
Temp (0.2 GPa)	1418	1415
Oliv Eq	90.4	89.5
% Oliv	4.94	9.11
Temp (3–3.5 GPa)	1392	1551
F	0.02	0.11
Tp	1360	1415

). Calculations used an oxygen fugacity of QFM + 0.5 log units which is a suitable value for OIB magmas [137]. Further details of the mineral-melt equilibrium models used are presented in Table 4 and Table S6. Mass balance calculations (Table S6) using the analyzed groundmass composition of 70454 (Table S3) and average olivine and clinopyroxene compositions indicate that the whole rock composition of 70453 contains ~18 wt% olivine and 12 wt% clinopyroxene phenocrysts. Modelling with Petrolog3 software indicates that the whole rock composition of 70453 is representative of a parental liquid composition for the following reasons: (1) the calculated equilibrium olivine composition of the groundmass has an Mg# of 85.1 matching the rim compositions of olivine phenocrysts (Mg# ~84–86) whereas the whole rock composition has a calculated equilibrium olivine composition of Mg# 89.4 which is less than the maximum observed (Mg# 90.4). This result indicates that it is unlikely that the whole rock composition of 70453 is the result of crystal accumulation; (2) modelling of fractional crystallization using the whole rock composition of 70453 can produce a reasonable match to the groundmass composition of 70454 with proportions and amounts of crystal phases extracted almost identical to the mass balance results (Table S6). In summary, we believe the whole rock composition of 70453 represents a parental melt composition and is a suitable composition for petrogenetic calculations as presented in Table 4.

As the most magnesian olivine composition analyzed has a Mg# of 90.4 (Table S4) we use Petrolog3 to reverse olivine crystallization (~5 wt%, Table 4) to calculate a parental magma (17 wt% MgO) in equilibrium with this olivine (Table 4). This composition has a calculated anhydrous temperature at 0.2 GPa of 1418 °C, which will obviously be lower, taking into account the presence of volatiles (H₂O and CO₂).

The olivine mineral-melt model [138] oxygen fugacity model (QFM + 0.5 log units; [139]). See text for further details.

As we have not determined the volatile contents for the Christmas Island lava series, we estimated the likely number of volatiles via natural and experimental constraints on similar alkaline compositions from other intraplate oceanic settings. We have therefore used a H₂O/Ce value of 200 [140,141] to calculate a parental H₂O content of 2.38 wt% (Table 4). We calculate CO₂ contents by a CO₂/Nb value of 505 [142] resulting in an estimated CO₂ content of 2.83 wt%. The resulting estimated CO₂/H₂ O value of ~1.2 is consistent with natural OIB lava suites [143,144,145] and experimental studies of peridotite-melt equilibria [146,147,148,149,150]. Using these volatile abundances, we can apply an olivine liquidus depression for H₂O of ~55 °C/1 wt% (calculated from the experimental data of [147,149]) and for CO₂ of ~18 °C/1 wt% (calculated from the experimental data of [151]) to infer a temperature of ~1236 °C at 0.2 GPa for the UVS parental magma.

To determine the pressure of mantle melting for the calculated UVS parental magma we project the composition into the CIPW normative tetrahedron and compare it with relevant experimental data at a range of pressures (Figure 17). The projected position of the UVS parental magma (Figure 17) is consistent with it being a melt in equilibrium with the mantle at pressures >3.0 GPa, significantly deeper than pressures expected for the LAB in the Indian Ocean (~2.6 GPa; [135]). The UVS parental composition plots well away from the low-normative olivine compositions expected from the melting of amphibole bearing mantle compositions [152,153,154]. As the UVS parental magma composition plots between the anhydrous and CO₂ bearing mantle melting cotectics at 3 GPa [151,155] and the H₂O bearing mantle melting cotectic at 4 GPa [154], we infer a pressure of ~3.5 GPa for mantle equilibrium for the UVS primary melt (Figure 17). Using the K₂O content of the parental UVS magma and MORB source mantle (MORB pyrolite K₂O~0.03 wt%; [76,130]), we calculate that the UVS primary melt represents a F (weight fraction of melt) of 0.02 of a garnet lherzolite mantle composition. Using the TiO₂ content of MORB pyrolite (~0.17wt%) and the method of [151] we calculate a slightly higher melt fraction of ~0.04. To reconcile the two results the mantle source needs to be slightly more depleted with ~0.13 wt% TiO₂. The relatively high primitive mantle normalised (Dy/Yb)_N value of the parental UVS magma is 2.26 which is consistent with garnet being a residual phase in the mantle but is too high for a MORB source composition (e.g., DMM; [76]). Using the starting modal proportions of [89] for garnet lherzolite and the mineral-melt coefficients of [156], melting F 0.02 of a MORB source mantle only produces a melt with a (Dy/Yb)_N value of 2.08. To be consistent with the calculated F using K₂O abundances, the mantle source needs to be enriched in Dy relative to Yb. This enrichment we believe reflects the nature of the mantle source to the UVS (see Section 4.4 below). Using Petrolog3 modelling and the calculated liquidus depression based on the inferred volatile contents (see above), we calculate a temperature of ~1392 °C at a pressure of 3.5 GPa. Using the methods outlined in [157] this equates to a mantle potential temperature (Tp) of ~1360 °C.

Therefore, in summary, our calculated UVS primary melt is not consistent with a melt derived from the LAB but instead is consistent with an adiabatic mantle melting decompression path for normal MORB mantle (1375 ± 75 °C; [157,158,159,160,161]). Our results are consistent with the experimental study on Hokkaido Rise parental compositions [10,162], who suggest that petit-spot volcanism is the result of decompression melting of a buoyant mantle heterogeneity (Figure 17, see also Supplementary Discussion). Our results suggest that the lithospheric flexure of the oceanic plate must induce upwelling and subsequent decompression melting of randomly distributed enriched mantle heterogeneities, reflecting recycled metasomatized subcontinental lithospheric mantle possibly including small amounts of lower crust [10], within the shallow MORB asthenosphere. This explains why petit-spot volcanism is not ubiquitous along the flexural bends of subducting oceanic plates in agreement with previous studies [75,116,162].

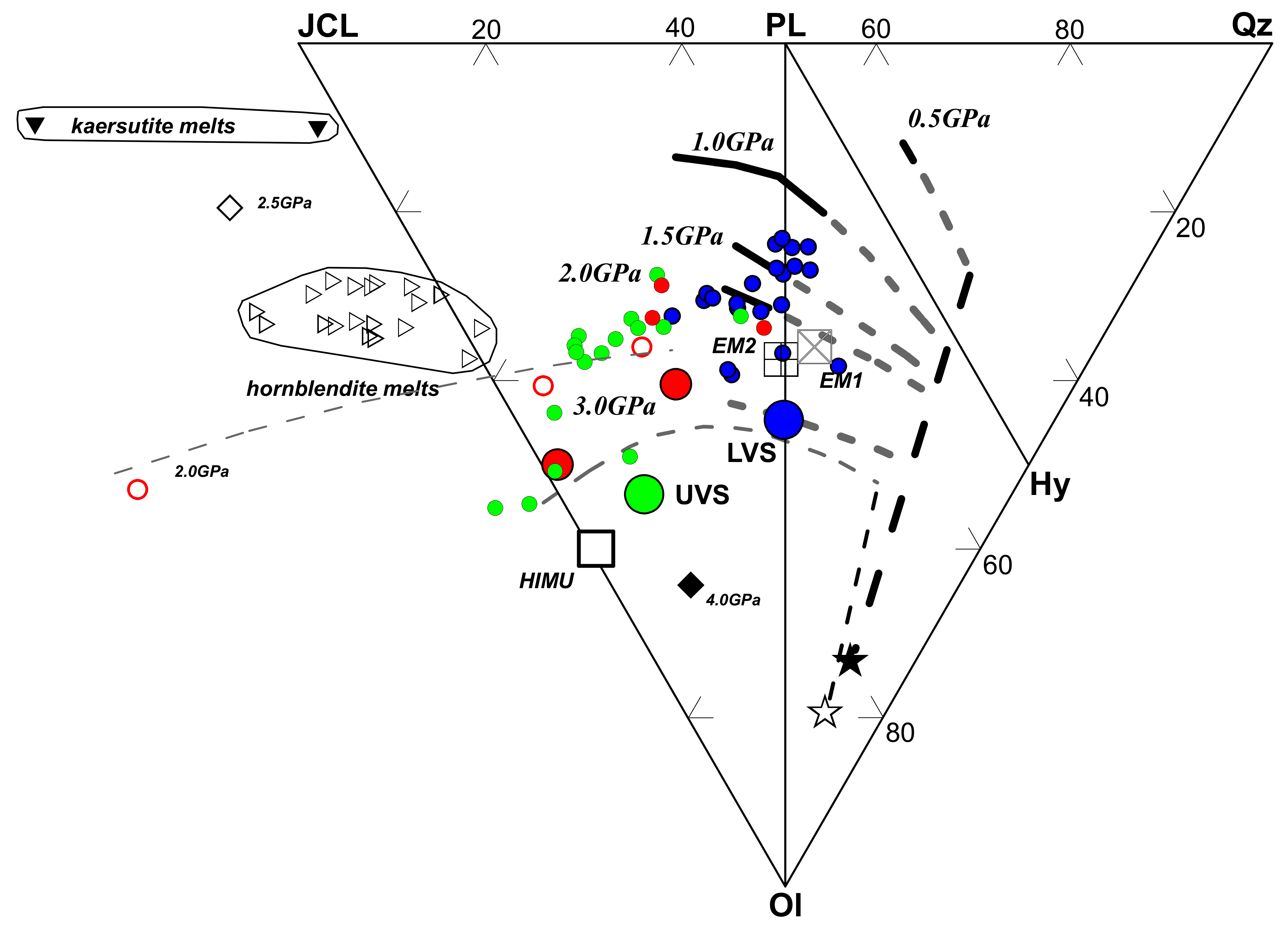

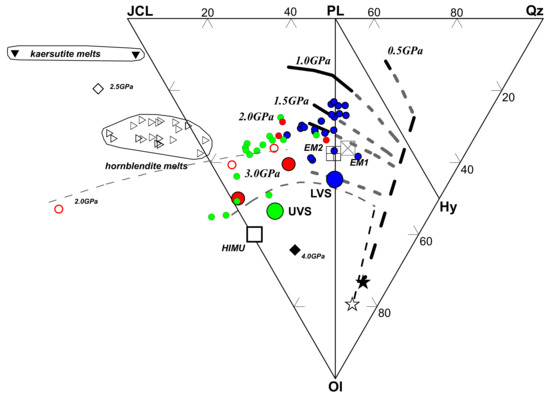

Figure 17. Calculated parental magmas for the Christmas Island lava series (Table 4, large green circle—UVS, large blue circle—LVS) and for petit-spot magmas from the Hokkaido Rise (large red circles; [162]) plotted in the projection from diopside onto the base of the CIPW molecular normative ‘basalt tetrahedron’. Normative components as follows: Ol, olivine; Qz, quartz; Hy, hypersphene; Pl, Ab + An + Or (Ab, albite; An, anorthite; Or, orthoclase); JCL, Jd + CaTs + Lc (Jd, jadeite; CaTs, Ca-Tschermaks; Lc, leucite). The position of the parental magmas is compared to experimentally determined melting cotectics for Hawaiian pyrolite (open star) from 0.5–3 GPa under nominally volatile free conditions [155] and for peridotite (PERC3; filled star) under CO₂ under-saturated conditions at 3 GPa [151]. Solid cotectic lines are melts in equilibrium with a lherzolite residue; grey dashed cotectic lines are melts in equilibrium with a harzburgite residue and black dashed cotectic lines are melts in equilibrium with a dunite residue. Other symbols and fields are as follows: small blue circles—LVS lava >9 wt% MgO; small green circles—UVS lava >9 wt% MgO; small filled red circles—petit-spot lava from the Hokkaido Rise with >9 wt% MgO [27]; HIMU, EMI, EMII are calculated parental melts for mantle-end members from [56]); small red open circles are melts in equilibrium with harzburgite from the experiments of Machida et al. [162] (see also Supplementary Discussion); open and filled diamonds are the near-solidus melts for HZ1 peridotite [163] under H₂O-saturated conditions at 2.5 and 4 GPa respectively [154]; right facing open triangles are experimentally determined melts of amphibole bearing mantle lithologies from [153]; filled upside triangles are natural glass in mantle xenoliths resulting from the melting of amphibole [152].

Figure 17. Calculated parental magmas for the Christmas Island lava series (Table 4, large green circle—UVS, large blue circle—LVS) and for petit-spot magmas from the Hokkaido Rise (large red circles; [162]) plotted in the projection from diopside onto the base of the CIPW molecular normative ‘basalt tetrahedron’. Normative components as follows: Ol, olivine; Qz, quartz; Hy, hypersphene; Pl, Ab + An + Or (Ab, albite; An, anorthite; Or, orthoclase); JCL, Jd + CaTs + Lc (Jd, jadeite; CaTs, Ca-Tschermaks; Lc, leucite). The position of the parental magmas is compared to experimentally determined melting cotectics for Hawaiian pyrolite (open star) from 0.5–3 GPa under nominally volatile free conditions [155] and for peridotite (PERC3; filled star) under CO₂ under-saturated conditions at 3 GPa [151]. Solid cotectic lines are melts in equilibrium with a lherzolite residue; grey dashed cotectic lines are melts in equilibrium with a harzburgite residue and black dashed cotectic lines are melts in equilibrium with a dunite residue. Other symbols and fields are as follows: small blue circles—LVS lava >9 wt% MgO; small green circles—UVS lava >9 wt% MgO; small filled red circles—petit-spot lava from the Hokkaido Rise with >9 wt% MgO [27]; HIMU, EMI, EMII are calculated parental melts for mantle-end members from [56]); small red open circles are melts in equilibrium with harzburgite from the experiments of Machida et al. [162] (see also Supplementary Discussion); open and filled diamonds are the near-solidus melts for HZ1 peridotite [163] under H₂O-saturated conditions at 2.5 and 4 GPa respectively [154]; right facing open triangles are experimentally determined melts of amphibole bearing mantle lithologies from [153]; filled upside triangles are natural glass in mantle xenoliths resulting from the melting of amphibole [152].

4.2. Are the LVS Plume-Related Volcanism?

Since in general, late-stage volcanism generally occurs within a few million years after the main volcanic phase at other hotspots (e.g., [18,19,20,164,165]), the long ~41 Ma volcanic hiatus compared to the age of the seamounts of the VMP is of interest. Two possibilities are that the LVS is derived from a mantle plume and is thus unrelated to CHRISP or alternatively the LVS represents a late stage or delayed expression of the shallow-level recycling of CHRISP as outlined by [10].

To help answer this question, we have calculated a parental melt composition for the LVS using the whole rock composition of sample 70480 (Table 4, Figure 17) in a similar manner to the UVS (see above). Mass balance calculations (Table S6) using the analyzed groundmass composition of 70476 (Table S3) and average olivine, clinopyroxene and plagioclase compositions indicates that the whole rock composition of 70480 contains ~19 wt% olivine, ~12 wt% clinopyroxene and ~1 wt% plagioclase phenocrysts. As was the case for 70453, modelling with Petrolog3 software indicates that the whole rock composition of 70480 is also representative of a parental liquid as: (1) the calculated equilibrium olivine composition of the groundmass has an Mg# of 79 matching the rim compositions of olivine phenocrysts (Mg# > 77), whereas the whole rock composition has a calculated equilibrium olivine composition of Mg# 87.7, which is less than the maximum observed (Mg# 89.5) and (2) modelling of fractional crystallization using the whole rock composition of 70480 can produce a very close matching to the groundmass composition of 70476 with proportions and amounts of crystal phases extracted almost identical to the mass balance results (Table S6). The calculated parental melt has ~17 wt% MgO in equilibrium with olivine Mg# 89.5, which is the composition of the most magnesian olivine phenocryst analyzed in sample 70480, which we are confident is not xenocrystal (Figure 3, Table S4). As with the UVS we use a H₂O/Ce value of 200 to calculate a H₂O content of ~1.7 wt% and a CO₂/Nb value of 505 to calculate a CO₂ content of ~2.5 wt% (Table 4). When projected into the CIPW normative tetrahedron (Figure 17), the parental composition plots at slightly lower pressures (~3 GPa) compared to the UVS parental composition and towards Hy, consistent with its higher calculated degree of partial melting of F ~0.11, based on the K₂O content of Hawaiian Pyrolite [130]. An OIB mantle source like Hawaii is appropriate for the LVS due to the similarity in olivine compositions as opposed to the MORB like olivine compositions of the UVS (Figure 3). Using the TiO₂ content of Hawaiian pyrolite (0.7wt%) and the method of [151] we calculate a significantly higher melt fraction of ~0.22. To reconcile the two results the mantle source needs to have lower TiO₂ abundances (~0.4 wt%) than Hawaiian pyrolite. As Hawaiian pyrolite is based on a Kilauea composition [130] it is more enriched in TiO₂ than other OIB [166]. The high (Dy/Yb)_N values of 2.16 for the parental LVS composition suggests garnet as a residual phase which in contrast to the UVS is inconsistent with the projected position of the LVS in the normative CIPW tetrahdron, which suggests equilibrium with a harzburgite residue (Figure 17). This inconsistency is a common problem amongst OIB magma suites [131,166,167] and in the case of the LVS we believe it is due to the nature of the prior history of the recycled components in the mantle source (see Section 4.4 below). A pressure of ~3.0 GPa for the LVS is significantly higher than expected for the LAB at 41 Ma, if the LVS was erupted on normal oceanic crust with an age of 55 Ma (~2.5 GPa, 81 km; [10,168]) and requires a mantle Tp of ~1415 °C. This Tp is within the range of 1375 ± 75 °C proposed for normal mantle and is significantly lower than temperatures proposed for thermal plumes (Tp > 1500 °C; [169]). So, in summary our petrogenetic calculations for a parental melt for the LVS strongly support the hypothesis that the LVS is the result of decompression melting of normal MORB mantle at ~41 Ma, containing dispersed enriched heterogeneities like CHRISP. The ages of the LVS also overlap the timing of collision between the Australian and Indian plates at ~40–45 Ma resulting in a significant plate network reorganization [170]. Thus, regional plate tectonic stress may well have contributed to the origin of LVS magmatism.

4.3. Are the LVS Related to Recycled Oceanic Crust?

Hoernle et al. [10] noted that the LVS has affinities to E-MORB (enriched mid ocean ridge basalt) in terms of Sr-Nd-Pb-Hf isotopes [10], suggesting recycling of young oceanic crust as a component in CHRISP. In this section we investigate whether the major and trace element geochemistry of the LVS is consistent with recycled oceanic crust or alternatively represents a heterogeneity due to pollution by major plumes in Indian Ocean, such as the Reunion (Reunion Island, 21°07′ S 55°32′ E) and Kerguelen (Heard Island, 53°05′ S 73°30′ E) plumes which could have potentially enriched the asthenospheric mantle source region of the Christmas Island lava [57,171]. In terms of major element and trace element abundances, the LVS lava compositions are very similar to lava from the currently active expression of the Kerguelen plume (Heard Island, Figure 8 and Figure 9) and have higher TiO₂ and, in general, have higher trace element abundances compared to Reunion (Figure 8 and Figure 9). However, when average NAPs are compared (Figure 15b), the LVS are clearly distinct from both the Reunion and Kerguelen plumes in their marked enrichment in HFSE (Nb, Ta) and relative depletion in LIL (Cs, Rb, K) and slight depletion in Pb relative to Ce (Figure 15b). In particular, the LVS lava have relatively high Nb/Rb, Nb/U and Ce/Pb values (2.34 ± 0.73 vs. 2.82 ± 0.36; 49.02 ± 8.20 vs. 44.05 ± 6.19; 42.1 ± 12.2 vs. 31.9 ± 2.3; LVS vs. HIMU respectively) typical of HIMU derived lava [64,74,172]. Instead, the LVS NAPs (Figure 15b) are similar to NAPs for endmember HIMU [64], African HIMU suites (Figure 15b; [74,126,127,128,173,174]) and HIMU-type late-stage volcanism on the Walvis Ridge [125].

The HIMU signature carried in intraplate lava on and around the African continent is believed to be derived from the African LLSVP (large low s-wave velocity province; [125,173,175]). Therefore, the presence of this HIMU signature (young oceanic crust) in the Christmas Island LVS far from the African LLSVP is of interest. In the next section below (Section 4.4), we investigate two possibilities: (1) that the Christmas Island LVS represents shallow recycling of young oceanic crust (with HIMU trace element geochemistry and isotopic affinities similar to component C of [78]) unrelated to the African HIMU suites, or (2) the Christmas Island LVS represents recycling of Gondwana lithospheric mantle, which has been cratonized by a long history of upwelling HIMU plume material (cf., [176]). During the break-up of Gondwana and the formation of the Indian Ocean, this lithospheric mantle has been incorporated into the developing Indian MORB by asthenospheric mantle flow [174,177,178,179].

4.4. The Nature of Enriched Mantle Components

As demonstrated by Hoernle et al. [10] the near-ridge seamount lava of CHRISP have strong DUPAL isotopic compositions as defined by Hart [43] (Δ²⁰⁸Pb/Δ²⁰⁴Pb > + 60 and ⁸⁷Sr/⁸⁶Sr > 0.705, Figure 11). The UVS are also strongly DUPAL and plot within the field of the VMP seamounts (Figure 11), however they also plot close to the composition of the extreme EM (defined by ¹⁴³Nd/¹⁴⁴Nd < 0.512630; [180]) Kerguelen plume (Figure 11). Hoernle et al. [10] explain the isotopic composition of the VMP lava as the result of shallow recycling of LCC and/or m-SCLM and as the UVS plot with the VMP in Figure 11, and as we have demonstrated are the result of shallow melting of a buoyant heterogeneity within the MORB mantle, it is reasonable to conclude that the mantle source for the UVS has been enriched with similar LCC and/or m-SCLM recycled components. However, it is also possible that the enrichment seen in the UVS is due to pollution by the Kerguelen Plume during the development on the Indian Ocean [181]. The ⁸⁷Sr/⁸⁶Sr and ²⁰⁶Pb/²⁰⁴Pb values of the UVS could also be explained by mixing between a C or HIMU type component with an enriched component similar to the Eastern Wharton Province Seamounts or the UVS (Figure 11b). As previously stated (Section 4.2), the nature of the enriched component is important to evaluate whether the LVS mantle source is an independent recycled component with HIMU-EM characteristics or reflects recycling of the Gondwana lithosphere (with HIMU characteristics) and/or Gondwana LCC components.

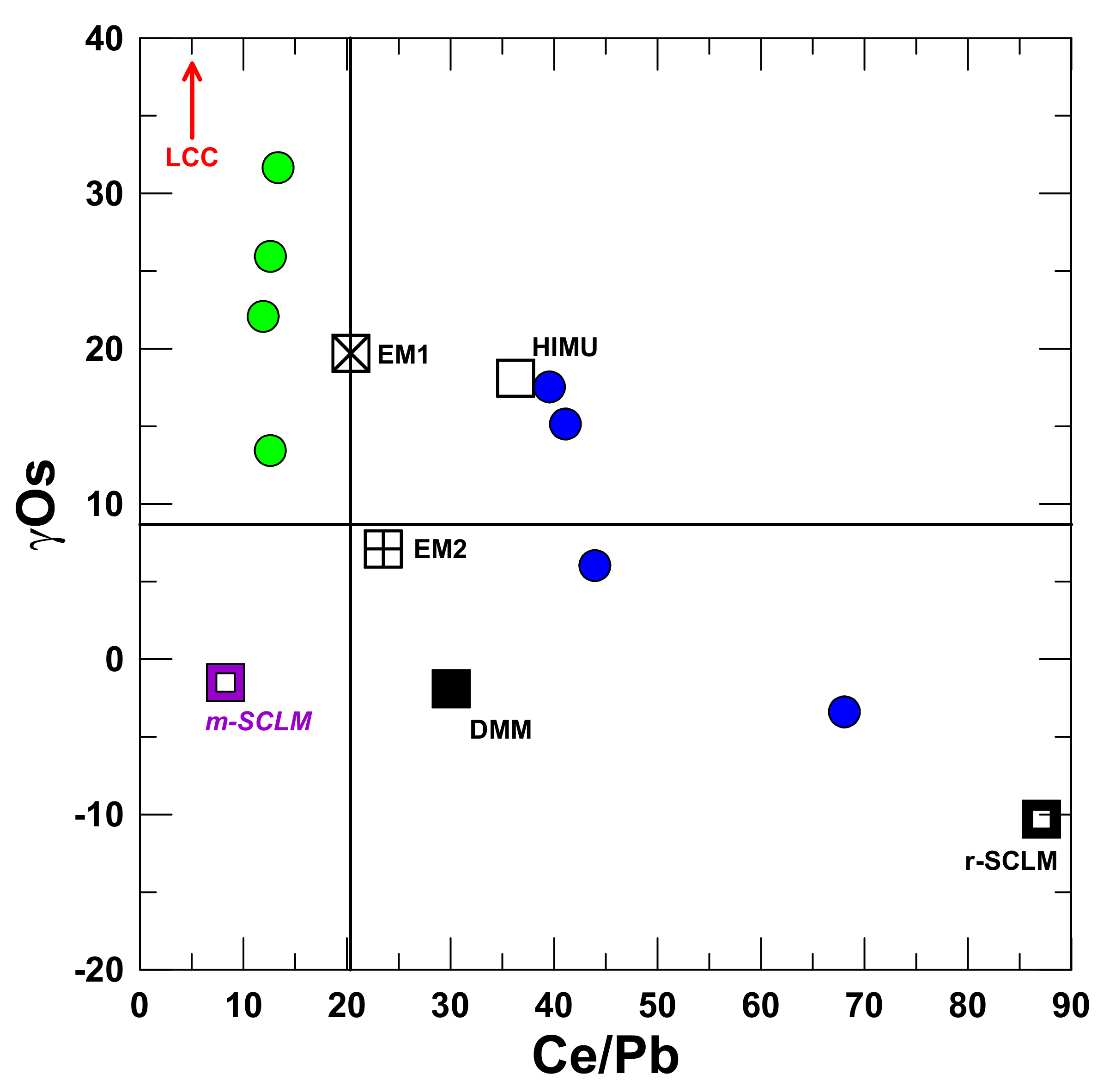

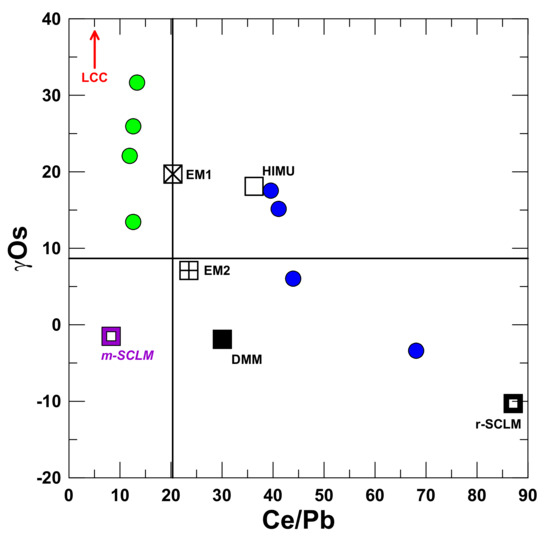

We test the above potential possibilities using the determined Ce/Pb and γOs values of the Christmas Island lava series (Figure 17). Ce/Pb values are a strong tracer of crustal sources due to the strong enrichment in Pb relative to the mantle [182,183,184]. Sims and DePaolo [185] demonstrate Ce/Pb values can change due to plagioclase fractionation—as Pb is partitioned into plagioclase preferentially to Ce. If plagioclase fractionation has occurred, we would expect to find a strong negative linear relationship with Eu/Eu* [185], which is not observed in the Christmas Island lava (Figure S12). As there are no correlations with indices of alteration, and the samples being considered have MgO contents >9 wt% we are confident that the Ce/Pb values of Christmas Island lava plotted in Figure 18 are primary magmatic values. In contrast to Ce/Pb, γOs values are a powerful tool to distinguish between crustal and lithospheric sources, due to the strong partitioning for Re into the crust and Os into the mantle [32,33,90,91,92,186]. Therefore, crustal sources will have positive γOs values in contrast to negative γOs for lithospheric mantle sources [32,33].

The UVS show a wide range in + γOs at relatively constant low Ce/Pb values (Figure 18, UVS average ~ 12.6). The UVS appear to form a steep almost vertical array lying between the composition of m-SCLM and LCC (Figure 18). The UVS array is displaced from the composition of Indian MORB mantle and extends to higher + γOs values than the EM1 mantle (Figure 18). These relationships strongly suggest that both m-SCLM and LCC are required to explain the enrichments in the UVS as opposed to enrichment by an EM plume such as Kerguelen. This observation is supported by the NAPs of the UVS compared to those for representative average compositions for m-SCLM and LCC (Figure 15a). The average NAP for the UVS plots in an intermediate position between m-SCLM and LCC suggesting a mixture between LCC and m-SCLM could explain the enrichments seen in the UVS (Figure 15a). The UVS NAP shares the same distinctive Ba and Pb peaks which can be seen in the NAPs for both LCC and m-SCLM (Figure 15a) but absent in the Kerguelen plume NAPs and EM1 mantle (Figure 15b).

The LVS γOs values correlate negatively with Ce/Pb values (Figure 18) and Os isotope values range from + γOs (~17.5), similar to HIMU mantle, towards a more depleted mantle end-member with—γOs (~–3.4) values (Figure 18). The correlation between Ce/Pb and γOs values of the LVS are inconsistent with asthenospheric mantle (e.g., Indian MORB, DMM) being the high Ce/Pb and—γOs end member. As pyroxenite is a component within refractory lithospheric mantle [32] we speculate that the high Ce/Pb—γOs component in the LVS is derived from a pyroxenite component of refractory lithospheric mantle (r-SCLM, Figure 18). Based on the modelling of peridotite-pyroxenite melting of [156], we assign a Ce/Pb value of 87.1 and a γOs value of -10.3 based on the average value for on craton mantle xenoliths [35]. The presence of a r-SCLM component in the LVS lava gives strong support to the hypothesis that the LVS mantle source is not an isolated independent HIMU-EMI recycled component but is more likely to be the result of recycling of SCLM during breakup of Gondwana, specifically Greater India, Australia and the Burma block. This result supports the model of [10] that LCC and SCLM is distributed throughout the Indian Ocean due to Gondwana breakup. The model of [10] is also supported by the ages of zircons (2525–173Ma; [189]) obtained from gabbros recovered from the Central Indian Ridge (at 5°15′ S 68°30′ E; [189]) suggesting episodic entrainment and dispersal of continental lithosphere during the breakup of Gondwana and the formation of the Indian Ocean crust [189].

Previous studies on Indian Ocean MORB and plumes in the South Atlantic and Indian ocean propose that three-component mixing is required to explain the range in DUPAL isotopic compositions observed [10,57,74,78,175,190,191,192,193,194]. In Figure 19 we qualitatively demonstrate the plausibility of three component mixing with respect to the petrogenesis of the Christmas Island lava series using ⁸⁷Sr/⁸⁶Sr and ²⁰⁶Pb/²⁰⁴Pb values (Figure 19). The end members in three-component mixing in most previous studies involve a mixture of (a) a plume component; (b) a depleted mantle component and (c) a continental component (LCC and/or SCLM).

In the case of the UVS, the three components that are plausibly required to fully encapsulate the range in isotopic values shown by lava compositions are (a) SCLM derived from Gondwana lithosphere, with an intermediate composition between r-SCLM and m-SCLM, (b) LCC from Gondwana lower crust and (c) ambient Indian MORB mantle (Figure 19, green shaded triangle). No plume component is required or is a suitable component to explain the isotopic values of the UVS lava (Figure 19). This observation agrees with other studies, which propose that the enrichments present in petit-spot lava are the result of ubiquitous shallow-level enrichment of MORB source mantle by continental components [10,75,195].

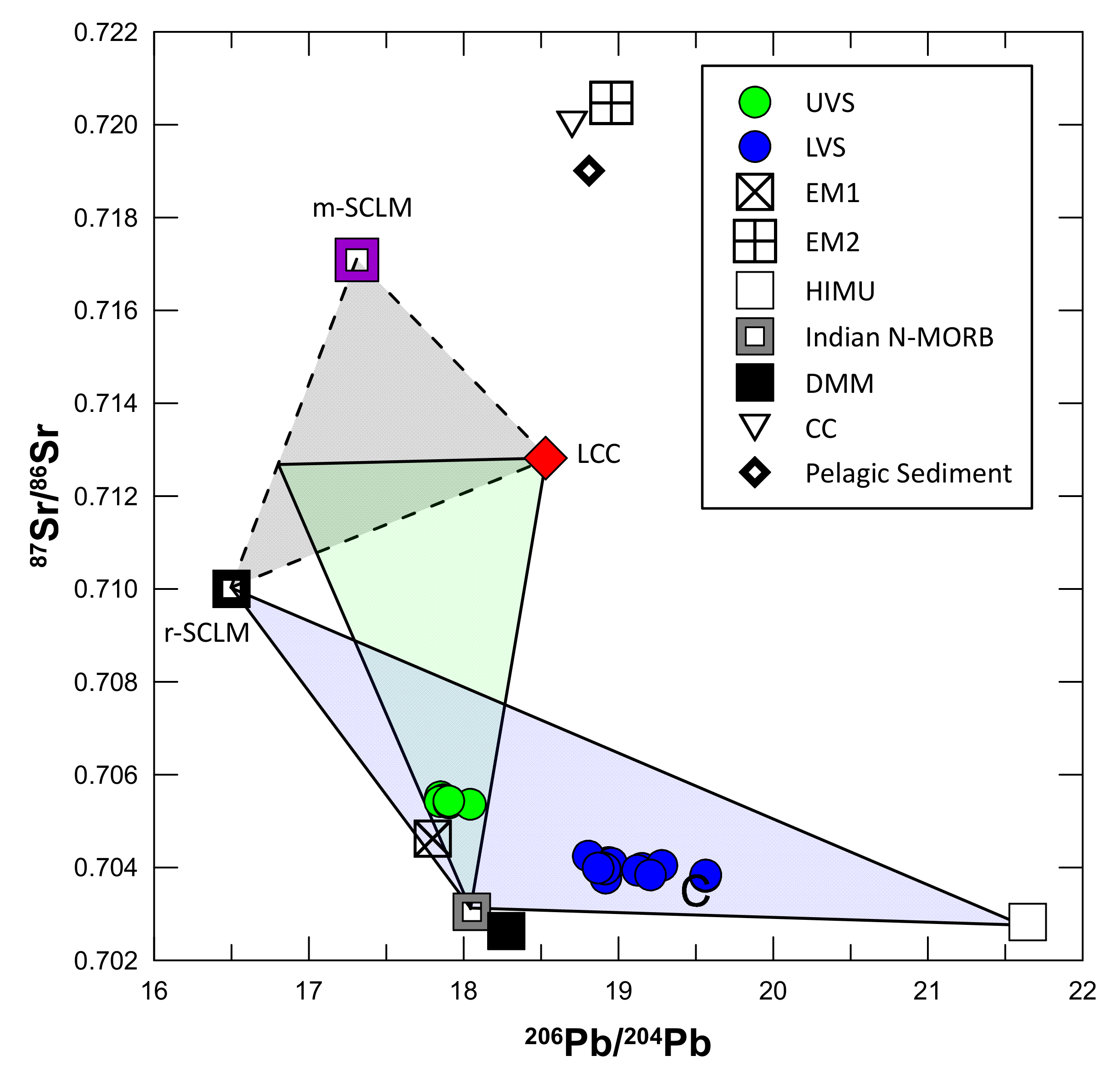

Figure 19. A proposed three component mixing model for the Christmas Island lava series schematically outlined in ⁸⁷Sr/⁸⁶Sr versus ²⁰⁶Pb/²⁰⁴Pb isotopic space (see text for details). Data sources as follows: Indian MORB, average (n = 157) N-MORB Indian glasses where Sr-Nd-Pb isotopes were analyzed on the same glass sample [70]; DMM, [76]; m-SCLM average Western Australian olivine lamproite [73]; r-SCLM [74]; EMII, Savaii, most isotopically enriched whole rock sample D115-21 [67]; EM1, average (n = 11) > 9 wt% MgO lava from Pitcairn Island and adjacent seamounts [65,66]; HIMU, average (n = 14) > 9 wt% MgO lava from Mangaia Island [64]; Component “C” [78]; Modern Pelagic sediment [196]; CC—average modern continental crust [172]; LCC—lower continental crust, average (n = 89) granulites [197,198,199,200,201]. LVS, and UVS lava >9 wt% MgO (Table 2; [10,43]).

Figure 19. A proposed three component mixing model for the Christmas Island lava series schematically outlined in ⁸⁷Sr/⁸⁶Sr versus ²⁰⁶Pb/²⁰⁴Pb isotopic space (see text for details). Data sources as follows: Indian MORB, average (n = 157) N-MORB Indian glasses where Sr-Nd-Pb isotopes were analyzed on the same glass sample [70]; DMM, [76]; m-SCLM average Western Australian olivine lamproite [73]; r-SCLM [74]; EMII, Savaii, most isotopically enriched whole rock sample D115-21 [67]; EM1, average (n = 11) > 9 wt% MgO lava from Pitcairn Island and adjacent seamounts [65,66]; HIMU, average (n = 14) > 9 wt% MgO lava from Mangaia Island [64]; Component “C” [78]; Modern Pelagic sediment [196]; CC—average modern continental crust [172]; LCC—lower continental crust, average (n = 89) granulites [197,198,199,200,201]. LVS, and UVS lava >9 wt% MgO (Table 2; [10,43]).

In the case of the LVS, the three components that are plausibly required to fully encapsulate the range in isotopic values shown by the lava compositions (Figure 19) are (a) a HIMU component, (b) r-SCLM derived from Gondwana lithospheric mantle and (c) ambient Indian MORB mantle. The HIMU component could either be young recycled oceanic crust [10] or potentially a mantle plume component incorporated into Gondwana lithospheric mantle during cratonization [176].

5. Conclusions

(1)

The variable Os isotopic compositions of the Christmas Island lava series, extending from subchondritic to superchondritic values but none have typical MORB type Os isotope values, are consistent with DUPAL components being present in Indian Ocean upper mantle. These components are likely to reflect the presence of recycled LCC and/or SCLM components within the ambient Indian MORB mantle due to Gondwana break-up and continental drift [10].

(2)

The geochemistry of the UVS lava of Christmas Island is consistent with a petrogenesis involving shallow-level melting of Indian MORB source mantle enriched with both LCC and SCLM components. The enrichment of the Indian MORB mantle by plume components, such as the EM1 Kerguelen mantle, is not required to explain the enriched trace element and isotopic composition of the UVS. This is supported by the MORB like olivine compositions (Mg#, Ni ppm) of the UVS and olivine δ¹⁸O values, which are similar to m-SCLM. Calculated primary mantle-derived melts for the UVS petit-spot lava are inferred to result from decompression melting along a MORB mantle adiabat of ~Tp 1360 °C with melt segregation at ~3.5 GPa. They do not originate from the LAB, although lithospheric flexure clearly plays a role in causing upwelling and the melting of small-scale heterogeneities present in the asthenospheric MORB source mantle as suggested by [10].

(3)

The geochemistry of the LVS is consistent with recycling plume and SCLM components related to Gondwana break-up. Calculated primary mantle-derived melts for the LVS lava require a MORB like adiabat of Tp ~1415 °C along with the Os isotopic evidence for the presence of r-SCLM supports the proposed idea that continental breakup causes recycling of lithospheric components into the ambient MORB mantle. As the LVS end member with radiogenic Pb represents a shallow recycled component, it provides a satisfactory explanation as to why there is no associated hotspot track or LIP associated with the LVS.
