Article

Spätzle Regulates Developmental and Immune Trade-Offs Induced by Bacillus thuringiensis Priming in Rhynchophorus ferrugineus

by
Pengju Li
1,2,3,
He Zhang
1,2,3,
Anran Tan
1,2,3,
Zhuolin Hu
1,2,3,
Lu Peng
1,2,3,* and
Youming Hou
1,2,3,*
1
State Key Laboratory of Ecological Pest Control for Fujian and Taiwan Crops, Fujian Agriculture and Forestry University, Fuzhou 350002, China
2
Key Lab of Biopesticide and Chemical Biology, Ministry of Education & Fujian, Fujian Agriculture and Forestry University, Fuzhou 350002, China
3
Province Key Laboratory of Insect Ecology, College of Plant Protection, Fujian Agriculture and Forestry University, Fuzhou 350002, China
*
Authors to whom correspondence should be addressed.
Insects 2024, 15(12), 925; https://doi.org/10.3390/insects15120925
Submission received: 21 October 2024 / Revised: 19 November 2024 / Accepted: 22 November 2024 / Published: 26 November 2024
(This article belongs to the Section Insect Physiology, Reproduction and Development)
Browse Figures
Versions Notes

Simple Summary

Insects have specific immune priming to pathogenic microorganisms, such as Bacillus thuringiensis (Bt). However, there may be a trade-off between immunity and development during immune priming and its molecular signaling pathways have not yet been reported. Our study found that Bt priming regulated the development and immune trade-offs in Rhynchophorus ferrugineus by activating the immune gene Spatzle, thereby inhibiting SHADOW transcription and 20E synthesis. Our results contribute to a deeper understanding of the trade-off during immune priming of insects and provide new targets for biological controls of Rhynchophorus ferrugineus.

Abstract

The red palm weevil (RPW) is an invasive pest that causes devastating damage to a variety of palm plants, which exhibit specific immune priming to Bacillus thuringiensis (Bt). However, immune priming in RPW may incur a high fitness cost, and its molecular signaling pathways have not yet been reported. Here, we investigated the effect of Bt priming on RPW development and subsequently analyzed the hormonal and immune-related molecular pathways influencing the fitness cost induced by Bt priming. Bt priming delayed the body weight gain of fifth-instar larvae and prolonged their developmental duration. Bt priming significantly reduced the 20-hydroxyecdysone (20E) content in RPW hemolymph, and the expression levels of the 20E biosynthesis-related genes SHADOW and SHADE were significantly downregulated. Furthermore, we analyzed Toll pathway genes influencing Bt priming and found that only Spätzle (SPZ) transcription was significantly activated under Bt priming. After silencing SPZ expression, the negative effects of Bt priming on development, SHADOW expression, and 20E synthesis were eliminated, thereby suggesting that SPZ is a key molecular signal mediating developmental and immune trade-offs induced by Bt priming. Our results elucidate the molecular cascade pathway of immune priming and provide new targets for improving the efficiency of RPW biological controls.

1. Introduction

During evolution to adverse environmental stress and pathogen infection, organisms can exhibit two immune defense modes: innate and acquired immunity [1]. Unlike vertebrates, insects are generally considered to lack acquired immunity and rely primarily on innate immunity without immune memory against pathogens [2,3,4,5]; however, recent studies have found that some insects exposed to non-lethal doses of pathogen infestation or external stimuli can initiate a faster and more efficient immune response to increase survival when re-infected, a phenomenon known as immune priming [6,7,8]. Some studies have confirmed the existence of immune priming in certain insect species, including Tribolium castaneum, Bombyx mori, and Drosophila melanogaster [9,10,11]. Shi et al. discovered immune priming in red palm weevils (RPW) [12]. However, immune priming initiated by different pathogens is species-specific [13].
Insects produce a series of immune defensive responses during priming to protect against reinfection. For example, Bacillus thuringiensis (Bt)-mediated immune priming caused a significant increase in phenoloxidase (PO) activity in the RPW hemolymph and led to rapid immune resistance upon reinfection [12], as well as an increase in the concentration of hemocytes and phagocytosis while inducing the expression of immune-related genes [7]. The activities of PO and lysozyme in the hemolymph increased and the expression of antimicrobial peptides was induced after the immune priming of Teleogryllus oceanicus [14]. Additionally, a clear boost in reactive oxygen production in Parasemia plantaginis was observed through Bt-mediated immune priming [15]; however, immune responses induced by immune priming consume considerable energy and affect the allocation of limited resources, thus imposing a certain fitness cost [16].
Genetic and physiological trade-offs exist among fitness-related traits, which is a fundamental principle of life history theory [17,18]. Immune priming in insects evolves in response to different pathogens and continuous stimulation, suggesting phenotypic plasticity in immune priming [19,20,21,22]; however, the emergence of phenotypic plasticity implies a high investment in immune responses; therefore, it must be weighed against other fitness traits, such as development [23]. In response to adverse environments, Galleria mellonella can prolong development and reduce growth to improve its immune capacity [24]. Conversely, when G. mellonella interacts with parasitic wasps, parasite-induced immune priming prompts the host to activate its immune system, thereby accelerating development [25]. Zanchi et al. found that if adult Tenebrio molitor were infected with pathogens, the developmental duration of their offspring was significantly prolonged [26]; however, the opposite result was observed in T. castaneum [27]. These results suggest that the fitness trade-offs triggered by immune priming are species-specific.
Hormones are important growth regulators that are crucial for controlling fitness trade-offs through endocrine signaling pathways to maintain the physiological homeostasis of arthropod species [28,29]. In insects, hormones such as the juvenile hormone (JH) and 20-hydroxyecdysone (20E) induce developmental transitions, including molting and metamorphosis; therefore, changes in hormone titers can affect growth and development [30,31], and JH and 20E are considered immunomodulators [32]. These immunomodulators may represent a potential regulatory factor in the balance between insect immunity and development [28,33]. Palli et al. showed that JH titers increased and ecdysteroid titers decreased after the entomopoxvirus infection in Choristoneura fumiferana, resulting in developmental delays and mass death of the final larvae [34]. Similarly, the entomopoxvirus infection reduced ecdysone titers and maintained the status quo levels of JH by preventing its metabolism in Mythimna separata larvae, thus delaying development [35]; however, the molecular mechanisms and signaling pathways through which hormones regulate immune priming and fitness trade-offs remain unclear.
The RPW, Rhynchophorus ferrugineus Olivier, is a highly invasive quarantine pest that poses a serious threat to palm plants in China. RPWs feed within the palm trunks and create crisscross tunnels, which makes their control extremely difficult [36]. Our previous study found that RPW exhibits specific immune priming against Bacillus thuringiensis (Bt), which leads to an increase in hemocyte differentiation and phagocytosis as well as an induction of the immune-related gene expression [7,12]. However, the fitness costs associated with immune priming, along with the regulatory mechanisms and molecular signaling pathways influencing these trade-offs, remain unclear. In this study, to address this research gap, we investigated the effects of Bt priming on RPW development. Subsequently, the hormone- and immune-related molecular pathways associated with fitness costs induced by Bt priming were analyzed. This is the first study to explore the trade-off between immune priming and fitness costs from the perspective of the interaction of hormones and immune signaling in RPW, and our results provide new insights and targets for improving the efficiency of RPW biological control.

2. Materials and Methods

2.1. Insects and Entomopathogen

The RPWs used in this study originated from the palm plantation in Quanzhou and Zhangzhou City, Fujian Province, China, and were reared in the Pest Ecological Control Laboratory, Fujian University of Agriculture and Forestry. The adults and larvae were fed with fresh sugarcane at 28 ± 1 °C, 65 ± 5% relative humidity, and a 14:10 h light:dark (L:D). Pairs of RPW adults were placed in a permeable plastic tank (8 × 11 cm2) for rearing. The larvae were reared individually in a plastic box (inner grid size: 19 × 12.7 × 3.5 cm3, 24 grids) with a regular diet change [7,37,38]. Fifth-instar larvae (approximately 500 mg) were selected for follow-up tests [7].
Bacillus thuringiensis (Bt) was used for the infection and priming, as it demonstrates insecticidal activity against RPW [37,38]. Bt was first electroporated into the PBR322 plasmid (Solarbio, Beijing, China) to attain tetracycline resistance and then cultured on Luria–Bertani (LB) liquid medium on a shaker at 30 °C with 200 rpm until reaching an OD600 of approximately 1.0.

2.2. Preparation of Bt Priming Suspension

Bt was centrifuged at 4 °C with 2300× g, and the supernatant was removed. Then the tube was washed thrice with PBS buffer. The concentration of Bt suspension was adjusted to 108 cells/mL using a PBS solution and then inactivated by heating at 100 °C for 25 min for immune priming [7]. Part of the Bt suspension was cultured in an LB solid medium to verify the inactivation effect, and the remainder was stored at −80 °C until use.

2.3. Effect of Bt Priming on Biological Parameters

The PBS solution (10 μL) with heat-killed cells of Bt (1 × 108) was injected into the hemolymph of fifth-instar larvae for Bt priming, and 10 μL of PBS solution was injected as a control, and the consistent processing was used in subsequent Bt priming. There were 30 fifth-instar larvae in both the treatment and control groups. Body weight was measured daily until molting, and the developmental duration was recorded.

2.4. Hormone Content Measurement

The 20E [39], JH [40], and insulin (INS) [41] contents in the RPW hemolymph were determined using an ELISA Kit (Meike, China) according to the manufacturer’s instructions. First, the hemolymph of the fifth-instar larvae (weight 0.50 ± 0.05 g) was extracted at 1, 3, and 6 d after Bt priming; then, the hemolymph, the standard substance, and the HRP-conjugate reagent-labeled detection antibody were successively added to the micropores pre-coated with the 20E, JH, and INS antibody, respectively. After incubation at 37 °C for 60 min and five rounds of washing, the substrate 3,3′,5,5′-Tetramethylbenzidine (TMB) was added for chromogenic reaction. The absorbance (OD value) was measured using a microplate reader at 450 nm. The regression equation of the standard curve was calculated according to the concentration and OD values, and the 20E, JH, and INS contents were calculated [39,40,41]. Each sample consisted of three larvae with five replicates.

2.5. RT-qPCR Analysis

Genes in the Toll and 20E synthesis pathways of D. melanogaster and T. castaneum were downloaded from NCBI GenBank (https://www.ncbi.nlm.nih.gov/) “URL (accessed on 1 May 2022)” [42,43,44] and used as queries against the RPW genome (https://www.ncbi.nlm.nih.gov/assembly/GCA_014462685.1/) “URL (accessed on 1 May 2022)” using the local BLASTP Program (E-value < 10−5). For RT-qPCR, total RNA was extracted from the hemolymph of the fifth-instar larvae (weight 0.5 ± 0.05 g) at 1, 3, and 6 d after Bt priming using the Whole Blood Total RNA Extraction Kit (Aidlab, Beijing, China), following the manufacturer’s instructions, and its concentration, purity, and integrity were determined using a NanoDrop 2000 (Thermo Fisher Scientific, Waltham, MA, USA) and agarose gel electrophoresis, respectively. The cDNA template was synthesized using the PrimeScript TM RT Reagent Kit with gDNA Eraser (Takara, Beijing, China) with 1000 ng RNA. RT-qPCR was performed using the Eastep® RT Master Mix kit (Promega, Shanghai, China) with the following procedure: 95 °C for 10 min in pre-denaturation, and 40 cycles of 95 °C for 15 s and 60 °C for 1 min. Each sample was composed of six larvae with a total of three replicates, and the fold change of the expression was calculated using the comparative Ct method (2−ΔΔCt). The primers used are listed in Table S1; GAPDH was used as a reference gene.

2.6. RNA Interference

Specific primers containing the T7 RNA polymerase promoter sequence were designed for use in the double-stranded RNA (dsRNA) synthesis (Table S1). The PCR program was performed as follows: 98 °C for 3 min, 35 cycles of 98 °C for 30 s, 68.3 °C for 30 s, 72 °C for 30 s, and an additional extension at 72 °C for 5 min. PCR products were further purified using a Gel Extraction Kit (Tiangen, Beijing, China). dsRNA of SPZ and eGFP was synthesized using the HiScribe T7 Quick High Yield RNA Synthesis Kit (New England Biolabs, Ipswich, MA, USA) according to the manufacturer’s protocols [7]. dsSPZ (2 μg) was injected into the hemolymph of the fifth-instar larvae with a Nanoliter 2010 Injector (WPI, Sarasota, FL, USA), and dseGFP (2 μg) was injected as a negative control. Hemolymph was collected from the injected individuals 24 h after dsRNA injection to verify RNAi efficiency. The transcription levels of SHADOW and SHADE, as well as the content of 20E, were also determined using RT-qPCR and ELISA (refer to Section 2.5 and Section 2.4, respectively). Each sample consisted of five larvae with three replicates. The specific primers are listed in Table S1.

2.7. Detection of Bt Priming Effects After SPZ Interference

The fifth-instar larvae were injected with 2 μg of dsSPZ, followed by a separate injection of 10 μL PBS and heat-killed Bt (108 cells/mL). Larvae were then reared individually in a plastic box (see Section 2.1), and the body weight and developmental duration were recorded (see Section 2.3), which included 15 larvae each in the treatment and control groups. Additionally, the hemolymph of the larvae was collected 24 h after the dsSPZ and Bt as well as dsSPZ and PBS injections to detect the SHADOW expression and 20E synthesis (see Section 2.5 and Section 2.4, respectively). Six and three larvae were included in each sample, respectively, with a total of three and five replicates, respectively.

2.8. Statistical Analysis

The experimental data were processed in Microsoft Excel, and graphs were created using the GraphPad Prism 9.0.0 software (San Diego, CA, USA). Statistical analyses were performed using the SPSS Statistics software (version 21.0; IBM, Armonk, NY, USA). Data were compared using an independent-samples t-test, with significance levels of * p < 0.05, ** p < 0.01, and *** p < 0.001.

3. Results

3.1. Effect of Bt Priming on RPW Development

The development of fifth-instar RPW larvae was measured after Bt priming, which resulted in slower weight gain in RPW (Figure 1A). Compared with PBS, Bt priming resulted in a 7.6% reduction in body weight on the first day (t = 3.087, df = 58, p = 0.0031), and this difference gradually increased with time (Figure 1A; Table S2). The developmental time of the fifth-instar larvae with Bt priming was 17.67 d, which was significantly longer than that of the larvae injected with PBS, at 14.61 d (t = 3.815, df = 34, p = 0.0005) (Figure 1B). Therefore, Bt priming delayed the development of the RPW larvae.

3.2. Effects of Bt Priming on Hormone Contents

The 20E, JH, and INS contents in the hemolymph of fifth-instar larvae were measured after Bt priming using ELISA. After Bt priming for 1, 3, and 6 d, the contents of 20E in the hemolymph significantly decreased by 31.0%, 39.8%, and 34.9% compared to the PBS control group, respectively (1 d: t = 4.423, df = 8, p = 0.0022; 3 d: t = 6.884, df = 8, p = 0.0001; 6 d: t = 10.78, df = 8, p = 0.0000) (Figure 2A). However, there were no significant differences in the contents of JH and INS between Bt and PBS priming at all time points (Figure 2B,C) (JH, 1 d: t = 0.3969, df = 6, p = 0.7052; 3 d: t = 0.1271, df = 6, p = 0.9030; 6 d: t = 0.1978, df = 6, p = 0.0953. INS, 1 d: t = 1.419, df = 6, p = 0.1935; 3 d: t = 0.1656, df = 8, p = 0.8726; 6 d: t = 0.9426, df = 8, p = 0.3735). Therefore, the reduction in the 20E titer may have inhibited RPW development.

3.3. Effects of Bt Priming on Transcription of 20E Synthesis Pathway Genes

The expression of key genes in the 20E synthesis pathway in RPW was determined after Bt priming by RT-qPCR. There were no significant differences in the expressions of PHANTOM (1 d: t = 0.1986, df = 4, p = 0.8522; 3 d: t = 0.4032, df = 4, p = 0.7074; 6 d: t = 1.237, df = 4, p = 0.2836) and DISEMBODIED (1 d: t = 1.643, df = 4, p = 0.1756; 3 d: t = 0.5100, df = 4, p = 0.6369; 6 d: t = 0.1195, df = 4, p = 0.9106) between the Bt and PBS treatments at each time point (Figure 3A,B). However, the expression of SHADOW was significantly downregulated by 43.7%, 78.8%, and 45.4% at 1, 3, 6 d after Bt priming, respectively, compared to the PBS control group (1 d: t = 5.783, df = 4, p = 0.0044; 3 d: t = 3.000, df = 4, p = 0.0400; 6 d: t = 3.926, df = 4, p = 0.0172) (Figure 3C). The expression of SHADE significantly decreased by 39.6%, 67.4%, and 36.4% compared with the PBS treatment, respectively (1 d: t = 3.180, df = 4, p = 0.0335; 3 d: t = 7.140, df = 4, p = 0.0020; 6 d: t = 3.218, df = 4, p = 0.0324) (Figure 3D).

3.4. Effects of Bt Priming on Transcription of Toll Pathway Genes

The expression of key genes in the Toll pathway in RPW was determined by RT-qPCR after Bt priming. There were no significant differences in the expression of Cactus (1 d: t = 1.956, df = 4, p = 0.1222; 3 d: t = 0.6258, df = 4, p = 0.5654; 6 d: t = 0.2514, df = 4, p = 0.8139), PGRP-SA (1 d: t = 0.6862, df = 4, p = 0.5303; 3 d: t = 1.131, df = 4, p = 0.3214; 6 d: t = 1.511, df = 4, p = 0.2053), TLR (1 d: t = 0.9007, df = 4, p = 0.4187; 3 d: t = 1.087, df = 4, p = 0.3382; 6 d: t = 1.829, df = 4, p = 0.1415), and Tube (1 d: t = 0.1290, df = 4, p = 0.9036; 3 d: t = 0.4791, df = 4, p = 0.6569; 6 d: t = 1.188, df = 4, p = 0.3005) between the Bt and PBS treatments at each time point (Figure 4A,B,D,E). However, the expression of SPZ significantly increased by 13.6, 3.0, and 2.3 times at 1, 3, and 6 d after Bt priming, respectively, compared with the PBS control group (1 d: t = 4.786, df = 4, p = 0.0087; 3 d: t = 3.154, df = 4, p = 0.0344; 6 d: t = 2.801, df = 4, p = 0.0488) (Figure 4C). This result suggests that SPZ may represent a key node in the signaling pathway involved in Bt priming of RPW.

3.5. Effect of SPZ Silencing on SHADOW Expression and 20E Synthesis

After dsSPZ injection for 24 h, the mRNA expression level of SPZ in hemolymph was significantly suppressed by 87.6% compared to the dseGFP control group (t = 3.957, df = 4, p = 0.0167) (Figure 5A), whereas the relative expression of SHADOW was significantly upregulated by 3.46 times compared with the control (t = 2.932, df = 4, p = 0.0427) (Figure 5B). However, there was no significant difference in the relative expression of SHADE between the dsSPZ and dseGFP treatments (t = 1.801, df = 4, p = 0.1460) (Figure 5C). The contents of 20E in the hemolymph were significantly increased from 14.63 nmol/L for dseGFP to 22.21 nmol/L for dsSPZ (t = 7.925, df = 6, p = 0.0002) (Figure 5D). These results indicated that SPZ inhibited 20E synthesis by negatively regulating the SHADOW expression in RPW.

3.6. SPZ Interference Led to Clearance of Bt Priming on Development

The inhibitory effects of Bt priming were reversed when SPZ was silenced in RPW. There was no significant difference in the SHADOW expression from PBS and Bt treatments following inhibition of the SPZ expression (t = 0.3900, df = 4, p = 0.7149), as well as in the 20E synthesis (28.67 nmol/L for PBS and 27.53 nmol/L for Bt) (t = 1.132, df = 8, p = 0.2904) (Figure 6A,B). Additionally, there were no significant differences in weight on the 1 and 2 days (1 d: t = 1.381, df = 28, p = 0.1783; 2 d: t = 1.167, df = 28, p = 0.2529) and developmental duration (10.36 d for PBS and 9.91 d for Bt) (t = 0.5720, df = 20, p = 0.5737) of the fifth-instar larvae via Bt and PBS priming after inhibition of SPZ expression in RPW (Figure 6C,D).

4. Discussion

A growing number of contemporary studies have shown that an early microbial infection or parasitic attack can enhance the immune response of invertebrates through immune priming to subsequent exposure to pathogens or parasitoids [6,26,45,46,47], and this effect can even be passed from parents to offspring [6,48]. Previous studies have confirmed that pathogenic infections, such as Bt, Escherichia coli, Serratia marcescens, and Metarhizium anisopliae, can also cause the immune priming of RPW [7,12]. Immune priming primarily requires changes in PO activity, antibacterial activity, hemocyte differentiation, phagocytosis, and the expression of immune-related genes [7,12]; however, immune priming is an energy-consuming process, and its trade-offs with fitness are poorly understood. Our study analyzed the fitness cost of Bt priming in RPW and the trade-offs between development and immunity.
We observed that the body mass of immune-primed larvae increased more slowly, and the developmental period was significantly prolonged compared with that of the PBS control. Our results support previous studies showing that the activation of the immune response delays growth and development in the host [47]. Microbial infections can induce changes in host hormone levels, thereby regulating host development [35,49,50]. For example, an entomopoxvirus infection inhibited 20E synthesis, thus prolonging the developmental period of M. separata larvae [35], and a microsporidian infection prevented the development of Lacanobia oleracea by increasing the levels of JH [51]. Similar results were observed in our study, where Bt priming resulted in a reduced 20E content and slower development in the fifth-instar larvae of RPW. Simultaneously, Bt priming significantly downregulated the expressions of SHADOW and SHADE in the 20E synthesis pathway. SHADOW normally produces 2-deoxyecdysone to catalyze the generation of ecdysone, whereas SHADE catalyzes the hydroxylation of ecdysone to 20-hydroxyecdysone [52]. A previous knockdown of SHADOW reduced the 20E titer and prolonged the developmental duration of Plutella xylostella [53], and inhibition of SHADE transcription also blocked 20E synthesis, increased mortality, and prolonged development in Laodelphax striatellus nymphs [54]. These results indicate that Bt priming regulates RPW development by controlling the 20E synthesis pathway, resulting in a fitness cost.
Immune priming activates a series of molecular responses that inhibit the proliferation of viruses, parasites, and bacteria in arthropods [45]. Wu et al. showed that Bt priming upregulated the expression of immune-related genes, cecropin, hemolin, gallerimycin, and lysozyme1, in Galleria mellonella [47]. The process of insect immunity begins when host cells precisely recognize and bind to biological macromolecules with pathogen-associated molecular patterns through pattern recognition receptors, ultimately stimulating immune signaling regulatory networks [55,56,57]; the most important of these networks are the Toll and IMD signaling pathways [3]. Different immune response pathways participate in combating various pathogenic infections [3,58]. For example, the Toll pathway mainly influences fungal and gram-positive infections (e.g., B. thuringiensis), whereas the IMD pathway primarily addresses gram-negative infections (e.g., S. marcescens) [59]. In this study, the expression of the Spätzle (SPZ) gene in the Toll pathway significantly increased after Bt priming. SPZ binds to Toll receptors as a dimeric ligand, initiating the secretion of antimicrobial peptides by activating immune signaling pathways [3]. Valanne et al. also verified that SPZ is an extracellular ligand for Toll receptors and plays a crucial role in activating antimicrobial peptides [60]. Muhammad et al. reported that silencing SPZ significantly downregulated the expression of antimicrobial peptide genes, RfColeoptericin and RfCecropin, resulting in increased mortality of RPW larvae caused by Bt infection [61]. We conclude that SPZ strongly induced the immune response by Bt priming in RPWs.
The maintenance and activation of the immune response induced by immune priming enhance the host’s antimicrobial ability but also cause a negative impact because of the high energetic cost of immunity [62,63,64,65]. Life history theory posits that organisms allocate their limited energy to different biological functions through trade-offs [66]. Individuals investing in survival maintenance, including pathogen resistance, may have less energy to devote to other biological functions, thereby reducing their fitness for development and reproduction [67,68,69]. Contreras-Garduño et al. determined that Plasmodium berghei priming more effectively controlled a challenge from the same parasite and maintained a higher survival rate in Anopheles albimanus; however, this increased effectiveness was accompanied by the inability to lay eggs [70], thus demonstrating a trade-off between immune priming and reproduction.

5. Conclusions

We demonstrated that Bt priming activated immune resistance via SPZ but inhibited development by regulating 20E synthesis; this result suggests that Bt priming induces a fitness trade-off between immunity and RPW development. Our recovery experiments showed that a knockdown of SPZ reduced the fitness cost caused by Bt priming, indicating that SPZ is a key regulator of developmental and immune trade-offs induced by Bt priming in RPW. These findings highlight the co-effects of immune, hormonal, and developmental factors on the fitness trade-offs of RPW, thereby more comprehensively detailing the evolution of immune defenses in insect pests and providing new insights and targets for RPW biological controls.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/insects15120925/s1, Table S1: Primers for qPCR; Table S2: Statistical analysis of body weight of the fifth instar larvae of Rhynchophorus ferrugineus after Bt priming.

Author Contributions

Investigation, experimental design, methodology, software, data curation, writing—original draft preparation, P.L. and H.Z.; investigation, experimental operation and revising article, A.T. and Z.H.; experimental design, writing and editing, supervision, L.P.; experimental design, writing and editing, funding acquisition, project administration, supervision, Y.H. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Key R & D Program of China (2022YFC2601400) and the National Natural Science Foundation of China (U1705232, 31872033).

Data Availability Statement

All data included in this study are available upon request by contact with the corresponding author.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

References

  1. Vilmos, P.; Kurucz, E. Insect immunity: Evolutionary roots of the mammalian innate immune system. Immunol. Lett. 1998, 62, 59–66. [Google Scholar] [CrossRef] [PubMed]
  2. Buchon, N.; Silverman, N.; Cherry, S. Immunity in Drosophila melanogaster—From microbial recognition to whole-organism physiology. Nat. Rev. Immunol. 2014, 14, 796–810. [Google Scholar] [CrossRef] [PubMed]
  3. Lemaitre, B.; Hoffmann, J. The host defense of Drosophila melanogaster. Annu. Rev. Immunol. 2007, 25, 697–743. [Google Scholar] [CrossRef] [PubMed]
  4. Sheehan, G.; Farrell, G.; Kavanagh, K. Immune priming: The secret weapon of the insect world. Virulence 2020, 11, 238–246. [Google Scholar] [CrossRef] [PubMed]
  5. Sun, L.N.; Meng, J.Y.; Wang, Z.; Lin, S.Y.; Shen, J.; Yan, S. Research progress of aphid immunity system: Potential effective target for green pest management. Insect Sci. 2024; Advance online publication. [Google Scholar] [CrossRef]
  6. Cooper, D.; Eleftherianos, I. Memory and specificity in the insect immune system: Current perspectives and future challenges. Front. Immunol. 2017, 8, 539. [Google Scholar] [CrossRef]
  7. Zhang, H.; Tan, A.R.; Li, P.J.; Lu, S.P.; Jia, Q.C.; Huang, S.N.; Bai, J.; Hou, Y.M. A specific primed immune response in red palm weevil, Rhynchophorus ferrugineus, is mediated by hemocyte differentiation and phagocytosis. Dev. Comp. Immunol. 2022, 131, 104380. [Google Scholar] [CrossRef]
  8. Jang, S.; Ishigami, K.; Mergaert, P.; Kikuchi, Y. Ingested soil bacteria breach gut epithelia and prime systemic immunity in an insect. Proc. Natl. Acad. Sci. USA 2024, 121, e2315540121. [Google Scholar] [CrossRef]
  9. Pham, L.N.; Dionne, M.S.; Shirasu-Hiza, M.; Schneider, D.S. A specific primed immune response in Drosophila is dependent on phagocytes. PLoS Pathog. 2007, 3, e26. [Google Scholar] [CrossRef]
  10. Miyashita, A.; Kizaki, H.; Kawasaki, K.; Sekimizu, K.; Kaito, C. Primed immune responses to gram-negative peptidoglycans confer infection resistance in silkworms. J. Biol. Chem. 2014, 289, 14412–14421. [Google Scholar] [CrossRef]
  11. Milutinović, B.; Peuß, R.; Ferro, K.; Kurtz, J. Immune priming in arthropods: An update focusing on the red flour beetle. Zoology 2016, 119, 254–261. [Google Scholar] [CrossRef]
  12. Shi, Z.H.; Lin, Y.T.; Hou, Y.M. Mother-derived trans-generational immune priming in the red palm weevil, Rhynchophorus ferrugineus Olivier (Coleoptera, Dryophthoridae). Bull. Entomol. Res. 2014, 104, 742–750. [Google Scholar] [CrossRef] [PubMed]
  13. Dhinaut, J.; Chogne, M.; Moret, Y. Immune priming specificity within and across generations reveals the range of pathogens affecting evolution of immunity in an insect. J. Anim. Ecol. 2018, 87, 448–463. [Google Scholar] [CrossRef] [PubMed]
  14. McNamara, K.B.; van Lieshout, E.; Simmons, L.W. The effect of maternal and paternal immune challenge on offspring immunity and reproduction in a cricket. J. Evol. Biol. 2014, 27, 1020–1028. [Google Scholar] [CrossRef] [PubMed]
  15. Mikonranta, L.; Mappes, J.; Kaukoniitty, M.; Freitak, D. Insect immunity: Oral exposure to a bacterial pathogen elicits free radical response and protects from a recurring infection. Front. Zool. 2014, 11, 23. [Google Scholar] [CrossRef] [PubMed]
  16. Ardia, D.R.; Gantz, J.E.; Schneider, B.C.; Schneider, S.; Strebel, S. Costs of immunity in insects: An induced immune response increases metabolic rate and decreases antimicrobial activity. Funct. Ecol. 2012, 26, 732–739. [Google Scholar] [CrossRef]
  17. Stearns, S.C. Life history evolution: Successes, limitations, and prospects. Naturwissenschaften 2000, 87, 476–486. [Google Scholar] [CrossRef]
  18. Rolff, J. Bateman’s principle and immunity. Proc. Biol. Sci. 2002, 269, 867–872. [Google Scholar] [CrossRef]
  19. Little, T.J.; Kraaijeveld, A.R. Ecological and evolutionary implications of immunological priming in invertebrates. Trends Ecol. Evol. 2004, 19, 58–60. [Google Scholar] [CrossRef]
  20. Flatt, T.; Kawecki, T.J. Juvenile hormone as a regulator of the trade-off between reproduction and life span in Drosophila melanogaster. Evolution 2007, 61, 1980–1991. [Google Scholar] [CrossRef]
  21. Khan, I.; Prakash, A.; Agashe, D. Experimental evolution of insect immune memory versus pathogen resistance. Proc. Biol. Sci. 2017, 284, 20171583. [Google Scholar] [CrossRef]
  22. Gourbal, B.; Pinaud, S.; Beckers, G.J.M.; van Der Meer, J.W.M.; Conrath, U.; Netea, M.G. Innate immune memory: An evolutionary perspective. Immunol. Rev. 2018, 283, 21–40. [Google Scholar] [CrossRef] [PubMed]
  23. van Boven, M.; Weissing, F.J. The evolutionary economics of immunity. Am. Nat. 2004, 163, 277–294. [Google Scholar] [CrossRef] [PubMed]
  24. Kangassalo, K.; Valtonen, T.M.; Roff, D.; Pölkki, M.; Dubovskiy, I.M.; Sorvari, J.; Rantala, M.J. Intra-and trans-generational effects of larval diet on susceptibility to an entomopathogenic fungus, Beauveria bassiana, in the greater wax moth, Galleria mellonella. J. Evol. Biol. 2015, 28, 1453–1464. [Google Scholar] [CrossRef] [PubMed]
  25. Kangassalo, K.; Valtonen, T.M.; Sorvari, J.; Kecko, S.; Pölkki, M.; Krams, I.; Krama, T.; Rantala, M.J. Independent and interactive effects of immune activation and larval diet on adult immune function, growth and development in the greater wax moth (Galleria mellonella). J. Evol. Biol. 2018, 31, 1485–1497. [Google Scholar] [CrossRef] [PubMed]
  26. Zanchi, C.; Troussard, J.P.; Martinaud, G.; Moreau, J.; Moret, Y. Differential expression and costs between maternally and paternally derived immune priming for offspring in an insect. J. Anim. Ecol. 2011, 80, 1174–1183. [Google Scholar] [CrossRef]
  27. Roth, O.; Kurtz, J. The stimulation of immune defence accelerates development in the red flour beetle (Tribolium castaneum). J. Evol. Biol. 2008, 21, 1703–1710. [Google Scholar] [CrossRef]
  28. Flatt, T.; Tu, M.P.; Tatar, M. Hormonal pleiotropy and the juvenile hormone regulation of Drosophila development and life history. BioEssays 2005, 27, 999–1010. [Google Scholar] [CrossRef]
  29. Schwenke, R.A.; Lazzaro, B.P.; Wolfner, M.F. Reproduction-Immunity trade-offs in insects. Annu. Rev. Entomol. 2016, 61, 239–256. [Google Scholar] [CrossRef]
  30. Iga, M.; Smagghe, G. Identification and expression profile of Halloween genes involved in ecdysteroid biosynthesis in Spodoptera littoralis. Peptides 2010, 31, 456–467. [Google Scholar] [CrossRef]
  31. Yamanaka, N.; Rewitz, K.F.; O’Connor, M.B. Ecdysone control of developmental transitions: Lessons from Drosophila research. Annu. Rev. Entomol. 2013, 58, 497–516. [Google Scholar] [CrossRef]
  32. Flatt, T.; Heyland, A.; Rus, F.; Porpiglia, E.; Sherlock, C.; Yamamoto, R.; Garbuzov, A.; Palli, S.R.; Tatar, M.; Silverman, N. Hormonal regulation of the humoral innate immune response in Drosophila melanogaster. J. Exp. Biol. 2008, 211, 2712–2724. [Google Scholar] [CrossRef] [PubMed]
  33. Harshman, L.G.; Zera, A.J. The cost of reproduction: The devil in the details. Trends Ecol. Evol. 2007, 22, 80–86. [Google Scholar] [CrossRef] [PubMed]
  34. Palli, S.R.; Ladd, T.R.; Tomkins, W.L.; Shu, S.; Ramaswamy, S.B.; Tanaka, Y.; Arif, B.; Retnakaran, A. Choristoneura fumiferana entomopoxvirus prevents metamorphosis and modulates juvenile hormone and ecdysteroid titers. Insect Biochem. Mol. Biol. 2000, 30, 869–876. [Google Scholar] [CrossRef] [PubMed]
  35. Nakai, M.; Kinjo, H.; Takatsuka, J.; Shiotsuki, T.; Kamita, S.G.; Kunimi, Y. Entomopoxvirus infection induces changes in both juvenile hormone and ecdysteroid levels in larval Mythimna separata. J. Gen. Virol. 2016, 97, 225–232. [Google Scholar] [CrossRef] [PubMed]
  36. Dembilio, O.; Quesada-Moraga, E.; Santiago-Alvarez, C.; Jacas, J.A. Potential of an indigenous strain of the entomopathogenic fungus Beauveria bassiana as a biological control agent against the red palm weevil, Rhynchophorus ferrugineus. J. Invertebr. Pathol. 2010, 104, 214–221. [Google Scholar] [CrossRef]
  37. Pu, Y.C.; Hou, Y.M. Isolation and identification of bacterial strains with insecticidal activities from Rhynchophorus ferrugineus Oliver (Coleoptera: Curculionidae). J. Appl. Entomol. 2016, 140, 617–626. [Google Scholar] [CrossRef]
  38. Pu, Y.C.; Ma, T.L.; Hou, Y.M.; Sun, M. An entomopathogenic bacterium strain, Bacillus thuringiensis, as a biological control agent against the red palm weevil, Rhynchophorus ferrugineus (Coleoptera: Curculionidae). Pest Manag. Sci. 2017, 73, 1494–1502. [Google Scholar] [CrossRef]
  39. Li, Y.; Zhang, J.; Zhao, S.; Wu, X. BmNPV-induced hormone metabolic disorder in silkworm leads to enhanced locomotory behavior. Dev. Comp. Immunol. 2021, 121, 104036. [Google Scholar] [CrossRef]
  40. Li, J.; Mao, T.; Wang, H.; Lu, Z.; Qu, J.; Fang, Y.; Chen, J.; Li, M.; Cheng, X.; Hu, J.; et al. The CncC/keap1 pathway is activated in high temperature-induced metamorphosis and mediates the expression of Cyp450 genes in silkworm, Bombyx mori. Biochem. Biophys. Res. Commun. 2019, 514, 1045–1050. [Google Scholar] [CrossRef]
  41. Xie, J.; Chen, H.; Zheng, W.; Cai, Z.; Li, X.; Zhang, H. miR-275/305 cluster is essential for maintaining energy metabolic homeostasis by the insulin signaling pathway in Bactrocera dorsalis. PLoS Genet. 2022, 18, e1010418. [Google Scholar] [CrossRef]
  42. Huang, X.; Warren, J.T.; Gilbert, L.I. New players in the regulation of ecdysone biosynthesis. J. Genet. Genom. 2008, 35, 1–10. [Google Scholar] [CrossRef] [PubMed]
  43. Lindsay, S.A.; Wasserman, S.A. Conventional and non-conventional Drosophila Toll signaling. Dev. Comp. Immunol. 2014, 42, 16–24. [Google Scholar] [CrossRef] [PubMed]
  44. Lin, X.; Yu, N.; Smagghe, G. FoxO mediates the timing of pupation through regulating ecdysteroid biosynthesis in the red flour beetle, Tribolium castaneum. Gen. Comp. Endocrinol. 2018, 258, 149–156. [Google Scholar] [CrossRef] [PubMed]
  45. Cime-Castillo, J.; Vargas, V.; Hernández-Tablas, J.M.; Quezada-Ruiz, E.; Díaz, G.; Lanz-Mendoza, H. The costs of transgenerational immune priming for homologous and heterologous infections with different serotypes of dengue virus in Aedes aegypti mosquitoes. Front. Immunol. 2023, 14, 1286831. [Google Scholar] [CrossRef] [PubMed]
  46. Rodrigues, J.; Brayner, F.A.; Alves, L.C.; Dixit, R.; Barillas-Mury, C. Hemocyte differentiation mediates innate immune memory in Anopheles gambiae mosquitoes. Science 2010, 329, 1353–1355. [Google Scholar] [CrossRef]
  47. Wu, G.; Liu, J.; Li, M.; Xiao, Y.; Yi, Y. Prior infection of Galleria mellonella with sublethal dose of Bt elicits immune priming responses but incurs metabolic changes. J. Insect Physiol. 2022, 139, 104401. [Google Scholar] [CrossRef]
  48. Kurtz, J.; Franz, K. Innate defence: Evidence for memory in invertebrate immunity. Nature 2003, 425, 37–38. [Google Scholar] [CrossRef]
  49. Beckage, N.E.; Gelman, D.B. Wasp parasitoid disruption of host development: Implications for new biologically based strategies for insect control. Annu. Rev. Entomol. 2004, 49, 299–330. [Google Scholar] [CrossRef]
  50. Karlhofer, F.M.; Schafellner, M.; Hoch, G. Reduced activity of juvenile hormone esterase in microsporidia-infected Lymantria dispar larvae. J. Invertebr. Pathol. 2012, 110, 126–128. [Google Scholar] [CrossRef]
  51. Down, R.E.; Bell, H.A.; Bryning, G.; Kirkbride-Smith, A.E.; Edwards, J.P.; Weaver, R.J. Infection by the microsporidium Vairimorpha necatrix (Microspora: Microsporidia) elevates juvenile hormone titres in larvae of the tomato moth, Lacanobia oleracea (Lepidoptera: Noctuidae). J. Invertebr. Pathol. 2008, 97, 223–229. [Google Scholar] [CrossRef]
  52. Petryk, A.; Warren, J.T.; Marqués, G.; Jarcho, M.P.; Gilbert, L.I.; Kahler, J. Shade is the Drosophila P450 enzyme that mediates the hydroxylation of ecdysone to the steroid insect molting hormone 20-hydroxyecdysone. Proc. Natl. Acad. Sci. USA 2003, 100, 13773–13778. [Google Scholar] [CrossRef] [PubMed]
  53. Peng, L.; Wang, L.; Zou, M.M.; Vasseur, L.; Chu, L.N.; Qin, Y.D.; Zhai, Y.L.; You, M.S. Identification of Halloween genes and RNA interference-mediated functional characterization of a Halloween gene shadow in Plutella xylostella. Front. Physiol. 2019, 10, 1120. [Google Scholar] [CrossRef] [PubMed]
  54. Jia, S.; Wan, P.J.; Zhou, L.T.; Mu, L.L.; Li, G.Q. Knockdown of a putative Halloween gene Shade reveals its role in ecdysteroidogenesis in the small brown planthopper Laodelphax striatellus. Gene 2013, 531, 168–174. [Google Scholar] [CrossRef] [PubMed]
  55. Tzou, P.; De Gregorio, E.; Lemaitre, B. How Drosophila combats microbial infection: A model to study innate immunity and host-pathogen interactions. Curr. Opin. Microbiol. 2002, 5, 102–110. [Google Scholar] [CrossRef] [PubMed]
  56. Hultmark, D. Drosophila immunity: Paths and patterns. Curr. Opin. Immunol. 2003, 15, 12–19. [Google Scholar] [CrossRef]
  57. Brennan, C.A.; Anderson, K.V. Drosophila: The genetics of innate immune recognition and response. Annu. Rev. Immunol. 2004, 22, 457–483. [Google Scholar] [CrossRef]
  58. Lemaitre, B.; Reichhart, J.M.; Hoffmann, J.A. Drosophila host defense: Differential induction of antimicrobial peptide genes after infection by various classes of microorganisms. Proc. Natl. Acad. Sci. USA 1997, 94, 14614–14619. [Google Scholar] [CrossRef]
  59. Leulier, F.; Parquet, C.; Pili-Floury, S.; Ryu, J.H.; Caroff, M.; Lee, W.J.; Mengin-Lecreulx, D.; Lemaitre, B. The Drosophila immune system detects bacteria through specific peptidoglycan recognition. Nat. Immunol. 2003, 4, 478–484. [Google Scholar] [CrossRef]
  60. Valanne, S.; Wang, J.H.; Rämet, M. The Drosophila Toll signaling pathway. J. Immunol. 2011, 186, 649–656. [Google Scholar] [CrossRef]
  61. Muhammad, A.; Habineza, P.; Wang, X.; Xiao, R.; Ji, T.; Hou, Y.; Shi, Z. Spätzle Homolog-mediated Toll-like pathway regulates innate immune responses to maintain the homeostasis of gut microbiota in the red palm weevil, Rhynchophorus ferrugineus Olivier (Coleoptera: Dryophthoridae). Front. Microbiol. 2020, 11, 846. [Google Scholar] [CrossRef]
  62. Hamilton, W.D.; Zuk, M. Heritable true fitness and bright birds: A role for parasites? Science 1982, 218, 384–387. [Google Scholar] [CrossRef] [PubMed]
  63. Sheldon, B.C.; Verhulst, S. Ecological immunology: Costly parasite defences and trade-offs in evolutionary ecology. Trends Ecol. Evol. 1996, 11, 317–321. [Google Scholar] [CrossRef] [PubMed]
  64. Nava-Sánchez, S.; González-Tokman, D.; Munguía-Steyer, R.; Córdoba-Aguilar, A. Does mating activity impair phagocytosis-mediated priming immune response? A test using the house cricket, Acheta domesticus. Acta Ethol. 2015, 18, 295–299. [Google Scholar] [CrossRef]
  65. Shikano, I.; Hua, K.N.; Cory, J.S. Baculovirus-challenge and poor nutrition inflict within-generation fitness costs without triggering transgenerational immune priming. J. Invertebr. Pathol. 2016, 136, 35–42. [Google Scholar] [CrossRef] [PubMed]
  66. Prigot-Maurice, C.; Depeux, C.; Paulhac, H.; Braquart-Varnier, C.; Beltran-Bech, S. Immune priming in Armadillidium vulgare against Salmonellaenterica: Direct or indirect costs on life history traits? ZooKeys 2022, 1101, 131–158. [Google Scholar] [CrossRef]
  67. Rolff, J.; Siva-Jothy, M.T. Invertebrate ecological immunology. Science 2003, 301, 472–475. [Google Scholar] [CrossRef]
  68. Schmid-Hempel, P. Evolutionary ecology of insect immune defenses. Annu. Rev. Entomol. 2005, 50, 529–551. [Google Scholar] [CrossRef]
  69. Luu, H.; Tate, A.T. Recovery and immune priming modulate the evolutionary trajectory of infection-induced reproductive strategies. J. Evol. Biol. 2017, 30, 1748–1762. [Google Scholar] [CrossRef]
  70. Contreras-Garduño, J.; Rodríguez, M.C.; Rodríguez, M.H.; Alvarado-Delgado, A.; Lanz-Mendoza, H. Cost of immune priming within generations: Trade-off between infection and reproduction. Microbes Infect. 2014, 16, 261–267. [Google Scholar] [CrossRef]
Insects 15 00925 g001

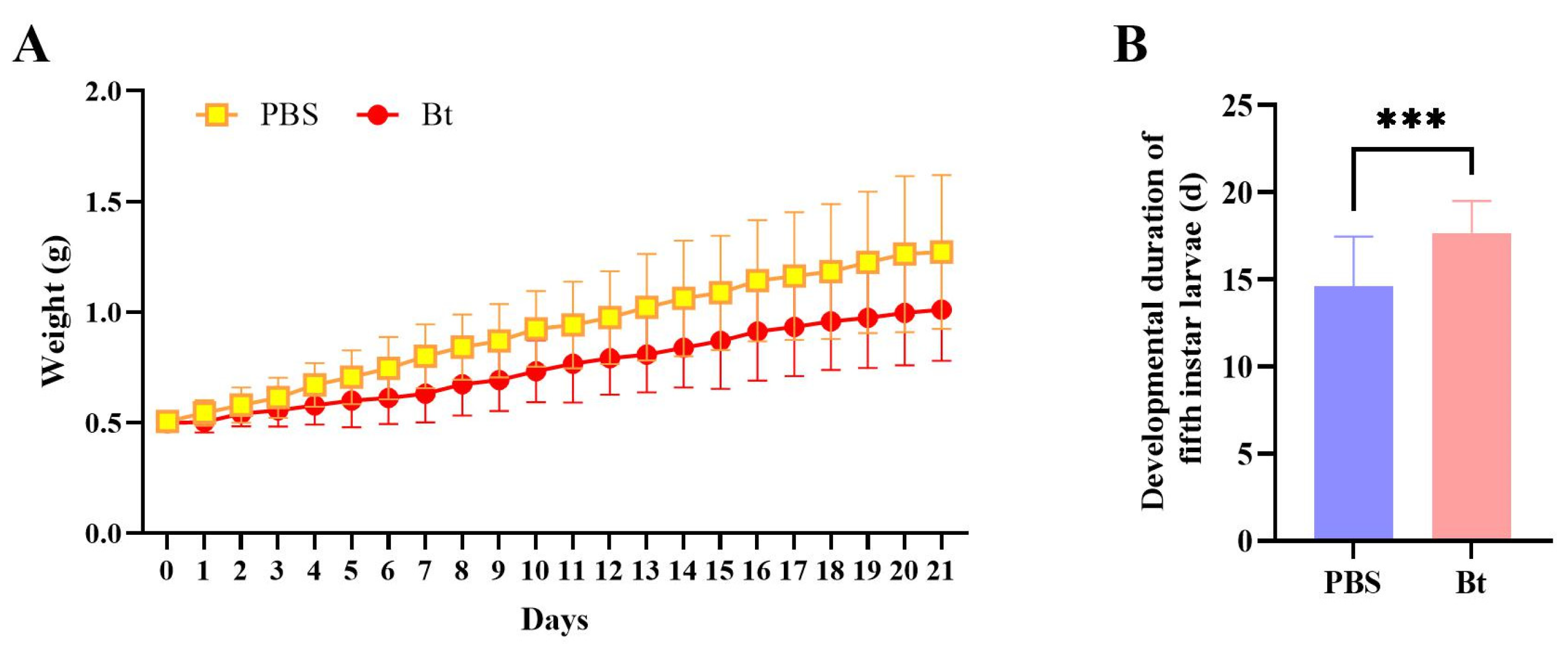

Figure 1. Biological parameters of the fifth-instar larvae of Rhynchophorus ferrugineus after Bt priming. (A) Weight gain of the fifth instar larvae after Bt priming. (B) Developmental duration of the fifth instar larvae after Bt priming. Data are shown as mean ± SE. Statistical significance was analyzed via independent-samples t-test. *** p < 0.001.
Figure 1. Biological parameters of the fifth-instar larvae of Rhynchophorus ferrugineus after Bt priming. (A) Weight gain of the fifth instar larvae after Bt priming. (B) Developmental duration of the fifth instar larvae after Bt priming. Data are shown as mean ± SE. Statistical significance was analyzed via independent-samples t-test. *** p < 0.001.
Insects 15 00925 g001
Insects 15 00925 g002

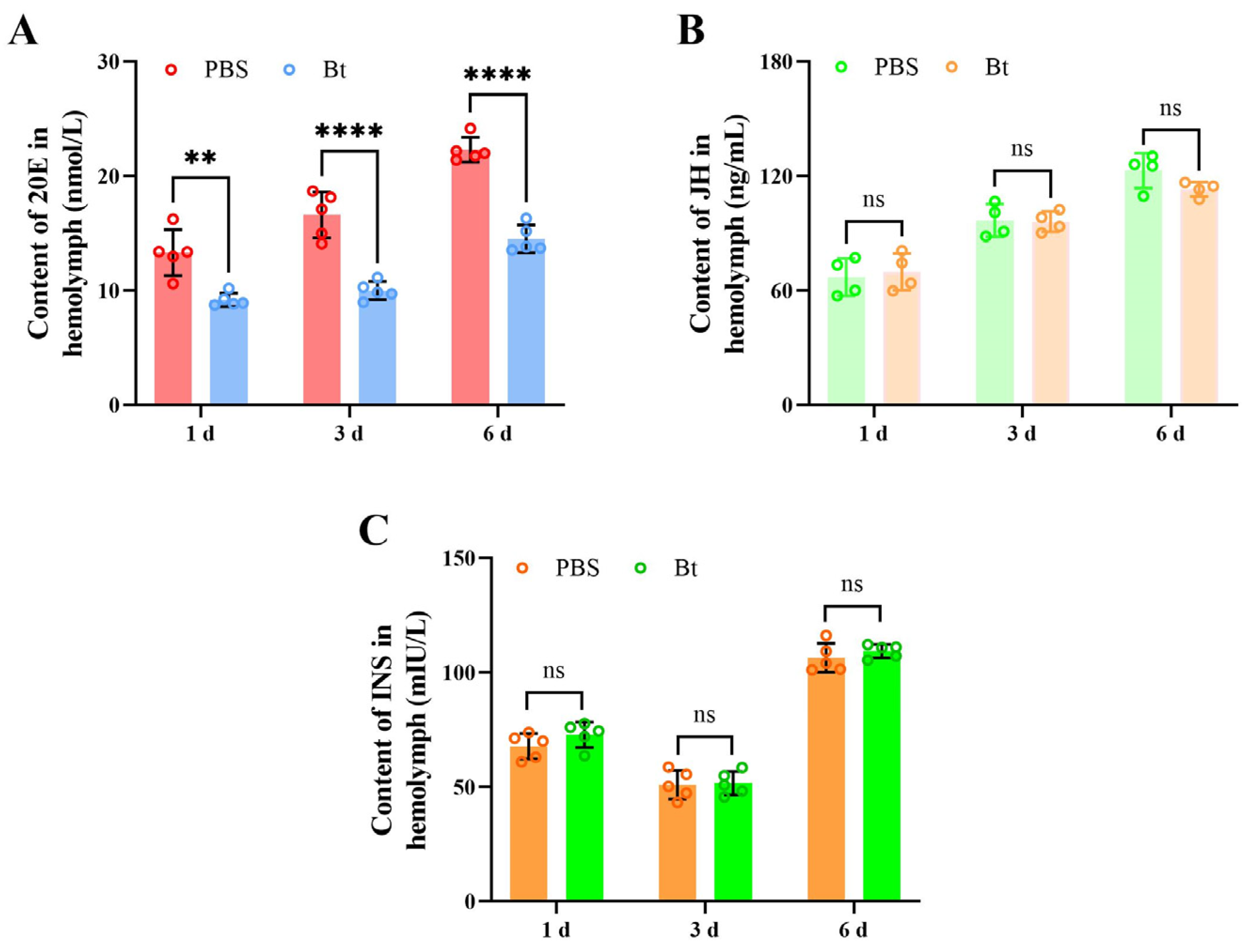

Figure 2. Contents of 20E, JH, and INS in the hemolymph of fifth-instar larvae of Rhynchophorus ferrugineus after Bt priming. 1, 3, and 6 d indicates the time after Bt priming. (A) Contents of 20E in the I think it’s OKhemolymph after Bt priming for 1, 3, and 6 d. (B) Contents of JH in the hemolymph after Bt priming for 1, 3, and 6 d. (C) Contents of INS in the hemolymph after Bt priming for 1, 3, and 6 d. Data are shown as mean ± SE. Statistical significance was analyzed by independent-samples t-test. ns: no significance (p > 0.05), ** p < 0.01, **** p < 0.0001.
Figure 2. Contents of 20E, JH, and INS in the hemolymph of fifth-instar larvae of Rhynchophorus ferrugineus after Bt priming. 1, 3, and 6 d indicates the time after Bt priming. (A) Contents of 20E in the I think it’s OKhemolymph after Bt priming for 1, 3, and 6 d. (B) Contents of JH in the hemolymph after Bt priming for 1, 3, and 6 d. (C) Contents of INS in the hemolymph after Bt priming for 1, 3, and 6 d. Data are shown as mean ± SE. Statistical significance was analyzed by independent-samples t-test. ns: no significance (p > 0.05), ** p < 0.01, **** p < 0.0001.
Insects 15 00925 g002
Insects 15 00925 g003

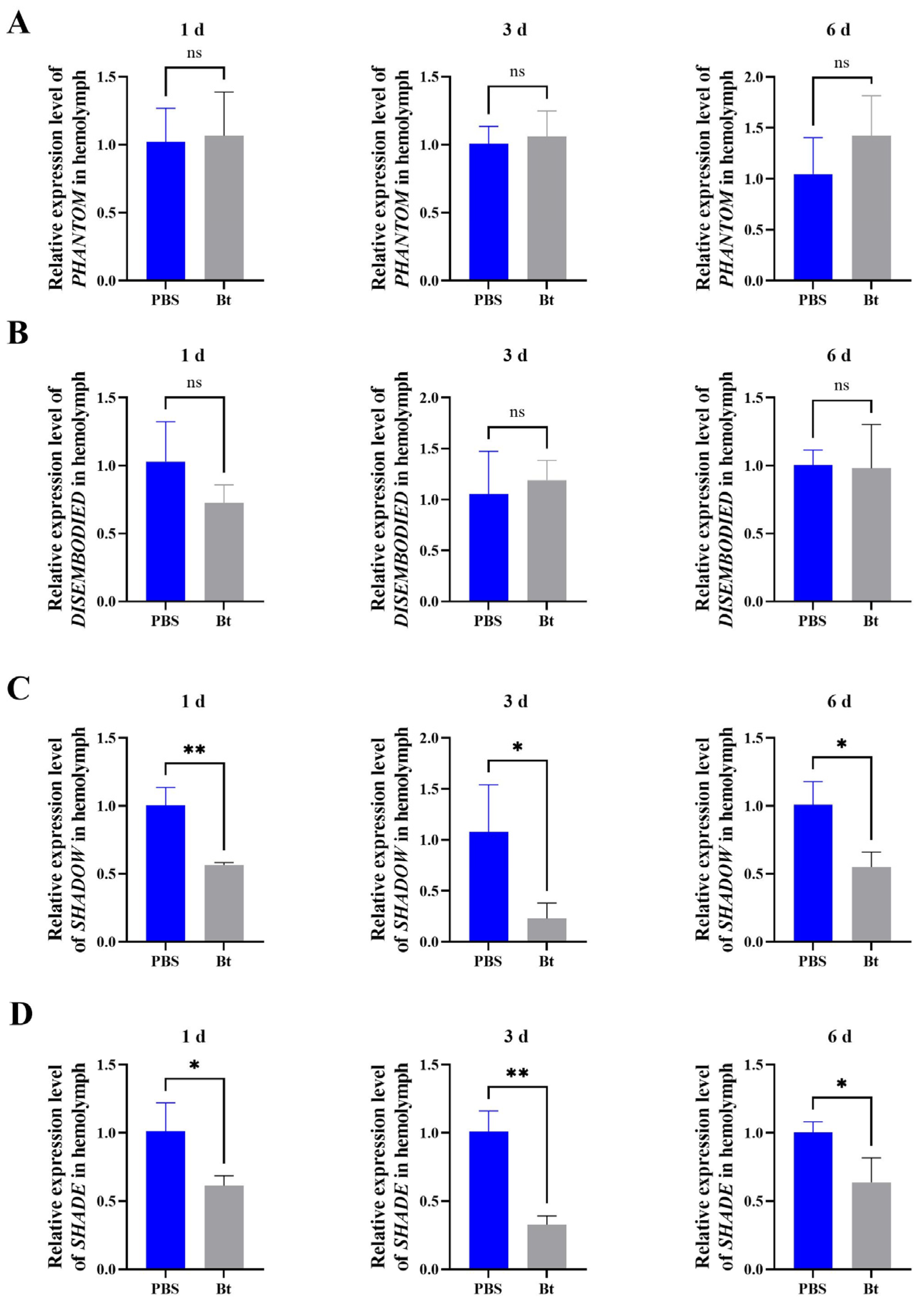

Figure 3. Relative expression of 20E synthesis genes in the hemolymph of the fifth-instar larvae of Rhynchophorus ferrugineus after Bt priming. (A) The relative expression of PHANTOM after Bt priming for 1, 3, and 6 d. (B) The relative expression of DISEMBODIED after Bt priming for 1, 3, and 6 d. (C) The relative expression of SHADOW after Bt priming for 1, 3, and 6 d. (D) The relative expression of SHADE after Bt priming for 1, 3, and 6 d. Data are shown as mean ± SE. Statistical significance was analyzed via independent-samples t-test. ns: no significance (p > 0.05), * p < 0.05, ** p < 0.01.
Figure 3. Relative expression of 20E synthesis genes in the hemolymph of the fifth-instar larvae of Rhynchophorus ferrugineus after Bt priming. (A) The relative expression of PHANTOM after Bt priming for 1, 3, and 6 d. (B) The relative expression of DISEMBODIED after Bt priming for 1, 3, and 6 d. (C) The relative expression of SHADOW after Bt priming for 1, 3, and 6 d. (D) The relative expression of SHADE after Bt priming for 1, 3, and 6 d. Data are shown as mean ± SE. Statistical significance was analyzed via independent-samples t-test. ns: no significance (p > 0.05), * p < 0.05, ** p < 0.01.
Insects 15 00925 g003
Insects 15 00925 g004

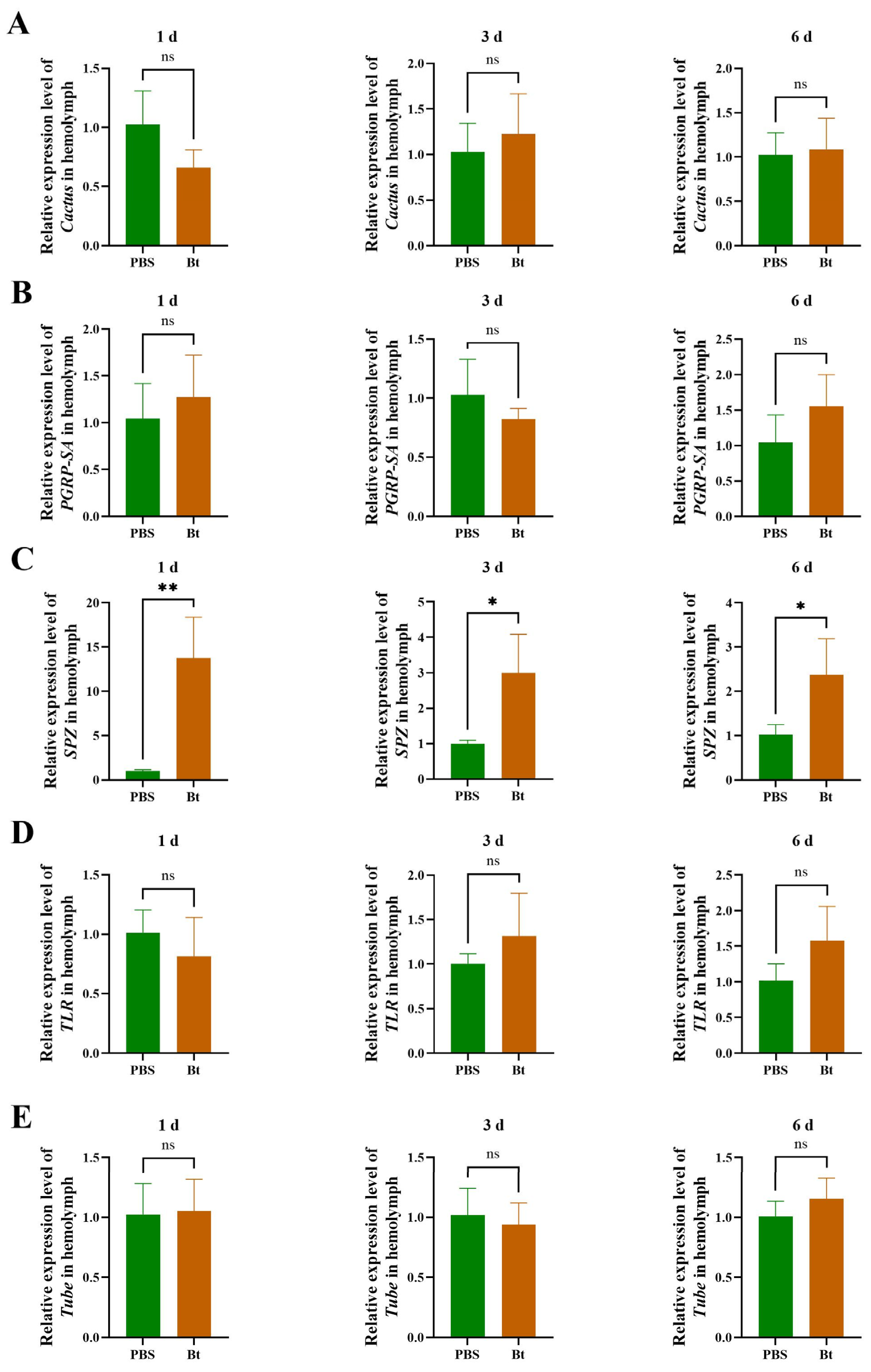

Figure 4. Relative expression of Toll pathway genes in the hemolymph of the fifth-instar larvae of Rhynchophorus ferrugineus after Bt priming. (A) The relative expression of Cactus after Bt priming for 1, 3, and 6 d. (B) The relative expression of PGRP-SA after Bt priming for 1, 3, and 6 d. (C) The relative expression of SPZ after Bt priming for 1, 3, and 6 d. (D) The relative expression of TLR after Bt priming for 1, 3, and 6 d. (E) The relative expression of Tube after Bt priming for 1, 3, and 6 d. Data are shown as mean ± SE. Statistical significance was analyzed via independent-samples t-test. ns: no significance (p > 0.05), * p < 0.05, ** p < 0.01.
Figure 4. Relative expression of Toll pathway genes in the hemolymph of the fifth-instar larvae of Rhynchophorus ferrugineus after Bt priming. (A) The relative expression of Cactus after Bt priming for 1, 3, and 6 d. (B) The relative expression of PGRP-SA after Bt priming for 1, 3, and 6 d. (C) The relative expression of SPZ after Bt priming for 1, 3, and 6 d. (D) The relative expression of TLR after Bt priming for 1, 3, and 6 d. (E) The relative expression of Tube after Bt priming for 1, 3, and 6 d. Data are shown as mean ± SE. Statistical significance was analyzed via independent-samples t-test. ns: no significance (p > 0.05), * p < 0.05, ** p < 0.01.
Insects 15 00925 g004
Insects 15 00925 g005

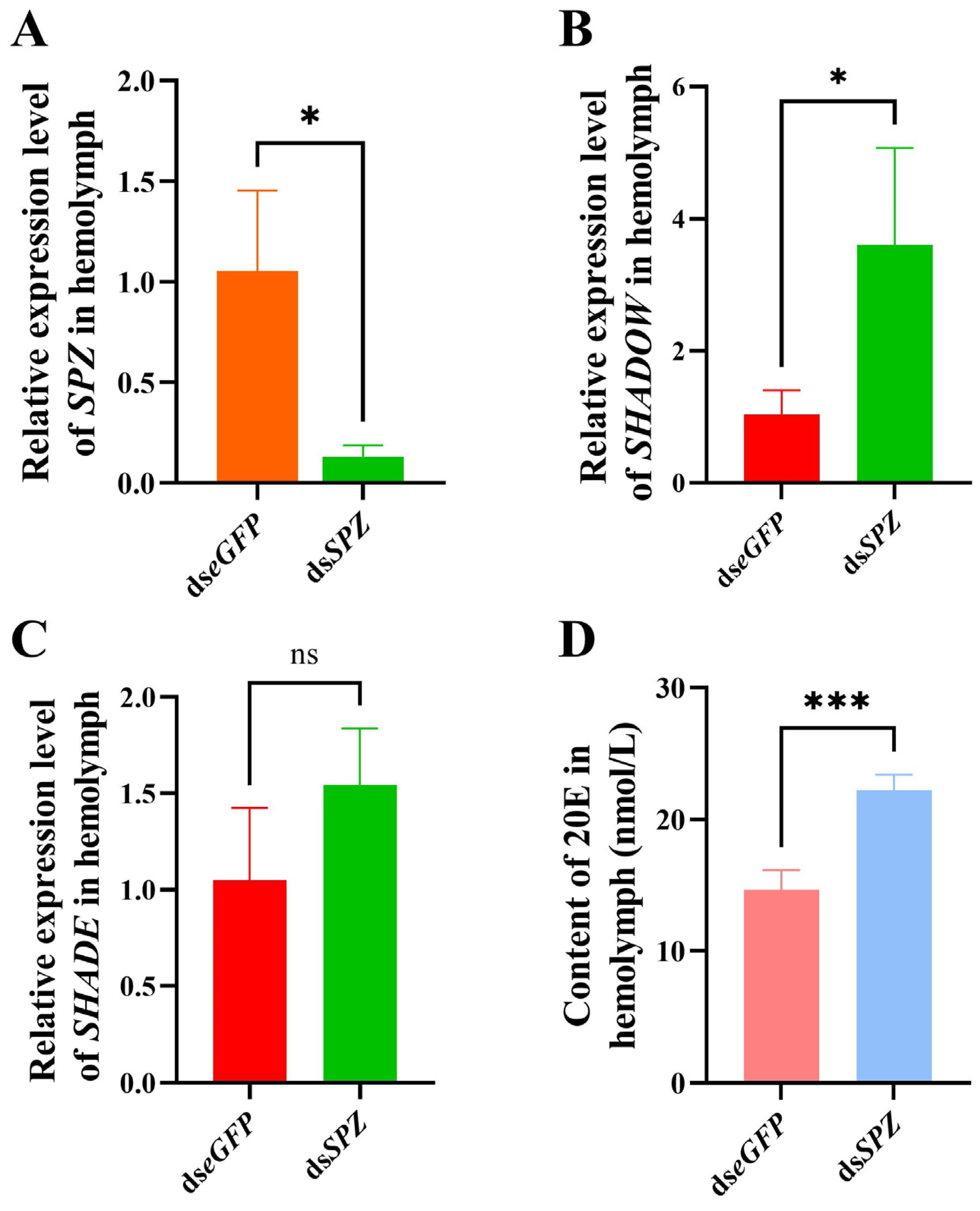

Figure 5. Effect of SPZ interference on SHADOW expression and 20E content in the hemolymph of the fifth-instar larvae of Rhynchophorus ferrugineus. (A) Interference efficiency of target genes SPZ at 24 h. (B) Relative expression of SHADOW following SPZ interference. (C) Relative expression of SHADE after SPZ interference. (D) The content of 20E in the PRW hemolymph following SPZ interference. Data are shown as mean ± SE. Statistical significance was analyzed via independent-samples t-test. ns: no significance (p > 0.05), * p < 0.05, *** p < 0.001.
Figure 5. Effect of SPZ interference on SHADOW expression and 20E content in the hemolymph of the fifth-instar larvae of Rhynchophorus ferrugineus. (A) Interference efficiency of target genes SPZ at 24 h. (B) Relative expression of SHADOW following SPZ interference. (C) Relative expression of SHADE after SPZ interference. (D) The content of 20E in the PRW hemolymph following SPZ interference. Data are shown as mean ± SE. Statistical significance was analyzed via independent-samples t-test. ns: no significance (p > 0.05), * p < 0.05, *** p < 0.001.
Insects 15 00925 g005
Insects 15 00925 g006

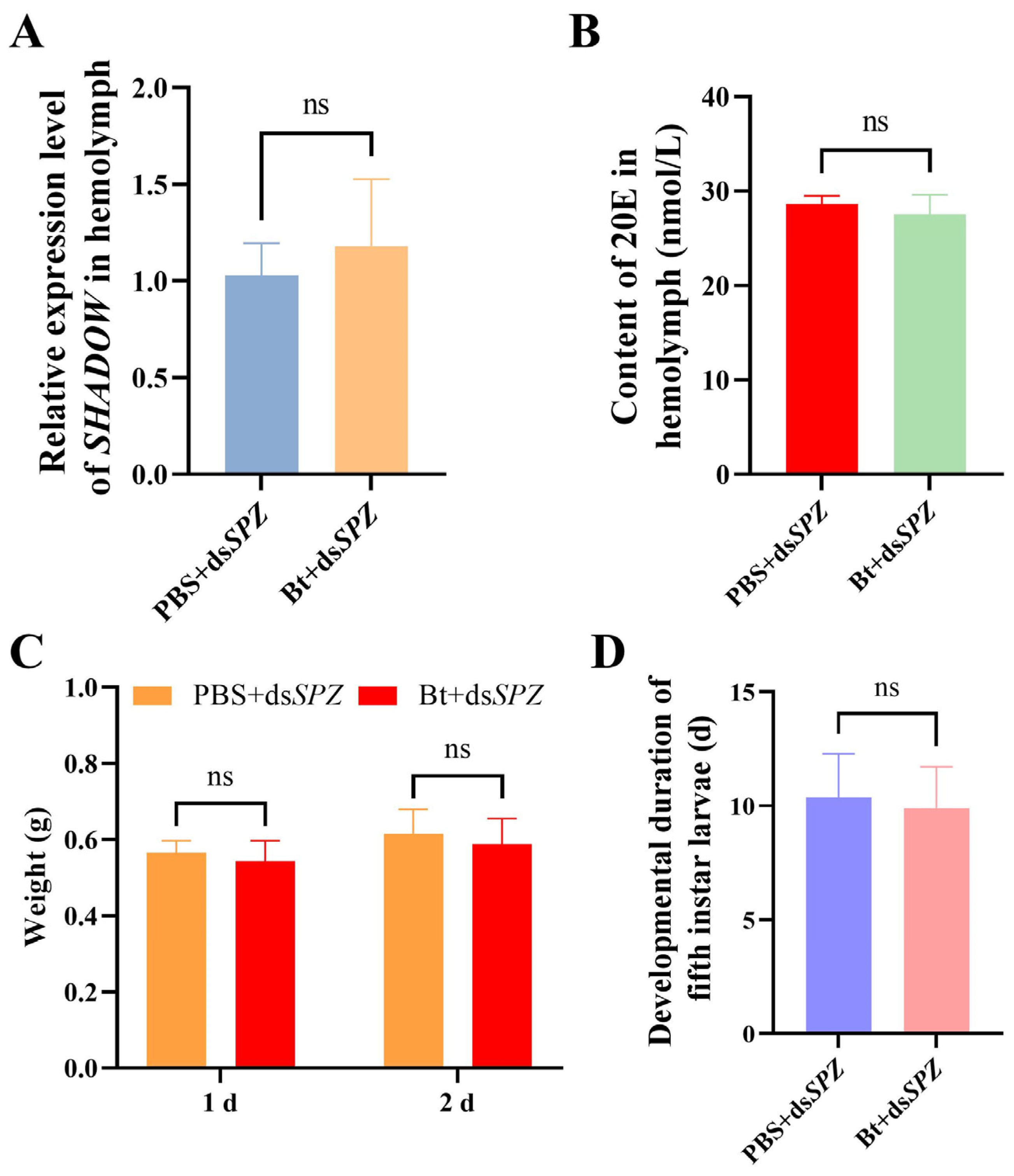

Figure 6. Effect of Bt priming on the fifth-instar larvae of Rhynchophorus ferrugineus after SPZ interference. (A) The relative expression of SHADOW via Bt priming after SPZ interference. (B) The content of 20E in the PRW hemolymph by Bt priming following SPZ interference. (C) Weight of the fifth-instar larvae of PRW following 1 and 2 days of Bt priming after SPZ interference. (D) Developmental duration of the fifth-instar larvae of PRW via Bt priming after SPZ interference. Data are shown as mean ± SE. Statistical significance was analyzed via independent-samples t-test. ns: no significance (p > 0.05).
Figure 6. Effect of Bt priming on the fifth-instar larvae of Rhynchophorus ferrugineus after SPZ interference. (A) The relative expression of SHADOW via Bt priming after SPZ interference. (B) The content of 20E in the PRW hemolymph by Bt priming following SPZ interference. (C) Weight of the fifth-instar larvae of PRW following 1 and 2 days of Bt priming after SPZ interference. (D) Developmental duration of the fifth-instar larvae of PRW via Bt priming after SPZ interference. Data are shown as mean ± SE. Statistical significance was analyzed via independent-samples t-test. ns: no significance (p > 0.05).
Insects 15 00925 g006
