Article

Identification of Terpenoid Compounds and Toxicity Assays of Essential Oil Microcapsules from Artemisia stechmanniana

by
Chang Liu
1,2,
Zhilong Liu
1,
Yihan Zhang
1,
Xuan Song
1,
Wenguang Huang
3 and
Rong Zhang
2,*
1
College of Plant Protection, China Agricultural University, Beijing 100193, China
2
Institute of Plant Protection, Ningxia Academy of Agricultural and Forestry Sciences, Yinchuan 750002, China
3
Grassland Workstation of Ningxia, Yinchuan 750002, China
*
Author to whom correspondence should be addressed.
Insects 2023, 14(5), 470; https://doi.org/10.3390/insects14050470
Submission received: 17 April 2023 / Revised: 12 May 2023 / Accepted: 15 May 2023 / Published: 16 May 2023
(This article belongs to the Section Insect Pest and Vector Management)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Plant essential oils, as biological pesticides, play a key role in chemical ecology. In this study, we analyzed the components of A. stechmanniana essential oil and identified 17 terpenoid compounds. A. stechmanniana essential oil showed a high efficiency compared with azadirachtin against Aphis gossypii, Frankliniella occidentalis, and Bactericera gobica of the wolfberry (Lycium barbarum L.) in indoor toxicity assays. For practical use, the A. stechmanniana essential oil microencapsule showed long-lasting insecticidal activity in the Lycium barbarum field. This study contributes to the identification of a new biopesticide from untapped Artemisia plants and the design of a novel method against pests of L. barbarum.

Abstract

Plant essential oils, as biological pesticides, have been reviewed from several perspectives and play a key role in chemical ecology. However, plant essential oils show rapid degradation and vulnerability during actual usage. In this study, we conducted a detailed analysis of the compounds present in the essential oils of A. stechmanniana using gas chromatography–mass spectrometry (GC-MS). The results showed seventeen terpenoid compounds in the A. stechmanniana oil, with four major terpenoid compounds, i.e., eucalyptol (15.84%), (+)-2-Bornanone (16.92%), 1-(1,2,3-Trimethyl-cyclopent-2-enyl)-ethanone (25.63%), and (-)-Spathulenol (16.38%), in addition to an amount of the other terpenoid compounds (25.26%). Indoor toxicity assays were used to evaluate the insecticidal activity of Artemisia stechmanniana essential oil against Aphis gossypii, Frankliniella occidentalis, and Bactericera gobica in Lycium barbarum. The LC50/LD50 values of A. stechmanniana essential oils against A. gossypii, F. occidentalis, and B. gobica were 5.39 mg/mL, 0.34 mg/L, and 1.40 μg/insect, respectively, all of which were highly efficient compared with azadirachtin essential oil. Interestingly, A. stechmanniana essential oil embedded in β-cyclodextrin (microencapsule) remained for only 21 days, whereas pure essential oils remained for only 5 days. A field efficacy assay with the A. stechmanniana microencapsule (AM) and doses at three concentrations was conducted in Lycium barbarum, revealing that the insecticidal activities of AM showed high efficiency, maintained a significant control efficacy at all concentrations tested, and remained for 21 days. Our study identified terpenoid compounds from untapped Artemisia plants and designed a novel method against pests using a new biopesticide on L. barbarum.

Graphical Abstract

1. Introduction

Plant essential oils (EOs) play multiple key biological roles in the insecticidal properties of complex compounds including ketones, phenols, and terpenoids [1]. Most known EOs have been considered major alternatives to plant-derived bioinsecticides that meet the sustainable biological standard of Integrated Pest Management (IPM) [2]. Previous studies have shown that Eos, as bio-insecticides, are obtained from several plant families, including Asteraceae, Meliaceae, Myrtaceae, Lamiaceae, Apiaceae, and Rutaceae. Plant essential oils exhibit contact, fumigant, repellent, and ingestion toxicities against various agricultural pests [3,4,5]. Recently, increasing attention has been paid to the exploration of low-risk insecticides, which are a popular source for organic growers and environmentally conscious consumers [6]. Furthermore, local plants, as sources, are desirable to use as maximum resources and are environmentally friendly [7].
Lycium barbarum L. (Solanaceae: Lycium) is an important plant with high medicinal value, and its main production area is located in the Ningxia Hui Autonomous Region of Northwest China, also known as goji berry, wolfberry, and Chinese boxthorn (or gouqizi in Chinese) [8,9]. A. gossypii, F. occidentalis, and B. gobica are among the most widespread and harmful agricultural pests during the maturity of wolfberry [10]. Previous studies have shown that the biological pesticide azadirachtin, which is extracted from neem trees, can control pests in L. barbarum [11,12]. Nevertheless, azadirachtin is the only registered biopesticide for L. barbarum and is expensive [13]. Thus, it is challenging to identify new biopesticides from untapped local plant resources.
Artemisia stechmanniana Besser (Asteraceae) is a kind of local plant widely distributed in the Ningxia Hui Autonomous Region [14]. In Artemisia absinthium and Artemisia argyi, EOs possessed significant insecticidal properties to cabbage aphids [15]. Artemesia songarica EOs exhibit strong insecticide and repellent activities against Tribolium castaneum Herbst and Liposcelis bostrychophila Badonnel [16]. Artemisia also influences insects through direct contact, fumigation, repelling insects, keeping them from feeding, or hindering their reproduction [17,18]. Thus, A. stechmanniana could be a good new material for obtaining botanical pesticides as a local plant source [19]. However, plant essential oils have many drawbacks, including their high volatility and low durability. β-cyclodextrin, as the most common cyclodextrin product, is composed of seven α-D-glucopyranose units. It is a multifunctional encapsulation material that protects bioactive ingredients from volatilization, oxidization, or degradation [20]. Essential oils embedded in β-cyclodextrin (microencapsule) represent a novel method for slowing down volatile characteristics.
In several preliminary studies, our group evaluated the insecticidal activity of plant essential oils from 14 kinds of Chinese medicinal herbs, i.e., Curcuma longa L., Epimedium pubescens Maximouwicz, Lindera aggregate (Sims) Kostermans, Nardostachys chinensis Battandier, Schizonepeta tenuifolia Briquet, Zanthoxylum schinifolium Sieber et Zuccarini, and Z. officinale Roscoe, that have been investigated and have strong repellency against Liposcelis bostrychophila and Tribolium castaneum [21]. Furthermore, we obtained essential oils from Chinese medicinal herbs with insecticidal activity against Drosophila melanogaster [22]. A. stechmanniana can provide a good opportunity for comparative studies for investigating the biological activity of essential oils from local wild plants to protect Lycium barbarum. Here, we first analyzed the composition of terpenoid compounds in A. stechmanniana essential oil using gas chromatography–mass spectrometry (GC-MS). Next, the indoor toxicity assay against the main pests in the Lycium barbarum, including A. gossypii, F. occidentalis, and B. gobica, was conducted. Furthermore, we conducted a series of field efficacy assays using the A. stechmanniana essential oil microencapsules. This study identified a novel biopesticide from an untapped local plant against L. barbarum pests.

2. Materials and Methods

2.1. Plants and Insects

Wild Artemisia stechmanniana were grown in Guyuan (36°28′50.9″ N, 106°3′50.9″ E), Ningxia Hui Autonomous Region, China. The aerial parts (10.0 kg) were harvested in July 2022. The plants were identified by Prof. Huang (Grassland Workstation of Ningxia). Voucher specimens (BNU-Liuchang-2022-07-28-05) were deposited at the herbarium (BNU) of the Institute of Plant Protection, Ningxia Academy of Agricultural and Forestry Sciences. Aphis gossypii Glover, Frankliniella occidentalis Pergande, and Bactericera gobica Loginova were obtained from the Ningxia Academy of Agriculture and Forestry Sciences and reared on Gossypium, Phaseolus vulgaris, and Lycium barbarum (cultivated in the greenhouse of the Ningxia Academy of Agricultural Sciences). All pests were reared in a growth chamber (RXZ-300B, Ningbo, China) maintained at 25 ± 1 °C, 40 ± 5% relative humidity (RH), and a 16 L: 8 D photoperiod [14].

2.2. Preparation of the Essential Oil

Fresh Artemisia stechmanniana (10 kg) was chopped into 3–5 cm segments and subjected to hydrodistillation in a clevenger-type (Lichen, Shanghai, China) apparatus at 100 °C for 4 h. The distilled oil was extracted with n-hexane and dehydrated with anhydrous sodium sulfate after extraction to remove any residual water drops. The solvent was evaporated using a vacuum rotary evaporator (Heidolph Rotavapor Hei-VAP (ML), Germany) and stored at 4 °C until further use. After filtration, the yield of the A. stechmanniana essential oil was 34.44 g (0.34%, w/w). The density of the essential oils was 0.82 g/mL, calculated using the volume and weight [23].

2.3. Analysis of Essential Oils from A. stechmanniana Using GC/MS

A. stechmanniana essential oil was analyzed on an Agilent GCMS-QP 2010 (Agilent Technologies Inc., Santa Clara, CA, USA), equipped with a DB-5MS chromatographic column (60 m × 0.32 mm × 0.25 μm, Agilent, Santa Clara, CA, USA). After sample injection, the split flow of the carrier gas helium was 30:1, with a 2 µL injection volume. The oven temperature program consisted of 40 °C (held for 1 min), which increased to 220 °C at a rate of 4 °C/min and then to 280 °C at a rate of 11 °C/min (held for 10 min) [24]. The injector and ion source temperatures were set to 200 °C. The MS was operated with electron impact ionization (El, 60 eV) and a scan range of m/z 29–650. Terpenoid compounds from A. stechmanniana oil were identified by comparing the retention times and mass spectra to the NIST Mass Spectral Library using NIST 17 [25]. The major terpenoid compounds were identified by comparing their retention times and mass spectra with those of the standards (Sigma-Aldrich, Ontario, Canada) under the same conditions. Three biological replicates were used for each treatment. The proportions of the individual compounds were calculated based on the peak areas.

2.4. Indoor Toxicity Assays

Indoor toxicity assays were carried out via leaf dipping, fumigation, and topical application against A. gossypii, F. occidentalis, and B. gobica, respectively, following the method that was described in a previous study [14]. The contact toxicity of A. stechmanniana essential oils against A. gossypii was evaluated using the leaf dipping method [26]. Range-finding studies were performed to determine appropriate test concentrations. Serial dilutions (five concentrations: 1.02, 2.05, 4.10, 8.20, and 16.40 mg/mL) of A. stechmanniana essential oils with buffer I (on a 1:1 mixture of ethanol and DMSO) in 1.5 mL microcentrifuge tubes as the insecticides were prepared. Fresh cotton leaves were flooded with insecticide, kept for 10 s, and then placed in the dish with 12 wells (diameter 12 mm, Corning, New York, NY, USA). Each treatment was performed with ten adult aphids, and six replicates were analyzed. Buffer I and azadirachtin oil (Neem, OMRI Listed, California, CA, USA) (five concentrations: 2.30, 4.60, 9.20, 18.40, and 36.80 mg/mL) were used as the negative and positive control, respectively. Both the treated and control groups were maintained in an incubator at 25 ± 1 °C and 40 ± 5% RH.
A. stechmanniana essential oils against F. occidentalis were performed by fumigation that was described in a previous study, with some modifications [27]. The tested concentrations of essential oils also had five concentrations: 1.02, 2.05, 4.10, 8.20, and 16.40 mg/mL, with acetone as the solvent. The impregnated filter paper (1 cm × 6 cm) treated with 20 μL of an appropriate concentration of test essential oil was then placed in the bottom cover of a 250 mL glass jar and exposed for 24 h. Each treatment (10 adults) was performed with six replications [28]. Acetone and 5% azadirachtin oil were used as the negative and positive controls, respectively. The temperature, humidity, and photoperiod were the same as those described above.
A. stechmanniana essential oils against B. gobica were performed by topical application with contact toxicity [29]. Five concentrations (0.52, 1.31, 3.28, 8.20, and 20.5 mg/mL) of the essential oils were diluted with buffer I. The B. gobica were anesthetized on ice and then treated with a mixture (0.25 μL) that was applied to the notum of B. gobica using a PDE0003 microapplicator (Burkard, London, UK). The treated B. gobica (n = 10) was then moved to the wolfberry. Six biological replicates were used for each treatment group. The buffer I and 5% azadirachtin were used as the negative and positive controls, respectively.

2.5. Preparation of A. stechmanniana Essential Oil Microcapsule

A. stechmanniana essential oil and β-cyclodextrin (β-CD) (97%, Solarbio, Beijing, China) were combined into microcapsules at a ratio of 1:8 that was described in a previous study [14]. Briefly, β-CD (8 g) was dissolved in 283 mL ddH2O at 50 °C, and the total solid concentration of the solution obtained was 2.83% (w/v). Subsequently, A. stechmanniana essential oil (1 g) in 25% ethanol was added dropwise to a saturated aqueous solution of β-CD in a magnetic heating agitator (MH S6 pro, JOAN LAB EQUIPMENT CO., LTD, China) and mixed for 2 h at 50 °C. The mixtures were stored at 4 °C for 24 h, filtered, and intensively washed with ethanol, respectively, to remove unreacted chemicals and oil by ethanol three times (20 min each), and they were dried at 50 °C in an oven for 24 h until the powder weight remained constant [30]. The dried mixtures were A. stechmanniana essential oil microcapsules that formed a white powder.
A microcapsule (4 g) was placed in a round-bottom flask (250 mL) with ddH2O for 5 h at 100 °C and tested by heating the mixture to reflux for 24 h to calculate the total essential oil content. The essential oils were recovered from the supernatant using a rotary evaporator and weighed. The microcapsule efficiency was determined as follows: embedding rate (%) = W1/W2 and drug loading rate (%) = W1/W3.
Where W1 = Embedded oils, W2 = Total oils, and W3 = microcapsules after drying [31].

2.6. Release (R%) of the Essential Oil Microcapsule

The release (R%) of the A. stechmanniana essential oil microcapsule was determined according to the method determined by Housseini et al. [32], with some modifications. A. stechmanniana essential oil microcapsules (20 mg) were taken and diluted with 5 mL acetate buffer solution (pH 4). The vials were released in an airing chamber maintained at room temperature (14 L: 27 °C and 10 D: 12 °C) and a wind speed of 0.5 ± 0.1 m/s. The sample (1 mL) was taken to determine the release at the time points 0, 1, 2, 3, 5, 7, 9, 11, 14, 18, and 21 days, and 1 mL of acetate buffer solution was added each time. The release (R%) of the A. stechmanniana essential oil microcapsules was measured using a UV-Vis spectrophotometer at 326 nm. Four biological replicates were used for each group. A. stechmanniana essential oils (negative control) used the same conditions as described above.

2.7. Field Efficacy Assay

Field efficacy assays were carried out on the A. stechmanniana essential oil microcapsule against A. gossypii, F. occidentalis, and B. gobica, respectively, in the L. barbarum field (30°20′37″ N, 120°11′20″ E); the atmospheric temperature ranged from 23.0 to 28.5 °C during July and August 2022 [14,33,34]. Lycium barbarum was maintained at a distance of 1 m, the row spacing was 3 m in this 3-year-old conventionally managed plantation, and no insecticides were used. Three doses of microcapsules (129, 258, and 516 g a.i./hm2) were sprayed onto L. barbarum [35]. Populations of the three different insect species were recorded before and after spraying at the following time points: 1st, 3rd, 7th, 14th, and 21st day. Four biological replicates were used for each group. Each replicate consisted of five branches (0–30 cm) from different areas in five directions (east, south, west, north, and middle). The investigation method for insect population reduction in the field was based on the DB64/T852-2013 in China. The formula was determined as: %Reduction rate = (Insect numbers before spraying − Insect numbers after spraying)/Insect numbers before spraying. Field efficacy assay was determined as: %Control efficacy = (%Reduction rate in the insecticide treated − %Reduction rate in the insecticide untreated)/(100 − %Reduction rate in the insecticide untreated) [36].

2.8. Data Analysis

All replicate bioassay results from indoor toxicity assays used the PriProbit program V1.6.3 to determine LC50 or LD50 values and their 95% confidence intervals [37]. Field assays were analyzed using GraphPad Statistics (version 8.0; San Diego, CA, USA) by one-way analysis of variance (ANOVA), followed by Tukey’s B multiple range test (p < 0.05).

3. Results

3.1. Identification of Terpenoid Compounds in A. stechmanniana Essential Oils

The results showed that seventeen terpenoid compounds were detected in A. stechmanniana essential oils, including the eleven monoterpenoids compounds, i.e., (1R)-2,6,6-Trimethylbicyclo [3.1.1]hept-2-ene, Eucalyptol, Linalool, Thujone, (+)-trans-Chrysanthenyl acetate, (1R,4R)-4-Isopropyl-1-methylcyclohex-2-enol, (+)-2-Bornanone, Pinocarvone, α-Terpineol, 4-methyl-1-(1-methylethyl)-bicyclo[3.1.0]hexan-3-ol, and 1-(1,2,3-Trimethyl-cyclopent-2-enyl)-ethanone, and six sesquiterpenoids compounds, i.e., β-Bisabolene, Caryophyllene, Kessane, (-)-Spathulenol, Caryophyllene oxide, and α-Bisabolol (Table 1). The compounds eucalyptol and (+)-2-Bornanone corresponded to peaks 1 and 2 in Figure 1, as characterized by GC-MS, based on the reference standard that showed peaks 5 and 6 in Figure 1. Interestingly, some additional peaks were detected based on a comparative analysis with the standard mass spectrometry library NIST17s. Moreover, the proportions of compounds were calculated as: eucalyptol (15.84%), (+)-2-Bornanone (16.92%), 1-(1,2,3-Trimethyl-cyclopent-2-enyl)-ethanone (25.63%), and (-)-Spathulenol (16.38%), with other compounds accounting for 25.26% (Table S2).

3.2. Insecticidal Activity of A. stechmanniana Essential Oil on Three Different Insect Species

The insecticidal activity of azadirachtin (negative control) and A. stechmanniana essential oils against A. gossypii, F. occidentalis, and B. gobica was measured in an incubator.
The LC50/LD50 of the A. stechmanniana essential oils against A. gossypii, F. occidentalis, and B. gobica were 5.39 mg/mL, 0.34 mg/L, and 1.40 μg/adult, respectively. Meanwhile, the LC50/LD50 of the azadirachtin essential oils against A. gossypii, F. occidentalis, and B. gobica was 14.47 mg/mL, 0.59 mg/L, and 2.27 μg/adult, respectively. Taken together, A. stechmanniana essential oils have an advantage over azadirachtin in terms of their control efficacy (Table 2).

3.3. A. stechmanniana Essential Oil Microcapsule

A. stechmanniana essential oils in β-CD formed microcapsules that were referred to as Artemisia mongolica optimum conditions in Table S1 [14]. The microcapsules had core/shell mass ratios (12.5%) with a maximum embedding rate of 52% and a loading rate of 8.5% (Figure 2; Table S1).

3.4. Release (R%)

The release (R%) of A. stechmanniana essential oils and EO microcapsules is shown in Figure 3. For the microcapsules, a release study was conducted for 21 days at 30 °C in a solution of pH 4. The results showed that the amount of essential oils maintained a long release for 21 days in microcapsules (from 100% to 7.84%), whereas that of A. stechmanniana essential oils decreased sharply and remained for only 5 days (from 100% to 0.17%).

3.5. Control Efficacy (CE%) with A. stechmanniana Essential Oil Microcapsule

The control efficacy (CE%) of the A. stechmanniana essential oil microcapsules was measured using the insecticidal activities of A. gossypii, F. occidentalis, and B. gobica in the L. barbarum field. Three doses of A. stechmanniana oil essential oil microcapsules were prepared at 129 g a.i./hm2 (Dose I), 258 g a.i./hm2 (Dose II), and 516 g a.i./hm2 (Dose III). Control efficacy was categorized into two types: M (moderate, 20% < CE < 60%) and S (strong, CE > 60%). The results showed that the insecticidal activities of the insects were tested on persistence days and were recorded at time points of 1, 3, 7, 11, 14, and 21 days (Figure 4; Table S3). Specifically, Dose I, Dose II, and Dose III all displayed moderate control efficacy against three different insect species, with a control efficacy value (Type M) at 14 and 21 days. Dose I, Dose II, and Dose III exhibited strong control efficacy (S) regarding A. gossypii at 1, 3, and 7 days, except Dose I showed moderate control efficacy (M) at 1 and 3 days. Dose I, Dose II, and Dose III exhibited moderate control efficacy (M) against F. occidentalis at 1, 3, and 7 days, with the exception of Dose III, which showed strong control efficacy (S) at 1 and 3 days. Interestingly, Dose I, Dose II, and Dose III exhibited the same trend in control efficacy for A. gossypii and B. gobica at 1, 3, and 7 days (Figure 4).

4. Discussion

GC-MS analysis of the seventeen terpenoid compounds in A. stechmanniana essential oils identified four top terpenoid compounds, including eucalyptol, (+)-2-Bornanone, 1-(1,2,3-Trimethyl-cyclopent-2-enyl)-ethanone, (-)-Spathulenol, and an additional ten terpenoid compounds. Compared with the previously reported data in A. stechmanniana and A. mongolica essential oils, the proportion of (+)-2-Bornanone and (-)-Spathulenol measured here was much higher (16.92% vs. 3.49%, 16.38% vs. 0.45%), respectively, in contrast to the proportion of eucalyptol (15.84% vs. 28.24%) [14]. Additionally, the major component 1-(1,2,3-Trimethyl-cyclopent-2-enyl)-ethanone (25.63%) was not found in A. mongolica plants (Table S2). Indeed, A. stechmanniana and A. mongolica are local plants, and their geographic factors are the same. Thus, a possible reason for the difference between the two studies might be the different species. Therefore, the identification of compounds from different species of Artemisia requires further investigation.
Indoor toxicity assays revealed the insecticidal activities of A. stechmanniana EOs against A. gossypii, F. occidentalis, and B. gobica, respectively. A. stechmanniana EOs showed insecticidal activity against A. gossypii, F. occidentalis, and B. gobica with an LC50/LD50 of 5.39 mg/mL, 0.34 mg/L, and 1.40 μg/adult, respectively. A previous study showed that pure eucalyptol had insecticidal activity against three insect species at 10.00 mg/mL, 3.42 mg/mL, and 1.07 μg/insect, respectively [14]. An external diet containing 100 ng of sesquiterpene (EβF) can cause thanatosis or kill the aphids Aphis fabae and Myzus persicae immediately [38]. Monoterpenoid compounds (γ-Terpinene) had insecticidal activity against Macrosiphum roseiformis, with an LC50 value ranging from 0.18 to 0.004 mg/mL [39]. Therefore, terpenoids play important ecological roles in insect control. However, to date, the research on individual terpenoid components against A. gossypii, F. occidentalis, and B. gobica is still limited, and the action mechanism is still a mystery. Further studies are required to assess the dipping, fumigation, and topical application of individual terpenoid compounds at different insect life stages.
Finally, our results revealed that the EO microcapsules could remain for 21 days, whereas the release of A. stechmanniana essential oils was only 5 days. This result adds an advantage for EOs with microcapsules in actual usage, and a new method for managing pests in the field is likely to be designed.
Field efficacy assays revealed the long-lasting effectiveness of A. stechmanniana EOs microcapsules against three main pests (A. gossypii, F. occidentalis, and B. gobica) of Lycium barbarum. In this study, A. stechmanniana EOs exhibited higher control efficacy against three main pests in the field. All doses showed strong or moderate insecticidal activities against A. gossypii, F. occidentalis, and B. gobica and remained for 21 days. At all concentrations tested, Dose I, Dose II, and Dose III displayed only moderate activity after 14 days. These findings indicated a very valuable and stable material for agricultural applications with essential oils.
In summary, we identified seventeen terpenoid compounds in A. stechmanniana essential oils. Indoor toxicity assays revealed that the insecticidal activity of A. stechmanniana essential oils possessed strong contact and fumigant insecticidal activities against three species of pests of L. barbarum. Moreover, microencapsulation has solved the problems of essential oils as insecticides in practical applications in the field, such as brief efficacy and poor stability. Our findings provide valuable insight into an untapped natural source bio-pesticide from A. stechmanniana, which contributes to the design of a novel, high-efficiency, long-lasting, and effective bio-pesticide for regulating pests in the L. barbarum field.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/insects14050470/s1, Table S1. Box-Behnken Design factors and level for microencapsule; Table S2. GC–MS analys relative proportion (in %) of main components from A. stechmanniana and A. mongolica EOs in the terpenoid compounds; Table S3. Cotronl efficacy (CE%) of A. stechmanniana essential oil to three different insect species in the Lycium barbarum field.

Author Contributions

Conceptualization, Z.L. and C.L.; Methodology, Z.L. and C.L.; Validation, C.L. and X.S.; Formal analysis, C.L. and Y.Z.; Investigation, C.L. and W.H.; Resources, W.H.; Data Curation, X.S. and Y.Z.; Writing—original draft, C.L.; Writing—review & editing, X.S.; Funding acquisition, R.Z.; Project administration, R.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by Key Research and Development Projects in Ningxia Hui Autonomous Region (2021BEF02006) and the Ningxia Natural Fund Project (2018AAC03194).

Data Availability Statement

The datasets generated and/or analyzed during the present study are available from the corresponding author.

Conflicts of Interest

The authors have no conflict of interest or competing interest to disclose.

References

  1. Regnault-Roger, C.; Vincent, C.; Arnason, J.T. Essential oils in insect control: Low-risk products in a high-stakes world. Annu. Rev. Entomol. 2012, 57, 405–424. [Google Scholar] [CrossRef] [PubMed]
  2. Blowman, K.; Magalhaes, M.; Lemos, M.F.L.; Cabral, C.; Pires, I.M. Anticancer properties of essential oils and other natural products. Evid. Based Complement. Altern. Med. 2018, 2018, 3149362. [Google Scholar] [CrossRef] [PubMed]
  3. Sharmeen, J.B.; Mahomoodally, F.M.; Zengin, G.; Maggi, F. Essential oils as Natural Sources of Fragrance Compounds for Cosmetics and Cosmeceuticals. Molecules 2021, 26, 666. [Google Scholar] [CrossRef] [PubMed]
  4. Scheringer, M.; Johansson, J.H.; Salter, M.E.; Sha, B.; Cousins, I.T. Stories of Global Chemical Pollution: Will We Ever Understand Environmental Persistence? Environ. Sci. Technol. 2022, 56, 17498–17501. [Google Scholar] [CrossRef]
  5. Chu, S.S.; Hu, J.F.; Liu, Z.L. Composition of essential oils of Chinese Chenopodium ambrosioides and insecticidal activities to maize weevil, Sitophilus zeamais. Pest Manag. Sci. 2011, 67, 714–718. [Google Scholar] [CrossRef]
  6. Donald, A.; Ukeh, A.B.; Sylvia, B.A.; Umoetok, A. Repellent effects of Þve monoterpenoid odours against Tribolium castaneum (Herbst) and Rhyzopertha dominica (F.) in Calabar, Nigeria. Crop Prot. 2011, 30, 1351–1355. [Google Scholar]
  7. Isman, M.B. Botanical insecticides, deterrents, and repellents in modern agriculture and an increasingly regulated world. Annu. Rev. Entomol. 2006, 51, 45–66. [Google Scholar] [CrossRef]
  8. Zhang, Y.H.; Qin, J.Q.; Wang, Y.; Zhou, T.N.; Feng, N.C.; Ma, C.H.; Zhu, M.L. Levels and health risk assessment of pesticides and metals in Lycium barbarum L. from different sources in Ningxia, China. Sci. Rep. 2022, 12, 561. [Google Scholar] [CrossRef]
  9. Cao, Y.L.; Li, Y.L.; Fan, Y.F.; Li, Z.; Yoshida, K.; Wang, J.Y.; Ma, X.K.; Wang, N.; Mitsuda, N.; Kotake, T.; et al. Wolfberry genomes and the evolution of Lycium (Solanaceae). Commun. Biol. 2021, 4, 671. [Google Scholar] [CrossRef]
  10. Xu, C.Q.; Liu, S.; Xu, R.; Chen, J.; Cheng, H.Z. Investigation of production status in major wolfberry producingareas of China and some suggestions. China J. Chin. Mater. Med. 2014, 39, 1979–1984. (In Chinese) [Google Scholar]
  11. Zhao, W.H.; Zheng, Q.; Qin, D.Q.; Luo, P.R.; Ye, C.Y.; Shen, S.G.; Cheng, D.M.; Huang, S.Q.; Liu, L.H.; Zhang, Z.; et al. Azadirachtin inhibits the development and metabolism of the silk glands of Spodoptera frugiperda and affects spinning behavior. Pest Manag. Sci. 2022, 78, 5293–5301. [Google Scholar] [CrossRef]
  12. Aniwanou, C.T.; Sinzogan, A.A.; Deguenon, J.M.; Sikirou, R.; Stewart, D.A.; Ahanchede, A. Bio-efficacy of diatomaceous earth, household soaps, and neem oil against Spodoptera frugiperda (Lepidoptera: Noctuidae) larvae in Benin. Insects 2020, 12, 18. [Google Scholar] [CrossRef]
  13. David, K.; Dean, T.; Susana, G.; Derek, C.; Kevin, G.; Taylor, S. Environmental safety to decomposer invertebrates of azadirachtin (neem) as a systemic insecticide in trees to control emerald ash borer. Ecotoxicol. Environ. Saf. 2011, 74, 1734–1741. [Google Scholar]
  14. Liu, C.; Liu, Z.L.; Zhang, R.; Huang, W.G.; Wang, F.; Quan, M.R. Control effect of the essential oils of Artemisia mongolica against three main pests of Wolfberry (Lycium barbarum). Chin. J. Biol. Control 2022, 38, 1400–1409. (In Chinese) [Google Scholar]
  15. Ahmed, M.; Peiwen, Q.; Gu, Z.; Liu, Y.; Sikandar, A.; Hussain, D.; Javeed, A.; Shafi, J.; Iqbal, M.F.; An, R.; et al. Insecticidal activity and biochemical composition of Citrullus colocynthis, Cannabis indica and Artemisia argyi extracts against cabbage aphid (Brevicoryne brassicae L.). Sci. Rep. 2020, 10, 522. [Google Scholar] [CrossRef]
  16. Zhang, J.W.; Wang, D.; Zhang, Z.; Lu, X.X.; Du, Y.S.; Zheng, Y.U.; Du, S.S. Chemical composition and insecticidal properties of essential oil obtained from Artemesia songarica Schrenk. J. Food Prot. 2022, 85, 686–692. [Google Scholar] [CrossRef]
  17. Umpiérrez, M.L.; Paullier, J.; Porrini, M.; Garrido, M.; Santos, E.; Rossini, C. Potential botanical pesticides from Asteraceae essential oils for tomato production: Activity against whiteflies, plants and bees. Ind. Crops Prod. 2017, 109, 686–692. [Google Scholar] [CrossRef]
  18. Ivănescu, B.; Burlec, A.F.; Crivoi, F.; Roșu, C.; Corciovă, A. Secondary metabolites from Artemisia Genus as biopesticides and innovative nano-based application strategies. Molecules 2021, 26, 3061. [Google Scholar] [CrossRef]
  19. Ekiert, H.; Klimek-Szczykutowicz, M.; Rzepiela, A.; Klin, P.; Szopa, A. Artemisia species with high biological values as a potential source of medicinal and cosmetic raw materials. Molecules 2022, 27, 6427. [Google Scholar] [CrossRef]
  20. Chang, H.T.; Lin, C.Y.; Hsu, L.S.; Chang, S.T. Thermal degradation of linalool-chemotype Cinnamomum osmophloeum leaf essential oils and its stabilization by microencapsulation with β-Cyclodextrin. Molecules 2021, 26, 409. [Google Scholar] [CrossRef]
  21. Liang, Y.; Li, J.L.; Xu, S.; Zhao, N.N.; Zhou, L.; Cheng, J.; Liu, Z.L. Evaluation of repellency of some Chinese medicinal herbs essential oilss against Liposcelis bostrychophila (Psocoptera: Liposcelidae) and Tribolium castaneum (Coleoptera: Tenebrionidae). J. Econ. Entomol. 2013, 106, 513–519. [Google Scholar] [CrossRef] [PubMed]
  22. Chu, S.S.; Hu, J.F.; Liu, Z.L. Insecticidal compounds from the essential oils of Chinese medicinal herb Atractylodes chinensis. Pest Manag. Sci. 2011, 67, 1253–1257. [Google Scholar] [CrossRef] [PubMed]
  23. Pan, X.J.; Xiao, H.; Hu, X.P.; Liu, Z.L. Insecticidal activities of the essential oils of Rhynchanthus beesianus rhizomes and its constituents against two species of grain storage insects. Z. Naturforsch. C 2022, 78, 83–89. [Google Scholar] [CrossRef] [PubMed]
  24. Song, X.; Qin, Y.G.; Zhang, Y.H.; Zhou, Y.B.; Li, Z.X. Farnesyl/geranylgeranyl diphosphate synthases regulate the biosynthesis of alarm pheromone in a unique manner in the vetch aphid Megoura viciae. Insect Mol. Biol. 2022, 32, 229–239. [Google Scholar] [CrossRef]
  25. Li, Z.H.; Wang, Y.; Sun, J.S.; Li, J.G.; Zou, K.X.; Liu, H.; Li, G.X.; Hu, Z.Z.; Nong, L.Z.; Ning, Z.X.; et al. Repellent activities of essential oilss rich in sesquiterpenoids from Saussurea amara (L.) DC. and Sigesbeckia pubescens Makino against two stored-product insects. Environ. Sci. Pollut. Res. Int. 2019, 26, 36048–36054. [Google Scholar] [CrossRef]
  26. Cantó-Tejero, M.; Guirao, P.; Pascual-Villalobos, M.J. Aphicidal activity of farnesol against the green peach aphid Myzus persicae. Pest Manag. Sci. 2022, 78, 2714–2721. [Google Scholar] [CrossRef]
  27. Gharbi, K.; Jia-Wei, T. Fumigant toxicity of essential oilss against Frankliniella occidentalis and F. insularis (Thysanoptera: Thripidae) as affected by polymer release and adjuvants. Insects 2022, 13, 493. [Google Scholar] [CrossRef]
  28. Li, X.; Zhang, Z.; Hafeez, M.; Huang, J.; Zhang, J.; Wang, L.; Lu, Y. Rosmarinus officinialis L. (Lamiales: Lamiaceae), a Promising Repellent Plant for Thrips Management. J. Econ. Entomol. 2021, 114, 131–141. [Google Scholar] [CrossRef]
  29. Rizvi, S.A.H.; Ling, S.; Tian, F.; Xie, F.; Zeng, X. Toxicity and enzyme inhibition activities of the essential oils and dominant constituents derived from Artemisia absinthium L. against adult Asian citrus psyllid Diaphorina citri Kuwayama (Hemiptera: Psyllidae). Ind. Crops Prod. 2018, 121, 468–475. [Google Scholar] [CrossRef]
  30. Hogenbom, J.; Jones, A.; Wang, H.V.; Pickett, L.J.; Faraone, N. Synthesis and characterization of β-cyclodextrin-essential oils inclusion complexes for tick repellent development. Polymers 2021, 13, 1892. [Google Scholar] [CrossRef]
  31. Sittipummongkol, K.; Chuysinuan, P.; Techasakul, S.; Pisitsak, P.; Pechyen, C. Core shell microcapsules of neem seed oil extract containing azadirachtin and biodegradable polymers and their release characteristics. Polym. Bull. 2019, 76, 3803–3817. [Google Scholar] [CrossRef]
  32. Hosseini, S.F.; Zandi, M.; Rezaei, M.; Farahmandghavi, F. Two step method for encapsulation of oregano essential oils in chitosan nanoparticles: Preparation, characterization and in vitro release study. Carbohydr. Polym. 2013, 95, 50–56. [Google Scholar] [CrossRef]
  33. Li, J.; Tian, B.; Isman, M. Peppermint essential oils toxicity to the pear psylla (Hemiptera: Psyllidae) and potential applications in the field. J. Econ. Entomol. 2020, 113, 1307–1314. [Google Scholar] [CrossRef]
  34. Pascual-Villalobos, M.J.; Díaz, I.; Martín, F.; Cantó-Tejero, M.; Villora, G.; Guirao, P. Plant bioactive volatile products and their efficiency in aphid control. Ind. Crops Prod. 2022, 183, 114975. [Google Scholar] [CrossRef]
  35. Wu, Y.J.; Wang, B.J.; Wang, M.R.; Peng, Y.C.; Cao, H.Q.; Sheng, C.W. Control efficacy and joint toxicity of metaflumizone mixed with chlorantraniliprole or indoxacarb against the fall armyworm, Spodoptera frugiperda. Pest Manag. Sci. 2022, 79, 1094–1101. [Google Scholar] [CrossRef]
  36. Piao, X.X.; Zhang, L.R.; Zhang, S.X. Nematicidal action of microencapsulated essential oils of flesh fingered citron. J. Chem. 2020, 1, 7934605. [Google Scholar] [CrossRef]
  37. Sakuma, M. Probit analysisof preference data. Appl. Entomol. Zool. 1998, 33, 339–347. [Google Scholar] [CrossRef]
  38. Oosten, A.; Gut, J.; Harrewijn, P.; Piron, P. Role of farnesene isomers and other terpenoids in the development of different morphs and forms of the aphids Aphis fabae and Myzus persicae. Acta. Phytopathol. Entomol. 1990, 25, 331–342. [Google Scholar]
  39. Gupta, G.; Agarwal, U.; Kaur, H.; Kumar, N.R.; Gupta, P. Aphicidal effects of terpenoids present in Citrus limon on Macrosiphum roseiformis and two generalist insect predators. J. Asia Pac. Entomol. 2017, 20, 1087–1095. [Google Scholar] [CrossRef]
Insects 14 00470 g001 550

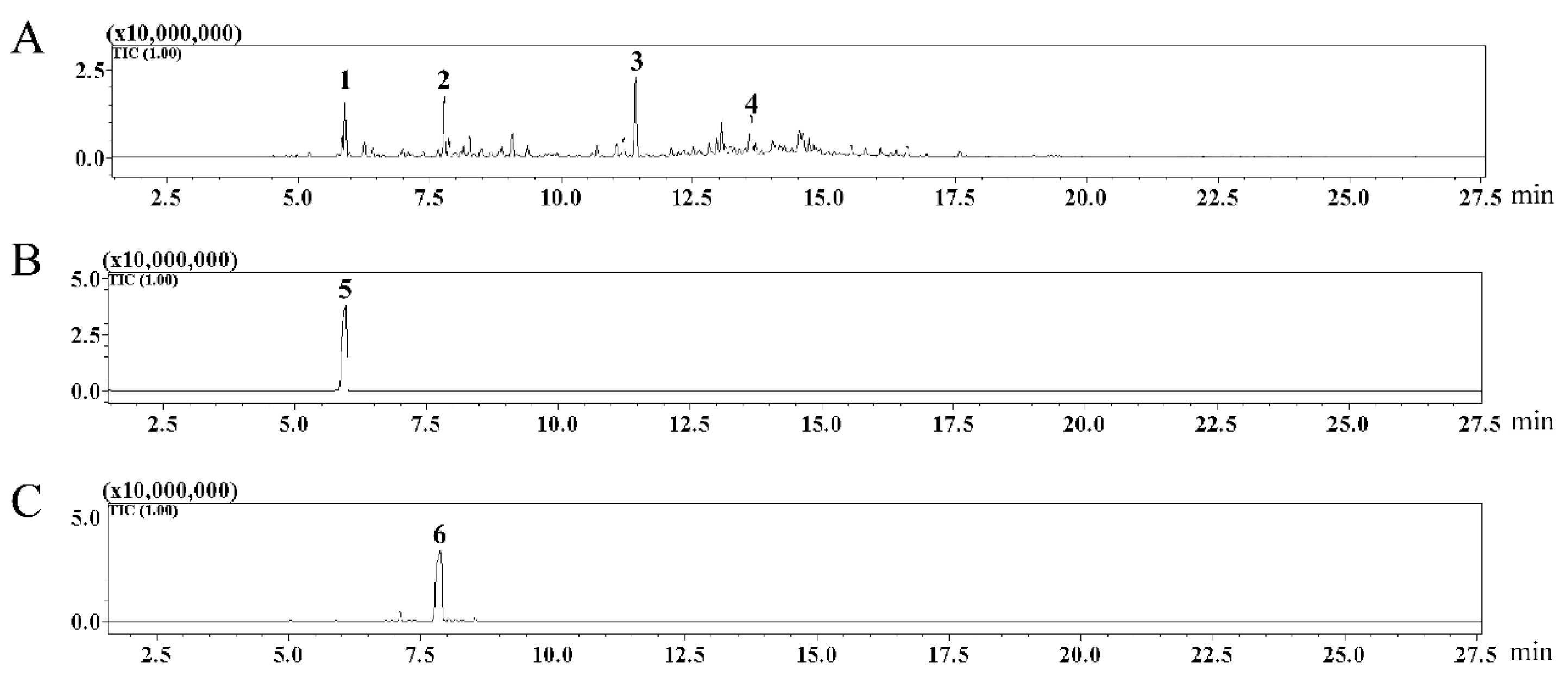

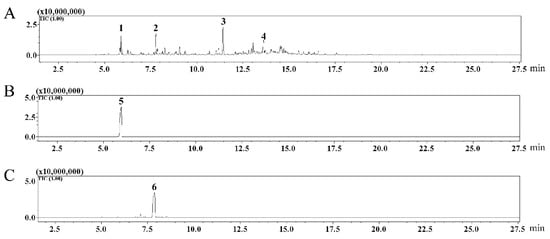

Figure 1. Gas chromatograms of A. stechmanniana essential oils. (A) Gas chromatogram of the whole component analysis of A. stechmanniana essential oils. (B,C) The gas chromatogram showed the reference standards of the eucalyptol and (+)-2-Bornanone. Peaks 1, 2, 3, and 4 indicate eucalyptol, (+)-2-Bornanone, 1-(1,2,3-Trimethyl-cyclopent-2-enyl)-ethanone, and (-)-Spathulenol, respectively. Peaks 5 and 6 correspond to the reference standards eucalyptol and (+)-2-Bornanone.
Figure 1. Gas chromatograms of A. stechmanniana essential oils. (A) Gas chromatogram of the whole component analysis of A. stechmanniana essential oils. (B,C) The gas chromatogram showed the reference standards of the eucalyptol and (+)-2-Bornanone. Peaks 1, 2, 3, and 4 indicate eucalyptol, (+)-2-Bornanone, 1-(1,2,3-Trimethyl-cyclopent-2-enyl)-ethanone, and (-)-Spathulenol, respectively. Peaks 5 and 6 correspond to the reference standards eucalyptol and (+)-2-Bornanone.
Insects 14 00470 g001
Insects 14 00470 g002 550

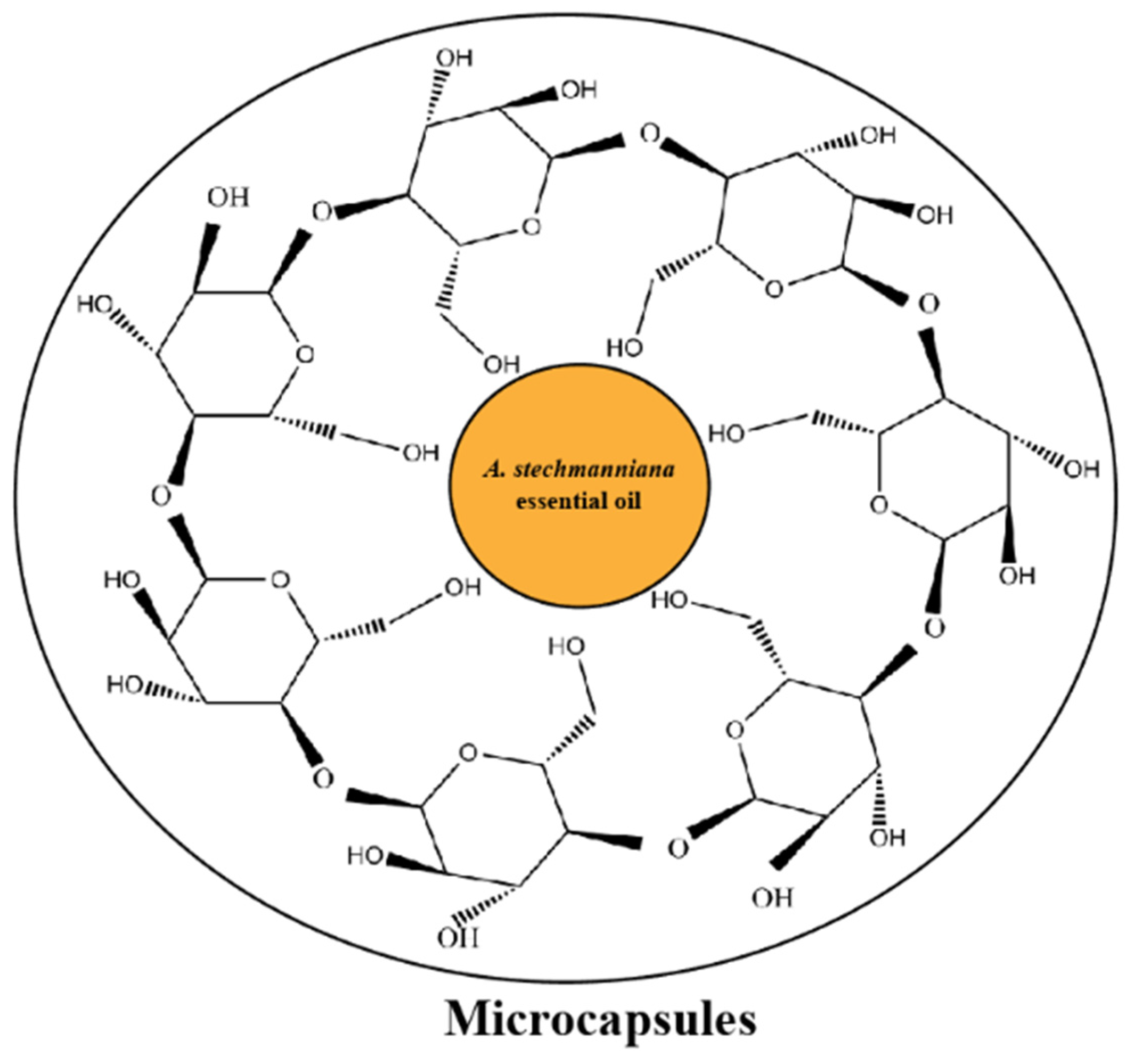

Figure 2. Schematic diagram showing the microcapsule composed of β-cyclodextrin with 8.6% A. stechmanniana essential oils.
Figure 2. Schematic diagram showing the microcapsule composed of β-cyclodextrin with 8.6% A. stechmanniana essential oils.
Insects 14 00470 g002
Insects 14 00470 g003 550

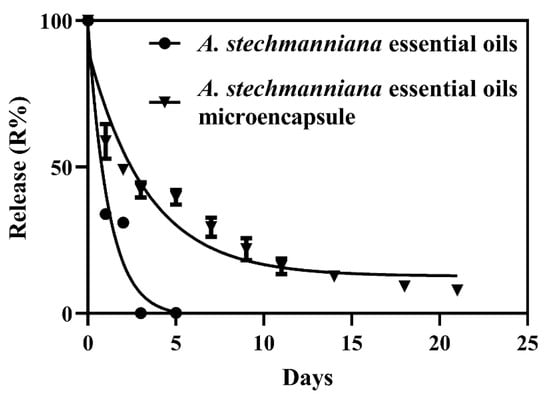

Figure 3. Release (R%) of A. stechmanniana essential oils and essential oil microcapsule.
Figure 3. Release (R%) of A. stechmanniana essential oils and essential oil microcapsule.
Insects 14 00470 g003
Insects 14 00470 g004 550

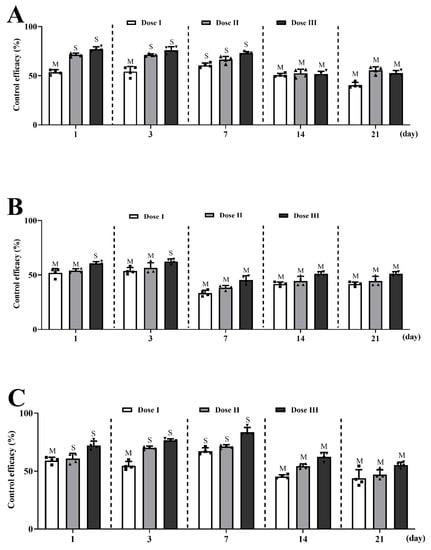

Figure 4. Control efficacy of three different insect species tested under three doses of A. stechmanniana essential oils in the Lycium barbarum field. (A) Control efficacy of A. gossypii treated with three doses of A. stechmanniana essential oils. (B) Control efficacy of F. occidentalis with three doses of A. stechmanniana essential oils. (C) Control efficacy of the three doses of A. stechmanniana essential oils against B. gobica. The A. stechmanniana essential oil microcapsules were sprayed in the field (6 m × 2 m). Dose I: 129 g a.i./hm2; Dose II: 258 g a.i./hm2; Dose III: 516 g a.i./hm2. S, strong (CE > 60%); M, moderate (20% < CE < 60%). Four biological replicates were performed.
Figure 4. Control efficacy of three different insect species tested under three doses of A. stechmanniana essential oils in the Lycium barbarum field. (A) Control efficacy of A. gossypii treated with three doses of A. stechmanniana essential oils. (B) Control efficacy of F. occidentalis with three doses of A. stechmanniana essential oils. (C) Control efficacy of the three doses of A. stechmanniana essential oils against B. gobica. The A. stechmanniana essential oil microcapsules were sprayed in the field (6 m × 2 m). Dose I: 129 g a.i./hm2; Dose II: 258 g a.i./hm2; Dose III: 516 g a.i./hm2. S, strong (CE > 60%); M, moderate (20% < CE < 60%). Four biological replicates were performed.
Insects 14 00470 g004
Table
Table 1. GC-MS identification of terpenoid compounds in the A. stechmanniana essential oil.
Table 1. GC-MS identification of terpenoid compounds in the A. stechmanniana essential oil.
No.Retention Time (min)Name of Terpenoid% Peak AreaMolecular Formula
14.238(1R)-2,6,6-Trimethylbicyclo[3.1.1]hept-2-ene 0.07C10H16
25.896Eucalyptol4.38C10H18O
36.932Linalool0.46C10H18O
47.28Thujone0.09C10H16O
57.54(+)-trans-Chrysanthenyl acetate0.11C10H16O
67.66(1R,4R)-4-Isopropyl-1-methylcyclohex-2-enol0.80C10H18O
77.78(+)-2-Bornanone4.68C10H16O
88.0Pinocarvone0.67C10H14O
98.48α-Terpineol1.10C10H18O
108.964-methyl-1-(1-methylethyl)-bicyclo[3.1.0]hexan-3-ol0.21C10H18O
1110.96β-Bisabolene0.06C15H24O
1211.421-(1,2,3-Trimethyl-cyclopent-2-enyl)-ethanone7.09C10H16O
1311.63Caryophyllene0.41C15H24
1411.93Kessane0.48C15H24
1513.61(-)-Spathulenol4.53C15H24O
1613.69Caryophyllene oxide1.36C15H24O
1714.80α-Bisabolol1.16C15H24O
Table
Table 2. Insecticidal activity regarding three different insect species by A. stechmanniana essential oil.
Table 2. Insecticidal activity regarding three different insect species by A. stechmanniana essential oil.
InsectsTreatmentsLC50/LD5095% Confidence
Interval		Slope ± SEχ2
A. gossypiiA. stechmanniana5.39 mg/mL4.32–6.871.63 ± 0.208.20
Azadirachtin14.47 mg/mL11.64–18.691.66 ± 0.218.20
F. occidentalisA. stechmanniana0.34 mg/L air *0.27–0.451.37 ± 0.197.25
Azadirachtin0.59 mg/L air *0.47–0.761.62 ± 0.208.20
B. gobicaA. stechmanniana1.40 μg/insect #1.06–1.941.29 ± 0.158.32
Azadirachtin2.27 μg/insect #1.75–3.121.36 ± 0.187.47
Note: Contact toxicity: A. gossypii and B. gobica. Fumigant toxicity: F. occidentalis. * five concentrations in 250 mL glass jar. # five concentrations (0.25 μL) per insect.
