Article

Halyomorpha halys (Hemiptera: Pentatomidae) Genetic Diversity in North America and Europe

by
Despoina Ev. Kapantaidaki
1,
Vassiliki I. Evangelou
1,
William R. Morrison
2,
Tracy C. Leskey
3,
Jacques Brodeur
4 and
Panagiotis Milonas
1,*
1
Department of Entomology and Agricultural Zoology, Benaki Phytopathological Institute, 8 St. Delta str., 14561 Kifissia, Greece
2
Center for Grain and Animal Health Research, USDA-ARS, 1515 College Ave., Manhattan, KS 66502, USA
3
Appalachian Fruit Research Station, USDA-ARS, 2217 Wiltshire Rd., Kearneysville, WV 25430, USA
4
Département de Sciences Biologiques, Institut de Recherche en Biologie Végétale, Université de Montréal, 4101 Rue Sherbrooke Est, Montréal, QC H1X 2B2, Canada
*
Author to whom correspondence should be addressed.
Insects 2019, 10(6), 174; https://doi.org/10.3390/insects10060174
Submission received: 29 May 2019 / Revised: 11 June 2019 / Accepted: 12 June 2019 / Published: 17 June 2019
Browse Figures
Versions Notes

Abstract

The brown marmorated stink bug, Halyomorpha halys (Hemiptera: Pentatomidae), is an invasive species in North America and Europe that damages many different host plants. Substantial work has been conducted on the genetic diversity and invasion pathways of H. halys in some of the countries where it has been found, based on mitochondrial sequences. The main objective of the present study was to further explore the genetic diversity of invasive populations of H. halys exploiting both mitochondrial and nuclear markers. We used two molecular markers: the mitochondrial Cytochrome Oxidase I (COI) gene, an ideal standardized molecular marker for distinguishing closely related species, and the ribosomal Internal Transcribed Spacer 1 (ITS1), because only a few sequences of H. halys exist to this point in global databases. We used specimens from eight populations from Greece, Italy, Canada, and the US. Among the 14 haplotypes retrieved based on the mtCOI gene, two of them (H162–H163) were detected for the first time. These two haplotypes were found in specimens from Canada, Italy, and the US. Concerning the ITS1 region, 24 haplotypes were identified, with 15 being unique for a sampled population. In Greece and the US, 14 and 12 haplotypes were found, respectively, with 7 and 6 of them being unique for Greece and the US, respectively. Our analysis of the nuclear genes of H. halys indicates high genetic diversity of the invading populations in North America and Europe.

1. Introduction

The brown marmorated stink bug, Halyomorpha halys (Stål) (Hemiptera: Pentatomidae), is native to China, Japan, Korea, and Taiwan, and has recently become a global invasive species [1,2,3]. It was likely first found outside of its native range in Allentown, Pennsylvania in 1996 [4], and confirmed in 2001 in the United States [4] and subsequently in Canada [5], Europe [6,7,8,9,10,11,12,13,14,15,16,17,18,19], Russia, Abkhazia, Georgia [20], and South America [21]. Based on recent modelling approaches, as well as newly reported distribution points, its dispersal will likely continue in the coming years. The brown marmorated stink bug is considered a major biosecurity concern for Australia and New Zealand [22,23,24]. In the new regions of its introduction in North America and Europe, it has become a devastating pest, causing significant damage and economic loss, as well as creating nuisance to residents in rural and urban areas [25]. Halyomorpha halys is an extremely polyphagous species, with more than 170 documented host plants, including many important agricultural crops [3,25].
The introduction and rapid spread of H. halys outside of its native range has elicited considerable efforts to identify the invasion pathways based on haplotype identification through sequencing. In North America, a single introduction from Beijing, China is most likely to have been the source of invasion of H. halys in the United States, which later spread to Canada. However, in Europe, multiple introductions have occurred, both from H. halys in its native range and possibly also from North America [6,14,26,27,28].
The genetic studies that have been conducted to elucidate the invasion history of H. halys in North America and Europe have focused mainly on the use of the mitochondrial Cytochrome Oxidase I (COI) gene, coupled with the Cytochrome Oxidase II (COII) gene [6,27,28], the 12S ribosomal RNA gene (12S rRNA) [28], and the cytochrome b (cytb) gene [14]. These studies have shown that there is considerable genetic diversity in the populations of H. halys in Europe, whereas the genetic variability in populations from North America is limited [14,26,28]. Further published studies reported secondary invasions, as well as continuous introductions into Europe and North America of the insect from its native range [27]. Although the COI gene has been extensively studied to elucidate the source and genetic variability of H. halys populations, other genetic markers, such as nuclear ones, have been neglected. To our knowledge, two studies based on sequences of the 28S [14] and the Internal Transcribed Spacer 1 (ITS1) [29] have been conducted. No sequence variation was observed for the 28S D2 region in specimens collected in Japan, Korea, North America, and Europe (Switzerland), whereas eight unique haplotypes were obtained from 40 specimens from China, Korea, and Taiwan for a 416 bp fragment of the ITS1 region.
The ITS1 has been used for population genetic studies [30,31], and insects with a high level of polymorphism in the nuclear DNA appear to have high genetic diversity in the mitochondrial DNA as well [32]. The main objective of the present study was to further explore the genetic diversity of invasive populations of H. halys exploiting both mitochondrial and nuclear markers. Therefore, in the present study, we used two molecular markers. Firstly, the COI mitochondrial gene is an ideal standardized molecular marker for distinguishing closely related species, because it is characterized by a fast mutation rate and its sequence is conserved among conspecifics [33]. Secondly, the ITS1 nuclear region shows potential, but has been largely unexplored, since only a few sequences of H. halys exist in global databases (e.g., NCBI) [34].

2. Materials and Methods

2.1. Insect Material

We sampled and analysed eight populations of H. halys coming from Europe (Greece, Italy) and North America (USA, Canada) (Table 1). The populations from Athens, Greece, and Maryland, USA have been collected for a previous study [35]. The number of specimens for each country ranged between 1 and 50 (Table 1). Collected adults or nymphs were examined under a binocular stereoscope for species identification, and were preserved in 98% ethanol at −20 °C until used for molecular analysis.

2.2. DNA Isolation, Amplification, and Sequencing

The genomic DNA (gDNA) was isolated from a single leg from each specimen using a cetyltrimethyl ammonium bromide (CTAB)-based protocol, as described by Milligan [36]. The purity and quality of the extracted gDNA from each specimen was assessed using a nanophotometer (i.e., IMPLEN), and it was used as a template for the amplification of a partial fragment of the COI mitochondrial gene and a partial fragment of the ITS1 nuclear region. The primer pairs LCO—1490 (5′-GGTCAACAAATCATAAAGATATTGG-3′) and HCO—2198 (5′-TAAACTTCAGGGTGACCAAAAAATCA-3′) [37] were used for the amplification of a 658 bp fragment of the COI gene and the universal invertebrate primers, BD1 (5′-GTGTCCCATTTAATTAGTAGAGA-3′) and 4S (5′-TCTAGATGCGTTCGAAGTGTCGATG-3′) [34,38,39] for a 389–702 bp fragment of the ITS1 region.
Two microliters of the genomic DNA extract were used in 20 μL reactions consisting of 0.2 mM dNTPs, 1.0 μM of each primer, 1 μL Kapa Taq DNA polymerase (KapaBiosystems, Cape Town, South Africa), and 1× enzyme buffer (KapaBiosystems). Reactions for the COI gene were performed using the following profile: initial denaturation at 95 °C for 3 min, followed by five cycles of 95 °C for 1 min, 45 °C for 1 min, and 72 °C for 1 min, and by 35 cycles at 95 °C for 1 min, 50 °C for 1 min, and 72 °C for 1 min, and a final step of extension at 72 °C for 2 min. Reactions for the ITS1 region were performed using the following conditions: denaturating at 95 °C for 3 min, followed by 35 cycles of 95 °C for 30 s, 53 °C for 1 min, 72 °C for 1 min, and a final extension at 72 °C for 2 min. All reactions were run on a Verity 96-well Thermal Cycler (Applied Biosystems, Foster City, CA, USA).
Resulting PCR products were purified using the Nucleovac 96 Vacuum Manifold Kit (Macherey-Nagel, Düren, Germany) according to the manufacturer’s instructions, and sequenced in both directions (Macrogen Inc., Amsterdam, The Netherlands) using the same primers as in the PCR amplification.

2.3. Phylogenetic Analysis

Both forward and reverse partial COI and ITS1 sequences were obtained from a total of 59 and 100 specimens, respectively (Table 1). Consensus sequences were aligned using the multiple alignment algorithm MUSCLE in the software package Geneious Prime 19.1.1 [40] with default parameters. The same allele number was given for the identical sequences at each locus. The whole genome (Assembly Accession No.: GCA_000696795), including the complete mitochondrial genome (RefSeq ID: NC_013272), of H. halys is already available in NCBI [41]. Comparisons between the obtained sequences and those already published in previous studies [6,14,26,27,28,34] were performed with the use of the BLAST algorithm of NCBI (https://blast.ncbi.nlm.nih.gov/). Single sequences of each new haplotype were deposited in GenBank under the Accession Numbers MK779996 to MK779997 for COI and MK779975 to MK779995 for ITS1.
Aligned sequences were used for determining the phylogenetic relationships between specimens with the MEGA X version 10.0 [42] by using the Maximum Likelihood (ML) tree build method for each gene, respectively. The General Time Reversible model was chosen as the most appropriate one. To assess branch support, 1000 bootstrap replicates, as implemented in MEGA, were done for every analysis. Branches corresponding to partitions reproduced in less than 50% of bootstrap replicates were collapsed [43]. A discrete Gamma distribution was used to model evolutionary rate differences among sites (5 categories, +G, parameter = 0.3004 and 0.7690 for COI and ITS1, respectively). Published sequences for both genes available in the database were included as references in the phylogenetic analysis.
To produce diversity measures, the different sequences from the amplified fragment of the ITS1, generated from the 100 specimens of H. halys, were grouped according to the geographic collection area (Greece, Italy, Canada, USA) because amplification of ITS1 was successful only for a few individuals for the population from North Carolina, US. Diversity measures of the datasets for each country, namely the number of specimens (N), the number of sequences (n), the number of haplotypes (h) and unique haplotypes (H), haplotype diversity (Hd), nucleotide diversity per site (Pi), the number of variable polymorphic sites (S), the average number of nucleotide differences (k), the singleton variable (SVS) and parsimony informative sites (PIS), as well as the population genetic test, Tajima’s D, were calculated using the DNaSP v.6.12.01 package [44].

3. Results

3.1. Analysis of Cytochrome Oxidase I Gene

Sequences of the COI gene fragment were analysed for a total of 59 specimens of H. halys that were collected from Greece, Italy, Canada, and the US. Among the 14 different haplotypes retrieved, two of them (H162–H163) were detected for the first time, and had not been previously described (Figure 1). These two haplotypes were found in specimens from Canada, Italy, and the US. The remaining haplotypes correspond to the available sequence data from previous studies [6,26,27,35]. The haplotype H1 was the most abundant and widespread, as it was shared among specimens from all four countries. It was not found in the specimens from both locations, Chania (Crete) and Peloponnese, Greece. The two specimens from Peloponnese belonged to H32 and the one from Crete to H33; those haplotypes have also been found in the population from Athens. The new haplotype H163 was commonly found (50%) in specimens from North Carolina, US (Figure 1).
A phylogenetic tree was constructed from sequences of the COI gene using the new haplotypes detected in this study and the already identified haplotypes from previous studies existing in the National Center for Biotechnology Information, NCBI (https://www.ncbi.nlm.nih.gov/) (Figure 2). Based on their position in the phylogenetic tree, the new haplotypes detected in specimens from Italy, US, and Canada (H162 and H163) cluster with haplotypes being detected in other surveys conducted in China, Korea, US, Canada, and Europe [45].

3.2. Analysis of Internal Transcribed Spacer 1

In total, 100 individuals were sequenced for the ITS1 region, and 24 variants (denoted as VAR1-VAR24) were identified. The occurrence and frequency of each variant in each sampling site are shown in Figure 3. Among the 24 different variants, 15 occurred in just one population. In Greece and the US, 14 and 12 variants were found, respectively, with 7 and 6 of them being unique for Greece or the US. The populations from Italy and Canada included 8 and 3 variants, with 2 and 1 being unique, respectively, for each country (Table 2). The two most common variants in specimens collected from Greece were VAR9 (28.3%) and VAR21 (11.3%), followed by VAR17 (9.4%), VAR4, and VAR10 (each 7.5%). The population from Canada was predominated by VAR23 (60%). Specimens from Italy and the US were more evenly distributed among the different variants detected (Figure 3). Sequences of the ITS1 region from 100 specimens were used to construct a phylogenetic tree (Figure 4). The phylogenetic tree reveals structuring among the variants and divides the ribosomal DNA sequences of H. halys into two large clusters, both of which consisted of specimens collected from all four countries, without clustering specimens sampled from a single country into the same cluster. The first cluster was dominated by specimens from the US, and the second one by specimens from Greece. In addition, high divergence was observed in the US and Greece, since most of the variants in both countries were clustered into private lineages.
Genetic diversity data for ITS1, based on haplotype and nucleotide diversity are shown in Table 2. The specimens from Greece had the highest haplotype and nucleotide diversity, which were 0.830 ± 0.034 (SD) and 0.022 ± 0.001 (SD), respectively. The specimens from the US also had high haplotype and nucleotide diversity, and were found to be 0.728 ± 0.062 (SD) and 0.023 ± 0.012 (SD), respectively. The specimens from Italy and Canada had similar levels of haplotype and nucleotide diversity (Table 2). The polymorphic sites were 82, 64, 12, and 10 for Greece, the US, Canada, and Italy, respectively. Within these polymorphic sites, there were 80, 12, 9, and 2 parsimony informative sites, and 2, 52, 3, and 8 singleton variable sites, respectively. In Greece and the US, Tajima’s D values were found to be significantly negative, indicating a possible demographic expansion following a bottleneck event.

4. Discussion

Until recently, the genetic variation of H. halys in the US based on COI was considered very low [29]. Approximately 10 years after its introduction in the US, only two haplotypes have been detected. Recently, Valentin et al. [45] and Lee et al. [46] reported additional haplotypes from specimens collected in the US, both in Eastern and Western states. In this paper, we reported two novel haplotypes from the US, increasing the total number to seven. Although this number remains relatively smaller than for haplotypes detected in other invaded countries, the genetic diversity of H. halys in the US is not as low as was initially found [28]. It is likely that there had been a single event of introduction in the US which was followed by additional introductions from the native range of H. halys. However, we cannot exclude the possibility that the initial introduced population was dominated by the H1 haplotype, hampering the sampling and detection of other haplotypes.
Our study confirms higher COI haplotype diversity in Europe than in North America [14,26], with 13 and 3 haplotypes found in each continent, respectively. Despite extensive analyses of H. halys haplotype diversity in Europe (e.g., [6,14,26,27]), we have documented one new haplotype (also found in the US), suggesting ongoing invasion and re-introduction of H. halys in Europe.
This is the first study to report detailed genetic variability of H. halys based on the ITS1 region in countries outside its native range. The introduction and spread of H. halys in North America and Europe have triggered research efforts to identify the pathways of introduction based on the underlying genetics of populations originating from native and introduced areas [6,14,26,27,46]. Most of these studies performed genetic analyses on the mitochondrial COI gene. A few studies were performed on the genetic variability of H. halys by analyzing the COII gene [6,27,29], the 12S ribosomal RNA gene (12S rRNA) [29], and the cytochrome b (cytb) gene [14,29]. On the other hand, studies of genetic variability based on nuclear genes are limited [28]. Here, we reported genetic variability for H. halys based on sequences of the ITS1 region from 100 specimens. Only three sequences for ITS1 have been reported up to now in the literature [34]. In the present study, 24 new variants were identified from specimens originating from North America and Europe. The geographic distribution of variants shows that only VAR4 occurs in all countries, except for Canada. Among the other variants, several (VAR1, VAR2, VAR3, VAR8, VAR16, and VAR20) are unique for the US and Greece (VAR5, VAR7, VAR9, VAR11, VAR14, VAR17, and VAR19). Unique variants are also identified in specimens from Canada and Italy. It is important to note that the greater sample size for Greece (n = 53) likely permits a larger resolution of genetic diversity compared to the other countries examined, where sample sizes were much lower. Interestingly, the US was the second most diverse country.
While the low number of COI haplotypes historically found in the US was considered an indication of a single introduction, at least in the eastern part of the US, our combined analysis of COI and ITS has demonstrated a much higher genetic diversity from specimens in the US. This suggests multiple introductions of H. halys in the US, as also suggested for Europe. Although invasive species initially experience a decrease in genetic diversity, it has been suggested that high genetic diversity due to multiple introductions might allow a species to become invasive, and subsequently to establish, persist, and disperse into new habitats [47]. Genetic diversity enhances the capacity for adaptive evolution and population success, since heritable genetic variation is a prerequisite for adaptation to new conditions, which occurs in many introduced species [48]. The high genetic diversity of H. halys occurring both in Europe and North America indicates that the invasions are not affected by genetic bottlenecks or founder effects; two of the most dominant processes influencing the genetic diversity of a species in its new range [47].

5. Conclusions

In summary, our results demonstrate that by exploiting both mitochondrial and nuclear markers, we were able to identify substantial genetic diversity from specimens in the US. Detection of the source area of an invasion is more accurate when multiple molecular markers are combined. The greater diversity of the ITS1 region relative to the mitochondrial COI gene presents an interesting wrinkle in unraveling the population genetics of this important and devastating invasive species.

Author Contributions

Conceptualization, D.E.K. and P.M.; Data curation, D.E.K. and P.M.; Funding acquisition, J.B. and P.M.; Methodology, D.E.K. and V.I.E.; Project administration, P.M.; Resources, J.B. and P.M.; Supervision, P.M.; Writing—original draft, D.E.K. and P.M.; Writing—review & editing, D.E.K., V.I.E., W.R.M.III, T.C.L., J.B., and P.M.

Funding

This research was partially supported by the Marie Skłodowska-Curie Research and Innovation Staff Exchange (RISE) H2020-MSCA-RISE-2015 of the European Union with the project “Impact of invasive alien true bug species in native trophic webs—INVASIoN” (GA 690952) and in part, by a USDA NIFA SCRI CAP Grant 2016-51181-25409.

Acknowledgments

We would like to thank Tara Gariepy, Agriculture and Agri-Food Canada for thoughtful discussions and guidance. We also thank Eric Conti and Teresa Mers for sending specimens of H. halys. The use of trade names is for the purposes of providing scientific information only, and does not constitute endorsement by the United States Department of Agriculture. The USDA is an equal opportunity employer.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Josifov, M.V.; Kerzhner, I.M. Heteroptera aus Korea: II. Teil (Aradidae, Berytidae, Lygaeidae, Pyrrhocoridae, Rhopalidae, Alydidae, Coreidae, Urostylidae, Acanthosomatidae, Scutelleridae, Pentatomidae, Cydnidae, Plataspidae. Fragm. Faun. 1978, 23, 137–196. [Google Scholar] [CrossRef]
  2. Rider, D.A.; Zheng, L.Y.; Kerzhner, I.M. Checklist and nomenclatural notes on the Chinese Pentatomidae (Heteroptera). II. Pentatominae. Zoosyst. Ross. 2002, 11, 135–153. [Google Scholar]
  3. Lee, D.-H.; Short, B.D.; Joseph, S.V.; Bergh, J.C.; Leskey, T.C.; Adachi, I.; Uchino, K.; Mochizuki, F.; Arakawa, R.; Namura, Y.; et al. Review of the biology, ecology, and management of Halyomorpha halys (Hemiptera: Pentatomidae) in China, Japan, and the Republic of Korea. Environ. Entomol. 2013, 42, 627–641. [Google Scholar] [CrossRef] [PubMed]
  4. Hoebeke, E.R.; Carter, M.E. Halyomorpha halys (Stal) (Heteroptera: Pentatomidae): A polyphagous plant pest from Asia newly detected in North America. Proc. Entomol. Soc. Wash. 2003, 105, 225–237. [Google Scholar]
  5. Fogain, R.; Graff, S. First records of the invasive pest, Halyomorpha halys (Hemiptera: Pentatomidae), in Ontario and Quebec. J. Entomol. Soc. Ont. 2011, 142, 45–48. [Google Scholar]
  6. Cesari, M.; Maistrello, L.; Ganzerli, F.; Dioli, P.; Rebecchi, L.; Guidetti, R. A pest alien invasion in progress: Potential pathways of origin of the brown marmorated stink bug Halyomorpha halys populations in Italy. J. Pest Sci. 2015, 88, 1–7. [Google Scholar] [CrossRef]
  7. Milonas, P.G.; Partsinevelos, G.K. First report of brown marmorated stink bug Halyomorpha halys Stål (Hemiptera: Pentatomidae) in Greece. EPPO Bull. 2014, 44, 183–186. [Google Scholar] [CrossRef]
  8. Seat, J. Halyomorpha halys (Stal, 1855) (Heteroptera: Pentatomidae) a new invasive species in Serbia. Acta Entomol. Serb. 2015, 20, 167–171. [Google Scholar]
  9. Dioli, P.; Leo, P.; Maistrello, L. Prime segnalazioni in Spagna e in Sardegna della specie aliena Halyomorpha halys (Stal, 1855) e note sulla sua distribuzione in Europa (Hemiptera, Pentatomidae). Rev. Gaditana Entomol. 2016, 7, 539–548. [Google Scholar]
  10. Simov, N. The invasive brown marmorated stink bug Halyomorpha halys (Stal 1855 (Heteroptera: Pentatomidae) already in Bulgaria. Ecol. Montenegrina 2016, 9, 51–53. [Google Scholar]
  11. Maistrello, L.; Dioli, P.; Bariselli, M.; Mazzoli, G.L.; Giacalone-Forini, I. Citizen science and early detection of invasive species: Phenology of first occurrences of Halyomorpha halys in Southern Europe. Biol. Invasions 2016, 18, 3109–3116. [Google Scholar] [CrossRef]
  12. Wermelinger, B.; Wyniger, D.; Forster, B. First records of an invasive bug in Europe: Halyomorpha halys Stål (Heteroptera: Pentatomidae), a new pest on woody ornamentals and fruit trees? Bull. Soc. Entomol. Suisse 2008, 81, 1–8. [Google Scholar]
  13. Vétek, G.; Papp, V.; Haltrich, A.; Rédei, D. First record of the brown marmorated stink bug, Halyomorpha halys (Hemiptera: Heteroptera: Pentatomidae), in Hungary, with description of the genitalia of both sexes. Zootaxa 2014, 3780, 194–200. [Google Scholar] [CrossRef]
  14. Gariepy, T.D.; Haye, T.; Fraser, H.; Zhang, J. Occurrence, genetic diversity, and potential pathways of entry of Halyomorpha halys in newly invaded areas of Canada and Switzerland. J. Pest Sci. 2014, 87, 17–28. [Google Scholar] [CrossRef]
  15. Arnold, K. Halyomorpha halys (Stal, 1855), Eine fur die europaische Fauna neu nachgewiesene Wanzenart (Insecta: Heteroptera: Pentatomidae: Cappaeini). Mitteillungen Thuring. Entomol. 2009, 16, 19. [Google Scholar]
  16. Heckmann, R. Erster nachweis von Halyomorpha halys (Stål, 1855)(Heteroptera: Pentatomidae) für deutschland. Heteropteron 2012, 36, 17–18. [Google Scholar]
  17. Callot, H.; Brua, C. Halyomorpha halys (Stal, 1855), la Punaise diabolique, nouvelle espece pour la faune de France (Heteroptera Pentatomidae). L’Entomologiste 2013, 69, 69–71. [Google Scholar]
  18. Hemala, V.; Kment, P. First record of Halyomorpha halys and mass occurrence of Nezara viridula in Slovakia. Plant Prot. Sci. 2017, 53, 1–7. [Google Scholar]
  19. Macavei, L.; Baetan, R.; Oltean, I.; Florean, T.; Varga, M.; Costi, E.; Maistrello, L. First detection of Halyomorpha halys, a new invasive species with a high potential of damage on agricultural crops in Romania. Lucr. Stiint. Ser. Agron. 2015, 58, 105–108. [Google Scholar]
  20. Gapon, D.A. First records of the brown marmorated stink bug, Halyomorpha halys (Stal, 1855) (Heteroptera: Pentatomidae) in Russia, Abkhazia, and Georgia. Entomol. Rev. 2016, 96, 1086–1088. [Google Scholar] [CrossRef]
  21. Faundez, E.I.; Rider, D.A. The brown marmorated stink bug Halyomorpha halys (Stal, 1855) (Heteroptera: Pentatomidae) in Chile. Arq. Entomol. 2017, 17, 305–307. [Google Scholar]
  22. Kriticos, D.J.; Kean, J.M.; Phillips, C.B.; Senay, S.D.; Acosta, H.; Haye, T. The potential global distribution of the brown marmorated stink bug, Halyomorpha halys, a critical threat to plant biosecurity. J. Pest Sci. 2017, 90, 1033–1043. [Google Scholar] [CrossRef]
  23. Lo, P.L.; Walker, J.T.S.; Rogers, D.J. Risks to pest management in New Zealand’s pipfruit Integrated Fruit Production programme. N. Z. Plant Prot. 2015, 68, 306–312. [Google Scholar]
  24. Duthie, C.; Michael, T.; Stephenson, B.; Yamoah, E.; McDonald, B. Risk Analysis of Halyomorpha halys (Brown Marmorated Stink Bug) on All Pathways; Biosecurity Risk Analysis Group, Ministry of Agriculture and Forestry of New Zealand: Wellington, New Zealand, 2012.
  25. Leskey, T.C.; Nielsen, A.L. Impact of the Invasive Brown Marmorated Stink Bug in North America and Europe: History, Biology, Ecology, and Management. Annu. Rev. Entomol. 2018, 63, 599–618. [Google Scholar] [CrossRef] [PubMed]
  26. Gariepy, T.D.; Bruin, A.; Haye, T.; Milonas, P.; Vétek, G. Occurrence and genetic diversity of new populations of Halyomorpha halys in Europe. J. Pest Sci. 2015, 88, 451–460. [Google Scholar] [CrossRef]
  27. Cesari, M.; Maistrello, L.; Piemontese, L.; Bonini, R.; Dioli, P.; Lee, W.; Park, C.-G.; Partsinevels, G.K.; Rebecchi, L.; Guidetti, R. Genetic diversity of the brown marmorated stink bug Halyomorpha halys in the invaded territories of Europe and its patterns of diffusion in Italy. Biol. Invasions 2017, 20, 1073–1092. [Google Scholar] [CrossRef]
  28. Xu, J.; Fonseca, D.M.; Hamilton, G.C.; Hoelmer, K.A.; Nielsen, A.L. Tracing the origin of US brown marmorated stink bugs, Halyomorpha halys. Biol. Invasions 2014, 16, 153–166. [Google Scholar] [CrossRef]
  29. Zhu, G.-P.; Ye, Z.; Du, J.; Zhang, D.-L.; Zhen, Y.; Zheng, C.; Zhao, L.; Li, M.; Bu, W.-J. Range wide molecular data and niche modeling revealed the Pleistocene history of a global invader (Halyomorpha halys). Sci. Rep. 2016, 6, 23192. [Google Scholar] [CrossRef]
  30. Kurata, A.; Fujiwara, A.; Haruyama, N.; Tsuchida, T. Multiplex PCR method for rapid identification of genetic group and symbiont infection status in Bemisia tabaci (Hemiptera: Aleyrodidae). Appl. Entomol. Zool. 2016, 51, 167–172. [Google Scholar] [CrossRef]
  31. Kumar, L.S.; Shankar, P.; Kulkarni, V.M. Analyses of the internal transcribed rDNA spacers (ITS1 and ITS2) of Indian weevils of Odoiporus longicollis (Olivier) reveal gene flow between locations. Int. J. Trop. Insect Sci. 2018, 38, 313–329. [Google Scholar] [CrossRef]
  32. Allio, R.; Donega, S.; Galtier, N.; Nabholz, B. Large variation in the ratio of mitochondrial to nuclear mutation rate across animals: Implications for genetic diversity and the use of mitochondrial DNA as a molecular marker. Mol. Biol. Evol. 2017, 34, 2762–2772. [Google Scholar] [CrossRef] [PubMed]
  33. Hebert, P.D.N.; Penton, E.H.; Burns, J.M.; Janzen, D.H.; Hallwachs, W. Herbertetal_2004. Proc. Natl. Acad. Sci. USA 2004, 101, 14812–14817. [Google Scholar] [CrossRef] [PubMed]
  34. Valentin, R.E.; Maslo, B.; Lockwood, J.L.; Pote, J.; Fonseca, D.M. Real-time PCR assay to detect brown marmorated stink bug, Halyomorpha halys (Stål), in environmental DNA. Pest Manag. Sci. 2016, 72, 1854–1861. [Google Scholar] [CrossRef] [PubMed]
  35. Morrison, W.R.; Milonas, P.; Kapantaidaki, D.E.; Cesari, M.; Di Bella, E.; Guidetti, R.; Haye, T.; Maistrello, L.; Moraglio, S.T.; Piemontese, L.; et al. Attraction of Halyomorpha halys (Hemiptera: Pentatomidae) haplotypes in North America and Europe to baited traps. Sci. Rep. 2017, 7, 16941. [Google Scholar] [CrossRef] [PubMed]
  36. Milligan BG Total DNA Isolation. Molecular Genetic Analysis of Population: A Practical Approach; Hoelzel, A.R., Ed.; Oxford University Press: Oxford, UK; New York, NY, USA; Tokyo, Japan, 1998; pp. 29–64. [Google Scholar]
  37. Folmer, O.; Black, M.; Hoeh, W.; Lutz, R.; Vrijenhoek, R. DNA primers for amplification of mitochondrial cytochrome c oxidase subunit I from diverse metazoan invertebrates. Mol. Mar. Biol. Biotechnol. 1994, 3, 294–299. [Google Scholar] [PubMed]
  38. Von der Schulenburg, J.H.G.; Hancock, J.M.; Pagnamenta, A.; Sloggett, J.J.; Majerus, M.E.N.; Hurst, G.D.D. Extreme Length and Length Variation in the First Ribosomal Internal Transcribed Spacer of Ladybird Beetles (Coleoptera: Coccinellidae). Mol. Biol. Evol. 2001, 18, 648–660. [Google Scholar] [CrossRef] [PubMed]
  39. Remigio, E.A.; Blair, D. Relationships among problematic North American stagnicoline snails (Pulmonata: Lymnaeidae) reinvestigated using nuclear ribosomal DNA internal transcribed spacer sequences. Can. J. Zool. 2008, 75, 1540–1545. [Google Scholar] [CrossRef]
  40. Geneious | Bioinformatics Software for Molecular Sequence Data Analysis. Available online: https://www.geneious.com/ (accessed on 4 April 2019).
  41. Lee, W.; Kang, J.; Jung, C.; Hoelmer, K.; Lee, S.H.; Lee, S. Complete mitochondrial genome of brown marmorated stink bug Halyomorpha halys (Hemiptera: Pentatomidae), and phylogenetic relationships of hemipteran suborders. Mol. Cells 2009, 28, 155–165. [Google Scholar] [CrossRef]
  42. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 36, 1547–1549. [Google Scholar] [CrossRef]
  43. Felsenstein, J. Confidence limits on phylogenies: An approach using the bootstrap. Evolution 1985, 39, 783–791. [Google Scholar] [CrossRef]
  44. Rozas, J.; Ferrer-Mata, A.; Sánchez-DelBarrio, J.C.; Guirao-Rico, S.; Librado, P.; Ramos-Onsins, S.E.; Sánchez-Gracia, A. DnaSP 6: DNA Sequence Polymorphism Analysis of Large Data Sets. Mol. Biol. Evol. 2017, 34, 3299–3302. [Google Scholar] [CrossRef] [PubMed]
  45. Valentin, R.E.; Nielsen, A.L.; Wiman, N.G.; Lee, D.-H.; Fonseca, D.M. Global invasion network of the brown marmorated stink bug, Halyomorpha halys. Sci. Rep. 2017, 7, 9866. [Google Scholar] [CrossRef] [PubMed]
  46. Lee, W.; Guidetti, R.; Cesari, M.; Gariepy, T.D.; Park, Y.-L.; Park, C.-G. Genetic Diversity of Halyomorpha halys (Hemiptera, Pentatomidae) in Korea and Comparison with COI Sequence Datasets from East Asia, Europe, and North America. Florida Entomol. 2018, 101, 49–54. [Google Scholar] [CrossRef]
  47. Kerdelhué, C.; Boivin, T.; Burban, C. Contrasted invasion processes imprint the genetic structure of an invasive scale insect across southern Europe. Heredity 2014, 113, 390–400. [Google Scholar] [CrossRef] [PubMed]
  48. Tanaka, K.; Murata, K.; Matsuura, A. Rapid evolution of an introduced insect Ophraella communa LeSage in new environments: Temporal changes and geographical differences in photoperiodic response. Entomol. Sci. 2015, 18, 104–112. [Google Scholar] [CrossRef]
Insects 10 00174 g001

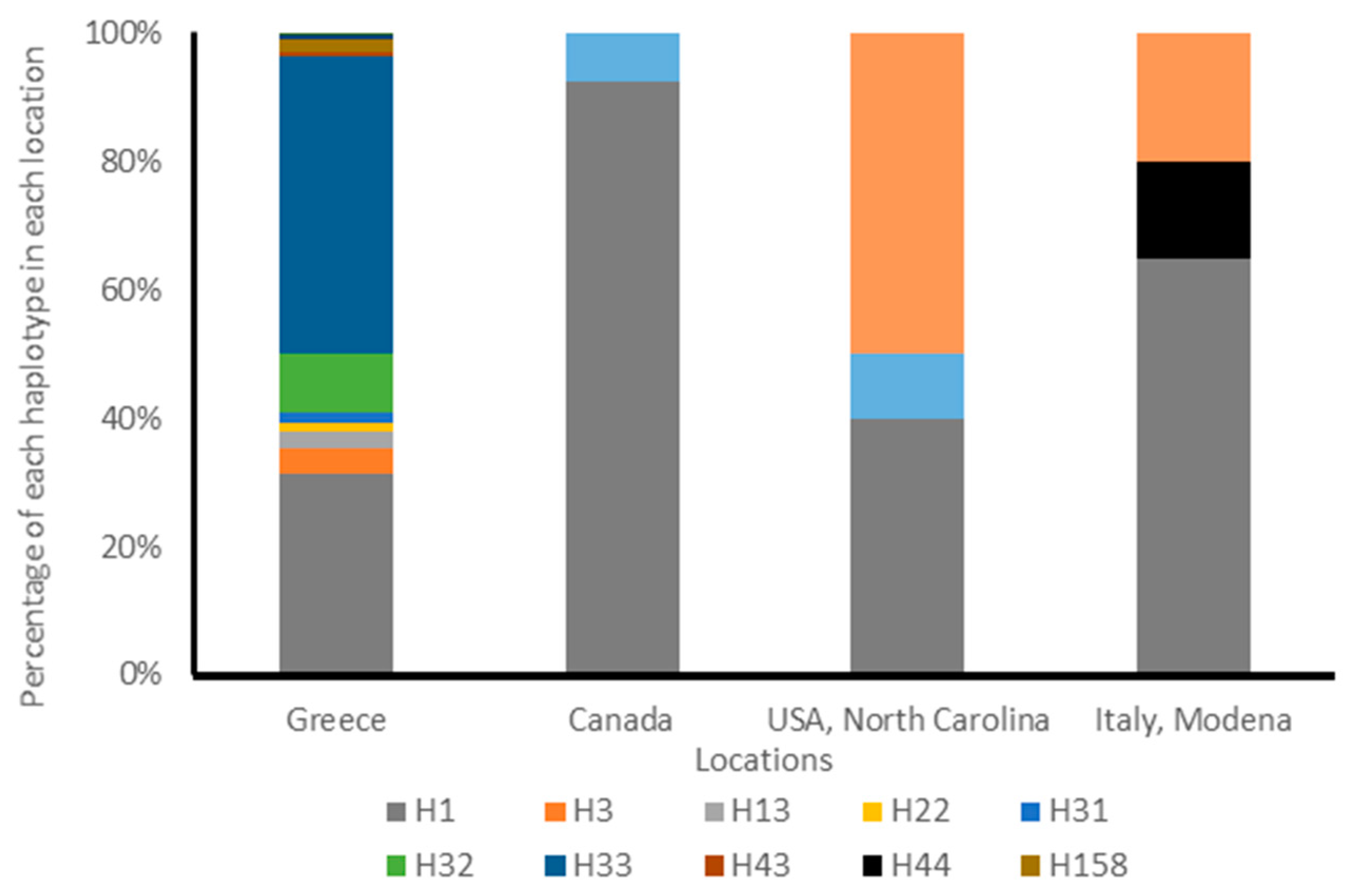

Figure 1. Summary of haplotype frequency of Halyomorpha halys adults based on the mitochondrial Cytochrome Oxidase I (COI) gene. The notation for the haplotypes is in accordance with data previously published in the literature.
Figure 1. Summary of haplotype frequency of Halyomorpha halys adults based on the mitochondrial Cytochrome Oxidase I (COI) gene. The notation for the haplotypes is in accordance with data previously published in the literature.
Insects 10 00174 g001
Insects 10 00174 g002

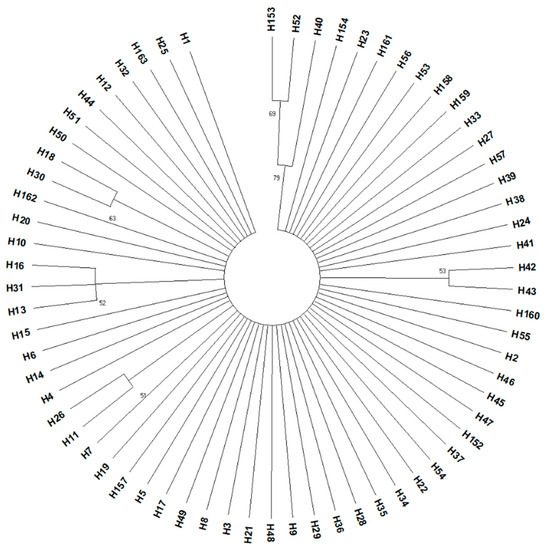

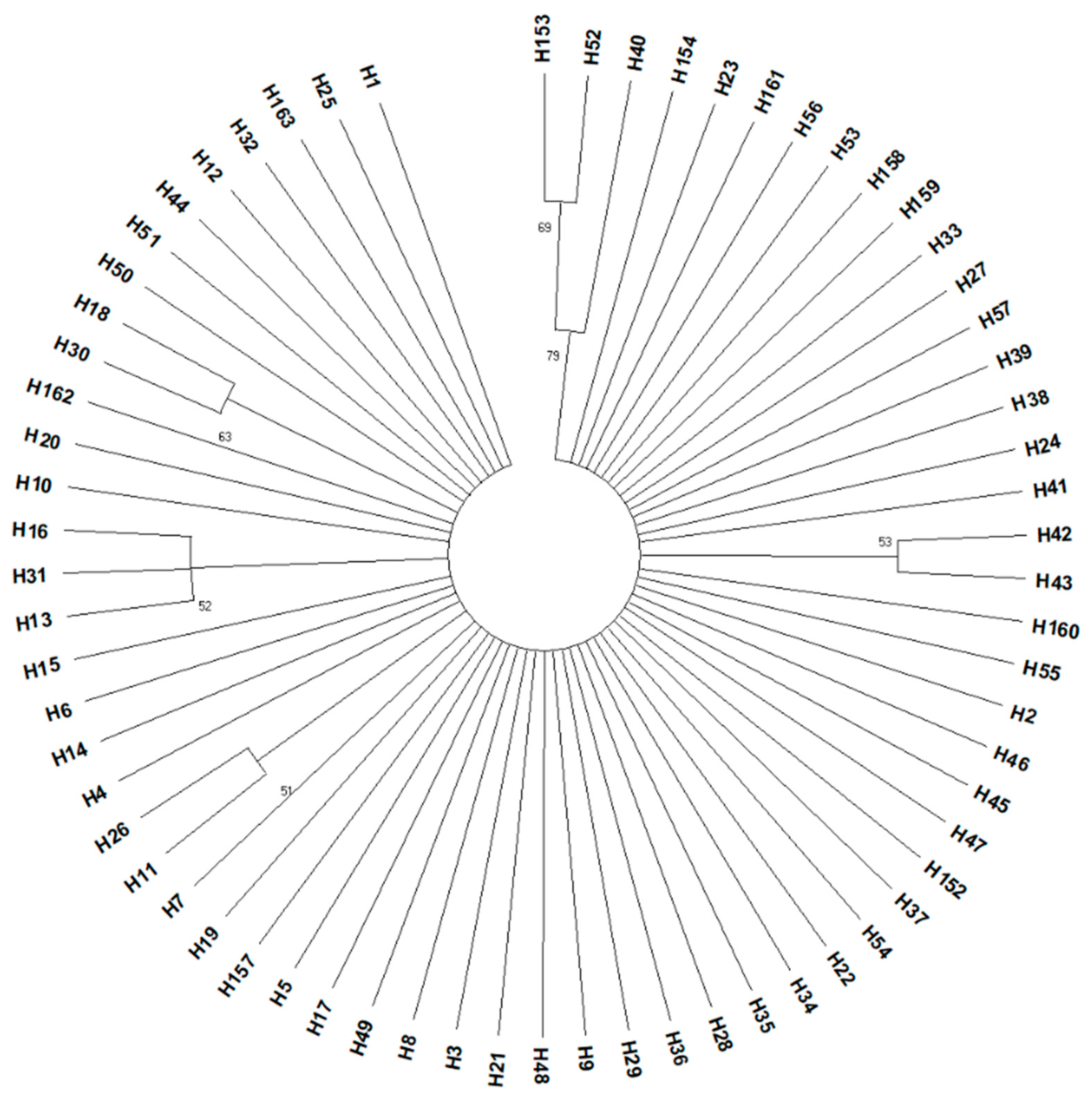

Figure 2. Phylogenetic tree constructed on haplotypes of COI for Halyomorpha halys using the Maximum Likelihood Tree Build Method based on the General Time Reversible model. Percentage bootstrap values from 1000 replicates superior to 50% are given at each node. Based on data from the present study and [6,14,26,27,35,45].
Figure 2. Phylogenetic tree constructed on haplotypes of COI for Halyomorpha halys using the Maximum Likelihood Tree Build Method based on the General Time Reversible model. Percentage bootstrap values from 1000 replicates superior to 50% are given at each node. Based on data from the present study and [6,14,26,27,35,45].
Insects 10 00174 g002
Insects 10 00174 g003

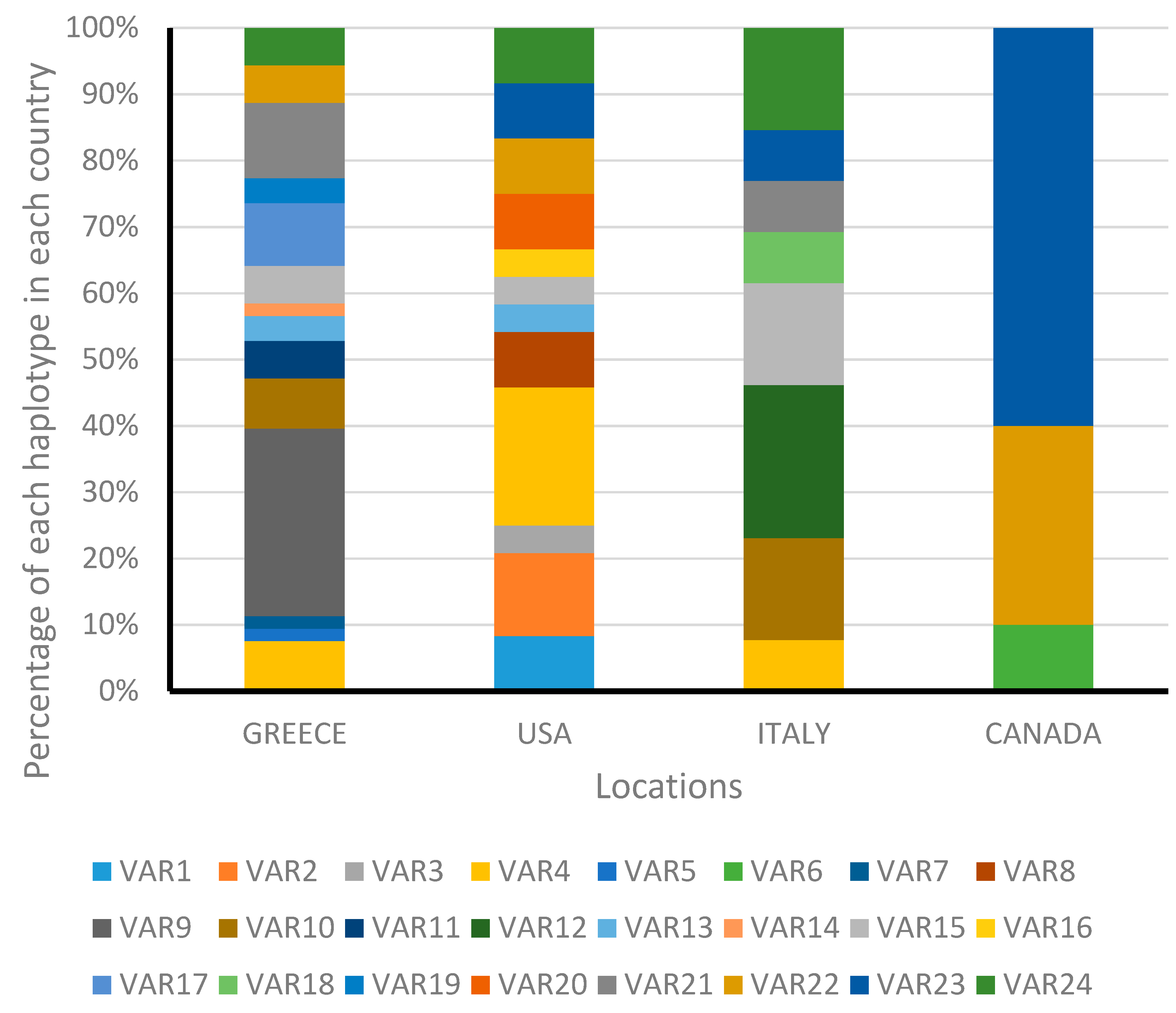

Figure 3. Summary of haplotype frequency of Halyomorpha halys adults based on Internal Transcribed Spacer 1 (ITS1) region.
Figure 3. Summary of haplotype frequency of Halyomorpha halys adults based on Internal Transcribed Spacer 1 (ITS1) region.
Insects 10 00174 g003
Insects 10 00174 g004

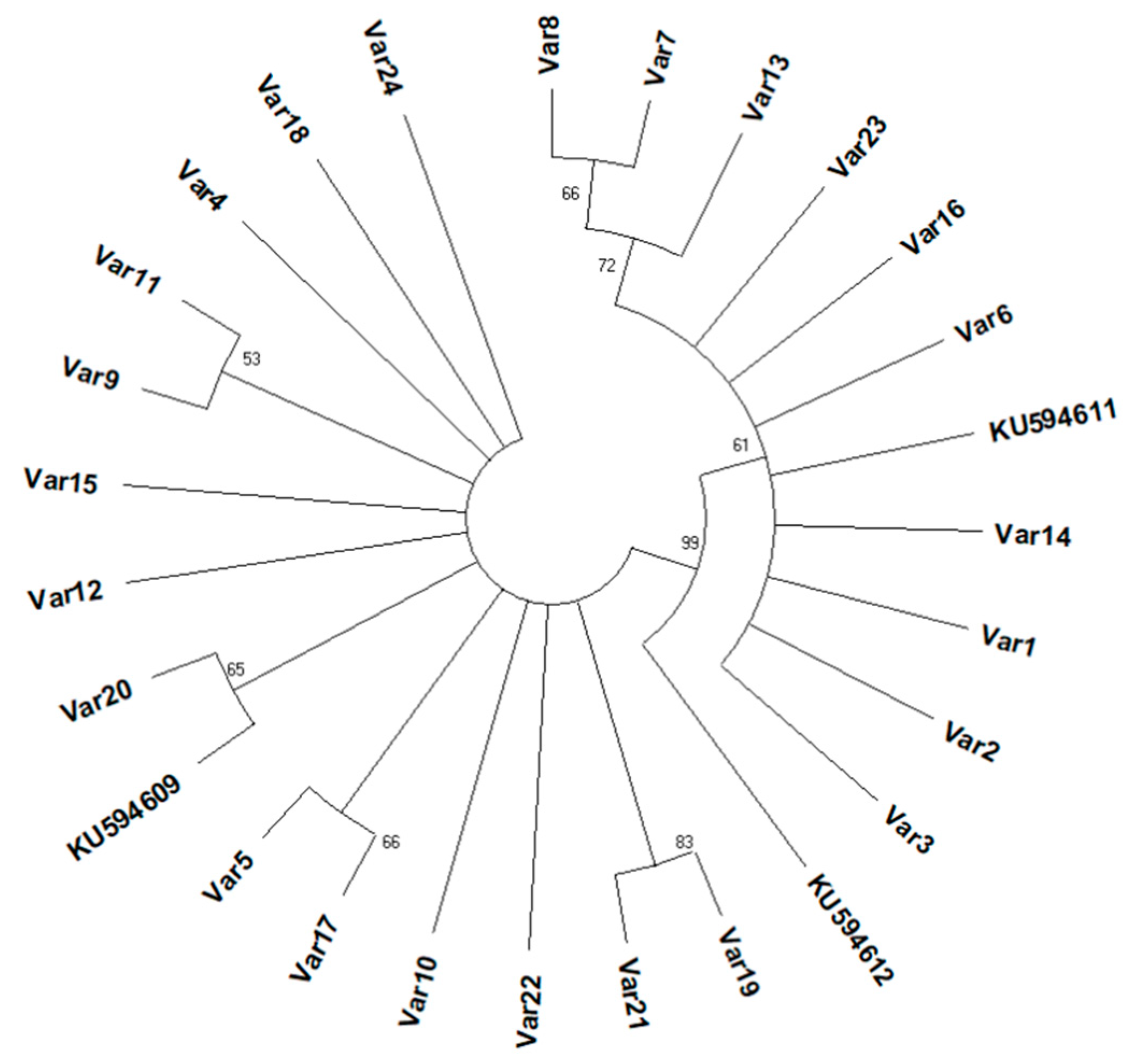

Figure 4. Phylogenetic tree constructed on Internal Transcribed Spacer 1 (ITS1) sequences for Halyomorpha halys using the Maximum Likelihood Tree Build Method, based on the General Time Reversible model. Percentage bootstrap values from 1000 replicates superior to 50% are given at each node. The ITS1 sequences from Valentin et al. (2015) are included [34].
Figure 4. Phylogenetic tree constructed on Internal Transcribed Spacer 1 (ITS1) sequences for Halyomorpha halys using the Maximum Likelihood Tree Build Method, based on the General Time Reversible model. Percentage bootstrap values from 1000 replicates superior to 50% are given at each node. The ITS1 sequences from Valentin et al. (2015) are included [34].
Insects 10 00174 g004
Table 1. Populations of H. halys used in this study and total number of specimens from each population analyzed for the molecular markers Cytochrome Oxidase I (COI) and Internal Transcribed Spacer 1 (ITS1).
Table 1. Populations of H. halys used in this study and total number of specimens from each population analyzed for the molecular markers Cytochrome Oxidase I (COI) and Internal Transcribed Spacer 1 (ITS1).
CountryRegionCOIITS1
Morrison et al. 2017 [35]This StudyMorrison et al. 2017 [35]This Study
GreeceAthens195 50
Peloponnese 2 2
Chania 1 1
ItalyModena 20 11
Perugia 3 2
USASmithsburg, Maryland60 19
North Carolina 20 5
CanadaLondon, Ontario 13 10
Table 2. Genetic diversity of H. halys populations from Canada, Greece, the US, and Italy, assessed using on Internal Transcribed Spacer 1 (ITS1) sequences. N, number of specimens; n, number of sequences; h, number of haplotypes; H, number of unique haplotypes; Hd, haplotype (gene) diversity; Pi, nucleotide diversity (per site); S, number of variable polymorphic sites; k, average number of nucleotide differences; SVS, singleton variable sites; PIS, parsimony informative sites.
Table 2. Genetic diversity of H. halys populations from Canada, Greece, the US, and Italy, assessed using on Internal Transcribed Spacer 1 (ITS1) sequences. N, number of specimens; n, number of sequences; h, number of haplotypes; H, number of unique haplotypes; Hd, haplotype (gene) diversity; Pi, nucleotide diversity (per site); S, number of variable polymorphic sites; k, average number of nucleotide differences; SVS, singleton variable sites; PIS, parsimony informative sites.
RegionNnhHHd ± SDPi ± SDSkSVSPISTajima’s Dp-ValueFu’s Fs
Canada1010310.600 ± 0.1310.011± 0.003124.800390.594p > 0.104.717
Greece53531470.830 ± 0.0340.022 ± 0.001827.896280−2.083p < 0.053.967
USA24241260.728 ± 0.0620.023 ± 0.012647.9095212−2.138p < 0.055.890
Italy1313820.603 ± 0.1310.005 ± 0.002101.89782−1.643p > 0.050.934
