# Stag Beetle Elytra: Localized Shape Retention and Puncture/Wear Resistance

^{1}

^{2}

^{3}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Sample Preparation

#### 2.2. Optical and Electron Microscopy

#### 2.3. Mechanical Testing

#### 2.4. Finite Element Simulation

^{3}) were chosen to be in the order of chitin properties [27] as a first approximation. For convenience, the simulations with orthotropic material properties were performed with a constant Poisson’s ratio along the three directions. We used a simplified symmetric model representing one-quarter of the complete geometry and specified two symmetry planes (Figure 3). Identical to the experimental setup, the model was clamped at both the ends and the load (P) was applied in displacement-control mode over a transversal line at the middle of the top surface. The total load was obtained following an incremental approach known as the Riks method [28]. The computational volume was discretized with 9000-s-order tetrahedral elements.

#### 2.5. Nanoindentation

## 3. Results

#### 3.1. Microstructure of the Elytra and the Abdominal Surface

#### 3.2. Deformation of the Elytra

#### 3.3. Puncture and Wear Resistance

^{1.5}/E) [44], which is calculated to be 0.05 ± 0.01 GPa

^{1/2}. These values were close to the values observed in Glycera jaw (~0.077 GPa

^{1/2}) which is known to be wear-resistant [45] and the high abrasion-resistant (0.06–0.08 GPa

^{1/2}) outer layer of the spider fang [44]. Materials with a hard-external layer and relatively softer inner layers enable them to be puncture-resistant and also flexible [46]. Thus, we can see from the above results that the elytra are designed to be both puncture- and wear-resistant. Though our studies are performed on dehydrated samples due to the nature of species selection, we can say that the estimated properties such as wear-resistance and puncture force are of the same order as compared to the hydrated state.

_{g}) and drag force (F

_{d}). It is used to calculate the maximal kinetic energy (E

_{k_max}) that the beetle builds up just before the impact. The kinetic energy values are then compared with the energy absorbed (E

_{a}) by the whole elytra during deflection, using the force (F)-deflection (x) curves. Also, we have performed another calculation to assess the situation of beetles falling with an optimal velocity (v) that is lower than terminal velocity and the corresponding impact energy becomes equal to the amount of energy that can be absorbed by both the elytra, using Equation (7).

_{max}= terminal velocity, ρ = density of the air (1.25 kg/m

^{3}), A = approximated surface area of the beetle (3 cm

^{2}), m = mass of the dehydrated beetle (1.7 g), H

_{max}= maximum height to reach terminal velocity, H = height to reach optimal velocity, and g = acceleration of gravity and ${C}_{d}$ = drag coefficient (1.04, from [47]). The estimated terminal velocity and maximum kinetic energy (E

_{k_max}) of the falling beetle during impact are 9.3 m/s and 72.6 mJ, respectively (Table 2). Also, we estimate the height of fall to reach terminal velocity and the height of optimal velocity to be, 4.4 m and 0.35 m, respectively.

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A

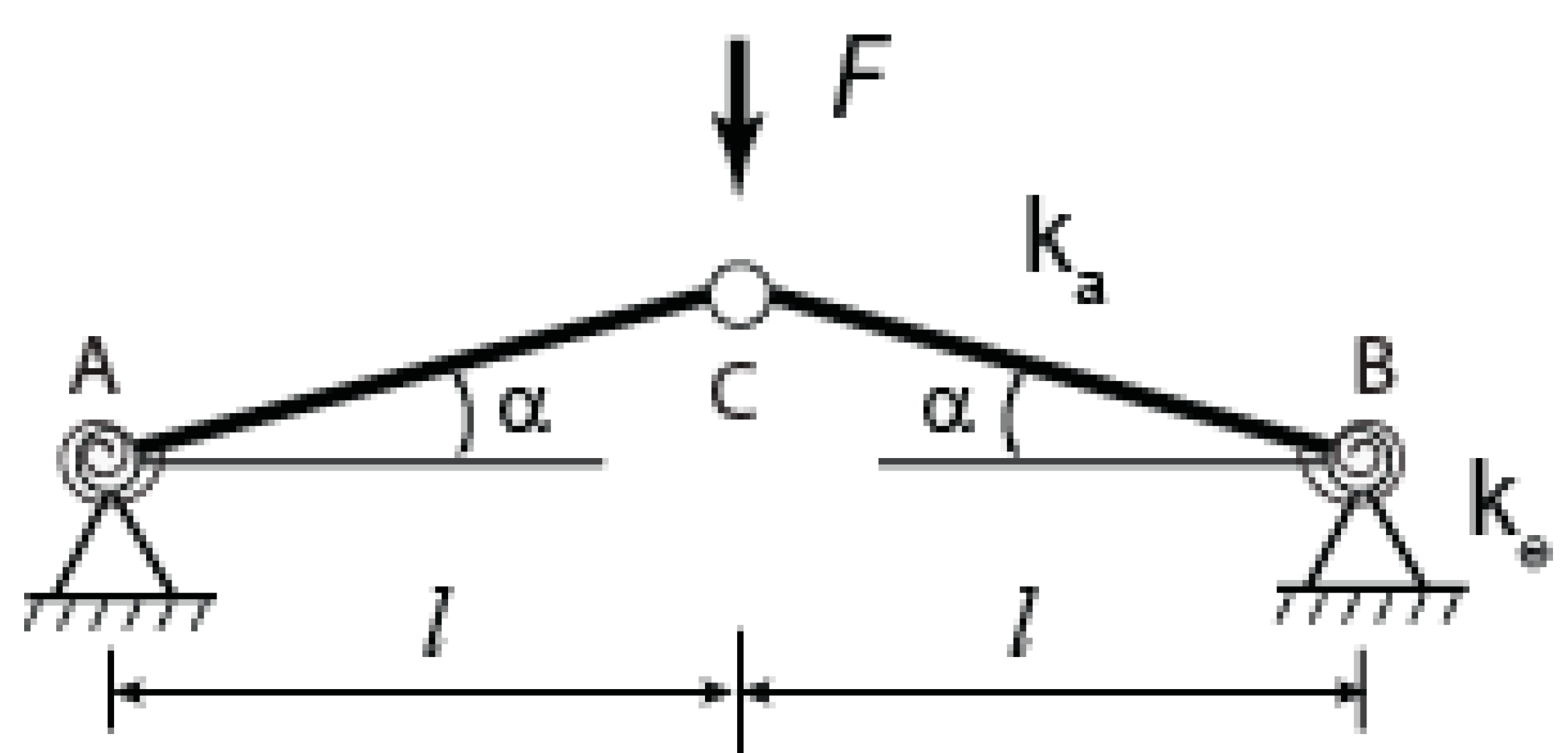

#### Analytical Estimation of the Snap-Through Curve

_{a}and the rotational stiffness of the hinges A and B is k

_{θ}.

## References

- Stork, N. Insect diversity: Facts, fiction and speculation. Biol. J. Linn. Soc.
**1988**, 35, 321–337. [Google Scholar] [CrossRef] - Hunt, T. A comprehensive phylogeny of beetles reveals the evolutionary origins of a superradiation. Science
**2007**, 318, 1913–1916. [Google Scholar] [CrossRef] [PubMed] - Vincent, J.F.V.; Wegst, U.G.K. Design and mechanical properties of insect cuticle. Arthropod Struct. Dev.
**2004**, 33, 187–199. [Google Scholar] [CrossRef] [PubMed] - Van De Kamp, T.; Greven, H. On the architecture of beetle elytra. Entomol. Heute
**2010**, 22, 191–204. [Google Scholar] - Lomakin, J.; Huber, P.A.; Eichler, C.; Arakane, Y.; Kramer, K.J.; Beeman, R.W.; Kanost, M.R.; Gehrke, S.H. Mechanical properties of the beetle elytron, a biological composite material. Biomacromolecules
**2011**, 12, 321–335. [Google Scholar] [CrossRef] - Lomakin, J.; Arakane, Y.; Kramer, K.J.; Beeman, R.W.; Kanost, M.R.; Gehrke, S.H. Mechanical properties of elytra from Tribolium castaneum wild-type and body color mutant strains. J. Insect Physiol.
**2010**, 56, 1901–1906. [Google Scholar] [CrossRef] - Conrad, M.B. Bioinspired Composites Design: Mechanical and Optical Characterization of the Hercules Beetle Elytra. Ph.D. Thesis, Naval Post Graduate School, Monterey, CA, USA, 2014. [Google Scholar]
- van de Kamp, T.; Doerstelmann, M.; dos Sanots Rolo, T.; Baumbach, T.; Menges, A.; Knippers, J. Beetle Elytra as Role Models for Lightweight Building Construction. Entomol. Heute
**2015**, 27, 149–158. [Google Scholar] - Parle, E.; Herbaj, S.; Sheils, F.; Larmon, H.; Taylor, D. Buckling failures in insect exoskeletons. Bioinspir. Biomim.
**2015**, 11, 016003. [Google Scholar] [CrossRef] [Green Version] - Kundanati, L.; Gundiah, N. Biomechanics of substrate boring by fig wasps. J. Exp. Biol.
**2014**, 217, 1946–1954. [Google Scholar] [CrossRef] [Green Version] - Pini, V.; Ruz, J.J.; Kosaka, P.M.; Malvar, O.; Calleja, M.; Tamayo, J. How two-dimensional bending can extraordinarily stiffen thin sheets. Sci. Rep.
**2016**, 6, 29627. [Google Scholar] [CrossRef] [Green Version] - Forterre, Y.; Skotheim, J.M.; Dumais, J.; Mahadevan, L. How the Venus flytrap snaps. Nature
**2005**, 433, 421–426. [Google Scholar] [CrossRef] [PubMed] - Hu, N.; Burgueño, R. Buckling-induced smart applications: Recent advances and trends. Smart Mater. Struct.
**2015**, 24, 063001. [Google Scholar] [CrossRef] - Overvelde, J.T.B.; Kloek, T.; D’haen, J.J.A.; Bertoldi, K. Amplifying the response of soft actuators by harnessing snap-through instabilities. Proc. Natl. Acad. Sci. USA
**2015**, 112, 10863–10868. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Brinkmeyer, A.; Santer, M.; Pirrera, A.; Weaver, P.M. Pseudo-bistable self-actuated domes for morphing applications. Int. J. Solids Struct.
**2012**, 49, 1077–1087. [Google Scholar] [CrossRef] [Green Version] - McKittrick, J.; Chen, P.Y.; Tombolato, L.; Novitskaya, E.E.; Trim, M.W.; Hirata, G.A.; Olevsky, E.A.; Horstemeyer, M.F.; Meyers, M.A. Energy absorbent natural materials and bioinspired design strategies: A review. Mater. Sci. Eng. C
**2010**, 30, 331–342. [Google Scholar] [CrossRef] - Chen, I.H.; Kiang, J.H.; Correa, V.; Lopez, M.I.; Chen, P.Y.; McKittrick, J.; Meyers, M.A. Armadillo armor: Mechanical testing and micro-structural evaluation. J. Mech. Behav. Biomed. Mater.
**2011**, 4, 713–722. [Google Scholar] [CrossRef] - Krauss, S.; Monsonego-Ornan, E.; Zelzer, E.; Fratzl, P.; Shahar, R. Mechanical function of a complex three-dimensional suture joining the bony elements in the shell of the red-eared slider turtle. Adv. Mater.
**2009**, 21, 407–412. [Google Scholar] [CrossRef] - Amini, S.; Miserez, A. Wear and abrasion resistance selection maps of biological materials. Acta Biomater.
**2013**, 9, 7895–7907. [Google Scholar] [CrossRef] - Müller, M.; Olek, M.; Giersig, M.; Schmitz, H. Micromechanical properties of consecutive layers in specialized insect cuticle: The gula of Pachnoda marginata (Coleoptera, Scarabaeidae) and the infrared sensilla of Melanophila acuminata (Coleoptera, Buprestidae). J. Exp. Biol.
**2008**, 211, 2576–2583. [Google Scholar] [CrossRef] [Green Version] - Harvey, D.J.; Hawes, C.J.; Gange, A.C.; Finch, P.; Chesmore, D.; Farr, I. Development of non-invasive monitoring methods for larvae and adults of the stag beetle, Lucanus cervus. Insect Conserv. Divers.
**2011**, 4, 4–14. [Google Scholar] [CrossRef] - Ha, N.S.; Le, V.T.; Goo, N.S. Investigation of Punch Resistance of the Allomyrira dichtoloma Beetle Forewing. J. Bionic Eng.
**2018**, 15, 57–68. [Google Scholar] [CrossRef] - Zhu, D.; Szewciw, L.; Vernerey, F.; Barthelat, F. Puncture resistance of the scaled skin from striped bass: Collective mechanisms and inspiration for new flexible armor designs. J. Mech. Behav. Biomed. Mater.
**2013**, 24, 30–40. [Google Scholar] [CrossRef] [PubMed] - Clark, A.J.; Triblehorn, J.D. Mechanical properties of the cuticles of three cockroach species that differ in their wind-evoked escape behavior. PeerJ
**2014**, 2, e501. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Kundanati, L.; Signetti, S.; Gupta, H.S.; Menegon, M.; Pugno, N.M. Multilayer stag beetle elytra perform better under external loading via non-symmetric bending properties. J. R. Soc. Interface
**2018**, 15, 20180427. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Abràmoff, M.D.; Magalhães, P.J. Image Processing with ImageJ. Biophotonics Int.
**2004**, 11, 36–42. [Google Scholar] - Fabritius, H.; Sachs, C.; Raabe, D.; Nikolov, S.; Friák, M.; Neugebauer, F. Chitin in the exoskeletons of arthropoda: From ancient design to novel materials science. In Chitin; Springer: Dordrecht, The Netherlands, 2011; p. 182. [Google Scholar] [CrossRef]
- Riks, E. An incremental approach to the solution of snapping and buckling problems. Int. J. Solids Struct.
**1979**, 15, 529–551. [Google Scholar] [CrossRef] - Dai, Z.; Yang, Z. Macro-/Micro-Structures of Elytra, Mechanical Properties of the Biomaterial and the Coupling Strength Between Elytra in Beetles. J. Bionic Eng.
**2010**, 7, 6–12. [Google Scholar] [CrossRef] - Gorb, S.N. Frictional Surfaces of the Elytra-to-Body Arresting Mechanism in Tenebrionid beetles (Coleoptera: Tenebrionidae): Design of co-opted fields of microtrichia and cutilcle ultrastructure. Int. J. Insect Morphol. Embryol.
**1998**, 27, 205–225. [Google Scholar] [CrossRef] - Schultz, M.R.; Hyer, M.W. Snap-through of unsymmetric cross-ply laminates using piezoceramic actuators. J. Intell. Mater. Syst. Struct.
**2003**, 14, 795–814. [Google Scholar] [CrossRef] - Brampton, C.J.; Betts, D.N.; Bowen, C.R.; Kim, H.A. Sensitivity of bistable laminates to uncertainties in material properties, geometry and environmental conditions. Compos. Struct.
**2013**, 102, 276–286. [Google Scholar] [CrossRef] [Green Version] - Dano, M.L.; Hyer, M.W. SMA-induced snap-through of unsymmetric fiber-reinforced composite laminates. Int. J. Solids Struct.
**2003**, 40, 5949–5972. [Google Scholar] [CrossRef] - Arena, G.; Groh, R.M.J.; Brinkmeyer, A.; Theunissen, R.; Weaver, P.M.; Pirrera, A. Adaptive compliant structures for flow regulation. Proc. R. Soc. A Math. Phys. Eng. Sci.
**2017**, 473, 20170334. [Google Scholar] [CrossRef] [PubMed] - Bellini, P.X. The concept of Snap-buckling illustrated by a simple model. Int. J. Non Linear. Mech.
**1972**, 7, 643–650. [Google Scholar] [CrossRef] - Bazzucchi, F.; Manuello, A.; Carpinteri, A. Interaction between snap-through and Eulerian instability in shallow structures. Int. J. Non Linear Mech.
**2017**, 88, 11–20. [Google Scholar] [CrossRef] - Sumirin, S.; Nuroji, N.; Besari, S. International Journal of Science and Engineering (IJSE) Snap-Through Buckling Problem of Spherical Shell Structure. Int. J. Sci. Eng.
**2015**, 8, 54–59. [Google Scholar] [CrossRef] - Di Landro, L.; Sala, G.; Olivieri, D. Deformation mechanisms and energy absorption of polystyrene foams for protective helmets. Polym. Test.
**2002**, 21, 217–228. [Google Scholar] [CrossRef] - Goyens, J.; Dirckx, J.; Dierick, M.; Van Hoorebeke, L.; Aerts, P. Biomechanical determinants of bite force dimorphism in Cyclommatus metallifer stag beetles. J. Exp. Biol.
**2014**, 217, 1065–1071. [Google Scholar] [CrossRef] [Green Version] - Broomell, C.C.; Zok, F.W.; Waite, J.H. Role of transition metals in sclerotization of biological tissue. Acta Biomater.
**2008**, 4, 2045–2051. [Google Scholar] [CrossRef] - Czapla, T.; Hopkins, T.; Kramer, K. Cuticular strains strength and pigmentation of five of adult blattella germanica (L.) during sclerotization: Correlations with catecholamines. J. Insect Physiol.
**1990**, 36, 647–654. [Google Scholar] [CrossRef] - Chen, P.-Y.; Lin, A.Y.-M.; McKittrick, J.; Meyers, M.A. Structure and mechanical properties of crab exoskeletons. Acta Biomater.
**2008**, 4, 587–596. [Google Scholar] [CrossRef] - Klocke, D.; Schmitz, H. Water as a major modulator of the mechanical properties of insect cuticle. Acta Biomater.
**2011**, 7, 2935–2942. [Google Scholar] [CrossRef] [PubMed] - Politi, Y.; Priewasser, M.; Pippel, E.; Zaslansky, P.; Hartmann, J.; Siegel, S.; Li, C.; Barth, F.G.; Fratzl, P. A spider’s fang: How to design an injection needle using chitin-based composite material. Adv. Funct. Mater.
**2012**, 22, 2519–2528. [Google Scholar] [CrossRef] - Lichtenegger, H.C.; Schöberl, T.; Bartl, M.H.; Waite, H.; Stucky, G.D. High abrasion resistance with sparse mineralization: Copper biomineral in worm jaws. Science
**2002**, 298, 389–392. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Meng, J.; Zhang, P.; Wang, S. Recent progress of abrasion-resistant materials: Learning from nature. Chem. Soc. Rev.
**2015**, 45, 237–251. [Google Scholar] [CrossRef] - Goyens, J.; Wassenbergh, S.; Van Dirckx, J.; Aerts, P. Cost of flight and the evolution of stag beetle weaponry. J. R. Soc. Interface
**2015**, 12, 20150222. [Google Scholar] [CrossRef] [Green Version] - Munk, Y.; Yanoviak, S.P.; Koehl, M.A.R.; Dudley, R. The descent of ant: Field-measured performance of gliding ants. J. Exp. Biol.
**2015**, 218, 1393–1401. [Google Scholar] [CrossRef] [Green Version] - Yanoviak, S.P.; Munk, Y.; Dudley, R. Arachnid aloft: Directed aerial descent in neotropical canopy spiders. J. R. Soc. Interface
**2015**, 12, 20150534. [Google Scholar] [CrossRef] - Yanoviak, S.P.; Dudley, R.; Kaspari, M. Directed aerial descent in canopy ants. Nature
**2005**, 433, 624–626. [Google Scholar] [CrossRef] - Reichel, S.V.; Labisch, S.; Dirks, J.-H. What goes up must come down Biomechanical impact analysis of jumping locusts. J. Exp. Biol.
**2019**, 222, 1–15. [Google Scholar] [CrossRef] [Green Version]

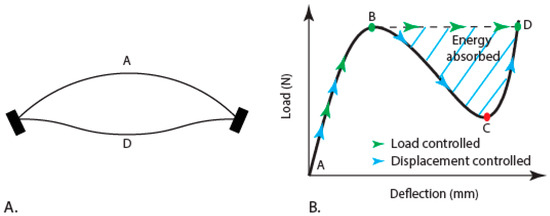

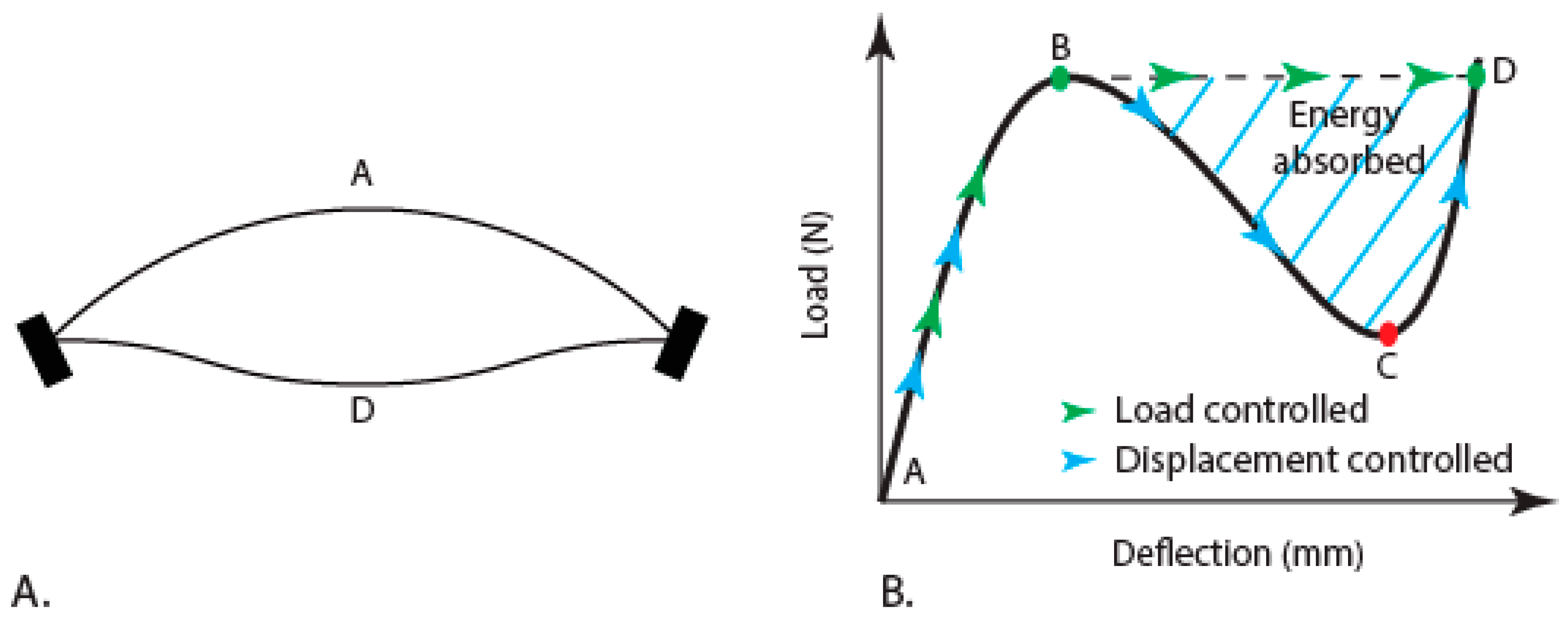

**Figure 1.**(

**A**) Schematic of a shallow structure in the initial and final configuration. (

**B**) The corresponding response is shown in the load-deflection curve (adapted from [13]).

**Figure 2.**(

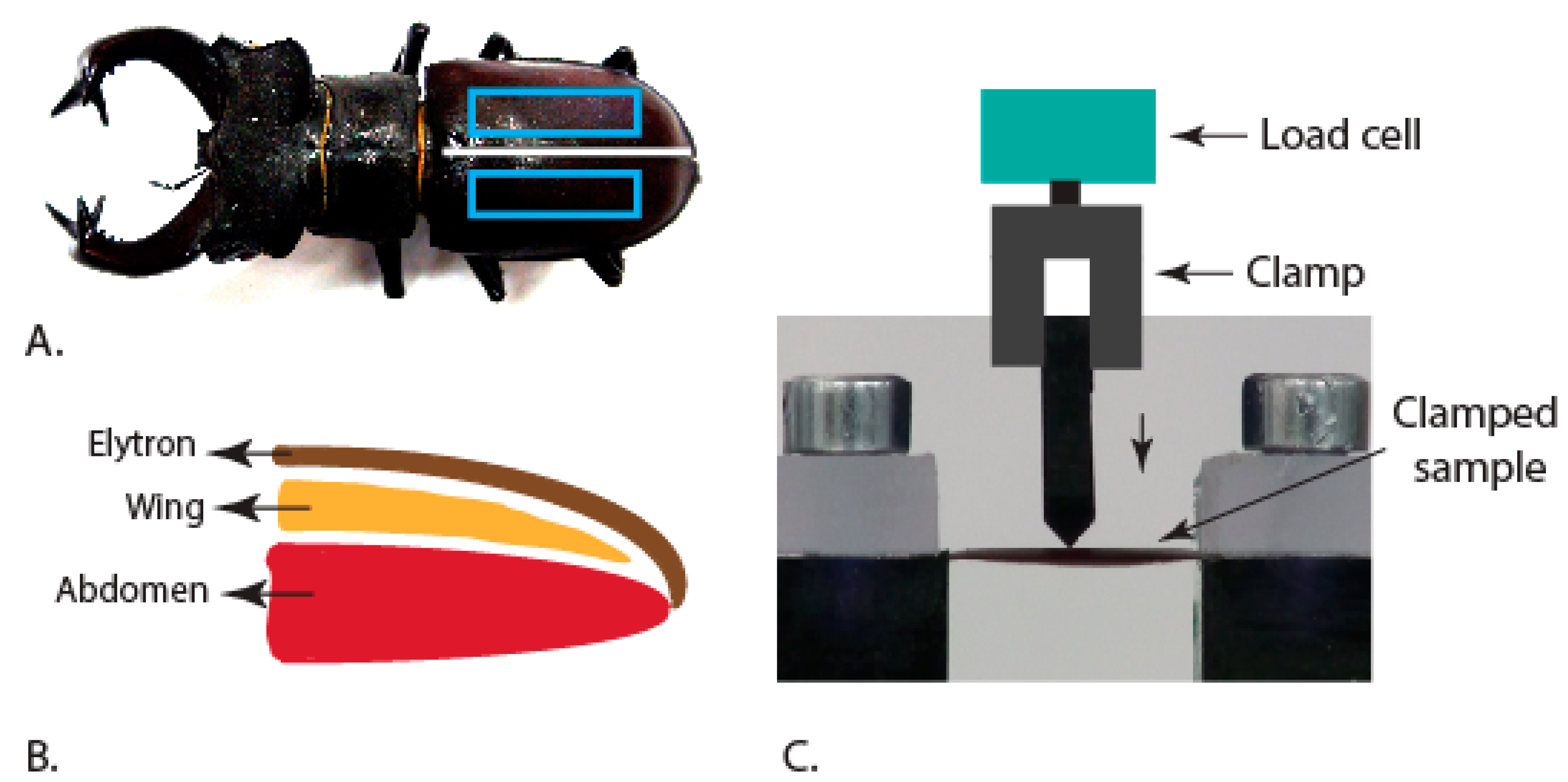

**A**) Sample extraction location for the experiments (blue boxes) [25]. (

**B**) Schematic of cross-sectional view of the insect body along the axis of symmetry of the body (white line in A). (

**C**) Clamp set-up used for performing the experiments.

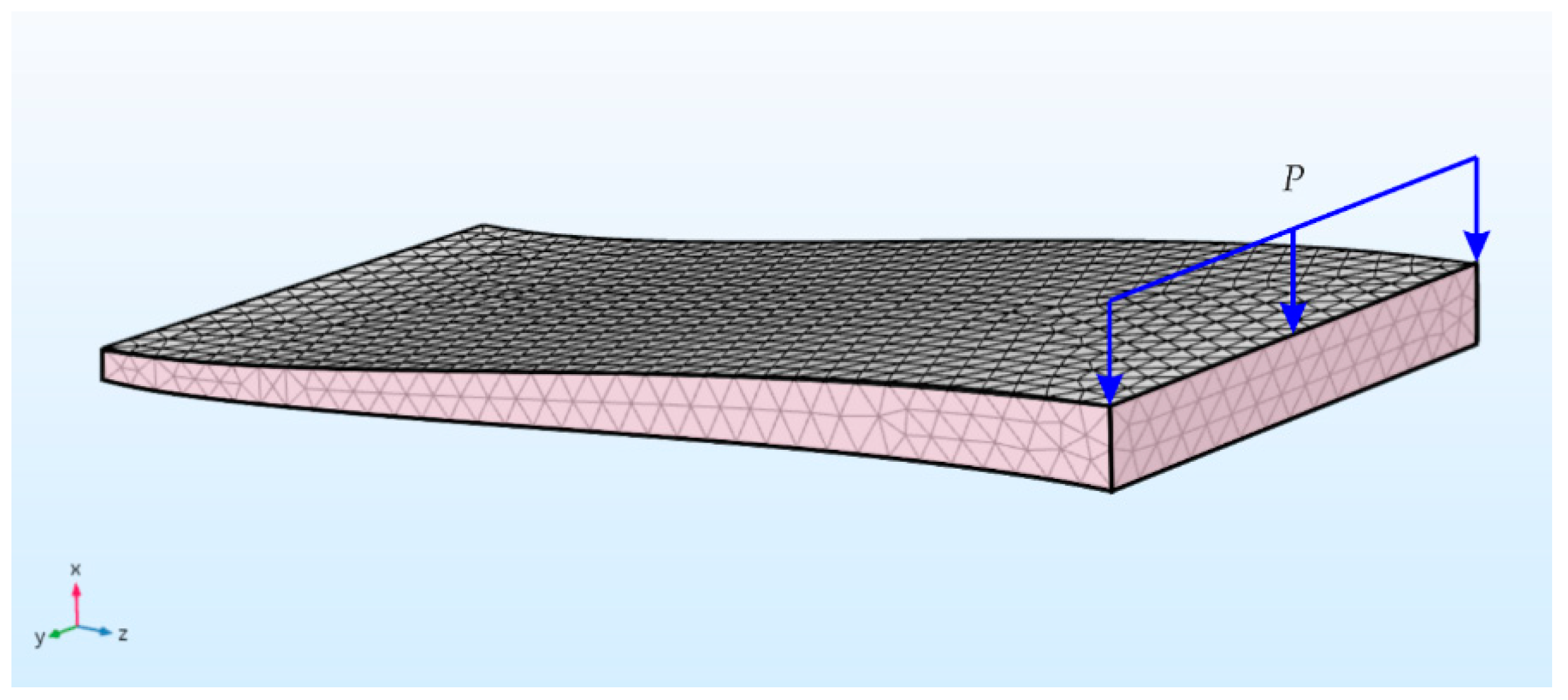

**Figure 3.**Meshed model and coordinate reference system, with highlighted the two symmetry planes (pink) and the applied edge load (P).

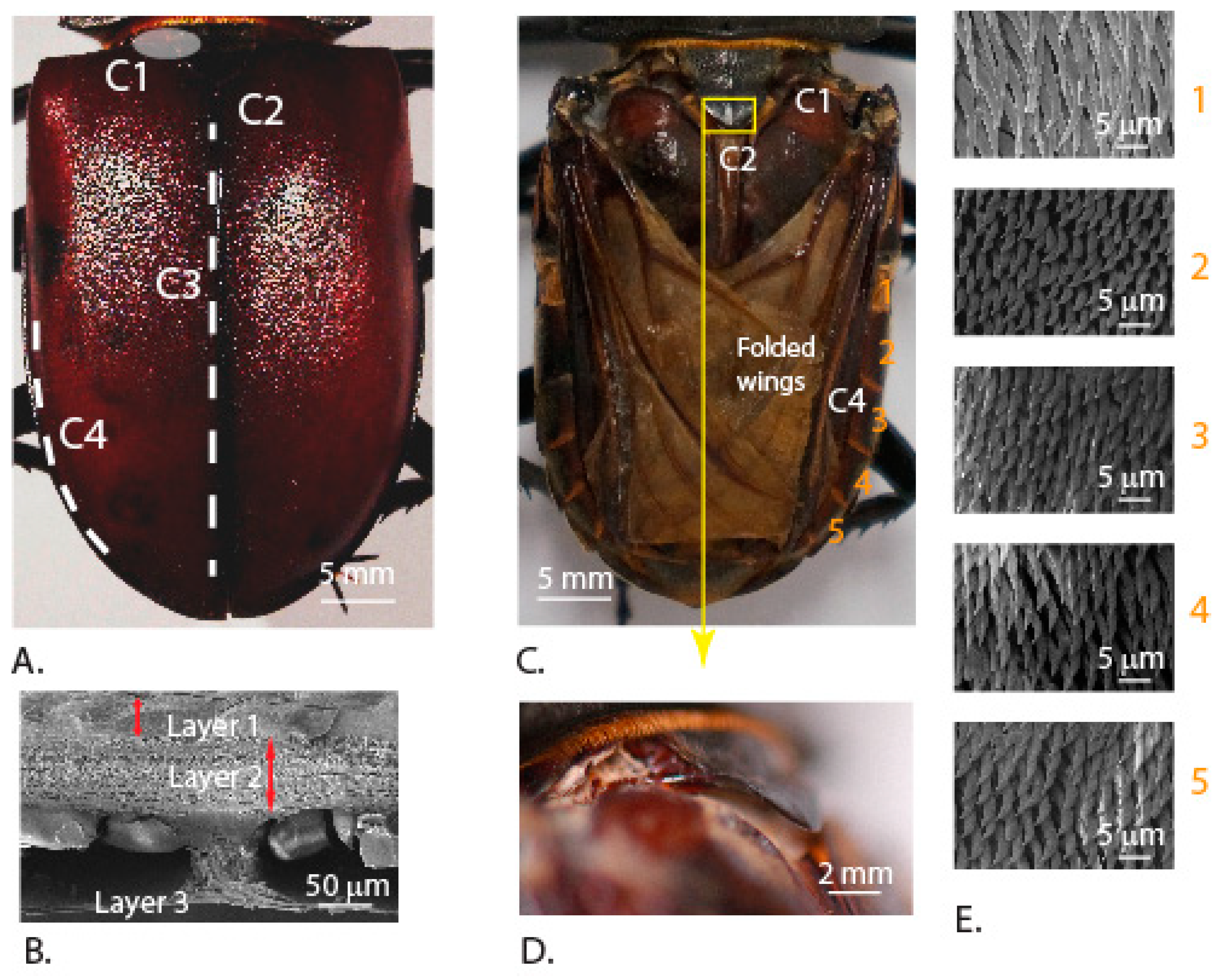

**Figure 4.**(

**A**) Primary contact regions of elytra with abdomen. (

**B**) Scanning electron micrograph of the cross-section of an elytron highlighting the different layers [25]. (

**C**) Abdomen surface with folded wings after removal of elytra showing the hinge location (C1), a triangular shaped structure (C2) which accommodates the inner-side corners of elytra, and five surfaces with microtrachia (C4). (

**D**) Magnified image of C2. (

**E**) Scanning electron micrographs of the locking edge surfaces showing the microtrachia.

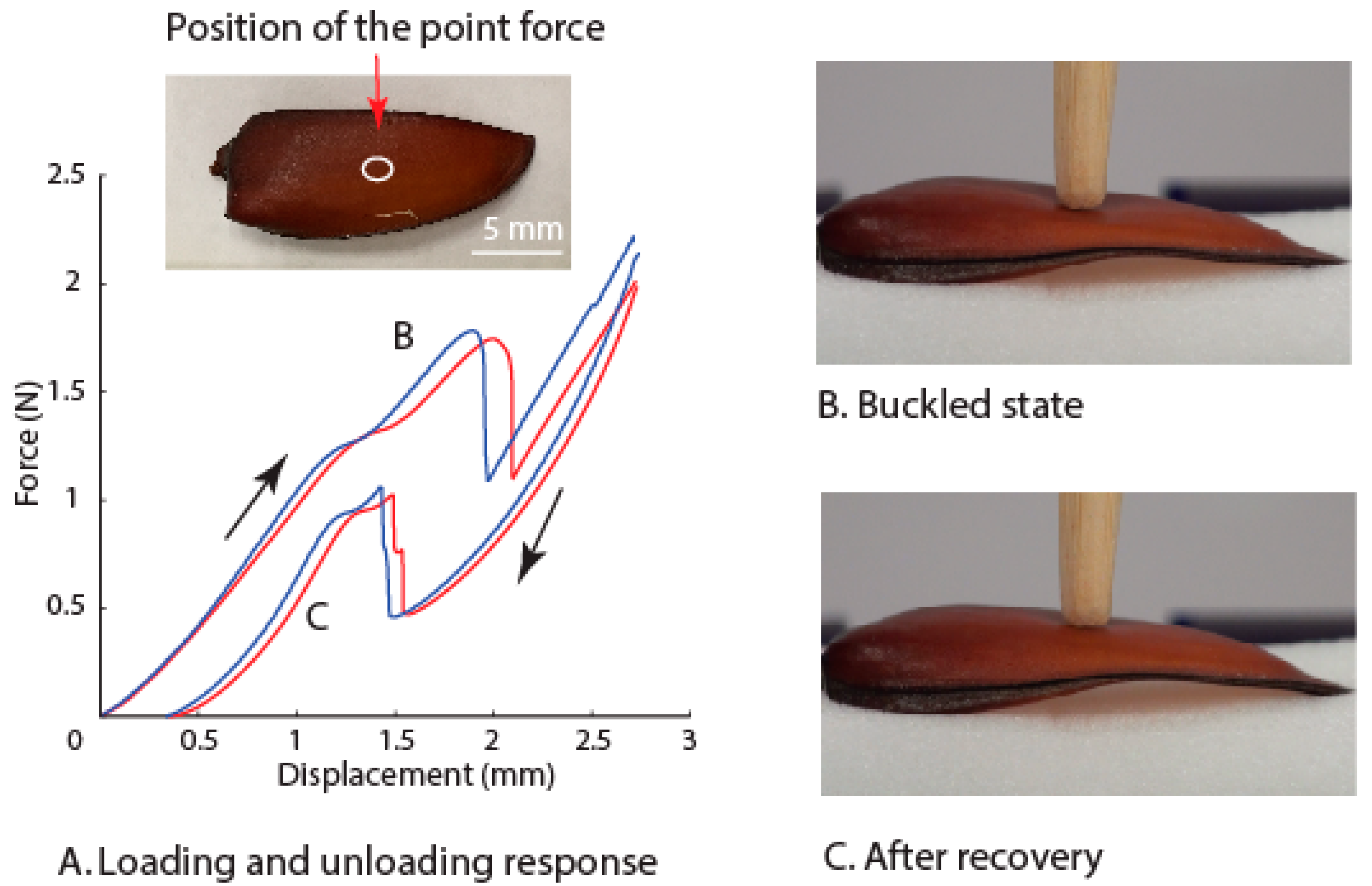

**Figure 5.**Whole elytra deformation response during loading and unloading. (

**A**) Force-displacement curves and optical image showing the position of applied point force. (

**B**) Elytron shape in the buckled state. (

**C**) Elytron shape recovery after reverse snap-through.

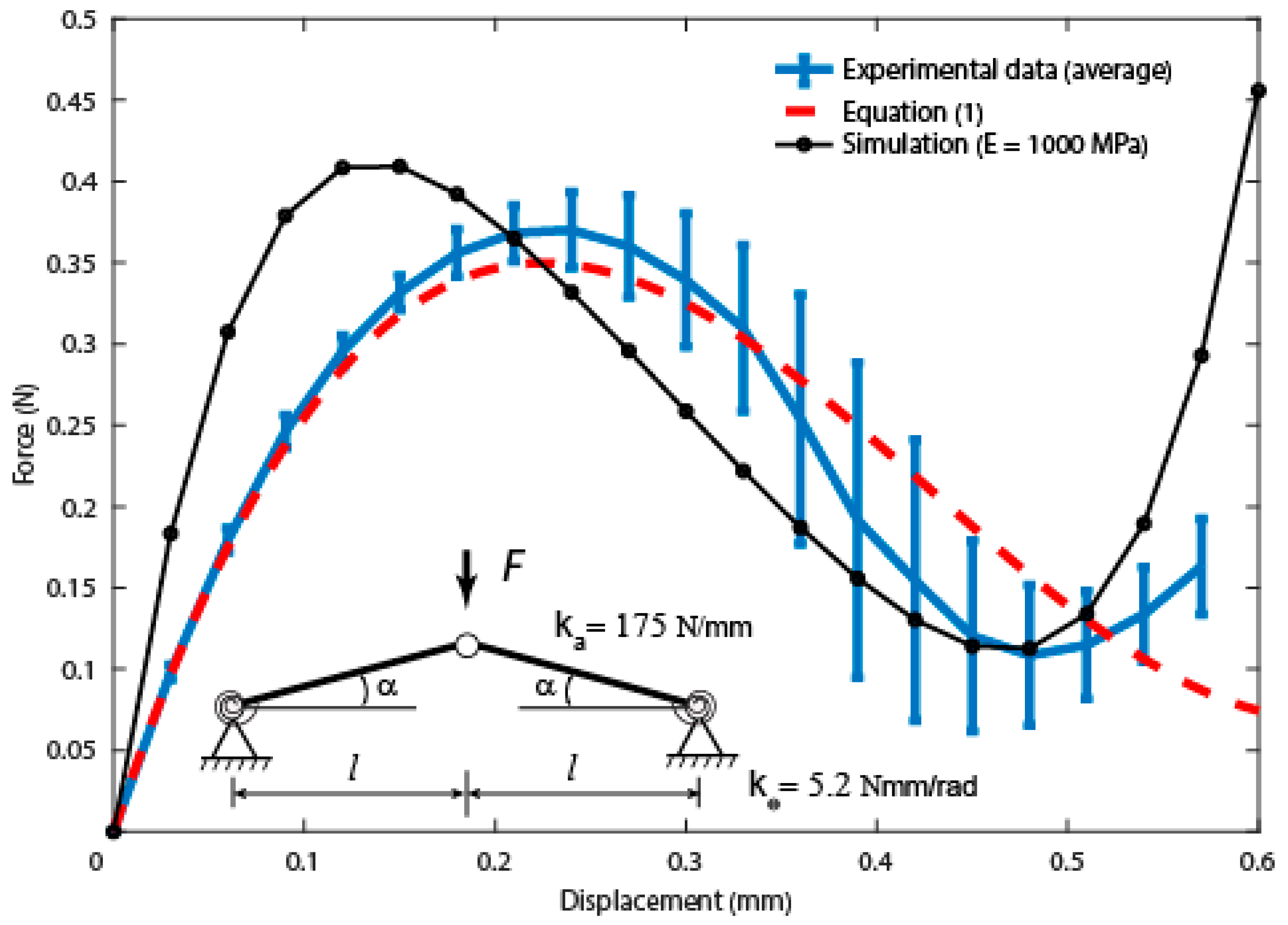

**Figure 6.**Comparison of sectioned elytra force-displacement curves from the experiments, analytical estimation, and the finite element simulation.

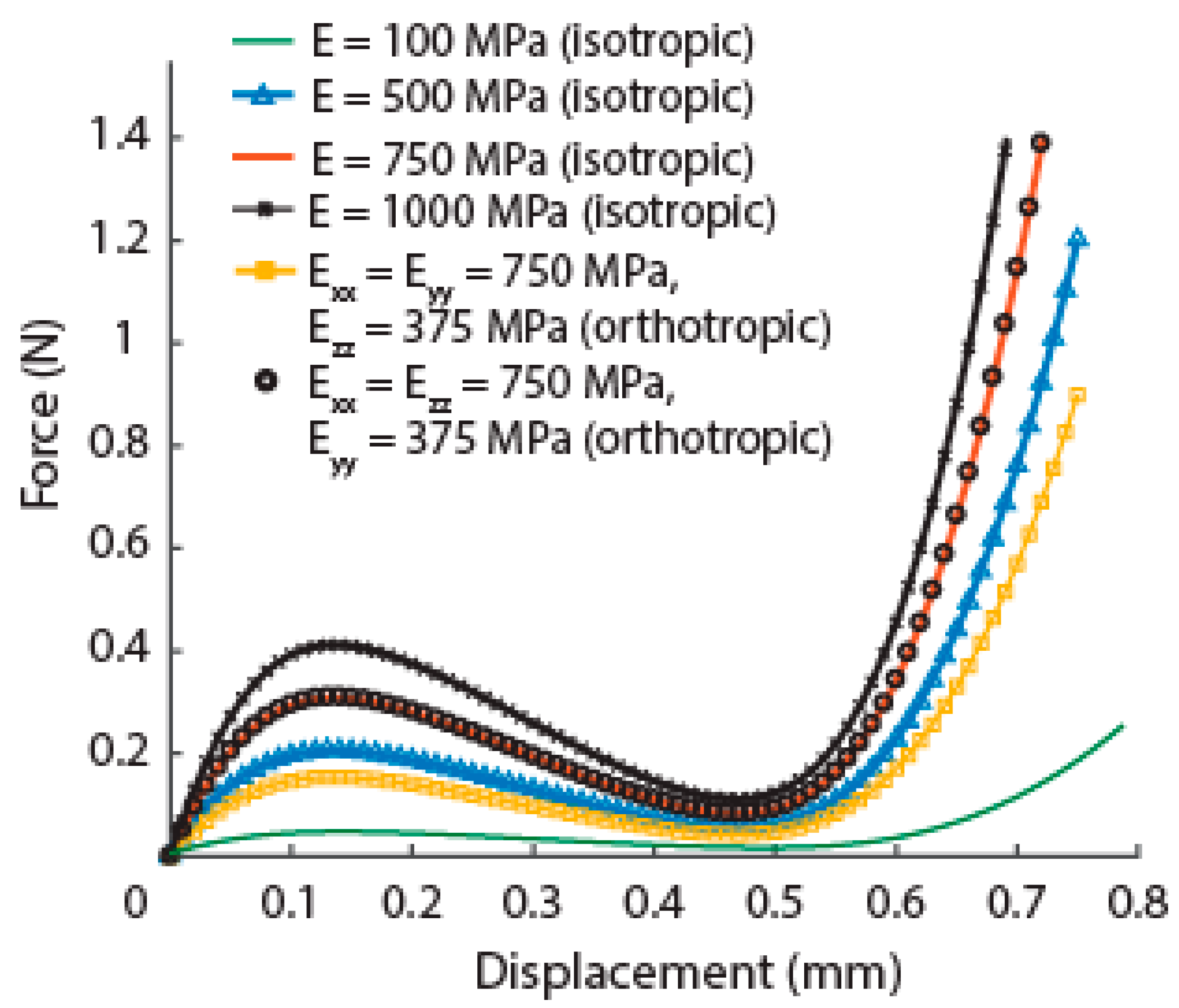

**Figure 7.**Force-displacement curves from finite element simulations for different material properties.

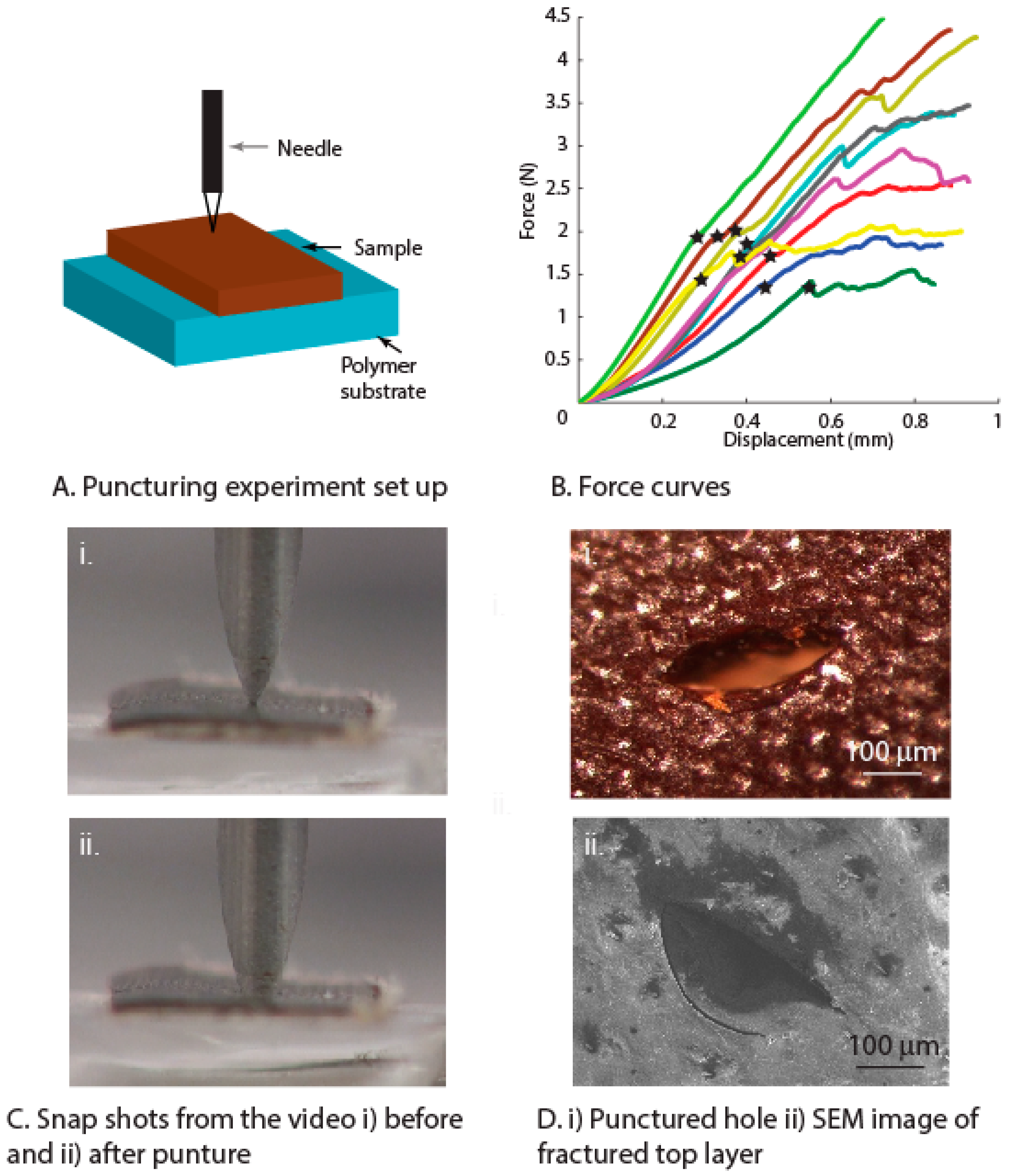

**Figure 8.**(

**A**) Schematic showing the experimental set up used for puncture tests. (

**B**) Force curves from the puncture tests, showing the puncture force (highlighted by *). (

**C**) Snapshots from the video during puncturing. (

**D**) (

**i**). Beetle top surface with the punctured hole showing the brittle nature of the top layer; (

**ii**). Brittle nature of the top layer observed from an SEM image of the punctured surface.

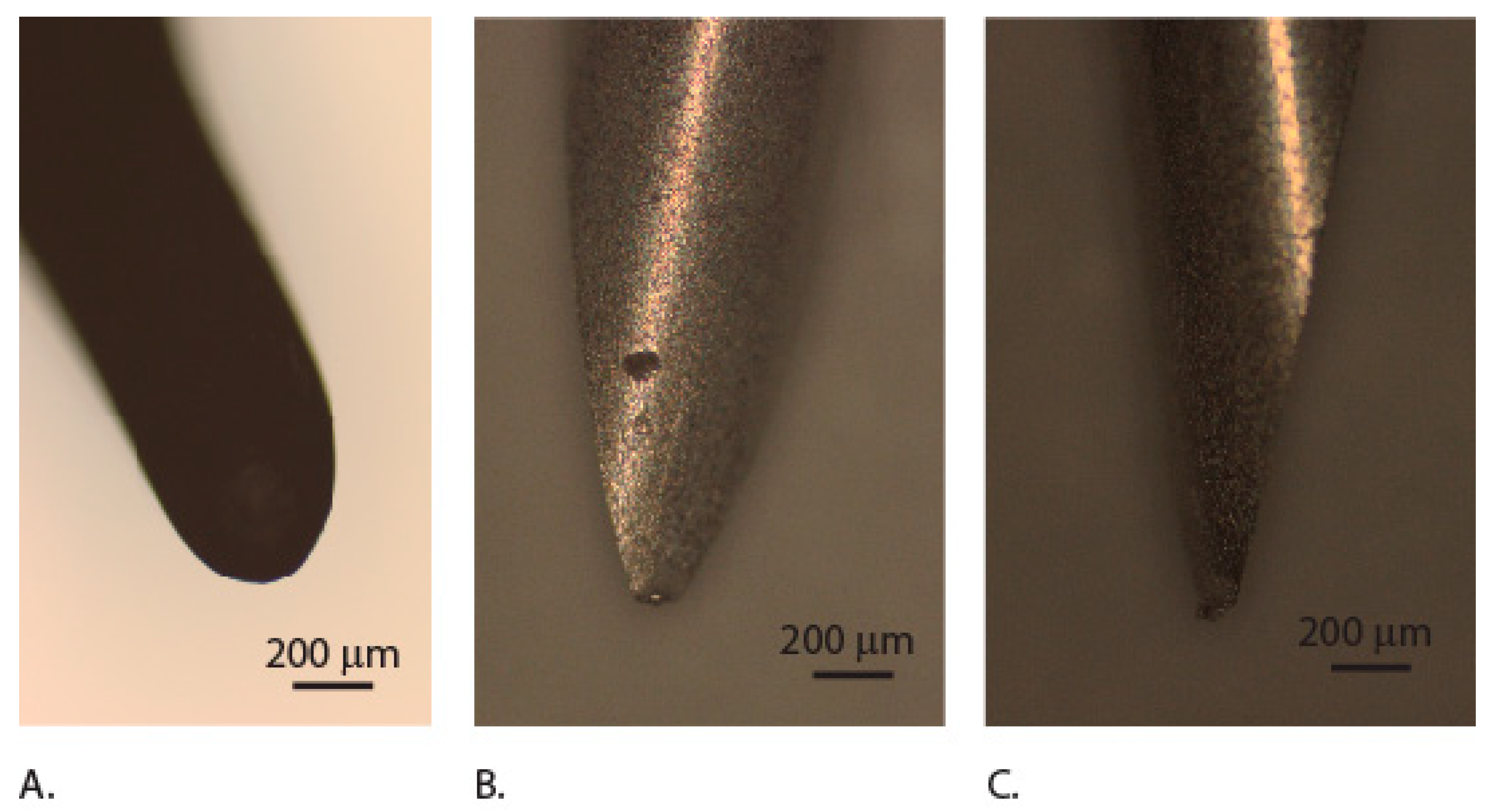

**Figure 9.**Images of the mandible. (

**A**) Dark field image of mandible tip, and needle. (

**B**) Front view. (

**C**) Profile view.

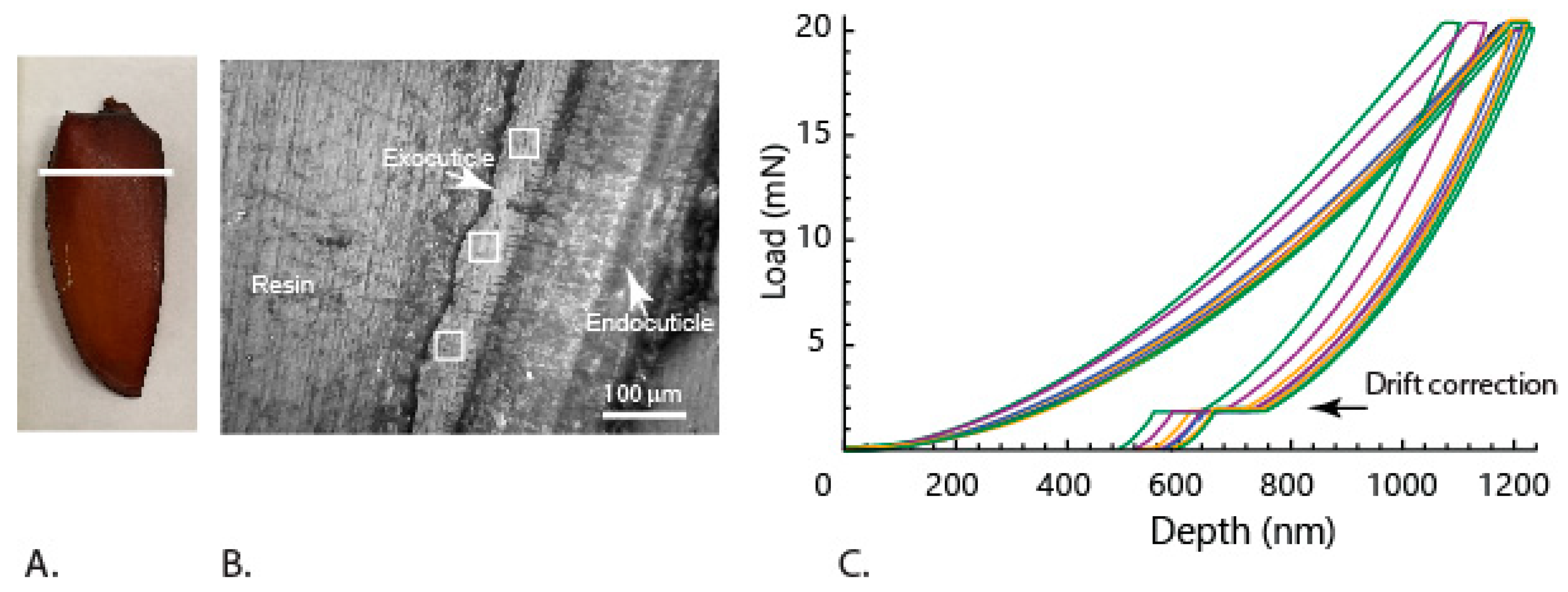

**Figure 10.**Optical image of (

**A**) section location (white line). (

**B**) the polished surface with the cuticle cross-section showing the selected locations of the nanoindentation on the external exocuticle, and the (

**C**) force depth curves obtained from the experiments.

Tip Diameter (µm) Measured at 100 µm from the Tip | Average Puncture Force (N) | Puncture Pressure (kPa) | |
---|---|---|---|

Mandible | 338 | 6.9 | 64 |

Needle | 180 | 1.8 | 597 |

**Table 2.**Estimated average values of velocities, heights of fall, kinetic energy of a falling beetle and the energy absorbeded by elytra.

Terminal Velocity (v_{max}) (m/s) | Height to Reach Terminal Velocity, H_{max} (m) | Optimal Velocity (v) | Height to Reach Optimal Velocity, H (m) | Maximum Kinetic Energy (E_{k_max}) (mJ) | Energy Absorbed by Elytra, (2E_{a}) (mJ) |
---|---|---|---|---|---|

9.3 | 4.4 | 1.8 | 0.35 | 72.6 | 5.8 |

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Kundanati, L.; Guarino, R.; Pugno, N.M.
Stag Beetle Elytra: Localized Shape Retention and Puncture/Wear Resistance. *Insects* **2019**, *10*, 438.
https://doi.org/10.3390/insects10120438

**AMA Style**

Kundanati L, Guarino R, Pugno NM.
Stag Beetle Elytra: Localized Shape Retention and Puncture/Wear Resistance. *Insects*. 2019; 10(12):438.
https://doi.org/10.3390/insects10120438

**Chicago/Turabian Style**

Kundanati, Lakshminath, Roberto Guarino, and Nicola M. Pugno.
2019. "Stag Beetle Elytra: Localized Shape Retention and Puncture/Wear Resistance" *Insects* 10, no. 12: 438.
https://doi.org/10.3390/insects10120438
