Insects 2019, 10(11), 391;

Do Host Plant and Associated Ant Species Affect Microbial Communities in Myrmecophytes?
Departamento de Ciencias Biológicas, Universidad Técnica Particular de Loja, San Cayetano Alto s/n, Loja 1101608, Ecuador
AMAP, IRD, CIRAD, CNRS, INRA, Université de Montpellier, 34000 Montpellier, France
CNRS, UMR EcoFoG, Agroparistech, CIRAD, INRA, Université de Guyane, Université des Antilles, Campus Agronomique, 97379 Kourou, France
Ecolab, Université de Toulouse, CNRS, INPT, UPS, 31062 Toulouse, France
Laboratoire Evolution & Diversité Biologique (EDB UMR 5174), CNRS, IRD, Université de Toulouse, 31062 Toulouse, France
Biodiversity Genomics Team, Plant Ecophysiology & Evolution Group, Guangxi Key Laboratory of Forest Ecology and Conservation, College of Forestry, Daxuedonglu 100, Nanning 530005, Guangxi, China
Authors to whom correspondence should be addressed.
Received: 24 September 2019 / Accepted: 2 November 2019 / Published: 6 November 2019


Ant-associated microorganisms can play crucial and often overlooked roles, and given the diversity of interactions that ants have developed, the study of the associated microbiomes is of interest. We focused here on specialist plant-ant species of the genus Allomerus that grow a fungus to build galleries on their host-plant stems. Allomerus-inhabited domatia, thus, might be a rich arena for microbes associated with the ants, the plant, and the fungus. We investigated the microbial communities present in domatia colonised by four arboreal ants: Allomerus decemarticulatus, A. octoarticulatus, A. octoarticulatus var. demerarae, and the non-fungus growing plant-ant Azteca sp. cf. depilis, inhabiting Hirtella physophora or Cordia nodosa in French Guiana. We hypothesized that the microbial community will differ among these species. We isolated microorganisms from five colonies of each species, sequenced the 16S rRNA or Internal TranscribedSpacer (ITS) regions, and described both the alpha and beta diversities. We identified 69 microbial taxa, which belong to five bacterial and two fungal phyla. The most diverse phyla were Proteobacteria and Actinobacteria. The microbial community of Azteca cf. depilis and Allomerus spp. differed in composition and richness. Geographical distance affected microbial communities and richness but plant species did not. Actinobacteria were only associated with Allomerus spp.
microbial diversity; domatia; Allomerus decemarticulatus; Allomerus octoarticulatus; Azteca sp. cf. depilis; Cordia nodosa; Hirtella physophora

1. Introduction

The emergence of social life promoted the ecological success of the social species, but it also had profound evolutionary, ecological, and economic impacts on many other species, thus shaping life on Earth [1,2,3]. Indeed, the dominance of social species can have important consequences for the functioning of ecosystems and biodiversity in general [4]. On the other hand, sociality is associated with costs linked to the many potential risks associated with living in a group [5,6,7]. Thus, one can expect that both fitness benefits and costs shape the communities of organisms associated with social species.
Social insects, particularly ants, are good examples of these successful social organisms. They are considered as ecological engineers involved in many key ecosystem processes [2,8] and, given the high relatedness within colonies, the spread of pathogens and parasites can have strong deleterious effects both at the individual and colony levels [9]. Therefore, ant-associated microorganisms have received particular attention, mainly focusing on the complex multipartite networks of interactions among fungus-growing ants, their associated fungi, and a diversity of both detrimental and beneficial associated microorganisms [3,10,11,12,13,14,15,16,17,18]. Non fungus-growing ants also exhibit the ability to modify both abiotic and biotic characteristics, thus selecting for different microbial communities while boosting microbial diversity in their nests [19,20,21,22].
The recent discovery of bacteria and fungi associated with plant-ants (i.e., ants associated with myrmecophytes or plants providing them with a nesting place in the form of hollow structures called “domatia”) shed light on an overlooked role of microbiomes in ant-plant interactions [23,24,25,26]. It has also contributed to improving our understanding of how ants regulate their immediate environment and, thus, how they affect the diversity and functioning of the ecosystem. Moreover, myrmecophytes constitute a robust system that can be studied in order to answer such questions, since they are most often inhabited by one or a few specialized plant-ant species, with usually one colony per plant [27,28,29]. In addition, the environmental conditions provided by myrmecophytes can be considered as different from the surroundings, so that the microorganisms found inside the domatia are expected to differ according to the identity of both the associated ant species and the plant. As a consequence, both the local environment provided by the plant and the traits of the ant species might affect the diversity and composition of the associated microbial communities, which can be considered as a selection force or niche-filtering [30,31].
Here we investigated the bacterial and fungal microorganisms associated with two sympatric ant-plants, Cordia nodosa Lamarck (Boraginaceae) and Hirtella physophora Martius and Zuccharini (Chrysobalanaceae), and their associated ants at two sites in French Guiana. These myrmecophytes are mainly inhabited by ants of the genus Allomerus (Myrmicinae), but C. nodosa can also host Azteca sp. cf. depilis (Dolichoderinae) [32]. Ants of the genus Allomerus are specific plant-ants [33] that have developed a particular behaviour for prey capture, which relies on the construction of galleries on their host plants to ambush prey [34]. To this end, they have evolved the practice of a novel kind of fungal agriculture with non-nutritional purposes, which involves highly fine-tuned multipartite plant-ant-fungus-bacteria associations [26,35,36,37]. We isolated and identified bacteria and fungi present inside the domatia of the two plants inhabited by the different ant species and hypothesized that a strong niche filtering affected the microbial diversity and composition. That is, that the microbial community might be influenced by the location of the sampling site, and that both the species of the plants and the ants should influence bacteria and fungi present inside the domatia.

2. Material and Methods

2.1. Sampling

Samples were collected at two locations in French Guiana, Montagne des Singes (MdS: 5°04’21.92” N; 52°41’51.13” O) and Basevie (Bsv: 5°05’21.91” N; 53°01’28.39” O), between January and February 2009. Both sites were located about 40 km from each other. It should be noted the microbial isolation, culture and sequencing were performed just after the samples were collected (see methods below), while microbial identifications have been updated more recently, thus reflecting the potential changes in the GenBank database, which could have occurred since the sampling period. We randomly selected five colonies of each of four plant-ant species that inhabit the domatia of two myrmecophytic plant species: Cordia nodosa Lamarck (Boraginaceae) and Hirtella physophora Martius et Zuccharini (Crysobalanaceae). In the Montagne des Singes area, C. nodosa is colonized by either Allomerus octoarticulatus var. demerarae or Azteca sp. cf. depilis, and H. physophora is colonized both by A. decemarticulatus or A. octoarticulatus. Note that the two A. octoarticulatus species are different, cryptic species, and each is associated to a single host plant species, H. physophora or C. nodosa, in French Guiana. These two A. octoarticulatus species cannot be separated based on morphology alone. However, they separate into monophyletic sister clades based on the barcoding of the COI (Cytochrome c oxidase subunit I) gene fragment [38]. Allomerus octoarticulatus var. demerarae appears always and solely associated with C. nodosa, whatever its geographic origin, while A. octoarticulatus can be associated with a variety of host plants over its distribution range, although only found inhabiting H. physophora in French Guiana.
In Basevie, C. nodosa was colonized only by A. octoarticulatus var. demerarae and H. physophora only by A. decemarticulatus.
The C. nodosa domatia are located in the stems below each sympodial fork [39], while in H. physophora they result from the curling under of the leaf margin on either side of the petiole [40]. For each of the 30 plants with well-established ant colonies, we collected three leaves with domatia from the upper part of the plants to minimize the potential contamination of the leaves with soil microbiota. Leaves were collected from opposite branches. We sampled leaves of similar age based on their colouration. Then, domatia were individually transported in sterile zip bags to the laboratory. Each domatia was dissected with flame sterilized forceps and scalpel. We used 100 μL of sterile physiological saline solution (0.90% w/v NaCl) to thoroughly wash the inner walls and collect as many microorganisms as possible. Each sample was stored at 4 °C in 1.5 mL Eppendorf vials.

2.2. Microbial Isolation and Identification

Dilutions of the samples (1/106) were prepared after being gently vortexed, and 50 μL of dilution were plated on solid MYG medium (1% malt extract, 0.4% yeast extract, 0.4% glucose, 1.5% agar). Two plates were inoculated by sample, and the cultures were kept in dark conditions at 20 °C for up to 15 days. Afterward, we selected random bacterial and fungal colonies belonging to every potentially different morphospecies based on colony colour, size, and shape. Fungi were transferred to new plates to obtain pure cultures.
Fungal DNA was extracted from mycelium pieces with the Chelex® method [41], and we used direct PCR of intact bacteria as template. The 16S rRNA region of bacteria was amplified using the FD1 and RP2 primers [42] and the fungal ITS region of the rRNA with ITS1 and ITS4 primers [43]. PCR products were sequenced by Genoscreen (Lille, France), and edited with Chromas 2.6.5 (Technelysium Pty Ltd, Brisbanes, Australia). We checked for the closest sequences in GenBank [44] by following a BLAST procedure.

2.3. Alpha Diversity

Species richness was calculated as the total number of microbial species present in each community (S), and species abundance as the total number of microbial isolates of each species that appeared in our samples (N). To take into account sample size, we calculated the Margalef’s index of species richness ( D M G = S 1 L n N ) obtained with the ‘vegan’ R package. Then, to describe the alpha diversity, we obtained five indexes with the ‘phyloseq’ R package: Chao (± SE), Shannon, Simpson, Inversed Simpson, and Fisher. We also calculated the percentage of completeness as C ( % ) = S C h a o . All calculations were conducted for Site (Basevie and Montagne des Singes), Plant (C. nodosa and H. physophora), Ant (A. decemarticulatus, A. octoarticulatus, A. octoarticulatus var. demerarae and Azteca sp. cf. depilis), and their interactions of Site × Plant, Site × Ant, Plant × Ant, and Site × Plant × Ant. The values of the Shannon indexes between pairs of communities were compared using Student’s t-test, and p-values were corrected using a Bonferroni adjustment. Species rarefaction curves were plotted on the expected number of species, and species accumulation curves or sample rarefaction (Mao tau) were computed as a function of the six communities using PAST software [45]. For both curves, the standard errors were converted as 95% confidence intervals.

2.4. Beta Diversity

We calculated Bray-Curtis dissimilarities and, then, we clustered together the six microbial communities (Site × Plant × Ant) of domatia with the ‘picante’ R package. Furthermore, to visualize the level of similarity among microbial communities across Site × Plant × Ant and colonies, we conducted multidimensional scaling multivariate data analysis. Then, we conducted a multivariate analysis of variance (MANOVA) using the distance matrix with 999 permutations, and a multilevel pairwise comparison (permutational multivariate analysis of variance, PERMANOVA) to the Bray-Curtis distances with 40,000 permutations, using the ‘vegan’ package from R [46]. Furthermore, to validate the relevance of the pairwise comparisons after the PERMANOVA we performed a pairwise permutation MANOVA with 40,000 permutations, as found in R package ‘RVAideMemoire’.

3. Results

3.1. Microbial Isolation

A total of 67 bacteria species and two fungi species were isolated, and identified after 16S or ITS sequencing, across all ant domatia (Table 1). Bacteria belonged to the phyla Actinobacteria, Bacteroidetes, Firmicutes, and Proteobacteria. Among the 11 bacterial orders, the best represented were the Rhizobiales (14 species), Enterobacterales (10), Micrococcales (9), Pseudomonadales (9) and Xanthomonadales (9). One Dothideomycetes (Ascomycota) and a Tremellomycetes (Basidiomycota) were also isolated. While Actinobacteria species (9) were not present in Azteca sp. cf. depilis nests, the two fungal species were only isolated from them. Firmicutes (class Bacilli) species were only present in A. decemarticulatus. Three bacteria were present in all ant species across all sites and plants: the insect symbiont Ochrobactrum sp. 1, Sphingomonas echinoides, and Luteibacter cf. yeojuensis st 2. Finally, Arthrobacter sp. 1 and Burkholderia sp. 9 were exclusively associated with Allomerus spp. Overall, we found 20 bacterial genera in A. decemarticulatus (18 families), A. octoarticulatus (14 families), and Azteca sp. cf. depilis (12 families) domatia, and 19 in A. octoarticulatus var. demerarae (14 families).

3.2. Alpha Diversity

The rarefaction curve and the completeness values suggest that the microbial communities present in A. octoarticulatus var. demerarae are better characterised compared to the other four communities (Figure 1A,B; Table 2). That is, the slopes of the C. nodosa curves appear to be different from the H. physophora slopes, and indicate that total microbial diversity would likely be different between the plant species if more samples were collected. We found an overall significantly higher microbial species richness in Montagne des Singes than in Basevie (Table 2 and Table 3). There were no differences in species richness or evenness between plant species, although Chao’s abundance-based richness was higher in H. physophora than in C. nodosa (Table 2). Microbial richness associated with Azteca sp. cf. depilis (18) was more than half lower compared with A. decemarticulatus (43) or A. octoarticulatus (47), and thus exhibited significantly lower species richness and evenness (Table 3). When we analysed the diversity associated with the Site × Plant interaction, we found that C. nodosa from Basevie (21 species) had the lowest species richness and diversity, while the highest was found in H. physophora (40) from Montagne des Singes (Table 3). When investigating nest microbial diversity associated to Site × Ant communities, we found significant differences in richness in Montagne des Singes between Azteca sp. cf. depilis and A. decemarticulatus, A. octoarticulatus, and A. octoarticulatus var. demerarae (Table 3). In the interaction Plant × Ant, the only significant differences in species richness were between the microbial communities associated with Azteca sp. cf. depilis from C. nodosa, A. decemarticulatus colonising H. physophora, and A. octoarticulatus var. demerarae from C. nodosa (Table 3). Finally, in the Site × Plant × Ant interaction, the only microbial communities that exhibited significant differences in richness were those associated with Azteca sp. cf. depilis in C. nodosa and A. decemarticulatus in H. physophora, both from Montagne des Singes (Table 3).

3.3. Beta Diversity

The dendrogram based on Bray-Curtis dissimilarities grouped the two microbial communities of Basevie into a clade, the microbial communities from Allomerus domatia in a second clade and the community from Azteca sp. cf. depilis into a third clade (Figure 2A). Moreover, the clades are related to the phylogenetic diversity of each microbial community (Figure 2B,C). We found overall significant differences among the six microbial communities (F5,89 = 2.6544; p-value = 0.001). The multilevel pairwise comparison detected differences for 10 pairs of communities (Table 3, which were further confirmed by the pairwise permutation MANOVA. The MDS mapping (Figure 3) was well supported by the non-metric fit of R2 = 0.948, although the linear fit (R2 = 0.708), and the stress (S = 0.228) values were slightly weak.

4. Discussion

4.1. Microbial Diversity and Composition

The microbial diversity of the studied plant-ant species is similar in genera numbers to the one found associated with fungus-growing ants in their nests [13], even if the taxonomic diversity studied here is based on the microbial ability to grow on media and, thus, the presence of more species can be expected. In another ant-plant associations between Azteca alfari and Cecropia peltata, Lucas et al. [47] found 22 bacterial phyla across internal and external structures of the plant but 90% of the microbial diversity corresponded to Proteobacteria and Actinobacteria taxa. This study also demonstrated the role that ants play in shaping the composition of microbial communities inside their nests, as it has been shown here too, which can be considered as an effect of niche filtering (see below).
That Allomerus ants were associated with the highest number of bacterial species compared to Azteca ants, which can be explained either by the fact that they cannot filter as many microbial species as Azteca spp., or because they allow and select a wider microbial community composition because of more complex functional roles. It is particularly relevant that only these ants harboured Actinobacteria species because the defensive role of some species in fungus gardens of Attine ants is well known [11,48]; and because Allomerus ants practise a particular type of fungiculture in their colonies [26]. Recent work investigating the Azteca spp. microbiome from myrmecophytic Cecropia, found different Actinobacteria species [47] from the ones identified here for Azteca sp. cf. depilis. One species of Proteobacteria, Pseudomonas citronellolis, was recorded as associated with both Azteca sp. cf. depilis (this study) and Az. alfari [47]. This species could be specifically associated with Azteca ants. Previous work on bacteria associated with both fungus-growing and arboreal ants detected bacteria from diverse genera that perform different roles, such as defence against parasites and diseases, plant substrate degradation, and nitrogen fixing bacteria from the genera Burkholderia, Curtobacterium, Enterobacter, Escherichia, Pantoea, and Rhizobium [10,13,49,50,51]. We have found bacterial species from all these genera that could perform similar roles. First, they can complement the behaviour of Allomerus ants that chew the walls of the domatia to prepare vegetal substrate and culture their mutualistic fungus Trimmatostroma cordae [26]. Second, they could act in reinforcing the active transfer of nitrogen to the plant mediated by the mutualistic fungus [36]. Third, they could play a role in the defence of the domatia against diseases by limiting pathogen proliferation.

4.2. Variations in Microbial Communities

The observed richness of microbial communities appears driven by both distance (geography) and ant species identity, as a result of niche filtering. That is, the effect of site location in microbial composition means horizontal acquisition of local bacterial species or strains. Furthermore, the effect of ant species in microbial richness suggest the presence of ant-engineered microbial communities. Whether these microbial communities are vertically transmitted or filtered from the environment by the ants remains unclear. Host plant species, however, do not seem to have an effect on richness or evenness of microbial species in domatia. Therefore, in the studied systems, plant species do not contribute to niche filtering. Indeed, the microbial communities associated with Azteca sp. cf. depilis appeared different from the ones associated with Allomerus ants, both in terms of richness and composition. Moreover, the pairwise comparison of the composition of bacterial communities highlighted differences between A. octoarticulatus inhabiting C. nodosa from Basevie and the other communities but A. octoarticulatus from Montagne des Singes. On the one hand, the ant species effect might be related to an active selection of potentially beneficial microorganisms by the ants; or at least the removal of pathogens. It could be also linked to differences in the environmental conditions in the domatia, not related to the plant species, but to the ants. On the other hand, the geographic effect might be driven by dispersal limitations of the microorganisms and/or differences in the local abiotic environment, surrounding plant species or even ant diet. Allomerus ants are omnivores; however, because of their particular behaviour in practising a highly specialised type of agriculture, they can be expected to exert a strong selective pressure on the composition of the microbial community such that healthy fungal symbionts are maintained [26]. The lack of bacterial communities specifically associated with host plant species is supported by previous work in acacia-ants [52]. All these results strongly suggest an active role of ants in the assemblage of their associated microbial communities.

5. Conclusions

Altogether our results show that the microbial communities present inside the domatia of ant plants are mainly influenced by ant species and, to a lower extent, by the local environment. This suggests that the ants actively select for at least part of the associated microorganisms and, thus, that the latter could have beneficial roles in the survival of the colonies and in the interaction with their host plants. Although the plant does not seem to contribute to the observed diversity in microbial communities, it could indeed benefit from their presence as already shown from the recent studies of Chaetothyriales fungi associated with plant ants. Our understanding of ant-plant-microorganism interactions and of the functioning of these interaction networks appears promising as a mean of shedding more light on the importance of biotic interactions in the evolution of biodiversity.

Author Contributions

Conceptualization, M.X.R.-G., J.O. and C.L.; methodology, M.X.R.-G., H.G. and P.J.; software, M.X.R.-G. and A.D.A.C.; formal analysis, M.X.R.-G. and A.D.A.C.; investigation, M.X.R.-G., H.G., P.J. and C.L.; resources, J.O.; data curation, M.X.R.-G. and A.D.A.C.; writing—original draft preparation, M.X.R.G, J.O. and A.D.; writing—review and editing, all authors.; project administration, J.O.; funding acquisition, J.O and A.D.


Financial support for this study was provided by an Investissement d’Avenir grant of the Agence Nationale de la Recherche (CEBA, ANR-10-LABX-25-01) and by the PO-FEDER 2014–2020, Région Guyane (BING, GY0007194).


We thank Jérémie Lauth and Laurie Esparza for their help in the field and in the isolation and culturing of the microbial strains, to Andrea Yockey-Dejean for proof-reading the manuscript and to the Laboratoire Environnement de Petit Saut (HYDRECO) for logistical help.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Hung, K.-L.J.; Kingston, J.M.; Albrecht, M.; Holway, D.A.; Kohn, J.R. The worldwide importance of honey bees as pollinators in natural habitats. Proc. R. Soc. B 2018, 285, 20172140. [Google Scholar] [CrossRef] [PubMed]
  2. Sanders, D.; van Veen, F.J.F. Ecosystem engineering and predation: The multi-trophic impact of two ant species. J. Anim. Ecol. 2011, 80, 569–576. [Google Scholar] [CrossRef] [PubMed]
  3. Wilson, E.O. The Insect Societies; Belknap: Cambridge, MA, USA, 1971; p. 548. [Google Scholar]
  4. Wilson, E. The effects of complex social life on evolution and biodiversity. Oikos 1992, 63, 13–18. [Google Scholar] [CrossRef]
  5. Cremer, S.; Armitage, S.A.O.; Schmid-Hempel, P. Social Immunity. Curr. Biol. 2007, 17, 693–702. [Google Scholar] [CrossRef]
  6. Meunier, J. Social immunity and the evolution of group living in insects. Phil. Trans. R. Soc. B 2015, 370, 20140102. [Google Scholar] [CrossRef]
  7. Schmid-Hempel, P. Parasites in Social Insects; Princeton University Press: Princeton, NJ, USA, 1998. [Google Scholar]
  8. Griffiths, H.M.; Ashton, L.A.; Walker, A.E.; Hasan, F.; Evans, T.A.; Eggleton, P.; Parr, C.L. Ants are the major agents of resource removal from tropical rainforests. J. Anim. Ecol. 2018, 87, 293–300. [Google Scholar] [CrossRef]
  9. Schmid-Hempel, P. Parasites and their social hosts. Trends Parasitol. 2017, 33, 453–462. [Google Scholar] [CrossRef]
  10. Aylward, F.O.; Burnum, K.E.; Scott, J.J.; Suen, G.; Tringe, S.G.; Adams, S.M.; Barry, K.W.; Nicora, C.D.; Piehowski, P.D.; Purvine, S.O.; et al. Metagenomic and metaproteomic insights into bacterial communities in leaf-cutter ant fungus gardens. ISME J. 2012, 6, 1688–1701. [Google Scholar] [CrossRef]
  11. Currie, C.R.; Scott, J.A.; Summerbell, R.C.; Malloch, D. Fungus-growing ants use antibiotic-producing bacteria to control garden parasites. Nature 1999, 398, 701–705. [Google Scholar] [CrossRef]
  12. Currie, C.R.; Bot, A.N.M.; Boomsma, J.J. Experimental evidence of a tripartite mutualism: Bacteria protect ant fungus gardens from specialized parasites. Oikos 2003, 101, 91–102. [Google Scholar] [CrossRef]
  13. Kellner, K.; Ishak, H.D.; Linksvayer, T.A.; Mueller, U.G. Bacterial community composition and diversity in an ancestral ant fungus symbiosis. FEMS Microbiol. Ecol. 2015, 91, 7. [Google Scholar] [CrossRef] [PubMed]
  14. Little, A.E.F.; Currie, C.R. Symbiotic complexity: Discovery of a fifth symbiont in the attine ant-microbe symbiosis. Biol. Lett. 2007, 3, 501–504. [Google Scholar] [CrossRef] [PubMed]
  15. Mehdiabadi, N.J.; Hughes, B.; Mueller, U.G. Cooperation, conflict, and coevolution in the attine ant-fungus symbiosis. Behav. Ecol. 2006, 17, 291–296. [Google Scholar] [CrossRef]
  16. Sanders, S.B.; Yek, S.H.; Nash, D.R.; Boomsma, J.J. Interaction specificity between leaf-cutting ants and vertically transmitted Pseudonocardia bacteria. BMC Evol. Biol. 2015, 15, 27. [Google Scholar] [CrossRef]
  17. Schultz, T.R.; Brady, S.G. Major evolutionary transitions in ant agriculture. Proc. Natl. Acad. Sci. USA 2008, 105, 5435–5440. [Google Scholar] [CrossRef]
  18. Scott, J.J.; Budsberg, K.J.; Suen, G.; Wixon, D.L.; Balser, T.C.; Currie, C.R. Microbial community structure of leaf-cutter ant fungus gardens and refuse dumps. PLoS ONE 2010, 5, e9922. [Google Scholar] [CrossRef]
  19. Boots, B.; Clipson, N. Linking ecosystem modification by the yellow meadow ant (Lasius flavus) to microbial assemblages in different soil environments. Eur. J. Soil. Biol. 2013, 55, 100–106. [Google Scholar] [CrossRef]
  20. Dauber, J.; Schroeter, D.; Wolters, V. Species specific effects of ants on microbial activity and N-availability in the soil of an old-field. Eur. J. Soil. Biol. 2001, 37, 259–261. [Google Scholar] [CrossRef]
  21. Delgado-Baquerizo, M.; Eldridge, D.J.; Hamonts, K.; Singh, B.K. Ant colonies promote the diversity of soil microbial communities. ISME J. 2019, 13, 1114–1118. [Google Scholar] [CrossRef]
  22. Duff, L.B.; Urichuk, T.M.; Hodgins, L.N.; Young, J.R.; Untereine, W.A. Diversity of fungi from the mound nests of Formica ulkei and adjacent non-nest soils. Can. J. Microbiol. 2016, 62, 562–571. [Google Scholar] [CrossRef]
  23. Defossez, E.; Selosse, M.-A.; Dubois, M.-P.; Mondolot, L.; Faccio, A.; Djieto-Lordon, C.; McKey, D.; Blatrix, R. Ant-plants and fungi: A new three-way symbiosis. New Phytol. 2009, 182, 942–949. [Google Scholar] [CrossRef]
  24. Mayer, V.E.; Nepel, M.; Blatrix, R.; Oberhauser, F.B.; Fiedler, K.; Schönenberger, J.; Voglmayr, H. Transmission of fungal partners to incipient Cecropia-tree ant colonies. PLoS ONE 2018, 13, e0192207. [Google Scholar] [CrossRef]
  25. Mayer, V.E.; Voglmayr, H. Mycelial carton galleries of Azteca brevis (Formicidae) as a multi-species network. Proc. R. Soc. B 2009, 276, 3265–3273. [Google Scholar] [CrossRef] [PubMed]
  26. Ruiz-González, M.X.; Malé, P.-J.G.; Leroy, C.; Dejean, A.; Gryta, H.; Jargeat, P.; Quilichini, A.; Orivel, J. Specific, non-nutritional association between an ascomycete fungus and Allomerus plant-ants. Biol. Lett. 2011, 7, 475–479. [Google Scholar] [CrossRef] [PubMed]
  27. Janzen, D.H. Coevolution of mutualism between ants and acacias in Central America. Evolution 1966, 20, 249–275. [Google Scholar] [CrossRef] [PubMed]
  28. Solano, P.J.; Durou, S.; Corbara, B.; Quilichini, A.; Cerdan, P.; Belin-Depoux, M.; Delabie, J.H.C.; Dejean, A. Myrmecophytes of the understory of French Guianian rainforests: Their distribution and their associated ants. Sociobiology 2003, 41, 605–614. [Google Scholar]
  29. Mayer, V.E.; Frederickson, M.E.; McKey, D.; Blatrix, R. Current issues in the evolutionary ecology of ant-plant symbioses. New Phytol. 2014, 202, 749–764. [Google Scholar] [CrossRef]
  30. Ramette, A.; Tiedje, J.M. Multiscale responses of microbial life to spatial distance and environmental heterogeneity in a patchy ecosystem. Proc. Natl. Acad. Sci. USA 2007, 104, 2761–2766. [Google Scholar] [CrossRef] [PubMed]
  31. Nemergut, D.R.; Schmidt, S.K.; Fukami, T.; O’Neill, S.P.; Bilinski, T.M.; Stanish, L.F.; Knelman, J.E.; Darcy, J.L.; Lynch, R.C.; Wickey, P.; et al. Patterns and processes of microbial community assembly. Microbiol. Mol. Biol. Rev. 2013, 77, 342–356. [Google Scholar] [CrossRef]
  32. Dejean, A.; Azémar, F.; Petitclerc, F.; Delabie, J.H.C.; Corbara, B.; Leroy, C.; Céréghino, R.; Compin, A. Highly modular pattern in ant-plant interactions involving specialized and non-specialized myrmecophytes. Sci. Nat. 2018, 105, 43. [Google Scholar] [CrossRef]
  33. Fernández, F. The myrmicine ant genus Allomerus Mayr (Hymenoptera: Formicidae). Caldasia 2007, 29, 159–175. [Google Scholar]
  34. Dejean, A.; Solano, P.J.; Ayroles, J.; Corbara, B.; Orivel, J. Arboreal ants build traps to capture prey. Nature 2005, 434, 973. [Google Scholar] [CrossRef] [PubMed]
  35. Lauth, J.; Ruiz-González, M.X.; Orivel, J. New findings in insect fungiculture. Commun. Integr. Biol. 2011, 4, 728–730. [Google Scholar] [CrossRef] [PubMed]
  36. Leroy, C.; Séjalon-Delmas, N.; Jauneau, A.; Ruiz-González, M.X.; Gryta, H.; Jargeat, P.; Corbara, B.; Dejean, A.; Orivel, J. Trophic mediation by a fungus in an ant–plant mutualism. J. Ecol. 2011, 99, 583–590. [Google Scholar] [CrossRef]
  37. Seipke, R.F.; Barke, J.; Ruiz-González, M.X.; Orivel, J.; Yu, D.W.; Hutchings, M.I. Fungus-growing Allomerus ants are associated with antibiotic-producing actinobacteria. Antonie Van Leeuwenhoek 2012, 101, 443–447. [Google Scholar] [CrossRef]
  38. Orivel, J.; Malé, P.-J.; Lauth, J.; Roux, O.; Petitclerc, F.; Dejean, A.; Leroy, C. Trade-offs in an ant-plant-fungus mutualism. Proc. R. Soc. B 2017, 284, 20161679. [Google Scholar] [CrossRef]
  39. Mori, S.A.; Cremers, G.; Gracie, C.A.; de Granville, J.-J.; Heald, S.V.; Hoff, M.; Mitchell, J.D. Guide to the Vascular Plants of Central French Guiana, Part 2, Dicotyledons; The New York Botanical Garden: New York, NY, USA, 2002. [Google Scholar]
  40. Leroy, C.; Jauneau, A.; Quilichini, A.; Dejean, A.; Orivel, J. Comparison between the anatomical and morphological structure of leaf blades and foliar domatia in the ant-plant Hirtella physophora (Chrysobalanaceae). Ann. Bot. 2008, 101, 501–507. [Google Scholar] [CrossRef]
  41. Walsh, P.S.; Metzger, D.A.; Higuchi, R. Chelex-100 as a medium for simple extraction of DNA for PCR-based typing from forensic material. Biotechniques 1991, 10, 506–513. [Google Scholar] [CrossRef]
  42. Weisburg, W.G.; Barns, S.M.; Pelletier, D.A.; Lane, D.J. 16S ribosomal DNA amplification for phylogenetic study. J. Bacteriol. 1991, 173, 697–703. [Google Scholar] [CrossRef]
  43. White, T.J.; Bruns, T.; Lee, S.; Taylor, J. Amplification and Direct Sequencing of Fungal Ribosomal RNA Genes for Phylogenetics. In PCR Protocols: A Guide to Methods and Applications; Innis, N., Gelfand, D., Sninsky, J., White, T., Eds.; Academic Press: Cambridge, MA, USA, 1990; pp. 315–322. [Google Scholar]
  44. Basic Local Alignment Search Tool (BLAST). Available online: (accessed on 28 May 2019).
  45. Hammer, Ø.; Harper, D.A.T.; Ryan, P.D. PAST: Paleontological statistics software package for education and data analysis. Palaeontol. Electron. 2001, 4, 9. [Google Scholar]
  46. Martinez Arbizu, P. PairwiseAdonis: Pairwise Multilevel Comparison Using Adonis. R Package Version 0.3. 2019. Available online: (accessed on 17 June 2019).
  47. Lucas, J.M.; Madden, A.A.; Penick, C.A.; Epps, M.J.; Marting, P.R.; Stevens, J.L.; Fergus, D.J.; Dunn, R.R.; Meineke, E.K. Azteca ants maintain unique microbiomes across functionally distinct nest chambers. Proc. R. Soc. B 2019, 286, 20191026. [Google Scholar] [CrossRef] [PubMed]
  48. Mueller, U.G.; Gerardo, N.M.; Aanen, D.K.; Six, D.L.; Schultz, T.R. The evolution of agriculture in insects. Annu. Rev. Ecol. Evol. Syst. 2005, 36, 563–595. [Google Scholar] [CrossRef]
  49. Eilmus, S.; Heil, M. Bacterial associates of arboreal ants and their putative functions in an obligate ant-plant mutualism. Appl. Environ. Microbiol. 2009, 75, 4324–4332. [Google Scholar] [CrossRef] [PubMed]
  50. Pinto-Tomas, A.A.; Anderson, M.A.; Suen, G.; Stevenson, D.M.; Chu, F.S.T.; Cleland, W.W.; Weimer, P.J.; Currie, C.R. Symbiotic nitrogen fixation in the fungus gardens of leaf-cutter ants. Science 2009, 326, 1120–1123. [Google Scholar] [CrossRef] [PubMed]
  51. Zucchi, T.D.; Guidolin, A.S.; Cônsoli, F.L. Isolation and characterization of actinobacteria ectosymbionts from Acromyrmex subterraneus brunneus (Hymenoptera, Formicidae). Microbiol. Res. 2011, 166, 68–76. [Google Scholar] [CrossRef] [PubMed]
  52. Rubin, B.E.R.; Kautz, S.; Wray, B.D.; Moreau, C.S. Dietary specialization in mutualistic acacia-ants affects relative abundance but not identity of host-associated bacteria. Mol. Ecol. 2019, 28, 900–916. [Google Scholar] [CrossRef]

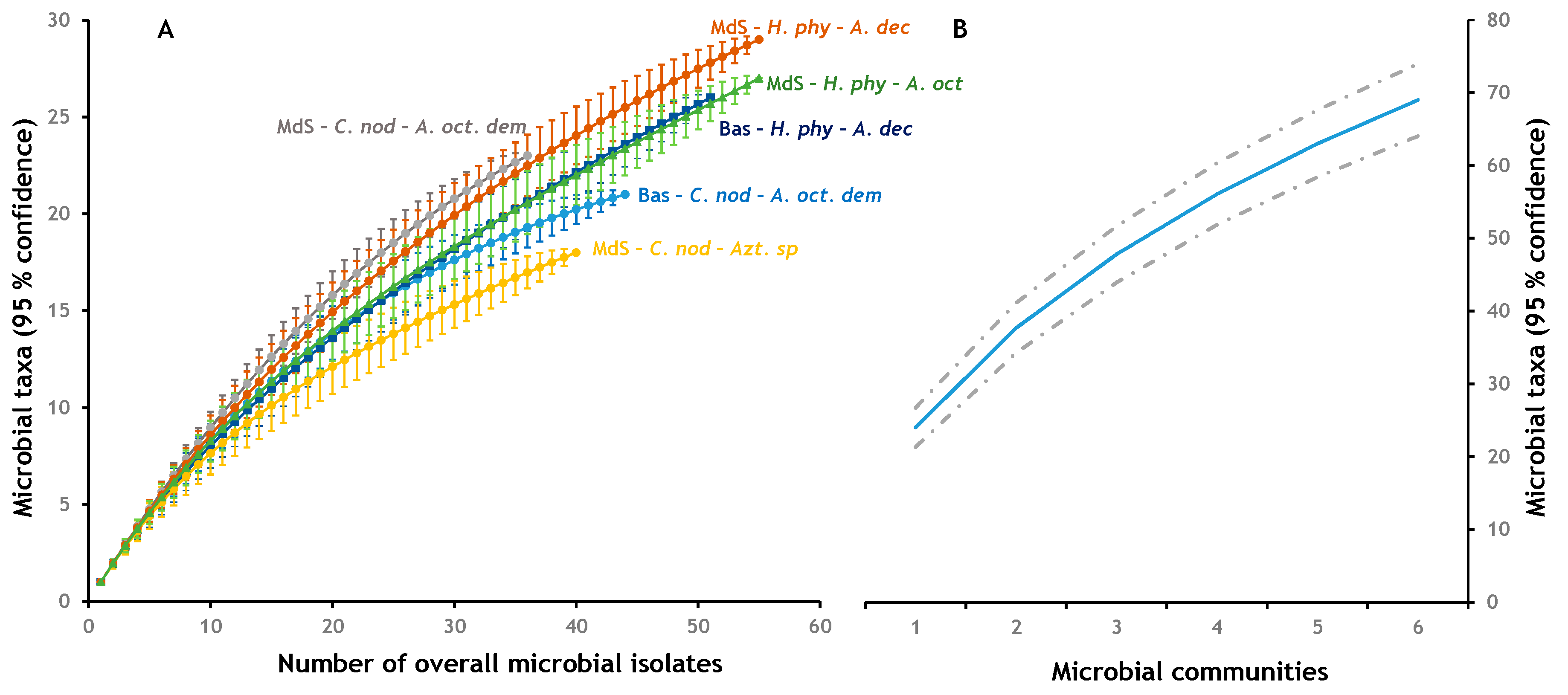

Figure 1. Rarefaction and accumulation curves of microbial species in ant nests. (A) Rarefaction curve for each bacterial community; (B) species accumulation curve.
Figure 1. Rarefaction and accumulation curves of microbial species in ant nests. (A) Rarefaction curve for each bacterial community; (B) species accumulation curve.
Insects 10 00391 g001

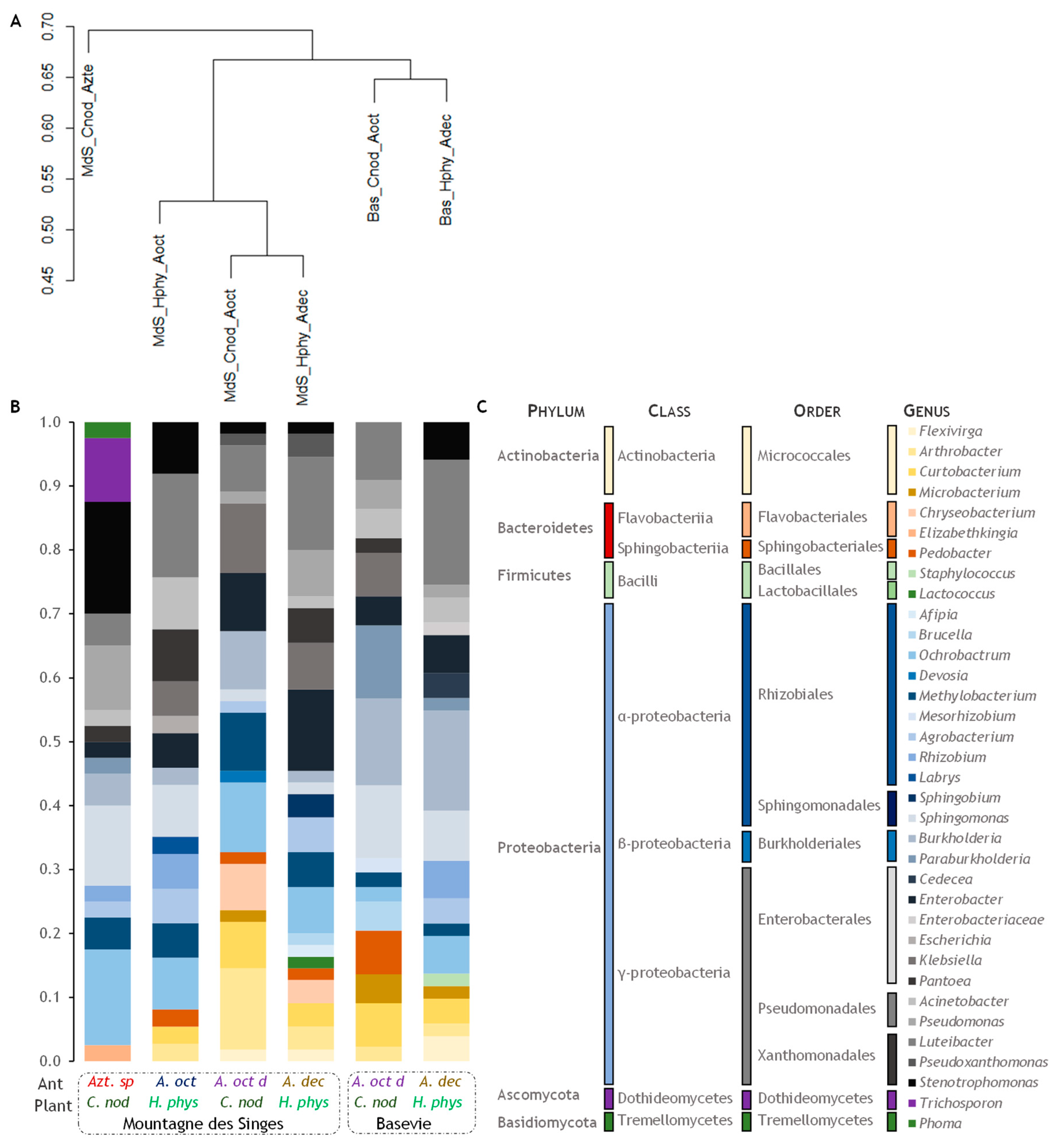

Figure 2. Distribution and abundance of microbial communities in Cordia nodosa (C. nod) and Hirtella physophora (H. phys) domatia occupied by, Allomerus decemarticulatus (A. dec), A. octoarticulatus (A. oct), A. octoarticulatus var. demerarae (A. oct d), and Azteca sp. cf. depilis (Azt. sp) ant species from Montagne des Singes and Basevie. (A) Bray-Curtis dissimilarity dendrogram; (B) stackplot of bacterial taxonomic composition; (C) microbial diversity by taxonomic level (Phylum, Class, Order, and Genus).
Figure 2. Distribution and abundance of microbial communities in Cordia nodosa (C. nod) and Hirtella physophora (H. phys) domatia occupied by, Allomerus decemarticulatus (A. dec), A. octoarticulatus (A. oct), A. octoarticulatus var. demerarae (A. oct d), and Azteca sp. cf. depilis (Azt. sp) ant species from Montagne des Singes and Basevie. (A) Bray-Curtis dissimilarity dendrogram; (B) stackplot of bacterial taxonomic composition; (C) microbial diversity by taxonomic level (Phylum, Class, Order, and Genus).
Insects 10 00391 g002
Figure 3. MDS mapping with two dimensions for the six microbial communities. M, Montagne des Singes; B, Basevie; Cn, Cordia nodosa; Hp, Hirtella physophora; Ad, Allomerus decemarticulatus; Ao, A. octoarticulatus; Az, Azteca sp. cf. depilis.
Figure 3. MDS mapping with two dimensions for the six microbial communities. M, Montagne des Singes; B, Basevie; Cn, Cordia nodosa; Hp, Hirtella physophora; Ad, Allomerus decemarticulatus; Ao, A. octoarticulatus; Az, Azteca sp. cf. depilis.
Insects 10 00391 g003
Table 1. Identification of the taxa isolated from the six communities of arboreal ants and frequency of each species per community. The first column corresponds to the microbial species found in this study with their GenBank accession numbers. Second and third columns provide information about the GenBank taxid closest to our sequences and their percentage of sequence identity. Other columns represent the frequency of each microbial sequence in the studied communities. Azt: Azteca sp. cf. depilis; Ao: Allomerus octoarticulatus; Aod: A. octoarticulatus var. demerarae; Ad: A. decemarticulatus; M: Montagne des Singes; B: Basevie; C: C. nodosa; H: H. physophora.
Table 1. Identification of the taxa isolated from the six communities of arboreal ants and frequency of each species per community. The first column corresponds to the microbial species found in this study with their GenBank accession numbers. Second and third columns provide information about the GenBank taxid closest to our sequences and their percentage of sequence identity. Other columns represent the frequency of each microbial sequence in the studied communities. Azt: Azteca sp. cf. depilis; Ao: Allomerus octoarticulatus; Aod: A. octoarticulatus var. demerarae; Ad: A. decemarticulatus; M: Montagne des Singes; B: Basevie; C: C. nodosa; H: H. physophora.
Microbial Species in Domatia (New GENBANK Accession)
Closest Taxid Accession nbIdentity
Flexivirga sp. (MN437546)MH69919397.56 0.018 0.019 0.039
Arthrobacter sp. 1 (MN437547)KX03659299.00 0.1270.0270.0370.0230.020
Curtobacterium albidum (MN437548)MK41494899.71 0.0270.019
Curtobacterium flaccumfaciens st 4 (MN437549)KT15938199.54 0.0450.020
Curtobacterium luteum st 2 (MN437550)JQ66028299.70 0.055 0.019 0.020
Curtobacterium sp. 1 (MN437551)MK70429099.90 0.023
Curtobacterium sp. 9 (MN437552)MH91562698.31 0.018
Microbacterium sp. 1 (MN437554)JX56664097.63 0.020
Microbacterium sp. 3 (MN437553)MK57828599.79 0.018 0.045
Chryseobacterium sp. 1 (MN437556)LT54783297.00 0.055
Chryseobacterium jejuense (MN437555)KM11494798.00 0.018 0.037
Elizabethkingia sp. 2 (MN437557)KP97526295.300.025
Pedobacter sp. 1 (MN437558)KP70859798.10 0.0190.023
Pedobacter sp. 2 (MN437559)AB46180596.66 0.0180.027 0.045
Staphylococcus haemolyticus (MN437560)MF15759999.71 0.020
Lactococcus lactis (MN437561)MF97207899.46 0.019
Afipia sp. 1 (MN437562)KY82723099.00 0.019
Brucella sp. (MN437563)CP00771792.54 0.0190.045
Ochrobactrum sp. 1 (MN437564)AY914071100.000.1500.1090.0810.0740.0230.059
Devosia sp. 2 (MN437565)LC31733999.27 0.018
Methylobacterium cf. persicinum (MN437568)NR_04144299.600.0500.0730.0540.0370.023
Methylobacterium cf. phyllostachyos (MN437567)FR87248499.80 0.018 0.019 0.020
Methylobacterium sp. 5 (MN437566)KC70282899.72 0.023
Agrobacterium sp. (MN437571)EU29545098.640.0250.0180.0540.037 0.020
Agrobacterium tumefaciens st 2 (MN437570)KU24058099.68 0.020
Agrobacterium tumefaciens st 3 (MN437569)KY87404799.62 0.019
Rhizobium sp. 1 (MN437573)LC38571498.29 0.027
Rhizobium sp. 4 (MN437574)KP21913499.71 0.027 0.020
Rhizobium sp. 5 (MN437572)MH32792197.540.025 0.039
Labrys sp. 1 (MN437575)KR77888699.72 0.027
Sphingobium sp. (MN437576)HM32115298.27 0.037
Sphingomonas echinoides (MN437577)MH72553898.900.1250.0180.0540.0190.1140.078
Sphingomonas polyaromaticivorans st 1 (MN437578)HM24121699.63 0.027
Burkholderia contaminans (MN437582)KY88614299.800.050
Burkholderia sp. 5 (MN437583)AB29957498.98 0.055 0.068
Burkholderia sp. 9 (MN437580)KX23212698.78 0.0180.0270.0190.0450.020
Burkholderia sp. 21 (MN437581)JN63425096.51 0.018
Burkholderia tropica st 1 (MN437579)KT39091299.67 0.0230.137
Paraburkholderia fungorum (MN437584)MG57601299.710.025 0.1140.020
Cedecea lapagei (MN437585)MH07479899.39 0.039
Enterobacter hormaechei cf subsp xiangfangensis (MN437588)MG92840799.16 0.018 0.0450.039
Enterobacter sp. 1 (MN437587)JQ66016099.520.0250.0550.0540.130 0.020
Enterobacter sp. 5 (MN437586)KM02133798.58 0.018
Enterobacteriaceae sp. 2 (MN437589)KJ93475798.55 0.020
Escherichia sp. (MN437590)MH46514599.13 0.027
Klebsiella aerogenes st 1 (MN437591)JF49482299.25 0.0910.0540.0740.068
Klebsiella oxytoca (MN437592)KT26078398.90 0.018
Pantoea agglomerans (MN437593)AF13089698.900.025 0.0540.0560.023
Pantoea dispersa st 1 (MN437594)KC18205098.11 0.027
Acinetobacter cf. bereziniae (MN437596)MK087738100.000.025 0.081 0.020
Acinetobacter sp. 2 (MN437597)JQ43392499.27 0.0450.020
Acinetobacter sp. 3 (MN437595)KR18958599.30 0.019
Pseudomonas cf. aeruginosa (MN437602)KT94397699.62 0.019
Pseudomonas cf. citronellolis (MN437599)JQ65985899.900.100
Pseudomonas fulva (MN437603)KY51107498.95 0.019
Pseudomonas nitroreducens (MN437601)MH67550498.90 0.045
Pseudomonas sp. 2 (MN437600)KJ18487099.90 0.037 0.020
Pseudomonas sp. 3 (MN437598)KM18719598.33 0.018
Luteibacter cf. rhizovinicus st 1 (MN437606)KY93810099.90 0.020
Luteibacter cf. rhizovinicus st 2 (MN437607)EU02202399.72 0.027
Luteibacter sp.1 (MN437604)FR71494099.25 0.0180.0540.037
Luteibacter cf. yeojuensis st 2 (MN437605)KF66847499.900.0500.0550.0810.0930.0910.176
Luteibacter cf. yeojuensis st 3 (MN437608)JQ79848898.74 0.020
Pseudoxanthomonas sp. (MN437609)MH79554099.72 0.018 0.037
Stenotrophomonas maltophilia st 1 (MN437612)MK53738599.610.125 0.027
Stenotrophomonas panacihumi (MN437610)KF66848499.350.0250.0180.0540.019 0.059
Stenotrophomonas sp. 3 (MN437611)JQ68452099.500.025
Phoma sp. (MN435151)KP30701199.830.100
Trichosporon siamense (MN435152)AB16437099.270.025
Table 2. Alpha diversity indexes: Margalef, Chao, Shannon, Simpson, inversed Simpson, and Fisher. S: species richness, overall number of species recorded; N: total number of microbial isolates in the community; C (%): percentage of completeness.
Table 2. Alpha diversity indexes: Margalef, Chao, Shannon, Simpson, inversed Simpson, and Fisher. S: species richness, overall number of species recorded; N: total number of microbial isolates in the community; C (%): percentage of completeness.
Margalef’s DMGChao ± SE
Shannon’s H’Simpson
Inversed Simpson
Basevie379571.07.9152.11 ± 9.733.260.95918.6122.27
Montagne des Singes 5718652.910.72107.75 ± 26.463.560.94624.4028.05
Plant species
C. nodosa4212077.88.5654.00 ± 7.963.430.95723. 6122.97
H. physophora5316135.910.23147.50 ± 55.563.530.95823.7227.56
Ant species
A. decemarticulatus4310673.19.0158.83 ± 9.373.420.95321.4426.94
A. octoarticulatus275515.06.49180.00 ±
A. octoarticulatus demerarae358085.47.7641.00 ± 4.53 3.360.9623.7023.73
Azteca sp. cf. depilis184061.54.6129.25 ± 9.532.640.912511.4312.59
Site × Plant
Basevie × C. nodosa214487.15.2924.11 ± 3.102.890.95015.6115.75
Basevie × H. physophora265148.96.3653.20 ± 18.162.930.94613.2021.24
Montagne des Singes × C. nodosa317650.86.9361.00 ± 20.923.150.92418.5119.53
Montagne des Singes × H. physophora4011065.28.3061.38 ± 13.143.320.93620.5822.61
Site × Ant
Basevie × A. decemarticulatus265148.96.3653.20 ± 18.162.930.95313.2021.24
Basevie × A. octoarticulatus demerarae214487.15.2924.11 ± 3.102.890.91215.6115.75
Montagne des Singes × A. decemarticulatus295568.56.9942.33 ± 8.843.150.92418.5624.83
Montagne des Singes × A. octoarticulatus275515.06.49180.00 ±
Montagne des Singes × A. octoarticulatus demerarae233677.76.1429.6 ±
Montagne des Singes × Azteca sp. cf. depilis184061.54.6129.25 ± 9.532.640.94411.4312.59
Plant × Ant
C. nodosa × A. octoarticulatus demerarae358085.47.7641.00 ± 4.533.360.95323.7023.73
C. nodosa × Azteca sp. cf. depilis184061.54.6129.25 ± 9.532.640.93811.4312.59
H. physophora × A. decemarticulatus4310673.19.0158.83 ± 9.373.420.95821.4426.94
H. physophora × A. octoarticulatus275515.06.49180.00 ±
Site × Plant × Ant
Basevie × C. nodosa × A. octoarticulatus demerarae214487.15.2924.11 ± 3.102.890.93815.6115.75
Basevie × H. physophora × A. decemarticulatus265148.96.3653.20 ± 18.162.930.94413.2021.24
Montagne des Singes × C. nodosa × A. octoarticulatus demerarae233677.76.1429. 60 ± 6427.45
Montagne des Singes × C. nodosa × Azteca sp. cf. depilis184061.54.6129.25 ± 9.532.640.91311.4312.59
Montagne des Singes × H. physophora × A. decemarticulatus295568.56.9942.33 ± 8.843.150.93618.5624.83
Montagne des Singes × H. physophora × A. octoarticulatus275515.06.49180.00 ±
Table 3. T-student tests for Shannon’s H’ and Simpsons’ D. Pairwise comparisons for Site, Plant, Ant, Site × Plant, Site × Ant, Plant × Ant, and Site × Plant × Ant. Bold values denote significant pairwise comparisons. Bas.: Basevie; MdS: Montagne des Singes; C. nod.: Cordia nodosa; H. phy.: Hirtella physophora; A. dec.: Allomerus decemarticulatus; A. oct.: A. octoarticulatus; A. oct. demer.: A. octoarticulatus var. demerarae; Azteca sp.: Azteca sp. cf. depilis. * denote significant P-values after Bonferroni correction.
Table 3. T-student tests for Shannon’s H’ and Simpsons’ D. Pairwise comparisons for Site, Plant, Ant, Site × Plant, Site × Ant, Plant × Ant, and Site × Plant × Ant. Bold values denote significant pairwise comparisons. Bas.: Basevie; MdS: Montagne des Singes; C. nod.: Cordia nodosa; H. phy.: Hirtella physophora; A. dec.: Allomerus decemarticulatus; A. oct.: A. octoarticulatus; A. oct. demer.: A. octoarticulatus var. demerarae; Azteca sp.: Azteca sp. cf. depilis. * denote significant P-values after Bonferroni correction.
Shannon’s RichnessSimpson’s Evenness
Community 1 vsCommunity 2tdfp-Valuetdf p-Value
BasevieMontagne des Singes2.399203.4200.017 *−1.225143.9200.223
C. nodosaH. physophora−0.829274.4100.4080.025264.4100.980
A. decemarticulatusA. octoarticulatus2.646119.850.009−1.085104.4100.281
A. octoarticulatus demerarae0.498185.10.6190.423185.520.673
Azteca sp. cf. depilis4.85483.287<0.001 *−2.10157.7040.040
A. octoarticulatusA. octoarticulatus demerarae−2.284108.140.0241.46487.9860.147
Azteca sp. cf. depilis2.14089.3750.035−1.16774.5640.247
A. octoarticulatus demeraraeAzteca sp. cf. depilis4.56276.011<0.001 *−2.39751.7790.020
Basevie–C. nodosaBasevie–H. physophora−0.22592.7490.823−0.52887.9680.599
MdS–C. nodosa−1.783104.0800.0770.65585.6160.514
MdS–H. physophora−3.059104.0500.003 *1.08670.2850.281
Basevie–H. physophoraMdS–C. nodosa−1.31398.4650.1921.07474.7040.286
MdS–H. physophora−2.38795.1010.0191.39965.1540.167
MdS–C. nodosaMdS–H. physophora−1.286172.7800.2000.491154.1600.624
Basevie–A. dec.Basevie–A. oct. demer.0.22592.7490.8230.52887.9680.599
MdS–A. dec−1.222100.8100.2251.01886.1990.311
MdS–A. oct.−0.475102.620.6360.60689.9060.546
MdS–A. oct. demer.−0.68986.9520.4931.17279.1850.245
MdS–Azteca sp.1.53790.5930.128−0.46390.2460.644
Basevie–A. oct. demer.MdS–A. dec−1.63598.5230.1050.60194.6680.550
MdS–A. oct.−0.78098.9490.4370.09096.9310.929
MdS–A. oct. demer.−1.03278.5510.3050.79379.7790.430
MdS–Azteca sp.1.48379.9610.142−1.08173.5440.283
MdS–A. decMdS–A. oct.0.799109.760.426−0.517109.50.606
MdS–A. oct. demer.0.59687.2780.5530.18988.7100.850
MdS–Azteca sp.2.94687.2730.004−1.60170.9770.114
MdS–A. oct.MdS–A. oct. demer.−0.22088.7620.8260.71290.2370.478
MdS–Azteca sp.2.1489.3750.035−1.16774.5640.247
MdS–A. oct. demerMdS–Azteca sp.2.40175.3880.019−1.76765.2320.082
C. nodosaA. oct. demerC. nodosaAzteca sp.4.56276.011<0.001 *−2.39751.7790.020
H. physophoraA. decemarticulatus−0.498185.1000.619−0.423185.5200.673
H. physophoraA. octoarticulatus2.284108.1400.024−1.46487.9860.147
C. nodosaAzteca sp.H. physophoraA. decemarticulatus−4.85483.287<0.001 *2.10157.7040.040
H. physophoraA. octoarticulatus−2.14089.3750.0351.16774.5640.247
H. physophoraA. dec.H. physophoraA. octoarticulatus2.646119.8500.009−1.085104.4100.281
Bas.–C. nod.A. oct. demerBasevie–H. physophoraA. dec.−0.22592.7490.823−0.52887.9680.599
MdS–C. nodosaA. oct. demer.−1.03278.5510.3050.79379.7790.430
MdS–C. nodosaAzteca sp.1.48379.9610.142−1.08173.5440.283
MdS–H. physophoraA. dec.−1.63598.5230.1050.60194.6680.550
MdS–H. physophoraA. oct.−0.78098.9490.4370.09096.9310.929
Bas.–H. phy.A. dec.MdS–C. nodosaA. oct. demer.−0.68886.9520.4931.17279.1850.245
MdS–C. nodosaAzteca sp.1.53790.5930.128−0.46390.2460.644
MdS–H. physophoraA. dec.−1.222100.8100.2251.01886.1990.311
MdS–H. physophoraA. oct.−0.475102.6200.6360.60689.9060.546
MdS–C. nod.A. oct. demerMdS–C. nodosaAzteca sp.2.40175.3880.019−1.76765.2320.082
MdS–H. physophoraA. dec.−0.59687.2780.553−0.18988.7100.850
MdS–H. physophoraA. oct.0.22088.7620.826−0.71290.2370.478
MdS–C. nod.Azteca sp.MdS–H. physophoraA. dec.−2.94687.2730.0041.60170.9770.114
MdS–H. physophoraA. oct.−2.14089.3750.0351.16774.5640.247
MdS–H. phy.A. dec.MdS–H. physophoraA. oct.0.799109.7600.426−0.517109.5000.606
Back to TopTop
