Myogenous Temporomandibular Disorders: Diagnostic Concepts and Prospective Pilot Study on Extracorporeal Shockwave Therapy

by
Dion Tik Shun Li
1,
Kar Yan Li
2 and
Yiu Yan Leung
1,*
1
Oral and Maxillofacial Surgery, Faculty of Dentistry, The University of Hong Kong, Hong Kong SAR, China
2
Clinical Research Centre, Faculty of Dentistry, The University of Hong Kong, Hong Kong SAR, China
*
Author to whom correspondence should be addressed.
Diagnostics 2023, 13(1), 51; https://doi.org/10.3390/diagnostics13010051
Submission received: 7 December 2022 / Revised: 20 December 2022 / Accepted: 22 December 2022 / Published: 24 December 2022
(This article belongs to the Special Issue Advances in the Diagnosis and Management of Temporomandibular Joint Diseases 2.0)
Browse Figures
Versions Notes

Abstract

:
The aims of this article are to discuss the current, and potential future directions, in the diagnosis of myogenous temporomandibular disorders (M-TMD), as well as to report a pilot study to investigate the feasibility and clinical outcomes of extracorporeal shockwave therapy (ESWT) in the treatment of M-TMD. Forty-one adult patients presented with M-TMD were recruited into the study and randomized into two groups: Group 1 received ESWT treatment, whereas Group 2 received placebo treatment. The variables investigated were pain, measured by a numerical rating scale (NRS) and mouth opening. Twenty-six patients (Group 1: n = 14, mean age = 45.3 (16.7) years; Group 2: n = 12, mean age = 46.8 (19.7) years) completed 1-year follow up and were included into the final analysis. In both groups, reduction in pain and increase in MO (unassisted maximum, assisted maximum, and pain-free) were seen at post-treatment 1 year. There were more reduction in pain and increase in all MO in Group 1 than Group 2, but statistical significance was not detected. No major complications were encountered in this study. Although significant differences were not seen between groups, this prospective pilot study provided preliminary evidence that ESWT is safe and potentially beneficial in the treatment of M-TMD.

1. Introduction

Temporomandibular disorders (TMD) are a group of conditions related to the impaired function of the temporomandibular joints (TMJ) and the associated neuro-muscular system [1]. Common complaints of TMD include clicking in the joint, pain in the TMJs or masticatory muscle and limited mouth opening, which could affect daily functions such as speech and mastication. The origin of the pain and dysfunction could be from the joint, muscles of mastication, or a combination of the two [2].
Since TMD of arthrogenous and myogenous nature may have different etiologies, it is important to differentiate between the two in the clinical setting, as the management approach of these conditions may be different [3,4]. Myogenous TMD (M-TMD) is known to mainly affect adult women from age 25–45 years old [5], and may have a higher tendency to seek treatment than those with TMD of arthrogenous origin [6]. Symptoms of M-TMD may include a moderate dull, pressing pain in the masticatory muscle which may become a sharper and more intense pain upon provocation and function [7]. It is known that apart from somatic causes, psychosocial factors may be responsible for the course of development of M-TMD among others [8].
Various treatment options for M-TMD are available, such as jaw exercises [9], medications [10], splint therapy [11], dry-needling [12], botox injection [13], cognitive behavioural therapy [14], and self-care instructions. While clinicians may find favourable outcomes in some of these options, there are those patients that are not fit for a particular treatment. For example, good patient compliance is required for jaw exercises and occlusal splint therapy, and that occlusal splint therapy may not be appropriate in those who also have obstructive sleep apnea (OSA) requiring continuous positive airway pressure (CPAP). In addition, some of the treatment options might produce undesirable effects, such as possible change in facial shape in the case of botox injection.
Shockwave is a propagating disturbance of great amplitude which travels in a medium and is faster than the speed of sound. First described in the 1980s for the treatment of urolithiasis [15], extracorporeal shockwave therapy (ESWT) has since shown promising results in conditions such as plantar fasciitis [16,17], erectile dysfunction [18], spasticity in post-stroke patients [19], Achilles tendinopathy [19], and chronic calcific tendinitis of the shoulder [20]. Although the exact mechanism of ESWT in its therapeutic applications is unknown, it is speculated that it has an effect on wound healing [21,22]. Recently, ESWT for the treatment of TMD has gained interest. Initial results revealed beneficial outcomes in the treatment of muscle reflex-induced lock jaw with ESWT [23]. ESWT was shown to produce a protective effect on cartilage and subchondral bone structures in the rat model with temporomandibular joint osteoarthritis [24]. In a recent prospective study comparing the effects of ESWT with ultra-short wave (UW) in the treatment of TMD, ESWT resulted in improved response in terms of pain reduction and increased mouth opening in the short-term [25]. However, there are no studies that compare the efficacy and safety of ESWT compared with conventional treatments for M-TMD, and whether it can produce a long-term benefit is unknown at this time.
The aims of this article are to discuss the diagnostic concepts in M-TMD, and to report a prospective pilot study is to assess the feasibility and safety of ESWT in the treatment of M-TMD, and to compare the efficacy of ESWT and placebo therapy in terms of changes in pain score and mandibular function.
Diagnostic Concepts
Currently, the most accepted diagnostic tool for TMD is the Diagnostic Criteria for Temporomandibular Disorders (DC/TMD), which is used for both research and clinical purposes [1]. For M-TMD, diagnosis may include myalgia, local myalgia, myofascial pain, and myofascial pain with referral, which can involve the temporalis, masseter, and other muscles [1] (Table 1). At present, the standard for diagnosis of M-TMD mainly involves clinical examination and history taking, such as palpation of affected muscles and measurement of mandibular function, as opposed to TMD of arthrogenous origin in which imaging may also play a significant role in diagnosis. Magnetic resonance imaging (MRI) is considered the gold standard in the diagnosis of arthrogenous TMD, since disc abnormalities in location and morphology and presence of joint effusion could be readily assessed [26,27,28]. In addition, cone-beam computed tomography (CBCT) may be used to assess any bony pathologies of the mandibular condyle as well as the glenoid fossa [29].
At present, less is known about the imaging approach to the diagnosis of M-TMD. It has been suggested that M-TMD could be caused by injury to the masticatory muscles due to repeated strain from parafunctional habits, resulting in myofascial trigger points [30,31]. A myofascial trigger point has been described as a hyperirritable spot within a taut band of skeletal muscle, which may be painful to palpation and may also result in referred pain [31]. Understanding and locating such myofascial trigger points may be clinically important, as it has been shown that various invasive treatments, such as dry-needling and injection of platelet-rich plasma, may be useful to alleviate symptoms arising from such myofascial trigger points in the masseter muscle [32]. However, the use of imaging modalities is not routinely carried out in the management of M-TMD due to there being insufficient literature to support its application.
Although taut band, which may house myofascial trigger points, is readily palpable by a trained clinician, the detection of those on imaging is often less than straightforward [33]. Although MRI has been suggested to be useful in locating such taut bands in various muscles such as the trapezius [33,34], it is expensive, inconvenient, invasive in the case where contrast agent such as gadolinium is used, and has not been shown to be useful in the muscles of mastication. Another diagnostic imaging modality which has been proposed is ultrasonography (US) which may be more cost-effective, convenient and accessible. Various reports have described the efficacy of US in the identification of myofascial trigger points in muscles such as the lower back and trapezius muscle [35,36,37,38]. However, to the best knowledge of the authors, there are no reports on the identification of taut bands and myofascial trigger points in M-TMD using imaging modalities such as US. A clinical trial on the detection of myofascial trigger points using US in the management of M-TMD is currently underway at the authors centre in an attempt to fill such knowledge gap. The following sections of this paper will focus on a prospective pilot study on ESWT in the management of M-TMD.

2. Materials and Methods

This prospective pilot study was designed according to the CONSORT 2010 statement. Ethical approval was obtained from the Institutional Review Board of the University of Hong Kong/Hospital Authority Hong Kong West Cluster (HKU/HA HKW IRB) (IRB Reference Number: UW 20-704) prior to the start of this study. Written informed consent was obtained from participating subjects.

2.1. Study Design

This was a parallel-grouped clinical trial with balanced randomization (1:1).

2.2. Participants

Ethnic Chinese adults presented to the Discipline of Oral and Maxillofacial Surgery, Faculty of Dentistry, the University of Hong Kong for myogenous temporomandibular disorders were considered for recruitment into the current study:

2.2.1. Inclusion Criteria

  • At least 16 years of age;
  • Pain in the masticatory muscles, headache attributed to TMD, with or without limited mouth opening and pain in the TMJ.

2.2.2. Exclusion Criteria

  • Pain in the TMJ only and not involving muscles of mastication;
  • Active infection in the TMJ region;
  • Systemic rheumatic diseases;
  • Significant systemic diseases, such as uncontrolled hypertension, history of stroke within 6 months, and unstable angina;
  • Craniofacial syndromes;
  • Previous operations in the TMJ.
After an initial clinical examination and confirmation of the diagnosis of M-TMD (DTSL), the patients were prescribed a 2-week course of non-steroidal anti-inflammatory drugs (NSAIDs) (Ibuprofen 400 mg TDS), or paracetamol (500 mg QID) if NSAIDs were contraindicated. If the clinical symptoms were refractory to medication (no reduction in pain score), the patients were then be recruited into the study.

2.3. Pre-Treatment Assessment

2.3.1. Clinical Diagnosis

The clinical diagnosis was based on the Diagnostic Criteria for Temporomandibular Disorders (DC/TMD) [1]. Any type of pain in the masticatory muscle (myalgia, tendonitis, myositis, spasm) and any headache attributed to TMD were recorded.

2.3.2. Assessment of Pain

Pre-treatment pain symptoms, both at rest and during mandibular movement, was measured with a 11-point (0–10) numerical rating scale (NRS) adopted from the Graded Chronic Pain Scale [39], with 0 indicating no pain, while 10 indicates maximum pain.

2.3.3. Assessment of TMJ Function

Mouth opening (MO, pain-free, unassisted maximum, and assisted maximum, measured with a ruler between the incisal edges of the upper and lower incisors, minus the overbite), was measured in millimetres in the same way using the midpoints of the upper and lower incisors as references.

2.4. Interventions

The two arms of intervention are ESWT versus placebo. After palpation and identification of the region of pain, the patients were blinded with regards to which group they had been allocated to, and were treated in the following manner:

2.4.1. Group 1: Extracorporeal Shockwave Therapy

In the ESWT group, Focused ESWT (DUOLITH® SD1 T-TOP, Storz Medical) was applied at 0.15 mJ/mm2 and stand-off II as per manufacturer’s recommendations for craniomandibular dysfunction (CMD) to the painful side of the masseter muscle by a single operator (DTSL), for three sessions delivered at one-week intervals. At each session, 500 pulses were delivered to the masseter muscle.

2.4.2. Group 2: Placebo

In the placebo group, the handpiece of the ESWT was connected to a placebo stand-off with zero energy output so that no shockwave was transmitted to the patient. The procedure was carried out in the same way as in the ESWT. The patients were treated once a week for 3 weeks.

2.5. Outcomes

The primary outcome measure was pain symptoms in 6 weeks, as measured with a numerical rating scale (NRS). The secondary outcome measure was TMJ function.

2.5.1. Assessment of Pain

Post-treatment assessment of pain symptoms was measured with an NRS 1 week after each treatment session and at 6 weeks, 3 months, 6 months and 1 year after the first treatment session.

2.5.2. Assessment of Mouth Opening

Post-treatment assessment of pain-free mouth opening was carried out 1 week after each treatment session and at 6 weeks, 3 months, 6 months and 1 year after the first treatment session. Post-treatment assessment of maximum unassisted and maximum assisted mouth opening was performed at post-treatment 1 year.

2.5.3. Complications

All intra-operative, immediate, early post-operative, and late post-operative complications were recorded.

2.6. Randomization

Recruited patients were randomized into one of the two study groups by a simple randomization procedure. Using a computer program, a randomization table was generated. The allocation sequence was kept concealed in sequentially numbered, opaque and sealed envelopes. Upon obtaining the study consent from the participants, the surgeon in-charge would open the sealed envelope containing the allocation sequence.

2.7. Statistical Methods

Statistical analysis was performed using SPSS 28 software (IBM Corp., New York, NY, USA). For continuous variables, Shapiro-Wilk normality test was performed to test if the data followed normal distribution. For testing the differences at the same time interval between groups, independent t-test (or Mann-Whitney test if normality of the data was not fulfilled) was used. Comparison between baseline and other follow-up time points were performed with the paired-sample t-test (or Wilcoxon Signed Ranks test if normality of the data was not fulfilled). For the analysis of multiple comparisons at other follow-up time points and multiple comparisons between baseline and other follow-up time points, Bonferroni correction was used. p < 0.05 was considered statistically significant.

3. Results

Patients whose symptoms of M-TMD were not alleviated by NSAIDs were recruited into the study. A rolling recruitment and randomization strategy were employed in anticipation of a sizable dropout due to the COVID-19 pandemic. A total of 41 patients were initially recruited into the study. Of these, 21 patients were allocated to Group 1 (ESWT) and 20 patients were allocated to Group 2 (placebo). Loss of follow-up occurred in various time-points. The final number of patients who completed the 1-year follow-up schedule included 26 patients: 14 patients in Group 1 and 12 patients in Group 2 (Figure 1).

3.1. Patient Characteristics

Demographic characteristics of the final study sample is shown in Table 2. Male patients consisted of 14.3% in Group 1 (n = 2), and 25% in Group 2 (n = 3). The mean age at the time of recruitment was 45.3 (16.7) and 46.8 (19.7) years, respectively, for Group 1 and 2. The mean duration of pain in months at recruitment was 33.5 (36.2) and 42.6 (43.1) for Group 1 and 2, respectively. Other variables are presented in Table 2. There was no significance in any of the demographic characteristics between the two groups.

3.2. Pain

Figure 2 shows the progression of clinical outcomes (pain, unassisted maximal mouth opening, assisted maximal mouth opening, and pain-free mouth opening), based on the raw data. A normality test showed that pain did not follow a normal distribution (p < 0.05) and thus non-parametric tests were performed.
At baseline (T0), there was no significant difference in pain between Group 1 and Group 2 (p = 0.063). There was a greater reduction in pain in the ESWT group than the placebo group at subsequent time points. However, there was no significant difference between the two groups in terms of pain at any follow up time points after Bonferroni correction. Within each group, pain dropped over time significantly compared to baseline. Within Group 1, after Bonferroni correction, significant differences were observed between T0 and T1 (p = 0.024), between T0 and T2 (p = 0.013), between T0 and T3 (p = 0.020), between T0 and T4 (p = 0.002), between T0 and T5 (p = 0.020) and between T0 and T6 (p = 0.013). However, within Group 2, after Bonferroni correction, significant differences were only detected between T0 and T3 (p = 0.042), between T0 and T4 (p = 0.019), and between T0 and T5 (p = 0.0030) (Figure 2).

3.3. Mouth Opening

A normality test showed that unassisted MO did not follow a normal distribution (p < 0.05) and thus non-parametric tests were performed. At baseline (T0), there were no significant differences in unassisted maximum MO (p = 0.816), assisted maximum MO (p = 0.659) and pain-free MO (p = 0.725) between the two groups. Then, at all follow-up time points, after Bonferroni correction, no significant differences were detected in unassisted maximum MO, assisted maximum MO, and pain-free MO between the two groups. Within each group for unassisted maximum MO, the only significant difference was found between T0 and T2 in Group 1 (p = 0.029) and between T0 and T4 in group 2 (p = 0.039) after Bonferroni correction. No significance time changes in assisted maximal MO and pain-free were found within both groups (Figure 2).

3.4. Complications

One patient in Group 1 (male, age 40 years) complained of increased pain which radiated to the temporalis and neck one day after the application of ESWT. He was given paracetamol and the pain subsided the next day. There were no other complications observed.

4. Discussion

The diagnosis and management of M-TMD are not always straightforward due to the little understanding of the value of other investigations apart from clinical examination. At present, there is an obvious gap in the literature concerning the use of imaging in the diagnosis of M-TMD. Moreover, there is no consensus on which treatment options are superior to others, as no single treatment modality has consistently provided predictable outcomes [40]. Thus, the management for any individual patient may often be based on a trial-and-error approach and may comprise of a combination of treatment options. Apart from the potential clinical efficacy that a particular treatment modality may be able to deliver, other important considerations in selecting treatment options include safety, convenience, cost-effectiveness, patient compliance, and the possibility to be combined with other treatment modalities.
The result of this prospective pilot study has shown that ESWT is safe and is a potentially beneficial treatment option in the management of myogenous TMD. Reduction in pain and improvement of mouth opening were found to be superior in the ESWT group compared to the placebo group, though these findings were not statistically significant and was likely attributed to the small sample size in this pilot study.
Currently, there are various treatment options for M-TMD that are commonly employed by clinicians and may be considered conventional options. These include occlusal splints [41,42], physical therapy [11], counselling therapy [43,44], and botulinum toxin injection [12,13,45]. Other treatments that have been mentioned in the literature but may be less common include dry-needling [12,40], low level laser [46], and acupuncture [12,47]. For pain relief of myofascial trigger points in the trapezius muscle, dry-needling and low-level laser have shown promising results [48]; however, whether this can be applied to myofascial trigger points in M-TMD is unknown. In a recent systematic review and network meta-analysis of randomized clinical trials, it was found that manual therapy, counselling therapy, occlusal splint, and botulinum toxin injection may have a positive effect in the management of M-TMD in both the short and intermediate term [40]. On the other hand, another systematic review has found that placebo effect may be responsible for the positive outcomes seen in some other treatment options, such as acupuncture and dry needling [49]. However, the evidence of these findings is mostly of low quality due to the limitations of the studies included.
ESWT may be an emerging novel treatment modality in the management of M-TMD and may be offered in conjunction of other available treatments. ESWT may have a positive effect on wound healing [21,22] which may be beneficial as an additional treatment option for M-TMD. Although ESWT has been describe as a therapeutic option for multiple applications [16,16,17,18,19,20], to the authors’ best knowledge, there are no other studies in the literature that compare ESWT with other conventional treatment options of M-TMD, nor any other studies that describe its safety and feasibility. A comparative study with a 4-week follow up has shown that ESWT may be beneficial in the management of temporomandibular joint disorder, when compared to ultrashort wave (UW) applied to the TMJ, in terms of reduction in pain and improvement of mandibular function [25]. The results of this study suggest that positive outcomes may also be applicable in the treatment of M-TMD and when compared to conventional treatments of M-TMD. However, future prospective studies with a larger sample size may be able to detect any statistical significance.
The current prospective pilot study provides preliminary information regarding ESWT in the treatment of M-TMD; however, there are several limitations. First of all, the sizable dropout rate may represent potential bias in this study, as patients with different traits or resultant clinical outcomes may be more prone to dropout. Moreover, as M-TMD may represent a chronic pain syndrome with patients consulting multiple clinicians and have attempted various treatment options, many patients recruited in this study had received prior treatments for M-TMD. In addition, as a pilot study, the post-operative accessor (DTSL) was the same as the treating clinician and thus was not blinded. Another notable finding was that significant clinical improvement was also seen in the placebo group which suggests that, similarly to other treatment modalities for M-TMD as mentioned above, the placebo effect likely played a role in this study.

5. Conclusions

In conclusion, provided the safety, convenience, and likely potential clinical benefit of ESWT in the treatment of M-TMD suggested by the results of this prospective pilot study, it is worthwhile to explore this application further with well-designed future prospective trials with larger sample sizes.

Author Contributions

Conceptualization, D.T.S.L. and Y.Y.L.; methodology, D.T.S.L.; formal analysis, D.T.S.L. and K.Y.L.; writing—original draft preparation, D.T.S.L.; writing—review and editing, Y.Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Institutional Review Board of the University of Hong Kong/Hospital Authority Hong Kong West Cluster (HKU/HA HKW IRB) (IRB Reference Number: UW 20-704; Date of approval: 18 November 2020).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Data is available in the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Schiffman, E.; Ohrbach, R.; Truelove, E.; Look, J.; Anderson, G.; Goulet, J.P.; List, T.; Svensson, P.; Gonzalez, Y.; Lobbezoo, F.; et al. Diagnostic Criteria for Temporomandibular Disorders (DC/TMD) for Clinical and Research Applications: Recommendations of the International RDC/TMD Consortium Network* and Orofacial Pain Special Interest Groupdagger. J. Oral Facial Pain Headache 2014, 28, 6–27. [Google Scholar] [CrossRef] [PubMed]
  2. Magnusson, T.; Syren, M. Therapeutic jaw exercises and interocclusal appliance therapy. A comparison between two common treatments of temporomandibular disorders. Swed. Dent. J. 1999, 23, 27–37. [Google Scholar] [PubMed]
  3. Lövgren, A.; Visscher, C.M.; Alstergren, P.; Lobbezoo, F.; Häggman-Henrikson, B.; Wänman, A. The outcome of a temporomandibular joint compression test for the diagnosis of arthralgia is confounded by concurrent myalgia. Clin. Oral Investig. 2020, 24, 97–102. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Li, D.T.S.; Leung, Y.Y. Temporomandibular Disorders: Current Concepts and Controversies in Diagnosis and Management. Diagnostics 2021, 11, 459. [Google Scholar] [CrossRef] [PubMed]
  5. Kuttila, M.; Niemi, P.M.; Kuttila, S.; Alanen, P.; Le Bell, Y. TMD treatment need in relation to age, gender, stress, and diagnostic subgroup. J. Orofac. Pain 1998, 12, 67–74. [Google Scholar]
  6. Gauer, R.L.; Semidey, M.J. Diagnosis and treatment of temporomandibular disorders. Am. Fam. Physician 2015, 91, 378–386. [Google Scholar]
  7. Craane, B.; Dijkstra, P.U.; Stappaerts, K.; De Laat, A. One-year evaluation of the effect of physical therapy for masticatory muscle pain: A randomized controlled trial. Eur. J. Pain 2012, 16, 737–747. [Google Scholar] [CrossRef]
  8. Chan, N.H.Y.; Ip, C.K.; Li, D.T.S.; Leung, Y.Y. Diagnosis and Treatment of Myogenous Temporomandibular Disorders: A Clinical Update. Diagnostics 2022, 12, 2914. [Google Scholar] [CrossRef]
  9. Shimada, A.; Ishigaki, S.; Matsuka, Y.; Komiyama, O.; Torisu, T.; Oono, Y.; Sato, H.; Naganawa, T.; Mine, A.; Yamazaki, Y.; et al. Effects of exercise therapy on painful temporomandibular disorders. J. Oral Rehabil. 2019, 46, 475–481. [Google Scholar] [CrossRef]
  10. Heir, G.M. The Efficacy of Pharmacologic Treatment of Temporomandibular Disorders. Oral Maxillofac. Surg. Clin. N. Am. 2018, 30, 279–285. [Google Scholar] [CrossRef]
  11. Incorvati, C.; Romeo, A.; Fabrizi, A.; Defila, L.; Vanti, C.; Gatto, M.R.A.; Marchetti, C.; Pillastrini, P. Effectiveness of physical therapy in addition to occlusal splint in myogenic temporomandibular disorders: Protocol of a randomised controlled trial. BMJ Open 2020, 10, e038438. [Google Scholar] [CrossRef] [PubMed]
  12. Kutuk, S.G.; Ozkan, Y.; Kutuk, M.; Ozdas, T. Comparison of the Efficacies of Dry Needling and Botox Methods in the Treatment of Myofascial Pain Syndrome Affecting the Temporomandibular Joint. J. Craniofac. Surg. 2019, 30, 1556–1559. [Google Scholar] [CrossRef] [PubMed]
  13. Patel, J.; Cardoso, J.A.; Mehta, S. A systematic review of botulinum toxin in the management of patients with temporomandibular disorders and bruxism. Br. Dent. J. 2019, 226, 667–672. [Google Scholar] [CrossRef] [PubMed]
  14. Nasri-Heir, C.; Epstein, J.B.; Touger-Decker, R.; Benoliel, R. What should we tell patients with painful temporomandibular disorders about what to eat? J. Am. Dent. Assoc. 2016, 147, 667–671. [Google Scholar] [CrossRef] [PubMed]
  15. Chaussy, C.; Brendel, W.; Schmiedt, E. Extracorporeally induced destruction of kidney stones by shock waves. Lancet 1980, 2, 1265–1268. [Google Scholar] [CrossRef] [PubMed]
  16. Li, X.; Zhang, L.; Gu, S.; Sun, J.; Qin, Z.; Yue, J.; Zhong, Y.; Ding, N.; Gao, R. Comparative effectiveness of extracorporeal shock wave, ultrasound, low-level laser therapy, noninvasive interactive neurostimulation, and pulsed radiofrequency treatment for treating plantar fasciitis: A systematic review and network meta-analysis. Medicine 2018, 97, e12819. [Google Scholar] [CrossRef]
  17. Sun, J.; Gao, F.; Wang, Y.; Sun, W.; Jiang, B.; Li, Z. Extracorporeal shock wave therapy is effective in treating chronic plantar fasciitis: A meta-analysis of RCTs. Medicine 2017, 96, e6621. [Google Scholar] [CrossRef]
  18. Lu, Z.; Lin, G.; Reed-Maldonado, A.; Wang, C.; Lee, Y.C.; Lue, T.F. Low-intensity Extracorporeal Shock Wave Treatment Improves Erectile Function: A Systematic Review and Meta-analysis. Eur. Urol. 2017, 71, 223–233. [Google Scholar] [CrossRef]
  19. Xiang, J.; Wang, W.; Jiang, W.; Qian, Q. Effects of extracorporeal shock wave therapy on spasticity in post-stroke patients: A systematic review and meta-analysis of randomized controlled trials. J. Rehabil. Med. 2018, 50, 852–859. [Google Scholar] [CrossRef] [Green Version]
  20. Bannuru, R.R.; Flavin, N.E.; Vaysbrot, E.; Harvey, W.; McAlindon, T. High-energy extracorporeal shock-wave therapy for treating chronic calcific tendinitis of the shoulder: A systematic review. Ann. Intern. Med. 2014, 160, 542–549. [Google Scholar] [CrossRef]
  21. Dymarek, R.; Halski, T.; Ptaszkowski, K.; Slupska, L.; Rosinczuk, J.; Taradaj, J. Extracorporeal shock wave therapy as an adjunct wound treatment: A systematic review of the literature. Ostomy Wound Manag. 2014, 60, 26–39. [Google Scholar]
  22. Aguilera-Sáez, J.; Muñoz, P.; Serracanta, J.; Monte, A.; Barret, J.P. Extracorporeal shock wave therapy role in the treatment of burn patients. A systematic literature review. Burns 2019, 7, 1525–1532. [Google Scholar] [CrossRef] [PubMed]
  23. Schenk, I.; Vesper, M.; Nam, V.C. Initial results using extracorporeal low energy shockwave therapy ESWT in muscle reflex-induced lock jaw. Mund Kiefer Gesichtschir. 2002, 6, 351–355. [Google Scholar] [CrossRef] [PubMed]
  24. Kim, Y.H.; Bang, J.I.; Son, H.J.; Kim, Y.; Kim, J.H.; Bae, H.; Han, S.J.; Yoon, H.J.; Kim, B.S. Protective effects of extracorporeal shockwave on rat chondrocytes and temporomandibular joint osteoarthritis; preclinical evaluation with in vivo(99m)Tc-HDP SPECT and ex vivo micro-CT. Osteoarthr. Cartil. 2019, 27, 1692–1701. [Google Scholar] [CrossRef]
  25. Li, W.; Wu, J. Treatment of Temporomandibular Joint Disorders by Ultrashort Wave and Extracorporeal Shock Wave: A Comparative Study. Med. Sci. Monit. 2020, 26, e923461. [Google Scholar] [CrossRef]
  26. Al-Saleh, M.A.; Alsufyani, N.A.; Saltaji, H.; Jaremko, J.L.; Major, P.W. MRI and CBCT image registration of temporomandibular joint: A systematic review. J. Otolaryngol. Head Neck Surg. 2016, 45, 30. [Google Scholar] [CrossRef] [Green Version]
  27. Hu, S.; Shao, Z.; Deng, L. Clinical Manifestations, Imaging Features, and Pathogenic/Prognostic Risk Factors for Temporomandibular Disorders (TMD): A Case-Control Study Based on Psychogenic Factors of Patients. Comput. Math. Methods Med. 2022, 2022, 8279357. [Google Scholar] [CrossRef]
  28. Shen, S.; Ye, M.; Wu, M.; Zhou, W.; Xu, S. MRI and DC/TMD Methods Analyze the Diagnostic Accuracy of the Change in Articular Disc of Temporomandibular Joint. Comput. Math. Methods Med. 2022, 2022, 1770810. [Google Scholar] [CrossRef]
  29. Larheim, T.A.; Abrahamsson, A.K.; Kristensen, M.; Arvidsson, L.Z. Temporomandibular joint diagnostics using CBCT. Dentomaxillofac. Radiol. 2015, 44, 20140235. [Google Scholar] [CrossRef] [Green Version]
  30. Dawson, A.; Ghafouri, B.; Gerdle, B.; List, T.; Svensson, P.; Ernberg, M. Effects of experimental tooth clenching on pain and intramuscular release of 5-HT and glutamate in patients with myofascial TMD. Clin. J. Pain 2015, 31, 740–749. [Google Scholar] [CrossRef]
  31. Lavelle, E.D.; Lavelle, W.; Smith, H.S. Myofascial trigger points. Anesthesiol. Clin. 2007, 25, 841–851. [Google Scholar] [CrossRef] [PubMed]
  32. Agarwal, V.; Gupta, A.; Singh, H.; Kamboj, M.; Popli, H.; Saroha, S. Comparative Efficacy of Platelet-Rich Plasma and Dry Needling for Management of Trigger Points in Masseter Muscle in Myofascial Pain Syndrome Patients: A Randomized Controlled Trial. J. Oral Facial Pain Headache 2022. [Google Scholar] [CrossRef] [PubMed]
  33. Keltz, E.; Bercovich, E.; Militianu, D.; Minerbi, A. Imaging of Myofascial Taut Bands Using Gadolinium-Enhanced Magnetic Resonance Imaging. Pain Med. 2022, 23, 1336–1337. [Google Scholar] [CrossRef] [PubMed]
  34. Chen, Q.; Wang, H.J.; Gay, R.E.; Thompson, J.M.; Manduca, A.; An, K.N.; Ehman, R.E.; Basford, J.R. Quantification of Myofascial Taut Bands. Arch. Phys. Med. Rehabil. 2016, 97, 67–73. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Turo, D.; Otto, P.; Hossain, M.; Gebreab, T.; Armstrong, K.; Rosenberger, W.F.; Shao, H.; Shah, J.P.; Gerber, L.H.; Sikdar, S. Novel Use of Ultrasound Elastography to Quantify Muscle Tissue Changes After Dry Needling of Myofascial Trigger Points in Patients With Chronic Myofascial Pain. J. Ultrasound Med. 2015, 34, 2149–2161. [Google Scholar] [CrossRef] [Green Version]
  36. Sikdar, S.; Shah, J.P.; Gebreab, T.; Yen, R.H.; Gilliams, E.; Danoff, J.; Gerber, L.H. Novel applications of ultrasound technology to visualize and characterize myofascial trigger points and surrounding soft tissue. Arch. Phys. Med. Rehabil. 2009, 90, 1829–1838. [Google Scholar] [CrossRef] [Green Version]
  37. Diep, D.; Chen, K.J.Q.; Kumbhare, D. Ultrasound-guided interventional procedures for myofascial trigger points: A systematic review. Reg. Anesth. Pain Med. 2021, 46, 73–80. [Google Scholar] [CrossRef]
  38. Hachisuka, R.; Taguchi, S.; Moriwaki, K.; Oshita, K.; Umeda, A.; Tsutsumi, Y.M. Subacute postoperative myofascial pain diagnosed and treated successfully by ultrasound: A case after laparoscopic hepatectomy. JA Clin. Rep. 2022, 8, 53. [Google Scholar] [CrossRef]
  39. Von Korff, M.; Ormel, J.; Keefe, F.J.; Dworkin, S.F. Grading the severity of chronic pain. Pain 1992, 50, 133–149. [Google Scholar] [CrossRef]
  40. Al-Moraissi, E.A.; Conti, P.C.R.; Alyahya, A.; Alkebsi, K.; Elsharkawy, A.; Christidis, N. The hierarchy of different treatments for myogenous temporomandibular disorders: A systematic review and network meta-analysis of randomized clinical trials. Oral Maxillofac. Surg. 2022, 26, 519–533. [Google Scholar] [CrossRef]
  41. Al-Moraissi, E.A.; Farea, R.; Qasem, K.A.; Al-Wadeai, M.S.; Al-Sabahi, M.E.; Al-Iryani, G.M. Effectiveness of occlusal splint therapy in the management of temporomandibular disorders: Network meta-analysis of randomized controlled trials. Int. J. Oral Maxillofac. Surg. 2020, 49, 1042–1056. [Google Scholar] [CrossRef] [PubMed]
  42. van Grootel, R.J.; Buchner, R.; Wismeijer, D.; van der Glas, H.W. Towards an optimal therapy strategy for myogenous TMD, physiotherapy compared with occlusal splint therapy in an RCT with therapy-and-patient-specific treatment durations. BMC Musculoskelet. Disord. 2017, 18, 76. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Michelotti, A.; Parisini, F.; Farella, M.; Cimino, R.; Martina, R. Muscular physiotherapy in patients with temporomandibular disorders. Controlled clinical trial. Minerva Stomatol. 2000, 49, 541–548. [Google Scholar] [PubMed]
  44. Cioffi, I.; Perrotta, S.; Ammendola, L.; Cimino, R.; Vollaro, S.; Paduano, S.; Michelotti, A. Social impairment of individuals suffering from different types of chronic orofacial pain. Prog. Orthod. 2014, 15, 27. [Google Scholar] [CrossRef] [Green Version]
  45. Delcanho, R.; Val, M.; Guarda Nardini, L.; Manfredini, D. Botulinum Toxin for Treating Temporomandibular Disorders: What is the Evidence? J. Oral Facial Pain Headache 2022, 36, 6–20. [Google Scholar] [CrossRef]
  46. Conti, P.C. Low level laser therapy in the treatment of temporomandibular disorders (TMD): A double-blind pilot study. Cranio 1997, 15, 144–149. [Google Scholar] [CrossRef]
  47. Wu, J.Y.; Zhang, C.; Xu, Y.P.; Yu, Y.Y.; Peng, L.; Leng, W.D.; Niu, Y.M.; Deng, M.H. Acupuncture therapy in the management of the clinical outcomes for temporomandibular disorders: A PRISMA-compliant meta-analysis. Medicine 2017, 96, e6064. [Google Scholar] [CrossRef]
  48. Ansari, M.; Baradaran Mahdavi, S.; Vahdatpour, B.; Lahijanian, A.; Khosrawi, S. Effects of Dry Needling and Low-Power Laser for the Treatment of Trigger Points in the Upper Trapezius Muscle: A Randomized Clinical Trial. J. Chiropr. Med. 2022, 21, 288–295. [Google Scholar] [CrossRef]
  49. Al-Moraissi, E.A.; Goddard, G.; Christidis, N. Are acupuncture and dry needling effective in the management of masticatory muscle pain: A network meta-analysis of randomised clinical trials. J. Oral Rehabil. 2022. [Google Scholar] [CrossRef]
Diagnostics 13 00051 g001 550

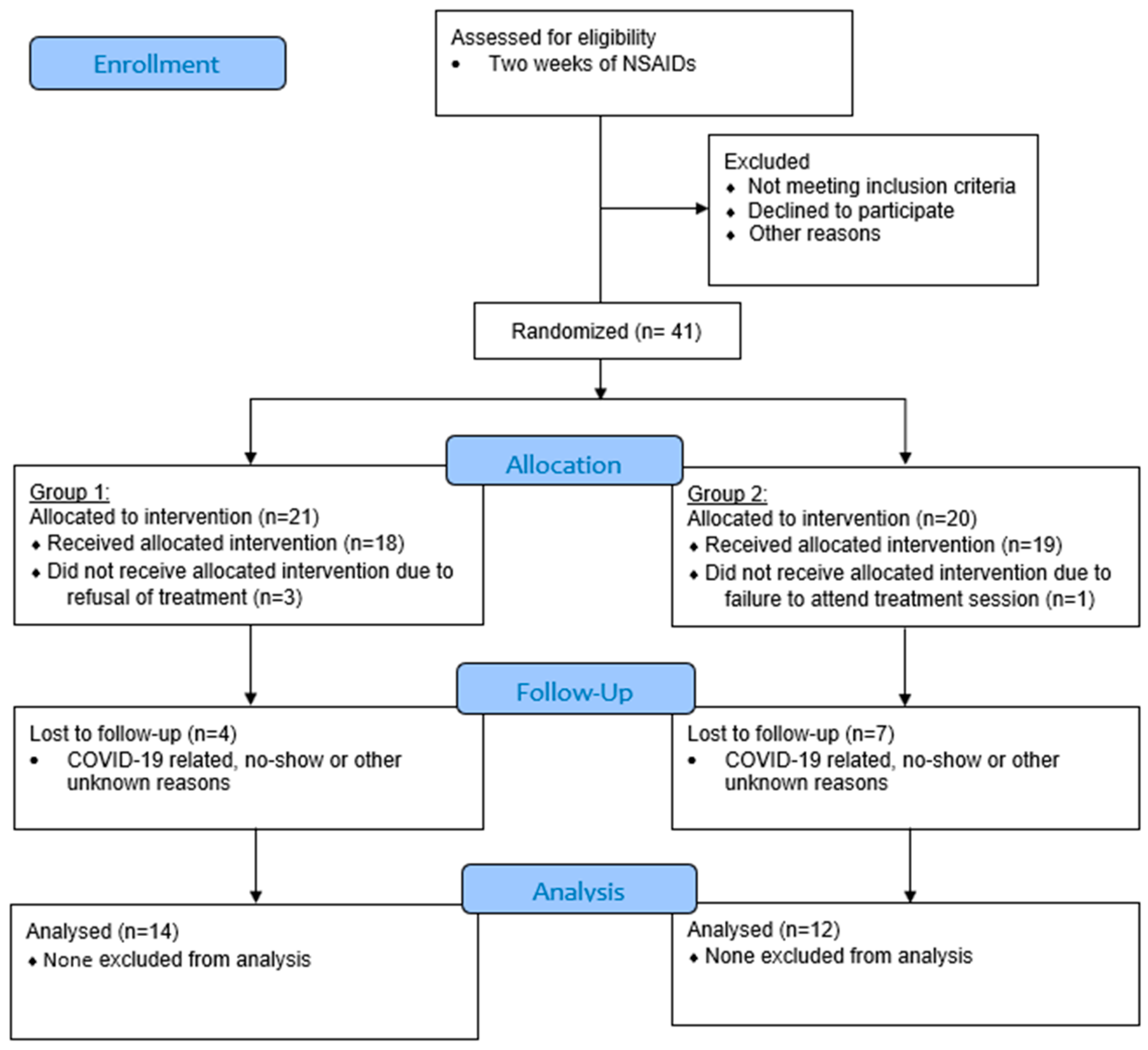

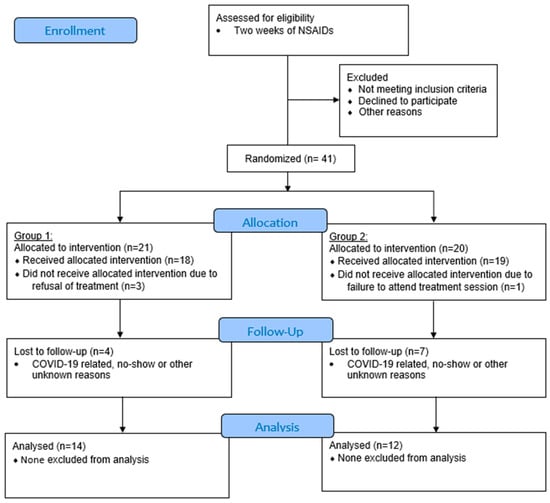

Figure 1. CONSORT flow diagram (version 2010) of subject enrolment, allocation, and follow-up. Group 1: extracorporeal shockwave therapy (ESWT); Group 2: placebo.
Figure 1. CONSORT flow diagram (version 2010) of subject enrolment, allocation, and follow-up. Group 1: extracorporeal shockwave therapy (ESWT); Group 2: placebo.
Diagnostics 13 00051 g001
Diagnostics 13 00051 g002 550

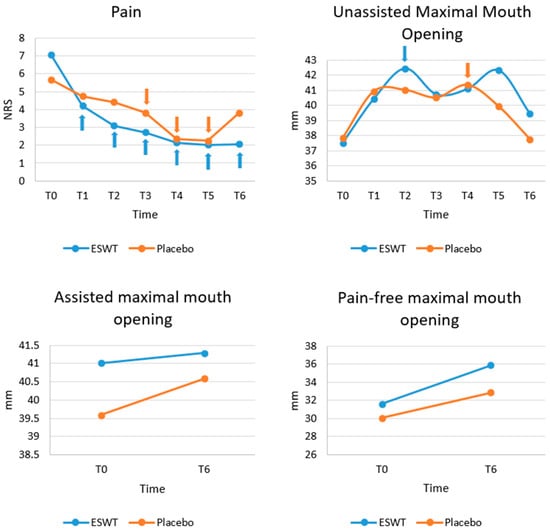

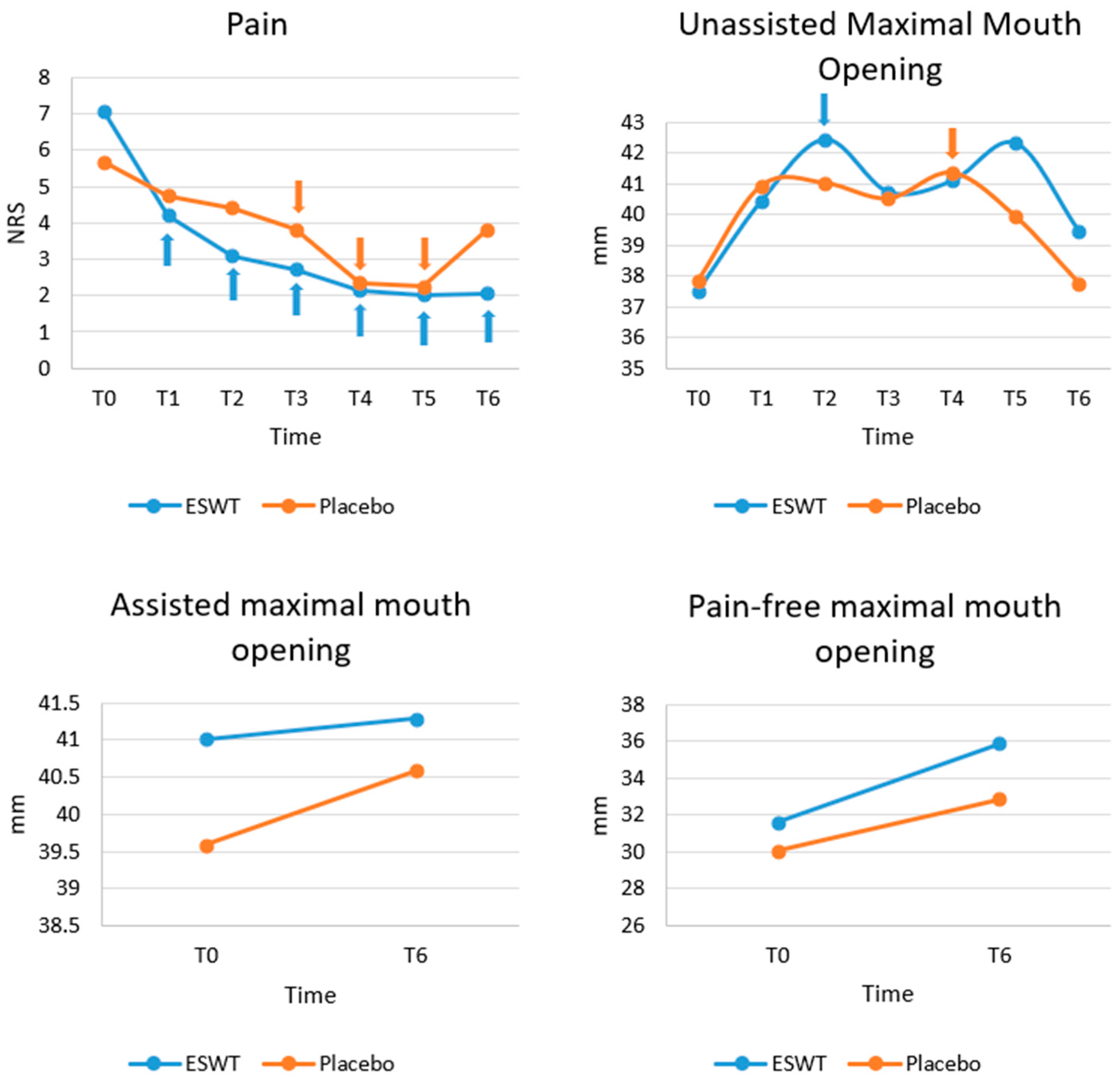

Figure 2. Progression of clinical variables (pain, unassisted maximum mouth opening, assisted maximum mouth opening, pain-free mouth opening) at different time points. Although greater reduction in pain and increase in mouth opening was seen in Group 1, there was no statistically significant difference of any variables at any time point between the two groups. For within group analyses, those values with significant difference compared to baseline (T0) are marked with arrows with corresponding colours. NRS, numerical rating scale; MO, mouth opening; T0, baseline; T1, 1 week after the first session; T2, 2 weeks after the first session; T3, 3 weeks after the first session; T4, 6 weeks after the first session; T5, post-treatment 3 months; T6, post-treatment 1 year.
Figure 2. Progression of clinical variables (pain, unassisted maximum mouth opening, assisted maximum mouth opening, pain-free mouth opening) at different time points. Although greater reduction in pain and increase in mouth opening was seen in Group 1, there was no statistically significant difference of any variables at any time point between the two groups. For within group analyses, those values with significant difference compared to baseline (T0) are marked with arrows with corresponding colours. NRS, numerical rating scale; MO, mouth opening; T0, baseline; T1, 1 week after the first session; T2, 2 weeks after the first session; T3, 3 weeks after the first session; T4, 6 weeks after the first session; T5, post-treatment 3 months; T6, post-treatment 1 year.
Diagnostics 13 00051 g002
Table
Table 1. Classification of myogenous temporomandibular disorders (M-TMD) according to the Diagnostic Criteria for Temporomandibular Disorders (DC/TMD).
Table 1. Classification of myogenous temporomandibular disorders (M-TMD) according to the Diagnostic Criteria for Temporomandibular Disorders (DC/TMD).
Classification of M-TMDClinical Findings
MyalgiaFamiliar pain in the masseter and temporalis upon palpation or mouth opening
Local myalgiaFamiliar pain in the masseter and temporalis localized to the site of palpation
Myofascial painPain in the masseter and temporalis spreading beyond the site of palpation but within the confines of the muscle being palpated
Myofascial pain with referralPain in the masseter and temporalis beyond the confines of the muscle being palpated
Table
Table 2. Demographic characteristics of the final analysed sample.
Table 2. Demographic characteristics of the final analysed sample.
Group 1: ESWTGroup 2: Placebo
Sample size, n1412
Male, n (%)2 (14.3)3 (25)
Female, n (%)12 (85.7)9 (75)
Mean age in years (SD)45.29 (16.7)46.75 (19.7)
Duration of pain in months (SD)33.5 (36.2)42.58 (43.1)
Pain (NRS) (SD)7.07 (1.7)5.67 (1.5)
MO (pain free, mm) (SD)31.57 (11.9)30.08 (7.9)
MO (max unassisted, mm) (SD)37.5 (8.1)37.83 (7.4)
MO (max assisted, mm) (SD)41 (7.9)39.58 (7.5)
Painful conditions (%)
Arthralgia5 (35.7)7 (58.3)
Myalgia10 (71.4)10 (83.3)
Myofascial pain with referral4 (28.6)2 (16.7)
Headache attributed to TMD6 (42.9)3 (25)
Non-painful conditions (%)
DDWR6 (42.9)5 (41.7)
DDWR with intermittent locking1 (7.1)3 (25)
DDWOR with limited mouth opening01 (8.3)
ESWT, extracorporeal shockwave therapy; SD, standard deviation; NRS, numerical rating scale; MO, mouth opening; mm, millimetres; TMD, temporomandibular disorders; DDWR, disc displacement with reduction; DDWOR, disc displacement without reduction.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, D.T.S.; Li, K.Y.; Leung, Y.Y. Myogenous Temporomandibular Disorders: Diagnostic Concepts and Prospective Pilot Study on Extracorporeal Shockwave Therapy. Diagnostics 2023, 13, 51. https://doi.org/10.3390/diagnostics13010051

AMA Style

Li DTS, Li KY, Leung YY. Myogenous Temporomandibular Disorders: Diagnostic Concepts and Prospective Pilot Study on Extracorporeal Shockwave Therapy. Diagnostics. 2023; 13(1):51. https://doi.org/10.3390/diagnostics13010051

Chicago/Turabian Style

Li, Dion Tik Shun, Kar Yan Li, and Yiu Yan Leung. 2023. "Myogenous Temporomandibular Disorders: Diagnostic Concepts and Prospective Pilot Study on Extracorporeal Shockwave Therapy" Diagnostics 13, no. 1: 51. https://doi.org/10.3390/diagnostics13010051

APA Style

Li, D. T. S., Li, K. Y., & Leung, Y. Y. (2023). Myogenous Temporomandibular Disorders: Diagnostic Concepts and Prospective Pilot Study on Extracorporeal Shockwave Therapy. Diagnostics, 13(1), 51. https://doi.org/10.3390/diagnostics13010051

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
