Assessment of Feature Selection Algorithms for Knowledge Discovery from Experimental Data

Abstract

Maintenance and repair play a crucial role in industry. Smart systems for technical diagnostics can help to save money and to prevent the breakdown of machines and plants. These systems and its classifiers benefit from plausible features because they tend toward robust classification. Although concepts for knowledge discovery are well-known in various scientific fields, they are not established in the field of rotating machines. Knowledge discovery from experimental data is a framework that combines valid methods for knowledge discovery with expert knowledge and automated experiments. For the central data mining step, feature selection algorithms based on heuristic or meta-heuristic search are established. The objective is to identify plausible pattern with a limited number of features and the best combination of these features. The results in this work show which strategies align the best with the requirements of knowledge discovery using experimental data to find plausible features. For this study, well-configured search strategies, namely, sequential forward selection and ant colony optimization, were applied on real data. The data represent several fault severity levels for parallel misalignment and cavitation. The plausible feature vectors and features exhibited good behavior when applied to new targets. It is expected that the obtained knowledge will be transferable to new classification tasks with only minimal optimization of the reference data or the classifier.

1. Introduction

Maintenance and repair are crucial for the reliable operation of plants and units in industry. The objective is always to reduce costs due to wear and failure. In addition, the cost of the measurements should also be low. Three basic strategies are used to deal with used equipment [1]: time-based, fault-based, and condition-based maintenance. They differ in terms of the provision of spare parts, the duration of the repair, and monitoring effort. Condition-based maintenance is of special interest because the breakdown reserve can be used to a greater extent than in the case of a time-based strategy without the risk of breakdown, as would be the case if a fault-based strategy were used. To put this into effect, sophisticated monitoring is necessary. This could be realized by using multiple sensors placed on the concerned parts. With this strategy, all necessary information is gathered through measurement. The drawback here is the cost, which is only reasonable if the losses are higher than the investment in technical diagnostics would be otherwise or if there is a high risk of breakdown. A different approach is the use of low-sensor monitoring. In this case, all necessary information is obtained by a few sensors and smart algorithms. This cost-effective measure, called condition-based maintenance, can be applied to smaller plants and units. Furthermore, the low number of sensors per unit also allows for the monitoring to be expanded machine floats. Finally, the fact that only electrical signals are processed enables monitoring in areas that are restricted due to lack of accessibility, low spaces, aggressive fluids, dust, or the danger of explosion. This is possible because sensors can be attached to the end of the power cable.

In the field of technical diagnostics of rotating machinery, several approaches have been established to improve the diagnostics regarding monitoring on the algorithm side. Analytical approaches improve knowledge by comparing models with real measurements [2]. The complexity of a model drastically increases with a higher number of relations. This is why this approach is only used to identify and describe basic phenomena. The obtained knowledge then can be used for optimizing diagnostic algorithms. Data-driven approaches use data from experiments or field measurements. They allow for systems to be analyzed under multiple influences. These methods focus on the relations between features, a fault, and several disturbances. Although there are powerful algorithms for data mining that easily detect hidden patterns, the identification of basic phenomena can be challenging. The reason for this is that not all features identified by a search algorithm are mono-causal. The objective here is to separate the features in a found feature vector and to check them for plausibility.

These approaches and the technical diagnostics themselves are mainly affected by two independent fields: electrical engineering and computer science. On the one hand, publications from the field of electrical engineering mainly focus on the machines and the description of fundamental effects [3,4,5,6,7,8,9]. This method is called the traditional method, according to [10]. Nevertheless, in this field, a large amount of expert knowledge is available. On the other hand, computer scientists focus on algorithms that allow for knowledge to be derived from Big Data [11,12,13,14,15,16,17] and in a systematic way [10]. In this field, state-of-the-art algorithms and methods for knowledge discovery are discussed. Both fields yield important results for technical diagnostics. Unfortunately, basic concepts are often not combined. This means that studies in the field of electrical engineering are lacking concepts such as knowledge discovery in database (KDD) as a systematic approach to find new knowledge. Studies in the field of computer science, on the other hand, suffer from a lack of expert knowledge and data. In addition, they cannot apply their methods to every specific scientific area or adapt them accordingly. As a result, issues with knowledge discovery itself, implementation, or execution are not discussed.

In the following, a new framework called Knowledge Discovery from Experimental Data (KDED) [18] will be presented. The aim of this method is to find fundamental relations between the meassured signals and the condition of a machine. These findings should make the decision-making process in classification transparent, should clear the limits of a classification and should be transferable to similar problems. In order to achieve this, expert knowledge about rotating machines and the concept of KDD was combined. The alignment of automated experiments and data mining then allows for relations to be found between faults and unknown features, even if distortions occur. By preparing the data through the experiments, the algorithm used for the data mining is forced to select only potentially plausible features and feature sets. To check the results for plausibility, only general metrics, like kurtosis, variance, or RMS, and expert features from motor current signature analysis (MCSA) were calculated. These features are physically interpretable. By combining all physical quantities with these metrics, a big feature pool is built up. Therefore, data mining needs powerful search algorithms, which have to find all relevant features and feature combinations.

The method described in this paper is based on publications that will be listed and described in the following. In recent decades, the community around MCSA has spent great effort on identifying basic phenomena and related features. These relations were assessed for faults such as broken rotor bars [19], eccentricity in the rotor shaft [20], and bearing faults [21]. The range was enlarged with the faults of a coupled machine, such as gear faults [22], misalignment [3], and cavitation [23]. In addition to basic phenomena that influence the spectra in the case of a fault, further reasons for changing a specific component in the spectra were identified. The most important disturbance in technical diagnostics is a changing load, which was researched in References [5,24]. In addition, in [25] it was shown that different faults also can influence the same component in the spectra. This means that the diagnosis of several targets becomes difficult. To solve this issue, studies to find new mono-causal features were conducted, e.g., in [26], based on instantaneous power, or in [27], based on space vector components. Another important research path is Advanced Transient Current Signature Analysis (ATCSA), which examines the transient part of a motor signal by applying Wavelet Transformation (WT). This smart approach uses the startup of a motor, which occurs periodically in most rotating machine applications. The effects on which the approach focuses are independent of the load, as described in [28]. An assessment of eligibility for the mentioned fault was conducted in [29].

Information-rich features are a limited option for solving problems in technical diagnostics. The other option is to combine features into feature vectors that can deal with multi-dependencies. Algorithms from the field of Artificial Intelligence (AI) are capable of this task. In [30], an overview of the most important algorithms is given, separated into Deep Learning and Machine Learning. Studies such as [25,31,32] show the successful application of Machine Learning, while [33,34,35] show the application of Deep Learning.

Although the example obtained good results, data-driven approaches do come with some issues. The first is the need for sufficient [36] and high-quality data [34]. This data is needed, on the one hand, for the training and, on the other hand, for validation. According to [37], using online training in combination with anomaly detection could be a solution. The second issue is how to transfer trained models to new problems. In [38], transfer learning was used to bring the parameters of an already trained convolutional neural network to a new model. The third issue is optimization. In many studies, AI algorithms were applied without adapted dimension reduction or hyperparameter tuning. There are two ways of reducing the dimension: transformation into a lower feature space or feature (subset) selection. The objectives of feature selection are to reduce both classification error and the number of features [39]. This helps to identify the relevant information and check the results for plausibility as the features remain physically interpretable, as discussed in [40,41].

Besides the progress made with powerful AI algorithms applied directly to technical diagnostics tasks for data mining, important work has been carried out in describing methods for finding valid knowledge in data. One strategy, which was first described in [17], is knowledge discovery in a database. The developed framework has five parts, which are described in detail in [16]: data selection, preprocessing, transformation, data mining, and interpretation. This indicates that the extraction of knowledge is more than the application of data mining, but data mining is the central process. These findings were also reported in [42]. As a consequence, the alignment of KDD with experiments to achieve valid knowledge for fault (shaft) misalignment was presented in [43]. The result was a list of feature sets that are capable of diagnosing misalignment on different machines. An assessment of KDD for knowledge extraction was conducted in [44]. A hands-on application of KDD was demonstrated in [45]. The objective of the study was to find features and basic phenomena related to wear on a milling tool. Another work, ref. [46], addresses the interpretation step to obtain valid feature sets from experiments with low variation in plants and machines. Unlike the other works, the authors used a method called Feature-Extraction, -Selection, Classification/Regression (FESC/R). This method uses the same setup for the data mining as KDED, but it lacks the aligned experiment and the interpretation. Depending on the field in which KDD is applied, there are different data mining strategies, as mentioned in [14]. For the field of technical diagnostics, FESC/R is a suitable choice, and so KDED utilizes this technique.

KDED is designed to find features with one experiment that allows for technical diagnostics on every machine set of the same kind. New studies have researched this issue. As described in ref. [47], the problem is that the distribution of the data for training is different from the distribution in the field; this is called domain shift. The reasons for this are influences like load or temperature that are not considered during the analysis. Leave-one-group-out (LOGO) validation is a method to check the results against unconsidered influences, as described in [48]. Also, LOGO is designed the application within KDED; it has not been implemented yet. Nevertheless, in ref. [49] it was shown that concepts based on FESC/R deal better with domain shift than deep learning-based concepts.

According to [50], feature selection is the major process in data mining for technical diagnostics. For feature selection, a feature pool is searched for features and combinations of features, respectively, to form feature sets that are information-rich. This enables the optimization of a classifier used in technical diagnostics. Depending on the structure, the algorithms are classified as filter, wrapper, embedded, or hybrid [51]. Another classification can be made using the basic search strategy [52]: exhaustive, heuristic, or metaheuristic. Representatives of the heuristic class are sequential forward selection (SFS) and sequential backward selection (SBS), and for the metaheuristic class, ant colony optimization (ACO) [53,54,55] or simulated annealing [56]. The latter algorithms are capable of finding the global best results [39]. Another issue with SFS and SBS is the nesting effect, which is described in [57]. The authors also describe a solution for the issue with SFS and SBS. This led to the further development of sequential forward floating selection (SFFS) and sequential backward floating selection (SBFS).

The contribution of this paper is a detailed description of KDED and its placement in the field of knowledge discovery. The relevance of plausible over statistical features is emphasized. In addition, the characteristics of metaheuristic search strategies in the context of knowledge discovery are shown with real-world data. A special spotlight is on the ability to find feature vectors that fulfill all the needs of KDED.

To this end, ant colony optimization (ACO) was applied. This algorithm is capable of dealing with five major requirements of the KDED: selecting the global best feature sets, combining features, avoiding the nesting effect, multi-objective optimization, and a feasible search. With the basic idea of ACO, the search for globally best feature sets and the combination of features is fulfilled. In order to avoid the nesting effect, the concept of expending prey is introduced. The ACO algorithm also enables multi-objective optimization. This means that the cost function respects the classification error and the number of features. Since KDED looks for explainable results, the number of features in a feature vector is limited. Considering this fact, the search speed can be improved by limiting the vector length. For this, the concept of stamina is implemented.

KDED and ACO were applied to data from two fault scenarios. The first fault is parallel misalignment. Misalignment can occur between the shafts of a motor and a working machine when they have to be separately mounted. Furthermore, misalignment occurs during operation because of vibration or thermal expansion. During the operation of such a system, load changes are common, so the load is intended as a disturbance. The second fault is cavitation, which arises when upstream pressure in a pump system is not sufficient. If this occurs, vapor bubbles arise in the media. With the increasing pressure of the downstream, these bubbles implode and could damage nearby surfaces. For pump systems, changing volumetric flows is common. Because of this, the flow is a disturbance in this scenario.

2. Methodology

2.1. Knowledge Discovery from Experimental Data

As shown in the introduction, there are powerful expert features and algorithms for the technical diagnostics of rotating machines. Tests and experiments on partially or fully automated test benches for rotating machines are daily business. Furthermore, there is KDD, a well-discussed framework that allows for the extraction of valid knowledge from data. In the following, a new framework will be presented that combines all the advantages of these aspects. The core elements are the use of general and expert features, the alignment of the experiment and the data mining, and verification of the results and their plausibility. All of this is performed to find basic phenomena for a diagnostic task that should allow for the transfer of classification models.

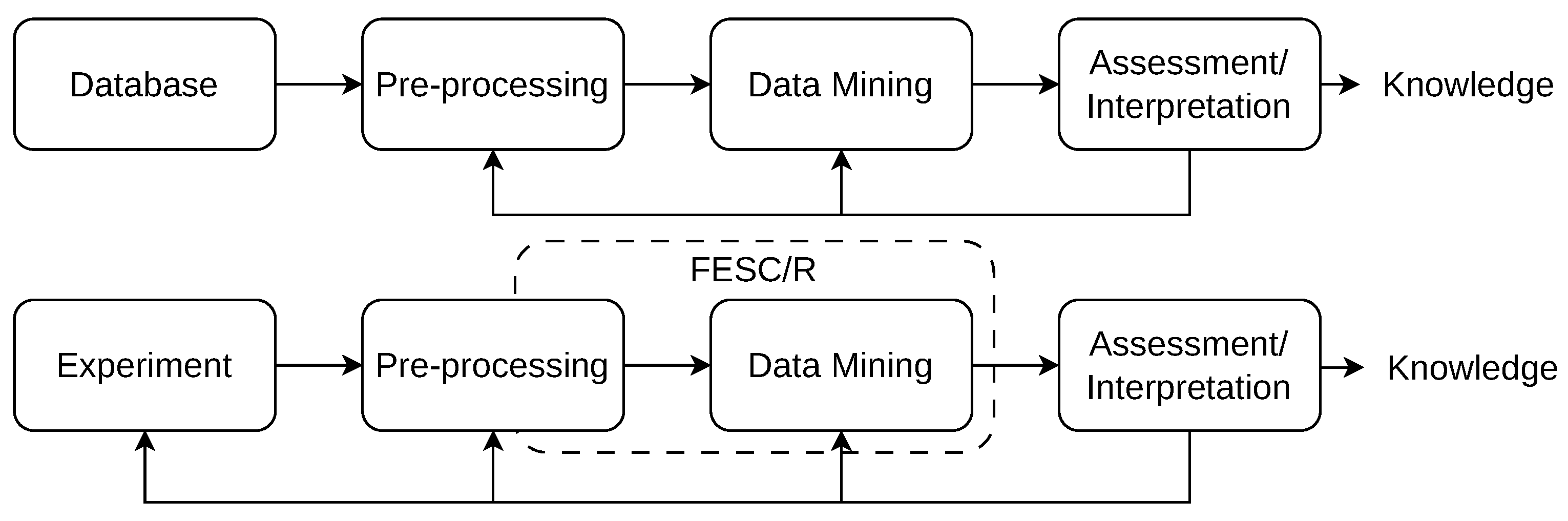

The framework of Knowledge Discovery from Experimental Data (KDED) is depicted and compared with KDD in Figure 1. The first difference between the two frameworks is a database in the case of KDD and an experiment in the case of KDED. KDD first appeared in economics to find knowledge in a company’s database and in astronomy to find patterns in sky images [10]. In this scenario, new data cannot be created for the processing. It only can be selected, transformed, or combined. For KDED, the data comes from an experiment designed for data mining. This means it is guaranteed that the information is there, the data builds clusters [58], and the data is optimized for the feature selection algorithm. In addition, it is guaranteed that there is enough data for all classes.

The second difference is the feedback. Depending on the results, modifications such as exchanging the feature selection algorithm, tuning the search parameters, or selecting the data can be made with both methods. For KDD no feedback to update the data is intended, but for KDED the modification of the data generation itself is possible. This feedback allows for optimization of the data that is to be processed. This is necessary when the results show a plausible data arrangement but bad classification performance. In this case, the step size for the sampling has to be adjusted. Also possible is a good classification but non-plausible arrangement. In these cases, the design of the experiment needs to be revised, and the process needs to be repeated. Some structural faults that can occur with data generation through experiments are described in [42]. When the results fulfill all the criteria of KDED, the found features describe basic phenomena. In addition to the differences in the structure, both frameworks can also differ in terms of the realization of the various steps, but in this paper, the focus is on KDED. Its steps will be described in the following.

For the supply of data, KDED uses an experiment. To ensure a low number of repetitions and modifications, the experiment needs a proper Design of Experiment (DoE). An example of this is provided in [59] for the analysis of bearings. The first question to answer is which signals have to be measured. To answer this question, it makes sense to first define the target and the disturbance. In a diagnostic task, the target is the quantity that must be classified correctly, and disturbance refers to those quantities that appear during a process and have a negative influence on the classification. For the DoE, the target is mostly clear because it is the fault. Selecting the disturbances requires estimating further major influences such as load, speed, volumetric flow, or temperature. If the number is unclear, expected disturbances can be added; the results will show if there is an influence. In contrast, the results can also show that a major influence was not considered. Because of this, expertise is needed to recognize all major influences. The next question is about quantization. With the experiment, a grid is defined. The grid is defined by the range and the number of steps required to quantify each quantity. This decision depends on the scope of the application and on whether non-linearities are expected in the range. A good starting point is to use four steps for the target and three steps for each disturbance. Another criterion is the scatter of the calculated features, which defines the step size of the target and the disturbances. In the first round, it should be ensured that there is no intersection of the clusters with a bigger step size. This ensures low fault rates in case of suitable feature vectors. The results will show the possible resolution of the fault severity. The expectation is to find a pattern that is comparable with the grid. Figure 2 shows the desired behavior. All the set conditions appear as native clusters and in the same order in the found dimension.

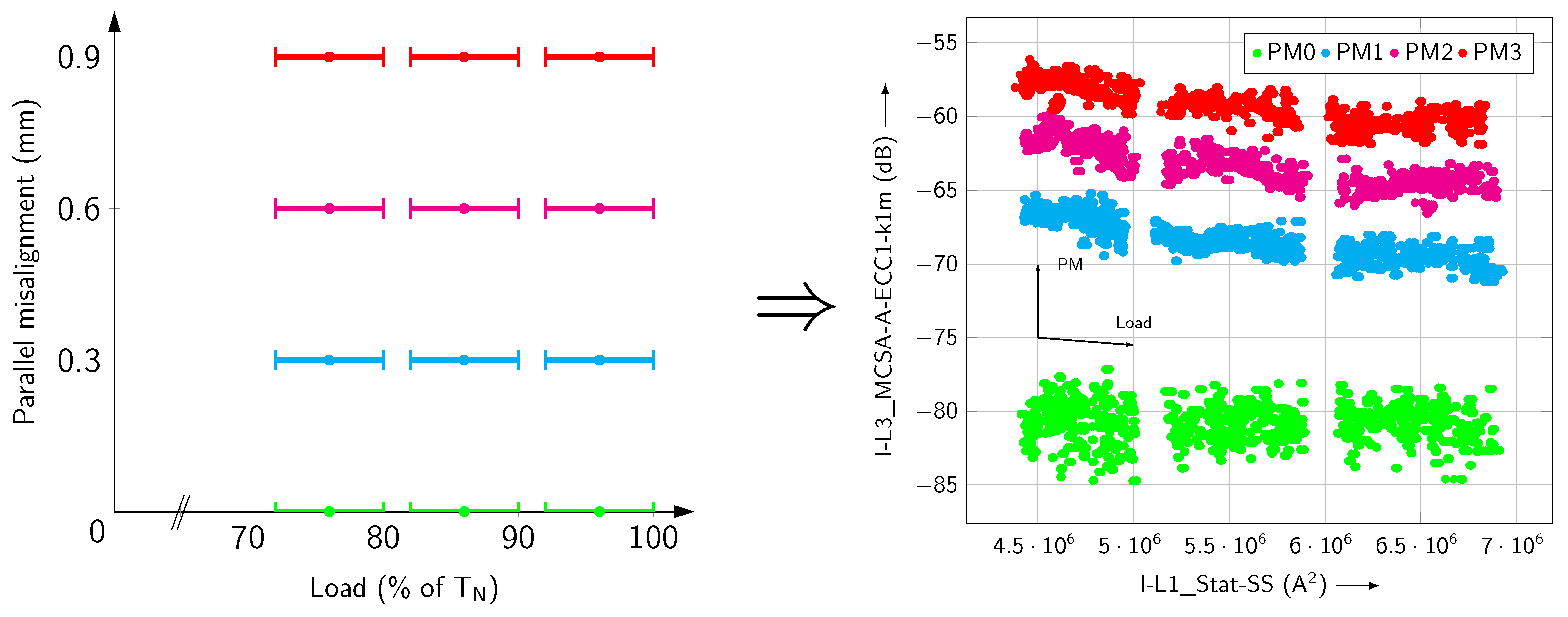

The result of the DoE is a list that combines the target with all disturbances. The list can quickly increase in size because all quantification steps need to be combined to sense all relevant information. Conducting such an experiment will take hours or days. This is why another relevant aspect of KDED is the use of partially or fully automated experiments. This can be realized with automated test benches, which are normally used for efficiency or long-term tests.

Once the data is available, the pre-processing step is conducted, which is depicted in Figure 3. The first part of this step is correction of the data structure. This includes modifying the signal length, modifying the number of samples, and removing faulty samples. The second part is feature extraction, with the following objectives:

• Calculation of physically interpretable features → feature pool.
• Compression.
• Keeping the relevant information.

Figure 3. KDED step pre-processing.

Figure 3. KDED step pre-processing.

The first item on the list is relevant to the assessment and interpretation step. Interpretation is only possible if the features remain physically interpretable and can be checked against signal and rotating field theory. Results with good classification but no plausibility will be discarded. In order to calculate one feature, feature extractors based on a three-step scheme are applied to the signals. By combining these three steps, where the dashed boxes can be executed or not, features in the time domain and the spectra are created. A more detailed explanation is provided in [42]. All features together build the feature pool. The second item affects the data mining step. Compression of the data can make the search more efficient. The reduced execution time then allows for a deeper search. The third item ensures the quality of the KDED results. During feature extraction or pre-filtering, a loss of information is possible. To avoid this, or at least to be aware of any loss, KDED is designed to be transparent and systematic.

Data mining is the next step once the feature pool is available. It is the central step in KDED, in which an algorithm lists all the recommended feature vectors that are capable of classifying the data correctly. The step is described in Figure 4. With grouping, the target and the conditions for the feature selection are set. This is achieved by rearranging the prime classes that contain data from a single condition sampled in the experiment. By merging a target class and one or several disturbance classes, new and more complex classes arise. With this measure, the feature selection algorithm is forced to select only robust features that allow for classification under realistic circumstances. As previously mentioned regarding experiments that consider the major influences on a system, the amount of data quickly increases. In addition, valuable results can only be achieved with an exhaustive search. As a result, the execution time can drastically increase. To keep feature selection executable, a reduction in the feature pool may be necessary. There are several papers that focus on hybrid search strategies [60] and especially on the selection and configuration of a pre-filter [61]. The challenge in the application of pre-filters is the need to drop only features without any information. For proper feature selection, a wrapper algorithm is used. This class of search algorithm involves a classifier and its classification result as the criteria. According to [39], the advantages of doing this are as follow:

• Assessment of feature combinations.
• Optimization of the classification error.
• High trust level because the classifier is involved.

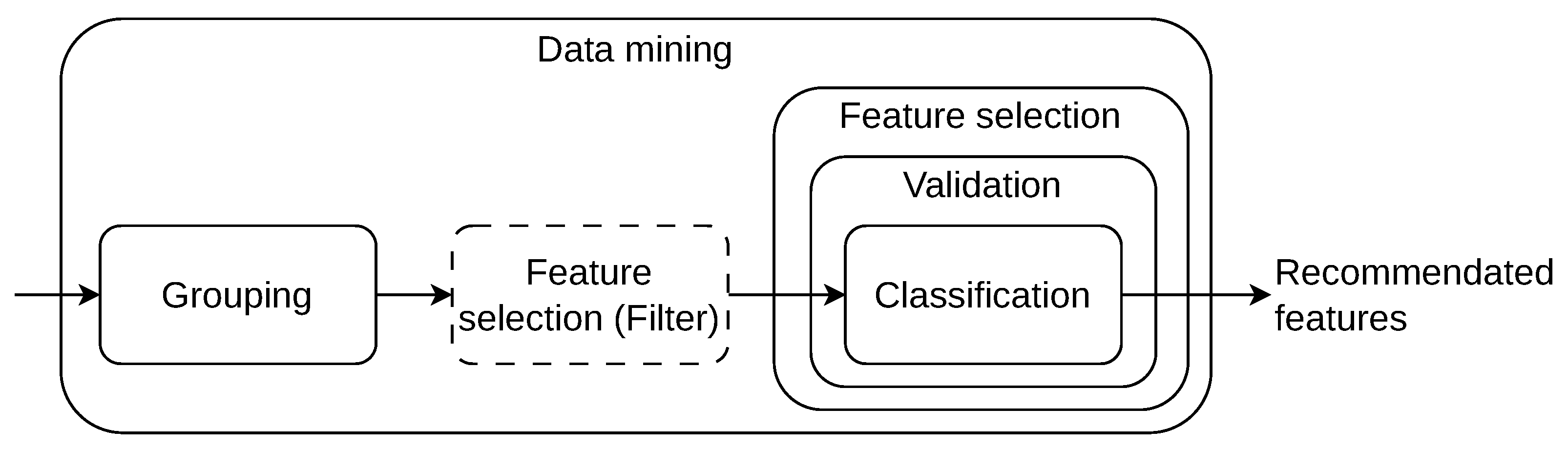

Figure 4. KDED step Data Mining.

Figure 4. KDED step Data Mining.

The drawback of wrapper approaches is that they have a greater tendency to overfit than filter approaches [50]. To deal with this issue, a validation step is interposed. This means that the search algorithm rates the validation error instead of the classification error. As search strategies, heuristics such as SFS/SBS or metaheuristics such as ACO are meaningful. In most cases, an exhaustive search cannot be performed because of the $({\displaystyle \genfrac{}{}{0pt}{}{M}{m_{\max }}})$ combinations that lead to long execution times. Metaheuristic strategies have a big advantage over greedy algorithms as they can find global optima. This aspect is essential for KDED. The application of ACO in the context of the KDED will be shown in the next section.

The final step of KDED is assessment and interpretation. This step is conducted when a search algorithm has created a recommendation list of feature vectors. It is important to emphasize that the data mining step only delivers recommendations because the results have not been checked for plausibility. In order to validate the recommendations and achieve a broad understanding of them, Figure 5 shows the criteria and the structure used to apply them. Depending on the search algorithm and its parameters, the number of features for each feature vector can vary. As a first measure, simplicity helps to reduce the list. Simplicity means that in the case of two feature vectors that have the same classification error, the one with fewer features is more valuable [10]. In addition, less complex feature vectors are easier to interpret in the sense of KDED. As a threshold, Equation (1) is applied:

$$\begin{array}{cc}\hfill m& =D+1\hfill \end{array}$$

(1)

where m is the number of features of a vector, D the number of disturbances, and $+1$ represents the target. According to this, a vector needs only one feature per influence. For some search strategies, simplicity can be included in the cost function. This leads to a multi-objective feature selection [39]. In these cases, the criterion is not part of the interpretation step. Another criterion is (Pearson) correlation. This allows for the strength of the inner connections to be assessed. One goal of KDED is to optimize classification by applying the right features. This means that good results can be achieved with different classifiers based on different concepts. For the validation of the feature vectors, k-Nearest Neighbors, Artificial Neural Networks, and Support Vector Machines are used. Finally, the arrangement of the clusters is visually checked. A good selection has to show all prime classes and an evolution that correlates with the increasing influences set up in the experiment. An example is depicted in Figure 2.

2.2. Ant Colony Optimization for KDED

Metaheuristic optimization algorithms are especially suitable for KDED because of their ability to search big feature spaces and find global optima. Out of the high number of algorithms belonging to this category, Ant Colony Optimization can be ideally modified for KDED. Further relevant aspects for the presented algorithm are as follows:

• Tradeoff between minimal classification error and a minimal number of features.
• Dealing with previously found solutions.

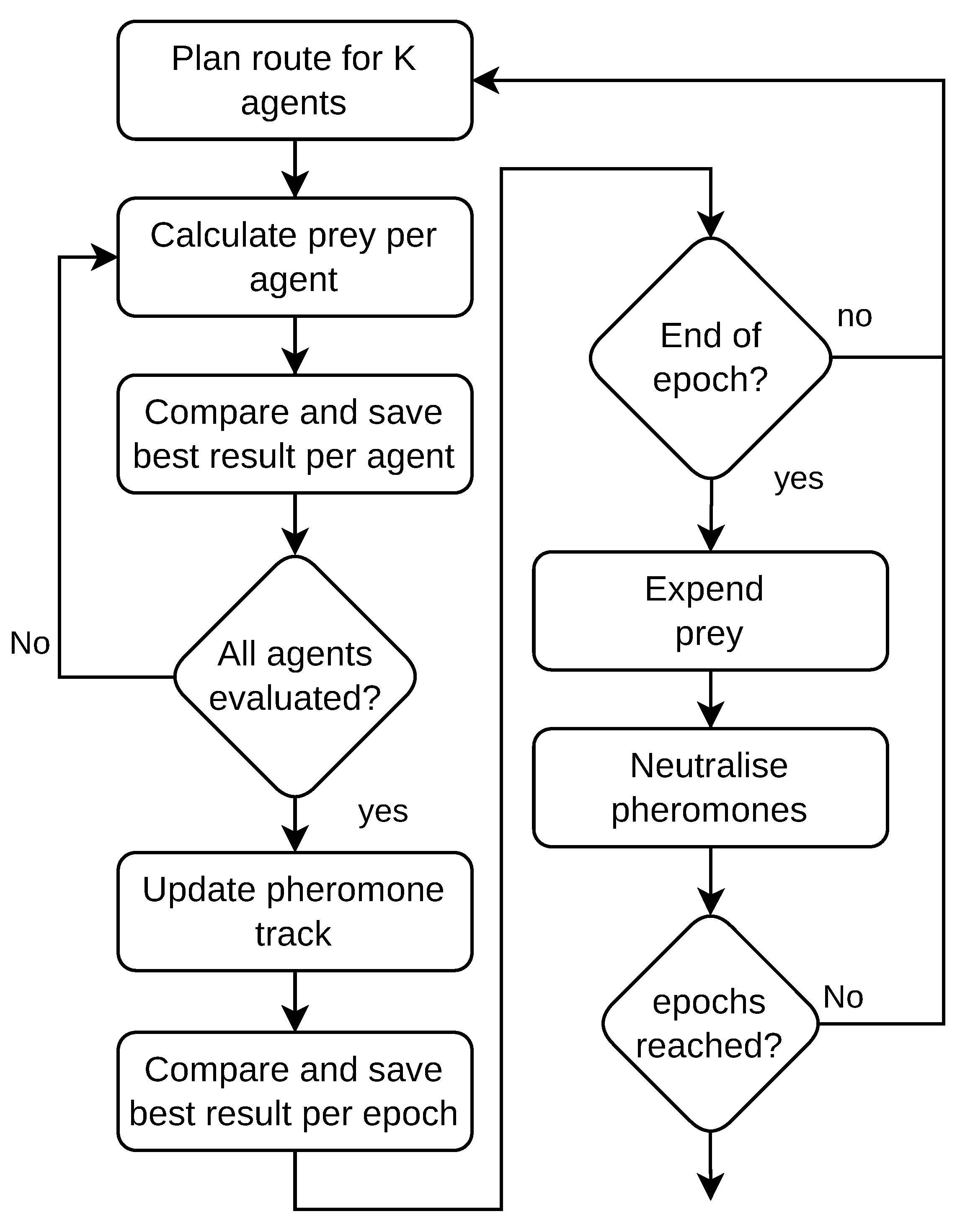

The basic idea of using ACO for feature selection is that a number of ants (agents) explore feature combinations (paths), which are then assessed by the number of features and classification error (prey). While the ants compete against each other in one round, the winner leaves a marker (pheromone track) that helps to find better solutions in the following round. The selection of a feature depends on the pheromones and a random value. The basic idea of the algorithm requires modification to fulfill all the requirements of KDED. The recommendations are depicted in Figure 6. Basically, the procedure has three loops: competition, epoch, and list. The competition and epoch loops are well-known by the basic algorithm and should deliver the global best results. These loops are extended with a list loop, which should find redundant feature vectors. After each epoch, a new feature vector is recommended, and the selected features are marked as expended. Expenditure is a weight that allows for previously selected features to be kept in the search space [62]. With this measure, unique features can be identified and used for several feature combinations.

In the first step, a route is planned for every agent. For this, (2) is applied:

$$\begin{array}{cc}\hfill P_{\mathrm{j}}& =\eta ·{\beta }_{\mathrm{j}}·{\tau }_{\mathrm{i},\mathrm{j}}·{\xi }_{\mathrm{j}}\hfill \end{array}$$

(2)

where $\eta$ is a random number, $\beta$ is the expenditure, $\tau$ is the pheromone level between the current and the next possible feature, and $\xi$ is a mask that excludes already chosen features. This equation is the basic method for calculating a score to choose a feature. A probabilistic factor that initiates new feature combinations is important in this kind of optimization. Another aspect that is important for ACO’s application in feature selection is the length of the travel and the number of features. To determine this, the stamina of an agent is evaluated. This is achieved using (3).

$$\begin{array}{cc}\hfill s& =\eta ·f(m,E\left\{m\right\})>0.5\hfill \end{array}$$

(3)

where $\eta$ is a random number between zero and one. The function $f(m,E\left\{m\right\})$ is any sigmoid function that decreases with an increasing number of features m and with an inflection point at the expected number of features. The parameter $E\left\{m\right\}$ is updated using the best result per epoch and can be initialized with (1). For this study, the logistic function was chosen:

$$\begin{array}{cc}\hfill f\left(x\right)& ={\displaystyle \frac{1}{e^{0.25·M-E\left\{m\right\}}}}\hfill \end{array}$$

(4)

where M is the number of features within the feature pool. The threshold of 0.5 means an equal weighting for the chance to proceed and to stop. After the features are selected, they are evaluated using the k-nearest neighbors classifier. To consider the number of features, the performance (prey) is calculated with (5) the following:

$$\begin{array}{cc}\hfill \gamma & =1-err-(0.03·m)\hfill \end{array}$$

(5)

where $err$ is the classification error and m the number of features. The result is compared with the best result to date. If the new result is better, it is saved together with the feature vector; otherwise, it is discarded. When all agents have been evaluated, the pheromone levels of the best vector’s features are updated. The best result of the competition cycle is compared with the best result to date of the epoch cycle, and if the new result is better, it is saved together with the feature vector; otherwise, it is discarded. The update is followed by checking for the end of the epoch. The following abortion criteria are possible:

• n-competitions executed.
• n-rounds king of the hill.
• Prey less than n.

All criteria come with individual advantages and disadvantages. The execution of n-competitions can be time-consuming even if there is no progress in updating the best result. The advantage is that this provides the algorithm with the chance to seek a global optimum. Prey greater than n forces the algorithm to accept only high-value results, but it is not clear whether high performance can be reached because, with a low threshold, there are no cycles to find a global optimum. For the application of the algorithm in this paper, n rounds king of the hill was selected. Using this criterion allows for the cycles to wait for a global optimum. When an epoch ends, a candidate for the recommendation list has been found. To find the next candidate, the prey is updated. This means that features of the best results receive a lower weight so that their chance of selection decreases. For a new epoch, the pheromone level of all features is reset. To check for an end to the search, the same abortion criteria mentioned above can be used again. In order to find a list of candidates, the number of epochs is set to ten.

3. Results and Discussion

For the discussion presented in this section, three experiments were conducted to generate data for the KDED. The first experiment was to measure the three-phase current and one voltage on a 7.5 kW ASM powered by the mains. The signals were measured in twelve conditions with two major influences: parallel misalignment from 0 to 0.11 mm in four steps and load from 72 to 100% of the rated load in three steps. The misalignment was induced by distance plates, and the load by configuring a coupled brake. Further details of the experiment can be found in [42]. In the second experiment, the same signals were measured on a 1.1 kW motor that propelled a circulation pump with a directly mounted wheel. The experiment included measuring nine conditions with two major influences: cavitation from 0 to a 10% drop in the pump pressure in three steps and flow from 90 to 110% of the rated flow in three steps. To set up the cavitation, a vacuum pump was used to reduce the pressure in the liquid by evacuating the air in the connected tank. The flow was set by opening and closing a valve mounted in the hydraulic circuit. In the following, the results for the KDED applied to the generated data will be discussed. Firstly, the results of the KDED conducted once with SFS and once with ACO will be compared. Aspects of interest are the number of vectors, the classification error, and the features that appeared. For the results of ACO, the assessment and interpretation step of KDED will then be applied.

3.1. Comparison Between SFS and ACO

A statistical overview of the results from SFS and ACO is listed in

Table 1. Comparison of SFS and ACO results for parallel misalignment and cavitation data.

No.	Evaluation	Parallel Misalignment		Cavitation
		SFS	ACO	SFS	ACO
1	# Vectors $err=$ 0	2	0	0	0
2	# Vectors $err<$ 1%	9	9	0	0
3	# Vectors $err<$ 5%	8	29	22	29
4	# Vectors with 1 feature	0	0	0	0
5	# Vectors with 2 features	40	40	40	28
6	# Vectors with 3 features	0	0	0	12
7	# Vectors with PC > 0.95	47	26	2	2
8	# Vectors with PC > 0.98	2	2	2	2
9	total # of features	80	80	80	92
10	# Same features	43	43	46	46
11	# Vectors KDED conform	15	36	11	5
12	total # of Vectors	40	40	40	40

. The comparison shows the individual advantages of the two algorithms for KDED. Both algorithms had to calculate the 40 best feature vectors (row 9). The first three rows (rows 1–3) of the table list the number of feature vectors found with an error rate of 0, 0 to 1%, and 1 to 5%. The vectors are counted only once, starting with the group with the lowest threshold. It can be seen that SFS performed slightly better with the parallel misalignment data when classification error was the only objective. This means that ACO did not completely look for the feature space to find the best two feature vectors. A longer search could resolve this. Otherwise, for parallel misalignment and cavitation, ACO found more feature vectors below a 5% error rate, which increases the chance of finding useful knowledge.

Rows 4 to 6 list the number of features per vector. For parallel misalignment, all obtained vectors had two features. This means that the data provides enough solutions in the expected dimension, and these were discovered by the algorithms. In the case of cavitation, SFS found 40 vectors with two dimensions. Because of the search strategy and the comparison, the maximum number of features in a vector was two. Because of this, the total number of found feature vectors below 5% was only 22 compared to ACO, which found 28 feature vectors with two features. For ACO, there was no fixed threshold for the number of features. This led to 12 feature vectors with three features. Because of the expected dimension of two, more challenging search parameters could lead to a higher number of two-dimensional feature vectors.

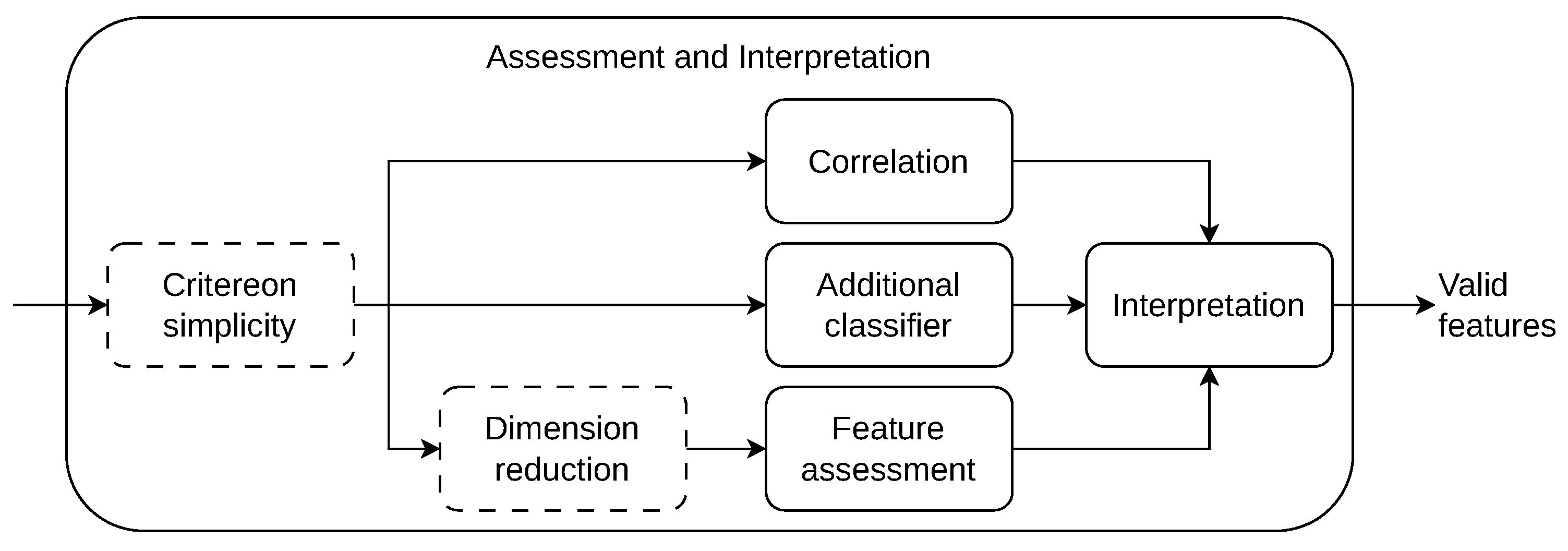

As depicted in Figure 5, the criterion to assess the found features is the correlation. Rows 7 and 8 list the number of found feature vectors with a Pearson correlation (PC) above 0.95 and 0.98. The counting includes the correlation of a single feature with parallel misalignment, load, and angular misalignment in the case of fault parallel misalignment, as well as cavitation and volumetric flow in the case of fault cavitation. For parallel misalignment, two features with a very high correlation were found with SFS and ACO, respectively. With the lower correlation, more features were found with SFS. Nevertheless, row 11 shows that more KDED conform features were found with ACO. This means that matching features do not need a very high correlation to build a plausible result. A different picture is shown in the results for the case of cavitation. For SFS and ACO, only two very highly correlated features were found. An explanation will be provided in the next section.

Row 10 lists the number of features found by both search strategies. For both data sets, approximately 50% of the overall number of features were discovered by both algorithms.

Row 11 lists the number of feature vectors that are compliant with the KDED criteria. In the case of parallel misalignment, SFS found 15 and ACO 36 of these feature vectors. The opposite result is shown for cavitation data; here, SFS found 11 and ACO found 5 vectors. The lower number of suitable feature vectors in the case of cavitation is confirmed through the assessment and interpretation step of KDED. In fact, the data for cavitation showed a worse separation capability compared to parallel misalignment. ACO seems to deal better with optimal data. However, a limitation to two-dimensional features could lead to more of the desired feature combination. Considering the best error rates and the number of KDED-compliant results, the ACO algorithm is the better choice for KDED. The reason for this is that the classification errors were slightly higher, but the number of useful combinations was also higher. This is because the algorithm does not discard features and optimizes each combination. This property is the most important for KDED.

3.2. KDED—Assessment and Interpretation

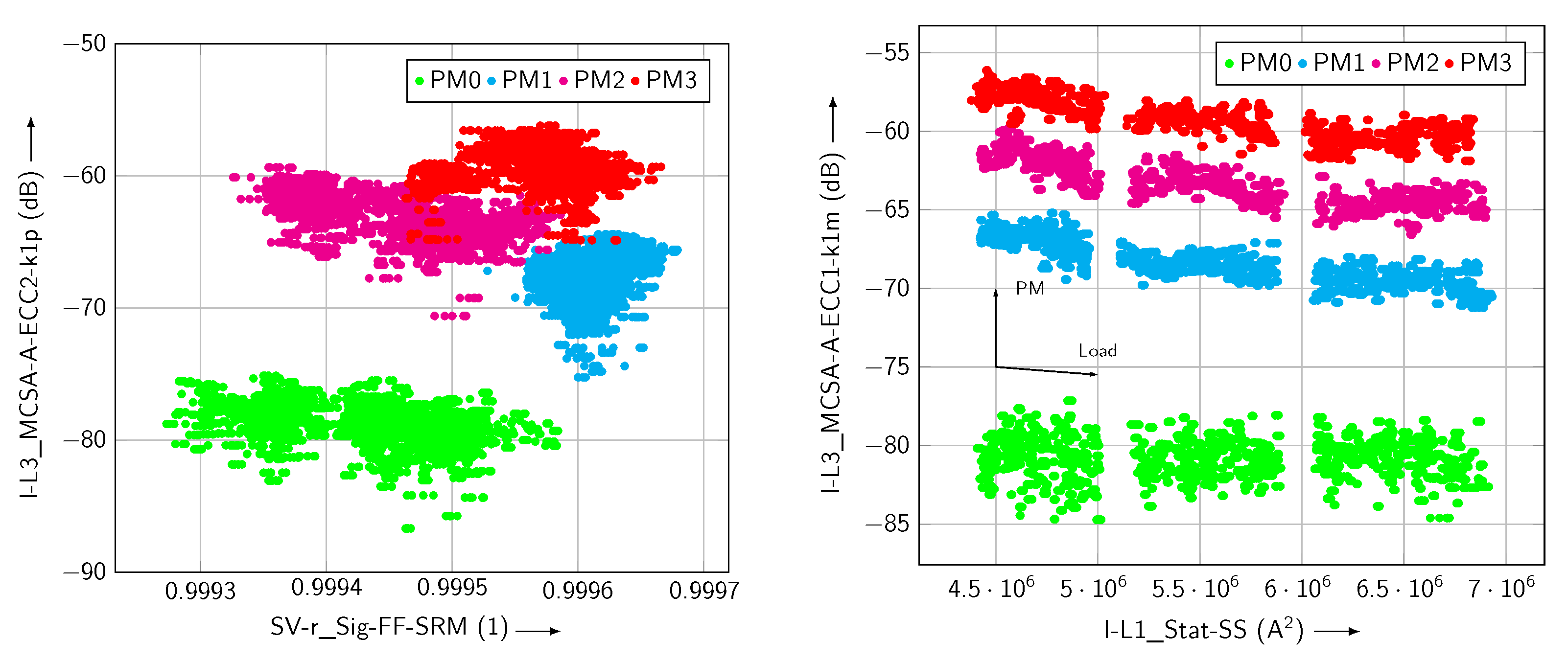

As described in the introduction, KDED was made to search for plausible results. Because of this, no results were obtained without an assessment and interpretation of the recommendations from the data mining step. As seen in Table 1, there are results with classification errors of less than 5%. The question now is whether these results are plausible. ACO did not find any plausible results. An example is shown in Figure 7 on the left-hand side. The depicted pattern shows all prime classes derived from the twelve conditions set by the experiment. This is one aspect of the KDED search. Unfortunately, the prime classes do not show an arrangement that is suitable for the order of the variables. The arrangement only fits for fault severity, not for the load. In the examined case, the intersection of the clusters was acceptable. The severity of the intersection only provides a hint regarding the maximal resolution of the physical magnitudes.

In contrast, Figure 7 depicts, on the right-hand side, a pattern from data mining with SFS that fulfills all the requirements of KDED. The pattern shows all prime classes that were set during the experiment. In addition, the arrangement follows the order of the major influences induced with the experiment. The correlation of the features with the major influences yields the following results:

• I_L1-SS: with load 0.961; with parallel misalignment −0.01.
• I_L3-ECC1-k1m: with load −0.098; with parallel misalignment 0.968.

This indicates that each of the features describes one influence. Compensation for multi-dependence is not necessary.

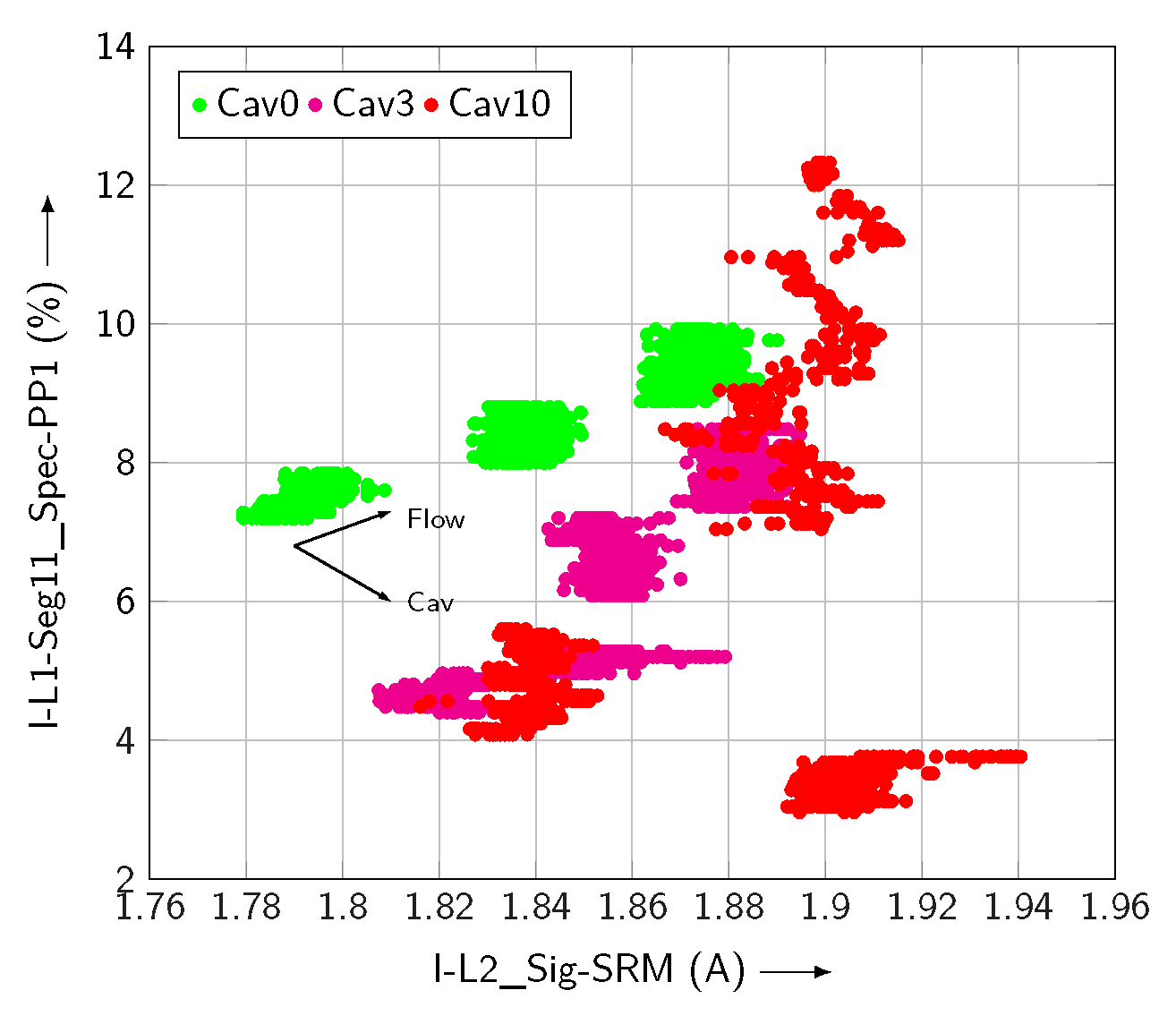

For the fault cavitation, KDED conform results were found with SFS. The pattern is depicted in Figure 8. The pattern shows all nine prime classes that were set during the experiment. Furthermore, the arrangement follows the order of the major influences induced with the experiment. Only one prime class is outside the expected lining, and one class has a bigger stray compared to the others. However, the selection is accepted. It is planned to repeat this experiment with optimized parameters to set the cavitation, because the 10% drop in head was difficult to keep stable. Solving this issue should lead to the exact lining. The features correlate with the main influences as follows:

• I_L2-SRM: with flow 0.832; with cavitation −0.468.
• I_L1-Seg11-PP1: with flow 0.178; with cavitation 0.586.

Figure 8. Pattern of a plausible result from the data mining step when applying ACO to cavitation data.

Figure 8. Pattern of a plausible result from the data mining step when applying ACO to cavitation data.

In this case, the correlation with disturbance is high, and the correlation with the target is only medium. However, in this case, both features correlate with cavitation. This also leads to classifiable results.

4. Conclusions

In this paper, a new framework, called KDE,D was presented. The framework is designed to search for plausible features and feature combinations that can solve a technical diagnostics problem and is expected to overcome domain shift issues.

Also, an evaluation is always needed. Data mining remains the central step in KDD and KDED. To improve the search, a novel ACO algorithm was presented. This was designed to fulfill all KDED needs, overcoming nesting effect (completeness), feature vectors with a low classification rate (relevance), and the low number of features (interpretability), and achieving global optima (quality) within a feasible execution time. Although the nesting effect was not relevant to the real-world data, the mechanism was tested separately. The expectation that the ACO algorithm would find the global best features was also not presented with the selected hyperparameter. Moreover, SFS alone found two feature vectors with a classification error of zero. Nevertheless, ACO found 240% more KDED conform feature vectors (36:15) in the case of parallel misalignment. And, for cavitation, ACO found 45% of the features compared to SFS (5:15). An explanation for this is that the algorithm, in this case, tends to select a third feature. Considering the rule regarding simplicity and the results of SFS, this third feature is not necessary and prevents meaningful combinations. A slight optimization of the hyperparameters could solve this problem. The number of KDED conform results remains the most meaningful value in the context of KDED. Because of this, meta-heuristic search strategies such as ACO are suitable for knowledge discovery.

The application of ACO also showed some limitations. First, ACO has many more hyperparameters, and a well-tuned set of these parameters is crucial for finding suitable results. Second, the global best results are of a special interest in KDED. Unfortunately, the implemented algorithm in combination with the selected hyperparameter did not lead to the best results. It is expected that optimization in this direction would lead to a drastic increase in the execution time.

An example of plausible results for the faults of parallel misalignment and cavitation were presented and discussed. These results were obtained with SFS and ACO. The good characteristics of the results led to high correlation coefficients. As an example, a power-related feature, sum of squares, and an eccentricity-related feature, MCSA-ECC1, lead, in the case of parallel misalignment, to a classification error of zero. The target can be perfectly classified even if the load varies. A similar result, with some limitations, was presented for the case of cavitation. The first feature, peak position, is slip-related and correlates with cavitation. The second feature, square root mean, is related to the power consumption and correlates with the flow. These findings of basic relations can easily be applied to new problems of the same kind.

Further developments will bring the LOGO to KDED. With this, a proof for the transferable feature sets will be obtained. Another improvement is the application of hybrid methods. With this measure, a shorter search, especially in the case of ACO will be realized.
