# Water Particles Monitoring in the Atacama Desert: SPC Approach Based on Proportional Data

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. The Data

## 3. Methodology

#### 3.1. The Unit-Lindley Distribution

`expint`package [28] in R.

`pracma`package [30] in R.

#### 3.2. Proposed Unit-Lindley Chart

## 4. Statistical Performance

#### 4.1. In-Control Processes

#### 4.2. Out-of-Control Processes

#### 4.3. Comparison with Some Standard Control Charts

## 5. Application

## 6. Concluding Remarks and Future Prospects

## Author Contributions

## Funding

## Institutional Review Board Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Petitgas, P. The CUSUM out-of-control table to monitor changes in fish stock status using many indicators. Aquat. Living Resour.
**2009**, 22, 201–206. [Google Scholar] [CrossRef] - Hanslik, T.; Boelle, P.Y.; Flahault, A. The control chart: An epidemiological tool for public health monitoring. Public Health
**2001**, 115, 277–281. [Google Scholar] [CrossRef] - Khan, Z.; Gulistan, M.; Hashim, R.; Yaqoob, N.; Chammam, W. Design of S-control chart for neutrosophic data: An application to manufacturing industry. J. Intell. Fuzzy Syst.
**2020**, 38, 4743–4751. [Google Scholar] [CrossRef] - Sellers, K.F. A generalized statistical control chart for over-or under-dispersed data. Qual. Reliab. Eng. Int.
**2012**, 28, 59–65. [Google Scholar] [CrossRef] - Woodall, W.H. Control charts based on attribute data: Bibliography and review. J. Qual. Technol.
**1997**, 29, 172–183. [Google Scholar] [CrossRef] - Joekes, S.; Barbosa, E.P. An improved attribute control chart for monitoring non-conforming proportion in high quality processes. Control. Eng. Pract.
**2013**, 21, 407–412. [Google Scholar] [CrossRef] - Lima-Filho, L.M.d.A.; Bayer, F.M. Kumaraswamy control chart for monitoring double bounded environmental data. Commun. Stat.-Simul. Comput.
**2019**, 1–16. [Google Scholar] [CrossRef] - Abbas, Z.; Nazir, H.Z.; Akhtar, N.; Abid, M.; Riaz, M. On designing an efficient control chart to monitor fraction nonconforming. Qual. Reliab. Eng. Int.
**2020**, 36, 547–564. [Google Scholar] [CrossRef] - Montgomery, D.C. Introduction to Statistical Quality Control; John Wiley & Sons: Hoboken, NJ, USA, 2020. [Google Scholar]
- Lee Ho, L.; Fernandes, F.H.; Bourguignon, M. Control charts to monitor rates and proportions. Qual. Reliab. Eng. Int.
**2019**, 35, 74–83. [Google Scholar] [CrossRef] [Green Version] - Sant’Anna, Â.M.O.; Ten Caten, C.S. Beta control charts for monitoring fraction data. Expert Syst. Appl.
**2012**, 39, 10236–10243. [Google Scholar] [CrossRef] - Korkmaz, M.Ç.; Chesneau, C.; Korkmaz, Z.S. On the arcsecant hyperbolic normal distribution. Properties, quantile regression modeling and applications. Symmetry
**2021**, 13, 117. [Google Scholar] [CrossRef] - Bakouch, H.S.; Nik, A.S.; Asgharzadeh, A.; Salinas, H.S. A flexible probability model for proportion data: Unit-half-normal distribution. Commun. Stat. Case Stud. Data Anal. Appl.
**2021**, 7, 271–288. [Google Scholar] - Bantan, R.A.R.; Chesneau, C.; Jamal, F.; Elgarhy, M.; Tahir, M.H.; Ali, A.; Zubair, M.; Anam, S. Some new facts about the unit-Rayleigh distribution with applications. Mathematics
**2020**, 8, 1954. [Google Scholar] [CrossRef] - Mazucheli, J.; Menezes, A.; Dey, S. The unit-Birnbaum-Saunders distribution with applications. Chil. J. Stat.
**2018**, 9, 47–57. [Google Scholar] - Zellner, A.; Keuzenkamp, H.A.; McAleer, M. Simplicity, Inference and Modelling: Keeping It Sophisticatedly Simple; Cambridge University Press: Cambridge, UK, 2001. [Google Scholar]
- Mazucheli, J.; Menezes, A.F.B.; Chakraborty, S. On the one parameter unit-Lindley distribution and its associated regression model for proportion data. J. Appl. Stat.
**2019**, 46, 700–714. [Google Scholar] [CrossRef] [Green Version] - Bonnail, E.; Lima, R.C.; Turrieta, G.M. Trapping fresh sea breeze in desert? Health status of Camanchaca, Atacama’s fog. Environ. Sci. Pollut. Res.
**2018**, 25, 18204–18212. [Google Scholar] [CrossRef] - Schemenauer, R.S.; Fuenzalida, H.; Cereceda, P. A neglected water resource: The Camanchaca of South America. Bull. Am. Meteorol. Soc.
**1988**, 69, 138–147. [Google Scholar] [CrossRef] [Green Version] - Diday, E. Thinking by classes in data science: The symbolic data analysis paradigm. Wiley Interdiscip. Rev. Comput. Stat.
**2016**, 8, 172–205. [Google Scholar] [CrossRef] - Nascimento, D.C.; Pimentel, B.; Souza, R.; Leite, J.P.; Edwards, D.J.; Santos, T.E.; Louzada, F. Dynamic time series smoothing for symbolic interval data applied to neuroscience. Inf. Sci.
**2020**, 517, 415–426. [Google Scholar] [CrossRef] - Bull, A.T.; Andrews, B.A.; Dorador, C.; Goodfellow, M. Introducing the Atacama Desert; Springer: Berlin/Heidelberg, Germany, 2018. [Google Scholar]
- Grosjean, M.; Veit, H. Water Resources in the Arid Mountains of the Atacama Desert (Northern Chile): Past Climate Changes and Modern Conflicts. In Global Change and Mountain Regions: An Overview of Current Knowledge; Huber, U.M., Bugmann, H.K.M., Reasoner, M.A., Eds.; Springer: Dordrecht, The Netherlands, 2005; pp. 93–104. [Google Scholar] [CrossRef]
- García, A.; Ulloa, C.; Amigo, G.; Milana, J.P.; Medina, C. An inventory of cryospheric landforms in the arid diagonal of South America (high Central Andes, Atacama region, Chile). Quat. Int.
**2017**, 438, 4–19. [Google Scholar] [CrossRef] - Donoso, G.; Lictevout, E.; Rinaudo, J.D. Groundwater management lessons from Chile. In Sustainable Groundwater Management; Springer: Berlin/Heidelberg, Germany, 2020; pp. 481–509. [Google Scholar]
- Suárez, F.; Muñoz, J.F.; Fernández, B.; Dorsaz, J.M.; Hunter, C.K.; Karavitis, C.A.; Gironás, J. Integrated water resource management and energy requirements for water supply in the Copiapó river basin, Chile. Water
**2014**, 6, 2590–2613. [Google Scholar] [CrossRef] [Green Version] - Abramowitz, M.; Stegun, I.A. Handbook of Mathematical Functions with Formulas, Graphs, and Mathematical Tables; US Government Printing Office: Washington, DC, USA, 1964; Volume 55.
- Goulet, V. Expint: Exponential Integral and Incomplete Gamma Function. R Package. 2016. Available online: https://cran.r-project.org/package=expint (accessed on 26 January 2021).
- Corless, R.M.; Gonnet, G.H.; Hare, D.E.G.; Jeffrey, D.J.; Knuth, D.E. On the LambertW function. Adv. Comput. Math.
**1996**, 5, 329–359. [Google Scholar] [CrossRef] - Borchers, H.W. Pracma: Practical Numerical Math Functions. R Package Version 2.2.9. 2019. Available online: https://cran.r-project.org/package=pracma (accessed on 29 January 2021).
- Cox, D.R.; Snell, E.J. A general definition of residuals. J. R. Stat. Soc. Ser. B Methodol.
**1968**, 30, 248–265. [Google Scholar] [CrossRef] - Bayer, F.M.; Tondolo, C.M.; Müller, F.M. Beta regression control chart for monitoring fractions and proportions. Comput. Ind. Eng.
**2018**, 119, 416–426. [Google Scholar] [CrossRef] [Green Version] - R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2020. [Google Scholar]
- Saghir, A.; Lin, Z. Control charts for dispersed count data: An overview. Qual. Reliab. Eng. Int.
**2015**, 31, 725–739. [Google Scholar] [CrossRef] - Riaz, M.; Ajadi, J.O.; Mahmood, T.; Abbasi, S.A. Multivariate mixed EWMA-CUSUM control chart for monitoring the process variance-covariance matrix. IEEE Access
**2019**, 7, 100174–100186. [Google Scholar] [CrossRef] - Jensen, W.A.; Jones-Farmer, L.A.; Champ, C.W.; Woodall, W.H. Effects of parameter estimation on control chart properties: A literature review. J. Qual. Technol.
**2006**, 38, 349–364. [Google Scholar] [CrossRef] - Moraes, D.; Oliveira, F.L.P.d.; Quinino, R.d.C.; Duczmal, L.H. Self-oriented control charts for efficient monitoring of mean vectors. Comput. Ind. Eng.
**2014**, 75, 102–115. [Google Scholar] [CrossRef] [Green Version] - Paroissin, C.; Penalva, L.; Pétrau, A.; Verdier, G. New control chart for monitoring and classification of environmental data. Environmetrics
**2016**, 27, 182–193. [Google Scholar] [CrossRef] - Jorgensen, B. The Theory of Dispersion Models; CRC Press: Boca Raton, FL, USA, 1997. [Google Scholar]
- Kumaraswamy, P. A generalized probability density function for double-bounded random processes. J. Hydrol.
**1980**, 46, 79–88. [Google Scholar] [CrossRef] - Wikipedia. Copiapó—Wikipedia, The Free Encyclopedia. 2021. Available online: https://en.wikipedia.org/w/index.php?title=Copiapó&oldid=1013845587 (accessed on 26 April 2021).
- Cleveland, W.S. Robust locally weighted regression and smoothing scatterplots. J. Am. Stat. Assoc.
**1979**, 74, 829–836. [Google Scholar] [CrossRef] - Bock, H.H.; Diday, E. Analysis of Symbolic Data, Exploratory Methods for Extracting Statistical Information from Complex Data; Springer: Berlin/Heidelberg, Germany, 2000. [Google Scholar]
- Billard, L.; Diday, E. Symbolic Data Analysis: Conceptual Statistics and Data Mining; John Wiley: Hoboken, NJ, USA, 2006. [Google Scholar]
- Diday, E.; Noirhomme-Fraiture, M. Symbolic Data Analysis and the SODAS Software; John Wiley & Sons: Hoboken, NJ, USA, 2008. [Google Scholar]
- Billard, L.; Diday, E. Clustering Methodology for Symbolic Data; John Wiley & Sons: Hoboken, NJ, USA, 2019. [Google Scholar]
- Diday, E.; Guan, R.; Saporta, G.; Wang, H. Advances in Data Science: Symbolic, Complex, and Network Data; John Wiley & Sons: Hoboken, NJ, USA, 2020. [Google Scholar]
- Conover, W.J. Practical Nonparametric Statistics, 3rd ed.; John Wiley & Sons: Hoboken, NJ, USA, 1999. [Google Scholar]

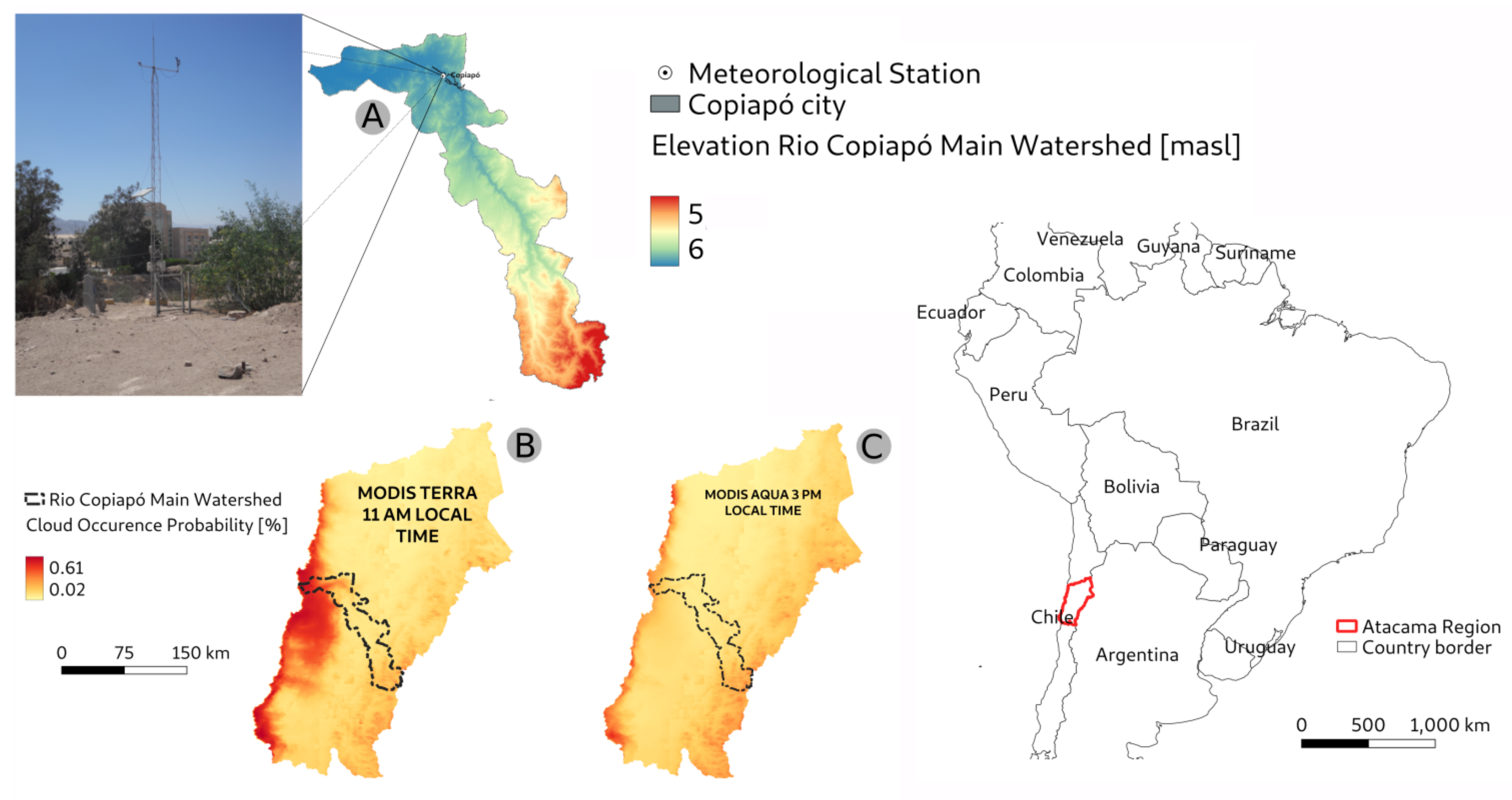

**Figure 1.**Statistics of the cloud occurrence over the Atacama region (panels B and C), shaded from high probability of cloud occurrence in dark-red to low probability of cloud occurrence in beige. The bottom left-hand map represents Terra MODIS (panel B), and Aqua MODIS (panel C) is in the bottom center map. The transaction of the dark-red area, which occurs mainly during the dawn and morning and is most associated with the Camanchaca increasing the humidity of the Chilean third region coast up to the beginning of the highlands, turns into the low scale of humidity right in the afternoons, represented by the full red map. Two bays are to be noticeable: in Copiapó and Huasco, as convergence points. In panel A, the digital elevation model for part of the Copiapó watershed is presented. Our data acquisition came from a weather station located at the University of Atacama in Copiapó, Chile (in the top left-hand picture).

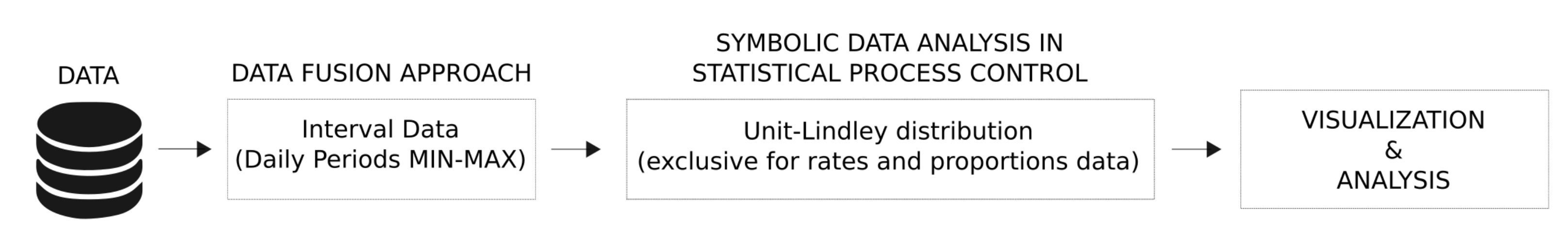

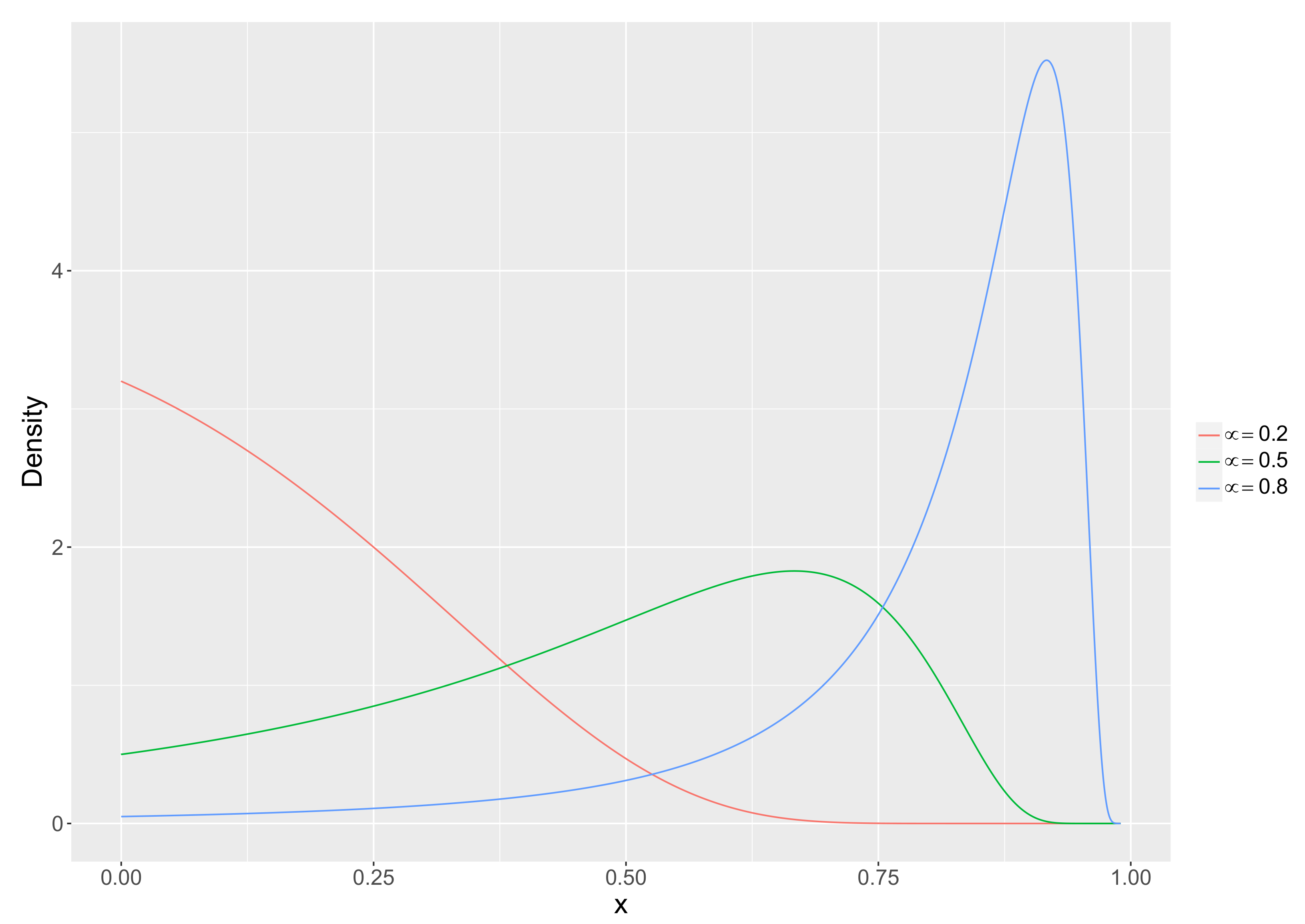

**Figure 3.**Unit-Lindley density function for the different parameter values considered in this study.

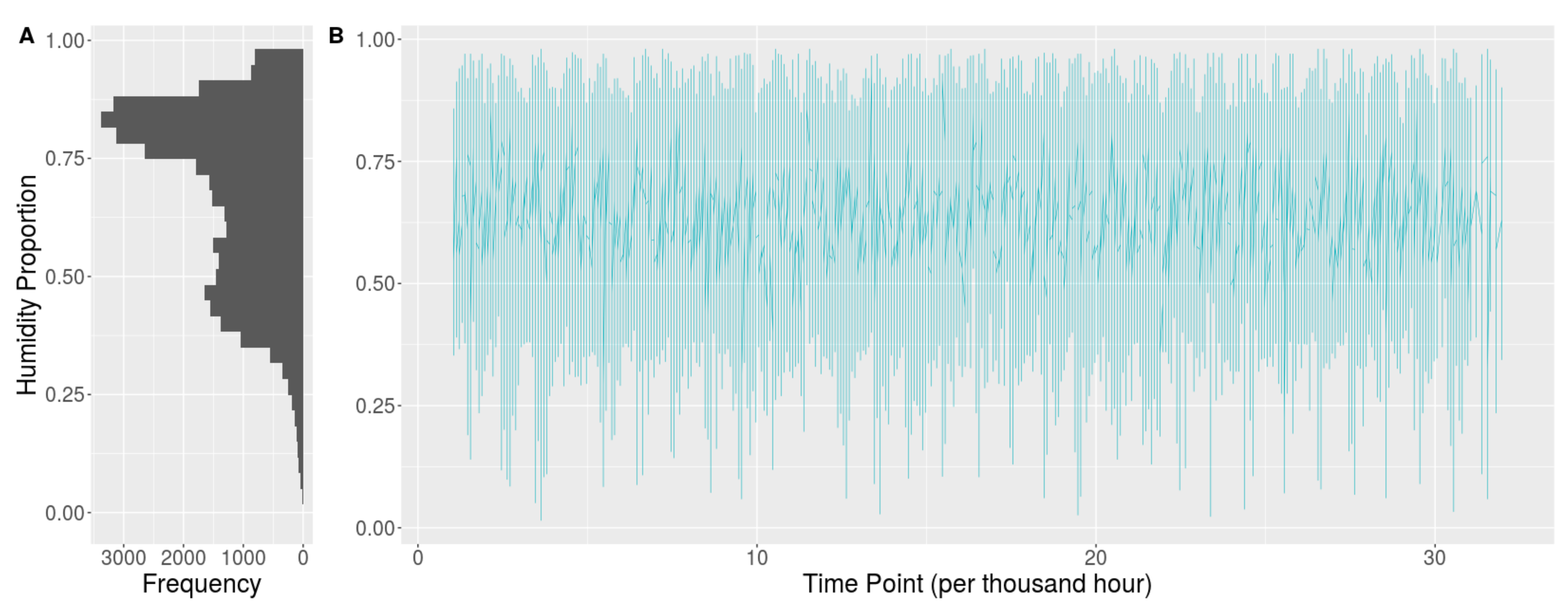

**Figure 4.**Humidity variation, collected per hour, from Copiapó (Chile) in the last five years. Panel A presents the histogram of the time series (TS), and panel B shows the dynamic of this series in light blue. Also, the solid line represents the TS average using a LOESS (an acronym for “Locally Estimated Scatterplot Smoothing”) smoothing method [42].

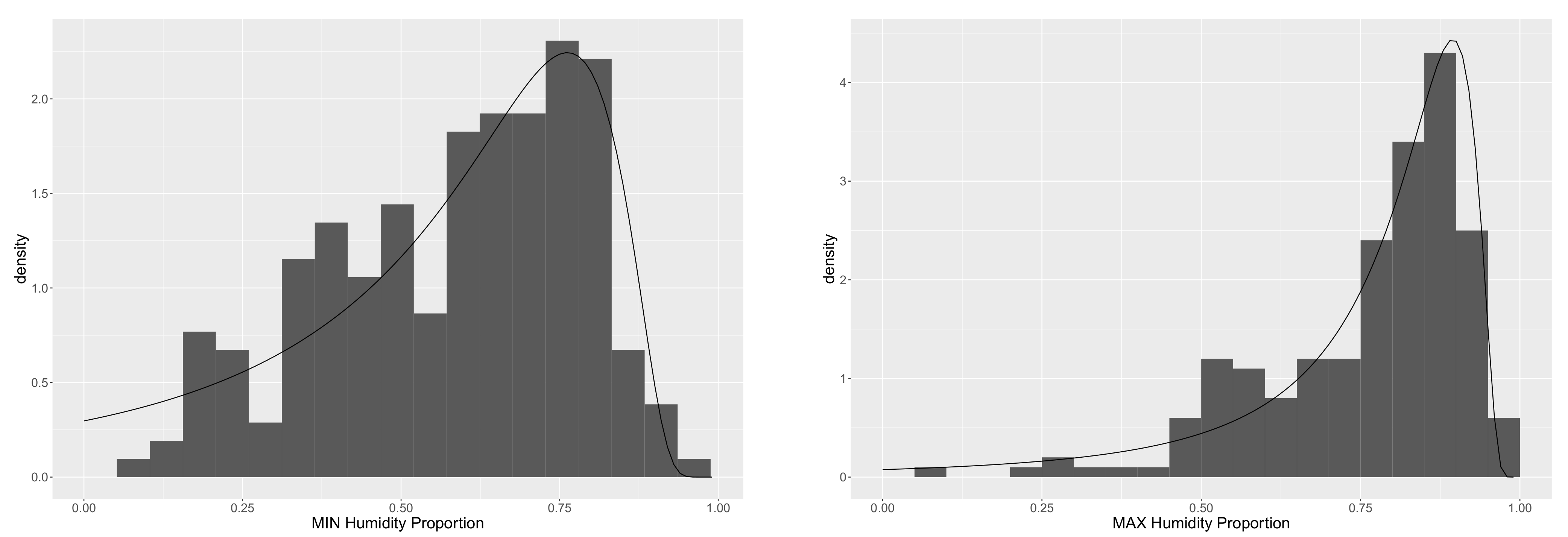

**Figure 5.**Histogram of the minimum (

**left-hand panel**) and maximum (

**right-hand panel**) observations, after aggregating the daily humidity representation of the data in day periods (parts 1–4), followed by a black solid line representing the estimated PDF of the unit-Lindley distribution.

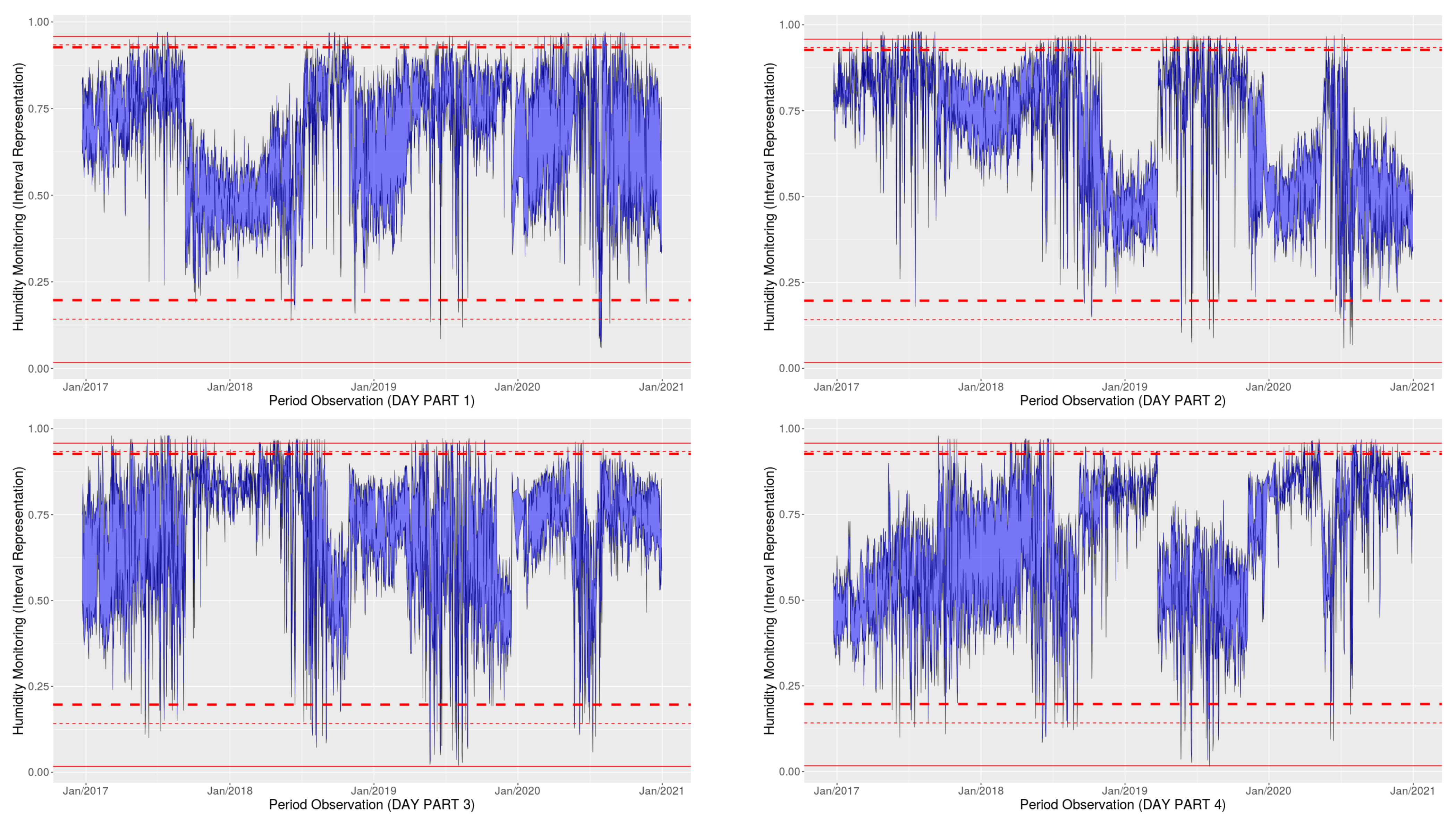

**Figure 6.**A visualization of the dynamic of Phase 1 (minimum and maximum TS), considering the observation points as four periods of the day, one in each graphic. Top-left panel: the day period part 1 (from midnight to 5:59 a.m. UTC); top-right panel: the day period part 2 (from 6:00 a.m. to 11:59 a.m. UTC); bottom-left panel: the day period part 3 (from midday to 5:59 p.m. UTC); bottom-right panel: the day period part 4 (from 6:00 p.m. to 11:59 p.m. UTC). Thus, the red lines represent three tolerance ($\alpha $) levels (15% as thick dashed line, 10% as thin dashed line, and 1% as solid line) for each estimated control limit (UCL for the maximum TS, and LCL for the minimum TS).

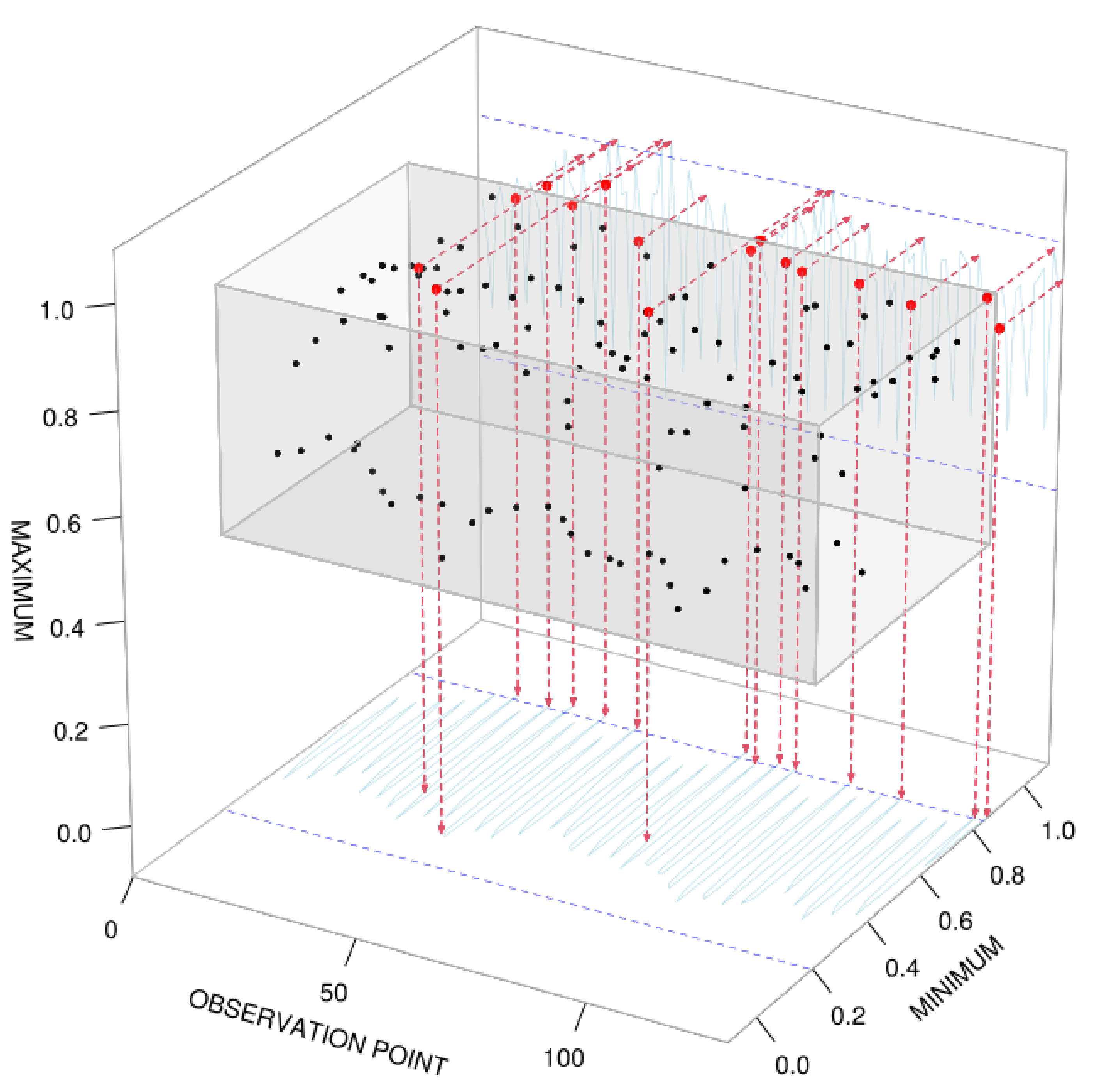

**Figure 7.**SDA bivariate control chart for the daily humidity in Phase II monitoring (records from 2021). Through the 3D plot, the z-axis represents the maximum upper bound and the y-axis the minimum lower bound from the daily humidity (aggregated per periods), adopting a certain tolerance level ($\alpha =0.15$ or $15\%$), whereas the x-axis is related to the time observation points (as dots). The estimated control limits are represented as a shaded box, observed out-of-control points are highlighted as red points and their projections placed in the control chart projections. Thus, the TS projection on the bottom (x- and y-axes) is the control chart related to the minimum daily humidity, and the TS projection on the background (x- and z-axes) is the control chart of the maximum daily humidity.

$\mathit{\alpha}=0.1$ | $\mathit{\alpha}=0.01$ | $\mathit{\alpha}=0.0027$ | |||||||
---|---|---|---|---|---|---|---|---|---|

$\mathit{\mu}$ | LCL | CL | UCL | LCL | CL | UCL | LCL | CL | UCL |

0.08 | 0.0048 | 0.08 | 0.2190 | 0.0005 | 0.08 | 0.3303 | 0.0001 | 0.08 | 0.3802 |

0.12 | 0.0079 | 0.12 | 0.3124 | 0.0008 | 0.12 | 0.4428 | 0.0002 | 0.12 | 0.4965 |

0.16 | 0.0115 | 0.16 | 0.3954 | 0.0011 | 0.16 | 0.5320 | 0.0003 | 0.16 | 0.5846 |

0.20 | 0.0158 | 0.20 | 0.4688 | 0.0016 | 0.20 | 0.6038 | 0.0004 | 0.20 | 0.6530 |

0.24 | 0.0208 | 0.24 | 0.5335 | 0.0021 | 0.24 | 0.6623 | 0.0006 | 0.24 | 0.7072 |

0.28 | 0.0269 | 0.28 | 0.5905 | 0.0027 | 0.28 | 0.7107 | 0.0007 | 0.28 | 0.7512 |

0.32 | 0.0341 | 0.32 | 0.6407 | 0.0035 | 0.32 | 0.7512 | 0.0009 | 0.32 | 0.7873 |

0.36 | 0.0428 | 0.36 | 0.6851 | 0.0044 | 0.36 | 0.7854 | 0.0012 | 0.36 | 0.8174 |

0.40 | 0.0534 | 0.40 | 0.7244 | 0.0055 | 0.40 | 0.8146 | 0.0015 | 0.40 | 0.8429 |

0.44 | 0.0662 | 0.44 | 0.7592 | 0.0070 | 0.44 | 0.8397 | 0.0019 | 0.44 | 0.8646 |

0.48 | 0.0819 | 0.48 | 0.7902 | 0.0088 | 0.48 | 0.8616 | 0.0024 | 0.48 | 0.8834 |

0.52 | 0.1012 | 0.52 | 0.8179 | 0.0112 | 0.52 | 0.8807 | 0.0030 | 0.52 | 0.8997 |

0.56 | 0.1250 | 0.56 | 0.8426 | 0.0142 | 0.56 | 0.8975 | 0.0039 | 0.56 | 0.9139 |

0.60 | 0.1545 | 0.60 | 0.8648 | 0.0183 | 0.60 | 0.9124 | 0.0050 | 0.60 | 0.9265 |

0.64 | 0.1912 | 0.64 | 0.8848 | 0.0240 | 0.64 | 0.9256 | 0.0066 | 0.64 | 0.9377 |

0.68 | 0.2366 | 0.68 | 0.9029 | 0.0319 | 0.68 | 0.9375 | 0.0089 | 0.68 | 0.9477 |

0.72 | 0.2927 | 0.72 | 0.9193 | 0.0433 | 0.72 | 0.9481 | 0.0122 | 0.72 | 0.9566 |

0.76 | 0.3612 | 0.76 | 0.9341 | 0.0607 | 0.76 | 0.9578 | 0.0174 | 0.76 | 0.9647 |

0.80 | 0.4433 | 0.80 | 0.9477 | 0.0881 | 0.80 | 0.9665 | 0.0260 | 0.80 | 0.9720 |

0.84 | 0.5393 | 0.84 | 0.9600 | 0.1339 | 0.84 | 0.9744 | 0.0417 | 0.84 | 0.9786 |

0.88 | 0.6475 | 0.88 | 0.9713 | 0.2151 | 0.88 | 0.9817 | 0.0739 | 0.88 | 0.9847 |

0.92 | 0.7642 | 0.92 | 0.9817 | 0.3645 | 0.92 | 0.9883 | 0.1522 | 0.92 | 0.9902 |

**Table 2.**Statistical summary description, per year, highlighting in bold the highest values per statistic.

Min. | 1st Quartile | Median | Mean | 3rd Quartile | Max. | ||
---|---|---|---|---|---|---|---|

Minimum | 2016 | 0.33 | 0.398 | 0.525 | 0.544 | 0.66 | 0.81 |

2017 | 0.10 | 0.43 | 0.58 | 0.581 | 0.74 | 0.98 | |

2018 | 0.072 | 0.418 | 0.57 | 0.575 | 0.741 | 0.965 | |

2019 | 0.015 | 0.408 | 0.557 | 0.563 | 0.722 | 0.963 | |

2020 | 0.059 | 0.413 | 0.571 | 0.571 | 0.74 | 0.957 | |

2021 | 0.295 | 0.39 | 0.567 | 0.559 | 0.731 | 0.873 | |

Maximum | 2016 | 0.50 | 0.61 | 0.77 | 0.726 | 0.81 | 0.89 |

2017 | 0.24 | 0.69 | 0.81 | 0.774 | 0.87 | 0.98 | |

2018 | 0.182 | 0.674 | 0.816 | 0.771 | 0.878 | 0.973 | |

2019 | 0.079 | 0.652 | 0.808 | 0.755 | 0.866 | 0.972 | |

2020 | 0.216 | 0.668 | 0.815 | 0.77 | 0.873 | 0.973 | |

2021 | 0.449 | 0.686 | 0.805 | 0.753 | 0.847 | 0.958 |

**Table 3.**The p-values from the Kolmogorov-Smirnov goodness-of-fit test for some continuous distributions defined on the range $(0,1)$ adjusted to the minimum and maximum daily relative humidity data.

Distribution | Minimum | Maximum |
---|---|---|

Unit-Lindley | 0.769 | 0.797 |

Beta | 0.104 | 0.012 |

Simplex | 0.089 | 0.038 |

Kumaraswamy | 0.176 | 0.015 |

**Table 4.**Control limits of the unit-Lindley chart for the minimum and maximum daily humidity monitoring.

Tolerance | Minimum | Maximum | ||||
---|---|---|---|---|---|---|

($\mathit{\alpha}$) | LCL | CL ($\widehat{\mathit{\mu}}$) | UCL | LCL | CL ($\widehat{\mathit{\mu}}$) | UCL |

0.15 | 0.197 | 0.584 | 0.840 | 0.447 | 0.760 | 0.927 |

0.10 | 0.142 | 0.584 | 0.856 | 0.361 | 0.760 | 0.934 |

0.01 | 0.017 | 0.584 | 0.906 | 0.061 | 0.760 | 0.958 |
