Article

Future Projection with an Extreme-Learning Machine and Support Vector Regression of Reference Evapotranspiration in a Mountainous Inland Watershed in North-West China

^{1}

Key Laboratory of Ecohydrology of Inland River Basin, Northwest Institute of Eco-Environment and Resources, Chinese Academy of Sciences, Lanzhou 730000, China

^{2}

School of Agricultural Computational and Environmental Sciences, Institute of Agriculture and Environment (IAg&E), University of Southern Queensland, Springfield, QLD 4300, Australia

^{*}

Authors to whom correspondence should be addressed.

Received: 14 October 2017 / Accepted: 6 November 2017 / Published: 11 November 2017

## Abstract

**:**

This study aims to project future variability of reference evapotranspiration (ET

_{0}) using artificial intelligence methods, constructed with an extreme-learning machine (ELM) and support vector regression (SVR) in a mountainous inland watershed in north-west China. Eight global climate model (GCM) outputs retrieved from the Coupled Model Inter-comparison Project Phase 5 (CMIP5) were employed to downscale monthly ET_{0}for the historical period 1960–2005 as a validation approach and for the future period 2010–2099 as a projection of ET_{0}under the Representative Concentration Pathway (RCP) 4.5 and 8.5 scenarios. The following conclusions can be drawn: the ELM and SVR methods demonstrate a very good performance in estimating Food and Agriculture Organization (FAO)-56 Penman–Monteith ET_{0}. Variation in future ET_{0}mainly occurs in the spring and autumn seasons, while the summer and winter ET_{0}changes are moderately small. Annually, the ET_{0}values were shown to increase at a rate of approximately 7.5 mm, 7.5 mm, 0.0 mm (8.2 mm, 15.0 mm, 15.0 mm) decade^{−1}, respectively, for the near-term projection (2010–2039), mid-term projection (2040–2069), and long-term projection (2070–2099) under the RCP4.5 (RCP8.5) scenario. Compared to the historical period, the relative changes in ET_{0}were found to be approximately 2%, 5% and 6% (2%, 7% and 13%), during the near, mid- and long-term periods, respectively, under the RCP4.5 (RCP8.5) warming scenarios. In accordance with the analyses, we aver that the opportunity to downscale monthly ET_{0}with artificial intelligence is useful in practice for water-management policies.Keywords:

reference evapotranspiration (ET_{0}); extreme-learning machine; support vector regression; ET

_{0}projection; climate change

## 1. Introduction

Reference evapotranspiration (ET

_{0}) is a significant parameter for agriculture, ecosystems and hydrological modeling [1,2]. ET_{0}is one of the most important indicators of global climate change and hydrological regime changes [3]. Therefore, the estimation and projection of trends in ET_{0}can be very important for water-resource management, precision agriculture, irrigation planning, and hydrological modeling studies [4,5,6]. In the last few decades, many different models, including water budget-based, mass transfer-based, temperature-based, radiation-based and combination approaches, have been used to estimate ET_{0}[7,8,9]. Based on a significantly large number of existing research studies, the FAO-56 Penman–Monteith (PM) equation is considered to be the most precise and widely used approach for estimating ET_{0}and for providing the validation standard for the other predictive models [3,10,11,12,13]. Many studies have regarded the ET_{0}values estimated by the FAO-56 PM method as reference values for the other methods [14,15].Other than the utilization of traditional ET

_{0}estimation methods, artificial intelligence (AI) based approaches have also been tested to estimate ET_{0}, as well as other real-life case studies [16,17,18,19,20,21]. For instance, Kumar et al. [22] first investigated the ability of AI-based models in ET_{0}estimation, where artificial neural network (ANN) models were validated for this purpose. A number of other researchers have also paid considerable attention to the use of AI-based methods in estimating ET_{0}where ANN, adaptive neuro-fuzzy inference system (ANFIS), support vector regression (SVR), general neuro-fuzzy models, gene-expression programming, M5 Model Tree (M5Tree), extreme-learning machines (ELM), and so on, have been applied [4,5,23,24,25,26,27,28,29,30,31,32,33]. Among these AI-based methods, the SVR model is considered to be one of the novel models to have been widely applied in ET_{0}estimation studies. Wen et al. [34] evaluated the potential utility of SVR to model the daily ET_{0}with limited climatic data in an extremely arid region. The results indicated that the SVR-based ET_{0}was in good agreement with the FAO-56 PM based ET_{0}calculations. Furthermore, the use of SVR, ANFIS-, regression- and climate-based models for ET_{0}estimation in a semi-arid highland environment were also investigated by Tabari et al. [35], whose results revealed that the SVR model was considerably better than those attained by applying the regression- and climate-based models. In another study, the results from Yin et al. [36] obtained in a semi-arid mountain area showed that the SVR model was much better than the ANN model applied for estimating the daily ET_{0}data. In fact, Kisi [37] found that the least square SVR models were considerably superior to the ANN models for the estimation of ET_{0}data. Given the superiority of the SVR model in estimating ET_{0}, this method has been proven to possess good stability with relatively high prediction accuracy in many locations.Recently, an extreme-learning machine (ELM), regarded as an AI-based fast and efficient learning technique, has been introduced and tested in many different fields of research [38,39,40,41,42,43,44,45,46,47]. A review of the applications and trends of studies using the ELM model has been performed by Huang et al. [48]. In respect of the use of this method for an estimation of evapotranspiration, Abdullah et al. [5] first investigated the efficiency of the ELM method for the prediction of FAO-56 PM ET

_{0}data for three meteorological stations in Iraq, and the results proved that the ELM model was highly efficient in ET_{0}estimation. Then, Gocic et al. [49] applied the ELM model to estimate monthly ET_{0}for two weather stations in Serbia using data for a 31-year period, and the ELM-based ET_{0}data was compared with the results of the Hargreaves, Priestley–Taylor, and Turc equations. Evidently, the ELM model was found to be a better predictive tool than the other models considered for modeling monthly ET_{0}data. Although the ELM model is a relatively new AI-based method used for ET_{0}estimation, the model has been used rapidly in different locations and has proved to be an efficient and satisfactory tool for predicting ET_{0}.Data from the Intergovernmental Panel on Climate Change (IPCC) repositories show that global average air temperature has increased by 0.85 °C from 1880 to 2012, and would further rise by 1.5 °C by the end of the 21st century [50,51]. If so, this can directly or indirectly affect other climatic variables because of their links to atmospheric circulation [52]. It is notable that, as a result of climatic change, ET

_{0}has increased or decreased in different regions of the world [52,53,54,55,56]. Considering the uncertainty as to how the ET_{0}might change and its complex role in moderating climates in different regions, the projected future trends in ET_{0}under the background of climate change continues to receive significant attention.Future ET

_{0}projections can be performed using physically-based models and statistical methods (e.g., Penman–Monteith equations) or by AI-based models (e.g., ANN, SVR and ELM models) where the output climatic variables from global climate models (GCMs) and local-scale, nested systems such as regional climate models (RCMs) are adopted. Li et al. [57] examined the present and future characteristics of ET_{0}on the Loess Plateau of China based on historical weather data in order to downscale HadCM3 (Hadley Centre Coupled Model, version 3) outputs. That study showed that the ET_{0}values increased significantly during the 1961–2009 period, whereas the HadCM3 projections showed a continuous increase in ET_{0}values into the 21st century. The future ET_{0}projections on the Loess Plateau in the study of Gao et al. [58], using CMIP5 data, also demonstrated increasing trends during the 2001–2050 period. The future ET_{0}on the Loess Plateau was also investigated by the study of Peng et al. [59] where the average annual ET_{0}was shown to increase by approximately 12.7–23.9% from 1961 to 1990 towards the end of the 21st century. Xing et al. [13] conducted an investigation on present and future changes (i.e., 2011–2099) in ET_{0}in the Haihe River Basin of China through the outputs of climatic variables extracted from the Phase 3 of the Coupled Model Intercomparison Project (CMIP3). Concluding that the future projection of ET_{0}is significant in assessing the hydrological regime change impacted by climate change, the study of Wang et al. [3] selected different approaches to investigate the differences of future ET_{0}response to climate change in accordance with HadCM3 outputs for the Hanjiang River Basin. The results showed that the water surplus exhibited a likely decreasing trend in the period 2011–2099. Kundu et al. [60] estimated the future change (2011–2099) trends of ET_{0}in central India by downscaling HadCM3 output data.In accordance with the reviews, it is evident that future ET

_{0}changes has been projected for many regions of the world based on simulated outputs of GCM. However, current studies have mainly been based on conventional (i.e., statistical) methods and models (e.g., the Hargreaves equation). AI-based models that have the ability to integrate historical knowledge (i.e., changes in ET_{0}) with GCM-simulated data in order to perform modeling have seldom been used to estimate future ET_{0}values. Several studies have applied downscaling techniques based on artificial neural networks (ANN), multiple linear regressions and other statistical models, owing to their ability to capture non-linear relationships between ground and GCM-based predictors in respect of the predictands, such as rainfall, winds, cloud cover, streamflow and temperature (e.g., [61,62,63]).In this paper, we have adopted two well-established AI techniques, the support vector regression (SVR) and extreme-learning machine (ELM) algorithms, considering their popularity as robust tools applied in the area of predictive modeling. Notably, the SVR model is a statistical model based in theory that utilizes the regularization framework, presenting advancement over conventional artificial neural network models; whereas the ELM model is a fast and efficient neuro-computational approach offering an improvement in its design and universal approximation capability compared to conventional ANN models. The ELM model was shown to perform more accurately than the SVR and ANN models for drought studies [46] and the simulation of streamflow [47]. To the authors’ best knowledge, the SVR and ELM models have not been fully explored for the future projection of ET

_{0}. Serious consideration should be given to the fact that most of the future ET_{0}projections have been based on the outputs of single-simulation climate models (e.g., HadCM3) that have some degree of uncertainty due to the models’ internal variability and fidelity. Uncertainties are likely to degrade a model’s overall predictive skill [64]. It is thus desirable that climate modelers and climate policy-makers assess more quantitatively a model’s fidelity with respect to observed records, addressed by means of multi-model ensemble projections, in order to reduce uncertainties in the downscaled variables.Considering the aforementioned review of literature, this study employs two well-established AI-based models comprising ELM and SVR algorithms to project future changes in ET

_{0}in an inland mountainous watershed region of China in which data from GCM outputs of CMIP5 are utilized. In order to reduce the uncertainties of single-simulation GCM models, in this paper we have selected eight-model ensemble projections (from CMIP5) to analyze the overall future variability of ET_{0}in northwest of China. The FAO-56 PM based ET_{0}has been chosen as the verification standard for the downscaled data, which is meaningful for agricultural applications. The rest of the paper is structured as follows. Section 2 details the materials and methods, including a description of the study area, datasets, methodologies, model development and performance-evaluation measures; Section 3 gives the details of the results; Section 4 includes the discussion; and Section 4 lists the conclusions of this research.## 2. Materials and Methods

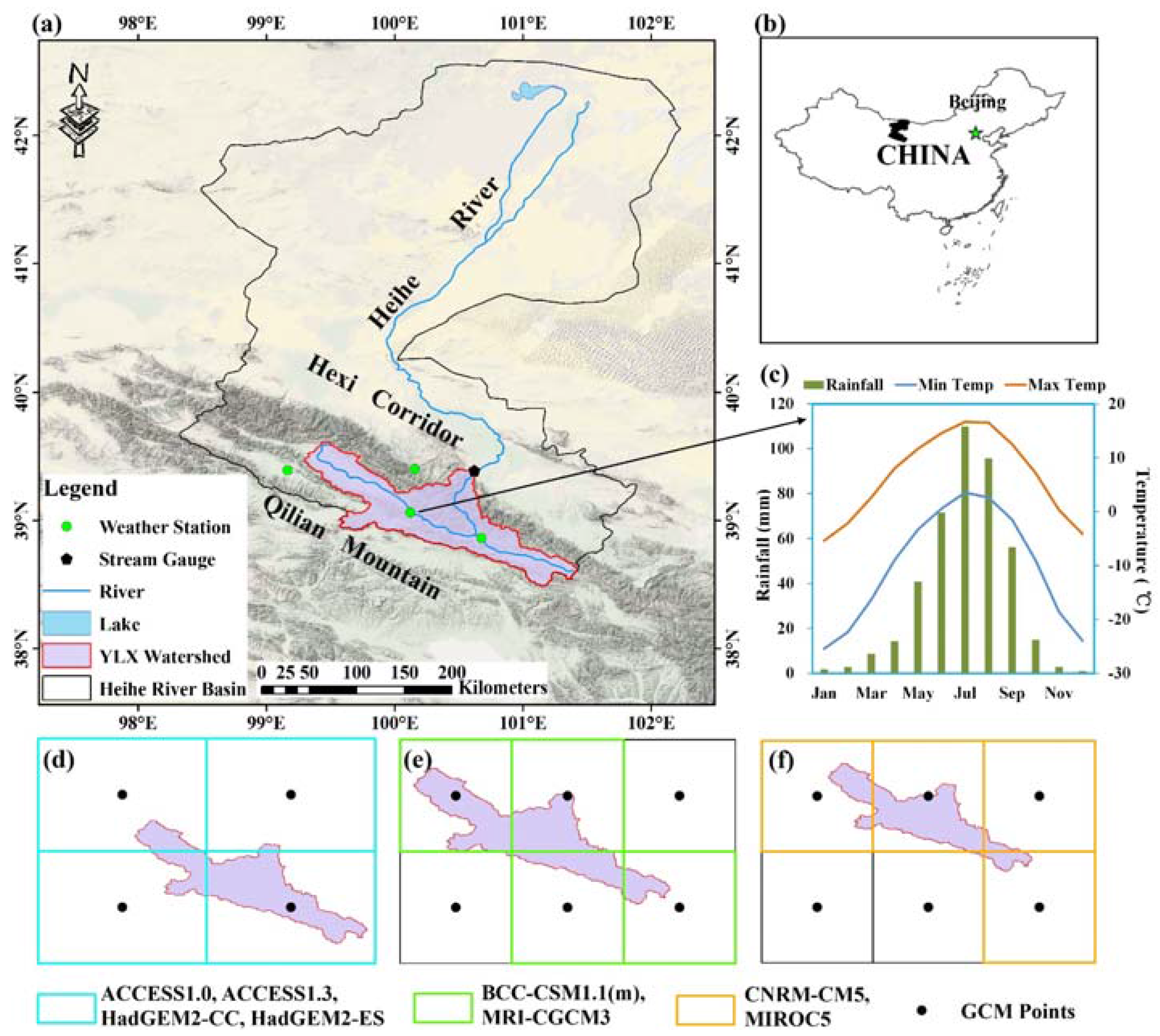

#### 2.1. Study Area

The Heihe is a famous inland river in China, located in the central part of the Hexi Corridor. In this study, we selected as the study area the headwater region (Yingluoxia Watershed) of the Heihe River (Figure 1) which is located on the north slope of Qilian Mountain covering an area of 10,018 km

^{2}lying between 99° to 101° E and 38° to 39° N. About 90% of the water resources of the Heihe River are generated from the Yingluoxia (YLX) Watershed. The water resources from the YLX Watershed supply more than 1.3 million people in China, support about 266,000 ha of irrigated agricultural land midstream and downstream, and also play a major role in maintaining the stability of the natural ecosystem. Considering these factors, the YLX Watershed is a very important inland area that has attracted much research attention in China. The climate of the watershed is characterized by hot and wet conditions in summer and cold and dry conditions in winter. The annual precipitation data shows a decrease in rainfall from the east to the west of the region, and an increase from approximately 200 mm to 700 mm with an increase in altitude. Detailed descriptions of the YLX Watershed can be found in previous studies of Yin et al. [65] and Cheng et al. [66].#### 2.2. Datasets

In this study, we have adopted two different datasets, including the observed historical weather data and the simulated global climate model (GCM) outputs, in order to calculate the ET

_{0}for the YLX Watershed region for the historical period 1961–2005 and the future period 2010–2099, respectively. The historical weather data including the daily maximum, minimum and mean temperature, relative humidity (%), precipitation (mm), wind speed (m/s), atmospheric pressure (hPa) and sunlight duration (h) at 4 weather stations in and around the YLX Watershed were downloaded from the China Meteorological Administration (http://data.cma.cn/) for the period 1961–2005. The simulated historical daily data in the same period for a total of 8 GCMs were acquired from the Coupled Model Intercomparison Project Phase 5 (CMIP5) project. The projected future daily data (e.g., daily maximum, minimum and mean temperature, daily relative humidity, wind speed, atmospheric pressure, etc.) were acquired for the period 2010–2099 for two distinct scenarios based on the Representative Concentration Pathways (RCP4.5 and 8.5) extracted from the simulations of the 8 GCMs. Table 1 shows the details of the 8 GCM outputs.In order to downscale ET

_{0}for the mountainous inland watershed region in north-west China, in this study we have employed two different AI-based techniques where the ELM and SVR algorithms were used to model ET_{0}for the historical period (1961–2005) and the future period (2010–2099). In this regard, during the historical simulation period, the observed and simulated historical datasets were partitioned into two distinct phases; with the first 30 years’ of data (i.e., 1961–1990) utilized as a training set and the remaining 15 years’ data (i.e., 1991–2005) utilized as a testing set. The projected future datasets were also divided into three segments of 30-year forecast horizons, which were denoted as: 2010–2039, 2040–2069, 2070–2099 to represent the climate change of the near-term, mid-term and long-term periods, respectively.#### 2.3. Computational Methodology

#### 2.3.1. FAO-56 Penman–Monteith Equation

ET
where ET

_{0}values computed by the FAO-56 Penman–Monteith equation were used in this study to evaluate the performance of the other prediction methods. Mathematically, the Penman–Monteith equation is expressed as follows:
$$E{T}_{0}=\frac{0.408\Delta \left({R}_{n}-G\right)+\gamma \frac{900}{{T}_{mean}+273}{U}_{2}\left({e}_{s}-{e}_{a}\right)}{\Delta +\gamma \left(1+0.34{U}_{2}\right)}$$

_{0}is the reference evapotranspiration (mm day^{−1}); Δ is the slope of the saturation vapor pressure–temperature curve (kPa °C^{−1}); R_{n}is the net radiation (MJ m^{−2}day^{−1}); G is the soil heat flux (MJ m^{2}day^{−1}); γ is the psychrometric constant (kPa °C^{−1}); T_{mean}is the average daily air temperature at 2 m (°C); U_{2}is the mean daily wind speed at 2 m (m s^{−1}); e_{s}is the saturation vapor pressure (kPa); and e_{a}is the actual vapor pressure (kPa). The computations from all data required the calculation of the ET_{0}following the method and procedures outlined in Chapter 3 of the FAO-56 manual [73].#### 2.3.2. Extreme-Learning Machine

The extreme-learning machine (ELM) as an AI-based method was first introduced by Huang et al. [38,74]. The learning speed of the ELM model is relatively faster than the conventional feed-forward network without the need for too much human intervention, but this model is able to offer better generalization performance than the conventional ANN model [42,46,47,75]. ELM is based on single-layer feed-forward neural networks (SLFNNs) architecture [5] where there are 3 layers, including the input layer, hidden layer, and output layer. An important distinction and advantage of ELM as an improved version of the ANN model is that the hidden layer does not need to be tuned iteratively. Hence, the ELM model is able randomly to screen the input weights, and then analytically determine the output weights (e.g., feature-analyzed property) of the SLFNNs. Detailed descriptions of the ELM can be found in Huang et al. [74], Gocic et al. [49], Abdullah et al. [5], and Patil and Deka [33].

For i = 1, 2, …, N, the SLFN with L hidden neurons is expressed as:
where, $\beta $ ${\left[{\beta}_{1},\text{}{\beta}_{2},\cdots ,{\beta}_{L}\right]}^{T}$ is the output weight matrix computed between the hidden and the output neurons; $h\left(x\right)$ $\left[{h}_{1},\text{}{h}_{2},\cdots ,{h}_{L}\right]$ is the hidden neuron outputs representing the randomized hidden features of predictor X

$${\psi}_{L}(x)={\displaystyle \sum _{i=1}^{i=L}}{h}_{i}\left(x\right){\beta}_{i}=h(x)\beta $$

_{i}; and ${h}_{i}\left(x\right)$ is the ith hidden neuron, given as:
$${h}_{i}\left(\mathbf{x}\right)=\vartheta \left({\mathbf{a}}_{i},{b}_{i},\mathrm{{\rm X}}\right)\text{}and\text{}{\mathbf{a}}_{i}\in {R}^{d},{b}_{i}\in R$$

The non-linear piecewise-continuous hidden layer activation function ${h}_{i}\left(x\right)$ is defined using hidden neuron parameters (
here, $\Vert \Vert $ is the Frobenius norm, and

**a**, b) and must satisfy the approximation theorem, $\mathsf{\vartheta}\left({a}_{i},\text{}{b}_{i},\text{}\mathit{X}\right)$. The model’s approximation error is minimized when solving for weights connecting the hidden and output layer (β) using a least square method:
$$\underset{\beta \in {R}^{L\times m}}{\mathrm{min}}{\Vert \mathbf{H}\beta -\mathbf{T}\Vert}^{2}$$

**H**is the hidden layer output matrix, given as:

$$\mathbf{H}=\left[\begin{array}{c}g\left({x}_{1}\right)\\ \vdots \\ g\left({x}_{N}\right)\end{array}\right]=\left[\begin{array}{ccc}{g}_{1}\left({a}_{1}{x}_{1}+{b}_{1}\right)& \cdots & {g}_{L}\left({a}_{L}{x}_{1}+{b}_{L}\right)\\ \vdots & \cdots & \vdots \\ {g}_{1}\left({a}_{N}{x}_{N}+{b}_{1}\right)& \cdots & {g}_{L}\left({a}_{L}{x}_{N}+{b}_{L}\right)\end{array}\right]$$

**T**is the target matrix, drawn from the training dataset, and given as:

$$\mathbf{T}=\left[\begin{array}{c}{\mathbf{t}}_{1}^{T}\\ \vdots \\ {\mathbf{t}}_{N}^{T}\end{array}\right]=\left[\begin{array}{c}{t}_{11}\\ \vdots \\ {t}_{N1}\end{array}\begin{array}{c}\\ \\ \end{array}\begin{array}{c}\cdots \\ \\ \cdots \end{array}\begin{array}{c}\\ \\ \end{array}\begin{array}{c}{t}_{1m}\\ \vdots \\ {t}_{Nm}\end{array}\right]$$

An optimal solution is then determined by solving a system of linear equations:
and

$${\beta}^{*}={\mathbf{H}}^{+}\mathbf{T}$$

**H**^{+}is the Moore–Penrose generalized inverse function (+).#### 2.3.3. Support Vector Regression

Support vector regression (SVR) is an effective forecasting tool developed for solving regression problems by Vapnik [76]. SVR is a next-generation statistical learning method where data features can be learned from high-dimensional, and a small number of, training data [77]. SVR is used to describe a regression-based modeling process where the following linear estimation function could be employed:
where ω is weight vector; b is a constant; and $\phi \left(x\right)$ denotes a mapping function in the feature space. The coefficients ω and b can be estimated by minimizing:
where both C and ε are prescribed parameters. The term ${L}_{\epsilon}\left(f\left({x}_{i}\right),{y}_{i}\right)$ is called the ε-intensive loss function. This function indicates that errors below ε are not penalized. The term $C\frac{1}{N}{\displaystyle {\sum}_{i=1}^{N}{L}_{\epsilon}\left(f\left({x}_{i}\right),{y}_{i}\right)}$ is the empirical error. The term $\frac{1}{2}{\Vert w\Vert}^{2}$ measures the smoothness of the function. C evaluates the trade-off between the empirical risk and the smoothness of the model. A Largrange multiplier and optimality constraints are used, so a nonlinear regression function is obtained using the following expression:
where α

$$f\left(x\right)=\omega \cdot \phi \left(x\right)+b$$

$${R}_{reg}\left(f\right)=C\frac{1}{N}{\displaystyle {\sum}_{i=1}^{N}{L}_{\epsilon}\left(f\left({x}_{i}\right),{y}_{i}\right)}+\frac{1}{2}{\Vert w\Vert}^{2}$$

$${L}_{\epsilon}\left(f\left(x\right)-y\right)=\{\begin{array}{ll}\left|f\left(x\right)-y\right|-\epsilon & \phantom{\rule{15.pt}{0ex}}for\left|f\left(x\right)-y\right|\ge \epsilon \\ 0& \phantom{\rule{15.pt}{0ex}}otherwise\end{array}$$

$$f\left(x\right)={\displaystyle {\sum}_{i=1}^{l}\left({\alpha}_{i}-{\alpha}_{i}^{*}\right)k\left({x}_{i},x\right)}+b$$

_{i}and α_{i}^{*}are the introduced Lagrange multipliers, and k(x_{i}, x) is kernel function.#### 2.3.4. Model Development

In this study, we have employ ELM and SVR models to establish the relationship between the estimated ET

_{0}by the FAO-56 PM method with the historical observed meteorological variables and the GCM output variables. Figure 2 shows a schematic diagram for future ET_{0}projection. First, we estimated ET_{0}by using historically observed variables. Then, we used the historical ET_{0}as target to directly downscale the GCM outputs by using the ELM and SVR. Thus, we divided the 45-year data set representing the current climate (1961–2005) into two sub-period datasets. The first 30 years of data (1961–1990) were used for developing and calibration the regression-based AI models; while the remaining 15 years of data (1991–2005) were used to validate the models.To investigate the variability of future ET

_{0}, the Sen Slope method and Mann–Kendall (M–K) Test [78] were employed.#### 2.3.5. Model Goodness-of-Fit Criteria

To evaluate the effectiveness of the downscaling approaches, four statistical score metrics, including the coefficient of correlation (R), mean absolute relative error (MAE), root mean square error (RMSE) and Nash–Sutcliffe efficiency (NSE) [79,80] were selected. In fact, the R value, which is expressed as the degree of correlation between the FAO-56 PM based ET

_{0}and the downscaled ET_{0}by the SVR and ELM models, respectively, measures the covariance in the two datasets. The MAE and RMSE provide different types of information about the estimation abilities of the AI-based models, whereby the RMSE (mm/month) is able to evaluate the goodness-of-fit relevant to the peak values and the MAE (mm/month) is able to generate the performance index of modeled ET_{0}and the distribution of the modeling errors. It should be noted that both of these metrics are required in the mode evaluation phase since they can provide complementary information about the accuracy of modeled ET_{0}. In accordance with the literature [79], the RMSE is a more appropriate metric when the error distribution is found to be Gaussian, whereas RMSE (due its squaring effects) should be used to assess the errors that are not normally distributed. Mathematically, the R value is expressed as:
$$R=\frac{{\displaystyle {\sum}_{i=1}^{N}\left(E{T}_{0-\mathbf{PM},i}-\overline{E{T}_{0-\mathbf{PM},i}}\right)\left(E{T}_{0-\mathbf{AI},i}-\overline{E{T}_{0-\mathbf{AI},i}}\right)}}{\sqrt{{\displaystyle {\sum}_{i=1}^{N}{\left(E{T}_{0-\mathbf{PM},i}-\overline{E{T}_{0-\mathbf{PM},i}}\right)}^{2}{\displaystyle {\sum}_{i=1}^{N}{\left(E{T}_{0-\mathbf{AI},i}-\overline{E{T}_{0-\mathbf{AI},i}}\right)}^{2}}}}}$$

The MAE value is expressed as:

$$MAE=\frac{1}{N}{\displaystyle {\sum}_{i=1}^{N}\left|\left(E{T}_{0-\mathbf{AI},i}-E{T}_{0-\mathbf{PM},i}\right)\right|}$$

The RMSE value can be calculated as:

$$RMSE=\sqrt{\frac{1}{N}{\displaystyle {\sum}_{i=1}^{N}{\left(E{T}_{0-\mathbf{AI},i}-E{T}_{0-\mathbf{PM},i}\right)}^{2}}}$$

The NSE value can be calculated as:

$$NSE=1-\left[\frac{{\displaystyle {\sum}_{i=1}^{N}{\left(E{T}_{0-\mathbf{PM},i}-E{T}_{0-\mathbf{AI},i}\right)}^{2}}}{{\displaystyle {\sum}_{i=1}^{N}{\left(E{T}_{0-\mathbf{PM},i}-\overline{E{T}_{0-\mathbf{PM},i}}\right)}^{2}}}\right],\phantom{\rule{15.pt}{0ex}}\infty \le NSE\le 1$$

In the above equations, N is the number of input test samples; $E{T}_{0-\mathbf{PM}}$ and $E{T}_{0-\mathbf{AI}}$ are the FAO-56 PM ET

_{0}and modeled ith ET_{0}value; and $\overline{E{T}_{0-\mathbf{PM}}}$ and $\overline{E{T}_{0-\mathbf{AI}}}$ are the average of the FAO-56 PM value and modeled value of the ET_{0}. The best performances for the SVR and ELM models are expected to yield R = 1, MAE = 0, RMSE = 0 and NSE = 1, respectively.## 3. Results

#### 3.1. Model Verification and Comparison

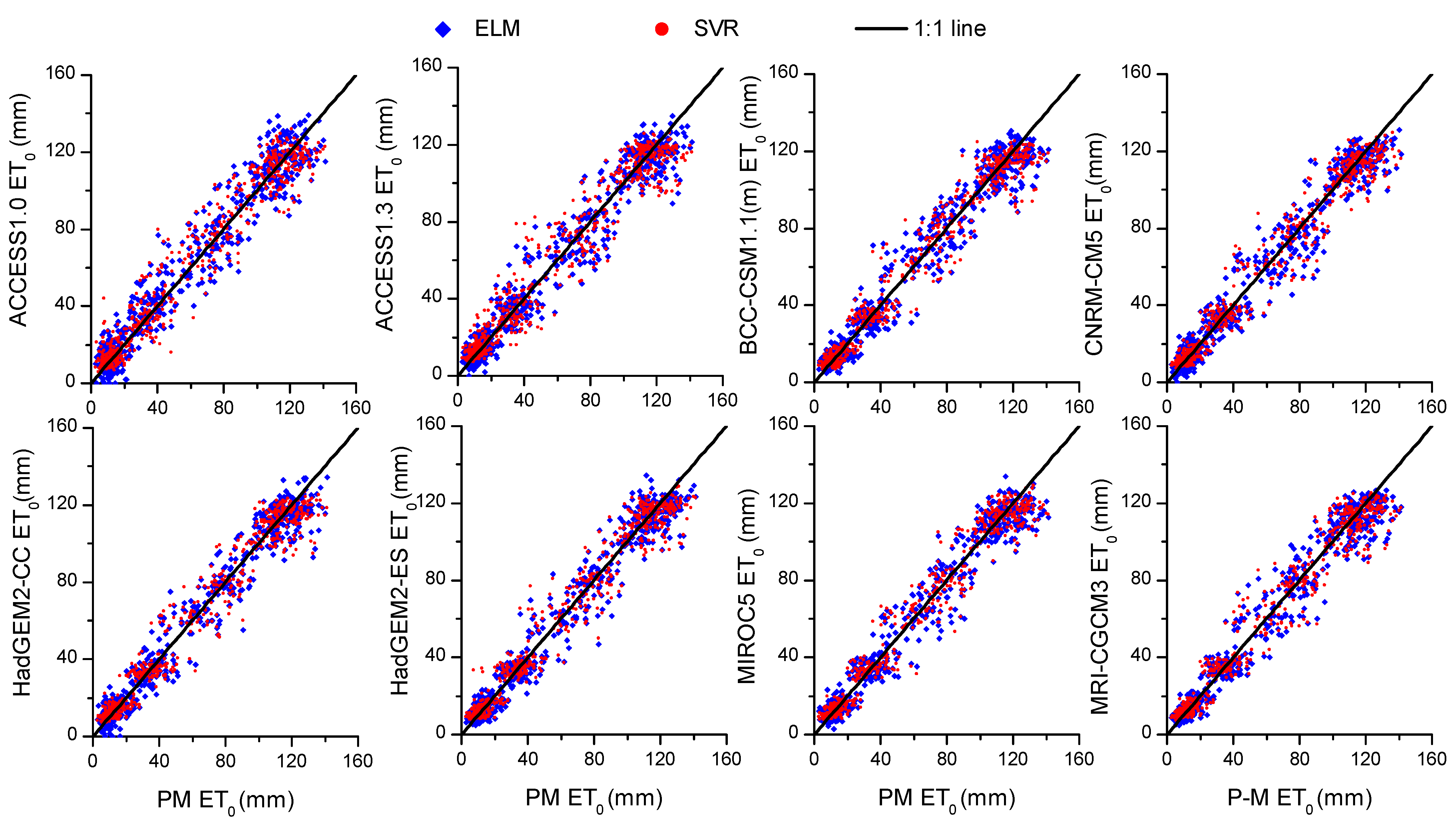

The FAO-56 PM based ET

_{0}was calculated by deriving the historically observed meteorological variables (i.e., maximum and minimum air temperature, relative humidity, air pressure, sunlight duration and wind speed at 2 m height) for the period 1961 to 2005. The eight selected GCM outputs were extracted to compute ET_{0}using ELM and SVR-based downscaling approaches. Figure 3 shows the correlation of these data with the FAO-56 PM based ET_{0}. Generally, it is evident that the GCM outputs-derived ET_{0}exhibited a very good correlation in respect to the FAO-56 PM based ET_{0}when the results for both ELM and SVR based methods were analyzed. This suggests that the GCM-derived ET_{0}values are good representatives of the FAO-56 PM based ET_{0}in this particular study region. The performance metrics for the GCM-derived ET_{0}data in the validation period are shown in Figure 4. It is noteworthy that all of the ET_{0}downscaled results revealed relatively good performances with the NSE values being greater than 0.94; the RMSE/MAE values being lower than 10 mm/month and 8 mm/month, respectively; and the R values being larger than 0.97. It is especially the case that the downscaled-derived ET_{0}values from the BBC-CSM1.1(m), CNRM-CM5, HadGEM2-CC, HadGEM2-ES, MIROC5 and MRI-CGCM3 models registered acceptably high performance with NSE greater than 0.96; RMSE/MAE lower than 8 mm/month and 6 mm/month, respectively; and R values greater than 0.98. When the ELM and SVR model performances were compared, the results showed that at least five out of the eight GCM model outputs from the SVR-based calculations were better than those from the ELM-based calculations, with higher NSE and R values, and lower RMSE and MAE values. This indicates the SVR model had a better performance compared to the ELM model when used for downscaling the ET_{0}data for the mountainous inland watershed region in north-west China.Boxplots describing the four performance metrics for the ET

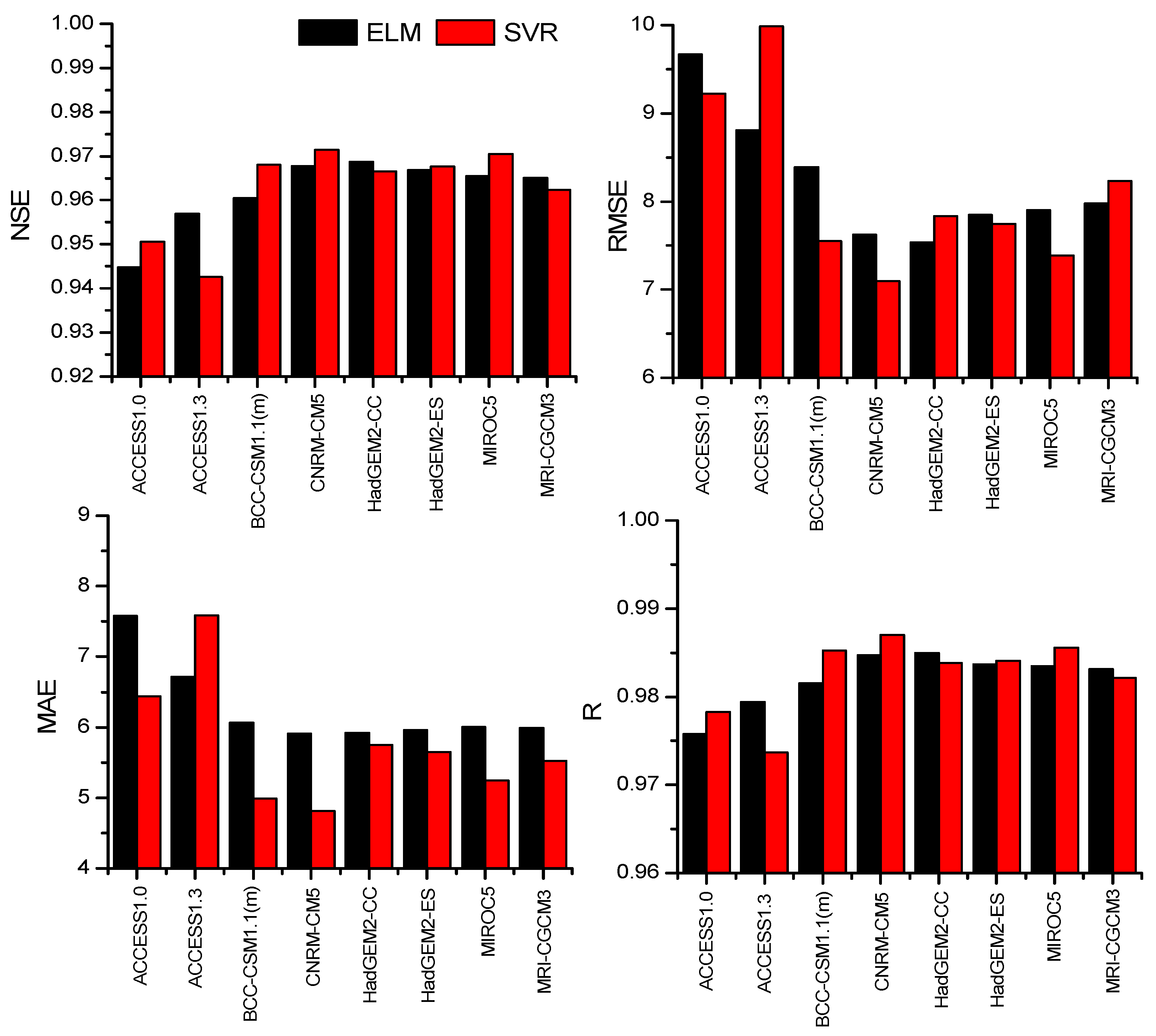

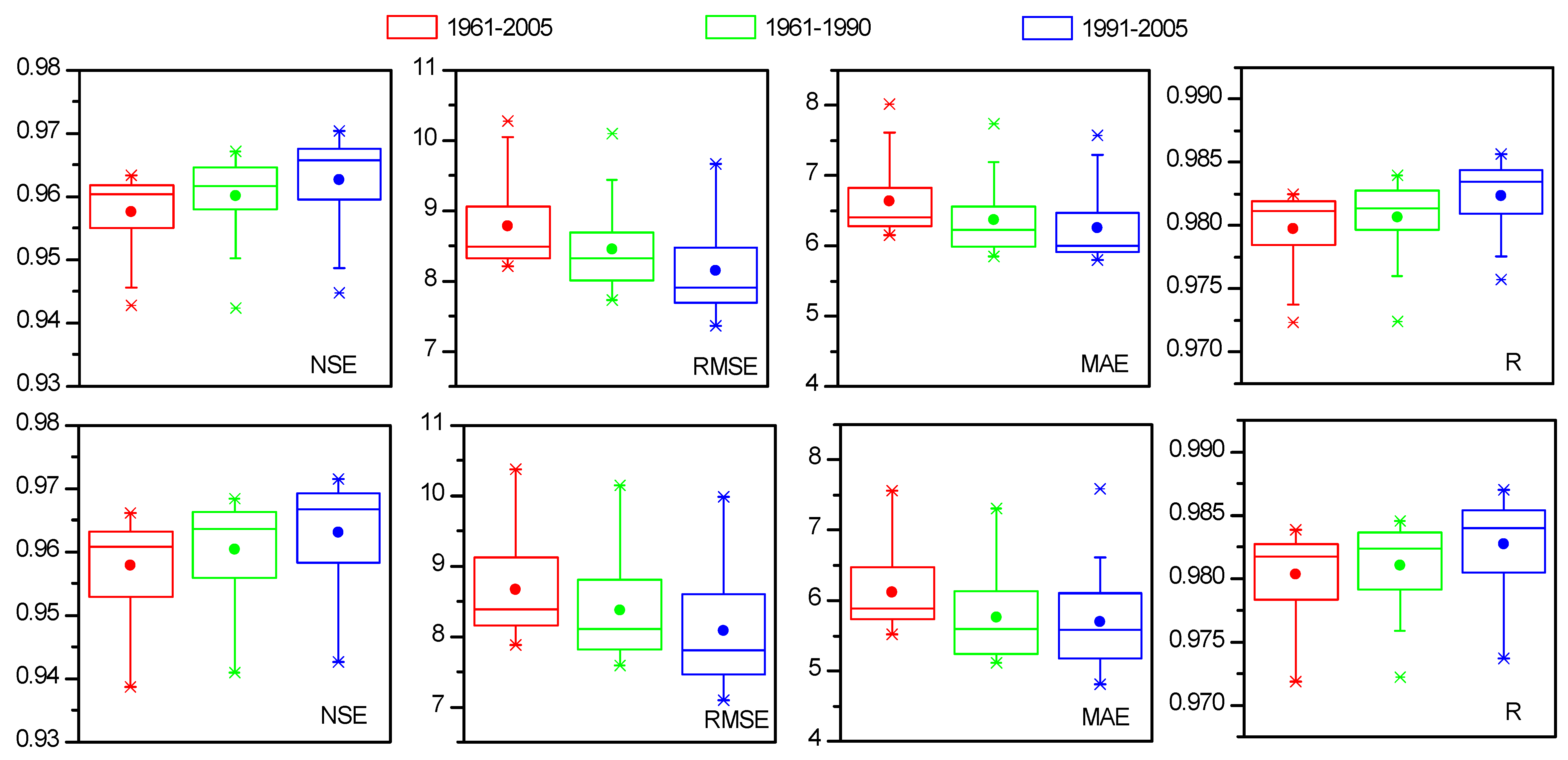

_{0}modelling by the ELM and SVR methods based on eight GCM outputs with different periods are shown in Figure 5. On the basis of these four performance metrics, the testing period (1991–2005) revealed a much better performance with a higher value of NSE and R, and a lower value of RMSE and MAE compared to those of the training period (1961–1990). It is important to note that when the entire period (1961–2005) was considered, the performance was even worse than that of the training period, indicating that the error in simulations increased with an increase in the modelling timespan. When compared in terms of the performances between the ELM and SVR approaches for downscaling the ET_{0}, it is observable that the median values of the NSE and R for the SVR model are considerably higher than those of the ELM model, and the RMSE and MAE values for the SVR model are much lower than those of the ELM model among the three different periods considered in this paper. This indicates that almost half of the GCM outputs-derived ET_{0}calculations based on the SVR model are much better than those of the ELM model. In order to further verify this phenomenon, we have assessed the model performances at seasonal scales. Figure 6 shows the seasonal performance of the two AI-based methods, derived from the GCM outputs. Evidently, the four performance metrics for the SVR model appear to have largely increased relative to the ELM model in the winter and autumn seasons. This reveals that the SVR approach demonstrates a very good capacity to estimate the ET_{0}data compared to the ELM model. In accordance with this, we can conclude that the SVR-calculated ET_{0}simulations are more accurate than the ELM-based ET_{0}simulations, which is attributable to the better ability of the SVR model to simulate this parameter in the winter and autumn seasons.#### 3.2. Evaluation of Future ET_{0} Projections

#### 3.2.1. Annual Future ET_{0}

Figure 7 illustrates the future projections of ET

_{0}modelled by the ELM and SVR approaches, where a total of eight GCM outputs used as inputs for the AI-based models under RCP4.5 and RCP8.5 warming scenarios were investigated. In accordance with this result, there appears to be little difference between the performances of the ELM and SVR approaches for both scenarios. Notably, for the case of the RCP4.5 scenario, the ET_{0}projections derived from the ACCESS1.0 model had the largest value, lying within the range of approximately 760–1100 mm for ELM and 750–970 mm for the SVR model, followed by the ACCESS1.3 model. Interestingly, the range appeared to be even broader for the case of the RCP8.5 warming scenario. The rest of the six GCM models registered very similar, and conservative, trends in the future under both warming scenarios. It should be noted that the ELM results revealed a larger variability than the SVR results. In order to eliminate the uncertainty caused by a single simulation model, we have adopted the median value of the eight GCM-derived ET_{0}data to represent the ET_{0}projections in the present study region. The range of the ET_{0}data for the RCP4.5 is found to be approximately 720–760 mm and for the RCP8.5 warming scenario approximately 725–810 mm.#### 3.2.2. Decadal and Seasonal Future ET_{0} Projections

Furthermore, we divided the projection horizons into three sub-periods: first, a sub-period (from 2010 to 2039) named as the near term; a second sub-period (from 2040 to 2069) as the mid term; and a third (2070 to 2099) as the long term. The statistics of ET

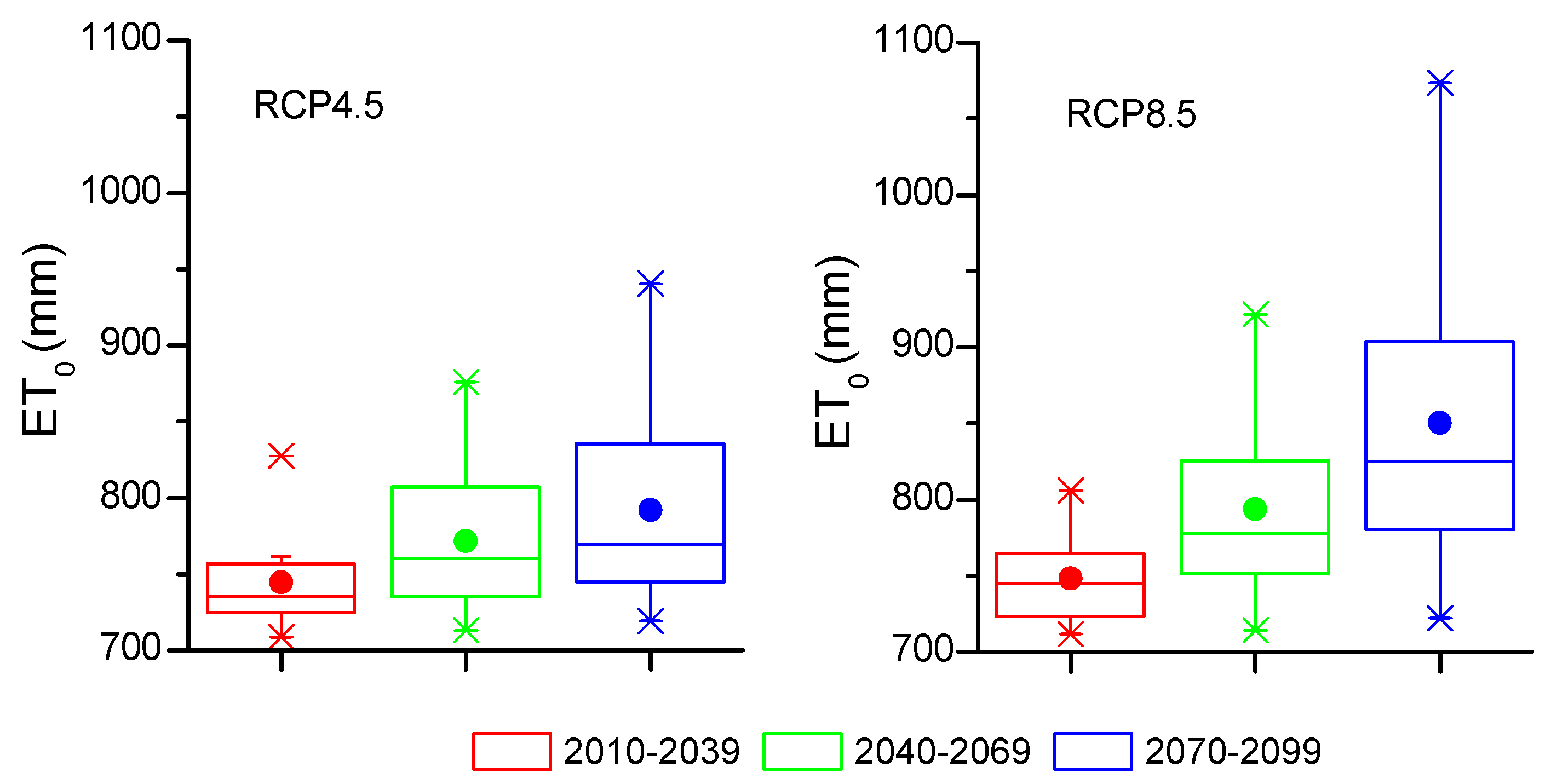

_{0}for the three periods have been illustrated in Figure 8. It is evident that the magnitudes and variations appear to increase with an increase in time at the two warming scenarios, and it is becoming more obvious with increasing uncertainty under the RCP8.5. For the near term, the ET_{0}values varied between 725–755 mm under the RCP4.5 warming scenario and between 720–765 mm under the RCP8.5 warming scenario. The ranges of ET_{0}in the mid term are found to be approximately 740–805 mm and 750–830 mm for the RCP4.5 and RCP8.5 scenarios, respectively; and in the long term they are found to be approximately 745–840 mm and 770–890 mm for the RCP4.5 and RCP8.5 scenarios, respectively.Figure 9 shows the simulated the ET

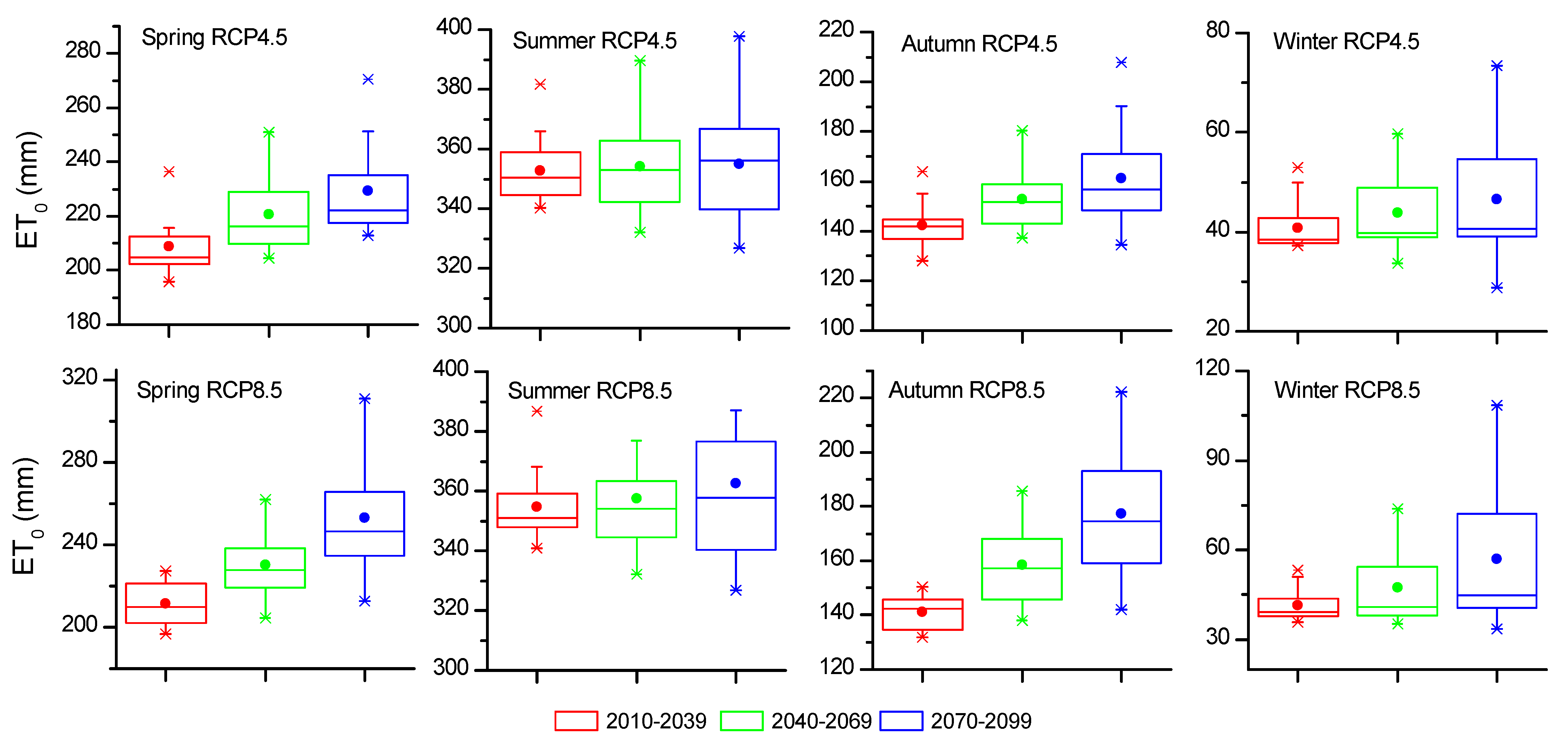

_{0}for the four seasons. The magnitudes and variations in ET_{0}for the three periods in the four seasons are seen to agree with the annual properties for both warming scenarios. That is, the summer ET_{0}is found to be the largest compared to the other three seasons, with median values of approximately 350 mm, 353 mm and 357 mm for RCP4.5 and approximately 351 mm, 355 mm and 357 mm for RCP8.5 from the near to long term, respectively. The winter ET_{0}value is found to be the lowest, with median values of approximately 38 mm, 40 mm and 41 mm for RCP4.5 and approximately 40 mm, 42 mm and 44 mm for RCP8.5 from the near to long term, respectively. It should be noted that the median of the summer and winter changes in ET_{0}from the near to long term is lower when compared to spring and autumn. This implies that future ET_{0}variations are likely to occur mainly in the spring and autumn seasons.#### 3.3. Projection of Future ET_{0} Variation

In order to simulate the tendency of future ET

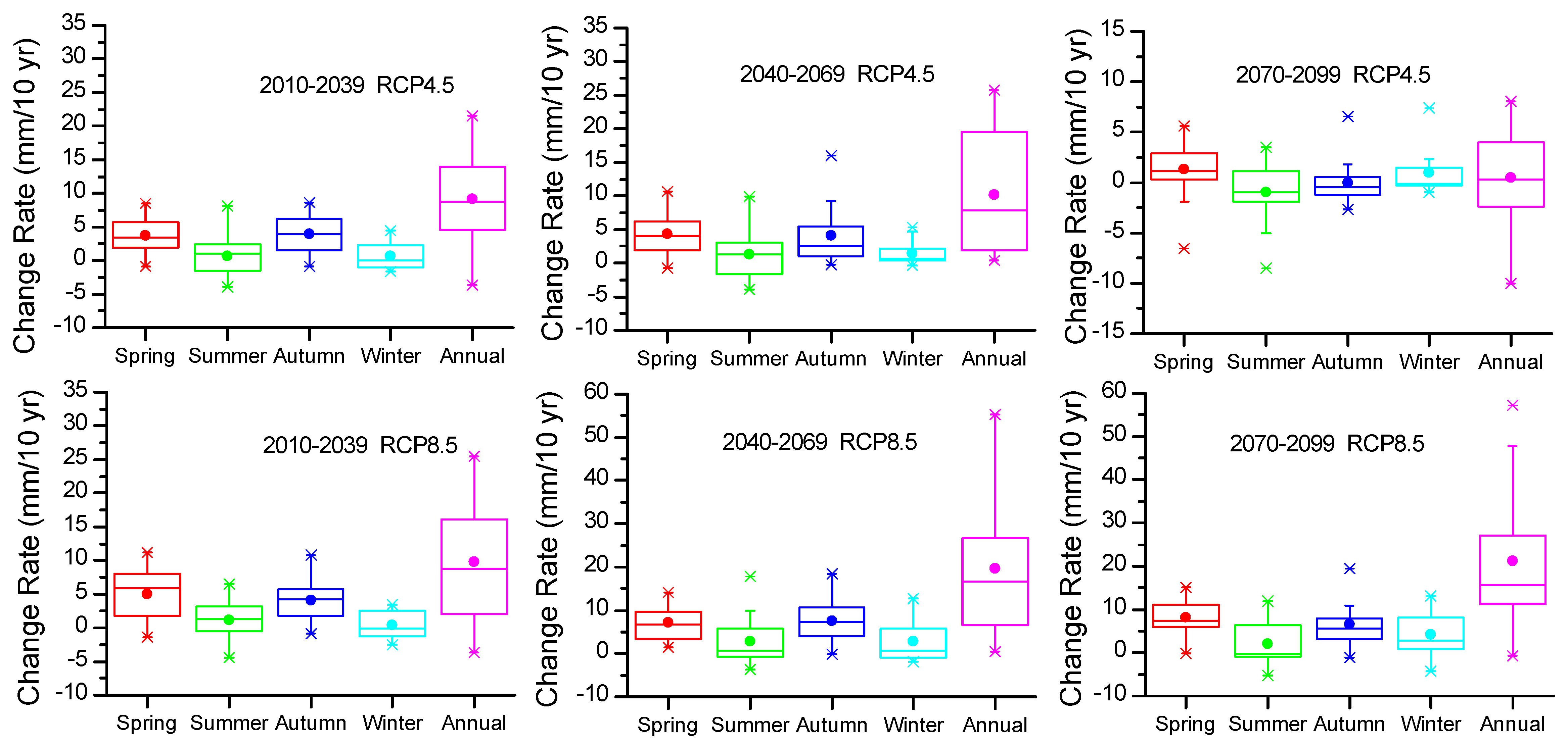

_{0}variation, the Sen Slope method was applied [78]. Figure 10 shows the seasonal and annual ET_{0}change rate for the three periods considered under the two RCP warming scenarios. Seasonally, the ET_{0}change rate for the summer and the winter seasons appear to be nearly close to 0 during the three periods. However, we can apparently deduce that the increasing trend is likely to occur in the spring and autumn seasons. This is more obvious under the RCP8.5 compared to the RCP4.5 warming scenarios. Annually, the ET_{0}data is likely to exhibit an increase, with a median rate of 7.5 mm/decade during the near term and mid term, and nearly close to 0 during the long term under the RCP4.5 warming scenarios. Moreover, for the RCP8.5 scenario, the median rate of ET_{0}for the near term is found to be approximately 8.2 mm/decade, and for the mid term is approximately 15 mm/decade.Figure 11 shows the relative changes in simulated ET

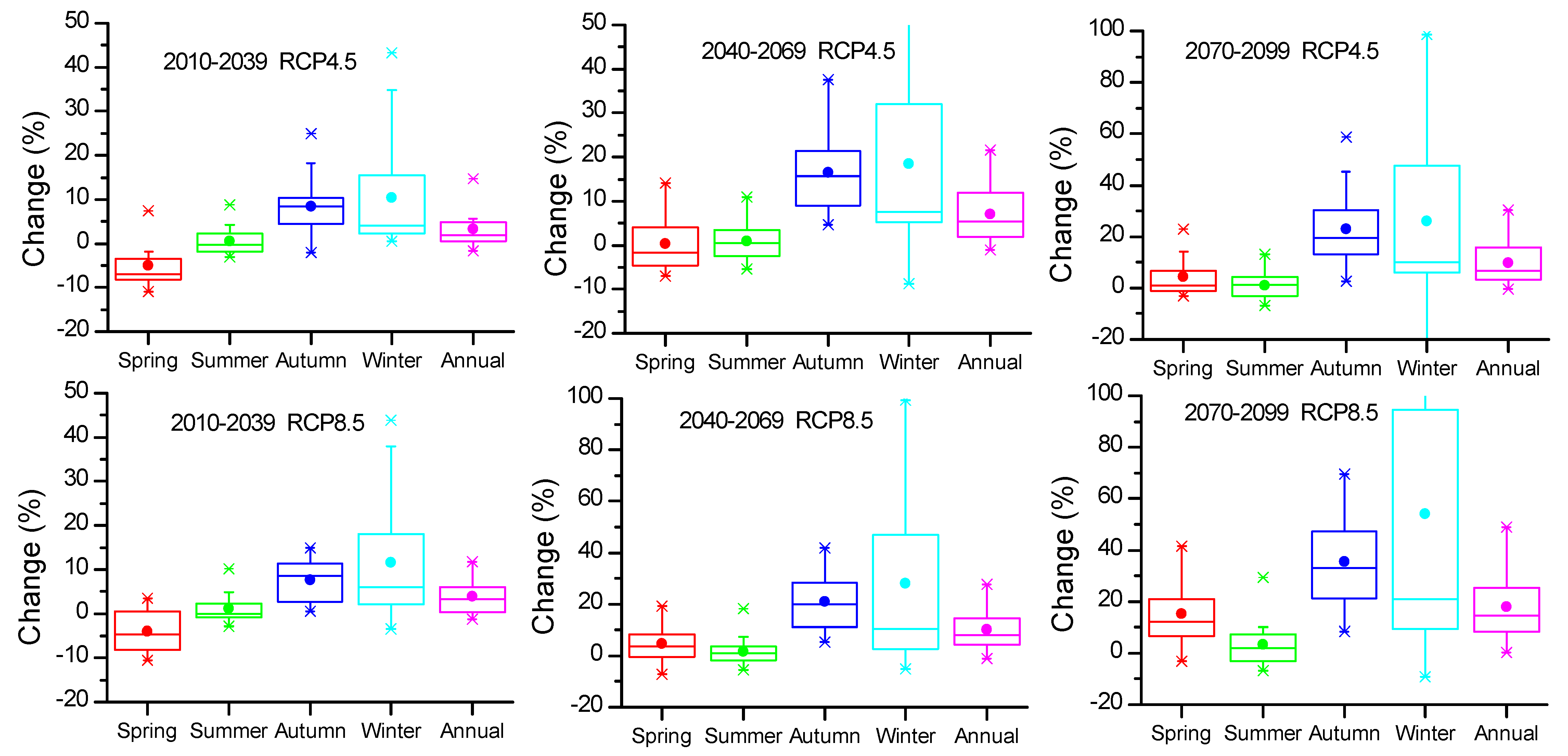

_{0}compared to the historical period (1961–2005). Evidently, the results show that the spring season ET_{0}is likely to decrease by approximately 5% and 10% for the RCP4.5 and RCP8.5 warning scenarios, respectively, in the near term when compared with the period 1961–2005. However, the summer ET_{0}values are likely to be almost consistent with the median value, being close to 0. The relative change in the autumn seasonal ET_{0}is shown to be largest when compared to the other three seasons, with a highest median value for both warming scenarios and three considered periods. The winter ET_{0}, however, is likely to increase with a large degree of uncertainty. It is also possible that the uncertainty is likely to increase over the passage of time. For the annual changes in ET_{0}, the present results show that the relative changes are likely to be approximately 2%, 5% and 6% during the near-, mid- and long-term periods, respectively, under the RCP4.5 warming scenario; whereas it is likely to be approximately 2%, 7% and 13% during the three periods considered, respectively, under the RCP8.5 warming scenario.## 4. Discussion and Summary

In reality, the true reference evapotranspiration (ET

_{0}) can be obtained experimentally; however, in many situations there are difficulties carrying out measurements. As a result, the FAO-56 Penman–Monteith formulation for ET_{0}is often accepted. This paper aimed to downscale monthly ET_{0}using two less-explored learning algorithms based on ELM and SVR approaches by developing and validating the regression relationships between station-based ET_{0}and large-scale atmospheric variables from a suite of eight relatively high spatial-resolution GCM outputs. Without considering the physical relationship between ET_{0}and the climatic variables, the approaches presented in this paper were able to successfully downscale local ET_{0}time series by building on the appropriate statistical relationships between the observed ET_{0}(FAO-56 PM ET_{0}) with the surface–atmospheric features, whereby an ensemble of models was studied in terms of the large-scale and transient changes of the host GCM models. In this regard, the downscaling approaches applied in the present study, where a study of future trends in ET_{0}is based on many GCM selections, simulation methods and warming scenarios and trajectories, are considered as invaluable tools for advancing the relevance of hydrological models for more meaningful local-scale applications.This study has projected the future variability of ET

_{0}by applying the ELM and SVR approaches in a mountainous inland watershed of north-west China. A total of eight relatively high spatial-resolution GCM-based model outputs from CMIP5 simulations were employed to downscale for the historical period (1960–2005) and the future period (2010–2099) ET_{0}under the RCP4.5 and RCP8.5 warming scenarios.The AI-based ELM and SVR approaches revealed satisfactory performances in estimating the ET

_{0}data. Moreover, the performance of the SVR model for ET_{0}projection is modestly better than the ELM model. The future variation in ET_{0}appeared to occur mainly in the spring and autumn seasons, while in the summer and winter seasons, the ET_{0}changes were very small. Annually, the rate of increase in ET_{0}was found to be approximately 7.5 mm/decade for the near and middle terms, and nearly close to 0 for the long-term period under the RCP4.5 warming scenario. By contrast, for RCP8.5, the rate of increase in ET_{0}for the near term was found to be approximately 8.2 mm/decade, and 15 mm/decade for the mid-term and long-term periods. Compared to the historical period in this study (1960–2005), the relative changes were found to be approximately 2%, 5% and 6% in the near-, mid- and long-term periods, respectively, under the RCP4.5 warming scenario, whereas they were approximately 2%, 7% and 13% for the three periods, respectively, under the RCP8.5 warming scenario.Compared to the uncertainties from the different estimation formulations and different inputs from atmospheric variables, the uncertainties derived from the different GCM outputs are a prime source of a model’s fidelity [81]. Thus, it is necessary to employ multiple GCM outputs to be used as predictor variables when a local-scale climatic property needs to be projected.

The AI-based methods developed in this case study appear to promise soft-computing approaches for the future variability of reference evapotranspiration. However, there were some unavoidable uncertainties; for example, we tested 8 GCM-based model outputs which might not completely represent future climate change. More GCM-based model outputs should be adopted. Moreover, future work should test more AI-based methods for investigating ET

_{0}projection.## Acknowledgments

This work was supported by the National Natural Science Foundation of China (Grant No. 41601038), the National Key R&D Program of China (Grant Nos. 2017YFC0404302, 2016YFC0400908, 2016YFC0501001), the Key Research Program of Frontier Sciences, CAS (Grant No. QYZDJ-SSW-DQC031), the China Postdoctoral Science Foundation (Grant No. 2015M572620), and the Foundation for Excellent Youth Scholars of Northwest Institute of Eco-Environment and Resources, CAS. Ravinesh C Deo thanks the Chinese Academy of Sciences for its continued support. Data were acquired from CIMP5 repositories, which are duly acknowledged.

## Author Contributions

Qi Feng and Ravinesh C. Deo designed this study. Zhenliang Yin and Linshan Yang prepared the driven data and calculated the results. The manuscript was prepared by Zhenliang Yin and Linshan Yang, and revised by Xiaohu Wen, Jianhua Si and Shengchun Xiao.

## Conflicts of Interest

The authors declare no conflict of interest.
