# Robust Meter Network for Water Distribution Pipe Burst Detection

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. Detection Performance Measures

#### 2.2. Meter Network’s Robustness

- Step 1: For a given meter set with a total number of meters N, one of the meters (ith meter, i = 1, ..., N) is assumed to fail in a long time (e.g., for two days). No data measurement is received by the supervisory control and data acquisition (SCADA) system from the meter due to either meter malfunction or communication system failure. Thus, the ith meter’s DP is set to zero.
- Step 2: The network’s DP in the event of failure of the ith meter (DP
_{f,i}) is then calculated. - Step 3: The failed/impaired meter is then assumed to be back to its normal condition, and another meter is assumed to fail.
- Step 4: Steps 1–3 are repeated until the failure of all meters has been evaluated (i.e., DP
_{f,i}is calculated for i = 1, ..., N). - Step 5: CV of DP
_{f,i}(CVDP_{f}) is then calculated:$${\mathrm{CVDP}}_{f}=\frac{\mathsf{\sigma}\left({\mathrm{DP}}_{f,i}\right)}{avg\left({\mathrm{DP}}_{f,i}\right)},i=1,\dots ,\mathrm{N}$$_{f,i}) and σ(DP_{f,i}) are the average and standard deviation, respectively, of DP_{f,i}(i = 1, ..., N). - Step 6: Finally, MeterRob is calculated as:$$\mathrm{MeterRob}=1-{\mathrm{CVDP}}_{f}$$

_{f}with low σ(DP

_{f,i}) and high avg(DP

_{f,i}). Note that MeterRob has a value between 0 and 1 because CVDP

_{f}is less than 1. DP

_{f,i}is a ratio value between 0 and 1, so $\mathsf{\sigma}\left({\mathrm{DP}}_{f,i}\right)$ will always be smaller than avg(DP

_{f,i}).

#### 2.3. Multi-Objective Optimal Meter Placement (MOMP) Model

_{1}), minimize RF (F

_{2}), and maximize MeterRob (F

_{3}):

#### 2.4. Pipe Burst Detection Method: Western Electric Company (WEC) Rules

- Rule 1: Any single measurement is beyond the ±4σ CL.
- Rule 2: Two of three consecutive measurements are beyond the ±3σ WL.
- Rule 3: Four of five consecutive measurements are beyond the ±2σ WL.
- Rule 4: Eight consecutive measurements are beyond the ±1σ WL.

#### 2.5. Data Generation and Detection and False Alarm Matrix

_{n,m}is set to 1 if the mth meter detects the n burst event. The element value of 1 in F indicates a false alarm. To populate the two matrices, the WEC rules were applied to each meter’s data. A number of burst events are considered to have reliable DP and RF values. The matrices D and F are nburst × N and nnormal × N matrices, respectively. Note that N is nn for the pressure meter and np for a pipe flowmeter, where np is the total number of pipes.

_{l}= 1 (l = 1, 2, ..., N), and no meter is located there otherwise. Therefore, DP of a given meter set (meterset) is computed as follows:

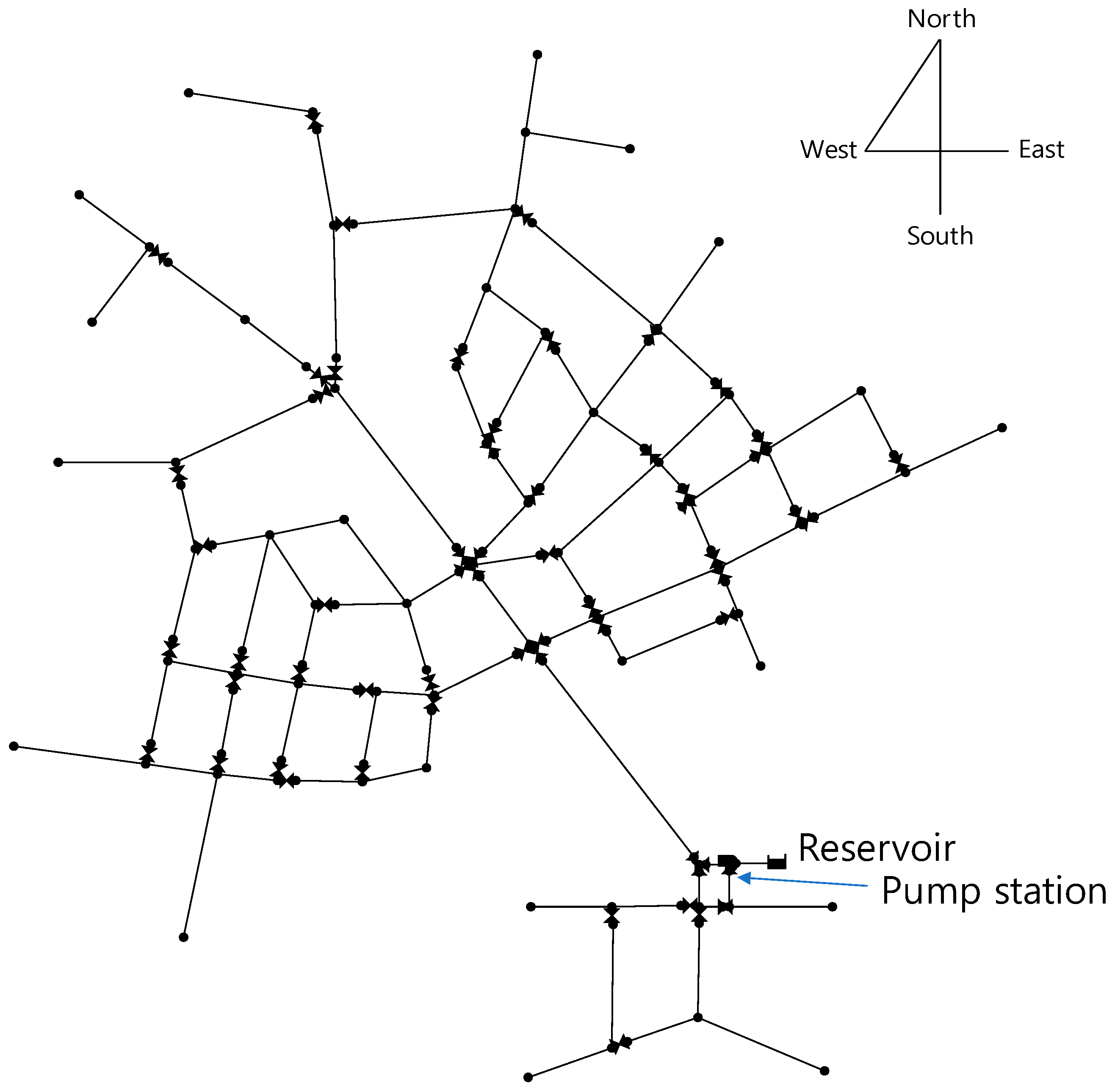

## 3. Study Network

## 4. Results

#### 4.1. Pareto Optimal Solutions for Pipe Flow Meter Placement

#### 4.2. Pareto Optimal Solutions for Pressure Meter Placement

#### 4.3. Optimal Meter Placement Comparison

## 5. Summary and Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Abbreviations

Acronyms | |

WDS | Water Distribution System |

OMP | Optimal Meter Placement |

MOMP | Multi-objective Optimal Meter Placement |

DP | Detection Probability |

RF | Rate of False Alarms |

SPC | Statistical Process Control |

CV | Coefficient of Variation |

SCADA | Supervisory Control and Data Acquisition |

NSGA-II | Non-dominated Sorting Genetic Algorithm-II |

WEC | Western Electric Company Rules |

WL | Warning Limit |

CL | Control Limit |

DMA | District Metering Area |

Symbols | |

nmeter | Predefined total number of meters in the proposed MOMP model |

nburst | Total number of burst events |

nnormal | Total number of natural events |

N | Total number of meters |

nn | Total number of nodes |

np | Total number of pipes |

DP_{f,i} | Meter network’s DP in the event of failure of the ith meter |

CVDP_{f} | Coefficient of variation of DP_{f,i} |

avg(DP_{f,i}) | Average of DP_{f,i} |

σ(DP_{f,i}) | Standard deviation of DP_{f,i} |

MeterRob | Meter network’s robustness indicator and 1-CVDP_{f} |

F_{1} | The first objective function of the proposed MOMP model (DP) |

F_{2} | The second objective function of the proposed MOMP model (RF) |

F_{3} | The third objective of function the proposed MOMP model (MeterRob) |

μ | Time-varying mean value of the process variable (e.g., pipe flows and nodal pressures) |

σ | Time-varying standard deviation value of the process variable |

C | Burst discharge coefficient |

α | The burst flow power equation’s exponent |

D | Detection matrix (its subscript indicates the location of element in D) |

F | False alarm matrix (its subscript indicates the location of the element in F) |

M | Meter configuration matrix (its subscript indicates the location of the element in M) |

meterset | A given meter set |

## References

- Jung, D.; Kang, D.; Kim, J.H.; Lansey, K. Robustness-based design of water distribution systems. J. Water Resour. Plan. Manag.
**2014**, 140, 04014033. [Google Scholar] [CrossRef] - Jung, D.; Lansey, K.E.; Choi, Y.H.; Kim, J.H. Robustness-based optimal pump design and scheduling for water distribution systems. J. Hydroinform.
**2016**, 18, 500–513. [Google Scholar] [CrossRef] - Taormina, R.; Galelli, S. Real-time detection of cyber-physical attacks on water distribution systems using deep learning. In Proceedings of the World Environmental and Water Resources Congress, Sacramento, CA, USA, 21–25 May 2017; ASCE: Reston, VA, USA, 2017; pp. 469–479. [Google Scholar]
- Taormina, R.; Galelli, S.; Tippenhauer, N.O.; Salomons, E.; Ostfeld, A. Characterizing cyber-physical attacks on water distribution systems. J. Water Resour. Plan. Manag.
**2017**, 143, 04017009. [Google Scholar] [CrossRef] - Kang, D.; Lansey, K. Optimal meter placement for water distribution system state estimation. J. Water Resour. Plan. Manag.
**2010**, 136, 337–347. [Google Scholar] [CrossRef] - Bragalli, C.; Fortini, M.; Todini, E. Enhancing knowledge in water distribution networks via data assimilation. Water Resour. Manag.
**2016**, 30, 3689–3706. [Google Scholar] [CrossRef] - Jung, D.; Kim, J.H. State estimation network design for water distribution systems. J. Water Resour. Plan. Manag.
**2017**, in press. [Google Scholar] [CrossRef] - Kapelan, Z.S.; Savic, D.A.; Walters, G.A. Multiobjective sampling design for water distribution model calibration. J. Water Resour. Plan. Manag.
**2003**, 129, 466–479. [Google Scholar] [CrossRef] - Kapelan, Z.S.; Savic, D.A.; Walters, G.A. Optimal sampling design methodologies for water distribution model calibration. J. Hydraul. Eng.
**2005**, 131, 190–200. [Google Scholar] [CrossRef] - Simone, A.; Giustolisi, O.; Laucelli, D.B. A proposal of optimal sampling design using a modularity strategy. Water Resour. Res.
**2016**, 52, 6171–6185. [Google Scholar] [CrossRef] - Pérez, R.; Puig, V.; Pascual, J.; Peralta, A.; Landeros, E.; Jordanas, L. Pressure sensor distribution for leak detection in Barcelona water distribution network. Water Sci. Technol. Water Supply
**2009**, 9, 715–721. [Google Scholar] [CrossRef] - Farley, B.; Mounce, S.R.; Boxall, J.B. Field testing of an optimal sensor placement methodology for event detection in an urban water distribution network. Urban Water J.
**2010**, 7, 345–356. [Google Scholar] [CrossRef] - Huang, H.; Tao, T.; Xin, K. Optimal pressure meters placement for bursts detection based on SOM. In Proceedings of the 14th Water Distribution Systems Analysis Conference, Adelaide, Australia, 24–27 September 2012; Engineers Australia: Barton, Australia, 2012; pp. 1127–1137. [Google Scholar]
- Zheng, Y.W.; Yuan, S. Optimizing pressure logger placement for leakage detection and model calibration. In Proceedings of the 14th Water Distribution Systems Analysis Conference, Adelaide, Australia, 24–27 September 2012; Engineers Australia: Barton, Australia, 2012; pp. 858–870. [Google Scholar]
- Jung, D.; Kang, D.; Liu, J.; Lansey, K. Improving the rapidity of responses to pipe burst in water distribution systems: A comparison of statistical process control methods. J. Hydroinform.
**2015**, 17, 307–328. [Google Scholar] [CrossRef] - Jung, D.; Lansey, K. Water distribution system burst detection using a nonlinear Kalman filter. J. Water Resour. Plan. Manag.
**2015**, 141, 04014070. [Google Scholar] [CrossRef] - Hagos, M.; Jung, D.; Lansey, K.E. Optimal meter placement for pipe burst detection in water distribution systems. J. Hydroinform.
**2016**, 18, 741–756. [Google Scholar] [CrossRef] - Deb, K.; Pratap, A.; Agarwal, S.; Meyarivan, T.A. A fast and elitist multiobjective genetic algorithm: NSGA-II. IEEE Trans. Evol. Comput.
**2002**, 6, 182–197. [Google Scholar] [CrossRef] - Mounce, S.R.; Machell, J. Burst detection using hydraulic data from water distribution systems with artificial neural networks. Urban Water J.
**2006**, 3, 21–31. [Google Scholar] [CrossRef] - Mounce, S.R.; Boxall, J.B.; Machell, J. Development and verification of an online artificial intelligence system for detection of bursts and other abnormal flows. J. Water Resour. Plan. Manag.
**2009**, 136, 309–318. [Google Scholar] [CrossRef] - Andersen, J.H.; Powell, R.S. Implicit state-estimation technique for water network monitoring. Urban Water
**2000**, 2, 123–130. [Google Scholar] [CrossRef] - Ye, G.; Fenner, R.A. Weighted least squares with expectation-maximization algorithm for burst detection in UK water distribution systems. J. Water Resour. Plan. Manag.
**2014**, 140, 417–424. [Google Scholar] [CrossRef] - Poulakis, Z.; Valougeorgis, D.; Papadimitriou, C. Leakage detection in water pipe networks using a Bayesian probabilistic framework. Probab. Eng. Mech.
**2003**, 18, 315–327. [Google Scholar] [CrossRef] - Aksela, K.; Aksela, M.; Vahala, R. Leakage detection in a real distribution network using a SOM. Urban Water J.
**2009**, 6, 279–289. [Google Scholar] [CrossRef] - Wu, Z.Y.; Sage, P.; Turtle, D. Pressure-dependent leak detection model and its application to a district water system. J. Water Resour. Plan. Manag.
**2009**, 136, 116–128. [Google Scholar] [CrossRef] - Misiunas, D.; Vítkovský, J.; Olsson, G.; Lambert, M.; Simpson, A. Failure monitoring in water distribution networks. Water Sci. Technol.
**2006**, 53, 503–511. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Romano, M.; Kapelan, Z.; Savić, D.A. Automated detection of pipe bursts and other events in water distribution systems. J. Water Resour. Plan. Manag.
**2014**, 140, 457–467. [Google Scholar] [CrossRef] - Palau, C.V.; Arregui, F.J.; Carlos, M. Burst detection in water networks using principal component analysis. J. Water Resour. Plan. Manag.
**2012**, 138, 47–54. [Google Scholar] [CrossRef] - Wu, Y.; Liu, S. A review of data-driven approaches for burst detection in water distribution systems. Urban Water J.
**2017**, 14, 972–983. [Google Scholar] [CrossRef] - Bakker, M.; Jung, D.; Vreeburg, J.; Van de Roer, M.; Lansey, K.; Rietveld, L. Detecting pipe bursts using heuristic and CUSUM methods. Procedia Eng.
**2014**, 70, 85–92. [Google Scholar] [CrossRef] - Western Electric Company. Statistical Quality Control Handbook, 2nd ed.; AT&T Technologies: New York, NY, USA, 1958. [Google Scholar]
- Rossman, L. EPANet2 User’s Manual; US Environmental Protection Agency: Washington, DC, USA, 2000.

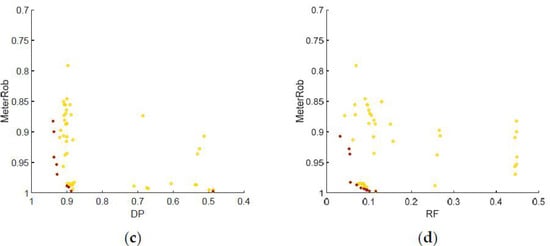

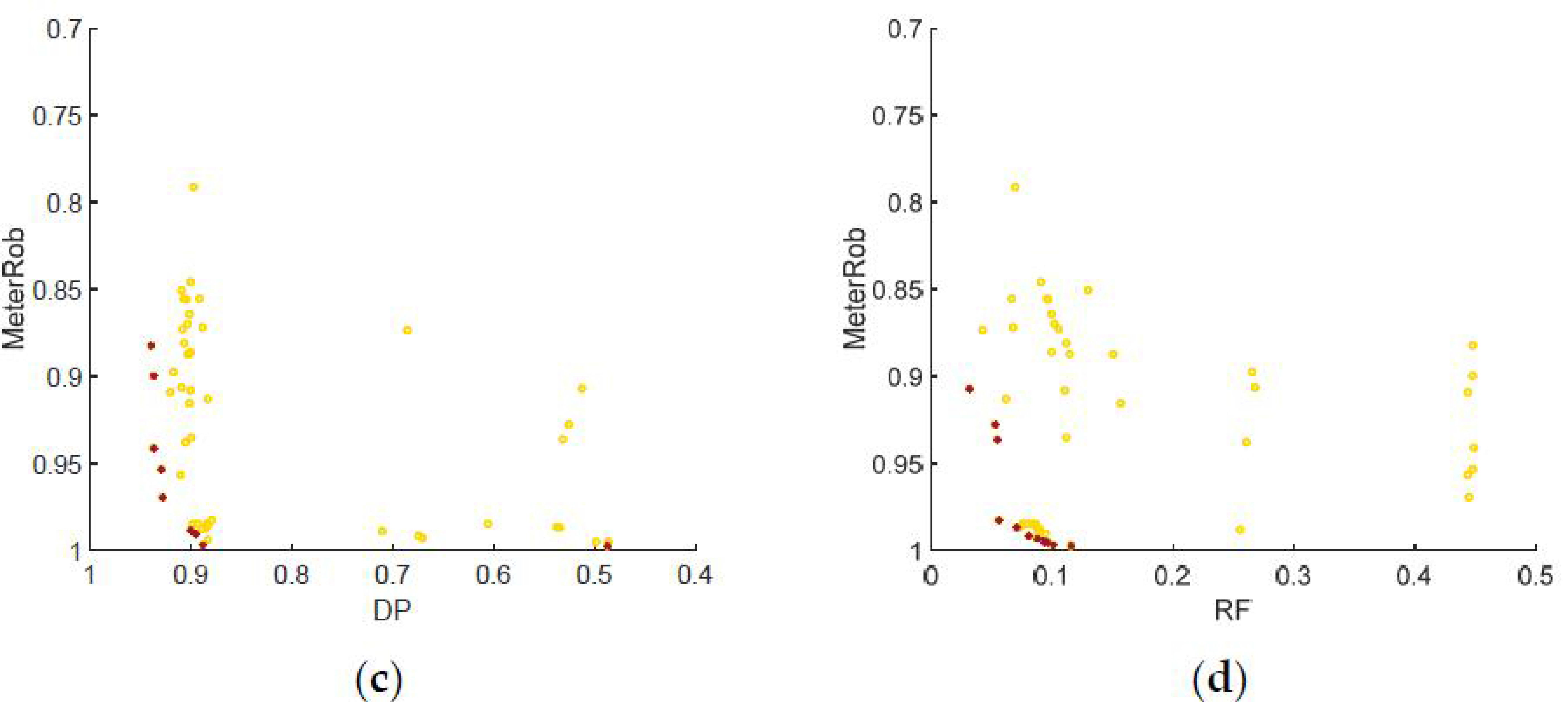

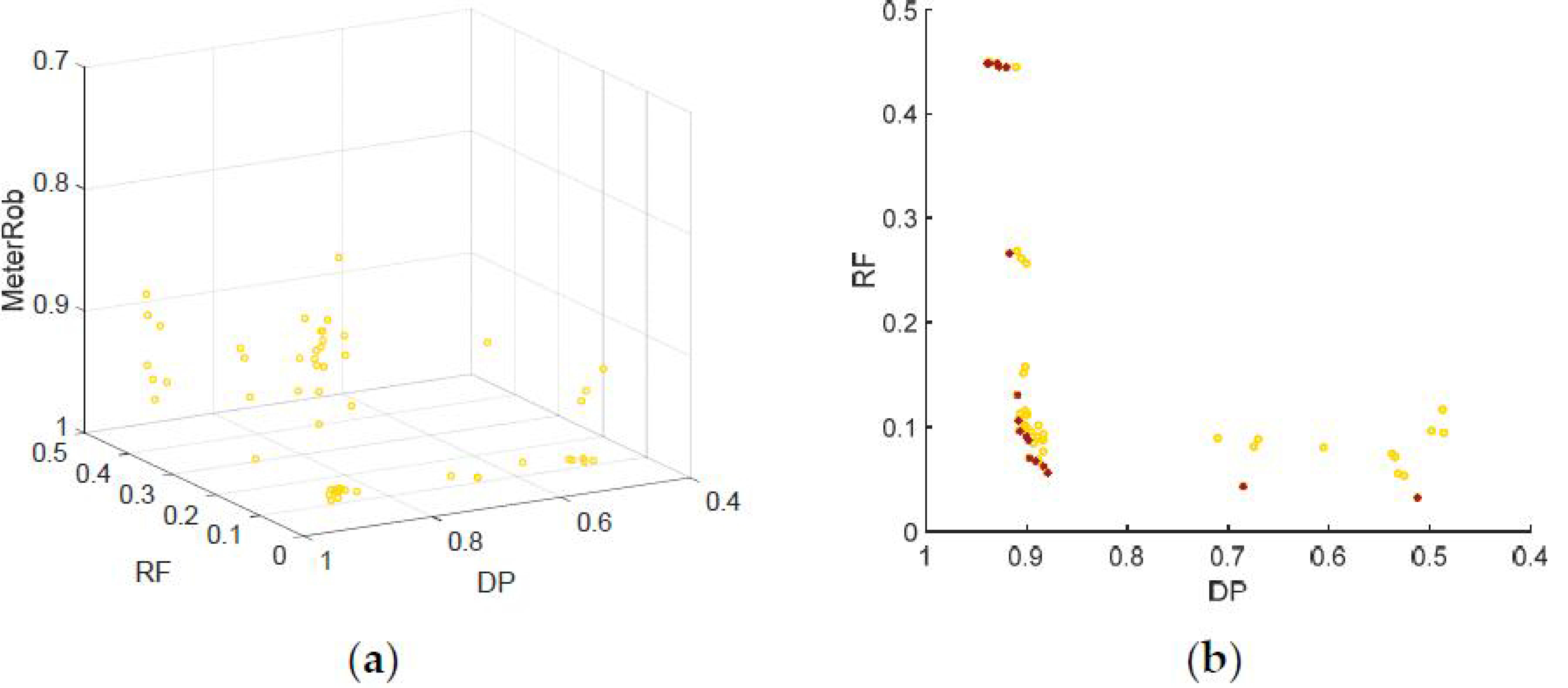

**Figure 2.**Projections of the Pareto optimal solutions of the pipe flow meters given nmeter = 3 in (

**a**) a three-dimensional plot and two-dimensional plots of (

**b**) DP and RF; (

**c**) DP and MeterRob; and (

**d**) RF and MeterRob. Non-dominated solutions with respect to the two objectives were identified in a post-optimization process and are marked with asterisks in Figure 2b–d.

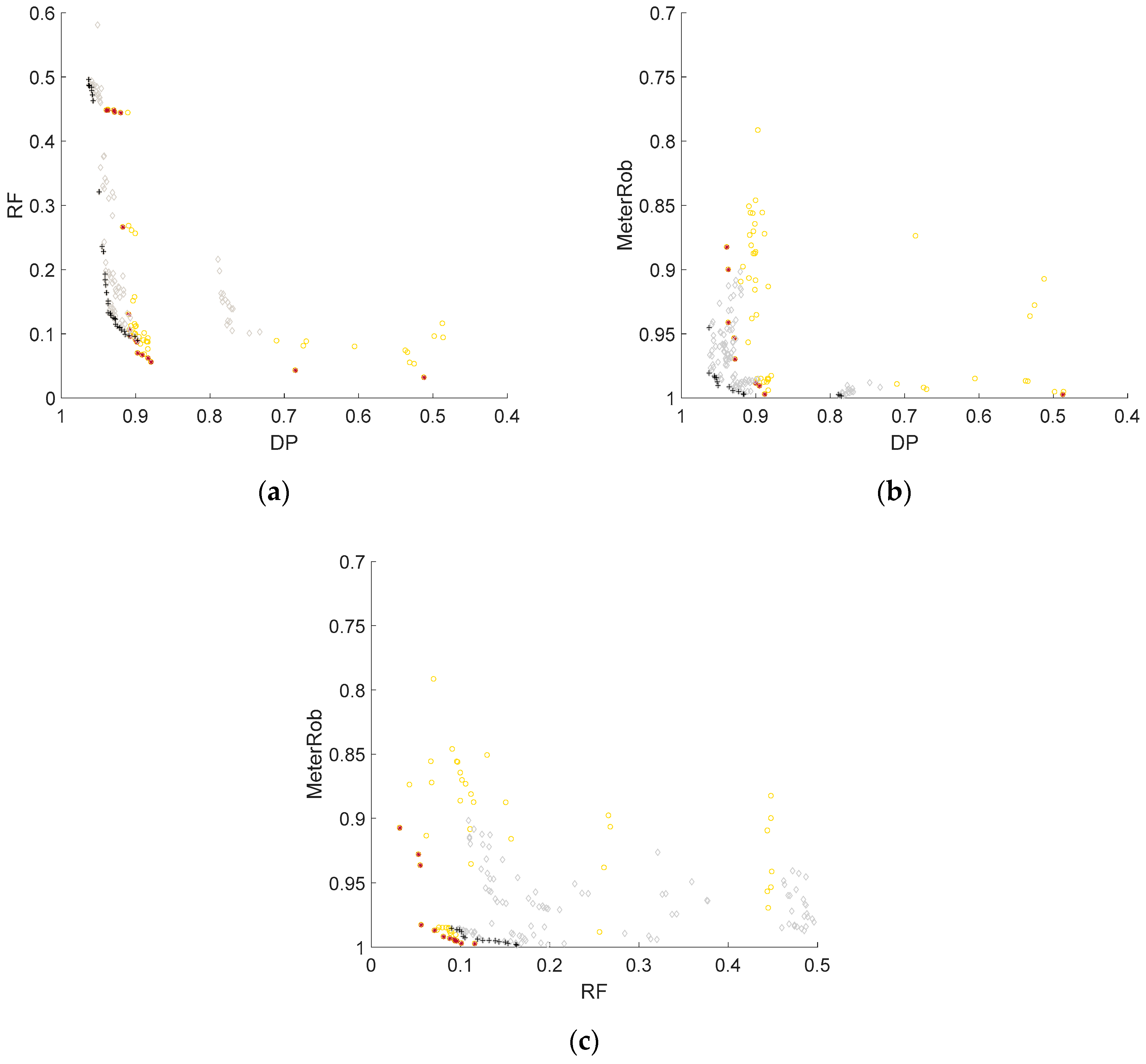

**Figure 3.**Comparison of two Pareto optimal solutions for pipe flow meter placement with nmeter = 3 (circle points) and 5 (diamond points) in two-dimensional plots of (

**a**) DP and RF; (

**b**) DP and MeterRob; and (

**c**) RF and MeterRob. Non-dominated solutions with respect to the two objectives were identified in a post-optimization process and are marked with asterisk points for nmeter = 3 and cross marks for nmeter = 5.

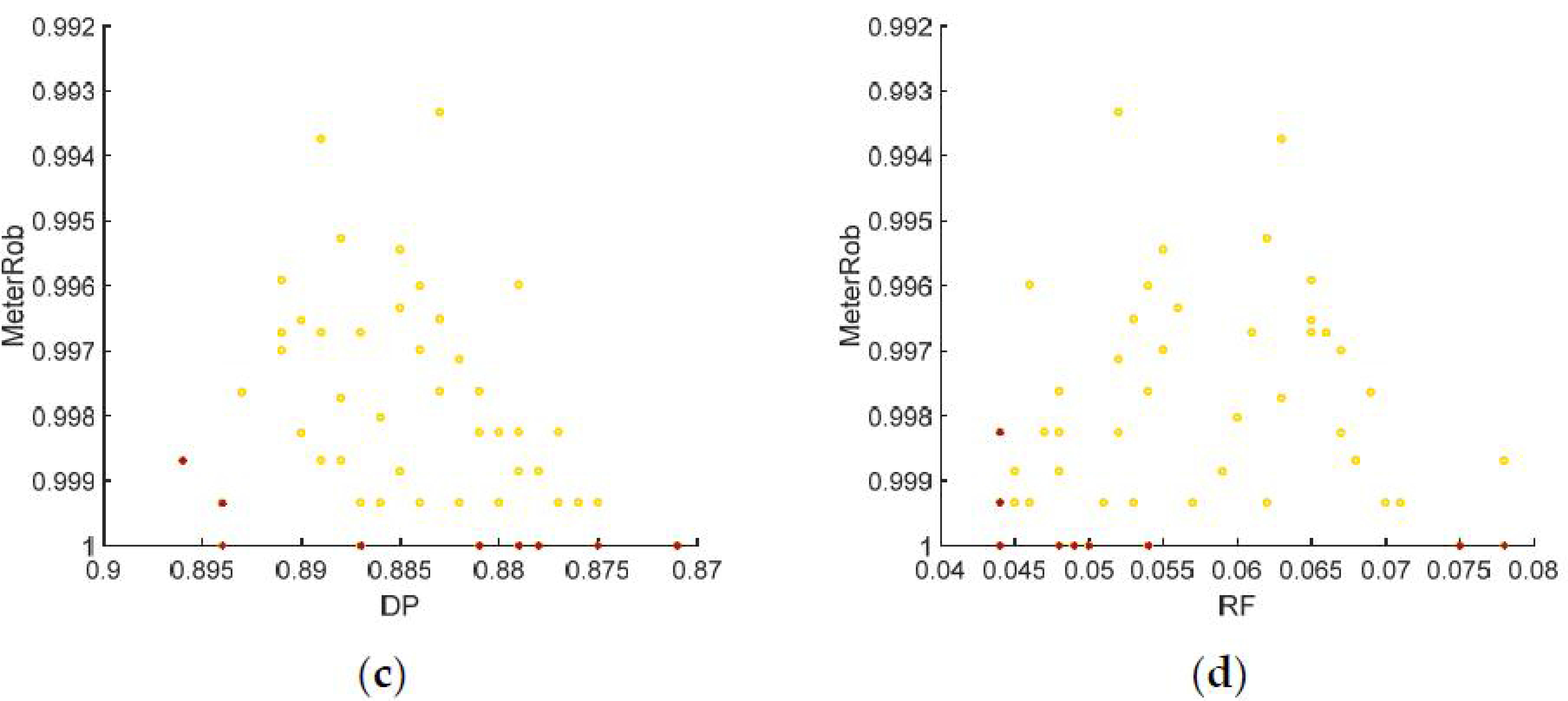

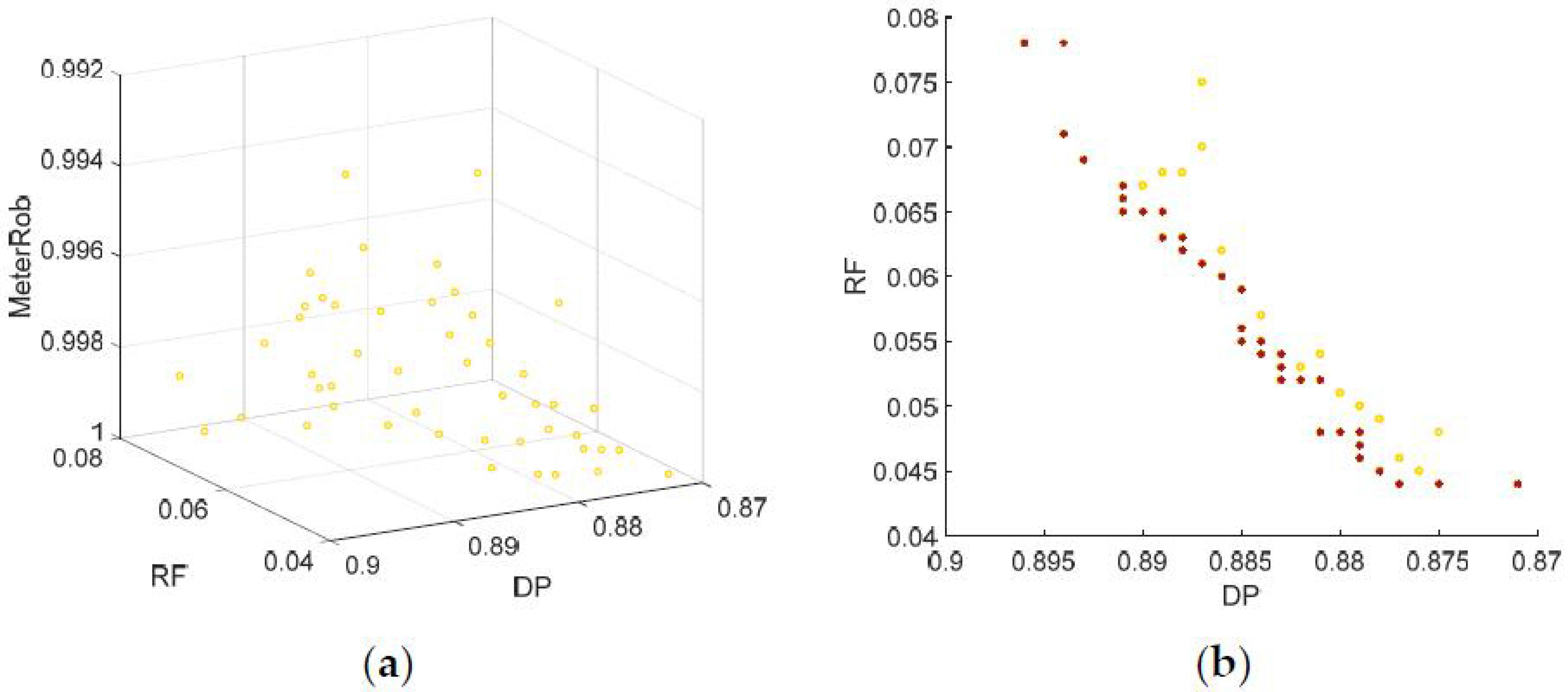

**Figure 4.**Projections of the Pareto optimal solutions of pressure meters given nmeter = 3 in (

**a**) a three-dimensional plot and two-dimensional plots of (

**b**) DP and RF; (

**c**) DP and MeterRob; and (

**d**) RF and MeterRob. Non-dominated solutions with respect to the two objectives were identified in a post-optimization process and are marked with asterisk points in Figure 4b–d.

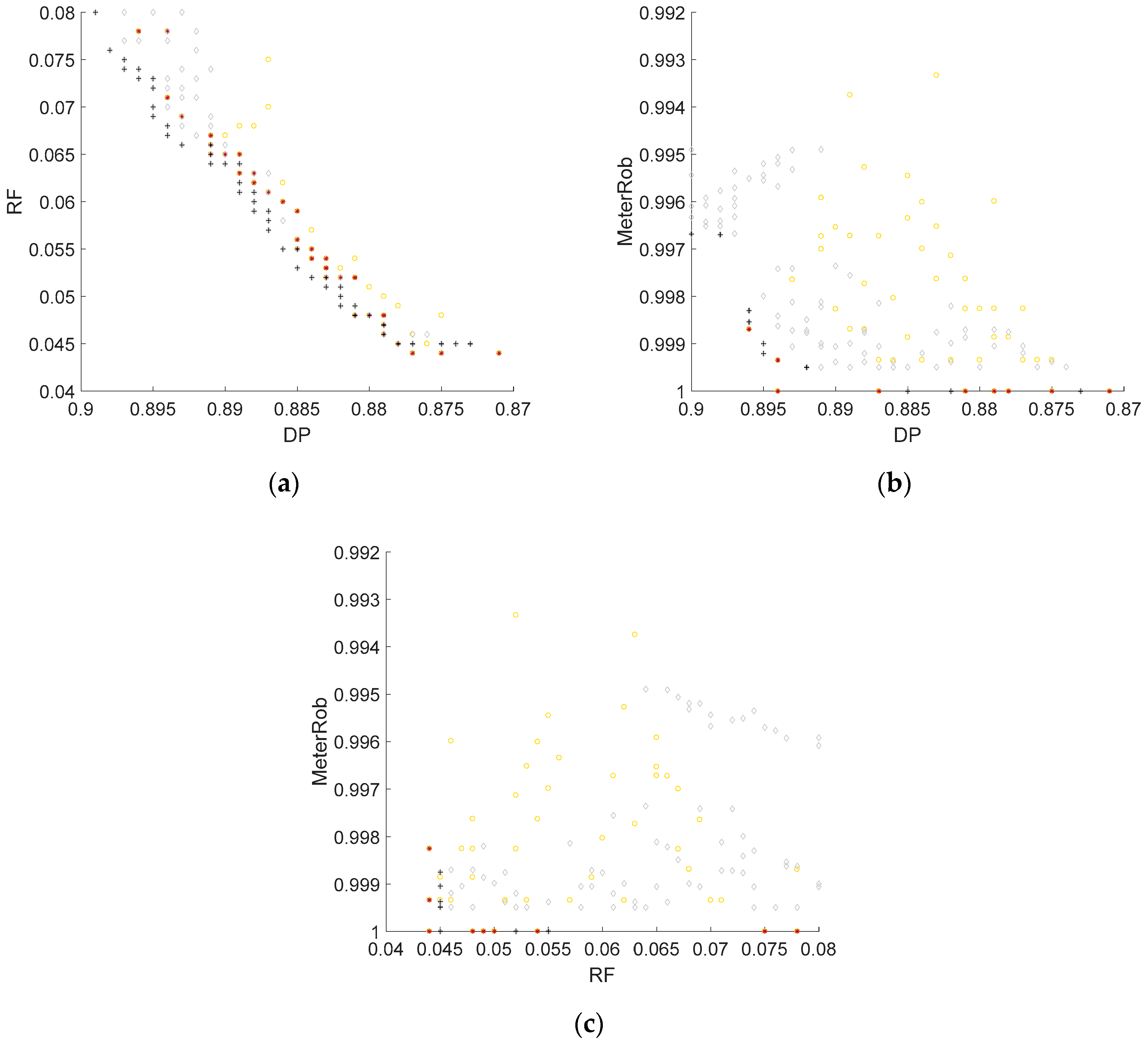

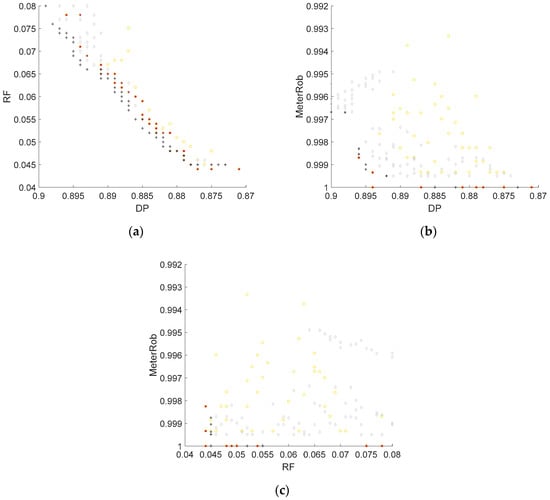

**Figure 5.**Comparison of two Pareto optimal solutions for pressure meter placement with nmeter = 3 (circle points) and 5 (diamond points) in two-dimensional plots of (

**a**) DP and RF; (

**b**) DP and MeterRob; and (

**c**) RF and MeterRob. Non-dominated solutions with respect to the two objectives were identified in a post-optimization process and are marked with asterisk points for nmeter = 3 and cross marks for nmeter = 5.

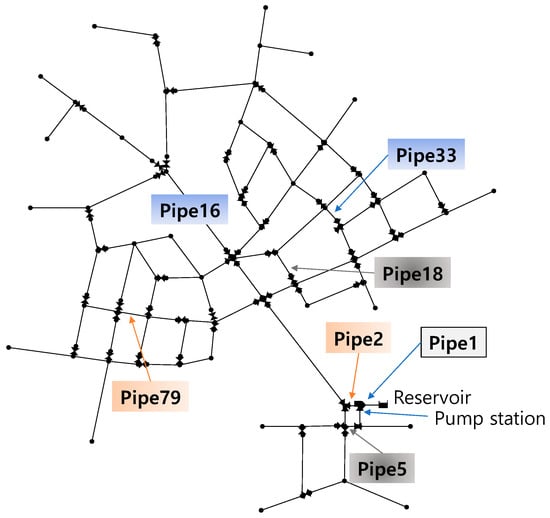

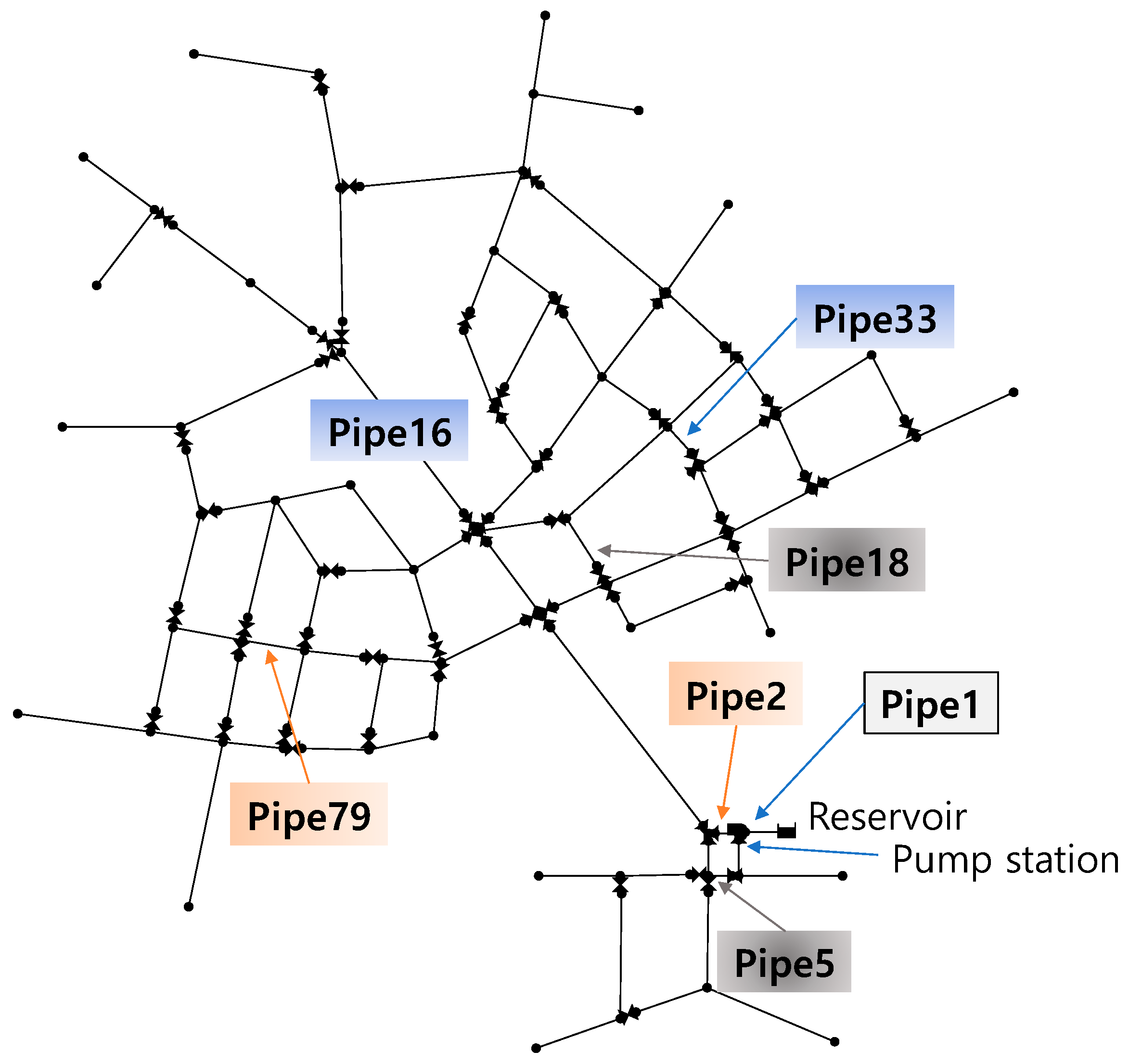

**Figure 6.**Meter locations of the three selected solutions given in Table 1.

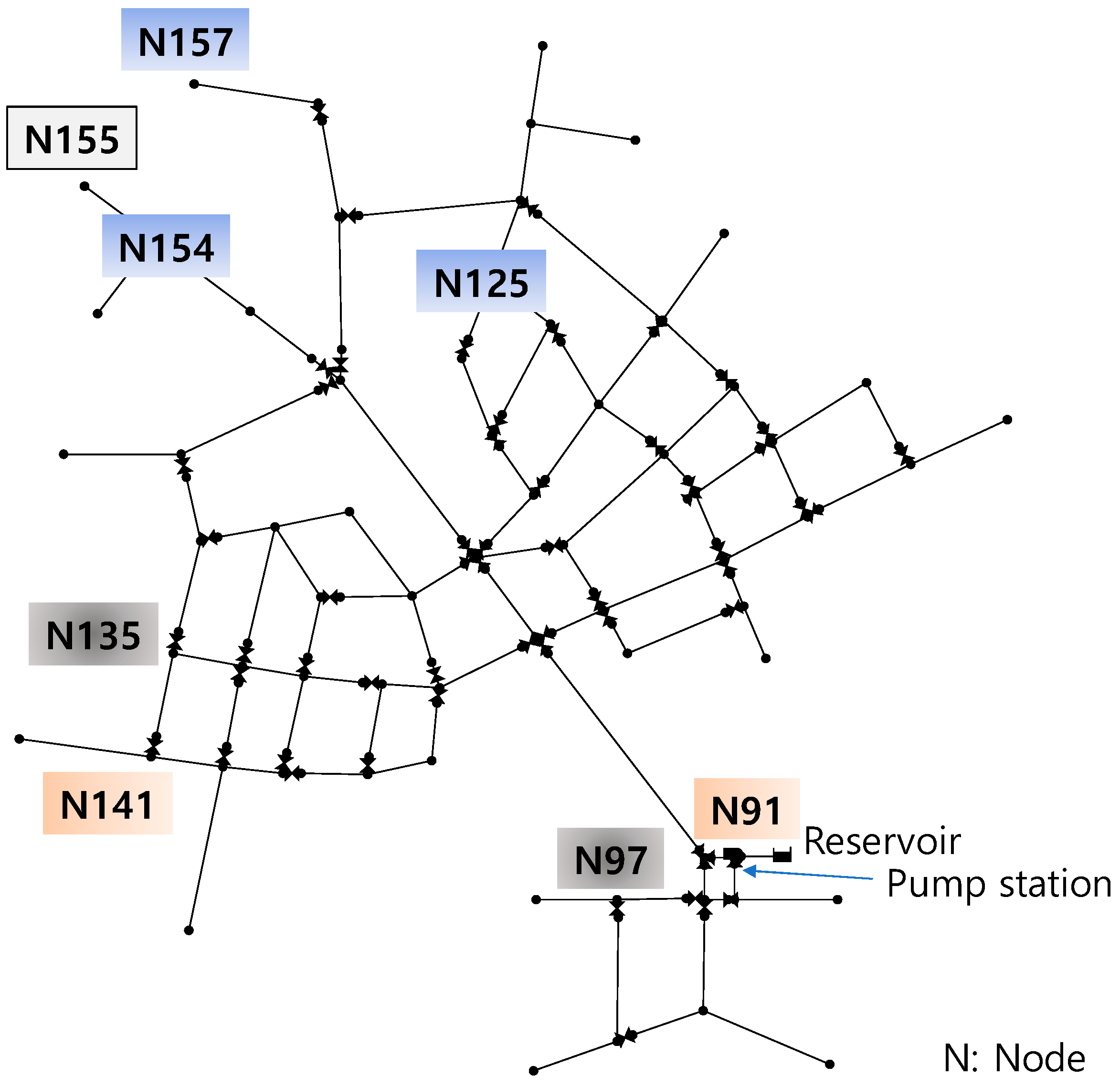

**Figure 7.**Meter locations of the three selected solutions given in Table 2.

**Table 1.**DP, RF, and MeterRob values of the three selected solutions obtained for three pipe flow meter placements (nmeter = 3).

Solution Identifier | Objective Function Values | Meter Locations | ||||
---|---|---|---|---|---|---|

DP | RF | MeterRob | Meter 1 | Meter 2 | Meter 3 | |

Solution 1 | 0.9 | 0.091 | 0.846 | Pipe 1 | Pipe 16 | Pipe 33 |

Solution 2 | 0.9 | 0.111 | 0.908 | Pipe 1 | Pipe 18 | Pipe 5 |

Solution 3 | 0.9 | 0.256 | 0.988 | Pipe 1 | Pipe 2 | Pipe 79 |

**Table 2.**DP, RF, and MeterRob values of the three selected solutions for three pressure meter placements (nmeter = 3).

Solution Identifier | Objective Function Values | Meter Locations | ||||
---|---|---|---|---|---|---|

DP | RF | MeterRob | Meter 1 | Meter 2 | Meter 3 | |

Solution 1 | 0.875 | 0.044 | 0.9993 | Node 125 | Node 154 | Node 157 |

Solution 2 | 0.885 | 0.059 | 0.9989 | Node 97 | Node 135 | Node 155 |

Solution 3 | 0.894 | 0.071 | 0.9994 | Node 91 | Node 141 | Node 155 |
