Hamiltonian Additional Damping Control for Suppressing Power Oscillation Induced by Draft Tube Pressure Fluctuation

Faculty of Civil Engineering and Mechanics, Kunming University of Science and Technology, Kunming 650500, China
Faculty of Metallurgical and Energy Engineering, Kunming University of Science and Technology, Kunming 650093, China
Author to whom correspondence should be addressed.
Water 2023, 15(8), 1479;
Submission received: 21 March 2023 / Revised: 6 April 2023 / Accepted: 8 April 2023 / Published: 10 April 2023


The power oscillation induced by pressure fluctuation in the draft tube of the hydraulic turbine is one of the limiting factors preventing the Francis turbine from operating in the vibration zone. At the present power grid with a high proportion of renewable energy resources, we try to improve the load regulation ability of the hydropower units by extending the stable operation zone to the vibration zone. By the mathematical modelling of pressure fluctuation, this paper gives an analytical expression of the power oscillation. We derive the extended Hamiltonian model of the hydropower unit where power oscillation is external excitation. Secondly, the damping injection method introduces some desired interconnection and damping matrices as the Hamiltonian damping factor into the additional damping control. Finally, through theoretical analysis and experimental simulation, this research discusses the resonance characteristics of pressure fluctuation and power oscillation, the equivalent analysis between the damping factor and equivalent damping coefficient, and the control design of vibration zone crossing during the start-up. Simulation results show that when r25 = 1.3, the minimum power oscillation amplitude is 0.5466, which is equivalent to an increase in D by 20. The maximum oscillation amplitude decreases by 4.6%, and the operation limited zone is reduced by 10.1%. The proposed additional damping control can effectively suppress the power oscillation and expand the regulation range.

1. Introduction

In a power system with a high proportion of renewable energy resources, hydropower units (HU) as a large-capacity regulating power supply have been the only feasible technical path to date. So, the load regulation requires a high frequency and a large span. When the power oscillation occurs in the deviation from the rated-load condition, the stable operation zone of HU is limited to 60%–100% of the rated load at present, and some are even limited to 70–100% [1]. This situation narrows the range of active power regulation, which cannot meet the requirements for regulating power supply. To expand the regulation range, related research has even investigated the stability of operation under non-design conditions and the expansion of the overload area [2,3]. From the perspective of practical projects, it has greater potential for extending the stable operation zone under part-load conditions. There are some theoretical and experimental studies on the formation and evolution mechanism [4,5] and suppression measures [6,7] of pressure fluctuation in DL. However, because of its complex dynamic behaviour and multi-field coupling characteristics, we have no suitable method to solve this problem completely. This paper only analyses and studies the power oscillation of the active power caused by the pressure fluctuation of DL in the Francis turbine.
When the frequency of pressure fluctuation in DL is close to the other oscillation frequencies of HU, the resonance of hydraulic, mechanical, or electrical systems will be induced, which can cause greater harm to the entire system. For example, when the frequency is close to the natural frequency of the generator, the power oscillation of active power will be amplified [8,9,10], and when the frequency is close to the low-frequency oscillation frequency of the power grid, it will even threaten grid stability [11]. The problem of power oscillation caused by pressure fluctuation in hydropower stations has been reported from time to time. There are two main ways: one is that the units operate in the vibration zone under part-load conditions [12]; the next is that the units take too long to cross or stay in the vibration zone during the start-up [13].
In the studies discussing the influence of pressure fluctuation on operation control, its external features or measurable characteristics are usually used to describe pressure fluctuation in DL, which many scholars have explored [14,15,16]. However, due to the differences in structural parameters and operating conditions of HU, it is difficult to quantify the nonlinear dynamics behaviour of pressure fluctuation accurately. In the related applications of control analysis, the frequency and amplitude of pressure fluctuation are regarded as measurable characteristics. For example, according to the features of the vortex belt in DL under different load conditions, the piecewise function is used to give the variation of pressure fluctuation [17]. The simplest way is to express the amplitude and frequency of pressure fluctuation is by sine or cosine [18]. This paper adopts this simple sine function to describe pressure fluctuation in the experimental simulation.
From the dynamic of view, it is effective to increase the system damping to suppress the parameter variety and disturbance. For example, by increasing the damping of HU, the amplitude of power oscillation can be significantly reduced [19]. The article [20] used PSS to suppress the power oscillation induced by pressure fluctuation, which is equal to increasing the damping of their resonance zone. Based on this idea, this paper attempts to study how to improve the damping of HU to suppress the amplitude of power oscillation from the control.
The damping characteristics are improved by narrowing the oscillation amplitude and reducing the oscillation times through the control strategy. For the power oscillation induced by the vortex belt of DL, the optimization of governor control parameters has a less inhibiting effect on the power oscillation [21]. Therefore, it is necessary to consider other auxiliary signals as control inputs to supply additional damping to the object system, such as the PSS module on the generator side. There are a few control theories whose purpose is to improve the damping characteristics of the system. The damping injection method based on generalized Hamiltonian theory explicitly proposes injecting damping into the system to improve the transient characteristics [22,23,24]. The core of this theory is to change the geometric structure by modifying the interconnection or damping matrix. However, it is difficult to obtain the analytical expression of the modified Hamilton function to maintain the mathematical equivalence. Some research results have used flexible methods to design the equivalent control law after structural modification in practical problems. For example, for high-order systems with incomplete control, the control design adopts the approximate treatment at the given equilibrium point [25], and the article [26] has proposed a parametric design method called H-damping-assignable. The Hamiltonian function is minimized to synthesize the corresponding control laws [27].
This paper proposes an equivalent control design method of damping injection in the fifth-order Hamiltonian system of HU, which aims at suppressing the power oscillation induced by pressure fluctuation. Associations among the value of damping factor, the variation of damping characteristics, and the influence of resonance characteristics are studied. In practical application, selecting appropriate damping factors and adopting PID + Hamiltonian additional damping control can effectively improve the vibration zone crossing during the start-up of HU. The new control strategy ensures that the system quickly passes through the resonance region and reduces the active oscillation amplitude induced by pressure fluctuation.

2. Problem Description

The pressure fluctuation of a Francis turbine results from the upward transmission of an eccentric vortex in the draft tube (DL). It is presented as a periodic change of the water head across DL [18]. The mechanical power pt defined by the IEEE Working Group [28] is expressed as
p t = A t h t ( q q nl )
pt only applies to the unconstrained draft tube with zero inlet pressure, and ht only refers to the pressure at the hydro turbine admission. However, the strict definition of the water head is the pressure difference between the upstream of the hydro turbine and the downstream.
The new water head accounting for the pressure fluctuation is described by
h t = h t 0 + h p sin ( ω p t )
Noted that ht0 is ht in Equation (1).
Similarly, we define the new mechanical power after inserting Equation (2) into Equation (1):
p t = A t h t 0 ( q q nl ) + A t ( q q nl ) h p sin ( ω p t ) = p t 0 + Δ p
where pt0 is pt in Equation (1) and Δp = Athp(qqnl)sin(ωpt).
Let Δp/pt0 in Equation (3), we have:
Δ p p t 0 = h p h t 0 sin ( ω p t )
Equation (4) shows that the frequency of power oscillation is the same as that of pressure fluctuation. According to “Basic technical specification for large and medium hydraulic turbines” [29], the peak-to-peak allowable value is 3~10% of the corresponding operating head, and the absolute value is less than 10 (m). In medium and low turbines, their power oscillation may have a larger oscillation amplitude.
The motion equation of HU is:
d ω d t = 1 T j [ p t p e D ( ω 1 ) ]
Substituting Equation (3) into Equation (5) to obtain:
d ω d t = 1 T j [ p t 0 p e D ( ω 1 ) ] + 1 T j F p sin ( ω p t )
We define Fp = Athp(qqnl).
According to the theory of vibration mechanics [30], the active power under harmonic excitation is sinusoidal oscillation with the same external excitation frequency. When the frequency of pressure fluctuation is close to the natural frequency of power oscillation, the latter amplitude will be increased by the resonance, and HU will be unable to operate stably. According to the resonance characteristics, the oscillation amplitude can be reduced or suppressed by increasing the damping of the system. In this paper, we try to minimize the power oscillation and improve the operating stability by the damping injection method.

3. Additional Damping Control for the Hamiltonian System

The port-controlled Hamiltonian (PCH) system takes the form of:
x ˙ = [ J ( x ) R ( x ) ] H x ( x ) + g ( x ) u x
The state variable xRn and control input uRm, m < n, H(x) is the energy function, g(x) is the input matrix, the structure matrix J(x) is antisymmetric, and the damping matrix R(x) is a semi-positive definite symmetric matrix.
Assume that x* is the equilibrium, the constant control v* is the solution of
0 = [ J ( x ) R ( x ) ] H x ( x ) + g ( x ) v
If the corresponding conditions [31] are satisfied, v* is the input of stabilization control in system (7).
Given the constant structural modification Ja and Ra, the desired Hamiltonian structure matrix is Jd(x) = J(x) + Ja, Rd(x) = R(x) + Ra, which satisfies Jd(x) = −Jd(x)T, Rd(x) = Rd(x)T. So, the system (7) can be rewritten as
x ˙ = J d ( x ) J a R d ( x ) R a H x ( x ) + g ( x ) u ( x ) = [ J d ( x ) R d ( x ) ] H x ( x ) [ J a R a ] H x ( x ) + g ( x ) u ( x ) = [ J d ( x ) R d ( x ) ] H x ( x ) + g ( x ) β ( x )
g ( x ) β ( x ) = [ J a R a ] H x ( x ) + g ( x ) u ( x )
β(x) is the equivalent control after structure modification.
At the equilibria x*, the modified Hamiltonian system (9) also satisfies:
0 = [ J d ( x ) R d ( x ) ] H x ( x ) + g ( x ) β ( x ) = [ J ( x ) R ( x ) ] H x ( x ) + [ J a R a ] H x ( x ) + g ( x ) β ( x ) = g ( x ) v + [ J a R a ] H x ( x ) + g ( x ) β ( x )
When the system is asymptotically stable, the control β(x) in Equation (10) replacing β(x*) in a neighbourhood around the equilibrium point is valid. Assume that g(x) is a constant matrix, that is, g(x) = g(x*) = g. Combining with Equations (10) and (11), there are:
g [ u ( x ) v ] = ( J a R a ) [ H x ( x ) H x ( x ) ]
Let α(x) = u(x)-v*. If g(x) is full of rank, (gTg) is reversible. In addition,
α ( x ) = ( g T g ) 1 g T ( J a R a ) [ H x ( x ) H x ( x ) ]
α(x) is the additional damping control of the Hamiltonian system (7) with (Ja, Ra), and α(x*) = 0. Notice that α(x) only plays a role in the transient process.
The resulting control law must calculate the matching Equation (8) at the given equilibrium x*, which is its limitation. The control design method is selected by the load state of the system in the actual operation. The additional damping control is appropriate for this research, which aims to suppress the power oscillation induced by pressure fluctuation.

4. Hamiltonian Model of Hydropower Units

As the external excitation, the power oscillation induced by the pressure fluctuation in DL is added to the motion Equation (5) of HU. The generalized Hamiltonian model is from the transformation of the differential equation model. Assuming that the power oscillation approximates the Hamiltonian system input as an external excitation, we add the excitation to the PCH model of HU [32]. The expanded PCH model is expressed as follows:
x ˙ = [ J ( x ) R ( x ) ] H x + g ( x ) v ( x ) + F ( x )
J ( x ) = 0 C T ( x ) 0 0 0 C T ( x ) 0 0 1 2 T j T y 0 0 0 0 1 T j 0 0 1 2 T j T y 1 T j 0 0 0 0 0 0 0 , R ( x ) = r ( x ) 0 0 0 0 0 r ( x ) 0 1 2 T j T y 0 0 0 0 0 0 0 1 2 T j T y 0 D T j 2 ω B 0 0 0 0 0 ω B X a d 2 T d 0 X f g ( x ) = 0 1 T y 0 0 0 0 0 0 0 ω B T d 0 ' T , v ( x ) = u p ( x ) E f F ( x ) = [ 0 0 0 1 T j F p sin ( ω p t ) 0 ] T
where x = [x1, x2, x3, x4, x5]T = [q, y, δ, ω, Eq]T, F(x) is the external excitation, and the Hamilton function is:
H x = T y A t x 1 2 x 2 ( x 1 q nl ) + 1 2 T j ω B x 4 2 1 2 U s 2 ( 1 X q 1 X q Σ ) cos 2 x 3 + 1 2 U s 2 X q + 1 2 X d X f X a d 2 X d x 5 2 U s cos x 3 X d x 5
The algebraic equations in Equation (14) are:
f 1 ( x ) = 1 T w ( h 0 f p x 1 2 x 1 2 x 2 2 ) f 2 ( x ) = 1 T y ( x 2 y 0 ) r ( x ) = f 2 ( x ) x 2 H + A t x 1 3 / x 2 ( x 1 H ) 2 + ( x 2 H ) 2 C T ( x ) = f 1 ( x ) + x 1 H r ( x ) x 2 H u p ( x ) = u ( x ) + T y f 1 ( x ) x 1 H + A t x 1 3 / x 2 x 2 H p t = A t x 1 2 x 2 2 ( x 1 q n l )
where up(x) is the control realized by a feedback dissipative, Xd∑ = Xd + XT + XL, Xd∑= Xd + XT + XL and Xq∑ = Xq + XT + XL.
In the above model, the hydro turbine is a second-order model including flow and guide vane opening. The head losses are proportional to flow squared and given by f1(x) in CT(x) of structure matrix J(x) in Equation (14). It is only a simple hydraulic condition with a penstock and a non-elastic water column. If the elastic water column is adopted, the model becomes a five-order model, and the derived Hamiltonian model has a more complex expression, while HU is the eighth-order model. It is bound to make additional damping control (13) more difficult.
In this paper, we first design the additional damping control for the fifth-order Hamiltonian model. Then, the adaptability of the control law for the expanded PCH system is studied by example simulation.

5. Control Design

5.1. Damping Injection

This research aims to inject damping into the Hamiltonian system and suppress the power oscillation. In the PCH system (7), the damping matrix R(x) reflects the port dissipation characteristics. We want to add the corresponding Hamiltonian damping factor Ra to R(x) to increase the system damping. In HU, the active power belongs to the electrical systems, and the pressure fluctuation of DL belongs to the hydraulic systems. So, Ra is the correlation item between hydraulic and electrical systems. The desired structure matrix is selected as follows:
J a = 0 5 × 5 , R a = 0 0 0 0 0 0 0 0 0 r 25 0 0 0 0 0 0 0 0 0 0 0 r 25 0 0 0
Insert (14) and (16) into (13), and the additional damping control is as follows:
α x = α 1 x α 2 x = T y r 25 [ H x 5 ( x ) H x 5 ( x ) ] T d 0 ω B r 25 [ H x 2 ( x ) H x 2 ( x ) ]
Combining u(x) = α(x) + v* to obtain:
u ( x ) = u p + T y r 25 [ X d X f X a d 2 X d ( x 5 x 5 ) U s X d ( cos x 3 cos x 3 ) ] E f T d 0 ω B r 25 T y A t [ x 1 2 x 2 2 ( x 1 q nl ) x 1 2 x 2 2 ( x 1 q nl ) ]
u(x) is a state feedback control, which builds the coupling correlation between the different systems.
According to Lyapunov stability theory, the range of r25 in (16) should be calculated by the positive definiteness of the Hessian matrix. Only in this way is the PCH system with the desired structure matrix (Jd, Rd) asymptotically stable. However, for a high-order system, it is too complicated to confirm the positive definite condition of the Hessian matrix, and the obtained range of r25 at the given equilibrium is not the expected optimal value. Therefore, this paper adopts the numerical example simulation to determine its value range.

5.2. Analysis of Control Law

The control input up(x) in the PCH system (14) can be rewritten as:
u p ( x ) = u ( x ) + 1 T w T y A t Δ h 1 x 2 ( 3 x 1 2 2 x 1 q nl ) + A t x 1 3 / x 2 T y p t
Δ h = h 0 f p x 1 2 x 1 2 x 2 2
The change in water head Δh differs in the calculation between the rigid and elastic water-hammer models, and the turbine power pt and flow q are both affected by Δh. From the above discussion, it seems feasible to calculate Δh in the elastic water hammer model and add it to the additional damping control of the PCH system. This problem needs more research by simulation.

5.3. Control Structure

The control input of the hydro turbine is the main servomotor displacement u, and that of the generator is excitation voltage Ef. We can regard the additional damping control (17) as a part of coordinated control consisting of the traditional speed governor and excitation controller. The structure of the Hamiltonian additional damping control is shown in Figure 1.

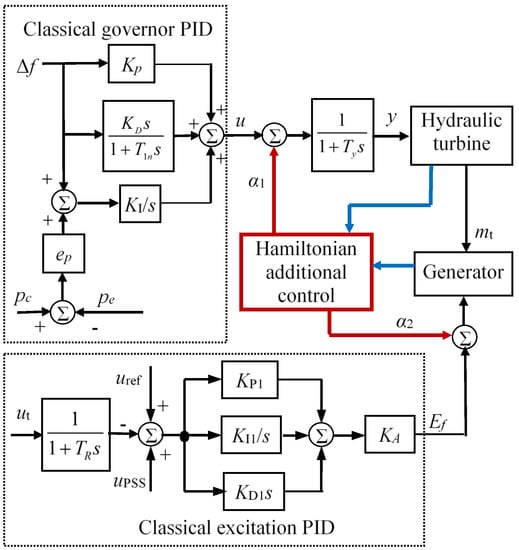

In the structure diagram, we give the port information of the existing control system and the scheme of additional control signal access. The speed governor adopts parallel PID control: Kp = 5.0, KI = 1.7, KD = 1.3, and the excitation controller adopts thyristor excitation PID: KP1 = 1.0, KI1 = 1.5, KD1 = 0.0001. The main parameters of the system are At = 1.127, Tw = 2.242, Ty = 0.5, Tj = 8.999, Td0′ = 5.4, Xd = 1.07, Xd′ = 0.34, Xq = 0.66, Xf = 1.29, Xad = 0.97, D = 5.

6. Simulation Research

6.1. Pressure Fluctuation Analysis

The frequency of pressure fluctuation is usually described by multiples of that of rated rotation in HU. The approximate estimation at present generally is to delimit an adequate range. The natural frequency is nearly 1.0 (Hz). We define fp as the pressure fluctuation frequency and fp = ωp/2π. In the following simulation, we try to find the possible resonance phenomenon with fp = 0.9 (Hz), hp = 0.05 (p.u) and fp = 0.7 (Hz), hp = 0.05 (p.u). The pressure fluctuation occurs at t = 1.0 (s). The mechanical power pt of the hydro turbine and the active power pe of the generator is shown in Figure 2.

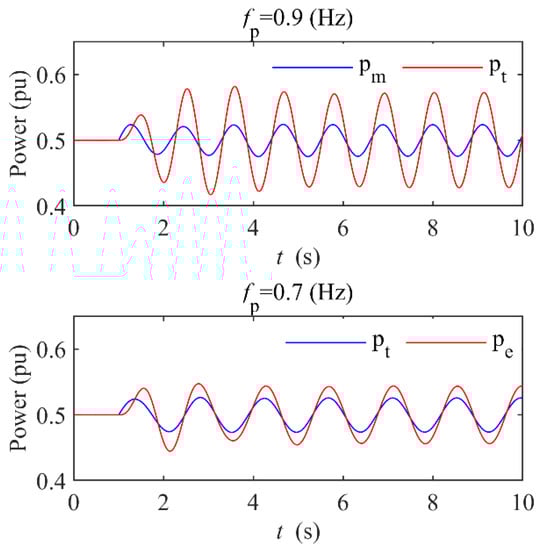

pt and pe have the same oscillation frequency after entering the steady state. When fp = 0.9 (Hz) is close to the natural frequency (1.0 (Hz)), there is a larger difference in the oscillation amplitude between pe and pt than that of fp = 0.6 (Hz). Here is a resonance zone of the pressure fluctuation and power oscillation. The article [18] also found that the frequency of pressure fluctuation has a great influence on the oscillation amplitude of active power, and there is an amplification point of the maximum amplitude. This result is consistent with the classical vibration mechanics theory.
According to the classical theory of vibration mechanics, increasing the damping can suppress the amplification of oscillation amplitude in the resonance zone, which is the theoretical basis of this paper.

6.2. Damping Injection Simulation

Let hp = 0.05 (p.u), fp = 0.9 (Hz), and the pressure fluctuation occurs at t = 1.0 (s). The responses of pe under the control laws (17) with different r25s are shown in Figure 3.

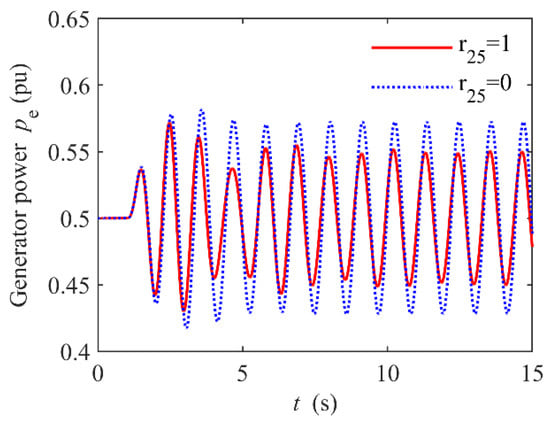

r25 = 0 is equivalent to not adding the additional damping in control (17), and r25 = 1 is added to the damping. Compared to the result of no control, the Hamiltonian additional damping control can obviously narrow the amplitude of power oscillation.

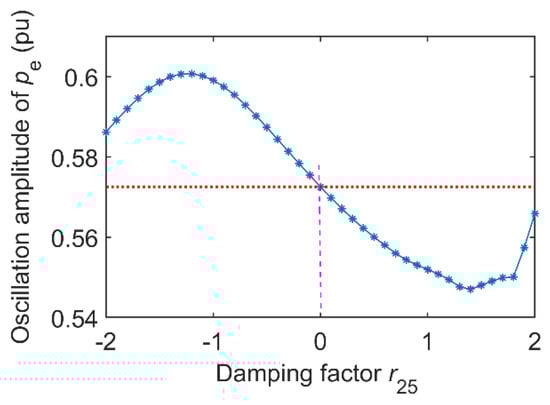

As mentioned in Section 4, the value of r25 needs to be determined by simulation. r25 has a reasonable range to guarantee the convergence of the system to the desired neighbourhood. The oscillation amplitude changes with r25 are as follows in Figure 4.
When r25 = 0, the oscillation amplitude of pe is the reference value marked by a red dotted line.
When the data points are above the reference line, α(x) with r25 < 0 supplies negative damping. In addition, α(x) with r25 > 0 shows a positive damping characteristic. This variation of damping characteristics is consistent with the expectation of the damping injection method. When r25 exceeds the range limited to the X-axis in Figure 4, the response curve of pe will gradually diverge and lose its stability, and when r25 = 1.3, the oscillation amplitude is the smallest, which can function as the optimal value.
The above study determines the effective range and optimal value of the damping factor through simulation calculation. In this simple way, we solve the problem of manually constructing and solving the high-order Hessian matrix.
Further simulation shows that this change in damping characteristics is related to the frequency of pressure fluctuation in DL. Given different r25s, the oscillation amplitude change with fp is shown in Figure 5.
The oscillation amplitude with r25 = 0 is also used as the reference value marked by the blue line. The intersection point of any two lines tells that the damping characteristic changes dynamically with fp. When fp is below a specific value located at the intersection, the positive damping induced by r25 = 1 adjusts to the negative damping. This situation also applies to r25 = −1.

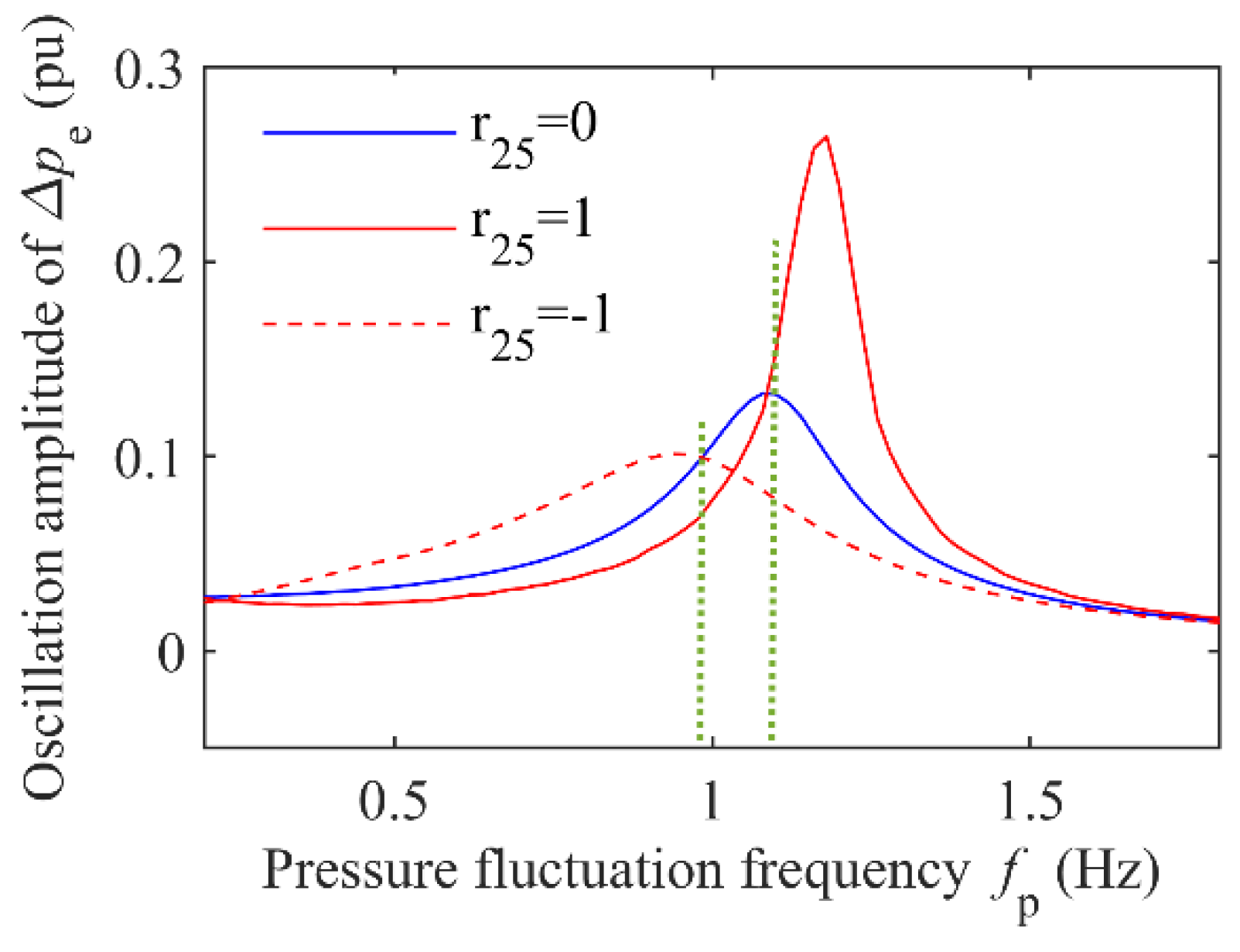

From the two waveform peaks in Figure 5, the resonance peak point is shifted with the value of r25. The additional damping control based on the desired structure matrix (Jd, Rd) can modify the self-vibration characteristics and natural frequency. This phenomenon reveals a new way to improve the oscillation characteristic of the system, which needs further study.

6.3. Damping Injection Quantization

It is difficult to make rigorous theoretical calculations to quantify the damping in the Hamiltonian addition control. The power oscillation caused by the equivalent damping coefficient of generator D can be equated with that of a certain r25. We try to obtain the value of r25 indirectly by calculating D.

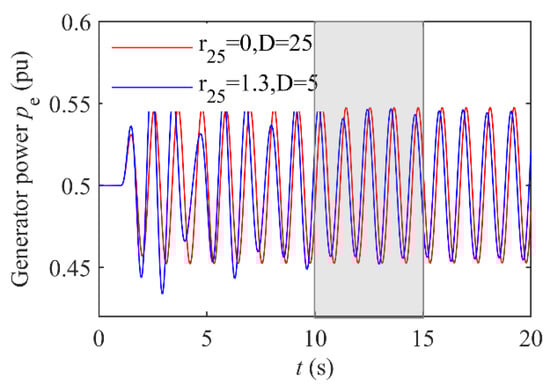

Take r25 = 0, D = 25 and r25 = 1.3, D = 5 for example, we select the maximum amplitude of power oscillation in steady state as a reference. The responses under two conditions are shown in Figure 6.
The oscillation amplitude of the red line is 0.5477, which is close to that of the blue line (= 0.5466) in t = 10 ~ 15 s. It shows that the effect of r25 = 1.3 is equivalent to an increase in D by 20.

6.4. Expand the Stable Operation Zone

Figure 4 shows that the Hamiltonian additional damping control with any r25s cannot completely restrain power oscillation induced by pressure fluctuation. The expansion of the oscillation amplitude is the main cause of the loss of stability. We want to use the Hamiltonian additional damping control to expand the load regulation range, which is analysed as follows with an example simulation.
Under different load conditions, traditional PID control and PID + Hamiltonian additional damping control are adopted. The comparison is as follows in Figure 7.

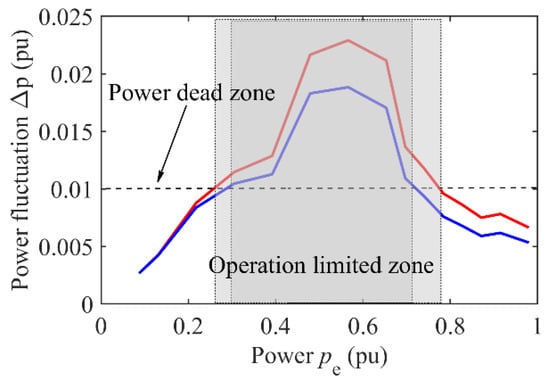

The dead-zone set in Figure 8 is 0.01 (p.u). When Hamiltonian additional damping control is added, the power oscillation (blue line) is lower than the PID control (red line). In HU, the operation limited zone (shaded part) shrinks, and the load regulation range is extended.

6.5. Simulation of Vibration Zone Crossing

From no-load to rated load, HU will inevitably pass through the part-load vibration zone. If it takes too long in this process, the power oscillation in the vibration zone will induce the low-frequency oscillation [18].
When the active power increases from 0.1 to 1.0 (p.u), the unit will cross the vibration zone during the part-load operation. Consider the following three conditions.
Case 1. No additional Hamiltonian additional damping control, that is, r25 = 0, only the PID control of speed regulation and excitation.
Case 2. Add Hamiltonian additional damping control, and r25 = −0.5. In the transient process of load increase, the target value in control law is obtained by the difference between the initial and final active values of pe.
Case 3. Add Hamiltonian additional damping control, and r25 = −0.5. The target value only corresponds to load pe = 1, ignoring its variation in the load increase.

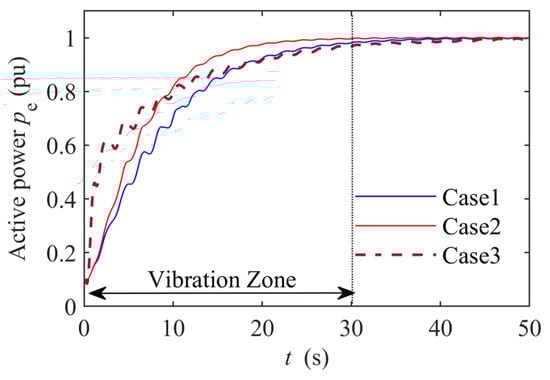

The simulation results are shown in Figure 8.
From the above figure, pe of different control strategies receives different degrees of influence from pressure pulsation when the unit runs in the part-load vibration zone during the start-up (0~30 s). After 30 s, the unit leaves the vibration zone and gradually enters a steady state, and the influence of pressure pulsation disappears. The power oscillation may occur when it crosses the vibration zone too slowly or when the pressure fluctuation amplitude is high. Compared to the control effect of Case 1, the control law in Case 2 can greatly reduce the amplitude of power oscillation, and Case 3 can let the unit pass through the vibration zone rapidly.
From the signal flowchart in Figure 1, the Hamiltonian additional damping control is directly added to the PID output. It is equivalent to adding a power feed-forward to improve the regulation speed. The opening speed of the guide vane is accelerated, which may cause high pressure in the pipeline. During the start-up, we should comprehensively consider the relationship between the velocity of passing through and the pressure change.

7. Conclusions

In this paper, we first give the calculation formula of the water head considering the pressure fluctuation in DL and expand the PCH model of HU. Secondly, the damping injection method is used to design the Hamiltonian additional damping control to suppress the power oscillation induced by pressure fluctuation. There are three conclusions:
  • The simulation results show that adding the Hamiltonian damping factor is mathematically equivalent to increasing the oscillation damping, and it is effective to use additional damping control based on the damping injection method.
  • The resonance point of pressure fluctuation and power oscillation shifts with the values of the Hamiltonian damping factor. The damping characteristic of the same factor is a variation of positive-negative near the resonance point. In application, the values of these damping factors should be selected by the load condition.
  • PID + Hamiltonian additional damping control can expand the stable operation zone. During the start-up, HU applying the Hamiltonian additional damping control can faster pass through the vibration zone and have a smaller power oscillation than the PID control.
However, in deriving the control strategy, the approximate treatment at the given equilibrium point is used to obtain the equivalent control law. This processing method is only a flexible approach selected for practical problems. It is difficult to maintain mathematical equivalence between the modified and original systems, and due to the excessively strict mathematical equivalence, there are still many difficulties in applying it to high-order systems. These issues will continue to be explored in future research.

Author Contributions

J.Q., F.D., X.L. and Y.X. has contributed the most to the conception, guidance, and revising of the manuscript. The data acquisition and analysis were completed by Y.Z. The manuscript was written by S.Y. All authors have read and agreed to the published version of the manuscript.


This research was funded by National Natural Science Foundation of China, grant number 52079059.

Data Availability Statement

Data sharing is not applicable to this article as no datasets were generated or analysed during the current study.


Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


DFDraft tube
HUHydropower unit
PCHPort-controlled Hamiltonian
AtConstant proportionality factor
htWater head of the hydro turbine (p.u)
qFlow of the hydro turbine (p.u)
qnlNo-load flow of the hydro turbine (p.u)
hpAmplitude of Pressure fluctuation in DL (p.u)
Δp Mechanical power oscillation (p.u)
TjInertia time constant (s)
peActive power of the generator (p.u)
DThe equivalent damping coefficient
FpAmplitude of power oscillation in the hydro turbine (p.u)
uSpeed governor output (p.u)
EfExcitation controller output (p.u)
yGuide vane opening (p.u)
y0Initial guide vane opening (p.u)
TwWater inertia time (s)
fpWater head loss coefficient
TyTime constant of the main servomotor (s)
EqInternal transient voltage (p.u)
UsInfinite-bus voltage (p.u)
XdThe d-axis synchronous reactance
XdTransient reactance of the generator (p.u)
XTReactance of the transformer (p.u)
XLReactance of the transmission line (p.u)
XqThe q-axis synchronous reactance (p.u)
XfReactance of the excitation winding (p.u)
XadThe d-axis armature reaction reactance (p.u)
Td0Time constant (s)
ωpAngular frequency of pressure fluctuation (rad/s)
ω Angular velocity of the generator (p.u)
ωBBasic angular velocity, ωB = 314 rad/s
δPower angle (rad)


  1. Hu, L.; Shen, J.; Tang, H. Automatic Generation Control Strategies of Hydropower Plant Considering Complex Constraints. Proc. Chin. Soc. Electr. Eng. 2017, 37, 5643–5654. [Google Scholar]
  2. David, V.; Alexandre, P.; Eduard, E.; Carme, V.; Mònica, E.; Matias, B. Power Swing Generated in Francis Turbines by Part Load and Overload Instabilities. Energies 2017, 10, 2124. [Google Scholar]
  3. Zhao, W.; Presas, A.; Egusquiza, M.; Valentín, D.; Egusquiza, E. Increasing the Operating Range and Energy Production in Francis Turbines by An Early Detection of the Overload Instability. Measurement 2021, 181, 109580. [Google Scholar] [CrossRef]
  4. Pasche, S.; Gallaire, F.; Avellan, F. Origin of the synchronous pressure fluctuations in the draft tube of Francis turbines operating at part load conditions. J. Fluids Struct. 2019, 86, 13–33. [Google Scholar] [CrossRef]
  5. Zhao, Y.; Li, Y.; Feng, J.; Dang, M.; Ren, Y.; Luo, X. Vibration Characteristics of a Tubular Turbine Prototype at Different Heads with Considering Free Surface and Water Gravity. Water 2023, 15, 791. [Google Scholar] [CrossRef]
  6. Yu, A.; Tang, Q.; Wang, X.; Zhou, D.; Liu, J. Investigation of the Pressure Fluctuation Alleviation in a Hydraulic Turbine by Runner Modification. Water 2019, 11, 1332. [Google Scholar] [CrossRef] [Green Version]
  7. Kim, S.-J.; Choi, Y.-S.; Cho, Y.; Choi, J.-W.; Hyun, J.-J.; Joo, W.-G.; Kim, J.-H. Effect of Fins on the Internal Flow Characteristics in the Draft Tube of a Francis Turbine Model. Energies 2020, 13, 2806. [Google Scholar] [CrossRef]
  8. Feng, J.; Wu, H.; Wu, G.; Guo, P.; Luo, X. Numerical simulation of pressure fluctuation in a Francis turbine at part load conditions with improved measures. J. Hydraul. Eng. 2014, 45, 1099–1106. [Google Scholar]
  9. Chen, X.; Wu, G.; Liu, S.; Feng, J.; Luo, X. Analysis of Abnormal Fluctuations of Output Power of Francis Turbine. Power Syst. Clean Energy 2020, 36, 98–102. [Google Scholar]
  10. Lei, L.; Li, F.; Xu, B.; Egusquiza, M.; Luo, X.; Zhang, J.; Egusquiza, E.; Chen, D.; Jiang, W.; Patelli, E. Time-frequency domain characteristics analysis of a hydro-turbine governor system considering vortex rope excitation. Renew. Energy 2022, 183, 172–187. [Google Scholar] [CrossRef]
  11. Liu, G.; Qiu, X.; Ma, J.; Chen, D.; Liang, X. Influence of Flexible Generation Mode on the Stability of Hydropower Generation System: Stability Assessment of Part-Load Operation. Energies 2022, 15, 3956. [Google Scholar] [CrossRef]
  12. Jianfeng, M.; Wenfeng, L. Analysis and Handling of Generator Power Swing. Northwest. Hydropower 2015, 1, 69–72. [Google Scholar]
  13. Wang, S.; Feng, Z.; Wei, B.; Plant, E.H. Analysis of a Low-frequency Power Oscillation Event in Large-scale Hydro-turbine Generator Unit. Hydropower New Energy 2017, 5, 54–57. [Google Scholar]
  14. Xu, Y.; Qin, D.; Zhao, Y.; Wang, H. Exploratory analysis on pressure fluctuation conversion in Francis turbine draft tubes. J. Hydraul. Eng. 2016, 35, 87–94. [Google Scholar]
  15. Laouari, A.; Ghenaiet, A. Predicting unsteady behavior of a small francis turbine at several operating points. Renew. Energy Int. J. 2019, 133, 712–724. [Google Scholar] [CrossRef]
  16. Zhu, L.; Zhang, R.Z.; Yu, A.; Lu, L.; Luo, X.W. Suppression of vortex rope oscillation and pressure vibrations in Francis turbine draft tube using various strategies. J. Hydrodyn. 2021, 33, 534–545. [Google Scholar] [CrossRef]
  17. Zhang, L.; Wu, Q.; Ma, Z.; Wang, X. Transient vibration analysis of unit-plant structure for hydropower station in sudden load increasing process. Mech. Syst. Signal. Process. 2019, 120, 486–504. [Google Scholar] [CrossRef]
  18. Guo, P.; Zhang, H.; Gou, D. Dynamic characteristics of a hydro-turbine governing system considering draft tube pressure pulsation. IET Renew. Power Gener. 2020, 14, 1210–1218. [Google Scholar] [CrossRef]
  19. Zhang, H.; Chen, Q.; Zheng, Y.; Geng, Q.; Wang, L. Active power oscillation suppression method of large hydropower unit with damping sill. J. Vib. Shock. 2021, 40, 183–188. [Google Scholar]
  20. Bollinger, K.E.; Nettleton, L.D.; Gurney, J.H. Reducing the effect of penstock pressure pulsations on hydro electric plant power system stabilizer signals. IEEE Trans. Energy Convers. 1998, 8, 628–631. [Google Scholar] [CrossRef]
  21. Xia, Z.; Yan, W.; Yang, J.; Cheng, Y.; Huang, G.; Yang, J. Analysis of power oscillation of generating units at Bailianhe pumped-storage power station. J. Hydraul. Eng. 2021, 40, 141–148. [Google Scholar]
  22. Ortega, R.; van der Schaft, A.; Maschke, B.; Escobar, G. Interconnection and damping assignment passivity-based control of port-controlled Hamiltonian systems. Automatica 2002, 38, 585–596. [Google Scholar] [CrossRef] [Green Version]
  23. Ortega, R.; Schaft, A.; Mareels, I.; Maschke, B. Putting energy back in control. IEEE Control Syst. 2001, 21, 18–33. [Google Scholar]
  24. Ortega, R.; Garcia-Canseco, E. Interconnection and Damping Assignment Passivity-Based Control: A Survey. Eur. J. Control 2004, 10, 432–450. [Google Scholar] [CrossRef]
  25. Zeng, Y.; Qian, J.; Yu, F.; Mei, H.; Yu, S. Damping Formation Mechanism and Damping Injection of Virtual Synchronous Generator Based on Generalized Hamiltonian Theory. Energies 2021, 14, 7082. [Google Scholar] [CrossRef]
  26. Zhao, T.; Duan, G. Interconnection structure preservation design for a type of portcontrolled hamiltonian systems―A parametric approach. IET Control. Theory Appl. 2021, 15, 338–347. [Google Scholar] [CrossRef]
  27. Khefifi, N.; Houari, A.; Machmoum, M.; Saim, A.; Ghanes, M. Generalized IDA-PBC Control Using Enhanced Decoupled Power Sharing for Parallel Distributed Generators in Standalone Microgrids. IEEE Trans. Emerg. Sel. Top. Power Electron. 2021, 9, 5069–5082. [Google Scholar] [CrossRef]
  28. Mover, W.G.P.; Supply, E. Hydraulic turbine and turbine control models for system dynamic studies. IEEE Trans. Power Syst. 1992, 7, 167–179. [Google Scholar]
  29. Zhang, H.; Yao, J.; Han, L.; Jiang, D.; Wu, S.; Zou, M.; Pan, X. Basic Technical Specification for Large and Medium Hydraulic Turbines: NB/T 10135-2019; National Energy Administration: Beijing, China, 2019; pp. 3–5. [Google Scholar]
  30. Liu, Y.; Chen, L.; Chen, W. Mechanic of Vibrations, 2nd ed.; Higher Education Press: Beijing, China, 2011; p. 33. [Google Scholar]
  31. Zeng, Y.; Zhang, L.; Guo, Y.; Qian, J. Hamiltonian Stabilization Additional L-2 Adaptive Control and Its Application to Hydro Turbine Generating Sets. Int. J. Control Autom. Syst. 2015, 13, 867–876. [Google Scholar] [CrossRef]
  32. Yun, Z.; Yu, W.; Chcngli, Z. Study for Hamiltonian System of Nonlinear Hydraulic Turbine Generating Unit. Proc. Chin. Soc. Electr. Eng. 2008, 28, 88–92. [Google Scholar]
Figure 1. Control structure.
Figure 1. Control structure.
Water 15 01479 g001
Figure 2. pt and pe with different fp s.
Figure 2. pt and pe with different fp s.
Water 15 01479 g002
Figure 3. Comparison of power oscillations with different r25s.
Figure 3. Comparison of power oscillations with different r25s.
Water 15 01479 g003
Figure 4. Amplitude change of pe with r25.
Figure 4. Amplitude change of pe with r25.
Water 15 01479 g004
Figure 5. Amplitude change with fp in different r25s.
Figure 5. Amplitude change with fp in different r25s.
Water 15 01479 g005
Figure 6. Damping equivalence calculation.
Figure 6. Damping equivalence calculation.
Water 15 01479 g006
Figure 7. Operation limited zone with different controls.
Figure 7. Operation limited zone with different controls.
Water 15 01479 g007
Figure 8. Response curves of pe with different controls.
Figure 8. Response curves of pe with different controls.
Water 15 01479 g008
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zeng, Y.; Yu, S.; Dao, F.; Li, X.; Xu, Y.; Qian, J. Hamiltonian Additional Damping Control for Suppressing Power Oscillation Induced by Draft Tube Pressure Fluctuation. Water 2023, 15, 1479.

AMA Style

Zeng Y, Yu S, Dao F, Li X, Xu Y, Qian J. Hamiltonian Additional Damping Control for Suppressing Power Oscillation Induced by Draft Tube Pressure Fluctuation. Water. 2023; 15(8):1479.

Chicago/Turabian Style

Zeng, Yun, Shige Yu, Fang Dao, Xiang Li, Yiting Xu, and Jing Qian. 2023. "Hamiltonian Additional Damping Control for Suppressing Power Oscillation Induced by Draft Tube Pressure Fluctuation" Water 15, no. 8: 1479.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
