Examining Current and Future Applications of Electrocoagulation in Wastewater Treatment

Abstract

Electrocoagulation (EC) has gained increasing attention as an effective and environmentally friendly technique for purifying water and wastewater. This review provides a comprehensive analysis of the recent literature on EC and identifies new trends and potentials for further research. Initially, the nature of EC and its operating parameters are discussed, while the research trends are analyzed using the Scopus database and VOSviewer software. From 1977 to 2022, 2691 research articles and review papers on EC for water/wastewater treatment were published, with the number of publications increasing from 2 in 1977 to 293 in 2022. In the past five years, most studies focused on treatment performance and the mechanism of EC systems. However, recent emphasis has been placed on combining EC with other treatment processes and addressing emerging pollutants. The innovative applications of EC are highlighted, including the removal of microplastics and per/polyfluoroalkyl substances, the power supply of EC via microbial fuel cells (MFCs) and electro-wetlands (EWs), and the application of power management systems in EC. The review concludes with suggestions for further research to enhance the technology and expand its scope of applications.

1. Introduction

Water scarcity and pollution have become increasing global problems due to population growth, industrialization, and the overuse of water resources. In 2020, only 74% (5.8 billion) of the global population had access to ‘safely managed’ drinking water services [1,2]. This term refers to access to improved water sources, which are located on their premises, available when needed, and free from fecal and priority chemical contamination. However, the remaining two billion people still live without safely managed drinking water services, with 1.2 billion people lacking even a basic level of service. Approximately 80% live in rural areas, and half live in the least-developed countries. The United Nations Sustainable Development Goal targets 6.1 and 6.A aim to achieve, by 2030, universal and equitable access to safe and affordable drinking water and building support to developing countries in water- and sanitation-related activities and programs, including water harvesting, desalination, water efficiency, wastewater treatment, recycling, and reuse technologies [1].

This has prompted research into developing low-cost, easily constructed and maintained, and sustainable technologies for water treatment and recycling in rural or less-developed areas. Electrocoagulation (EC) is a water purification system that uses micro-electrical current to remove contaminants in aqueous environments. It is an alternative to chemical coagulation (CC), which involves delivering metallic coagulants to water through the electro-dissolution of electrodes. Both methods aim to remove finely dispersed particles from water/wastewater by destabilizing or neutralizing the repulsive forces that keep the particles suspended in the water. This process leads to the formation of larger particles that can settle and be more easily separated from the water.

EC combines the benefits of coagulation, flotation, and electrochemistry in one system [3,4]. EC consists of an electrolytic cell with two electrodes (an anode and a cathode) immersed in a conducting solution to be treated and coupled to an external electricity power supplier (Figure 1). There are several steps in the EC process:

(1)

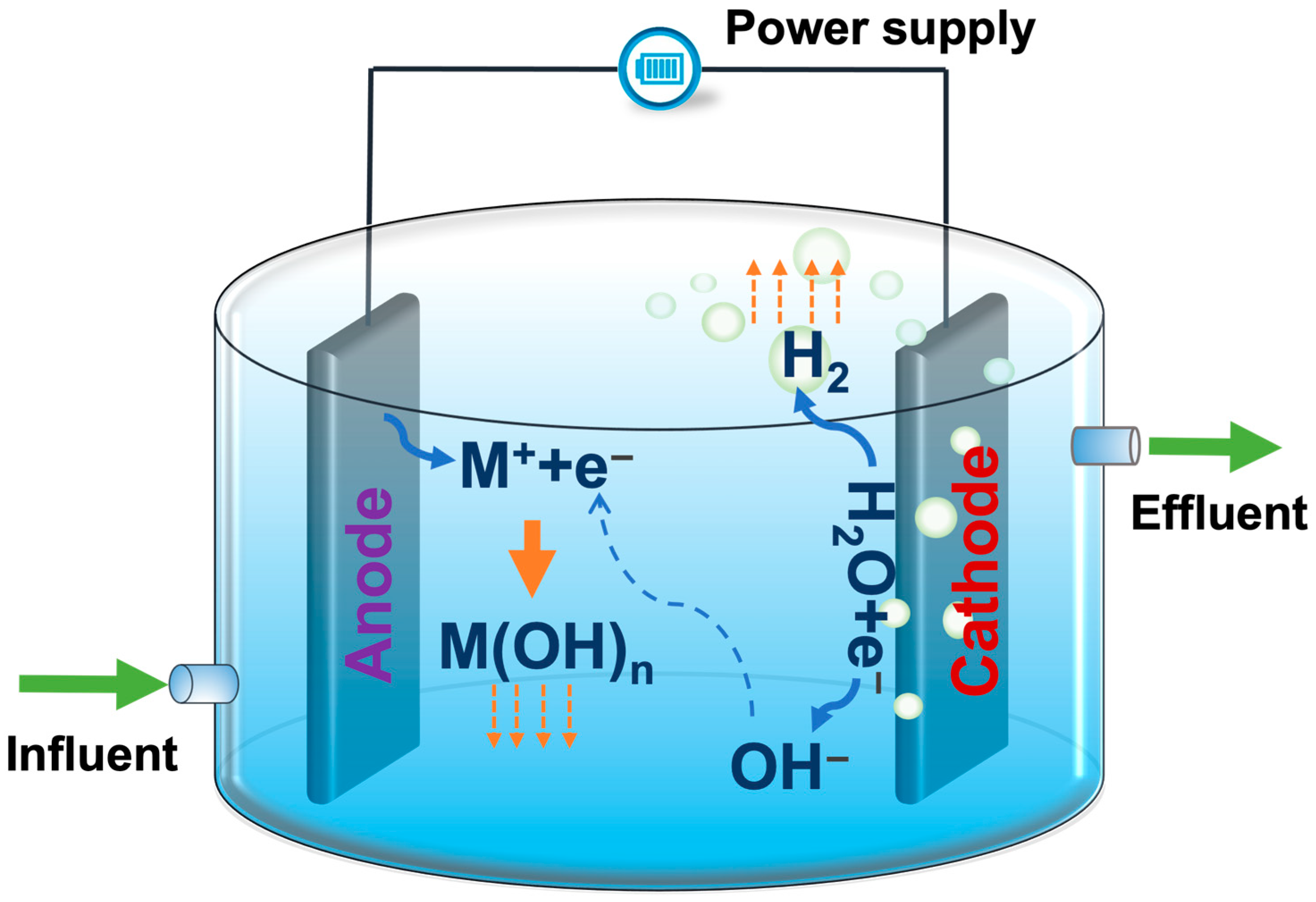

When an electric current is supplied from an external power source, the active coagulant cations (usually aluminum or iron) are released into the solution by the electrolytic oxidation of a sacrificial anode Equations (1) and (4);

(2)

Simultaneously, hydroxyl ions are produced due to cathode hydrolysis Equation (6);

(3)

The metal cations react with hydroxyls to form monomeric and polymeric species Equations (2), (3) and (5);

(4)

Neutralization of the surface charge of contaminants, suspended particulate matter, and emulsions is achieved due to its reaction with metal hydroxyls;

(5)

Agglomeration of neutralized particles and their coagulation occurs in the aqueous phase as flocs;

(6)

Precipitation of heavier flocs takes place by sedimentation via sweep coagulation;

(7)

Hydrogen bubbles are produced at the cathode by water electrolysis, resulting in the floatation of flocs at the surface of the solution via sweep coagulation Equation (6).

Anode reactions:

$$\mathrm{Fe} \left(\mathrm{s}\right)\to {\mathrm{Fe}}^{\mathrm{n}+}\left(\mathrm{aq}\right)+{\mathrm{ne}}^{-1}$$

(1)

$$4{\mathrm{Fe}}^{2+}\left(\mathrm{aq}\right)+10{\mathrm{H}}_2\mathrm{O}+{\mathrm{O}}_2\left(\mathrm{aq}\right)\to 4\mathrm{Fe}{\left(\mathrm{OH}\right)}_3\left(\mathrm{s}\right)+8{\mathrm{H}}^{+}$$

(2)

$${\mathrm{Fe}}^{2+}\left(\mathrm{aq}\right)+2{\mathrm{OH}}^{-}\to \mathrm{Fe}{\left(\mathrm{OH}\right)}_2\left(\mathrm{s}\right)$$

(3)

$$\mathrm{Al}\left(\mathrm{s}\right)\to {\mathrm{Al}}^{3+}\left(\mathrm{aq}\right)+3{\mathrm{e}}^{-1}$$

(4)

$${\mathrm{Al}}^{3+}\left(\mathrm{aq}\right)+{\mathrm{nH}}_2\mathrm{O}\to \mathrm{Al}{\left(\mathrm{OH}\right)}_{\mathrm{n}}^{3-\mathrm{n}}\left(\mathrm{s}\right)+{\mathrm{nH}}^{+}$$

(5)

Cathode reactions:

$$2{\mathrm{e}}^{-1}+2{\mathrm{H}}_2\mathrm{O}\to {\mathrm{H}}_2+2{\mathrm{OH}}^{-}$$

(6)

The anode dissociation follows Faraday’s law Equation (7). Where, $m_A$ is the mass of anode dissolved (g), I is the current (A), t is the operation time (s), Mw is the molecular weight of anode (aluminum, 29.89 g/mol), F is Faraday’s constant (96,487 C/mol), and z is the number of electrons involved in the reaction.

$$m_A=\frac{I\times t\times M_w}{z\times F}$$

(7)

In some cases, the actual anode dissolution does not match the theoretical anodic dissolution calculated by Faraday’s law, which indicates that other electrochemical reactions might be taking place at the anode. Several authors suggested that the evolution of oxygen at the anode might take place at alkaline pH and sufficiently high anodic potential Equation (8) [5]

$$2{\mathrm{H}}_2\mathrm{O}\to {\mathrm{O}}_2+4{\mathrm{H}}^{+}+4{\mathrm{e}}^{-1}$$

(8)

In 1889, the first study to use electricity for sewage treatment was proposed in the United Kingdom [6], and this gained interest and was widely applied globally from the 1970s onwards [7]. There are a vast number of published research papers from the last two decades that sought to investigate the performance of EC for the treatment of different wastewater. Previous studies have reported that EC is effective for the removal of contaminants such as heavy metals [8,9], oil droplets [10], dyes [11], suspended solids [12], natural organic matter (NOM) [13,14], and phosphorous [15,16] in wastewaters including municipal sewage, industrial wastewater, and polluted natural water [5,17,18]. In this review paper, the characteristics of EC and operational parameters are discussed, followed by an analysis of research trends of publications utilizing the Scopus database and VOSviewer software. The paper places particular emphasis on exploring novel applications of EC in recent studies, including treating emerging pollutants, utilizing sustainable bio-current sources (such as microbial fuel cells and electro-wetlands), and implementing power management systems. Additionally, the paper identifies gaps in current research and provides recommendations for future investigations that can address these gaps and overcome operational challenges.

2. Nature of Electrocoagulation and Performance-Influencing Factors

2.1. Pros and Cons of Electrocoagulation

The EC approach to coagulation has several advantages and disadvantages over traditional physio-chemical treatment methods [4,5,18,19] (

Table 1. Advantages and disadvantages of electrocoagulation over traditional physio-chemical treatment methods.

Pros	Cons
Produces larger and more stable flocs for easy filtration, compared with CC.	Cathode passivation can occur due to the hydroxides of calcium, magnesium, and other substances, inhibiting the flow of current and the release of hydrogen.
pH control without chemicals.	Sacrificial anodes must be replaced periodically due to corrosion.
Lower operating costs compared to CC, PC, and EF processes due to lower equipment and maintenance costs and no addition of chemical costs.	Post-treatment may be necessary to remove high concentrations of iron and aluminum ions from effluent.
No secondary pollution or added chemicals means less sludge production.	Electrochemical methods may be costly in areas with limited access to electricity.
Produces gas bubbles to aid pollutant removal.	Sludge buildup on electrodes can inhibit the electrolytic process during continuous operation.
Simple equipment with automation potential.	Electrochemical methods may not be as effective as biological processes for removing biodegradable pollutants and soluble organic substances.
Can remove even the smallest colloidal particles through faster collision and facilitated coagulation.
Can operate under a wide range of conditions compared with PC and EF, including high salt and pH levels.

). EC has advantages over CC for wastewater treatment, including faster and more efficient organic-matter separation, pH control without chemicals, lower operating costs, less secondary pollution, and easier automation. It also produces gas bubbles to facilitate pollutant removal, larger and more stable flocs and can remove even small colloidal particles. Compared to other electrochemical/chemical processes, such as photocatalysis (PC) and electro-Fenton (EF), EC is relatively inexpensive due to its lower equipment and maintenance costs and because no additional chemicals are required [20,21]. Additionally, EC can function under a wide range of conditions, including high salt and pH levels. In contrast, PC is sensitive to environmental factors such as pH, temperature, and the presence of organic matter [22], while EF only operates under a narrow acidic pH range [17,23].

However, EC has some disadvantages, including cathode passivation, periodic replacement of sacrificial anodes, the need for post-treatment due to high metal-ion concentrations, high power-consumption costs in areas with limited access to electricity, and potential sludge buildup on electrodes during continuous operation. In addition, EC utilizes electrochemical methods exclusively to eliminate pollutants without relying on biological processes, which are not very effective for breaking down biodegradable pollutants and soluble organic substances [20]. However, other treatment methods, such as PC [20,24], EF [21], microbial electrolysis cell (MEC), and microbial fuel cell (MFC) [17], may be more effective at treating water with organic pollutants. These methods involve bio-electrochemical processes or the use of chemicals and light to support the treatment process and, therefore, may be more efficient.

2.2. Removal Mechanisms

The mechanisms of coagulation–flocculation and the series of reactions and processes in the EC and CC are similar. In Al-based EC, when the aluminum anode is dissolved into Al³⁺ ions, they become hydrated and form the hexaaquoaluminium ion (Al(H₂O)₆³⁺); see Equations (1)–(8). This ion then undergoes a series of rapid hydrolysis reactions, leading to the formation of soluble monomeric species (Al(OH)(H₂O)₅²⁺) and polymeric species (Al₁₃O₄(OH)₂₄⁷⁺), as well as solid Al(OH)₃ and aluminate ions (Al(OH)₄⁻) [7,25].

For the removal of organic matter, there are several mechanisms including: (1) complexation; (2) charge neutralization or destabilization; (3) entrapment; and (4) adsorption [19]. The predominance of each mechanism depends on the nature of the pollutant (charge, size, hydrophobicity, etc.), the type of coagulant and its dosage, as well as the pH and other factors in the water matrix. It is important to note that the overall mechanism for removing pollutants through coagulation is complex and can often involve multiple mechanisms working together to improve the removal efficiency [19].

Natural organic matter (NOM) refers to organic material which consists of a diverse mix of humic substances (such as humic and fulvic acids and phenolic compounds), hydrophilic acids, proteins, lipids, and carbohydrates. ECs have been reported to treat a variety of NOM-containing waters, including peat water [13,26], river water [27,28], lake water [14,28,29], and synthetic wastewater [30,31]. Low levels of NOM in water can prevent chemical dissolution, pitting corrosion, and chlorine generation during electrolysis, as there are low levels of salinity and chloride ions [32]. In the case of using iron electrodes, Fe(II) can be converted to Fe(OH)₃(s) through ‘sweep coagulation’ by increasing pH and dissolved-oxygen concentration in oxygenated water [32]. Aluminum hydroxide is the main oxide formed during Al-based EC in natural water, and the presence of NOM can disrupt its crystalline precipitation, similar to chemical precipitation with aluminum chloride [32]. Oxygen was not released during the anodic dissolution of aluminum/iron, indicating that all electrons participated in the process [32].

Aluminum electrodes can remove phosphates in water through the direct adsorption of phosphate ions, incorporation of soluble phosphates into suspended colloids, and formation of insoluble salts with aluminum [7]. However, the system of the aluminum–orthophosphate is complex, and the removal of phosphates also depends on hydrolysis products of aluminum and the Al³⁺ ion rather than the formation of individual AlPO₄ and Al(OH)₃ species [7]. The pH of the solution affects the process, with higher pH leading to the formation of aluminum–hydroxy species that can adsorb onto positively charged aluminum hydrolysis species or act as nucleation points for the further precipitation of aluminum hydrolysis products. The highest removal efficiency occurs when the concentrations of aluminum hydroxy species and phosphates are high, and the solubility of AlPO₄ is low [7].

2.3. Influencing Factors

Several parameters influence electrocoagulation efficiency and its ability to remove pollutants from wastewater (Figure 2). The most important parameters include electrode materials and arrangement, pH and anion concentration, type of power sources, and current density. EC-removal efficiencies, power consumption, and operating costs under various operating conditions in previous studies are summarized in Table 2.

2.3.1. Electrode Materials and Its Arrangement

Aluminum and iron are commonly used electrode materials due to their reliability and availability [18]. Aluminum anodes dissolve as Al^3+, while iron anodes dissolve as Fe²⁺ and Fe³⁺ in solutions, Equations (1) and (4). Fe²⁺ is highly soluble but a weak coagulant and has a lower pollutant-adsorption capacity compared to Fe³⁺. Iron electrodes are suitable in specific pH ranges to ensure complete oxidation of Fe²⁺ to Fe³⁺ [5]. Aluminum electrodes are more expensive but more efficient than iron electrodes [5,7]. Aluminum anodes can be paired with other materials as cathodes, such as stainless steel [33,34,35] or iron [36], for specific pollutant removal. Alternative anodic materials like copper, zinc, and magnesium can be used instead of iron or aluminum to coagulate contaminants in water. These materials dissolve to form hydroxides and help with coagulation [19,37]. However, iron and aluminum require less coagulant due to their higher charge valence [19]. It is important to note that excessive coagulant residue in treated water can be harmful to health, and EU regulations limit aluminum (200$\mathsf{\mu }\mathrm{g}/\mathrm{L}$), iron (200$\mathsf{\mu }\mathrm{g}/\mathrm{L}$), and magnesium (50 $\mathsf{\mu }\mathrm{g}$/L) concentrations to avoid potential health problems [38].

There are three types of electrode arrangements for electrochemical cells: monopolar–parallel (MP–P), monopolar–series (MP–S), and bipolar–series (BP–S) (Figure 2a). In MP–P, anodes are connected to each other and the power supply in a parallel configuration. In MP–S, the internal electrodes are connected to each other in a series connection. In BP–S, the inner electrodes are separated from each other and the power supply, forming a series connection [4,5]. It is important to note that a series connection requires a higher potential difference, while a parallel connection distributes the electric current among all the interconnected electrodes based on their resistance. However, a parallel-connection configuration offers significant energy savings. Thus, the MP–S connection mode uses a higher potential difference, while the MP–P connection mode has lower energy consumption. Additionally, the BP–S mode provides high pollutant removal [39,40], while the monopolar-configuration mode has a lower cost of operation [40,41].

2.3.2. pH and Anion Concentration

The electrode dissolves and forms different metal ions depending on the initial pH (pHi) of the solution. Aluminum and iron EH-pH diagrams (Figure 2b) show which compound is thermodynamically stable under given conditions. When the cell potential is between −2 V and +2 V, Al³⁺ is the major species present at pH < 3.5, Al(OH)₃(S) for pH 4–9.5, and Al(OH)₄⁻ for pH > 10. Al(OH)₃ is the main contributor to floccule and aggregate formation through complex precipitation processes [7,19]. Fe ion formation is more complicated, with the ferric ion predominant in highly acidic solutions and the ferrous ion more common in pH < 6.5. Most studies found that Fe²⁺ is initially formed by iron electrolysis and then oxidized to Fe³⁺ by dissolved oxygen when conditions are suitable (e.g., pH 5–9), after which it is then hydrolyzed to form insoluble Fe(OH)₃(s) and FeOOH(s) [3,5].

In ECs, the solution around the anode is slightly acidic due to H⁺ formation, and the solution around the cathode is slightly alkaline due to OH⁻ production and H₂ evolution. The amphoteric character of Al(OH)₃ contributes to a decrease in the solution pH when an aluminum anode is used. EC with Al anode is considered pH-neutralizing and can be used for wastewater treatment with specific pH conditions or pH-enhancement/reducing requirements [3].

The electrolyte used in electrochemical processes is important for improving solution conductivity and reducing energy consumption [42]. The type of cation and anion used can affect the electro-dissolution kinetics of sacrificial anodes and the ability of coagulants to form flocs. Sulfate and nitrate ions can inhibit electro-dissolution [3,43], while chloride (when the ratio of chloride to sulfate ions is greater than 0.1 [7]) and nitrate ions can break down passive films and improve EC processes [3]. However, high levels of chlorine can cause aluminum hydroxide to dissolve into aluminum chloride and reduce treatment effectiveness [44,45]. The supporting electrolyte can also compete with contaminants in the water, potentially affecting contaminant-removal efficiency. For example, sulfate ions can impact fluoride removal due to their ability to form precipitates with Al³⁺ along with fluoride ions [46]. Electrode corrosion can also be influenced by the type of electrolyte, with sulfate medium causing uniform corrosion, nitrate medium causing crevice corrosion, and chloride medium causing localized pitting corrosion [46].

2.3.3. Type of Power Sources and Current Density

EC processes rely on a power source, usually direct current (DC). Long-term use can lead to electrode passivation, reducing efficiency [47,48]. Alternating pulsed current (AC) or polarity-reversal current (PRC) can prevent passivation [3,5] and have been used in previous studies to improve EC efficiency [49,50]. AC uses a sinusoidal current, while PRC involves switching the direction of a direct current in a square-wave pattern (Figure 2c). PRC is simpler to implement and only requires a DC time relay or manual switching of the positive and negative terminals [3,47]. AC produces smoother electrodes [51,52], while PRC prevents electrode fouling and allows for more uniform metal-ion distribution [31]. It is unclear how passivation is prevented or removed during these processes, but possible mechanisms include hydrogen gas bubbles mechanically removing surface layers or dissolution of the metal beneath [48].

To reduce costs and explore more applications, onsite sustainable/renewable-energy sources with energy-storage systems used as backup power can be employed to power EC processes. These sources include solar photovoltaic [47,53], wind turbines [54,55], biomass [55,56,57], or hydroelectricity [58]. The rate of power generation by theses energy systems highly depends on the natural conditions, such as geographical latitude, the intensity of sunlight, wind speed, gravitational potential, land area, hydraulic loading, etc.

Current density is crucial in the EC process as it affects the amount of coagulant generated and the production rate, size, and density of bubbles produced. The applied current density can vary greatly, typically between 0.01 and 880 A m⁻² [40]. Increasing current density produces more coagulant [13,59] and smaller bubbles that adhere better to particles [60,61], increasing removal efficiency. However, excessive current can decrease Faradaic efficiency and removal performance due to secondary reactions and electrode passivation [3,30]. Chen et al. [62] reported that with an increase in current density from 18 mA/cm² to 52 mA/cm², the Faradaic efficiency dropped from 116% to 80% in aluminum-based electrocoagulation. A substantial decrease in Faradaic efficiencies (from ~100% to 60%) has also been observed after a 30 min reaction at a current of 1.40 A. The theoretical dissolved rate of the anode may differ from experimental observations due to oxygen evolution and high anodic potential [7]. Excess current may also result in wasted energy and reduced current efficiency [5,63].

Table 2. Summary of the removal efficiencies, power consumption, and operation cost of EC processes under different operating conditions.

EC Configuration	Impactor Factors	Pollutants or Wastewater	Optimum Operation Conditions	Removal Performance (%) and Power Consumption	Operation Cost	Reference
Batch mode; Reaction volume: 2 L; Electrode: Al (5 cm × 16.5 cm × 0.2 cm) and SS (6 cm × 16.5 cm × 0.2 cm), 5 cm apart; Stir rate: 300-rpm	CD, initial concentration, electrolysis duration, and application mode	pharmaceuticals from municipal wastewater		48%, 44%, and 36% of DCF, CBZ, and AMX removal when the CD of 1.8 mA/cm2	0.1, 0.2, 0.81, and 1.57 €/m3 when CD of 0.3, 0.5, 1.15, and 1.8 mA/m2	[33]
Electrode: Fe-SS, Al-SS (70 mm × 50 mm, distance: 5 mm); Reaction Volume: 500 mL; Stir rate: 200 rpm; Voltage: 40 V; Current: 5 A.	CD, Reaction time (RT)	uranium from mine water	RT: 101.6 min, CD: 59.9 mA/cm2	Iron system: uranium concentration: 5 μg/L, cumulative uncertainty: 25 μg/L; Power consumption: 461.7 kWh/g-U; Aluminum systerm: 96 μg/L-U;	Iron system: in the United States: 60.0 USD/g-U, South Korea: 55.4 USD/g-U and Finland: 78.5 USD/g-U; Aluminum system: 9 747 USD/g-U)	[34]
Batch mode; Reaction volume: 500 mL, Electrode: AL-SS and Fe-SS (70 mm × 50 mm, 5 mm apart); Stir rate: 200 rpm.	Electrode type, CD and RT	uranium from mine water	CD: 70 mA/cm2, RT: 120 min	99.7% and 97.7% of uranium removal in Fe-SS and AL-SS system		[35]
Batch mode; Reaction volume: 0.35 L; Electrode: titanium, Al, Fe (4.4 cm × 4.7 cm, effective area of 62 cm2, MP-P); Stir rate: 300 rpm	Initial pH, CD, initial phosphorus concentration, and reaction	phosphorus from domestic wastewater	pHi: 4, CD: 20 A/m2, RT: 80 min	99.99% of removal; Power consumption: 3.422 kWh/m3		[36]
Batch mode (180 min); Reaction volume: 1000 mL; Electrode: Zn-SS (effective initial area of 33.5 cm2, connect in parallel, distance: 5–20 mm)	pH, CD, distance between electrodes, nature of electrolyte, and kind of cathode	filtered real olive mill	Initial pH: 3.2, CD: 250 A/m2, distance between electrodes: 1.0 cm and NaCl: 1.5g/L	Removal of total phenolic (TPh) and COD: 84.2% and 40.3% with NaCl, 72.3% and 20.9% without NaCl addition; Power consumption: 40 kW h/m3 (simulated WW) and 34 kW h/m3 (real WW)		[37]
Reaction volume: 3 L; Electrode: Four AL (0.15 m × 0.1 m × 0.002 m, distance 0.5 cm, BP/MP connection, effective surface area 4 × 10−3 m2).	Initial concentrations of fluoride, electrode connections	fluoride from drinking water	RT: 30 min, CD: 625 A/m2, using BP connection	Fluoride (1 mg/L)	0.38 US$/m3 (MP) and 0.62 US$/m3 (BP) for the initial fluoride concentration of 10 mg/L1	[39]
Reaction volume: 1L; Electrode: Al or Fe (60 mm × 60 mm × 3 mm, effective area: 96 cm2, distance: 0.8 cm).	MP-P, MP-S, BP-P	textile wastewater	MP-P mode	Turbidity removal of 88.6% and 84.1%, Color removal 90.9% and 80.0%, COD removal of 69.3% and 64.1% of Al and Fe-based EC	Al-based EC: 6.439 €/m3, Fe based EC: 4.732 €/m3	[41]
EC followed by advanced oxidation by photoelectro-Fenton (PEF) process with in-situ H2O2 electrogeneration and UVA light irradiation; EC electrode: Fe or Al anode (3.0 cm × 1.5 cm × 0.25 cm), SS cathode, distance: 1.0 cm.	Anode material, supporting electrolyte, pH, and current	organic pollutants	0.05 M NaCl, pH: 6.3, CD: 200 mA, RT: 15 min			[43]
Batch mode; Reaction volume: 2 L; Anode: 10 mesh horizontal Al, Cathode: H2 evolving Al plate (14 cm × 20 cm), distance: 0.5 cm	Initial NO3− concentration, initial pH, applied CD, and NaCl concentration	nitrates		Complete removal after 100 min, 80% removal in 60 min; Power consumption: 3.9 to 96.17 kWh/kg nitrates		[44]
Anode: Al-Mg (4.0 cm × 6.0 cm), cathode: SS (surface area of 35.1 cm2, Constant CD of 11.0 mA/cm2,300 cm3 of solution	Initial concentration of phosphate	phosphates		Maximum 100% removal in AL-Mg system, 97 ± 2% removal in Al-Al; Power consumption: 3.15 to 0.15 kWh/m3		[45]
Batch mode; Reaction volume: 1 L; Electrode: seven Al electrodes (active area: 72 cm2 of each, distance 1 cm, BP connection); Stir rate: 400 rpm	SO42−, Cl−, NO3−	fluoride		Defluoridation = 100% w/o other ions. With other ions, bulk reaction happens, residual fluoride controlled by Al (III) amount.		[46]
Reactor size: 3 cm × 12 cm. Reaction volume: 40 mL; Electrode: Al plates (thickness of 2 mm, distance of 3 mm, effective surface area of 14 cm2 of each)	DC/AC, current densities, voltages, and operation modes, polarity changing frequency, AC current	Oil from synthetic bilge water		DC powered system: 98.8 ± 0.2%, 0.378 kWh/m3 to 0.977 kWh/m3; AC powered system: 99.2 ± 0.1%, 0.787 kWh/m3 to 0.936 kWh/m3		[48]
Batch mode; Reaction volume: 0.9 L; Electrodes: AZ31 alloy and Al plates (effective area of 76.5 cm2 and 46.6 cm2, distance of 0.5 cm), Current intensity of 0.34 A	polarity reversal frequency	Indigo carmine and chloride ions		69.1% of chloride ions removal and 90.4% of non-purgeable dissolved organic carbon removal with 0 and 2 min polarity changes.		[49]
Reaction volume: 400 mL; Electrodes: Al-Zn (60 mm × 40 mm × 2 mm, distance 2 cm); PREC: 9 V; reversing period of 10 s; Stir rate: 600 r/min, electrolyte concentration of NaCl: 1 g/L	Voltage, pH, stirring speed	PFAs from synthetic/natural groundwater samples	Voltage: 12.0 V, pH: 7.0, and stirring speed: 400 rpm	Removal of PFBS, PFHxS, and PFOS: 87.4%, 95.6%, and 100% in the synthetic aqueous solutions, and 59.0%, 88.2%, and 100% in the natural groundwater		[50]
Reaction volume: 1.0 L; Electrode: Magnesium alloy (size of 2 dm2 and distance of 0.5 cm)	pH, initial ion concentration, CD, co-existing ions	Copper	CD: 0.025 A/dm2, pH: 7.0	Removal of 97.8 and 97.2% with an energy consumption of 0.634 and 0.996 kWh/m3 for AC and DC		[51]
Reaction volume: 1 L; Electrodes: Two L-shaped Al (surface area of 100 cm2 at 1 cm distance, and 20 pores with a diameter of 4 mm); Mixing speed of 50 rpm (≈10.47 rad/s).	pHi, process time, conductivity, initial HA concentration, pulse time, current type, electrode shape, electrode surfaces	HA		0.57 kWh/g and 90% with DC and a simple electrode; 0.43 Wh/gand 91% with DC and a perforated electrode; 0.17 Wh/g and 85% with APC and a simple electrode; 0.18 Wh/g and 87% with APC and a perforated electrode		[31]
Reaction volume: 1 l; Electrode: 30 Fe and SS rods (50 mm × 5 mm, distance of 2 cm, MP connection)	Electrode type, current type, CD, RT.	Lead and zinc from battery-making industry wastewater		EC with AC and Fe: 96.7%, 95.2%, and 0.69 kWh/m3 of lead removal, zinc removal and power consumption; EC with AC and SS: 93.8%,93.3% and 0.98 kWh/m2; EC with DC and Fe: 97.2%, 95.5% and 1.97 kW h/m2; EC with DC and SS: 93.2%, 92.5% and 2.53 kWh/m3 respectively		[52]
Reaction volume: 1.0 L; Electrode: six Al plates (distance of 1 cm, effective area of 0.0210 m2, parallel connected) Power source: solar photovoltaic module	CD and detention time,	municipal wastewater	CD: 48 A/m2, hydraulic detention time: 16 min	90% for COD, 94.56% for turbidity, and 49.78% for TDS; Power consumption: 2.27 kWh/m3 (20 min of RT and 40 A/m2 of CD)		[53]
Reaction volume: 50 mL; Electrodes: Al-AL with a conversion circuit; Power sources: a wind energy harvesting triboelectric nanogenerator	RT	algae wastewater, dye wastewater		SPEC removes 90% of algae and 97% of organic dye with self-powered treatment for 72 h.		[54]
Reaction volume: 200 mL; Electrodes: two Al plates (effective electrode area of 25.3 cm2 and distance of 0.5 cm) Power sources: 3 MFC cells and DC	Power sources, electrode area, and distance	bilge water (EC) and municipal wastewater (MFC)		MFC stack-powered ECC removed 93% of oily organics		[56]
Batch mode (60 min of each run); Electrode: AL-SS (surface area: 60 cm2 of each, distance: 3 cm); Power sources: 6 MFCs with two 1.2 V rechargeable batteries		Synthetic and real municipal wastewater,		For synthetic wastewater treatment: 95.4%, 88.4%, and 93.8% of COD, TDS, and TSS removal; For real municipal treatment: 83.7%, 57.5%, and 85.8% of each.	3600 $/m3 per year	[57]
Continuous mode; Reaction volume: 1 L; Stir rate: 250 rpm; Electrode: Al–Al (distance 2 cm, 6.3 cm × 7.9 cm)	HRT, drug concentration	NOM, acetaminophen		HRT at 40 min with 0.5 mg/L AP exhibited the best removal efficiency for NOM (55.9%) and AP (53.4%) removal.	US$ 0.03/m3, 0.05/m3, 0.08/m3, 0.10/m3 in 10 min, 20 min, 30 min, and 40 min HRT	[60]
Reaction volume: 150 mL; Electrode: two rods (1.2 cm × 5 cm, 2.5 cm apart).	current intensity, TDS	Boron (B) from river water, oilfield produced water		50% B removal from river water (C0 = 10 mg/L, current = 0.2 A) in 2 h; 80% B removal from produced water (C0 = 50 mg/L, current = 1.0 A) in 2 h.		[62]
EC–ultrafiltration; EC: two Fe anode (dimensions of 15 cm × 12 cm × 0.3 cm) and two graphite cathodes (15 cm × 12 cm × 1 cm), distance of electrode: 1.5 cm.	RT, CD, Initial pH	Sulfonated Humic Acid	RT: 7 min, CD: 10 mA/cm2, pH: 5.	Higher CD and operation time, lower pH, and improved SHA removal. Max removal: 89.12%.		[63]
Batchwise mode: recirculation of the liquid medium at 1.0 L/min; Electrode: Fe plates (parallel connected, 10 cm × 17 cm × 0.2 cm, effective area: 170 cm2, 2.0 cm apart); CD of 318–481 A/m2	CD, RT, and initial pH, cl− and Fe	shale gas wastewater	For turbidity removal: 318 mA/cm2, 20 min and 4.4 (pHi); for TOC removal: 481 mA/cm2, 20 min and 2.4, and for Ca2+ removal: 400 A/m2, 20 min, 3.9 (pHi)	98.3%, 78.5%, and 56.5% for turbidity, TOC, and Ca2+ removal under the optimum conditions	0.80 US$/m3	[64]

Table 2. Summary of the removal efficiencies, power consumption, and operation cost of EC processes under different operating conditions.

EC Configuration	Impactor Factors	Pollutants or Wastewater	Optimum Operation Conditions	Removal Performance (%) and Power Consumption	Operation Cost	Reference
Batch mode; Reaction volume: 2 L; Electrode: Al (5 cm × 16.5 cm × 0.2 cm) and SS (6 cm × 16.5 cm × 0.2 cm), 5 cm apart; Stir rate: 300-rpm	CD, initial concentration, electrolysis duration, and application mode	pharmaceuticals from municipal wastewater		48%, 44%, and 36% of DCF, CBZ, and AMX removal when the CD of 1.8 mA/cm2	0.1, 0.2, 0.81, and 1.57 €/m3 when CD of 0.3, 0.5, 1.15, and 1.8 mA/m2	[33]
Electrode: Fe-SS, Al-SS (70 mm × 50 mm, distance: 5 mm); Reaction Volume: 500 mL; Stir rate: 200 rpm; Voltage: 40 V; Current: 5 A.	CD, Reaction time (RT)	uranium from mine water	RT: 101.6 min, CD: 59.9 mA/cm2	Iron system: uranium concentration: 5 μg/L, cumulative uncertainty: 25 μg/L; Power consumption: 461.7 kWh/g-U; Aluminum systerm: 96 μg/L-U;	Iron system: in the United States: 60.0 USD/g-U, South Korea: 55.4 USD/g-U and Finland: 78.5 USD/g-U; Aluminum system: 9 747 USD/g-U)	[34]
Batch mode; Reaction volume: 500 mL, Electrode: AL-SS and Fe-SS (70 mm × 50 mm, 5 mm apart); Stir rate: 200 rpm.	Electrode type, CD and RT	uranium from mine water	CD: 70 mA/cm2, RT: 120 min	99.7% and 97.7% of uranium removal in Fe-SS and AL-SS system		[35]
Batch mode; Reaction volume: 0.35 L; Electrode: titanium, Al, Fe (4.4 cm × 4.7 cm, effective area of 62 cm2, MP-P); Stir rate: 300 rpm	Initial pH, CD, initial phosphorus concentration, and reaction	phosphorus from domestic wastewater	pHi: 4, CD: 20 A/m2, RT: 80 min	99.99% of removal; Power consumption: 3.422 kWh/m3		[36]
Batch mode (180 min); Reaction volume: 1000 mL; Electrode: Zn-SS (effective initial area of 33.5 cm2, connect in parallel, distance: 5–20 mm)	pH, CD, distance between electrodes, nature of electrolyte, and kind of cathode	filtered real olive mill	Initial pH: 3.2, CD: 250 A/m2, distance between electrodes: 1.0 cm and NaCl: 1.5g/L	Removal of total phenolic (TPh) and COD: 84.2% and 40.3% with NaCl, 72.3% and 20.9% without NaCl addition; Power consumption: 40 kW h/m3 (simulated WW) and 34 kW h/m3 (real WW)		[37]
Reaction volume: 3 L; Electrode: Four AL (0.15 m × 0.1 m × 0.002 m, distance 0.5 cm, BP/MP connection, effective surface area 4 × 10−3 m2).	Initial concentrations of fluoride, electrode connections	fluoride from drinking water	RT: 30 min, CD: 625 A/m2, using BP connection	Fluoride (1 mg/L)	0.38 US$/m3 (MP) and 0.62 US$/m3 (BP) for the initial fluoride concentration of 10 mg/L1	[39]
Reaction volume: 1L; Electrode: Al or Fe (60 mm × 60 mm × 3 mm, effective area: 96 cm2, distance: 0.8 cm).	MP-P, MP-S, BP-P	textile wastewater	MP-P mode	Turbidity removal of 88.6% and 84.1%, Color removal 90.9% and 80.0%, COD removal of 69.3% and 64.1% of Al and Fe-based EC	Al-based EC: 6.439 €/m3, Fe based EC: 4.732 €/m3	[41]
EC followed by advanced oxidation by photoelectro-Fenton (PEF) process with in-situ H2O2 electrogeneration and UVA light irradiation; EC electrode: Fe or Al anode (3.0 cm × 1.5 cm × 0.25 cm), SS cathode, distance: 1.0 cm.	Anode material, supporting electrolyte, pH, and current	organic pollutants	0.05 M NaCl, pH: 6.3, CD: 200 mA, RT: 15 min			[43]
Batch mode; Reaction volume: 2 L; Anode: 10 mesh horizontal Al, Cathode: H2 evolving Al plate (14 cm × 20 cm), distance: 0.5 cm	Initial NO3− concentration, initial pH, applied CD, and NaCl concentration	nitrates		Complete removal after 100 min, 80% removal in 60 min; Power consumption: 3.9 to 96.17 kWh/kg nitrates		[44]
Anode: Al-Mg (4.0 cm × 6.0 cm), cathode: SS (surface area of 35.1 cm2, Constant CD of 11.0 mA/cm2,300 cm3 of solution	Initial concentration of phosphate	phosphates		Maximum 100% removal in AL-Mg system, 97 ± 2% removal in Al-Al; Power consumption: 3.15 to 0.15 kWh/m3		[45]
Batch mode; Reaction volume: 1 L; Electrode: seven Al electrodes (active area: 72 cm2 of each, distance 1 cm, BP connection); Stir rate: 400 rpm	SO42−, Cl−, NO3−	fluoride		Defluoridation = 100% w/o other ions. With other ions, bulk reaction happens, residual fluoride controlled by Al (III) amount.		[46]
Reactor size: 3 cm × 12 cm. Reaction volume: 40 mL; Electrode: Al plates (thickness of 2 mm, distance of 3 mm, effective surface area of 14 cm2 of each)	DC/AC, current densities, voltages, and operation modes, polarity changing frequency, AC current	Oil from synthetic bilge water		DC powered system: 98.8 ± 0.2%, 0.378 kWh/m3 to 0.977 kWh/m3; AC powered system: 99.2 ± 0.1%, 0.787 kWh/m3 to 0.936 kWh/m3		[48]
Batch mode; Reaction volume: 0.9 L; Electrodes: AZ31 alloy and Al plates (effective area of 76.5 cm2 and 46.6 cm2, distance of 0.5 cm), Current intensity of 0.34 A	polarity reversal frequency	Indigo carmine and chloride ions		69.1% of chloride ions removal and 90.4% of non-purgeable dissolved organic carbon removal with 0 and 2 min polarity changes.		[49]
Reaction volume: 400 mL; Electrodes: Al-Zn (60 mm × 40 mm × 2 mm, distance 2 cm); PREC: 9 V; reversing period of 10 s; Stir rate: 600 r/min, electrolyte concentration of NaCl: 1 g/L	Voltage, pH, stirring speed	PFAs from synthetic/natural groundwater samples	Voltage: 12.0 V, pH: 7.0, and stirring speed: 400 rpm	Removal of PFBS, PFHxS, and PFOS: 87.4%, 95.6%, and 100% in the synthetic aqueous solutions, and 59.0%, 88.2%, and 100% in the natural groundwater		[50]
Reaction volume: 1.0 L; Electrode: Magnesium alloy (size of 2 dm2 and distance of 0.5 cm)	pH, initial ion concentration, CD, co-existing ions	Copper	CD: 0.025 A/dm2, pH: 7.0	Removal of 97.8 and 97.2% with an energy consumption of 0.634 and 0.996 kWh/m3 for AC and DC		[51]
Reaction volume: 1 L; Electrodes: Two L-shaped Al (surface area of 100 cm2 at 1 cm distance, and 20 pores with a diameter of 4 mm); Mixing speed of 50 rpm (≈10.47 rad/s).	pHi, process time, conductivity, initial HA concentration, pulse time, current type, electrode shape, electrode surfaces	HA		0.57 kWh/g and 90% with DC and a simple electrode; 0.43 Wh/gand 91% with DC and a perforated electrode; 0.17 Wh/g and 85% with APC and a simple electrode; 0.18 Wh/g and 87% with APC and a perforated electrode		[31]
Reaction volume: 1 l; Electrode: 30 Fe and SS rods (50 mm × 5 mm, distance of 2 cm, MP connection)	Electrode type, current type, CD, RT.	Lead and zinc from battery-making industry wastewater		EC with AC and Fe: 96.7%, 95.2%, and 0.69 kWh/m3 of lead removal, zinc removal and power consumption; EC with AC and SS: 93.8%,93.3% and 0.98 kWh/m2; EC with DC and Fe: 97.2%, 95.5% and 1.97 kW h/m2; EC with DC and SS: 93.2%, 92.5% and 2.53 kWh/m3 respectively		[52]
Reaction volume: 1.0 L; Electrode: six Al plates (distance of 1 cm, effective area of 0.0210 m2, parallel connected) Power source: solar photovoltaic module	CD and detention time,	municipal wastewater	CD: 48 A/m2, hydraulic detention time: 16 min	90% for COD, 94.56% for turbidity, and 49.78% for TDS; Power consumption: 2.27 kWh/m3 (20 min of RT and 40 A/m2 of CD)		[53]
Reaction volume: 50 mL; Electrodes: Al-AL with a conversion circuit; Power sources: a wind energy harvesting triboelectric nanogenerator	RT	algae wastewater, dye wastewater		SPEC removes 90% of algae and 97% of organic dye with self-powered treatment for 72 h.		[54]
Reaction volume: 200 mL; Electrodes: two Al plates (effective electrode area of 25.3 cm2 and distance of 0.5 cm) Power sources: 3 MFC cells and DC	Power sources, electrode area, and distance	bilge water (EC) and municipal wastewater (MFC)		MFC stack-powered ECC removed 93% of oily organics		[56]
Batch mode (60 min of each run); Electrode: AL-SS (surface area: 60 cm2 of each, distance: 3 cm); Power sources: 6 MFCs with two 1.2 V rechargeable batteries		Synthetic and real municipal wastewater,		For synthetic wastewater treatment: 95.4%, 88.4%, and 93.8% of COD, TDS, and TSS removal; For real municipal treatment: 83.7%, 57.5%, and 85.8% of each.	3600 $/m3 per year	[57]
Continuous mode; Reaction volume: 1 L; Stir rate: 250 rpm; Electrode: Al–Al (distance 2 cm, 6.3 cm × 7.9 cm)	HRT, drug concentration	NOM, acetaminophen		HRT at 40 min with 0.5 mg/L AP exhibited the best removal efficiency for NOM (55.9%) and AP (53.4%) removal.	US$ 0.03/m3, 0.05/m3, 0.08/m3, 0.10/m3 in 10 min, 20 min, 30 min, and 40 min HRT	[60]
Reaction volume: 150 mL; Electrode: two rods (1.2 cm × 5 cm, 2.5 cm apart).	current intensity, TDS	Boron (B) from river water, oilfield produced water		50% B removal from river water (C0 = 10 mg/L, current = 0.2 A) in 2 h; 80% B removal from produced water (C0 = 50 mg/L, current = 1.0 A) in 2 h.		[62]
EC–ultrafiltration; EC: two Fe anode (dimensions of 15 cm × 12 cm × 0.3 cm) and two graphite cathodes (15 cm × 12 cm × 1 cm), distance of electrode: 1.5 cm.	RT, CD, Initial pH	Sulfonated Humic Acid	RT: 7 min, CD: 10 mA/cm2, pH: 5.	Higher CD and operation time, lower pH, and improved SHA removal. Max removal: 89.12%.		[63]
Batchwise mode: recirculation of the liquid medium at 1.0 L/min; Electrode: Fe plates (parallel connected, 10 cm × 17 cm × 0.2 cm, effective area: 170 cm2, 2.0 cm apart); CD of 318–481 A/m2	CD, RT, and initial pH, cl− and Fe	shale gas wastewater	For turbidity removal: 318 mA/cm2, 20 min and 4.4 (pHi); for TOC removal: 481 mA/cm2, 20 min and 2.4, and for Ca2+ removal: 400 A/m2, 20 min, 3.9 (pHi)	98.3%, 78.5%, and 56.5% for turbidity, TOC, and Ca2+ removal under the optimum conditions	0.80 US$/m3	[64]

2.4. Process Economy of EC

The implementation of EC technology in water and wastewater processes not only depends on its technical feasibility but also on its cost-effectiveness. Therefore, it is essential to calculate the operational costs to determine the viability of using EC technology to evaluate not only removal efficiencies but also the economic impact of this technology. The total EC operating costs typically ($TO{C}_{Total})$ include the cost of materials ($O{C}_{ma}, €/{\mathrm{m}}^3$), chemicals ($O{C}_{ch}, €/{\mathrm{m}}^3$), electricity ($O{C}_{en}, €/{\mathrm{m}}^3$), sludge generated ($O{C}_{sl},{ \mathrm{m}}^3$), maintenance ($O{C}_{ma}, €$), depreciation ($O{C}_{de}, €$), and labor ($O{C}_{la}, €$) [11,19,64], as Equations (9)–(12):

$$TO{C}_{Total}=a\times O{C}_{me}+b\times O{C}_{ch}+c\times O{C}_{en}+e\times O{C}_{sl}+O{C}_{ma}+O{C}_{de}+O{C}_{la}$$

(9)

$$O{C}_{me}=\frac{m_A}{V\ast 1000}$$

(10)

$$O{C}_{ch}=\frac{m_C}{V}$$

(11)

$$O{C}_{en}=\frac{UIt}{V\ast 3600000}$$

(12)

where $a$ is the electricity price, $b$ is the chemical price, c is the electrode material price, e is sludge dehydration and disposal cost. U is the applied voltage (V), I is the current (A), t is the time of reaction(s), V is the volume (m³) of the sample, and $m_C \left(\mathrm{kg}\right)$ is the mass of NaCl addition (to increase the electrical conductivity of solutions). The mass consumption of the electrode was calculated by a function of Faraday’s law, Equation (7).

It is clear that the TOC_total with EC is influenced by various factors, including the prices of consumables and costs related to sludge management, along with the cost of labor. The cost of electrochemical cells alone is reported to account for 30–60% of the total treatment cost in many cases [55,65]. The operating cost can be reduced by optimizing current density and treatment time and selecting appropriate electrode material and configuration [40]. However, factors such as electrode passivation and electrode thickness can increase the operating cost of materials and energy and need to be carefully evaluated [40]. These factors should be considered when calculating the cost and designing the reactor for the EC process. Additional measures such as periodically reversing electrode polarity [3,5], auto-cleaning of electrodes, and post-treatment methods can further reduce the operating cost [40].

The cost of electricity is a significant factor in the overall operating cost, particularly in areas where commercial energy networks are not available or where electricity is costly. Using renewable energy for EC could be one of the viable options to reduce costs. However, it is crucial to consider the high investment associated with some renewable energy facilities, such as solar photovoltaics [55]. This cost has been identified as a major obstacle to the widespread adoption of these technologies [66], especially for powering electrochemical treatment processes like EC.

3. Process Developments in the Past and Up to Now

3.1. Earlier Work and Updated Studies

Electrocoagulation was first proposed for sewage treatment using electrochemical processes and mixing domestic wastewater with saline water in 1887, as described in patents from Britain and France [6]. The UK carried out the first studies on the application of these patents to treat water in 1889 [6]. Two water treatment plants in the UK utilized electrochemical techniques with iron electrodes and chlorine disinfection with seawater as the source. One of these plants operated successfully for 10 years [6,67]. Thereafter, electrocoagulation was further developed and refined by researchers in Europe and the United States. In 1906, the electrocoagulation principle was patented by A. E. Dietrich for the treatment of bilge water from ships [68]. In 1909, J.T. Harries was awarded a patent in the United States for wastewater treatment by electrolysis using sacrificial aluminum and iron anodes [6]. Later, advances in chemical coagulation saw mass-produced alternatives for chemical coagulant dosing. The EC process for wastewater treatment, however, did not find widespread applications worldwide due to the relatively large capital investment and the cost of supplying electricity [69]. During the 1970s to 1980s, significant and growing interest in the use of electrocoagulation for water treatment was generated by Russian scientists [7]. Thereafter, a wide range of water and wastewater applications for electrocoagulation followed.

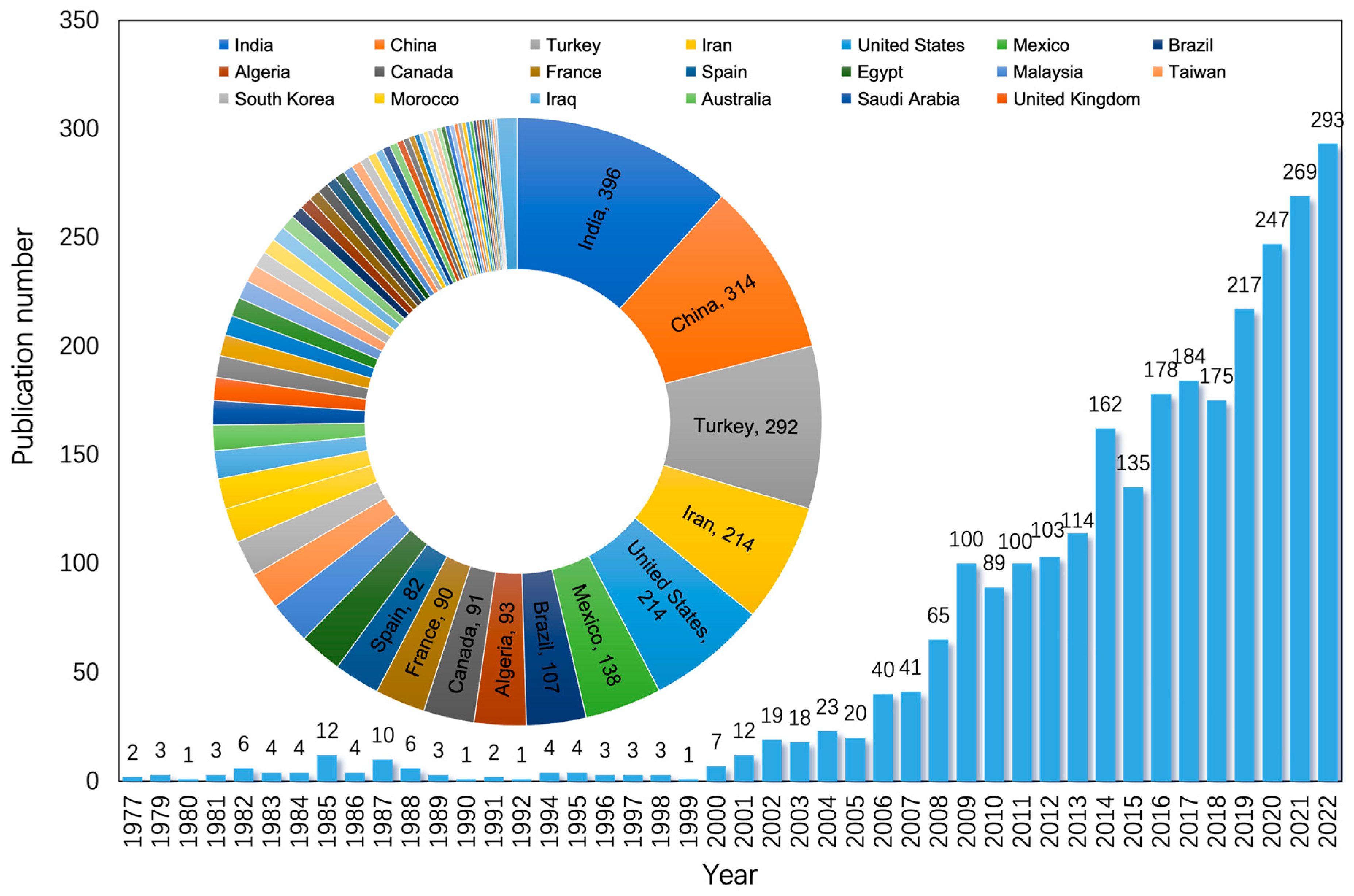

There are a total of 2691 articles published on electrocoagulation between 1977 and 2022 (Figure 3). The number of papers published annually on this topic has increased from just 2 papers in 1977 to 293 published in 2022. The first EC study published in 1977 (based on a Scopus.com search) used an EC with a continuous flow to treat fish paste manufacturing wastewater. Since 2001, the use of EC for water and wastewater treatment has gained significant attention. The majority of publications are from researchers in India (396), followed by researchers from China (314), Turkey (292), Iran (214), and the United States (214) (Figure 3). Around 7.4% (201) of these articles were review papers.

Literature reviews include Karimifard et al. [70], who discussed the use of response surface methodology (RSM) in the treatment of dye-containing wastewater through physico-chemical processes such as adsorption, advanced oxidation processes, coagulation/flocculation, and electrocoagulation. Samsami et al. [71] summarized the technologies commonly used for the removal of dyes from wastewater, including biological methods, advanced oxidation processes, electrocoagulation, adsorption, membrane technology, and photocatalytic reactors using nanomaterials. Peng and Guo [72] discussed the potential toxicity and carcinogenicity of chromium and the various methods for removing it from wastewater, including membrane filtration, chemical precipitation, ion exchange, adsorption, electrocoagulation, electrochemical reduction, electrodialysis, electrodeionization, photocatalysis, and nanotechnology. The use of EC for the treatment of different wastewaters was reviewed by Shahedi et al. and Tahreen et al. [73,74], including its effectiveness in removing various pollutants, the main challenges associated with EC, and the effects of various parameters on the effectiveness of EC. Tahreen et al. [74] also discussed emerging hybrid technologies of EC with integrated separation technologies and their limitations for enhanced wastewater treatment systems, with a focus on the hybrid EC-membrane process as a promising future technology for wastewater treatment. Moreover, the use of EC for the removal of arsenic and pharmaceutical contaminants in wastewater was reviewed by Kobya et al. and Zaied et al. [75,76], respectively, which include the mechanism and theoretical aspects of removal by EC, the effects of operational parameters on the efficiency of the process, and the reactor configurations and operating costs. Kobya et al. [75] further discussed the amount of sludge produced during EC and the characterization and disposal methods for it.

3.2. Application and Development Trends

To better understand research trends in the field of EC, key terms in EC research papers (and review articles) from the past 5 years (2018–2022) were searched on the Scopus database and analyzed using VOSviewer software. By using the keywords of “electrocoagulation” and “wastewater treatment” or “water treatment” and limiting the document type to “article” or “review”, the language to “English”, and the publishing year to “2018 to 2022”, 1201 EC papers were yielded in the Scopus database. These papers were then selected manually again to exclude unrelated papers. A network map showing the resultant top 100 terms of co-occurrence is shown in Figure 4.

There are five clusters of terms of publication of EC for wastewater treatment, represented by different colors, which have been identified by the VOSviewer software (Figure 4). The size of the circles indicates the frequency of the terms in EC studies. The terms “electrodes” (532 occurrences), “chemical oxygen demand” (215 occurrences), “pH” (175 occurrences), “Iron” (173 occurrences), “aluminium” (156 occurrences), and “current density” (161 occurrences) were most frequently studied in the past 5 years. In general, the red cluster consists of terms primarily related to the treatment performance of EC with a focus on the role of “electrodes”, “pH”, “COD”, “Iron”, “aluminum” and “anodes”. Terms relating to the energy aspects of the EC process, such as “current density”, and “energy consumption” also occurred frequently. The green cluster includes terms related to the mechanisms of EC, such as “adsorption”, “oxidation”, “procedures”, “electrochemistry analysis”, “chemistry”, “flocculation”, and “oxidation-reduction reactions”. The blue cluster represents the integration of EC with other water treatment technologies, such as “bioreactors”, “membrane”, “filtration”, and “microfiltration”. The yellow cluster focuses on the removal of specific contaminants in portable water, such as “heavy metal”, “arsenic”, “iron compounds”, “ground water”, and “drinking water”. The purple cluster consists of terms related to the analysis and optimization of EC operations, including “optimization”, “response surface methodology”, and “kinetics”.

Based on the analysis through the VOS reviewer, these five clusters could represent the five main areas of research currently being conducted on EC at a global level: (1) pollutant removal performance and energy consumption, with a total weight of occurrences of 2719; (2) studies to understand the mechanisms of the EC reaction, with 705 total occurrences; (3) integration of EC with other treatment processes, with 351 occurrences; (4) the removal of emerging contaminants, with a total of 282 occurrences; and (5) analysis and optimization of operation, with 471 occurrences.

The development trends towards the evolution of EC studies could also be noticed from the highly cited articles. The top-cited experiment-based studies in the last 5 years were searched on Scopus; it can be found that most of them were conducted to assess the effectiveness of EC in removing various contaminants from water, including the removal of microplastics [77], phosphate [78], mental pollutants [79,80], and the treatment of textile wastewater [81,82,83] and oil wastewater [80]. In 2018, Perren et al. [77] looked at the use of EC to remove microplastic contaminants from artificial wastewater containing polyethylene microbeads and found that EC was effective with removal efficiencies above 90% across a range of pH values. The highest removal efficiency of 99.24% was observed at a pH of 7.5, and the optimal concentration of NaCl for the reactor was found to be between 0 and 2 g/L. Additionally, the specific mass-removal rate was highest for the lowest-tested current density of 11 A/m², indicating that a low current density is more energy-efficient for microbead removal. After that, Hashim et al. [78] used a new aluminum-based electrochemical cell to remove phosphate from water, and it was found that 99% of phosphate could be removed within 60 min at certain operating conditions. Three studies focused on the treatment of textile wastewater were also conducted [81,82,83] and showed the removal of 86% to 98% of color, 82% and 83.5% of turbidity, and 18.6% to 59% of COD, respectively, under their optimum operation conditions.

The perspective of EC studies towards the integration of EC with other water/wastewater treatment processes, such as ozonation [84], electrochemical advanced-oxidation process (EAOP) [85,86], and microfiltration [80], was also highly interesting for researchers. Bilińska et al. [84] examined the use of EC and ozonation as a one-step and two-step process for the treatment of industrial textile wastewater and found that more than 95% of color removed could be achieved in a short treatment time. The EC and O₃ combination was found to be more cost-effective when used in a two-step process, and the purified wastewater produced by the treatment process was suitable for recycling. When considering the coupling of EC with EAOPs for dyeing wastewater, Zazou et al. found that the sequential EC-EF treatment was the most effective process for the degradation of organic pollutants, achieving removals of 97% for TOC, 100% for turbidity, and 100% for color [86]. Additionally, the EAOP followed by EC was a better approach than EC followed by EAOP, as it yielded a higher COD reduction of 93.5% with a lower specific energy consumption and less sludge generated [85]. A study by Changmai et al. utilized ceramic membranes that were prepared locally to perform microfiltration with the aim of eliminating flocs produced during the electrocoagulation process. The results showed that 75–85% of the initial flux was lost when performing microfiltration on the samples that had undergone electrocoagulation [80].

4. New Developments

4.1. Emerging Pollutants Removal by EC

4.1.1. Removal of Microplastics

Plastic is a popular polymer material used in various industries because of its light weight, strength, durability, and low cost. A large amount of plastic waste is being discharged into the environment, creating microplastics (MPs) with particle sizes less than 5 mm in diameter [23,87,88,89]. Microplastics can be found in various sizes worldwide, mainly originating from household sewage discharge, plastic manufacturing, and plastic debris fragmentation [89]. Wastewater treatment plants are a significant contributor to microplastics release into the environment, as they cannot efficiently remove them, leading to their accumulation in aquatic ecosystems [89]. MPs cannot be completely degraded due to their polymeric structure and their ability to be easily transported between different habitats [89]. In water environments, planktonic and invertebrate organisms are highly susceptible to accumulating microplastics, which then transfer through the food chain and the human body, and may lead to physical harm, decreased nutritional value, and exposure to pathogens [89,90]. Additionally, raw plastics contain chemical additives such as phthalates, bisphenol A, and polybrominated diphenyl ethers, which can cause toxic effects when consumed by living organisms [89].

Coagulation-based processes have great potential for MPs separation from water/wastewater [88]. The potential benefit of using the EC process to remove MPs is its simple operation, high efficiency, and low cost [88,91]. While EC has been a well-studied area of research, there are relatively few studies specifically focused on MPs removal. These studies indicate that EC could effectively remove MPs, i.e., more than 90% removal in optimum reaction conditions from real wastewater [92,93,94,95] and artificial wastewater [77,96].

EC uses metal electrodes to generate coagulants in situ, which can adsorb charged pollutants and even degrade MPs. The main removal mechanisms of MPs by EC include:

(1)

Sorption, electrical neutralization, and flotation, whereby the positive charge on the surface of the flocculants allows for the adsorption of negatively charged ionic MPs. The production of H₂ and O₂ bubbles during the EC process could also help bring the flocs to the surface, where they can be removed through skimming [23].

(2)

Oxidation reaction, where the reactive chlorine species (RCS, such as ClO⁻ and Cl₂) and reactive oxygen species (ROS, such as O₂, O₂•⁻, H₂O₂, and OH⁻) and Fe(IV) generated on the anode accompanied by the metal-ion precipitation, can oxidize the MPs into small molecules of non-toxic substrates [23].

4.1.2. Removal of PFASs

Per- and polyfluoroalkyl substances (PFAS) are a group of synthetic chemicals comprised of a hydrophobic fluorinated alkyl chain at one end and a hydrophilic functional group at the other [97,98]. The high thermal and chemical stability owing to the strong C-F bonds, make PFAS extremely suitable in applications where they need to repel water and oil and resist friction [97] with over 4700 different compounds in use (e.g., Perfluorooctanoic acid (PFOA) and perfluorooctane sulfonic acid (PFOS)) [99]. PFAS are produced on a large scale for various industrial purposes, such as the production of textiles, paper, pesticides, leather, medical devices, metals, minerals, and oil, as well as for consumer applications like non-stick cookware, food packaging, cosmetics, paints, inks, surfactants, waterproof products, and firefighting foams [97]. They are known for their persistence, bioaccumulation, and occurrence in drinking-water sources and the effluent of wastewater treatment plants. A nationwide study in the US found PFAS in all 25 drinking-water treatment plants studied at levels exceeding the maximum contaminant levels in some state-level regulations [100]. Previous studies have reported that exposure to PFAS is associated with various acute and chronic human diseases [97,101,102], and some perfluoroalkyl carboxylic acids have demonstrated immunotoxicity, carcinogenicity, and hormonal disorder effects in animals [97,103,104].

EC has the ability to eliminate PFAS through either non-destructive phase separation or destructive oxidative pathways. Compared to other PFAS treatment methods that are destructive, such as sonolysis, ultraviolet (UV) advanced oxidation, advanced reduction, and photocatalysis, EC requires less energy input [105]. Most studies using EC to remove PFAS have concentrated on non-destructive methods that involve the sorption of PFAS to metal hydroxide flocs created using sacrificial electrodes [105]. Iron and aluminum are the commonly used electrodes, while zinc has shown greater PFOA removal compared to iron and aluminum [106]. PFAS sorption to hydroxides was primarily attributed to hydrophobic interactions between PFAS species and the metal hydroxide surface via multilayer sorption [106]. Moreover, studies suggest that EC can produce oxidation reactions through anode-surface oxidation, reactive iron intermediates, or Fenton processes (presuming there is H₂O₂ in the matrix) at low pH, which may lead to PFAS degradation [105]. Recent research has demonstrated the oxidative ability of iron-electrocoagulation for PFAS removal, which involves direct electron transfer and oxidant generation, leading to the production of shorter-chain PFAS compounds [107]. The removal rate was independent of pH, making it a potential oxidative process for drinking-water treatment under neutral conditions [19].

Wang et al. [108] found that using a stainless steel rod as the cathode was more effective than those using an aluminum rod as the cathode for the removal of PFOA. Hydroxide flocs generated in situ in the EC process in the presence of Cl⁻/NO₃⁻ could effectively remove PFOA from an aqueous solution (99.7%/98.1% and 98.9%/97.3%), while the PFOA removal ratios were lower in the presence of SO₄²⁻ and CO₃²⁻/HCO₃⁻ (96.2%/4.1% and 7.4%/4.6%). The study also demonstrated that Zn_0.61Al_0.39(OH)₂(CO3)_0.195·xH₂O and ZnO generated in situ in the electrocoagulation process using a zinc anode and aluminum/stainless steel rod cathode governed the sorption of PFOA. Liu et al. [109] found that 99.6% and 79.4% of PFOA could be removed by EC with Al-Zn electrodes from a simulated solution (1 mag/L PFOA) and natural groundwater in optimum conditions. PFOA contamination was found to be adsorbed on the flocs of Zn_0.61Al_0.39(OH)₂(CO3)_0.195·xH₂O through the mechanism of adsorption bringing enmeshment, mainly resulting from the hydrophobic interaction of PFOA and Al-Zn hydroxide flocs. Kim et al. [107] found that an increase in the current density from 2.4 to 80.0 mA/cm² in EC using an Fe electrode led to a significant increase in the removal efficiency of PFOA from 10.0 to 100.0% within 6 h. Formate (HCOO⁻) ions and three shorter-chain perfluorocarboxylates were observed as organic byproducts during the EC of PFOA, indicating that the C-C bond between C7F15 was firstly broken down and then degraded into short carbon-chain compounds by PFOA decomposition. Aside from metal electrodes, air cathodes have also been applied in EC for PFAS removal. Mu et al. [110] showed that EC with an air cathode could remove high PFOA concentrations (99.8$\pm 0.3$%) with significantly less energy consumption than traditional electrocoagulation with aeration. At low PFOA concentrations, EC with an air cathode was found to be less effective 41.1 ± 11.6% than EC with aeration. PFOS removal rates were generally lower (76.4–88.5%) than PFOA but were better at low concentrations due to a higher hydrophobicity.

4.2. EC Powered by Bio-Current

4.2.1. Power Supply via Microbial Fuel Cells (MFCs)

In recent years, bio-electrochemical systems (BESs) such as microbial fuel cells (MFCs) have received increased attention for their ability to simultaneously treat wastewater and generate electricity [111,112,113]. MFCs are a promising technology that can convert chemical energy in biomass or organic matter found in wastewater into electricity. It operates based on the principles of oxidation and reduction processes. They typically consist of two chambers: an anode chamber (anaerobic/anoxic) and a cathode chamber (aerobic/oxic), which are separated by a proton-exchange membrane or sufficient distance (Figure 5). MFCs facilitate the degradation of organics or pollutants at the anode and generate an electron flow through a series of redox potentials, where oxygen is reduced, and electricity is produced [112].

Despite the advantages of using wastewater to generate energy, the voltage produced by MFCs is limited. The maximum theoretical open-circuit voltage that can be generated is 1.14 V, which is the result of subtracting the oxygen redox potential (−0.32 V) from the NADH redox potential (+0.82 V) when oxygen is used as the cathode’s electron acceptor. However, in practical applications, the working voltage of the MFC is typically only between 0.2 V and 0.7 V. In order to increase the overall voltage, MFCs can be stacked together (i.e., linked together in series or parallel), resulting in a nearly additive increase in total voltage [114,115,116]. The stacking of pure MFCs has been well-demonstrated with a wide variety of examples of how the power generated could be reused [116]. MFC stacks could be classified in two ways: electrical stacking and hydraulic stacking, with the connection arrangement of either of these approaches being either series or parallel [116]. The resulting power output from the system can be used to run electronic appliances and sensors that require low levels of power. To improve the current output of MFCs, the internal resistance needs to be reduced [117,118]. In a stacked configuration, the internal resistance of the MFC is affected by factors such as transport resistance, kinetic resistance, and ohmic resistance [117,118].

There has been only a very limited number of studies that have attempted to use MFCs to power EC. The system configuration is schematically illustrated in Figure 5. Mei et al. (2019) explored the possibility of using an integrated EC and MFC stack (three MFCs connected in series) to not only remove contaminants but to achieve energy neutrality by using the electricity produced by the MFC stack to power the EC. Results show that the MFC stack-powered EC was able to remove 93% of oily organics, similar to the performance of an externally (DC) powered EC. The EC electrode area and distance were found to have a significant impact on current generation and contaminant removal [56]. Safwat et al. (2018) also investigated the potential for integrating MFCs and ECs into a single system for two types of wastewater treatment: synthetic wastewater and real municipal wastewater. In contrast to the study by Mei et al. (2019), which connected MFC stacks directly to EC via wires, this study employed two rechargeable batteries to store the electricity generated from the MFCs stacks (which were comprised of 6 cells connected in series). The batteries were then discharged once they were full, providing power to the EC. The results showed that the system was able to effectively remove COD, TDS, and TSS from both types of wastewater. The energy harvested from MFCs to power ECs was higher when using synthetic wastewater. While the initial capital cost of the integrated system is high, it is expected to significantly reduce operational costs compared to using ECs alone [57]. Nevertheless, the investigations referred to herein solely addressed the EC operations carried out for brief periods of 7 h and 1 h in batch mode. The research used various MFCs linked in series as energy sources, but there remains a gap in understanding the impact that different numbers and modes of MFC connections may have. Consequently, further research is imperative to study the energy pathways in MFCs and evaluate the EC system’s long-term performance.

4.2.2. Power Supply via EW

MFC has the ability to convert more than 90% of bioenergy into electrical energy [113,119]. This encourages the exploration of larger-scale MFC-based systems that can extend the technical and economic capability of MFCs [120]. The combination of a low-cost wastewater treatment technology, constructed wetlands (CW), with MFCs [121,122,123], has been termed CW-MFC [123,124], METland [125], bioelectrochemical-wetland [120] and electroactive wetland [112], and electro-wetland (EW) [126]. EW shares a similar configuration as MFCs, whereby the naturally existing stratified redox conditions in EW are highly consistent with the requirements for MFCs. EW typically consist of electrodes, substrate material, and plants (Figure 6). The cathode is typically placed in the aerobic zone or on the surface as an air cathode, while the anode is embedded deep in the anaerobic zone. Substances such as alum sludge, activated carbon, and graphite are the most commonly used materials and have been proven to improve the efficiency of these systems through biogeochemical processes [127]. Plants are also one of the key components in the system and are typically located in the cathode area, with their roots embedded in the substrate [128]. The electroactive bacteria presented in the system break down organic matter at the anode and produce electrons that flow through external electric wires to the cathode [112,123,127]. In the cathode area, oxygen is used as the most common electron acceptor. In reduction reactions at the cathode, hydrogen peroxide, a strong oxidizing substance, can be produced as a by-product and used to enhance the efficiency of pollutant removal [113]. This electron transfer creates a potential difference between the anaerobic and aerobic regions, which allows for electricity generation in EWs [112,113,121].

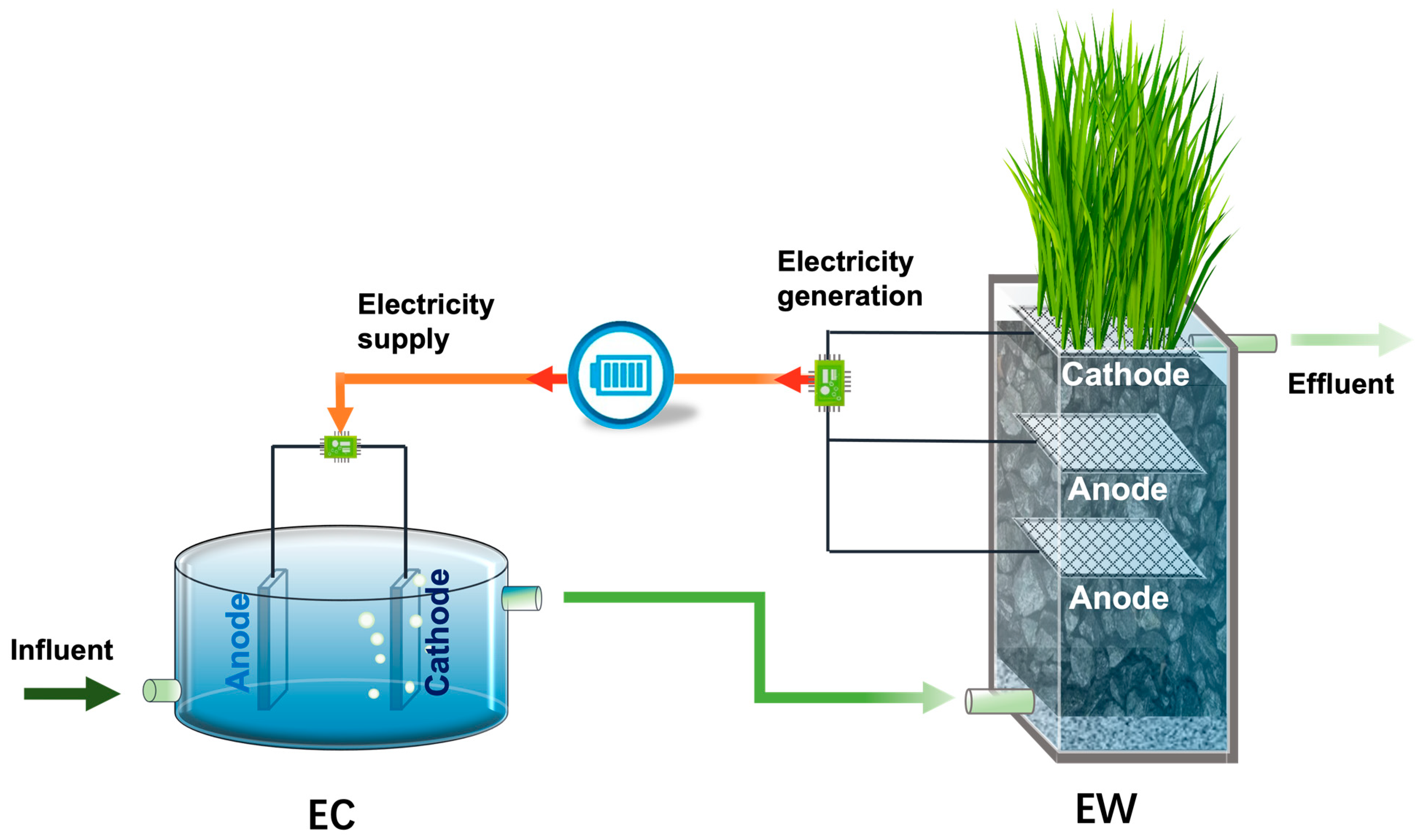

Given the sustainability and wastewater treatment capabilities of EWs, it is important to carefully consider which applications of this ‘green energy’ technology would be suitable for retrofitting existing EWs. During the last few years, the power output of EWs has been significantly improved [126,129,130]. However, the volumetric power densities of EWs are still in the milliwatts range [131]. The power density of EWs tends to be lower than MFCs, as a result of the large ohmic losses due to the internal resistance increment and the electrode potential losses (activation losses) [132]. Therefore, a greater electricity-generation performance may be achieved through the direct utilization of the bioenergy produced. Some researchers have suggested that the limited energy recovered from wastewater in EWs could potentially be used to power small electronic devices [57,133], such as bioelectrochemical/electrochemical systems. Xu et al. (2019) also mentioned that the energy produced by EW could possibly offset the energy consumed in the process, such as supporting bio-current to in situ or ex situ electrically related treatment process for electro-Fenton or bio-electrolysis process.

The application of EWs as power sources is currently very limited, with only two related studies reported. A proposed system configuration is schematically illustrated in Figure 6. Zhang et al. [134] used EWs stacks (2 cells connected in series) to power a bio-electrochemical system (BES) for sulfamethoxazole (SMX) removal. The results showed that EWs could provide enough stable electricity (between 0.84 and 1.01 volts) to support the BES in breaking down SMX without the need for additional energy. The low current levels powered by CW-MFCs did not impact the degradation products but did increase the rate of SMX removal [134]. Another study was conducted by Srivastava et al. [135], which explored the use of a power management system (PMS) to store the power output of EWs and boost voltage to power a small air pump for providing oxygen in the cathode area of the EW system. With intermittent aeration, the maximum power generation by one of the EW increased from 54.6 $\mathsf{\mu }$W to 90 $\mathsf{\mu }$W, and ammonium removal increased by 10% [135].

EC applies the micro-electrical current to remove contaminants in an aqueous environment and therefore presents the best possibility to use the power generated from EW [136]. It is reasonable to assume that the utilization of EW for powering EC could be an effective way to reduce not only the cost of energy consumed by EC but also to maintain the high treatment performance of both processes.

4.3. Unilizaiton of Power Management Systems in EC

A power management system (PMS) is an electronic circuit that harvests energy from an MFC/EW and shapes it into a usable form [137]. The system could capture and store the unstable and limited power output from MFCs/EWs and boost voltage to a relatively higher and constant level in a certain range [116,138], and subsequently prevent voltage reversal occurring in stacked MFCs/EWs during long-time reactions [138]. The system usually consists of a harvesting system, including maximum power point (MPP) tracking and an energy storage unit by means of supercapacitors [135]. It is different from external resistors, which only show energy output potential but do not capture usable energy, as the current flowing through the resistor is lost as heat [137,138]. Thus the combination of PMS with MFC-based technology is essential for the functioning of EC and provides the possibility of creating a self-sufficient power supply for EC throughout the duration of a long-term reaction.

As mentioned before, a rise in the current density in EC leads to more efficient removal. The current density also affects the bubble production rate and size [13,60,61]. A standard potential (1.229 V) between the cathode and anode is necessary to carry out water electrolysis in EC, resulting in floatation and enhanced treatment performance. Hence when considering using MFC/EW to power EC, the working voltage has to be sufficient to ensure the treatment performance of EC. Considering that the power generated from a single cell of EW is limited, using a stack of modular EWs could potentially increase the total voltage generated and make it sufficient to power low-energy devices [57,139]. However, the bio-current generated in MFCs/EWs relies heavily on the bioactivities of bacteria, which vary with reaction performance conditions. Increased power production cannot be achieved simply by constructing larger MFCs/EWs or connecting MFCs/EWs in series or parallel, owing to the non-linear characteristics of MFCs/EWs [138]. Stacked modular EWs often experience an unpredictable voltage reversal when some of the unit cells act as power-supplying batteries and others as power-consuming loads [140,141,142].

The PMS has been used with MFCs in previous studies for practical usage. Wang et al. [138] gave a detailed description of these updated PMS for pure MFCs, and summarized them as three energy-harvesting processes: (a) a concise process from MFCs (energy generator) to electronic devices (energy consumer); (b) a classic and widely adopted PMS circuit composed of a charge pump and a boost converter with accessory components; (c) a two-layer energy-harvesting scheme, which is operated in alternative ‘charge’ and ‘discharge’ phases [138].

So far, the use of PMS with EWs is very limited, and there have only been two related studies published. Xu et al. [129] first reported tests of a novel strategy of PMS, called a capacitator-engaged duty cycling (CDC) strategy, to harvest energy from an open-air bio-cathode EW. An investigation was conducted to compare the energy harvest performance of three working regimes: (1) continuous loading mode (CL), a continuous connection of external resistor to the circuit; (2) duty-cycling mode (DC), intermittent loading of an external resistor; and (3) CDC, intermittent consumption of energy stored in three external capacitors (4700 $\mathsf{\mu }\mathrm{F}$) through an external resistor. The results indicate that the CDC strategy (intermittent energy consumption) leads to a 19.81% higher effective charge than the CL (continuous loading) mode at a duty cycle value of 31.6%. With a lower duty cycle of 20%, the total charge harvested increases by 25.0%. This study is the first to use PMS to harvest energy in EW systems, which have not previously dealt with the application of energy from EW. Srivastava et al. [135] unitized a PMS with two supercapacitors (55 F) to harvest and boost voltage from EWs, and to power a small air pump to provide oxygen to the cathode area in EWs. With the connection of PMS, the voltage of EWs (394 ± 53 mV and 307 ± 34 mV) was boosted to 1.7 V to power the air pump. The ammonium removal and power generation of EW were subsequently increased. However, the initial energy harvested took a long time (60 days) to reach the start-up voltage of 1.5 V. Once 1.5 V was reached, the air pump was connected to the circuit, but every 60 s of aeration required 6 days of harvest time to withdraw power from the EW. Further studies are needed to focus on the optimization of the PMS circuits, including smaller supercapacitors and a lower start-up voltage to improve the system.

5. Research Gap and Further Research Direction of EC

Considering the complexities and high investments in supplying commercial energy to a field site, the application of EC in remote locations is limited [136]. Previous studies have explored renewable energy sources, such as photovoltaic energy, wind energy, or hydroelectricity. However, the power-generation rate of these energy systems is largely influenced by natural conditions, such as geographical latitude, sunlight intensity, wind speed, gravitational potential, land area, hydraulic loading, and other similar factors. The high cost of implementation of such technologies has limited their application [66], especially for powering electrochemical treatment processes like EC, which has only limited lab-scale studies published. Therefore, integration with compatible and economical bioenergy technologies (e.g., MFCs or EW) seems necessary and important. Compared with other power sources (e.g., fossil fuels, solar photovoltaic, wind turbines, hydroelectricity power), EW/MFC could recycle the ‘green’ energy in wastewater and output as electricity energy, which owns more advantages of sustainability, easy construction/maintaining, and lower investment. Therefore, EW/MFC may act as a capable and green energy source of EC for water/wastewater treatment in a field or rural area. There are only a few studies of EC powered by MFC and no published studies of EW powering EC. As such, further development is highly desirable for this proposed approach. The PMS and stacking EWs could be considered to manage and improve the energy output. Furthermore, energy flow pathways between the electron accepters and electron donor and their contribution on pollutants removal and power generation/consumption in systems should be identified.

EC systems are designed to remove pollutants using electrochemical processes only, without relying on biological processes. While this approach is effective in removing many pollutants, it may face practical limitations when it comes to removing new biodegradable and soluble organic pollutants. To overcome this limitation, the EC process can be combined with other biological treatment technologies to improve the efficiency of pollutant removal. It is crucial to select the appropriate combination of treatments to ensure optimal results. Systems that rely on bio-electrochemical processes, such as EW or MFC, can serve as suitable external power sources for EC systems, but they are susceptible to toxic or recalcitrant pollutants. Hence, combining EC and EW/MFC systems into a self-powered hybrid system can effectively enhance water-treatment performance and achieve energy neutrality in a single treatment process (Figure 5 and Figure 6). This combination of processes can be utilized to optimize treatment efficiency by allowing the removal of toxic pollutants before the EW/MFC stage, followed by the removal of biodegradable contaminants that may still be present after the EC pre-treatment stage. The proposed method could also serve as a sustainable alternative for treating complex wastewater, especially in scenarios where electricity is scarce or when dealing with field applications. At present, there is a dearth of literature on the feasibility of a hybrid EC-EW/MFC system. Hence, it may be necessary to conduct a feasibility study on the combination of these technologies. To ensure protection of the environment and human health, it is crucial to focus on the removal of emerging pollutants, such as antibiotics, pesticides, surfactants, and endocrine-disrupting compounds (EDCs). These compounds are likely to be subject to increasingly stringent water treatment regulations and thus require further attention.

6. Conclusions

EC is a highly efficient and environmentally friendly technology for removing contaminants from water and wastewater. This review offers valuable insights into the current state of EC technology and highlights opportunities for further research and development. The paper presents an overview of the advantages and limitations, fundamental mechanisms, and operational factors of EC. To determine the current state of EC research, a comprehensive literature search was conducted using the Scopus database, and relevant keywords were analyzed and classified using VOSviewer software. The review highlights new developments in EC, including the removal of emerging pollutants, the use of MFC and EW for power supply, and the application of PMS in EC. The paper concludes with a discussion of future research opportunities, including:

• Optimizing operating conditions of EC to achieve both low power consumption and high removal efficiency;
• Exploring the techno-economic feasibility of coupling EC and EW/MFC systems;
• Identifying the energy pathways and energy application/management of hybrid systems;
• Focusing on the effective removal of emerging pollutants using a hybrid EC system.
