Pollutant Removal and Energy Recovery from Swine Wastewater Using Anaerobic Membrane Bioreactor: A Comparative Study with Up-Flow Anaerobic Sludge Blanket

by
Yunhui Pu
1,2,
Jialing Tang
1,*,
Ting Zeng
3,
Yisong Hu
3,4,*,
Jixiang Yang
5,
Xiaochang Wang
3,4,
Jin Huang
1 and
Abdelfatah Abomohra
1,*
1
School of Architecture and Civil Engineering, Chengdu University, Chengdu 610106, China
2
Failure Mechanics & Engineering Disaster Prevention, Key Lab of Sichuan Province, Chengdu 610065, China
3
Key Lab of Northwest Water Resource, Environment and Ecology, MOE, Xi’an University of Architecture and Technology, Xi’an 710055, China
4
International Science & Technology Cooperation Center for Urban Alternative Water Resources Development, Xi’an 710055, China
5
Chongqing Institute of Green and Intelligent Technology, Chinese Academy of Sciences, Chongqing 400714, China
*
Authors to whom correspondence should be addressed.
Water 2022, 14(15), 2438; https://doi.org/10.3390/w14152438
Submission received: 11 July 2022 / Revised: 1 August 2022 / Accepted: 3 August 2022 / Published: 6 August 2022
(This article belongs to the Special Issue Advances of Anaerobic Technologies on Wastewater Treatment)
Browse Figures
Review Reports Versions Notes

Abstract

:
Due to its high content of organics and nutrients, swine wastewater has become one of the main environment pollution sources. Exploring high-efficient technologies for swine wastewater treatment is urgent and becoming a hot topic in the recent years. The present study introduces anaerobic membrane bioreactor (AnMBR) for efficient treatment of swine wastewater, compared with up-flow anaerobic sludge blanket (UASB) as a traditional system. Pollutant removal performance, methanogenic properties, and microbial community structures were investigated in both reactors. Results showed that by intercepting particulate organics, AnMBR achieved stable and much higher chemical oxygen demand (COD) removal rate (approximately 90%) than UASB (around 60%). Due to higher methanogenic activity of anaerobic sludge, methane yield of AnMBR (0.23 L/g-COD) was higher than that of UASB. Microbial community structure analysis showed enrichment of functional bacteria that can remove refractory organic matter in the AnMBR, which promoted the organics conversion processes. In addition, obvious accumulation of acetotrophic and hydrotrophic methanogens in AnMBR system was recorded, which could broaden the organic matter degradation pathways and the methanogenesis processes, ensuring a higher methane yield. Through energy balance analysis, results concluded that the net energy recovery efficiency of AnMBR was higher than that of UASB system, indicating that applying AnMBR for livestock wastewater treatment could not only efficiently remove pollutants, but also significantly enhance the energy recovery.

1. Introduction

Livestock breeding is an important growing industry to supply the world with the increased requirements of meat and nutrition. In 2020, approximately 850 million pigs were bred in China [1], which discharged a large amount of wastewater and solid wastes into the surroundings. Swine wastewater (SW) contains high content of organics, nutrients, antibiotics, and heavy metals [2,3,4,5], which result in serious water pollution and environmental deterioration if not properly managed. To reduce the negative impacts of SW, some physico-chemical methods have been adopted to recover organics and nutrients [6,7]. In addition, various microbial treatment systems such as aerobic, anaerobic, and even ecological systems were designed and applied into practice [8,9,10]. However, the high energy input and low pollutant removal efficiency of these methods are not suitable for SW treatment. Due to the high organics content, SW is commonly utilized as substrate for renewable energy production through anaerobic digestion (AD) process [11,12].
Recently, continuously stirred tank reactor (CSTR) and up-flow anaerobic sludge blanket (UASB) have been widely applied in the treatment of municipal waste such as chicken manure, SW, and other wastewater [4]. However, the effluent quality of these traditional AD systems cannot meet the requirement of water reuse and environmental standards. Moreover, these processes are usually unstable due to the existence of complicated components and inhibiting factors (such as high ammonia, heavy metals, and long-chain fatty acids) in the SW [11]. In addition, anaerobic digestion at high rate is a challenge in these reactors due to the risk of wash-out of microorganisms at short hydraulic retention time (HRT). More importantly, antibiotics in the SW would inhibit the microbial activity and metabolic processes, which negatively affects methane productivity and yield [3]. Therefore, exploring high-efficiency anaerobic digestion processes for SW treatment is of great importance for pollution control coupled with energy recovery.
As a novel and effective AD process, anaerobic membrane bioreactors (AnMBRs) have attracted increasing interest in recent years due to their high pollutants removal efficiency and energy recovery rate [13,14,15]. They have many advantages such as smaller reactor size without the need of sedimentation tank resulting in smaller footprint, no limitations on suspended solid content of the mixed liquor, easy control of solid retention time which enhances the quality of the treated water, excluding tertiary treatment, and energy efficient application [15,16,17]. To develop this technique, researchers have explored the pollutant removal performance, fouling mechanisms, membrane materials and reactor configurations with various wastewaters under different operating conditions in lab-scale studies and practical cases [18,19,20]. It has been verified that AnMBR can effectively retain the slow-growing functional microorganisms (e.g., methanogens) in the reactor and increases the biomass through direct membrane interception to promote system stability and methanogenesis [21]. In addition, the complete separation of sludge retention time (SRT) and HRT in AnMBR avoids the wash-out of microorganisms and increases the microbial communities, which is beneficial for promoting pollutant removal efficiency and effluent quality [15,22,23]. Ammonia and long-chain fatty acids inhibition have been widely observed in many AD systems, but AnMBR can bare high ammonia content and remove refractory organic matter [18]. Moreover, AnMBR could effectively remove many pollutants, including antibiotics and trace organic materials [24], and also achieve energy recovery by biogas production and nutrient recycling through digestate reuse [25]. More importantly, high virus and pathogen removal efficiency was also reported in AnMBR system, which provides potential tools for wastewater reuse. Because of these superiorities, AnMBR has attracted substantial interest for the treatment of a variety of waste streams with a broad spectrum of organic loadings to recover resources and biofuel production [21].
Ceramic materials and polymeric membranes have been compared for application in AnMBR, where many studies reported a higher overall permeability and efficiency for polymeric membranes [26,27]. There are three main forms of membranes, including hollow fiber, tubular, and flat sheet. Compared to other types, flat sheet membranes are more advantageous due to simple cleaning/replacement methods and high efficiency for commercial application, while high cost is their main disadvantage [15,28]. Therefore, enhancing the flat sheet membranes bioreactor performance could reduce the overall cost and enhances the process economy. In addition, combination of membrane separation with AD processes in AnMBR is widely investigated and applied into practice.
Although AnMBR systems have been extensively used in the treatment of wastewater with high organic matter concentration, research about SW treatment using AnMBR has been less conducted. Despite their advantages, comparing the potential of AnMBR in pollutant removal and methane production from SW with other conventional systems such as UASB was not systematically investigated. In addition, evaluation of energy production from SW in AnMBR and UASB is of great importance. In addition, comparing the microbial communities in both reactors has not been analyzed. Thus, in this study, AnMBR and UASB system were operated and compared. Pollutant removal efficiencies and energy recovery properties were investigated. The relationships between microbial community and reactor performance for pollutants removal and biogas production were also explored. The results of this study provide more information for future application of AnMBR in SW treatment and energy recovery.

2. Materials and Methods

2.1. Swine Wastewater and Inoculum Sludge

Swine wastewater (SW) was collected from a local pig farm, then particles bigger than 5 mm were removed from the SW using a mesh screen. The filtrate was stored at 4 °C until further use. pH value of the SW was 7.8, and total solid (TS) and volatile solid (VS) content were 7–8 and 4–5 g/L, respectively. Chemical oxygen demand (COD) and volatile fatty acids (VFAs) content were approximately 20 g/L and 5 g/L, respectively. The inoculum sludge was obtained from a full-scale mesophilic UASB reactor, which was used to treat the brewery wastewater. Mixed liquor suspended solids (MLSS) and mixed liquor volatile suspended solids (MLVSS) concentrations of the sludge were approximately 10.3 g/L and 6.3 g/L, respectively.

2.2. Reactors Design and Operation

The AnMBR and UASB were simultaneously conducted under the same operating conditions (Figure 1), with a total volume of 3.0 L and working volume of 2.6 L. AnMBR was a modified UASB with a flat-sheet microfiltration membrane module at the top of the reactor. The length and width of the membrane module was 12.8 cm and 7.8 cm, respectively. Membrane on both sides of the module frame was made of chlorinated polyethylene with a normal pore size of 0.22 μm and a total effective area of 0.02 m2. SW was fed into the bioreactor using a peristaltic pump (Longer BT-100, Longer, Baoding, China), which was connected with a water level sensor to maintain a constant water level in the reactors. Digestate was discharged using another peristaltic pump (Figure 1). An on-line pressure sensor (SIN-P400, Sinomeasure, Hangzhou, China) located on the permeate line of AnMBR was used to monitor the trans-membrane pressure (TMP). The volume of biogas was measured by wet-type gas flow meters (LML-2, Changchun Automobile Filter Co., Ltd., Changchun, China). A water bath was conducted to maintain a mesophilic temperature (37 ± 2 °C) in both reactors. The feedstock was stored at 4 °C in a substrate tank continuously stirred and connected to a cooling water bath. To control the membrane fouling in AnMBR, membrane filtration was intermittently operated (8 min-on, 2 min-off) during the whole operating period [29,30]. In addition, backwash using the effluent was conducted to remove membrane foulants and recover its permeability when the TMP exceeded 40 kPa. Before starting this study, the reactors were operated for more than 110 days using SW. Hydraulic retention time in both reactors was approximately 10 days. During the operation, the influent, mixed liquor, and permeate were periodically sampled and analyzed.

2.3. Analytical Methods and Data Analysis

2.3.1. General Parameters

Samples of influent, mixed liquor, and effluent were collected and centrifuged at 5000 rpm for 10 min at 4 °C. The supernatants were used to measure the pH, soluble COD (SCOD), and VFAs. Total solids (TS), VS, pH, and COD were analyzed in accordance with the American Public Health Association (APHA) standard methods [31]. Total and soluble carbohydrate and protein were detected using the methods described in our previous study [32]. Prior to determining VFAs and lactic acid, liquid samples were filtered through 0.22-μm filter membranes. The filtrate was analyzed by high performance liquid chromatography (LC-10AD, Shimadzu, Kyoto, Japan) equipped with an ultraviolet detector (210 nm) using sulfuric acid (5 mmol/L) as eluent. Biogas was collected in airbags, then its composition was regularly monitored using gas chromatograph (GC2010, Shimadzu, Kyoto, Japan) equipped with a packed column (TDX-01, Haohan, Tengzhou, China) and thermal conductivity detector (TCD). All analyses of individual samples were performed in triplicates, and methane production was analyzed by kinetic analysis using the modified Gompertz model [33].

2.3.2. Specific Methanogenic Activity (SMA) Analysis

Measurement of SMA for anaerobic sludge was carried out in 120 mL serum bottles using sodium acetate as a substrate (COD = 0.5 g/L) [34]. In SMA test, the feed/microorganisms (F/M) ratio was set at 0.5. The total working volume of each serum bottle was 80 mL, containing 20 mL sludge from the reactor, 50 mL substrate, and 10 mL nutrient solution. The nutrient solution was boiled for 0.5 h to remove dissolved oxygen and then cooled down to room temperature before use. Each bottle was purged with nitrogen gas for 2 min to remove the oxygen, sealed with rubber stoppers, and rapidly secured using an aluminum crimp. Finally, the above bottles were incubated on a shaker at 115 rpm and 25 ± 1 °C. After the set temperature was reached, the headspace of each bottle was vented using a syringe to release the pressure caused by thermal expansion. The production and composition of biogas were measured every 3–5 h and expressed as the value at the standard state. Each experiment was conducted in triplicates to ensure reliability.

2.3.3. Microbial Community Analysis

Sludge samples were collected from each reactor for microbial community analysis. The samples were centrifuged at 12,000× g for 15 min and then the supernatant was decanted. For each sludge sample, 0.45 g of the solid phase was collected and transferred into a commercial soil DNA isolation kit for DNA extraction. Thereafter, DNA for bacteria was amplified with universal forward primer 341F: CCTACGGGNGGCWGCAG and 805R: GACTACHVGGGTATCTAATCC. The DNA for Archaea was amplified with 340F: CCCTAYGGGGYGCASCAG and 1000R: GGCCATGCACYWCYTCTC in the first round and 349F: GYGCASCAGKCGMGAAW and 806R: GGACTACVSGGGTATCTAAT in the second round. After PCR amplification, minimization of random sequencing errors was performed by eliminating the low-quality sequences and those having a length shorter than 500 nucleotides. After the primers and barcodes were trimmed, the high-quality sequences were clustered into operational taxonomic units (OTUs) at a 0.03 cut-off. PCR amplicon sequencing analysis was executed at Sangon Inc. (Shanghai, China) based on the Illumina MiSeq platform.

2.3.4. Energy Balance Analysis

Energy consumption was calculated based on the equivalent electric power used for SW treatment, while energy production was calculating by the energy of produced biomethane. Energy consumption included the energy for influent pump and effluent pump during per ton wastewater treatment. In addition, the energy used for substrate mixing and water bath was calculated based on the power of the equipment. Energy recovery can be obtained according to the methane volume when one ton of wastewater was treated. The net energy was the result of energy produced minus the energy consumed. Energy consumption for both influent and effluent pumps during the operation was calculated based on a previous study [35];
P = Q γ h 1000 × η
In which P represents the energy needed for the pump (kW), Q is the flow rate of the pump (m3/s), γ is the water density (9800 N/m3), and h is the length of water column (m); η represents the energy transfer efficiency from electrical energy to pump energy (65%).
Based on methane production for per volume SW treatment, the energy recovery was calculated using the following equation [36];
P G = V α η Q
where V represents methane volume (m3), α is the low calorific value of methane (0.222 kWh/mol-CH4), η is the cogeneration efficiency (33%), and Q is the volume of rerated wastewater (m3).

3. Results and Discussions

3.1. Pollutants Removal

3.1.1. COD Removal

COD removal properties in both reactors during the operation are shown in Figure 2a. It can be clearly noted that although high COD concentration (approximately 20 g/L) was observed in the influent, it was relatively stable and lower than 5 g/L in the effluent of the AnMBR at the beginning and gradually decreased to less than 2 g/L, showing a removal rate around 80–90%. However, COD content in the effluent of UASB was much higher and retained at approximately 10 g/L, achieving COD removal efficiency at 40–50%. Therefore, with the assistance of membrane separation, AnMBR exhibited better COD removal capacity, which ensured higher pollutant removal and more energy production [37]. The lower pollutant removal rate and higher COD content in the effluent of UASB further verified the advantages of membrane filtration in anaerobic bioreactors.
As shown in Figure 2b, the components of COD varied along the reactors. In the influent, SCOD accounted for approximately 68.4% of the total COD, which decreased to 41.6% in the mixed liquor, indicating that soluble organics were mainly utilized by microorganisms in the anaerobic sludge. However, particulate organic matter was not effectively biodegraded, but retained in the reactor and accounted for 58.4% of the total COD in the mixed liquor. After membrane filtration, with a sharp decrease of COD content from 15.1 g/L to 2.7 g/L, SCOD became the dominant component (accounting for 90.9% of the total COD in the effluent), which verified that most of particulate organics were intercepted by the membrane. It has been reported that membrane and cake layer can intercept most of the particulate or macromolecular organics in the mixed liquor and guarantee low COD concentration in effluent [38]. In addition, with the assistance of membrane separation, some functional microorganisms can be easily accumulated in the reactor and contribute to degrade pollutants easily and rapidly [30,39]. Unsurprisingly, the proportion of SCOD in the mixed liquor and effluent of UASB was almost the same, and COD content retained constant, which further verifies that the high COD removal rate of AnMBR was mainly due to the interception of particulate organics.

3.1.2. Volatile Fatty Acids

The changes in VFAs content in the reactors are shown in Figure 3a. In the influent, VFAs content was approximately 6 g/L, while it sharply decreased to 2.3 g/L in the mixed liquor of AnMBR, showing that VFAs in the influent was effectively utilized by microorganisms during the operation. At the early stages of operation, VFAs in the effluent of AnMBR was relatively higher, which may be due to the fact that the microorganisms did not fully adapt to the operation conditions. However, with the domestication of microorganisms, VFAs content in the effluent of AnMBR gradually decreased and maintained below 1 g/L. Although membrane module had a lower ability to intercept VFAs due to their low molecular weight, concentration of VFAs in the effluent was much lower than that in the mixed liquor, which can be attributed to the microbial degradation. The decrease of VFAs content after membrane filtration ensured satisfactory methane production and high-quality effluent. In UASB, VFAs content in the mixed liquor and effluent was very close (approximately 1.5 g/L) and was much higher than that of AnMBR, indicating that the implantation of membrane was also favorable for VFAs degradation due to functional microorganisms enriched in the reactor through membrane interception.
In VFAs, acetate accounting for 39.9% of the total VFAs was the dominant components in the influent (Figure 3b), which may be produced from metabolisms of indigenous bacteria in SW. In addition, propionate with a proportion of 30.3% was also a dominant acid. Other VFAs, such as butyrate and valerate, were also detected, even with low proportions. However, in the mixed liquor and effluent of AnMBR, propionate with a proportion of 44.9% became the dominant VFA and was higher than that of acetate, which might be attributed to two reasons: firstly, propionate was largely produced during the operation and accumulated in the reactor. Secondly, degradation rate of propionate was lower than that of acetate, which is in consistent with the previous studies [40,41]. The variations in VFAs of UASB were similar to those of AnMBR, which might result from similar microbial community structures in the reactors, as discussed in the next section.

3.1.3. Proteins and Carbohydrates

Proteins and carbohydrates are the dominant organics in SW, which are favorable substrates for methane production. It was found that protein in the influent was about 4 g/L, but it sharply decreased to 1.5 g/L in the mixed liquor (Figure 4a), indicating that protein was effectively utilized by microorganisms in the reactors. Due to the fact that the membrane can intercept protein, the protein content in the effluent of AnMBR further decreased to less than 0.5 g/L. In addition, microorganisms in the cake layer may also contribute to protein degradation. Thus, protein in the effluent of AnMBR was much lower than that of UASB. Carbohydrate content along the reactor showed a similar trend to that of protein (Figure 4b). However, carbohydrate content in the mixed liquor of AnMBR was much higher than that of UASB, which might be due to the fact that microorganisms in AnMBR had higher hydrolysis rate than those in the UASB and/or membrane exhibited better interception for carbohydrates. The effective interception of proteins and carbohydrates provided favorable conditions for methane production and further guaranteed lower COD content in the effluent.

3.2. Energy Recovery Properties

3.2.1. Methane Yield

Changes in methane production and content during the operation are shown in Figure 5. It can be noted that daily methane production in AnMBR was approximately 1.3–1.4 L, while it was approximately 1.0–1.1 L in the UASB, indicating that AnMBR could obviously enhance the methane yield. It was reported that membrane can intercept organics in the reactor, which lengthens the retention time of organics in the reactor and promotes the microbial degradation processes [42]. In addition, with the assistance of membrane filtration, functional microorganisms can be easily enriched in the anaerobic sludge and contribute to enhance the methane processes.
As shown in Figure 5, methane content in the biogas during the operation of AnMBR was around 83%, which was slightly higher than that of UASB (82%). In AnMBR, the average methane yield was approximately 0.23 L/g-COD during the operation, while methane yield of UASB was only 0.19 L/g-COD. It was deduced that macromolecule or refractory organic matter can be effectively trapped by the membrane [42,43], which can prolong the residence time and provide favorable conditions for efficient conversion of organic matter. In addition, membrane module contributes to the enrichment of functional microorganisms, which increases microbial activity and thus promotes methane yield.

3.2.2. Specific Methanogenic Activity

It was found that methane content of AnMBR was higher than that of UASB, and the methane yield of AnMBR was also higher during the operation, which might be due to the differences in the activity of microbial metabolism. Therefore, specific methanogenic activity (SMA) of anaerobic sludge was analyzed. As shown in Table 1, the maximum methane yield and SMA value of the sludge from AnMBR were 1.02 mL-CH4/h and 5.71 mg-COD/g-VSS.h, respectively, which were much higher than the maximum methane yield of UASB sludge (0.83 mL-CH4/h) and SMA value (5.04 mg-COD/g-VSS.h). In addition, the retardation time (R) of methane production of sludge from AnMBR was approximately 6.9 h, which was significantly shorter than that of UASB sludge (7.3 h). These results indicate that AnMBR sludge had higher methane production activity, which was further confirmed by the higher methane yield in AnMBR.

3.3. Microbial Community Analysis

To reveal the relationships between methane production and microbial communities, high throughput sequencing was conducted. A total of 108,768 raw 16S rRNA sequences (longer than 500 bp) were obtained from the two sludge samples. As shown in Figure 6, samples from UASB contained reads of 52,226, while samples from AnMBR showed more reads (56,542) for bacteria. The rarefaction curves tended to approach the saturation plateau. It was found that the 711 OTUs were found in the samples from AnMBR, which was higher than that from UASB (612), indicating the higher microbial diversity in AnMBR. The rarefaction curves of Achaea in both samples showed a similar trend, and 53 OTUs were found in the sludge from AnMBR, which also exhibited richer microbial communities than that from the UASB. Microbial diversity can also be verified by the Shannon diversity indices, ACE, and Chao index as shown in Table 2. The coverage estimator of all samples was higher than 0.99, indicating that these libraries well-represent the majority of bacterial or archaeal 16S rRNA in each sample. Shannon index can reflect the diversity of microbial communities [44], where the higher recorded Shannon index AnMBR samples represents more complexity of the microbial community. In addition, Chao and ACE indices indicate the bacterial and archaeal richness of the sample [45]. Chao and ACE indices of sludge samples from AnMBR were also higher than that of UASB, showing richer microbial communities in the AnMBR system. Even though some bacteria might be still missed as a result of methodological limitations, the size of reads is sufficient to reveal most of the dominant microbial species in the sludge. The higher microbial diversity in AnMBR was beneficial for system stability and high pollutant removal efficiencies, which explained the higher COD removal efficiency and methane yield during the operation.

3.3.1. Bacteria

In order to explore the biological mechanisms of higher pollutant removal rate and methane yield in AnMBR than those of UASB, bacteria in the anaerobic sludge were analyzed. It was found that Firmicutes, Proteobacteria, Bacteroidetes, Actinobacteria, and Atribacteria are the dominant bacterial phyla in the sludge of both AnMBR and UASB (Figure 7). Firmicutes with a relative abundance of 80.7% in UASB was much higher than that in AnMBR (56.9%), while Proteobacteria and Bacteroidetes in the samples from AnMBR accounted for 30.3% and 5.4%, respectively, which were higher than those in UASB (11.2% and 2.3%, respectively). These results indicate that with the participation of membrane interception, microbial community structure in the anaerobic sludge was significantly different. It was reported that Firmicutes, Bacteroidetes, Actinobacteria, and Proteobacteria are commonly recognized as hydrolytic fermentative bacteria in AD process. These bacteria are involved in hydrolysis phase of AD process and convert complex macromolecular organics into biodegradable molecules [46,47], and thus provide favorable substrates for methanogenic processes. Synergistetes are able to digest monocarboxylic and long chain fatty acids (butyrate, isoheptanoate, oleate, etc.), and produce hydrogen, acetate, and CO2 for methane production [48]. The higher relative abundance of this phylum in AnMBR is beneficial for enhanced digestion of macromolecules, which resulted in higher efficiency of pollutant removal and methane production.
On the genus level, Tissierella accounted for 24.1% and 25.0% in AnMBR and UASB, respectively, which can efficiently degrade protein, glucose, and produce VFAs with enhanced methane production [49]. In UASB, Sporosarcina with a relative abundance of 36.6% was the dominant genus and can secrete urease and degrade urea in the SW, which may result in high content of ammonia accumulation in the reactor and pose risks to methanogenic microbes [50]. Clostridium_sensu_stricto plays an essential role in hydrolyzing proteins and carbohydrates [51], and was more abundant in UASB (11.0%) than AnMBR (4.7%), indicating that microbial communities in UASB inclined to consume easily biodegradable organics. Psychrobacter was effectively enriched in the AnMBR (21.9%) during the operation, which is favorable for complicated organics degradation and widened the utilizable substrates. It was reported that Psychrobacters can utilize many organic compounds as sole carbon and energy sources for growth and can survive in a wide temperature range and organic loading conditions [52], which is beneficial for system stabilization. Other genera such as Terrisporobacter, Syntrophomonas, and Clostridium_III were also obviously detected in AnMBR, which provided favorable conditions for acid transformation for methane production and further explained the higher methane yield. Interestingly, Ignatzschineria with a relative abundance of 3.6% was highly detected in AnMBR, but was not detected in UASB, indicating that membrane interception contributes to enrich the microbial communities. In addition, other unclassified genera were also found in the reactors and more abundant in AnMBR, which is beneficial for high pollutant removal and methane production. Overall, the presents study confirmed that accumulation of bacteria for complicated organics degradation in AnMBR provides favorable conditions for high pollutant removal and methane production.

3.3.2. Archaea

Euryarchaeota was the sole archaeal phylum recorded in both reactors. As shown in Figure 8a, Methanosarcinales with a relative abundance of 91.1% in AnMBR and 95.5% in UASB was the dominant order in both reactors. However, Methanomicrobiales accounting for 6.2% was more abundant in AnMBR than that in UASB. In addition, Methanomassiliicoccales and Methanobacteriales were also detected in both reactors. At the genus level (Figure 8b), Methanosarcina, acetoclastic methanogens in AD process dominate in AnMBR (90.2%) and UASB (94.8%), indicating that the microorganisms in UASB were inclined to utilize acetate as substrate for methane production [48,53]. Methanoculleus is the major hydrogenotrophic methanogen and can utilize hydrogen as a substrate for methane production [48]. The higher abundance of this genus in AnMBR (4.4%) than that in UASB (1.9%) indicated that methane production from hydrogen also existed in the AnMBR system, which further explains the higher methane content and yield in AnMBR. Methanomassiliicoccus only produces methane with hydrogen and methanol, even with a relative abundance of 1.3% in AnMBR, but plays key supporting roles and functions to maintain the stability of the AD process [48]. In addition, Methanocorpusculum and Methanosphaera were more abundant in AnMBR, which widened methane production pathways and benefited for system stability. Therefore, it can be concluded that the higher microbial diversity and efficient methanogenisis pathways are the main reasons for the recorded higher methane yield in AnMBR than UASB.

3.4. Energy Balance Analysis

Energy consumption and production in both reactors during the operation were analyzed (Table 3). The energy required for influent was 5.04 × 10−3 kWh/m3 in both reactors, while energy needed for effluent discharge from the AnMBR to overcome the trans-membrane pressure was 8.4 × 10−3 kWh/m3, which is almost consistent with previous studies [19,35,36]. In addition, energy for the water bath and substrate mixing was approximately 10.0 and 1.0 kWh/m3, respectively. However, energy recovery through methane production from AnMBR was 14.05 kWh/m3, meaning that 3.03 kWh/m3 can be produced as net energy from AnMBR. The net energy produced from UASB was only 0.92 kWh/m3, which indicates that more net energy can be obtained using AnMBR for SW treatment. Previously, Xiong et al. [35] recorded a net energy production (0.0884 kWh/m3) from municipal wastewater using a dynamic membrane filtration and AD combined system. Although energy production and requirement are influenced by substrate properties, reactor configurations, and operation parameters [19,54], the net energy production obtained in this study confirms that AnMBR is a promising technique for SW treatment coupled with efficient bioenergy recovery.

4. Conclusions

Pollutant removal performance and efficiency of methane recovery from SW using AnMBR and UASB were compared. Results showed that AnMBR can intercept particulate organic matter and enhance metabolic processes, achieving much higher COD removal efficiency than UASB. In addition, the higher methanogenic activity of the activated sludge, richer microbial communities, and significant accumulation of functional bacteria which enhanced various methanogenesis pathways led to higher methane yield in AnMBR than UASB. Finally, the net energy produced from AnMBR was also higher, indicating that AnMBR can not only achieve high pollutant removal efficiencies, but also produce more energy as a promising SW treatment system. The membrane fouling properties, mechanisms, and mitigation pathways should be further investigated.

Author Contributions

Y.P.: Funding acquisition, Writing—original draft preparation; J.T.: Writing—review and editing, Conceptualization, Supervision, Funding acquisition; T.Z.: Investigation; Y.H.: Supervision, Writing—review and editing, Funding acquisition; J.Y.: Writing—review and editing; X.W.: Writing—review and editing; J.H.: software; Y.H.: Formal analysis; A.A.: Writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by grants from the Natural Science Foundation of China (Grant no. 51508450, 51778522), Sichuan Science and Technology Program (2020YJ0196), the Start-up Fund of Chengdu University (Grant no. 2081917045), the Solid-state Fermentation Resource Utilization Key Laboratory of Sichuan Province (no. 2018GTJ008) and the 2021 Open Project of Failure Mechanics & Engineering Disaster Prevention, Key Lab of Sichuan Province (grant number: FMEDP202105).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. National Bureau of Statistics of China. China Statistical Yearbook; National Bureau of Statistics of China, Ed.; China Statistics Press: Beijing, China, 2020. [Google Scholar]
  2. Cheng, D.; Ngo, H.H.; Guo, W.; Chang, S.W.; Nguyen, D.D.; Nguyen, Q.A.; Zhang, J.; Liang, S. Improving sulfonamide antibiotics removal from swine wastewater by supplying a new pomelo peel derived biochar in an anaerobic membrane bioreactor. Bioresour. Technol. 2021, 319, 124160. [Google Scholar] [CrossRef]
  3. Liu, Y.; Li, X.; Tan, Z.; Yang, C. Inhibition of tetracycline on anaerobic digestion of swine wastewater. Bioresour. Technol. 2021, 334, 125253. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, M.; Liu, Y.-S.; Zhao, J.-L.; Liu, W.-R.; Chen, J.; Zhang, Q.-Q.; He, L.-Y.; Ying, G.-G. Variations of antibiotic resistome in swine wastewater during full-scale anaerobic digestion treatment. Environ. Int. 2021, 155, 106694. [Google Scholar] [CrossRef]
  5. Zeng, Z.; Zheng, P.; Kang, D.; Li, Y.; Li, W.; Xu, D.; Chen, W.; Pan, C. The removal of copper and zinc from swine wastewater by anaerobic biological-chemical process: Performance and mechanism. J. Hazard. Mater. 2021, 401, 123767. [Google Scholar] [CrossRef] [PubMed]
  6. Domingues, E.; Fernandes, E.; Gomes, J.; Martins, R.C. Swine wastewater treatment by Fenton’s process and integrated methodologies involving coagulation and biofiltration. J. Clean. Prod. 2021, 293, 126105. [Google Scholar] [CrossRef]
  7. Guan, Q.; Zeng, G.; Gong, B.; Li, Y.; Ji, H.; Zhang, J.; Song, J.; Liu, C.; Wang, Z.; Deng, C. Phosphorus recovery and iron, copper precipitation from swine wastewater via struvite crystallization using various magnesium compounds. J. Clean. Prod. 2021, 328, 129588. [Google Scholar] [CrossRef]
  8. Dinnebier, H.C.F.; Matthiensen, A.; Michelon, W.; Tápparo, D.C.; Fonseca, T.G.; Favretto, R.; Steinmetz, R.L.R.; Treichel, H.; Antes, F.G.; Kunz, A. Phycoremediation and biomass production from high strong swine wastewater for biogas generation improvement: An integrated bioprocess. Bioresour. Technol. 2021, 332, 125111. [Google Scholar] [CrossRef]
  9. De Oliveira, M.G.; Mourão, J.M.M.; Silva, F.S.S.; dos Santos, A.B.; Pereira, E.L. Effect of microaerophilic treatment on swine wastewater (SWW) treatment: Engineering and microbiological aspects. J. Environ. Manag. 2021, 299, 113598. [Google Scholar] [CrossRef]
  10. Guimarães de Oliveira, M.; Marques Mourão, J.M.; Marques de Oliveira, A.K.; Bezerra dos Santos, A.; Lopes Pereira, E. Microaerophilic treatment enhanced organic matter removal and methane production rates during swine wastewater treatment: A long-term engineering evaluation. Renew. Energy 2021, 180, 691–699. [Google Scholar] [CrossRef]
  11. Jiang, M.; Westerholm, M.; Qiao, W.; Wandera, S.M.; Dong, R. High rate anaerobic digestion of swine wastewater in an anaerobic membrane bioreactor. Energy 2020, 193, 116783. [Google Scholar] [CrossRef]
  12. Cheng, H.-H.; Narindri, B.; Chu, H.; Whang, L.-M. Recent advancement on biological technologies and strategies for resource recovery from swine wastewater. Bioresour. Technol. 2020, 303, 122861. [Google Scholar] [CrossRef] [PubMed]
  13. Shahid, M.K.; Kashif, A.; Rout, P.R.; Aslam, M.; Fuwad, A.; Choi, Y.; Banu, J.R.; Park, J.H.; Kumar, G. A brief review of anaerobic membrane bioreactors emphasizing recent advancements, fouling issues and future perspectives. J. Environ. Manag. 2020, 270, 110909. [Google Scholar] [CrossRef]
  14. Lin, H.; Peng, W.; Zhang, M.; Chen, J.; Hong, H.; Zhang, Y. A review on anaerobic membrane bioreactors: Applications, membrane fouling and future perspectives. Desalination 2013, 314, 169–188. [Google Scholar] [CrossRef]
  15. Al-Asheh, S.; Bagheri, M.; Aidan, A. Membrane bioreactor for wastewater treatment: A review. Case Stud. Chem. Environ. Eng. 2021, 4, 100109. [Google Scholar] [CrossRef]
  16. Asante-Sackey, D.; Rathilal, S.; Tetteh, E.K.; Armah, E.K. Membrane Bioreactors for Produced Water Treatment: A Mini-Review. Membranes 2022, 12, 275. [Google Scholar] [CrossRef] [PubMed]
  17. Tomczak, W.; Gryta, M. Energy-Efficient AnMBRs Technology for Treatment of Wastewaters: A Review. Energies 2022, 15, 4981. [Google Scholar] [CrossRef]
  18. Jensen, P.; Yap, S.D.; Boyle-Gotla, A.; Janoschka, J.; Carney, C.; Pidou, M.; Batstone, D. Anaerobic membrane bioreactors enable high rate treatment of slaughterhouse wastewater. Biochem. Eng. J. 2015, 97, 132–141. [Google Scholar] [CrossRef] [Green Version]
  19. Pretel, R.; Robles, A.; Ruano, M.; Seco, A.; Ferrer, J. The operating cost of an anaerobic membrane bioreactor (AnMBR) treating sulphate-rich urban wastewater. Sep. Purif. Technol. 2014, 126, 30–38. [Google Scholar] [CrossRef]
  20. Lin, Y.-L. Membrane Fouling Control in Water Treatment. Membranes 2022, 12, 551. [Google Scholar] [CrossRef]
  21. Zhen, G.; Pan, Y.; Lu, X.; Li, Y.-Y.; Zhang, Z.; Niu, C.; Kumar, G.; Kobayashi, T.; Zhao, Y.; Xu, K. Anaerobic membrane bioreactor towards biowaste biorefinery and chemical energy harvest: Recent progress, membrane fouling and future perspectives. Renew. Sustain. Energy Rev. 2019, 115, 109392. [Google Scholar] [CrossRef]
  22. Berkessa, Y.W.; Yan, B.; Li, T.; Tan, M.; She, Z.; Jegatheesan, V.; Jiang, H.; Zhang, Y. Novel anaerobic membrane bioreactor (AnMBR) design for wastewater treatment at long HRT and high solid concentration. Bioresour. Technol. 2018, 250, 281–289. [Google Scholar] [CrossRef] [PubMed]
  23. Ni, J.; Ji, J.; Li, Y.-Y.; Kubota, K. Kubota, Microbial characteristics in anaerobic membrane bioreactor treating domestic sewage: Effects of HRT and process performance. J. Environ. Sci. 2022, 111, 392–399. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, S.; Lei, Z.; Dzakpasu, M.; Li, Q.; Li, Y.-Y.; Chen, R. Removal of trace organic contaminants in municipal wastewater by anaerobic membrane bioreactor: Efficiencies, fates and impact factors. J. Water Process Eng. 2021, 40, 101953. [Google Scholar] [CrossRef]
  25. Foglia, A.; Andreola, C.; Cipolletta, G.; Radini, S.; Akyol, C.; Eusebi, A.L.; Stanchev, P.; Katsou, E.; Fatone, F. Comparative life cycle environmental and economic assessment of anaerobic membrane bioreactor and disinfection for reclaimed water reuse in agricultural irrigation: A case study in Italy. J. Clean. Prod. 2021, 293, 126201. [Google Scholar] [CrossRef]
  26. Tomczak, W.; Gryta, M. Comparison of Polypropylene and Ceramic Microfiltration Membranes Applied for Separation of 1,3-PD Fermentation Broths and Saccharomyces cerevisiae Yeast Suspensions. Membranes 2021, 11, 44. [Google Scholar] [CrossRef]
  27. Jarvis, P.; Carra, I.; Jafari, M.; Judd, S. Ceramic vs polymeric membrane implementation for potable water treatment. Water Res. 2022, 215, 118269. [Google Scholar] [CrossRef]
  28. Yi, X.; Zhang, M.; Song, W.; Wang, X. Effect of Initial Water Flux on the Performance of Anaerobic Membrane Bioreactor: Constant Flux Mode versus Varying Flux Mode. Membranes 2021, 11, 203. [Google Scholar] [CrossRef]
  29. Annuar, A.M.; Nawi, N.I.M.; Bilad, M.R.; Jaafar, J.; Marbelia, L.; Nandianto, A.B.D. Improved bubbling for membrane fouling control in filtration of palm oil mill effluent anaerobic digester sludge. J. Water Process Eng. 2020, 36, 101350. [Google Scholar] [CrossRef]
  30. Tang, J.; Pu, Y.; Zeng, T.; Hu, Y.; Huang, J.; Pan, S.; Wang, X.C.; Li, Y.; Abomohra, A.E.-F. Enhanced methane production coupled with livestock wastewater treatment using anaerobic membrane bioreactor: Performance and membrane filtration properties. Bioresour. Technol. 2022, 345, 126470. [Google Scholar] [CrossRef]
  31. APHA. Standard Methods for the Examination of Water and Wastewater; American Public Health Association Inc.: Washington, DC, USA, 2005. [Google Scholar]
  32. Yang, Y.; Hu, Y.; Duan, A.; Wang, X.C.; Ngo, H.H.; Li, Y.-Y. Characterization of preconcentrated domestic wastewater toward efficient bioenergy recovery: Applying size fractionation, chemical composition and biomethane potential assay. Bioresour. Technol. 2021, 319, 124144. [Google Scholar] [CrossRef]
  33. Pu, Y.; Tang, J.; Wang, X.C.; Hu, Y.; Huang, J.; Zeng, Y.; Ngo, H.H.; Li, Y. Hydrogen production from acidogenic food waste fermentation using untreated inoculum: Effect of substrate concentrations. Int. J. Hydrog. Energy 2019, 44, 27272–27284. [Google Scholar] [CrossRef]
  34. Yang, Y.; Zang, Y.; Hu, Y.; Wang, X.C.; Ngo, H.H. Upflow anaerobic dynamic membrane bioreactor (AnDMBR) for wastewater treatment at room temperature and short HRTs: Process characteristics and practical applicability. Chem. Eng. J. 2020, 383, 123186. [Google Scholar] [CrossRef]
  35. Xiong, J.; Yu, S.; Hu, Y.; Yang, Y.; Wang, X. Applying a dynamic membrane filtration (DMF) process for domestic wastewater preconcentration: Organics recovery and bioenergy production potential analysis. Sci. Total Environ. 2019, 680, 35–43. [Google Scholar] [CrossRef] [PubMed]
  36. Aslam, M.; McCarty, P.L.; Shin, C.; Bae, J.; Kim, J. Low energy single-staged anaerobic fluidized bed ceramic membrane bioreactor (AFCMBR) for wastewater treatment. Bioresour. Technol. 2017, 240, 33–41. [Google Scholar] [CrossRef] [PubMed]
  37. Aslam, A.; Khan, S.J.; Shahzad, H.M.A. Anaerobic membrane bioreactors (AnMBRs) for municipal wastewater treatment- potential benefits, constraints, and future perspectives: An updated review. Sci. Total Environ. 2022, 802, 149612. [Google Scholar] [CrossRef]
  38. Shao, S.; Feng, Y.; Yu, H.; Li, J.; Li, G.; Liang, H. Presence of an adsorbent cake layer improves the performance of gravity-driven membrane (GDM) filtration system. Water Res. 2017, 108, 240–249. [Google Scholar] [CrossRef]
  39. Ji, J.; Kakade, A.; Yu, Z.; Khan, A.; Liu, P.; Li, X. Anaerobic membrane bioreactors for treatment of emerging contaminants: A review. J. Environ. Manag. 2020, 270, 110913. [Google Scholar] [CrossRef]
  40. Xu, Y.; Wang, M.; Yu, Q.; Zhang, Y. Enhancing methanogenesis from anaerobic digestion of propionate with addition of Fe oxides supported on conductive carbon cloth. Bioresour. Technol. 2020, 302, 122796. [Google Scholar] [CrossRef]
  41. Li, Q.; Liu, Y.; Yang, X.; Zhang, J.; Lu, B.; Chen, R. Kinetic and thermodynamic effects of temperature on methanogenic degradation of acetate, propionate, butyrate and valerate. Chem. Eng. J. 2020, 396, 125366. [Google Scholar] [CrossRef]
  42. Balcıoğlu, G.; Yilmaz, G.; Gönder, Z.B. Evaluation of anaerobic membrane bioreactor (AnMBR) treating confectionery wastewater at long-term operation under different organic loading rates: Performance and membrane fouling. Chem. Eng. J. 2021, 404, 126261. [Google Scholar] [CrossRef]
  43. Ji, J.; Ni, J.; Ohtsu, A.; Isozumi, N.; Hu, Y.; Du, R.; Chen, Y.; Qin, Y.; Kubota, K.; Li, Y.-Y. Important effects of temperature on treating real municipal wastewater by a submerged anaerobic membrane bioreactor: Removal efficiency, biogas, and microbial community. Bioresour. Technol. 2021, 336, 125306. [Google Scholar] [CrossRef] [PubMed]
  44. Wang, W.; Xie, L.; Luo, G.; Zhou, Q.; Angelidaki, I. Performance and microbial community analysis of the anaerobic reactor with coke oven gas biomethanation and in situ biogas upgrading. Bioresour. Technol. 2013, 146, 234–239. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Shao, Z.; Guo, X.; Qu, Q.; Kang, K.; Su, Q.; Wang, C.; Qiu, L. Effects of chlorine disinfectants on the microbial community structure and the performance of anaerobic digestion of swine manure. Bioresource Technology 2021, 339, 125576. [Google Scholar] [CrossRef] [PubMed]
  46. Fu, J.; Yan, B.; Gui, S.; Fu, Y.; Xia, S. Anaerobic co-digestion of thermo-alkaline pretreated microalgae and sewage sludge: Methane potential and microbial community. J. Environ. Sci. 2023, 127, 133–142. [Google Scholar] [CrossRef]
  47. Pasalari, H.; Gholami, M.; Rezaee, A.; Esrafili, A.; Farzadkia, M. Perspectives on microbial community in anaerobic digestion with emphasis on environmental parameters: A systematic review. Chemosphere 2021, 270, 128618. [Google Scholar] [CrossRef]
  48. Ma, G.; Chen, Y.; Ndegwa, P. Association between methane yield and microbiota abundance in the anaerobic digestion process: A meta-regression. Renew. Sustain. Energy Rev. 2021, 135, 110212. [Google Scholar] [CrossRef]
  49. Zhang, L.; Loh, K.-C.; Zhang, J.; Mao, L.; Tong, Y.W.; Wang, C.-H.; Dai, Y. Three-stage anaerobic co-digestion of food waste and waste activated sludge: Identifying bacterial and methanogenic archaeal communities and their correlations with performance parameters. Bioresour. Technol. 2019, 285, 121333. [Google Scholar] [CrossRef]
  50. Niel, K.A.V. Sporosarcina. In Bergey’s Manual of Systematics of Archaea and Bacteria; Trujillo, M.E., Dedysh, S., DeVos, P., Hedlund, B., Kämpfer, P., Rainey, F.A., Whitman, W.B., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2015. [Google Scholar] [CrossRef]
  51. Zhang, L.; Tsui, T.-H.; Loh, K.-C.; Dai, Y.; Tong, Y.W. Effects of plastics on reactor performance and microbial communities during acidogenic fermentation of food waste for production of volatile fatty acids. Bioresour. Technol. 2021, 337, 125481. [Google Scholar] [CrossRef]
  52. Juni, E. Psychrobacter. In Bergey’s Manual of Systematics of Archaea and Bacteria; Trujillo, M.E., Dedysh, S., DeVos, P., Hedlund, B., Kämpfer, P., Rainey, F.A., Whitman, W.B., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2015. [Google Scholar] [CrossRef]
  53. Lin, R.; Cheng, J.; Ding, L.; Murphy, J.D. Improved efficiency of anaerobic digestion through direct interspecies electron transfer at mesophilic and thermophilic temperature ranges. Chem. Eng. J. 2018, 350, 681–691. [Google Scholar] [CrossRef]
  54. Pretel, R.; Durán, F.; Robles, A.; Ruano, M.V.; Ribes, J.; Serralta, J.; Ferrer, J. Designing an AnMBR-based WWTP for energy recovery from urban wastewater: The role of primary settling and anaerobic digestion. Sep. Purif. Technol. 2015, 156, 132–139. [Google Scholar] [CrossRef]
Water 14 02438 g001 550

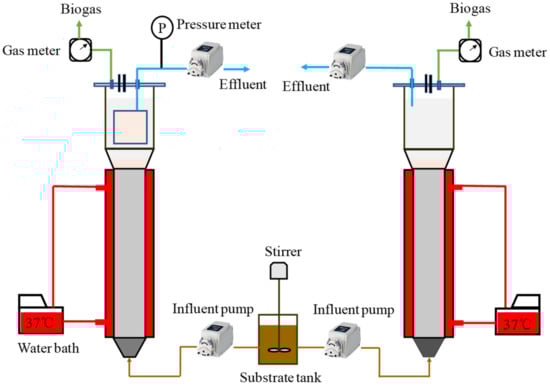

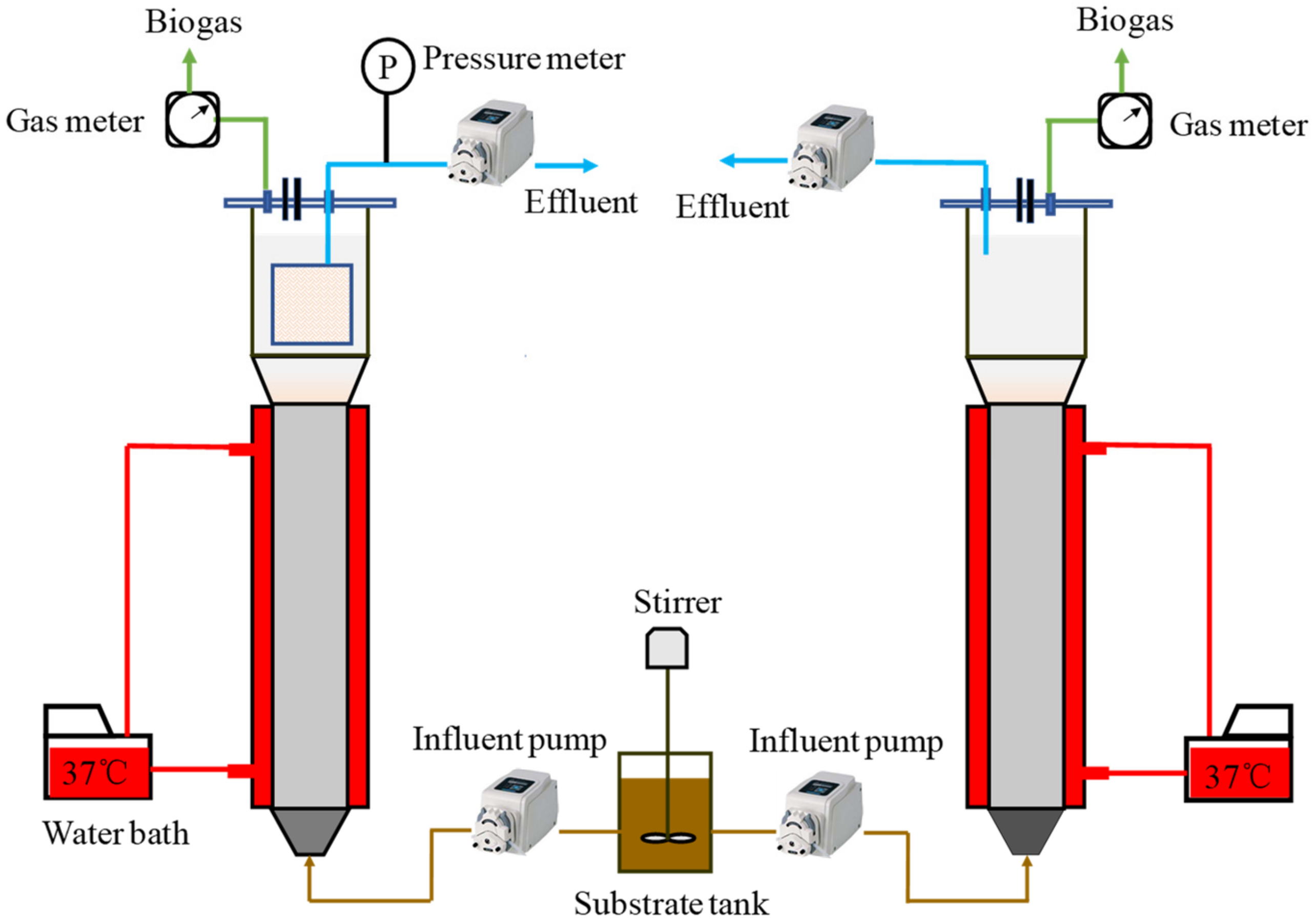

Figure 1. Schematic diagram of the AnMBR (left) and UASB (right) used in the present study.
Figure 1. Schematic diagram of the AnMBR (left) and UASB (right) used in the present study.
Water 14 02438 g001
Water 14 02438 g002 550

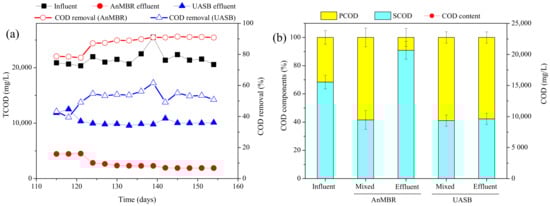

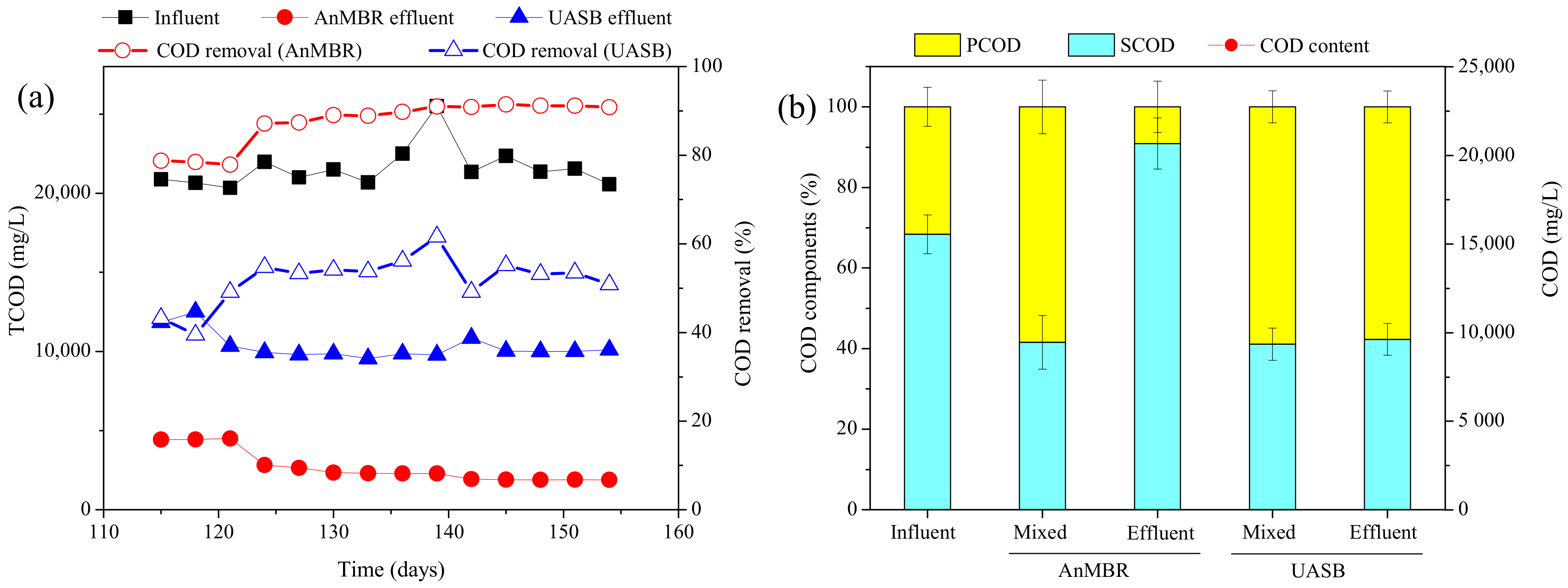

Figure 2. Variations of COD removal in AnMBR and UASB. (a) COD content; (b) COD components along the reactor. PCOD and SCOD represent particulate and soluble COD, respectively.
Figure 2. Variations of COD removal in AnMBR and UASB. (a) COD content; (b) COD components along the reactor. PCOD and SCOD represent particulate and soluble COD, respectively.
Water 14 02438 g002
Water 14 02438 g003 550

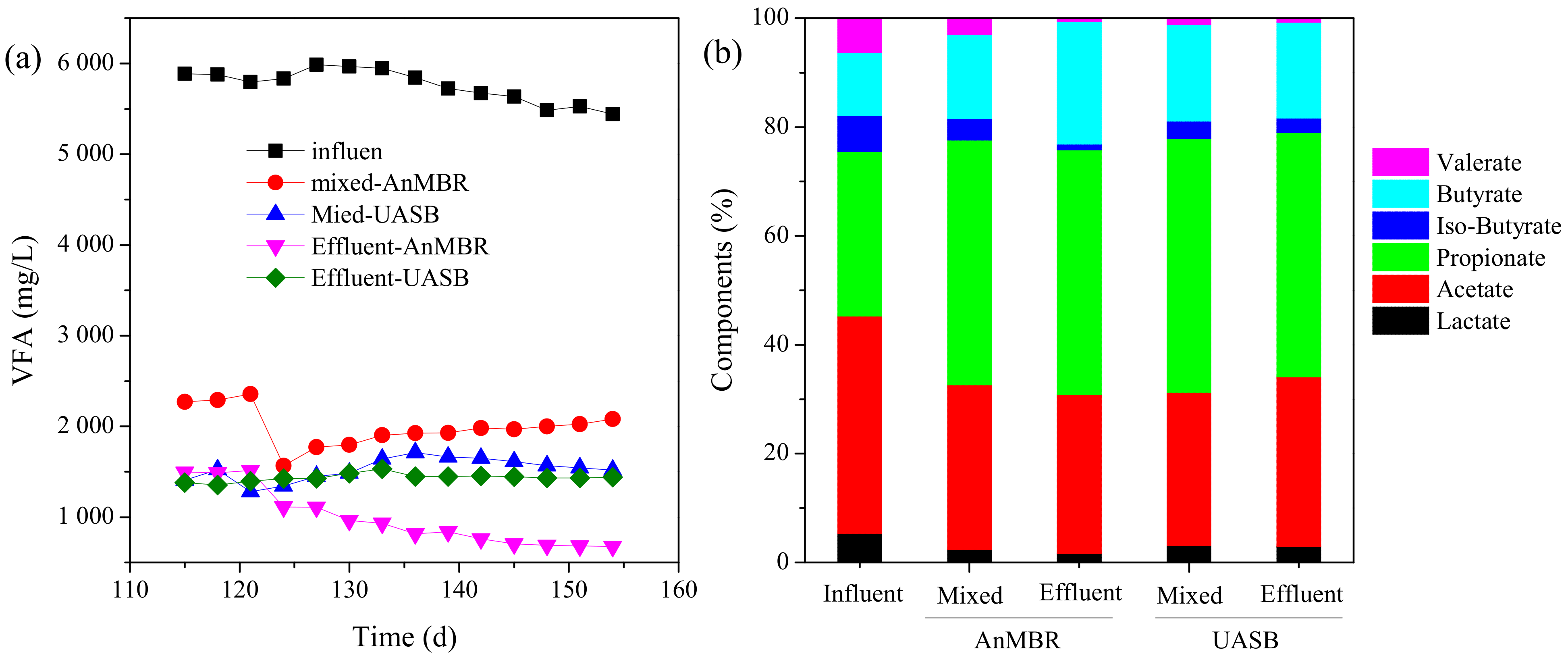

Figure 3. Variations in the content (a) and composition (b) of VFAs in the two studied reactors.
Figure 3. Variations in the content (a) and composition (b) of VFAs in the two studied reactors.
Water 14 02438 g003
Water 14 02438 g004 550

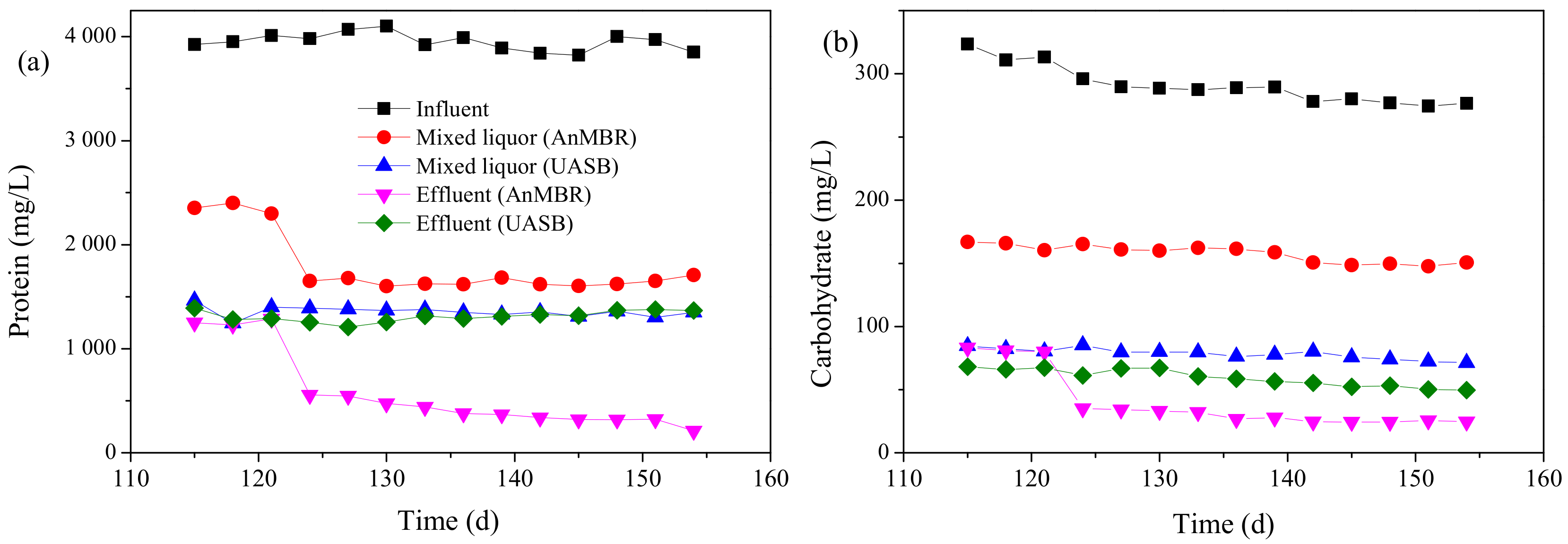

Figure 4. Variations of protein (a) and carbohydrate (b) in the studied AnMBR and UASB.
Figure 4. Variations of protein (a) and carbohydrate (b) in the studied AnMBR and UASB.
Water 14 02438 g004
Water 14 02438 g005 550

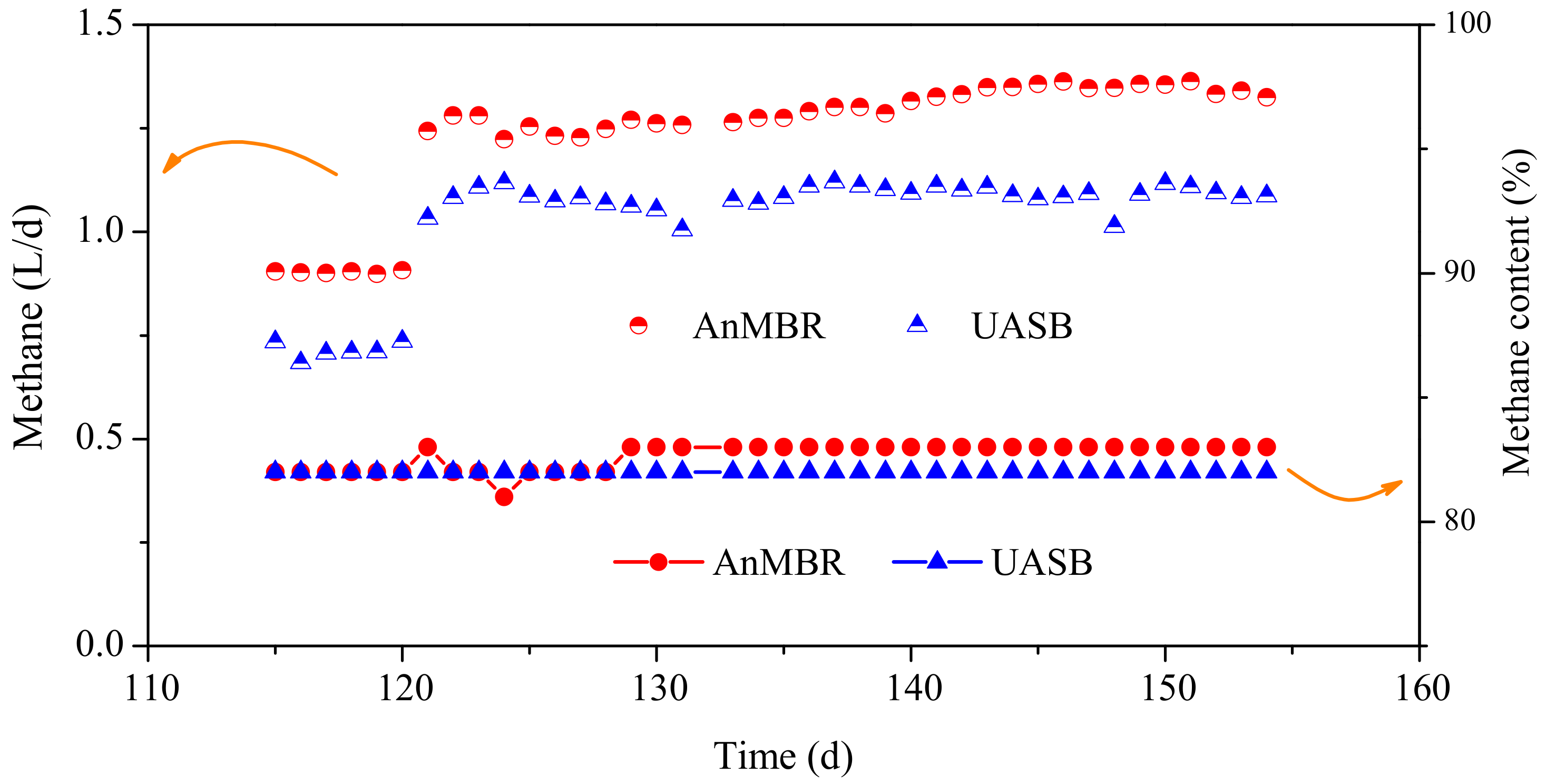

Figure 5. Methane production in AnMBR and UASB.
Figure 5. Methane production in AnMBR and UASB.
Water 14 02438 g005
Water 14 02438 g006 550

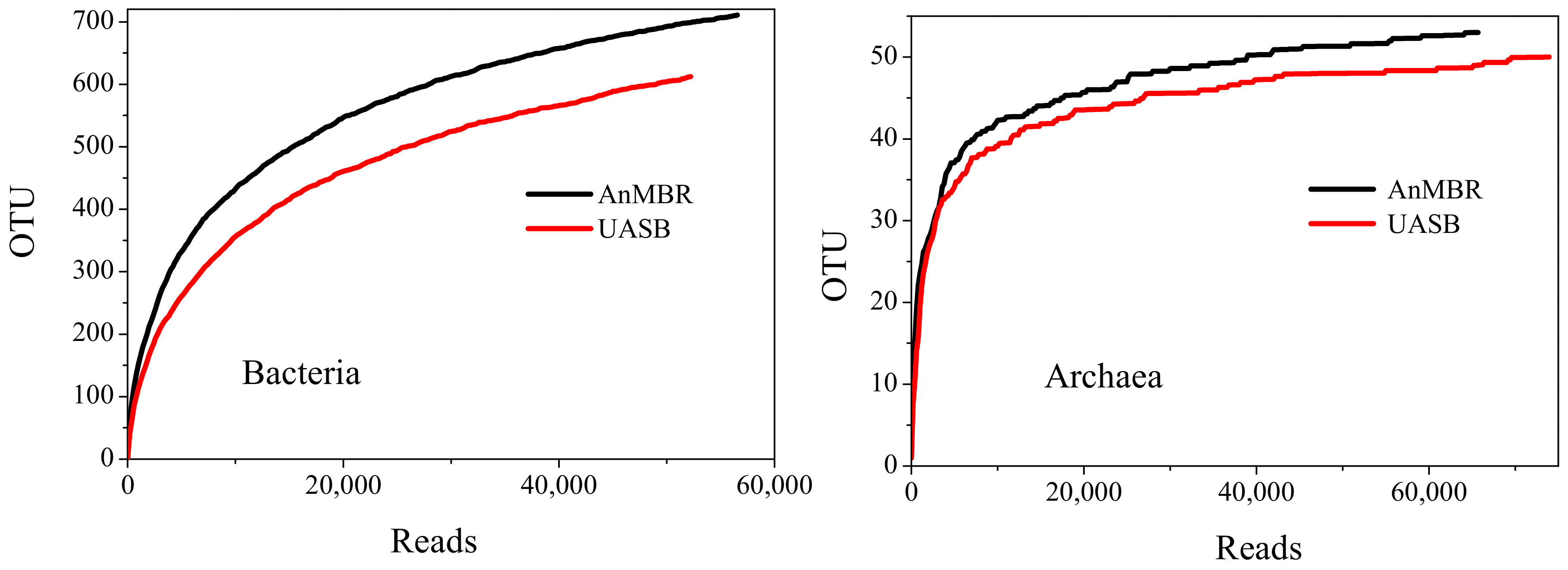

Figure 6. The rarefaction curves of the bacteria and archaea in the studied AnMBR and UASB.
Figure 6. The rarefaction curves of the bacteria and archaea in the studied AnMBR and UASB.
Water 14 02438 g006
Water 14 02438 g007 550

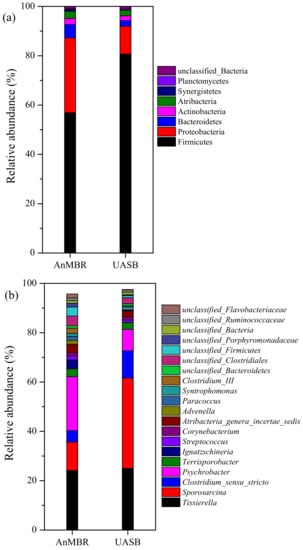

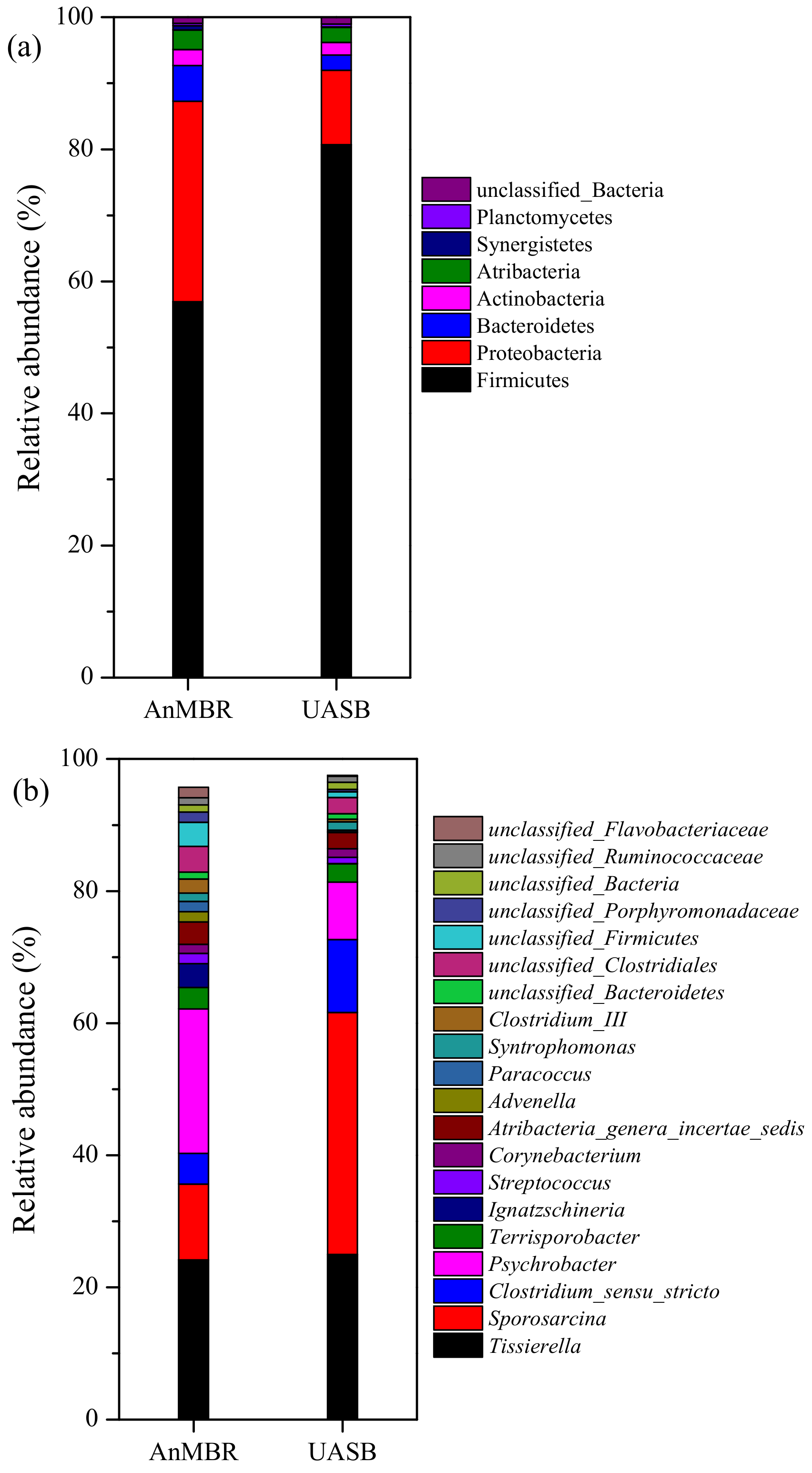

Figure 7. Bacterial communities in AnMBR and UASB. (a) phylum level, (b) genus level.
Figure 7. Bacterial communities in AnMBR and UASB. (a) phylum level, (b) genus level.
Water 14 02438 g007
Water 14 02438 g008 550

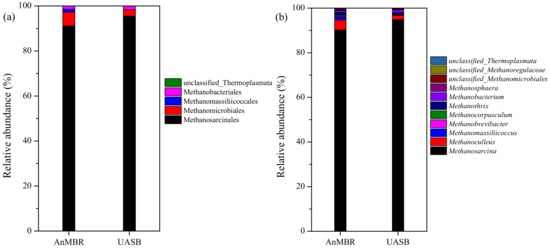

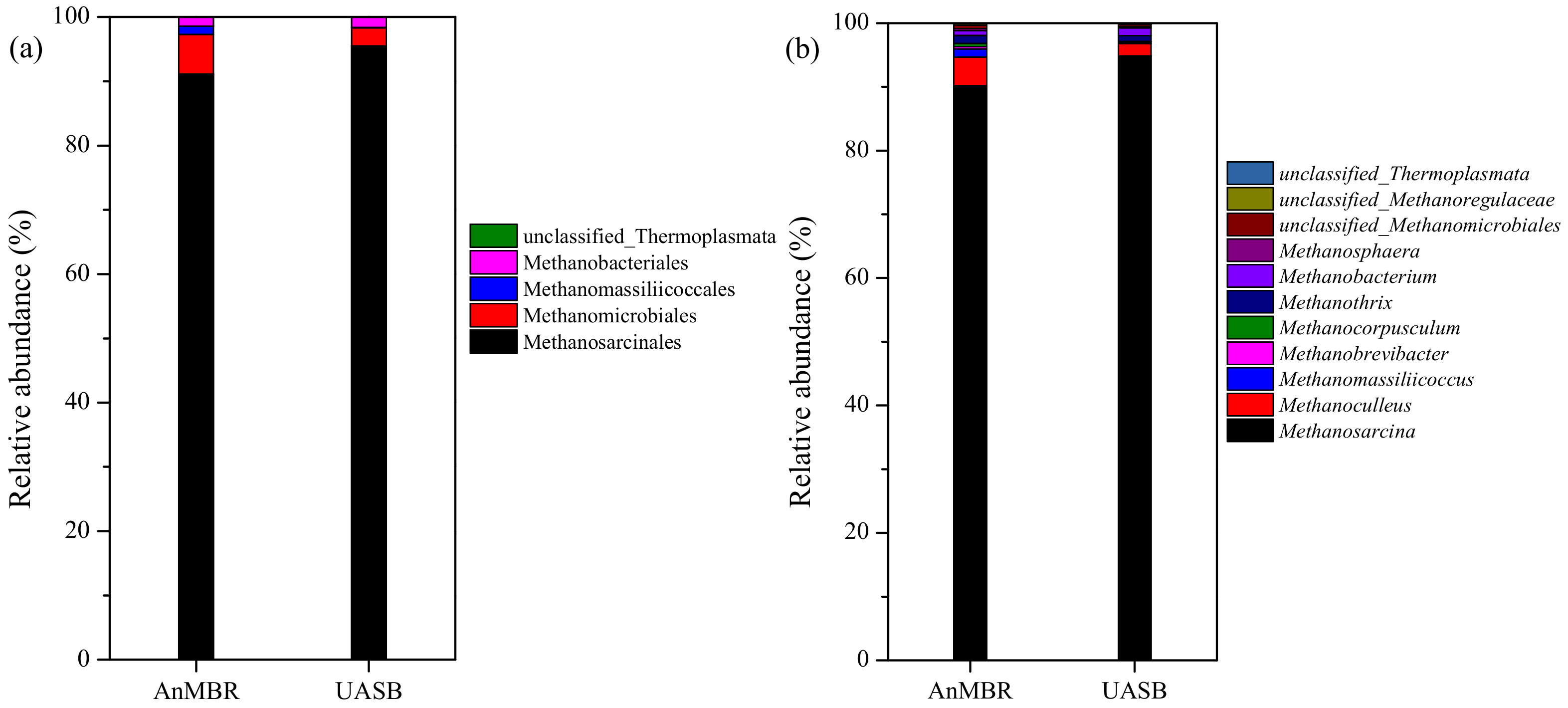

Figure 8. Order (a) and genus (b) level of archaea in AnMBR and UASB.
Figure 8. Order (a) and genus (b) level of archaea in AnMBR and UASB.
Water 14 02438 g008
Table
Table 1. Specific methanogenic activity of the sludge from AnMBR and UASB.
Table 1. Specific methanogenic activity of the sludge from AnMBR and UASB.
ReactorAccumulative Methane Volume
(mL)		Retardation Time
(h)		Maximal Methane Yiled
(mL-CH4/h)		SMAvalue
(mg-COD/g-VSS·h)
AnMBR17.2 ± 1.16.9 ± 0.21.02 ± 0.035.71 ± 0.8
UASB15.8 ± 2.67.3 ± 0.10.83 ± 0.045.04 ± 0.6
Table
Table 2. Microbial diversity indicators in the sludge from AnMBR and UASB.
Table 2. Microbial diversity indicators in the sludge from AnMBR and UASB.
TypeSamplesReadsOTUsShannonChaoAceCoverage
BacteriaAnMBR56,5427113.61804.59813.760.998
UASB52,2266122.78715.21726.470.998
ArchaeaAnMBR65,678530.5854.6757.140.999
UASB73,942500.365253.310.999
Table
Table 3. Energy balance calculation in AnMBR and UASB during the operation.
Table 3. Energy balance calculation in AnMBR and UASB during the operation.
ParametersAnMBRUASB
Energy consumption
Influent flow rate (Q, 10−9 m3/s)3.013.01
Water head (h, m)1.201.20
Energy needed for influent (10−3 kWh/m3)5.045.04
Effluent flow rate (Q, 10−9 m3/s)3.013.01
Water head (h, m)2.000
Energy needed for effluent (10−3 kWh/m3)8.400
Energy for substrate mixing (kWh/m3)1.001.00
Energy for water bath (kWh/m3)10.0010.00
Energy recovery
Methane production from wastewater (V/Q, m3/m3)4.703.99
Energy from produced methane (kWh/m3)14.0511.93
Net energy recovery (kWh/m3)3.030.92
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Pu, Y.; Tang, J.; Zeng, T.; Hu, Y.; Yang, J.; Wang, X.; Huang, J.; Abomohra, A. Pollutant Removal and Energy Recovery from Swine Wastewater Using Anaerobic Membrane Bioreactor: A Comparative Study with Up-Flow Anaerobic Sludge Blanket. Water 2022, 14, 2438. https://doi.org/10.3390/w14152438

AMA Style

Pu Y, Tang J, Zeng T, Hu Y, Yang J, Wang X, Huang J, Abomohra A. Pollutant Removal and Energy Recovery from Swine Wastewater Using Anaerobic Membrane Bioreactor: A Comparative Study with Up-Flow Anaerobic Sludge Blanket. Water. 2022; 14(15):2438. https://doi.org/10.3390/w14152438

Chicago/Turabian Style

Pu, Yunhui, Jialing Tang, Ting Zeng, Yisong Hu, Jixiang Yang, Xiaochang Wang, Jin Huang, and Abdelfatah Abomohra. 2022. "Pollutant Removal and Energy Recovery from Swine Wastewater Using Anaerobic Membrane Bioreactor: A Comparative Study with Up-Flow Anaerobic Sludge Blanket" Water 14, no. 15: 2438. https://doi.org/10.3390/w14152438

APA Style

Pu, Y., Tang, J., Zeng, T., Hu, Y., Yang, J., Wang, X., Huang, J., & Abomohra, A. (2022). Pollutant Removal and Energy Recovery from Swine Wastewater Using Anaerobic Membrane Bioreactor: A Comparative Study with Up-Flow Anaerobic Sludge Blanket. Water, 14(15), 2438. https://doi.org/10.3390/w14152438

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
