# Multifractal Comparison of Reflectivity and Polarimetric Rainfall Data from C- and X-Band Radars and Respective Hydrological Responses of a Complex Catchment Model

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

^{2}). The study was carried out in the framework of the RainGain project [37].

^{2}upstream catchment of the Bièvre River in the Ile-de-France region. This catchment is an example of a peri-urban area, some parts of which are highly urbanised. Veolia is the company chosen since 1991 by the local authority SIAVB (“Syndicat Intercommunal pour l’Assainissement de la Vallée de la Bièvre”—Bièvre Valley Intermunicipal Sanitation Office) to design, install and operate a real-time control system of the river over the area. Hence, the study is performed with Veolia’s operational model, Optim Sim. Instead of suffering limitations, the aforementioned methodological goal and the present study benefit from cross-fertilisation of research and operational hydrology, whereas they have both suffered from a long-lasting divorce [38]. Furthermore, the potential decentralisation of meteorological and hydrological data collection, processing and distribution should enable most of businesses to optimise their operational management, because often more than 60% of their activities are weather-sensitive.

## 2. Materials and Methods

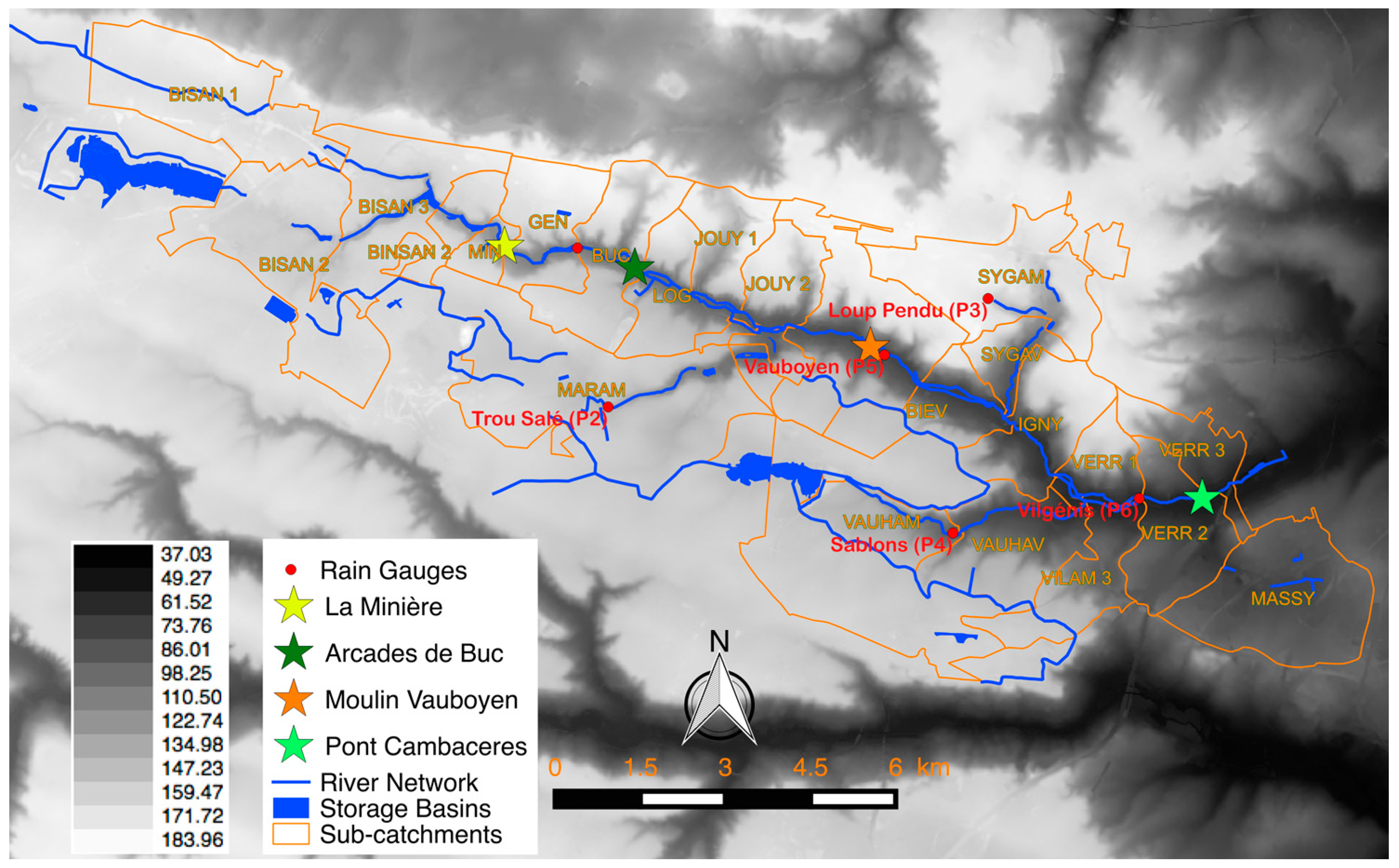

#### 2.1. Case Study Site

#### 2.2. Selected Rainfall Events and Three Data Types

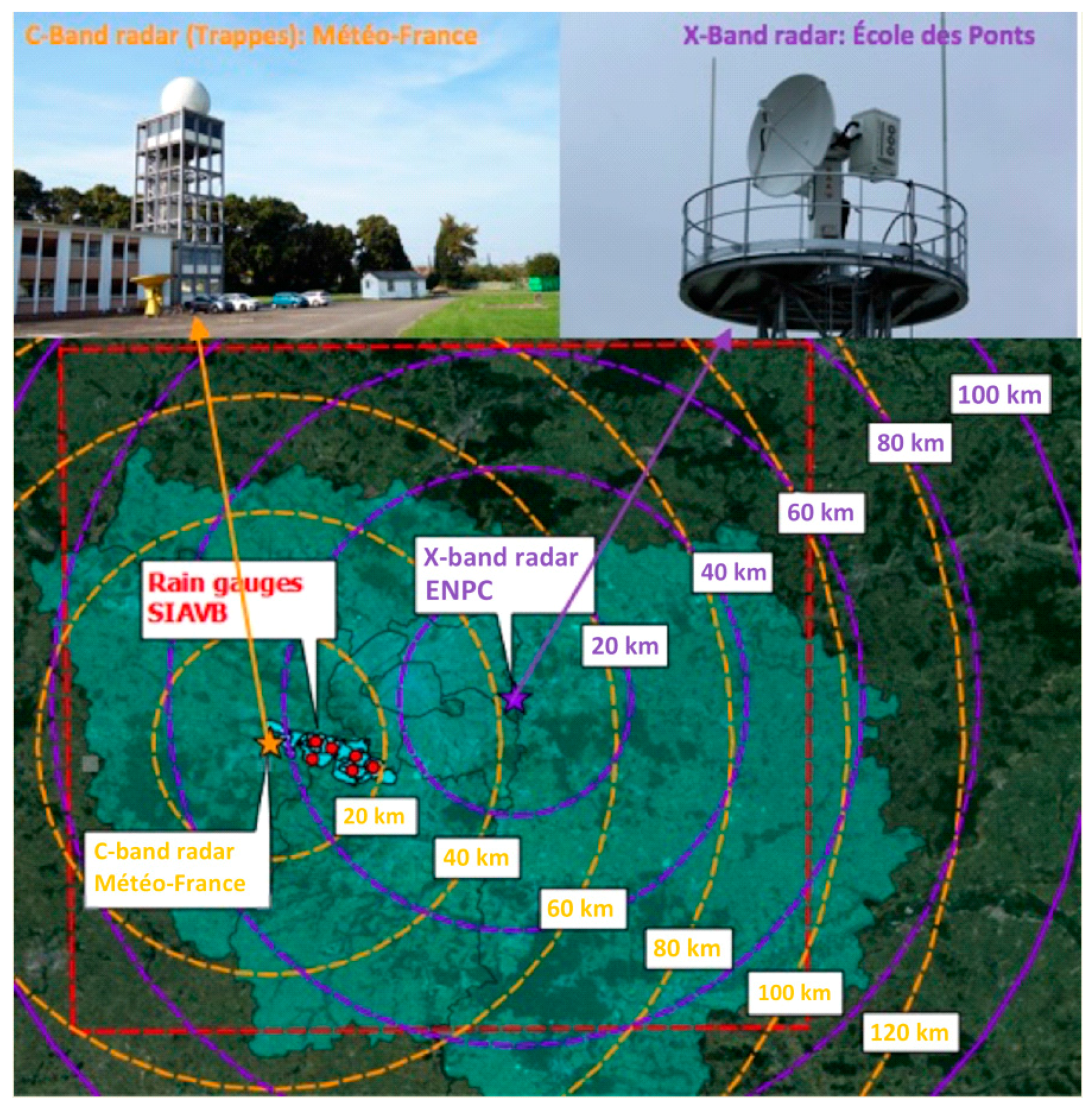

- The SIAVB network of six tipping bucket rain gauges, being distributed over the catchment;
- The Météo-France polarimetric C-band radar of Trappes, being located in a direct proximity (~0–20 km) of the catchment;
- The ENPC polarimetric X-band radar of Champs-sur-Marne, with distances ranging between 25 to 45 km.

#### 2.3. Radar Data Processing

#### 2.3.1. From Météo-France

#### 2.3.2. From ENPC

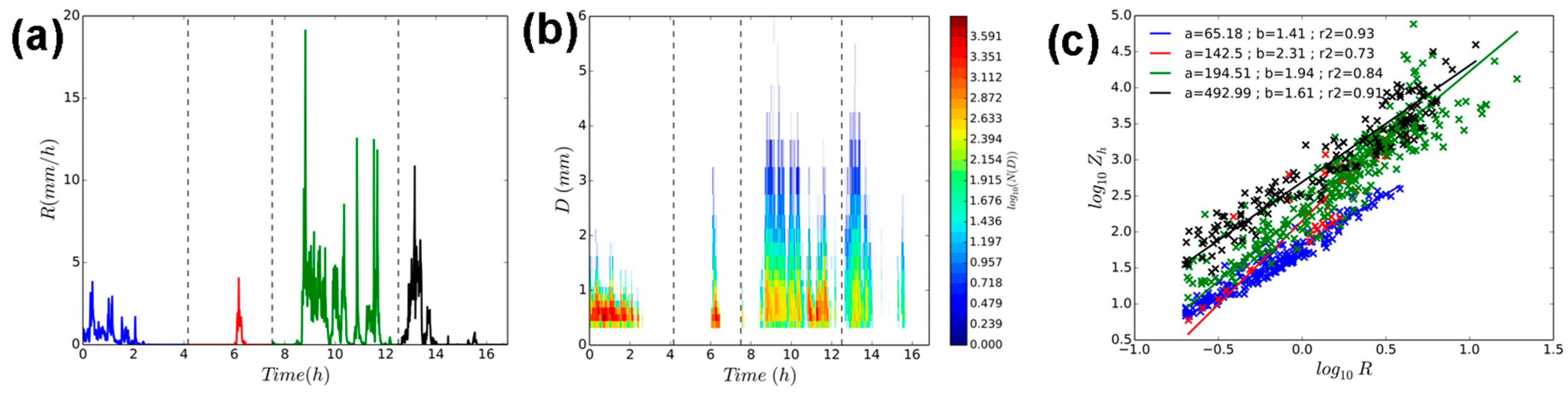

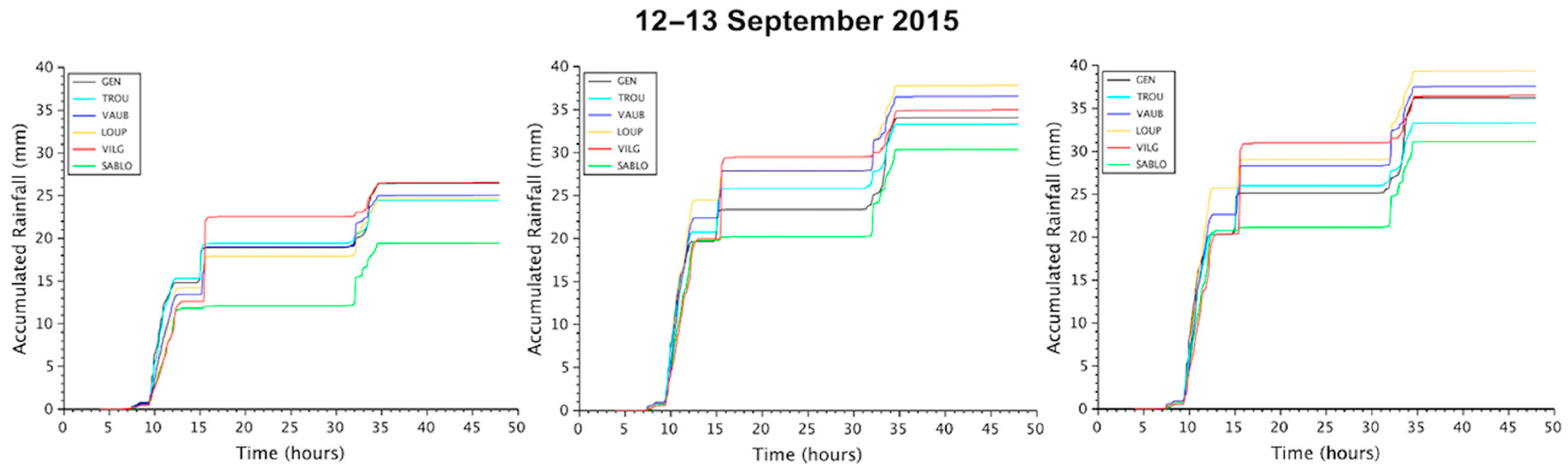

^{−1}), this change increases the rainfall totals by about 40%. This simple analysis highlights how critical the choice of a and b parameters is, furthermore considering the wide range of possible values discussed in the literature (examples: [41,45,46]). By comparing the middle and right graphs, the second observation is that simply filtered KDP results in a slight increase in the rainfall estimates. Similar behaviour was observed for two other events. Selecting the appropriate radar algorithms remains a challenging, methodological, observational question that has far-reaching implications on water management. In Section 3.1.1, we innovatively use multifractal analysis to help to choose which X-band radar product will be used for the hydrological modelling. To the knowledge of the authors, this is the first time that such methodology has been developed.

#### 2.4. Hydrological Model

^{2}. This model is integrated in the Optim Sim platform, an offline tool developed by Veolia that imitates the actual regulation of the storage basins either at the local or catchment scale. It should be mentioned that the settings of neither InfoWorks CS model nor Optim Sim are fully up to date. For instance, a recent modification of the networks that consisted in the removal of the Vilgénis basin to restore the natural flow of the river (near “Vilgénis” rain gauge P6 on Figure 1) is not yet taken into account in the models. This difficulty pushes us in this study to focus on events without active regulation, i.e., when gates positions remain unchanged and therefore to focus on the differences associated with rainfall. There are two simulation modes in Optim Sim: the “replay mode” and the “forecasting mode”. The first one enables to replay past events by extracting data from the linked database of the six rain gauges of the SIAVB. The rain rates for each sub-catchment are obtained using the Thiessen polygons technique. Then the simulations and observations (flood depth or flow at the measuring points) can be compared and analysed. It should be noted that, during Optim Sim simulations in “replay mode”, the positions of gates are not necessarily the same as the ones resulting from the regulation during the real events. Since no other source of rainfall data can be used with this mode, we used the “forecasting mode”. This second mode simulates the behaviour of the river by introducing rainfall data from different possible sources, notably from (fully distributed) C-band radar measurements, although being converted in semi-distributed ones (i.e., a unique rainfall time series per catchment). It is also possible to use the forecasting mode for replays by merely setting past dates, thereby making it possible to compare the simulations with measured flow observations. Rainfall data can be input in three ways: an average intensity (mm/h) over all sub-catchments; a single average intensity time series over all sub-catchments; and an average intensity time series over each sub-catchment. In the last case, which we chose, a text file with a column containing rainfall intensity in mm/h with 5-min time steps has to be generated for each sub-catchment.

#### 2.5. Short Recap of Multifractals and Classical Error Metrics

- The correlation coefficient ($Corr\in \left[-1,\text{}1\right]$) measures the strength and the direction of the linear relationship between the both time series:$$Corr\left(A,B\right)=\frac{{{\displaystyle \sum}}_{i}\left[\left({A}_{i}-{\overline{A}}_{i}\right)\xb7\left({B}_{i}-{\overline{B}}_{i}\right)\right]}{\sqrt{{{\displaystyle \sum}}_{i}{\left({A}_{i}-{\overline{A}}_{i}\right)}^{2}}\xb7\sqrt{{{\displaystyle \sum}}_{i}{\left({B}_{i}-{\overline{B}}_{i}\right)}^{2}}},$$
- The Nash–Sutcliffe Efficiency ($Nash\in \text{}\left(-\infty ,1\right]$) is the most commonly used indicator to quantify performance of models in urban hydrology. It measures how well the model outputs ($A$) reproduce the observations ($B)$ in comparison to a model that only uses the mean of the observed data. It is calculated as:$$Nash\left(A,B\right)=1-\text{}\frac{{{\displaystyle \sum}}_{i}{({B}_{i}-{A}_{i})}^{2}}{{{\displaystyle \sum}}_{i}{({B}_{i}-{\overline{B}}_{i})}^{2}},$$
- The Root-Mean-Square Error (RMSE) is used in urban hydrology to quantify errors between two time series. It measures the deviation of predictions from observed value (calculated as the square root of average square deviation):$$RMSE\left(A,B\right)=\sqrt{\frac{1}{N}{{\displaystyle \sum}}_{i}{\left({A}_{i}-{B}_{i}\right)}^{2}}.$$

## 3. Results

#### 3.1. Direct Comparison of Rainfall

#### 3.1.1. Multifractal Analysis

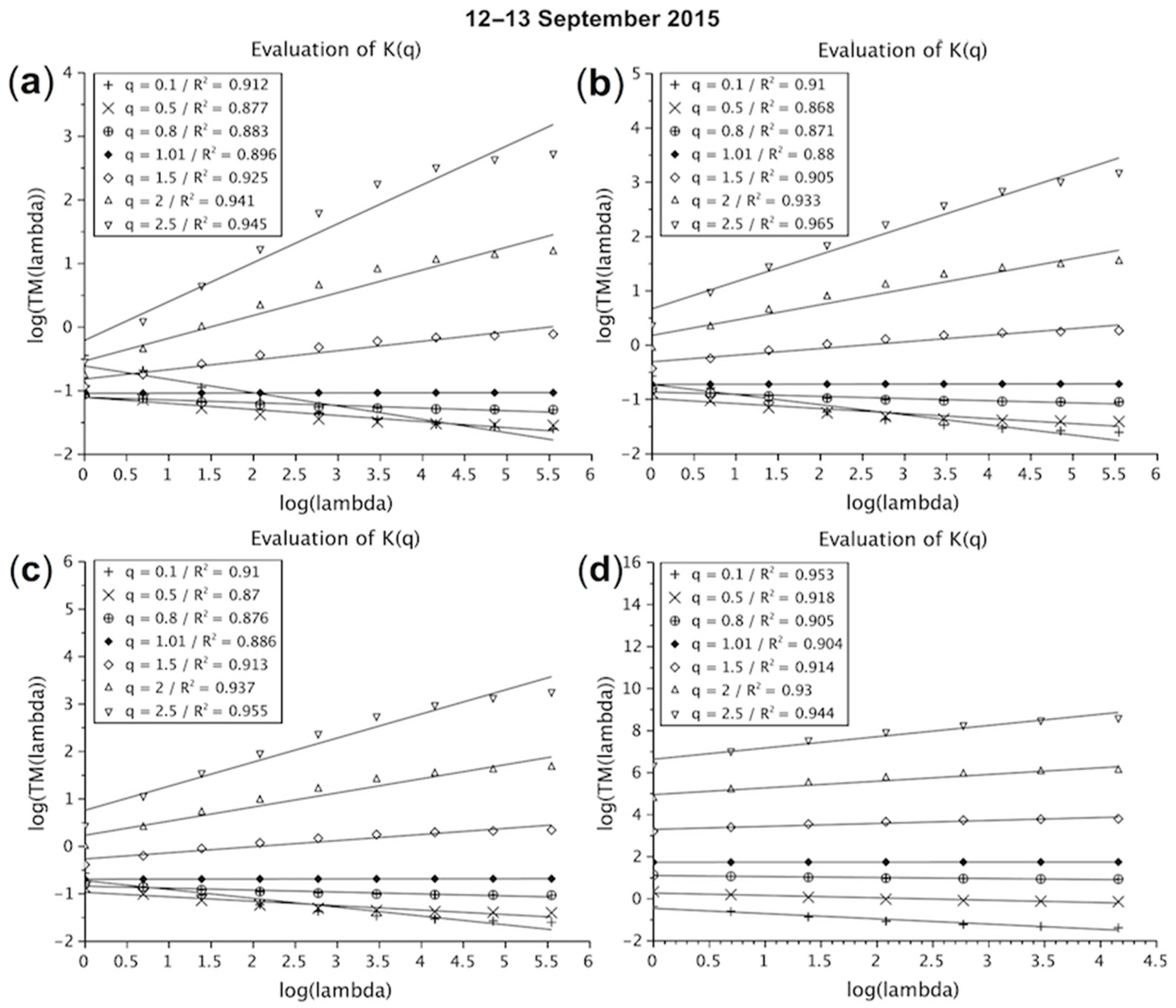

^{2}, being used as a metrics of scaling behaviour, are lower for X-band radar data. Somewhat similar scaling behaviour is found for the other two rainfall events.

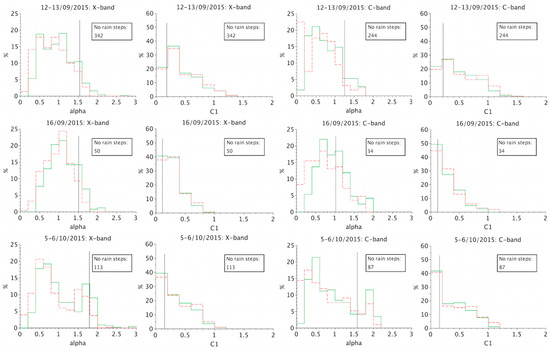

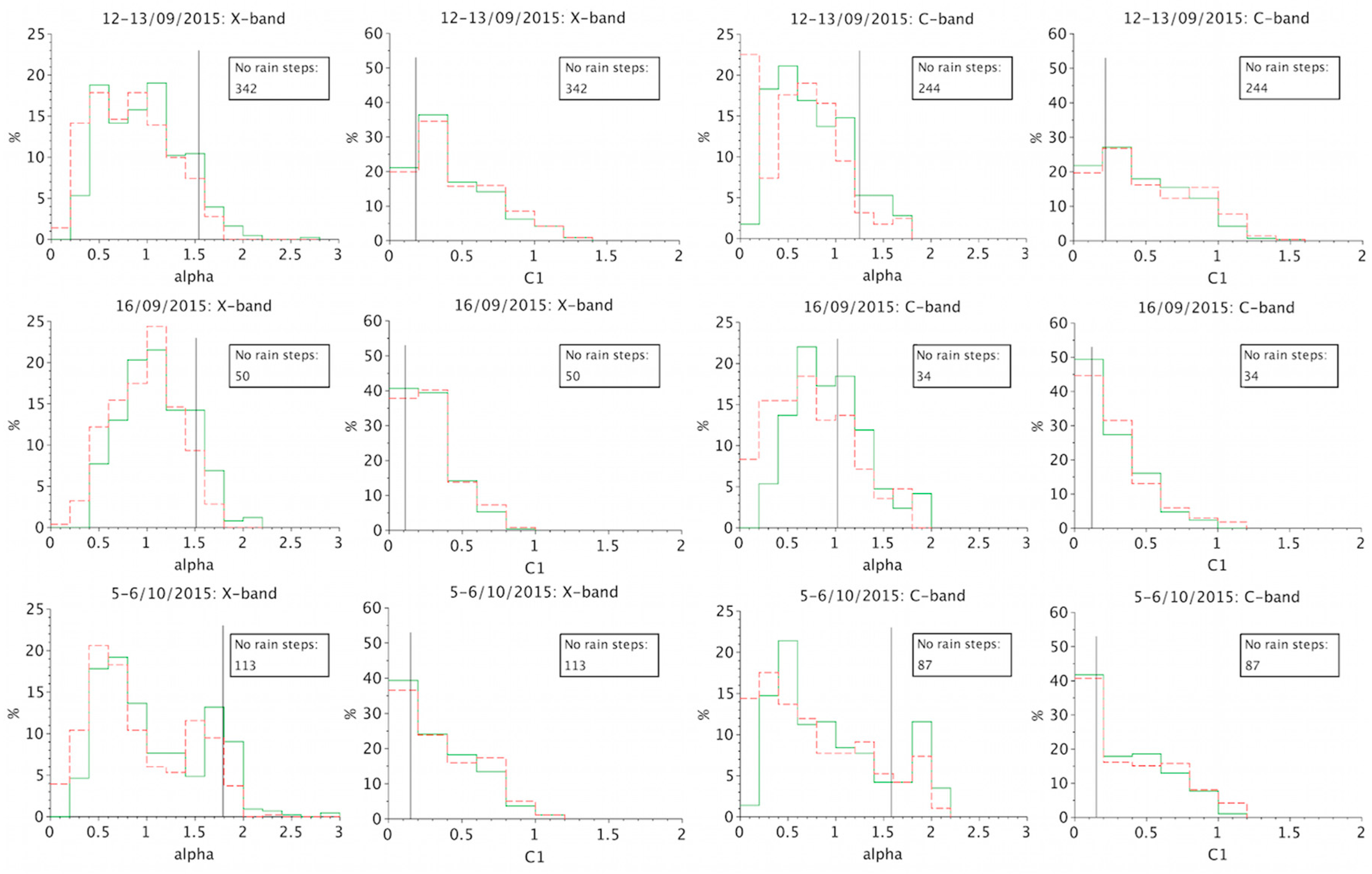

^{2}(see Figure 5b,d, for the event of 12–13 September 2015), being used as a metrics of the scaling behaviour, are lower for the X-band radar data, mainly because changes in scaling may occur over smaller scales that are not available with the C-band measurements. We tested that two scaling regimes with distinct linear fits in a log–log plot yield two distinct pairs of UM parameters for the X-band spatial rainfall. While the multifractality parameter estimated over large scales (1–64 km) becomes closer to that obtained for the C-band radar data (on the same range), the DTM estimator gives spurious multifractality parameter (>2) over the small scales (0.25–1 km, unknown for the C-band radar). This could be due to the emergent properties of rainfall extremes at small scales. Indeed, a well-known basic property of precipitation is that small-scale extremes (short duration or/and size, e.g., heavy rainfall episodes) can drastically influence much larger scales (e.g., yearly statistics and even climate) to the point of creating heavy tails for the probability of larger scale extremes. This basic feature remains out of reach from (quasi-) linear models (e.g., the still used Scott–Newman model and variants), whereas it is generic in multifractal cascade models.

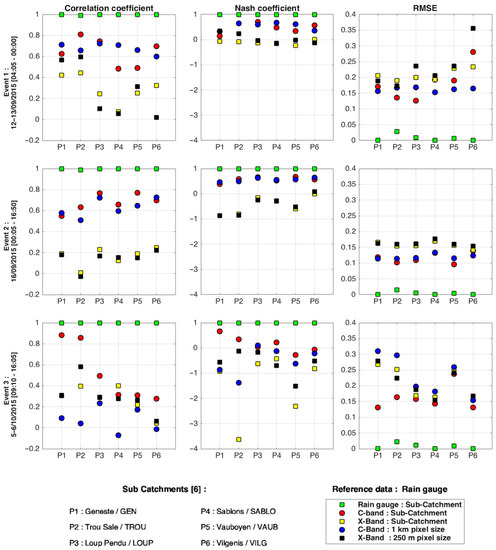

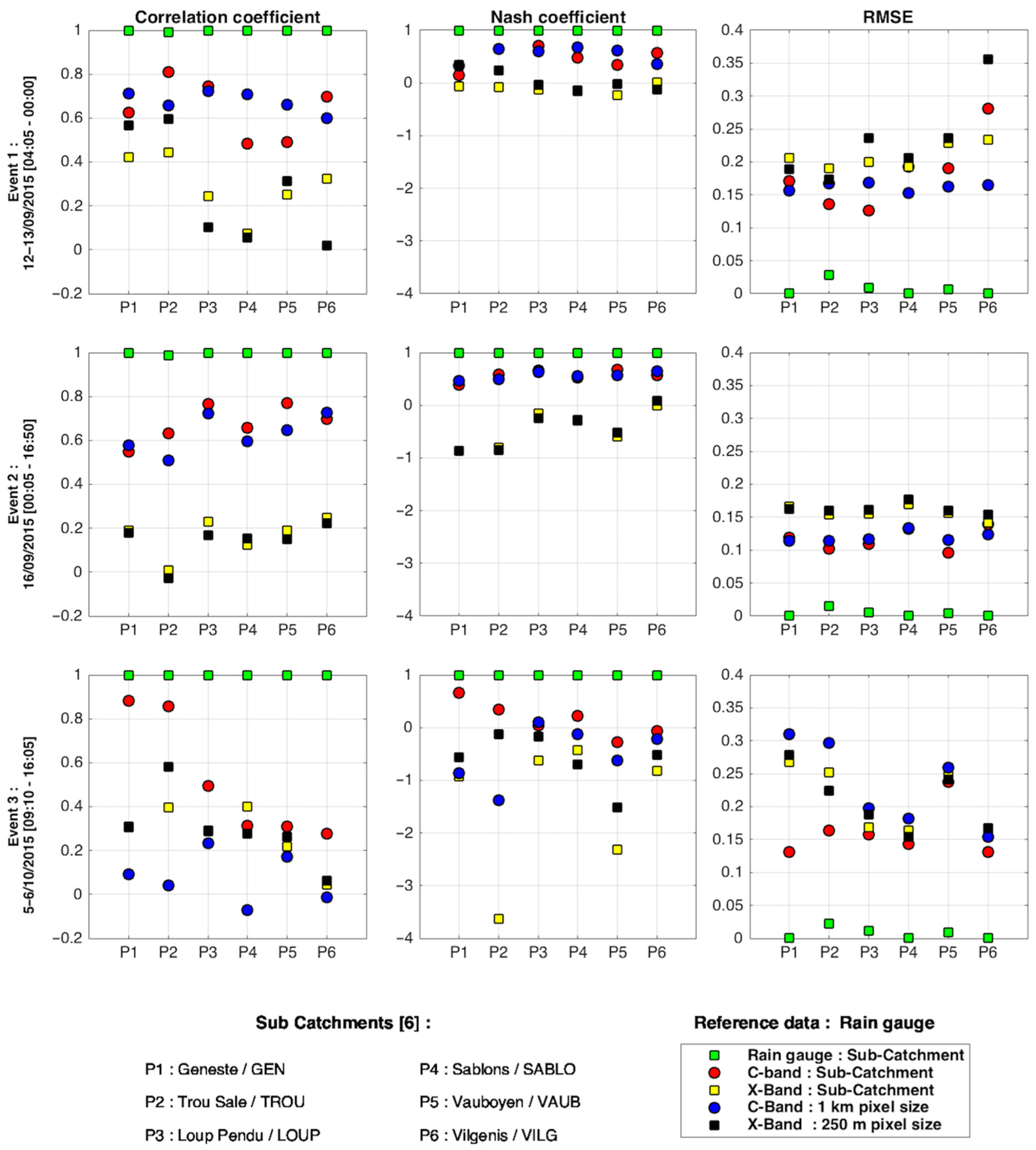

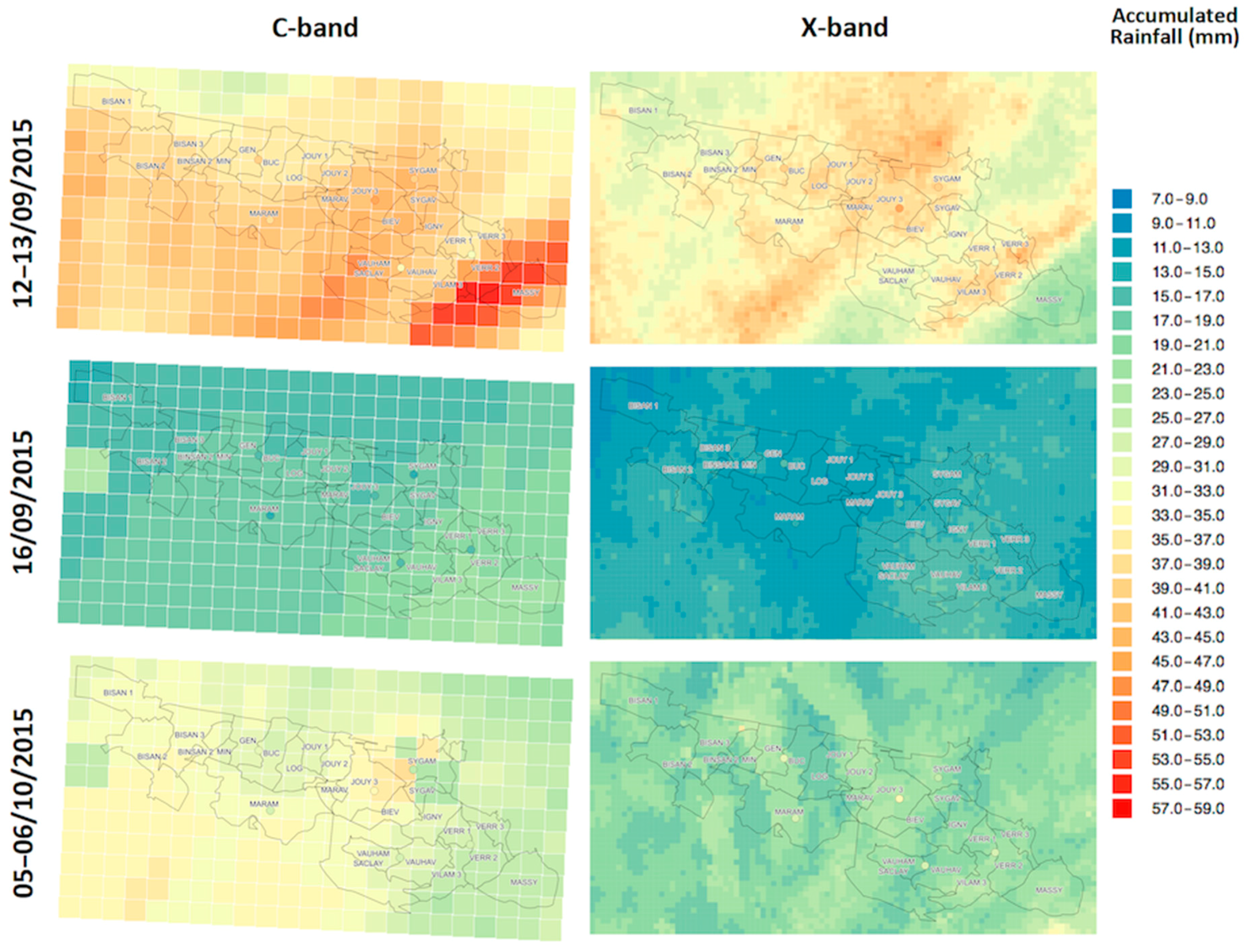

#### 3.1.2. Rainfall Estimates over the Catchment

#### 3.2. Hydrological Comparison

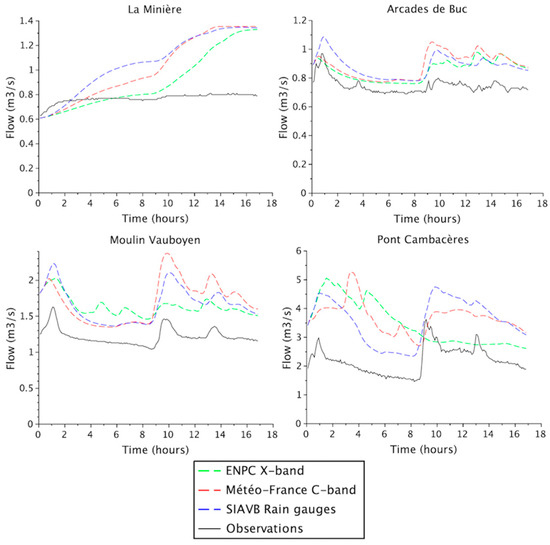

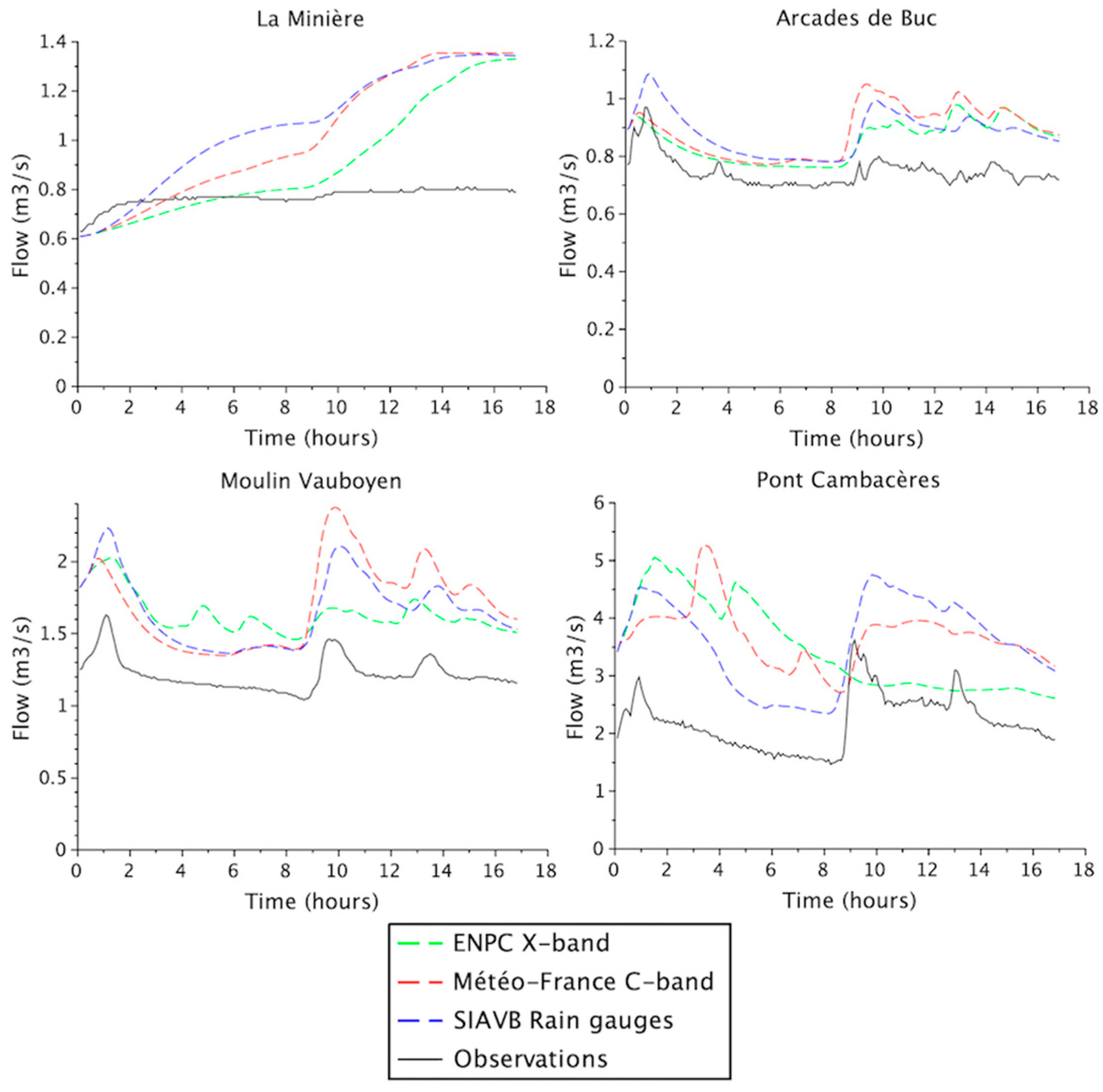

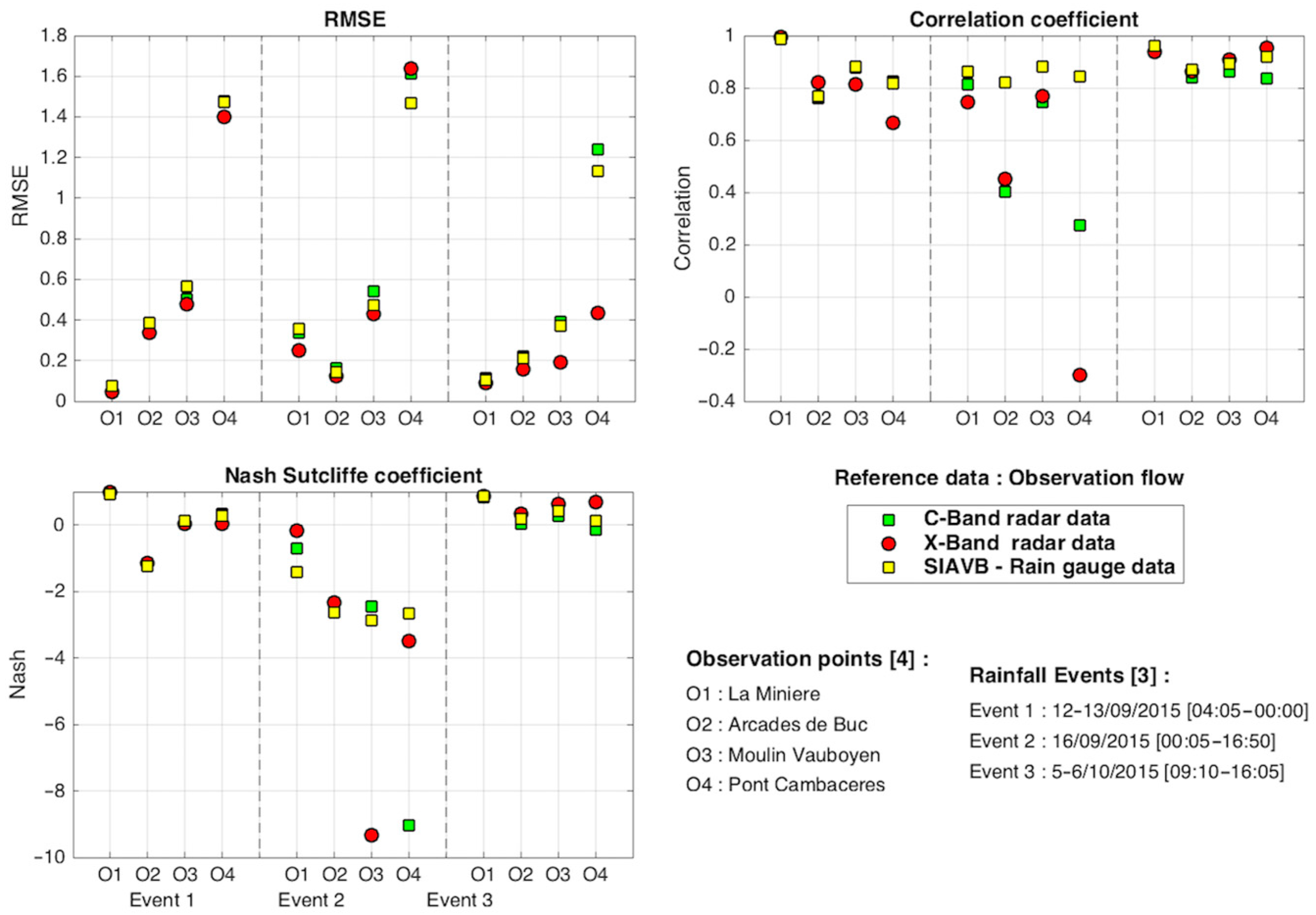

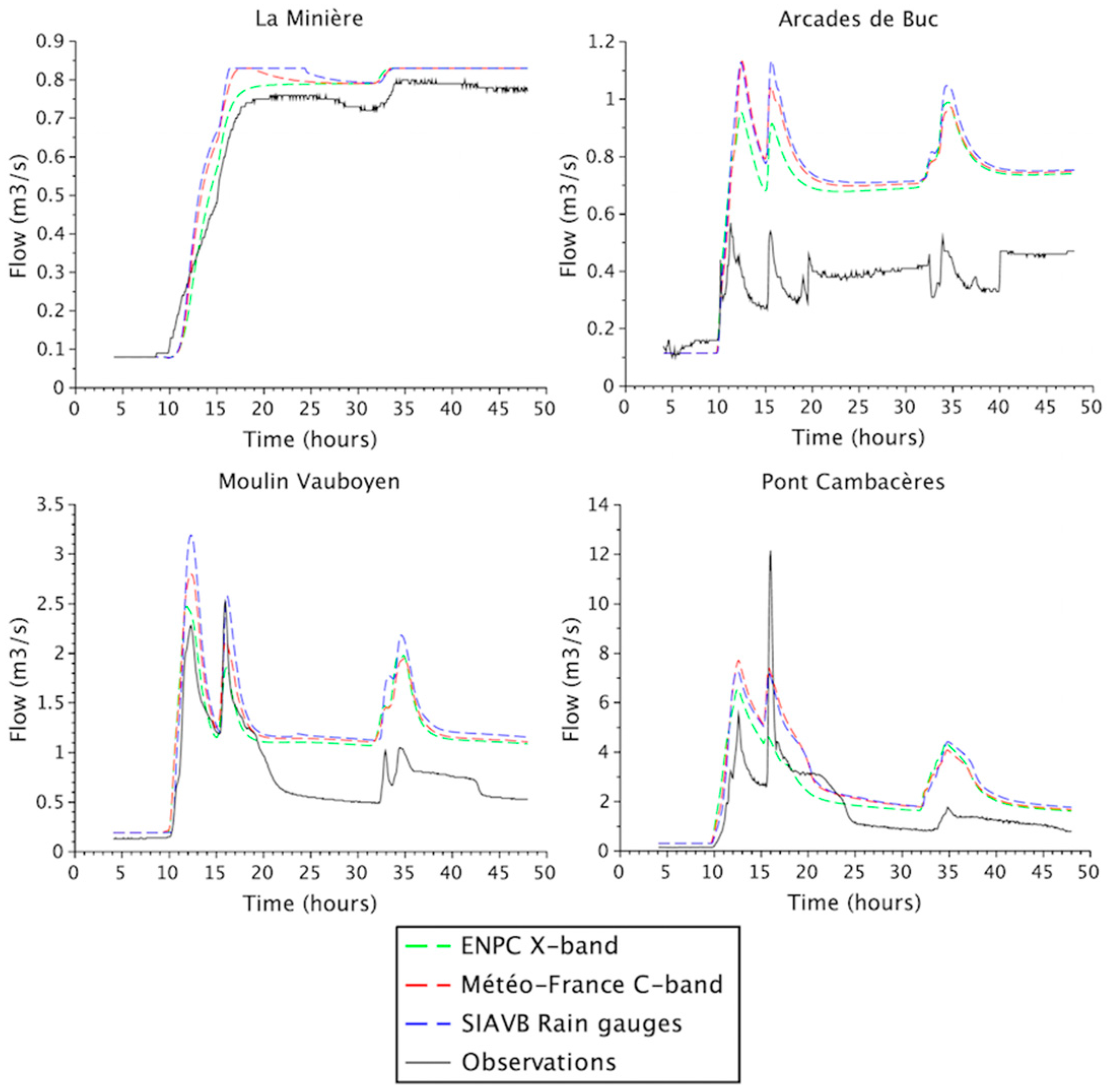

^{3}/s, being well reproduced with the three rainfall products, which is confirmed by the error metrics (Figure 12): $Nash\approx 1$, $Corr\approx 1$ and $RMSE<0.12$. For the other observation points, the three rainfall products reproduce the observed flow dynamic (correlation values are approximately 0.8), with important differences in the obtained volumes (RMSE errors are between 0.35 and 0.6 for “Arcades de Buc” and “Moulin Vauboyen” and around 1.4 for “Pont Cambaceres”; Nash values are between −1.5 and 0.2). The fact that regulation at the catchment scale is not mimicked makes comparison with observations not relevant, as discussed above. For this event, there is a tendency of the X-band data to generate slightly smaller flows than the other two products, well visible on all curves of the figure. This tendency is more pronounced for the first half of the event (until 13 September 2015 at 07:00) than for the second one.

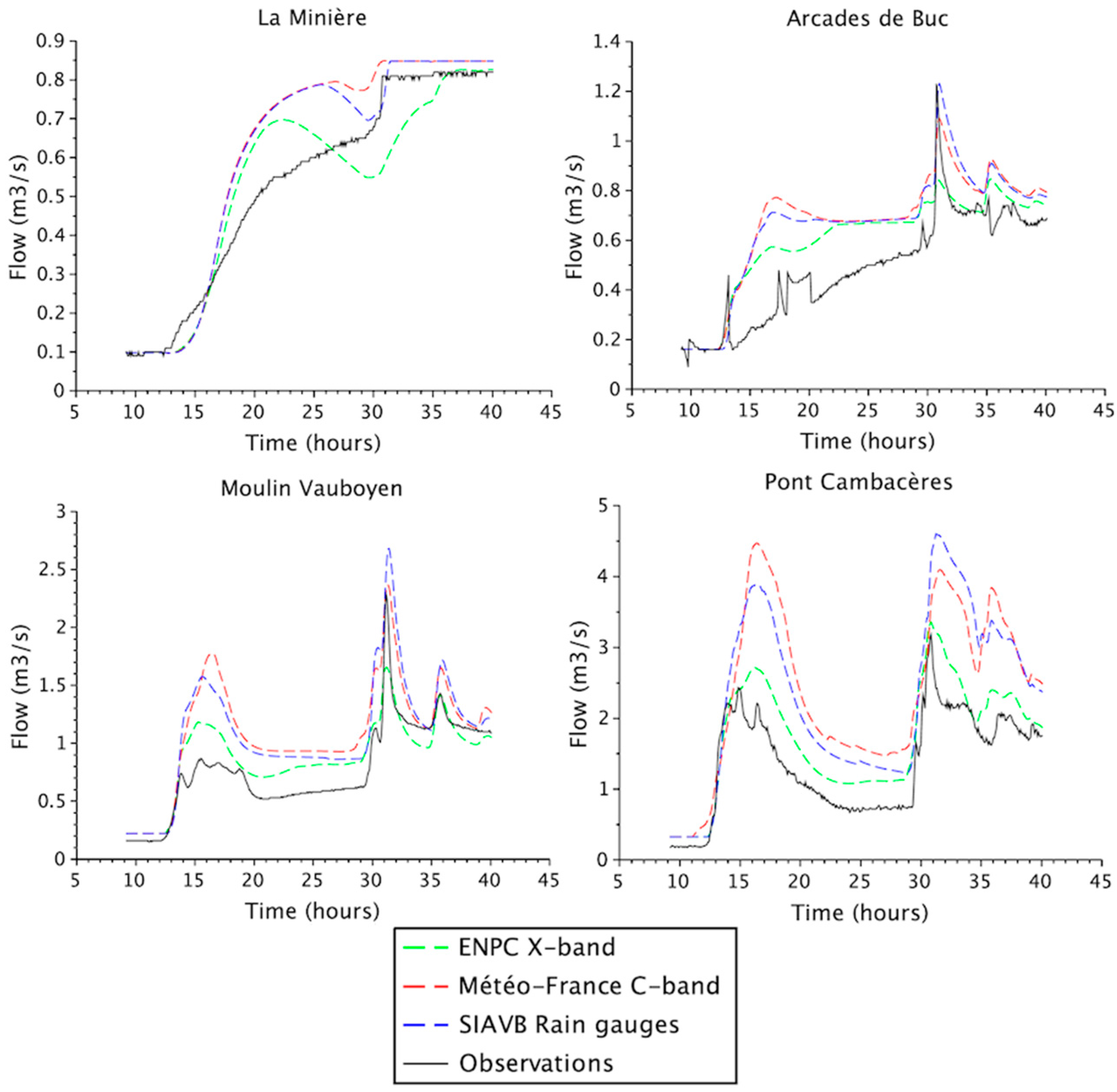

^{3}/s regulated target value because additional water coming from an overflow at Val d’Or is input in the model for this event. This should be investigated more precisely in future work. The differences between the three rainfall products on the simulated flows are more pronounced for this event than for the other two, as it can be noticed in Figure 12 (with bigger gaps between the three points for this event). It should also be noted that there are some changes according to the observation point and time. For instance, at the beginning of the event (before 16 September 2015 at ~ 05:00), rain gauges yield a greater flow at “Arcades de Buc” and “Moulin Vauboyen” whereas it is at “Pont Cambaceres” for the X-band radar. At this location, the C-band rainfall data generate a peak that is found neither with other rainfall data nor on observations. In the period between 08:00 and 16:50 on 16 September 2015, C-band data yield greater flows at “Arcades de Buc” and “Moulin Vauboyen” (more pronounced for the beginning of this period) whereas it is the rain gauges at “Pont Cambaceres”. Here the simulated flows are much smaller with X-band data. As for the 12–13 September event, it is not relevant to compare with actual measurements due to the problematic simulation of regulation at the catchment scale that was actually deployed.

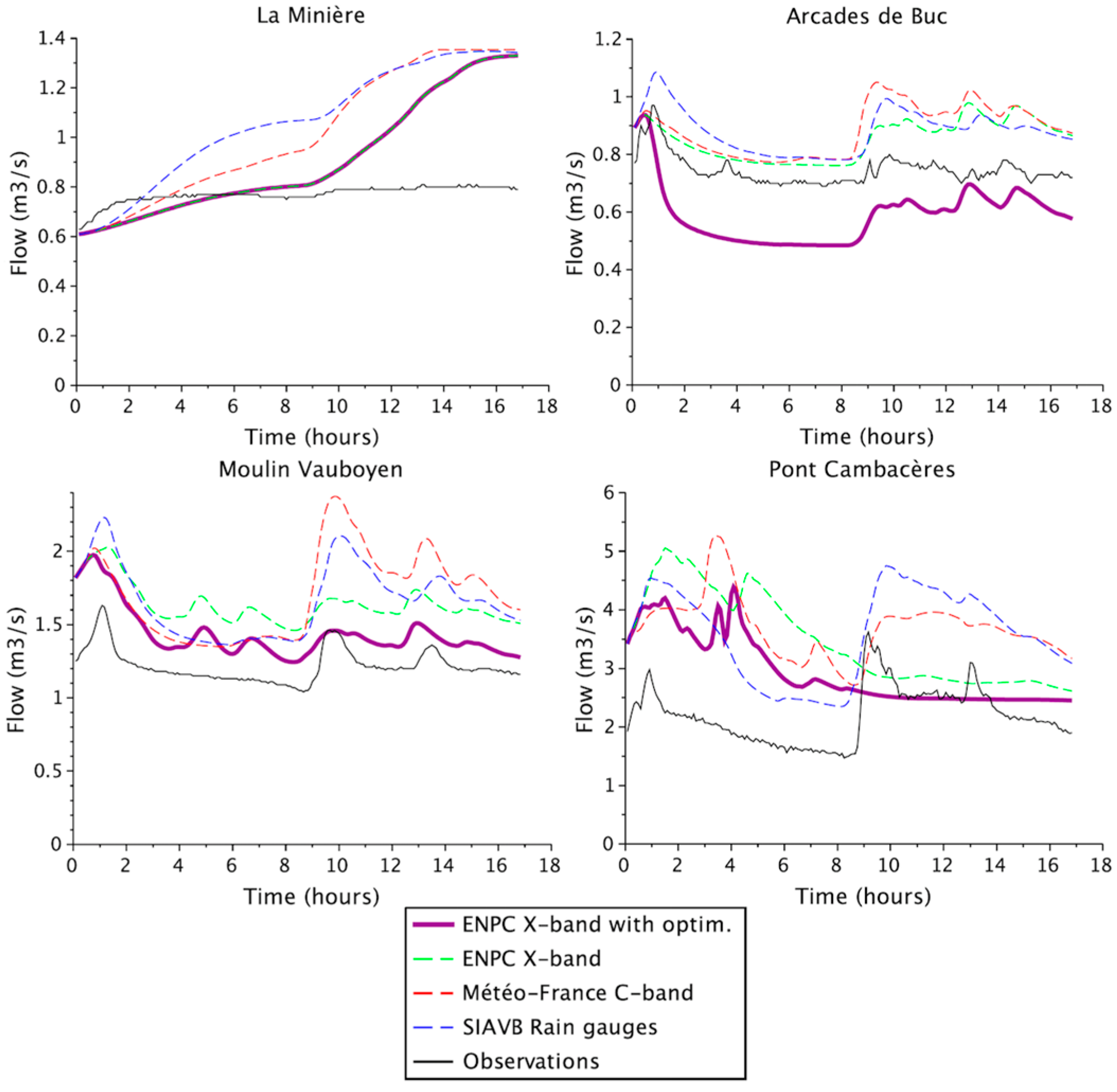

## 4. Discussion

^{2}spatial resolution, having the highest quality indicator over the pixel’s vertical and are adjusted to rain gauges. In addition, the SIAVB rain gauge network provided the third set of rainfall data studied. Furthermore, the semi-distributed model InfoWorks CS was used with sub-catchments of average size of 2 km, which highlights its limitations to take into account the high spatial variability of the rainfall.
