Article

Dual RNA-Seq Analysis of Trichophyton rubrum and HaCat Keratinocyte Co-Culture Highlights Important Genes for Fungal-Host Interaction

1
Biotechnology Unit, University of Ribeirão Preto-UNAERP, São Paulo 2201, Brazil
2
Laboratory of Molecular Genetics and Bioinformatics, Regional Hemotherapy Center of Ribeirão Preto, Ribeirão Preto 2501, Brazil
3
Department of Genetics, Ribeirão Preto Medical School, University of São Paulo, Ribeirão Preto 14049-900, Brazil
4
Center for Medical Genomics at the Clinics Hospital of Ribeirão Preto Medical School, University of São Paulo, Ribeirão Preto 14049-900, Brazil
*
Author to whom correspondence should be addressed.
Genes 2018, 9(7), 362; https://doi.org/10.3390/genes9070362
Received: 30 May 2018 / Revised: 11 July 2018 / Accepted: 16 July 2018 / Published: 19 July 2018
(This article belongs to the Special Issue Fungal Pathogenesis in Humans: The Growing Threat)

Abstract

:
The dermatophyte Trichophyton rubrum is the major fungal pathogen of skin, hair, and nails that uses keratinized substrates as the primary nutrients during infection. Few strategies are available that permit a better understanding of the molecular mechanisms involved in the interaction of T. rubrum with the host because of the limitations of models mimicking this interaction. Dual RNA-seq is a powerful tool to unravel this complex interaction since it enables simultaneous evaluation of the transcriptome of two organisms. Using this technology in an in vitro model of co-culture, this study evaluated the transcriptional profile of genes involved in fungus-host interactions in 24 h. Our data demonstrated the induction of glyoxylate cycle genes, ERG6 and TERG_00916, which encodes a carboxylic acid transporter that may improve the assimilation of nutrients and fungal survival in the host. Furthermore, genes encoding keratinolytic proteases were also induced. In human keratinocytes (HaCat) cells, the SLC11A1, RNASE7, and CSF2 genes were induced and the products of these genes are known to have antimicrobial activity. In addition, the FLG and KRT1 genes involved in the epithelial barrier integrity were inhibited. This analysis showed the modulation of important genes involved in T. rubrum–host interaction, which could represent potential antifungal targets for the treatment of dermatophytoses.

Graphical Abstract

1. Introduction

Dermatophytoses are superficial infections of keratinized tissues caused by a group of filamentous fungi called dermatophytes [1]. Although these infections are restricted to the superficial layers of the epidermis, they can become invasive and can lead to severe diseases in immunocompromised [2] and diabetic patients [3]. Data from the World Health Organization estimate that approximately 25% of the world’s population have skin infections caused by fungi.
Most human dermatophytoses are caused by anthropophilic dermatophytes. Among these species, Trichophyton rubrum is the main cause of dermatophytoses in the world [4,5]. It is estimated that T. rubrum is the etiological agent of 69.5% of all cases of dermatophytosis caused by species of the genus Trichophyton, followed by Trichophyton interdigitale, Trichophyton verrucosum and Trichophyton tonsurans [6].
Despite the importance of these infections in clinical practice, knowledge of the molecular mechanisms involved in the dermatophyte-host interaction is limited, possibly because of the technical difficulties of the models mimicking this interaction, as well as the lack of genetic tools that allow for a more in-depth study of these organisms [7]. However, this scenario has been changing with the sequencing of mixed transcriptomes, also called dual RNA-seq, an approach widely used for the study of the complex interaction that exists between the host and pathogen [8] including bacteria [9], viruses [10], and fungi [11,12].
With the advent of this technology and the published sequence of the T. rubrum genome, the present study evaluated the transcriptional profile of T. rubrum co-cultured with human keratinocytes (HaCat) for 24 h by dual RNA-seq to identify important genes involved in the host defense and fungal pathogenicity in order to increase our understanding of the molecular aspects of this interaction. After 24 h of co-culture, we observed the induction of specific genes of the glyoxylate cycle and of a carboxylic acid transporter in T. rubrum, which may contribute to metabolic flexibility in nutrient-limited host niches, as well as of the ERG6 gene involved in plasma membrane permeability, which may favor the assimilation of nutrients and fungal survival in the host. In addition, we found that the modulation of the LAP2 and DPPV genes involved in the production of keratinolytic proteases that are important for the virulence of this dermatophyte. In contrast, in keratinocytes, genes involved in the repair of the epithelial barrier, in the increase of cell migration and the RNASE7, SLC11A1 and CSF2 genes (whose gene products have potential antimicrobial activity) were induced. Furthermore, the inhibition of FLG and KRT1 genes whose products are directly involved in the maintenance of skin barrier integrity was observed.

2. Materials and Methods

2.1. Strains, Media and Growth Conditions

The T. rubrum strain CBS 118892 (CBS-KNAW Fungal Biodiversity Center, Utrech, The Netherlands) sequenced by the Broad Institute (Cambridge, MA, USA) was cultured on Sabouraud dextrose agar (Oxoid, Hampshire, UK) for 15 days at 28 °C.

2.2. Keratinocytes, Media and Growth Conditions

The immortalized human keratinocytes cell line HaCat was purchased from Cell Lines Service GmbH (Eppelheim, Germany). The cells were cultured in an RPMI medium (Sigma Aldrich, St. Louis, MO, USA) supplemented with 10% fetal bovine serum at 37 °C in a humidified atmosphere containing 5% CO2. Antibiotics (100 U/mL penicillin and 100 μg/mL streptomycin) were added to the medium to prevent bacterial contamination.

2.3. Co-Culture Assay and Conditions

For co-culture assay, a ratio of 2.5 × 105 cells/mL of keratinocytes to 1 × 107 conidia/mL of T. rubrum solution was used, and the co-culture was performed as described in [13]. The assays were carried out in three independent experiments performed in triplicate. Cultured keratinocytes and T. rubrum conidia were used as controls and were cultured similarly to the co-infection in RPMI Medium (Sigma Aldrich). Scanning electron microscopy was performed with a JEOL JEM 100CXII electron microscope at the Multiuser Electron Microscopy Laboratory of the Department of Cell and Molecular Biology (Ribeirão Preto Medical School, São Paulo, Brazil) to determine whether the penetration of fungal hyphae into keratinocytes occurred within 24 h of co-culture. The cell viability of HaCat keratinocytes prior to T. rubrum inoculation and after 24 h of co-culture was determined by measuring the release of the enzyme lactate dehydrogenase (LDH) (TOX7 kit from Sigma-Aldrich) in the RPMI Medium (Sigma Aldrich) according to the manufacturer’s instructions and described in [14]. The absorbance was read in a microplate reader (Elx 800 UV Bio-Tek Instruments, Inc., Winooski, VT, USA) at 490 nm.

2.4. RNA Isolation and Integrity Analysis

After 24 h of incubation, fungi and human cells were recovered by scraping and centrifuging at 1730× g for 10 min. For the disruption of the fungal cell wall, the samples (co-culture and controls) were treated with lysis solution (20 mg/mL of lysing enzymes from Trichoderma harzianum purchased from Sigma-Aldrich; 0.7 M KCl and 1 M MgSO4, pH 6.8) for 1 h at 28 °C under gentle shaking, followed by centrifugation at 1000× g for 10 min, as described in [13]. Total RNA was extracted using the Illustra RNAspin Mini RNA Isolation Kit (GE Healthcare, Chicago, IL, USA) according to the manufacturer’s instructions. After extraction, the absence of proteins and phenol in the RNA was analyzed in a MidSci Nanophotometer (Midwest Scientific, St. Louis, MO, USA) and the RNA integrity was assessed by microfluidic electrophoresis in an Agilent 2100 Bioanalyzer (Agilent Technologies, Santa Clara, CA, USA). Only RNA with an RNA integrity number (RIN) >7.0 was used. These RNAs were quantified in a Quantus™ Fluorometer (Promega Corporation, Madison, WI, USA) to verify if they had the adequate concentration for library construction.

2.5. Library Construction and Sequencing

The cDNA libraries for RNA sequencing were constructed in triplicate for each condition (cultured keratinocytes and T. rubrum conidia as control and co-culture). The libraries were constructed using the TrueSeq® RNA Sample Preparation Kit v2 (Illumina, San Diego, CA, USA) according to manufacturer’s instructions and the libraries were validated according to the Library quantitative PCR (qPCR) Quantification Guide (Illumina). A pool of 11 pM of each library was distributed on the flowcell lanes and cluster amplification was performed in a cBot (Illumina) according to the manufacturer’s instructions.
Single read and paired-end sequencing were performed in a Genome Analyzer IIx and Hiseq 2000 (Illumina), respectively, according to the manufacturer’s instructions. The RNA-seq data are deposited in the GEO (Gene Expression Omnibus) database [15] under the accession number GSE110073

2.6. Sequence Data Analysis

The reads generated for each library were filtered using the FastQC software (https://www.bioinformatics.babraham.ac.uk/index.html) for removal of Illumina adapters and poor-quality reads. Only those with a Phred score > 20 were considered high-quality reads.
The high-quality reads were aligned to the T. rubrum reference genome of the Broad Institute’s Dermatophyte Comparative Database and to the Homo sapiens reference genome HG19 [16].
After alignment, the triplicate of each library was normalized according to each library size and the number of reads was calculated using the summarize Overlaps function in the Genomic Ranges Bioconductor package, obtaining the expression levels of the transcripts in the samples. For statistical evaluation of the gene expression data between the samples, the false discovery rate (FDR) procedure was applied using the DEseq package [17] implemented in the R/Bioconductor software. Genes exhibiting statistical significance <0.05 and a log2 fold change ratio ≥1 or ≤−1 were defined as differentially expressed genes (DEGs). The functional categorization of T. rubrum and keratinocyte DEGs in co-culture was performed according to Gene Ontology [18] using the Blast2GO algorithm [19] for T. rubrum and the website http://www.geneontology.org/ for human keratinocyte DEGs. For functional enrichment, the BayGO algorithm [20] and Enrichr enrichment tool [21,22], were used for the T. rubrum and keratinocyte DEGs, respectively. A p-value < 0.05 indicated the over-represented categories.

2.7. qPCR Validation

A set of 14 genes, including the T. rubrum and keratinocyte genes, were selected for validation by qPCR. For the reaction, 1 μg of the total RNA used for sequencing was treated with DNAse 1 Amplification Grade® (Sigma Aldrich) to remove any genomic DNA contamination. The High-Capacity cDNA Reverse Transcription® Kit (Applied Biosystems, Foster city, CA, USA) was used for cDNA conversion according to the manufacturer’s instructions. Quantitative Real Time (RT)-PCR experiments were performed in triplicate using the SYBR Taq Ready Mix Kit (Sigma Aldrich) in a Mx3300 qPCR System (Stratagene, San Diego, CA, USA). The cycling conditions were initial denaturation at 94 °C for 10 min, followed by 40 cycles at 94 °C for 2 min, at 60 °C for 60 s and at 72 °C for 1 min. A dissociation curve was constructed at the end of each PCR cycle to verify single product amplification. Gene expression levels were calculated using the 2−ΔΔCT comparative method. GAPDH [23] and β-actin [24] were used as normalizer genes for keratinocytes and 18S [25] and β-tubulin [26] as normalizer genes for T. rubrum. The results are reported as the mean ± standard deviation of three experiments. Pearson’s correlation test was used to evaluate the correlation between the qPCR and RNA-seq techniques. The primers used for qPCR validation are available in Table S4.

3. Results

3.1. Electron Microscopy of T. rubrum and HaCat Co-Culture

Figure 1B shows the penetration of a T. rubrum hypha into a HaCat cell after 24 h of co-culture. Thus, the period of co-culture was considered appropriate for the evaluation of the fungal-host interaction.
We performed the LDH assay with 24 h of co-culture to evaluate the keratinocyte cell viability. The percentage of LDH release was 18%. This LDH release may be due to the penetration of some fungal hyphae into keratinocyte cells (as observed in Figure 1B). LDH release was also evaluated at 0 h to assess cell viability prior to the addition of the fungus. The LDH release rate at 0 h was 1%. As a positive control, Triton X-100 (1%) was used in which 100% of the LDH release was obtained. Considering that we used 2.5 × 105 cells/mL prior to inoculation of the fungus and that the percentage of LDH was 18%, we can estimate that approximately 2 × 105 cells/mL are still viable in 24 h of co-cultivation.

3.2. Dual RNA-Seq Analysis of the Fungal-Host Interaction

Sequencing resulted in an average of 40, 34 and 47 million raw reads corresponding to the libraries of T. rubrum conidia, co-culture, and keratinocytes, respectively. Low-quality reads were then removed, and the resulting reads were aligned to the references genomes of T. rubrum and Homo sapiens HG19 (UCSC Genome Bioinformatics site, Santa Cruz, CA, USA). On average, 85% and 5% of the quality reads of the T. rubrum conidia and co-culture libraries, respectively, aligned to the T. rubrum reference genome (CBS 118892). These percentages were 84% and 85%, respectively, when the quality reads of the co-culture and keratinocyte cell line were aligned to the HG19 reference genome. The total number of filtered and aligned reads of each library is shown in Table S1.

3.3. Transcriptional Profile Analysis of Differentially Expressed Genes in the T. rubrum-Keratinocyte Co-Culture System

Table 1 and Table 2 show the genes that are up-regulated and down-regulated in keratinocytes and T. rubrum, respectively. According to the distribution of the genes, those showing a p-value < 0.05 and log2 fold change ≥1 or ≥−1 in each condition were considered differentially expressed (Figure S1). A total of 353 HaCat genes and 70 T. rubrum genes were differentially expressed during 24 h of co-culture (Tables S2 and S3).

3.4. Functional Categorization of Differentially Expressed Genes

To evaluate the molecular and biological mechanisms involved in the fungal-host interaction, the DEGs were categorized according to biological processes and molecular functions. The most enriched categories considering a p < 0.05 are shown in Figure 2.
Most of the up-regulated T. rubrum genes (Figure 2A) belong to categories related to metabolic processes, membrane proteins, and substance transport, while the down-regulated genes are mainly involved in ATP binding. However, categories important to the fungus-host relationship, such as those including genes involved in the glyoxylate cycle and pathogenicity, should also be highlighted. Table 3 shows some functional categories that are important for the interaction of T. rubrum with HaCat keratinocytes. Within these categories, we selected some genes considered to play a fundamental role in the attack mechanisms and survival of the fungus when in contact with the host for validation and discussion: genes involved in protease secretion (TERG_12606; TERG_08405), metabolic flexibility for nutrient assimilation (TERG_01281; TERG_11638; TERG_11639; TERG_00916), and plasma membrane permeability (TERG_03102). On the other hand, up-regulated genes in keratinocytes (Figure 2B) are mainly found in the categories related to RNA binding, translation, and rRNA processing, while most of the down-regulated genes belong to the RNA binding category. Furthermore, Table 4 shows some functional categories that are important for the cell defense mechanisms of human keratinocytes during co-culture with T. rubrum, such as the genes involved in the innate immune response, epidermal cell differentiation, regulation of cell migration, and establishment of the skin barrier.

3.5. Validation by qPCR

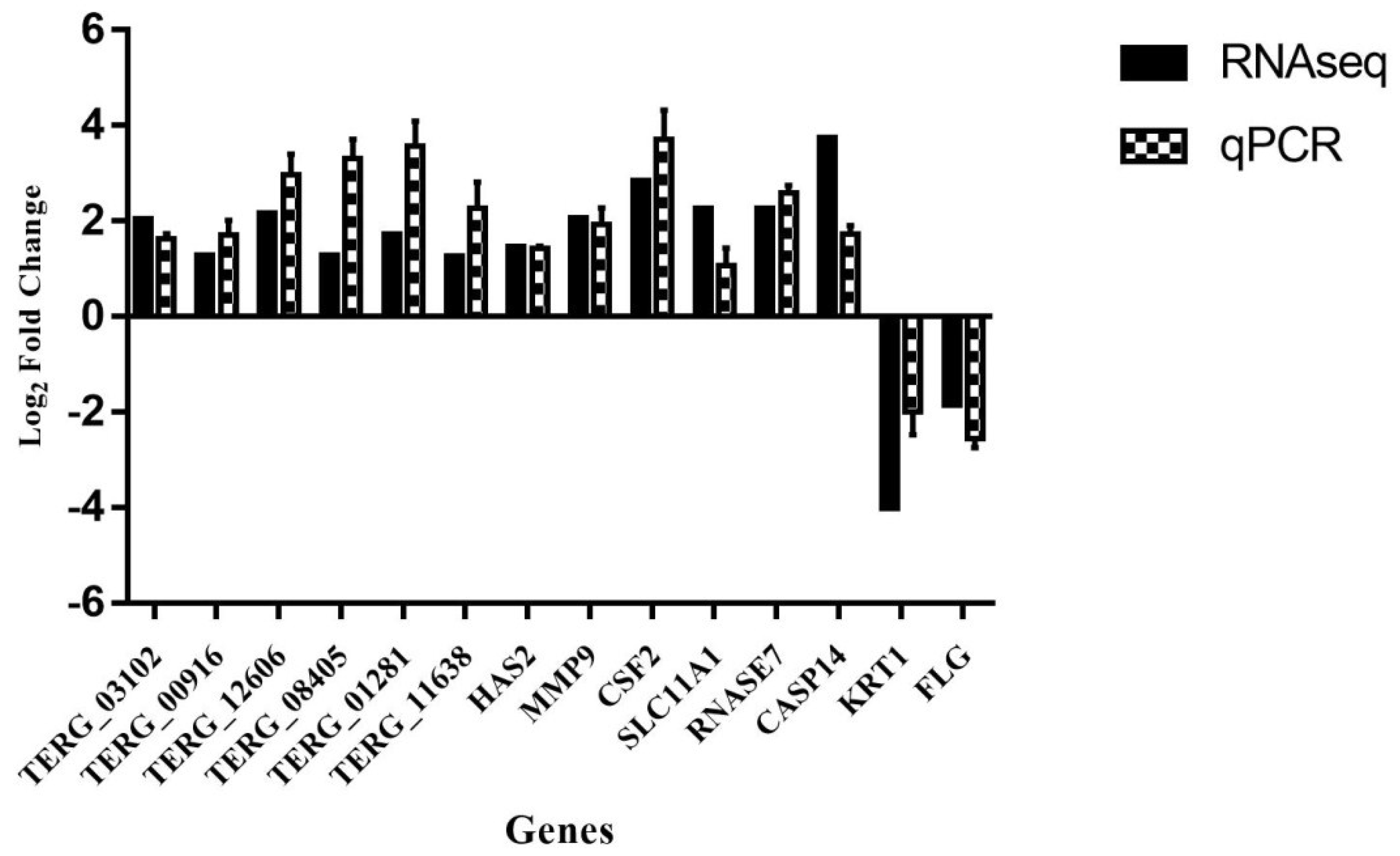

Pearson’s correlation test was used to evaluate the correlation between dual RNA-seq and qPCR. For this purpose, 14 genes were chosen for validation, including 6 T. rubrum genes (TERG_11638; TERG_01281; TERG_08405; TERG_12606; TERG_00916; TERG_03102) and 8 HaCat genes (HAS2; CSF2; SLC11A1; RNASE7; CASP14; MMP9; KRT1; FLG). Figure 3 shows the comparison of the log2 fold change values obtained with the two techniques. The gene expression results obtained by RNA-seq showed a strong correlation (r = 0.80, p < 0.001) with the gene modulation values obtained by qPCR. This finding suggests that sequencing provided reliable results, demonstrating the reproducibility and accuracy of the technique.

4. Discussion

Through the analysis of mixed transcriptomes, this is the first study to sequence by dual RNA-seq the dermatophyte T. rubrum with a HaCat cells in an in vitro model of co-culture for 24 h.
Based on the sequencing data generated, only about 5% of the quality reads of the co-culture could be aligned to the T. rubrum reference genome (CBS 118892), indicating a predominance of human reads in this library. Indeed, a major challenge encountered in the sequencing of mixed transcriptomes is the difference in the amount of RNA between different cell types. Whereas a human cell contains about 20–25 pg RNA, a fungal cell contains 0.5–1 pg [8,27], a fact that may explain the smaller number of reads generated for T. rubrum compared to human keratinocytes. This obstacle was also observed in dual RNA-seq analysis of a Magnaporthe oryzae and Oryza sativa co-culture, in which the percentage of alignment of fungal reads to the M. oryzae reference genome ranged from 0.1–0.2% [28]. As the latest example, in [12] also obtained a low percentage (~1%) of reads corresponding to the pathogen Phytophthora cinnamomi in dual RNAseq with Eucalyptus nitens. In that study, the authors obtained 283 genes of Phytophthora cinnamomi in a genome comprising approximately 58.38 Mb (National Center for Biotechnology). Comparing these data with our study, we obtained about 5% of read alignment and 70 modulated T. rubrum genes considering a fold change ≥1 or ≤−1 within a genome of 22.5 Mb.
However, we reached coverage of 90.7% of the 8.616 annotated genes in the T. rubrum genome considering the genes with at least one count read.
Seventy DEGs of T. rubrum were identified after 24 h of co-culture, which could be allocated to different categories according to biological function. Categories that were relevant for the understanding of the attack mechanisms of T. rubrum against keratinocytes included those containing TERG_12606 and TERG_08405 which encode important proteases for tissue invasion by the fungus, TERG_03102 or the ERG6 gene which is considered a promising target for the development of new antifungal agents [29], and TERG_01281, TERG_11638 and TERG_ 00916 which may be involved in the metabolic flexibility of T. rubrum, improving the adaptation and development in the host.
Regarding the functional categories containing the 353 HaCat DEGs, we highlight the following genes as important for the host defense mechanisms: SLC11A1, RNASE7 and CSF2 involved in innate immune response signaling; MMP9 and HAS2 involved in the regulation of epithelial cell migration; KRT1 and FLG involved in maintaining skin barrier integrity, and CASP14 involved in epidermal cells differentiation.

4.1. Genes Involved in Protease Secretion Are Important for the Pathogenicity of T. rubrum

During the course of infection, dermatophytes such as T. rubrum secrete endo- and exoproteases that degrade the keratin of the host tissue into oligopeptides and amino acids [30]. These compounds are used as a source of carbon, nitrogen, phosphorus, and sulfur for nutrition of the fungus [31].
The results of dual RNA-seq showed the induction of TERG_12606 (log2 fold change: 2.16) and TERG_08405 (log2 fold change: 1.29) (functional category: pathogenicity), which encode exoproteases (dipeptidyl peptidase V and leucine aminopeptidase 2, respectively). These findings corroborate the results of Reference [32] which evaluated gene expression by microarray in T. rubrum grown in a keratin-containing medium, and in [33] which evaluated the secretion of exoproteases, including dipeptidyl peptidase V, by T. rubrum in a keratin-containing medium. The secretion of endo- and exo-proteases by dermatophytes is one of the best-characterized virulence factors [32,33] and is of fundamental importance for invasion and dissemination of the fungus through the stratum corneum of the host [34].

4.2. The ERG6 Gene Is a Promising Target for Developing a New Antifungal Agent Against T. rubrum

In addition to the need of effective degradation of skin protein components for penetration of the fungus into tissue, the maintenance of fungal plasma membrane permeability and fluidity is essential for the correct assimilation of nutrients and the consequent growth and survival of T. rubrum in the host. In the present study, we observed the induction of TERG_03102 (log2 fold change: 2.05) (functional category: metabolic process), which corresponds to the ERG6 gene. This gene encodes the enzyme 24-C-methyltransferase, which participates in ergosterol biosynthesis [35]. Ergosterol is known to be responsible for fungal plasma membrane fluidity and permeability and it is important for the adequate function of membrane-anchored proteins [36].
The ergosterol biosynthesis pathway, which is absent in mammals, is the target of antifungal agents such as terbinafine. However, new genes of this pathway should be explored as potential targets because of reports of resistance of T. rubrum to this commercial antifungal drug [37]. One example of a promising potential target of new antifungals is the ERG6 gene whose expression was found to be modulated in this study. Altered expression of this gene results in plasma membrane changes, impairing the transport of nutrients into the fungal cell [38]. The importance of this gene as a new therapeutic strategy has also been reported in [29]. In a comparative genomics study, these authors identified this gene in important human fungal pathogens such as Candida albicans and Aspergillus fumigatus.

4.3. Glyoxylate Cycle Genes and a Carboxylic Acid Transporter May Be Associated with Mechanisms of Metabolic Flexibility in the T. rubrum-Host Relationship

Additionally, regarding the importance of nutrient assimilation by the fungus for its development during infection, the metabolic flexibility of some pathogenic fungi is worth noting. This flexibility enables the fungus to obtain nutrients through the assimilation of alternative carbon sources in nutrient-limited host niches [39,40]. Knowledge of the genes that are induced to favor this metabolic flexibility is still limited. Thus, these genes are interesting targets for the development of more selective antifungals since the induction of alternative metabolic pathways is an exclusive property of pathogenic fungi [41].
In the present study, genes involved in metabolic flexibility were modulated: TERG_01281 (log2 fold change: 1.72), TERG_11638 (log2 fold change: 1.26) and TERG_11639 (log2 fold change: 1.13) (functional category: glyoxylate cycle), which encode malate synthase and isocitrate lyases, respectively, are enzymes that participate in the glyoxylate cycle. In other clinical fungi, the activation of this cycle permits cell survival in low-glucose environments through the synthesis of glucose from lipids and other carbon sources [41]. We suggest this strategy could favor the growth and persistence of T. rubrum in the host since the fungus infects tissues rich in keratin and lipids. Furthermore, this cycle provides pathogenicity and virulence to other pathogens such as C. albicans, since the alternative assimilation of nutrients in nutrient-limited host niches favors pathogen survival and adaptation to the host [39].
The role of the glyoxylate cycle in the pathogenicity of T. rubrum is still not well established considering that this fungus causes superficial infections. However, we also showed the induction of genes encoding isocitrate lyase and malate synthase during the co-culture of HaCat keratinocytes with T. rubrum. The same genes were repressed in the presence of antifungal compounds licochalcone and caffeic acid in the co-culture for 24 h [42]. We also highlight the induction of TERG_00916 (log2 fold change: 1.28), which encodes a carboxylic acid transporter (functional category: transport), and suggest that the fungus can use this transporter to facilitate the assimilation of carboxylic acids as an alternative carbon source during infection. The expression of two short-chain carboxylic acid transporters has been demonstrated in C. albicans when glucose availability in the host is low. These findings indicate the importance of these transporters in the early stages of infection, contributing to the virulence of the pathogen [43].

4.4. The Modulation of Genes Involved in the Maintenance of the Skin Barrier, Cell Migration, and Differentiation May Be Associated with the Defense Strategies of Human Keratinocytes

The degradation of keratin present in the epidermis through the secretion of proteases such as those modulated in this study (TERG_12606 and TERG_08405) causes marked changes in the function and structure of the epithelial barrier [44]. Repression of the FLG (log2 fold change: −1.86) and KRT1 (log2 fold change: −4.02) genes that encode filaggrin and keratin 1, respectively, was observed during the 24 h of co-culture of T. rubrum with HaCat cells. We suggest the repression of the FLG and KRT1 genes to be related to the loss of skin barrier integrity, favoring the installation and tissue invasion by the fungus since the proteins encoded by these genes act together during the transition of keratinocytes to corneocytes that will compose the epithelial barrier [45,46]. These results corroborate the findings reported in [47] which identified the reduced expression of filaggrin in cases of tinea corporis caused by T. rubrum, and in [48] which observed the loss of skin barrier integrity in KRT1-deficient mice.
In the case of damage to the skin barrier, creating a portal of entry for exogenous microorganisms, epithelial cells respond rapidly to close the wound by increasing cell proliferation. In addition, the remodeling of affected tissue occurs and the migration of epithelial and immunocompetent cells to the site of infection is facilitated [49,50].
Among the genes allocated to the functional category of epidermal cell differentiation, the most modulated gene was CASP14 (log2 fold change: 3.74), which encodes caspase 14 (Table 4). This is the only caspase not involved in apoptotic pathways [51,52] and an increase in its expression is associated with the differentiation of keratinocytes into corneocytes [53,54], demonstrating a low accumulation of filaggrin fragments in the stratum corneum and increased epithelial water loss in caspase 14-deficient mice. Thus, the induction of CASP14 expression might be related to the increased differentiation of keratinocytes into corneocytes in an attempt to strengthen the epithelial barrier. Another possibility is that the increased expression of the CASP14 gene is involved in the repair of damage caused by the repression of the FLG and KRT1 genes as a host defense response during infection with T. rubrum.
Regarding the functional category containing genes involved in the regulation of cell migration, the induction of the MMP9 gene (log2 fold change: 1.46), which encodes matrix metalloproteinase 9, should be highlighted (Table 4). In addition to the role of matrix metalloproteinases in the remodeling of damaged tissues through the degradation of extracellular matrix, studies have shown that matrix metalloproteinase 9 is necessary for the migration of inflammatory cells to the epidermis [55]. Considering the data available so far, the induction of this gene may indicate an important role in the regulation of the flow of immunocompetent cells through the epidermal compartment in infections caused by T. rubrum. Since this protein is produced in its inactive form [56], the present results do not permit to establish whether the matrix metalloproteinase 9 becomes active in keratinocytes during dermatophyte infections. Furthermore, the increased expression of this enzyme in its active form may be associated with an increase in inflammation and the occurrence of ulcers in some diseases such as ocular herpes [57] and leishmaniasis [58], in addition to facilitating the dissemination of the pathogen through tissues by excessive cleavage of collagen IV present in the basement membrane [59].
With respect to other genes involved in the regulation of cell migration, the induction of the HAS2 gene was observed (log2 fold change: 1.46), which encodes hyaluronan synthase 2, an enzyme that participates in the synthesis of hyaluronic acid. This acid is one of the main components of the extracellular matrix and plays an important role in the repair of damaged tissues, contributing to the activation of inflammatory cells and the stimulation of chemokines and cytokines through its interaction with Toll-like receptors [60]. Studies also indicate a potential antifungal effect of hyaluronic acid, which inhibits the growth of C. albicans in vitro [61].

4.5. The Induction of Genes Involved in the Immune Response of Human Keratinocytes that Encode Compounds with Antimicrobial Activity

Among the functional categories studied, the most important to be evaluated during the fungal-host interaction are those containing the set of genes involved in the human cellular defense. These genes participate not only in the signaling and recruitment of immune system cells, but also in the production of compounds by the host that have a potential antimicrobial effect. These include genes allocated to the MAPK cascade involved in the innate immune response and antimicrobial humoral immune response categories (Table 4).
As an innate cellular defense mechanism, keratinocytes produce peptides with antimicrobial activity, such as cathelicidins, defensins, and ribonucleases [62]. We observed the induction of the RNASE7 gene (log2 fold change: 2.27) that encodes ribonuclease 7. This ribonuclease is known for its marked antimicrobial activity against Gram-positive and -negative bacteria, C. albicans [63] and dermatophytes [64], suggesting its use as a new antifungal agent.
Compounds that can be used as new approaches to the treatment of fungal diseases are increasingly being explored because of the growing resistance of pathogenic fungi to conventional antifungal agents [65]. In addition to the RNASE7 gene, we highlight the induction of the CSF2 gene (log2 fold change: 2.86), which encodes the cytokine granulocyte-macrophage colony-stimulating factor (GM-CSF). Studies indicate the clinical use of this cytokine as an immunological adjuvant for the treatment of fungal diseases. GM-CSF has already been used to treat neutropenic patients undergoing chemotherapy, HIV-infected patients, and bone marrow transplant recipients [66,67]. The effects of this cytokine have been evaluated in species of the genera Candida [68] and Aspergillus [69], administered alone or in combination with other commercial antifungals.
The induction of the CSF2 and RNASE7 genes during co-culture of human keratinocytes with T. rubrum may indicate an important cellular defense response of the host when in contact with this fungus since both genes encode compounds with antimicrobial activity. Furthermore, the production of these compounds favors the recruitment of immunocompetent cells to the affected sites that are important for the host’s innate immune mechanisms [63,70,71]
Another gene that was found to be induced in this study and that is also known for its antimicrobial activity is SLC11A1. This gene encodes an integral membrane protein [72] that mediates the transport of divalent ions, activating macrophages and exerting other pleiotropic effects on the innate immune system [73]. The available data indicate that this protein protects the host against intracellular pathogens such as Salmonella by controlling iron homeostasis inside macrophages, limiting the access of the pathogen to this essential element inside the host, and by concomitantly promoting an increase in the production of antimicrobial effector molecules [72].
Although more elucidated in macrophages, the increased expression of this gene was also observed in keratinocytes of patients with severe burns, suggesting that this gene participates in the innate immune response in the presence of tissue injury [74]. Tissue damage also occurs in dermatophytoses as a result of the secretion of keratinolytic proteases by the fungus. We, therefore, suggest that the induction of this gene during co-culture of keratinocytes with T. rubrum may be associated with a defense mechanism of the host, since the SLC11A1 gene can also exert some signaling effects on the immune system such as macrophage activation, the regulation of interleukin 1-β, and the induction of iNOS, major histocompatibility (MHC) class II molecules, and tumor necrosis factor α (TNFα), among others [75,76]. However, more in-depth studies are necessary to elucidate this possible mechanism of defense

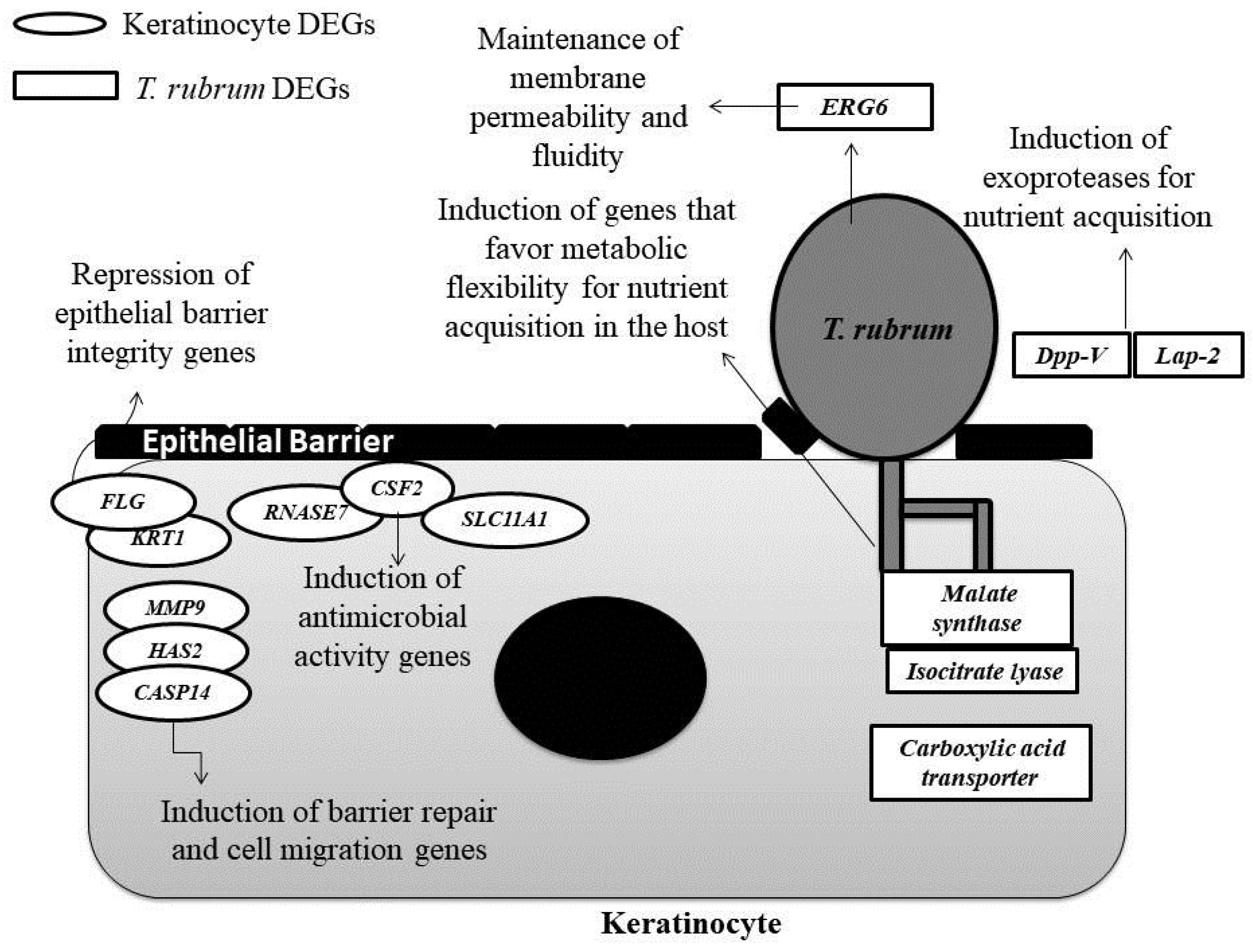

In summary, within the complex interaction between the fungus and host, we highlight the importance of the modulation of expression of T. rubrum genes that contribute to the acquisition and assimilation of nutrients. In this respect, genes responsible for the secretion of keratinolytic proteases (TERG_12606; TERG_08405) and metabolic adaptation (TERG_01281; TERG_11638; TERG_11639; TERG_00916) were found to be induced, as well as the ERG6 gene that is responsible for maintaining the integrity and permeability of the plasma membrane. In contrast, in the presence of keratinocytes, genes encoding proteins with antimicrobial activity (RNASE7; SLC11A1; CSF2) and genes involved in the maintenance of the skin barrier (MMP9; HAS2; CASP14) are induced, while two genes essential for the stability and integrity of the skin barrier (FLG; KRT1) are repressed (Figure 4). Considering the limited knowledge, the use of dual RNA-seq allowed for a better understanding of some of the molecular mechanisms involved in the T. rubrum-host relationship.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/9/7/362/s1, Figure S1: The distribution of differentially expressed genes after 24 h of co-culture. The red points indicate differentially expressed genes. Table S1: The general features of dual RNA-seq sequences against reference genomes. CBS I, CBS II, CBS III: T. rubrum libraries; CO I, CO II, CO III: co-culture libraries; H I, H II, H III: human keratinocyte libraries. The libraries were constructed in triplicate, with I, II and III corresponding to the sample number of each condition. PE: paired-end sequence; SR: single read sequence. Table S2: The complete list of genes differentially expressed in keratinocytes after 24 h of co-culture. Table S3: The complete list of genes differentially expressed in T. rubrum after 24 h of co-culture. Table S4: The primers used for qPCR analysis.

Author Contributions

M.F.P. performed the laboratory experiments and bioinformatics analysis and wrote the manuscript. K.P. and W.A.d.S.J. constructed the libraries and performed the sequencing. P.R.S. performed the bioinformatics analysis. T.T.K. performed the co-culture experiments. J.B.M. helped with the laboratory experiments. R.O.B. discussed the manuscript. N.M.M.-R. supervised the bioinformatics analysis. M.M. supervised the research and contributed reagents and materials. A.L.F. designed the project, supervised the research, contributed reagents/materials/analysis tools, and wrote the manuscript. All authors have read and approved the final version of the manuscript.

Funding

This study was supported by grants from Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP, 2016/22701-9) and CAPES (PhD fellowships granted to MFP and TTK).

Acknowledgments

We thank the Multiuser Electron Microscopy Laboratory of the Department of Cellular and Molecular Biology, Ribeirão Preto Medical School, for the electron microscopy experiment, and Nilce M. Martinez-Rossi for kindly providing the CBS T. rubrum strain.

Conflicts of Interest

The authors declare that they have no competing interests.

References

  1. Bouchara, J.P.; Mignon, B.; Chaturvedi, V. Dermatophytes and dermatophytoses: a thematic overview of state of the art, and the directions for future research and developments. Mycopathologia 2017, 182, 1–4. [Google Scholar] [CrossRef] [PubMed]
  2. Rodwell, G.E.; Bayles, C.L.; Towersey, L.; Aly, R. The prevalence of dermatophyte infection in patients infected with human immunodeficiency virus. Int. J. Dermatol. 2008, 47, 339–343. [Google Scholar] [CrossRef] [PubMed]
  3. Romano, C.; Massai, L.; Asta, F.; Signorini, A.M. Prevalence of dermatophytic skin and nail infections in diabetic patients. Mycoses 2001, 44, 83–86. [Google Scholar] [CrossRef] [PubMed]
  4. Aly, R. Ecology and epidemiology of dermatophyte infections. J. Am. Acad. Dermatol. 1994, 31, S21–S25. [Google Scholar] [CrossRef]
  5. Havlickova, B.; Czaika, V.A.; Fredrich, M. Epidemiological trends in skin mycosis worldwide. Mycosis 2008, 51, 2–15. [Google Scholar] [CrossRef] [PubMed]
  6. Hube, B.; Hay, R.; Brasch, J.; Veraldi, S.; Schaller, M. Dermatomycoses and inflammation: The adaptive balance between growth, damage, and survival. J. Mycol. Med. 2015, 25, e44–e58. [Google Scholar] [CrossRef] [PubMed]
  7. Achterman, R.R.; White, T.C. A foot in the door for dermatophyte research. PLoS Pathog. 2012, 8, 6–9. [Google Scholar] [CrossRef] [PubMed]
  8. Wolf, T.; Kämmer, P.; Brunke, S.; Linde, J. Two’s company: Studying interspecies relationships with dual RNA-seq. Curr. Opin. Microbiol. 2018, 42, 7–12. [Google Scholar] [CrossRef] [PubMed]
  9. Aprianto, R.; Slager, J.; Holsappel, S.; Veening, J.-W. Time-resolved dual RNA-seq reveals extensive rewiring of lung epithelial and pneumococcal transcriptomes during early infection. Genome Biol. 2016, 17, 198. [Google Scholar] [CrossRef] [PubMed]
  10. Wesolowska-Andersen, A.; Everman, J.L.; Davidson, R.; Rios, C.; Herrin, R.; Eng, C.; Janssen, W.J.; Liu, A.H.; Oh, S.S.; Kumar, R.; et al. Dual RNA-seq reveals viral infections in asthmatic children without respiratory illness which are associated with changes in the airway transcriptome. Genome Biol. 2017, 18, 12. [Google Scholar] [CrossRef] [PubMed]
  11. Tierney, L.; Linde, J.; Müller, S.; Brunke, S.; Molina, J.C.; Hube, B.; Schöck, U.; Guthke, R.; Kuchler, K. An interspecies regulatory network inferred from simultaneous RNA-seq of Candida albicans invading innate immune cells. Front. Microbiol. 2012, 3, 1–14. [Google Scholar] [CrossRef] [PubMed]
  12. Meyer, F.E.; Shuey, L.S.; Naidoo, S.; Mamni, T.; Berger, D.K.; Myburg, A.A.; Van den Berg, N.; Naidoo, S. Dual RNA-sequencing of Eucalyptus nitens during Phytophthora cinnamomi challenge reveals pathogen and host factors influencing compatibility. Front. Plant Sci. 2016, 7, 1–15. [Google Scholar] [CrossRef] [PubMed]
  13. Komoto, T.T.; Bitencourt, T.A.; Silva, G.; Beleboni, R.O.; Marins, M.; Fachin, A.L. Gene expression response of Trichophyton rubrum during coculture on keratinocytes exposed to antifungal agents. Evid. Based Complement. Altern. Med. 2015, 2015, 1–7. [Google Scholar] [CrossRef] [PubMed]
  14. Santiago, K.; Bomfim, G.F.; Criado, P.R.; Almeida, S.R. Monocyte-derived dendritic cells from patients with dermatophytosis restrict the growth of Trichophyton rubrum and induce CD4-T cell activation. PLoS ONE 2014, 9, e110879. [Google Scholar] [CrossRef] [PubMed]
  15. Edgar, R. Gene Expression Omnibus: NCBI gene expression and hybridization array data repository. Nucleic Acids Res. 2002, 30, 207–210. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Langmead, B.; Salzberg, S.L. Fast gapped-read alignment with Bowtie 2. Nat. Methods 2012, 9, 357–359. [Google Scholar] [CrossRef] [PubMed][Green Version]
  17. Anders, S.; Huber, W. Differential expression analysis for sequence count data. Genome Biol. 2010, 11, 1–12. [Google Scholar] [CrossRef] [PubMed]
  18. Blake, J.A.; Harris, M.A. The Gene Ontology (GO) Project: Structured vocabularies for molecular biology and their application to genome and expression analysis. In Current Protocols in Bioinformatics; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2008; pp. 1–9. ISBN 0471250953. [Google Scholar]
  19. Gotz, S.; García-Gómez, J.M.; Terol, J.; Williams, T.D.; Nagaraj, S.H.; Nueda, M.J.; Robles, M.; Talón, M.; Dopazo, J.; Conesa, A. High-throughput functional annotation and data mining with the Blast2GO suite. Nucleic Acids Res. 2008, 36, 3420–3435. [Google Scholar] [CrossRef] [PubMed][Green Version]
  20. Vêncio, R.Z.N.; Koide, T.; Gomes, S.L.; de Pereira, C.A.B. BayGO: Bayesian analysis of ontology term enrichment in microarray data. BMC Bioinf. 2006, 7, 86. [Google Scholar] [CrossRef] [PubMed][Green Version]
  21. Chen, E.Y.; Tan, C.M.; Kou, Y.; Duan, Q.; Wang, Z.; Meirelles, G.; Clark, N.R.; Ma’ayan, A. Enrichr: Interactive and collaborative HTML5 gene list enrichment analysis tool. BMC Bioinf. 2013, 14, 128. [Google Scholar] [CrossRef] [PubMed]
  22. Kuleshov, M.V.; Jones, M.R.; Rouillard, A.D.; Fernandez, N.F.; Duan, Q.; Wang, Z.; Koplev, S.; Jenkins, S.L.; Jagodnik, K.M.; Lachmann, A.; et al. Enrichr: A comprehensive gene set enrichment analysis web server 2016 update. Nucleic Acids Res. 2016, 44, W90–W97. [Google Scholar] [CrossRef] [PubMed]
  23. Ma, R.; Zhang, D.; Hu, P.-C.; Li, Q.; Lin, C.-Y. HOXB7-S3 inhibits the proliferation and invasion of MCF-7 human breast cancer cells. Mol. Med. Rep. 2015, 4901–4908. [Google Scholar] [CrossRef] [PubMed]
  24. Dai, Z.; Ma, X.; Kang, H.; Gao, J.; Min, W.; Guan, H.; Diao, Y.; Lu, W.; Wang, X. Antitumor activity of the selective cyclooxygenase-2 inhibitor, celecoxib, on breast cancer in vitro and in vivo. Cancer Cell Int. 2012, 19, 1–8. [Google Scholar] [CrossRef] [PubMed]
  25. Bitencourt, T.A.; Komoto, T.T.; Massaroto, B.G.; Miranda, C.E.S.; Beleboni, R.O.; Marins, M.; Fachin, A.L. Trans-chalcone and quercetin down-regulate fatty acid synthase gene expression and reduce ergosterol content in the human pathogenic dermatophyte Trichophyton rubrum. BMC Complement. Altern. Med. 2013, 13, 229. [Google Scholar] [CrossRef] [PubMed]
  26. Jacob, T.R.; Peres, N.T.A.; Persinoti, G.F.; Silva, L.G.; Mazucato, M.; Rossi, A.; Martinez-Rossi, N.M. Rpb2 is a reliable reference gene for quantitative gene expression analysis in the dermatophyte Trichophyton rubrum. Med. Mycol. 2012, 50, 368–377. [Google Scholar] [CrossRef] [PubMed]
  27. Westermann, A.J.; Barquist, L.; Vogel, J. Resolving host–pathogen interactions by dual RNA-seq. PLoS Pathog. 2017, 13, 1–19. [Google Scholar] [CrossRef] [PubMed]
  28. Kawahara, Y.; Oono, Y.; Kanamori, H.; Matsumoto, T.; Itoh, T.; Minami, E. Simultaneous RNA-seq analysis of a mixed transcriptome of rice and blast fungus interaction. PLoS ONE 2012, 7, e49423. [Google Scholar] [CrossRef] [PubMed]
  29. Abadio, A.K.R.; Kioshima, E.S.; Teixeira, M.M.; Martins, N.F.; Maigret, B.; Felipe, M.S.S. Comparative genomics allowed the identification of drug targets against human fungal pathogens. BMC Genom. 2011, 12, 75. [Google Scholar] [CrossRef] [PubMed][Green Version]
  30. Baldo, A.; Monod, M.; Mathy, A.; Cambier, L.; Bagut, E.T.; Defaweux, V.; Symoens, F.; Antoine, N.; Mignon, B. Mechanisms of skin adherence and invasion by dermatophytes. Mycoses 2012, 55, 218–223. [Google Scholar] [CrossRef] [PubMed]
  31. Peres, N.T.D.A.; Maranhão, F.C.A.; Rossi, A.; Martinez-Rossi, N.M. Dermatophytes: Host-pathogen interaction and antifungal resistance. An. Bras. Dermatol. 2010, 85, 657–667. [Google Scholar] [CrossRef] [PubMed]
  32. Bitencourt, T.A.; Macedo, C.; Franco, M.E.; Assis, A.F.; Komoto, T.T.; Stehling, E.G.; Beleboni, R.O.; Malavazi, I.; Marins, M.; Fachin, A.L. Transcription profile of Trichophyton rubrum conidia grown on keratin reveals the induction of an adhesin-like protein gene with a tandem repeat pattern. BMC Genom. 2016, 17, 249. [Google Scholar] [CrossRef] [PubMed]
  33. Monod, M.; Léchenne, B.; Jousson, O.; Grand, D.; Zaugg, C.; Stöcklin, R.; Grouzmann, E. Aminopeptidases and dipeptidyl-peptidases secreted by the dermatophyte Trichophyton rubrum. Microbiology 2005, 151, 145–155. [Google Scholar] [CrossRef] [PubMed]
  34. Leng, W.; Liu, T.; Wang, J.; Li, R.; Jin, Q. Expression dynamics of secreted protease genes in Trichophyton rubrum induced by key host’s proteinaceous components. Med. Mycol. 2009, 47, 759–765. [Google Scholar] [CrossRef] [PubMed]
  35. Azam, S.S.; Abro, A.; Raza, S.; Saroosh, A. Structure and dynamics studies of sterol 24-C-methyltransferase with mechanism based inactivators for the disruption of ergosterol biosynthesis. Mol. Biol. Rep. 2014, 41, 4279–4293. [Google Scholar] [CrossRef] [PubMed]
  36. Iwaki, T.; Iefuji, H.; Hiraga, Y.; Hosomi, A.; Morita, T.; Giga-Hama, Y.; Takegawa, K. Multiple functions of ergosterol in the fission yeast Schizosaccharomyces pombe. Microbiology 2008, 154, 830–841. [Google Scholar] [CrossRef] [PubMed]
  37. Osborne, C.S.; Leitner, I.; Favre, B.; Neil, S.; Osborne, C.S.; Leitner, I.; Favre, B.; Ryder, N.S. Amino acid substitution in Trichophyton rubrum squalene epoxidase associated with resistance to terbinafine. 2005, 49, 2840–2844. [Google Scholar] [CrossRef] [PubMed]
  38. Gaber, R.F.; Copple, D.M.; Kennedy, B.K.; Vidal, M.; Bard, M. The yeast gene ERG6 is required for normal membrane function but is not essential for biosynthesis of the cell-cycle-sparking sterol. Mol. Cell. Biol. 1989, 9, 3447–3456. [Google Scholar] [CrossRef] [PubMed]
  39. Mayer, F.L.; Wilson, D.; Hube, B. Candida albicans pathogenicity mechanisms. Virulence 2013, 4, 119–128. [Google Scholar] [CrossRef] [PubMed][Green Version]
  40. Cheah, H.L.; Lim, V.; Sandai, D. Inhibitors of the glyoxylate cycle enzyme ICL1 in Candida albicans for potential use as antifungal agents. PLoS ONE 2014, 9. [Google Scholar] [CrossRef] [PubMed]
  41. Fleck, C.B.; Schöbel, F.; Brock, M. Nutrient acquisition by pathogenic fungi: Nutrient availability, pathway regulation, and differences in substrate utilization. Int. J. Med. Microbiol. 2011, 301, 400–407. [Google Scholar] [CrossRef] [PubMed]
  42. Cantelli, B.A.M.; Bitencourt, T.A.; Komoto, T.T.; Beleboni, R.O.; Marins, M.; Fachin, A.L. Caffeic acid and licochalcone A interfere with the glyoxylate cycle of Trichophyton rubrum. Biomed. Pharmacother. 2017. [Google Scholar] [CrossRef] [PubMed]
  43. Vieira, N.; Casal, M.; Johansson, B.; MacCallum, D.M.; Brown, A.J.P.; Paiva, S. Functional specialization and differential regulation of short-chain carboxylic acid transporters in the pathogen Candida albicans. Mol. Microbiol. 2010, 75, 1337–1354. [Google Scholar] [CrossRef] [PubMed][Green Version]
  44. Lee, W.J.; Kim, J.Y.; Song, C.H.; Jung, H.D.; Lee, S.H.; Lee, S.J.; Kim, D.W. Disruption of barrier function in dermatophytosis and pityriasis versicolor. J. Dermatol. 2011, 38, 1049–1053. [Google Scholar] [CrossRef] [PubMed]
  45. Brown, S.J.; Irvine, A.D. Atopic eczema and the filaggrin story. Semin. Cutan. Med. Surg. 2008, 27, 128–137. [Google Scholar] [CrossRef] [PubMed]
  46. McGrath, J.A. Filaggrin and the great epidermal barrier grief. Australas. J. Dermatol. 2008, 49, 67–74. [Google Scholar] [CrossRef] [PubMed]
  47. Jensen, J.-M.; Pfeiffer, S.; Akaki, T.; Schröder, J.-M.; Kleine, M.; Neumann, C.; Proksch, E.; Brasch, J. Barrier function, epidermal differentiation, and human β-defensin 2 expression in Tinea Corporis. J. Investig. Dermatol. 2007, 127, 1720–1727. [Google Scholar] [CrossRef] [PubMed]
  48. Roth, W.; Kumar, V.; Beer, H.-D.; Richter, M.; Wohlenberg, C.; Reuter, U.; Thiering, S.; Staratschek-Jox, A.; Hofmann, A.; Kreusch, F.; et al. Keratin 1 maintains skin integrity and participates in an inflammatory network in skin through interleukin-18. J. Cell Sci. 2012, 125, 5269–5279. [Google Scholar] [CrossRef] [PubMed][Green Version]
  49. Parks, W.; Wilson, C.; López-Boado, Y. Matrix metalloproteinases as modulators of inflammation and innate immunity. Nat. Rev. Immunol. 2004, 4, 617–629. [Google Scholar] [CrossRef] [PubMed]
  50. Purwar, R.; Kraus, M.; Werfel, T.; Wittmann, M. Modulation of keratinocyte-derived MMP-9 by IL-13: A possible role for the pathogenesis of epidermal inflammation. J. Investig. Dermatol. 2008, 128, 59–66. [Google Scholar] [CrossRef] [PubMed]
  51. Hvid, M.; Johansen, C.; Deleuran, B.; Kemp, K.; Deleuran, M.; Vestergaard, C. Regulation of caspase 14 expression in keratinocytes by inflammatory cytokines—A possible link between reduced skin barrier function and inflammation? Exp. Dermatol. 2011, 20, 633–636. [Google Scholar] [CrossRef] [PubMed]
  52. Gkegkes, I.D.; Aroni, K.; Agrogiannis, G.; Patsouris, E.S.; Konstantinidou, A.E. Expression of caspase-14 and keratin-19 in the human epidermis and appendages during fetal skin development. Arch. Dermatol. Res. 2013, 305, 379–387. [Google Scholar] [CrossRef] [PubMed]
  53. Lippens, S.; Kockx, M.; Knaapen, M.; Mortier, L.; Polakowska, R.; Verheyen, A.; Garmyn, M.; Zwijsen, A.; Formstecher, P.; Huylebroeck, D.; et al. Epidermal differentiation does not involve the pro-apoptotic executioner caspases, but is associated with caspase-14 induction and processing. Cell Death Differ. 2000, 7, 1218–1224. [Google Scholar] [CrossRef] [PubMed][Green Version]
  54. Denecker, G.; Hoste, E.; Gilbert, B.; Hochepied, T.; Ovaere, P.; Lippens, S.; Van den Broecke, C.; Van Damme, P.; D’Herde, K.; Hachem, J.-P.; et al. Caspase-14 protects against epidermal UVB photodamage and water loss. Nat. Cell Biol. 2007, 9, 666–674. [Google Scholar] [CrossRef] [PubMed]
  55. Ratzinger, G.; Stoitzner, P.; Ebner, S.; Lutz, M.B.; Layton, G.T.; Rainer, C.; Senior, R.M.; Shipley, J.M.; Fritsch, P.; Schuler, G.; et al. Matrix metalloproteinases 9 and 2 are necessary for the migration of langerhans cells and dermal dendritic cells from human and murine skin. J. Immunol. 2002, 168, 4361–4371. [Google Scholar] [CrossRef] [PubMed]
  56. Visse, R.; Nagase, H. Matrix metalloproteinases and tissue inhibitors of metalloproteinases: Structure, function, and biochemistry. Circ. Res. 2003, 92, 827–839. [Google Scholar] [CrossRef] [PubMed]
  57. Lee, S.; Zheng, M.; Kim, B.; Rouse, B.T. Role of matrix metalloproteinase-9 in angiogenesis caused by ocular infection with herpes simplex virus. J. Clin. Investig. 2002, 110, 1105–1111. [Google Scholar] [CrossRef] [PubMed][Green Version]
  58. Campos, T.M.; Passos, S.T.; Novais, F.O.; Beiting, D.P.; Costa, R.S.; Queiroz, A.; Mosser, D.; Scott, P.; Carvalho, E.M.; Carvalho, L.P. Matrix metalloproteinase 9 production by monocytes is enhanced by TNF and participates in the pathology of human Cutaneous Leishmaniasis. PLoS Negl. Trop. Dis. 2014, 8. [Google Scholar] [CrossRef] [PubMed]
  59. Murphy, G.; Nagase, H. Progress in matrix metalloproteinase research. Mol. Aspects Med. 2009, 29, 290–308. [Google Scholar] [CrossRef] [PubMed]
  60. Jiang, D.; Liang, J.; Noble, P.W. Hyaluronan in tissue injury and repair. Annu. Rev. Cell Dev. Biol. 2007, 23, 435–461. [Google Scholar] [CrossRef] [PubMed]
  61. Sakai, A.; Akifusa, S.; Itano, N.; Kimata, K.; Kawamura, T.; Koseki, T.; Takehara, T.; Nishihara, T. Potential role of high molecular weight hyaluronan in the anti-Candida activity of human oral epithelial cells. Med. Mycol. 2007, 45, 73–79. [Google Scholar] [CrossRef] [PubMed]
  62. Becknell, B.; Spencer, J.D. A Review of ribonuclease 7’s structure, regulation, and contributions to host defense. Int. J. Mol. Sci. 2016, 17, 423. [Google Scholar] [CrossRef] [PubMed]
  63. Harder, J.; Schröder, J.M. RNase 7, a novel innate immune defense antimicrobial protein of healthy human skin. J. Biol. Chem. 2002, 277, 46779–46784. [Google Scholar] [CrossRef] [PubMed]
  64. Fritz, P.; Beck-Jendroschek, V.; Brasch, J. Inhibition of dermatophytes by the antimicrobial peptides human β-defensin-2, ribonuclease 7 and psoriasin. Med. Mycol. 2012, 50, 579–584. [Google Scholar] [CrossRef] [PubMed][Green Version]
  65. Mehra, T.; Köberle, M.; Braunsdorf, C.; Mailänder-Sanchez, D.; Borelli, C.; Schaller, M. Alternative approaches to antifungal therapies. Exp. Dermatol. 2012, 21, 778–782. [Google Scholar] [CrossRef] [PubMed][Green Version]
  66. Hubel, K.; Dale, D.C.; Liles, W.C. Therapeutic use of cytokines to modulate phagocyte function for the treatment of infectious diseases: Current status of granulocyte colony-stimulating factor, granulocyte-macrophage colony-stimulating factor, macrophage colony-stimulating factor, and interferon-gamma. J. Infect. Dis. 2002, 185, 1490–1501. [Google Scholar] [CrossRef] [PubMed]
  67. Shi, Y.; Liu, C.H.; Roberts, A.I.; Das, J.; Xu, G.; Ren, G.; Zhang, Y.; Zhang, L.; Yuan, Z.R.; Tan, H.S.W.; et al. Granulocyte-macrophage colony-stimulating factor (GM-CSF) and T-cell responses: What we do and don’t know. Cell Res. 2006, 16, 126–133. [Google Scholar] [CrossRef] [PubMed]
  68. Liehl, E.; Hildebrandt, J.; Lam, C.; Mayer, P. Prediction of the role of granulocyte-macrophage colony-stimulating factor in animals and man from in vitro results. Eur. J. Clin. Microbiol. Infect. Dis. 1994, 13, 9–17. [Google Scholar] [CrossRef]
  69. Bodey, G.P.; Anaissie, E.; Gutterman, J.; Vadhan-Raj, S. Role of granulocyte-macrophage colony-stimulating factor as adjuvant treatment in neutropenic patients with bacterial and fungal infection. Eur. J. Clin. Microbiol. Infect. Dis. 1994, 13 (Suppl. 2), S18–S22. [Google Scholar] [CrossRef] [PubMed]
  70. Hamilton, J.A. GM-CSF in inflammation and autoimmunity. Trends Immunol. 2002, 23, 403–408. [Google Scholar] [CrossRef]
  71. Rademacher, F.; Simanski, M.; Harder, J. RNase 7 in cutaneous defense. Int. J. Mol. Sci. 2016, 17. [Google Scholar] [CrossRef] [PubMed]
  72. Nairz, M.; Fritsche, G.; Crouch, M.L.V.; Barton, H.C.; Fang, F.C.; Weiss, G. Slc11a1 limits intracellular growth of Salmonella enterica sv. Typhimurium by promoting macrophage immune effector functions and impairing bacterial iron acquisition. Cell. Microbiol. 2009, 11, 1365–1381. [Google Scholar] [CrossRef] [PubMed]
  73. Stober, C.B.; Brode, S.; White, J.K.; Popoff, J.-F.; Blackwell, J.M. Slc11a1, formerly Nramp1, is expressed in dendritic cells and influences major histocompatibility complex class II expression and antigen-presenting cell function. Infect. Immun. 2007, 75, 5059–5067. [Google Scholar] [CrossRef] [PubMed]
  74. Noronha, S.A.; Noronha, S.M.; Lanziani, L.E.; Ferreira, L.M.; Gragnani, A. Innate and adaptive immunity gene expression of human keratinocytes cultured of severe burn injury. Acta Cir. Bras. 2014, 29 (Suppl. 3), 60–67. [Google Scholar] [CrossRef] [PubMed][Green Version]
  75. Blackwell, J.M.; Searle, S.; Goswami, T.; Miller, E.N. Understanding the multiple functions of Nrampl. Microbes Infect. 2000, 2, 317–321. [Google Scholar] [CrossRef]
  76. Blackwell, J.M.; Goswami, T.; Evans, C.A.W.; Sibthorpe, D.; Papo, N.; White, J.K.; Searle, S.; Miller, E.N.; Peacock, C.S.; Mohammed, H.; et al. SLC11A1 (formerly NRAMP1) and disease resistance. Cell. Microbiol. 2001, 3, 773–784. [Google Scholar] [CrossRef] [PubMed]
Figure 1. The transmission electron microscopy of the Trichophyton rubrum-HaCat co-culture after 24 h. (A) Human keratinocytes (HaCat) keratinocyte as the control (14kx); (B) Co-culture (14kx). The arrow indicates a fragment of T. rubrum hyphae inside the HaCat cells.
Figure 1. The transmission electron microscopy of the Trichophyton rubrum-HaCat co-culture after 24 h. (A) Human keratinocytes (HaCat) keratinocyte as the control (14kx); (B) Co-culture (14kx). The arrow indicates a fragment of T. rubrum hyphae inside the HaCat cells.
Genes 09 00362 g001

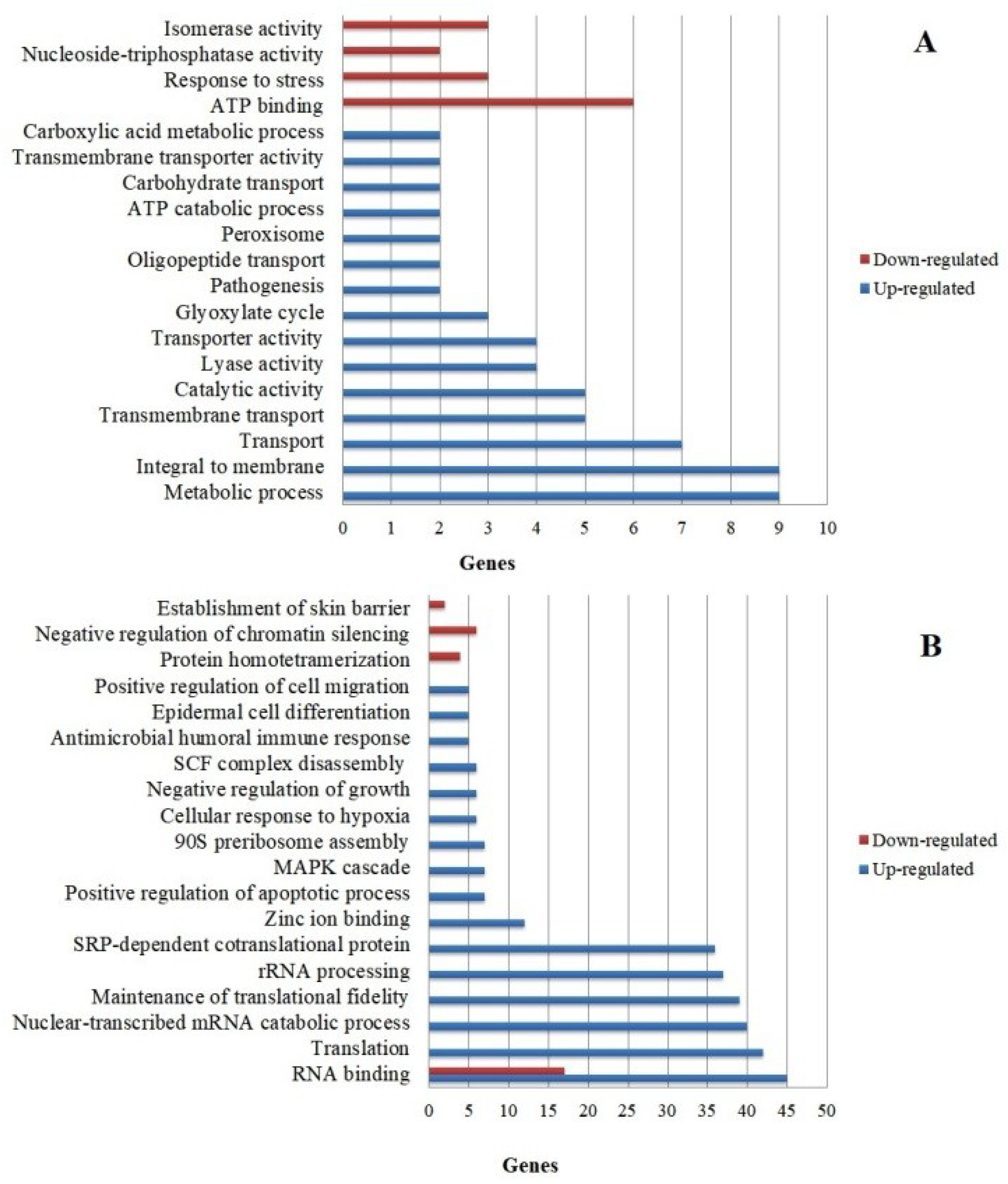

Figure 2. The gene Ontology-based functional categorization of differentially expressed genes. The main representative functional categories (p < 0.05) of genes differentially expressed in T. rubrum (A) and HaCat (B).
Figure 2. The gene Ontology-based functional categorization of differentially expressed genes. The main representative functional categories (p < 0.05) of genes differentially expressed in T. rubrum (A) and HaCat (B).
Genes 09 00362 g002
Figure 3. The comparison of gene modulation obtained by RNA-seq and quantitative PCR (qPCR). The error bars represent the standard error of three independent replicates. Pearson’s test indicated a strong correlation between the two techniques (r = 0.80; p < 0.01).
Figure 3. The comparison of gene modulation obtained by RNA-seq and quantitative PCR (qPCR). The error bars represent the standard error of three independent replicates. Pearson’s test indicated a strong correlation between the two techniques (r = 0.80; p < 0.01).
Genes 09 00362 g003
Figure 4. The schematic overview of the T. rubrum-keratinocyte interaction. The genes differentially expressed (DEGs) during host-pathogen interaction discussed in this paper are shown.
Figure 4. The schematic overview of the T. rubrum-keratinocyte interaction. The genes differentially expressed (DEGs) during host-pathogen interaction discussed in this paper are shown.
Genes 09 00362 g004
Table 1. The major up- and down-regulated genes in HaCat cells after 24 h of co-culture.
Table 1. The major up- and down-regulated genes in HaCat cells after 24 h of co-culture.
IDGene Product NameLog2 Fold Change
SLC9A2Sodium/hydrogen exchanger 25.01
ANGPTL4Angiopoietin-related protein 44.71
DESDesmin4.53
C4orf47UPF0602 protein C4orf474.51
KISS1RKiSS-1 receptor4.49
NSA2Ribosome biogenesis protein NSA2 homolog4.35
HIST1H3CHistone cluster 1 H3 family member c4.04
SEC11CSignal peptidase complex catalytic subunit3.87
KPNA7Importin subunit alpha-83.83
CASP14Caspase 143.74
SLC2A3Facilitated glucose transporter member 33.73
ALDOCFructose-bisphosphate aldolase C3.70
MT1BMetallothionein-1B3.62
SERPINE1Plasminogen activator inhibitor 13.55
MAFTranscription factor Maf3.54
CA9Carbonic anhydrase 93.36
TGM2Transglutaminase 23.35
PADI1Protein-arginine deiminase type-13.29
STC1Stanniocalcin 13.14
BNIP3BCL2 interacting protein 33.08
LSSLanosterol synthase3.06
MT1HMetallothionein 1H3.05
MT1XMetallothionein 1X2.97
PLA2G2FGroup IIF secretory phospholipase A22.96
CALB1Calbindin 12.93
POTEMPutative POTE ankyrin domain family member M−5.31
SNORA51Small nucleolar RNA. H/ACA box−4.90
ANP32A-IT1ANP32A intronic transcript 1−4.64
UCKL1Uridine-cytidine kinase 1 like 1−4.50
FNDC3BFibronectin type III domain containing−4.37
KRT1Keratin 1−4.02
MMP12Matrix metallopeptidase 12−3.22
NSD1Nuclear receptor binding SET domain−3.06
CYCSP52Cytochrome c. somatic pseudogene−3.02
EME2Essential meiotic structure-specific endonuclease subunit 2−3.00
COL12A1Collagen type XII alpha 1 chain−2.88
SNORD45ASmall nucleolar RNA. C/D box−2.82
FBXL19-AS1FBXL19 antisense RNA 1 (head to head)−2.80
TRIM26Tripartite motif containing 26−2.76
IARSIsoleucyl-tRNA synthetase−2.76
KIF14Kinesin family member 14−2.74
MEGF8Multiple EGF like domains 8−2.67
HNRNPLHeterogeneous nuclear ribonucleoprotein−2.66
Table 2. The major up- and down-regulated genes in T. rubrum after 24 h of co-culture.
Table 2. The major up- and down-regulated genes in T. rubrum after 24 h of co-culture.
IDGene Product NameLog2 Fold Change
TERG_12606Dipeptidyl peptidase V (DPPV)2.16
TERG_01280Hypothetical protein 2.06
TERG_03102Sterol 24-C-methyltransferase- ERG62.05
TERG_08104Potassium/sodium efflux P-type ATPase1.98
TERG_01281Malate synthase1.72
TERG_04399Phthalate transporter1.62
TERG_00215MFS peptide transporter1.47
TERG_00348Galactose-proton symporter1.47
TERG_02811Hypothetical protein 1.42
TERG_12645Hypothetical protein1.40
TERG_07017Oxidoreductase1.35
TERG_083331-pyrroline-5-carboxylate dehydrogenase1.34
TERG_02671Hypothetical protein1.34
TERG_02023Extracellular matrix protein1.32
TERG_08405Leucine aminopeptidase 21.30
TERG_00916Carboxylic acid transporter1.29
TERG_11638Isocitrate lyase1.28
TERG_04952ABC transporter1.26
TERG_01406Hypothetical protein −2.91
TERG_07726Hypothetical protein−2.25
TERG_03174MFS siderochrome iron transporter−1.99
TERG_06355Hypothetical protein −1.90
TERG_07035Hypothetical protein−1.85
TERG_04156Hypothetical protein−1.77
TERG_05655AN1 zinc finger protein−1.73
TERG_01622Hypothetical protein−1.63
TERG_07477Hypothetical protein −1.57
TERG_06186Protein disulfide-isomerase domain-containing protein−1.57
TERG_03708Hypothetical protein −1.53
TERG_03855Hypothetical protein −1.50
TERG_00499Hypothetical protein−1.45
TERG_03175Hypothetical protein −1.45
TERG_04073Glutathione synthetase−1.41
TERG_12563Hypothetical protein−1.37
TERG_08139NAD dependent epimerase/dehydratase−1.34
TERG_06963Hsp90-like protein−1.33
TERG_01731Hypothetical protein−1.32
TERG_04006Rho guanyl nucleotide exchange factor−1.32
Table 3. Some functional categories and related genes important for the pathogenesis of T. rubrum.
Table 3. Some functional categories and related genes important for the pathogenesis of T. rubrum.
IDGene Product NameLog2 Fold Change
Metabolic process
TERG_03102Sterol 24-C-methyltransferase2.05
TERG_08104Sodium transport ATPase1.98
TERG_02811Hypothetical protein1.40
TERG_08333Delta 1-pyrroline-5-carboxylate dehydrogenase1.34
TERG_11638Isocitrate lyase1.26
TERG_01270AMP-dependent ligase1.13
TERG_07691Nonspecific lipid-transfer protein1.13
TERG_07222Carbonic anhydrase1.05
Transmembrane transport
TERG_04399Phthalate transporter (MFS transporter)1.62
TERG_00348Galactose-proton symporter (MFS transporter)1.42
TERG_00916Carboxylic acid transporter (MFS transporter)1.28
TERG_04952ABC transporter1.25
TERG_04356Amino acid permease1.06
Pathogenesis
TERG_12606Dipeptidyl peptidase V2.16
TERG_08405Leucine Aminopeptidase 21.29
Glyoxylate cycle
TERG_01281Malate synthase1.72
TERG_11638Isocitrate lyase1.26
TERG_11639Isocitrate lyase1.13
Table 4. Some functional categories and related genes important for human host defense.
Table 4. Some functional categories and related genes important for human host defense.
IDGene Product NameLog2 Fold Change
Positive regulation of cell migration
TCAF2TRPM8 channel-associated factor 22.11
MMP9Matrix metalloproteinase-92.06
LAMC2Laminin subunit gamma-21.97
HBEGFProheparin-binding EGF-like growth factor1.84
HAS2Hyaluronan synthase 21.46
MAPK cascade involved in the innate immune response
CSF2Granulocyte-macrophage colony-stimulating factor2.86
HBEGFProheparin-binding EGF-like growth factor1.84
DUSP5Dual specificity protein phosphatase 51.57
PSMB3Proteasome subunit beta type-31.46
PPP5CSerine/threonine-protein phosphatase 51.37
PSMB2Proteasome subunit beta type-21.28
UBBPolyubiquitin-B1.24
Antimicrobial humoral immune response
SERPINE1Plasminogen activator inhibitor 13.55
SLC11A1Natural resistance-associated macrophage protein 12.28
RNASE7Ribonuclease 72.27
RPS1940S ribosomal protein S191.66
RPL3060S ribosomal protein L301.41
Epidermal cell differentiation
CASP14Caspase-143.74
ALDOCFructose-bisphosphate aldolase C3.70
AKR1C1Aldo-keto reductase family2.80
LAMC2Laminin subunit gamma-21.97
PGK1Phosphoglycerate kinase 11.62
Establishment of the skin barrier
KRT1Keratin type II cytoskeletal 1−4.02
FLGFilaggrin−1.86

Share and Cite

MDPI and ACS Style

Petrucelli, M.F.; Peronni, K.; Sanches, P.R.; Komoto, T.T.; Matsuda, J.B.; Silva, W.A.d., Jr.; Beleboni, R.O.; Martinez-Rossi, N.M.; Marins, M.; Fachin, A.L. Dual RNA-Seq Analysis of Trichophyton rubrum and HaCat Keratinocyte Co-Culture Highlights Important Genes for Fungal-Host Interaction. Genes 2018, 9, 362. https://doi.org/10.3390/genes9070362

AMA Style

Petrucelli MF, Peronni K, Sanches PR, Komoto TT, Matsuda JB, Silva WAd Jr., Beleboni RO, Martinez-Rossi NM, Marins M, Fachin AL. Dual RNA-Seq Analysis of Trichophyton rubrum and HaCat Keratinocyte Co-Culture Highlights Important Genes for Fungal-Host Interaction. Genes. 2018; 9(7):362. https://doi.org/10.3390/genes9070362

Chicago/Turabian Style

Petrucelli, Monise Fazolin, Kamila Peronni, Pablo Rodrigo Sanches, Tatiana Takahasi Komoto, Josie Budag Matsuda, Wilson Araújo da Silva Jr., Rene Oliveira Beleboni, Nilce Maria Martinez-Rossi, Mozart Marins, and Ana Lúcia Fachin. 2018. "Dual RNA-Seq Analysis of Trichophyton rubrum and HaCat Keratinocyte Co-Culture Highlights Important Genes for Fungal-Host Interaction" Genes 9, no. 7: 362. https://doi.org/10.3390/genes9070362

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
