Stargardt-like Clinical Characteristics and Disease Course Associated with Variants in the WDR19 Gene

by
Jana Sajovic
1,
Andrej Meglič
1,
Marija Volk
2,
Aleš Maver
2,
Martina Jarc-Vidmar
1,3,
Marko Hawlina
1,3 and
Ana Fakin
1,3,*
1
Eye Hospital, University Medical Centre Ljubljana, Grablovičeva 46, 1000 Ljubljana, Slovenia
2
Clinical Institute of Genomic Medicine, University Medical Centre Ljubljana, Šlajmerjeva 4, 1000 Ljubljana, Slovenia
3
Faculty of Medicine, University of Ljubljana, Vrazov trg 2, 1000 Ljubljana, Slovenia
*
Author to whom correspondence should be addressed.
Genes 2023, 14(2), 291; https://doi.org/10.3390/genes14020291
Submission received: 10 December 2022 / Revised: 11 January 2023 / Accepted: 19 January 2023 / Published: 22 January 2023
(This article belongs to the Special Issue Genetics in Inherited Retinal Diseases)
Browse Figures
Review Reports Versions Notes

Abstract

:
Variants in WDR19 (IFT144) have been implicated as another possible cause of Stargardt disease. The purpose of this study was to compare longitudinal multimodal imaging of a WDR19-Stargardt patient, harboring p.(Ser485Ile) and a novel c.(3183+1_3184-1)_(3261+1_3262-1)del variant, with 43 ABCA4-Stargardt patients. Age at onset, visual acuity, Ishihara color vision, color fundus, fundus autofluorescence (FAF), spectral-domain optical coherence tomography (OCT) images, microperimetry and electroretinography (ERG) were evaluated. First symptom of WDR19 patient was nyctalopia at the age of 5 years. After the age of 18 years, OCT showed hyper-reflectivity at the level of the external limiting membrane/outer nuclear layer. There was abnormal cone and rod photoreceptor function on ERG. Widespread fundus flecks appeared, followed by perifoveal photoreceptor atrophy. Fovea and peripapillary retina remained preserved until the latest exam at 25 years of age. ABCA4 patients had median age of onset at 16 (range 5–60) years and mostly displayed typical Stargardt triad. A total of 19% had foveal sparing. In comparison to ABCA4 patients, the WDR19 patient had a relatively large foveal preservation and severe rod photoreceptor impairment; however, it was still within the ABCA4 disease spectrum. Addition of WDR19 in the group of genes producing phenocopies of Stargardt disease underlines the importance of genetic testing and may help to understand its pathogenesis.

1. Introduction

Stargardt disease (STGD1, OMIM# 248200), also known as fundus flavimaculatus or ABCA4-retinopathy, is the most frequent retinal dystrophy caused by a single gene, characterized by a progressive degeneration of the retinal pigment epithelium (RPE) and photoreceptors [1,2,3]. It is classically caused by bi-allelic variants in the ABCA4 gene, localized on chromosome 1p22.1. ABCA4 gene encodes a transmembrane protein ABCA4, which is present in outer segments of photoreceptors and inner membranes of RPE [4,5,6]. It transports molecules involved in visual transduction, thus being an essential part in the visual cycle, and involved in removal of toxic vitamin A products [7]. Stargardt disease most commonly begins in childhood or adolescence and, although it is known for a very heterogeneous phenotypic appearance, typical Stargardt triad of central atrophy of RPE/photoreceptors, flecks, and peripapillary sparing is found in most patients [1,3,8]. Fundus appearance is usually classified according to Fishman groups: I—flecks limited to within the vascular arcades, II—fleck-like lesions anterior to the vascular arcades and/or nasal to the optic disc, III—most diffuse flecks resorbed leaving diffuse RPE atrophy, and IV—not only diffusely resorbed fundus flecks and atrophy of the RPE but also diffuse choriocapillaris atrophy. Based on electroretinography (ERG), patients can have either normal peripheral retinal function (ERG group 1) or develop cone/cone-rod dystrophy (ERG group 2 and 3, respectively) [9]. Fovea is typically affected early in the course of disease; however, approximately 20% of patients have a subtype of disease with delayed foveal involvement, i.e., “foveal sparing” [10,11,12,13].
Several other genes have been associated with clinical presentation similar to ABCA4-retinopathy and are important to consider in differential diagnosis. The most frequent phenocopies are caused by variants in ELOVL4, PROM1, and PRPH2 [14,15,16,17,18]. ELOVL4 is located on chromosome 6q14.1 and encodes a protein, present in the endoplasmic reticulum of photoreceptors [19]. It is involved in the biosynthesis of very-long-chain fatty acids (VLC-PUFA) that are enriched in the retina [20]. Stargardt-like phenotype caused by variants in ELOVL4 has been labelled Stargardt type 3 (STGD3, OMIM# 600110) [14,15,16,17]. PROM1 is located on chromosome 4p15.32 and encodes prominin 1, present at the base of the outer segments of photoreceptors, where it plays an important role in the disc morphogenesis, and RPE, where it regulates autophagy [21,22]. Stargardt-like phenotype caused by variants in PROM1 has been labelled Stargardt type 4 (STGD4, OMIM# 603786) [17,18,23,24,25]. PRPH2 is located on chromosome 6p21.1 and encodes peripherin 2, present in outer segments of photoreceptors, where it is involved in the morphogenesis, stabilization, and compaction of outer segment discs and lamellae [26,27]. Stargardt-like phenotype caused by variants in PRPH2 has been labelled multifocal pattern dystrophy simulating fundus flavimaculatus (PDSFF) [28,29]. Other genes that may cause retinal disease with characteristics of Stargardt disease are CRX, BEST1, CDH3, CERKL, RDH12, RPGR, and IMPG1 [1,30,31,32]; however, without all characteristics of the typical Stargardt triad. The term STGD2 was eventually discarded, as it was shown to be caused by the same gene as in STGD3 [19].
Recently another gene, WDR19 (also known as IFT144 or NPHP13), has been implicated in causing Stargardt-like phenotype [33,34]. WDR19 is located on chromosome 4p14 and encodes a ciliary protein named intraflagellar transport 144 protein (IFT144) [35]. WDR19 has been classically associated with ciliopathies involving retinitis pigmentosa (RP), such as Sensenbrenner, Jeune syndrome, [36], nephronophthisis [35], Caroli disease [37] and Senior-Løken syndrome [38]. In 2017, Stone et al. were the first to report an association between WDR19 and Stargardt-like phenotype [34]. In 2020, Shamseldin et al. published a report of three unrelated patients with a founder mutation [33]. These reports did not contain any clinical data with the exception of one color fundus image [33].
The purpose of this study was to extend the clinical description of WDR19-Stargardt phenotype using state-of-the-art methodology, including fundus autofluorescence (FAF), spectral-domain optical coherence tomography (OCT) and ERG. Furthermore, the phenotype was compared with that of ABCA4 patients, exhibiting the prototypical Stargardt phenotype.

2. Materials and Methods

The study included a 25-year old male patient with Stargardt-like disease, harboring two WDR19 variants (WDR19 patient), and 43 patients (13 male, 30 female; median age 38 years, range 11–75 years) with Stargardt disease, harboring ABCA4 variants (i.e., ABCA4-retinopathy) (ABCA4 patients). The patients were recruited from the Slovenian registry of 1157 patients with inherited retinal diseases. Clinical characteristics (defined in detail below) were compared between a WDR19 patient and ABCA4 patients. The ABCA4 patients were sub-stratified based on genotype (double null or other) and preservation of the fovea (foveal sparing or not). For the purpose of this study, foveal sparing was defined as foveal preservation on FAF and OCT, with or without surrounding RPE atrophy [11]. As disease was mostly symmetrical between the two eyes, the right eye was chosen for analysis.
The study was conducted according to the guidelines of the Declaration of Helsinki. Study was reviewed and approved by the National medical ethics committee of the Republic of Slovenia (protocol ID number: 0120-50/2021/3). All examinations were completed as a part of routine diagnostic procedures. Written informed consent was obtained from participants before their enrolment.

2.1. Genetic Analysis

The patient harboring WDR19 variants underwent genetic testing using a buccal swab sample and targeted genetic screening of 351 genes, including ABCA4, ELOVL4, PROM1 and PRPH2. Blueprint Genetics Retinal Dystrophy Panel (test code OP0801) was used. Exome sequencing was performed using a custom target capture approach, which targets coding regions of genes, mitochondrial genome and also includes those non-coding regions where pathogenic non-coding variants were previously reported in the literature and databases. Other non-coding regions, including 5′UTR, are not captured in this approach. Of ABCA4 patients, 21 of them underwent genetic testing with the panel Retinal disorders v2.14 (list is available on request) that included the WDR19 gene (none of those had variants in the WDR19 gene), while 22 patients had only ABCA4 gene analysis.

2.2. Clinical Analysis

All patients underwent a detailed ophthalmological exam. Best-corrected visual acuity (BCVA) was measured using Snellen charts. In some patients, at their last visit, Snellen vision was determined additionally by using Tabletop Refraction System TS-610 (Nidek Co., Ltd., Gamagōri, Japan). Color vision was measured using Ishihara tables. Visual field was examined with static perimetry using an Octopus 900 (Haag-Streit International, Koeniz, Switzerland). Age at onset was defined as the age at which patients first noted decreased visual acuity (VA). Disease duration was calculated as the time between the age at the last exam and the age at onset. Slit lamp examination, color fundus imaging, FAF imaging and OCT imaging were executed after pupil dilation with topical 1% tropiciamide. Color fundus image was taken with Topcon retinal camera TRC-50DX (Topcon Corporation, Tokyo, Japan). 55° or 30° FAF imaging was performed using Heidelberg Spectralis (Heidelberg Engineering, Heidelberg, Germany) and ultra-wide field FAF using Panoramic Ophthalmoscope P200DTx (Optos plc, Dunefermline, United Kingdom). OCT macular scans were performed using the Spectralis OCT+HRA device (Heidelberg Engineering, Heidelberg, Germany).
From the 30° FAF images, areas of definitely decreased autofluorescence (DDAF), representing RPE atrophy, were measured using our custom code written in MATLAB (The MathWorks, Inc., Natick, MA, USA). According to ProgStar criteria, DDAF was defined as being at least 90% black in reference to optic nerve / main blood vessels (100%). The opposite reference point represented a healthy retina (0%). Optic nerve and blood vessels were excluded. The analysis of DDAF included a subset of 18 ABCA4 patients from another study (harboring either two null variants or a combination of c.5714+5G>A; (p.[=,Glu1863Leufs * 33]) and a null variant). The WDR19 patient had unusually hypoautofluorescent foveal region that was, based on OCT findings, normally preserved and was therefore excluded from the DDAF area measurement.
Pattern ERG (PERG) and multifocal ERG (mfERG) were used to evaluate macular function, while scotopic and photopic full-field ERG (ffERG) was used to evaluate generalized retinal function. The recordings were made according to the standards of the International Society of Clinical Electrophysiology of Vision (ISCEV) [39,40,41,42]. The recording electrode was an HK loop placed in the fornix of the lower eyelid [43], silver chloride reference electrode was placed on the ipsilateral temple and the ground electrode was positioned on the forehead.
Retinal sensitivity to light and fixation were evaluated in WDR19 patient in mesopic conditions with a Nidek MP1 microperimeter (Nidek Technologies, Padova, Italy) after pupil dilation with topical 1% tropiciamide. Adjusted 10-2 Humphrey test grid was used, comprising 56 test loci, covering 20 × 20°. The test stimulus was white and was set to Goldmann size III. The stimulus intensity varied from 127 to 1.27 cd/m2, corresponding to retinal sensitivities of 0 dB to 20 dB. A 4-2 threshold strategy was used. Sensitivity values from all 56 test loci and fixation were then superimposed over a 55° FAF image using the MP1 microperimeter software (NAVIS software version 1.7.9, Nidek Technologies, Padova, Italy).

3. Results

3.1. Molecular Results

Sequence analysis identified two variants of uncertain significance (VUS) in the WDR19 gene (reference transcript NM_025132.4): c.1454G>T; p.(Ser485Ile) and c.(3183+1_3184-1)_(3261+1_3262-1)del; p.(?). The first is a missense variant, which is not found in gnomAD genomes or exomes [PM2]. However, this variant has been reported in a compound heterozygous state with c.1031A>G (p.His344Arg) in a family with two affected individuals with Stargardt-like phenotype [34] [PM3_SUP]. The second one is a novel variant and is also not found in gnomAD genomes nor exomes [PM2]. It results in the in-frame deletion of exon 29 of the WDR19 gene [PVS1_MOD]. Variants were classified according to ACMG guidelines for the interpretation of sequence variants [44,45]. Both variants are classified as VUS, as there is insufficient evidence to conclusively assert their pathogenicity. The patient had no identified pathogenic variants in ABCA4, ELOVL4, PROM1 or PRPH2. There were no other affected family members.

3.2. Review of Known WDR19 Variants and Their Associated Phenotypes

The list of previously identified WDR19 variants are shown in Supplemental Table S1. Stargardt phenotype has been noted in four patients harboring WDR19 variants, notably, c.1031A>G, c.1454G>T, c.2777G>T [33,34].

3.3. Clinical Data

The onset of visual symptoms of the WDR19 patient was approximately 5 years of age, when parents noticed that he had problems seeing at night (e.g., being cautious when walking in poorly lit environments). At that time VA was 0,8 Snellen decimal and an irregular foveal reflex was noted; however, color fundus imaging did not show any abnormalities (Figure 1A). Over the years, the patient noticed increasing problems seeing at night or in a dim light and at the age of 18 years, a detailed ophthalmological exam was performed. At that time, VA and color vision were normal and fundus exam was within normal limits. However, FAF showed a few hyperautofluorescent flecks and OCT showed hyper-reflectivity at the level of the external limiting membrane (ELM)/outer nuclear layer (ONL) (Figure 2). Over the follow-up of 7 years, VA and color vision remained preserved, while extensive yellow flecks appeared on the posterior pole, extending outside the vascular arcades (Fishman II). FAF showed increasing number of hyperfluorescent perifoveal flecks extending from the perifovea to outside of the vascular arcades, later transforming to spots of hypoautofluorescence (progressing from Fishman 0 to Fishman III) (Figure 1A–E). Perifoveal loss of photoreceptors appeared on OCT at the age of 24 years. Peripapillary and foveal regions were still relatively well preserved at the last imaging at aged 25 years. At the ages of 24 and 25, static assessment of the central 60° visual field showed reduced pericentral sensitivity, which corelated nicely with the photoreceptor atrophy. Microperimetry, performed at the ages of 20 and 24 years, showed loss of retinal sensitivity in the perifoveal area (Figure 2).
ERG performed at the age of 19 years revealed generalized photoreceptor dysfunction (ERG group 3). Function of cones and rods was severely decreased and the amplitudes reflecting rod responses being barely detectable above the noise level. MfERG showed preserved function in the central foveal ring. The follow-up ERG exam at the age of 24 years, revealed a decline in all responses, while the foveal function still remained relatively preserved. The ERG responses including PERG P50 amplitude, mfERG, dark-adapted (DA) 0.01 ERG b-wave, DA 3.0 ERG a-wave, oscillatory potentials (OP), light-adapted (LA) 30 Hz flicker ERG, LA 3.0 ERG b-wave and S-cone ERG from the last ERG exam are shown in Figure 3. The patient was otherwise healthy and had no renal impairment or other diseases and malformations.

3.4. Comparison between WDR19 and ABCA4 Stargardt Patients

Since the WDR19 patient presented with a Stargardt disease phenotype, a comparison with 43 ABCA4-Stargardt patients was performed. The main phenotypic characteristics are shown in Table 1.
A total of 8 out of 43 (19%) ABCA4 patients had preserved fovea on the initial OCT imaging (marked with empty circles on Figures 5 and 7–12). FAF and OCT of five representative cases are shown in Figure 4 for comparison with the WDR19 patient. The WDR19 patient had a relatively large extent of foveal preservation. Two of the ABCA4 patients had no signs of flecks or parafoveal RPE atrophy at the first imaging (Figure 4B,C). One of them (Figure 4B, harboring two null variants) lost foveal photoreceptors after 2 years, while they were still preserved at the latest follow-up (after four years) in the second patient (Figure 4C). Hyper-reflectivity at the level of ELM/ONL that was present the WDR19 patient was also observed in the two ABCA4 patients.

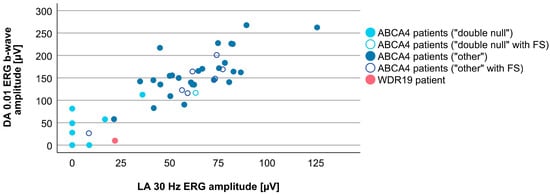

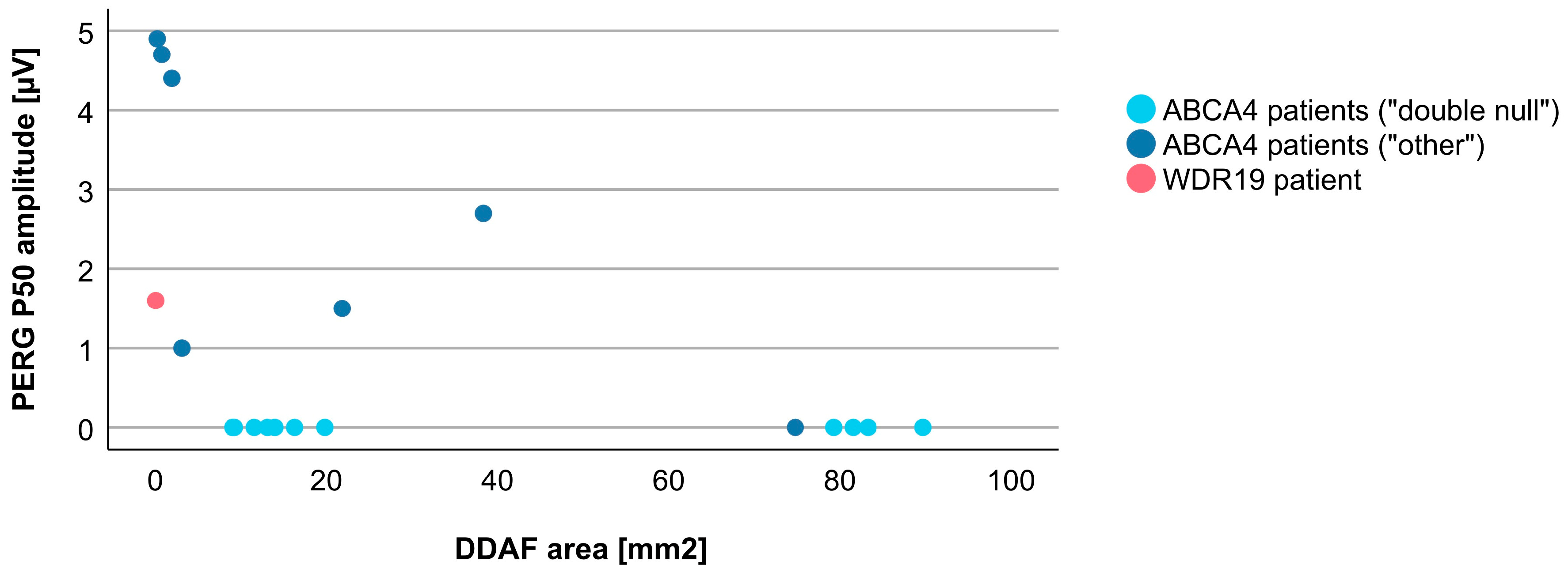

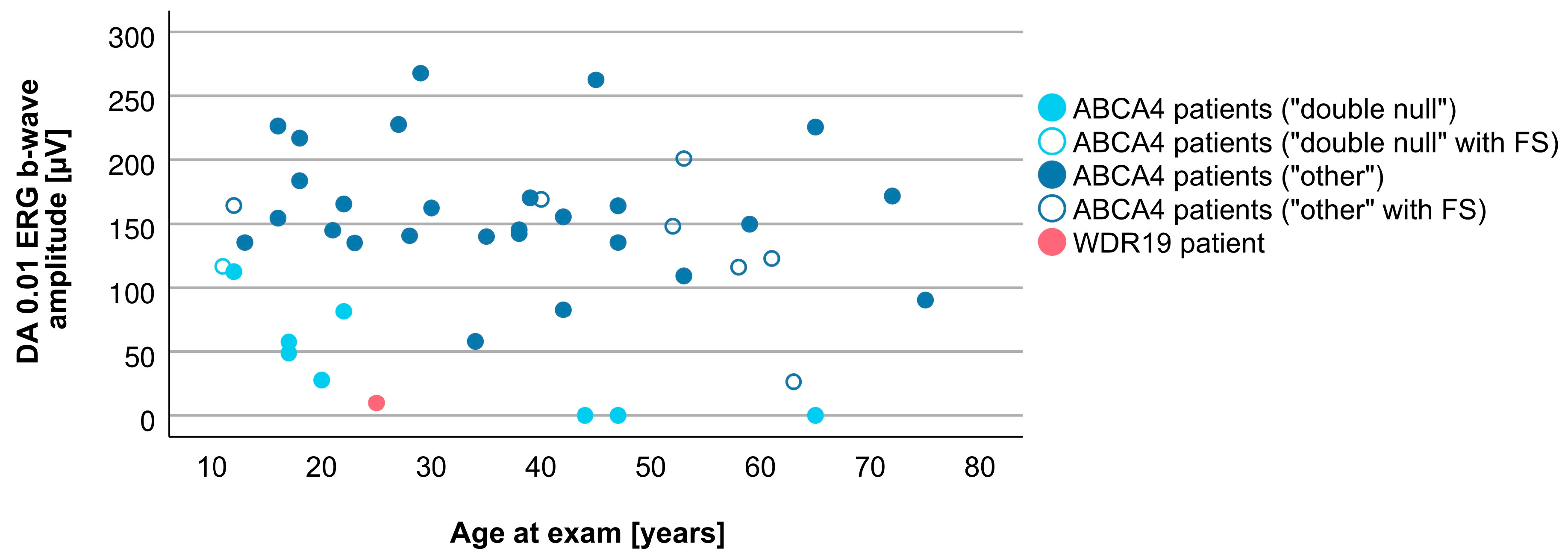

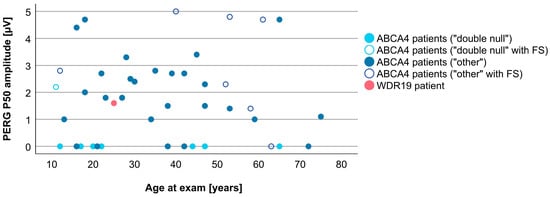

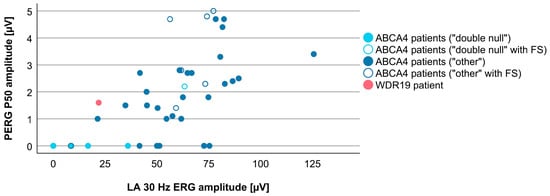

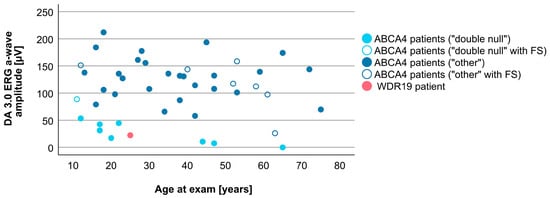

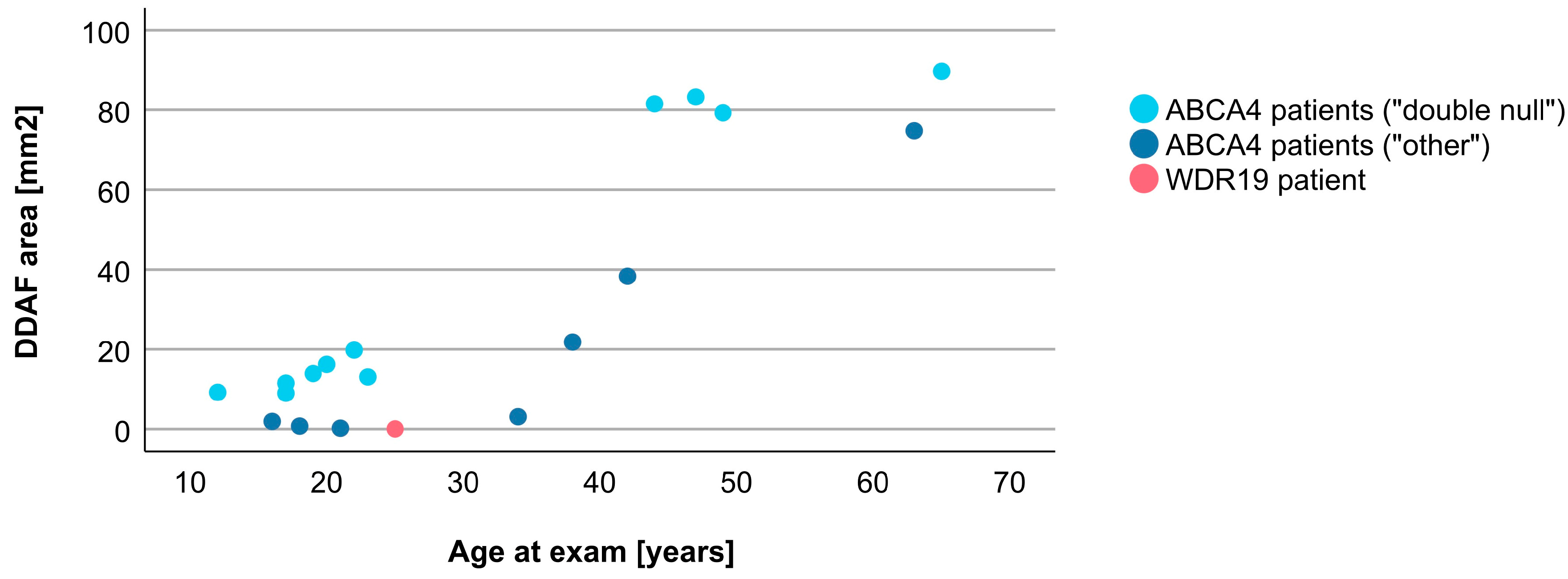

Associations between VA and age for WDR19 and ABCA4 patients are shown in Figure 5. Preserved VA of the WDR19 patient was similar to that of foveal sparing ABCA4 patients. Associations between RPE atrophy (represented by DDAF area) and age for WDR19 and ABCA4 patients are shown in Figure 6. WDR19 patient had DDAF area in the range of ABCA4 group, in the size similar to non-null (other) ABCA4 genotypes. Correlations between different ERG amplitudes and age for WDR19 and ABCA4 patients are shown in Figure 7, Figure 8, Figure 9 and Figure 10. ERG amplitudes of WDR19 patient were within the range observed in the ABCA4 patient group, with the ffERG responses resembling double null ABCA4 patients (Figure 7, Figure 8 and Figure 9) and PERG P50 resembling other ABCA4 genotypes (Figure 10). For patients with different genotypes, additional boxplot charts showing VA, DDAF area, DA 0.01 ERG b-wave amplitude, DA 3.0 ERG a-wave amplitude, LA 30 Hz ERG amplitude and PERG P50 amplitude are presented in a Supplementary Figure S1.

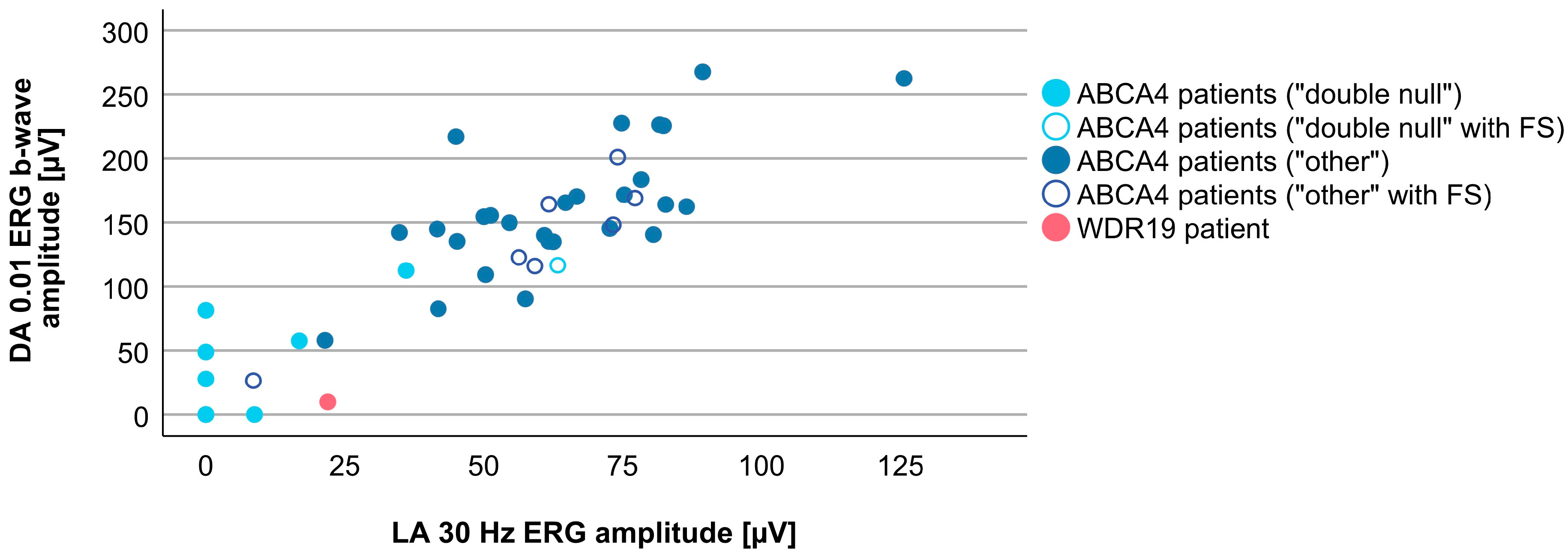

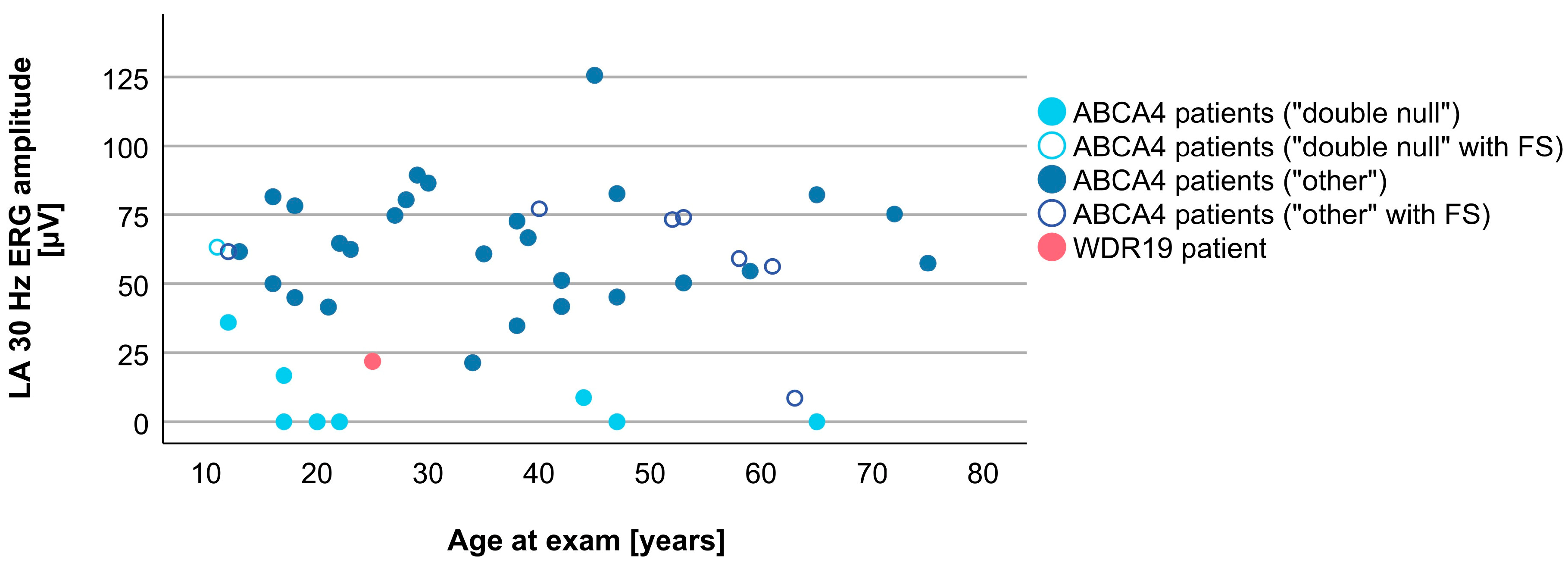

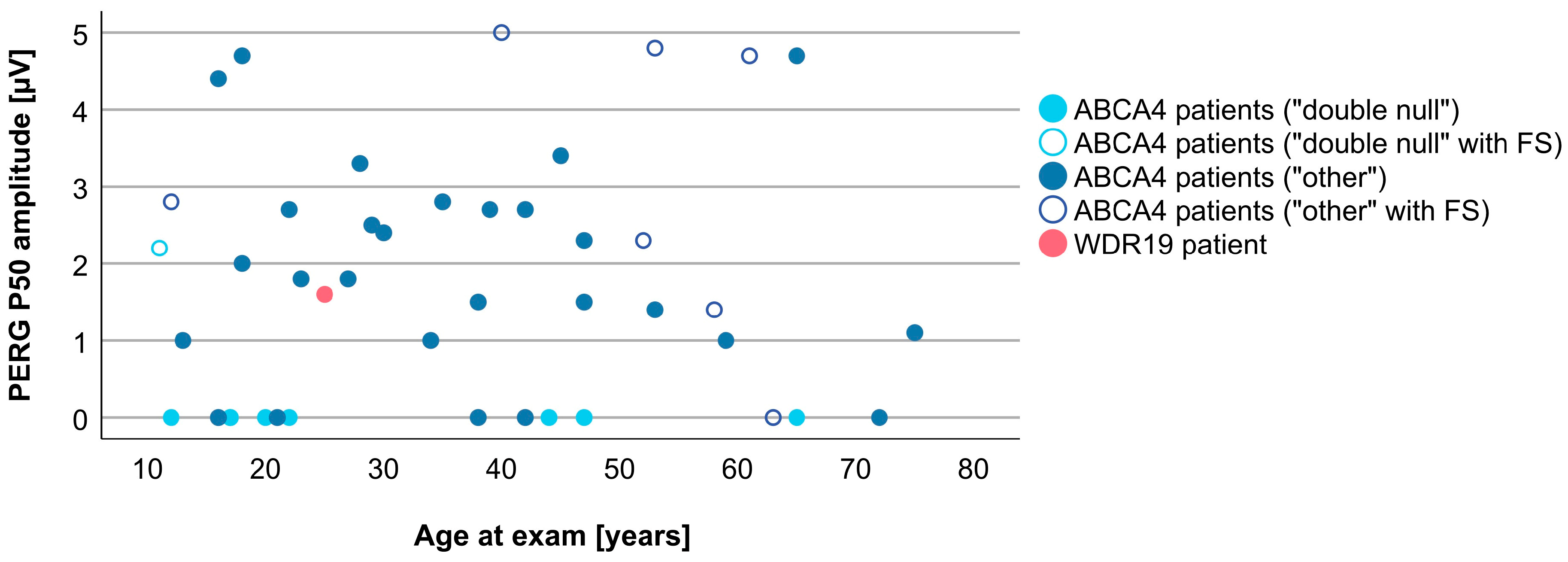

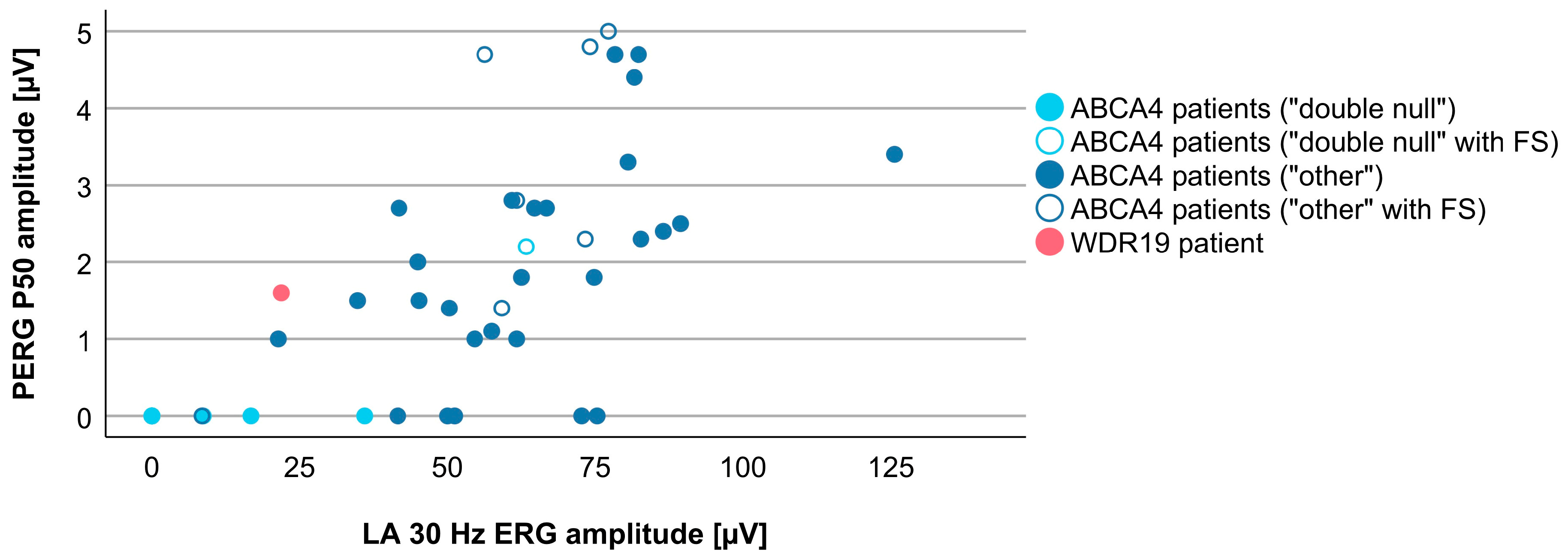

To evaluate whether there are any specific characteristics of the WDR19-Stargardt phenotype, analyses of parameters reflecting the ratios of rods vs. cone impairment, macular vs. peripheral retinal impairment, and photoreceptor vs. RPE impairment were performed. The relationship between the rod and cone photoreceptor impairment was studied by comparing DA 0.01 ERG (reflecting rod system function) and LA 30 Hz ERG (reflecting cone system function) amplitudes (Figure 11). The WDR19 patient had relatively lower rod responses in comparison to ABCA4 patients regardless of genotype, but still within the group’s variability. The relationship between macular and peripheral retinal involvement was studied by comparing PERG P50 (reflecting macular function) vs. LA 30 Hz ERG (reflecting mostly peripheral retinal function) amplitudes (Figure 12). The WDR19 patient had relatively higher PERG P50 amplitude in comparison to ABCA4 patients but still within the group’s variability. The relationship between photoreceptor and RPE impairment in the macula was studied by comparing DDAF area (reflecting RPE atrophy) and PERG P50 (reflecting macular photoreceptor function) amplitude (Figure 13). The WDR19 patient had values within the ABCA4 group’s variability, in similarity closer to the “other” ABCA4 group.

4. Discussion

The study reports a detailed phenotypic analysis of a WDR19 patient with a Stagart-like phenotype. The patients’ phenotype was by and large undistinguishable from ABCA4-Stargardt disease; however, there were some atypical findings, notably the degree of foveal sparing and the relatively severe involvement of rod photoreceptors.

4.1. Genetic Considerations

The presented patient harboured a previously reported heterozygous missense variant p.(Ser485Ile) and a novel heterozygous deletion c.(3183+1_3184-1)_(3261+1_3262-1)del, encompassing exon 29 of the WDR19 gene. Single or multi exon heterozygous deletions in the WDR19 gene have previously been reported in patients with WDR19-related conditions [46]. To date, no patients with WDR19-associated Stargard-like phenotype have been reported to have candidate copy number loss/gain variants. Some pathogenic copy number variants encompassing single or multiexon deletion have been associated with WDR19-related conditions [46] (see also ClinVar database). We added reported copy number variants in the WDR19 gene in the Supplementary Table S1, which sums reported pathogenic variants in the WDR19 gene. Variant p.(Ser485Ile) has been reported as compound heterozygous with WDR19 c.1031A>G; p.(His344Arg) in a family with two affected individuals with Stargardt-like phenotype [34]. It is likely that variants in our WDR19 patient are the cause of the disease, as the Stargardt-like phenotype has already been described in association with WDR19 [33,34] and the patient did not carry pathogenic variants in any other genes causing Stargardt-like disease. Both identified variants were absent from the gnomAD project (these variants do not have gnomAD exomes or genome entry despite good coverages of the loci). In addition, we did not detect these variants in our in-house database (more than 10,000 Slovenian exomes).
Biallelic pathogenic and likely pathogenic variants in the WDR19 gene present an established cause of autosomal recessive Cranioectodermal dysplasia 4 (OMIM: 614378), Nephronophthisis 13 (OMIM: 614377), Senior-Loken syndrome 8 (OMIM: 616307) and Short-rib thoracic dysplasia 5 with or without polydactyly (OMIM: 614376). There are only two reports of WDR19 variants associated with Stargardt-like disease. These variants are p.(His344Arg), p.(Ser485Ile) and p.(Ser926Ile) [33,34]. While the first two variants were novel, the letter was reported in trans with another pathogenic variant in association with cranioectodermal dysplasia [47]. It has been hypothesized that more severe WDR19 pathogenic variants may lead to multisystemic ciliopathies, while hypomorphic variants may be associated with non-syndromic retinal dystrophy (RP, macular dystrophy) [38]. However, other yet unrecognized mechanisms may impact the phenotypic expression of the WDR19 gene.

4.2. Clinical Findings and Comparison with ABCA4-Stargardt Phenotype

Many similarities were noted, when comparing the phenotype of the WDR19 patient with that of ABCA4-Stargardt patients. The WDR19 patient exhibited the typical Stargardt triad of macular atrophy (albeit in the perifoveal region), peripapillary sparing and widespread hyper- and hypoautofluorescent flecks. The fovea remained preserved after perifoveal atrophy occurred, similar to the phenotype observed in >10 % of Stargardt patients, who exhibit the so called foveal sparing phenotype [10,11,48]. The term “foveal sparing” is applied by some authors only to those patients that retain foveal structure next to extensive perifoveal RPE atrophy, and these mostly present with symptoms after the age of 50 years [10,48]. However, less strict definitions have also been used [11], the common denominator being that the patients do not exhibit early-onset foveal atrophy [10,11]. For the purpose of this study, we considered the patients to have foveal sparing if the fovea was preserved on presentation (examples in Figure 4), even though some lost the fovea soon after. The more accurate description of Stargardt phenotypes may be 1) early onset foveal atrophy, 2) delayed foveal atrophy, and 3) foveal sparing. Longitudinal follow-up will reveal whether the fovea of the WDR19 patient remains preserved long-term. Interestingly, the color fundus image of another WDR19-Stargardt patient provided by the Shamseldin et al. also seem to exhibit preservation of the fovea [33]; however, the definitive conclusion could not be made as there was no functional data. The WDR19 patient in the present study also had an unusually hypoautofluorescent foveal region compared to ABCA4 patients; however, it is unclear whether the sign is due to true hypoautofluorescence or only appears dark due to the surrounding hyperautofluorescence.
The WDR19 patient exhibited hyperreflective changes at the level of ELM/ONL, that remained during the whole 7 years of follow-up with OCT imaging (Figure 2), and the same sign was observed in two of the ABCA4 patients (Figure 4). This feature has been previously described in childhood-onset ABCA4 patients as one of the earliest OCT abnormalities [49]. Although the authors suggested that this structural change suggests metabolically stressed photoreceptors before cell death [49], curiously the photoreceptors of the WDR19 patient remained preserved for 7 years, and similarly, one of the two ABCA4 patients (Figure 4C) had this sign and preserved photoreceptors for 4 years.
As ABCA4 genotypic and phenotypic spectrum is extremely diverse [1,3,50,51], we attempted to determine whether the phenotype of the WDR19 patient more closely resembles that of the double null ABCA4 patients or that of ABCA4 patients with non-null genotypes. Interestingly, the WDR19 patient could not fit easily in either group. Relatively good macular preservation (large PERG P50 amplitude, small DDAF, and foveal sparing) more closely resembled the phenotype of non-null ABCA4 patients; however, severe generalized photoreceptor dysfunction on ffERG at a young age more closely resembled the phenotype of double null ABCA4 patients. The rod function was low even when compared to double null ABCA4 patients and the patient reported nyctalopia as the presenting symptom, which is unusual for Stargardt disease. WDR19 variants are mostly linked to RP (i.e., rod-cone dystrophy) [38]. A study on a larger group of patients is needed to confirm whether WDR19-Stargardt patients exhibit more rod dysfunction than ABCA4-Stargardt patients.

4.3. WDR19 and Other Genes Producing Phenocopies of Stargardt Disease

WDR19, a ciliary gene, is expressed in photoreceptors at the level of the connecting cilium, and encodes IFT144 protein, which is a component of the IFT-A transport complex. Although IFT-A complex is classically involved in retrograde transport, the studies showed that IFT144 protein is required for the efficient transport of opsins and the distal elongation of outer segments, which suggest its indirect involvement in the anterograde transport [52,53]. WDR19-associated retinal diseases are inherited in an autosomal recessive fashion. Among retinal diseases, it was reported to cause Stargardt-like disease [33,34] and isolated RP [38] or syndromic RP. RP can be restricted to the eye, present together with sub-clinical renal cysts or associated with a syndrome (e.g., Senior Løken and Sensenbrenner syndromes) [35,38]. The WDR19-Stargardt disease has not been associated with a syndromic disease, as was also the case in our patient.
Similar to the WDR19 gene, other genes that produce Stargardt phenocopies (ELOVL4, PROM1, and PRPH2) also exhibit phenotypic diversity, often in association with different inheritance patterns. Autosomal dominant mutations in ELOVL4 gene cause STGD3 [14], while autosomal recessive mutations result in RP [54,55,56,57] and LCA [54,58]. This is also true for the PROM1 gene, where recessive form resembles RP [23,59,60], while dominant PROM1 mutations leads to STGD4 and other forms of macular dystrophies [25,30,61]. PRPH2 gene is linked to the most heterogeneous spectrum of retinal diseases. It has an autosomal dominant pattern of inheritance and specific PRPH2 variants causes certain phenotypes: Stargardt-like disease/fundus flavimaculatus, retinitis punctata albescens, RP, digenic RP, extensive chorioretinal atrophy, central areolar choroidal dystrophy, retinitis punctata albescens, pattern dystrophy, adult-onset vitelliform macular dystrophy and other unspecified autosomal dominant macular dystrophies [28,29,62,63,64,65]. The addition of WDR19 to the group of Stargardt disease causing genes may help to understand the pathogenesis of this frequent, yet untreatable disease. The proteins encoded by ABCA4 and the four above-mentioned genes are not known to be directly linked; however, ABCA4 and PRPH2 and PROM1 occur on a similar location in the outer segments, WDR19 is involved in transport, and ELOVL4 is involved in synthesis of very long chain polyunsaturated fatty acid (VLC-PUFA), implicated in lipofuscin accumulation [66]. We hypothesize that these proteins play a cooperative role in at least one specific pathway, crucial for normal photoreceptor function.

4.4. Advantages and Disadvantages of the Study

This study for the first time provided a complete ophthalmological description of a WDR19-Stargardt patient. The advantage of the study was a long follow-up of 20 years and detailed imaging and functional analysis. The study is strengthened by a comparison of the WDR19 phenotype with an equally well documented cohort of patients with ABCA4-Stargardt disease. An obvious disadvantage of the study is that only one WDR19 patient is included, which makes it difficult to address the specific findings that suggested some deviation from the classical Stargardt phenotype.

5. Conclusions

The study showed that the WDR19-Stargardt phenotype is within the phenotypic spectrum of ABCA4-Strgardt disease, stressing the importance of genetic testing in patients with inherited retinal dystrophies. The addition of WDR19 in the group of genes producing Stargardt phenocopies may help to understand the pathogenesis behind this frequent yet untreatable disease.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes14020291/s1, Table S1: reported pathogenic and likely pathogenic variants in the WDR19 gene, including variants found in our patient, and associated phenotypes; Figure S1: boxplot charts showing selected parameters in patients with different genotypes.

Author Contributions

Conceptualization, J.S., A.M. (Andrej Meglič), M.V. and A.F.; methodology, J.S., A.M. (Andrej Meglič), M.V. and A.F.; formal analysis, J.S.; investigation, J.S., A.M. (Andrej Meglič), M.V., A.M. (Aleš Maver), M.J.-V. and A.F.; resources, J.S., A.M. (Andrej Meglič), M.V., M.J.-V., M.H. and A.F.; data curation, J.S., A.M. (Andrej Meglič), M.V. and A.F.; writing—original draft preparation, J.S., M.V. and A.F.; writing—review and editing, J.S., A.M. (Andrej Meglič), M.V., A.M. (Aleš Maver), M.J.-V., M.H. and A.F.; visualization, J.S., M.V., A.M. (Aleš Maver) and A.F.; supervision, M.H. and A.F. All authors have read and agreed to the published version of the manuscript.

Funding

The research was funded by the Javna Agencija za Raziskovalno Dejavnost RS (grant number ARRS J3-1750). The sponsor or funding organization had no role in the design or conduct of this research.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki. The study was reviewed and approved by the national medical ethics committee of the Republic of Slovenia (protocol ID number: 0120-50/2021/3). All examinations were conducted as a part of routine diagnostic procedures.

Informed Consent Statement

Written informed consent was obtained from the participants before their enrolment.

Data Availability Statement

The data that support the results of this study are available upon request from the corresponding author, A.F. The data are not publicly available due to personal data protection policies.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations and Acronyms

RPEretinal pigment epithelium
ERGelectroretinography
IFT144intraflagellar transport 144 protein
RPretinitis pigmentosa
FAFfundus autofluorescence
SD-OCTspectral-domain optical coherence tomography
DDAFdefinitely decreased autofluorescence
BCVAbest-corrected visual acuity
VAvisual acuity
PERGpattern electroretinography
mfERGmultifocal electroretinography
ffERGfull-field ERG
ISCEVInternational Society of Clinical Electrophysiology of Vision
VUSvariants of uncertain significance
ELMexternal limiting membrane
ONLouter nuclear layer
DAdark-adapted
LAlight-adapted
IshIshihara plates
OPoscillatory potentials
Ise bandinner segment ellipsoid band
FSfoveal sparing

References

  1. Cremers, F.P.M.; Lee, W.; Collin, R.W.J.; Allikmets, R. Clinical spectrum, genetic complexity and therapeutic approaches for retinal disease caused by ABCA4 mutations. Prog. Retin. Eye Res. 2020, 79, 100861. [Google Scholar] [CrossRef] [PubMed]
  2. Fishman, G.A. Fundus Flavimaculatus. A Clinical Classification. Arch. Ophthalmol. 1976, 94, 2061–2067. [Google Scholar] [CrossRef] [PubMed]
  3. Tanna, P.; Strauss, R.W.; Fujinami, K.; Michaelides, M. Stargardt disease: Clinical features, molecular genetics, animal models and therapeutic options. Br. J. Ophthalmol. 2017, 101, 25–30. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Molday, L.L.; Rabin, A.R.; Molday, R.S. ABCR expression in foveal cone photoreceptors and its role in Stargardt macular dystrophy. Nat. Genet. 2000, 25, 257–258. [Google Scholar] [CrossRef]
  5. Illing, M.; Molday, L.L.; Molday, R.S. The 220-kDa Rim Protein of Retinal Rod Outer Segments Is a Member of the ABC Transporter Superfamily. J. Biol. Chem. 1997, 272, 10303–10310. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Lenis, T.L.; Hu, J.; Ng, S.Y.; Jiang, Z.; Sarfare, S.; Lloyd, M.B.; Esposito, N.J.; Samuel, W.; Jaworski, C.; Bok, D.; et al. Expression of ABCA4 in the retinal pigment epithelium and its implications for Stargardt macular degeneration. Proc. Natl. Acad. Sci. USA 2018, 115, e11120–e11127. [Google Scholar] [CrossRef] [Green Version]
  7. Molday, R.S.; Zhong, M.; Quazi, F. The role of the photoreceptor ABC transporter ABCA4 in lipid transport and Stargardt macular degeneration. Biochim. Biophys. Acta 2009, 1791, 573–583. [Google Scholar] [CrossRef] [Green Version]
  8. Kumar, V. Insights into autofluorescence patterns in Stargardt macular dystrophy using ultra-wide-field imaging. Graefes Arch. Clin. Exp. Ophthalmol. 2017, 255, 1917–1922. [Google Scholar] [CrossRef]
  9. Lois, N.; Holder, G.E.; Bunce, C.; Fitzke, F.W.; Bird, A.C. Phenotypic Subtypes of Stargardt Macular Dystrophy-Fundus Flavimaculatus. Arch. Ophthalmol. 2001, 119, 359–369. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. van Huet, R.A.; Bax, N.M.; Westeneng-Van Haaften, S.C.; Muhamad, M.; Zonneveld-Vrieling, M.N.; Hoefsloot, L.H.; Cremers, F.P.; Boon, C.J.; Klevering, B.J.; Hoyng, C.B. Foveal Sparing in Stargardt Disease. Investig. Ophthalmol. Vis. Sci. 2014, 55, 7467–7478. [Google Scholar] [CrossRef]
  11. Fujinami, K.; Sergouniotis, P.I.; Davidson, A.E.; Wright, G.; Chana, R.K.; Tsunoda, K.; Tsubota, K.; Egan, C.A.; Robson, A.G.; Moore, A.T.; et al. Clinical and Molecular Analysis of Stargardt Disease With Preserved Foveal Structure and Function. Am. J. Ophthalmol. 2013, 156, 487–501.e1. [Google Scholar] [CrossRef] [PubMed]
  12. Lambertus, S.; Lindner, M.; Bax, N.M.; Mauschitz, M.M.; Nadal, J.; Schmid, M.; Schmitz-Valckenberg, S.; den Hollander, A.I.; Weber, B.H.F.; Holz, F.G.; et al. Progression of Late-Onset Stargardt Disease. Investig. Ophthalmol. Vis. Sci. 2016, 57, 5186–5191. [Google Scholar] [CrossRef]
  13. Kong, X.; West, S.K.; Strauss, R.W.; Munoz, B.; Cideciyan, A.V.; Michaelides, M.; Ho, A.; Ahmed, M.; Schönbach, E.M.; Cheetham, J.K.; et al. Progression of Visual Acuity and Fundus Autofluorescence in Recent-Onset Stargardt Disease: ProgStar Study Report #4. Ophthalmol. Retina 2017, 1, 514–523. [Google Scholar] [CrossRef] [PubMed]
  14. Edwards, A.O.; Miedziak, A.; Vrabec, T.; Verhoeven, J.; Acott, T.S.; Weleber, R.G.; Donoso, L.A. Autosomal dominant Stargardt-like macular dystrophy: I. Clinical characterization, longitudinal follow-up, and evidence for a common ancestry in families linked to chromosome 6q14. Am. J. Ophthalmol. 1999, 127, 426–435. [Google Scholar] [CrossRef] [PubMed]
  15. Stone, E.M.; Nichols, B.E.; Kimura, A.E.; Weingeist, T.A.; Drack, A.; Sheffield, V.C. Clinical Features of a Stargardt-Like Dominant Progressive Macular Dystrophy With Genetic Linkage to Chromosome 6q. Arch. Ophthalmol. 1994, 112, 765–772. [Google Scholar] [CrossRef]
  16. Maugeri, A.; Meire, F.; Hoyng, C.B.; Vink, C.; Van Regemorter, N.; Karan, G.; Yang, Z.; Cremers, F.P.M.; Zhang, K. A Novel Mutation in the ELOVL4 Gene Causes Autosomal Dominant Stargardt-like Macular Dystrophy. Investig. Ophthalmol. Vis. Sci. 2004, 45, 4263–4267. [Google Scholar] [CrossRef] [Green Version]
  17. Palejwala, N.V.; Gale, M.J.; Clark, R.F.; Schlechter, C.; Weleber, R.G.; Pennesi, M.E. Insights into Autosomal Dominant Stargardt-Like Macular Dystrophy Through Multimodality Diagnostic Imaging. Retina 2016, 36, 119–130. [Google Scholar] [CrossRef]
  18. Del Pozo-Valero, M.; Martin-Merida, I.; Jimenez-Rolando, B.; Arteche, A.; Avila-Fernandez, A.; Blanco-Kelly, F.; Riveiro-Alvarez, R.; Van Cauwenbergh, C.; De Baere, E.; Rivolta, C.; et al. Expanded Phenotypic Spectrum of Retinopathies Associated with Autosomal Recessive and Dominant Mutations in PROM1. Am. J. Ophthalmol. 2019, 207, 204–214. [Google Scholar] [CrossRef]
  19. Zhang, K.; Kniazeva, M.; Han, M.; Li, W.; Yu, Z.; Yang, Z.; Li, Y.; Metzker, M.L.; Allikmets, R.; Zack, D.J.; et al. A 5-bp deletion in ELOVL4 is associated with two related forms of autosomal dominant macular dystrophy. Nat. Genet. 2001, 27, 89–93. [Google Scholar] [CrossRef]
  20. Agbaga, M.P.; Brush, R.S.; Mandal, M.N.; Henry, K.; Elliott, M.H.; Anderson, R.E. Role of Stargardt-3 macular dystrophy protein (ELOVL4) in the biosynthesis of very long chain fatty acids. Proc. Natl. Acad. Sci. USA 2008, 105, 12843–12848. [Google Scholar] [CrossRef] [PubMed]
  21. Yang, Z.; Chen, Y.; Lillo, C.; Chien, J.; Yu, Z.; Michaelides, M.; Klein, M.; Howes, K.A.; Li, Y.; Kaminoh, Y.; et al. Mutant prominin 1 found in patients with macular degeneration disrupts photoreceptor disk morphogenesis in mice. J. Clin. Investig. 2008, 118, 2908–2916. [Google Scholar] [CrossRef] [Green Version]
  22. Bhattacharya, S.; Yin, J.; Winborn, C.S.; Zhang, Q.; Yue, J.; Chaum, E. Prominin-1 Is a Novel Regulator of Autophagy in the Human Retinal Pigment Epithelium. Investig. Ophthalmol. Vis. Sci. 2017, 58, 2366–2387. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Cehajic-Kapetanovic, J.; Birtel, J.; McClements, M.E.; Shanks, M.E.; Clouston, P.; Downes, S.M.; Charbel Issa, P.; MacLaren, R.E. Clinical and Molecular Characterization of PROM1-Related Retinal Degeneration. JAMA Netw. Open 2019, 2, e195752. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Kniazeva, M.; Chiang, M.F.; Morgan, B.; Anduze, A.L.; Zack, D.J.; Han, M.; Zhang, K. A New Locus for Autosomal Dominant Stargardt-Like Disease Maps to Chromosome 4. Am. J. Hum. Genet. 1999, 64, 1394–1399. [Google Scholar] [CrossRef] [Green Version]
  25. Michaelides, M.; Gaillard, M.C.; Escher, P.; Tiab, L.; Bedell, M.; Borruat, F.X.; Barthelmes, D.; Carmona, R.; Zhang, K.; White, E.; et al. The PROM1 Mutation p.R373C Causes an Autosomal Dominant Bull’s Eye Maculopathy Associated with Rod, Rod-Cone, and Macular Dystrophy. Investig. Ophthalmol. Vis. Sci. 2010, 51, 4771–4780. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Travis, G.H.; Sutcliffe, J.G.; Bok, D. The retinal degeneration slow (rds) gene product is a photoreceptor disc membrane-associated glycoprotein. Neuron 1991, 6, 61–70. [Google Scholar] [CrossRef]
  27. Connell, G.; Bascom, R.; Molday, L.; Reid, D.; McInnes, R.R.; Molday, R.S. Photoreceptor peripherin is the normal product of the gene responsible for retinal degeneration in the rds mouse. Proc. Natl. Acad. Sci. USA 1991, 88, 723–726. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Antonelli, G.; Parravano, M.; Barbano, L.; Costanzo, E.; Bertelli, M.; Medori, M.C.; Parisi, V.; Ziccardi, L. Multimodal Study of PRPH2 Gene-Related Retinal Phenotypes. Diagnostics 2022, 12, 1851. [Google Scholar] [CrossRef] [PubMed]
  29. Boon, C.J.; van Schooneveld, M.J.; den Hollander, A.I.; van Lith-Verhoeven, J.J.; Zonneveld-Vrieling, M.N.; Theelen, T.; Cremers, F.P.; Hoyng, C.B.; Klevering, B.J. Mutations in the peripherin/RDS gene are an important cause of multifocal pattern dystrophy simulating STGD1/fundus flavimaculatus. Br. J. Ophthalmol. 2007, 91, 1504–1511. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Wolock, C.J.; Stong, N.; Ma, C.J.; Nagasaki, T.; Lee, W.; Tsang, S.H.; Kamalakaran, S.; Goldstein, D.B.; Allikmets, R. A case-control collapsing analysis identifies retinal dystrophy genes associated with ophthalmic disease in patients with no pathogenic ABCA4 variants. Genet. Med. 2019, 21, 2336–2344. [Google Scholar] [CrossRef] [PubMed]
  31. Shah, M.; Broadgate, S.; Shanks, M.; Clouston, P.; Yu, J.; MacLaren, R.E.; Németh, A.H.; Halford, S.; Downes, S.M. Association of Clinical and Genetic Heterogeneity With BEST1 Sequence Variations. JAMA Ophthalmol. 2020, 138, 544–551. [Google Scholar] [CrossRef] [PubMed]
  32. Hull, S.; Arno, G.; Robson, A.G.; Broadgate, S.; Plagnol, V.; McKibbin, M.; Halford, S.; Michaelides, M.; Holder, G.E.; Moore, A.T.; et al. Characterization of CDH3-Related Congenital Hypotrichosis With Juvenile Macular Dystrophy. JAMA Ophthalmol. 2016, 134, 992–1000. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Shamseldin, H.E.; Shaheen, R.; Ewida, N.; Bubshait, D.K.; Alkuraya, H.; Almardawi, E.; Howaidi, A.; Sabr, Y.; Abdalla, E.M.; Alfaifi, A.Y.; et al. The morbid genome of ciliopathies: An update. Genet. Med. 2020, 22, 1051–1060. [Google Scholar] [CrossRef] [PubMed]
  34. Stone, E.M.; Andorf, J.L.; Whitmore, S.S.; DeLuca, A.P.; Giacalone, J.C.; Streb, L.M.; Braun, T.A.; Mullins, R.F.; Scheetz, T.E.; Sheffield, V.C.; et al. Clinically Focused Molecular Investigation of 1000 Consecutive Families with Inherited Retinal Disease. Ophthalmology 2017, 124, 1314–1331. [Google Scholar] [CrossRef] [PubMed]
  35. Bredrup, C.; Saunier, S.; Oud, M.M.; Fiskerstrand, T.; Hoischen, A.; Brackman, D.; Leh, S.M.; Midtbø, M.; Filhol, E.; Bole-Feysot, C.; et al. Ciliopathies with Skeletal Anomalies and Renal Insufficiency due to Mutations in the IFT-A Gene WDR19. Am. J. Hum. Genet. 2011, 89, 634–643. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Huber, C.; Cormier-Daire, V. Ciliary disorder of the skeleton. Am. J. Med. Genet. C Semin. Med. Genet. 2012, 160C, 165–174. [Google Scholar] [CrossRef]
  37. Halbritter, J.; Porath, J.D.; Diaz, K.A.; Braun, D.A.; Kohl, S.; Chaki, M.; Allen, S.J.; Soliman, N.A.; Hildebrandt, F.; Otto, E.A. Identification of 99 novel mutations in a worldwide cohort of 1,056 patients with a nephronophthisis-related ciliopathy. Hum. Genet. 2013, 132, 865–884. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Coussa, R.G.; Otto, E.A.; Gee, H.Y.; Arthurs, P.; Ren, H.; Lopez, I.; Keser, V.; Fu, Q.; Faingold, R.; Khan, A.; et al. WDR19: An ancient, retrograde, intraflagellar ciliary protein is mutated in autosomal recessive retinitis pigmentosa and in Senior-Loken syndrome. Clin. Genet. 2013, 84, 150–159. [Google Scholar] [CrossRef] [Green Version]
  39. Perlman, I.; Kondo, M.; Chelva, E.; Robson, A.G.; Holder, G.E. ISCEV extended protocol for the S-cone ERG. Doc. Ophthalmol. 2020, 140, 95–101. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Robson, A.G.; Frishman, L.J.; Grigg, J.; Hamilton, R.; Jeffrey, B.G.; Kondo, M.; Li, S.; McCulloch, D.L. ISCEV Standard for full-field clinical electroretinography (2022 update). Doc. Ophthalmol. 2022, 144, 165–177. [Google Scholar] [CrossRef]
  41. Bach, M.; Brigell, M.G.; Hawlina, M.; Holder, G.E.; Johnson, M.A.; McCulloch, D.L.; Meigen, T.; Viswanathan, S. ISCEV standard for clinical pattern electroretinography (PERG): 2012 update. Doc. Ophthalmol. 2013, 126, 1–7. [Google Scholar] [CrossRef]
  42. Hoffmann, M.B.; Bach, M.; Kondo, M.; Li, S.; Walker, S.; Holopigian, K.; Viswanathan, S.; Robson, A.G. ISCEV standard for clinical multifocal electroretinography (mfERG) (2021 update). Doc. Ophthalmol. 2021, 142, 5–16. [Google Scholar] [CrossRef] [PubMed]
  43. Hawlina, M.; Konec, B. New noncorneal HK-loop electrode for clinical electroretinography. Doc Ophthalmol 1992, 81, 253–259. [Google Scholar] [CrossRef] [PubMed]
  44. Richards, S.; Aziz, N.; Bale, S.; Bick, D.; Das, S.; Gastier-Foster, J.; Grody, W.W.; Hegde, M.; Lyon, E.; Spector, E.; et al. Standards and guidelines for the interpretation of sequence variants: A joint consensus recommendation of the American College of Medical Genetics and Genomics and the Association for Molecular Pathology. Genet. Med. 2015, 17, 405–424. [Google Scholar] [CrossRef] [Green Version]
  45. Abou Tayoun, A.N.; Pesaran, T.; DiStefano, M.T.; Oza, A.; Rehm, H.L.; Biesecker, L.G.; Harrison, S.M. Recommendations for interpreting the loss of function PVS1 ACMG/AMP variant criterion. Hum. Mutat. 2018, 39, 1517–1524. [Google Scholar] [CrossRef] [PubMed]
  46. Dharmadhikari, A.V.; Ghosh, R.; Yuan, B.; Liu, P.; Dai, H.; Al Masri, S.; Scull, J.; Posey, J.E.; Jiang, A.H.; He, W.; et al. Copy number variant and runs of homozygosity detection by microarrays enabled more precise molecular diagnoses in 11,020 clinical exome cases. Genome Med. 2019, 11, 30. [Google Scholar] [CrossRef] [Green Version]
  47. Maddirevula, S.; Alsahli, S.; Alhabeeb, L.; Patel, N.; Alzahrani, F.; Shamseldin, H.E.; Anazi, S.; Ewida, N.; Alsaif, H.S.; Mohamed, J.Y.; et al. Expanding the phenome and variome of skeletal dysplasia. Genet. Med. 2018, 20, 1609–1616. [Google Scholar] [CrossRef]
  48. Bax, N.M.; Valkenburg, D.; Lambertus, S.; Klevering, B.J.; Boon, C.J.F.; Holz, F.G.; Cremers, F.P.M.; Fleckenstein, M.; Hoyng, C.B.; Lindner, M. Foveal Sparing in Central Retinal Dystrophies. Investig. Ophthalmol. Vis. Sci. 2019, 60, 3456–3467. [Google Scholar] [CrossRef] [Green Version]
  49. Khan, K.N.; Kasilian, M.; Mahroo, O.A.R.; Tanna, P.; Kalitzeos, A.; Robson, A.G.; Tsunoda, K.; Iwata, T.; Moore, A.T.; Fujinami, K.; et al. Early Patterns of Macular Degeneration in ABCA4-Associated Retinopathy. Ophthalmology 2018, 125, 735–746. [Google Scholar] [CrossRef] [Green Version]
  50. Fakin, A.; Robson, A.G.; Chiang, J.P.; Fujinami, K.; Moore, A.T.; Michaelides, M.; Holder, G.E.; Webster, A.R. The Effect on Retinal Structure and Function of 15 Specific ABCA4 Mutations: A Detailed Examination of 82 Hemizygous Patients. Investig. Ophthalmol. Vis. Sci. 2016, 57, 5963–5973. [Google Scholar] [CrossRef]
  51. Schulz, H.L.; Grassmann, F.; Kellner, U.; Spital, G.; Rüther, K.; Jägle, H.; Hufendiek, K.; Rating, P.; Huchzermeyer, C.; Baier, M.J.; et al. Mutation Spectrum of the ABCA4 Gene in 335 Stargardt Disease Patients From a Multicenter German Cohort-Impact of Selected Deep Intronic Variants and Common SNPs. Investig. Ophthalmol. Vis. Sci. 2017, 58, 394–403. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Boubakri, M.; Chaya, T.; Hirata, H.; Kajimura, N.; Kuwahara, R.; Ueno, A.; Malicki, J.; Furukawa, T.; Omori, Y. Loss of ift122, a Retrograde Intraflagellar Transport (IFT) Complex Component, Leads to Slow, Progressive Photoreceptor Degeneration Due to Inefficient Opsin Transport*. J. Biol. Chem. 2016, 291, 24465–24474. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Boldt, K.; Mans, D.A.; Won, J.; van Reeuwijk, J.; Vogt, A.; Kinkl, N.; Letteboer, S.J.F.; Hicks, W.L.; Hurd, R.E.; Naggert, J.K.; et al. Disruption of intraflagellar protein transport in photoreceptor cilia causes Leber congenital amaurosis in humans and mice. J. Clin. Investig. 2011, 121, 2169–2180. [Google Scholar] [CrossRef] [PubMed]
  54. Rivolta, C.; Ayyagari, R.; Sieving, P.A.; Berson, E.L.; Dryja, T.P. Evaluation of the ELOVL4 gene in patients with autosomal recessive retinitis pigmentosa and Leber congenital amaurosis. Mol. Vis. 2003, 9, 49–51. [Google Scholar]
  55. Ruiz, A.; Borrego, S.; Marcos, I.; Antiñolo, G. A Major Locus for Autosomal Recessive Retinitis Pigmentosa on 6q, Determined by Homozygosity Mapping of Chromosomal Regions That Contain Gamma-Aminobutyric Acid-Receptor Clusters. Am. J. Hum. Genet. 1998, 62, 1452–1459. [Google Scholar] [CrossRef] [Green Version]
  56. Khaliq, S.; Hameed, A.; Ismail, M.; Mehdi, S.Q.; Bessant, D.A.; Payne, A.M.; Bhattacharya, S.S. Refinement of the Locus for Autosomal Recessive Retinitis pigmentosa (RP25) Linked to Chromosome 6q in a Family of Pakistani Origin. Am. J. Hum. Genet. 1999, 65, 571–574. [Google Scholar] [CrossRef] [Green Version]
  57. Xiao, C.; Binkley, E.M.; Rexach, J.; Knight-Johnson, A.; Khemani, P.; Fogel, B.L.; Das, S.; Stone, E.M.; Gomez, C.M. A family with spinocerebellar ataxia and retinitis pigmentosa attributed to an ELOVL4 mutation. Neurol. Genet. 2019, 5, e357. [Google Scholar] [CrossRef] [Green Version]
  58. Dharmaraj, S.; Li, Y.; Robitaille, J.M.; Silva, E.; Zhu, D.; Mitchell, T.N.; Maltby, L.P.; Baffoe-Bonnie, A.B.; Maumenee, I.H. A Novel Locus for Leber Congenital Amaurosis Maps to Chromosome 6q. Am. J. Hum. Genet. 2000, 66, 319–326. [Google Scholar] [CrossRef] [Green Version]
  59. Zhang, Q.; Zulfiqar, F.; Xiao, X.; Riazuddin, S.A.; Ahmad, Z.; Caruso, R.; MacDonald, I.; Sieving, P.; Riazuddin, S.; Hejtmancik, J.F. Severe retinitis pigmentosa mapped to 4p15 and associated with a novel mutation in the PROM1 gene. Hum. Genet. 2007, 122, 293–299. [Google Scholar] [CrossRef]
  60. Permanyer, J.; Navarro, R.; Friedman, J.; Pomares, E.; Castro-Navarro, J.; Marfany, G.; Swaroop, A.; Gonzàlez-Duarte, R. Autosomal Recessive Retinitis Pigmentosa with Early Macular Affectation Caused by Premature Truncation in PROM1. Investig. Ophthalmol. Vis. Sci. 2010, 51, 2656–2663. [Google Scholar] [CrossRef] [Green Version]
  61. Imani, S.; Cheng, J.; Shasaltaneh, M.D.; Wei, C.; Yang, L.; Fu, S.; Zou, H.; Khan, M.A.; Zhang, X.; Chen, H.; et al. Genetic identification and molecular modeling characterization reveal a novel PROM1 mutation in Stargardt4-like macular dystrophy. Oncotarget 2018, 9, 122–141. [Google Scholar] [CrossRef] [PubMed]
  62. Conley, S.M.; Naash, M.I. Gene Therapy for PRPH2-Associated Ocular Disease: Challenges and Prospects. Cold Spring Harb. Perspect. Med. 2014, 4, a017376. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Manes, G.; Guillaumie, T.; Vos, W.L.; Devos, A.; Audo, I.; Zeitz, C.; Marquette, V.; Zanlonghi, X.; Defoort-Dhellemmes, S.; Puech, B.; et al. High Prevalence of PRPH2 in Autosomal Dominant Retinitis Pigmentosa in France and Characterization of Biochemical and Clinical Features. Am. J. Ophthalmol. 2015, 159, 302–314. [Google Scholar] [CrossRef]
  64. Boon, C.J.F.; den Hollander, A.I.; Hoyng, C.B.; Cremers, F.P.M.; Klevering, B.J.; Keunen, J.E.E. The spectrum of retinal dystrophies caused by mutations in the peripherin/RDS gene. Prog. Retin. Eye Res. 2008, 27, 213–235. [Google Scholar] [CrossRef] [PubMed]
  65. Reeves, M.J.; Goetz, K.E.; Guan, B.; Ullah, E.; Blain, D.; Zein, W.M.; Tumminia, S.J.; Hufnagel, R.B. Genotype–phenotype associations in a large PRPH2-related retinopathy cohort. Hum. Mutat. 2020, 41, 1528–1539. [Google Scholar] [CrossRef] [PubMed]
  66. Harkewicz, R.; Du, H.; Tong, Z.; Alkuraya, H.; Bedell, M.; Sun, W.; Wang, X.; Hsu, Y.H.; Esteve-Rudd, J.; Hughes, G.; et al. Essential Role of ELOVL4 Protein in Very Long Chain Fatty Acid Synthesis and Retinal Function. J. Biol. Chem. 2012, 287, 11469–11480. [Google Scholar] [CrossRef]
Genes 14 00291 g001 550
Figure 1. Right eye color fundus images and fundus autofluorescence (FAF) Optos image from a WDR19 patient from the first until the last exam. Note the progression from normal fundus ((A); Fishman 0) to extensive flecks ((B); Fishman II) to resorbed flecks ((C–E); Fishman III). Scale bars: 200 µm.
Figure 1. Right eye color fundus images and fundus autofluorescence (FAF) Optos image from a WDR19 patient from the first until the last exam. Note the progression from normal fundus ((A); Fishman 0) to extensive flecks ((B); Fishman II) to resorbed flecks ((C–E); Fishman III). Scale bars: 200 µm.
Genes 14 00291 g001
Genes 14 00291 g002 550
Figure 2. Right eye (left column) and left eye (right column) spectral-domain optical coherence tomography (OCT) and FAF images of WDR19 patient over the course of 7 years. Age at the exam, best-corrected visual acuity (BCVA) in Snellen, Ishihara color vision are stated on each image. Microperimetry exam is overlaid on FAF images in selected exams. Static perimetry covering central 60° degrees is shown on the bottom. Note the typical signs of Stargardt disease, i.e., peripapillary sparing and hyper-and hypoautofluorescent flecks. Macular atrophy is most notable in the perifoveal area, while fovea is preserved (i.e., foveal sparing). Inner segment ellipsoid (ISe) band is marked with arrows. Abbreviation explanation: VA—visual acuity, Ish—Ishihara plates. Scale bars: 200 µm.
Figure 2. Right eye (left column) and left eye (right column) spectral-domain optical coherence tomography (OCT) and FAF images of WDR19 patient over the course of 7 years. Age at the exam, best-corrected visual acuity (BCVA) in Snellen, Ishihara color vision are stated on each image. Microperimetry exam is overlaid on FAF images in selected exams. Static perimetry covering central 60° degrees is shown on the bottom. Note the typical signs of Stargardt disease, i.e., peripapillary sparing and hyper-and hypoautofluorescent flecks. Macular atrophy is most notable in the perifoveal area, while fovea is preserved (i.e., foveal sparing). Inner segment ellipsoid (ISe) band is marked with arrows. Abbreviation explanation: VA—visual acuity, Ish—Ishihara plates. Scale bars: 200 µm.
Genes 14 00291 g002
Genes 14 00291 g003 550

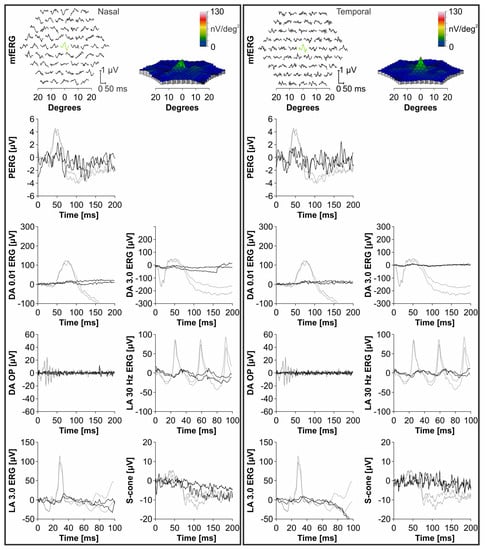

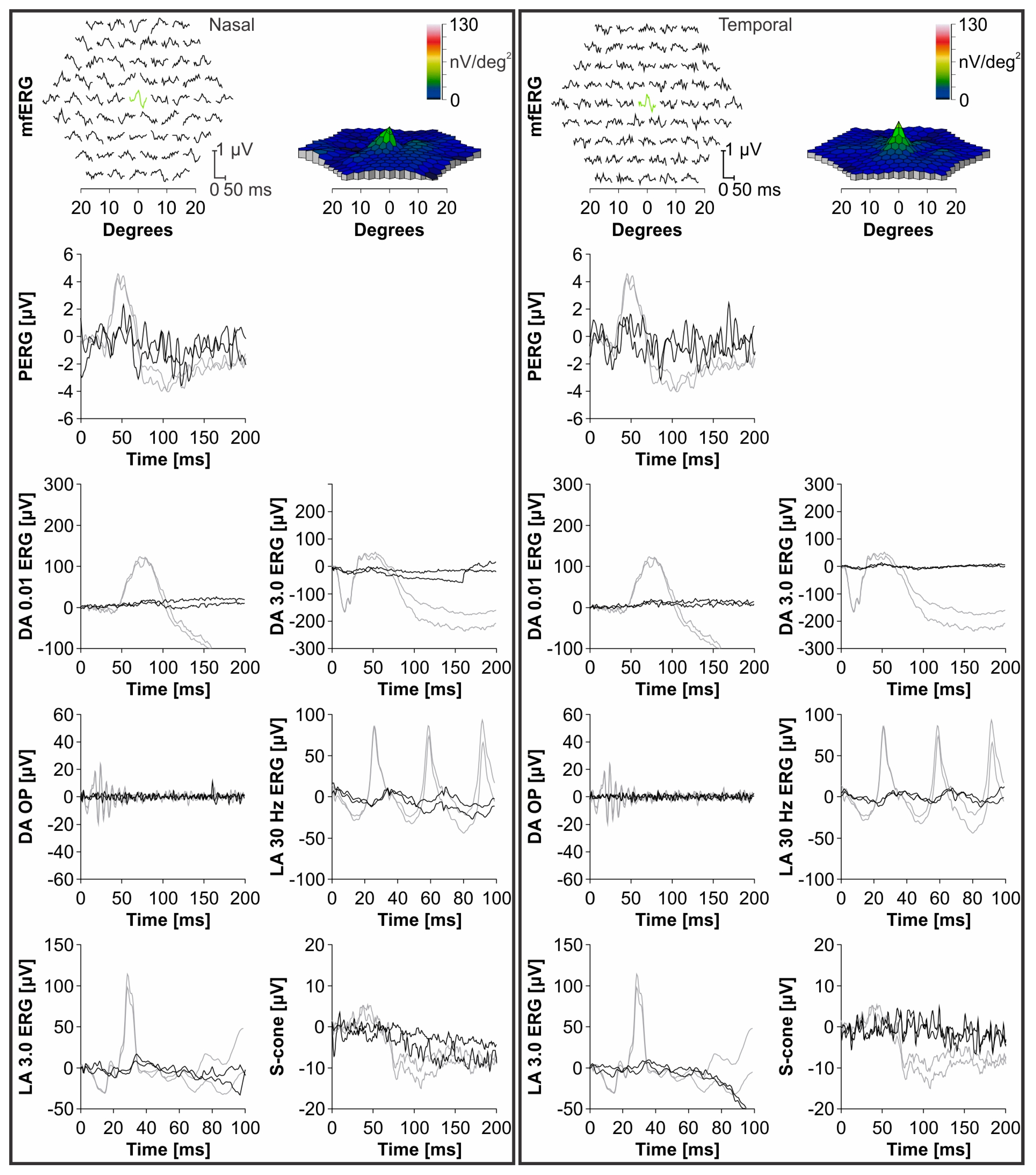

Figure 3. Right eye (left column) and left eye (right column) electroretinography (ERG) responses of the WDR19 patient at 24 years of age (black lines) and a healthy control (grey lines). Multifocal ERG (mfERG) responses of the WDR19 patient are shown at the top with a 3D representation of the values on the right side. All ERG responses of the WDR19 patient were below the normal range. Note the relatively severe loss of ERG responses representing rod system function (dark-adapted (DA) 0.01 ERG and DA 3.0 ERG) in comparison to light-adapted (LA) 30 Hz, which represents cone system function. Preserved foveal function in the first mfERG ring is marked with green. Abbreviation explanation: PERG—pattern ERG, OP—oscillatory potentials.
Figure 3. Right eye (left column) and left eye (right column) electroretinography (ERG) responses of the WDR19 patient at 24 years of age (black lines) and a healthy control (grey lines). Multifocal ERG (mfERG) responses of the WDR19 patient are shown at the top with a 3D representation of the values on the right side. All ERG responses of the WDR19 patient were below the normal range. Note the relatively severe loss of ERG responses representing rod system function (dark-adapted (DA) 0.01 ERG and DA 3.0 ERG) in comparison to light-adapted (LA) 30 Hz, which represents cone system function. Preserved foveal function in the first mfERG ring is marked with green. Abbreviation explanation: PERG—pattern ERG, OP—oscillatory potentials.
Genes 14 00291 g003
Genes 14 00291 g004 550
Figure 4. Characteristics of a WDR19 patient (A) and ABCA4 patients (B–F) and with foveal sparing. Note a relatively large extent of foveal preservation in the WDR19 patient. WDR19 patient is encircled with red (A), double null ABCA4 patient with light blue (B) and ABCA4 patients with other genotypes with dark blue (C–F). Note the hyper-reflectivity at the level of the external limiting membrane (ELM)/outer nuclear layer (ONL) in the WDR19 patient and two ABCA4 patients (B,C). Note also the relatively dark fovea of the WDR19 patient and two of the ABCA4 patients (E,F). Scale bars: 200 µm.
Figure 4. Characteristics of a WDR19 patient (A) and ABCA4 patients (B–F) and with foveal sparing. Note a relatively large extent of foveal preservation in the WDR19 patient. WDR19 patient is encircled with red (A), double null ABCA4 patient with light blue (B) and ABCA4 patients with other genotypes with dark blue (C–F). Note the hyper-reflectivity at the level of the external limiting membrane (ELM)/outer nuclear layer (ONL) in the WDR19 patient and two ABCA4 patients (B,C). Note also the relatively dark fovea of the WDR19 patient and two of the ABCA4 patients (E,F). Scale bars: 200 µm.
Genes 14 00291 g004
Genes 14 00291 g005 550

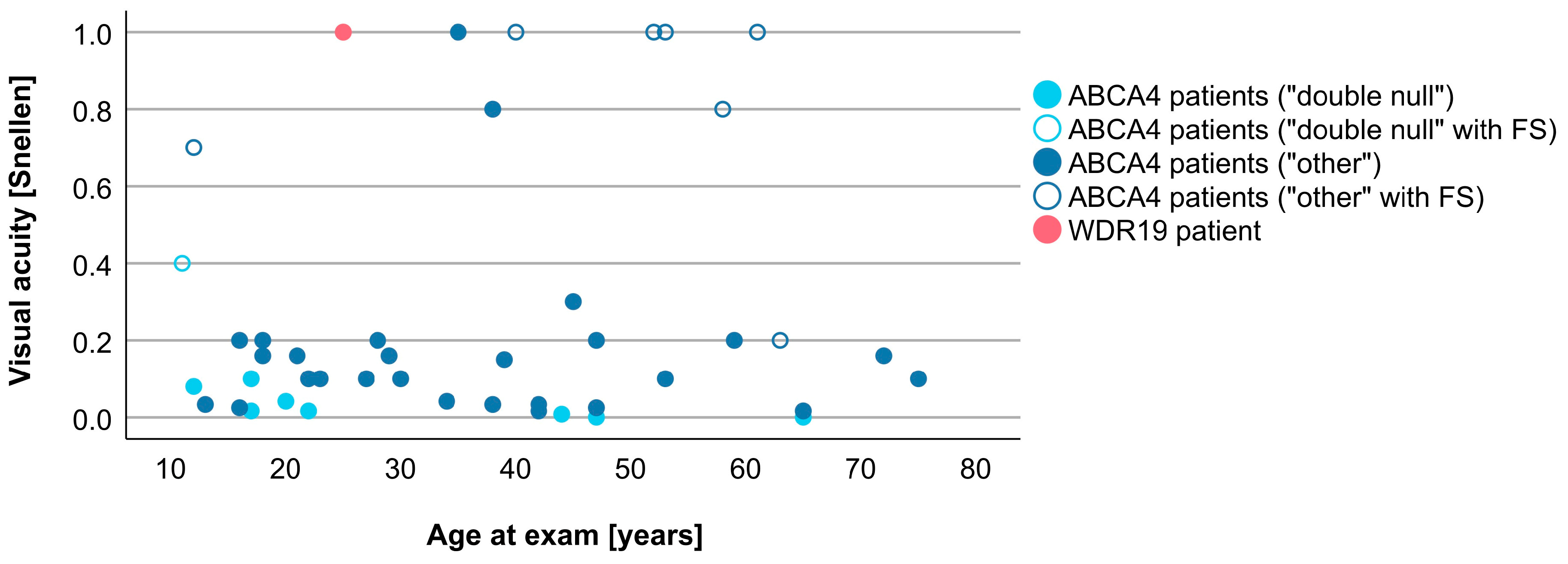

Figure 5. Comparison of VA between WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). Foveal sparing patients are marked with empty circles. Abbreviation explanation: FS—foveal sparing.
Figure 5. Comparison of VA between WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). Foveal sparing patients are marked with empty circles. Abbreviation explanation: FS—foveal sparing.
Genes 14 00291 g005
Genes 14 00291 g006 550
Figure 6. Comparison of DDAF area, representing retinal pigment epithelium (RPE) atrophy, between WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). For this analysis a limited number of “other” ABCA4 patients (only those harboring ABCA4 variant c.5714+5G>A (p.[=,Glu1863Leufs*33]) was included (see Section 2).
Figure 6. Comparison of DDAF area, representing retinal pigment epithelium (RPE) atrophy, between WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). For this analysis a limited number of “other” ABCA4 patients (only those harboring ABCA4 variant c.5714+5G>A (p.[=,Glu1863Leufs*33]) was included (see Section 2).
Genes 14 00291 g006
Genes 14 00291 g007 550

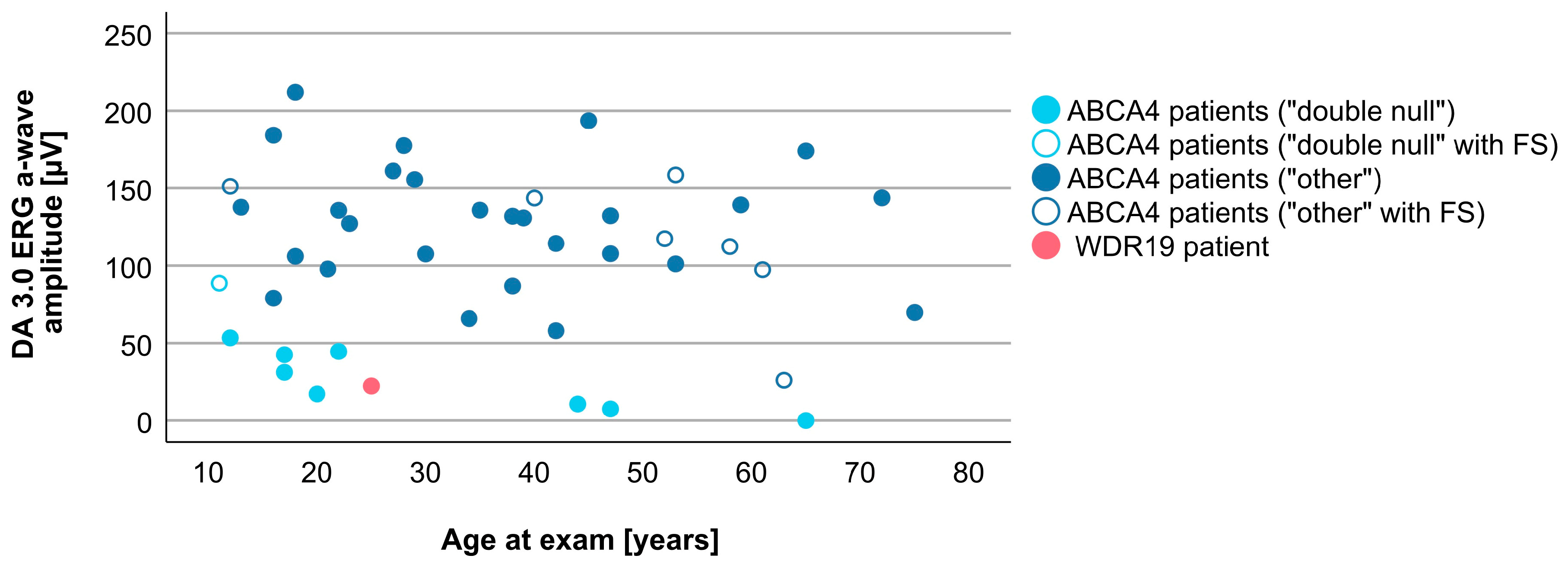

Figure 7. Comparison of DA 3.0 ERG a-wave amplitudes (providing a measure of rod photoreceptor funtion) between WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). Foveal sparing patients are marked with empty circles.
Figure 7. Comparison of DA 3.0 ERG a-wave amplitudes (providing a measure of rod photoreceptor funtion) between WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). Foveal sparing patients are marked with empty circles.
Genes 14 00291 g007
Genes 14 00291 g008 550
Figure 8. Comparison of DA 0.01 ERG b-wave amplitude (representing rod system function) between WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). Foveal sparing patients are marked with empty circles.
Figure 8. Comparison of DA 0.01 ERG b-wave amplitude (representing rod system function) between WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). Foveal sparing patients are marked with empty circles.
Genes 14 00291 g008
Genes 14 00291 g009 550
Figure 9. Comparison of LA 30 Hz ERG amplitudes (representing cone system function) between WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). Foveal sparing patients are marked with empty circles.
Figure 9. Comparison of LA 30 Hz ERG amplitudes (representing cone system function) between WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). Foveal sparing patients are marked with empty circles.
Genes 14 00291 g009
Genes 14 00291 g010 550
Figure 10. Comparison of PERG P50 amplitudes (representing macular function) between WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). Foveal sparing patients are marked with empty circles.
Figure 10. Comparison of PERG P50 amplitudes (representing macular function) between WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). Foveal sparing patients are marked with empty circles.
Genes 14 00291 g010
Genes 14 00291 g011 550
Figure 11. Different ratios of cones and rods impairment in WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). Foveal sparing patients are marked with empty circles.
Figure 11. Different ratios of cones and rods impairment in WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). Foveal sparing patients are marked with empty circles.
Genes 14 00291 g011
Genes 14 00291 g012 550
Figure 12. Different ratios of cone system and macular photoreceptors impairment in WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). Foveal sparing patients are marked with empty circles.
Figure 12. Different ratios of cone system and macular photoreceptors impairment in WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). Foveal sparing patients are marked with empty circles.
Genes 14 00291 g012
Genes 14 00291 g013 550
Figure 13. Different ratios of RPE and photoreceptor impairment in WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). For this analysis a limited number of “other” ABCA4 patients (only those harboring ABCA4 variant c.5714+5G>A (p.[=,Glu1863Leufs * 33]) was included (see Materials and Methods).
Figure 13. Different ratios of RPE and photoreceptor impairment in WDR19 patient (red), double null ABCA4 patients (light blue) and ABCA4 patients with other genotypes (dark blue). For this analysis a limited number of “other” ABCA4 patients (only those harboring ABCA4 variant c.5714+5G>A (p.[=,Glu1863Leufs * 33]) was included (see Materials and Methods).
Genes 14 00291 g013
Table
Table 1. Comparison of clinical characteristics of the WDR19 and ABCA4 Stargardt patients.
Table 1. Comparison of clinical characteristics of the WDR19 and ABCA4 Stargardt patients.
ParameterWDR19 PatientABCA4 Patients (Median, Range)
Age at exam24 years38 years (11–75 years)
Age at onset5 years16 years (5–60 years)
Disease duration21 years12 years (0–55 years)
Visual acuity (Snellen decimal)1.00.1 (0.0–1.0)
PERG P50 amplitude1.6 µV1.5 µV (0.5–5.0 µV)
S-cone ERG amplitude0.0 µV3.4 µV (0.0–8.9 µV)
DA 0.01 ERG b-wave amplitude9.8 µV143.6 (0.0–267.8 µV)
DA 3.0 ERG a-wave amplitude22.3 µV113.3 µV (0.0–211.9 µV)
Oscillatory potentials0.0 µV9.3 µV (0.0–53.9 µV)
LA 30 Hz ERG amplitude21.9 µV58.4 µV (0.0–125.6 µV)
LA 3.0 ERG b-wave amplitude16.7 µV60.5 µV (0.0–128.7 µV)
DDAF area0.04 mm215.09 mm2 (0.22–89.67 mm2), N = 18
Abbreviation explanation: DDAF—definitely decreased autofluorescence. Values recorded at the last ERG exam were taken for the analysis.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sajovic, J.; Meglič, A.; Volk, M.; Maver, A.; Jarc-Vidmar, M.; Hawlina, M.; Fakin, A. Stargardt-like Clinical Characteristics and Disease Course Associated with Variants in the WDR19 Gene. Genes 2023, 14, 291. https://doi.org/10.3390/genes14020291

AMA Style

Sajovic J, Meglič A, Volk M, Maver A, Jarc-Vidmar M, Hawlina M, Fakin A. Stargardt-like Clinical Characteristics and Disease Course Associated with Variants in the WDR19 Gene. Genes. 2023; 14(2):291. https://doi.org/10.3390/genes14020291

Chicago/Turabian Style

Sajovic, Jana, Andrej Meglič, Marija Volk, Aleš Maver, Martina Jarc-Vidmar, Marko Hawlina, and Ana Fakin. 2023. "Stargardt-like Clinical Characteristics and Disease Course Associated with Variants in the WDR19 Gene" Genes 14, no. 2: 291. https://doi.org/10.3390/genes14020291

APA Style

Sajovic, J., Meglič, A., Volk, M., Maver, A., Jarc-Vidmar, M., Hawlina, M., & Fakin, A. (2023). Stargardt-like Clinical Characteristics and Disease Course Associated with Variants in the WDR19 Gene. Genes, 14(2), 291. https://doi.org/10.3390/genes14020291

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
