ROS Homeostasis Involved in Dose-Dependent Responses of Arabidopsis Seedlings to Copper Toxicity

by
Jiehua Wang
,
Muhammad Moeen-ud-din
,
Rong Yin
and
Shaohui Yang
*
School of Environmental Science and Engineering, Tianjin University, Tianjin 300072, China
*
Author to whom correspondence should be addressed.
Genes 2023, 14(1), 11; https://doi.org/10.3390/genes14010011
Submission received: 25 November 2022 / Revised: 13 December 2022 / Accepted: 17 December 2022 / Published: 21 December 2022
(This article belongs to the Special Issue Genetic Mechanism of Plant Responses to Environmental Stresses)
Browse Figures
Versions Notes

Abstract

:
As an essential element in plant nutrition, copper (Cu) can promote or inhibit plant growth depending on its concentration. However, the dose-dependent effects of copper, particularly on DNA damage associated with reactive oxygen species (ROS) homeostasis, are much less understood. In this work, we analyzed the dual effect of Cu (5, 20, and 60 μM) on the reproductive performance of Arabidopsis plants. Whereas Cu5 promoted inflorescence initiation and increased kilo seed weight, two higher concentrations, Cu20 and Cu60, delayed inflorescence initiation and negatively affected silique size. Excess Cu also induced changes in cellular redox homeostasis, which was examined by in situ visualization and measurements of ROS, including superoxide (O2•−), hydrogen peroxide (H2O2), malonyldialdehyde (MDA), and plasma membrane damage. The most dramatic increases in the production of O2•− and H2O2 along with increased activity of superoxide dismutase (SOD) and glutathione peroxidase (GPX) and decreased activity of catalase (CAT) and ascorbate peroxidase (APX) were observed in roots with Cu60. Oxidative stress also modulated the expression levels of a number of genes involved in the DNA damage response (DDR), particularly those related to DNA repair. The Cu-induced chlorosis of Arabidopsis seedlings could be alleviated by exogenous addition of glutathione (GSH) and ascorbate (Asc), as the chlorophyll content was significantly increased. Overall, internal homeostasis ROS and the associated DDR pathway and the corresponding scavenging mechanisms play a central role in the response of Arabidopsis to oxidative stress induced by inhibitory Cu concentrations. Our results have shown, for the first time, that the biphasic responses of Arabidopsis seedlings to increasing Cu concentrations involve different DNA damage responses and oxidative reactions. They provide the basis for elucidating the network of Cu-induced DDR-related genes and the regulatory mechanism of the complex ROS production and scavenging system.

1. Introduction

As an essential micronutrient for plants, copper (Cu) is an important cofactor for many metalloproteins and plays a key role in important biological processes such as respiration, photosynthesis, antioxidant activity, cell wall metabolism and lignification, and ethylene signaling [1,2]. However, because it is a transition metal with high redox activity, Cu excess can be toxic to plants and, in particular, can catalyze the formation of harmful free radicals that disrupt numerous biochemical and physiological processes [2,3]. Symptoms of Cu excess in plants include reduced plant biomass, inhibited root growth, and necrosis–chlorosis [2]. Previously, we showed that the phenotypic responses of Arabidopsis seedling roots were dose-dependent, which correlated well with the change in the concentration of endogenous auxin [4]. In the current study, we continue to investigate plant adaptation strategies and mechanisms of Cu in the context of cellular redox homeostasis.
As a redox-active metal, Cu catalyzes the formation of reactive oxygen species (ROS) through the Fenton and Haber–Weiss reactions [1]. Therefore, excess Cu often leads to the accumulation of harmful ROS, including superoxide (O2•−), hydrogen peroxide (H2O2), and hydroxyl radical (•HO), which disrupt redox homeostasis and cause a variety of oxidative damage to cells at the lipid, protein, and nucleic acid levels [5,6,7]. For example, as a relatively long-lived molecule, H2O2 can diffuse from the site of production and penetrate membrane structures to induce intracellular damage [8]. The increased Cu tolerance in autotetraploid Arabidopsis compared to diploid wild-type Arabidopsis has been linked to its enhanced antioxidant activity [9], and the Arabidopsis miox4 mutant also exhibits higher resistance to deleterious Cu with reduced ROS production [6]. It has been widely reported in the literature that in order to survive and adapt to oxidative damage caused by excessive metal ions, plants have evolved an intricate defense network consisting of ROS-removing enzymes such as superoxide dismutase (SOD), ascorbate peroxidase (APX), catalase (CAT), glutathione reductase (GR), and peroxidase (POD) [10,11,12], as well as low molecular mass antioxidants such as ascorbate (Asc) and glutathione (GSH) [11]. The sequential and additive action of these antioxidant enzymes and compounds constitutes the antioxidant force to maintain cellular redox homeostasis. As previously shown, Cu stress induces the overproduction of the enzymes SOD, APX, and CAT in Ceratophyllum demersum [13] and the activities of CAT, POD, and APX in the duckweed Lemna minor [14].
The accumulation of ROS also causes oxidative damage to DNA molecules and subsequently leads to impaired genomic integrity and stability [15]. To defend against DNA damage, plants initiate a DNA damage response (DDR) network, which consists of a series of DNA damage detection and signal transduction pathways [16], to arrest the cell cycle and even trigger cell death [17,18]. The DDR network is a highly conserved system in various eukaryotic species, and in plants, a number of proteins such as WEE1 (Wee1-like protein kinase) [19], MRE11 (meiotic recombination 11) [20,21], PARP1 (poly(ADP-ribose) polymerase 1) [22], and BRCA1 (breast cancer susceptibility1) [23] have been shown to play important roles in DDR responses to maintain genome stability.
In the literature, a number of authors have described the responses of plants when exposed to relatively high and acute concentrations of copper [24,25], but there is far less research on the dose-dependent effects of copper, particularly on DNA damage related to ROS homeostasis. In this work, we aimed to (1) investigate the involvement of cellular redox balance in determining the tolerance of Arabidopsis seedlings to different doses of Cu by analyzing the changes in antioxidant enzyme activities and transcriptional changes in the genes encoding them; (2) evaluate the DNA damage response in Cu-stressed Arabidopsis seedlings by analyzing the accumulation of ROS and the expression levels of various DDR marker genes; (3) analyze the ameliorative effect of antioxidant Asc and GSH on Cu toxicity in Arabidopsis seedlings. Our data presented here may help elucidate the dose-dependent effects of Cu on plants in relation to cellular redox status and shed light on the development of Cu-tolerant germplasm for sustainable agricultural systems. In addition, the study may provide the basis for elucidating the network of Cu-induced DDR-related genes and the regulatory mechanism of the complex ROS production and scavenging system.

2. Materials and Methods

2.1. Plant Material, Growth Conditions, and Cu Treatment

Seeds of wild-type Arabidopsis thaliana (ecotype Col-0) were surface-sterilized with 12.5% sodium hypochlorite for 7 min and with 70% ethanol for 2 min and then washed 5 times with sterile water. After 3 days of vernalization at 4 °C in the dark, seeds were grown on 1/2 Murashige and Skoog (MS) medium (with 0.05 µM Cu) at pH 5.7 consisting of 1% (w/v) sucrose, 0.8% (w/v) phytoagar, and 0.05% 2-(4-morpholino) ethanesulfonic acid (MES) supplemented with CuSO4 at an additional concentration of 0, 5, 20, or 60 µM (control, Cu5, Cu20, or Cu60).
Seedlings were grown vertically in a growth chamber at a day/night temperature of 22 °C/18 °C, 16 h light/8 h dark, and a light intensity of 120 µmol m−2 s−1. After 6 days of growth, more than 30 plants per treatment were repotted into a 1:1 (v/v) perlite-vermiculite mixture soaked in 1/2 MS liquid medium with appropriate CuSO4 concentration. Pots were kept in plastic bags to prevent the loss of Cu. Plants were watered once a week with an appropriate amount of distilled water to keep the soil moist. The pot culture experiment was conducted in a greenhouse at a temperature of 21 ± 1 °C, a photoperiod of 16 h of light with a light intensity of 140 µmol m−2 s−1, and a relative humidity of 50%. In the pot experiment, the indices of reproductive growth of plants were evaluated, including the height of plant stems, time of bolting, length of siliques, and weight of one thousand seeds of Arabidopsis treated with different concentrations of CuSO4. For the experiment to test the function of Asc and GSH, seeds were sown on 1/2 MS plates containing 60 µM CuSO4 with or without 0.3 mM Asc or 1 mM GSH, and total chlorophyll content was determined after 6 days.

2.2. Determination of Physiological Indices

Arabidopsis seeds were germinated on 1/2 MS medium containing various concentrations of CuSO4 and grown for 6 days before shoots or roots were harvested separately for subsequent analysis. Fresh leaves (100 mg) were pulverized with liquid nitrogen, and chlorophyll was extracted with 95% (v/v) ethanol. Extraction was carried out at 4 °C for 2 h with the exclusion of light. The extract was centrifuged at 8000× g for 5 min at 4 °C. The absorbance of the supernatant at a wavelength of 652 nm was determined using a spectrophotometer (RAY LEIGH UV-1801,Beijing, China). The total chlorophyll content was calculated according to our previous study [26]. Membrane integrity was assessed by measuring the electrolyte leakage of the leaf using a previous method [27]. Quantitative detection of H2O2, O2•−, MDA, GSH, and Asc was performed using assay kits (Zike, Shenzhen, China) according to the manufacturer’s protocol. The enzyme activities of SOD, CAT, APX, and glutathione peroxidase (GPX) were determined using assay kits (Shenzhen Zike Biotechnology Company, Shenzhen, China) according to the manufacturer’s instructions.

2.3. Histochemical Localization Analysis

In situ visualization of O2•− was performed by using nitroblue tetrazolium (NBT) staining as previously described by Bournonville and Diaz-Ricci [28]. Briefly, 6-day-old seedlings were randomly selected in triplicate from different concentrations of CuSO4 treatments. Root and shoot samples were vacuum-filtered for 2 min in 50 mM phosphate buffer (pH 7.6) containing 0.1% NBT and 10 mM sodium azide, and then incubated for 2 h in the dark. Finally, they were washed once with phosphate buffer and immersed in 96% ethanol to completely remove chlorophyll.
Intracellular H2O2 was visually detected by 3, 3-diaminobenzidine (DAB) staining, a method described by Guan et al. [29]. Root and shoot samples from 6-day-old seedlings were incubated in 0.1% DAB staining solution in distilled water for 8 h in the dark. Samples were washed at least three times with distilled water and then bleached with (1:1:3) acetic acid: glycerol: ethanol to remove chlorophyll. The loss of membrane integrity or cell death was stained with trypan blue as described by Duan et al. [30]. Six-day-old seedlings were incubated in a 0.4% trypan blue solution for 20 min and then washed three times with distilled water. In all cases, the seedlings were immediately mounted on microscopic slides and histochemical staining was observed using Nikon microscope 50i equipped with a Nikon DS -Fi1C camera. The images were analyzed using Image J software.

2.4. RNA Isolation and qRT-PCR Analysis

The expression of genes encoding antioxidant enzymes was investigated by qRT-PCR according to our previous study [26]. The roots and shoots of six-day-old Arabidopsis seedlings were harvested separately and ground in liquid nitrogen to extract total RNA. Total RNA was extracted using an RNeasy Plant Mini Kit (Qiagen) according to the manufacturer’s instructions. The cDNA was prepared using SuperScript III reverse transcriptase (Invitrogen, Thermo Fisher Scientific, USA). qRT-PCR Reactions were performed using SYBR Premix Ex Taq II (Takara, Dalian, China) according to our previous study [26]. The relative expression of target genes was calculated using the ΔΔCt method [31]. The constitutively expressed actin gene (AtActin) was used as an internal control. The sequences of all primers used for qRT-PCR in this study are listed in Table S1.

2.5. Statistical Analysis

All experiments in this study were repeated three times. Values shown are means ± SD of three individual experiments. Statistical significance was determined by a one-way ANOVA/LSD post hoc test (p < 0.05). The analysis of all data and the drawing of graphs were performed using SPSS, Microsoft Excel, and Visio software.

3. Results and Discussions

3.1. Reproductive Performance of Arabidopsis upon Cu Treatment

Our previous work showed that wild-type Arabidopsis seedlings grew optimally in 1/2 MS medium supplemented with a CuSO4 concentration of 5 μM, and increasing concentrations had dose-dependent negative effects [32]. Therefore, 20 μM Cu (Cu20) was established as the threshold for Cu toxicity, and 60 μM Cu (Cu60) as the dose causing severe adverse effects [5]. Considering that Cu deficiency primarily affects the reproductive performance of higher plants [33], we first investigated how the above three Cu doses affected the reproductive parameters. The results showed that the three Cu doses had different effects on reproductive performance, except for inflorescence stalk height. The bolting time was 3 days earlier and 6 days later for Cu5 and Cu60, respectively, than the control plants (Table 1). The average length of siliques was 16% lower in Cu60-treated plants than in untreated control plants (Table 1). In terms of kilo seed weight, Cu5 resulted in an increase of 15%, whereas Cu20 and Cu60 resulted in a comparable seed weight to the control plants (Table 1). Together with the previous reports focusing on the vegetative stages of Arabidopsis seedlings, the results confirmed that the effect of copper on Arabidopsis thaliana is dose-dependent.

3.2. Dose-Dependent Accumulation of ROS Induced by Cu in Arabidopsis Seedlings

Abiotic stress always disturbs cellular redox homeostasis and increases the production of ROS, so we investigated the levels of O2•− and H2O2 in Arabidopsis tissues after Cu treatments by histochemical and biochemical analyses. In both roots and shoots, three Cu concentrations triggered O2•− and H2O2 production in a dose-dependent manner, as shown by the NBT and DAB staining assays, respectively (Figure 1 and Figure 2). As for H2O2 production, a dramatic increase in DAB staining intensity in roots was observed only for Cu20 and Cu60 compared with untreated control plants (Figure 1E and Figure 2D). The modulation of ROS content in roots (Figure 1C,F) and shoots (Figure 2F,G) was verified by biochemical measurements, which was consistent with previous reports. When 3-week-old Arabidopsis seedlings were exposed to 5 μM Cu for 24 h, H2O2 content in leaves and roots increased by 80% and 86%, respectively [34]. When the growth medium contained 25–50 μM CuSO4, Arabidopsis leaves exhibited 440–480% of the H2O2 concentration of control plants [35]. In leaves of A. thaliana treated with 100 μM Cu, H2O2 content increased 3.6-fold after 48 h and 9.5-fold after 144 h [7]. In conclusion, excessive Cu induces the accumulation of ROS, including O2•− and H2O2, thus disrupting cellular redox homeostasis.
As an intermediate of ROS, H2O2 removes electrons from the lipids of cell membranes, resulting in severe lipid peroxidation [11]. Therefore, MDA content, one of the end products of lipid peroxidation, was analyzed to evaluate the extent of oxidative damage caused by Cu. In this work, MDA content was significantly increased in both roots (Figure 1I) and shoots (Figure 2E). In roots, oxidative damage to the plasma membrane detected by trypan blue staining also showed a dose dependency and there was a clear indication of cell damage after treatment with Cu20 and Cu60 (Figure 1G,H). In Arabidopsis, the uptake of Cu mainly relies on the high-affinity transporter (COPT1) localized in the plasma membrane of root tip cells [32], where the massive entry of Cu could generate ROS [36]. When treated with 50 µM CuSO4 for 2 h, this increased cytosolic Cu pool produces a burst of reactive hydroxyl radicals (•OH) in the cytosol of Arabidopsis root tip cells [37]. In shoots, Cu5 did not appear to alter membrane permeability in Arabidopsis seedling leaves (Figure 2H), but Cu20 and Cu60 increased membrane permeability by 45% and 88%, respectively, compared with the control (Figure 2H), suggesting that excess Cu damages this essential physiological function of plant cells.

3.3. Cu Induces Oxidative DNA Damage Response in Arabidopsis Seedlings

Another serious consequence of the accumulation of ROS is oxidative DNA damage, which plants counteract by a series of DDR-related proteins such as MRE11, WEE1, RAD51, PARP1, and BRCA1 to maintain genome stability [16,17]. Since the products of these genes play an important role in the repair of double-stranded DNA breaks (DSBs) or DNA end joining [15], their mutation caused hypersensitivity to irradiation or genotoxic agents [38,39]. To date, little is known about the effects of Cu stress on DDR induction. Therefore, we examined DDR Arabidopsis seedlings after Cu stress by analyzing the transcript levels of eight DDR marker genes, including AtMRE11, AtRAD51, AtBRCA1, AtWEE1, AtPARP1, AtMSH2, AtMSH6, and AtMLH1, by qRT-PCR analysis. As shown in Figure 3, the induction of DDR genes by Cu20 was most pronounced compared with Cu5 and Cu60. In both shoots and roots, the transcription of all genes was significantly up-regulated by Cu20, except for AtMSH2, AtMSH6, and AtMLH1 in roots (Figure 3A,B). In comparison, Cu5 induced the expression of fewer genes and to a lesser extent, and Cu60 even decreased the expression of several genes in both tissues (Figure 3A,B), suggesting a dysfunctional plant DNA repair system at this high concentration. Similar to our results on Cu stress, the expression of RAD51, BRCA1, MRE11, WEE1, MSH1, MSH2, and MSH6 was also significantly decreased in Arabidopsis roots under 2.5 and 4.0 mg/L Cd stress [39].

3.4. Cu Regulates Antioxidative Enzyme Activity in Arabidopsis Seedlings

The metabolism of ROS is controlled by a group of enzymes, of which SOD and catalase (CAT) are the most important enzymes to lower the level of ROS and maintain redox homeostasis [12,40]. In Arabidopsis leaves exposed to Cu for 7 days, a gradual increase from 120% of control at 5 μM Cu to 400% of control at 300 μM Cu was reported [35]. However, in two other studies, the total activities of SOD in roots and leaves were not affected when the roots of 3-week-old Arabidopsis seedlings were exposed to 2–5 μM Cu [34] and 10 μM Cu [41] for 24 h via hydroponic nutrient solutions. In barley seedlings, treatment with 15 μM Cu resulted in a slight, but significant, increase in the total activity of SOD, whereas much higher Cu concentrations of 150 and 1500 μM caused visible toxicity symptoms, as evidenced by a decrease in the activity of SOD [42]. In this work, both roots and shoots showed higher SOD activities, with a significant correlation observed between Cu concentration and increased activity of SOD in roots (Figure 4A), whereas the activities of SOD in shoots were similarly upregulated by three doses of Cu (Figure 4B). Such differential responses in tissues with respect to SOD enzyme activities were also observed in 2-week-old Arabidopsis seedlings exposed to γ radiation for 7 days [43].
Copper/zinc SODs (Cu/ZnSODs, CSDs), manganese SODs (MnSODs, MSDs), and iron SODs (FeSODs, FSDs) are three classes of SODs in plants that play an important role in adaptation to abiotic stresses [40]. We then investigated whether or not the change in the overall activity of SOD was associated with changes in the expression levels of genes encoding the different SOD isoforms. First, FSD1 was found to be the only gene that was strongly down-regulated in both shoots and roots upon Cu exposure. MSD1 and FSD3 were moderately down-regulated by Cu in roots (Figure 4C) and shoots (Figure 4D), respectively. All other SOD-coding genes tested were unchanged or up-regulated in their transcription (Figure 4C and Figure 4D). In roots, FSD2, FSD3, and CSD2 were among the most Cu60-induced (>2-fold) genes (Figure 4C). In shoots, the expression levels of CSD2 at Cu20 and Cu60 and of MSD1 at Cu60 were dramatically higher than in control group plants (Figure 4D). Thus, the Cu-induced increased activities of SOD in Arabidopsis shoots and roots were associated with the increased expression of several SOD genes. In agreement with our results, an induction of CSD2 and an increase in SOD activity were detected in Arabidopsis leaves in response to 30 µM Cu [44]. In hydroponically grown Arabidopsis leaves, the activities of CSD1 and CSD2 were decreased under Cu-deficient conditions and increased when Cu was added to the medium [45]. In contrast, FSD was up-regulated under copper-deficient conditions, but disappeared when Cu was added [44]. Our results confirmed the contrasting responses of Cu/ZnSOD and FeSOD to different Cu availabilities, suggesting that the superoxide scavenging functions of cytosolic CSD1 in the presence of excess Cu may substitute for the activity of FSD1 localized in plastids.
CAT converts H2O2 to water and molecular oxygen and is considered one of the most important ROS scavengers in peroxisomes [10]. In the leaves of Arabidopsis exposed to Cu for 7 days, it was shown that the activity of CAT gradually decreased with increasing Cu concentration and at 75 μM, Cu was only about 40% of the control values [35]. In another work, the activity of CAT in 11-day-old Arabidopsis seedlings treated with 35 μM CuSO4 for three days was 71% and 83% in roots and shoots, respectively [32]. In our study, Cu5 showed no effect on the activity of CAT, but at Cu20 and Cu60, the activities of CAT were significantly decreased in both roots and shoots compared with control plants (Figure 5A,B). qRT-PCR results showed that the decrease in the activity of CAT in shoots and roots was supported by the decreased expression of CAT1-3 genes (Figure 5C,D).
As the first step of the Asc-GSH cycle, ascorbate peroxidase (APX) plays an important role in reducing H2O2 accumulation by using two molecules of ascorbate to reduce H2O2 to water [46]. In the current work, the activity of APX in Arabidopsis shoots showed dose-dependent increases at three Cu concentrations and a consistent trend in the expression of the APX gene. However, in roots treated with Cu60, the activity of APX decreased significantly (Figure 6A), along with a drastically decreased expression of APX1, which was absent in Cu5 or Cu20 (Figure 6B), suggesting that the increased H2O2 at high Cu concentrations in roots may be due to the impaired activity of APX, as previously suggested in another work [35].
Similar to APX, GPX plays an essential role in ROS homeostasis and stress signaling in plants and, thus, can be used as a biomarker of oxidative damage [47]. In our study, Cu5 and Cu20 significantly up-regulated GPX activity in both shoots and roots. In contrast, Cu60 down-regulated GPX activity only in roots (Figure 6C). The qRT-PCR results showed that these changes were associated with the modulated expression level of the GPX1 gene (Figure 6D). Similar to our results, 200 mg/L Cu exposure also reduced the GPX activity of Belamcanda chinensis calli from 7 d to 49 d [48]. Thus, the significantly reduced activities of APX and GPX could be attributed to H2O2 accumulation upon excessive Cu exposure.

3.5. Cu-Induced Changes of AsA and GSH Contents in Arabidopsis Seedlings

Ascorbate (Asc) and glutathione (GSH) are both multifunctional, non-enzymatic metabolites that play a prominent role in redox balance. A high ratio of reduced to oxidized Asc and GSH is essential for ROS scavenging in cells [48]. For Asc synthesis in Arabidopsis, the L-galactose pathway with VTC2 as the rate-limiting enzyme is the major metabolic pathway and the Asc-deficient mutants vtc2-1 and vtc2-3 have slightly elevated ROS levels and are Cu-sensitive [6]. When Asc content was measured in shoots and roots of Arabidopsis seedlings under different Cu treatments, Cu60 significantly increased Asc content in both shoots and roots (Figure 7A), which was accompanied by increased VTC2 gene expression (Figure 7B).
GSH is the predominant non-protein thiol and holds Asc in the reduced form [11,49]. GSH is synthesized by two sequential ATP-dependent reactions catalyzed by GSH1 and GSH2 [48]. GSH level [7] and the abundance of GSH1 transcripts have been shown to be increased after Cu treatment in Arabidopsis [50]. In this work, Cu60 dramatically increased GSH content in the roots, but not in the shoots, of Arabidopsis seedlings (Figure 7C), and the transcript levels of GSH1 and GSH2 genes were up-regulated mainly in roots exposed to Cu20 and Cu60. These results indicate that the oxidative stress caused by Cu toxicity induced the production of the two low-molecular-weight antioxidants and that the roots of Arabidopsis seedlings were more responsive to the oxidative stress.
As a regulatory element of chlorophyll synthesis [51], excess Cu can lead to loss of chloroplast integrity and inhibit photosynthetic electron transport [35,52]. In this work, a significant decrease in chlorophyll content was observed on day 6, which was evident in the more yellowish leaves of Arabidopsis seedlings treated with Cu60 (Figure 8A,B). In contrast, the leaves treated with Cu5 and Cu20 had higher and similar total chlorophyll content, respectively, compared to the leaves of the control plants (Figure 8A,B), a result that differs from a previous report [35]. To further clarify the function of Asc and GSH in plant tolerance to excess Cu, we administered 0.3 mM Asc or 1 mM GSH in the presence of Cu60, both of which significantly increased the total chlorophyll content in treated leaves compared with plants treated with Cu60 alone (Figure 8C). It was suggested that exogenous Asc can replenish its endogenous pool and enhance photosynthetic electron transport [7]. Moreover, photosynthesis also depends on thiol-regulated enzymes, and GSH is involved in the thioredoxin regulation of many enzymes in photosynthetic metabolism [50]. The effects of exogenous GSH on heavy metal tolerance have been shown to depend on the plant species and the type of metal [53]. Exogenous GSH did not attenuate the toxicity of cadmium (Cd), copper (Cu), or zinc (Zn), whereas it significantly increased Hg tolerance during seed germination and seedling growth of Arabidopsis thaliana [54]. Treatment with GSH and Asc could also prevent chlorosis and the accumulation of ROS by increasing the activity of the heme protein ascorbate peroxidase, as reported in Arabidopsis leaves [55].

4. Conclusions

This work demonstrated the close relationship between the dose-dependent responses of Arabidopsis seedlings to Cu and altered endogenous ROS status. The development of oxidative stress, accumulation of oxidizing molecules, modified regulation of DDR, altered activities of antioxidant enzymes, and varying levels of low-molecular-weight antioxidants have been shown to contribute to the dose-dependent toxicity of Cu. In Figure 9, we present a graphical model that attempts to explain the various regulatory effects of increasing Cu concentrations, with signals generated by DNA damage and oxidative species providing the basis for the gene regulatory network to adjust counteracting ROS production and scavenging systems.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes14010011/s1. Figure S1: Statistical significance results of NBT staining intensity in roots.; Figure S2: Statistical significance results of DAB staining intensity in roots. Figure S3: Statistical significance results of TB staining intensity in roots. Figure S4: Statistical significance results of O2− content in roots. Figure S5: Statistical significance results of H2O2 contents in roots. Figure S6: Statistical significance results of MDA contents in roots. Figure S7: Statistical significance results of NBT staining intensity in shoots. Figure S8: Statistical significance results of DAB staining intensity in shoots. Figure S9: Statistical significance results of MDA contents in shoots. Figure S10: Statistical significance results of H2O2 contents in shoots. Figure S11: Statistical significance results of O2− content in shoots. Figure S12: Statistical significance results of leaf electrolyte leakage. Table S1: Primers were used for qRT-PCR analysis.

Author Contributions

Formal analysis, J.W.; funding acquisition, S.Y.; investigation, R.Y.; project administration, S.Y.; writing—original draft, J.W.; writing—review and editing, M.M.-u.-d. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by National Natural Science Foundation of China (32271705).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Reis, R.; Hendrix, S.; Mourato, M.P.; Martins, L.L.; Vangronsveld, J.; Cuypers, A. Efficient regulation of copper homeostasis underlies accession-specific sensitivities to excess copper and cadmium in roots of Arabidopsis thaliana. J. Plant Physiol. 2021, 261, 153434. [Google Scholar] [CrossRef] [PubMed]
  2. Shabbir, Z.; Sardar, A.; Shabbir, A.; Abbas, G.; Shahid, M. Copper uptake, essentiality, toxicity, detoxification and risk assessment in soil-plant environment. Chemosphere 2020, 259, 127436. [Google Scholar] [CrossRef] [PubMed]
  3. Gong, Q.; Wang, L.; Dai, T.; Zhou, J.; Li, Z. Effects of copper on the growth, antioxidant enzymes and photosynthesis of spinach seedlings. Ecotoxicol. Environ. Saf. 2019, 171, 771–780. [Google Scholar] [CrossRef] [PubMed]
  4. Song, Y.; Zhou, L.; Yang, S.; Wang, C.; Zhang, T.; Wang, J. Dose-dependent sensitivity of Arabidopsis thaliana seedling root to copper is regulated by auxin homeostasis. Environ. Exp. Bot. 2017, 139, 23–30. [Google Scholar] [CrossRef]
  5. Zehra, A.; Choudhary, S.; Wani, K.I.; Naeem, M.; Aftab, T. Exogenous abscisic acid mediates ROS homeostasis and maintains glandular trichome to enhance artemisinin biosynthesis in Artemisia annua under copper toxicity. Plant Physiol. Bioch. 2020, 156, 125–134. [Google Scholar] [CrossRef]
  6. Pető, A.; Lehotai, N.; Feigl, G.; Tugyi, N.; Ördög, A.; Gémes, K.; Tari, I.; Erdei, L.; Kolbert, Z. Nitric oxide contributes to copper tolerance by influencing ROS metabolism in Arabidopsis. Plant Cell Rep. 2013, 32, 1913–1923. [Google Scholar] [CrossRef]
  7. Maksymiec, W.; Wójcik, M.; Krupa, Z. Variation in oxidative stress and photochemical activity in Arabidopsis thaliana leaves subjected to cadmium and excess copper in the presence or absence of jasmonate and ascorbate. Chemosphere 2007, 66, 421–427. [Google Scholar] [CrossRef]
  8. Smirnoff, N.; Arnaud, D. Hydrogen peroxide metabolism and functions in plants. New Phytol. 2019, 221, 1197–1214. [Google Scholar] [CrossRef] [Green Version]
  9. Li, M.; Xu, G.; Xia, X.; Wang, M.; Yin, X.; Zhang, B.; Zhang, X.; Cui, Y. Deciphering the physiological and molecular mechanisms for copper tolerance in autotetraploid Arabidopsis. Plant Cell Rep. 2017, 36, 1585–1597. [Google Scholar] [CrossRef]
  10. Anjum, N.A.; Sharma, P.; Gill, S.S.; Hasanuzzaman, M.; Khan, E.A.; Kachhap, K.; Mohamed, A.A.; Thangavel, P.; Devi, G.D.; Vasudhevan, P.; et al. Catalase and ascorbate peroxidase—Representative H2O2-detoxifying heme enzymes in plants. Environ. Sci. Pollut. R. 2016, 23, 19002–19029. [Google Scholar] [CrossRef]
  11. Devireddy, A.R.; Zandalinas, S.I.; Fichman, Y.; Mittler, R. Integration of reactive oxygen species and hormone signaling during abiotic stress. Plant J. 2021, 105, 459–476. [Google Scholar] [CrossRef]
  12. Huang, H.; Ullah, F.; Zhou, D.X.; Yi, M.; Zhao, Y. Mechanisms of ROS regulation of plant development and stress responses. Front. Plant Sci. 2019, 10, 800. [Google Scholar] [CrossRef] [PubMed]
  13. Devi, S.R.; Prasad, M. Copper toxicity in Ceratophyllum demersum L. (Coontail), a free floating macrophyte: Response of antioxidant enzymes and antioxidants. Plant Sci. 1998, 138, 157–165. [Google Scholar] [CrossRef]
  14. Teisseire, H.; Vernet, G. Ascorbate and glutathione contents in duckweed, Lemna minor, as biomarkers of the stress generated by copper, folpet and diuron. Biomarkers 2000, 5, 263–273. [Google Scholar] [CrossRef]
  15. Hu, Z.; Cools, T.; De Veylder, L. Mechanisms used by plants to cope with DNA damage. Ann. Rev. Plant Biol. 2016, 29, 439–462. [Google Scholar] [CrossRef] [PubMed]
  16. Nisa, M.U.; Huang, Y.; Benhamed, M.; Raynaud, C. The plant DNA damage response: Signaling pathways leading to growth inhibition and putative role in response to stress conditions. Front. Plant Sci. 2019, 10, 653. [Google Scholar] [CrossRef] [Green Version]
  17. Pedroza-Garcia, J.A.; Xiang, Y.; De Veylder, L. Cell cycle checkpoint control in response to DNA damage by environmental stresses. Plant J. 2022, 109, 490–507. [Google Scholar] [CrossRef]
  18. Wang, Q.; La, Y.; Xia, H.; Zhou, S.; Zhai, Z.; La, H. Roles of MEM1 in safeguarding Arabidopsis genome against DNA damage, inhibiting ATM/SOG1-mediated DNA damage response, and antagonizing global DNA hypermethylation. J. Integr. Plant Biol. 2022, 64, 87–104. [Google Scholar] [CrossRef]
  19. Cools, T.; Iantcheva, A.; Weimer, A.K.; Boens, S.; Takahashi, N.; Maes, S.; Van den Daele, H.; Van Isterdael, G.; Schnittger, A.; De Veylder, L. The Arabidopsis thaliana checkpoint kinase WEE1 protects against premature vascular differentiation during replication stress. Plant Cell. 2011, 23, 1435–1448. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Amiard, S.; Charbonnel, C.; Allain, E.; Depeiges, A.; White, C.I.; Gallego, M.E. Distinct roles of the ATR kinase and the Mre11-Rad50-Nbs1 complex in the maintenance of chromosomal stability in Arabidopsis. Plant Cell. 2010, 22, 3020–3033. [Google Scholar] [CrossRef]
  21. Shen, M.; Nie, Y.; Chen, Y.; Zhang, X.; Zhao, J. OsMre11 is required for mitosis during rice growth and development. Int. J. Mol. Sci. 2021, 22, 169. [Google Scholar] [CrossRef] [PubMed]
  22. Pandey, N.; Black, B.E. Rapid detection and signaling of DNA damage by PARP-1. Trends Biochem. Sci. 2021, 46, 744–757. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, J.; Nan, N.; Shi, L.; Li, N.; Huang, S.; Zhang, A.; Liu, Y.; Guo, P.; Liu, B.; Xu, Z.Y. Arabidopsis BRCA1 represses RRTF1-mediated ROS production and ROS-responsive gene expression under dehydration stress. New Phytol. 2020, 228, 1591–1610. [Google Scholar] [CrossRef]
  24. Maksymiec, W.; Krupa, Z. The effects of short-term exposition to Cd, excess Cu ions and jasmonate on oxidative stress appearing in Arabidopsis thaliana. Environ. Exp. Bot. 2006, 57, 187–194. [Google Scholar] [CrossRef]
  25. Jonak, C.; Nakagami, H.; Hirt, H. Heavy metal stress. Activation of distinct mitogen-activated protein kinase pathways by copper and cadmium. Plant Physiol. 2004, 136, 3276–3283. [Google Scholar] [CrossRef] [Green Version]
  26. Wang, J.; Moeen-Ud-Din, M.; Yang, S. Dose-dependent responses of Arabidopsis thaliana to zinc are mediated by auxin homeostasis and transport. Environ. Exp. Bot. 2021, 189, 104554. [Google Scholar] [CrossRef]
  27. Zhao, L.; Zhang, H.; Wang, J.; Tian, L.; Li, F.; Liu, S.; Peralta-Videa, J.R.; Gardea-Torresdey, J.L.; White, J.C.; Huang, Y.; et al. C60 fullerols enhance copper toxicity and alter the leaf metabolite and protein profile in Cucumber. Environ. Sci. Technol. 2019, 53, 2171–2180. [Google Scholar] [CrossRef]
  28. Grellet, C.F.; Bournonville, J.; Díaz-Ricci, C. Quantitative determination of superoxide in plant leaves using a modified NBT staining method. Phytochem. Anal. 2011, 22, 268–271. [Google Scholar] [CrossRef]
  29. Guan, Z.Q.; Chai, T.Y.; Zhang, Y.X.; Xu, J.; Wei, W. Enhancement of Cd tolerance in transgenic tobacco plants overexpressing a Cd-induced catalase cDNA. Chemosphere 2009, 76, 623–630. [Google Scholar] [CrossRef]
  30. Duan, Y.; Zhang, W.; Bao, L.; Wang, Y.; Sodmergen, K.C.; Han, Z.; Li, X. An endoplasmic reticulum response pathway mediates programmed cell death of root tip induced by water stress in Arabidopsis. New Phytol. 2010, 186, 681–695. [Google Scholar] [CrossRef]
  31. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  32. Shin, L.J.; Lo, J.C.; Yeh, K.C. Copper chaperone antioxidant protein1 is essential for copper homeostasis. Plant Physiol. Bioch. 2012, 159, 1099–1110. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Sancenon, V.; Puig, S.; Mateu-Andres, I.; Dorcey, E.; Thiele, D.J.; Penarrubia, L. The Arabidopsis copper transporter COPT1 functions in root elongation and pollen development. J. Biol. Chem. 2004, 279, 15348. [Google Scholar] [CrossRef] [Green Version]
  34. Cuypers, A.; Karen, S.; Jos, R.; Kelly, O.; Els, K.; Tony, R.; Nele, H.; Nathalie, V.; Yves, G.; Jan, C.; et al. The cellular redox state as a modulator in cadmium and copper responses in Arabidopsis thaliana seedlings. J. Plant. Physiol. 2011, 168, 309–316. [Google Scholar] [CrossRef] [PubMed]
  35. Drazkiewicz, M.; Skórzyńska-Polit, E.; Krupa, Z. Copper-induced oxidative stress and antioxidant defence in Arabidopsis thaliana. BioMetals 2004, 17, 379–387. [Google Scholar] [CrossRef]
  36. Choudhary, M.; Jetley, U.K.; Khan, M.A.; Zutshi, S.; Fatma, T. Effect of heavy metal stress on proline, malondialdehyde, and superoxide dismutase activity in the cyanobacterium Spirulina platensis-S5. Ecotox. Environ. Saf. 2007, 66, 204–209. [Google Scholar] [CrossRef]
  37. Rodrigo-Moreno, A.; Andrés-Colás, N.; Poschenrieder, C.; Gunsé, B.; Penarrubia, L.; Shabala, S. Calcium- and potassium-permeable plasma membrane transporters are activated by copper in Arabidopsis root tips: Linking copper transport with cytosolic hydroxyl radical production. Plant Cell Environ. 2013, 36, 844–855. [Google Scholar] [CrossRef]
  38. De Schutter, K.; Joubès, J.; Cools, T.; Verkest, A.; Corellou, F.; Babiychuk, E.; Van Der Schueren, E.; Beeckman, T.; Kushnir, S.; Inze, D.; et al. Arabidopsis WEE1 kinase controls cell cycle arrest in response to activation of the DNA Integrity checkpoint. Plant Cell. 2007, 19, 211–225. [Google Scholar] [CrossRef] [Green Version]
  39. Cao, X.; Wang, H.; Zhuang, D.; Zhu, H.; Du, Y.; Cheng, Z.; Cui, W.; Rogers, H.J.; Zhang, Q.; Jia, C.; et al. Roles of MSH2 and MSH6 in cadmium-induced G2/M checkpoint arrest in Arabidopsis roots. Chemosphere 2018, 201, 586–594. [Google Scholar] [CrossRef]
  40. Gill, S.S.; Anjum, N.A.; Gill, R.; Yadav, S.; Hasanuzzaman, M.; Fujita, M.; Mishra, P.; Sabat, S.C.; Tuteja, N. Superoxide dismutase—Mentor of abiotic stress tolerance in crop plants. Environ. Sci. Pollut. Res. 2015, 22, 10375–10394. [Google Scholar] [CrossRef]
  41. Smeets, K.; Opdenakker, K.; Remans, T.; Sanden, S.V.; Belleghem, F.V.; Semane, B.; Horemans, N.; Guisez, Y.; Vangronsveld, J.; Cuypers, A. Oxidative stress-related responses at transcriptional and enzymatic levels after exposure to Cd or Cu in a multipollution context. J. Plant. Physiol. 2009, 166, 1982–1992. [Google Scholar] [CrossRef] [PubMed]
  42. Demirevska-Kepova, K.; Simova-Stoilova, L.; Stoyanova, Z.; Hölzer, R.; Feller, U. Biochemical changes in barley plants after excessive supply of copper and manganese. Environ. Exp. Bot. 2004, 52, 253–266. [Google Scholar] [CrossRef]
  43. Vanhoudt, N.; Horemans, N.; Wannijn, J.; Nauts, R.; Hees, M.V.; Vandenhove, H. Primary stress responses in Arabidopsis thaliana exposed to gamma radiation. J. Environ. Radioact. 2014, 129, 1–6. [Google Scholar] [CrossRef] [PubMed]
  44. Khandekar, S.; Leisner, S. Soluble silicon modulates expression of Arabidopsis thaliana genes involved in copper stress. J. Plant. Physiol. 2011, 168, 699–705. [Google Scholar] [CrossRef] [PubMed]
  45. Abdel-Ghany, S.E. Contribution of plastocyanin isoforms to photosynthesis and copper homeostasis in Arabidopsis thaliana grown at different copper regimes. Planta 2009, 229, 767–779. [Google Scholar] [CrossRef] [PubMed]
  46. Mailloux, R.J. Mitochondrial antioxidants and the maintenance of cellular hydrogen peroxide levels. Oxid. Med. Cell. Longev. 2018, 2018, 7857251. [Google Scholar] [CrossRef] [PubMed]
  47. Zhu, Y.; Chen, Y.; Zhang, X.; Xie, G.; Qin, M. Copper stress-induced changes in biomass accumulation, antioxidant activity and flavonoid contents in Belamcanda chinensis calli. Plant Cell Tiss Organ Cult. 2020, 142, 299–311. [Google Scholar] [CrossRef]
  48. Altaf, M.M.; Diao, X.P.; Altaf, M.A.; ur Rehman, A.; Shakoor, A.; Khan, L.U.; Jan, B.L.; Ahmad, P. Silicon-mediated metabolic upregulation of ascorbate glutathione (AsA-GSH) and glyoxalase reduces the toxic effects of vanadium in rice. J. Hazard. Mater. 2022, 436, 129145. [Google Scholar] [CrossRef]
  49. Mullineaux, P.M.; Rausch, T. Glutathione, photosynthesis and the redox regulation of stress-responsive gene expression. Photosynth. Res. 2005, 86, 459–474. [Google Scholar] [CrossRef]
  50. Xiang, C.; Oliver, D.J. Glutathione metabolic genes coordinately respond to heavy metals and jasmonic acid in Arabidopsis. Plant Cell. 1998, 10, 1539–1550. [Google Scholar] [CrossRef]
  51. Aguirre, G.; Pilon, M. Copper delivery to chloroplast proteins and its regulation. Front. Plant Sci. 2016, 6, 1250. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Lysenko, E.A.; Klaus, A.A.; Kartashov, A.V.; Kusnetsov, V.V. Specificity of Cd, Cu, and Fe effects on barley growth, metal contents in leaves and chloroplasts, and activities of photosystem I and photosystem II. Plant Physiol. Bioch. 2020, 147, 191–204. [Google Scholar] [CrossRef] [PubMed]
  53. Anderson, M.E. Determination of glutathione and glutathione disulfide in biological samples. Method Enzymol. 1985, 113, 548–555. [Google Scholar]
  54. Kim, Y.O.; Bae, H.J.; Cho, E.; Kang, H. Exogenous glutathione enhances mercury tolerance by inhibiting mercury entry into plant cells. Front. Plant Sci. 2017, 8, 683. [Google Scholar] [CrossRef] [Green Version]
  55. Ramírez, L.; Bartoli, C.G.; Lamattina, L. Glutathione and ascorbic acid protect Arabidopsis plants against detrimental effects of iron deficiency. J. Exp. Bot. 2013, 64, 3169–3178. [Google Scholar] [CrossRef]
Genes 14 00011 g001 550

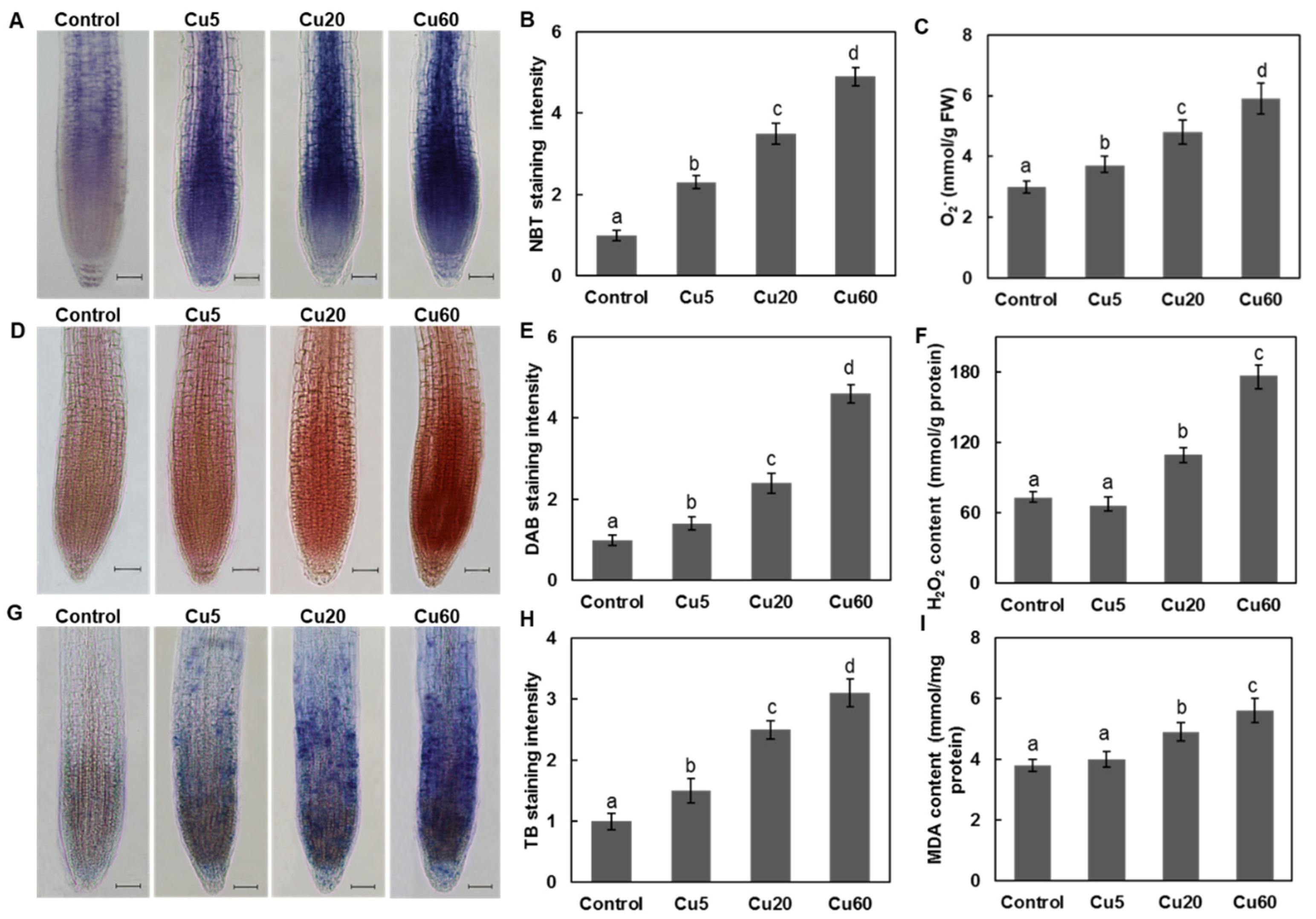

Figure 1. Accumulation of reactive oxygen species (ROS) and oxidative damage in roots of Arabidopsis seedling after treated with different concentrations of CuSO4 for 6 d. (A) Nitroblue tetrazolium (NBT) staining for superoxide anion. (B) Relative NBT staining intensity shown in (A). (C) O2− contents. (D) 3, 3-diaminobenzidine (DAB) staining for H2O2. (E) Relative DAB staining intensity shown in (D). (F) H2O2 contents. (G) Trypan blue (TB) staining. (H) Relative TB staining intensity shown in (G). (I) Malonyldialdehyde (MDA) levels. The relative color intensity of control was set as 1. At least ten images from three different experiments were measured. Data are means ± SD of three replicates with 30 seedlings. All the treatments were performed three times. Different letters indicate the significant difference (p < 0.05, by ANOVA-LSD post hoc test). Scale bar = 50 µm.
Figure 1. Accumulation of reactive oxygen species (ROS) and oxidative damage in roots of Arabidopsis seedling after treated with different concentrations of CuSO4 for 6 d. (A) Nitroblue tetrazolium (NBT) staining for superoxide anion. (B) Relative NBT staining intensity shown in (A). (C) O2− contents. (D) 3, 3-diaminobenzidine (DAB) staining for H2O2. (E) Relative DAB staining intensity shown in (D). (F) H2O2 contents. (G) Trypan blue (TB) staining. (H) Relative TB staining intensity shown in (G). (I) Malonyldialdehyde (MDA) levels. The relative color intensity of control was set as 1. At least ten images from three different experiments were measured. Data are means ± SD of three replicates with 30 seedlings. All the treatments were performed three times. Different letters indicate the significant difference (p < 0.05, by ANOVA-LSD post hoc test). Scale bar = 50 µm.
Genes 14 00011 g001
Genes 14 00011 g002 550

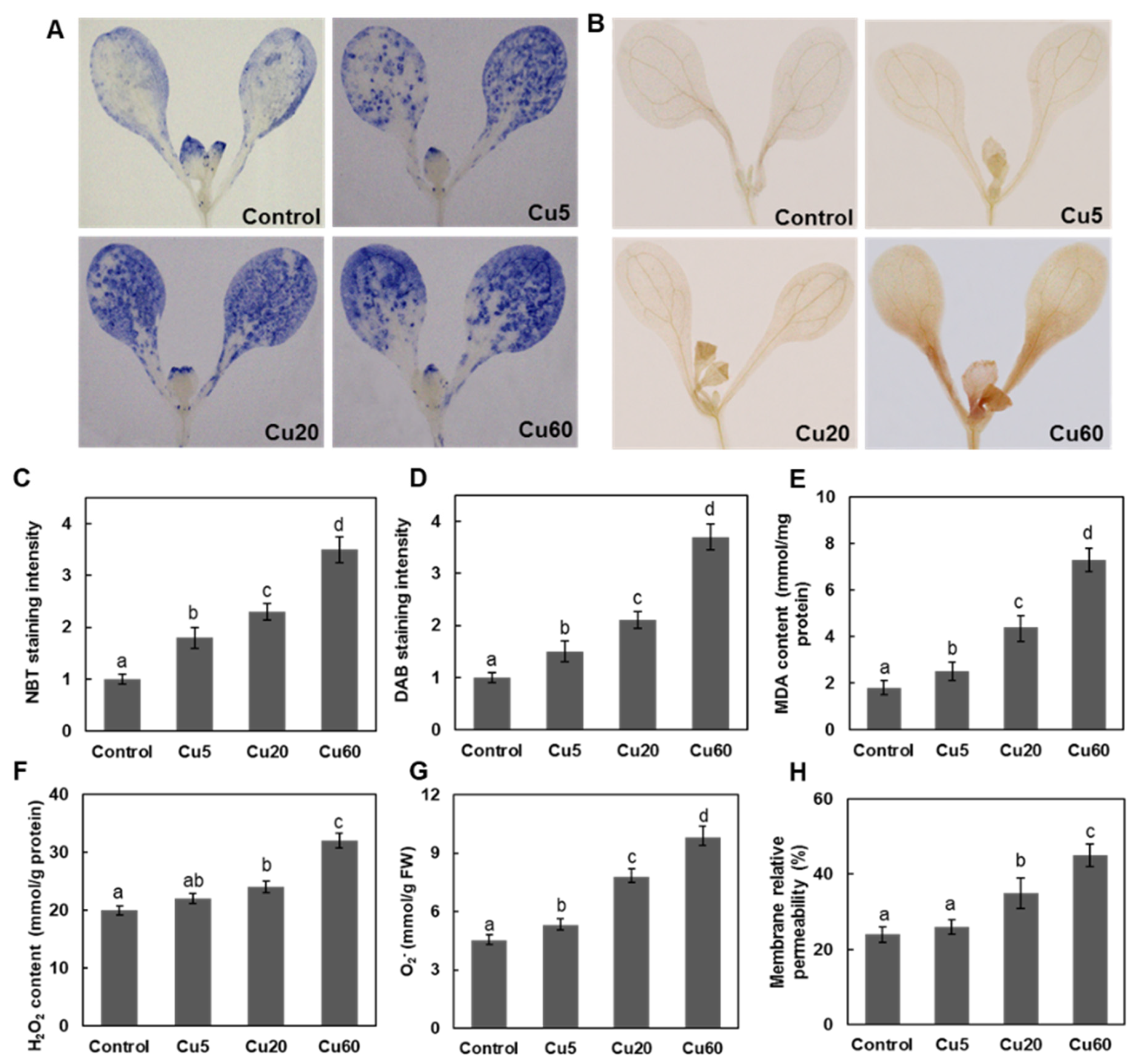

Figure 2. Accumulation of ROS and oxidative damage in shoots of Arabidopsis seedling after treated with different concentrations of CuSO4 for 6 d. (A) NBT staining for superoxide anion. (B) DAB staining for H2O2. (C) Relative NBT staining intensity shown in (A). (D) Relative DAB staining intensity shown in (B). (E) MDA levels. (F) H2O2 contents. (G) O2− contents. (H) Plasma membrane permeability of leaves. The relative color intensity of control was set as 1. Data are means ± SD of three replicates with 30 seedlings. All the treatments were performed three times. Different letters indicate the significant difference (p < 0.05, ANOVA-LSD post hoc test).
Figure 2. Accumulation of ROS and oxidative damage in shoots of Arabidopsis seedling after treated with different concentrations of CuSO4 for 6 d. (A) NBT staining for superoxide anion. (B) DAB staining for H2O2. (C) Relative NBT staining intensity shown in (A). (D) Relative DAB staining intensity shown in (B). (E) MDA levels. (F) H2O2 contents. (G) O2− contents. (H) Plasma membrane permeability of leaves. The relative color intensity of control was set as 1. Data are means ± SD of three replicates with 30 seedlings. All the treatments were performed three times. Different letters indicate the significant difference (p < 0.05, ANOVA-LSD post hoc test).
Genes 14 00011 g002
Genes 14 00011 g003 550

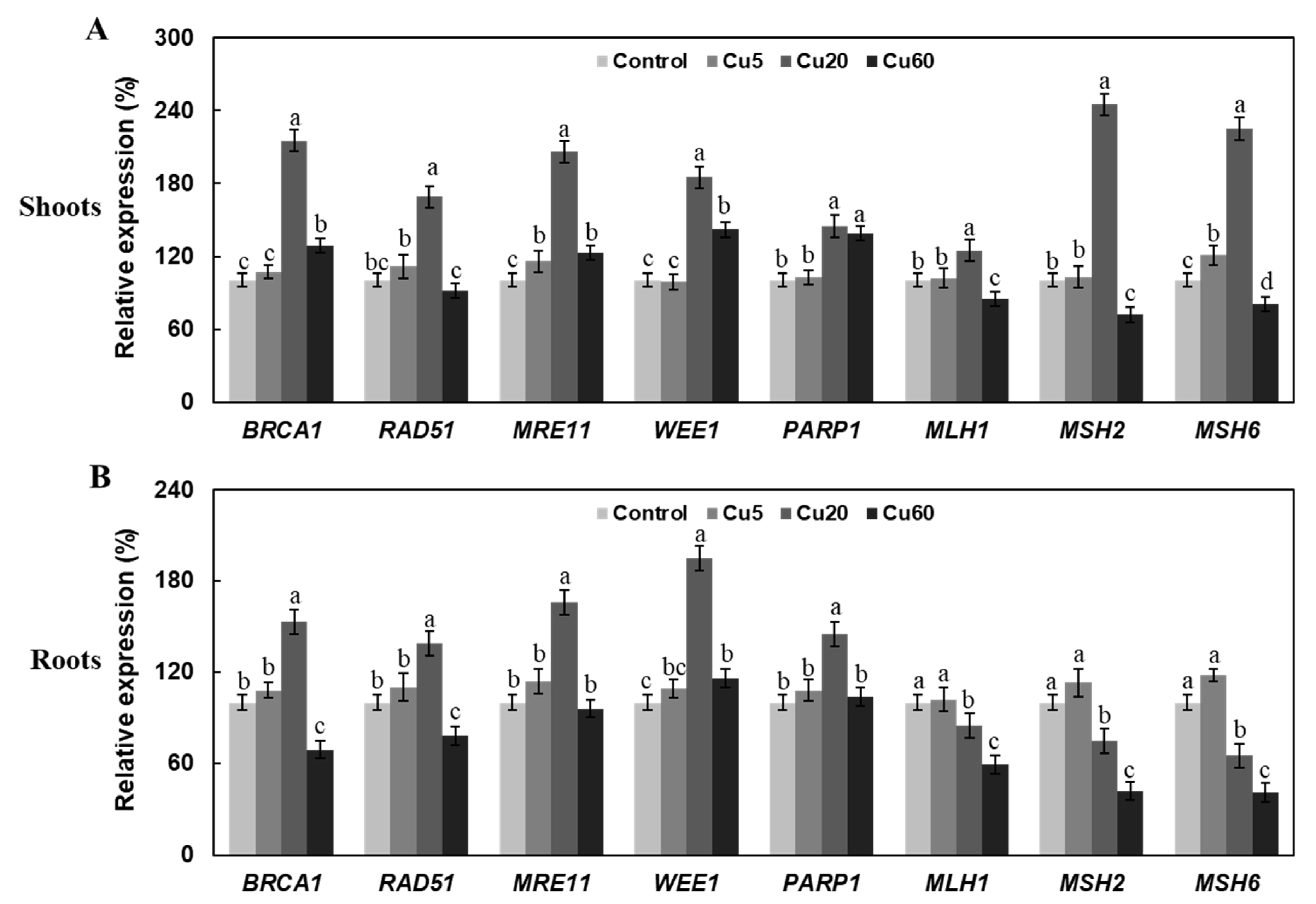

Figure 3. Expression levels of eight DDR-related genes in shoots (A) and roots (B) of 6-day-old Arabidopsis seedlings exposed to different concentrations of CuSO4. Expression levels of Arabidopsis seedlings grown on ½ MS medium served as controls and were set to 100% by qRT-PCR analysis. Data are means ± SD of three replicates. Different letters indicate significant difference between treatments (p < 0.05, ANOVA-LSD post hoc test).
Figure 3. Expression levels of eight DDR-related genes in shoots (A) and roots (B) of 6-day-old Arabidopsis seedlings exposed to different concentrations of CuSO4. Expression levels of Arabidopsis seedlings grown on ½ MS medium served as controls and were set to 100% by qRT-PCR analysis. Data are means ± SD of three replicates. Different letters indicate significant difference between treatments (p < 0.05, ANOVA-LSD post hoc test).
Genes 14 00011 g003
Genes 14 00011 g004 550

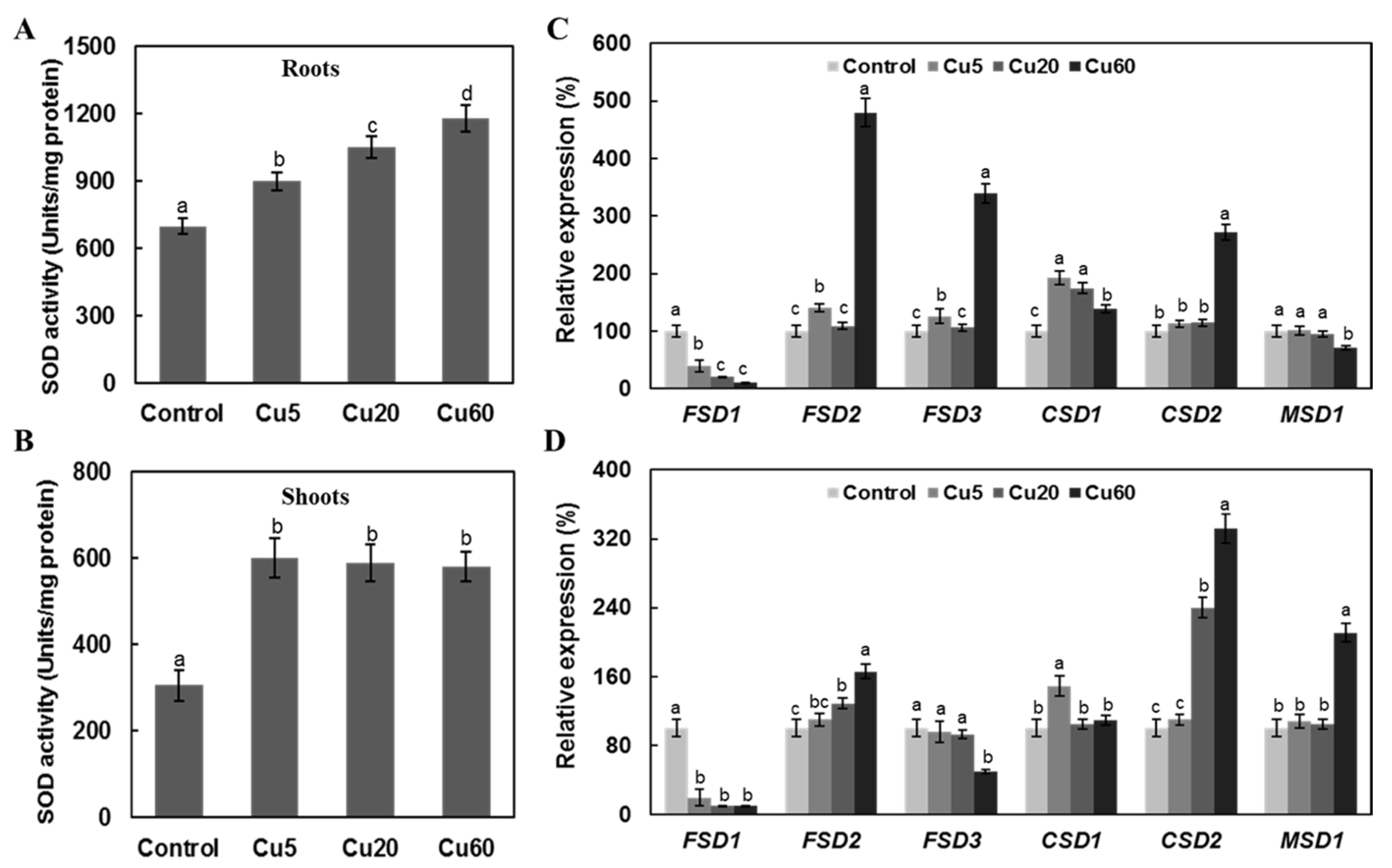

Figure 4. Effect of three different concentrations of CuSO4 on total superoxide dismutase (SOD) activity and expression levels of genes encoding multiple SOD isoforms in roots and shoots of 6-day-old Arabidopsis. SOD activities in roots (A) and shoots (B). Expression levels of genes encoding multiple SOD isoforms (FSDs, CSDs, and MSDs) in roots (C) and shoots (D). Data are means ± SD of three replicates with 30 seedlings. Different letters indicate a significant difference (p < 0.05, ANOVA-LSD post hoc test).
Figure 4. Effect of three different concentrations of CuSO4 on total superoxide dismutase (SOD) activity and expression levels of genes encoding multiple SOD isoforms in roots and shoots of 6-day-old Arabidopsis. SOD activities in roots (A) and shoots (B). Expression levels of genes encoding multiple SOD isoforms (FSDs, CSDs, and MSDs) in roots (C) and shoots (D). Data are means ± SD of three replicates with 30 seedlings. Different letters indicate a significant difference (p < 0.05, ANOVA-LSD post hoc test).
Genes 14 00011 g004
Genes 14 00011 g005 550

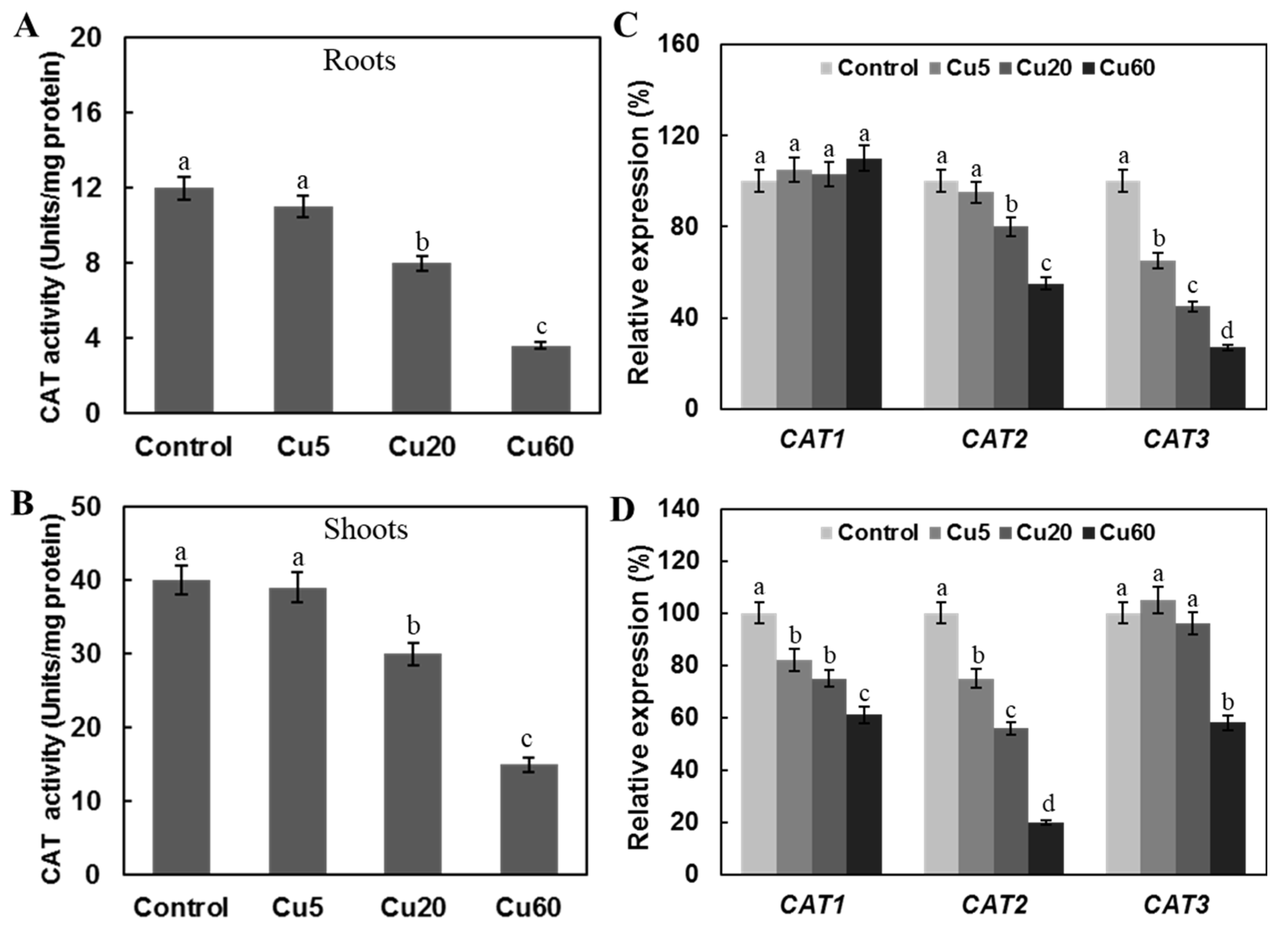

Figure 5. Effect of three different concentrations of CuSO4 on catalase (CAT) activity and expression levels of genes encoding CAT in roots and shoots of 6-day-old Arabidopsis. CAT activities in roots (A) and shoots (B). Expression levels of genes encoding multiple CAT isoforms in roots (C) and shoots (D). Data are means ± SD of three replicates with 30 seedlings. Different letters indicate the significant difference (p < 0.05, ANOVA-LSD post hoc test).
Figure 5. Effect of three different concentrations of CuSO4 on catalase (CAT) activity and expression levels of genes encoding CAT in roots and shoots of 6-day-old Arabidopsis. CAT activities in roots (A) and shoots (B). Expression levels of genes encoding multiple CAT isoforms in roots (C) and shoots (D). Data are means ± SD of three replicates with 30 seedlings. Different letters indicate the significant difference (p < 0.05, ANOVA-LSD post hoc test).
Genes 14 00011 g005
Genes 14 00011 g006 550

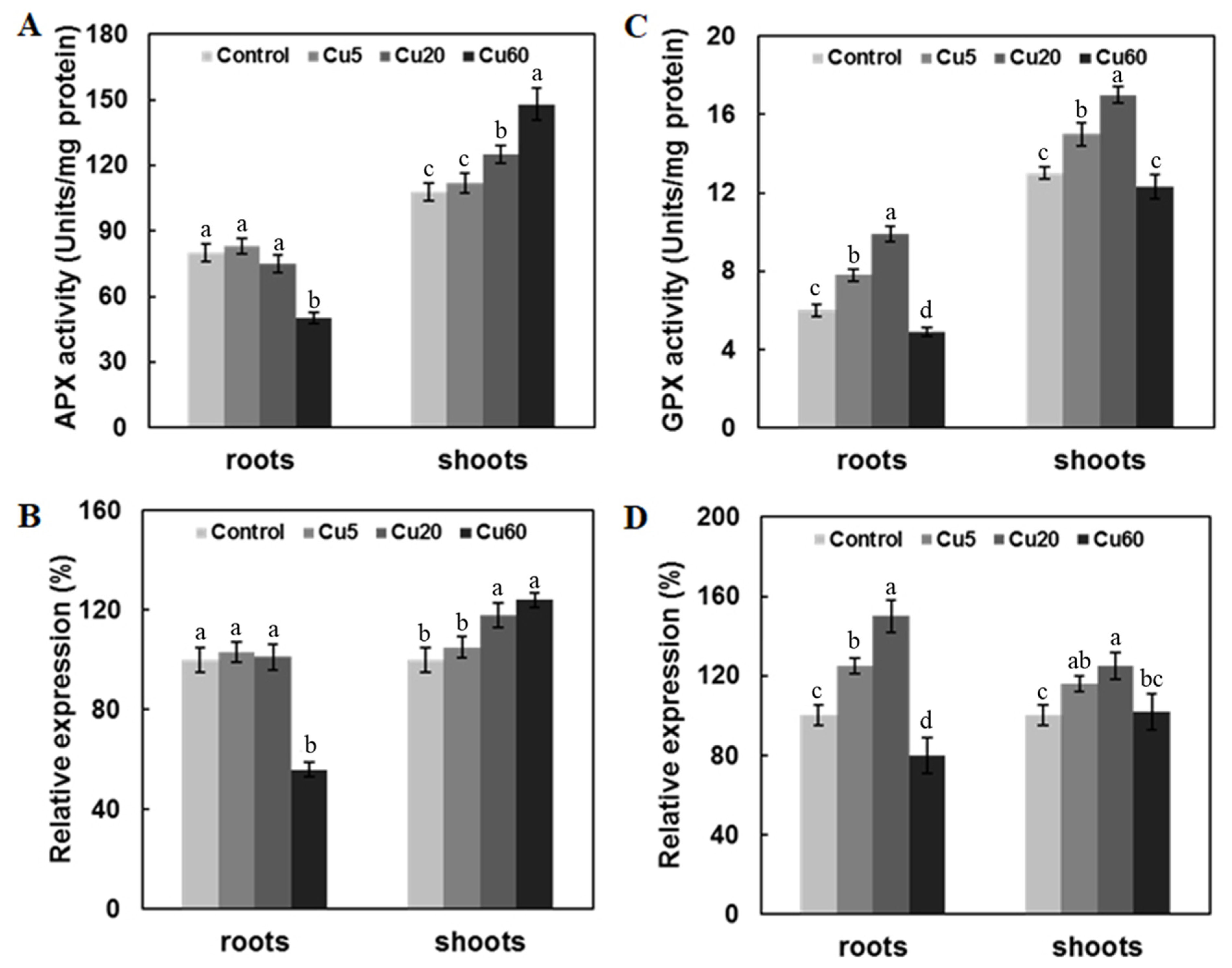

Figure 6. Effect of three different concentrations of CuSO4 on ascorbate peroxidase (APX) and glutathione peroxidase (GPX) activity and expression levels of their encoding genes in roots and shoots of 6-day-old Arabidopsis. APX activities (A). Expression levels of APX1 gene (B). GPX activities (C). Expression levels of GPX1 gene (D). Data are means ± SD of three replicates with 30 seedlings. Different letters indicate the significant difference (p < 0.05, ANOVA-LSD post hoc test).
Figure 6. Effect of three different concentrations of CuSO4 on ascorbate peroxidase (APX) and glutathione peroxidase (GPX) activity and expression levels of their encoding genes in roots and shoots of 6-day-old Arabidopsis. APX activities (A). Expression levels of APX1 gene (B). GPX activities (C). Expression levels of GPX1 gene (D). Data are means ± SD of three replicates with 30 seedlings. Different letters indicate the significant difference (p < 0.05, ANOVA-LSD post hoc test).
Genes 14 00011 g006
Genes 14 00011 g007 550

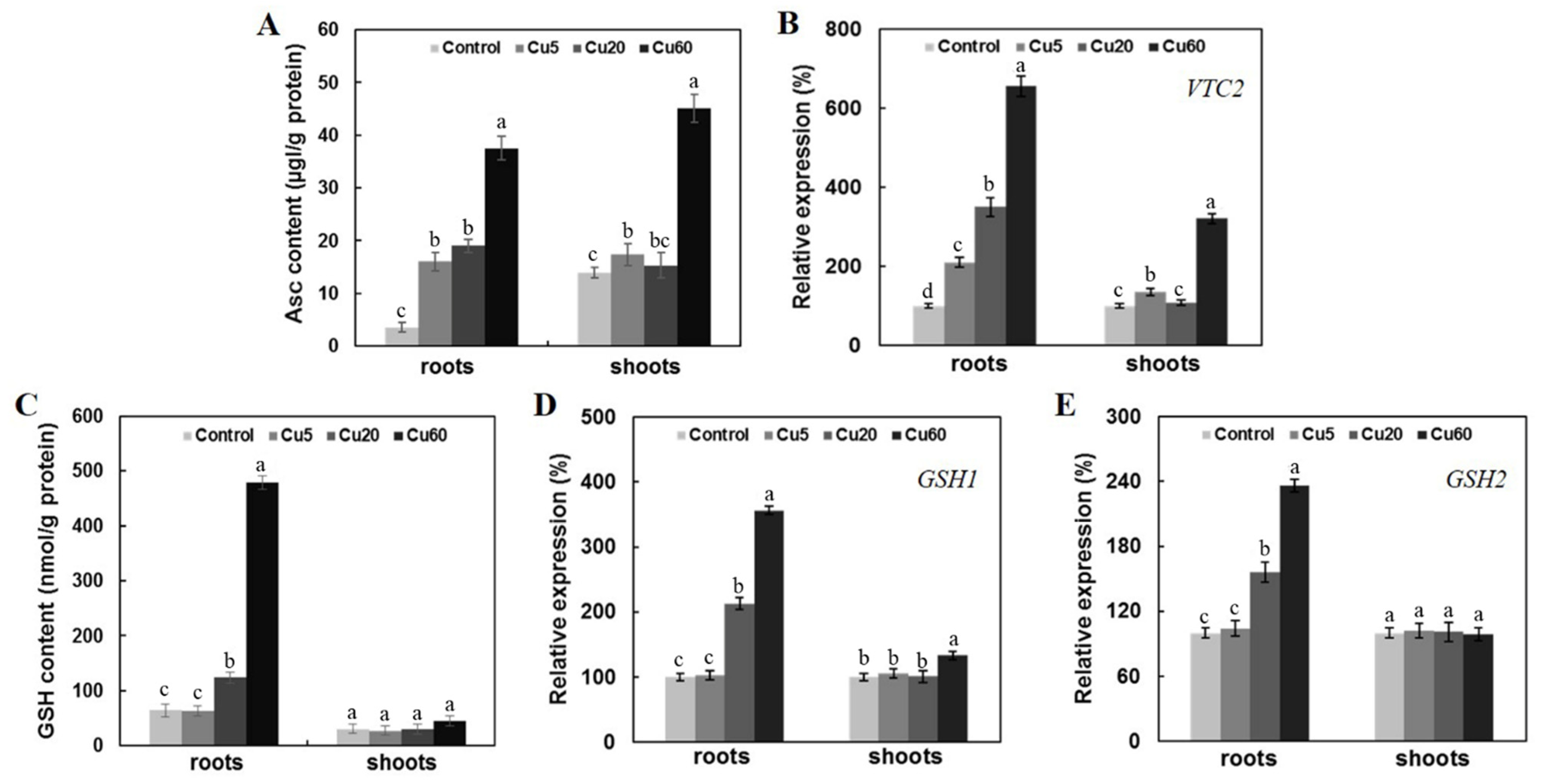

Figure 7. Effect of three different concentrations of CuSO4 on ascorbate (Asc) and glutathione (GSH) contents and the expression levels of their encoding genes in roots and shoots of 6-day-old Arabidopsis. Asc contents (A). Expression levels of VTC2 gene (B). GSH contents (C). Expression levels of GSH1 and GSH2 gene (D,E). Data are means ± SD of three replicates with 30 seedlings. Different letters indicate the significant difference (p < 0.05, by ANOVA-LSD post hoc test).
Figure 7. Effect of three different concentrations of CuSO4 on ascorbate (Asc) and glutathione (GSH) contents and the expression levels of their encoding genes in roots and shoots of 6-day-old Arabidopsis. Asc contents (A). Expression levels of VTC2 gene (B). GSH contents (C). Expression levels of GSH1 and GSH2 gene (D,E). Data are means ± SD of three replicates with 30 seedlings. Different letters indicate the significant difference (p < 0.05, by ANOVA-LSD post hoc test).
Genes 14 00011 g007
Genes 14 00011 g008 550

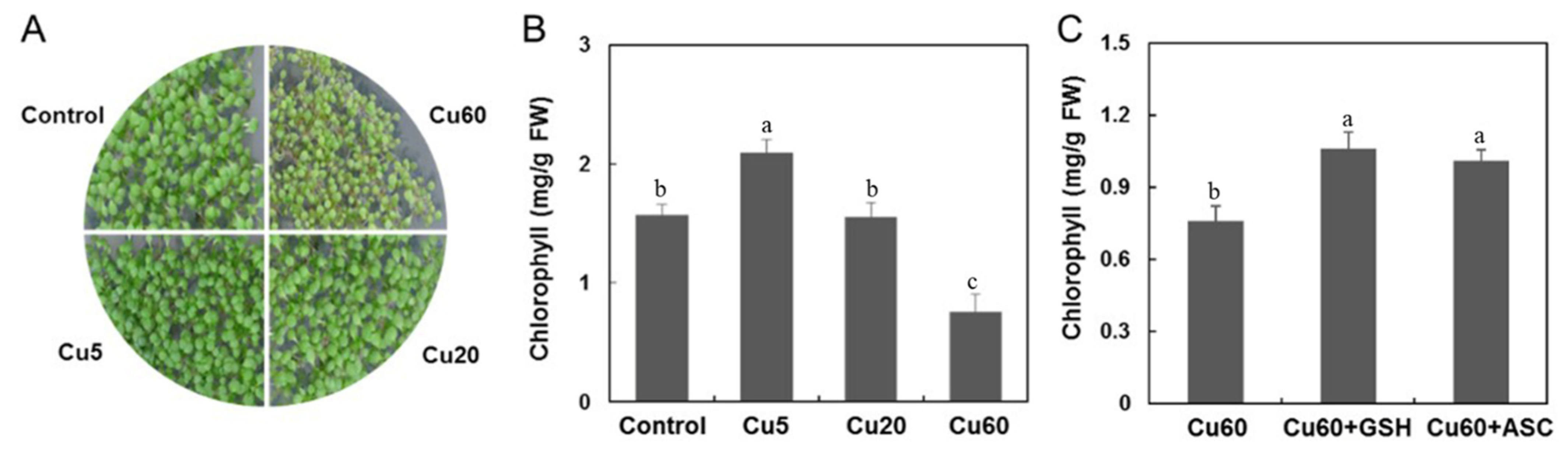

Figure 8. Effect of GSH and Asc on total chlorophyll of Arabidopsis seedlings exposed to Cu stress. Photos of 6-day-old Arabidopsis seedling treated with three different concentrations of CuSO4 (A). Total chlorophyll contents in leaves of different treatments (B). GSH and Asc treatments remedied the chlorosis of Cu-treated Arabidopsis seedlings (C). Data are means ± SD of three replicates with 30 seedlings. Different letters indicate the significant difference among treatments (p < 0.05, ANOVA-LSD post hoc test).
Figure 8. Effect of GSH and Asc on total chlorophyll of Arabidopsis seedlings exposed to Cu stress. Photos of 6-day-old Arabidopsis seedling treated with three different concentrations of CuSO4 (A). Total chlorophyll contents in leaves of different treatments (B). GSH and Asc treatments remedied the chlorosis of Cu-treated Arabidopsis seedlings (C). Data are means ± SD of three replicates with 30 seedlings. Different letters indicate the significant difference among treatments (p < 0.05, ANOVA-LSD post hoc test).
Genes 14 00011 g008
Genes 14 00011 g009 550

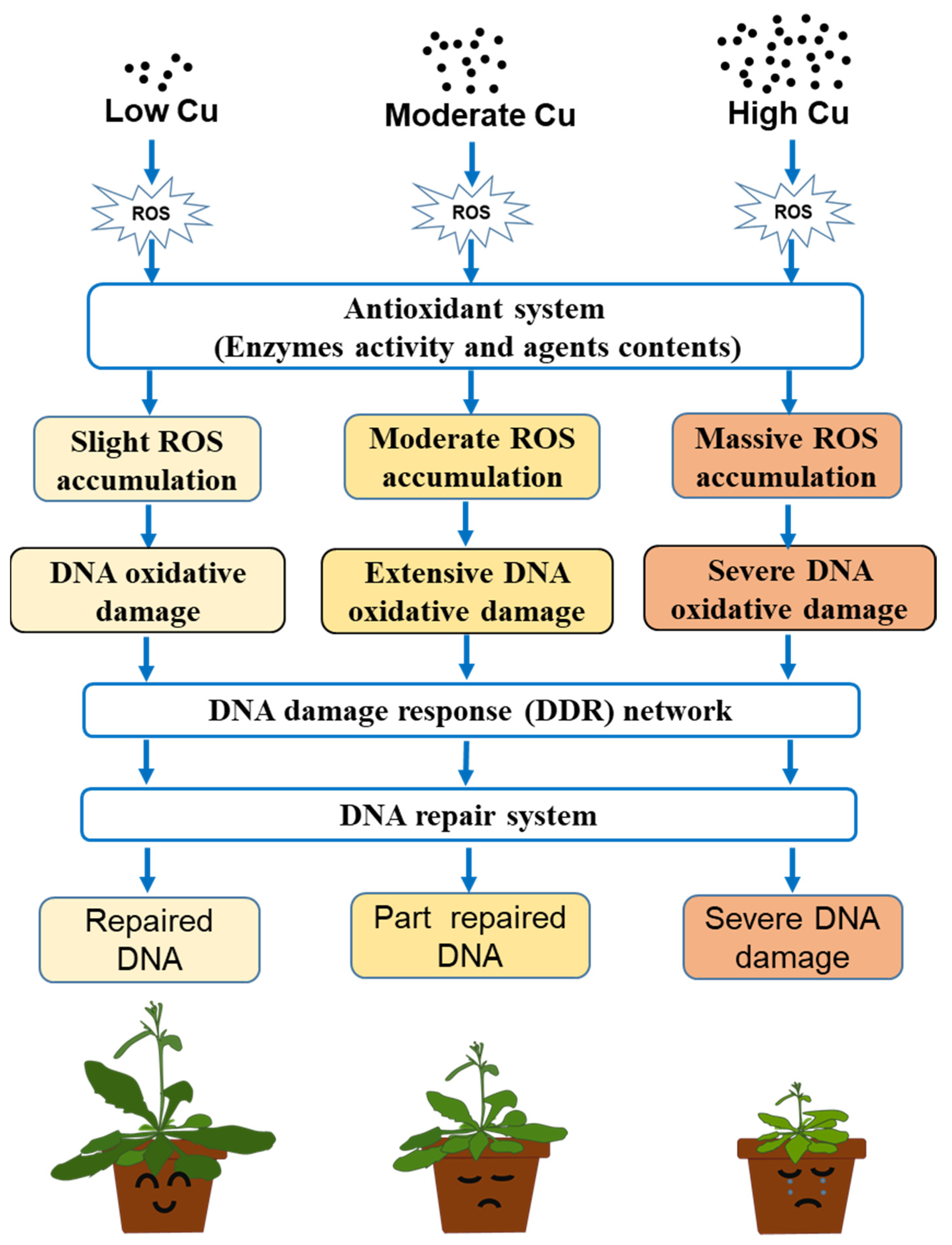

Figure 9. Graphical model of regulatory networks associated with DNA damage response and ROS homeostasis in dose-dependent responses of Arabidopsis seedlings to copper.
Figure 9. Graphical model of regulatory networks associated with DNA damage response and ROS homeostasis in dose-dependent responses of Arabidopsis seedlings to copper.
Genes 14 00011 g009
Table
Table 1. Reproductive growth characteristics of Arabidopsis plants grown in soil treated with three different concentrations of CuSO4. Data are means ± SD of three replicates. Different letters indicate a significant difference between treatments (p < 0.05, by ANOVA-LSD post hoc test).
Table 1. Reproductive growth characteristics of Arabidopsis plants grown in soil treated with three different concentrations of CuSO4. Data are means ± SD of three replicates. Different letters indicate a significant difference between treatments (p < 0.05, by ANOVA-LSD post hoc test).
CuSO4 (µM)ControlCu5Cu20Cu60
Stem height (cm)39.0 ± 1.2 a39.1 ± 1.8 a39.1 ± 1.9 a38.6 ± 2.1 a
Bolting time (d)31.0 ± 2.0 b28.0 ± 3.0 c33.0 ± 3.0 b37.0 ± 2.0 a
Silique lengths (cm)1.2 ± 0.3 a1.3 ± 0.2 a1.1 ± 0.3 ab1.0 ± 0.1 b
Thousand seed weight (mg DW)18.9 ± 0.9 b21.9 ± 0.5 a19.9 ± 1.1 ab18.6 ± 0.6 b
