Optical Genome Mapping and Single Nucleotide Polymorphism Microarray: An Integrated Approach for Investigating Products of Conception
Abstract
:1. Introduction
2. Materials and Methods
2.1. Patient Specimen and Study Design
2.2. Maternal Cell Contamination
2.3. Optical Genome Mapping
2.4. Histological Assessment and SNPM Analysis
2.5. Data Analysis
3. Results
3.1. Patient Characteristics

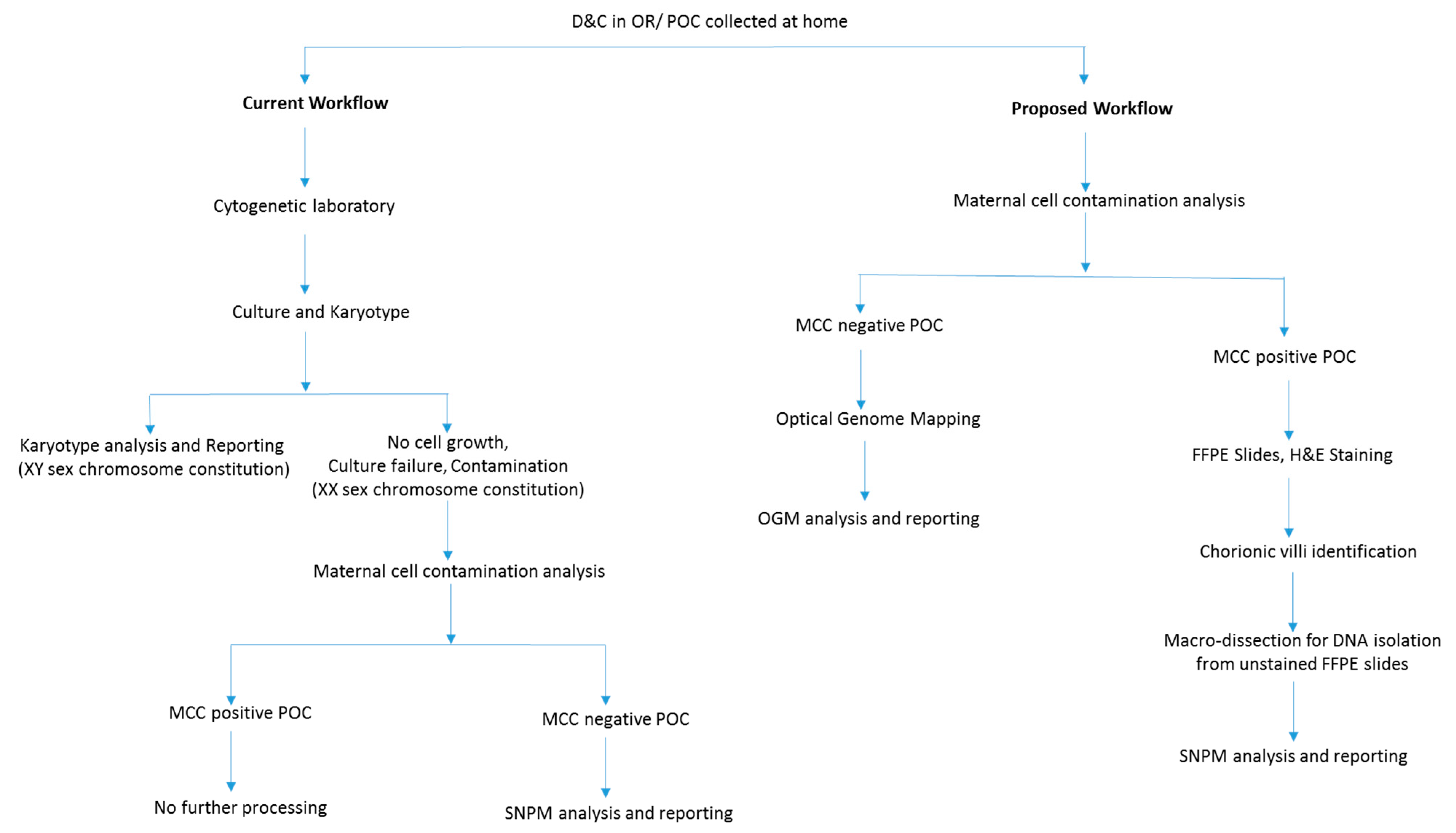

3.2. Prospective Sample Processing with Current and Proposed Workflow
3.3. Optical Genome Mapping Analysis

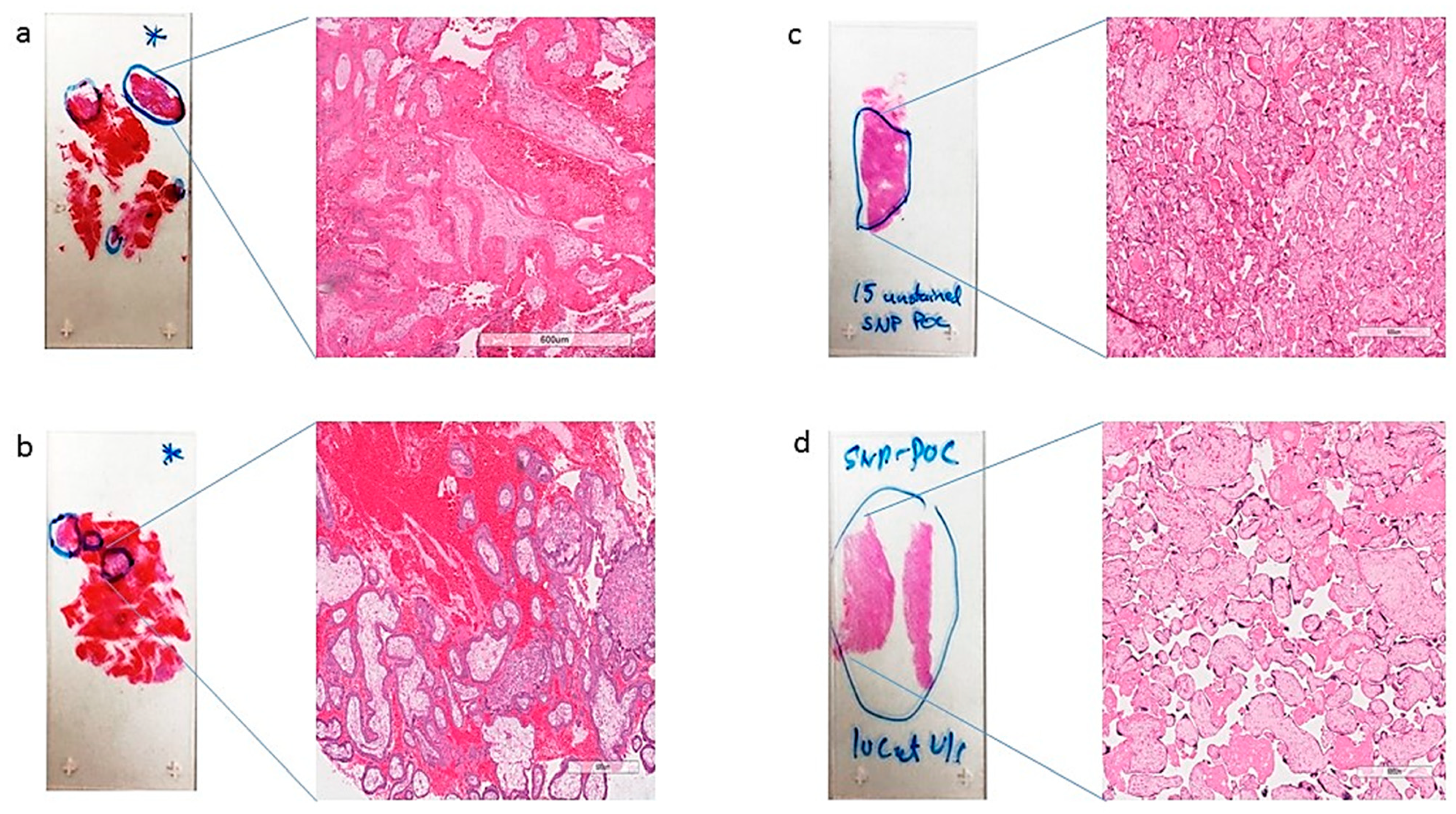

3.4. Histological Assessment and SNPM Analysis
3.5. Proposed Workflow Compared to Conventional Cytogenetic Testing
3.6. Selected, Interesting Clinical Cases
4. Discussion
5. Limitations of the Study
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Ethics Approval
References
- Jacobs, P.A.; Hassold, T. Chromosome abnormalities: Origin and etiology in abortions and livebirths. In Human Genetics; Vogel, F., Sperling, K., Eds.; Springer: Berlin/ Heidelberg, Germany, 1987; pp. 233–244. [Google Scholar]
- Gardner, R.M.; Sutherland, G.R.; Shaffer, L.G. Chromosome Abnormalities and Genetic Counseling; Oxford University Press: Oxford, UK, 2012. [Google Scholar]
- MacDorman, M.F.; Gregory, E.C. Fetal and perinatal mortality: United States, 2013. Natl. Vital Stat. Syst. 2015, 64, 1–24. [Google Scholar]
- Hassold, T.; Chiu, D. Maternal age specific rates of numerical chromosome abnormalities with special reference to trisomy. Hum. Genet. 1985, 70, 11–17. [Google Scholar] [CrossRef] [PubMed]
- Stephenson, M.D.; Awartani, K.A.; Robinson, W.P. Cytogenetic analysis of miscarriages from couples with recurrent miscarriage: A case-control study. Hum. Reprod. 2002, 17, 446–451. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Wilcox, A.J.; Weinberg, C.R.; O’Connor, J.F.; Baird, D.D.; Schlatterer, J.P.; Canfield, R.E.; Armstrong, E.G.; Nisula, B.C. Incidence of Early Loss of Pregnancy. N. Engl. J. Med. 1988, 319, 189–194. [Google Scholar] [CrossRef] [PubMed]
- Edmonds, D.K.; Lindsay, K.S.; Miller, J.F.; Williamson, E.; Wood, P.J. Early embryonic mortality in women. Fertil. Steril. 1982, 38, 447–453. [Google Scholar] [CrossRef]
- Knudsen, U.B.; Hansen, V.; Juul, S.; Secher, N.J. Prognosis of a new pregnancy following previous spontaneous abortions. Eur. J. Obstet. Gynecol. Reprod. Biol. 1991, 39, 31–36. [Google Scholar] [CrossRef]
- Practice Committee of the American Society for Reproductive Medicine. Evaluation and treatment of recurrent pregnancy loss: A committee opinion. Fertil. Steril. 2012, 98, 1103–1111. [Google Scholar] [CrossRef] [PubMed]
- ESHRE Guideline Group on RPL; Bender Atik, R.; Christiansen, O.B.; Elson, J.; Kolte, A.M.; Lewis, S.; Middeldorp, S.; Nelen, W.; Peramo, B.; Quenby, S.; et al. ESHRE guideline: Recurrent pregnancy loss. Hum. Reprod. Open 2018, 2018, hoy004. [Google Scholar] [PubMed]
- Wapner, R.J. Genetics of stillbirth. Clin. Obstet. Gynecol. 2010, 53, 628–634. [Google Scholar] [CrossRef] [PubMed]
- Menasha, J.; Levy, B.; Hirschhorn, K.; Kardon, N.B. Incidence and spectrum of chromosome abnormalities in spontaneous abortions: New insights from a 12-year study. Genet. Med. 2005, 7, 251–263. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Mantere, T.; Neveling, K.; Pebrel-Richard, C.; Benoist, M.; van der Zande, G.; Kater-Baats, E.; Baatout, I.; van Beek, R.; Yammine, T.; Oorsprong, M.; et al. Optical genome mapping enables constitutional chromosomal aberration detection. Am. J. Hum. Genet. 2021, 108, 1409–1422. [Google Scholar] [CrossRef] [PubMed]
- Shieh, J.T.; Penon-Portmann, M.; Wong, K.H.Y.; Levy-Sakin, M.; Verghese, M.; Slavotinek, A.; Gallagher, R.C.; Mendelsohn, B.A.; Tenney, J.; Beleford, D.; et al. Application of full-genome analysis to diagnose rare monogenic disorders. NPJ Genom. Med. 2021, 6, 77. [Google Scholar] [CrossRef] [PubMed]
- Pastor, S.; Tran, O.; Jin, A.; Carrado, D.; Silva, B.A.; Uppuluri, L.; Abid, H.Z.; Young, E.; Crowley, T.B.; Bailey, A.G.; et al. Optical mapping of the 22q11.2DS region reveals complex repeat structures and preferred locations for non-allelic homologous recombination (NAHR). Sci. Rep. 2020, 10, 12235. [Google Scholar] [CrossRef] [PubMed]
- Rosenfeld, J.A.; Tucker, M.E.; Escobar, L.F.; Neill, N.J.; Torchia, B.S.; McDaniel, L.D.; Schultz, R.A.; Chong, K.; Chitayat, D. Diagnostic utility of microarray testing in pregnancy loss. Ultrasound Obstet. Gynecol. 2015, 46, 478–486. [Google Scholar] [CrossRef] [PubMed]
- Zhu, X.; Li, J.; Zhu, Y.; Wang, W.; Wu, X.; Yang, Y.; Gu, L.; Gu, Y.; Hu, Y. Application of chromosomal microarray analysis in products of miscarriage. Mol. Cytogenet. 2018, 11, 44. [Google Scholar] [CrossRef] [PubMed]
- Levy, B.; Sigurjonsson, S.; Pettersen, B.; Maisenbacher, M.K.; Hall, M.P.; Demko, Z.; Lathi, R.B.; Tao, R.; Aggarwal, V.; Rabinowitz, M. Genomic imbalance in products of conception: Single-nucleotide polymorphism chromosomal microarray analysis. Obstet. Gynecol. 2014, 124, 202–209. [Google Scholar] [CrossRef] [PubMed]
- Gliem, T.J.; Aypar, U. Development of a Chromosomal Microarray Test for the Detection of Abnormalities in Formalin-Fixed, Paraffin-Embedded Products of Conception Specimens. J. Mol. Diagn. 2017, 19, 843–847. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Maslow, B.-S.L.; Budinetz, T.; Sueldo, C.; Anspach, E.; Engmann, L.; Benadiva, C.; Nulsen, J.C. Single-Nucleotide Polymorphism–Microarray Ploidy Analysis of Paraffin-Embedded Products of Conception in Recurrent Pregnancy Loss Evaluations. Obstet. Gynecol. 2015, 126, 175–181. [Google Scholar] [CrossRef] [PubMed]
- Sahoo, T.; Dzidic, N.; Strecker, M.N.; Commander, S.; Travis, M.K.; Doherty, C.; Tyson, R.W.; Mendoza, A.E.; Stephenson, M.; Dise, C.A.; et al. Comprehensive genetic analysis of pregnancy loss by chromosomal microarrays: Outcomes, benefits, and challenges. Genet. Med. 2017, 19, 83–89. [Google Scholar] [CrossRef] [PubMed]
Patient Characteristic | Classification | No. |
---|---|---|
Anamnestic data | ||
Age (Mean ± SD) | 33.4 ± 5.1 | |
No. of previous losses | 2 | 4 |
3 | 4 | |
4 | 0 | |
5 | 1 | |
6 | 1 | |
7 | 1 | |
No. of previous live births | 0 | 16 |
1 | 8 | |
2 | 4 | |
3 | 3 | |
Miscarriage | <20 weeks | 27 |
Intra-uterine fetal demise | 3 | |
Stillbirths | 1 | |
Current Material | ||
Sporadic miscarriage | 22 | |
Recurrent pregnancy loss | 9 |
S.No. | Trimester | ISCN Nomenclature | Size |
---|---|---|---|
OncoScan Analysis | |||
1 | 9 weeks, 1st | arr[hg19] (22) × 3 | Entire chromosome 22 |
2 | 10 weeks, 1st | arr[hg19] 4q34.3(178,112,003-182,153,124)×3, (21,22) × 2~3 | 4.0 Mb Gain of chr 4 and Gain of entire chromosomes 21 and 22 |
3 | 8 weeks, 1st | arr[hg19] (8) × 2~3 | Entire chromosome 8 |
4 | 9 weeks, 1st | arr[hg19] (8) × 3 | 146.1Mb |
5 | 10 weeks, 1st | arr[hg19] (14) × 2~3 | Entire chromosome 14 |
6 | 10 weeks, 1st | arr[hg19] (X) × 1~2 | Entire chromosome X |
7 | 14 weeks, 2nd | arr[hg19]2q34q37.2(214027641-236628038) ×3, 2q37.2q37.3(236228142-243052331) × 1 | 22.6Mb gain and 6.4Mb loss |
8 | 11 weeks, 1st | arr [hg19] (1-21,X) × 2, (22)×2~3 | Entire chromosome 22 |
9 | 8 weeks 5 days, 1st | arr[hg19] (15) × 2~3 | Entire chromosome 15 |
10 | 6 weeks, 6 days, 1st | arr[hg19] (18) × 3 | Entire chromosome 18 |
11 | 26 weeks 1 day, 2nd | arr[hg19] 2p21(43411752-44710936) × 3, 21q21.1(18762223-19136546) ×1 | 1.29 Mb Gain and 374 Kb Loss |
12 | Less than 3 weeks, 1st | arr[hg19] 13q14.11(42311546_42413745) × 1 | 102 Kb Loss |
Optical Genome Mapping | |||

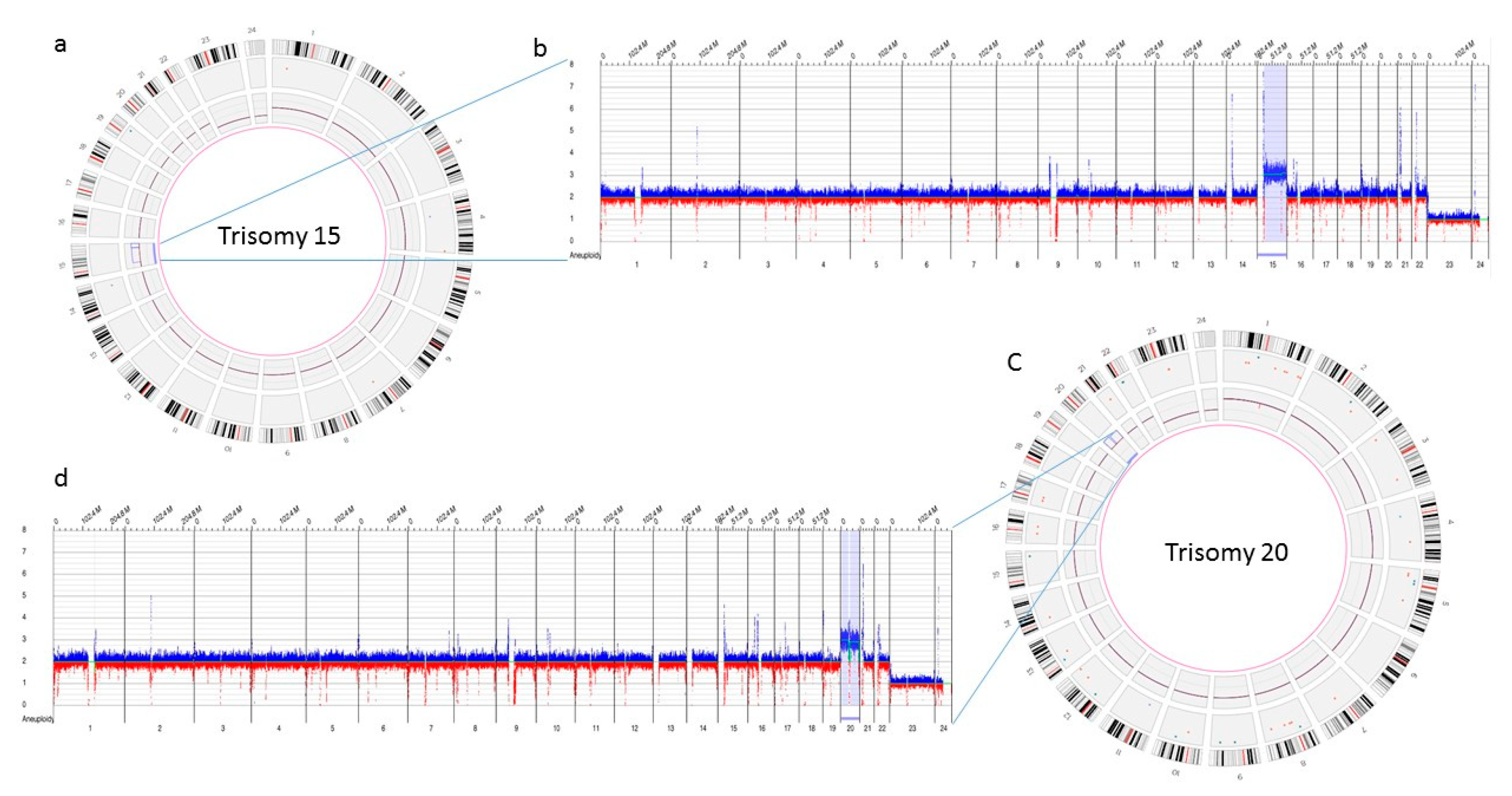

13 | 6 weeks, 1st | ogm[GrCh38](15) × 3 | Entire chromosome 15 |
14 | 8 weeks, 1st | ogm[GrCh38](20) × 3 | Entire chromosome 20 |
