New Eco-Friendly Phosphorus Organic Polymers as Gas Storage Media

Department of Chemistry, College of Science, Tikrit University, Tikrit, Iraq
Cornea Research Chair, Department of Optometry, College of Applied Medical Sciences, King Saud University, P.O. Box 10219, Riyadh 11433, Saudi Arabia
Department of Chemistry, College of Science, Al-Nahrain University, Baghdad 64021, Iraq
Authors to whom correspondence should be addressed.
Polymers 2017, 9(8), 336;
Submission received: 12 July 2017 / Revised: 30 July 2017 / Accepted: 1 August 2017 / Published: 3 August 2017


Three phosphate esters 13 were successfully synthesized from the reaction of 2-, 3- and 4-hydroxybenzaldehyde with phosphoryl chloride. Reactions of 13 with benzidine in the presence of glacial acetic acid gave the corresponding novel phosphorus organic polymers 46 containing the azomethane linkage. The structures of the synthesized compounds were confirmed by Fourier transform infrared spectroscopy, nuclear magnetic resonance and elemental analysis. Interesting physiochemical properties for the polymeric materials 46 were observed using a combination of several techniques such as gel permeation chromatography, scanning electron microscopy, Brunauer–Emmett–Teller and nitrogen adsorption–desorption isotherm, Barrett–Joyner–Halenda and H-sorb 2600 analyzer. The mesoporous polymers 46 exhibit tunable porosity with Brunauer–Emmett–Teller surface area (SABET = 24.8–30 m2·g–1), pore volume (0.03–0.05 cm3·g–1) and narrow pore size distribution, in which the average pore size was 2.4–2.8 nm. Polymers 46 were found to have high gas storage capacity and physico-chemical stability, particularly at a high pressure. At 323 K and 50 bars, polymers 46 have remarkable carbon dioxide uptake (up to 82.1 cm3·g–1) and a low hydrogen uptake (up to 7.4 cm3·g–1). The adsorption capacity of gasses for polymer 5 was found to be higher than those for polymers 4 and 6.

Graphical Abstract

1. Introduction

Carbon dioxide (CO2) emission levels in the atmosphere are increasing mainly as a result of high fossil fuel consumption. Carbon dioxide is considered one of the main greenhouse gases (GHG) which causes global warming [1,2,3,4,5,6,7,8]. This has led to climate changes such as flooding and droughts due to the changes in nature’s equilibrium. Recently, research has been directed to find ways to capture GHGs such as CO2, which can reduce the efficiency and capacity of natural gas and lead to gas piping corrosion [9,10]. Various strategies have been developed to reduce CO2 emission, one of the most common methods for capturing CO2 followed by underground storage is known as carbon capture and storage (CCS) [11]. Therefore, the production of new materials that are not only capable of capturing CO2 but also act as storage for clean energy is always of interest. The most common gas mixtures that require separation and capture technology are: natural gas, which is composed of methane (80–95%) along with CO2 as the major impurity; flue gas, which contains nitrogen (70%) along with CO2 (10–15%); and pre-combustion gas mixture, which contains hydrogen (H2) [12,13,14,15,16].
Hydrogen is considered one of the cleanest sources of energy in which water is the only product arising from its combustion [17]. Therefore, the development of efficient and safe methods for hydrogen storage is still important [18]. One conventional approach to hydrogen gas storage involves chemisorption of hydrogen, for which metal chemical hydrides have been investigated [19]. An alternative approach involves physisorption of hydrogen in porous media such as porous carbons, which have high stability and are easily accessible [20,21]. Recently, many efforts have been made to develop porous organic polymers (POPs) for their use in gas storage and separation, heterogeneous catalysis, light-harvesting, molecular sensors and other interesting applications [22,23,24,25,26,27,28,29,30,31]. Two main strategies are used in the design and production of POP materials. The first one involves the selection of suitable monomers and the second involves the choice of proper synthesis method that is highly flexible [22]. The main goal of using these efficient strategies is to control the porosity and functionality of the synthesized polymeric materials. Monomers should have multifunctional reaction sites with rigid or contorted structures [22]. The monomers that can afford high porosity could have linear [32], planar [33], tetrahedral [34] or octahedral geometries [35]. Metal–organic framework (MOF) compounds contain organic ligands that coordinate to metal ions and have interesting properties: they have small and tunable pore sizes, and can be used in various applications such as an efficient absorbent to capture H2 and CO2 [36,37,38,39].
Phosphorus–organic polymers have good mechanical and fire resistance properties [40]. They can be used as fire retardants, flame proofers, surface adhesion reagents, catalysts and tooth preservers [40,41,42,43,44,45]. To the best of our knowledge, no attempts have been made to use phosphorus–organic polymers for gas storage. Therefore, as a continuation of our research in the use of polymeric materials in various applications [46,47,48,49,50], we were interested in designing and synthesizing new polymeric materials containing phosphorous to be used as efficient gas storage. The current study manages CO2 capture to reduce greenhouse gas emission, which is an environmental issue of a major concern.

2. Experimental Section

2.1. Instrumentation

The FT-IR spectra were recorded using Shimadzu 8400 spectrophotometer (400–4000 cm–1) using KBr disks technique. Proton nuclear magnetic resonance (1H NMR; 400 MHz) spectra were recorded on a Bruker DRX400 NMR spectrometer (Zürich, Switzerland) in DMSO-d6. Elemental analyses were performed using Vario EL III Elementar instrument. Scanning electron microscopy (SEM) observations were carried out using a KYKY-EM3200 microscope (Ontario, CA, USA) at an accelerating voltage of 26 kV. The molecular weight was determined by gel permeation chromatography (GPC) using a Tosoh Bioscience GmbH EcoSEC HLC-8320GPC system (Tokyo, Japan). The system was equipped with a refractive index (RI) and an ultraviolet (UV) detector (λ = 280 nm) using a Tosoh TSK gel Alpha-4000 and 2000 columns (300 mm × 7.8 mm ID, Griesheim, Germany), with a particle size of 10 µm and a pore size of 450 Å that operated at 40 °C. Dimethylformamide (DMF) containing LiBr (10 mM) was used as the solvent at a flow rate of 1 mL/min. Calibration curves were obtained using polystyrene standards (Mn 2.89–500 × 10 6 g/mol).
Nitrogen (N2) adsorption–desorption isotherms were recorded at 77 K using Quantchrome analyzer. The samples were dried at 200 °C under dry nitrogen flow for 5 h before measurement. The specific surface areas were calculated following the multipoint Brunauer–Emmett–Teller (BET) method. The pore volumes were determined at a relative pressure (P/P0) of 0.98. The pore size distributions were verified by a Barrett–Joyner–Halenda (BJH) method. Gas uptake at 323 K and 50 bars were performed by H-sorb 2600 high pressure volumetric adsorption analyzer (Gold APP Instrument Corporation, Beijing, China). The gas adsorption analyzer has two degassing and analyzing ports that work simultaneously. A known amount of gas was dosed into the measurement tube containing the sample. When equilibrium between the sample and adsorbed gas was attained, a comprehensive final equilibrium pressure was automatically recorded using specialist software. The quantity of gas adsorbed was calculated from the data generated. The samples were degassed at 200 °C under dynamic vacuum for 5 h prior to the adsorption tests.

2.2. Synthesis of Phosphate Esters 13

To a stirred mixture of phosphoryl chloride (1.53 g, 10 mmol) and triethylamine (3.04 g, 30 mmol) in dry tetrahydrofuran (THF; 15 mL), in a dried three-necked round bottom flask (200 mL) fitted with a thermometer probe and mechanical stirrer, a solution of the appropriate hydroxybenzaldehyde (3.66 g, 30 mmol) in dry THF (15 mL) was added dropwise through a dropping funnel over a period of 20 min at 0 °C. The mixture was stirred at 40–45 °C for 5 h and then left to cool down to room temperature. The filtrate was collected by filtration and the solid, triethylamine hydrochloride, was washed with THF (3 × 25 mL). The combined THF was removed under reduced pressure to give the phosphate esters 13 as brownish oils in 71–77% yields.

2.3. Synthesis of Polymeric Schiff Bases 46

A mixture of phosphate esters 13 (8.21 g, 20 mmol) and benzidine (5.53 g, 30 mmol) in chloroform (25 mL) containing glacial acetic acid (0.5 mL) was stirred under reflux for 6 h. The mixture was left to cool to room temperature and the solid obtained was filtered, washed with chloroform (3 × 10 mL) and dried to give polymeric materials 46 as orange powders in 80–86% yields.

3. Results and Discussion

3.1. Synthesis of Phosphate Polymers 46

Three phosphate esters, tris(2-formylphenyl)phosphate (1), tris(3-formylphenyl)phosphate (2) and tris(4-formylphenyl)phosphate (3), were synthesized at 71–77% yields from reactions of 4-, 3- and 2-hydroxybenzaldehyde and phosphoryl chloride, respectively, in dry THF under reflux for 5 h (Scheme 1). Reactions of 13 with benzidine in chloroform under reflux condition for 6 h gave the corresponding phosphate polymeric Schiff bases 46 in 80–86% yields. Such phosphate esters can be easily scaled up for various applications and provide three reaction sites, enabling the formation of a crosslinking polymer network.

3.2. FT-IR Spectroscopy of Phosphate Esters 13

The FT-IR spectra of phosphate esters 13 show no hydroxyl groups absorption. The spectra show the presence of carbonyl groups (1681–1693 cm–1) and the P–O–C groups (1161–1188 cm–1) which is a clear indication that the esterification has taken place. The most common IR absorption bands for phosphate esters 13 are represented in Table 1 along with their elemental analyses.

3.3. 1H NMR Spectroscopy of Phosphate Esters 13

The structures of phosphate esters 13 were also confirmed by the 1H NMR spectral data (Table 2). They show singlet signals that resonate at 9.79–10.30 ppm region corresponding to the aldehyde proton. They also show the expected types of aromatic protons.

3.4. FT-IR Spectroscopy of Phosphate Polymers 46

The FT-IR spectra of 46 show the absence of the carbonyl groups which is a clear indication that the polymerization process of the phosphate esters 13 has taken place. The FT-IR spectra of 46 show the presence of absorption bands that appear at 1616–1635 cm–1 and can be attributed to the azomethane bands (C=N). Some of the most common and intense absorption bands in the FT-IR spectra for 46 are shown in Table 3.

3.5. Molecular Weight and Molecular Distribution of Phosphate Polymers 46 Determined by Gel Permeation Chromatography (GPC)

Gel Permeation Chromatography is a good technique to evaluate the molecular weight distribution (MWD) of resins which plays a major role in characterizing the resins performance capacities such as cure speed, viscosity, green strength development, substrates penetration and adhesion [51]. Higher molecular oligomers usually have smaller pores in packing column and can be eluted faster with a small retention time. On the other hand, smaller molecular weight oligomers remain in the pores and eluted slowly with a longer retention time [52]. The GPC chromatograms of polymers 46 are represented in Figure 1. The number average molecular weight (Mn), weight average molecular weight (Mw) and polydispersity index (Dp) were calculated using Equations (1)–(3) [53] and represented in Table 4.
M n = Σ n i   M i Σ n i = i = 1 N A i i = 1 N A i / M i = h i   h i / M i
M w = Σ n i   M i 2 Σ n i   M i = i = 1 N A i , M i i = 1 N A i = i = 1 N h i , M i i = 1 N h i
D p = M w M n
where ni is the number of molecules, Mi is the molecular weight, Ai is the area of slice i in which total area is A and hi is the peak height at each interval of molecular weight.

3.6. Scanning Electron Microscopy (SEM) of Phosphate Polymers 46

The morphologies, sizes of particles and porosity of phosphate polymers 46 were observed by SEM analysis. Higher magnification SEM images revealed the irregular morphology of 46 (Figure 2) with a grain size that ranged from ten to hundreds of nanometers. The polymers were amorphous and mostly micro-sized particles in which their dimensions ranged 40.0–164.8, 28.4–805.9 and 29.8–598 nm for 4, 5 and 6, respectively. The SEM images demonstrate that the polymers consist of agglomerated particles arranged side by side which formed a topographical microporous structures, each particle gathered to form a clusters due to the high surface energy. The SEM images of polymers 46 exhibit a porous structure due to the azomethane C=N linked network (Figure 2).

3.7. Pure Gas Adsorption of Phosphate Polymers 46

The N2 adsorption–desorption measurements were studied at 77 K to investigate the pore textural properties of polymers 46. The adsorption desorption isotherms of N2 and pore size distribution curves for polymers 46 are shown in Figure 3, Figure 4 and Figure 5.
The synthesized polymer networks 46 show Type-III nitrogen sorption isotherms, which has no identifiable monolayer formation. The adsorbent–adsorbate interactions also appear to be relatively weak and the adsorbed molecules are clustered around the most favorable sites on the surface [54] indicating that the polymers have mesoporous structures. The apparent surface area of 46, calculated from the Brunauer–Emmett–Teller (SBET), were 27.514, 30.021 and 24.840 m2·g–1, respectively. Polymers 46 have pore volumes 0.036, 0.052 and 0.040 cm3·g–1, respectively (Table 5).
The sorption of each polymer was studied at 323 K under 50 bars. The CO2 and H2 sorption isotherms of polymers 46 are shown in Figure 6, Figure 7 and Figure 8 and the data were recorded in Table 6. There is no apparent adsorption–desorption hysteresis, indicating that CO2 and H2 can be reversibly adsorbed in the pores under the chosen temperature and pressure. Polymers 46 show a high CO2 uptake. The CO2 adsorption quantity was 10.2, 82.1 and 63.4 cm3·g–1 for 4, 5 and 6, respectively (Table 5). Polymer 5 exhibits the highest BET surface area, total pore volume, H2 storage and CO2 uptake among tested polymers. Under the same condition, the polymers show low adsorption for H2 as 4.0, 7.4 and 5.5 cm3·g–1, respectively. Such behavior is due to the unfavorable interactions between hydrogen and the polymers.
Three monomers with different geometrical configurations were selected as the building block to produce polymers 46, which have tetrahedral shape with sp3-hybridized phosphorus core. Linking the monomers with different geometries may tune the porosity and functionality of the synthesized polymeric materials [55]. Tetrahedral monomers are of interest since the porous polymers can be designed to possess high specific surface area that lack the flexibility to pack efficiently and leads to the facile formation of free volumes to promote the porosity [22,34,55,56,57,58,59,60,61]. Three-dimensional polymers possess stronger sorption ability for CO2 compared to H2. The heteroatoms (oxygen, sulfur or nitrogen) in POPs were reported to play an important role in the efficient capture of polar gases and adsorption selectivity of CO2 over N2 or CH4 [62,63,64,65]. The CO2 uptake for the most common MOF materials is up to 18 wt % at different temperature and pressure [37,66]. However, the health and environmental impacts of such materials are questionable [67].
The efficiency of the synthesized polymers was found to follow the order 5 > 6 > 4. The difference in gas capture efficiency could be explained by the structure geometry of the building units for 46. The kinked geometry of 5 (meta-phosphate) and 6 (ortho-phosphate) could lead to a distorted networks compared to polymer 4 (para-phosphate) that has a relatively less distorted structure. The synthesized polymers are suitable for CO2 capture as a result of the high number of Lewis base sites. In addition, the interaction between polarized groups and gas molecules increases the CO2 uptake of 14 wt % at 50 bars. Moreover, the van der Waals interaction between the skeleton and weak nonpolar CO2 might be stronger compared to those between the skeleton and strong nonpolar H2.

4. Conclusions

Three novel 3D polymeric Schiff bases containing phosphate group were successfully synthesized in high yields. The chemical structures of the synthesized polymers were confirmed by FTIR, SEM, GPC, BET, BJH and H-sorb2600 analyzer. The analysis of N2 sorption isotherms reveal that the three polymers have type III isotherm and quite narrow pore size distribution. The pronounced affinity towards CO2 gas uptake was found to be high compared to that of H2 uptake at 323 K and 50 bars. The outstanding storage of CO2 gas endows these polymers a promising potential as efficient adsorbents in clean energy applications.


The project was supported by King Saud University, Deanship of Scientific Research, Research Chairs and Al-Nahrain and Tikrit Universities.

Author Contributions

Emad Yousif, Ayad S. Hameed, Mustafa Abdalla and Gamal A. El-Hiti conceived and designed the experiments. Dina S. Ahmed performed the experiments and analyzed the data. Gamal A. El-Hiti, Emad Yousif, Ayad S. Hameed and Mustafa Abdalla wrote the paper. All authors discussed the results and improved the final text of the paper.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Dawson, R.; Adams, D.J.; Cooper, A.I. Chemical tuning of CO2 sorption in robust nanoporous organic polymers. Chem. Sci. 2011, 2, 1173–1177. [Google Scholar] [CrossRef]
  2. Lu, W.; Yuan, D.Q.; Sculley, J.; Zhao, D.; Krishna, R.; Zhou, H.-C. Sulfonate-grafted porous polymer networks for preferential CO2 adsorption at low pressure. J. Am. Chem. Soc. 2011, 133, 18126–18129. [Google Scholar] [CrossRef] [PubMed]
  3. Bae, Y.S.; Snurr, R.Q. Development and evaluation of porous materials for carbon dioxide separation and capture. Angew. Chem. Int. Ed. 2011, 50, 11586–11596. [Google Scholar] [CrossRef] [PubMed]
  4. Leung, D.Y.C.; Caramanna, G.; Maroto-Valer, M.M. An overview of current status of carbon dioxide capture and storage technologies. Renew. Sustain. Energy Rev. 2014, 39, 426–443. [Google Scholar] [CrossRef] [Green Version]
  5. Ma, S.Q.; Zhou, H.-C. Gas storage in porous metal–organic frameworks for clean energy applications. Chem. Commun. 2010, 46, 44–53. [Google Scholar] [CrossRef] [PubMed]
  6. Keskin, S.; van Heest, T.M.; Sholl, D.S. Can Metal–organic framework materials play a useful role in large-scale carbon dioxide separations? ChemSusChem 2010, 3, 879–891. [Google Scholar] [CrossRef] [PubMed]
  7. Haszeldine, R.S. Carbon capture and storage: How green can black be? Science 2009, 325, 1647–1652. [Google Scholar] [CrossRef] [PubMed]
  8. Jacobson, M.Z. Review of solutions to global warming, air pollution, and energy security. Energy Environ. Sci. 2009, 2, 148–173. [Google Scholar] [CrossRef]
  9. Mastalerz, M.; Schneider, M.W.; Oppel, I.M.; Presly, O. A Salicylbisimine cage compound with high surface area and selective CO2/CH4 adsorption. Angew. Chem. Int. Ed. 2011, 50, 1046–1051. [Google Scholar] [CrossRef] [PubMed]
  10. D’Alessandro, D.M.; Smit, B.; Long, J.R. Carbon dioxide capture: Prospects for new materials. Angew. Chem. Int. Ed. 2010, 49, 6058–6082. [Google Scholar] [CrossRef] [PubMed]
  11. Metz, B.; Davidson, O.; de Coninck, H.; Loos, M.; Meyer, L. IPCC Special Report on Carbon Dioxide Capture and Storage; Cambridge University Press: New York, NY, USA, 2005. [Google Scholar]
  12. Rabbani, M.G.; El-Kaderi, H.M. Synthesis and characterization of porous benzimidazole-linked polymers and their performance in small gas storage and selective uptake. Chem. Mater. 2012, 24, 1511–1517. [Google Scholar] [CrossRef]
  13. Kaliva, M.; Armatas, G.S.; Vamvakaki, M. Microporous polystyrene particles for selective carbon dioxide capture. Langmuir 2012, 28, 2690–2695. [Google Scholar] [CrossRef] [PubMed]
  14. D’Alessandro, D.M.; McDonald, T. Toward carbon dioxide capture nanoporous materials. Pure Appl. Chem. 2011, 83, 57–66. [Google Scholar] [CrossRef]
  15. Rochelle, G.T. Amine scrubbing for CO2 capture. Science 2009, 325, 1652–1654. [Google Scholar] [CrossRef] [PubMed]
  16. Yang, H.; Xu, Z.; Fan, M.; Gupta, R.; Slimane, R.B.; Bland, A.E.; Wright, I. Progress in carbon dioxide separation and capture: A review. J. Environ. Sci. 2008, 20, 14–27. [Google Scholar] [CrossRef]
  17. Sethia, G.; Sayari, A. Activated carbon with optimum pore size distribution for hydrogen storage. Carbon 2016, 99, 289–294. [Google Scholar] [CrossRef]
  18. Rosi, N.L.; Eckert, J.; Eddaoudi, M.; Vodak, D.T.; Kim, J.; O’Keeffe, M.; Yaghi, O.M. Hydrogen storage in microporous metal-organic frameworks. Science 2003, 300, 1127–1129. [Google Scholar] [CrossRef] [PubMed]
  19. Orimo, S.; Nakamori, Y.; Eliseo, J.R.; Züttel, A.; Jensen, C.M. Complex hydrides for hydrogen storage. Chem. Rev. 2007, 107, 4111–4132. [Google Scholar] [CrossRef] [PubMed]
  20. Van den Berg, A.W.C.; Areán, C.O. Materials for hydrogen storage: Current research trends and perspectives. Chem. Commun. 2008, 668–681. [Google Scholar] [CrossRef]
  21. Panella, B.; Hirscher, M.; Roth, S. Hydrogen adsorption in different carbon nanostructures. Carbon 2005, 43, 2209–2214. [Google Scholar] [CrossRef]
  22. Wu, D.; Xu, F.; Sun, B.; Fu, R.; He, H.; Matyjaszewski, K. Design and preparation of porous polymers. Chem. Rev. 2012, 112, 3959–4015. [Google Scholar] [CrossRef] [PubMed]
  23. Dawson, R.; Cooper, A.I.; Adams, D.J. Nanoporous organic polymer networks. Prog. Polym. Sci. 2012, 37, 530–563. [Google Scholar] [CrossRef]
  24. Xu, Y.; Jin, S.; Xu, H.; Nagai, A.; Jiang, D. Conjugated microporous polymers: Design, synthesis and application. Chem. Soc. Rev. 2013, 42, 8012–8031. [Google Scholar] [CrossRef] [PubMed]
  25. Waller, P.J.; Gándara, F.; Yaghi, O.M. Chemistry of covalent organic frameworks. Acc. Chem. Res. 2015, 48, 3053–3063. [Google Scholar] [CrossRef] [PubMed]
  26. Jones, J.T.A.; Hasell, T.; Wu, X.; Bacsa, J.; Jelfs, K.E.; Schmidtmann, M.; Chong, S.Y.; Adams, D.J.; Trewin, A.; Schiffman, F.; et al. Modular and predictable assembly of porous organic molecular crystals. Nature 2011, 474, 367–371. [Google Scholar] [CrossRef] [PubMed]
  27. Kumar, A.; Madden, D.G.; Lusi, M.; Chen, K.-J.; Daniels, E.A.; Curtin, T.; Perry, J.J., IV; Zaworotko, M.J. Direct air capture of CO2 by physisorbent materials. Angew. Chem. Int. Ed. 2015, 54, 14372–14377. [Google Scholar] [CrossRef] [PubMed]
  28. Xiang, Z.; Mercado, R.; Huck, J.M.; Wang, H.; Guo, Z.; Wang, W.; Cao, D.; Haranczyk, M.; Smit, B. Systematic tuning and multifunctionalization of covalent organic polymers for enhanced carbon capture. J. Am. Chem. Soc. 2015, 137, 13301–13307. [Google Scholar] [CrossRef] [PubMed]
  29. Lau, C.H.; Konstas, K.; Thornton, A.W.; Liu, A.C.Y.; Mudie, S.; Kennedy, D.F.; Howard, S.C.; Hill, A.J.; Hill, M.R. Gas-separation membranes loaded with porous aromatic frameworks that improve with age. Angew. Chem. Int. Ed. 2015, 54, 2669–2673. [Google Scholar] [CrossRef] [PubMed]
  30. Sun, Q.; Dai, Z.; Meng, X.; Wang, L.; Xiao, F.-S. Task-specific design of porous polymer heterogeneous catalysts beyond homogeneous counterparts. ACS Catal. 2015, 5, 4556–4567. [Google Scholar] [CrossRef]
  31. Patra, A.; Scherf, U. Fluorescent microporous organic polymers: Potential testbed for optical applications. Chem. Eur. J. 2012, 18, 10074–10080. [Google Scholar] [CrossRef] [PubMed]
  32. Choi, J.H.; Choi, K.M.; Jeon, H.J.; Choi, Y.J.; Lee, Y.; Kang, J.K. Acetylene gas mediated conjugated microporous polymers (ACMPs): First use of acetylene gas as a building unit. Macromolecules 2010, 43, 5508–5511. [Google Scholar] [CrossRef]
  33. Jiang, J.-X.; Trewin, A.; Adams, D.J.; Cooper, A.I. Band gap engineering in fluorescent conjugated microporous polymers. Chem. Sci. 2011, 2, 1777–1781. [Google Scholar] [CrossRef]
  34. Yuan, D.; Lu, W.; Zhao, D.; Zhou, H.-C. Highly stable porous polymer networks with exceptionally high gas-uptake capacities. Adv. Mater. 2011, 23, 3723–3725. [Google Scholar]
  35. Wang, D.; Xue, L.; Li, L.; Deng, B.; Feng, S.; Liu, H.; Zhao, X. Rational design and synthesis of hybrid porous polymers derived from polyhedral oligomeric silsesquioxanes via Heck coupling reactions. Macromol. Rapid Commun. 2013, 34, 861–866. [Google Scholar] [CrossRef] [PubMed]
  36. Dhakshinamoorthy, A.; Asiri, A.M.; García, H. Metal–organic framework (MOF) compounds: Photocatalysts for redox reactions and solar fuel production. Angew. Chem. Int. Ed. 2016, 55, 5414–5445. [Google Scholar] [CrossRef] [PubMed]
  37. Schoedel, A.; Ji, Z.; Yaghi, O.M. The role of metal–organic frameworks in a carbon-neutral energy cycle. Nat. Energy 2016, 1, 16034. [Google Scholar] [CrossRef]
  38. Mason, J.A.; Veenstra, M.; Long, J.R. Evaluating metal–organic frameworks for natural gas storage. Chem. Sci. 2014, 5, 32–51. [Google Scholar] [CrossRef]
  39. Li, B.; Wen, H.-M.; Zhou, W.; Chen, B. Porous metal–organic frameworks for gas storage and separation: What, how, and why? Phys. Chem. Lett. 2014, 5, 3468–3479. [Google Scholar] [CrossRef] [PubMed]
  40. Corbridge, D.E.C. Phosphorus: Chemistry, Biochemistry and Technology, 6th ed.; CRC Press: New York, NY, USA, 2013. [Google Scholar]
  41. Iliescu, S.; Zubizarreta, L.; Plesu, N.; Macarie, L.; Popa, A.; Ilia, G. Polymers containing phosphorus groups and polyethers: From synthesis to application. Chem. Cent. J. 2012, 6, 132. [Google Scholar] [CrossRef] [PubMed]
  42. Monge, S.; Canniccioni, B.; Graillot, A.; Robin, J.-J. Phosphorus-containing polymers: A great opportunity for the biomedical field. Biomacromolecules 2011, 12, 1973–1982. [Google Scholar] [CrossRef] [PubMed]
  43. Ren, H.; Sun, J.; Wu, B.; Zhou, Q. Synthesis and properties of a phosphorus-containing flame retardant epoxy resin based on bis-phenoxy (3-hydroxy) phenyl phosphine oxide. Polym. Degrad. Stab. 2007, 92, 956–961. [Google Scholar] [CrossRef]
  44. Petreus, O.; Vlad-Bubulac, T.; Hamciuc, C. Synthesis and characterization of new polyesters with enhanced phosphorus content. Eur. Polym. J. 2005, 41, 2663–2670. [Google Scholar] [CrossRef]
  45. Chang, Y.-L.; Wang, Y.-Z.; Ban, D.-M.; Yang, B.; Zhao, G.-M. A novel phosphorus-containing polymer as a highly effective flame retardant. Macromol. Mater. Eng. 2004, 289, 703–707. [Google Scholar] [CrossRef]
  46. Ali, G.Q.; El-Hiti, G.A.; Tomi, I.H.R.; Haddad, R.; Al-Qaisi, A.J.; Yousif, E. Photostability and performance of polystyrene films containing 1,2,4-triazole-3-thiol ring system Schiff bases. Molecules 2016, 21, 1699. [Google Scholar] [CrossRef] [PubMed]
  47. Ali, M.M.; El-Hiti, G.A.; Yousif, E. Photostabilizing efficiency of poly(vinyl chloride) in the presence of organotin(IV) complexes as photostabilizers. Molecules 2016, 21, 1151. [Google Scholar] [CrossRef] [PubMed]
  48. Yousif, E.; Hasan, A.; El-Hiti, G.A. Spectroscopic, physical and topography of photochemical process of PVC films in the presence of Schiff base metal complexes. Polymers 2016, 8, 204. [Google Scholar] [CrossRef]
  49. Yousif, E.; El-Hiti, G.A.; Hussain, Z.; Altaie, A. Viscoelastic, spectroscopic and microscopic study of the photo irradiation effect on the stability of PVC in the presence of sulfamethoxazole Schiff’s bases. Polymers 2015, 7, 2190–2204. [Google Scholar] [CrossRef]
  50. Yousif, E.; El-Hiti, G.A.; Haddad, R.; Balakit, A.A. Photochemical stability and photostabilizing efficiency of poly(methyl methacrylate) based on 2-(6-methoxynaphthalen-2-yl)propanoate metal ion complexes. Polymers 2015, 7, 1005–1019. [Google Scholar] [CrossRef]
  51. Dillard, A.; Pocius, A.V. Adhesion Science and Engineering, The Mechanism of Adhesion; Elsevier: Amsterdam, The Netherlands, 2002. [Google Scholar]
  52. Lin-Gibson, S.; Glass, T.E.; Shultz, A.R.; Riffle, J.S. Controlled molecular weight cresol-formaldehyde oligomers. Polymer 2002, 43, 2017–2029. [Google Scholar] [CrossRef]
  53. Wu, C. Handbook of Size Exclusion Chromatography; Marcel Dekker: New York, NY, USA, 1995. [Google Scholar]
  54. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef]
  55. Ma, Q.-Y.; Yang, B.-X.; Li, J.-Q. Porous organic polymers derived from tetrahedral silicon-centered monomers and a stereocontorted spirobifluorene-based precursor: Synthesis, porosity and carbon dioxide sorption. RSC Adv. 2015, 5, 64163–64169. [Google Scholar] [CrossRef]
  56. Muller, T.; Bräse, S. Tetrahedral organic molecules as components in supramolecular architectures and in covalent assemblies, networks and polymers. RSC Adv. 2014, 4, 6886–6907. [Google Scholar] [CrossRef]
  57. Wang, D.; Yang, W.; Li, L.; Zhao, X.; Feng, S.; Liu, H. Hybrid networks constructed from tetrahedral silicon-centered precursors and cubic POSS-based building blocks via Heck reaction: Porosity, gas sorption, and luminescence. J. Mater. Chem. A 2013, 1, 13549–13558. [Google Scholar] [CrossRef]
  58. Holst, J.R.; Stöckel, E.; Adams, D.J.; Cooper, A.I. High surface area networks from tetrahedral monomers: Metal-catalyzed coupling, thermal polymerization, and “click” chemistry. Macromolecules 2010, 43, 8531–8538. [Google Scholar] [CrossRef]
  59. Stöckel, E.; Wu, X.; Trewin, A.; Wood, C.D.; Clowes, R.; Campbell, N.L.; Jones, J.T.A.; Khimyak, Y.Z.; Adams, D.J.; Cooper, A.I. High surface area amorphous microporous poly(aryleneethynylene) networks using tetrahedral carbon- and silicon-centred monomersw. Chem. Commun. 2009, 212–214. [Google Scholar] [CrossRef] [PubMed]
  60. Lu, W.; Yuan, D.; Zhao, D.; Schilling, C.I.; Plietzsch, O.; Muller, T.; Bräse, S.; Guenther, J.; Blümel, J.; Krishna, R.; et al. Porous polymer networks: Synthesis, porosity, and applications in gas storage/separation. Chem. Mater. 2010, 22, 5964–5972. [Google Scholar] [CrossRef]
  61. Ben, T.; Ren, H.; Ma, S.; Cao, D.; Lan, J.; Jing, X.; Wang, W.; Xu, J.; Deng, F.; Simmons, J.M.; et al. Targeted synthesis of a porous aromatic framework with high stability and exceptionally high surface area. Angew. Chem. Int. Ed. 2009, 48, 9457–9460. [Google Scholar] [CrossRef] [PubMed]
  62. Jin, Y.; Voss, B.A.; McCaffrey, R.; Baggett, C.T.; Noble, R.D.; Zhang, W. Microwave-assisted syntheses of highly CO2-selective organic cage frameworks (OCFs). Chem. Sci. 2012, 3, 874–877. [Google Scholar] [CrossRef]
  63. Yu, H.; Tian, M.; Shen, C.; Wang, Z. Facile preparation of porous polybenzimidazole networks and adsorption behavior of CO2 gas, organic and water vapors. Polym. Chem. 2013, 4, 961–968. [Google Scholar] [CrossRef]
  64. Katsoulidis, A.P.; Dyar, S.M.; Carmieli, R.; Malliakas, C.D.; Wasielewski, M.R.; Kanatzidis, M.G. Copolymerization of terephthalaldehyde with pyrrole, indole and carbazole gives microporous POFs functionalized with unpaired electrons. J. Mater. Chem. A 2013, 1, 10465–10473. [Google Scholar] [CrossRef]
  65. Ding, X.; Li, H.; Zhao, Y.-C.; Han, B.-H. Mannitol-based acetal-linked porous organic polymers for selective capture of carbon dioxide over methane. Polym. Chem. 2015, 6, 5305–5312. [Google Scholar] [CrossRef]
  66. Zhang, Z.; Zhao, Y.; Gong, Q.; Li, Z.; Li, J. MOFs for CO2 capture and separation from flue gas mixtures: The effect of multifunctional sites on their adsorption capacity and selectivity. Chem. Commun. 2013, 49, 653–661. [Google Scholar] [CrossRef] [PubMed]
  67. Sajid, M. Toxicity of nanoscale metal organic frameworks: A perspective. Environ. Sci. Pollut. Res. 2016, 23, 14805–14807. [Google Scholar] [CrossRef] [PubMed]

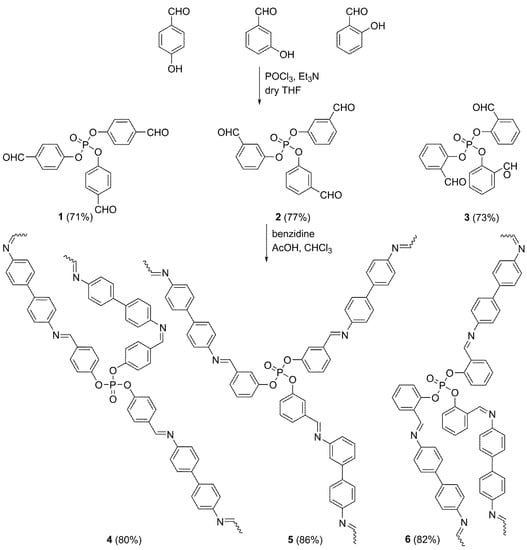

Scheme 1. Synthesis of phosphate polymers 46.
Scheme 1. Synthesis of phosphate polymers 46.
Polymers 09 00336 sch001

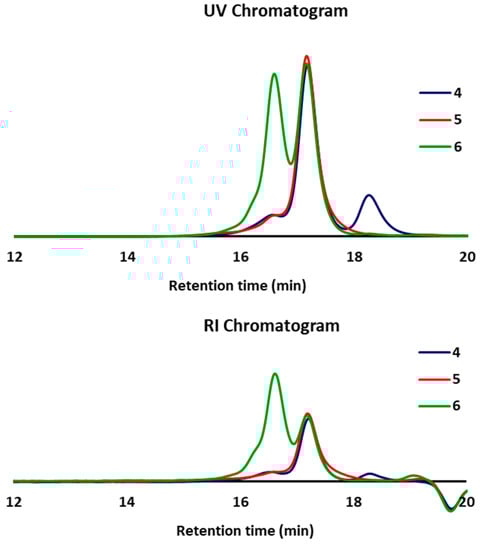

Figure 1. GPC chromatograms of polymers 46.
Figure 1. GPC chromatograms of polymers 46.
Polymers 09 00336 g001

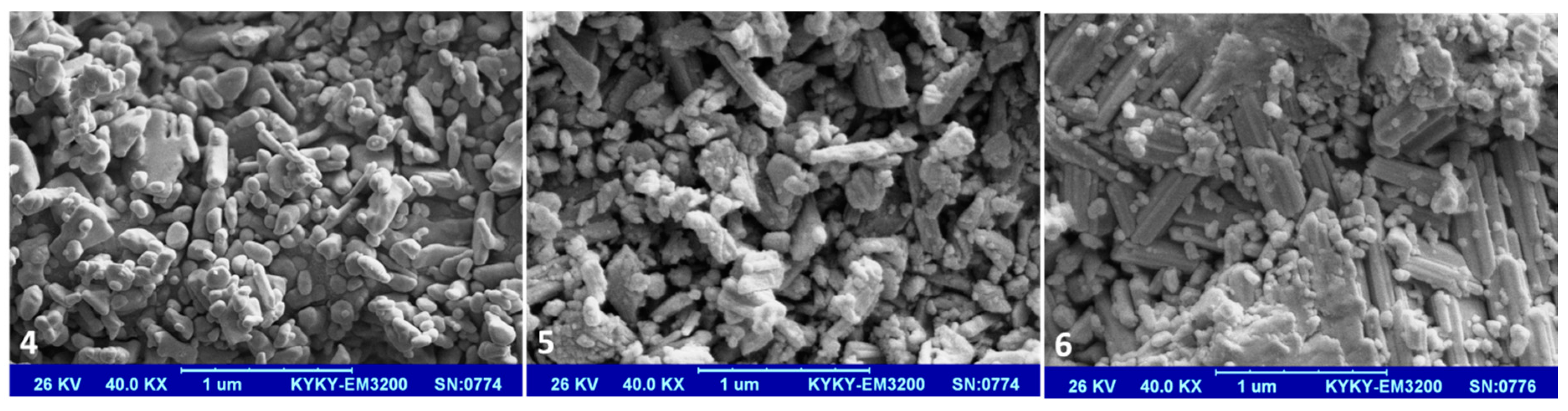

Figure 2. The micrographs of phosphate polymers 46 (1 µm width).
Figure 2. The micrographs of phosphate polymers 46 (1 µm width).
Polymers 09 00336 g002

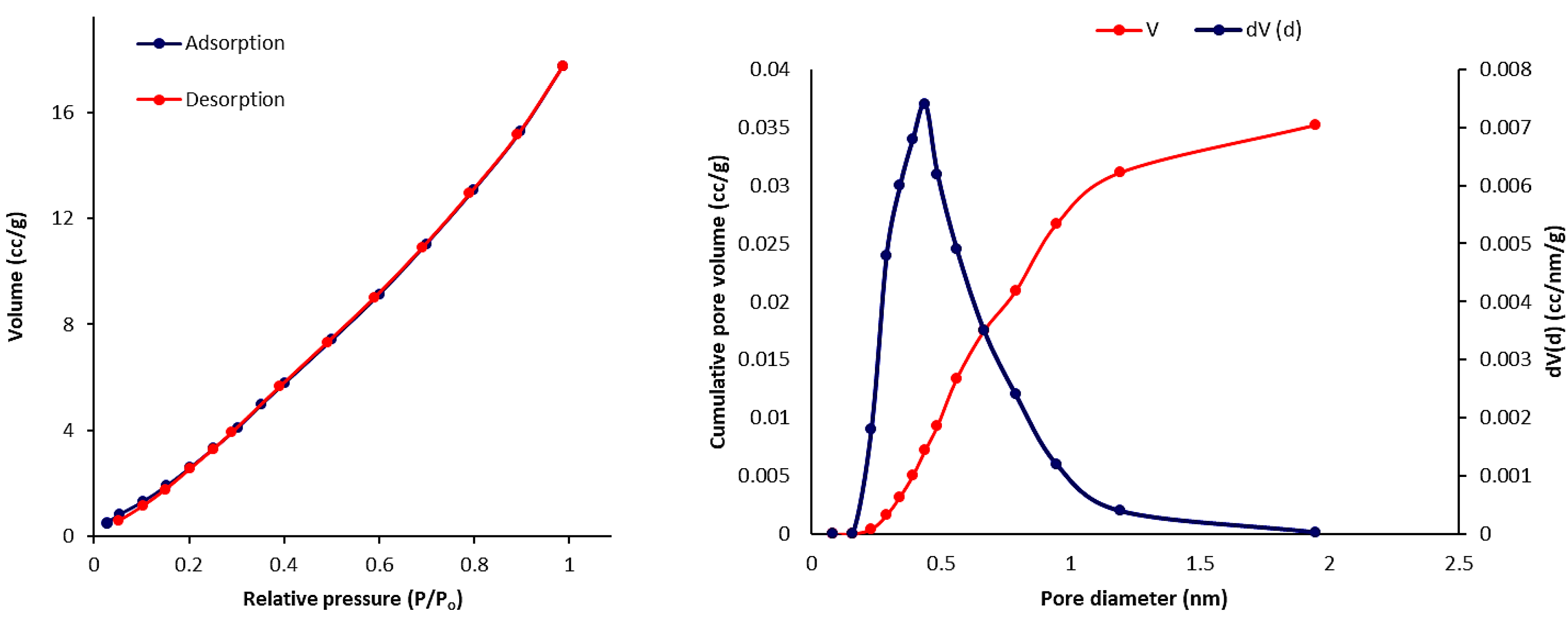

Figure 3. Adsorption–desorption isotherms of N2 and pore size distribution curve for 4.
Figure 3. Adsorption–desorption isotherms of N2 and pore size distribution curve for 4.
Polymers 09 00336 g003

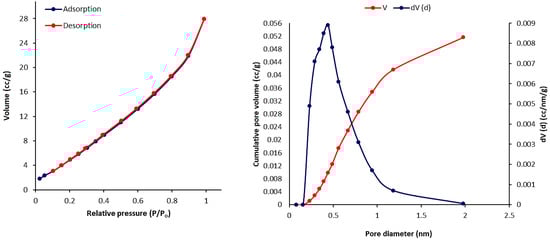

Figure 4. Adsorption–desorption isotherms of N2 and pore size distribution curve for 5.
Figure 4. Adsorption–desorption isotherms of N2 and pore size distribution curve for 5.
Polymers 09 00336 g004

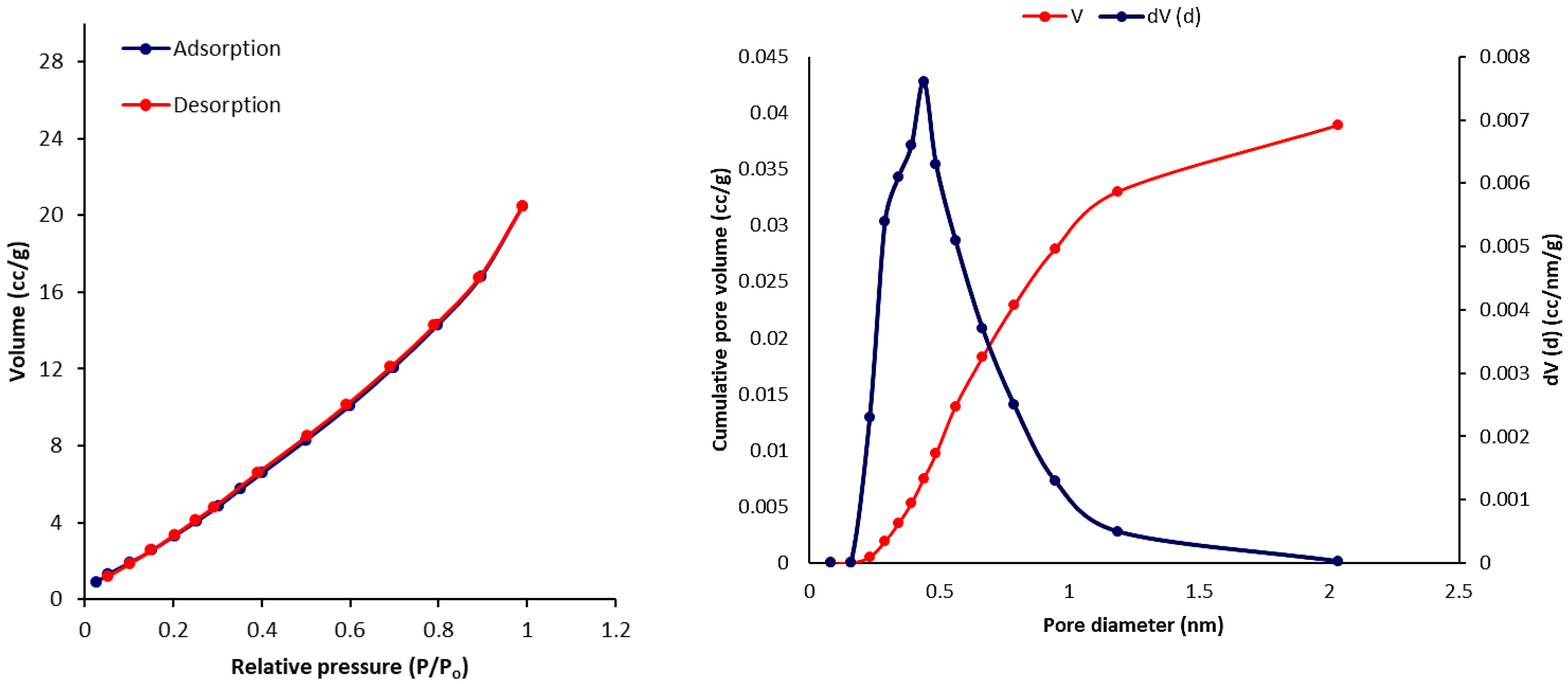

Figure 5. Adsorption–desorption isotherms of N2 and pore size distribution curve for 6.
Figure 5. Adsorption–desorption isotherms of N2 and pore size distribution curve for 6.
Polymers 09 00336 g005

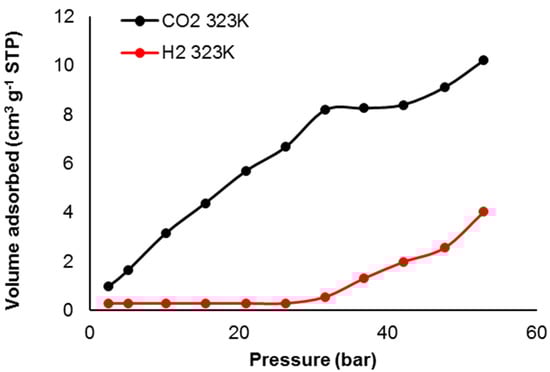

Figure 6. Adsorption isotherms of CO2 and H2 for polymer 4.
Figure 6. Adsorption isotherms of CO2 and H2 for polymer 4.
Polymers 09 00336 g006
Figure 7. Adsorption isotherms of CO2 and H2 for polymer 5.
Figure 7. Adsorption isotherms of CO2 and H2 for polymer 5.
Polymers 09 00336 g007

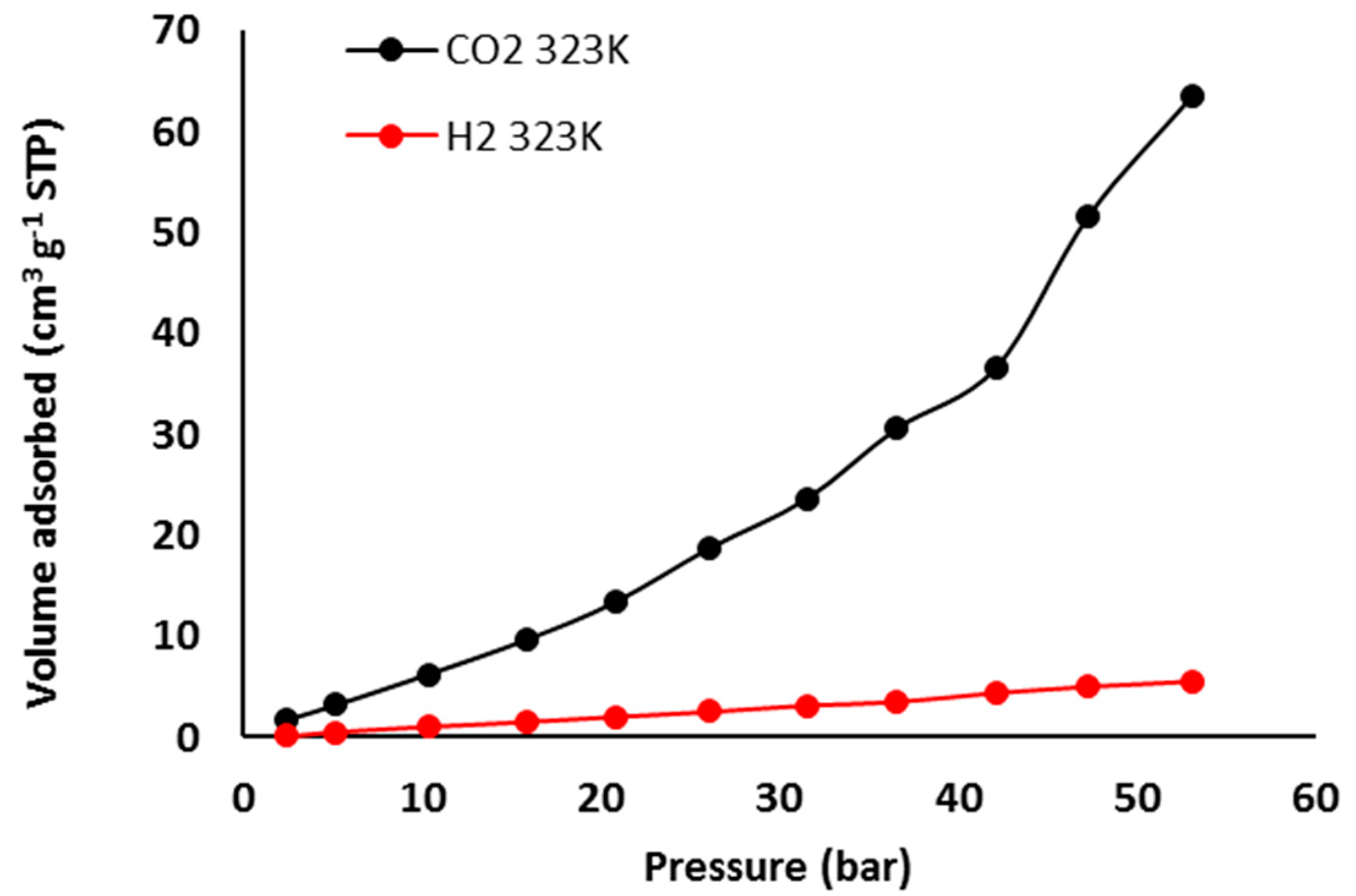

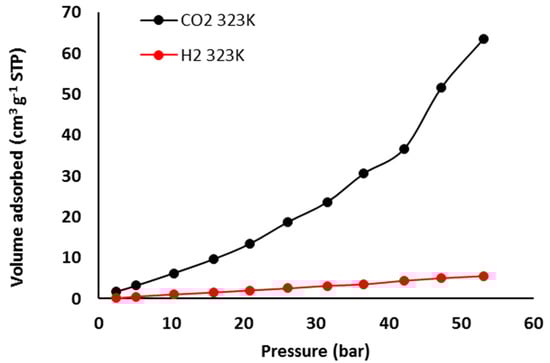

Figure 8. Adsorption isotherms of CO2 and H2 for polymer 6.
