Open AccessArticle
Polymers 2017, 9(7), 272; https://doi.org/10.3390/polym9070272

Novel Two-Dimensional Conjugated Polymer Containing Fluorinated Bithiophene as Donor and Benzoselenodiazole as Acceptor Units with Vinyl-Terthiophene Pendants for Polymer Photovoltaic Cells

1
Center for Condensed Matter Sciences, National Taiwan University, Taipei 10617, Taiwan
2
Institute of Organic and Polymeric Materials, National Taipei University of Technology, Taipei 10608, Taiwan
3
Institute of Polymer Science and Engineering, National Taiwan University, Taipei 10617, Taiwan
*
Authors to whom correspondence should be addressed.
Academic Editor: Zhan’ao Tan
Received: 7 June 2017 / Revised: 29 June 2017 / Accepted: 3 July 2017 / Published: 7 July 2017
(This article belongs to the Special Issue Polymer Solar Cells)
Full-Text   |   PDF [1833 KB, uploaded 7 July 2017]   |

Abstract

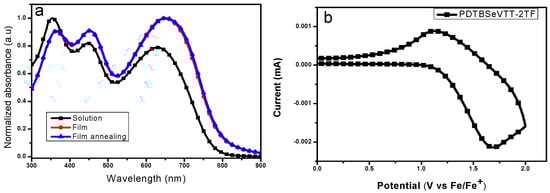

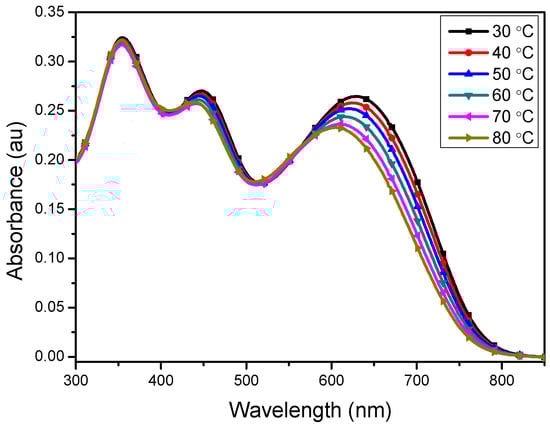

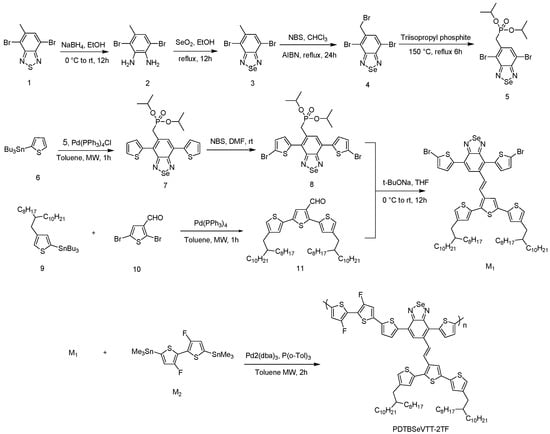

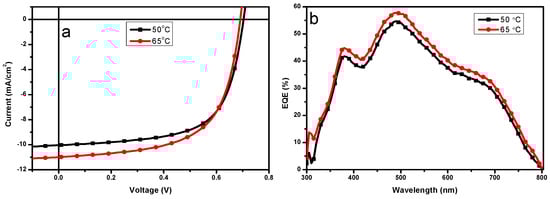

Novel two-dimensional conjugated copolymer, abbreviated as PDTBSeVTT-2TF, containing electron-deficient 4,7-di(thiophen-2-yl)benzo[c][1,2,5]selenodiazole (DTBSe) unit, conjugated vinyl-terthiophene (VTT) side chain and 3,3′-difluoro-2,2′-bithiophene (2TF) was designed and synthesized using microwave-assisted Stille cross-coupling polymerization. UV–visible absorption and cyclic voltammetry studies revealed that this copolymer possesses a strong and broad absorption in the range of 300–800 nm and a narrow optical bandgap (Eg) of 1.57 eV with low-lying HOMO and LUMO energy levels. Further, the bulk heterojunction polymer solar cells (PSCs) were fabricated using PDTBSeVTT-2TF as donor and [6,6]-phenyl-C71-butyric acid methyl ester (PC71BM) as acceptor with an inverted device structure of ITO/ZnO/PDTBSeVTT-2TF:PC71BM/V2O5/Ag. The processing temperature of blend solution for preparing PDTBSeVTT-2TF:PC71BM active layer showed obvious impact on the photovoltaic performance of solar devices. The cell fabricated from the blend solution at 65 °C exhibited enhanced power conversion efficiencies (PCE) of 5.11% with a Jsc of 10.99 mA/cm−2 compared with the one at 50 °C, which had a PCE of 4.69% with a Jsc of 10.10 mA/cm−2. This enhancement is due to the dissolution of PDTBSeVTT-2TF clusters into single molecules and small aggregates, improving the miscibility between the polymer and PC71BM and thus increasing the donor/acceptor interface. View Full-Text
Keywords: benzoselenodiazole; vinyl-terthiophene; difluoro-bithiophene; polymer solar cell benzoselenodiazole; vinyl-terthiophene; difluoro-bithiophene; polymer solar cell
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material
