A New Polymer-Based Fluorescent Chemosensor Incorporating Propane-1,3-Dione and 2,5-Diethynylbenzene Moieties for Detection of Copper(II) and Iron(III)

by
Dongliang Yang
1,
Chunhui Dai
2,
Yanling Hu
1,
Shuli Liu
1,
Lixing Weng
3,
Zhimin Luo
1,
Yixiang Cheng
2,* and
Lianhui Wang
1,*
1
Key Laboratory for Organic Electronics & Information Displays (KLOEID) and Institute of Advanced Materials (IAM), Nanjing University of Posts & Telecommunications, 9 Wenyuan Road, Nanjing 210046, China
2
Key Laboratory of Mesoscopic Chemistry of MOE, School of Chemistry and Chemical Engineering, Nanjing University, Nanjing 210093, China
3
College of Geography and Biological Information, Nanjing University of Posts and Telecommunications, Nanjing 210046, China
*
Authors to whom correspondence should be addressed.
Polymers 2017, 9(7), 267; https://doi.org/10.3390/polym9070267
Submission received: 18 May 2017 / Revised: 27 June 2017 / Accepted: 3 July 2017 / Published: 6 July 2017
(This article belongs to the Special Issue Polymeric Membranes)
Browse Figures
Versions Notes

Abstract

:
A novel conjugated polymer (PDBDBM) was developed by the polymerization of 1,4-dioctyloxy-2,5-diethynylbenzene with 1,3-bis(4-bromophenyl)propane-1,3-dione based on Pd-catalyzed Sonogashira-coupling reaction. The obtained polymer PDBDBM exhibited bright green photoluminescence under UV irradiation. According to the metal ion titration experiments, PDBDBM showed high sensitivity and selectivity for detection of Cu2+ and Fe3+ over other metal ions. The fluorescent detection limits of PDBDBM were calculated to be 5 nM for Cu2+ and 0.4 μM for Fe3+ and the Stern–Volmer quenching constant for Cu2+ and Fe3+ were found to be 1.28 × 108 M−1 and 2.40 × 104 M−1, respectively. These results indicated that the polymer can be used as a potential probe for Cu2+ and Fe3+ detection.

Graphical Abstract

1. Introduction

All organisms have absolute requirements for a series of metals as they play critical role in biological processes [1]. Copper, an essential trace metal, participates in a variety of fundamental physiological processes, such as redox processes and enzyme-catalyzed reactions [2]. Dysregulation of Cu2+ homeostasis could lead to numerous diseases, including amyotrophic lateral sclerosis, Parkinson’s disease, Alzheimer’s disease, Menkes disease, and neurodegenerative diseases [2,3]. Iron, as the second most abundant trace metal element, is involved in many physiological events such as oxygen transport, DNA synthesis, and electron transport [3,4]. Iron deficiency is associated with disorders such as anemia, hemochromatosis, and Alzheimer’s [5]. Moreover, Cu2+ and Fe3+ are ecological pollutions since they are widely used in agriculture and industry [6,7]. Consequently, numerous efforts have been made to develop selective and sensitive detection methods for Cu2+ and Fe3+, including UV–Vis [8], fluorescence [4], atomic absorption spectra [9], and electrochemical methods [10]. Of these methods, fluorescent probes have been widely used owing to their simplicity, low cost, fast response time, and high sensitivity. Currently, various fluorescent probes for Cu2+ and Fe3+ have been developed; but most of them are based on small organic molecules, and polymer-based chemosensors are very few [3].
Over the past decades, conjugated polymers (CPs) have gained increasing attention owing to their extensively π-conjugated backbones and conformationally restricted polymer chains [11]. Furthermore, the light-harvesting and light-amplifying properties of CPs make them attractive for applications in optoelectronics, fluorescence imaging, and chemosensors [11,12]. Compared to small organic fluorescent molecule sensors, polymer-based fluorescent chemosensors have several noteworthy features. For example, polymer-based fluorescent chemosensors can enhance and amplify the fluorescence responsive signal which was ascribed to facile energy migration along the polymer backbone upon light excitations [13,14]. Furthermore, polymer-based sensors possess high selectivity and binding efficiency due to the polymer chain incorporating multiple recognition elements for analytes [15]. These CPs show superior performance and offer a new platform to fluorescent sensors [16,17]. Poly(phenylene-ethynylene) (PPE) CPs are expected to possess strong fluorescence, making them amenable for applications such as fluorescent sensor emitters [18]. Many fluorescent sensors based on PPE derivative have been exploited for the detection of small molecule and biomolecule with high selectivity and sensitivity [18]. To develop the selective fluorescent sensors, various recognition moieties such as binaphthalene, oligo-crown ethers, and acetophenone ligands have been introduced to the backbone and side-chain of conjugated polymers [15,19]. Currently, some fluorescent sensors based on CPs for Cu2+ or Fe3+ have been developed. For example, the fluorescent polymers containing imidazole, bipyridine, and thiourea coordination moieties can serve as fluorescent sensors for Cu2+ [8,20,21,22]. Besides, some CPs bearing multidentate amino or carboxylate side chains also display high selectivity toward Cu2+ [23,24,25]. For design and synthesis Fe3+ sensors, the approach that introducing quinoline, phosphonate sodium salt, sulphonate, spirolactam, terpyridine, and carboxylic ester groups to conjugated polymer chain have been developed [26,27,28,29,30,31]. However, few of them can be used in both Cu2+ and Fe3+ detection. Moreover, there is no literature about polymer-based fluorescence containing propane-1,3-dione derivatives for selective metal ion detection. In the organic phosphorescent metal complexes, however, propane-1,3-dione derivatives can be used as bridging coordination moiety of metal [32,33].
In the present work, a novel fluorescence-based polymer (PDBDBM) sensor containing 1,4-dioctyloxy-2,5-diethynylbenzene (M1) and 1,3-bis(4-bromophenyl)propane-1,3-dione (M2) was synthesized based on Pd-catalyzed Sonogashira-coupling reaction, which demonstrated obvious absorbance change and fluorescence quenching upon the addition of Cu2+ and Fe3+ ion without interference from other metal ions. It is worth mentioning that the intensity change of photoluminescence of PDBDBM sensor could be easily observed by the naked eye under a hand-held UV lamp, which proved that PDBDBM can be utilized as potential optical chemosensors for Cu2+ and Fe3+ detection.

2. Materials and Methods

2.1. Materials and Measurements

All of the reagents and solvents were commercially available and of analytical reagent grade. Triethylamine (Et3N) and tetrahydrofuran (THF) were purified by distillation as previously described [34]. 1,4-dioctyloxy-2,5-diethynylbenzene (M1) and 1,3-bis(4-bromophenyl)propane-1,3-dione (M2) was synthesized according to our previous literature [35,36]. NMR spectra were recorded by Bruker Avance 300 spectrometer, Rheinstetten, Germany, using Deuterochloroform (CDCl3) as solvent. Mass spectrometry was collected from a Shimadzu LCMS-2020 Instrument, Kyoto, Japan. Fluorescence spectra were measured on an RF-5301PC spectrometer, Shimadzu, Kyoto, Japan. UV–Vis absorption spectra were undertaken on a Shimadzu UV-3600 spectrophotometer, Kyoto, Japan. Molecular weight of PDBDBM was carried out in THF by gel permeation chromatography (GPC) with a Waters 244 HPLC pump, Milford, MA, USA, THF was served as a solvent and measurements were relative to polystyrene standards. Ultrapure water used in experiments was produced by using a Milli-Q water purification system (Millipore Corp., Billerica, MA, USA).

2.2. Preparation of the Conjugated Polymer PDBDBM

M1 (76.6 mg, 0.2 mmol), M2 (77.0 mg, 0.2 mmol), tetrakis(triphenylphosphine)palladium (22.65 mg, 0.02 mmol), and cuprous iodide (3.75 mg, 0.02 mmol) was dissolved in 10 mL dimethylformamide (DMF) and 5 mL Et3N. The reaction was performed at 75 °C for two days under N2 atmosphere. The solution was filtered through a short silica gel column after the solution cooled to room temperature. Then the solvent was discarded and the precipitates formed were dissolved in 4 mL dichloromethane, and then reprecipitation polymer PDBDBM by adding 60 mL methanol. Finally, the resulting product was precipitated from dichloromethane, filtered, and washed with methanol several times, and dried in a vacuum to give yellow solids in 70% yield.
1H NMR (400 MHz, CDCl3) δ 7.98 (t, J = 7.3 Hz, 2H), 7.87 (d, J = 8.2 Hz, 1H), 7.64 (m, 3H), 7.04 (m, 1H), 6.80 (m, 1H), 4.06 (s, 2H), 1.88 (d, J = 6.2 Hz, 2H), 1.57 (d, J = 7.1 Hz, 2H), 1.30 (m, 9H), 0.88 (m, 3H).

2.3. Metal Ion Titration Procedure

Stock of 1 mg/mL PDBDBM was prepared in THF solution and stored at 4 °C until used. Metal ions were dissolved in Milli-Q water for obtaining each metal ion stock solutions (1 × 10−2 mol/L). For the metal ion titration experiment, 30 μL PDBDBM (1 mg/mL) was added into 2970 μL THF and thoroughly mixed with the micropipettor. Then different metal ions and different concentrations of Fe3+ and Cu2+ ions were added to a THF solution of PDBDBM and mixed by pipetting. Finally, the UV–Vis absorption and photoluminescence spectra were recorded. For further probing the structure changes of PDBDBM upon addition of Fe3+ and Cu2+, NMR spectrum were taken by adding various amounts of Cu2+/Fe3+ (dissolved in d6-DMSO) into a 10 mg/mL solution of PDBDBM in CDCl3 solvent.

3. Results and Discussion

3.1. Synthesis and Characterization of PDBDBM

The synthesis procedure of the monomers and conjugated polymer (PDBDBM) is outlined in Scheme 1. 1,4-dioctyloxy-2,5-diethynylbenzene (M1) was developed from the starting material hydroquinone by a four-step reaction as previously described [35]. 1,3-bis(4-bromophenyl)propane-1,3-dione (M2) was obtained through a three-step reaction from the starting material 4-bromobenzene carboxylic acid as our previously reported literatures [36]. PDBDBM was synthesized from M1 and M2 by Pd-catalyzed Sonogashira-coupling reaction under a mild reaction condition in DMF/Et3N (2:1, v/v) supplement with tetrakis(triphenylphosphine)palladium and cuprous iodide catalysts. To further purify the conjugated polymer PDBDBM, the product was washed with methanol and collected as a solid power in 70% yield. The chemical structure of PDBDBM was confirmed by 1H NMR (Figure S1). GPC result showed that the weight-average molecular weight (Mw), the number-average molecular weight (Mn), and polydispersity index (PDI) of PDBDBM are 5657, 2399, and 2.358, respectively (Figure S2). The resulting conjugated polymer exhibits good solubility in common organic solvents—such as DMF, THF, chloroform, and toluene—which is ascribe to the flexible n-octyl substituents. UV–Vis absorption and fluorescence spectroscopy of PDBDBM were recorded in THF solution. As shown in Figure S3, PDBDBM has a maximal absorption peak at 420 nm due to the π–π* transition in conjugated polymers; meanwhile, we also find an emission peak at 503 nm from fluorescence spectra.

3.2. Selectivity and Sensitivity of the PDBDBM Sensor for Detection of Cu2+ and Fe3+

The selectivity and sensitivity of the PDBDBM sensor against different metal ions were carried out by UV–Vis spectrophotometer and luminescence spectrometer. The UV–Vis spectral changes of the PDBDBM sensor (1 × 10−5 g/mL) towards different metal ions were investigated in THF solution. As shown in Figure 1A, UV–Vis absorption spectra of the PDBDBM sensor have no significant change by the addition of Co2+, Ba2+, Ag+, Al3+, Zn2+, Hg2+, Sn2+, K+, Na+, Mg2+, Ni2+, and Pb2+. Upon addition of Cu2+, the intensity of absorption peak at 420 nm shows a slight reduction with increase the concentration of Cu2+. On the contrary, the intensity of absorption peak 314 nm exhibits a gradual heightening and an obvious blue shift (Figure 2A). A good linear dependence of absorbance intensity at 288 nm versus Cu2+ concentration ranging from 1 to 200 μM with R2 = 0.9956 was got as Figure 2C shown. In addition, two new absorbance peaks arise at 240 and 364 nm upon addition of Fe3+ ions (Figure 1A). The intensities of absorption peaks at 240, 314, and 364 nm are gradually enhanced with the increasing concentration of Fe3+ (Figure 2B). The absorbance intensity of PDBDBM sensor at 240 nm versus Fe3+ concentrations exhibits a linear dependence from 0.2 to 500 μM with R2 = 0.9987 (Figure 2D). Further, the absorbance values at 314 and 364 nm also show dose-dependence ranging from 0 to 200 μM with R2 = 0.9993 and 0.9998 upon addition of Fe3+ (Figure S4C). As Figure S4 shown, the PDBDBM response to Fe3+ at 364 nm was hardly influenced by Cu2+ (60 μM). This result confirm that the PDBDBM can selectively detect and quantify Fe3+ by UV–Vis spectroscopy even in Cu2+ and Fe3+ mixture. The UV–Vis detection limit of PDBDBM sensor for Cu2+ and Fe3+ was calculated to be 1.5 μM and 0.15 μM, respectively. These results illustrate that the PDBDBM sensor interaction with Cu2+ and Fe3+ though different types of binding [37]. These results also show that PDBDBM can be used as a ratiometric sensor for Cu2+ and Fe3+ detection.
Next, we also checked the selectivity of PDBDBM sensor though fluorescence spectra. Figure 1B demonstrates that most of the tested metal cations (150 μM) did not markedly change the fluorescence intensity, but Cu2+ and Fe3+ can cause fluorescence quenching. Corresponding fluorescent images were recorded under UV lamp irradiation as Figure 1C shown. Cu2+ and Fe3+ at 150 μM lead to about 97.7% and 80.8% fluorescence quenching of PDBDBM sensor. The quenching efficiency of Cu2+ and Fe3+ was 73 and 5.2-fold higher than other metal ions (Figure S5). In addition, we also evaluated the performance of PDBDBM toward to Cu2+/Fe3+ in metal ions complex solution. As Figure S6 shown, the fluorescence responses of PDBDBM toward to Cu2+/Fe3+ had no obvious change in complex solution; especially for Cu2+. As is well known, a short response time is required for the sensor in most applications [38]. As Figure S7 shown, PDBDBM exhibited a fast response time of 5 s. Therefore, for complete reaction, 10 s of reaction time is selected in this work. These results further confirm that PDBDBM is a potential dual-response and highly selective probe for Cu2+ and Fe3+ over other metal ions.
Figure 3A,B depicts the fluorescent responses of PDBDBM sensor upon titration with Cu2+ and Fe3+. A gradual quenching process in fluorescence intensity of PDBDBM sensor was observed upon progressive addition of Cu2+ and Fe3+. Over the entire titration process, the Stern–Volmer plots for Cu2+ is linear in the concentration range of 10 to 250 nM (Figure 3C); meanwhile, fluorescent quenching value of Fe3+ was determined and presents a good linear relationship in the range of 0.6 to 500 μM (Figure 3D). The fluorescence detection limit of PDBDBM sensor for Cu2+ and Fe3+ was calculated to be 5 nM and 0.4 μM, which are lower than the allowable contaminant level of Cu2+ (20 μM) and Fe3+ (5.4 μM) in drinking water formulated by the Environmental Protection Agency (EPA) of the USA government [39]. This result indicates that fluorescence response is more sensitive toward small changes that affect electronic properties of molecular receptors [40]. The comparison of our work with the reported chemosensors based on polymers and small organic molecules is shown in Table 1, the present sensor shows high sensitivity for Cu2+ and Fe3+, especially for Cu2+.
As well known, d-block ions often create excited state deexcitation pathways via photoinduced electron transfer or electronic energy transfer involving the metal center. Therefore, there are many more examples of turn-off sensors than turn-on [41]. In the present work, the PDBDBM contains an electron accepting acceptor segment (benzene ring) and an electron donor segment (hydroxyl), making acceptor and donor in π conjugation. The PDBDBM sensor shows bright green fluorescence due to the n→π* charge transition in the polymer [42]. Besides, the paramagnetic ions with unfilled d shells can quench via an electron or energy transfer [15,42]. After PDBDBM–Cu2+/Fe3+ complex formation, the interaction between PDBDBM and Cu2+/Fe3+ hinders the n→π* charge transition and causes fluorescence quenching [43]. Due to the ligand-to-metal charge transfer, the absorption intensities of PDBDBM at 314 nm increase and blue shift with increased Cu2+ concentration and two new absorbance peaks arise at 240 and 364 nm for Fe3+ complex (Figure 2). As Figure 2 and Figure 3 show, moreover, there is no overlap between the emission spectrum and the absorption spectrum of the PDBDBM–Cu2+/Fe3+ complex, further excluding the possibility of fluorescence resonance energy transfer. Hence, the fluorescence quenching may be mainly caused by charge transfer between the PDBDBM and the chelated Cu2+/Fe3+ [44].
In order to quantify the Cu2+ and Fe3+ induced quenching process, the Stern–Volmer quenching constant Ksv was calculated by the Stern–Volmer equation, I0/I = 1 + Ksv[Q]. I0 and I are the fluorescence intensities of PDBDBM sensor at maximal emission peak (503 nm) in THF solution with and without quencher, respectively. Ksv is the Stern–Volmer quenching constant, and the concentration of quencher is [Q]. The Ksv value of PDBDBM sensor for Cu2+ and Fe3+ is 1.28 × 108 M−1 and 2.40 × 104 M−1, respectively. The Ksv value of PDBDBM for Cu2+ is higher than that of poly(pentiptycene) derivatives (2.27 × 106 M−1) [45] and poly(fluorine) derivatives (1.44 × 107 M−1) [20], and the Ksv value of PDBDBM for Fe3+ is about similar to that of julolidine derivatives (3.3 × 104 M−1) [46] and rhodamine derivatives (2.46 × 104 M−1) [47].
To ascertain the binding mechanism, 1H NMR analysis was carried out before and after the formation of PDBDBM-Cu2+/Fe3+ complexes. As Figure S8 shown, the proton of hydroxy of PDBDBM in absence of Cu2+/Fe3+ exhibited a sharp signal in 1H NMR at 1.88 ppm. The proton signals of hydroxyl became weaker with the increasing concentration of Cu2+/Fe3+. This phenomenon demonstrates that the oxygen on PDBDBM was directly involved in coordinating with Cu2+/Fe3+ [42,48].

4. Conclusions

In summary, a new polymer-based fluorescent chemosensor probe bearing 1,4-dioctyloxy-2,5-diethynylbenzene and 1,3-bis(4-bromophenyl)propane-1,3-dione was designed and synthesized via Pd-catalyzed Sonogashira-coupling reaction. The conjugated polymer (PDBDBM) shows a high sensitivity and selectivity toward Cu2+/Fe3+. Upon addition of Cu2+ and Fe3+, the UV–Vis absorption and PL spectra of PDBDBM could be gradually changed with the increasing concentration of Cu2+ and Fe3+. The fluorescent detection limit of PDBDBM for Cu2+ and Fe3+ was measured to be 5 nM and 0.4 μΜ, respectively. The 1H NMR result indicates that Cu2+/Fe3+ ions coordinate with the oxygen of PDBDBM, which is critical for the ligand-to-metal charge transfer. These results further confirm that the conjugated polymer PDBDBM can be used as a potential highly sensitive and selective chemosensor for Cu2+/Fe3+ detection.

Supplementary Materials

Supplementary Materials are available online at www.mdpi.com/2073-4360/9/7/267/s1.

Acknowledgments

This work was financially supported by the National Natural Science Foundation of China (21204038), the National Basic Research Program of China (2012CB933301), the Program for Changjiang Scholars and Innovative Research Team in University (IRT_15R37) and the Priority Academic Program Development of Jiangsu Higher Education Institutions (YX03001).

Author Contributions

Dongliang Yang and Chunhui Dai contributed equally to this article. Dongliang Yang, Chunhui Dai, Yixiang Cheng, Zhimin Luo and Lianhui Wang conceived and designed the experiments; Dongliang Yang and Chunhui Dai performed the experiments; Dongliang Yang, Chunhui Dai, Yanling Hu, Shuli Liu, Zhimin Luo and Lixing Weng analyzed the data; Yixiang Cheng and Lianhui Wang contributed reagents/materials/analysis tools; Dongliang Yang and Chunhui Dai wrote most the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yin, J.; Hu, Y.; Yoon, J. Fluorescent probes and bioimaging: Alkali metals, alkaline earth metals and pH. Chem. Soc. Rev. 2015, 44, 4619–4644. [Google Scholar] [CrossRef] [PubMed]
  2. Festa, R.A.; Thiele, D.J. Copper: An essential metal in biology. Curr. Biol. 2011, 21, R877–R883. [Google Scholar] [CrossRef] [PubMed]
  3. Carter, K.P.; Young, A.M.; Palmer, A.E. Fluorescent sensors for measuring metal ions in living systems. Chem. Rev. 2014, 114, 4564–4601. [Google Scholar] [CrossRef] [PubMed]
  4. Yang, D.; Li, F.; Luo, Z.; Bao, B.; Hu, Y.; Weng, L.; Cheng, Y.; Wang, L. Conjugated polymer nanoparticles with aggregation induced emission characteristics for intracellular Fe3+ sensing. J. Polym. Sci. Polym. Chem. 2016, 54, 1686–1693. [Google Scholar] [CrossRef]
  5. Zimmermann, M.B.; Hurrell, R.F. Nutritional iron deficiency. Lancet 2007, 370, 511–520. [Google Scholar] [CrossRef]
  6. Wang, Y.; Shi, J.; Wang, H.; Lin, Q.; Chen, X.; Chen, Y. The influence of soil heavy metals pollution on soil microbial biomass, enzyme activity, and community composition near a copper smelter. Ecotoxicol. Environ. Saf. 2007, 67, 75–81. [Google Scholar] [CrossRef] [PubMed]
  7. McKenzie, R. The adsorption of lead and other heavy metals on oxides of manganese and iron. Soil Res. 1980, 18, 61–73. [Google Scholar] [CrossRef]
  8. Dong, Y.; Koken, B.; Ma, X.; Wang, L.; Cheng, Y.; Zhu, C. Polymer-based fluorescent sensor incorporating 2,2′-bipyridyl and benzo[2,1,3]thiadiazole moieties for Cu2+ detection. Inorg. Chem. Commun. 2011, 14, 1719–1722. [Google Scholar] [CrossRef]
  9. Ajlec, R.; Stupar, J. Determination of iron species in wine by ion-exchange chromatography-flame atomic absorption spectrometry. Analyst 1989, 114, 137–142. [Google Scholar] [CrossRef] [PubMed]
  10. Lv, H.; Teng, Z.; Wang, C.; Wang, G. Ultra-high sensitive voltammetric sensor modified by largely oxygenous functionalized ultrathin carbon nitride nanosheets for detection of Cu(II). Sens. Actuators B 2017, 242, 897–903. [Google Scholar] [CrossRef]
  11. Feng, L.; Zhu, C.; Yuan, H.; Liu, L.; Lv, F.; Wang, S. Conjugated polymer nanoparticles: Preparation, properties, functionalization and biological applications. Chem. Soc. Rev. 2013, 42, 6620–6633. [Google Scholar] [CrossRef] [PubMed]
  12. McQuade, D.T.; Pullen, A.E.; Swager, T.M. Conjugated polymer-based chemical sensors. Chem. Rev. 2000, 100, 2537–2574. [Google Scholar] [CrossRef] [PubMed]
  13. Li, J.; Wu, Y.; Song, F.; Wei, G.; Cheng, Y.; Zhu, C. A highly selective and sensitive polymer-based off-on fluorescent sensor for Hg2+ detection incorporating salen and perylenyl moieties. J. Mater. Chem. 2012, 22, 478–482. [Google Scholar] [CrossRef]
  14. Li, F.; Meng, F.; Wang, Y.; Zhu, C.; Cheng, Y. Polymer-based fluorescence sensor incorporating thiazole moiety for direct and visual detection of Hg2+ and Ag+. Tetrahedron 2015, 71, 1700–1704. [Google Scholar] [CrossRef]
  15. Kim, H.N.; Guo, Z.; Zhu, W.; Yoon, J.; Tian, H. Recent progress on polymer-based fluorescent and colorimetric chemosensors. Chem. Soc. Rev. 2011, 40, 79–93. [Google Scholar] [CrossRef] [PubMed]
  16. Gu, C.; Huang, N.; Gao, J.; Xu, F.; Xu, Y.; Jiang, D. Controlled synthesis of conjugated microporous polymer films: Versatile platforms for highly sensitive and label-free chemo- and biosensing. Angew. Chem. Int. Ed. 2014, 53, 4850–4855. [Google Scholar] [CrossRef] [PubMed]
  17. Gu, C.; Huang, N.; Wu, Y.; Xu, H.; Jiang, D. Design of highly photofunctional porous polymer films with controlled thickness and prominent microporosity. Angew. Chem. Int. Ed. 2015, 54, 11540–11544. [Google Scholar] [CrossRef] [PubMed]
  18. Jiang, H.; Taranekar, P.; Reynolds, J.R.; Schanze, K.S. Conjugated polyelectrolytes: Synthesis, photophysics, and applications. Angew. Chem. Int. Ed. 2009, 48, 4300–4316. [Google Scholar] [CrossRef] [PubMed]
  19. Lange, U.; Roznyatovskaya, N.V.; Mirsky, V.M. Conducting polymers in chemical sensors and arrays. Anal. Chim. Acta 2008, 614, 1–26. [Google Scholar] [CrossRef] [PubMed]
  20. Xing, C.F.; Shi, Z.Q.; Yu, M.H.; Wang, S. Cationic conjugated polyelectrolyte-based fluorometric detection of copper(II) ions in aqueous solution. Polymer 2008, 49, 2698–2703. [Google Scholar] [CrossRef]
  21. Chen, X.L.; Zeng, W.F.; Yang, X.D.; Lu, X.W.; Qu, J.Q.; Liu, R.Y. Thiourea based conjugated polymer fluorescent chemosensor for Cu+ and its use for the detection of hydrogen peroxide and glucose. Chin. J. Polym. Sci. 2016, 34, 324–331. [Google Scholar] [CrossRef]
  22. Zeng, Q.; Cai, P.; Li, Z.; Qin, J.; Tang, B.Z. An imidazole-functionalized polyacetylene: Convenient synthesis and selective chemosensor for metal ions and cyanide. Chem. Commun. 2008, 1094–1096. [Google Scholar] [CrossRef] [PubMed]
  23. Bao, B.; Yuwen, L.; Zhan, X.; Wang, L. Water-soluble hyperbranched polyelectrolytes with high fluorescence quantum yield: Facile synthesis and selective chemosensor for Hg2+ and Cu2+ ions. J. Polym. Sci. Polym. Chem. 2010, 48, 3431–3439. [Google Scholar] [CrossRef]
  24. Guo, C.X.; Jiang, S.X.; Zhu, W.X.; Yang, X.X.; Pei, M.S.; Zhang, G.Y. Polythiophene based fluorescent probe for copper ions with high sensitivity. J. Appl. Polym. Sci. 2015, 132, 7. [Google Scholar] [CrossRef]
  25. Maiti, C.; Banerjee, R.; Maiti, S.; Dhara, D. Water-soluble polymeric chemosensor for detection of Cu2+ ions with high selectivity and sensitivity. Des. Monomers Polym. 2016, 19, 669–678. [Google Scholar] [CrossRef]
  26. Li, N.; Xu, Q.; Xia, X.; Wang, L.; Lu, J.; Wen, X. A polymeric chemosensor for Fe3+ based on fluorescence quenching of polymer with quinoline derivative in the side chain. Mater. Chem. Phys. 2009, 114, 339–343. [Google Scholar] [CrossRef]
  27. Wu, X.; Xu, B.; Tong, H.; Wang, L. Phosphonate-functionalized polyfluorene film sensors for sensitive detection of iron(III) in both organic and aqueous media. Macromolecules 2010, 43, 8917–8923. [Google Scholar] [CrossRef]
  28. Dwivedi, A.K.; Saikia, G.; Iyer, P.K. Aqueous polyfluorene probe for the detection and estimation of Fe3+ and inorganic phosphate in blood serum. J. Mater. Chem. 2011, 21, 2502–2507. [Google Scholar] [CrossRef]
  29. Geng, T.M.; Huang, R.Y.; Wu, D.Y. Turn-on fluorogenic and chromogenic detection of Fe3+ and Cr3+ in a completely water medium with polyacrylamide covalently bonding to rhodamine B using diethylenetriamine as a linker. RSC Adv. 2014, 4, 46332–46339. [Google Scholar] [CrossRef]
  30. Jin, L.; Liu, C.; An, N.Q.; Zhang, Q.; Wang, J.; Zhao, L.L.; Lu, Y. Fluorescence turn-on detection of Fe3+ in pure water based on a cationic poly(perylene diimide) derivative. RSC Adv. 2016, 6, 58394–58400. [Google Scholar] [CrossRef]
  31. Luo, C.X.; Liu, Y.T.; Zhang, Q.; Cai, X.D. Hyperbranched conjugated polymers containing 1,3-butadiene units: Metal-free catalyzed synthesis and selective chemosensors for Fe3+ ions. RSC Adv. 2017, 7, 12269–12276. [Google Scholar] [CrossRef]
  32. Feng, N.; Xie, J.; Zhang, D. Synthesis, characterization, photophysical and oxygen-sensing properties of a novel europium(III) complex. Spectrochim. Acta A 2010, 77, 292–296. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, K.; Chen, Z.; Zou, Y.; Yang, C.; Qin, J.; Cao, Y. Synthesis, characterization, and photophysics of electroluminescent copolymers with a quinoline-based iridium complex in the main chain: A versatile method for constructing metal-containing copolymers. Organometallics 2007, 26, 3699–3707. [Google Scholar] [CrossRef]
  34. Yang, D.; Zhang, S.; Hu, Y.; Chen, J.; Bao, B.; Yuwen, L.; Weng, L.; Cheng, Y.; Wang, L. AIE-active conjugated polymer nanoparticles with red-emission for in vitro and in vivo imaging. RSC Adv. 2016, 6, 114580–114586. [Google Scholar] [CrossRef]
  35. Hou, J.; Song, F.; Wang, L.; Wei, G.; Cheng, Y.; Zhu, C. In situgenerated 1:1 Zn(II)-containing polymer complex sensor for highly enantioselective recognition of n-boc-protected alanine. Macromolecules 2012, 45, 7835–7842. [Google Scholar] [CrossRef]
  36. Jiang, X.; Liu, X.; Jiang, Y.; Quan, Y.; Cheng, Y.; Zhu, C. Fluorescence study of chiral β-ketoiminate-based newly synthesized boron hybrid polymers. Macromol. Chem. Phys. 2014, 215, 358–364. [Google Scholar] [CrossRef]
  37. Han, C.; Huang, T.; Liu, Q.; Xu, H.; Zhuang, Y.; Li, J.; Hu, J.; Wang, A.; Xu, K. Design and synthesis of a highly sensitive "turn-on" fluorescent organic nanoprobe for iron(III) detection and imaging. J. Mater. Chem. C 2014, 2, 9077–9082. [Google Scholar] [CrossRef]
  38. McDonagh, C.; Bowe, P.; Mongey, K.; MacCraith, B.D. Characterisation of porosity and sensor response times of sol–gel-derived thin films for oxygen sensor applications. J. Non-Cryst. Solids 2002, 306, 138–148. [Google Scholar] [CrossRef]
  39. Zhang, B.; Liu, H.; Wu, F.; Hao, G.; Chen, Y.; Tan, C.; Tan, Y.; Jiang, Y. A dual-response quinoline-based fluorescent sensor for the detection of copper(II) and iron(III) ions in aqueous medium. Sens. Actuators B 2017, 243, 765–774. [Google Scholar] [CrossRef]
  40. Zhang, G.; Lu, B.; Wen, Y.; Lu, L.; Xu, J. Facile fabrication of a cost-effective, water-soluble, and electrosynthesized poly(9-aminofluorene) fluorescent sensor for the selective and sensitive detection of Fe(III) and inorganic phosphates. Sens. Actuators B 2012, 171, 786–794. [Google Scholar] [CrossRef]
  41. Sahoo, S.K.; Sharma, D.; Bera, R.K.; Crisponi, G.; Callan, J.F. Iron(III) selective molecular and supramolecular fluorescent probes. Chem. Soc. Rev. 2012, 41, 7195–7227. [Google Scholar] [CrossRef] [PubMed]
  42. Yue, Y.K.; Yin, C.X.; Huo, F.J. Highly sensitive and selective fluorescent probe for determination of Cu(II) in aqueous solution. J. Coord. Chem. 2014, 67, 2039–2047. [Google Scholar] [CrossRef]
  43. Xu, Z.C.; Xiao, Y.; Qian, X.H.; Cui, J.N.; Cui, D.W. Ratiometric and selective fluorescent sensor for Cu(II) based on internal charge transfer (ICT). Org. Lett. 2005, 7, 889–892. [Google Scholar] [CrossRef] [PubMed]
  44. Mondal, B.; Lohar, S.; Pal, S.; Maji, A.; Chattopadhyay, P. A new chemosensor selective for Cu2+ ions through fluorescence quenching approach applicable to real samples. J. Ind. Chem. Soc. 2015, 92, 1–8. [Google Scholar]
  45. Chen, A.; Wu, W.; Fegley, M.; Pinnock, S.; Duffy-Matzner, J.; Bernier, W.; Jones, W. Pentiptycene-derived fluorescence turn-off polymer chemosensor for copper(II) cation with high selectivity and sensitivity. Polymers 2017, 9, 118. [Google Scholar] [CrossRef]
  46. Choi, Y.W.; Park, G.J.; Na, Y.J.; Jo, H.Y.; Lee, S.A.; You, G.R.; Kim, C. A single schiff base molecule for recognizing multiple metal ions: A fluorescence sensor for Zn(II) and Al(III) and colorimetric sensor for Fe(II) and Fe(III). Sens. Actuators B 2014, 194, 343–352. [Google Scholar] [CrossRef]
  47. Bao, X.; Cao, X.; Nie, X.; Xu, Y.; Guo, W.; Zhou, B.; Zhang, L.; Liao, H.; Pang, T. A new selective fluorescent chemical sensor for Fe3+ based on rhodamine b and a 1,4,7,10-tetraoxa-13-azacyclopentadecane conjugate and its imaging in living cells. Sens. Actuators B 2015, 208, 54–66. [Google Scholar] [CrossRef]
  48. Wang, Y.; Sun, H.; Hou, L.; Shang, Z.; Dong, Z.; Jin, W. 1,4-dihydroxyanthraquinone–Cu2+ ensemble probe for selective detection of sulfide anion in aqueous solution. Anal. Methods 2013, 5, 5493. [Google Scholar] [CrossRef]
  49. Malik, A.H.; Hussain, S.; Tanwar, A.S.; Layek, S.; Trivedi, V.; Iyer, P.K. An anionic conjugated polymer as a multi-action sensor for the sensitive detection of Cu2+ and PPi real-time ALP assaying and cell imaging. Analyst 2015, 140, 4388–4392. [Google Scholar] [CrossRef] [PubMed]
  50. Hens, A.; Maity, A.; Rajak, K.K. N, N coordinating schiff base ligand acting as a fluorescence sensor for zinc(ii) and colorimetric sensor for copper(II), and zinc(II) in mixed aqueous media. Inorg. Chim. Acta 2014, 423, 408–420. [Google Scholar] [CrossRef]
  51. Xu, L.; Wei, S.; Diao, Q.; Ma, P.; Liu, X.; Sun, Y.; Song, D.; Wang, X. Sensitive and selective rhodamine-derived probes for fluorometric sensing of pH and colorimetric sensing of Cu2+. Sens. Actuators B 2017, 246, 395–401. [Google Scholar] [CrossRef]
  52. Sahoo, P.R.; Kumar, S. Photochromic spirooxazine as highly sensitive and selective probe for optical detection of Fe3+ in aqueous solution. Sens. Actuators B 2016, 226, 548–552. [Google Scholar] [CrossRef]
Polymers 09 00267 sch001 550

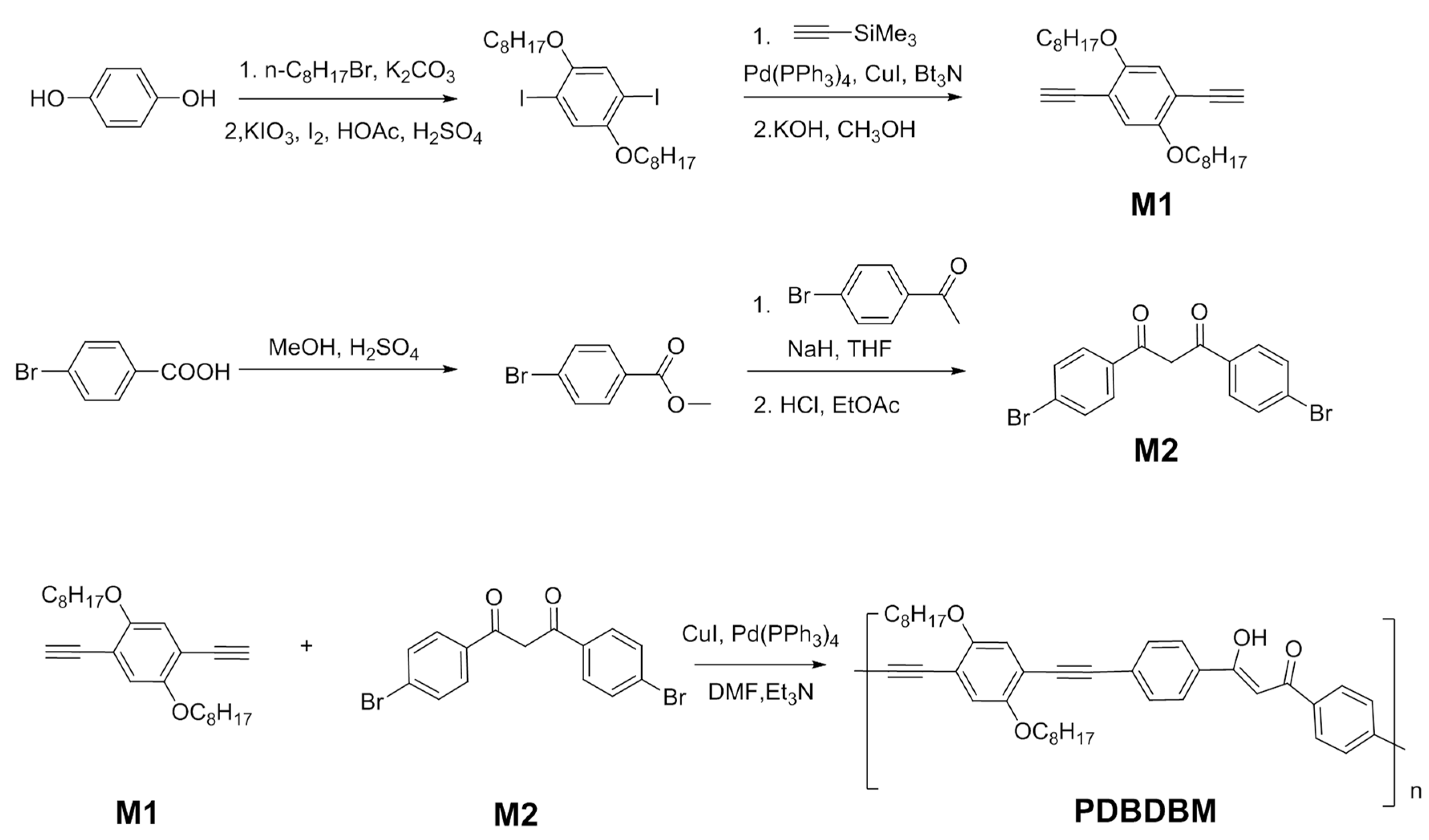

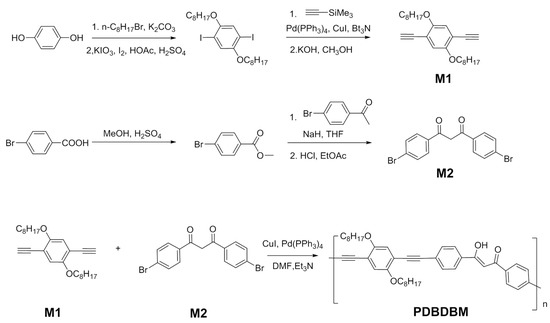

Scheme 1. Synthetic routes of PDBDBM.
Scheme 1. Synthetic routes of PDBDBM.
Polymers 09 00267 sch001
Polymers 09 00267 g001 550

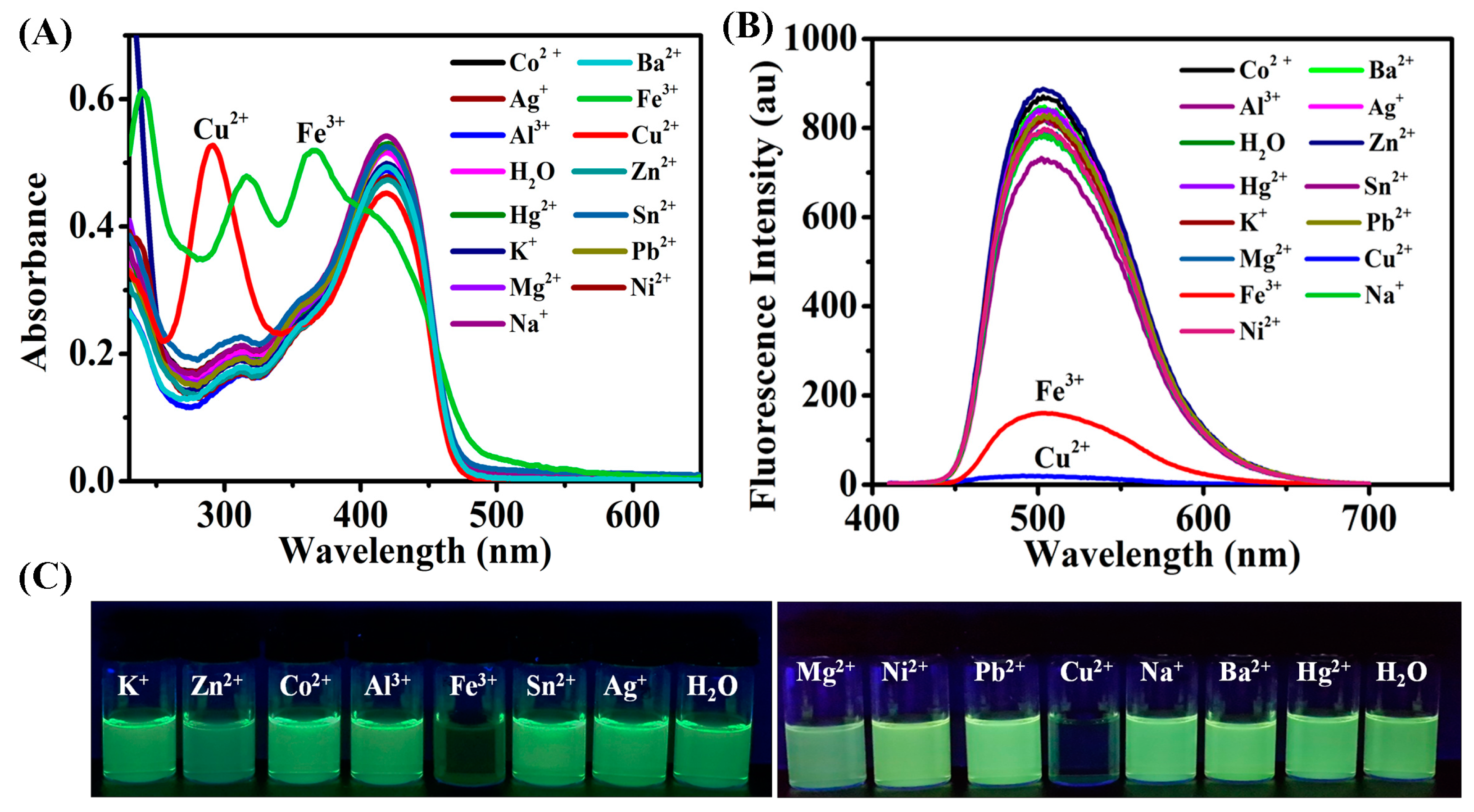

Figure 1. (A) UV–Vis spectra of PDBDBM sensor (1 × 10−5 mg/mL) and (B) fluorescence spectra collected in THF solution after adding various metal ions (150 μM); (C) Fluorescence images of PDBDBM sensor (1 × 10−5 mg/mL) was taken under UV lamp irradiation after adding various metal ions.
Figure 1. (A) UV–Vis spectra of PDBDBM sensor (1 × 10−5 mg/mL) and (B) fluorescence spectra collected in THF solution after adding various metal ions (150 μM); (C) Fluorescence images of PDBDBM sensor (1 × 10−5 mg/mL) was taken under UV lamp irradiation after adding various metal ions.
Polymers 09 00267 g001
Polymers 09 00267 g002 550

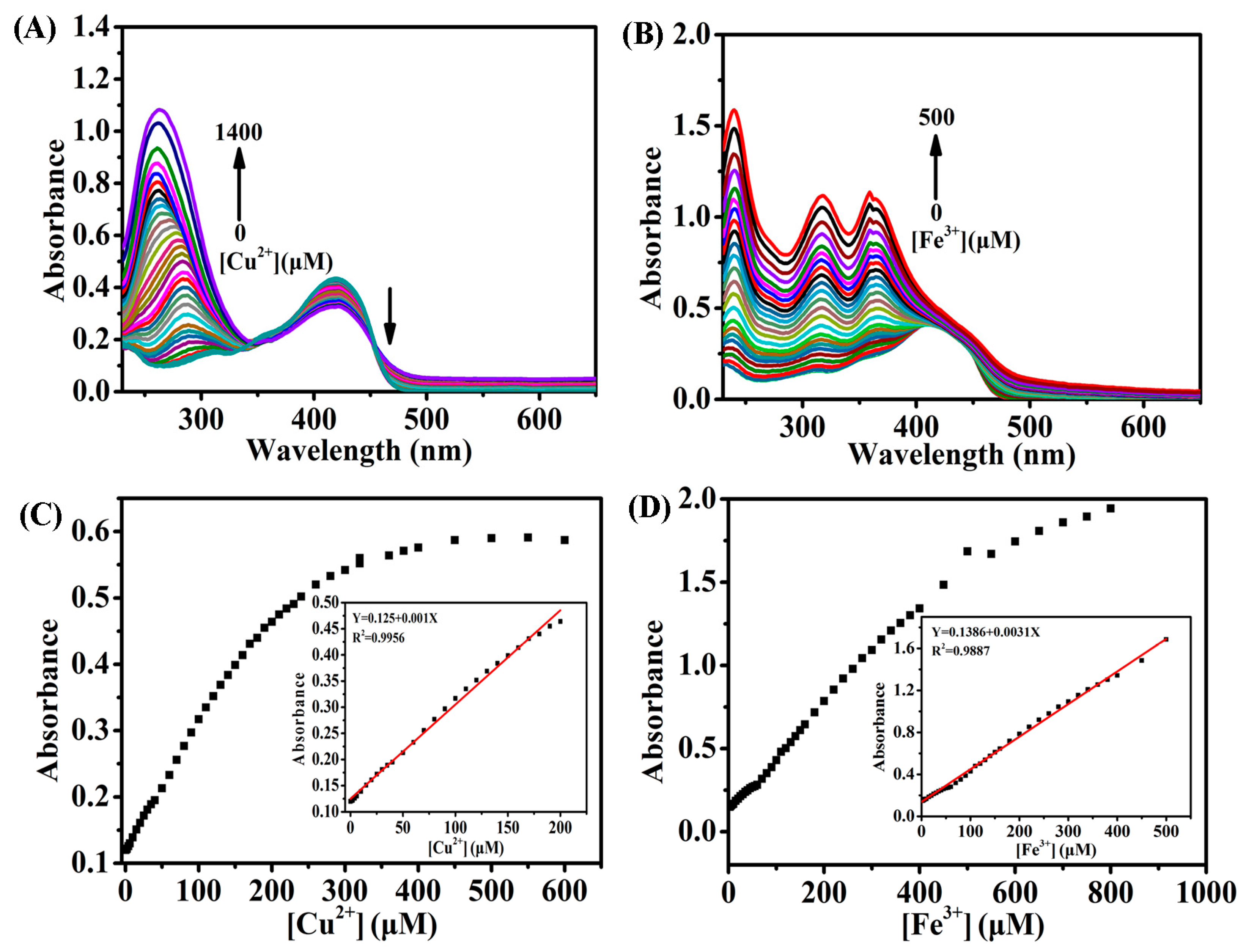

Figure 2. (A) UV–Vis absorption responses of PDBDBM sensor (1 × 10−5 g/mL) in THF upon addition of Cu2+; (B) UV–Vis absorption responses of PDBDBM sensor (1 × 10−5 g/mL) in THF upon addition of Fe3+; (C) Absorbance at 288 nm of PDBDBM sensor (1 × 10−5 g/mL) in THF versus the increasing concentration of Cu2+, the insert shows the plot of absorbance versus the concentration of Cu2+; (D) Absorbance at 240 nm of PDBDBM sensor (1 × 10−5 g/mL) in THF versus the increasing concentrations of Fe3+, the insert shows the plot of absorbance versus the concentration of Fe3+.
Figure 2. (A) UV–Vis absorption responses of PDBDBM sensor (1 × 10−5 g/mL) in THF upon addition of Cu2+; (B) UV–Vis absorption responses of PDBDBM sensor (1 × 10−5 g/mL) in THF upon addition of Fe3+; (C) Absorbance at 288 nm of PDBDBM sensor (1 × 10−5 g/mL) in THF versus the increasing concentration of Cu2+, the insert shows the plot of absorbance versus the concentration of Cu2+; (D) Absorbance at 240 nm of PDBDBM sensor (1 × 10−5 g/mL) in THF versus the increasing concentrations of Fe3+, the insert shows the plot of absorbance versus the concentration of Fe3+.
Polymers 09 00267 g002
Polymers 09 00267 g003 550

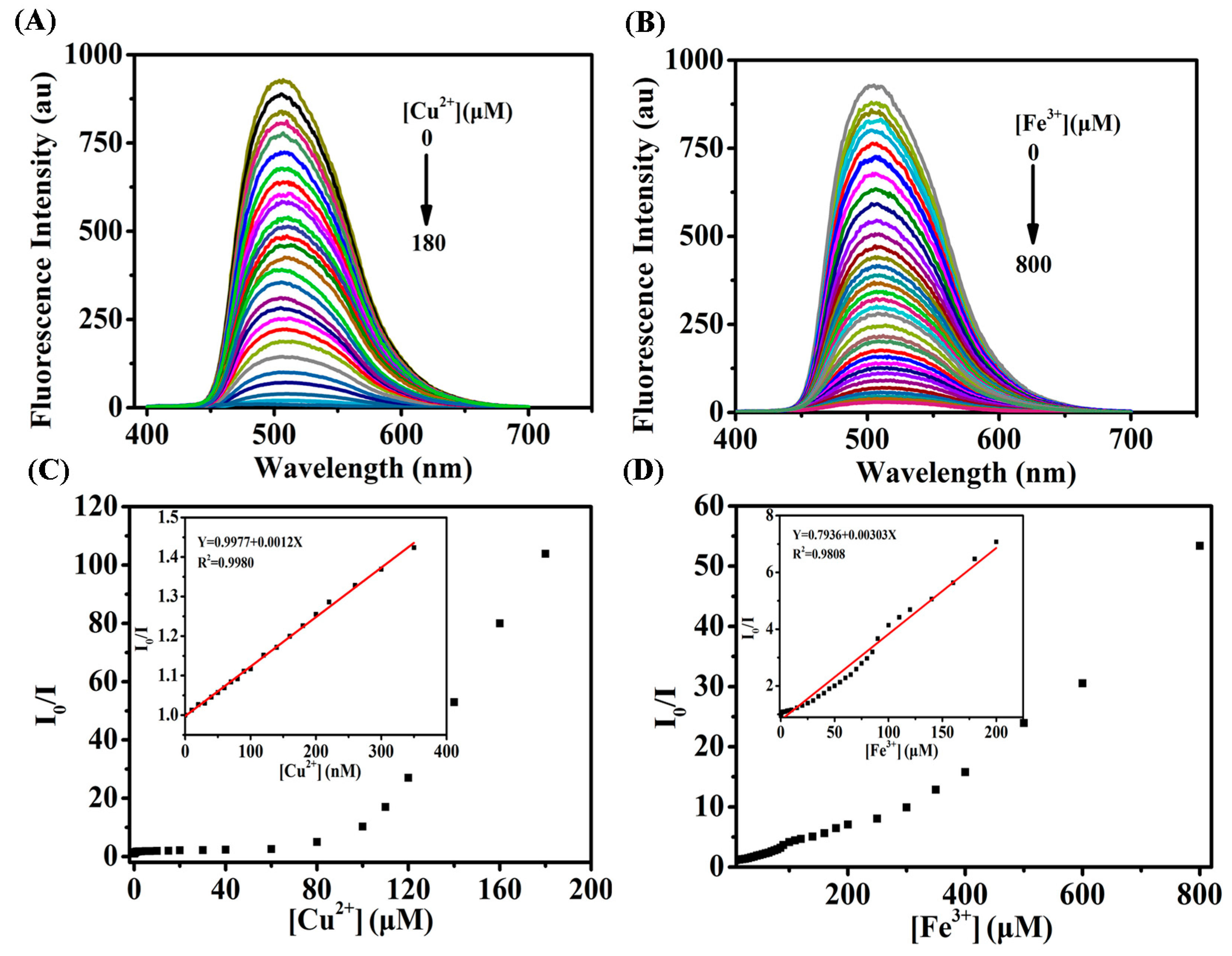

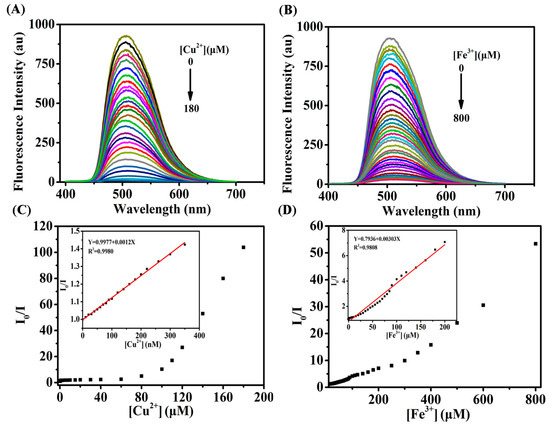

Figure 3. (A) Photoluminescence responses of PDBDBM sensor upon addition of Cu2+; (B) Photoluminescence responses of PDBDBM sensor upon addition of Fe3+; (C) Photoluminescence quench values (I0/I) versus Cu2+ concentration, the Stern–Volmer plots for Cu2+ are shown as an inset. (D) Photoluminescence quench values (I0/I) versus Fe3+ concentration, the Stern–Volmer plots for Fe3+ are shown as an inset.
Figure 3. (A) Photoluminescence responses of PDBDBM sensor upon addition of Cu2+; (B) Photoluminescence responses of PDBDBM sensor upon addition of Fe3+; (C) Photoluminescence quench values (I0/I) versus Cu2+ concentration, the Stern–Volmer plots for Cu2+ are shown as an inset. (D) Photoluminescence quench values (I0/I) versus Fe3+ concentration, the Stern–Volmer plots for Fe3+ are shown as an inset.
Polymers 09 00267 g003
Table
Table 1. Comparison of PDBDBM with recently reported chemosensors.
Table 1. Comparison of PDBDBM with recently reported chemosensors.
ChemosensorsTargetDetection TypeLimit of DetectionReference
PDBDBMCu2+Fluorescence5 × 10−9 MThis work
Poly(pentiptycene) derivativesCu2+Fluorescence1.65 × 10−8 M[45]
Poly(fluorine) derivativesCu2+Fluorescence3.59 × 10−8 M[49]
Poly(fluorine) derivativesCu2+Fluorescence2 × 10−8 M[20]
Imidazole derivativesCu2+Colorimetric1 × 10−5 M[50]
Rhodamine derivativesCu2+Fluorescence3.65 × 10−8 M[51]
PDBDBMFe3+Fluorescence4 × 10−7 MThis work
Poly(fluorine) derivativesFe3+Fluorescence2.2 × 10−7 M[4]
Julolidine derivativesFe3+Colorimetric6.8 × 10−6 M[46]
Spirooxazine derivativesFe3+Fluorescence8.8 × 10−7 M[52]
Rhodamine derivativesFe3+Fluorescence4 × 10−7 M[47]
Quinoline derivativesFe3+Fluorescence1.24 × 10−7 M[39]
