Article

Synergistic Enhancement of the High-Temperature Friction and Wear Behavior of PTFE Matrix Composites with the Addition of CF, PEEK, and TiC

by
Lin Yuan
,
Yunxiang Han
*,
Jinming Zhen
*,
Zhengfeng Jia
and
Ran Zhang
College of Materials Science and Engineering, Liaocheng University, Liaocheng 252059, China
*
Authors to whom correspondence should be addressed.
Polymers 2024, 16(23), 3412; https://doi.org/10.3390/polym16233412
Submission received: 12 November 2024 / Revised: 25 November 2024 / Accepted: 29 November 2024 / Published: 4 December 2024
(This article belongs to the Section Polymer Composites and Nanocomposites)
Browse Figures
Versions Notes

Abstract

:
With the rapid development of the aerospace, automobile, and ocean industries, there is an urgent need for the fabrication of high-performance polymer matrix composites with low friction and wear in wide temperature ranges. In this paper, polytetrafluoroethylenes (PTFEs) doped with polyether-ether-ketone (PEEK), carbon fiber (CF), and TiC were prepared, and the effects of testing temperatures from room temperature to 250 °C in air conditions were investigated. The results showed that the friction coefficient of the PTFE matrix composites had no obviously changing trend, while the wear resistance properties were significantly improved. Due to the synergistic lubrication and enhancement of CF, PEEK, and TiC, the wear rate for composites with these particles decreased from (2.04–2.72) × 10−3 mm3/Nm for pure PTFE to (0.67–1.96) × 10−4 mm3/Nm. Moreover, the SEM analysis results showed that the main wear mechanisms are fatigue and abrasive wear for the PTFE matrix composites. The results obtained in this study will provide data and technical support for the development of high-performance polymer matrix composites with low friction and wear that can be used over a wide temperature range.

1. Introduction

Due to its excellent resistance to corrosion and high temperatures and its self-lubricating properties, polytetrafluoroethylene (PTFE) has been widely used as a solid lubricating material in various industries, like aerospace, automobiles, medical devices, etc. [1,2,3,4,5,6,7]. However, its poor wear resistance limits its application in a wider range of fields, like those under high load/sliding speeds and wide temperature ranges, etc. [8,9,10]. Thus, it is quite important to improve the mechanical and tribological properties of PTFE matrix composites and broaden their applications under complex/severe environments.
Up to now, many studies have been performed by researchers to increase the frictional performance of PTFE matrix composites [4,11,12,13,14,15]. Among these studies, incorporating second reinforced particles is the main effective way to increase the wear resistance properties of PTFE matrix composites. With the aim of improving the wear resistance of PTFE matrix composites, Sun et al. investigated the effect of soft-phase PEEK and hard-phase ZrO2 on the tribological performance of PTFE materials. Their results showed that soft and hard fillers could inhibit interlayer slippage within the molecular chains and decrease the wear rate for composites [16]. Xue et al. fabricated and investigated the mechanical/frictional performance of a series of Ti3C2Tx MXene-reinforced PEEK-PTFE composites and found that due to the strong bonding between MXene and PEEK/PTFE, the compressive strength was improved by 28.37%, and the wear rate reduced by 40% [8]. Using the DC electric-field-assisted hot-pressing sintering method, Liu et al. prepared and studied the effect of the Mg–Al-layered bimetallic hydroxide (LDH) proportion on the frictional and wear behavior of polyamide–imide (PAI)/PTFE composites; the results showed that when the Mg–Al LDH content was 3%, the PAI composite film had the best lubricating and wear resistance properties [17]. Raut et al. investigated various reinforced fillers (carbon black, Gr, and bronze) on the tribological performance of polytetrafluoroethylene (PTFE) matrix composites under a fixed load (32 N) and sliding speed (0.5 m/s) for 1 h in dry sliding conditions. The results showed that PTFE matrix composites reinforced with the aromatic thermosetting copolyester exhibited higher wear resistance and a lower coefficient of friction compared to carbon black, bronze, and graphite fillers [18]. Based on the representative volume element model, He et al. investigated the effect ratios of 0.5 mm short carbon fibers (SSCFs) and 400-mesh short carbon fibers (LSCFs) on the mechanical and tribological properties of PTFE matrix composites. The results showed that the composite with 5 wt. % LSCFs/10 wt. % SSCFs presented the best overall performance compared to the addition of LSCFs and SSCFs alone [19].
Furthermore, it is also important to investigate the surrounding environment’s effect on the friction and wear behavior of the composite, as the frictional process is complex [2,20,21,22,23,24,25,26]. With the aim of investigating the effect of trace moisture in hydrogen gas on the frictional behavior of PTFE materials, Chen et al. studied the tribological behavior of CF-filled PTFE composites under this condition; the results showed that the coefficient of friction increased first and then decreased with an increase in water content, but the wear rate gradually increased with an increase in moisture [27]. Amenta et al. studied the frictional behavior of PTFE matrix composites (reinforced by glass fiber (GF) and carbon fiber (CF)) coupled with AISI 304 stainless steel (with and without sprayed Cr2O3). The results showed that the GF-reinforced PTFE composites had the lowest friction coefficient against both counterfaces [28]. Through incorporating polyaryl ether sulfone/polymethyphenlsiloxane microcapsules and carbon fibers into PTFE/aramid fabrics, Lu et al. studied the friction and wear of these composites under high temperatures and heavy loading. The results showed that the incorporation of microcapsules and carbon fiber multilayer structures could improve the tribological properties of the composites (the friction coefficient and wear rate were reduced by 17% and 24%) under severe conditions [29]. Xu et al. coated Nomex/PTFE fabric composites with PTFE/MoS2 coatings and investigated the tribological properties over a wide temperature range (−150–25 °C); the results showed that with a decrease in testing temperature, the wear rate for the composite decreased, and it exhibited unmeasurable wear at −150 °C [30].
As shown in the literature, the frictional behavior of PTFE matrix composites/coatings is quite dependent on the composition content and surrounding environment. From the above summary of the literature, we can see that there are fewer studies that systematically investigate the friction and wear behavior of PTFE matrix composites over a wide temperature range in recent years, and the wear mechanisms at high temperatures are complex. In this paper, with the aims of further improving the wear resistance properties of PTFE matrix composites and studying the effect of testing conditions on their frictional performance, PTFE matrixes with carbon fiber (CF), PEEK, and TiC ceramic particles were fabricated, and the synergistic enhancement effects were investigated from room temperature to 250 °C. Moreover, the related wear mechanism was discussed in detail.

2. Experimental Details

2.1. Material Preparation

The PTFE matrix composite was fabricated using the cold and hot sintering method. Firstly, the powders of PTFE, CF, TiC, and PEEK were thoroughly mixed in absolute ethanol, and then, the mixed powder was dried in an oven under a temperature of 60 °C for 6 h. After that, the dried mixed powder was placed into a stainless steel mold for cold pressing and shaping. Finally, the material was subjected to sintering in a furnace at 350 °C for 2 h to obtain the desired PTFE matrix composites. The composition of the PTFE matrix composites is listed in Table 1. The experimental raw materials and instruments used in this study are as follows: PTFE (Liaocheng Flore New Material Technology Co., Ltd., Liaocheng, China, medium particle ML0 type); PEEK (UK Vickers 450 G injection molded plastic particles, 500 mesh); TiC (Shanghai Naiou Nanotechnology Co., Ltd., Shanghai, China, 300 mesh).

2.2. Tribological Tests

Tribological tests were performed on an HT-1000 ball-on-disk high-temperature tribometer (Lanzhou Zhongke Kaihua Technology Development Co., Ltd., Lanzhou, China) in rotation mode, as shown in Figure 1a. The tribotests were run in air, sliding against GCr15 bearing steel (6.0 mm, 700HV1), under the following conditions: a sliding speed of 0.33 m/s, a duration of 30 min, a normal load of 5 N and a wear track diameter of 10 mm. The testing temperatures were selected as 25, 50, 100, 150, 200 and 250 °C, respectively. During the sliding process, the coefficient of friction (COF) for tribopairs was recorded automatically by a computer. The volume of the wear track for composites after the tribotest was measured by a contact surface profilometer (MT-500, Lanzhou Zhongke Kaihua Technology Development Co., Ltd., Lanzhou, China), as shown in Figure 1b, then the wear volume was divided by the load (N) and sliding distance (m), with the unit expressed as mm3N−1m−1. To decrease the accuracy of the tribological test, the measurement was performed at least three times under the same testing conditions.

2.3. Characterization

For the sintered samples, the phase composition of the PTFE matrix composites was characterized by X-ray diffraction (XRD, TD-3700, 40 kV, 30 mA, CuKα,) with a range of 5–80° under the θ–2θ scan mode. To analyze the wear mechanism of the PTFE matrix composites, the worn surface characteristics of the worn surface were investigated by scanning electron microscopy (SEM, JSM 5600LV, Zeiss, Germany).

3. Results and Discussion

Phase compositions of the six PTFE matrix composites will be analyzed by the XRD pattern, as shown in Figure 2. It can be seen that the composites are composed of three different phases: the PTFE matrix (three diffraction peaks at 2θ of 18.2°, 29.6°, and 47.7°), PEEK (three diffraction peaks at 2θ of 18.7°, 20.7°, and 22.8°) and TiC. In addition, it can be found that the relative strength of PTFE peak decreases with the increase in PEEK powder and TiC ceramic particles.
Figure 3 exhibits the changing trend of COF for these six PTFE matrix composites at various testing temperatures from 25 to 250 °C. It can be clearly see that the COFs vs. temperatures change similarly for composites of PCT, P, PCTP and PTP10: as the testing temperature increases from 25 to 200 °C, COFs of these composites show a slight fluctuation (P: 0.17–0.2; PCT: 0.18–0.19; PCTP: 0.16–0.17; PTP10: 0.17–0.18), while at 250 °C, due to the softening of the worn surface and the increased diffusion rate of the soft phase (PTFE and PEEK), the COFs decrease to the minimum for P (0.15), PTP10 (0.14) and PCTP (0.17) composites. As for the PCT material, it remains at 0.19. For the PT composite, when the testing temperature increases from 25 to 200 °C, the COFs show a slightly increasing (0.23 to 0.24) trend; as the surrounding temperature increases to 200 °C, the value decreases to the minimum of 0.18, then it increases slightly at 250 °C (0.20). For the PC composite, the COFs’ change trend is different; as the testing temperature increases from 25 to 150 °C, it continuously decreases to a low value of 0.16, then the COF increases slightly at 200 °C, while at 250 °C, the COF decreases to the minimum of 0.15. As for the PTP5 composite, the COF continuously increases to the maximum of 0.21 from 25 to 150 °C, then as the testing temperature increases to 250 °C, the best lubricating properties are observed (COF:0.17). For the effect of composition, we can see that from 25 to 150 °C, composites of PTP10, PCTP, PC and pure PTFE have similar COFs, which range from 0.16 to 0.20, while the values are high for PT and PTP5 composites (0.19–0.24). At 200 °C, the COFs are around 0.18 for all six composites. The P, PTP10 and PC composites exhibit the lowest COF of 0.15 at 250 °C, while composites of PCT and PT show the highest value of about 0.20 at this temperature.
Figure 4 presents the typical COFs vs. sliding time curves of the PTFE matrix composites at various testing temperatures from 25 to 250 °C. It can be seen that the changing trends of COFs with the sliding time are basically the same for these composites: in the running stage, the fluctuation om COF (within 5 min) is large and in the stable stage, the value become smooth, especially for the composites of PCT and PCTP, indicating that tribofilm has formed on the worn surface. Moreover, we can also see that at high temperatures (100–250 °C), the running stage becomes short, and in the stable stage, the COF fluctuation is smaller than that at low temperatures (25–100 °C).
Figure 5 shows the wear rate of the PTFE matrix composites coupled with a GCr15 stainless steel ball under various testing temperatures. All six composites exhibit relatively lower wear rates as compared with that of the pure PTFE sample; the value decreases from (2.04–2.72) × 10−3 mm3/Nm for pure PTFE to (0.674–10.6) × 10−4 mm3/Nm for other composites, especially for PCTP, the value for this being below 1.96 × 10−4 mm3/Nm. The results indicate that the addition of a hard phase (TiC), fiber (CF) and a soft phase (PEEK) have a synergistically enhancing effect, decreasing the wear rate of the PTFE matrix composite. For the effect of the testing temperature, the wear rate exhibits an increasing trend for these PTFE matrix composites with the increase in the testing temperature from 25 to 250 °C. For the composite of PT, the wear rate increases slightly from 25 to 100 °C (6.2–7.6 × 10−4 mm3/Nm), then it decreases to 6.4 × 10−4 mm3/Nm at 150 °C; as the testing temperature increases to 250 °C, composite exhibits the largest wear rate (10.7 × 10−4 mm3/Nm). The PC, PCTP and PTP10 composites show similar changing trends: the wear rate gradually increases to the maximum value from 25 to 200 °C for the PC and PCTP (PC: 9.97 × 10−4 mm3/Nm and PCTP: 1.96 × 10−4 mm3/Nm) and 250 °C for the PTP10 (4.6 × 10−4 mm3/Nm) composites; this may be due to the reduced mechanical properties at high temperatures. For the PCT composite, the changing trend is different: from 25 to 50 °C, the value increases to 4.6 × 10−4 mm3/Nm, and at 100 °C, it decreases to 2.78 × 10−4 mm3/Nm, then the wear rate increases slightly to the maximum value of 8.0 × 10−4 mm3/Nm at 250 °C. For the PTP5 composite, as the testing temperature increases from 25 to 150 °C, the wear rate continuously increases to 5.34 × 10−4 mm3/Nm, then it fluctuates within (5.04–6.11) × 10−4 mm3/Nm as the testing temperature increases to 250 °C.
The wear resistance performance for PTFE matrix composites can also be reflected by the cross-section and three-dimensional morphology of the worn surface, as shown in Figure 6, Figure 7, Figure 8 and Figure 9. Figure 6 presents the cross-section of the worn surface for the PTFE matrix composite after sliding against the GCr15 stainless steel ball at various testing temperatures. It can be seen that the wear track is deep (100–200 μm) and broad (about 4 mm) for the pure PTFE sample. While as the soft phase, PEEK, hard phase, TiC, and CF are added, the wear track becomes narrow and shallow, the especially for PCTP composite, the depth is less than 50 μm, indicating that the wear-resistant layer is formed on the worn surface, and this is consistent with the changing trend of the wear rate (Figure 5). Figure 7, Figure 8 and Figure 9 illustrate the three-dimensional morphologies of the worn surface for PTFE matrix composites at 25, 150 and 250 °C. At 25 °C, the wear track is characterized by shallow grooves for composites of PC (Figure 7a), PCT (Figure 7b) and PCTP (Figure 7c), and they are smooth for PT (Figure 7d) and PTP5 (Figure 7e) samples. For PTP10, there are some delaminated pits on the worn surface (Figure 7f). As the testing temperature increases to 150 °C, the wear track becomes larger and deeper for almost all PTFE matrix composites as compared with that at 25 °C (Figure 8). Moreover, the worn surface becomes smooth and there are almost no grooves, and this may be attributed to the softening of the matrix; at 250 °C (Figure 9), the worn surface characteristics are similar to those at 150 °C.
The SEM image was investigated to analyze the wear mechanism for PTFE matrix composites, as shown in Figure 10, Figure 11, Figure 12, Figure 13, Figure 14 and Figure 15. At 25 °C, a great extent of delamination and large grooves appear on the worn surface of the PC composite (Figure 10a), indicating that severe fatigue and abrasive wear are the main wear mechanisms. For the PCT sample, the worn surface characteristics are similar to those of the PC sample, both covered with grooves and delamination (Figure 10b). As for the PCTP and PTP5 composites, the extensive delamination and cracks disappear and only some flaking pits and grooves cover the worn surface (Figure 10c,e), suggesting that abrasive wear is the main wear mechanism. For PT and PTP10 composites (Figure 10d,f), the worn surface becomes smooth and there are no large grooves.
Figure 11 presents the worn surface as the testing temperature is 50 °C for PTFE matrix composites. The worn surface becomes smooth and there are only some tiny furrows (Figure 11a) for the PC composite as compared to the case at 25 °C, indicating that abrasive wear is the main wear mechanism. For the PCT, PCTP and PTP5 composites (Figure 11b,c,e), the worn surface characteristics are similar to those at room temperature. Large grooves instead of tiny grooves become the main feature for the PT composite (Figure 11d), suggesting that the main wear mechanism is abrasive wear. For the PTP10 (Figure 11f) composite, the worn surface is characterized by flaking pits and grooves.
Figure 12 shows the worn surface characteristics of six composites at a testing temperature of 100 °C. We can clearly see that the worn surface exhibits a similar morphology for PC, PCT and PTP5 composites (Figure 12a,b,e), compared with that at 50 °C. On the other hand, for the composite of PCTP (Figure 12c), tiny grooves become the main feature and there are almost no flaking pits on it; this may be due to the softening of the contact surface at moderate temperatures. As for the PT sample (Figure 12d), the grooves become tiny and some delamination appears on the worn surface. A large extent of delamination with cracks and grooves is present on the sliding surface for PTP10 (Figure 12f). In summary, the main wear mechanisms are abrasive and fatigue wear at 100 °C.
SEM images of the sliding surface for PTFE matrix composites at 150 °C are presented in Figure 13. The worn surface becomes smooth and there are only some flaking pits across the contact surface, as compared with the case at 100 °C for PCTP (Figure 13c), PTP5 (Figure 13e) and PTP10 (Figure 13f) composites; this may be due to the plastic deformation of the PTFE matrix and the reinforcement of PEEK. As for PC (Figure 13a), PCT (Figure 13b) and PT (Figure 13d) composites, there are large grooves and severe plastic deformation, indicating that abrasive wear is the main wear mechanism.
As the testing temperature increases to 200 and 250 °C, we can see that the worn surface characteristics are similar to those at 50 °C, 100 °C or 150 °C for PC, PT, PTP5, PTP10 (the main features are grooves, as shown in Figure 14a,d–f and Figure 15a,d–f) and PCT composites (the main features are large grooves, delamination and cracks, as shown in Figure 14b and Figure 15b), indicating that the main wear mechanism is abrasive wear. For the PCTP composite, the worn surface is covered by a great extent of delamination, grooves and cracks at 200 °C (Figure 14c); as the testing temperature increases to 250 °C (Figure 15c), grooves and flaking pits become the main features, the above information suggesting that abrasive and fatigue wear are the main wear mechanisms at 200 °C and that abrasive wear is the main wear mechanism at 250 °C.
This comprehensive comparison of the friction coefficient and wear rate shows that the frictional behavior of PTFE matrix composites is quite dependent on the testing temperature and second particle content. To further understand the wear mechanism of the composites, a schematic diagram is drawn, as shown in Figure 16. For pure PTFE material, due to the easy slippage of the interlayer and plastic deformation, the highest wear rate is presented over the testing temperature. For PC and PT composites, the addition of CF and TiC could enhance the non-deformability of the contact surface and inhibit the interlayer slippage, especially at low to moderate temperatures, so these two composites exhibit relatively lower wear rates when compared with that of pure PTFE material. As PEEK is added or all of these three particles are added in the composite, we can see that the wear resistance property is further improved, especially for PCTP and PTP10; this can be attributed to the synergistic enhancement effect of CF, TiC and PEEK. As the PEEK molecular chain could adsorb PTFE matrix molecules and the TiC/CF phase could increase the hardness of the PTFE matrix and support in resisting the applied load, both PEEK and TiC/CF could inhibit the interface slippage of PTFE molecules; thus, the high wear resistance of PTFE matrix composites is exhibited, and this is consistent with the changing trend in wear rate (Figure 5).

4. Conclusions

In the present work, PTFE matrix composites with CF, TiC and PEEK were prepared by the cold pressing and hot sintering method, and the influence of second particles and testing temperature (from 25 to 250 °C) on tribological behavior was studied. The main conclusions can be summarized as follows:
(1)
From 25 to 250 °C, the COFs for composites show a slight fluctuation (0.16–0.24). Due to the softening of the worn surface and the increased diffusion rate of PTFE and PEEK, four composites exhibited the minimum COF at 250 °C. By comparison, the PTCT composite shows the best lubricating performance over the testing temperature (0.16–0.17).
(2)
All six PTFE matrix composites exhibit low wear rates when compared with pure PTFE material; the data decrease from (2.04–2.72) × 10−3 mm3/Nm for pure PTFE material to (0.674–10.6) × 10−4 mm3/Nm for other composites. Overall, the PCTP composite exhibits the best wear resistance properties, with a value below 1.96 × 10−4 mm3/Nm.
(3)
From 25 to 250 °C, the effective lubricant and wear resistance performance is attributed to the synergistic effect of TiC/CF and PEEK. The main wear mechanisms are abrasive and fatigue wear at low-to-moderate temperatures (25–100 °C), and these change into abrasive wear from 150 to 250 °C.
(4)
In future work, we plan to investigate the influence of extreme testing conditions on the friction and wear behavior for PTFE matrix composites, including ultralow temperatures (−50 °C, −100 °C and −150 °C). The results obtained in this work will provide theoretical guidance for the design and preparation of self-lubricating polymer matrix composites.

Author Contributions

Methodology, and writing—review and editing, J.Z.; investigation and writing—original Y.H.; data curation and writing—original draft, L.Y.; software, Z.J.; software and resources, R.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (52105190 and 51905247), Guangyue Young Scholar Innovation Team of Liaocheng University (LCUGYTD2023-02), Shandong Province Science and Technology Small and Medium Enterprises Innovation Ability Improvement Project (2022TSGC1220, 2022TSGC2575).

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Biswas, S.; Vijayan, K. Friction and wear of PTFE—A review. Wear 1992, 158, 193–211. [Google Scholar] [CrossRef]
  2. Barry, P.; Chiu, P.; Perry, S.; Sawyer, W.; Sinnott, S.; Phillpot, S. Effect of temperature on the friction and wear of PTFE by atomic-level simulation. Tribol. Lett. 2015, 58, 50. [Google Scholar] [CrossRef]
  3. Liu, H.; Wang, J.; Jiang, P.; Yan, F. Hydrostatic pressure-dependent corrosion behaviour of polytetrafluoroethylene composites in the deep sea. Corros. Sci. 2018, 139, 289–300. [Google Scholar] [CrossRef]
  4. Wang, N.; Wang, H.; Ren, J.; Gao, G.; Chen, S.; Zhao, G.; Yang, Y.; Wang, J. Novel additive of PTFE@SiO2 core-shell nanoparticles with superior water lubricating properties. Mater. Des. 2020, 195, 109069. [Google Scholar] [CrossRef]
  5. Sun, W.; Chen, T.; Liu, X.; Jiao, Y.; Zhu, Y.; Ye, J. Microstructure-armored surface and its tribological effects on ultralow-wear PEEK/PTFE composites. Polymer 2024, 291, 126599. [Google Scholar] [CrossRef]
  6. Lin, Z.; Qu, T.; Zhang, K.; Zhang, Q.; Wang, S.; Wang, G.; Gao, B.; Fan, G. Modeling of contact temperatures and their influence on the tribological performance of PEEK and PTFE in a dual-pin-on-disk tribometer. Friction 2023, 11, 546–566. [Google Scholar] [CrossRef]
  7. Van Meter, K.; Junk, C.; Campbell, K.; Babuska, T.; Krick, B. Ultralow wear self-mated PTFE composites. Macromolecules 2022, 55, 3924–3935. [Google Scholar] [CrossRef]
  8. Xue, L.; Xu, Q.; Meng, C.; Lei, S.; Zhang, G.; Tang, M.; Zhai, W.; Yu, H.; Liu, X.; Du, C. Achieving the ultra-low friction and wear rate of PEEK-PTFE composites by Ti3C2Tx MXene reinforcement. Tribol. Int. 2024, 199, 110030. [Google Scholar] [CrossRef]
  9. Makowiec, M.; Blanchet, T. Improved wear resistance of nanotube- and other carbon-filled PTFE composites. Wear 2017, 374–375, 77–85. [Google Scholar] [CrossRef]
  10. Zhang, K.; Lin, Z.; Chen, J.; Chen, W.; Wang, D.; Chen, C.; Zhao, X. An ingenious synergistic solid lubricant of copper and graphite for exceptional wear resistance of the SCF/PTFE/PEEK composite. Tribol. Int. 2024, 195, 109583. [Google Scholar] [CrossRef]
  11. Yang, Y.; Zhu, J.; Hou, K.; Ma, L.; Li, Z.; Jia, W.; Wang, H.; Wang, J.; Yang, S. Friction-induced construction of PTFE-anchored MXene heterogeneous lubricating coating and its in-situ tribological transfer mechanism. Chem. Eng. J. 2022, 442, 136238. [Google Scholar] [CrossRef]
  12. Hu, Y.; Tan, D.Q.; Xu, C.; He, Q.; Yang, X.Q.; Gao, H.Y.; Lewis, R. Influence of high temperature on the tribological properties of hybrid PTFE/Kevlar fabric composite. Tribol. Int. 2022, 174, 107781. [Google Scholar] [CrossRef]
  13. Yang, Y.; Yang, G.; Hou, K.; Wang, H.; Wang, N.; Yang, S.; Wang, J. Environmentally-adaptive epoxy lubricating coating using self-assembled pMXene@polytetrafluoroethylene core-shell hybrid as novel additive. Carbon 2021, 184, 12–23. [Google Scholar] [CrossRef]
  14. Song, W.; Wang, S.; Lu, Y.; Zhang, X.; Xia, Z. Friction behavior of PTFE-coated Si3N4/TiC ceramics fabricated by spray technique under dry friction. Ceram. Int. 2021, 47, 7487–7496. [Google Scholar] [CrossRef]
  15. Bandaru, A.K.; Weaver, P.M.; O’ Higgins, R.M. Abrasive wear performance of hygrothermally aged glass/PTFE composites. Polym. Test. 2021, 103, 107369. [Google Scholar] [CrossRef]
  16. Qi, Y.; Sun, B.; Zhang, Y.; Gao, G.; Zhang, P.; Zheng, X. Tribological Properties of Nano-ZrO2 and PEEK reinforced PTFE composites based on molecular dynamics. Lubricants 2023, 11, 194. [Google Scholar] [CrossRef]
  17. Liu, J.; Guo, T.; Li, X.; Liu, X.; Zhang, L.; Liu, Z.; Pan, D.; Jiao, T. Preparation and tribological properties of PAI/PTFE@Mg-Al LDH polymer-based solid self-lubricating materials. Colloids Surf. A Physicochem. Eng. Asp. 2024, 702, 135154. [Google Scholar] [CrossRef]
  18. Raut, A.; Nunez, E.E.; Sellers, R.; Rahman, M.S.; Polycarpou, A.A. The effect of reinforcing fillers on the tribological performance of PTFE composites for a sustainable environment. Wear 2024, 556–557, 205524. [Google Scholar] [CrossRef]
  19. He, Y.; Lin, B.; Wang, Y.; Zhao, F.; Yan, S.; Ning, G.; Bao, X.; Li, H.; Sui, T. Hybrid reinforcing effect of multi-scale short carbon fibers on the wear resistance of PTFE composites: Self-reconstruction and stress transmission. Tribol. Int. 2024, 194, 109510. [Google Scholar] [CrossRef]
  20. Panin, S.; Luo, J.; Buslovich, D.; Alexenko, V.; Berto, F.; Kornienko, L. Effect of transfer film on tribological properties of anti-Friction PEI- and PI-based composites at elevated temperatures. Polymers 2022, 14, 1215. [Google Scholar] [CrossRef]
  21. Zhang, Z.; Jia, X.; Guo, F.; Shan, Z.; Wang, Y. Effect of contact forms on the wear of hard silicon surfaces by soft polymers. Friction 2021, 9, 918–928. [Google Scholar] [CrossRef]
  22. Torres, H.; Ripoll, M.; Prakash, B. Tribological behaviour of self-lubricating materials at high temperatures. Int. Mater. Rev. 2018, 63, 309–340. [Google Scholar] [CrossRef]
  23. Zhen, J.; Han, Y.; Wang, H.; Jiang, Z.; Wang, L.; Huang, Y.; Jia, Z.; Zhang, R. High temperature friction and wear behavior of PTFE/MoS2 composites. Lubricants 2023, 11, 312. [Google Scholar] [CrossRef]
  24. Gürgen, S. Wear behavior of UHMWPE composites under oxidative effect. Polym. Degrad. Stab. 2022, 199, 109912. [Google Scholar] [CrossRef]
  25. Gürgen, S.; Sert, A.; Kuşhan, M. An investigation on wear behavior of UHMWPE/carbide composites at elevated temperatures. J. Appl. Polym. Sci. 2021, 138, 50245. [Google Scholar] [CrossRef]
  26. Wang, H.; Qi, X.; Zhang, W.; Dong, Y.; Fan, B.; Zhang, Y. Tribological properties of PTFE/Kevlar fabric composites under heavy loading. Tribol. Int. 2020, 151, 106507. [Google Scholar] [CrossRef]
  27. Chen, Q.; Morita, T.; Sawae, Y.; Fukuda, K.; Sugimura, J. Effects of trace moisture content on tribofilm formation, friction and wear of CF-filled PTFE in hydrogen. Tribol. Int. 2023, 188, 108905. [Google Scholar] [CrossRef]
  28. Amenta, F.; Bolelli, G.; Pedrazzi, S.; Allesina, G.; Santeramo, F.; Bertarini, A.; Sassatelli, P.; Lusvarghi, L. Sliding wear behaviour of fibre-reinforced PTFE composites against coated and uncoated steel. Wear 2021, 486–487, 204097. [Google Scholar] [CrossRef]
  29. Lu, G.; Liang, Z.; Qi, X.; Wang, G.; Liu, Y.; Kang, W.; Kim, D. Enhancement of tribological performance of PTFE/aramid fabric liner under high-temperature and heavy-load through incorporation of microcapsule/CF multilayer composite structure. Tribol. Int. 2025, 201, 110239. [Google Scholar] [CrossRef]
  30. Xu, M.; Li, S.; Wang, T.; Wang, Q.; Tao, L.; Liu, P. Construction of a PTFE-based lubricant film on the surface of Nomex/PTFE fabric to enhance the tribological performance at cryogenic temperatures. Tribol. Int. 2023, 185, 108552. [Google Scholar] [CrossRef]
Polymers 16 03412 g001

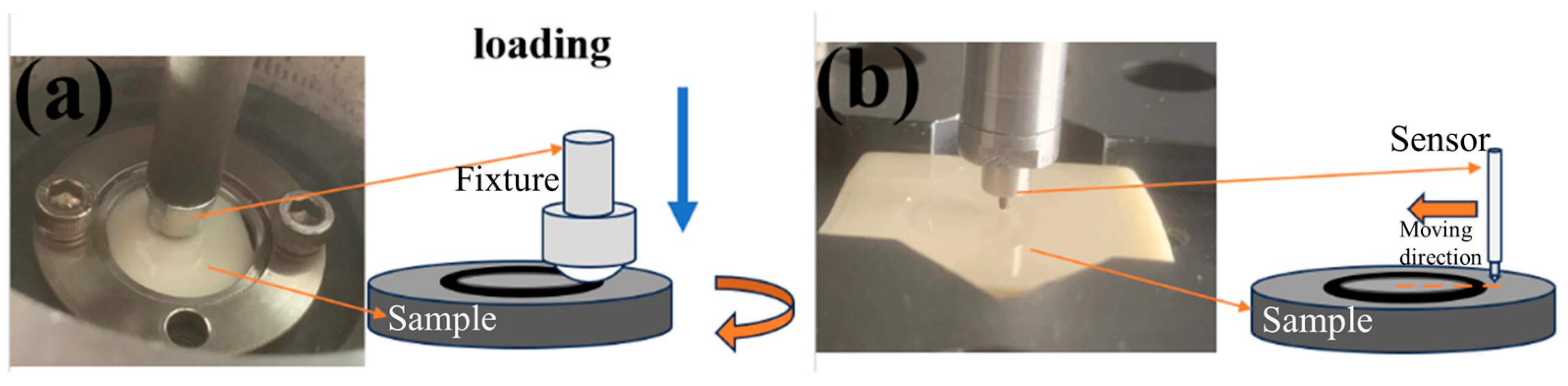

Figure 1. Schematic diagram of friction (a) and wear rate (b) testing machine.
Figure 1. Schematic diagram of friction (a) and wear rate (b) testing machine.
Polymers 16 03412 g001
Polymers 16 03412 g002

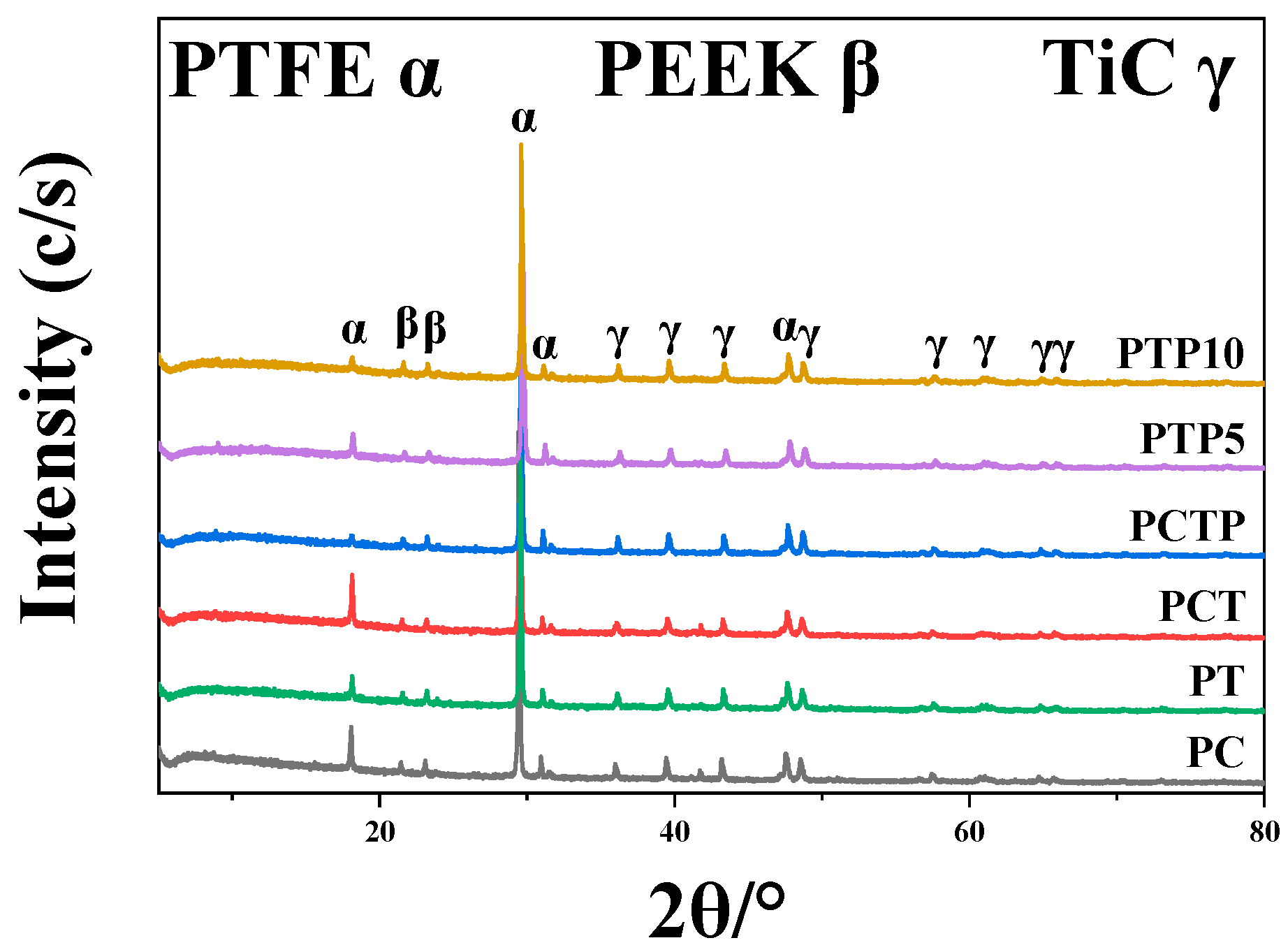

Figure 2. XRD pattern of the PTFE matrix composite.
Figure 2. XRD pattern of the PTFE matrix composite.
Polymers 16 03412 g002
Polymers 16 03412 g003

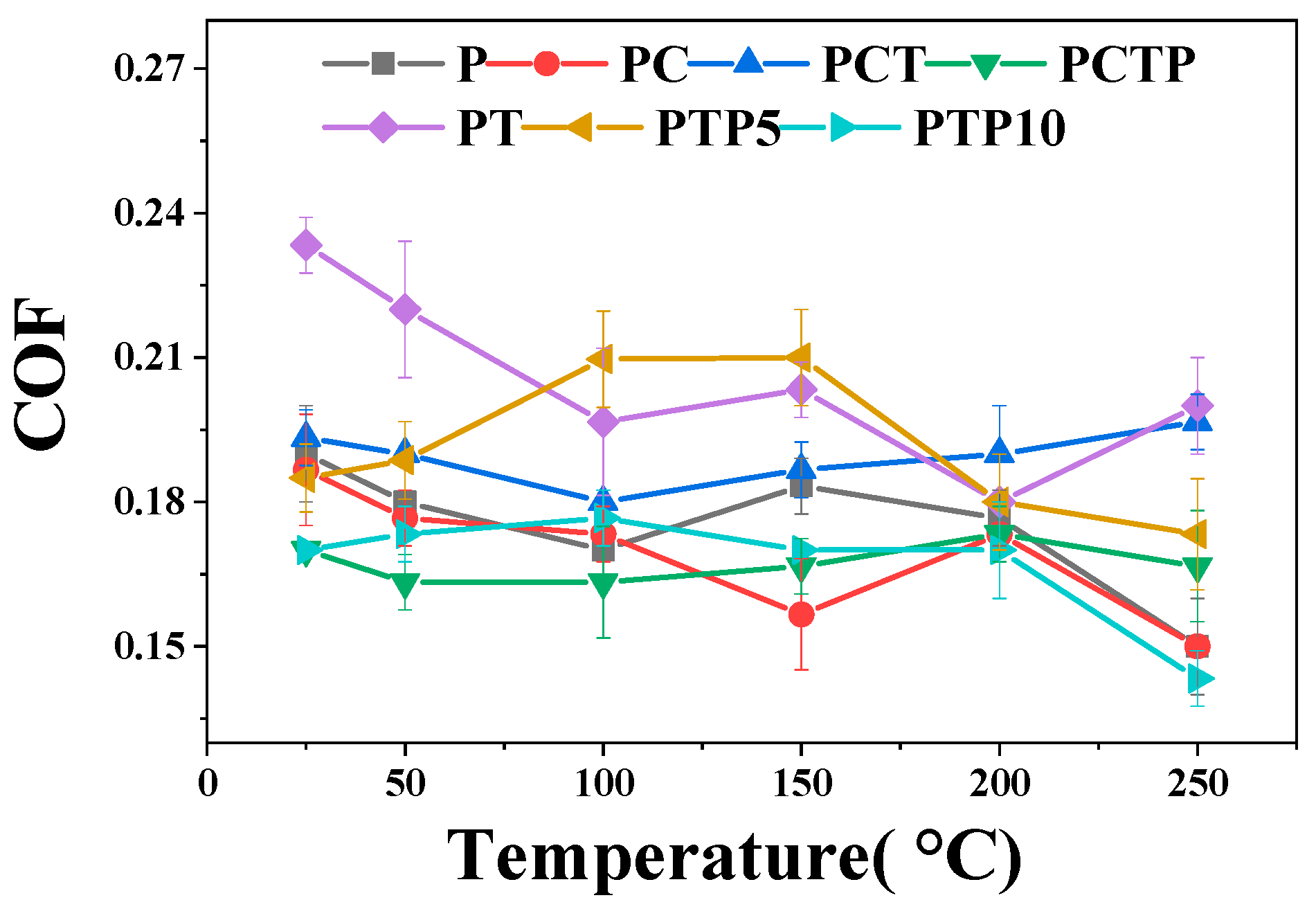

Figure 3. Friction coefficient of the PTFE matrix composites as a function of testing temperature.
Figure 3. Friction coefficient of the PTFE matrix composites as a function of testing temperature.
Polymers 16 03412 g003
Polymers 16 03412 g004aPolymers 16 03412 g004b

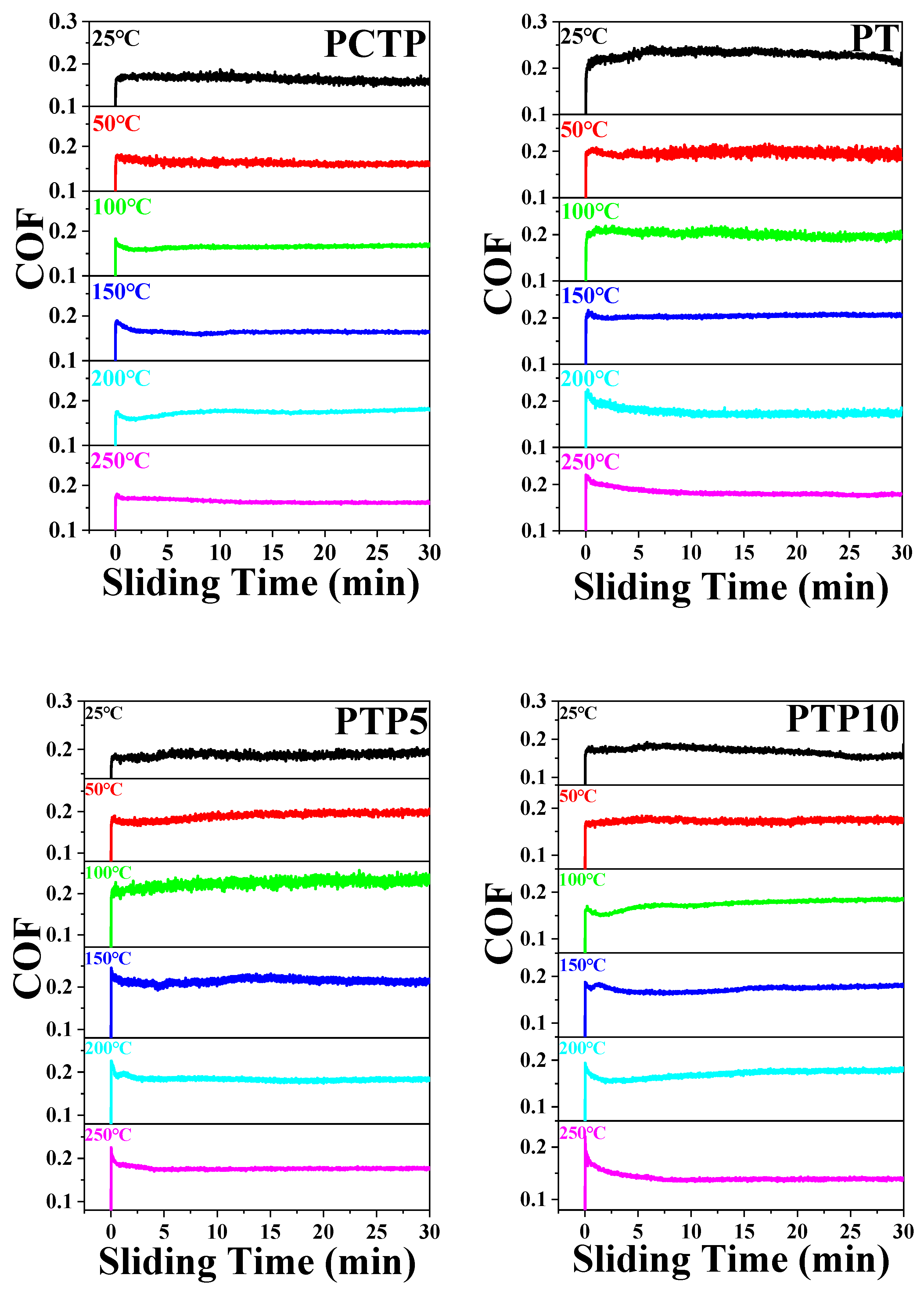

Figure 4. Typical friction curve of PTFE matrix composites at different testing temperatures.
Figure 4. Typical friction curve of PTFE matrix composites at different testing temperatures.
Polymers 16 03412 g004aPolymers 16 03412 g004b
Polymers 16 03412 g005

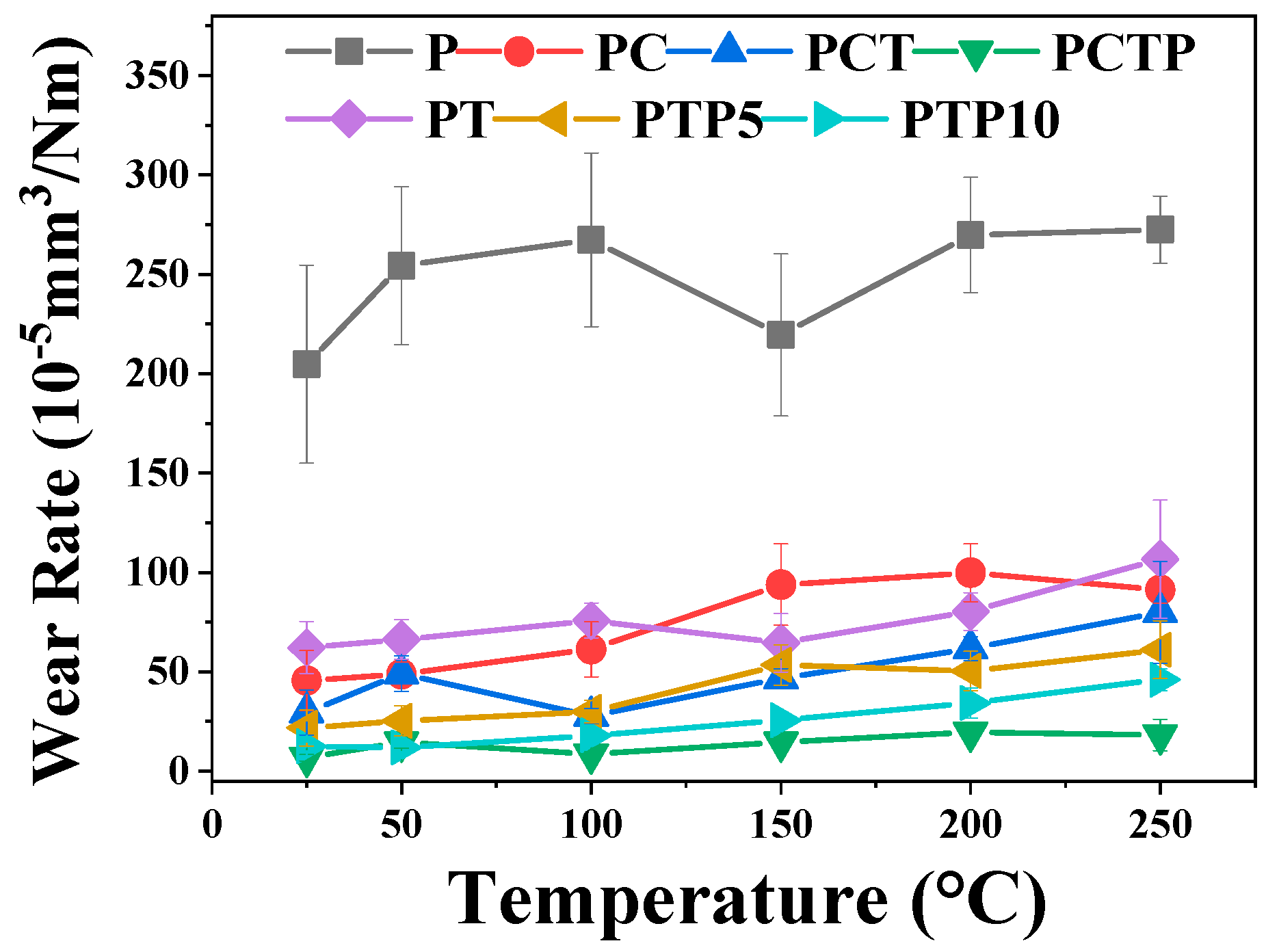

Figure 5. Wear rate of the PTFE matrix composites at different sliding temperatures.
Figure 5. Wear rate of the PTFE matrix composites at different sliding temperatures.
Polymers 16 03412 g005
Polymers 16 03412 g006
Figure 6. Cross-section of the worn surfaces for PTFE matrix composites at various testing temperatures.
Figure 6. Cross-section of the worn surfaces for PTFE matrix composites at various testing temperatures.
Polymers 16 03412 g006
Polymers 16 03412 g007aPolymers 16 03412 g007b

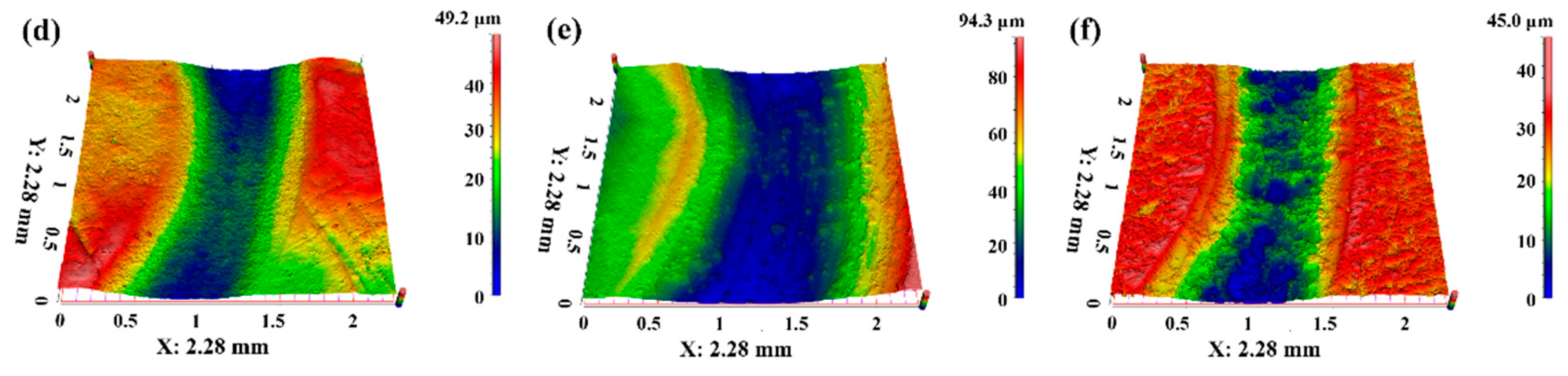

Figure 7. Three-dimensional morphologies of the worn surfaces for PTFE matrix composites at different testing temperatures: (a) PC-25 °C, (b) PCT-25 °C, (c) PCTP-25 °C, (d) PT-25 °C, (e) PTP5-25 °C, (f) PTP10-25 °C.
Figure 7. Three-dimensional morphologies of the worn surfaces for PTFE matrix composites at different testing temperatures: (a) PC-25 °C, (b) PCT-25 °C, (c) PCTP-25 °C, (d) PT-25 °C, (e) PTP5-25 °C, (f) PTP10-25 °C.
Polymers 16 03412 g007aPolymers 16 03412 g007b
Polymers 16 03412 g008

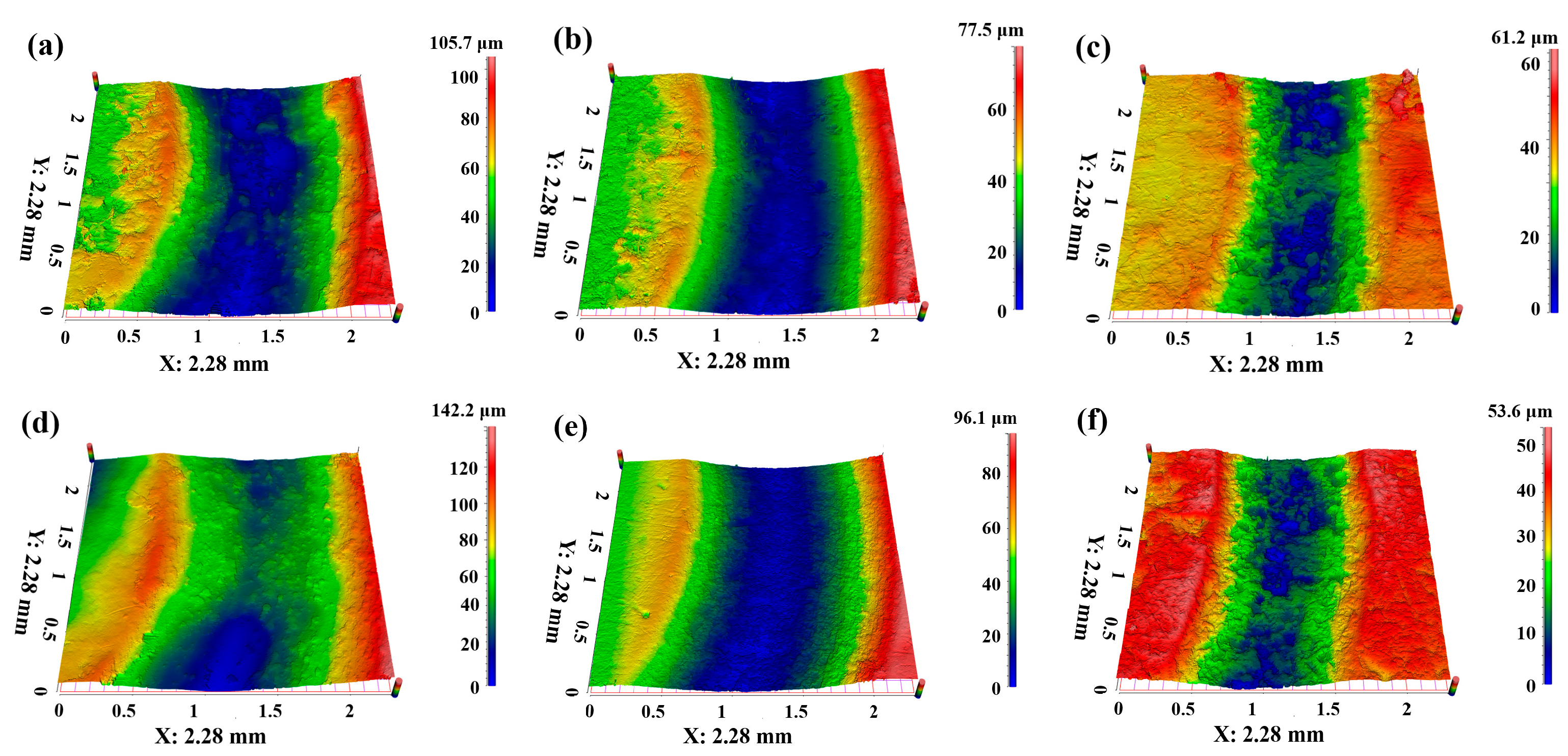

Figure 8. Three-dimensional morphologies of the worn surfaces for PTFE matrix composites at different testing temperatures: (a) PC-150 °C, (b) PCT-150 °C, (c) PCTP-150 °C, (d) PT-150 °C, (e) PTP5-150 °C, (f) PTP10-150 °C.
Figure 8. Three-dimensional morphologies of the worn surfaces for PTFE matrix composites at different testing temperatures: (a) PC-150 °C, (b) PCT-150 °C, (c) PCTP-150 °C, (d) PT-150 °C, (e) PTP5-150 °C, (f) PTP10-150 °C.
Polymers 16 03412 g008
Polymers 16 03412 g009

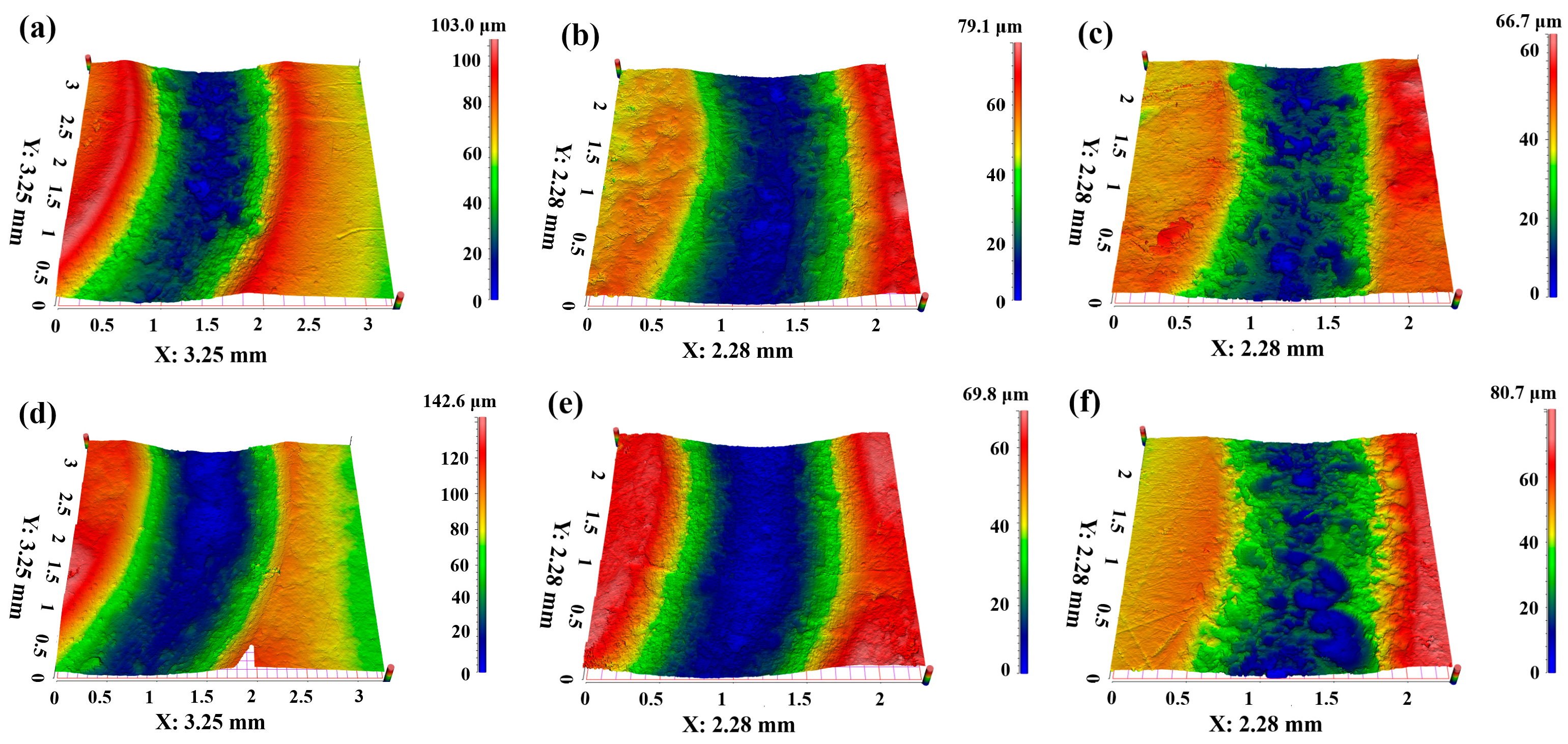

Figure 9. Three-dimensional morphologies of the worn surfaces for PTFE matrix composites at different testing temperatures: (a) PC-250 °C, (b) PCT-250 °C, (c) PCTP-250 °C, (d) PT-250 °C, (e) PTP5-250 °C, (f) PTP10-250 °C.
Figure 9. Three-dimensional morphologies of the worn surfaces for PTFE matrix composites at different testing temperatures: (a) PC-250 °C, (b) PCT-250 °C, (c) PCTP-250 °C, (d) PT-250 °C, (e) PTP5-250 °C, (f) PTP10-250 °C.
Polymers 16 03412 g009
Polymers 16 03412 g010
Figure 10. SEM images of the worn surfaces for PTFE matrix composites at 25 °C: (a) PC, (b) PCT, (c) PCTP, (d) PT, (e) PTP5, (f) PTP10.
Figure 10. SEM images of the worn surfaces for PTFE matrix composites at 25 °C: (a) PC, (b) PCT, (c) PCTP, (d) PT, (e) PTP5, (f) PTP10.
Polymers 16 03412 g010
Polymers 16 03412 g011
Figure 11. SEM images of the sliding surfaces for PTFE matrix composites at 50 °C: (a) PC, (b) PCT, (c) PCTP, (d) PT, (e) PTP5, (f) PTP10.
Figure 11. SEM images of the sliding surfaces for PTFE matrix composites at 50 °C: (a) PC, (b) PCT, (c) PCTP, (d) PT, (e) PTP5, (f) PTP10.
Polymers 16 03412 g011
Polymers 16 03412 g012aPolymers 16 03412 g012b
Figure 12. SEM images of the sliding surfaces for PTFE matrix composites at 100 °C: (a) PC, (b) PCT, (c) PCTP, (d) PT, (e) PTP5, (f) PTP10.
Figure 12. SEM images of the sliding surfaces for PTFE matrix composites at 100 °C: (a) PC, (b) PCT, (c) PCTP, (d) PT, (e) PTP5, (f) PTP10.
Polymers 16 03412 g012aPolymers 16 03412 g012b
Polymers 16 03412 g013
Figure 13. SEM images of the sliding surfaces for PTFE matrix composites at 150 °C: (a) PC, (b) PCT, (c) PCTP, (d) PT, (e) PTP5, (f) PTP10.
Figure 13. SEM images of the sliding surfaces for PTFE matrix composites at 150 °C: (a) PC, (b) PCT, (c) PCTP, (d) PT, (e) PTP5, (f) PTP10.
Polymers 16 03412 g013
Polymers 16 03412 g014
Figure 14. SEM images of the sliding surfaces for PTFE matrix composites at 200 °C: (a) PC, (b) PCT, (c) PCTP, (d) PT, (e) PTP5, (f) PTP10.
Figure 14. SEM images of the sliding surfaces for PTFE matrix composites at 200 °C: (a) PC, (b) PCT, (c) PCTP, (d) PT, (e) PTP5, (f) PTP10.
Polymers 16 03412 g014
Polymers 16 03412 g015aPolymers 16 03412 g015b
Figure 15. SEM images of the sliding surfaces for PTFE matrix composites at 250 °C: (a) PC, (b) PCT, (c) PCTP, (d) PT, (e) PTP5, (f) PTP10.
Figure 15. SEM images of the sliding surfaces for PTFE matrix composites at 250 °C: (a) PC, (b) PCT, (c) PCTP, (d) PT, (e) PTP5, (f) PTP10.
Polymers 16 03412 g015aPolymers 16 03412 g015b
Polymers 16 03412 g016

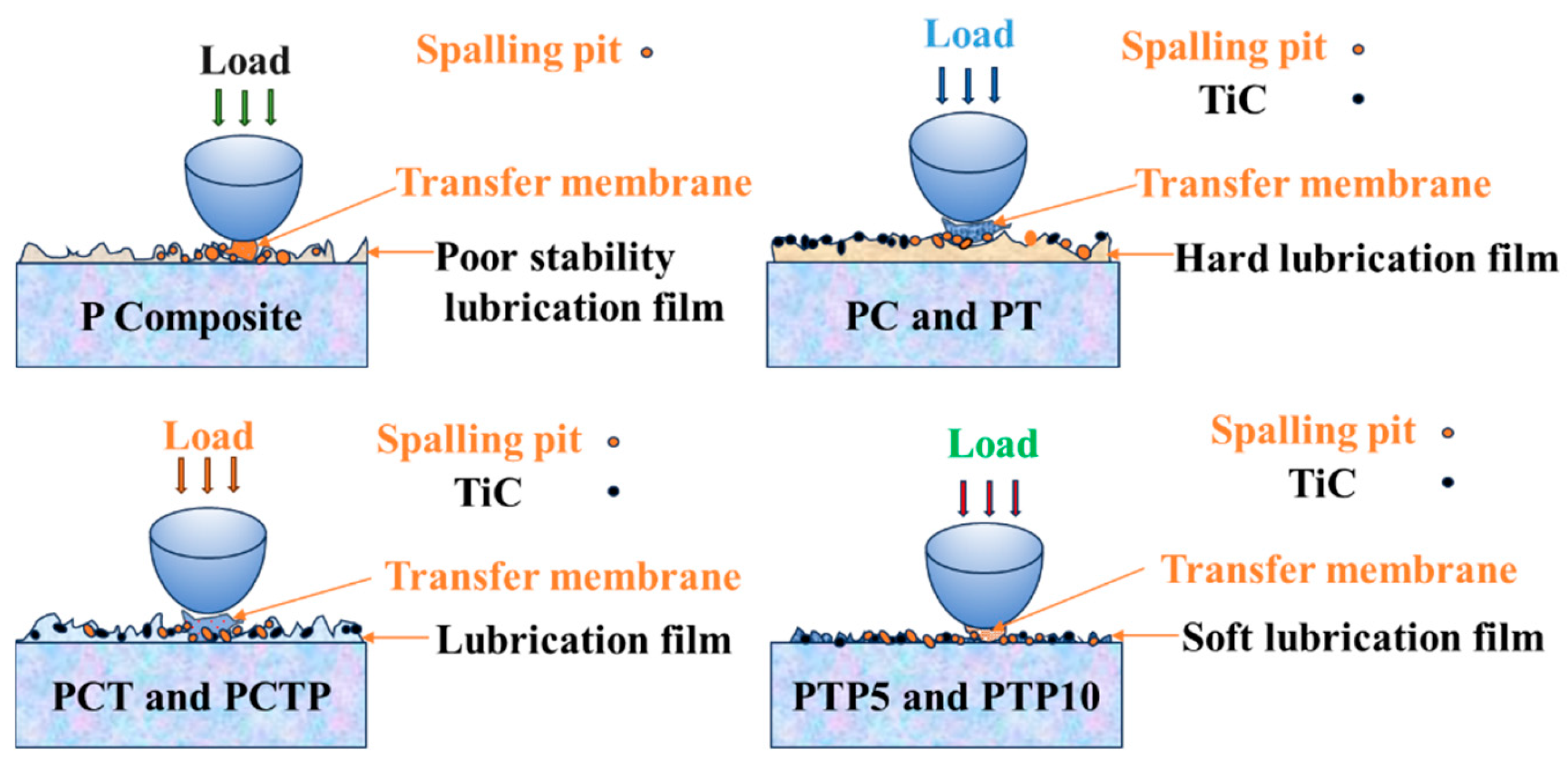

Figure 16. Schematic diagram of wear mechanism for different composites.
Figure 16. Schematic diagram of wear mechanism for different composites.
Polymers 16 03412 g016
Table 1. Composition of the PTFE matrix composites.
Table 1. Composition of the PTFE matrix composites.
MaterialsCompositionPTFE (wt. %)CF (wt. %)TiC (wt. %)PEEK (wt. %)
PCPTFE + CF95500
PCTPTFE + CF + TiC90550
PCTPPTFE + CF + TiC + PEEK85555
PTPTFE + TiC95050
PTP5PTFE + TiC + PEEK90 55
PTP10PTFE + TiC + PEEK850510
