Next Article in Journal
Comparative X-ray Shielding Properties of Single-Layered and Multi-Layered Bi2O3/NR Composites: Simulation and Numerical Studies
Next Article in Special Issue
Bioinspired High-Strength Montmorillonite-Alginate Hybrid Film: The Effect of Different Divalent Metal Cation Crosslinking
Previous Article in Journal
Polyvinyl Alcohol/Polyaniline/Carboxylated Graphene Oxide Nanocomposites for Coating Protection of Cast Iron in Simulated Seawater
Previous Article in Special Issue
Mass-Synthesized Solution-Processable Polyimide Gate Dielectrics for Electrically Stable Operating OFETs and Integrated Circuits
Article

Blends Based on Poly(ε-Caprolactone) with Addition of Poly(Lactic Acid) and Coconut Fibers: Thermal Analysis, Ageing Behavior and Application for Embossing Process

1
Faculty of Graphic Arts, University of Zagreb, 10000 Zagreb, Croatia
2
Faculty of Chemical Engineering and Technology, University of Zagreb, 10000 Zagreb, Croatia
*
Authors to whom correspondence should be addressed.
Academic Editor: Bon-Cheol Ku
Polymers 2022, 14(9), 1792; https://doi.org/10.3390/polym14091792
Received: 29 March 2022 / Revised: 18 April 2022 / Accepted: 26 April 2022 / Published: 27 April 2022
(This article belongs to the Collection Progress in Polymer Applications)

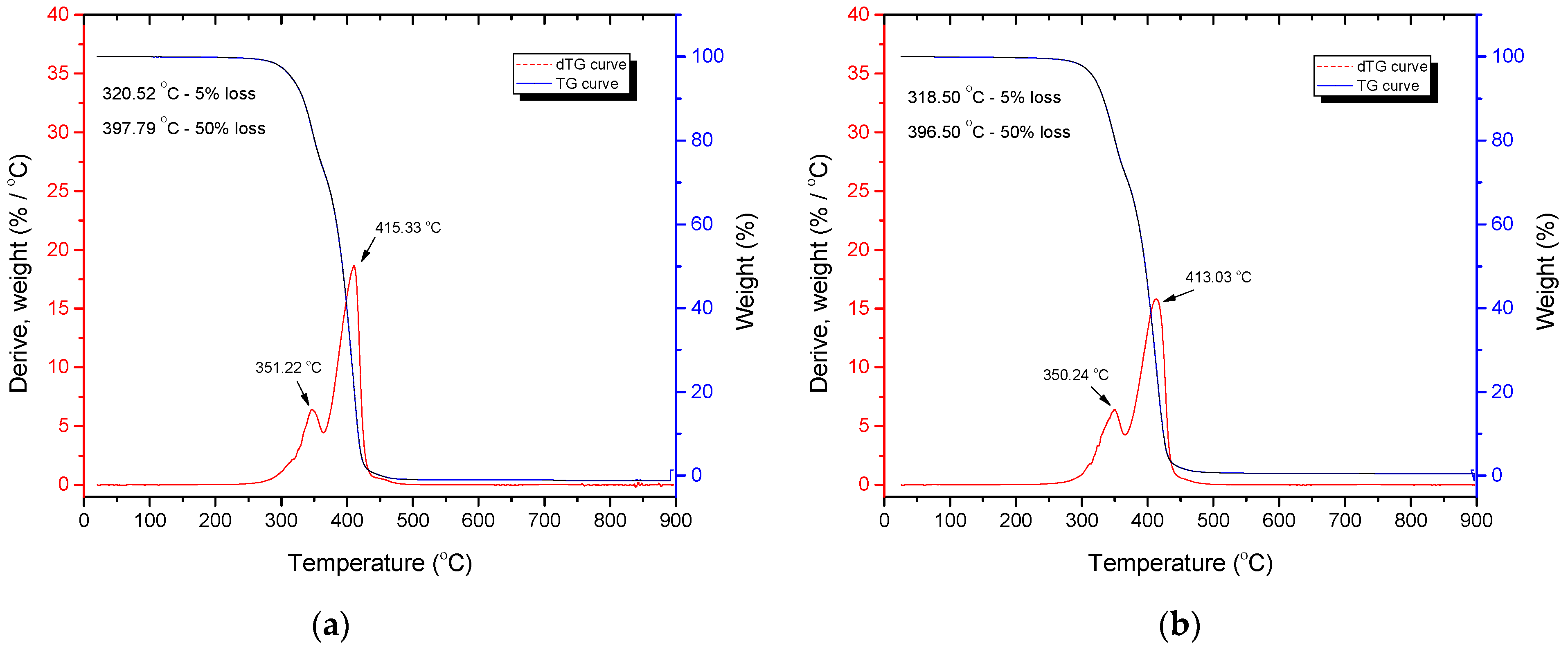

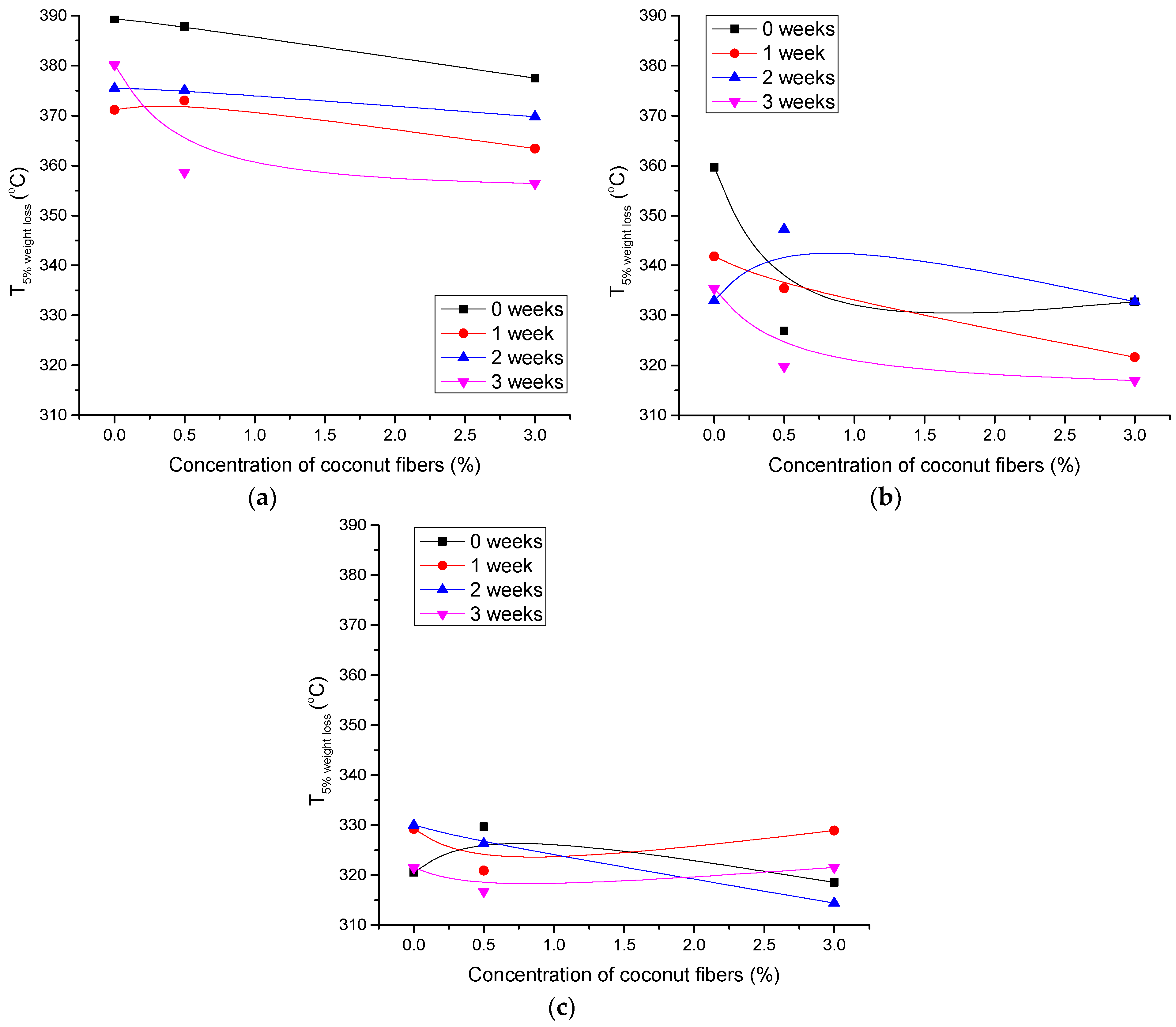

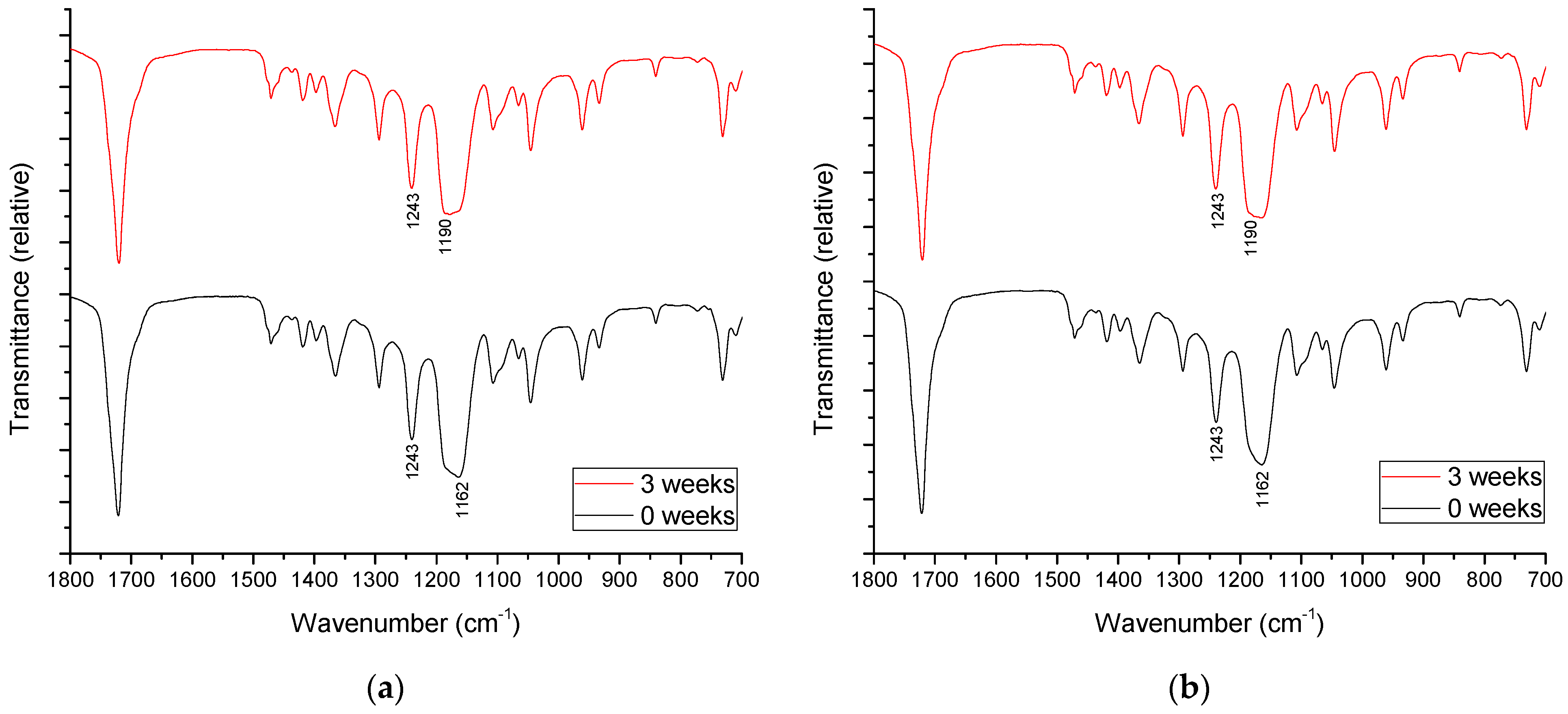

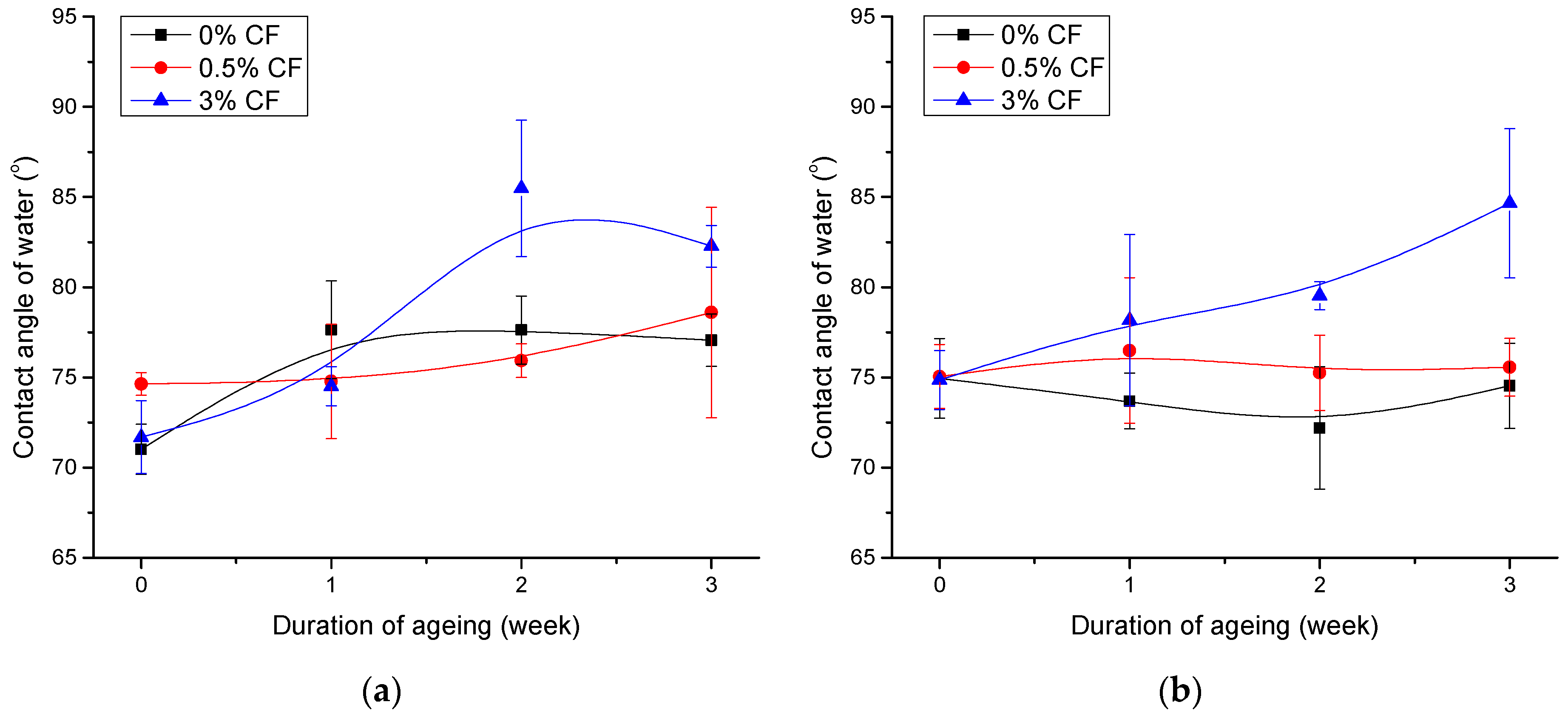

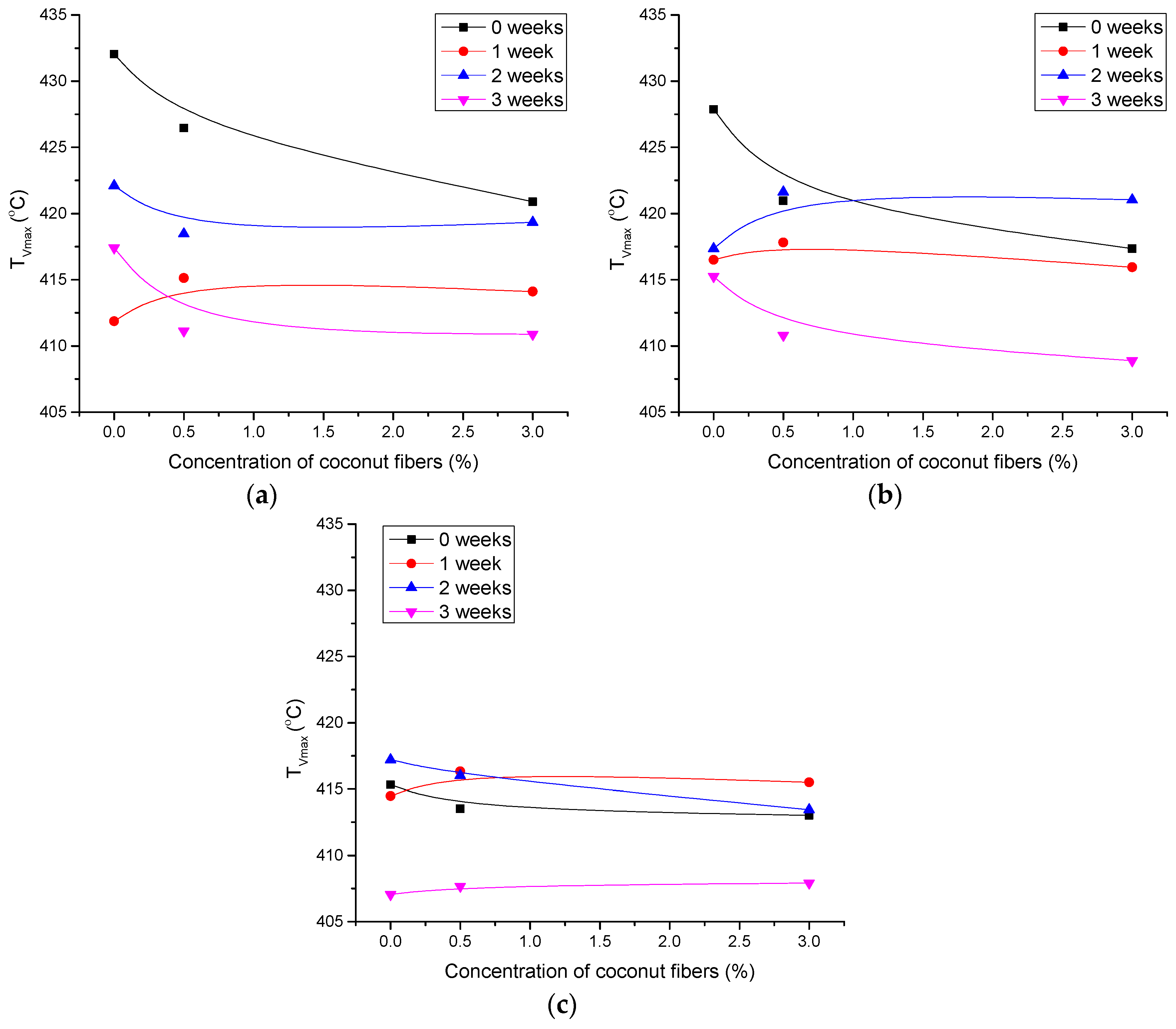

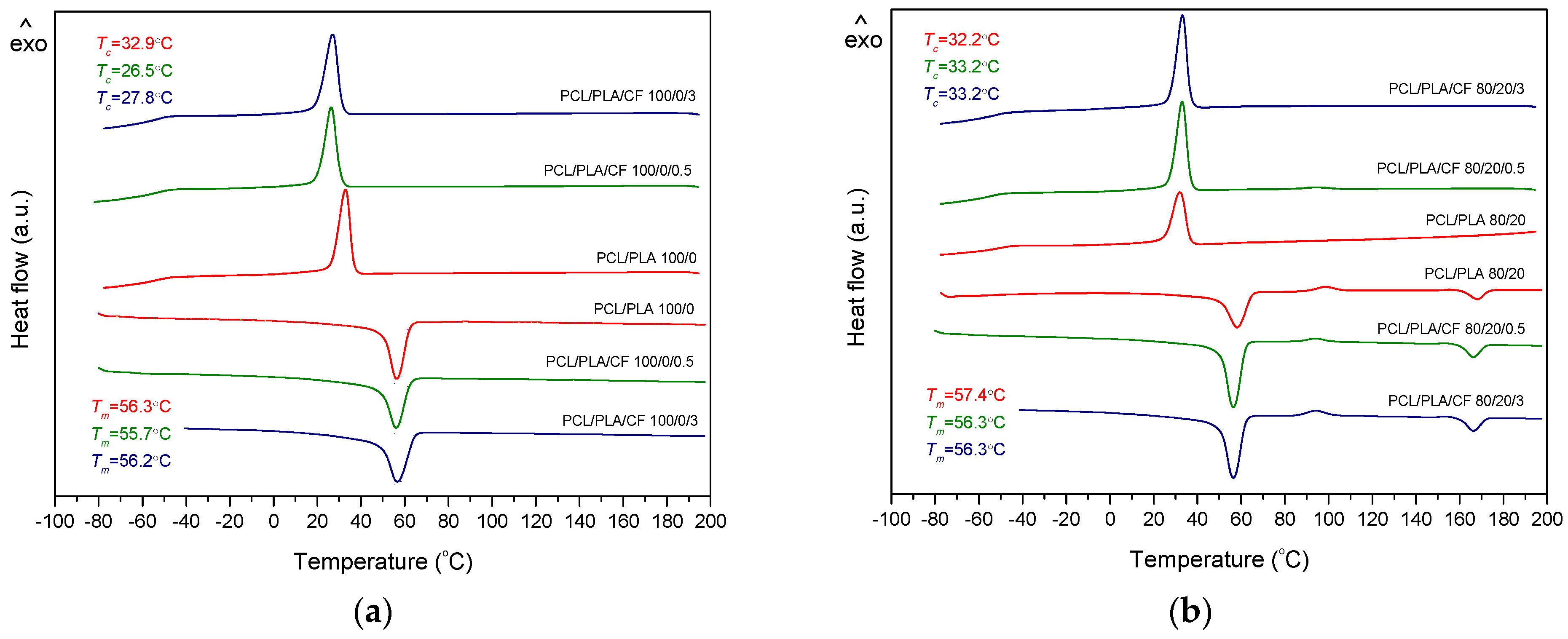

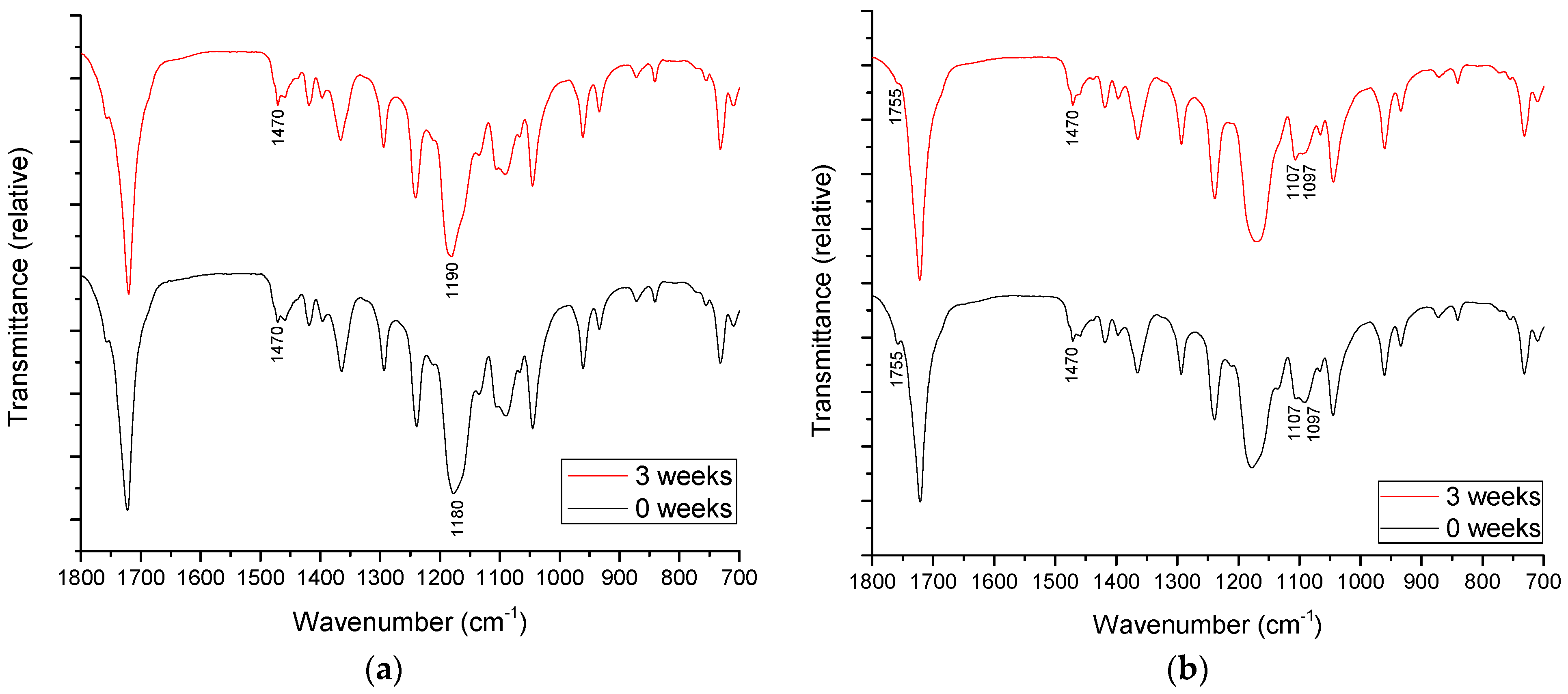

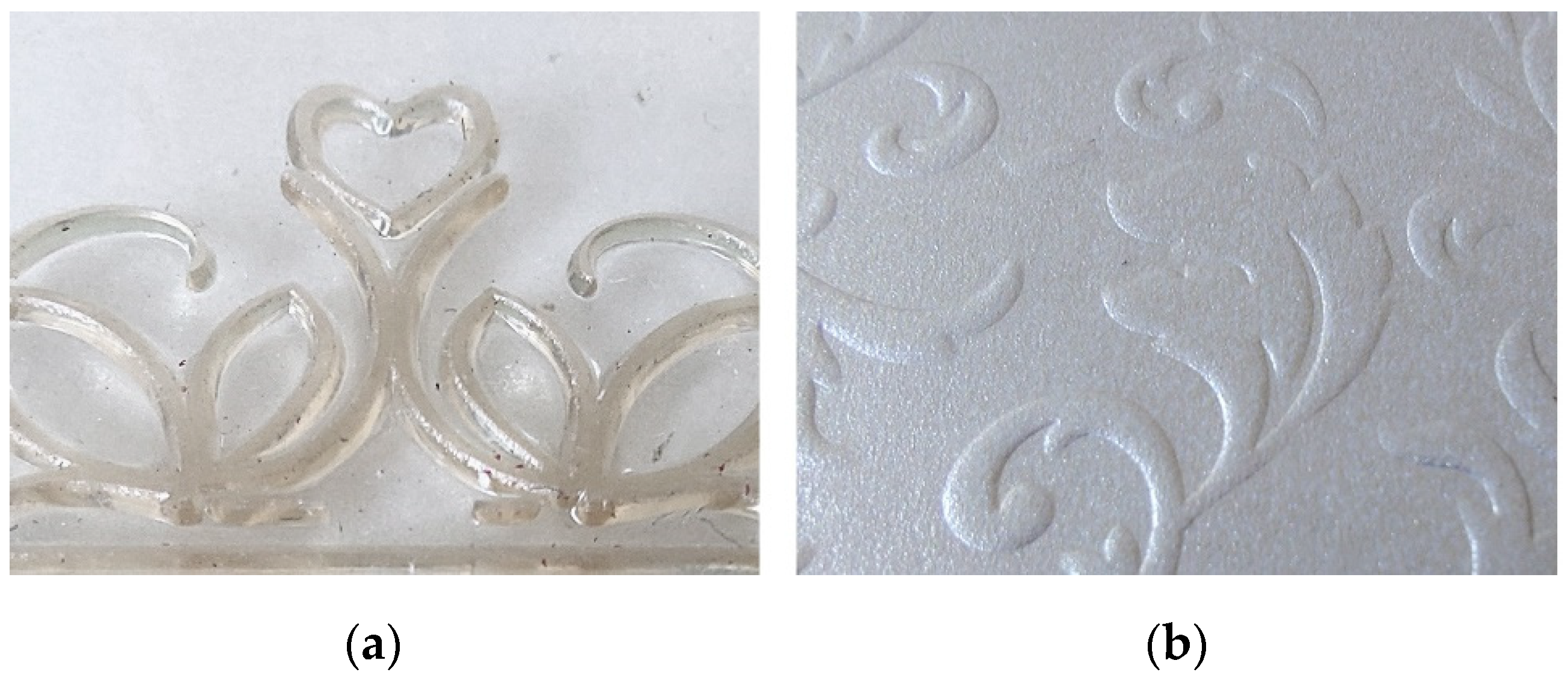

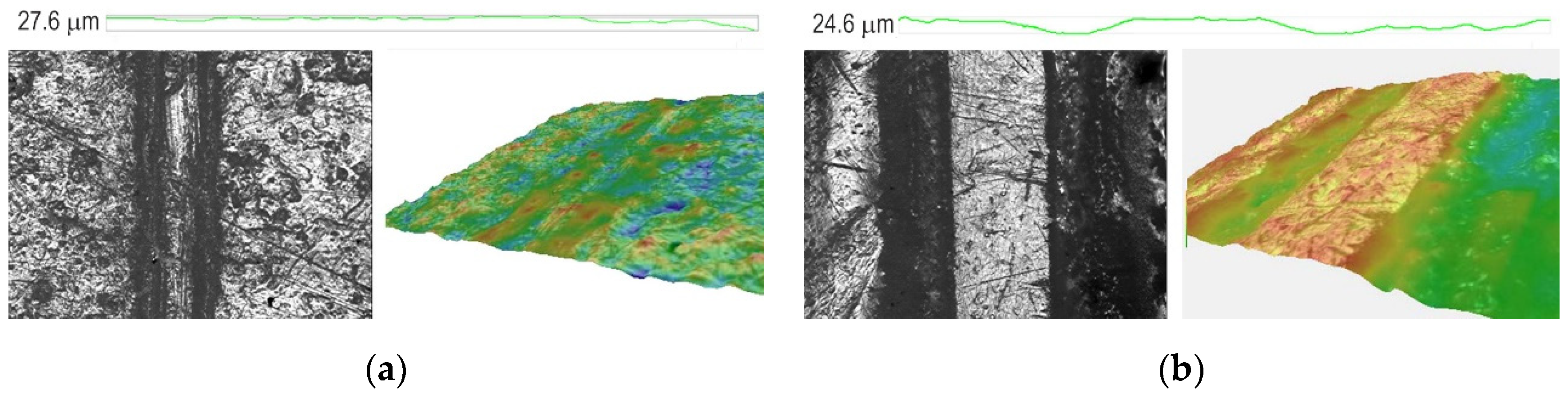

In this research a biodegradable blend of poly(ɛ-caprolactone) (PCL) and poly(lactic acid) (PLA) is proposed as a new material for the production of a relief printing plate used for special applications on packaging materials, i.e., the embossing process. Coconut fibers (CFs) were added as a natural filler to PCL/PLA blends to improve the functional properties of the prepared blends. Thermal, mechanical and surface analyses were performed on the unaged and artificially aged blends. The results showed that CF has been proven to optimize the hardness of the blend, which is crucial for the production of relief plate for embossing applications. The lowest hardness was measured on neat PCL (53.30° Sh D) and the highest value on PCL/PLA/CF 70/30/3.0 blend (60.13° Sh D). Stronger interfacial interactions were present at the PLA/CF interface because the interfacial free energy is closer to zero and the work of adhesion and spreading coefficient are higher than for the PCL/CF interface. The results of thermal analysis of unaged and aged blends showed that ageing for 3 weeks resulted in significantly lower thermal stability, especially for neat PCL and PCL/PLA 80/20 blends. Blends with a higher content of PLA and CF showed a slightly increased ageing resistance, which is attributed to the increased crystallinity of PLA after ageing due to the addition of CF showed in the DSC diagrams. View Full-Text
Keywords: poly(ɛ-caprolactone); poly(lactic acid); coconut fibers; blends; printing plate; embossing process poly(ɛ-caprolactone); poly(lactic acid); coconut fibers; blends; printing plate; embossing process
Show Figures

Graphical abstract

MDPI and ACS Style

Priselac, D.; Mahović Poljaček, S.; Tomašegović, T.; Leskovac, M. Blends Based on Poly(ε-Caprolactone) with Addition of Poly(Lactic Acid) and Coconut Fibers: Thermal Analysis, Ageing Behavior and Application for Embossing Process. Polymers 2022, 14, 1792. https://doi.org/10.3390/polym14091792

AMA Style

Priselac D, Mahović Poljaček S, Tomašegović T, Leskovac M. Blends Based on Poly(ε-Caprolactone) with Addition of Poly(Lactic Acid) and Coconut Fibers: Thermal Analysis, Ageing Behavior and Application for Embossing Process. Polymers. 2022; 14(9):1792. https://doi.org/10.3390/polym14091792

Chicago/Turabian Style

Priselac, Dino, Sanja Mahović Poljaček, Tamara Tomašegović, and Mirela Leskovac. 2022. "Blends Based on Poly(ε-Caprolactone) with Addition of Poly(Lactic Acid) and Coconut Fibers: Thermal Analysis, Ageing Behavior and Application for Embossing Process" Polymers 14, no. 9: 1792. https://doi.org/10.3390/polym14091792

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
