Dried Brown Seaweed’s Phytoremediation Potential for Methylene Blue Dye Removal from Aquatic Environments

Abdallah Tageldein Mansour
Ahmed E. Alprol
Khamael M. Abualnaja
Hossam S. El-Beltagi
Khaled M. A. Ramadan
7,8 and
Mohamed Ashour
Animal and Fish Production Department, College of Agricultural and Food Sciences, King Faisal University, P.O. Box 420, Al-Ahsa 31982, Saudi Arabia
Fish and Animal Production Department, Faculty of Agriculture (Saba Basha), Alexandria University, Alexandria 21531, Egypt
National Institute of Oceanography and Fisheries (NIOF), Cairo 11516, Egypt
Department of Chemistry, College of Science, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
Agricultural Biotechnology Department, College of Agriculture and Food Sciences, King Faisal University, P.O. Box 420, Al-Ahsa 31982, Saudi Arabia
Biochemistry Department, Faculty of Agriculture, Cairo University, Giza 12613, Egypt
Central Laboratories, Department of Chemistry, King Faisal University, P.O. Box 420, Al-Ahsa 31982, Saudi Arabia
Department of Biochemistry, Faculty of Agriculture, Ain Shams University, Cairo 11566, Egypt
Authors to whom correspondence should be addressed.
Polymers 2022, 14(7), 1375;
Submission received: 20 February 2022 / Revised: 22 March 2022 / Accepted: 23 March 2022 / Published: 28 March 2022
(This article belongs to the Special Issue Novel Wastewater Treatment Applications Using Polymeric Materials)


The dried form of the brown seaweed Sargassum latifolium was tested for its ability to remove toxic Methylene Blue Dye (MBD) ions from aqueous synthetic solutions and industrial wastewater effluents. In a batch adsorption experiment, different initial concentrations of MBD (5, 10, 20, 30, and 40 mg L−1), sorbent dosages (0.025, 0.05, 0.1, 0.2, 0.3, 0.4, and 0.5 g L−1), contact time (5, 10, 15, 30, 60, 120 min), pH (3, 5, 8, 10, and 12), and temperature (30, 40, 50, 60 °C) were observed. Dried powder of S. latifolium was characterized before and after adsorption of MBD using different techniques, such as FTIR, SEM, UV visible spectral examination, and BET techniques. The BET surface area suggests the formation of S. latifolium was 111.65 m2 g−1, and the average pore size was 2.19 nm. The obtained results showed that at an MBD concentration of 40 mg L−1, the adsorption was rapid in the first 5, 10, and 15 min of contact time, and an equilibrium was reached in about 60 and 120 min for the adsorption. At the optimum temperature of 30 °C and the adsorbent dose of 0.1 g L−1, approximately 94.88% of MBD were removed. To find the best-fit isotherm model, the error function equations are applied to the isotherm model findings. Both Tempkin and Freundlich isotherm models could appropriate the equilibrium data, as well as the pseudo 2nd order kinetics model due to high correlation coefficients (R2). Thermodynamic and Freundlich model parameters were assessed and showed that the mechanism of the sorption process occurs by an endothermic and physical process. According to the results of the experiments, S. latifolium is a promising environmentally friendly approach for eliminating MBD from the aqueous solution that is also cost-effective. This technology could be useful in addressing the rising demand for adsorbents employed in environmental protection processes.

1. Introduction

A pollutant is a substance that changes the environment’s nature through chemical, biological, or physical mechanisms, resulting in contamination of water, soil, and/or air [1]. Several synthetic dyes are primary sources of high effluent pollutants produced as a result of industrial pollution [2]. Textile effluents are considered one of the most environmentally harmful pollutants due to their massive discharge volume and verity in composition, as well as the high volumes of poisonous dye that are lost through the dyeing operation [3]. Several industries, including paper, dyeing, pulp, textiles, paint, and industrial effluent, have produced over 8000 dyes, both insoluble and soluble [1]. Because of their carcinogenic and mutagenic properties, these poisonous dyes pose a threat to human health [4,5,6]. Furthermore, these toxic dyes have had devastating effects on aquatic ecosystems, as well as a significant impact on the distributions and compositions of aquatic animals, zooplanktonic, and phytoplanktonic organisms [7,8,9,10,11]. The dyes alter the characteristics of water and prevent sunlight from penetrating, decreasing photosynthetic activity [2,12,13]. With the harmful effects of several toxic dyes on ecosystem components, it is necessary to find appropriate and effective substances to eliminate these toxic dyes from industrial waste. Despite there being various physical, chemical, and biological processes available for the elimination of these toxic dyes, their efficiency still needs improvement [14,15,16,17]. Globally, the annual production of a large assortment of these toxic dyes is estimated at 1.6 million tons [18].
As a result, the developed techniques that are capable of eliminating dyes that have not adhered to tissue fibers over the process procedures and are emitted along with the effluents of such industries are a constant concern [19,20,21,22]. The chemical stability of synthetic textile dyes makes existing wastewater treatment technologies incapable of the treatment of effluents that contain these contaminants [23]. Adsorption methods have high adequacy in industrial wastewater treatment, owing to their significant capacity for eliminating organic matter and low cost [24,25,26,27]. Methylene blue dye (MBD) is one of the most extensively used industrial dyes, especially in the textile industry. C16H18N3SCl is the formula for MBD, a heterocyclic chemical molecule [28]. MBD appears as a dark green powder at room temperature and as a blue hue in the water [29]. MBD was first produced in 1876 as an aniline-based synthetic dye to stain cotton for the textile industry [30]. The maximum absorption of MBD was at around 665 nm [18]. Flocculation [31], coagulation [32], photocatalysis chemical precipitation [33,34], chemical oxidation [35], and ion exchange [36] are some of the treatment procedures used to remove organic pollutants from wastewater effluents.
Adsorbent refers to either adsorption or absorption and is currently one of the most widely used adsorbents. The amalgamation of a material into another material of an unlike condition is known as absorption (liquids are absorbed by gases or/and a solid is absorbed via a liquid). However, the adsorption process is a physical attachment of molecules and ions to another molecule’s surface. Sorption has several advantages, including efficiency, simplicity of operation, regeneration of the adsorbents, and processing [37]. Other advantages of the adsorption process, such as the potential for cost-effective adsorbent regeneration and less sludge generation, making it one of the most important treatment methods for water-intensive sectors like textiles and paints. The efficacy of the adsorption techniques for textile and dye wastewater treatment has been demonstrated through extensive previous work [38,39,40].
Numerous microorganisms’ biomass, for example, fungi, yeast, microalgae, seaweed, and bacteria, have been used as biological, sustainable, and low-cost efficient adsorption materials for the absorption of hazardous dyes, according to the literature [41,42,43,44,45,46]. Among all microorganisms, algal cells are the most promising, sustainable, and low-cost biomaterials for adsorptions [47]. In general, aquatic organisms are the richest sources of biologically active compounds on the planet [48,49,50]. However, amongst all aquatic organisms, algal cells are the richest sources of biomolecules, making algae a vital player in a variety of bioindustries [51,52,53,54,55,56]. Depending on the algal strain, algal cells contain proteins (EAAs), lipids (PUFA, AA, EPA, and DHA), and carbohydrates (polysaccharides, etc.) [57]. However, algal cells’ adsorption ability is linked to the cell wall’s heteropolysaccharide and lipid molecules, which contain several functional groups, for example, phosphate, carboxyl, amino, carbonyl, and hydroxyl groups [46].
Sargassum species are brown macroalgae (seaweed) found in shallow marine meadows in the tropical and subtropical regions. These are a good source of vitamins, carotenoids, dietary fibers, proteins, and minerals, as well as other bioactive components. Biologically active substances such as terpenoids, flavonoids, sterols, sulfated polysaccharides, polyphenols, sargaquinoic acids, sargachromenol, and pheophytine have also been identified in various Sargassum species. [58].
This work aimed to investigate the efficacy of the brown seaweed, Sargassum latifolium, as a suggested MBD removal substance. This dye is globally utilized in textile effluents. Characterizations of materials and understanding of the mechanisms comprised in the sorption process of dyes through the identification of functional groups were determined using different characterization techniques (SEM, FTIR, BET, and UV visible). The parameters (pH, contact time, sorbent dose, temperature, and initial MBD concentration) controlling the sorption process were examined. Moreover, equilibrium and kinetics studies were conducted using adsorption experiments. The experimental data have been used to adjust the Langmuir, Freundlich, Smith Halsey, Henderson, Tempkin, and Harkins–Jura models.

2. Materials and Methods

2.1. Brown Seaweeds (Sargassum latifolium)

Brown seaweed, S. latifolium, samples were collected in May 2021 from the intertidal zone of Suez Bay, Red Sea, Egypt. To remove salts and particle materials adhering to the surface, samples were first washed with seawater, then transferred to the laboratory and cleaned with tap water, followed by deionized water [59]. After sample cleaning, S. latifolium was sun-dried, and the obtained biomass were powdered using a grinder, sieved to gain a uniform particle size, and stored in plastic bags until further use. Approximately one gram of the brown algae powder was soaked in 100 mL of deionized water and boiled at 45 °C for 1 h to obtain the extract.

2.2. Methylene Blue Dye (MBD)

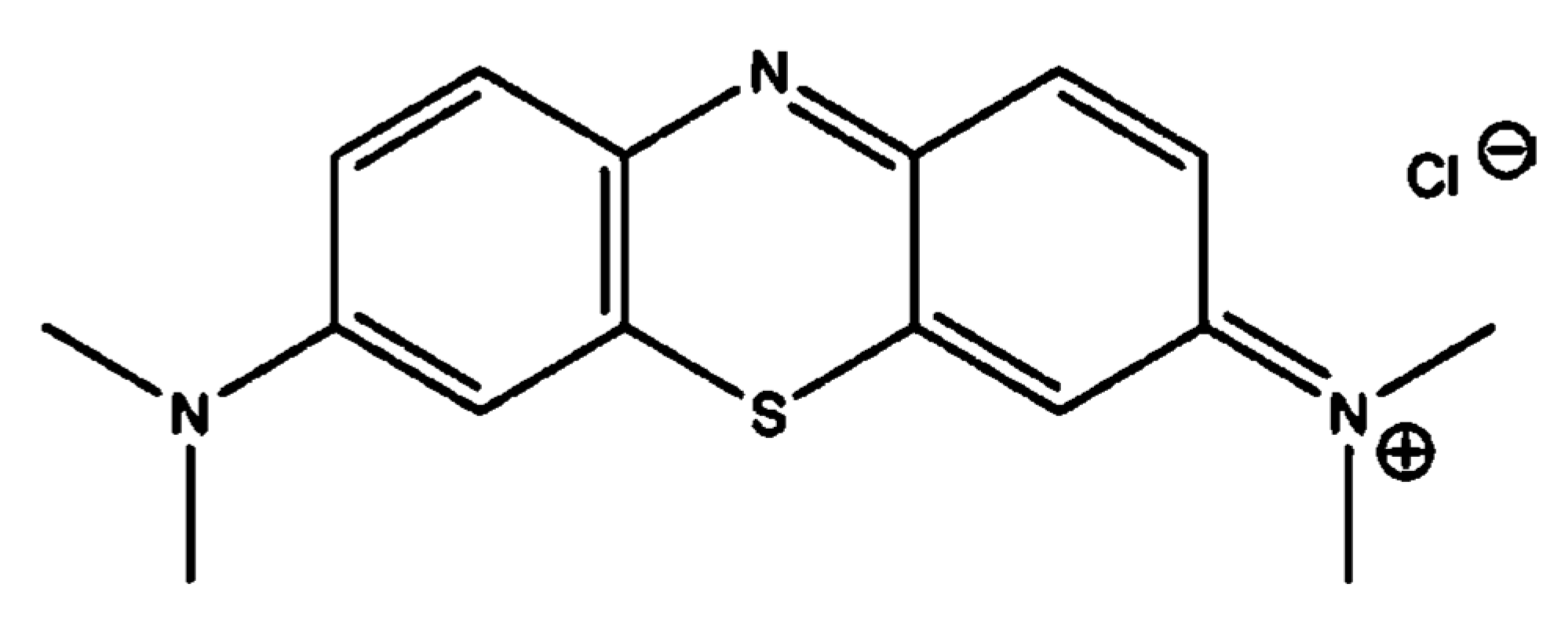

The solid form of the studied dye (MBD) was obtained from Sigma-Aldrich (Milano, Italy). MBD (Figure 1) is a cationic dye with the chemical formula C16H18N3SCl, molar mass of 319.85 g mol−1, and a maximum wavelength of 665 nm [60]. MBD has a positively charged S atom and is highly water soluble at 293 °K. The stock solutions of MBD were made via dissolving one gram of MBD in one liter of distilled water.

2.3. Adsorption Experimentation

The seaweed, S. latifolium, was utilized as a low-cost adsorbent in this investigation to remove MBD from a synthetic aqueous solution. In distilled water, dried powdered S. latifolium was suspended and then exposed to a vortex (Dremel, 1100-01, São Paulo, Brazil) at 10,000 rpm for 20 min [47]. Using batch ion exchange, the experiments were carried out in flasks (100 mL of distilled water, three replicates of each treatment) in a constant shaker (120 rpm) under different initial MBD concentrations (5, 10, 20, 30, and 40 mg L−1), adsorbent doses of S. latifolium (0.025, 0.05, 0.1, 0.2, 0.3, 0.4, and 0.5 g L−1), different contact times (5, 10, 15, 30, 60, and 120 min), temperature (30, 40, 50, and 60 °C), and pH (3, 5, 8, 10, and 12). The adsorption capacity (qe) and MBD elimination percentage were calculated using Equations (1) and (2), as follows [61]:
q e = ( C i C f ) × V W
Percentage   removal   ( % ) = ( C i C f ) C i × 100
where Ci and Cf (mg L−1): the early concentration at the primary contact time in addition to, the final concentration of MBD at a definite time, respectively, the volume of the MBD mixture (L) is represented by V, while the weight of the dry adsorbent is represented by W (g).

2.4. Adsorption Isotherm Studies

The amount of MBD removed from aqueous solutions is highly dependent on the initial MBD concentrations. To measure the isotherm study, various MBD concentrations (5 to 40 mg L−1) were examined at constant factors of 0.01 g of S. latifolium adsorbents, pH 6, 30 °C, and at 150 rpm, 120 min, and mixed with 50 mL of MBD solution [62]. The data were fitted and calculated in terms of the isotherm models of Freundlich, Langmuir, Henderson, Halsey, Harkins–Jura, Smith, and Tempkin.

2.4.1. The Freundlich Model

By plotting a curve of log qe with relation to log Ce, the efficiency of the Freundlich model to describe the experimental data was used to produce a slope of n and an intercept value of Kf. By plotting the Freundlich model in logarithmic form, it is easy to linearize [63]:
log qe = log Kf + 1/n log Ce
Freundlich parameters Kf and n were calculated from the isotherm equation by Equation (3).

2.4.2. The Langmuir Model

The model of Langmuir predicts uniform adsorption energies of a solute from a liquid solution onto a surface with a finite number of equal sites as monolayer adsorption with no adsorbate movement in the surface plane [64]. To estimate the highest adsorption capacity similar to complete monolayer adsorption on the sorbent surface, the Langmuir isotherm model was used. The mathematical expression represents the Langmuir model as the following equation [65]:
qe = qmax bCe/(1 + bCe)
where qmax (mg g−1) considers the highest sorption capacity in proportion to the saturation capacity, and b (L mg−1) shows a coefficient relating to the affinity between S. latifolium and dye ions. The values of qmax and b calculated from the intercept and slope, respectively, by plotting curve (1/qe) vs. (1/Ce) yields the following linear relationship:
1/qe = 1/(bqmax Ce) + 1/qmax

2.4.3. The Henderson and Halsey Isotherm Models

These models are suitable for heterosporous solids and the multilayer sorption technique [66,67]. These models were calculated using the following equations:
Ln   q e = 1 n Ln   K + 1 n   Ln   C e
where: n and K are Halsey constants. Meanwhile, the Henderson model was obtained from the following equation:
Ln [ nLn ( 1 nC e ) ] = LnK + ( 1 n ) Lnq e
while: the Henderson constants are nh and Kh.

2.4.4. The Harkins–Jura Model

This model explains multilayer sorption and the presence of heterogeneous pore scattering in a sorbent [68]. This model was obtained from the following equation:
1 q e 2 = ( B 2 A ) ( 1 A ) log C e
where: the isotherm constants are A and B.

2.4.5. The Smith Model

For heteroporous solids and multilayer adsorption, the Smith model is acceptable. This model is usually obtained from the following equation:
qe = WbS − WS Ln (1 − Ce)
where: the Smith model parameters are Wbs and Ws.

2.4.6. The Tempkin Model

The Tempkin isotherm model assumes that owing to adsorbate–adsorbent interactions, a uniform distribution of binding energies up to greater binding energies characterizes the sorption process, and the heat of adsorption of each particle in the layer decreases with saturation [69,70]. The following equation was used to calculate the Tempkin model:
qe = B Ln A + B Ln Ce
where: A is the equilibrium binding constant (L g−1), b (J mol−1) is a constant that corresponds to the heat of sorption, and B = (RT/b) (J mol−1) is the Tempkin constant, which is connected to the heat of adsorption and the gas constant (R = 8.314 J mol−1 K−1).

2.5. Error Functions Tests

Various error functions were examined to find the best and most fitting model for analyzing the equilibrium data. The following models were used for the error function test [40,71].

2.5.1. Fractional Error Hybrid (HYBRID)

Because it adjusts for small concentrations by balancing absolute deviation versus fractional error and is more dependable than other error functions, the hybrid fractional error function is used. The following equation represents the hybrid error (11).
HYBRID = 100 N P | q e , exp q e , calc q e , exp | i
where: the qe,exp and qe,calc denote the experimental and the calculated data (mg g−1), in addition to N is the number of parameters of the isotherm equation, and P the number of data points.

2.5.2. Average Percentage Error (APE)

The ABE model shows a tendency or appropriateness among the predicted and experimental values of the sorption capacity used for plotting model curves (APE) and can be designed consistent with the following equation:
APE ( % ) = 100 N i = 1 N | q e , isotherm q e , calc q e , isotherm | i
The number of data points under investigation is denoted by the letter N.

2.5.3. Nonlinear Chi-Square Analysis (χ2)

The nonlinear chi-square experiment is a statistical factor for evaluating which treatment system is best. The approach of the chi-square error, χ2, and model is assumed as the following equation:
χ 2 = ( q e , isotherm q e , calc ) 2 q e , isotherm

2.5.4. Sum Squares of the Errors (ERRSQ)

The following Equation (14) gives the sum of the squares of the errors (ERRSQ) [72].
ERRSQ = i = 1 P ( q e , calc q e , isotherm ) i 2

2.5.5. Sum of Absolute Errors (EABS)

An increase in errors increases the fit, resulting in a bias toward high concentration data. EABS examinations can be evaluated [73] using the following equation:
EABS = i = 1 P | q e , calc q e , isotherm |
where P is the number of data points.

2.6. Adsorption Kinetics Studies

2.6.1. Pseudo-First-Order (PFO)

The model equation of the generalized pseudo-first-order equation is given by the following equation [74].
Dq/dt = K1 (qe − qt)
where qe represents the quantity of dye adsorbed at equilibrium (mg g−1), qt represents the number of dyes adsorbed at time t (mg g−1), and K1 represents a pseudo-first-order rate constant (min−1). The integrating equation was assessed [75] as follows:
Log (qe/qe − qt) = k1t/2.303
In a linear equation, the PFO equation is given by the formula:
Log (qe − qt) = log qe − k1t/2.303
Log(qe − qt) against (t) plots should show a linear relationship between k1 and qe, as measured by the slope and intercept, respectively.

2.6.2. Pseudo-Second-Order (PSO)

The PSO equation is expressed as follows [76].
dqt/dt = K2(qe − qt)2
where: K2 indicates the constant of the second-order rate (g mg−1 min). The integrated equation is presented as follows:
1/(qe − qt) = 1/qe + K2
Following Ho et al. [76] and the following linear form of the pseudo-second-order equation:
t/qt = 1/K2 qe2 + t/qe
Plotting (t/qt) versus (t) would yield a linear relationship, and the values of (t/qt) would be the values of the qe from the slope and intercept can be used to calculate the K2 parameters, respectively.

2.6.3. The Intraparticle Diffusion Model

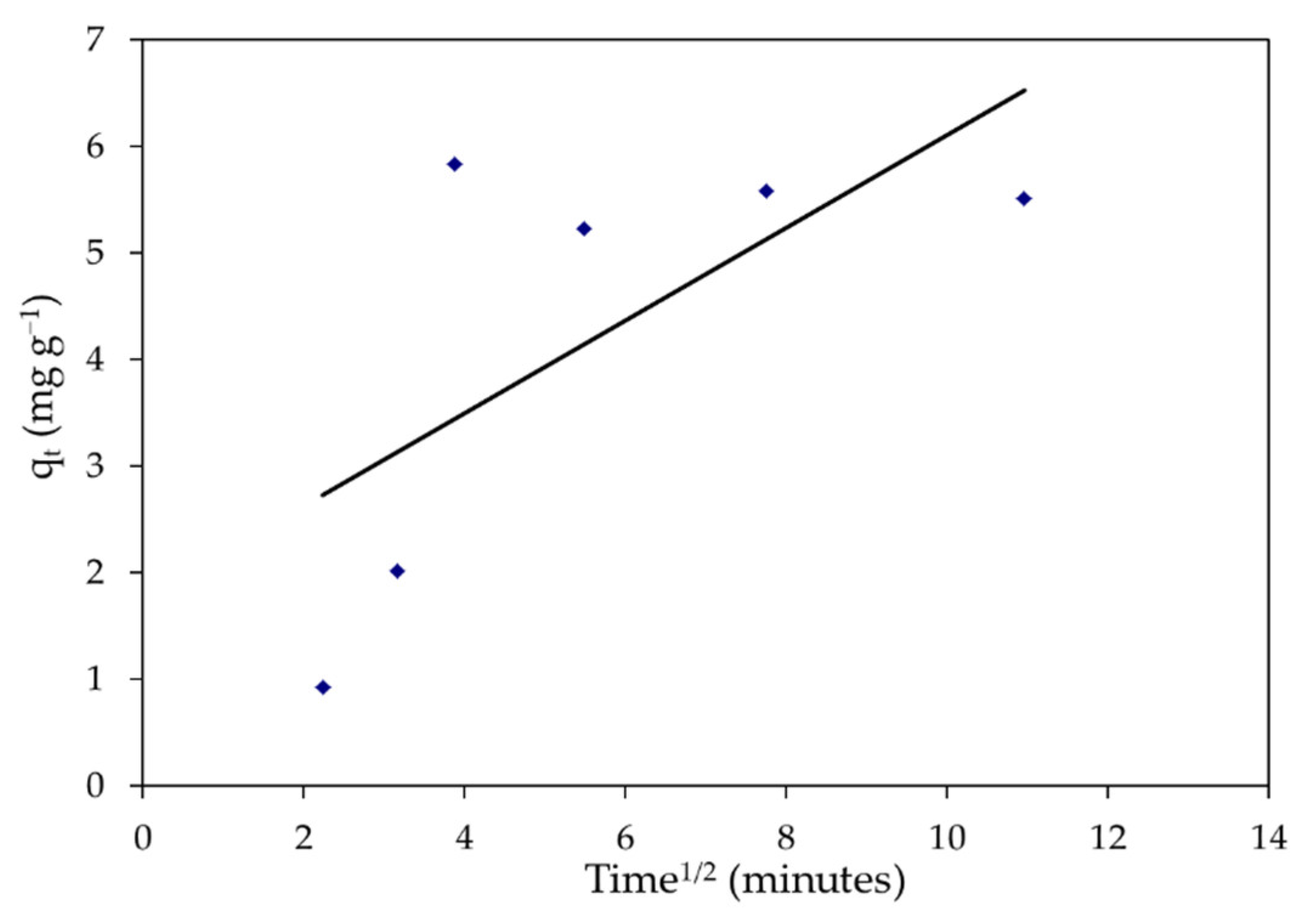

The following is the intraparticle diffusion equation [14]:
qt = Kdif t1/2 + C
where C denotes the intercept, and Kdif (mg g−1 min0.5) is the intraparticle diffusion rate constant, which is calculated using the regression lines of the slope.

2.7. Characterization of Adsorbents

The morphological characterization (before and after the experiment) of the adsorbent brown seaweed, S. latifolium, was performed via Scanning Electron Microscope, SEM (JEOL JSM 6360, Peabody, MA, USA), followed by Fourier transform infrared (Shimadzu FTIR-8400 S, Kyoto, Japan). A UV–vis spectrophotometer (UV-2550, Shimadzu, OSLO, Kyoto, Japan) was used to evaluate the absorption spectrum of S. latifolium marine algae extract in the range of 200–800 nm, with deionized water as a blank.

3. Results and Discussion

3.1. Characterizations

3.1.1. Functional Groups

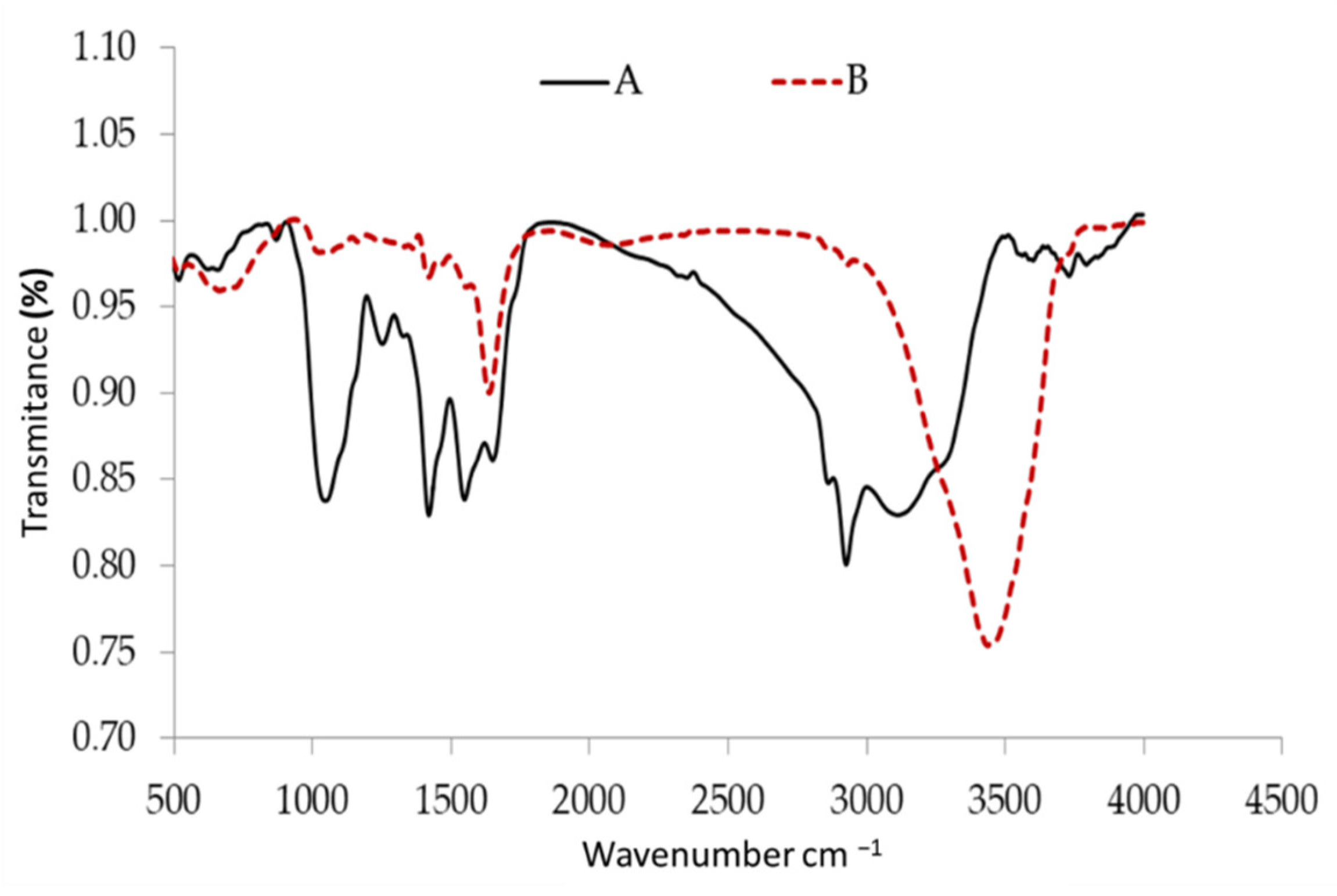

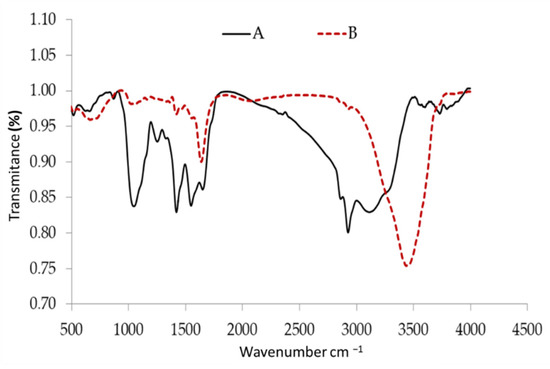

The infrared spectrum of biomass in nature is shown in Figure 2. The stretching of the extension vibrations of the –NH and O–H groups was attributed to the inter- and intermolecular hydrogen bonding of polymeric compounds such as phenols or alcohols, which resulted in large and intense peaks at 3112 and 3729 cm−1 [77]. Similarly, the band at 2925 cm−1 corresponds to methylene’s symmetric and asymmetric stretch (H-C-H), whereas the peaks at 1649 cm−1 are C=C stretches, which could be owing to the presence of aromatic, olefinic, or N-H bending bands.
Only dye saturated biomass showed a peak, as the 1547 cm−1 band, indicating the presence of C=N and C=C stretch and the typical absorptions. Stretching of the sp3 C-H bond is responsible for the band at 1419 cm−1. The C-O stretching of acyl or phenol is related to the sharp peak at 1251 cm−1. The absorption band of the –OH and –NH groups at 3733 cm−1 changed to 3436 cm−1 after interaction with MBD adsorption, as shown in Figure 2. The C–H stretching vibrations of sp3 hybridized C in CH3 and CH2 functional groups is assigned to another peak with a shoulder at 2937 cm−1 and 2939 cm−1 [78]. CH3 bending and C–H stretching vibrations are responsible for the other absorption peaks, which occurred at 1419, 1467 cm−1, and 1361 cm−1, respectively. Algal cells have many functional groups on their surfaces, such as phosphate, hydroxyl, amino, and carboxylate, which are responsible for removing pollutants from various wastewaters. The accumulation of dye ions on the biopolymers of the algal surface, followed by dye migration from the aqueous phase to the biopolymer solid phase, could be the source of dye removal using algae [79].

3.1.2. Surface Morphology

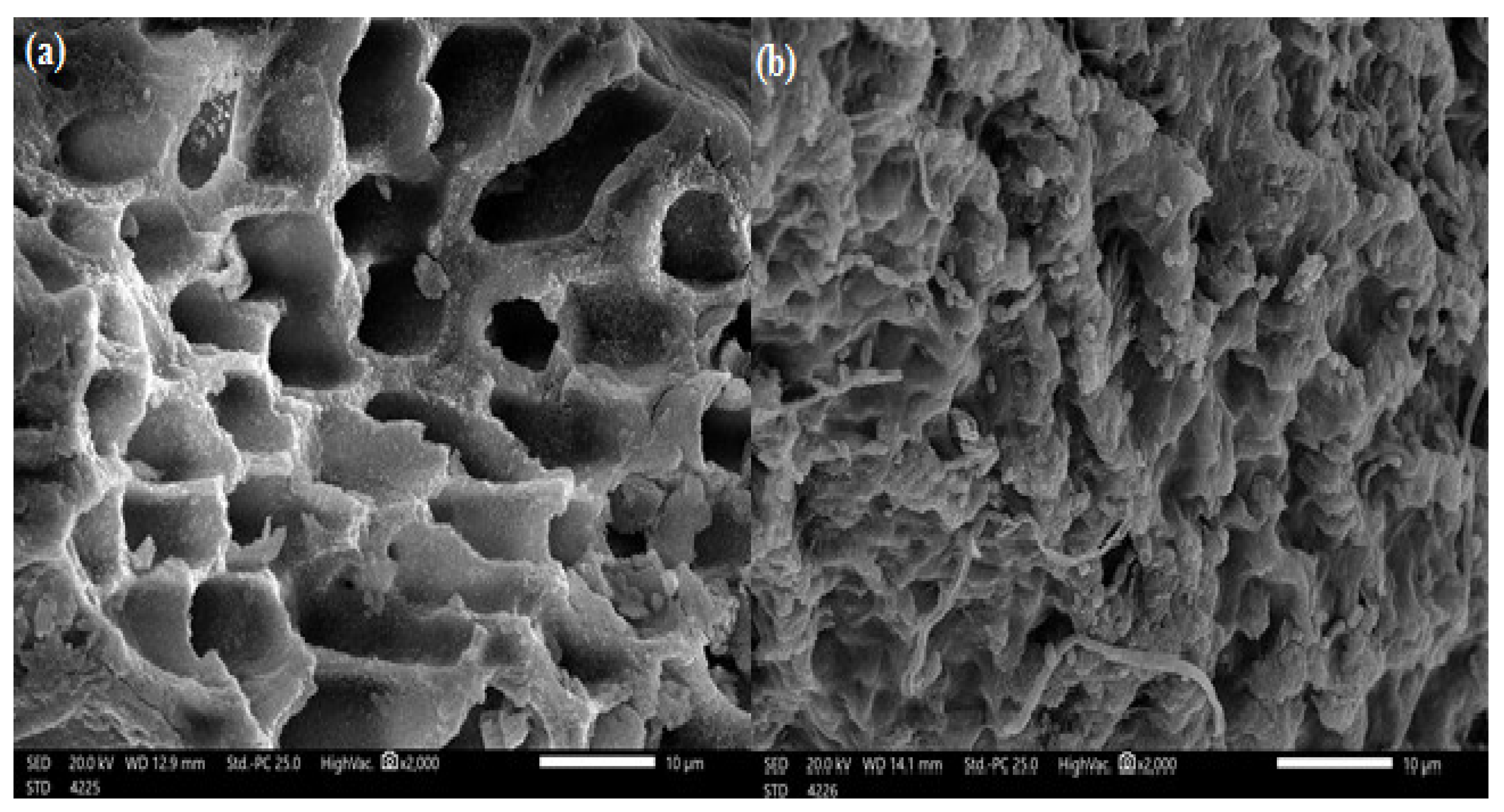

SEM analysis of algal cells showed the surface shape of the adsorbents before and after MBD adsorption. Figure 3 presents SEM pictures of S. latifolium before and after dye uptake at 2000 magnifications as an example. Figure 3a shows that the adsorbent has a uniform porosity structure and that salt crystals are present on the biosorbent’s outside because of natural mineral deposition. There are also spots related to crystalline salts and the irregularity of the algal cell surface. The cross-linked micropores on the adsorbent surface may enhance the efficient uptake of the liquid electrolyte and improve the adsorbent’s ionic conductivity. In Figure 3b there are significant changes to the surface morphology of the adsorbents, as well as the formation of separate aggregates on their surfaces following MBD adsorption. In addition, after contact with MBD, the porous texture was filled and vanished. Interaction with MBD changed the surface texture of the algal cell surface from smooth to rough and irregular. Meanwhile, tiny swellings were observed after contact with MBD.

3.1.3. UV—Visible Spectral Examination

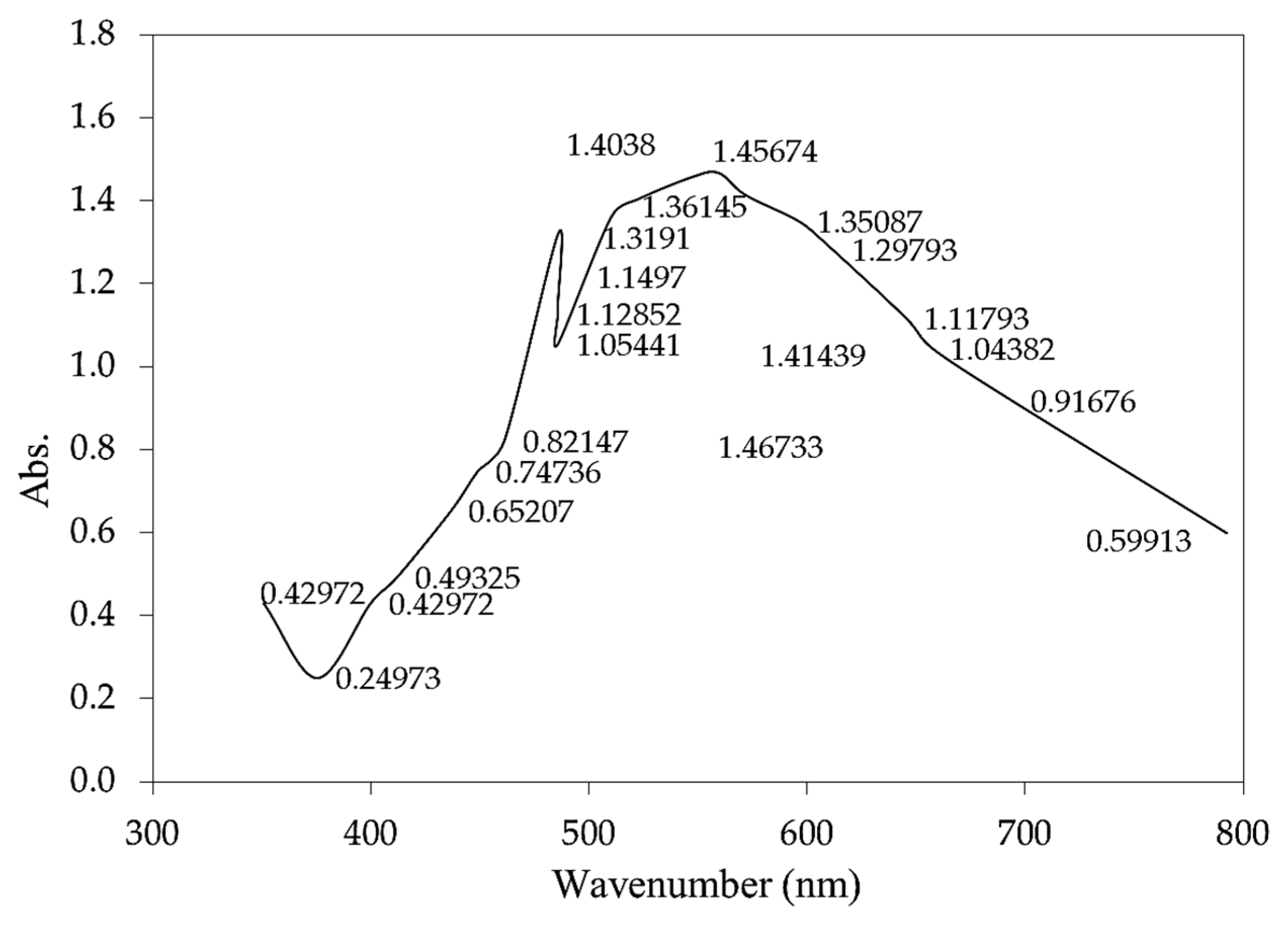

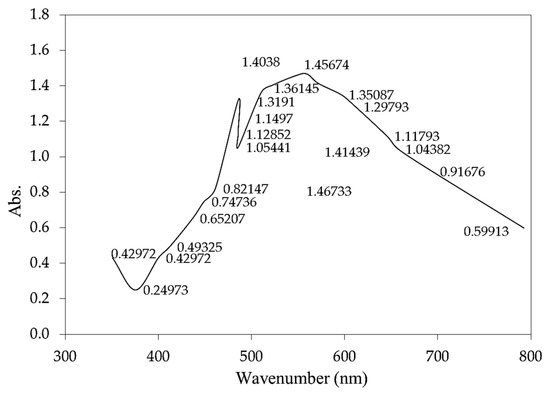

Spectral analysis in the ultraviolet (UV) ranges according to the sharpness of the peaks, the UV-VIS spectrum summary of S. latifolium extract was chosen between 200 and 800 nm, as shown in Figure 4. Flavonoids and their derivatives have unique absorption spectra. The spectral bands of flavonoids are typically absorption spectra with maximal values in the range of 300–360 nm [80]. The absorption maximum bands for anthocyanins are at 460–560 nm, while flavones and flavonols are around 310–370 nm, as seen in peaks (350, 375, 399, 461,485, 547, and 559 nm) [81,82]. Furthermore, the profile revealed that the compounds were separated at 608, 657, and 694 nm. The exact location and virtual intensities of these peaks provide a wealth of information about the flavonoids’ nature [83]. These peaks at 234–676 nm indicate the presence of phenolic and alkalidic chemicals in S. latifolium. The extract has some comparable alkaloid, flavonoids, and glycoside components when compared to the spectra of seeds and flowers [84,85]. The absorption spectra of S. latifolium seaweed extract revealed a broad absorbance range between 300 and 700 nm [86] with absorption maxima in the visible area of the solar spectrum at 412.5, 608, and 657 nm. The characteristic absorption of chlorophylls can be related to these absorption peaks [86,87].

3.1.4. BET Characterization

To investigate any changes in the porosity of the sample under investigation, the specific surface area and pore volumes of the adsorbent were investigated as presented in Table 1. The S. latifolium isotherm displays quick N2 uptake at low pressures (P/P0 0.01) and constant high adsorption with hysteresis at higher pressures. The surface area of the BET is estimated to be 111.65 m2/g. Because the pores operate as binding or receptor sites during the adsorption phase, this is critical for pollutant trapping. Additionally, the pore volume is 0.122 cc/g.

3.2. Study of Batch Adsorption Process

3.2.1. pH

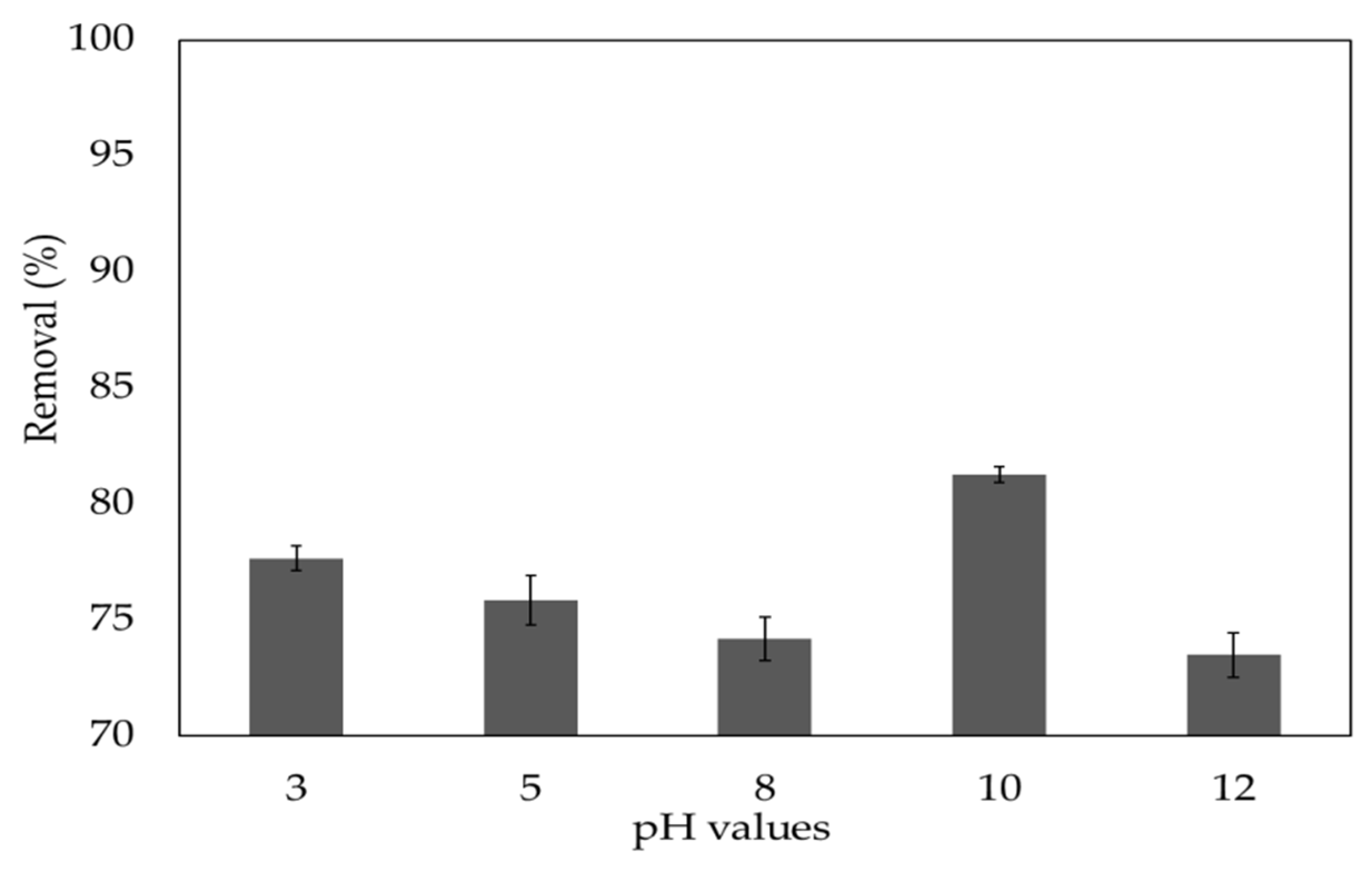

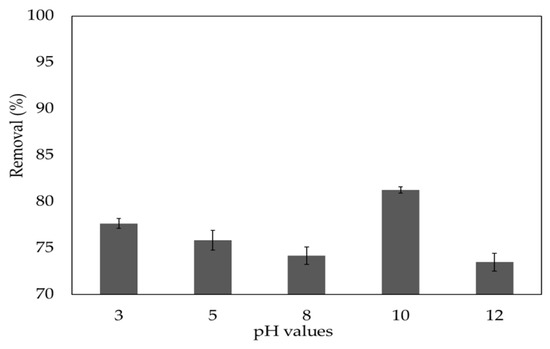

The pH value of the MBD solution has a significant effect on the adsorption mechanism because it affects both the adsorbent’s surface binding sites and the dye molecules’ ionization process. The net charge on the adsorbent is also pH-dependent since the adsorbent surface contains polymers with numerous unique functional groups such as phosphates, carboxyl, amino, and hydroxyl. In this work, the influence of pH was determined for pH values ranging from 3 to 12, as shown in Figure 5.
The S. latifolium can be employed in a wide pH range, and the rate of MBD removal increases as the pH value increases. When the pH was 10, the removal rate was 81.3%, demonstrating that the pH of the solution had an important influence on MBD adsorption. The presence of a positive charge on the nitrogen in the MB dye’s structure indicates that it is a basic and cationic dye. The surface charge on the adsorbent can be used to explain the influence of pH. However, the poor MBD adsorption has been seen at low pH values (pH 3), increasing the density of positive charge (protons) at surface biomass sites. The electrostatic repulsion that occurs between the MBD cations and the positive charges on the adsorbent’s surface explains this. The rate of negative surface charge of the biomass increases at a higher pH value (pH > 3), which electrostatically attracts cationic dyes [88], resulting in good MB adsorption on the surface of the adsorbent. Furthermore, the strong physical interactions (such as H-bonds) between both the adsorbate molecules (MBD) and various functional groups, namely hydroxyl, esters, alkynes, carbonyl, and carboxyl present in the phenols and flavonoids present in the noncellulosic cells of adsorbents of brown algal Sargassum, may describe the adsorption of MBD on S. latifolium.
The surface charge on the adsorbent, which is affected by the solution pH, is the most important factor in the adsorption of these positively charged dye groups on the surface of the adsorbent [89]. Methylene blue adsorption by dried Ulothrix sp. Biomass was examined by Doğar, et al. [90], who showed that the adsorption increased as the pH was increased.

3.2.2. MDB Concentration

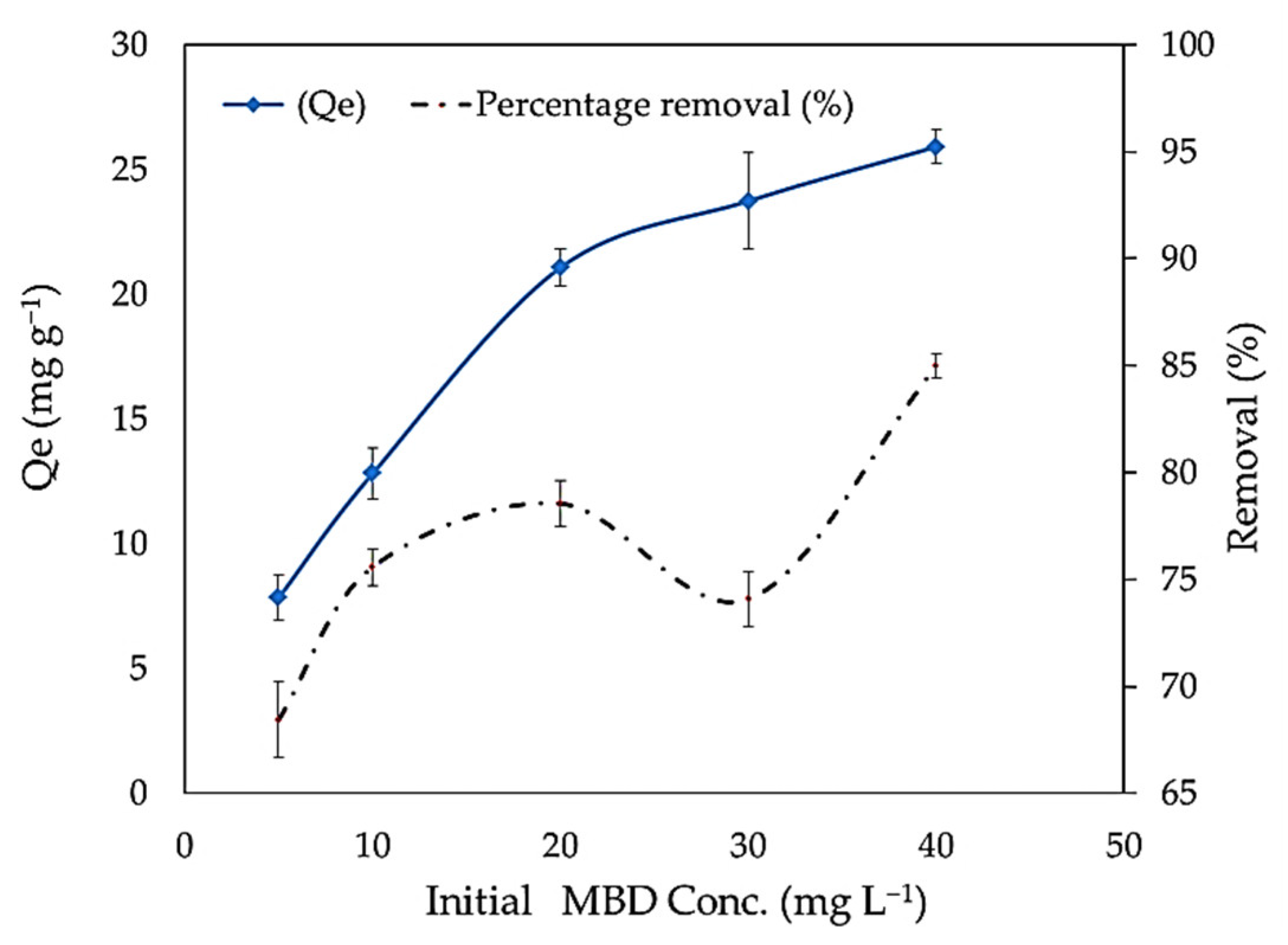

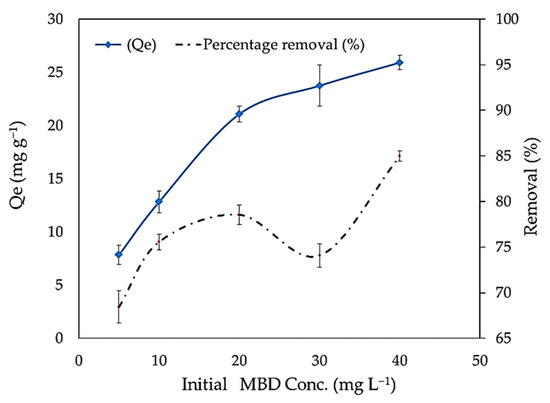

The initial dye concentration works as a forceful driving force, increasing the dye’s mass transfer resistance between the aqueous and solid phases to its limit. The effect of concentrations of MBD on the adsorption was studied at 5, 10, 20, 30, and 40 mg L−1 with the initial pH value of 10. Figure 6 shows the relationship between the percentage removals of MBD and adsorbent capacity (qe) and the equilibrium dye concentration in the liquid phase (Ce). When the MBD initial concentration is augmented from 5 to 40 mg L−1, the quantity of MBD adsorbed increases from 68.42% to 84.96%. In addition, the adsorption capacity is improved from 7.8 to 25.9 by increasing the initial dye concentration from 5 to 40 mg L−1 as shown in Figure 6. The total number of dye molecule collisions and macrophytes increases when the initial dye concentration is increased. As a result, increasing the initial dye concentration could accelerate the adsorption process [91]. Furthermore, it might be attributed to an increase in the driving force of the concentration gradient with the increase in the initial concentration [92]. This is in agreement with results reported by other studies [2].

3.2.3. Sorbent Loading

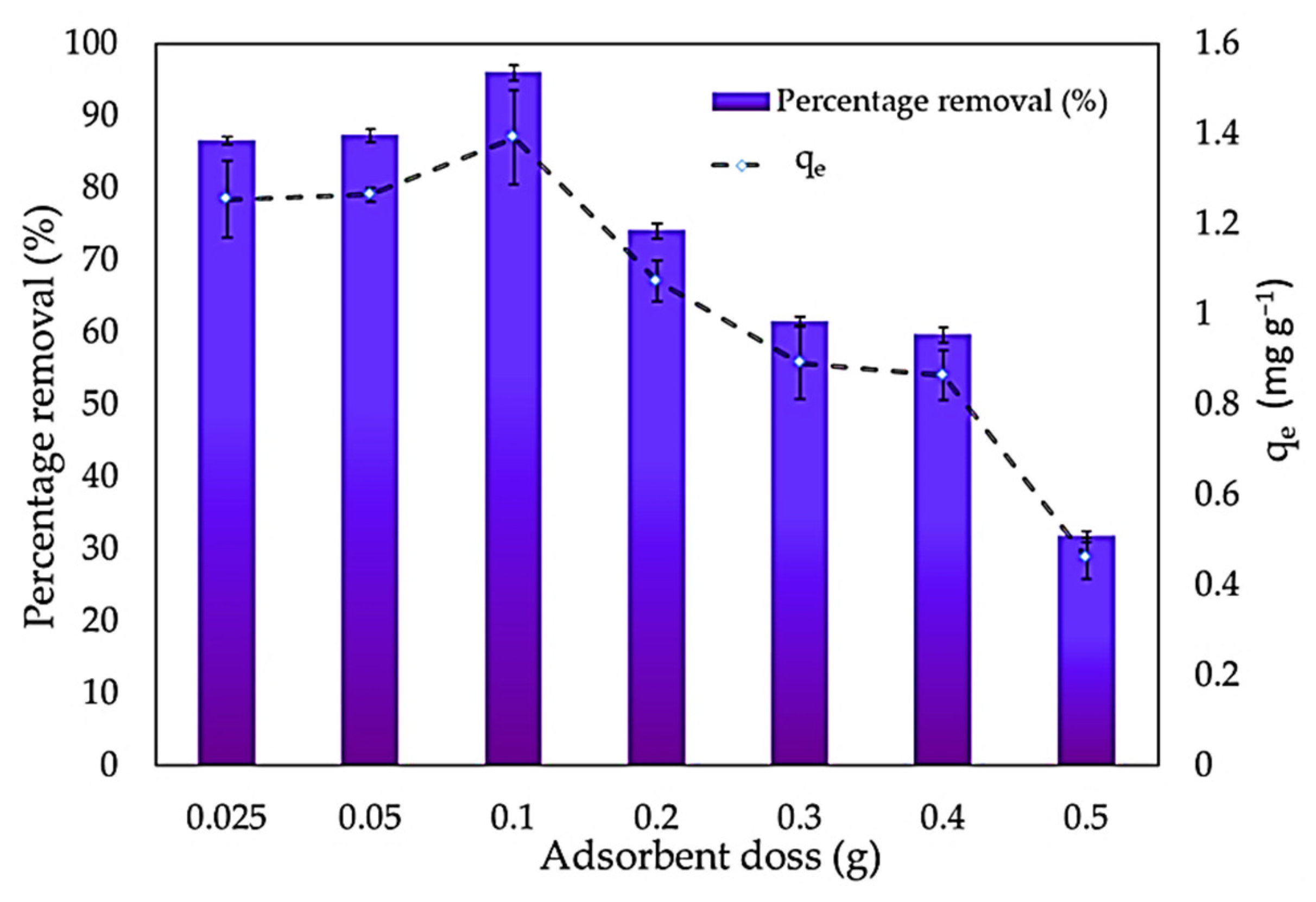

At an MBD concentration of 10 mg L−1, the impact of the adsorbent amount on methylene blue removal was examined. In the MBD solution, S. latifolium concentrations varying from 0.025 to 0.5 g L−1 were incorporated. Figure 7 shows that when the adsorbent loading was raised from 0.025 to 0.1 g, the elimination effectiveness increased from 86.53 to 95.97 percent, then dropped after this value. The availability of additional active adsorption sites, as well as an increase in the adsorptive surface area, is the key reason for this. Furthermore, adsorption onto the adsorbent surface happens very quickly at higher adsorbent dosages. The amounts of MBD adsorbed per unit weight of seaweed were lowered when the adsorbent loading was augmented from 0.2 to 0.5 g. Increased biomass loading may lead to a decrease in the removal percentage value due to the complicated interaction of numerous factors, for example, solute availability, binding site interference, and electrostatic interactions [93]. At higher adsorbent dosages, the available MBD molecules are inadequate to cover all of the exchangeable sites on the adsorbent, resulting in the limited dye uptake. Additionally, as adsorbent mass increases, the amount of dye adsorbed qe (mg g−1) decreases due to a split in the flow or concentration gradient between the solute concentration in the solution and solute concentration on the adsorbent surface [2].

3.2.4. Contact Time

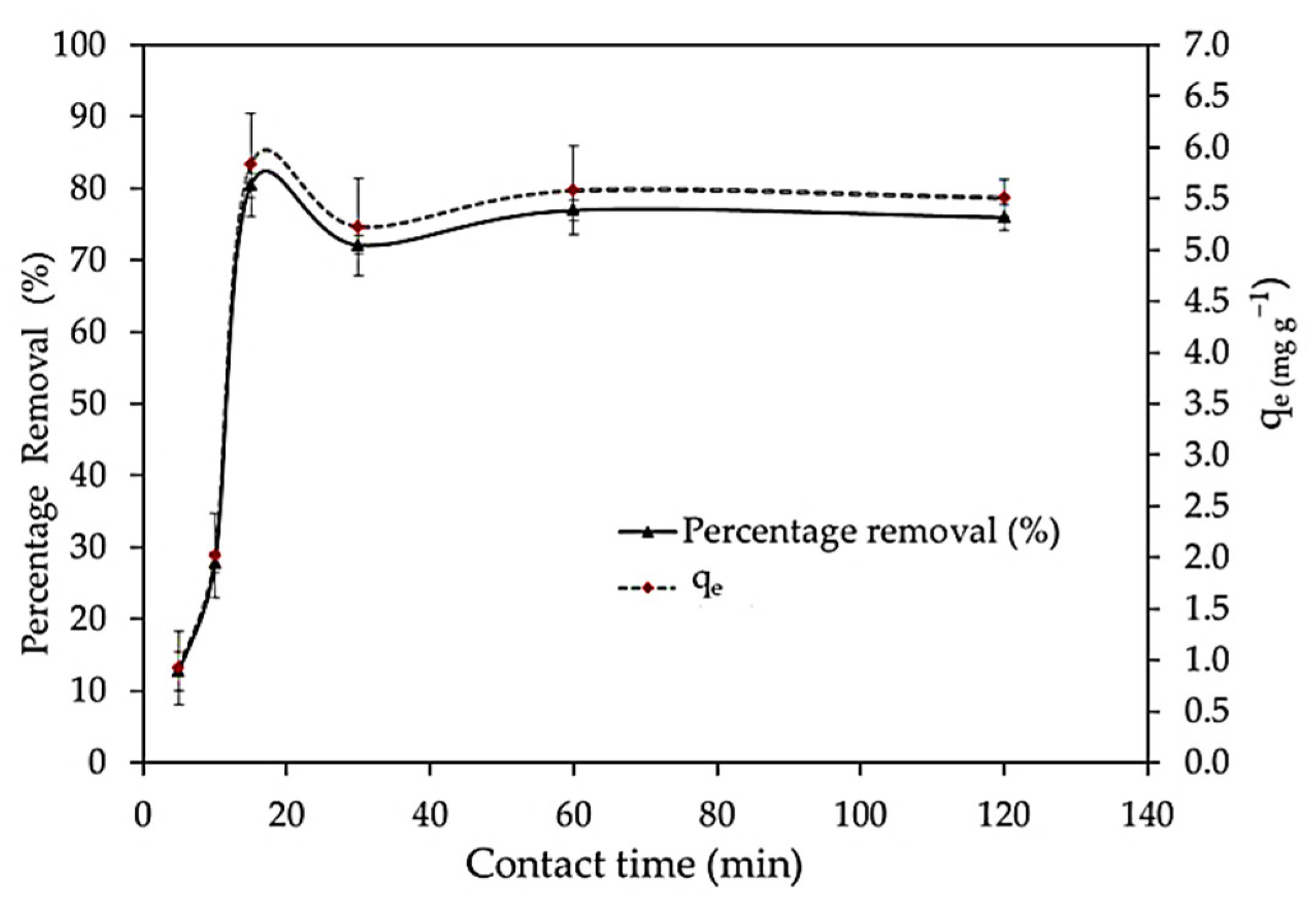

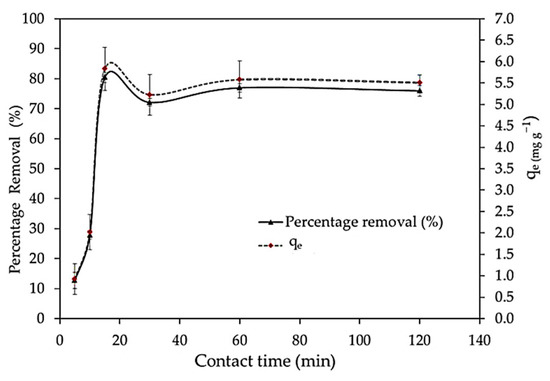

The equilibrium adsorption of S. latifolium was measured at various contact time intervals to investigate the influence of different contact times on adsorption. The percentage of elimination efficiency increases as contact time increases (Figure 8). The result showed that the percentage of removal efficiency increased from 12.7% to 80.43% with increasing the heating time from 5 to 15 min, then decreased to 76% after the first and the second hour of contact time (Figure 8).
The rapid adsorption at the initial contact time is due to the availability of the positively charged surface of the S. latifolium for the adsorption of MBD. Moreover, it is clear that MBD ions adsorption mainly consists of two stages, an initial rapid stage related to the instantaneous external surface adsorption of MBD ions with the more available reactive groups, which allows quick binding of ions on the biomass [94], whereas fast adsorption equilibrium was reached in the first 15 min. This could be due to the high specific surface area of the adsorbent particles and the absence of internal diffusion resistance at this stage [95]. As these sites became progressively covered, the rate of adsorption decreased. The second stage is much slower, with gradual adsorption levels taking place and lasting until adsorbate ions adsorption attains equilibrium, which is attributed to the diffusion of dye ions into the adsorbent layers for binding on the inner reactive groups, with the aid of hydrophilic and swelling characteristics of the adsorbent material. Therefore, the initial adsorption uptake rate is increased while the second step is slowed down [96]. Additionally, Khan et al. [97] reported that the transfer of the dye from the solution phase into the pores of the adsorbent is the rate-controlling stage in batch experiments under rapid stirring circumstances. Likewise, Sheen [98] found that adsorption was rapid in the first 5 min of contact with an uptake of more than 90%, and equilibrium was reached in 60 min of agitation time as the binding sites became exhausted. As the binding sites became exhausted, the uptake rate slowed due to metal ions competing for the decreasing availability of active sites. According to the test results, the rest of the batch experiment’s shaking period was set at 120 min to ensure that equilibrium was achieved. This quick (or rapid) adsorption phenomenon is advantageous in applications because the short contact time effectively allows for a smaller contact equipment size, which has a direct effect on both the capacity and operation cost of the process.

3.2.5. Temperature

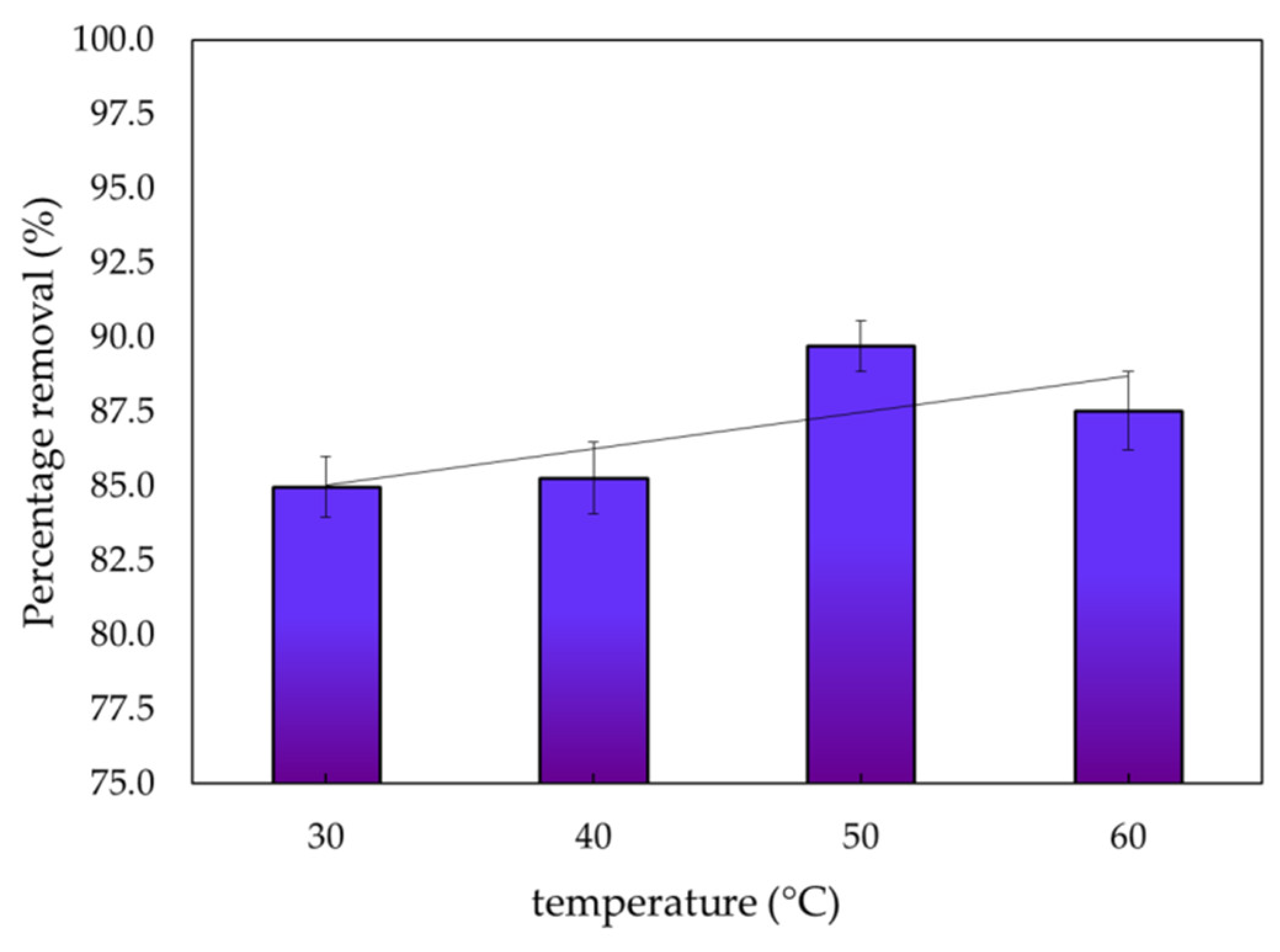

The equilibrium uptake of dye into the biomass of S. latifolium was also influenced by the temperature parameter (Figure 9). The uptake of MBD onto the dried biomass was found to be most effective at 50 °C, with a removal percentage of 89.71%. With a decrease in temperature, adsorption decreased. The viscosity of the dye-containing solution is reduced as the temperature rises, allowing more dye molecules to diffuse through the external boundary layer and into the internal pores of the adsorbent particles [99]. Temperature also has a major influence on dye degradation, first by directly changing the chemistry of the pollutant, and then by influencing its physiology.

3.3. Equilibrium Adsorption

Sorption equilibrium is reached when the concentration of solutes adsorbent onto matches the amount of associated development. When this happens, the equilibrium solution concentration remains constant. By graphing the concentration of the solid phase versus the concentration of the liquid phase, the equilibrium adsorption isotherm will be seen. The Freundlich, Langmuir, Harkins–Jura, Halsey, Henderson, Smith, and Tempkin models were used to analyze equilibrium data.

3.3.1. Freundlich Isotherm

The Freundlich adsorption isotherms with the correlation coefficient are shown in Figure 10 and Table 2.
The R2 (0.906) and 1/n (1.115) results indicate that adsorption isotherms and monolayer coverage on the adsorbent surface are applicable, based on the discovered linear relationships. The value of 1/n, also known as the heterogeneity factor, describes the deviation from sorption linearity as follows: if 1/n = 1, the adsorption is linear, and the dye particle concentration does not affect the division between the two stages. Chemical adsorption occurs when 1/n is less than 1, whereas cooperative adsorption occurs when 1/n is more than 1, which is more physically favorable and involves strong contacts between the adsorbate particles [100]. In this study, the values of factor “1/n” are more than 1, indicating that using this isotherm equation to properly perform the physical sorption mechanism on an exterior surface is preferable. The adsorbent could be used as a low-cost adsorbent for MBD removal due to its outstanding monolayer adsorption properties. Additionally, the Freundlich isotherm equation can be used to describe heterogeneous systems and can be applied to adsorption on heterogeneous surfaces with the interaction between adsorbed molecules.

3.3.2. Langmuir Isotherm

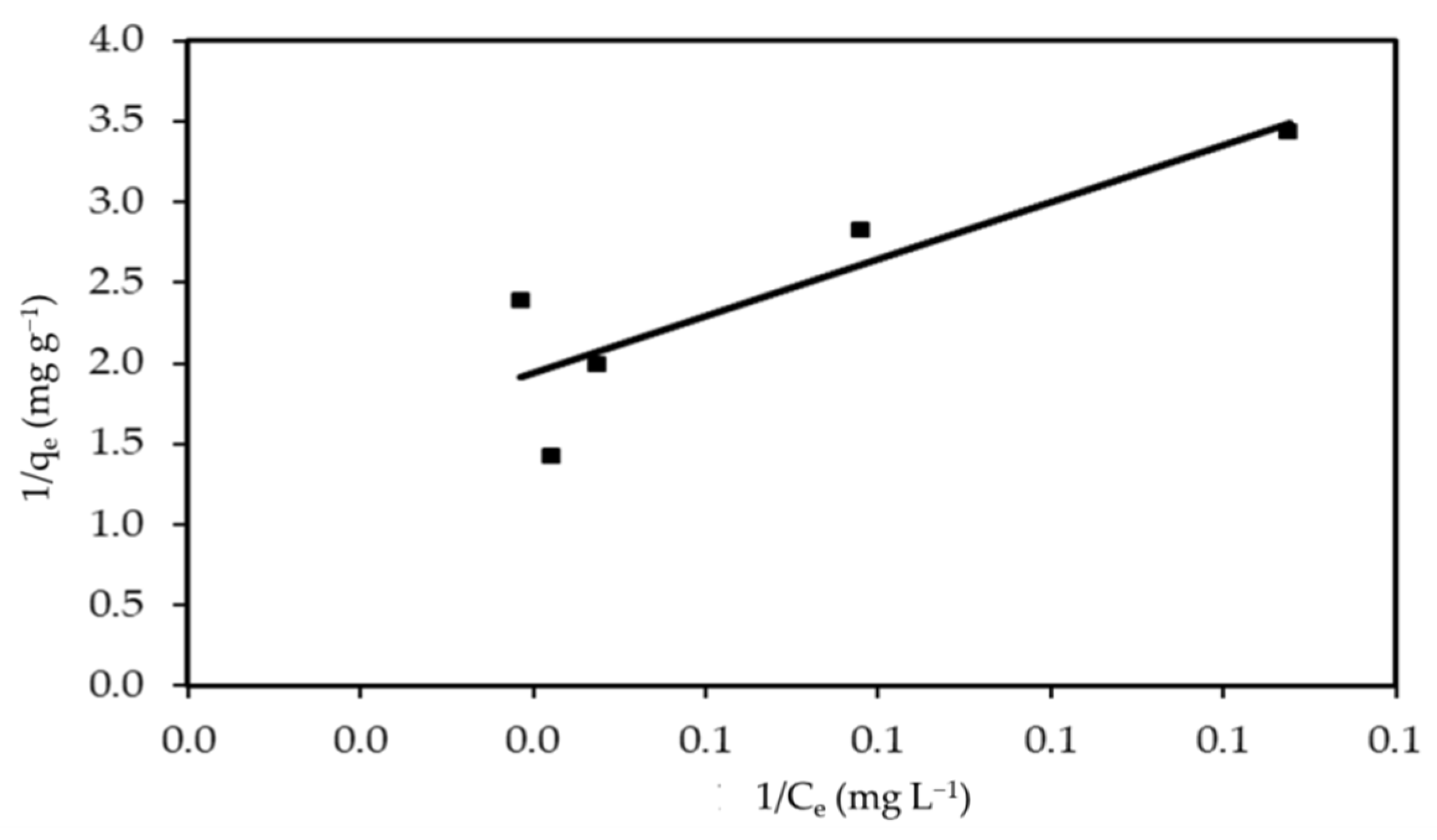

The regression data and adsorption parameters obtained are shown in Figure 11 and Table 2. The Langmuir equation’s linear form has the advantage of pointing to the high success rate of using algal biomass for dye removal. R2 = 0.751 for MBD shows the monolayer coverage of MBD on the outer surface of the sorbent, in which the mechanism of adsorption occurs uniformly on the reactive section of the surface. The sorbent shows that the Langmuir model does not apply to the tested system. The maximum adsorption capacity (qmax) is 0.819 mg g−1, which corresponds to complete monolayer coverage on the surface. The adsorption capacities (qmax) of various adsorbents for MBD are compared in Table 3. qmax of S. latifolium is significantly higher than those of other adsorbents. Due to its low cost, reusability, and high adsorption capacity, RL can also be used to express the fundamental features of a Langmuir isotherm, which is determined from the relation of Hall et al. [101]:
R L = 1 1 +   bCi
The types of equilibrium isotherms are related to the RL values; for RL > 1, an unfavorable process dominates, but for RL = 1, a favorable mechanism is available [109]. Table 2 shows that the values of RL in this study ranged from zero to one (0.969), indicating that MBD adsorption on algal biomass was favorable.

3.3.3. Tempkin Isotherm

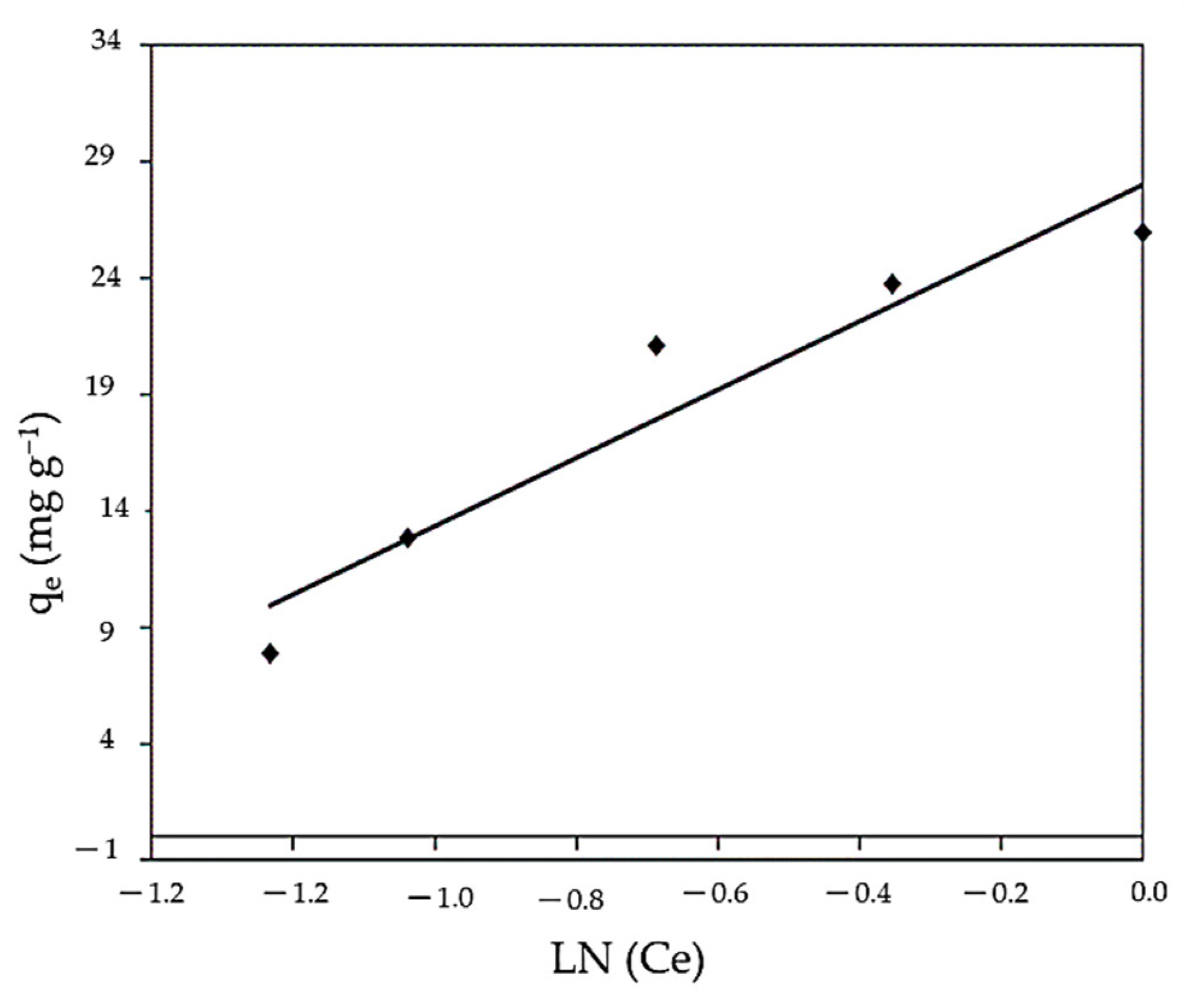

The Tempkin isotherm model posits that the heat of adsorption of all molecules reduces linearly rather than logarithmically, with coverage due to the interaction between adsorbate and adsorbent. From the Tempkin model (Figure 12 and Table 2), the following values were obtained: A = 2.47 L g−1, B = 14.67 J mol−1, and bT = 168.8. The correlation coefficient value (R2 = 0.916) is high and demonstrates a satisfactory well to the experimental data where the sorption process of MBD of the algal biomass does obey the Tempkin isotherm. Additionally, it assumes that the heat of adsorption of all the molecules in the layer decreases linearly with coverage due to adsorbate–adsorbate repulsions and that the adsorption is a uniform distribution of maximum binding energy [110].

3.3.4. Harkins–Jura Isotherm

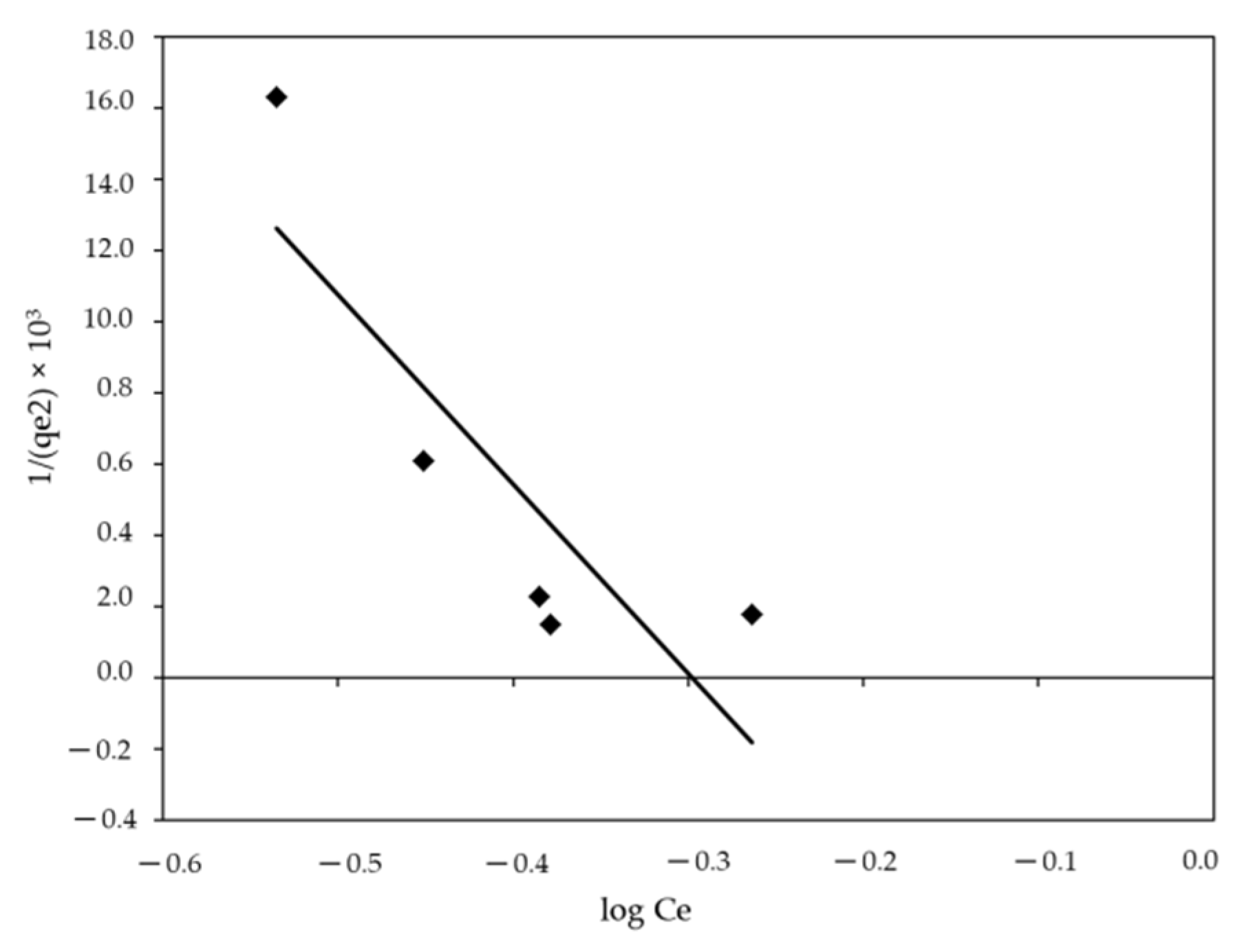

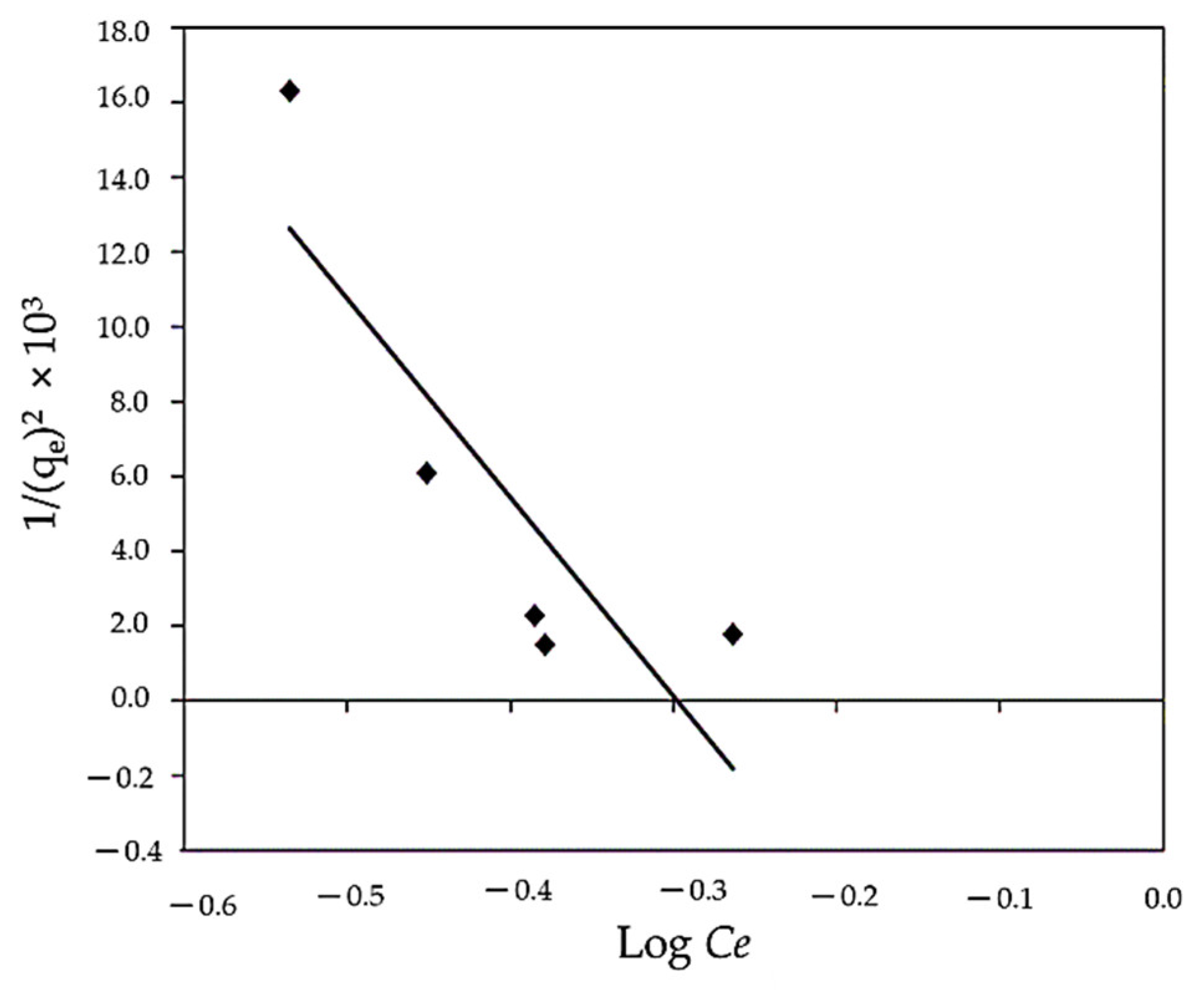

As shown in Figure 13, the Harkins–Jura adsorption isotherm can be written as Equation (8), which can be solved by plotting 1/qe vs. log Ce. The presence of a heterogeneous pore distribution and multilayer adsorption can be represented by the Harkins–Jura model. The range of isotherm constants and correlation coefficients is R2 = 0.719 (Table 2). This may indicate that the Harkins–Jura model is less applicable.

3.3.5. Halsey and Henderson Isotherm

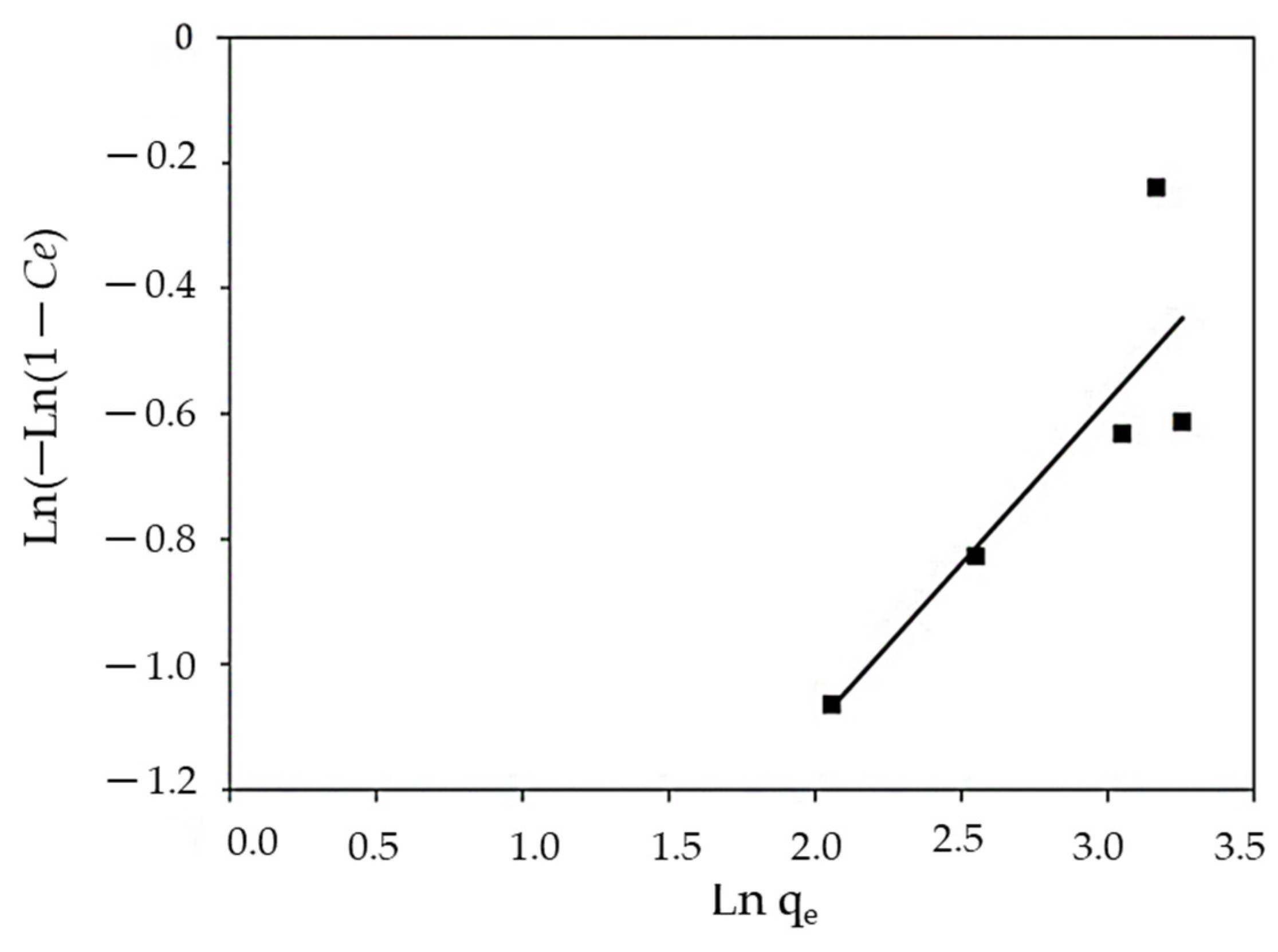

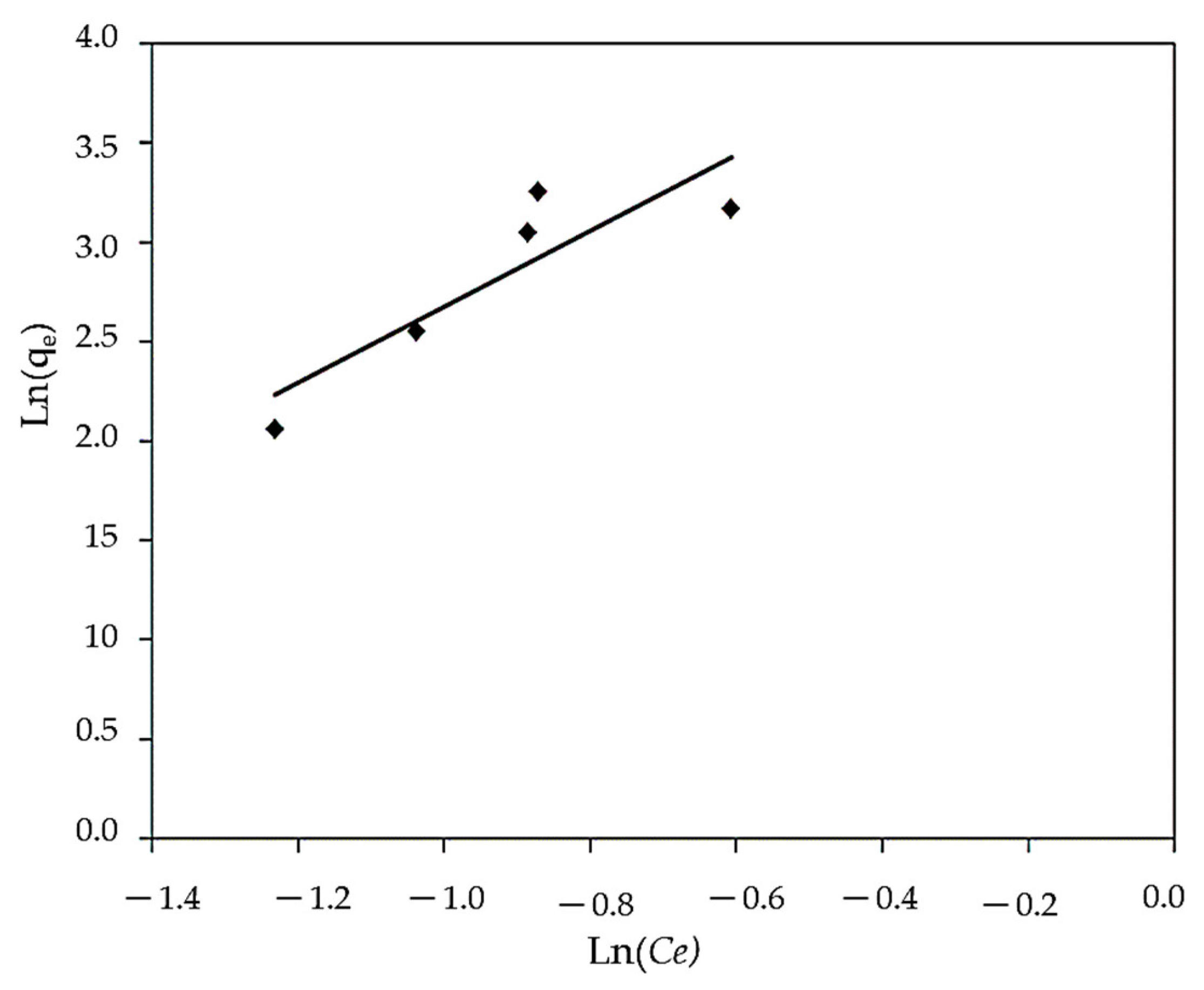

Figure 14 and Figure 15 show the Halsey and Henderson adsorption isotherms, respectively. The Halsey isotherm shows that the correlation coefficient was R2 = 0.768, while Henderson shows the regression coefficient value of R2 = 0.735. The results obtained from Halsey and Henderson show that both models are small and did not demonstrate a satisfactory response to the experimental data where the sorption process of MBD onto algal biomass was concerned.

3.3.6. Smith Isotherm

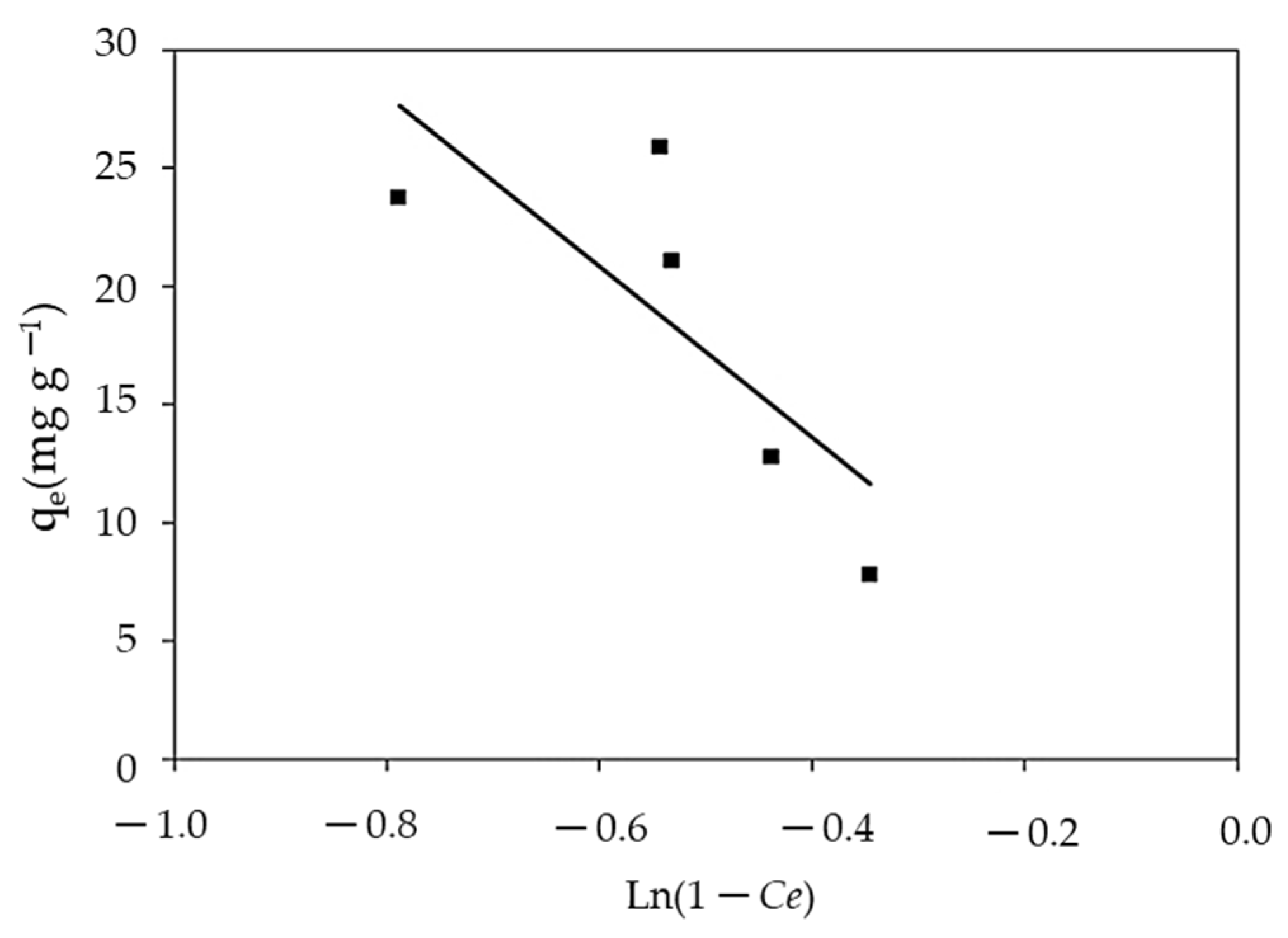

Smith’s model is useful in explaining the adsorption isotherm of biological substances, such as cellulose and starch, in addition to being appropriate for heterosporous solids and multilayer adsorption [111]. The Smith model can be solved by the plot of qe vs. Ln (1 − Ce) as presented in Figure 16 and Table 2. The sorption isotherms were accurately reproduced by Smith models across the entire range of water activity. However, Smith’s equation was not effective in describing the isotherms of MBD on algal biomass because the model gave lower R2 values (0.605).

3.3.7. Error Functions Examination for Best-Appropriate Isotherm Model

Traditional linear regression methods for calculating isotherm parameters appear to provide a satisfactory fit to the experimental data. The R2 is determined using the linear versions of the isotherm equations, but it eliminates the isotherm curve error [71]. To assess the fit of the isotherm equations to the experimental data, several error functions of non-linear regression were employed to establish the constant model parameters, and they were compared to those determined from less precise linearized data fitting [112]. Several error functions, such as the hybrid fractional error (Hybrid), the average percentage errors (APE) equation, the Chi-square error (X2) equation, the sum of the squares of the errors (ERRSQ), and the sum of absolute errors (SAE), were applied to determine the most-fit model for the investigational data (EABS). Table 4 summarizes the data gathered from various error functions. From the observed data, the best appropriate isotherm models are Halsey, Henderson, Freundlich, Langmuir Harkins–Jura, Tempkin, and Smith. However, the error functions studied gave variable results for each isotherm model and the comparison between the isotherm models should be focused on each error function separately. The (EABS) equation demonstrates that all the isotherm models can be applied to the investigational data except the Harkins–Jura, Tempkin, and Smith isotherms. Analysis of Table 4 shows that the Halsey, Henderson, Freundlich, and Langmuir models have smaller errors in almost all of the cases and that the Harkins–Jura, Tempkin, and Smith models did not show high accuracy. In this case, the Freundlich isotherm model can be more useful for describing the adsorption process of MB by S. latifolium adsorbent.

3.4. Kinetic Models

Kinetic analysis was performed using pseudo-first and second-order models, as well as the intraparticle diffusion model, to evaluate the adsorption processes of MBD on S. latifolium. These models are commonly used to describe the sorption of dyes and other pollutants on solid sorbents, as well as to evaluate their applicability. For the adsorption of a solute from a liquid solution, the Lagergren rate equation is one of the most extensively used adsorption rate equations. The linear regressions are shown in Figure 17, Figure 18 and Figure 19. In addition to the intraparticle diffusion model, Table 5 shows the coefficients of the pseudo-first and second-order adsorption kinetic models.

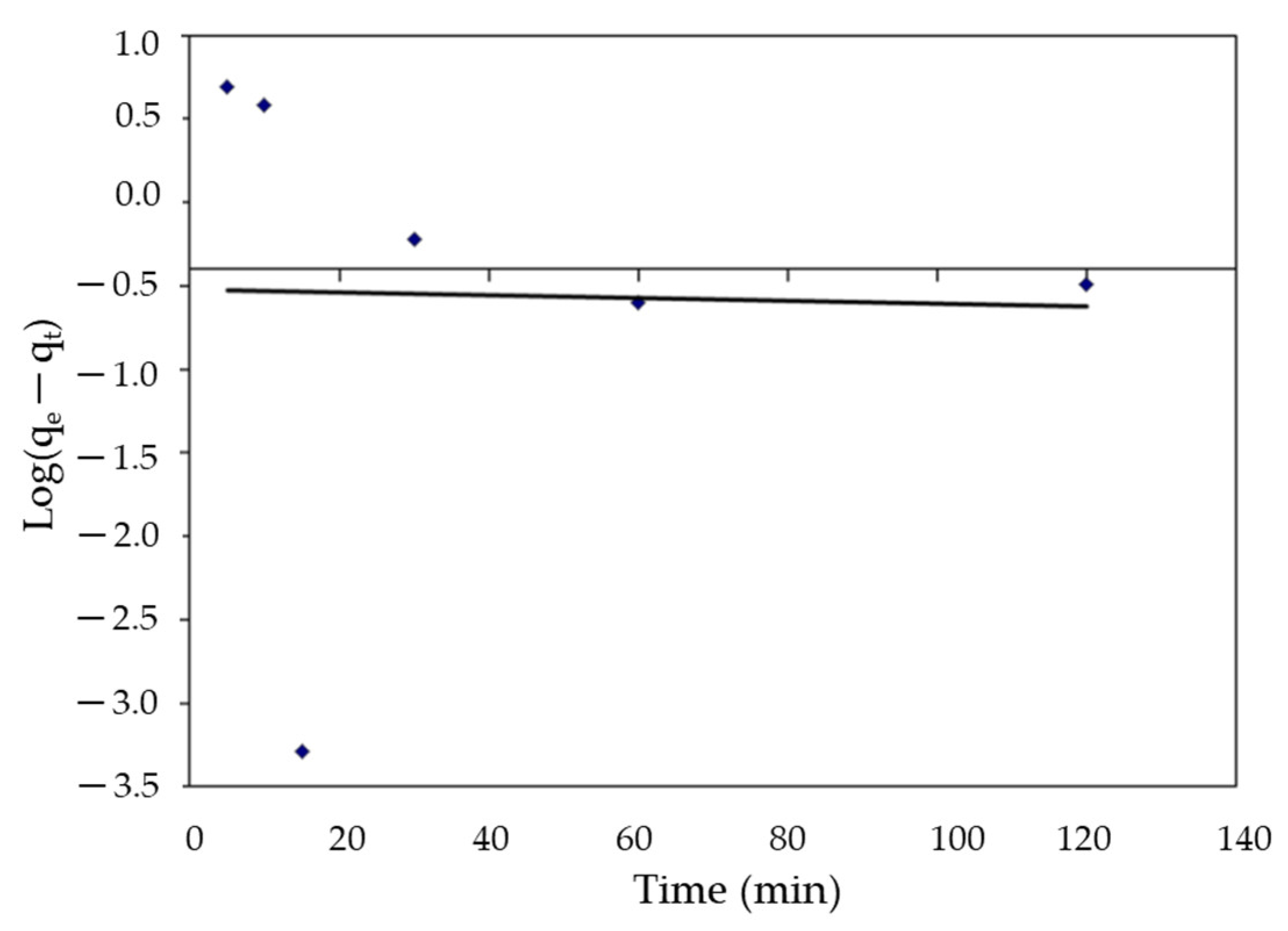

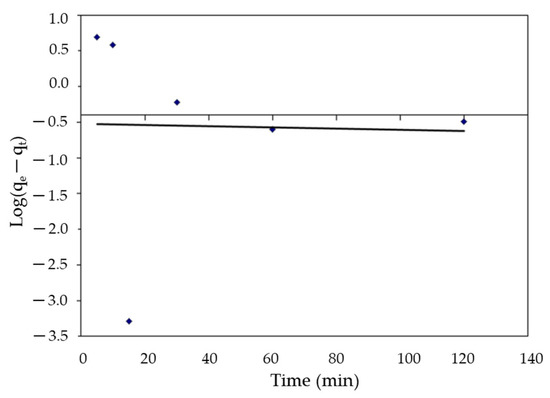

The linearized form of the plot log (qe − qt) versus time (t) as shown in Figure 17 showed a poor pseudo-first-order linear regression coefficient (R2) value of 0.001. The slope of the plot is used to calculate the rate constant of pseudo-first-order adsorption. Furthermore, the pseudo first-order kinetic model predicted a significantly lower equilibrium adsorption capacity (qe = 3.30) than the experimental value (qe = 4.181), indicating the model’s impermissibility.

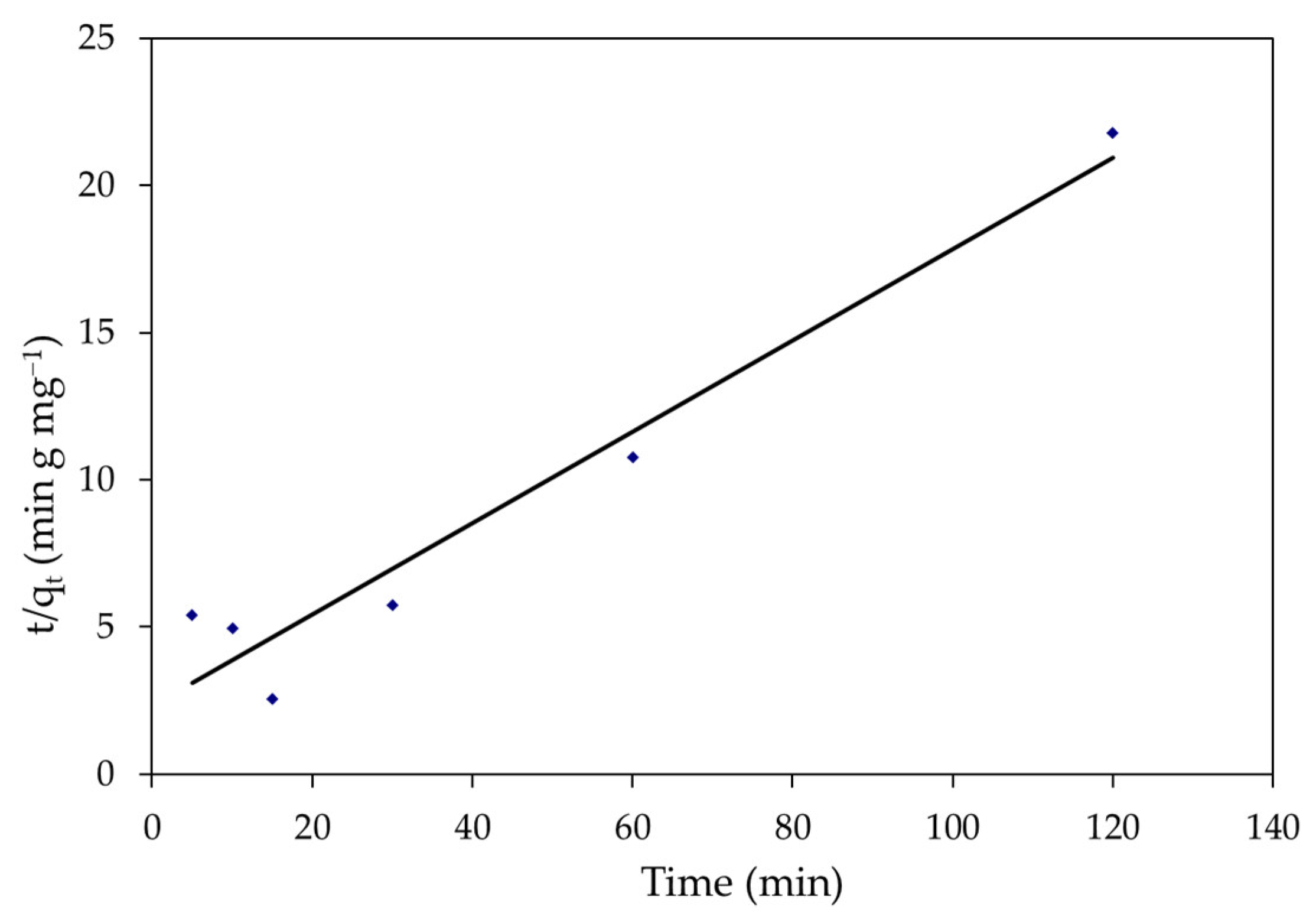

On the other hand, the intercept and slope of the plots of t/qt vs. t, were used to compute the second-order rate constant, k2, and the equilibrium adsorption capacity, qe. Figure 18 depicts pseudo-second-order kinetic graphs. In addition, the linear regression coefficient (R2) value for the pseudo-second-order kinetic model was 0.943, indicating that the model is applicable, as shown in Table 5. The (qe) computed value was close to the experimental data, hence a pseudo-second-order model was fitted. Generally, the kinetic studies displayed that the adsorption of MBD was followed by pseudo-second-order kinetics models and the sorption process was controlled through the chemisorption process. Similar results have been reported for the adsorption of organic pollutants [113,114]. Furthermore, understanding the adsorption system’s dynamic behavior is critical for process design. The removal of MBD by adsorption on biomass was shown to be quick for the first 15 min, but thereafter became slow as contact duration increased. The dye molecules migrate from the bulk solution to the surface of the sorbent and penetrate through the boundary layer to the surface of the sorbent, where adsorption and intra-particle diffusion actually occur, according to the intra-particle diffusion mechanism for the sorption system of MBD removal from its aqueous phase [115]. The intercept is C, and the slope directly predicts the rate constant Kdif, as illustrated in Figure 19. The form of Figure 16 reveals that straight lines do not pass through the origin and that the removal of MBD on S. latifolium has a poor correlation (0.446), reflecting the fact that the intraparticle diffusion model does not suit the experimental results. Because the resistance to exterior mass transfer increases as the intercept increases, the value of the C factor provides information about the thickness of the boundary layer.

3.5. Thermodynamic Studies

Table 6 displays the values for ΔG°, ΔH°, and ΔS°. The reaction is spontaneous and endothermic, as evidenced by the positive values of ΔH° and ΔS°. The negative values of ΔG° also represent the process’s spontaneity. The values of ΔG° get increasingly negative as the temperature rises, indicating that the process is becoming more spontaneous. Physical binding forces may be involved in the process, as evidenced by the low value of ΔH°. The range of ΔG° values for physisorption is between −20 and 0 kJ mol−1, but the range for chemisorption is between −80 and −400 kJ mol−1. According to the activation energy estimations in this work, MBD sorption onto the marine algae S. latifolium occurred via a physisorption mechanism.

3.6. Treatment of Real Dye Effluent

To check the efficiency of S. latifolium as an adsorbent for the removal of MBD from industrial effluents, simulated water was prepared as a control to study the influence of biomass on the adsorption process, and optimization conditions (at an acidic pH 10, 0.1 g of adsorbent after 120 min at a higher temperature of 50 °C) were used. Due to the low quantities of MBD, a large amount of MBD was applied to achieve a final concentration of 40 mg L−1. Industrial effluent samples were obtained from a factory in Al-Mahla Al-kobra, Egypt, which specializes in dyeing and printing. To track the percentage of the dye combination eliminated from the real dye effluents, the UV–vis spectra of the simulated water and effluents treated with S. latifolium were recorded at 665 nm. The results confirmed that changing the type of water affected the largest removal, with simulated water having the least impact on the sorption process, with a percentage removal of 89.15%. Real wastewater, on the other hand, contains very high concentrations of interfering ions from a variety of contaminants, which had a major impact on the removal effectiveness of MBD, with a percentage removal of 65.9%.
The novelty in this research lies in different values of the optimization process, mathematical models, and the highest suitable model being achieved by using error function tests such as a fractional error hybrid, average percentage error, sum squares of errors, nonlinear chi-square analysis, and the sum of absolute errors. To describe the elimination of the MBD’s effects on S. latifolium, error functions were proposed. This study is unique in that it highlights the possibility of integrating the use of marine algae biomass into the removal of MBD from aqueous environments in accordance with circular economic principles. Thus, using a simple and abandoned, readily available, low-cost, cheap, and environmentally friendly bio-material experimental procedure, the S. latifolium material, which can be more efficiently used to retain MBD, is obtained from a low-performance adsorbent material, such as marine brown algae biomass. Therefore, S. latifolium was chosen to prepare the adsorbent based on the above parameters. A step was taken to prepare the adsorbent, which was then utilized to remove the MBD from the water.

4. Conclusions

In the current study, brown seaweed, S. latifolium, was applied as an adsorbent for the elimination of methylene blue dye (MBD) from an aqueous solution. Initial pH, initial MBD concentration, adsorbent dose, and adsorption temperature all had an impact on adsorption. The highest removal of MB was 95.97% under optimal operating conditions, which included an initial MBD concentration of 40 mg L−1, a temperature of 50 °C, and a pH of 10. Increases in the adsorbent dose and starting MBD concentrations increased MBD removal effectiveness. Furthermore, MBD removal using S. latifolium is also influenced by the presence of functional groups such as carbonyl, hydroxyl, amino, carboxylate groups, and other natural compounds that support ions binding like lignins, cellulose, and lipids. Additionally, SEM analysis demonstrates the ability of S. latifolium biomass to adsorb and remove MBD from an aqueous solution. Moreover, the absorption bands for photosynthetic pigments, such as flavonoids and their derivatives, were found in the UV-visible spectra of seaweed. In addition, the quality of S. latifolium was also assessed using BET characterization, which shows that S. latifolium has a greater surface area. MBD adsorption on S. latifolium followed Halsey, Henderson, Harkins–Jura, Freundlich, Tempkin, Smith, and Langmuir isotherms revealed in the research. S. latifolium was found to be a good adsorbent for removing MBD from wastewater through the adsorption process.

Author Contributions

Conceptualization, A.E.A. and M.A.; methodology, A.E.A. and M.A.; software, A.T.M., H.S.E.-B., A.E.A. and M.A.; validation, A.E.A. and M.A.; formal analysis, A.E.A. and M.A.; investigation, A.E.A. and M.A.; resources, A.T.M., H.S.E.-B., A.E.A., K.M.A., K.M.A.R. and M.A.; data curation, A.E.A. and M.A.; writing—original draft preparation, A.E.A. and M.A.; writing—review and editing, A.T.M., H.S.E.-B., A.E.A., K.M.A., K.M.A.R. and M.A.; visualization, A.E.A. and M.A.; supervision, A.T.M., H.S.E.-B., A.E.A. and M.A.; project administration, A.T.M., H.S.E.-B., K.M.A. and K.M.A.R.; funding acquisition, A.T.M., H.S.E.-B., A.E.A., K.M.A., K.M.A.R. and M.A. All authors have read and agreed to the published version of the manuscript.


This work was supported by the Deanship of Scientific Research, Vice Presidency for Graduate Studies and Scientific Research, King Faisal University, Saudi Arabia [Project No. 10]. Taif University Researchers Supporting Project number TURSP-2020/267, Taif University, Taif, Saudi Arabia.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the authors upon reasonable request.


The authors gratefully appreciate Deanship of Scientific Research, Vice Presidency for Graduate Studies and Scientific Research, King Faisal University, Saudi Arabia [Project No. 10], for supporting the present study. Also, the authors appreciated Taif University Researchers Supporting Project number TURSP-2020/267, Taif University, Taif, Saudi Arabia.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Badawi, A.K.; Ismail, B.; Baaloudj, O.; Abdalla, K.Z. Advanced wastewater treatment process using algal photo-bioreactor associated with dissolved-air flotation system: A pilot-scale demonstration. J. Water Process Eng 2022, 46, 102565. [Google Scholar] [CrossRef]
  2. Abualnaja, K.M.; Alprol, A.E.; Abu-Saied, M.A.; Mansour, A.T.; Ashour, M. Studying the Adsorptive Behavior of Poly(Acrylonitrile-co-Styrene) and Carbon Nanotubes (Nanocomposites) Impregnated with Adsorbent Materials towards Methyl Orange Dye. Nanomaterials 2021, 11, 1144. [Google Scholar] [CrossRef] [PubMed]
  3. Al-Ghouti, M.A.; Al-Degs, Y.S.; Khraisheh, M.A.; Ahmad, M.N.; Allen, S.J. Mechanisms and chemistry of dye adsorption on manganese oxides-modified diatomite. J. Environ. Manag. 2009, 90, 3520–3527. [Google Scholar] [CrossRef] [PubMed]
  4. Sakkayawong, N.; Thiravetyan, P.; Nakbanpote, W. Adsorption mechanism of synthetic reactive dye wastewater by chitosan. J. Colloid Interface Sci 2005, 286, 36–42. [Google Scholar] [CrossRef]
  5. Manzoor, J.; Sharma, M. Impact of Textile Dyes on Human Health and Environment. In Impact of Textile Dyes on Public Health and the Environment; IGI Global: Hershey, PA, USA, 2020; pp. 162–169. [Google Scholar] [CrossRef]
  6. Chung, K.-T. Azo dyes and human health: A review. J. Environ. Sci. Health 2016, 34, 233–261. [Google Scholar] [CrossRef]
  7. Abbas, E.M.; Ali, F.S.; Desouky, M.G.; Ashour, M.; El-Shafei, A.; Maaty, M.M.; Sharawy, Z.Z. Novel Comprehensive Molecular and Ecological Study Introducing Coastal Mud Shrimp (Solenocera Crassicornis) Recorded at the Gulf of Suez, Egypt. J. Mar. Sci. Eng. 2020, 9, 9. [Google Scholar] [CrossRef]
  8. Alprol, A.E.; Heneash, A.M.M.; Soliman, A.M.; Ashour, M.; Alsanie, W.F.; Gaber, A.; Mansour, A.T. Assessment of Water Quality, Eutrophication, and Zooplankton Community in Lake Burullus, Egypt. Diversity 2021, 13, 268. [Google Scholar] [CrossRef]
  9. Ashour, M.; Alprol, A.E.; Heneash, A.M.M.; Saleh, H.; Abualnaja, K.M.; Alhashmialameer, D.; Mansour, A.T. Ammonia Bioremediation from Aquaculture Wastewater Effluents Using Arthrospira platensis NIOF17/003: Impact of Biodiesel Residue and Potential of Ammonia-Loaded Biomass as Rotifer Feed. Materials 2021, 14, 5460. [Google Scholar] [CrossRef]
  10. Ashour, M.; Mabrouk, M.M.; Abo-Taleb, H.A.; Sharawy, Z.Z.; Ayoub, H.F.; Van Doan, H.; Davies, S.J.; El-Haroun, E.; Goda, A.M.S.A. A liquid seaweed extract (TAM®) improves aqueous rearing environment, diversity of zooplankton community, whilst enhancing growth and immune response of Nile tilapia, Oreochromis niloticus, challenged by Aeromonas hydrophila. Aquaculture 2021, 543, 736915. [Google Scholar] [CrossRef]
  11. Alprol, A.E.; Ashour, M.; Mansour, A.T.; Alzahrani, O.M.; Mahmoud, S.F.; Gharib, S.M. Assessment of Water Quality and Phytoplankton Structure of Eight Alexandria Beaches, Southeastern Mediterranean Sea, Egypt. J. Mar. Sci Eng. 2021, 9, 1328. [Google Scholar] [CrossRef]
  12. da Silva, G.L.; Silva, V.L.; Vieira, M.G.; da Silva, M.G. Solophenyl navy blue dye removal by smectite clay in a porous bed column. Adsorpt. Sci. Technol. 2009, 27, 861–875. [Google Scholar] [CrossRef]
  13. Sardar, M.; Manna, M.; Maharana, M.; Sen, S. Remediation of dyes from industrial wastewater using low-cost adsorbents. In Green Adsorbents to Remove Metals, Dyes and Boron from Polluted Water; Springer: New York, NY, USA, 2021; pp. 377–403. [Google Scholar] [CrossRef]
  14. Raza, W.; Lee, J.; Raza, N.; Luo, Y.; Kim, K.-H.; Yang, J. Removal of phenolic compounds from industrial waste water based on membrane-based technologies. J. Ind. Eng. Chem. 2019, 71, 1–18. [Google Scholar] [CrossRef]
  15. Dawood, S.; Sen, T. Review on dye removal from its aqueous solution into alternative cost effective and non-conventional adsorbents. J. Chem. Process Eng. 2014, 1, 1–11. [Google Scholar]
  16. Kumar, P.S.; Joshiba, G.J.; Femina, C.C.; Varshini, P.; Priyadharshini, S.; Karthick, M.A.; Jothirani, R. A critical review on recent developments in the low-cost adsorption of dyes from wastewater. Desalin. Water Treat 2019, 172, 395–416. [Google Scholar] [CrossRef]
  17. Mehrotra, T.; Dev, S.; Banerjee, A.; Chatterjee, A.; Singh, R.; Aggarwal, S. Use of immobilized bacteria for environmental bioremediation: A review. J. Environ. Chem. Eng. 2021, 9, 105920. [Google Scholar] [CrossRef]
  18. Sarma, G.; Gupta, S.S.; Bhattacharyya, K. Removal of hazardous basic dyes from aqueous solution by adsorption onto kaolinite and acid-treated kaolinite: Kinetics, isotherm and mechanistic study. SN Appl. Sci. 2019, 1, 211. [Google Scholar] [CrossRef] [Green Version]
  19. Souza, M.; Lenzi, G.; Colpini, L.; Jorge, L.; Santos, O. Photocatalytic discoloration of reactive blue 5G dye in the presence of mixed oxides and with the addition of iron and silver. Braz. J. Chem. Eng. 2011, 28, 393–402. [Google Scholar] [CrossRef] [Green Version]
  20. Katheresan, V.; Kansedo, J.; Lau, S.Y. Efficiency of various recent wastewater dye removal methods: A review. J. Environ. Chem. Eng. 2018, 6, 4676–4697. [Google Scholar] [CrossRef]
  21. Rahimian, R.; Zarinabadi, S. A review of studies on the removal of methylene blue dye from industrial wastewater using activated carbon adsorbents made from almond bark. Prog Chem. Biochem. Res. 2020, 3, 251–268. [Google Scholar]
  22. El Haggar, S. Sustainable Industrial Design and Waste Management: Cradle-to-Cradle for Sustainable Development; Academic Press: Cambridge, MA, USA, 2010. [Google Scholar]
  23. Forgacs, E.; Cserhati, T.; Oros, G. Removal of synthetic dyes from wastewaters: A review. Environ. Int. 2004, 30, 953–971. [Google Scholar] [CrossRef]
  24. Ncibi, M.; Hamissa, A.B.; Fathallah, A.; Kortas, M.; Baklouti, T.; Mahjoub, B.; Seffen, M. Biosorptive uptake of methylene blue using Mediterranean green alga Enteromorpha spp. J. Hazard. Mater. 2009, 170, 1050–1055. [Google Scholar] [CrossRef] [PubMed]
  25. Ali, I.; Gupta, V. Advances in water treatment by adsorption technology. Nat. Protoc. 2006, 1, 2661–2667. [Google Scholar] [CrossRef] [PubMed]
  26. Bonilla-Petriciolet, A.; Mendoza-Castillo, D.I.; Reynel-Ávila, H.E. Adsorption Processes for Water Treatment and Purification; Springer: NewYork, NY, USA, 2017. [Google Scholar] [CrossRef]
  27. Lakherwal, D. Adsorption of heavy metals: A review. Int. J. Environ. Res. Dev. 2014, 4, 41–48. [Google Scholar]
  28. Mashkoor, F.; Nasar, A. Magsorbents: Potential candidates in wastewater treatment technology–A review on the removal of methylene blue dye. J. Magn. Magn. Mater. 2020, 500, 166408. [Google Scholar] [CrossRef]
  29. Oz, M.; Lorke, D.E.; Hasan, M.; Petroianu, G.A. Cellular and molecular actions of methylene blue in the nervous system. Med. Res. Rev. 2011, 31, 93–117. [Google Scholar] [CrossRef] [Green Version]
  30. Brooks, M.M. Methylene blue as antidote for cyanide and carbon monoxide poisoning. J. Am. Med. Assoc. 1933, 100, 59. [Google Scholar] [CrossRef]
  31. Buthelezi, S.P.; Olaniran, A.O.; Pillay, B. Textile dye removal from wastewater effluents using bioflocculants produced by indigenous bacterial isolates. Molecules 2012, 17, 14260–14274. [Google Scholar] [CrossRef] [Green Version]
  32. Zahrim, A.; Hilal, N. Treatment of highly concentrated dye solution by coagulation/flocculation–sand filtration and nanofiltration. Water Res. Ind. 2013, 3, 23–34. [Google Scholar] [CrossRef] [Green Version]
  33. Baaloudj, O.; Nasrallah, N.; Bouallouche, R.; Kenfoud, H.; Khezami, L.; Assadi, A.A. High efficient Cefixime removal from water by the sillenite Bi12TiO20: Photocatalytic mechanism and degradation pathway. J. Clean. Prod. 2022, 330, 129934. [Google Scholar] [CrossRef]
  34. Abul, A.; Samad, S.; Huq, D.; Moniruzzaman, M.; Masum, M. Textile dye removal from wastewater effluents using chitosan-ZnO nanocomposite. J. Text. Sci. Eng. 2015, 5, e1000200. [Google Scholar] [CrossRef]
  35. El-Hamid, A.; Al-Prol, A.; El-Alfy, M.A. Remediation of extracted water from El-Burullus drains sediments using chemical oxidation. J. Environ. Sci. Mansoura Univ. 2021, 50, 20–26. [Google Scholar]
  36. Mansour, A.T.; Ashour, M.; Alprol, A.E.; Alsaqufi, A.S. Aquatic Plants and Aquatic Animals in the Context of Sustainability: Cultivation Techniques, Integration, and Blue Revolution. Sustainability 2022, 14, 3257. [Google Scholar] [CrossRef]
  37. Babel, S.; Opiso, E.M. Removal of Cr from synthetic wastewater by sorption into volcanic ash soil. Int. J. Environ. Sci. Technol. 2007, 4, 99–107. [Google Scholar] [CrossRef] [Green Version]
  38. Badawi, A.K.; Abd Elkodous, M.; Ali, G.A. Recent advances in dye and metal ion removal using efficient adsorbents and novel nano-based materials: An overview. RSC Adv. 2021, 11, 36528–36553. [Google Scholar] [CrossRef]
  39. Abdelwahab, O.; Amin, N. Adsorption of phenol from aqueous solutions by Luffa cylindrica fibers: Kinetics, isotherm and thermodynamic studies. Egypt. J. Aquat. Res. 2013, 39, 215–223. [Google Scholar] [CrossRef] [Green Version]
  40. Amrhar, O.; Nassali, H.; Elyoubi, M. Modeling of adsorption isotherms of methylene blue onto natural illitic clay: Nonlinear regression analysis. Moroc. J. Chem. 2015, 3, 582–593. [Google Scholar]
  41. Yagub, M.T.; Sen, T.K.; Afroze, S.; Ang, H.M. Dye and its removal from aqueous solution by adsorption: A review. Adv. Colloid Interface Sci. 2014, 209, 172–184. [Google Scholar] [CrossRef]
  42. Khan, R.; Bhawana, P.; Fulekar, M. Microbial decolorization and degradation of synthetic dyes: A review. Rev. Environ. Sci. Bio/Technol. 2013, 12, 75–97. [Google Scholar] [CrossRef]
  43. Mishra, S.; Cheng, L.; Maiti, A. The utilization of agro-biomass/byproducts for effective bio-removal of dyes from dyeing wastewater: A comprehensive review. J. Environ. Chem. Eng. 2021, 9, 104901. [Google Scholar] [CrossRef]
  44. Kapoor, R.T.; Danish, M.; Singh, R.S.; Rafatullah, M.; HPS, A.K. Exploiting microbial biomass in treating azo dyes contaminated wastewater: Mechanism of degradation and factors affecting microbial efficiency. J. Water Process Eng. 2021, 43, 102255. [Google Scholar] [CrossRef]
  45. Blaga, A.C.; Zaharia, C.; Suteu, D. Polysaccharides as Support for Microbial Biomass-Based Adsorbents with Applications in Removal of Heavy Metals and Dyes. Polymers 2021, 13, 2893. [Google Scholar] [CrossRef] [PubMed]
  46. El-Sheekh, M.M.; Gharieb, M.; Abou-El-Souod, G. Biodegradation of dyes by some green algae and cyanobacteria. Int. Biodeterior. Biodegrad. 2009, 63, 699–704. [Google Scholar] [CrossRef]
  47. Alprol, A.E.; Heneash, A.M.M.; Ashour, M.; Abualnaja, K.M.; Alhashmialameer, D.; Mansour, A.T.; Sharawy, Z.Z.; Abu-Saied, M.A.; Abomohra, A.E. Potential Applications of Arthrospira platensis Lipid-Free Biomass in Bioremediation of Organic Dye from Industrial Textile Effluents and Its Influence on Marine Rotifer (Brachionus plicatilis). Materials 2021, 14, 4446. [Google Scholar] [CrossRef] [PubMed]
  48. Abo-Taleb, H.A.; FZeina, A.; Ashour, M.; MMabrouk, M.; ESallam, A.; MMEl-feky, M. Isolation and cultivation of the freshwater amphipod Gammarus pulex (Linnaeus, 1758), with an evaluation of its chemical and nutritional content. Egypt. J. Aquat. Biol Fish. 2020, 24, 69–82. [Google Scholar] [CrossRef] [Green Version]
  49. Metwally, A.S.; El-Naggar, H.A.; El-Damhougy, K.A.; Bashar, M.A.E.; Ashour, M.; Abo-Taleb, H.A.H. GC-MS analysis of bioactive components in six different crude extracts from the Soft Coral (Sinularia maxim) collected from Ras Mohamed, Aqaba Gulf, Red Sea, Egypt. Egypt. J. Aquat. Biol. Fish. 2020, 24, 425–434. [Google Scholar] [CrossRef]
  50. Magouz, F.I.; Essa, M.A.; Matter, M.; Tageldein Mansour, A.; Alkafafy, M.; Ashour, M. Population Dynamics, Fecundity and Fatty Acid Composition of Oithona nana (Cyclopoida, Copepoda), Fed on Different Diets. Animals 2021, 11, 1188. [Google Scholar] [CrossRef] [PubMed]
  51. Abomohra, A.E.-F.; Almutairi, A.W. A close-loop integrated approach for microalgae cultivation and efficient utilization of agar-free seaweed residues for enhanced biofuel recovery. Bioresour. Technol. 2020, 317, 124027. [Google Scholar] [CrossRef]
  52. Ashour, M.; El-Shafei, A.A.; Khairy, H.M.; Abd-Elkader, D.Y.; Mattar, M.A.; Alataway, A.; Hassan, S.M. Effect of Pterocladia capillacea Seaweed Extracts on Growth Parameters and Biochemical Constituents of Jew’s Mallow. Agronomy 2020, 10, 420. [Google Scholar] [CrossRef] [Green Version]
  53. Ashour, M.; Hassan, S.M.; Elshobary, M.E.; Ammar, G.A.G.; Gaber, A.; Alsanie, W.F.; Mansour, A.T.; El-Shenody, R. Impact of Commercial Seaweed Liquid Extract (TAM®) Biostimulant and Its Bioactive Molecules on Growth and Antioxidant Activities of Hot Pepper (Capsicum annuum). Plants 2021, 10, 1045. [Google Scholar] [CrossRef]
  54. Hassan, S.M.; Ashour, M.; Sakai, N.; Zhang, L.; Hassanien, H.A.; Gaber, A.; Ammar, G. Impact of Seaweed Liquid Extract Biostimulant on Growth, Yield, and Chemical Composition of Cucumber (Cucumis sativus). Agriculture 2021, 11, 320. [Google Scholar] [CrossRef]
  55. Hassan, S.M.; Ashour, M.; Soliman, A.A.F.; Hassanien, H.A.; Alsanie, W.F.; Gaber, A.; Elshobary, M.E. The Potential of a New Commercial Seaweed Extract in Stimulating Morpho-Agronomic and Bioactive Properties of Eruca vesicaria (L.) Cav. Sustainability 2021, 13, 4485. [Google Scholar] [CrossRef]
  56. Shao, W.; Ebaid, R.; El-Sheekh, M.; Abomohra, A.; Eladel, H. Pharmaceutical applications and consequent environmental impacts of Spirulina (Arthrospira): An overview. Grasasy Aceites 2019, 70, 292. [Google Scholar] [CrossRef] [Green Version]
  57. Raja, R.; Coelho, A.; Hemaiswarya, S.; Kumar, P.; Carvalho, I.S.; Alagarsamy, A. Applications of microalgal paste and powder as food and feed: An update using text mining tool. Beni-Suef Univ. J. Basic Appl. Sci. 2018, 7, 740–747. [Google Scholar] [CrossRef]
  58. Al Prol, A.E.; EAEl-Metwally, M.; Amer, A. Sargassum latifolium as eco-friendly materials for treatment of toxic nickel (II) and lead (II) ions from aqueous solution. Egypt. J. Aquat. Biol. Fish. 2019, 23, 285–299. [Google Scholar] [CrossRef] [Green Version]
  59. Ashour, M.; Mabrouk, M.M.; Ayoub, H.F.; El-Feky, M.M.M.M.; Zaki, S.Z.; Hoseinifar, S.H.; Rossi, W.; Van Doan, H.; El-Haroun, E.; Goda, A.M.A.S. Effect of dietary seaweed extract supplementation on growth, feed utilization, hematological indices, and non-specific immunity of Nile Tilapia, Oreochromis niloticus challenged with Aeromonas hydrophila. J. Appl. Phycol. 2020, 32, 3467–3479. [Google Scholar] [CrossRef]
  60. Maurya, R.; Ghosh, T.; Paliwal, C.; Shrivastav, A.; Chokshi, K.; Pancha, I.; Ghosh, A.; Mishra, S. Biosorption of methylene blue by de-oiled algal biomass: Equilibrium, kinetics and artificial neural network modelling. PLoS ONE 2014, 9, e109545. [Google Scholar] [CrossRef] [Green Version]
  61. Ghoneim, M.M.; El-Desoky, H.S.; El-Moselhy, K.M.; Amer, A.; Abou El-Naga, E.H.; Mohamedein, L.I.; Al-Prol, A.E. Removal of cadmium from aqueous solution using marine green algae, Ulva lactuca. Egypt. J. Aquat. Res. 2014, 40, 235–242. [Google Scholar] [CrossRef] [Green Version]
  62. Dada, A.; Olalekan, A.; Olatunya, A.; Dada, O. Langmuir, Freundlich, Temkin and Dubinin–Radushkevich isotherms studies of equilibrium sorption of Zn2+ unto phosphoric acid modified rice husk. IOSR J. Appl. Chem. 2012, 3, 38–45. [Google Scholar]
  63. Freundlich, H. Over the adsorption in solution. J. Phys. Chem. 1906, 57, 1100–1107. [Google Scholar]
  64. Langmuir, I. The constitution and fundamental properties of solids and liquids. Part, I. Solids. J. Am. Chem. Soc. 1916, 38, 2221–2295. [Google Scholar] [CrossRef] [Green Version]
  65. Langmuir, I. The constitution and fundamental properties of solids and liquids. II. Liquids. J. Am. Chem. Soc. 1917, 39, 1848–1906. [Google Scholar] [CrossRef] [Green Version]
  66. Halsey, G. Physical adsorption on non-uniform surfaces. J. Chem. Phys. 1948, 16, 931–937. [Google Scholar] [CrossRef]
  67. Harkins, W.D.; Jura, G. An adsorption method for the determination of the area of a solid without the assumption of a molecular area, and the area occupied by nitrogen molecules on the surfaces of solids. J.Chem.Phys. 1943, 11, 431–432. [Google Scholar] [CrossRef]
  68. Harkins, W.D.; Jura, G. Surfaces of solids. XIII. A vapor adsorption method for the determination of the area of a solid without the assumption of a molecular area, and the areas occupied by nitrogen and other molecules on the surface of a solid. J. Am. Chem. Soc. 1944, 66, 1366–1373. [Google Scholar] [CrossRef]
  69. Mall, I.D.; Srivastava, V.C.; Agarwal, N.K. Removal of Orange-G and Methyl Violet dyes by adsorption onto bagasse fly ash—kinetic study and equilibrium isotherm analyses. Dyes Pigment. 2006, 69, 210–223. [Google Scholar] [CrossRef]
  70. Temkin, M.; Pyzhev, V. Recent modifications to Langmuir isotherms. Chemosphere 1940, 12, 217–222. [Google Scholar]
  71. Foo, K.Y.; Hameed, B.H. Insights into the modeling of adsorption isotherm systems. Chem. Eng. J. 2010, 156, 2–10. [Google Scholar] [CrossRef]
  72. Ng, J.; Cheung, W.; McKay, G. Equilibrium studies of the sorption of Cu (II) ions onto chitosan. J. Colloid Interface Sci. 2002, 255, 64–74. [Google Scholar] [CrossRef]
  73. Kumar, Y.P.; King, P.; Prasad, V. Removal of copper from aqueous solution using Ulva fasciata sp.—A marine green algae. J. Hazard. Mater. 2006, 137, 367–373. [Google Scholar] [CrossRef]
  74. Levankumar, L.; Muthukumaran, V.; Gobinath, M. Batch adsorption and kinetics of chromium (VI) removal from aqueous solutions by Ocimum americanum L. seed pods. J. Hazard. Mater. 2009, 161, 709–713. [Google Scholar] [CrossRef]
  75. Lagergren, S. Zur theorie der sogenannten adsorption geloster stoffe. Kungliga Svenska Vetenskapsakademiens Handlingar 1898, 24, 1–39. [Google Scholar]
  76. Ho, Y.; McKay, G.; Wase, D.; Forster, C. Study of the sorption of divalent metal ions on to peat. Adsorpt. Sci. Technol. 2000, 18, 639–650. [Google Scholar] [CrossRef]
  77. Abualnaja, K.M.; Alprol, A.E.; Abu-Saied, M.A.; Ashour, M.; Mansour, A.T. Removing of Anionic Dye from Aqueous Solutions by Adsorption Using of Multiwalled Carbon Nanotubes and Poly (Acrylonitrile-styrene) Impregnated with Activated Carbon. Sustainability 2021, 13, 7077. [Google Scholar] [CrossRef]
  78. Inyinbor, A.; Adekola, F.; Olatunji, G.A. Kinetics, isotherms and thermodynamic modeling of liquid phase adsorption of Rhodamine B dye onto Raphia hookerie fruit epicarp. Water Res. Ind. 2016, 15, 14–27. [Google Scholar] [CrossRef] [Green Version]
  79. Dönmez, G.; Aksu, Z. Removal of chromium (VI) from saline wastewaters by Dunaliella species. Process Biochem. 2002, 38, 751–762. [Google Scholar] [CrossRef]
  80. Rajeswari, R.; Jeyaprakash, K. Bioactive potential analysis of brown seaweed Sargassum wightii using UV-VIS and FT-IR. J. Drug Deliv. Ther 2019, 9, 150–153. [Google Scholar] [CrossRef] [Green Version]
  81. Santos-Buelga, C.; González-Paramás, A.M.; González-Manzano, S.; Dueñas, M. Analysis and occurrence of flavonoids in foods and biological samples. In Recent Advances in Medicinal Chemistry; Atta-ur-Rahman, M., Iqbal, C., Perry, G., Eds.; Bentham Science Publisher: Shajah, United Arab Emirates, 2015; pp. 10–58. [Google Scholar]
  82. Vihakas, M. Flavonoids and Other Phenolic Compounds: Characterization and Interactions with Lepidopteran and Sawfly Larvae. Ph.D. Thesis, University of Turku, Turku, Finland, 2014. [Google Scholar]
  83. Sahu, N.; Saxena, J. Phytochemical analysis of Bougainvillea glabra Choisy by FTIR and UV-VIS spectroscopic analysis. Int. J. Pharm. Sci. Rev. Res 2013, 21, 196–198. [Google Scholar]
  84. Sofowora, A. Medicinal Plants and Traditional Medicine in Africa; Karthala: Paris, France, 1996. [Google Scholar]
  85. Jasper, C.; Maruzzella, J.; Henry, P. The antimicrobial activity of perfume oils. J. Am. Pharm. Assoc. 1958, 47, 471–476. [Google Scholar]
  86. Anand, M.; Suresh, S. Marine seaweed Sargassum wightii extract as a low-cost sensitizer for ZnO photoanode based dye-sensitized solar cell. Adv. Nat. Sci. Nanosci. Nanotechnol. 2015, 6, 035008. [Google Scholar] [CrossRef]
  87. Lai, W.H.; Su, Y.H.; Teoh, L.G.; Hon, M.H. Commercial and natural dyes as photosensitizers for a water-based dye-sensitized solar cell loaded with gold nanoparticles. J. Photochem. Photobiol. A Chemistry 2008, 195, 307–313. [Google Scholar] [CrossRef]
  88. Ali, H. Biodegradation of synthetic dyes—A review. Water Air Soil Pollut. 2010, 213, 251–273. [Google Scholar] [CrossRef]
  89. Sivaprakasha, S.; Kumarb, P.S.; Krishnac, S. Adsorption study of various dyes on Activated Carbon Fe3O4 Magnetic Nano Composite. Int. J. Appl. Chem. 2017, 13, 255–266. [Google Scholar]
  90. Doğar, Ç.; Gürses, A.; Açıkyıldız, M.; Özkan, E. Thermodynamics and kinetic studies of biosorption of a basic dye from aqueous solution using green algae Ulothrix sp. Colloids. Surf. B Biointerfaces 2010, 76, 279–285. [Google Scholar] [CrossRef] [PubMed]
  91. Maleki, A.; Mahvi, A.H.; Ebrahimi, R.; Zandsalimi, Y. Study of photochemical and sonochemical processes efficiency for degradation of dyes in aqueous solution. Korean J. Chem. Eng. 2010, 27, 1805–1810. [Google Scholar] [CrossRef]
  92. Yao, Y.; Xu, F.; Chen, M.; Xu, Z.; Zhu, Z. Adsorption behavior of methylene blue on carbon nanotubes. Bioresour. Technol. 2010, 101, 3040–3046. [Google Scholar] [CrossRef]
  93. Konicki, W.; Pełech, I.; Mijowska, E.; Jasińska, I. Adsorption of anionic dye Direct Red 23 onto magnetic multi-walled carbon nanotubes-Fe3C nanocomposite: Kinetics, equilibrium and thermodynamics. Chem. Eng. J. 2012, 210, 87–95. [Google Scholar] [CrossRef]
  94. Aravindhan, R.; Rao, J.R.; Nair, B.U. Removal of basic yellow dye from aqueous solution by sorption on green alga Caulerpa scalpelliformis. J. Hazard Mater. 2007, 142, 68–76. [Google Scholar] [CrossRef]
  95. Gupta, S.; Kumar, D.; Gaur, J. Kinetic and isotherm modeling of lead (II) sorption onto some waste plant materials. Chem. Eng. J. 2009, 148, 226–233. [Google Scholar] [CrossRef]
  96. Xue, X.; Wang, J.; Mei, L.; Wang, Z.; Qi, K.; Yang, B. Recognition and enrichment specificity of Fe3O4 magnetic nanoparticles surface modified by chitosan and Staphylococcus aureus enterotoxins A antiserum. Colloids Surf. B Biointerfaces 2013, 103, 107–113. [Google Scholar] [CrossRef]
  97. Tolba, A.A. Evaluation of uranium adsorption using magnetic-polyamine chitosan from sulfate leach liquor of sela ore material, South Eastern Desert, Egypt. Egypt. J. Chem. 2020, 63, 5219–5238. [Google Scholar] [CrossRef]
  98. Khan, M.M.R.; Ray, M.; Guha, A.K. Mechanistic studies on the binding of Acid Yellow 99 on coir pith. Bioresour. Technol. 2011, 102, 2394–2399. [Google Scholar] [CrossRef]
  99. Ong, P.S.; Ong, S.T.; Hung, Y.T. Utilization of mango leaf as low-cost adsorbent for the removal of Cu (II) ion from aqueous solution. Asian J. Chem. 2011, 25, 6141–6145. [Google Scholar] [CrossRef]
  100. Khalaf, M.A. Biosorption of reactive dye from textile wastewater by non-viable biomass of Aspergillus niger and Spirogyra sp. Biores. Technol. 2008, 99, 6631–6634. [Google Scholar] [CrossRef]
  101. Al Prol, A.E. Study of environmental concerns of dyes and recent textile effluents treatment technology: A Review. Asian J. Fish. Aquat. Res. 2019, 3, 1–18. [Google Scholar] [CrossRef]
  102. Sampranpiboon, P.; Charnkeitkong, P.; Feng, X. Equilibrium isotherm models for adsorption of zinc (II) ion from aqueous solution on pulp waste. WSEAS Transac. Environ. Dev. 2014, 10, 35–47. [Google Scholar]
  103. Gautam, S.; Khan, S.H. Removal of methylene blue from waste water using banana peel as adsorbent. Int. J. Sci. Environ. Technol. 2016, 5, 3230–3236. [Google Scholar]
  104. Tahir, K.; Nazir, S.; Li, B.; Khan, A.U.; Khan, Z.U.H.; Ahmad, A.; Khan, F.U. An efficient photo catalytic activity of green synthesized silver nanoparticles using Salvadora persica stem extract. Sep. Purif. Technol. 2015, 150, 316–324. [Google Scholar] [CrossRef]
  105. Bulut, Y.; Aydın, H. A kinetics and thermodynamics study of methylene blue adsorption on wheat shells. Desalination 2006, 194, 259–267. [Google Scholar] [CrossRef]
  106. Kavitha, D.; Namasivayam, C. Experimental and kinetic studies on methylene blue adsorption by coir pith carbon. Bioresour. Technol. 2007, 98, 14–21. [Google Scholar] [CrossRef]
  107. Banat, F.; Al-Asheh, S.; Al-Makhadmeh, L. Evaluation of the use of raw and activated date pits as potential adsorbents for dye containing waters. Process. Biochem. 2003, 39, 193–202. [Google Scholar] [CrossRef]
  108. Han, R.; Wang, Y.; Han, P.; Shi, J.; Yang, J.; Lu, Y. Removal of methylene blue from aqueous solution by chaff in batch mode. J. Hazard. Mater. 2006, 137, 550–557. [Google Scholar] [CrossRef] [PubMed]
  109. Hall, K.R.; Eagleton, L.C.; Acrivos, A.; Vermeulen, T. Pore-and solid-diffusion kinetics in fixed-bed adsorption under constant-pattern conditions. Ind. Eng Chem. Fundam. 1966, 5, 212–223. [Google Scholar] [CrossRef]
  110. Abdelwahab, O.; El Nemr, A.; El Sikaily, A.; Khaled, A. Use of rice husk for adsorption of direct dyes from aqueous solution: A case study of Direct, F. Scarlet. Egypt. J. Aquat. Res. 2005, 31, 1–11. [Google Scholar]
  111. El Nemr, A.; Khaled, A.; Abdelwahab, O.; El-Sikaily, A. Treatment of wastewater containing toxic chromium using new activated carbon developed from date palm seed. J. Hazard. Mat. 2008, 152, 263–275. [Google Scholar] [CrossRef]
  112. Abualnaja, K.M.; Alprol, A.E.; Ashour, M.; Mansour, A.T. Influencing Multi-Walled Carbon Nanotubes for the Removal of Ismate Violet 2R Dye from Wastewater: Isotherm, Kinetics, and Thermodynamic Studies. Appl. Sci. 2021, 11, 4786. [Google Scholar] [CrossRef]
  113. Potgieter, J.; Pearson, S.; Pardesi, C. Kinetic and thermodynamic parameters for the adsorption of methylene blue using fly ash under batch, column, and heap leaching configurations. Coal Combust. Gasif. Prod. 2018, 10, 23–33. [Google Scholar]
  114. Baaloudj, O.; Assadi, I.; Nasrallah, N.; El Jery, A.; Khezami, L.; Assadi, A.A. Simultaneous removal of antibiotics and inactivation of antibiotic-resistant bacteria by photocatalysis: A review. J. Water Process Eng. 2021, 42, 102089. [Google Scholar] [CrossRef]
  115. Vimonses, V.; Lei, S.; Jin, B.; Chow, C.W.; Saint, C. Kinetic study and equilibrium isotherm analysis of Congo Red adsorption by clay materials. Chem. Eng. J. 2009, 148, 354–364. [Google Scholar] [CrossRef]
Figure 1. Chemical structure of the Methylene Blue Dye (MBD).
Figure 1. Chemical structure of the Methylene Blue Dye (MBD).
Polymers 14 01375 g001
Figure 2. FTIR analysis of Sargassum latifolium before (A) and safter adsorption (B) of methylene blue dye.
Figure 2. FTIR analysis of Sargassum latifolium before (A) and safter adsorption (B) of methylene blue dye.
Polymers 14 01375 g002
Figure 3. Scanning electron microscope of Sargassum latifolium at (a) before and (b) after adsorption of methylene blue dye.
Figure 3. Scanning electron microscope of Sargassum latifolium at (a) before and (b) after adsorption of methylene blue dye.
Polymers 14 01375 g003
Figure 4. UV-Visible spectrum of S. linifolium extracts obtained with aqueous extract.
Figure 4. UV-Visible spectrum of S. linifolium extracts obtained with aqueous extract.
Polymers 14 01375 g004
Figure 5. Impact of the initial pH on removal efficiency of methylene blue dye.
Figure 5. Impact of the initial pH on removal efficiency of methylene blue dye.
Polymers 14 01375 g005
Figure 6. Impact of different methylene blue dye concentrations on adsorption capacity and removal percentages.
Figure 6. Impact of different methylene blue dye concentrations on adsorption capacity and removal percentages.
Polymers 14 01375 g006
Figure 7. Impact of adsorbent dose on adsorption capacity and removal percentages of methylene blue dye.
Figure 7. Impact of adsorbent dose on adsorption capacity and removal percentages of methylene blue dye.
Polymers 14 01375 g007
Figure 8. Impact of different contact times on adsorption percentages of the methylene blue dye.
Figure 8. Impact of different contact times on adsorption percentages of the methylene blue dye.
Polymers 14 01375 g008
Figure 9. Impact temperature on the percentages of adsorption of methylene blue dye.
Figure 9. Impact temperature on the percentages of adsorption of methylene blue dye.
Polymers 14 01375 g009
Figure 10. Linear Freundlich isotherm for MBD sorption.
Figure 10. Linear Freundlich isotherm for MBD sorption.
Polymers 14 01375 g010
Figure 11. Linear Langmuir isotherm for MBD sorption.
Figure 11. Linear Langmuir isotherm for MBD sorption.
Polymers 14 01375 g011
Figure 12. Linear Tempkin model for MBD sorption.
Figure 12. Linear Tempkin model for MBD sorption.
Polymers 14 01375 g012
Figure 13. Linear Harkins–Jura isotherm for MBD sorption.
Figure 13. Linear Harkins–Jura isotherm for MBD sorption.
Polymers 14 01375 g013
Figure 14. Linear Halsey isotherm for MBD sorption.
Figure 14. Linear Halsey isotherm for MBD sorption.
Polymers 14 01375 g014
Figure 15. Linear Henderson isotherm for MBD sorption.
Figure 15. Linear Henderson isotherm for MBD sorption.
Polymers 14 01375 g015
Figure 16. Smith isotherm for MBD sorption.
Figure 16. Smith isotherm for MBD sorption.
Polymers 14 01375 g016
Figure 17. The pseudo-first-order equation for the elimination of MBD onto S. latifolium.
Figure 17. The pseudo-first-order equation for the elimination of MBD onto S. latifolium.
Polymers 14 01375 g017
Figure 18. The pseudo-second-order for the elimination of MBD onto S. latifolium.
Figure 18. The pseudo-second-order for the elimination of MBD onto S. latifolium.
Polymers 14 01375 g018
Figure 19. The intraparticle diffusion equation for the elimination of MBD onto S. latifolium.
Figure 19. The intraparticle diffusion equation for the elimination of MBD onto S. latifolium.
Polymers 14 01375 g019
Table 1. Textural properties of S. latifolium as determined by N2 adsorption.
Table 1. Textural properties of S. latifolium as determined by N2 adsorption.
Surface Area Results (m2/g)Total Pore VolumeAverage Pore SizeAverage Particle Radius
Single Point BETMultipoint BETLangmuir MethodBJH
100.78111.65178.4067.8758.4860.12 cc/g2.19 nm1.22 + 001 nm
Table 2. Factors of isotherm models from non-linear and linear solvation.
Table 2. Factors of isotherm models from non-linear and linear solvation.
Isotherm ModelIsotherm ParameterValue
KF (mg1–1/nL1/ng−1)31.6
LangmuirQmax (mg g−1)0.819
b (L mg−1)0.068
B 0.3
Table 3. Comparison of higher monolayer sorption of MBD onto different adsorbents materials.
Table 3. Comparison of higher monolayer sorption of MBD onto different adsorbents materials.
AdsorbentCapacities (mg g−1)Reference
Banana peel0.124[102]
Cotton stalk11.6[103]
Wheat shells16.6[104]
Coir pith carbon5.9[105]
Wheat shells16.6[104]
Activated date pits12.9[106]
Cereal chaff20.3[107]
Fly Ash0.0727[108]
S. latifolium0.819This study
Table 4. The values of the five various error assessments of isotherm models for adsorption.
Table 4. The values of the five various error assessments of isotherm models for adsorption.
Isotherm ModelHybridAPE%X2ERRSQEABS
Table 5. The comparison of the first order, second-order, and intraparticle diffusion for adsorption rate constants.
Table 5. The comparison of the first order, second-order, and intraparticle diffusion for adsorption rate constants.
First-order Kineticqe (calc.)3.30
Second-order Kineticqe (calc)6.44
qe (exp.)4.18
Interparticle DiffusionKdif1.747
Table 6. Thermodynamic factors of the sorption of IV MB 2R onto S. latifolium.
Table 6. Thermodynamic factors of the sorption of IV MB 2R onto S. latifolium.
Temperature (°C)ΔG° (kJ mol−1)ΔH° (kJ mol−1)ΔS° (J mol−1)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mansour, A.T.; Alprol, A.E.; Abualnaja, K.M.; El-Beltagi, H.S.; Ramadan, K.M.A.; Ashour, M. Dried Brown Seaweed’s Phytoremediation Potential for Methylene Blue Dye Removal from Aquatic Environments. Polymers 2022, 14, 1375.

AMA Style

Mansour AT, Alprol AE, Abualnaja KM, El-Beltagi HS, Ramadan KMA, Ashour M. Dried Brown Seaweed’s Phytoremediation Potential for Methylene Blue Dye Removal from Aquatic Environments. Polymers. 2022; 14(7):1375.

Chicago/Turabian Style

Mansour, Abdallah Tageldein, Ahmed E. Alprol, Khamael M. Abualnaja, Hossam S. El-Beltagi, Khaled M. A. Ramadan, and Mohamed Ashour. 2022. "Dried Brown Seaweed’s Phytoremediation Potential for Methylene Blue Dye Removal from Aquatic Environments" Polymers 14, no. 7: 1375.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
