Article

Ion-Selective Electrode Based on a Novel Biomimetic Nicotinamide Compound for Phosphate Ion Sensor

1
ICT Creative Research Laboratory, Electronics & Telecommunications Research Institute, Daejeon 34129, Korea
2
Department of Chemistry, Chungnam National University, Daejeon 34134, Korea
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Polymers 2022, 14(16), 3392; https://doi.org/10.3390/polym14163392
Submission received: 25 July 2022 / Revised: 10 August 2022 / Accepted: 17 August 2022 / Published: 19 August 2022
(This article belongs to the Special Issue Polymer Thin Films in Sensor Applications)

Abstract

:
Phosphorus is not only an import nutrient to aquatic habitats, but it also acts as a growth inhibitor in aquatic ecosystems; however, it also aggravates environmental issues, such as eutrophication. There is a growing interest in rapid phosphorus detection to manage and protect water resources. Due to the large molecular structure and high hydration energy of phosphate ions, ion-selective electrodes (ISEs) remain in their infancy for real-time measurements in terms of practical application. In this study, a newly developed ionophore based on a biomimetic nicotinamide functional group was used to detect phosphate selectively, displaying efficient binding through charge interactions and hydrogen bonds. The ISE membrane containing silicone rubber demonstrated an effective detection performance over a long period of time. With a dynamic range between 10−6 and 10−2 M and a limit of detection of 0.85 × 10−6 M (26 μg/L), the newly synthesized ISE membranes demonstrated selectivity for phosphate ions over other ions, including acetate, sulfate, and chloride.

Graphical Abstract

1. Introduction

Growth-limiting nutrients of aquatic habitats, such as carbon, nitrogen, and phosphorus, play important roles in aquatic ecosystems. An accurate assessment of growth-limiting nutrients can provide a better understanding of aquatic ecosystems. It is crucial to accurately measure phosphorus chemically and biochemically. Phosphorus often causes eutrophication owing to its excessive loading into water bodies, which impairs the aquatic environment [1,2]. Environmental agencies in many countries have established recommended limits for total phosphorus or phosphate concentrations and standard protocols for determining their concentrations to manage and protect water resources [3,4,5]. However, these standard protocols mostly require sample collection, reaction with redox agents or coloring agents under harsh conditions in the laboratory, and spectroscopic measurements within a certain time period [6,7].Therefore, this method is not suitable for the effective real-time monitoring of phosphate ion concentration changes because of its complex and time-consuming steps. A number of electrochemical and spectrophotometric commercial sensors offer the seamless monitoring of nutrients such as NH4+, K+, Na+, Mg2+, Ca2+, Cl, NO3, CN, and F [8,9,10,11,12,13,14]. However, currently, no commercial phosphate sensors that can handle real-time analysis exist in the field.
Phosphorus is mostly present in the form of phosphate ions, which are considered to be relatively large ions similar to sulfate, acetate, and perchlorate ions. Phosphorous’s large hydration energy renders it difficult to develop a sensor based on hydrogen bonding between the sensing material and the analyte [15,16]. Despite these challenges, researchers have been developing phosphate sensors based on spectrophotometric sensors using colorimetric or photoluminescent probes and electrochemical sensors, such as potentiometric or voltametric sensors [17,18,19,20,21,22,23,24]. Spectrophotometric sensors have a relatively low limit of detection (LOD) but a narrow linear concentration range with respect to their sensor performance. However, electrochemical sensors have a wide linear relationship between phosphate concentrations and sensor output signals. Pioneering research on phosphate sensors based on electrochemical principles has focused on ion-selective electrode (ISE) sensors using urea or thiourea-functionalized calix[4]arene as an ionophore [6,25]. The ionophore possesses well-organized interaction sites for spherical or tetragonally structured ions through hydrogen bonds [26]. The ISE sensor using calix[4]arene shows an ideal Nernst behavior in the 10−5– 10−1 M concentration range and an LOD of 5 × 10−5 M for its phosphate concentration [6]. However, its inferior sensitivity to phosphate, rather than perchlorate, remains to be improved.
In this study, ionophores with nicotinamide functional groups were designed and synthesized to develop an ISE sensor that detects phosphate effectively, and their phosphate detection characteristics were also studied. As an important biomaterial, nicotinamide is a water-soluble form of vitamin used as a precursor of the nicotinamide-adenine dinucleotide. Specific hydrogen bonding between nicotinamide and the phosphates of lipids plays a critical role as nicotinamide effectively penetrates phospholipids in biological systems [27,28]. This study demonstrates an ISE sensor consisting of a nicotinamide-based ionophore that detects phosphate selectively and sensitively by imitating the specific interaction in a biological system and examines its characteristics. Furthermore, the long-term performance stability of the sensor was achieved by optimizing the ISE membrane constituents.

2. Materials and Methods

Poly-vinyl chloride (PVC), 2-nitrophenyl octyl ether (NPOE), tetradodecylammonium bromide (TDAB), potassium chloride, tetrahydrofuran (THF), dimethyl sulfoxide (DMSO), acetonitrile (ACN), ethanol (EtOH), and potassium phosphate monobasic were purchased from Sigma Aldrich (Merck Korea, Seoul, Korea). Silicone rubber RTV 3140 was obtained from DOWSIL (Dow, MI, USA). Nicotinamide, 1,3-bis (bromomethyl) benzene and potassium hexafluorophosphate (KPF6) obtained from Tokyo Chemical Industry CO., Ltd (SEJIN CI Co., Ltd., Seoul, Korea). All aqueous solutions were prepared using deionized water (resistivity of 18.2 M Ω cm). All chemicals were used without further purification.

2.1. Synthesis of Ionophores

1,3-Phenylenebis (methylene) [3-(N,N-diethyl)carbamoylpyridinium] bromide (bis-meta-NICO-Br) was prepared via a method used in previous study [29]. Nicotinamide (2.00 g, 16.7 mmol) was added to a solution of 1,3-bis (bromomethyl)benzene (2.00 g, 7.06 mmol) in a solvent mixture of ACN (15 mL) and EtOH (35 mL) (Scheme 1). The reaction mixture was stirred for 3 h at 82 °C and then cooled to room temperature. The white precipitates were filtered and washed thrice with cold ethanol and then dried in an oven at 60 °C (1.90 g, yield: 49%). 1H nuclear magnetic resonance (NMR, 300 MHz, DMSO-d6): δ 9.64 (s, 2H, -NCH-), δ 9.32 (d, 2H, -CH-), δ 9.01 (d, 2H, -CH-), δ 8.62 (s, 2H, -NH2), δ 8.30 (t, 2H, -CH-), δ 8.20 (s, 2H -NH2), δ 7.79 (s, 1H, Ar-H), δ 7.60 (d, 2H, Ar-H), δ 7.53 (t, 1H, Ar-H), and δ 5.96 (s, 4H, -CH2-).
Synthesis of bis-meta-NICO-PF6: The counter anions of bis-meta-NICO-Br, which is a cation, were exchanged with hexafluorophosphate. This additional procedure was conducted to improve the solubility of the ionophore in common organic solvents and prepare a homogeneous ISE membrane (Scheme 1). An aqueous solution (20 mL) of bis-meta-NICO-Br (0.500 g, 3.20 mmol) was added to an aqueous solution (30 mL) of KPF6 (2.55 g, 13.7 mmol). The reaction mixture was then stirred for 2 h at room temperature (Scheme 1). The white precipitates were filtered, washed thrice, and dried in an oven at 60 °C (0.466 g, yield: 73%). 1H NMR (300 MHz, DMSO-d6): δ 9.55 (s, 2H, -NCH-), δ 9.22 (d, 2H, -CH-), δ 8.97 (d, 2H, -CH-), δ 8.57 (s, 2H, -NH2), δ 8.30 (t, 2H, -CH-), δ 8.20 (s, 2H -NH2), δ 7.67 (s, 1H, Ar-H), δ 7.56 (d, 2H, Ar-H), δ 7.54 (t, 1H, Ar-H), and δ 5.92 (s, 4H, -CH2-). MALDI-TOF mass (m/z) calculated—493.3642; observed—492.6193 [M+PF6] (Figure S1).
Bis-para-NICO isomer was prepared by following the same procedure as that of bis-meta-NICO using p-nicotinamide as a starting material (see Supporting Information). The synthesis of tris-meta-NICO-PF6 was performed by switching 1,3-bis (bromomethyl) benzene with 1,3,5-tris (bromomethyl)benzene (Scheme 1).

2.2. Membrane

To fabricate the Type 1 ISE membrane, we first prepared a PVC solution by dissolving PVC (33 mg) in THF (400 μL) and then vortexing it for 2 h. Thereafter, 1 mg of bis-meta-NICO-PF6 was dissolved in THF (100 μL) and DMSO (40 μL) to obtain bis-meta-NICO-PF6 solution, which was further mixed with the PVC solution and stirred for 1 h. TDAB (1 mg), as an additive in THF (100 μL), was mixed with PVC/bis-meta-NICO-PF6 solution and stirred for 1 h. Furthermore, NPOE (1.04 g/mL, 66 μL) was added to the PVC/bis-meta-NICO-PF6/additive solution and stirred for 2 h. The resulting solution (membrane solution) was dried at room temperature for 48 h using a glass ring of a predetermined size [30]. A further layer of silicone rubber (SR) solution was prepared for developing Type 2 membrane (Figure 1). The SR solution was prepared by mixing the membrane solution and RTV 3140 (50 mg/mL, dissolved in THF) at a 1:1 volume ratio [31]. To prepare the Type 2 ISE membrane, the membrane solution (360 μL) was dried at room temperature for 24 h and then covered with the SR solution (240 μL), followed by drying for an additional 24 h. When the Type 2 ISE membrane was evaluated, the layer formed by drying the SR solution was exposed to the analyte solution.

2.3. Characterization

The NMR data—including 2D experiments and NMR titration studies for the compounds bis-meta-NICO-PF6, tris-meta-NICO-PF6, and bis-para-NICO-PF6—were collected in samples dissolved in DMSO-d6 with 1H referencing to the residual solvent peak at 2.50 ppm on an NMR spectrometer (Fourier 300, Bruker, Billerica, MA, USA). The following abbreviations were used to indicate the multiplicity in the NMR spectra: s = singlet, d = doublet, and t = triplet signal. The structure of the membrane and its binding behavior to the ions were verified using Fourier transform infrared (FT-IR) spectroscopy (ALPHA-P, USA).

2.4. Electromotive Force (EMF) Measurement

The EMF was evaluated to quantify the strength and selectivity of the ion interactions in a liquid membrane. A potentiometer (KST101A, Kosentech, Korea) with a computer-based data-gathering system was used to examine the EMFs of each sample. The measurement setup featured a double-junction Ag/AgCl electrode saturated with KCl as a reference electrode from Thermo Fisher Scientific. The EMF of the stabilized ISEs was measured after 5-min incubation in deionized water. The EMF or membrane potential (E) was calculated for sample concentrations (C) ranging from 10−6 M to 10−2 M as follows:
E = E 0 + R T z F l o g C = E 0 + S × l o g C
where R is the gas constant (8.314 J/K). mol), T is the temperature (K), F is the Faraday constant (96,500 C/mol), and z is the charge of the analyte ion. With the exception of the membrane–sample solution interface, the potential differences of all other interfaces are added together to obtain the constant term E0, which is unique to the analyte [32]. A plot of E versus l o g C demonstrates that the measured E is proportional to the logarithm of the analyte concentration with a slope (S).
The ISE capacity to match the principal ions in a mixed solution is measured by its selectivity coefficient ( k i j p o t ) [33,34]. The selectivity coefficient was obtained using the separation method at the same concentrations ranging between 10−6 and 10−2 M. E1 and E2 are the measured membrane potentials for a solution containing the salt of the primary ion i and interfering ion j, respectively; z i is the charge of the primary ion; S is the slope of the linear part of the electrode calibration curve; and Δ E is the potential difference between ions j and i.
log k i j p o t = ( E 2 E 1 ) z i F 2.303 R T = Δ E S

3. Results

3.1. Synthesis of Ionophore and Its Interaction with Phosphate

The phosphate receptors were designed to have cationic moieties, such as pyridinium and imidazolium. In the preliminary phosphate titration tests, nicotinamide-type receptors showed a high performance compared with the other ionophores owing to the additional H-bonding sites. Significantly, the bis-nicotinamide-based ionophore (bis-meta-NICO-PF6, Figure 2) exhibited stronger interactions with phosphate ions than tris-meta-NICO-PF6 (Figure S2). The different positions of the amide groups, the meta- and para-isomers, were also compared through phosphate titration studies (Figure S3). Based on the findings of a preliminary NMR titration investigation, bis-meta-NICO-PF6 was chosen as the best molecular design among the ionophores in this study for the adhesion of an ionophore to a phosphate ion. The optimized modeling structure of the bis-meta-NICO-PF6 was obtained by repeating the energy minimization process five times on Chem3D software (Figure S4). In a three-dimensional modeling structure, the two arms of the receptor can be aligned to form a binding pocket, which is flexible and fits well with a phosphate ion. The groove of the ionophore provides cationic charges for electrostatic attraction and hydrogen bonding. The protons on the ionophore molecule were determined based on the two-dimensional-NMR interpretation as shown in Figures S5 and S6. In phosphate titration studies, 2-H, which is adjacent to the amide group and positively charged nitrogen, was significantly affected by the phosphate ion, and large downfield shifts were observed (Figure 2). Similarly, 5-H also was significantly shifted downfield. However, 3-H and 4-H showed substantially smaller upfield shifts as they were separated from the amide group. This tendency indicates that charge interactions and hydrogen bonding with amide groups play an important role in facilitating the interaction between the ionophore and phosphate ions. Significantly, two amide protons (1-H and 1-H’) split each other, and a 1-H proton peak initially appeared at 8.6 ppm and gradually moved downfield and broadened to 9.1 ppm when a 0.75 equivalent of phosphate was added. The other amide proton, 1-H’, moved in the opposite direction. A fast and dynamic exchange processes may be involved, and the large chemical-shift indicates a strong interaction between amide groups and phosphate anions. The 7-H showed the largest downfield shift, which strongly supports the formation of a binding pocket around 2-H, 5-H, and 7-H by a phosphate anion.
Phosphate titration investigations with a variety of anions, including CH3COO, NO3, SO42−, Br, and Cl, were conducted (Figures S7–S11). The results of the NMR titration experiments are summarized and listed as chemical shift changes (Figure S12). The chemical shifts of all the protons in bis-meta-NICO-PF6 were investigated when 1 eq of an anion was added. Large downfield shifts and their wide distribution were observed for 2-H, 5-H, and 7-H in all cases, owing to the strong interaction between bis-meta-NICO-PF6 and an anion. Figure S13 shows plots only for 7-H to compare and estimate the relative binding affinity upon increasing the amount of guest anions. These results are very useful for determining the selectivity order for anions in solution, which is determined as H2PO4 > Cl > SO42− > CH3COO > NO3 > Br.

3.2. Membrane Characteristics

FT-IR spectroscopic analyses were performed to verify the interactions between bis-meta-NICO-PF6 and phosphate ions in the Type 2 membrane. Figure 3 shows the FT-IR spectra of the bis-meta-NICO-PF6 (S1), Type 2 membrane (S2), and Type 2 membrane reacted with 0.5 M phosphate ions (S3). The peaks corresponding to nicotinamide were clearly observed in S1 at 3400 (N–H), 1670 (C=O), 1506 (C=C), and 1394 cm−1 (C–N) [35]. The spectra (S2, S3) of the Type 2 membranes in Figure 3 showed several vibration bands from PVC and silicone rubber: 2924 (C–H stretching), 1278 (C–H rocking), 962 (C–H wagging), 855 (C–Cl), and ca. 1000 cm−1 (Si–O–Si) [36,37]. Additionally, it is known that bands for P–O from phosphate ions can be seen at approximately 1070 and 982 cm−1 [38]. The peaks in S3 at 1080 and 982 cm−1 can be attributed to the presence of phosphate in the Type 2 membrane.

3.3. Evaluation of ISE Response

The EMF responses were measured before and after the interaction between ISE and H2PO4 at various concentrations ranging between 10−6 and 10−2 M. The EMF values were obtained by measuring the differences between the internal and external potentials of the membrane during the interaction between H2PO4 and bis-meta-NICO-PF6. Figure 4a shows that the pH sensor barely changed in response to the phosphate concentration; however, the EMF values linearly decreased with an increasing H2PO4 concentration. The EMF was plotted against the logarithm of the H2PO4 concentration (Figure 4b and Figure S14). Therefore, we can deduce that the change in the signal was caused by a change in the amount of phosphate rather than a change in the hydrogen ions. The linear dependence between the EMF and H2PO4 concentration led to a regression equation of y = −22.9 logx + 0.3 with a correlation coefficient of 0.96 for Type 1. With a correlation coefficient of 0.95, the regression equation y = −38.3 logx + 158.2 was obtained for Type 2.
The reproducibility, expressed in terms of the relative standard deviation, was approximately 2.9% (n = 3) at a H2PO4 concentration of 5.0 μM. The LOD value of phosphate for the Type 2 membrane was 0.85 × 10−6 M (26 μg/L) (Figure 4b(i)), using the formula LOD = 3 σ/k, where σ is the standard deviation and k is the slope [39]. However, the phosphate detection without an SR layer membrane (Type 1) demonstrated that the linear range was between 10−6 and 10−2 M, and the LOD was approximately 1.54 × 10−6 M (47 μg/L) (Figure 4b(ii)). The Type 2 membrane achieved an LOD three times lower than that of the Type 1 membrane, demonstrating that the SR layer effectively prevented the leakage of bis-meta-NICO-PF6 and maintained the potential difference.
During a long period of measurements, the phosphate ion-sensing behaviors of the Type 1 and Type 2 membranes were different. When the measurements were taken continuously over a period of five days, the Type 2 membrane exhibited a larger slope than the Type 1 membrane because of its higher sensitivity to the changes in the phosphate concentration. Figure S15 shows that the results from Type 1 and Type 2 had statistically significant differences according to the p-value obtained under the equal variance condition of the independent sample T test, which was 0.000761. The slope of Equation (1) was evaluated over a period of more than 40 days to assess the long-term durability of the Type 1 and 2 membranes (Figure 5). The slopes exhibited a gradual increase for approximately 5 to 10 days, allowing the membrane matrix’s aging or component reorganization to occur. The membrane matrix demonstrated a phenomenon of gradual sensitivity enhancement based on the rising slope, as opposed to most ISE matrixes, which showed a performance loss with aging [11]. After 30 days, the Type 1 slope was reduced by 70% (from −37.49 to −11.07), but the Type 2 slope was only diminished by 5% (−56.21 to −53.16). According to previous studies, the good sensitivity and durability of the Type 2 membrane can be attributed to the ability of the SR layer to prevent bis-meta-NICO-PF6 leakage into the matrix [31].
The selectivity coefficient was determined to verify the binding constants of various anions. A separate solution method was used to calculate the coefficient [33,34]. The Type 1 membrane showed higher affinities for NO3 and Cl than H2PO4, but the selectivity coefficient of phosphate to both NO3 and Cl had improved in Type 2. However, NO3 acted as an interfering ion for H2PO4 detection in both Type 1 and Type 2 [40], which necessitates a more scrutinized approach, such as molecular imprinting. The selectivity coefficient for the Type 2 ISE changed in the following order: H2PO4 ≥ NO3 > Cl > SO42− > CH3COO. Furthermore, NO3 had the second-lowest affinity for NICO-PF6 in the solution-based NMR titration experiments. However, NO3 demonstrated a similar attraction to NICO-PF6 in the Type 2 membrane. These results may be attributed to the differences between the solution and liquid membrane states. Further investigations should be conducted on the interactions between NO3 and other components of the Type 2 membranes, such as PVC, additives, plasticizers, and RTV 3140 as SR.
Table 1 presents a comparison of the analytical properties of the Type 1 and Type 2 ISE and other H2PO4−ISEs, demonstrating that they have equivalent linear ranges, slopes, and selectivity values ( log k i j p o t ) [40,41,42,43]. Furthermore, Type 2 outperformed the other sensors in terms of stability and LOD. Therefore, the newly synthesized ionophores inspired by the nicotinamide moiety owing to their multiple binding modes through hydrogen bonds and charge interactions, as well as effective matrix components such as SR that prevent ionophores from dissolving, are considered effective for their unique characteristics.

4. Conclusions

The specific affinity between nicotinamide and phosphate through hydrogen bonding and charge interactions was utilized to develop an effective ionophore that can be applied in an ISE-based phosphate sensor. Several analogs of ionophores, including bis-, tris-, meta-, and para-NICO, which include the nicotinamide functional group, were synthesized and their affinities to phosphate in the solution phase were investigated using NMR spectroscopic analyses. In this study, the most efficient ionophore was bis-meta-NICO-PF6, which had a stronger affinity for phosphate than Cl, SO42−, CH3COO, NO3, and Br in the solution phase. Bis-meta-NICO-PF6 had to be embedded into the membrane using carefully formulated membrane components, such as PVC, NPOE as a plasticizer, and DTAB as an additive; its affinity for phosphate ions in the membrane was practically comparable with that of the ionophore in the solution phase with the only exception being NO3-. Further studies should be conducted to understand the different affinity behaviors of bis-meta-NICO-PF6 for NO3 in solution and in the ISE membrane. In addition, an SR layer was introduced to prevent the elution of bis-meta-NICO-PF6 from the developed membrane and was found to maintain the sensor performance for a long time-period, namely, over 40 days. Therefore, we developed a Type 2 membrane based on ISE with an LOD value of 0.85 × 10−6 M for phosphate, which is one of the best LOD values reported thus far for phosphate sensors in the field of ISEs. With its selectivity, sensitivity, and durability characteristics, the newly synthesized ionophore, bis-meta-NICO-PF6, can be used for the seamless and real-time monitoring of phosphate concentration changes in the field.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym14163392/s1, Figure S1. (a) 1H-NMR spectrum of bis-meta-NICO-PF6 ionophore. (b) MALDI-TOF spectrum of bis-meta-NICO-PF6 m/z=492.6193 [M+PF6].; Figure S2. 1H-NMR spectra of tris-meta-NICO-PF6 under phosphate titration.; Figure S3. 1H-NMR spectra of bis-para-NICO-PF6 under phosphate titration study.; Figure S4. Three-dimensional modeling of bis-meta-NICO-PF6 binding phosphate.; Figure S5. 2-D NOESY NMR spectrum of bis-meta-NICO-PF6.; Figure S6. 2-D NOESY NMR spectrum of bis-meta-NICO-PF6 with phosphate ion.; Figure S7. Acetate titration to bis-meta-NICO-PF6 in DMSO-d6.; Figure S8. Nitrate titration to bis-meta-NICO-PF6 in DMSO-d6.; Figure S9. Sulfate titration to bis-meta-NICO-PF6 in DMSO-d6.; Figure S10. Bromide titration to bis-meta-NICO-PF6 in DMSO-d6.; Figure S11. Chloride titration to bis-meta-NICO-PF6 in DMSO-d6.; Figure S12. Chemical shift change distribution of bis-meta-NICO-PF6 upon 1 equivalent of anion addition.; Figure S13. Chemical shift change profile of 7-H on bis-meta-NICO-PF6 upon anion titration.; Figure S14. Type 1 and Type 2 ISE reproducibility across production batches.; Figure S15. Slope comparison of Type 1 and Type 2 during five consecutive days.

Author Contributions

Conceptualization, B.J., D.Y.K., J.H. and H.-K.L.; methodology, B.J., D.Y.K., J.H. and H.-K.L.; validation, B.J., J.S.O., D.G.K., J.H. and H.-K.L.; formal analysis, B.J., J.S.O., D.Y.K., Y.I.K., J.H. and H.-K.L.; investigation, B.J., D.Y.K., D.G.K., Y.I.K., J.H. and H.-K.L.; resources, J.H. and H.-K.L.; data curation, B.J., J.S.O., D.G.K., Y.I.K., J.H. and H.-K.L.; writing—original draft preparation, B.J., J.S.O., D.Y.K., D.G.K., Y.I.K., J.H. and H.-K.L.; writing—review and editing, B.J., J.H. and H.-K.L.; visualization, B.J., J.S.O., D.Y.K., D.G.K., J.H. and H.-K.L.; supervision, J.H. and H.-K.L.; project administration, J.H. and H.-K.L.; funding acquisition, J.H. and H.-K.L. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by NRF (2021M3H4A4079264/2021M3H4A4079271) and the ICT R&D program of MSIT/IITP (2018-0-00219).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors thank Jinho Oh of the Korean Science Academy for his advice on setting up ISE measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lu, J.; Zhu, B.; Struewing, I.; Xu, N.; Duan, S. Nitrogen–Phosphorus-Associated Metabolic Activities during the Development of a Cyanobacterial Bloom Revealed by Metatranscriptomics. Sci. Rep. 2019, 9, 2480. [Google Scholar] [CrossRef] [PubMed]
  2. McAdams, H.H. Bacterial Stalks Are Nutrient-Scavenging Antennas. Proc. Natl. Acad. Sci. USA 2006, 103, 11435. [Google Scholar] [CrossRef] [PubMed]
  3. Litke, D.W. Review of Phosphorus Control Measures in the United States and Their Effects on Water Quality; US Department of the Interior, US Geological Survey: Denver, CO, USA, 1999.
  4. Sims, J.T.; Goggin, N.; McDermott, J. Nutrient Management for Water Quality Protection: Integrating Research into Environmental Policy. Water Sci. Technol. 1999, 39, 291–298. [Google Scholar] [CrossRef]
  5. Manuel, J. Nutrient Pollution: A Persistent Threat to Waterways. Environ. Health Perspect. 2014, 122, A304–A309. [Google Scholar] [CrossRef]
  6. Kivlehan, F.; Mace, W.J.; Moynihan, H.A.; Arrigan, D.W.M. Potentiometric Evaluation of Calix[4]Arene Anion Receptors in Membrane Electrodes: Phosphate Detection. Anal. Chim. Acta 2007, 585, 154–160. [Google Scholar] [CrossRef]
  7. Chambers, P. Standard Methods for the Examination of Water and Wastewater; Scientific e-Resources: Delhi, India, 2019; ISBN 1-83947-166-2. [Google Scholar]
  8. Crespo, G.A. Recent Advances in Ion-Selective Membrane Electrodes for in Situ Environmental Water Analysis. Electrochim. Acta 2017, 245, 1023–1034. [Google Scholar] [CrossRef]
  9. Fiedler, U.; Růžička, J. Selectrode—The Universal Ion-Selective Electrode. Anal. Chim. Acta 1973, 67, 179–193. [Google Scholar] [CrossRef]
  10. Saleh, M.A.; Ewane, E.; Wilson, B.L. Monitoring the Houston Ship Channel for Inorganic Pollutants by Ion Selective Electrodes, Ion Chromatography, and Inductively Coupled Plasma Spectroscopy. Chemosphere 1999, 39, 2357–2364. [Google Scholar] [CrossRef]
  11. De Marco, R.; Clarke, G.; Pejcic, B. Ion-Selective Electrode Potentiometry in Environmental Analysis. Electroanalysis 2007, 19, 1987–2001. [Google Scholar] [CrossRef]
  12. Wang, L.; Cheng, Y.; Lamb, D.; Megharaj, M.; Naidu, R. Application of Ion Selective Electrode Array to Simultaneously Determinate Multi-Free Ions in Solution. Environ. Technol. Innov. 2019, 15, 100424. [Google Scholar] [CrossRef]
  13. Warwick, C.; Guerreiro, A.; Soares, A. Sensing and Analysis of Soluble Phosphates in Environmental Samples: A Review. Biosens. Bioelectron. 2013, 41, 1–11. [Google Scholar] [CrossRef]
  14. Strehlitz, B.; Grundig, B.; Vorlop, K.-D.; Bartholmes, P.; Kotte, H.; Stottmeister, U. Artificial Electron Donors for Nitrate and Nitrite Reductases Usable as Mediators in Amperometric Biosensors. Fresenius J. Anal. Chem. 1994, 349, 676–678. [Google Scholar] [CrossRef]
  15. Zhang, Y.; Cremer, P. Interactions between Macromolecules and Ions: The Hofmeister Series. Curr. Opin. Chem. Biol. 2006, 10, 658–663. [Google Scholar] [CrossRef]
  16. Vlachy, N.; Jagoda-Cwiklik, B.; Vácha, R.; Touraud, D.; Jungwirth, P.; Kunz, W. Hofmeister Series and Specific Interactions of Charged Headgroups with Aqueous Ions. Adv. Colloid Interface Sci. 2009, 146, 42–47. [Google Scholar] [CrossRef]
  17. Li, X.; Niu, X.; Liu, P.; Xu, X.; Du, D.; Lin, Y. High-Performance Dual-Channel Ratiometric Colorimetric Sensing of Phosphate Ion Based on Target-Induced Differential Oxidase-like Activity Changes of Ce-Zr Bimetal-Organic Frameworks. Sens. Actuators B Chem. 2020, 321, 128546. [Google Scholar] [CrossRef]
  18. Pinyorospathum, C.; Rattanarat, P.; Chaiyo, S.; Siangproh, W.; Chailapakul, O. Colorimetric Sensor for Determination of Phosphate Ions Using Anti-Aggregation of 2-Mercaptoethanesulfonate-Modified Silver Nanoplates and Europium Ions. Sens. Actuators B Chem. 2019, 290, 226–232. [Google Scholar] [CrossRef]
  19. Patel, V.; Selvaganapathy, P.R. Enhancing the Sensitivity of Cobalt Based Solid-State Phosphate Sensor Using Electrical Pretreatment. Sens. Actuators B Chem. 2021, 349, 130789. [Google Scholar] [CrossRef]
  20. Xu, K.; Kitazumi, Y.; Kano, K.; Shirai, O. Phosphate Ion Sensor Using a Cobalt Phosphate Coated Cobalt Electrode. Electrochim. Acta 2018, 282, 242–246. [Google Scholar] [CrossRef]
  21. Huang, Y.; Ye, Y.; Zhao, G.; Wu, X.; Kan, Y.; Mur, L.; Han, J.; Qin, H. An All-Solid-State Phosphate Electrode with H3PO4 Doped Polyaniline as the Sensitive Layer. Int. J. Electrochem. Sci. 2017, 12, 4677–4691. [Google Scholar] [CrossRef]
  22. Zhang, Y.; Sheng, S.; Mao, S.; Wu, X.; Li, Z.; Tao, W.; Jenkinson, I.R. Highly Sensitive and Selective Fluorescent Detection of Phosphate in Water Environment by a Functionalized Coordination Polymer. Water Res. 2019, 163, 114883. [Google Scholar] [CrossRef]
  23. Kim, D.Y.; Kim, D.G.; Jeong, B.; Kim, Y.I.; Heo, J.; Lee, H.-K. Reusable and PH-Stable Luminescent Sensors for Highly Selective Detection of Phosphate. Polymers 2022, 14, 190. [Google Scholar] [CrossRef]
  24. Chen, X.; Zhou, G.; Mao, S.; Chen, J. Rapid Detection of Nutrients with Electronic Sensors: A Review. Environ. Sci. Nano 2018, 5, 837–862. [Google Scholar] [CrossRef]
  25. Modi, N.R.; Patel, B.; Patel, M.B.; Menon, S.K. Novel Monohydrogenphosphate Ion-Selective Polymeric Membrane Sensor Based on Phenyl Urea Substituted Calix[4]Arene. Talanta 2011, 86, 121–127. [Google Scholar] [CrossRef]
  26. Nishizawa, S.; Yokobori, T.; Kato, R.; Yoshimoto, K.; Kamaishi, T.; Teramae, N. Hydrogen-Bond Forming Ionophore for Highly Efficient Transport of Phosphate Anions across the Nitrobenzene–Water Interface. Analyst 2003, 128, 663–669. [Google Scholar] [CrossRef]
  27. Borba, A.; Lairion, F.; Disalvo, A.; Fausto, R. Interaction of Nicotinamide and Picolinamide with Phosphatidylcholine and Phosphatidylethanolamine Membranes: A Combined Approach Using Dipole Potential Measurements and Quantum Chemical Calculations. Biochim. Biophys. Acta (BBA) Biomembr. 2009, 1788, 2553–2562. [Google Scholar] [CrossRef]
  28. Nikas, I.P.; Paschou, S.A.; Ryu, H.S. The Role of Nicotinamide in Cancer Chemoprevention and Therapy. Biomolecules 2020, 10, 477. [Google Scholar] [CrossRef]
  29. Zhou, F.; Wang, C.-H.; Warner, J.C. Synthesis of phenylene 1,3- and 1,44 bis (methylene)-3-carbamoyl pyridinium bromides. Org. Prep. Proced. Int. 2004, 36, 173–177. [Google Scholar] [CrossRef]
  30. Craggs, A.; Moody, G.J.; Thomas, J.D.R. PVC Matrix Membrane Ion-Selective Electrodes. Construction and Laboratory Experiments. J. Chem. Educ. 1974, 51, 541. [Google Scholar] [CrossRef]
  31. Joon, N.K.; He, N.; Ruzgas, T.; Bobacka, J.; Lisak, G. PVC-Based Ion-Selective Electrodes with a Silicone Rubber Outer Coating with Improved Analytical Performance. Anal. Chem. 2019, 91, 10524–10531. [Google Scholar] [CrossRef]
  32. Amemiya, S. 7—Ion-Selective Electrodes. In Handbook of Electrochemistry; Zoski, C.G., Ed.; Elsevier: Amsterdam, The Netherlands, 2007; pp. 261–294. ISBN 978-0-444-51958-0. [Google Scholar]
  33. Bakker, E. Determination of Unbiased Selectivity Coefficients of Neutral Carrier-Based Cation-Selective Electrodes. Anal. Chem. 1997, 69, 1061–1069. [Google Scholar] [CrossRef]
  34. Umezawa, Y.; Bühlmann, P.; Umezawa, K.; Tohda, K.; Amemiya, S. Potentiometric Selectivity Coefficients of Ion-Selective Electrodes. Part I. Inorganic Cations (Technical Report). Pure Appl. Chem. 2000, 72, 1851–2082. [Google Scholar] [CrossRef]
  35. Uspenskaya, E.; Pleteneva, T.; Syroeshkin, A.; Kasymova, I.; Zakharova, N. Development of an Effective Way to Increase the Biological Activity of Nicotinamide—A New Strategy to Protect against Photoageing and Skin Neoplasia. BIO Web Conf. 2020, 22, 01005. [Google Scholar] [CrossRef]
  36. Ramesh, S.; Leen, K.H.; Kumutha, K.; Arof, A.K. FTIR Studies of PVC/PMMA Blend Based Polymer Electrolytes. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2007, 66, 1237–1242. [Google Scholar] [CrossRef] [PubMed]
  37. Fu, H.; Ding, X.; Ren, C.; Li, W.; Wu, H.; Yang, H. Preparation of Magnetic Porous NiFe2O4/SiO2 Composite Xerogels for Potential Application in Adsorption of Ce(Iv) Ions from Aqueous Solution. RSC Adv. 2017, 7, 16513–16523. [Google Scholar] [CrossRef]
  38. Kleinsmann, A.J.; Weckenmann, N.M.; Nachtsheim, B.J. Phosphate-Triggered Self-Assembly of N-[(Uracil-5-Yl)Methyl]Urea: A Minimalistic Urea-Derived Hydrogelator. Chem. Eur. J. 2014, 20, 9753–9761. [Google Scholar] [CrossRef]
  39. Yang, J.; Wang, Z.; Hu, K.; Li, Y.; Feng, J.; Shi, J.; Gu, J. Rapid and Specific Aqueous-Phase Detection of Nitroaromatic Explosives with Inherent Porphyrin Recognition Sites in Metal–Organic Frameworks. ACS Appl. Mater. Interfaces 2015, 7, 11956–11964. [Google Scholar] [CrossRef]
  40. Liu, Y.; Yuan, T.; Zhu, J.; Qin, Y.; Jiang, D. Polymer–Multiwall Carbon Nantubes Composites for Durable All Solid-Contact H2PO4−-Selective Electrodes. Sens. Actuators B Chem. 2015, 219, 100–104. [Google Scholar] [CrossRef]
  41. Jiang, H.; Ali, M.A.; Jiao, Y.; Yang, B.; Dong, L. In-Situ, Real-Time Monitoring of Nutrient Uptake on Plant Chip Integrated with Nutrient Sensor. In Proceedings of the 2017 19th International Conference on Solid-State Sensors, Actuators and Microsystems (TRANSDUCERS), Kaohsiung, Taiwan, 18–22 June 2017; pp. 289–292. [Google Scholar]
  42. Kim, H.J.; Hummel, J.W.; Sudduth, K.A.; Birrell, S.J. Evaluation of Phosphate Ion-Selective Membranes and Cobalt-Based Electrodes for Soil Nutrient Sensing. Trans. ASABE 2007, 50, 415–425. [Google Scholar] [CrossRef]
  43. Sasaki, S. Organic Tin Compounds Combined with Anionic Additives—An Ionophore System Leading to a Phosphate Ion-Selective Electrode? Talanta 2004, 63, 131–134. [Google Scholar] [CrossRef]

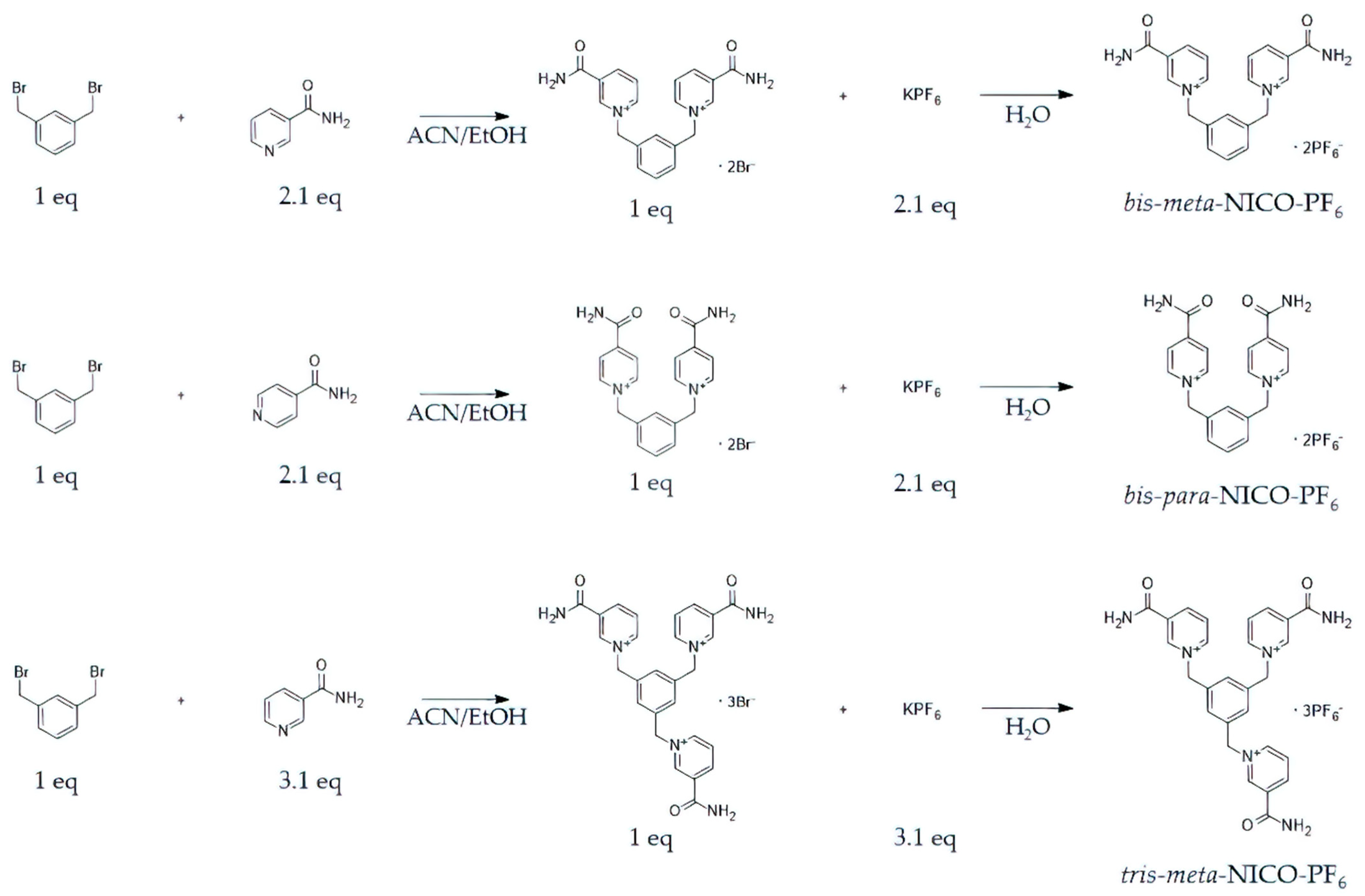

Scheme 1. Synthetic scheme of phosphate ionophores with nicotinamide functional groups. The symbol “eq” stands for equivalent weight.
Scheme 1. Synthetic scheme of phosphate ionophores with nicotinamide functional groups. The symbol “eq” stands for equivalent weight.
Polymers 14 03392 sch001

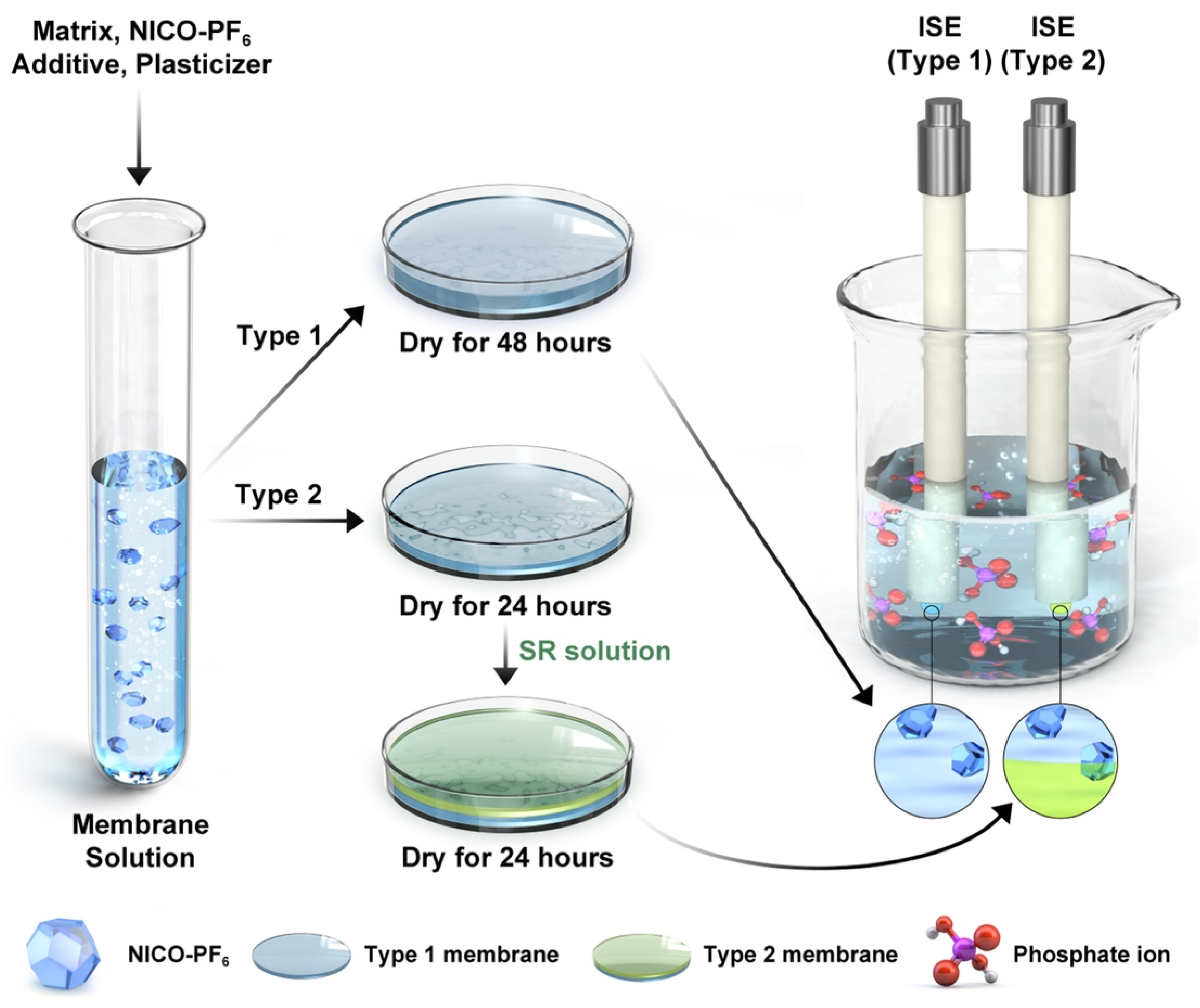

Figure 1. Fabrication of Type 1 and Type 2 ISE membranes composed of ionophore (bis-meta-NICO-PF6).
Figure 1. Fabrication of Type 1 and Type 2 ISE membranes composed of ionophore (bis-meta-NICO-PF6).
Polymers 14 03392 g001

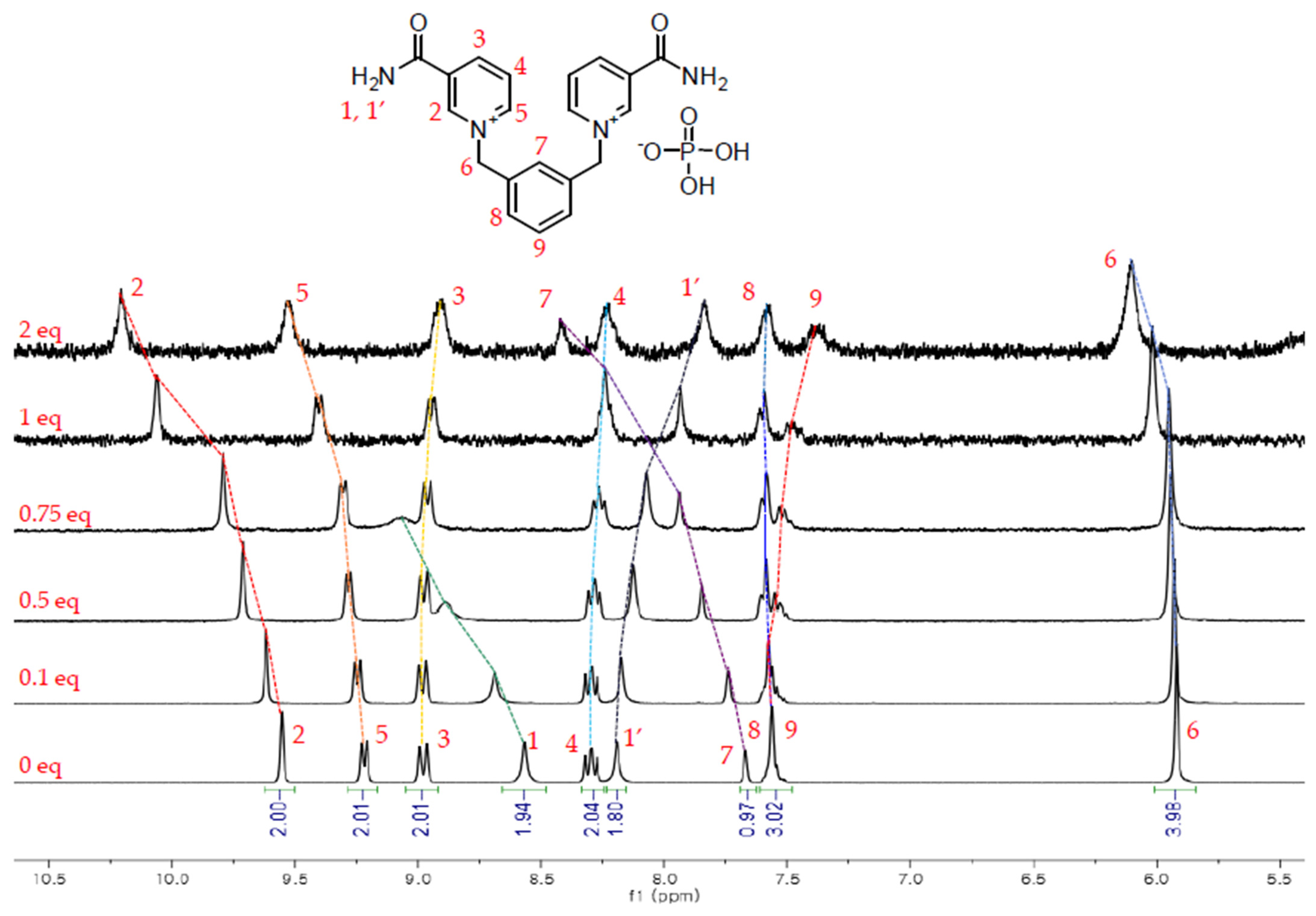

Figure 2. 1H-NMR spectra of bis-meta-NICO-PF6 during phosphate titration.
Figure 2. 1H-NMR spectra of bis-meta-NICO-PF6 during phosphate titration.
Polymers 14 03392 g002

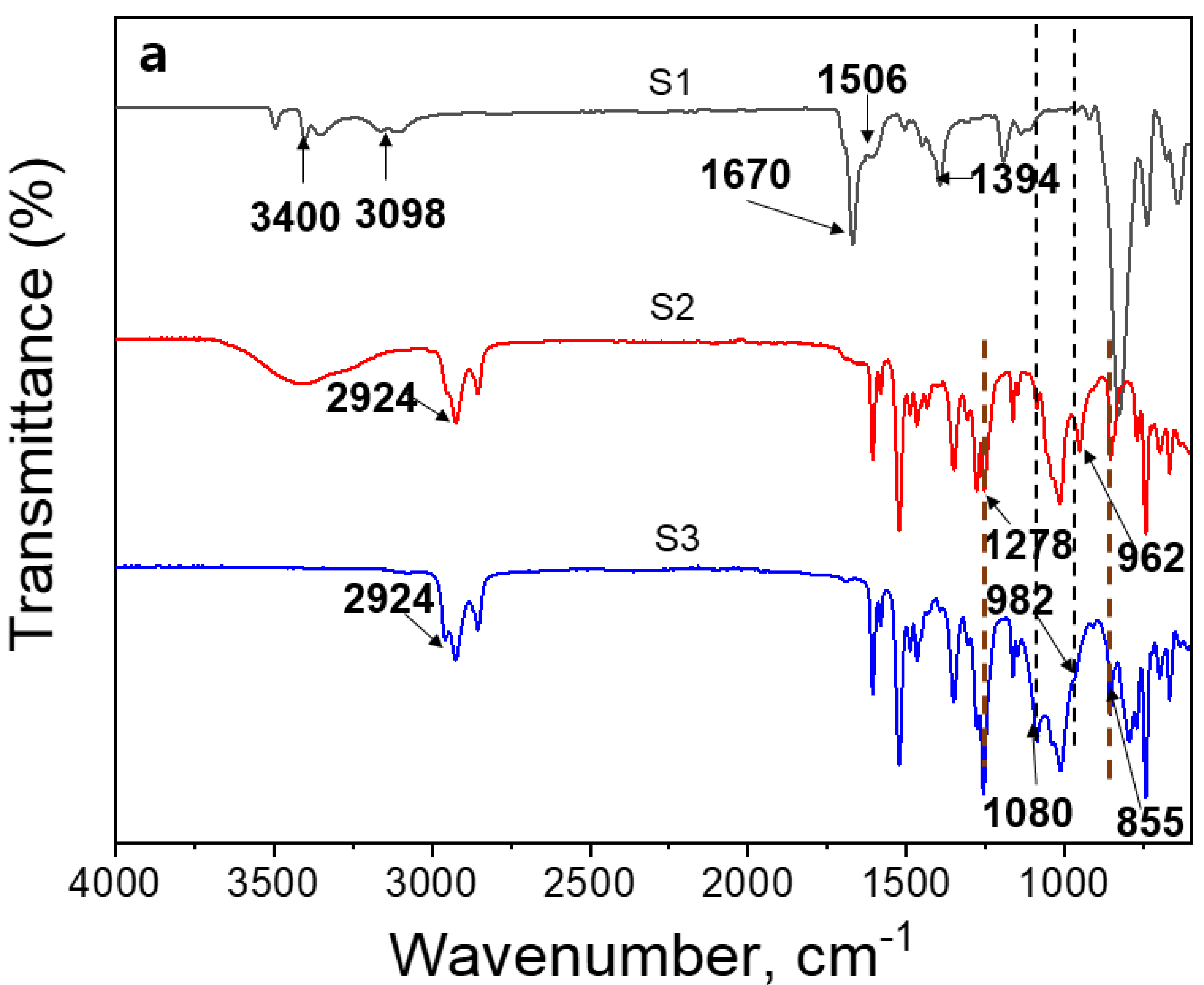

Figure 3. FT-IR spectra of the bis-meta-NICO-PF6 (S1) and Type 2 membrane before (S2) and after incubation (S3) with phosphate.
Figure 3. FT-IR spectra of the bis-meta-NICO-PF6 (S1) and Type 2 membrane before (S2) and after incubation (S3) with phosphate.
Polymers 14 03392 g003

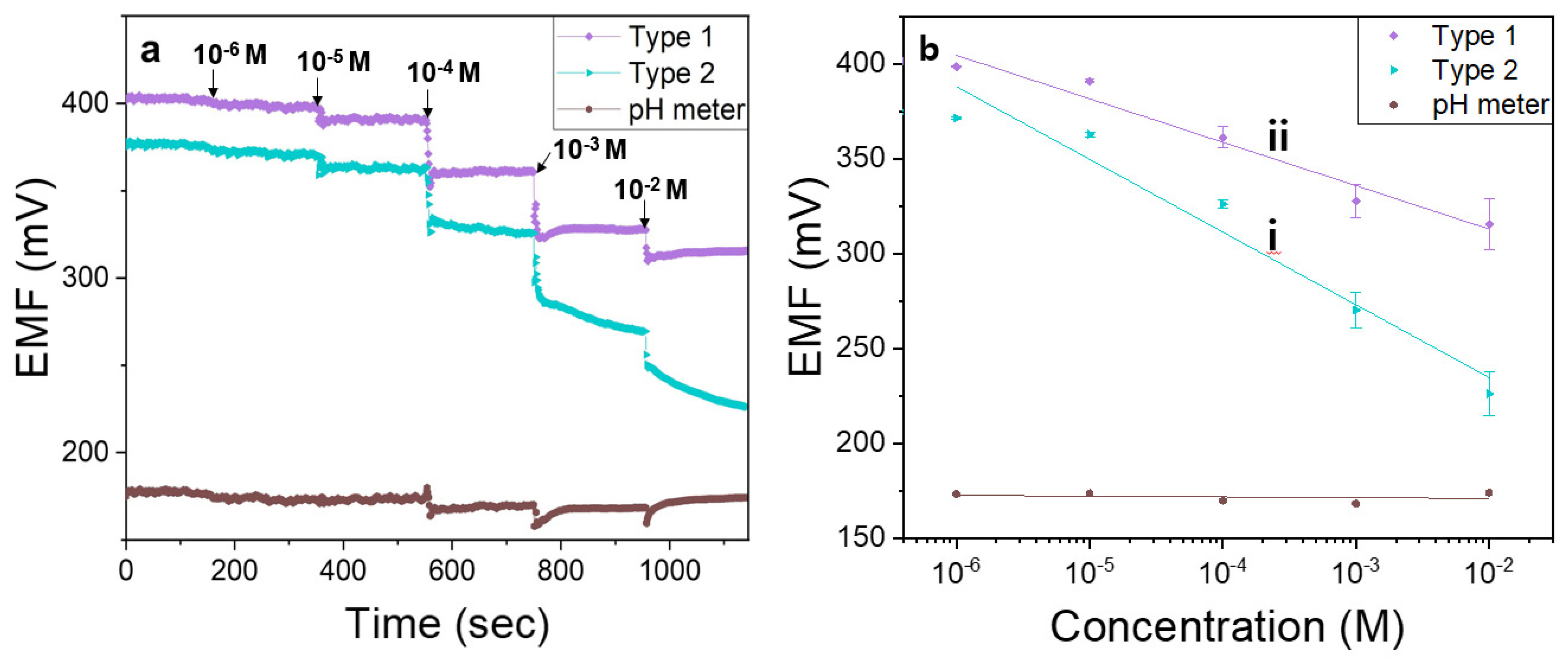

Figure 4. Calibration curve of two types of ISEs: (a) EMF response from 10−6 to 10−2 M KH2PO4 and (b) plot of EMF versus logarithmic concentration.
Figure 4. Calibration curve of two types of ISEs: (a) EMF response from 10−6 to 10−2 M KH2PO4 and (b) plot of EMF versus logarithmic concentration.
Polymers 14 03392 g004
Figure 5. Durability measurements taken over a period of 43 days for Type 1 and Type 2 ISEs.
Figure 5. Durability measurements taken over a period of 43 days for Type 1 and Type 2 ISEs.
Polymers 14 03392 g005
Table 1. Comparison of ISE characteristics of Type 1 and 2 with other research results.
Table 1. Comparison of ISE characteristics of Type 1 and 2 with other research results.
Linear Range(M)Slope (mV/decade)LOD (μM)Stability(Day)Selectivity
CH3
COO
ClNO3BrSO42−HCO3
ref [40]10−6–10−1−59.01.64.8-−2.9−2.1−2.5−3.9-
ref [41]10−6–10−1−55.72.14--−2.37--−2.52−2.31
ref [42]10−5–10−1−37.21020-1.82−2.102.04-−1.67
ref [43]10−4–10−1−60.070--−1.5−2.5−1.4−2.3−0.3
Type 1 *10−6–10−2−23.51.5430−6.090.021.71-−0.68-
Type 2 *10−6–10−2−53.30.8540−16.3−1.32−0.06-−2.23-
* This study.
