Article

Effects of Fe(OH)3 and MnO2 Flocs on Iron/Manganese Removal and Fouling in Aerated Submerged Membrane Systems

by
Güler Türkoğlu Demirkol
1,*,
Suna Özden Çelik
2,
Sevgi Güneş Durak
3,
Seren Acarer
1,*,
Ender Çetin
1,
Sultan Akarçay Demir
1 and
Neşe Tüfekci
1
1
Department of Environmental Engineering, Faculty of Engineering, Istanbul University-Cerrahpasa, Avcilar Campus, Istanbul 34320, Turkey
2
Department of Environmental Engineering, Corlu Engineering Faculty, Namik Kemal University, Corlu/Tekirdag 59860, Turkey
3
Department of Environmental Engineering, Faculty of Engineering-Architecture, Nevsehir Haci Bektas Veli University, Nevsehir 50300, Turkey
*
Authors to whom correspondence should be addressed.
Polymers 2021, 13(19), 3201; https://doi.org/10.3390/polym13193201
Submission received: 27 July 2021 / Revised: 27 August 2021 / Accepted: 30 August 2021 / Published: 22 September 2021

Abstract

:
Many treatment methods are used to remove iron and manganese from water. Aeration and membrane filtration are two of these methods. In this study, Fe2+ and Mn2+ removal by aeration with different catalysts and instead of simple membrane filtration applied in other studies, the aerated-submerged membrane systems were evaluated separately. When Fe(OH)3 was applied in the aeration step and complete oxidation of Fe2+ was obtained after 27 min, while complete Mn2+ oxidation was obtained in 76 min. However, when MnO2 was applied in the aeration step, complete oxidation of Fe2+ and Mn2+ was relatively slow (36 and 110 min, respectively). According to the results obtained from the aerated membrane system, Fe2+ and Mn2+ removal were extended by Fe(OH)3 via adsorption/surface oxidation. It is clearly shown from the flux, resistance results, scanning electron microscope (SEM) and Fourier transform infrared (FT/IR) spectroscopy observation that manganese oxides were deposited mainly in membrane pores forming membrane fouling by small flocs, while iron oxide particles were deposited on the membrane surface. Although the flux performance of PT PES membrane was higher than HF PP membrane, fouling resistance of HF PP membrane was higher than PT PES.

1. Introduction

Iron and manganese removal from water sources is important for drinking and both domestic and industrial uses. The formation of MnO2, even at a concentration of 0.2 mg/L of manganese, causes the formation of black sludge in the inner walls of the pipe. According to the US Environmental Protection Agency (EPA) and European Union (EU) regulations, the allowed value for manganese is 0.05 mg/L [1]. The presence of dissolved, colloidal, and particulate iron and manganese in water varies greatly depending on the ambient pH and the amount of dissolved oxygen. The presence of organic matter and various anions in the environment are important factors that determine the type of iron and manganese oxide formed by aeration and its conversion over time [2,3,4]. Iron oxide minerals have a high specific surface area (>100 m2/g). Similarly, manganese oxide flocs have a large surface area. Therefore, they are effective adsorbents for many dissolved ions, molecules, and gases.
Various technologies are enriched and used in iron and manganese removal. Ion exchange, biological trickling filter, reverse osmosis, nanofiltration, and aeration are some of these methods [5]. In studies on the treatment of iron and manganese with aeration, it is stated that the reaction accelerated with the addition of Fe(OH)3; in other words, Fe(OH)3 flocs had a catalytic effect on Fe2+ oxidation [6]. O’Connor claimed that in the majority of iron and manganese removal facilities in the USA, aeration, retention tank/settling, and filtration are widely applied. They explained that Fe(OH)3 flock has a very high capacity to adsorb Fe2+, and this is explained by iron removal in contact filters as well as inside the filters, where the filter medium is covered with Fe(OH)3. They also stated that an aging process is required in the filter for the flocs that will replace the precipitate [7]. Takai pointed out that among many iron oxides, only γ-FeOOH is an effective catalyst [8]. Andersen et al. revealed that catalysts play an important role in the oxidation of iron and manganese [9]. They explained this by increasing the efficiency of multiple treatment plants after the formation of oxidized iron and manganese in an aeration or filter medium. The study of Coughlin and Matsui handled higher initial Mn2+ concentrations and revealed the catalytic effect of manganese oxides formed by the aeration on Mn2+ oxidation [10]. They also stated that manganese oxides catalyze the removal of Mn2+ by aeration and the increase in removal cannot be explained only by adhering to the manganese oxide surface. Sung investigated the effect of iron oxides on the removal of Mn2+ by aeration [11]. Accordingly, it is determined that iron oxide is a catalyst as effective as manganese oxide. Davies and Morgan stated that Mn2+ oxidation is faster in the presence of goethite (α-FeOOH) than in the presence of lepidocrocite (γ-FeOOH) or silicon oxide [12]. Tüfekci and Sarikaya observed that the catalytic effect of Fe3+ increased up to 600 mg/L and beyond this value, Fe3+ did not have a significant catalytic effect on the oxidation of Fe2+ [13]. In addition, it is observed that the catalytic effect increased up to three days with the aging of Fe(OH)3 sludge. It has been expressed that the increase of the catalytic effect with the aging of the sludge may cause the reaction of Fe2+ radicals to be accelerated in the reaction of Fe2+ with oxygen, and that any of the different structural forms of iron oxides can be effective in this reaction rate. Similar catalytic effects were observed up to 700 mg/L concentration for MnO2 for the oxidation rate of Mn2+ [14]. In the study by Ormancı et al., it is pointed out that MnO2 accelerated the Mn2+ oxidation up to 800 mg/L and that there is no significant effect beyond this value [15]. In the study of Gunes Durak et. al., it is stated that the catalytic effect increased up to four days with the aging of MnO2 sludge [16]. It is emphasized in the study conducted by Celik, although the removal of Mn2+ with aeration is quite slow at pH = 8.5, Mn2+ removal efficiency increased significantly if Fe(OH)3 and/or MnO2 is added [17]. Similar results were obtained by Ormanci and Turkoglu [18,19]. In the study conducted by Cheng, it is found that when dissolved oxygen is sufficient, iron and manganese are completely removed from the solution [20]. When dissolved oxygen is below 3 mg/L, only iron is removed, while manganese remained in solution. Various aeration systems are used in four different plans by Štembal et al. [21]. Dissolved oxygen ranges from 8–17 mg/L values. Groundwater iron concentrations used in the study were 0.98–2.45 mg/L. After treatment, the iron is reduced to a standard value of 0.3 mg/L in the filter at a depth of 0.8 m (Table 1).
The most important issue for iron and manganese removal in membrane systems is that the selected membrane is below the particle size of iron and manganese so that it can function to hold the particles. However, when compared with ceramic membranes, polymeric membranes provide up to 100% iron and manganese removal [5]. The particle size of Fe2+ and Mn2+ in dissolved form is too small to be kept by microfiltration and ultrafiltration. Ion exchanger, ultrafiltration (UF) membrane is tried for Fe2+ and Mn2+ removal, but it is determined that more than 74% of the parts passed through the membrane. Again, nanofiltration and reverse osmosis membrane are tried for Fe2+ and Mn2+ removal, and it is determined that reverse osmosis membrane did not meet the standards, although it provides better Mn2+ removal. Therefore, an oxidation process is essential before the membrane. While this oxidation process can be just simple aeration for Fe2+ at natural water pH, it requires a stronger oxidant for Mn2+ removal. Strong oxidants such as chlorine derivatives, potassium permanganate or ozone should be applied as oxidants. Iron and manganese oxides formed by oxidation can also contribute to the removal of turbidity and other pollutants, as they contain other pollutant particles in the water. In the work of Choo et al., while iron oxide particles do not cause fouling in the membrane, ultrafiltration is not sufficient for oxidized manganese particles and caused significant fouling in the ultrafiltration membrane [5]. The membrane used in the study is cellulose acetate and it has 100 kDa MWCO. In a study conducted by Kan et. al., microfiltration is applied following NaOCl oxidation for Fe2+ and Mn2+ removal [22]. Oxidized metal ion particles are examined with a particle counter. In the study, manganese values are reduced below the standards after two weeks of application. According to the results, it is concluded that the iron and manganese oxide layer deposited on the membrane surface had an important role in manganese removal. The membrane used in the study is made of PTFE material whose surface has been treated with a hydrophilic polymer. In their studies where Yu et al. compared the fouling properties of the PVDF membrane coated and uncoated with MnO2 nanoparticles, they determined that the membrane coated with MnO2 is less fouled, while the uncoated membrane is exposed to both recyclable and irreversible fouling [23]. According to the results of the work of Celik, iron oxides were found more effective than manganese oxides to remove Fe2+ and Mn2+ in both aeration and aerated-submerged membrane systems, and that significant iron and manganese removal efficiencies were obtained if both oxides were present in the solution [17]. Iron oxides also provided significant iron, manganese, and TOC removal efficiencies. Based on this, she stated that iron oxides increase the lifetime of the membrane and that it can be recycled by recycling or chemical cleaning rather than irreversible fouling. As a result of the study, it has been determined that Fe(OH)3 increases Fe2+ and Mn2+ removal efficiency through adsorption/oxidation on the surface, and also that the flocs it produces grows beyond the membrane and cause an increase in membrane productivity. Similarly, it is stated that Fe(OH)3 caused a decrease in pressure increase, which is an indicator of membrane fouling and an increase in removal efficiency [18] (Table 1).
When Table 1 is examined, there is an increase in the removal efficiency when catalysts such as MnO2, FeO, α-FeOOH, and Fe(OH)3 are used for the aeration method in iron and manganese removal. Membrane filtration method enriched with oxidants also provides high removal efficiency in treatment.
In this study, Fe2+ and Mn2+ removal by aeration and the aerated-submerged membrane systems were investigated experimentally. MnO2 and Fe(OH)3 were used as catalysts in order to remove iron and manganese in the aeration method. The pH was adjusted as 6.5 for iron removal and 9.2 for manganese removal. According to these values, the effects of different doses of oxidants on the oxidation time were determined. In the ventilated submerged membrane method, Fe2+, Mn2+, and Fe2+-Mn2+ removal were investigated with plate-type polyethersulfone (PES) and hollow fiber polypropylene (PP) membranes. The flux performance and fouling resistance of the membranes were determined. Clean membranes and after the Fe2+, Mn2+, and Fe2+-Mn2+ experiments the contaminated membranes were characterized by FT/IR and SEM, and the effect of iron and manganese on membrane fouling was determined.
Table 1. Studies in the literature on iron and manganese removal by aeration and/or filtration.
Table 1. Studies in the literature on iron and manganese removal by aeration and/or filtration.
Removal ProcessAmbientResultsReference
Aeration + FiltrationFeCOH3 covered filterHigh-capacity Fe2+ adsorptionO’Connor [7]
Aeration + FiltrationCatalystsEffective iron and manganese removalAndersen [9]
AerationCatalysts—MnO2Effective manganese removalCoughlin &Matsu [10], Sung [11], Tüfekci and Sarikaya [13], Güneş-Durak et al. [16]
AerationCatalysts—FeOEffective iron removalSung [11]
AerationCatalysts—α-FeOOHFast oxidationDavies and Morgan [12]
AerationCatalysts—Fe(OH)3/MnO2Effective manganese removalÇelik [17], Türkoglu [18,19]
AerationSufficient dissolved O2Completely manganese and iron removalCheng [20]
Biological trickling filter(Absence iron and ammonia)94% manganese removalGouzinis et al. [24]
Reverse Osmosis-UF (Dead end)Oxidant- Chlorine80% manganese removalChoo et al. [5]
MFOxidant- NaOCl90% manganese removalKan et al. [22]
Aeration + MF-99% iron and manganese removalCelik [17]
Aeration + UF-99% iron and manganese removalCelik [17]

2. Materials and Methods

2.1. Experimental Setup of Oxidation

The effect of iron and manganese oxides on the oxidation of Fe2+ and Mn2+ by aeration is studied in a laboratory scale batch reactor (Tin Mühendislik, Istanbul, Turkey) of 2 L volume under the constant pH, temperature, alkalinity, and O2 concentration. The experimental setup is illustrated in Figure 1. The solution is continuously mixed with the WiseStir HS-50A model of a mechanical mixer (Witeg, Wertheim, Germany). NaHCO3 is added into the solution to obtain 2 × 10−2 eq/L alkalinity. Air and CO2 are given into the solution using fine bubble diffusers (KHN, Yixing, China). The pH of the solution is controlled by adjusting the flow of CO2 gas. Since the HCO3-CO2 buffer system is used, the pH is adjusted by changing the CO2. HACH HQ40d type pH meter (HACH Company, Loveland, CO, USA) is used for temperature and pH measurement. The dissolved oxygen levels are monitored using the Armfield oxygen meter (Armfield Limited, Ringwood, UK). Constant temperature (25 °C) is maintained by immersing the reaction tank into GN 111–200 Gastronorm water bath (Gastronorm, Ponte nelle Alpi, Italy). Fe2+ stock solution is prepared by dissolving Ferro ammonium sulfate in 1 L demineralized water containing 2 mL of concentrated H2SO4. The samples taken at predecided times as measured from the start of the experiments are transferred into the 25 mL flasks containing 1 mL of (1 + 4) H2SO4. The determination of Fe2+ is carried out by spectrophotometric determination of Fe2+ with 1.10 phenanthroline in the presence of a large amount of Fe3+ given by Tamura and Goto [25] with PC Instrument T80 UV/VIS (PG Instruments Limited, Leicestershire, UK) model spectrophotometer.
Fe2+ and Mn2+ removal in the aeration step was evaluated at pH = 6.5 and 9.2, respectively. The pH of the solution is controlled by adding 0.1N NaOH/H2SO4 for Mn2+ oxidation. Mn(II) stock solution is prepared by dissolving manganese sulfate monohydrate (MnSO4·H2O) in 1 L demineralized water. The samples taken at predetermined times are immediately filtered and acidified after filtration with 2 mL HNO3. The detection limit for the AAS manganese measurement is 0.015 mg/L as Mn(II). All experiments are conducted at 25 °C and 9.2 of pH, 2 × 10−2 eq/L of alkalinity. Mn2+ measurement is performed according to the Standard Methods (3010A). The sample is filtered through a 0.22 µm filter before analysis.

2.2. Experimental Setup of Submerged Membrane System

Polyethersulfone and polypropylene materials are among the most used polymeric membrane materials [26,27,28,29,30]. In addition, the hollow fiber membrane has a higher packing density. For these reasons, plate type polyethersulfone and hollow fiber polypropylene membrane were found suitable for comparison. Plate type polyethersulfone (PT PES) and hollow fiber polypropylene (HF PP) membrane are used in the submerged membrane system setup. The experimental setup consists of a 200 L volume polyethylene feed tank, 10 cm × 10 cm × 45 cm plexiglass reactor feeding by a peristaltic pump. Experiments are conducted with synthetic solutions. During the experiment, the air is fed from the bottom of the reactor by using fine bubble diffusers. Flux is continuously measured with scales and is controlled at constant pressure. The schematic diagram of the submerged membrane experimental setup is presented in Figure 2. Determination of Fe2+ and Mn2+ is done with the same methods as in oxidation analysis [25,31]. The physical and chemical properties of the membranes are given in Table 2 and images are presented in Figure 3.
Removal of Fe2+, Mn2+, and Fe2+-Mn2+ in submerged membrane reactor (Tin Mühendislik, Istanbul, Turkey) is studied for 90 days for each case. The pH is adjusted to 6.5, 9.5, and 8.5, respectively. Hollow fiber PP membrane is used by combining approximately 15 fibers to make the plate type PES equal to the surface area of the membrane. After the analyzes, samples are taken from fouled membranes. Images of membranes before and after experiments are given in Figure 3. While fouled membranes with Fe2+ experiments show dark reddish color on the membrane surface, Mn2+ flocks give the membrane a dark blackish appearance.

3. Results and Discussion

3.1. Oxidation Results

3.1.1. Catalytic Effect of MnO2 and Fe(OH)3 on Oxidation of Fe2+ by Aeration

The change in the rate of Fe2+ oxidation with atmospheric oxygen is investigated by adding Fe(OH)3 and MnO2 to the medium separately. Figure 4 shows the catalytic effects of MnO2 and Fe(OH)3 on the oxidation of Fe2+. The reaction is completed in 79 min without adding MnO2 and Fe(OH)3 (Table 3). It is observed that the reaction completion time is reduced to 36 min and 27 min when 50 mg/L MnO2 and 50 mg/L Fe(OH)3 are added to the reactor, respectively. The homogeneous rate constant, k, is determined as 0.038 min−1. In the case of adding MnO2 and Fe(OH)3 to the reactor, it is observed that the value of the heterogeneous rate constant (kcat) is 0.08 min−1 and 0.107 min−1, respectively.
It is seen from Figure 4 that MnO2 and Fe(OH)3 flocs added to the medium accelerate oxidation. It is also observed that the catalytic effect of Fe(OH)3 on the oxidation of Fe2+ is higher than MnO2 (Table 3 and Figure 4). It is thought that the reason for this is due to the characteristics of Fe(OH)3 and MnO2. Fe(OH)3 may be more effective in the floc formation in the reactor. Kasim et al. found that MnO2 is more stable than Fe(OH)3 when the pH > 8 [32]. Therefore, the higher reaction time required for removal when using MnO2 may depend on the stability of MnO2.

3.1.2. Catalytic Effect of MnO2 and Fe(OH)3 on Oxidation of Mn2+ by Aeration

The variation in the oxidation rate of Mn2+ is investigated by adding MnO2 and Fe(OH)3 to the medium separately. The catalytic effect of MnO2 and Fe(OH)3 on the oxidation of Mn2+ is shown in Figure 5 and Table 4. When Table 4 is examined, it is seen that the reaction completion time is 177 min without adding MnO2 and Fe(OH)3 to the medium It was observed that the reaction completion time was reduced to 110 min when 50 mg/L MnO2 was added to the reactor, and the completion time of the reaction was reduced to 76 min when 50 mg/L Fe (OH)3 was added. The homogeneous rate constant, k is determined as 0.0169 min−1. When MnO2 is added to the medium, the rate constant (kcat) is obtained as 0.0272 min−1. The rate constant (kcat) is obtained as 0.0392 min−1 if Fe(OH)3 is added to the medium.
As can be seen from the results, MnO2 and Fe(OH)3 flocs addition to the medium accelerated the oxidation of Fe2+and Mn2+. It is also observed that the catalytic effect of Fe(OH)3 is higher than MnO2. In general, it is determined that the catalytic effect of Fe(OH)3 on the oxidation of Fe2+ and Mn2+ with atmospheric oxygen is higher than that of MnO2. This phenomenon can be attributed to the positive charge of Fe(OH)3 flocs within the pH ranges of the study since the point of zero charges of iron oxide is in the range of 8.5–9.3 [17]. As a result, the diffuse layer of Fe(OH)3 flocs will have negatively charged hydroxide ions rather than hydrogen ion and as a result, the pH value in the particle layer are higher than the solution pH. Since Fe2+ oxidation rate is known to be the second-order of OH-dependence, Fe(OH)3 flocs accelerate oxidation due to high pH in their scattered layers [33,34,35].

3.2. Submerged Membrane Filtration Results

Submerged membrane experiments were conducted at pH = 8.5, representing the average pH of aeration tank of water treatment plants as well as the same pH of oxidation experiments (6.5 for Fe2+ and 9.2 for Mn2+) to present membrane fouling.

3.2.1. Removal of Fe2+ and Mn2+

In the study, two types of membranes, plate type polyethersulfone (PT PES) and hollow fiber polypropylene (HF PP) membrane are used in the submerged membrane system setup. During the experiment, permeate samples are taken every 10 days during 90 days of operating period and the analysis of Fe2+ and Mn2+ is conducted according to the methods explained in the Materials and Methods Section. Based on the obtained results were given in Figure 6 and Figure 7, although high removal efficiencies were obtained (≥90%), Fe2+ removal efficiency was higher than Mn2+. During the operation, it was seen that the removal efficiency increased during the operating period. The major part of Fe2+ and Mn2+ is oxidized by feeding air. It is thought that the remaining unoxidized part of Fe2+ and Mn2+ are removed by adsorption onto iron oxide and manganese hydroxide flocs on the membrane surface. However, it is determined that iron oxide causes minimal membrane fouling and the water quality has not possessed a notable impact on the to extend of fouling [36]. These phenomena can explain obtained high iron removal efficiencies.
Figure 8 and Figure 9 give the Fe2+-Mn2+ removal results. These experiments were conducted at pH = 8.5. The removal efficiency increased with the catalytic effect of the oxides, the amount of which increased with time (Figure 8 and Figure 9). According to the results, obtained Mn2+ removal efficiency is notably lower (60–65%) than that of pH = 9.2 experiments (90–95%). Nevertheless, Fe2+ removal efficiency is ≥99%.
According to the literature, oxidation kinetics of Mn2+ by aeration at pH = 8.5 is very slow (20–30%) [17,18,37]. In these experiments, this rate is raised up to 60–65% with the contribution of Fe2+.

3.2.2. Membrane Flux

Removal of Fe2+, Mn2+, and Fe2+-Mn2+ in the PT PES and HF PP submerged membrane reactor is studied for 90 days for each case. The effect of iron and manganese oxides on membrane flux was investigated. Steady-state fluxes were calculated from the average flux of the last 10 days Flux variation obtained from experiments with the submerged membrane during 90 days is given in Figure 10, Figure 11, Figure 12. According to Figure 10, initial flux was J0 = 470.00 L/m2·h, while steady-state flux Jd = 148.57 L/m2·h with PT PES membrane. Obtained initial and steady-state fluxes of HF PP membrane were J0 = 91.79 L/m2·h and Jd = 9.48 L/m2·h, respectively. It is found that PT PES membrane have higher initial and steady-state flux than that of HF PP membrane. As shown from Figure 10, flux initially declined with time for both types of membranes.

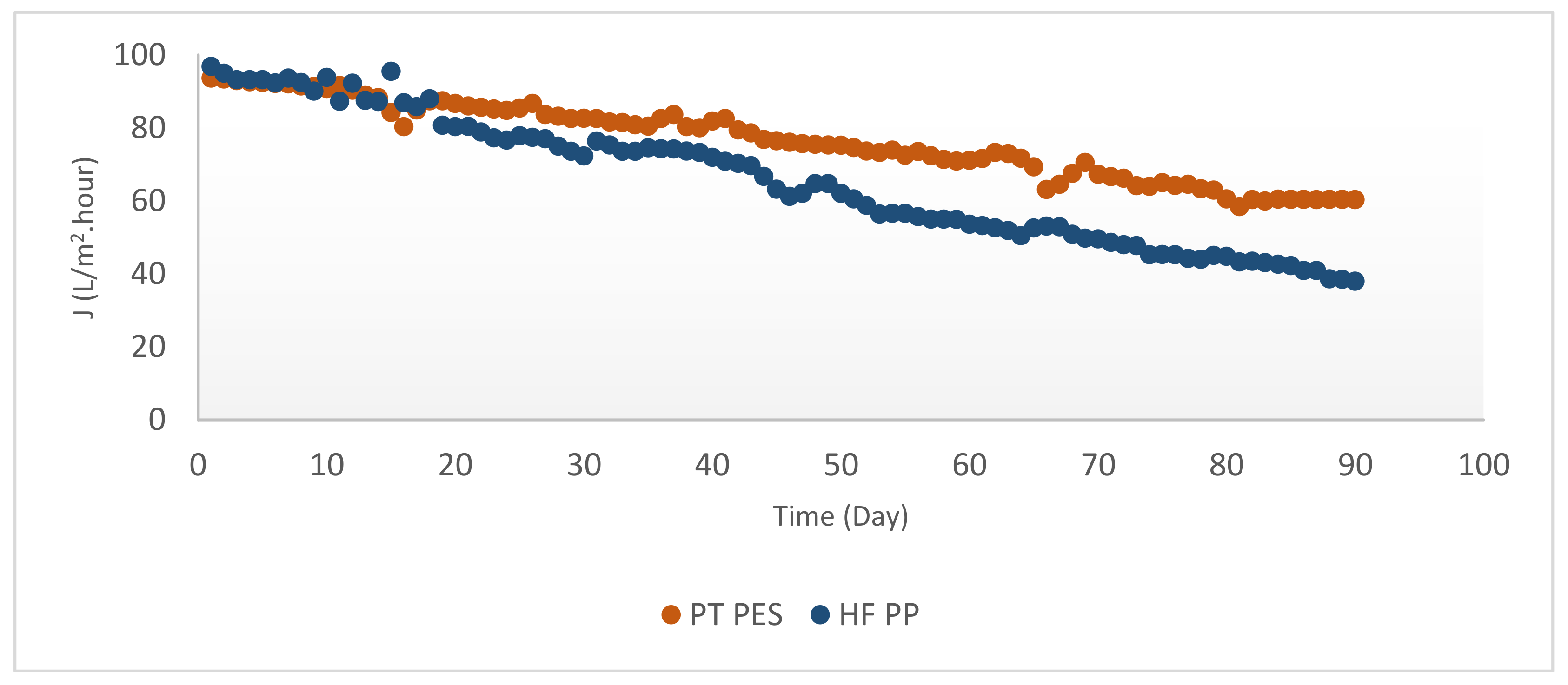

According to Figure 11, flux initially declined with time for both types of membranes. Even though PT PES has a higher initial flux than HF PP membrane, during the Mn2+ removal experiments, both membranes showed similar steady-state flux characteristics. Nevertheless, PT PES membrane gave a higher permeate flux compared with HF PP membrane. Obtained initial and steady-state fluxes of HF PP membrane were J0 = 54.70 L/m2·h and Jd = 9.37 L/m2·h, respectively. Initial and steady-state flux of PT PES membrane were found as J0 = 84.96 L/m2·h and Jd = 10.81 L/m2·h, respectively [38].
As it shown from Figure 12, both membranes used in this study had similar initial flux trend for Fe2+-Mn2+ removal experiments, even though differentiated with time.
Obtained initial and steady state fluxes of PT PES membrane were J0 = 93.69 L/m2·h and Jd = 60.22 L/m2·h. Initial and steady state fluxes of HF PP membrane were recorded as J0 = 96.85 L/m2·h and Jd = 41.53 L/m2·h. Obtained initial and steady-state fluxes were shown in Table 5. According to the table, in every case obtained fluxes with PT PES membrane were relatively higher than HF PP membrane. It can be explained by the PT PES permeability pattern due to its membrane structure. Relatively high permeate flux obtained in Fe2+ experiments can be explained by hindering pore-blocking through the accumulation of iron hydroxide on the PT PES membrane surface [17]. Initial permeate flux values obtained by PT PES membrane can be ordered as follows: J0 (Fe2+) > J0 (Fe2+-Mn2+) > J0 (Mn2+). Recorded highest permeate flux was obtained in Fe2+ experiments, while lowest permeate flux was obtained in Mn2+ experiments. This phenomenon can be explained by the pore-blocking effect of manganese hydroxide [5] and the accumulation of iron hydroxide on the membrane surface hindering pore-blocking as stated above. As clearly shown from Table 5, initial permeate flux values obtained by HF PP membrane can be ordered as follows: J0 (Fe2+-Mn2+) > J0 (Fe2+) > J0 (Mn2+) Recorded highest permeate flux (96.85 L/m2·h) was obtained from Fe2+-Mn2+ experiments by HF PP membrane. This phenomenon can be explained by the positive effect of iron hydroxide on membrane flux [17].
Overall, a better performance was obtained from the PT PES membrane. PES polymer is hydrophilic while PP polymer is hydrophobic polymer. Hydrophilic membranes have a high filtration rate and are less prone to fouling. Therefore, less adhesion occurred in the hydrophilic membrane pores and higher filtration and purification efficiency was obtained [39,40,41].

3.2.3. Membrane Resistance

Resistance values were calculated using Equations (1)–(5). Resistance values of submerged PT PES and HF PP membrane obtained from Fe2+, Mn2+, and Fe2+-Mn2+ removal experiments were given in Table 6. Total resistance (Rt), membrane resistance (Rm), pore resistance (Rp), and cake resistance (Rc) values were calculated for each membrane performed in the experiments [42].
R t = Δ P /   J × μ
R m + R p   =   Δ P / J w a s t e   w a t e r + J p u r e   w a t e r × μ
R m   =   Δ P / J p ı u r e   w a t e r × μ
R p   = R m + R p R m
R c   = R t   R m + R p
The obtained results showed that overall resistance varied from 1.94 × 1012 to 30.73 × 1012 m−1, pore resistance from 0.26 × 1012 to 9.57 × 1012 m−1 and cake resistance from 0.96 × 1012 to 19.83 × 1012 m−1. Membrane resistance of PT PES and HF PP is 0.72 × 1012 m−1 and 1.33 × 1012 m−1, respectively. The membrane resistance is affected by several factors such as membrane porosity, membrane material, membrane pore size, and membrane thickness (besides the composition of solution) [29]. The contribution of membrane resistance to the overall resistance varied in the range of 2.70–37.11%, pore resistance from 13.40–31.14%, cake resistance from 49.49–69.26%. According to Maximus et al., cake resistance is more representative than the modified serial resistance model to reflect the actual fouling mechanism [39].
When the overall resistances were compared, it is shown that the overall resistance of HF PP membrane was higher than the PT PES membrane for Fe2+ removal experiments. The same trend had been observed for membrane resistance. In view of cake resistance, it is found that the HF PP membrane had higher cake resistance than the PT PES membrane. High cake resistance induces low initial flux [43]. It is clearly shown from Figure 10 and Figure 11, an initial flux of the HF PP membrane was found lower than that of the PT PP membrane.
All resistance parameters (overall, membrane, pore, and cake) of the HF PP membrane were found higher than the PT PES membrane for Mn2+ removal experiments and Fe2+-Mn2+ removal experiments.
It is shown from Figure 13 that high overall resistance values were obtained with both membrane types for Mn2+ experiments. When the membranes were compared, it has been clearly shown that the highest overall resistance values were obtained with the HF PP membrane. This is related to the higher flux that can be achieved with the PT PES membrane than the HF PP membrane.

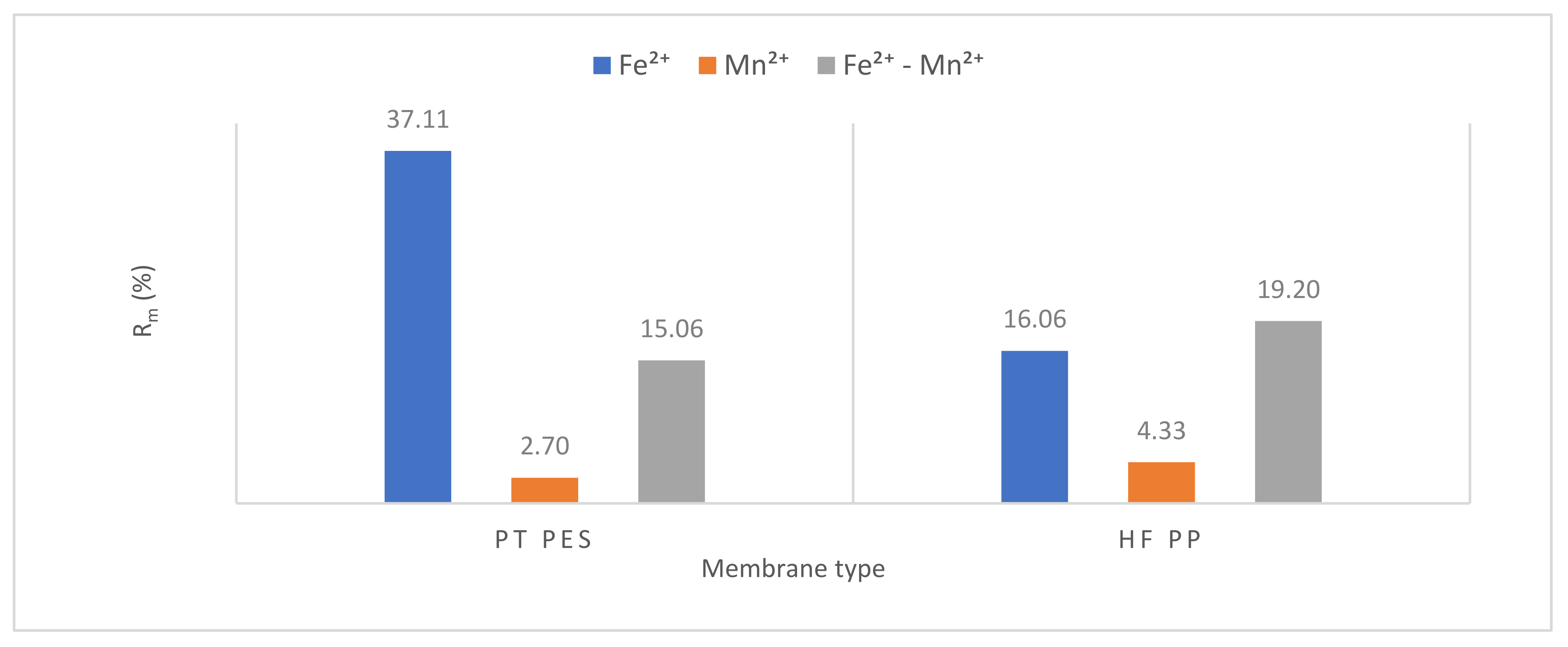

As can be seen from Figure 14, the highest membrane resistance was obtained with PT PES membrane for Fe2+ removal experiments. Low membrane resistance values were obtained with both membranes for Mn2+ removal experiments. The presence of iron caused an increase in membrane resistance values. This suggests that iron oxide formed to have a positive effect on membrane resistance. HF PP membrane is less hydrophilic than PT PES membrane, for this reason, as can be seen from Figure 14, its membrane resistance is relatively lower. For HF PP membrane, the highest membrane resistance value has been obtained in Fe2+-Mn2+ removal experiments and the lowest value in Fe2+ removal experiments.
According to Figure 15, the highest pore resistance value was obtained in Mn2+ removal experiments with both membranes. The lowest pore resistance value was obtained in Fe2+ removal experiments for the PT PES membrane. On the other hand, the lowest pore resistance value for HF PP membrane was obtained in Fe2+-Mn2+ experiments. This can be explained by the fact that formed iron oxides accumulate on membrane surfaces rather than pores. An increase in pore resistance was observed in Mn2+ removal experiments. Unlike iron oxide, manganese oxide accumulates in membrane pores, which reduces the flux and increases the pore resistance. The overall resistance increases in Mn2+ removal experiments and less removal efficiency can be obtained compared to Fe2+ [21].
Cake resistance is one of the parameters that play an active role in membrane fouling and lifetime. As can be seen from Figure 16, cake resistance reached the highest value for Mn2+ removal experiments. The lowest flux has been also obtained for Mn2+ removal experiments. High cake resistance and low flux correspond to each other. The lowest cake resistance has been obtained in the Fe2+ removal experiment by PT PES membrane, and in the Fe2+-Mn2+ removal experiment by HF PP membrane. These results reveal that cake resistance plays an important role in membrane fouling and flux [44].

3.3. FT/IR Analysis

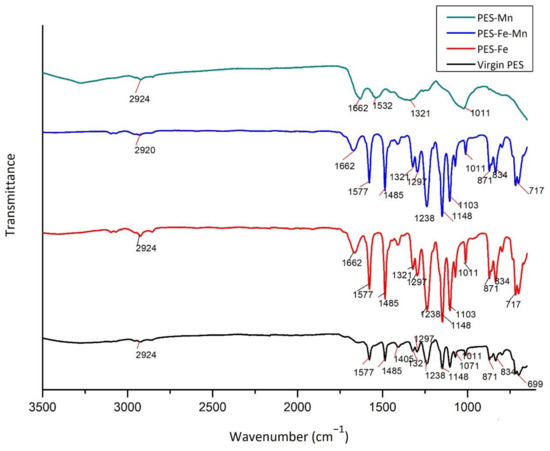

Attenuated Total Reflection (ATR)-Fourier Transform Infrared (FTIR) Spectroscopy Spektrum-100 FT/IR (Perkin Elmer, Waltham, MA, USA) analyses were performed on the fouled and virgin membrane. ATR/FTIR spectra of fouled and virgin PT PES and HF PP membranes are shown in Figure 17 and Figure 18.
When the infrared spectrum of fouled and virgin PT PES membranes is examined, peaks observed at 2924 cm−1 wavenumber are assigned to O-H stretching. This group is attributed to the occurrence of membrane-air interaction [45]. The characteristic peaks originated from the vibration of aromatic bonds of PT PES membrane were observed from the appearance of the band at 1662 cm−1 and 1405 cm−1 range [46]. In the range of 1321 cm−1 to 1238 cm−1 peaks originated from C-O-C stretching. Peaks at 1148 cm−1 to 1011 cm−1 range were attributed to stretching of O=S=O bonds [47].
When the infrared spectrum of fouled PT PES membrane is examined, certain peaks shown in the virgin membrane disappeared and are replaced by new peaks. The peak observed at 1662 cm−1 for all fouled membranes is thought due to iron and manganese oxide presence [48]. When FTIR results were compared, a noticeable reduction in PT PES membrane peaks for Mn2+ removal experiments is observed. This can be explained by the fact that manganese oxide increases fouling due to smaller floc formation than iron oxide.
The virgin and fouled HF PP membrane spectrum shows the occurrence of a new peak at 2951 cm−1. This peak is indicative of CH2 vibrational bands [49,50] of HF PP polymer [51]. The band at 3278 cm−1 in the spectrum of HF PP membrane indicates O-H stretching possibly caused by adsorbed H2 O [52]. A broadband emerged at 1454 and 1374 cm−1 [53]. The peak at 1454 cm−1 originated from CH3 asymmetric deformation or CH2 bending vibration. The adsorption at 1374 cm−1 was due to CH3 symmetric deformation vibration [54]. The peak at 1015 cm−1 was assigned to the C-C asymmetric stretching, CH3 asymmetric wagging, and C-H wagging vibration [55].
When the infrared spectrum of fouled HF PP membrane used in Mn2+ experiments is examined, it can be seen that certain peaks disappeared shown in membranes of Fe2+ experiments and virgin membrane. This was due to the strong adsorption of manganese dioxide to the membrane inner layer. It is thought that iron oxide flocs are more adsorbed on membrane surfaces and acts as secondary membrane layers by adsorbing other pollutants.

3.4. SEM Analysis

PT PES and HF PP membranes were investigated with a scanned electron microscope SEM/FEI-Quanta FEG 250 (Serontech, Gyeonggi-do, Korea) before and after the membrane experiments with a magnification of 1000× and 5000×. Figure 19, Figure 20, Figure 21 give SEM images of virgin and fouled PT PES and HF PP membranes.

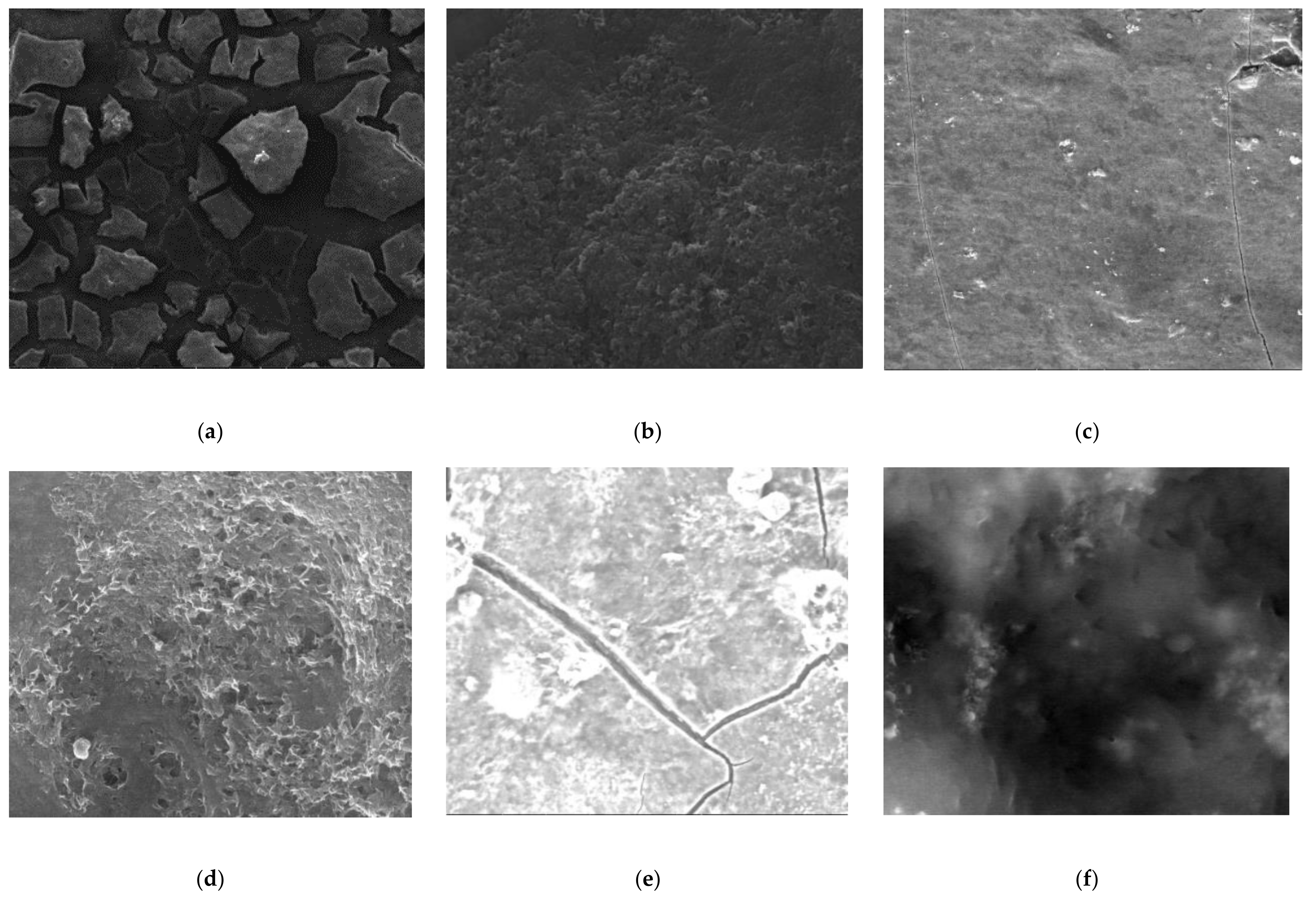

According to Figure 20, a thick cake layer formed on PT PES membrane surface for Fe2+ removal experiment rather than irreversible fouling. Furthermore, a maintained porous structure indicates that iron oxide accumulated on the membrane surface rather than pores and acted as a second membrane. It can be said that this has led to low flux reduction and a positive contribution to the membrane life. On the other hand, it is disadvantageous for the mechanical behavior of the membrane [56]. The SEM images also showed that the thickness of the cake layer on the surface of the membranes was different for Fe2+ and Mn2+ removal experiments. On the other hand, foulant accumulation mainly occurred in membrane pores for the Mn2+ removal experiment [5].
When the fouled membrane of the Fe2+-Mn2+ experiment is examined, it can be seen that the pores are more prevalent and visible than the Mn2+ experiment, but denser and more open textured than the Fe2+ experiment. This was attributed to Fe(OH)3 formation retards membrane fouling via cake layer formation.

4. Conclusions

In this study, iron and manganese removal from water was investigated separately with aeration and aerated-submerged membrane system. Two different membranes, plate type polyethersulfone (PT PES) and hollow fiber polypropylene (HF PP) membrane, were used in the aerated-submerged membrane system.
When the results of the oxidation and aerated membrane studies were evaluated, it can be said that formed iron and manganese oxides extended Fe2+, especially Mn2+ oxidation, due to floc formation and adsorption/surface oxidation. Early oxidation studies showed that iron and manganese oxides have a catalytic effect up to 600–800 mg/L. In addition, it is observed that the catalytic effect increased up to from three to four days with the aging of oxides. However, the catalytic effect of iron oxide is greater than that of manganese oxide to remove both Fe2+ and Mn2+.
Due to the combination of all of these mechanisms with filtration proses in the aerated submerged membrane system, Fe(OH)3 increase Fe2+ and Mn2+ removal efficiency through surface adsorption/oxidation and the flocs it produces also grows beyond the membrane and can cause an increase in membrane productivity. It was seen that Fe(OH)3 caused a decrease in pressure increase, which is an indicator of membrane fouling. Besides, it can be said that iron oxide retards membrane fouling via cake layer formation on membrane surface acting as a second membrane layer.

Author Contributions

Conceptualization, G.T.D. and N.T.; methodology, N.T.; software, S.Ö.Ç.; validation, G.T.D., E.Ç. and S.A.D.; formal analysis, G.T.D., S.Ö.Ç., S.G.D., S.A., E.Ç., S.A.D. and N.T.; investigation, G.T.D., S.Ö.Ç., S.G.D., S.A., E.Ç., S.A.D. and N.T.; resources, E.Ç., N.T.; data curation, S.A.D.; writing—original draft preparation, G.T.D., S.Ö.Ç., S.G.D., S.A., S.A.D. and N.T.; writing—review and editing, N.T.; visualization, S.A.D.; supervision, E.Ç. and N.T.; project administration, N.T.; funding acquisition, S.A.D. and N.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Istanbul University-Cerrahpasa Scientific Research Projects Coordination Unit, grant number 55551.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors would like to acknowledge the support of MEM-TEK National Research Center on Membrane Technologies, İstanbul Technical University during this research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Patil, D.S.; Chavan, S.M.; Oubagaranadin, J.U.K. A review of technologies for manganese removal from wastewaters. J. Environ. Chem. Eng. 2016, 4, 468–487. [Google Scholar] [CrossRef]
  2. Pedersen, H.D.; Postma, D.J.; Jakobsen, R.; Larsen, O. Fast transformation of iron oxyhydroxides by the catalytic action of aqueous Fe(II). Geochim. Cosmochim. Acta 2005, 69, 3967–3977. [Google Scholar] [CrossRef]
  3. Tufekci, N.; Celik, S.O. The effects of some inorganic and organic species on oxidation with atmospheric oxygen of manganese in natural water. Pol. J. Environ. Stud. 2011, 20, 201–207. [Google Scholar]
  4. Gumus, S.A.; Acar, T.O.; Demİrkol, G.T.; Durak, S.G.; Tufekcİ, N. Removal of iron in the presence of humic acid, sulphate and nitrate from drinking water by atmospheric oxygen. Fresenius Environ. Bull. 2019, 28, 846–851. [Google Scholar]
  5. Choo, K.H.; Lee, H.; Choi, S.J. Iron and manganese removal and membrane fouling during UF in conjunction with prechlorination for drinking water treatment. J. Memb. Sci. 2005, 267, 18–26. [Google Scholar] [CrossRef]
  6. Okura, T.; Goto, K. Oxidation of ferrous iron in natural water. J. Chem. Soc. Jpn. 1955, 58, 239–241. [Google Scholar]
  7. O’Connor, J. Iron and Manganese. In Water Quality and Treatment; Mc Graw-Hill: New York, NY, USA, 1971. [Google Scholar]
  8. Takai, T. Studies on the mechanisms of catalytic deferrization (2). J. Jpn. Water Work. Assoc. 1973, 466, 22–23. [Google Scholar]
  9. Andersen Dewey, R.; Row Donald, D.; Sindelar Gary, E. Iron and Manganese Studies of Nebraska Water Supplies on JSTOR. J. Am. Water Works Assoc. 1973, 65, 635–641. [Google Scholar] [CrossRef]
  10. Coughlin, R.W.; Matsui, I. Catalytic oxidation of aqueous Mn(II). J. Catal. 1976, 41, 108–123. [Google Scholar] [CrossRef]
  11. Sung, W. Catalytic Effects of The Y-FeOOH (Lepidocrocite) Surface on the Oxygenation Removal Kinetics of Fe(II) and Mn(II); Keck Laboratories of Environmental Engineering Science Division of Engineering and Applied Science California Institute of Technology: Pasadena, CA, USA, 1980. [Google Scholar]
  12. Davies, S.H.R.; Morgan, J.J. Manganese(II) oxidation kinetics on metal oxide surfaces. J. Colloid Interface Sci. 1989, 129, 63–77. [Google Scholar] [CrossRef]
  13. Tüfekci, N.; Sarikaya, H.Z. Catalytic effects of high Fe(III) concentrations on Fe(II) oxidation. Water Sci. Technol. 1996, 34, 389–396. [Google Scholar] [CrossRef]
  14. Aydin, S.; Tufekci, N.; Arayici, S.; Ozturk, I. Catalytic effects of high Mn(IV) concentrations on Mn(II) oxidation. Water Sci. Technol. 2000, 42, 387–392. [Google Scholar] [CrossRef]
  15. Ormanci, T.; Turkoglu Demirkol, G.; Aydın, I.M.; Tufekci, N. An experimental study on manganese(II) removal with manganese dioxide recycling. Desalination Water Treat. 2013, 51, 2225–2230. [Google Scholar] [CrossRef]
  16. Güneş Durak, S.; Köseoǧlu Imer, D.Y.; Türkoǧlu Demirkol, G.; Ormanci, T.; Armaǧan, B.; Tüfekci, N. Influence of ageing on the catalytic activity of MnO2 sludge for oxidation of Mn(II). Desalin. Water Treat. 2013, 51, 5692–5700. [Google Scholar] [CrossRef]
  17. Celik, S.O. Effect of NOM on the Removal of Fe(II) and Mn(II) and Advanced Treatment with Immersed Membrane System; Istanbul University: Istanbul, Turkey, 2011. [Google Scholar]
  18. Ormancı, T. Treatment of Fe(II) and Mn(II) in the Drinking Water with Fulvic Asid by Submerged Membrane System; Istanbul University: Istanbul, Turkey, 2011. [Google Scholar]
  19. Türkoğlu Demirkol, G. The effects of some organic compounds on the catalytic properties of MnO2 and Mn 2+ oxidation in drinking water. Fresenius Environ. Bull. 2019, 28, 569–573. [Google Scholar]
  20. Cheng, Q. Competitive mechanism of ammonia, iron and manganese for dissolved oxygen using pilot-scale biofilter at different dissolved oxygen concentrations. Water Sci. Technol. Water Supply 2016, 16, 766–774. [Google Scholar] [CrossRef]
  21. Štembal, T.; Markić, M.; Ribičić, N.; Briški, F.; Sipos, L. Removal of ammonia, iron and manganese from groundwaters of northern Croatia-pilot plant studies. Process Biochem. 2005, 1, 327–335. [Google Scholar] [CrossRef]
  22. Kan, C.-C.; Wan, M.-W.; Chen, W.-H.; Phatai, P.; Wittayakun, J.; Li, K.-F. The preliminary study of iron and manganese removal from groundwater by NaOCl oxidation and MF filtration | Request PDF. Sustain. Environ. Res. 2012, 22, 25–30. [Google Scholar]
  23. Yu, W.; Brown, M.; Graham, N.J.D. Prevention of PVDF ultrafiltration membrane fouling by coating MnO2 nanoparticles with ozonation. Sci. Rep. 2016, 6, 1–12. [Google Scholar] [CrossRef] [Green Version]
  24. Gouzinis, A.; Kosmidis, N.; Vayenas, D.V.; Lyberatos, G. Removal of Mn and simultaneous removal of NH3, Fe and Mn from potable water using a trickling filter. Water Res. 1998, 32, 2442–2450. [Google Scholar] [CrossRef]
  25. Tamura, H.; Goto, K.; Yotsuyanagi, T.; Nagayama, M. Spectrophotometric determination of iron(II) with 1,10-phenanthroline in the presence of large amounts of iron(III). Talanta 1974, 21, 314–318. [Google Scholar] [CrossRef]
  26. Chen, G.E.; Li, J.F.; Xu, Z.L.; Yu, L.Y. Preparation of Micro-Porous Polyethersulphone Hollow Fibre Membranes Using Non-Solvent Vapour-Induced Phase Seperation. Iran. Polym. J. 2010, 19, 863–873. [Google Scholar]
  27. Loh, C.H.; Wang, R.; Shi, L.; Fane, A.G. Fabrication of high performance polyethersulfone UF hollow fiber membranes using amphiphilic Pluronic block copolymers as pore-forming additives. J. Memb. Sci. 2011, 380, 114–123. [Google Scholar] [CrossRef]
  28. Pang, D.X.; Lü, S.L.; Wei, X.Z.; Zhu, B.K.; Xu, Y.Y. Effect of coagulation bath temperature on the structure and performance of polyethersulfone hollow fiber membranes by dry/wet process. J. Clin. Rehabil. Tissue Eng. Res. 2008, 12, 5381–5384. [Google Scholar]
  29. Judd, S.; Judd, C. The MBR Book: Principles and Applications of Membrane Bioreactors in Water and Wastewater Treatment; Elsevier: Amsterdam, The Netherlands, 2011; ISBN 0080465102. [Google Scholar]
  30. Koyuncu, İ.; Sengur, R.; Turken, T.; Guclu, S.; Pasaoglu, M.E. Advances in water treatment by microfiltration, ultrafiltration, and nanofiltration. In Advances in Membrane Technologies for Water Treatment-Materials, Processes and Applications; Basile, A., Cassano, A., Rastogi, N., Eds.; Woodhead Publishing: Oxford, UK, 2015; pp. 83–128. ISBN 9781845699697. [Google Scholar]
  31. APHA; AWWA; WEF. Standard Methods for the Examination of Water and Wastewater; American Public Health Association: Washington, DC, USA, 2012; p. 541. ISBN 9780875532356. [Google Scholar]
  32. Kasim, N.; Wahab Mohammad, A.; Rozaimah Sheikh Abdullah, S. Iron and Manganase Removal by Nanofiltration and Ultrafiltration Membranes: Influence of pH Adjustment. Malays. J. Anal. Sci. 2017, 21, 149–158. [Google Scholar] [CrossRef]
  33. Stumm, W.; Lee, G.F. The chemistry of aqueous iron. Schweiz. Z. Hydrol. 1960, 22, 295–319. [Google Scholar] [CrossRef]
  34. Zelmanov, G.; Semiat, R. Iron (Fe+3) oxide/hydroxide nanoparticles-based agglomerates suspension as adsorbent for chromium (Cr+6) removal from water and recovery. Sep. Purif. Technol. 2011, 2, 330–337. [Google Scholar] [CrossRef]
  35. Capponi, F.; Sartori, M.; Souza, M.L.; Rubio, J. Modified column flotation of adsorbing iron hydroxide colloidal precipitates. Int. J. Miner. Process. 2006, 79, 167–173. [Google Scholar] [CrossRef]
  36. Dashtban Kenari, S.L.; Barbeau, B. Understanding ultrafiltration fouling of ceramic and polymeric membranes caused by oxidized iron and manganese in water treatment. J. Memb. Sci. 2016, 516, 1–12. [Google Scholar] [CrossRef]
  37. Aguiar, A.O.; Duarte, R.A.; Ladeira, A.C.Q. The application of MnO2 in the removal of manganese from acid mine water. Water Air. Soil Pollut. 2013, 224, 1–8. [Google Scholar] [CrossRef]
  38. Bodík, I.; Blšťáková, A.; Dančová, L.; Sedláček, S. Comparison of Flat-Sheet and Hollow-Fiber Membrane Modules in Municipal Wastewater Treatment. Pol. J. Environ. Stud. 2009, 18, 331–340. [Google Scholar]
  39. Maximous, N.; Nakhla, G.; Wan, W. Comparative assessment of hydrophobic and hydrophilic membrane fouling in wastewater applications. J. Memb. Sci. 2009, 339, 93–99. [Google Scholar] [CrossRef]
  40. Dereli, R.K.; Urban, D.R.; Heffernan, B.; Jordan, J.A.; Ewing, J.; Rosenberger, G.T.; Dunaev, T.I. Performance evaluation of a pilot-scale anaerobic membrane bioreactor (AnMBR) treating ethanol thin stillage. Environ. Technol. 2012, 33, 1511–1516. [Google Scholar] [CrossRef]
  41. Choo, K.-H.; Kang, I.-J.; Yoon, S.-H.; Park, H.; Kim, J.-H.; Adiya, S.; Lee, C.-H. Approaches to membrane fouling control in anaerobic membrane bioreactors. Water Sci. Technol. 2000, 41, 363–371. [Google Scholar] [CrossRef]
  42. Chang, I.S.; Lee, C.H. Membrane filtration characteristics in membrane-coupled activated sludge system—The effect of physiological states of activated sludge on membrane fouling. Desalination 1998, 120, 221–233. [Google Scholar] [CrossRef]
  43. Stephenson, T.; Judd, S.; Jefferson, B.; Brindle, K. Membrane Bioreactors for Wastewater Treatment. J. Memb. Sci. 2001, 194, 145–146. [Google Scholar] [CrossRef]
  44. Dizge, N. The Investigation of Fouling Characteristics of Microfiltration Membranes Depending on Membrane Type and Pore Size in Conventional Activated Sludge System; Gebze High Technology Institute: Kocaeli, Turkey, 2011. [Google Scholar]
  45. Belfer, S.; Fainchtain, R.; Purinson, Y.; Kedem, O. Surface characterization by FTIR-ATR spectroscopy of polyethersulfone membranes-unmodified, modified and protein fouled. J. Memb. Sci. 2000, 172, 113–124. [Google Scholar] [CrossRef]
  46. Rabiller-Baudry, M.; le Maux, M.; Chaufer, B.; Begoin, L. Characterisation of cleaned and fouled membrane by ATR—FTIR and EDX analysis coupled with SEM: Application to UF of skimmed milk with a PES membrane. Desalination 2002, 146, 123–128. [Google Scholar] [CrossRef]
  47. Türkoğlu Demirkol, G. Membrane Surface Modification by Using Plasma Techniques and Application to Membrane Bioreactors; Istanbul University: Istanbul, Turkey, 2014. [Google Scholar]
  48. Howe, K.J.; Ishida, K.P.; Clark, M.M. Use of ATR/FTIR spectrometry to study fouling of microfiltration membranes by natural waters. Desalination 2002, 147, 251–255. [Google Scholar] [CrossRef]
  49. Tüfekci, M.; Durak, S.G.; Pir, İ.; Acar, T.O.; Demirkol, G.T.; Tüfekci, N. Manufacturing, Characterisation and Mechanical Analysis of Polyacrylonitrile Membranes. Polymers 2020, 12, 2378. [Google Scholar] [CrossRef]
  50. Acarer, S.; Pir, İ.; Tüfekci, M.; Demirkol, G.T.; Tüfekci, N. Manufacturing and Characterisation of Polymeric Membranes for Water Treatment and Numerical Investigation of Mechanics of Nanocomposite Membranes. Polymers 2021, 13, 1661. [Google Scholar] [CrossRef] [PubMed]
  51. Bae, B.; Chun, B.H.; Kim, D. Surface characterization of microporous polypropylene membranes modified by plasma treatment. Polymer 2001, 42, 7879–7885. [Google Scholar] [CrossRef]
  52. Gryta, M.; Tomaszewska, M.; Grzechulska, J.; Morawski, A.W. Membrane distillation of NaCl solution containing natural organic matter. J. Memb. Sci. 2001, 181, 279–287. [Google Scholar] [CrossRef]
  53. Gryta, M.; Grzechulska-Damszel, J.; Markowska, A.; Karakulski, K. The influence of polypropylene degradation on the membrane wettability during membrane distillation. J. Memb. Sci. 2009, 326, 493–502. [Google Scholar] [CrossRef]
  54. Farsani, R.E.; Raissi, S.; Shokuhfar, A.; Sedghi, A. FT-IR Study of Stabilized PAN Fibers for Fabrication of Carbon Fibers. World Acad. Sci. Eng. Technol. 2009, 3, 430–433. Available online: http://waset.org/publications/447 (accessed on 2 September 2021).
  55. Yamamura, H.; Kimura, K.; Watanabe, Y. Mechanism involved in the evolution of physically irreversible fouling in microfiltration and ultrafiltration membranes used for drinking water treatment. Environ. Sci. Technol. 2007, 41, 6789–6794. [Google Scholar] [CrossRef] [PubMed]
  56. Tufekci, M.; Gunes-Durak, S.; Ormanci-Acar, T.; Tufekci, N. Effects of geometry and PVP addition on mechanical behavior of PEI membranes for use in wastewater treatment. J. Appl. Polym. Sci. 2019, 136, 47073. [Google Scholar] [CrossRef]

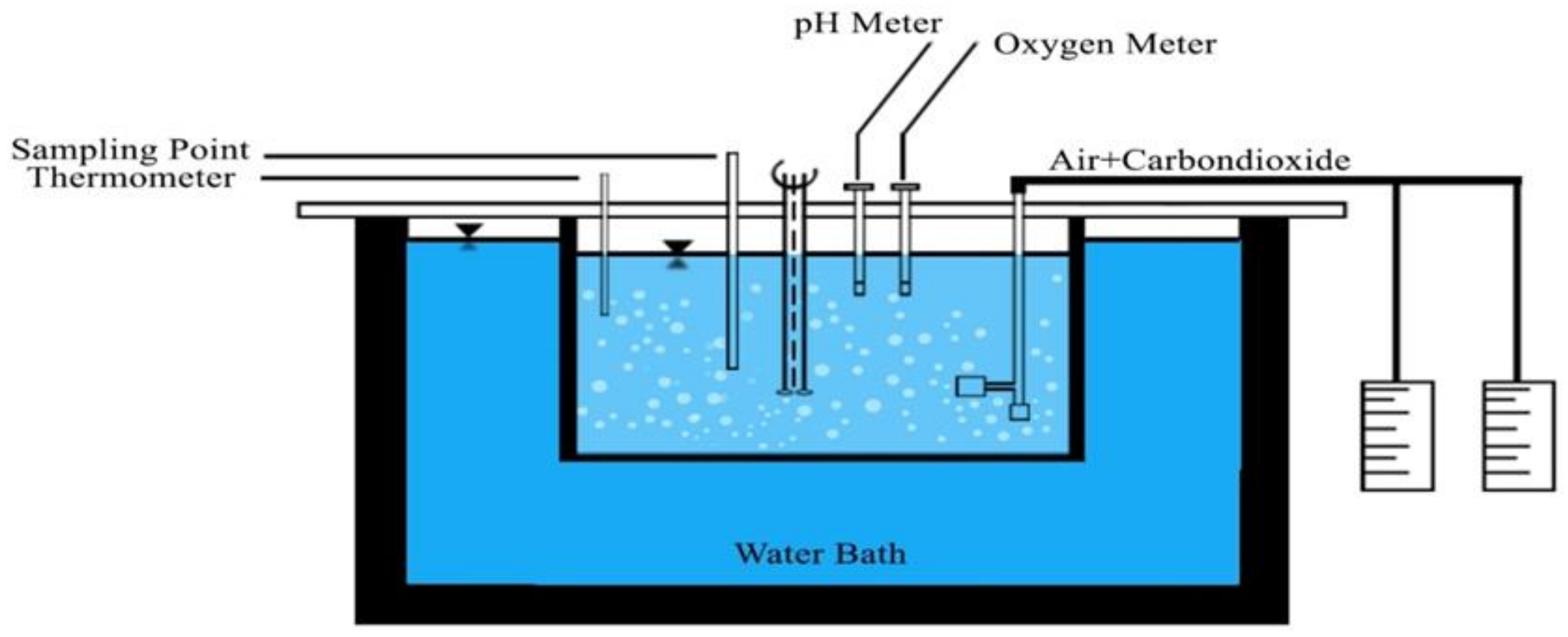

Figure 1. Experimental set up for oxidation with aeration.
Figure 1. Experimental set up for oxidation with aeration.
Polymers 13 03201 g001

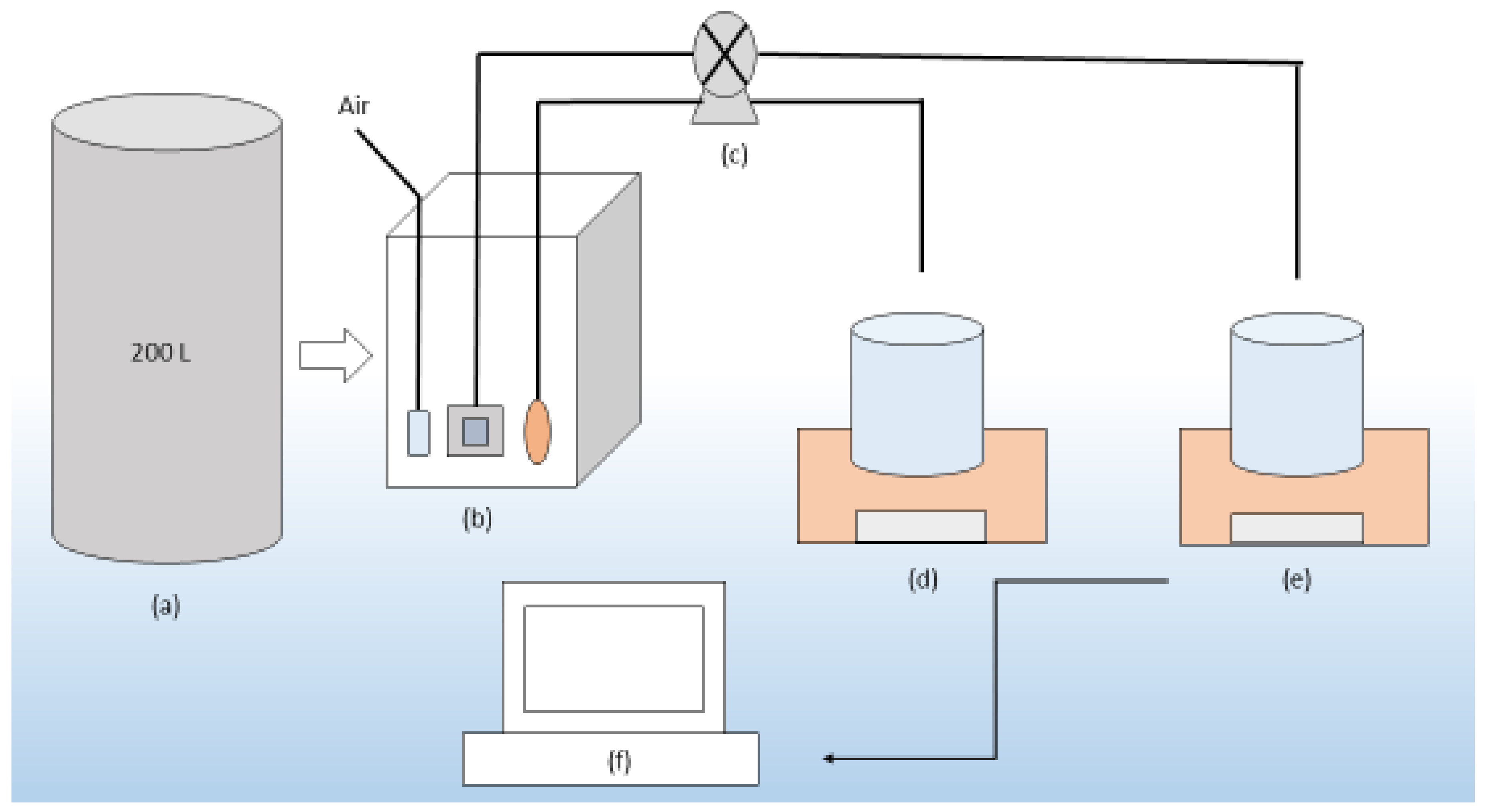

Figure 2. Experimental setup for submerged membrane system: (a) Feeding tank; (b) Reactor and submerged membranes; (c) Peristaltic pump; (d) Scales (PES membrane filtration weighing); (e) Scales (PP membrane filtration weighing); and (f) Computer.
Figure 2. Experimental setup for submerged membrane system: (a) Feeding tank; (b) Reactor and submerged membranes; (c) Peristaltic pump; (d) Scales (PES membrane filtration weighing); (e) Scales (PP membrane filtration weighing); and (f) Computer.
Polymers 13 03201 g002

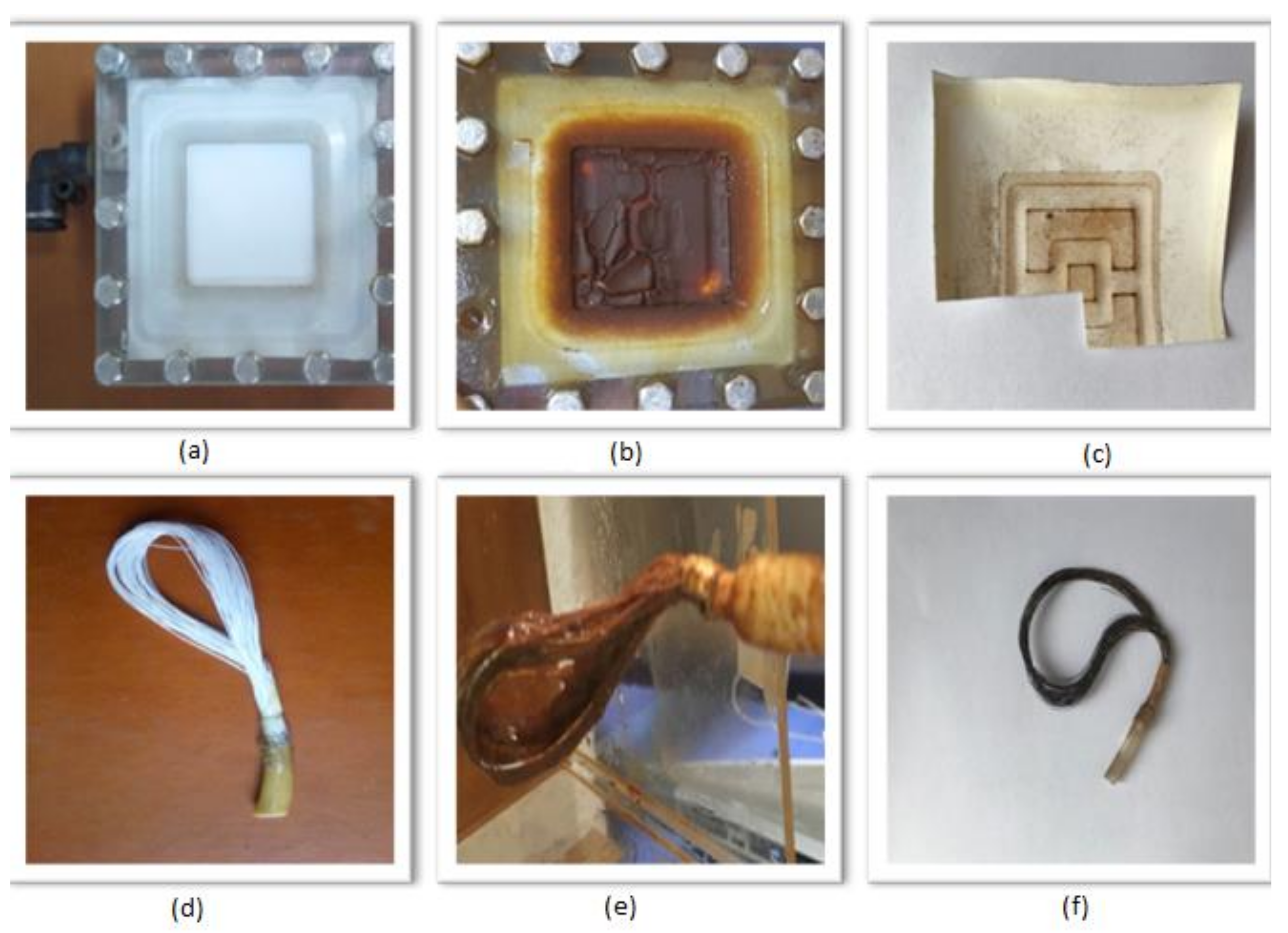

Figure 3. Clean and fouled membranes images. (a) Clean PES membrane; (b) fouled PES membrane after Fe2+ removal experiments; (c) fouled PES membrane after Mn2+ removal experiments; (d) clean PP membrane; (e) fouled PP membrane after Fe2+ removal experiments; (f) fouled PP membrane after Mn2+ removal experiments.
Figure 3. Clean and fouled membranes images. (a) Clean PES membrane; (b) fouled PES membrane after Fe2+ removal experiments; (c) fouled PES membrane after Mn2+ removal experiments; (d) clean PP membrane; (e) fouled PP membrane after Fe2+ removal experiments; (f) fouled PP membrane after Mn2+ removal experiments.
Polymers 13 03201 g003

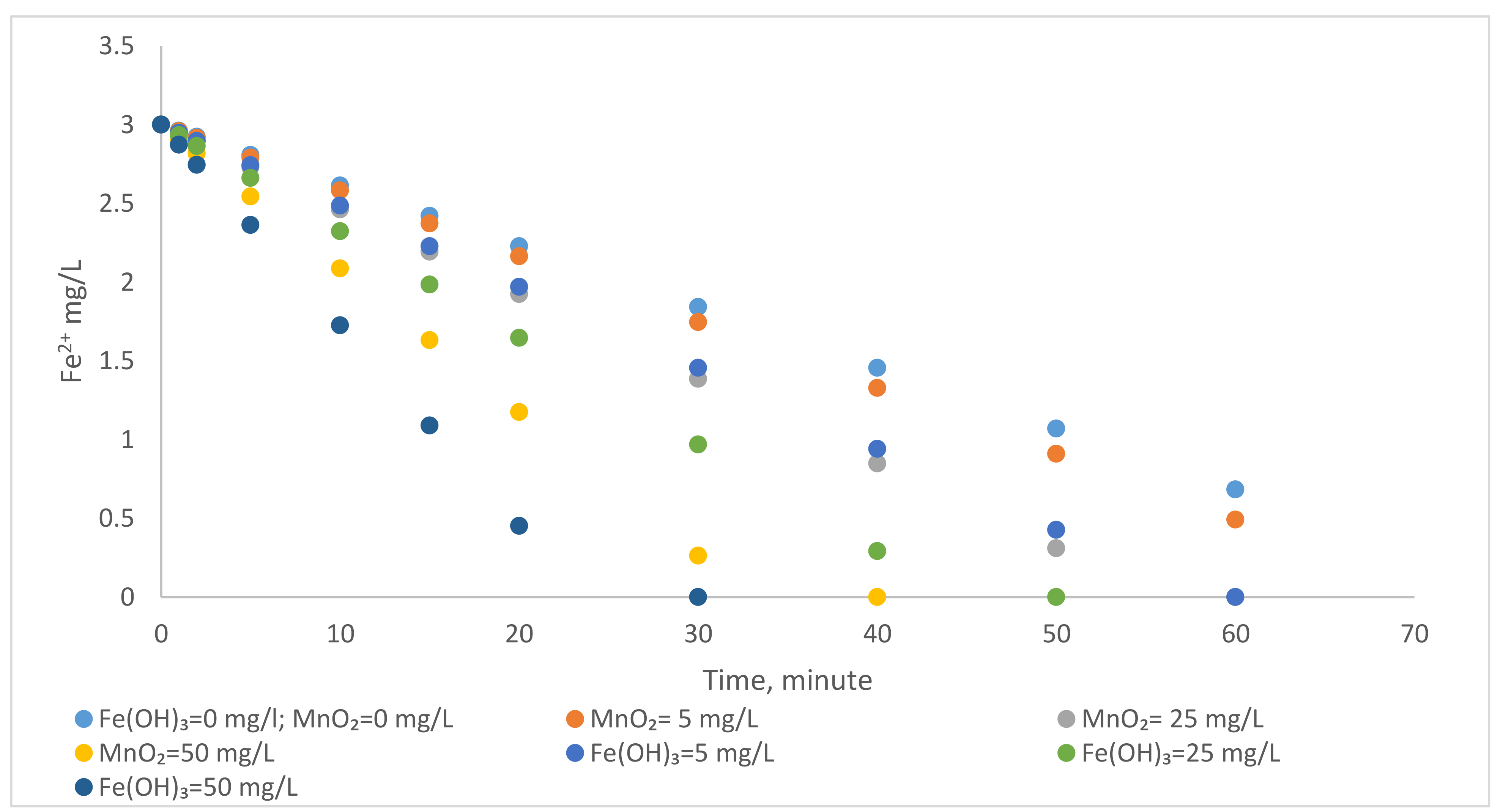

Figure 4. The effect of MnO2 and Fe(OH)3 on the oxidation of Fe2+ with atmospheric oxygen (Fe2+ = 3 mg/L, pH = 6.5, alkalinity = 2 × 10−2 eq/L, temperature = 25 °C).
Figure 4. The effect of MnO2 and Fe(OH)3 on the oxidation of Fe2+ with atmospheric oxygen (Fe2+ = 3 mg/L, pH = 6.5, alkalinity = 2 × 10−2 eq/L, temperature = 25 °C).
Polymers 13 03201 g004

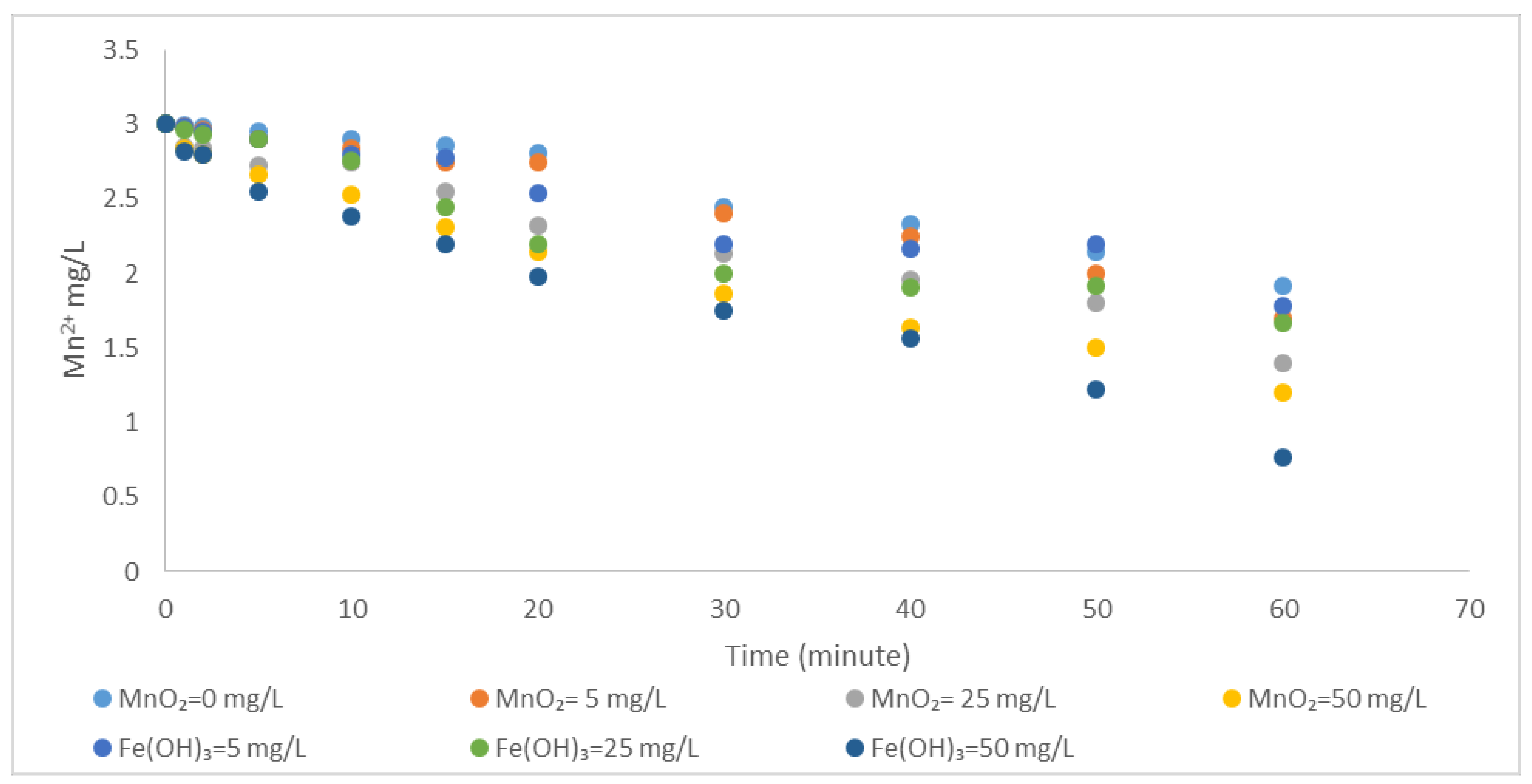

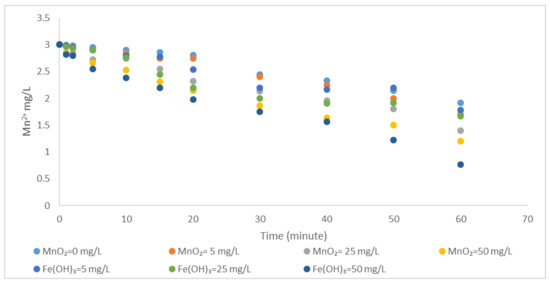

Figure 5. The effect of MnO2 and Fe(OH)3 on the oxidation of Mn2+ with atmospheric oxygen (Mn2+ = 3 mg/L, pH = 9.2 alkalinity = 2 × 10−2 eq/L, temperature = 25 °C).
Figure 5. The effect of MnO2 and Fe(OH)3 on the oxidation of Mn2+ with atmospheric oxygen (Mn2+ = 3 mg/L, pH = 9.2 alkalinity = 2 × 10−2 eq/L, temperature = 25 °C).
Polymers 13 03201 g005

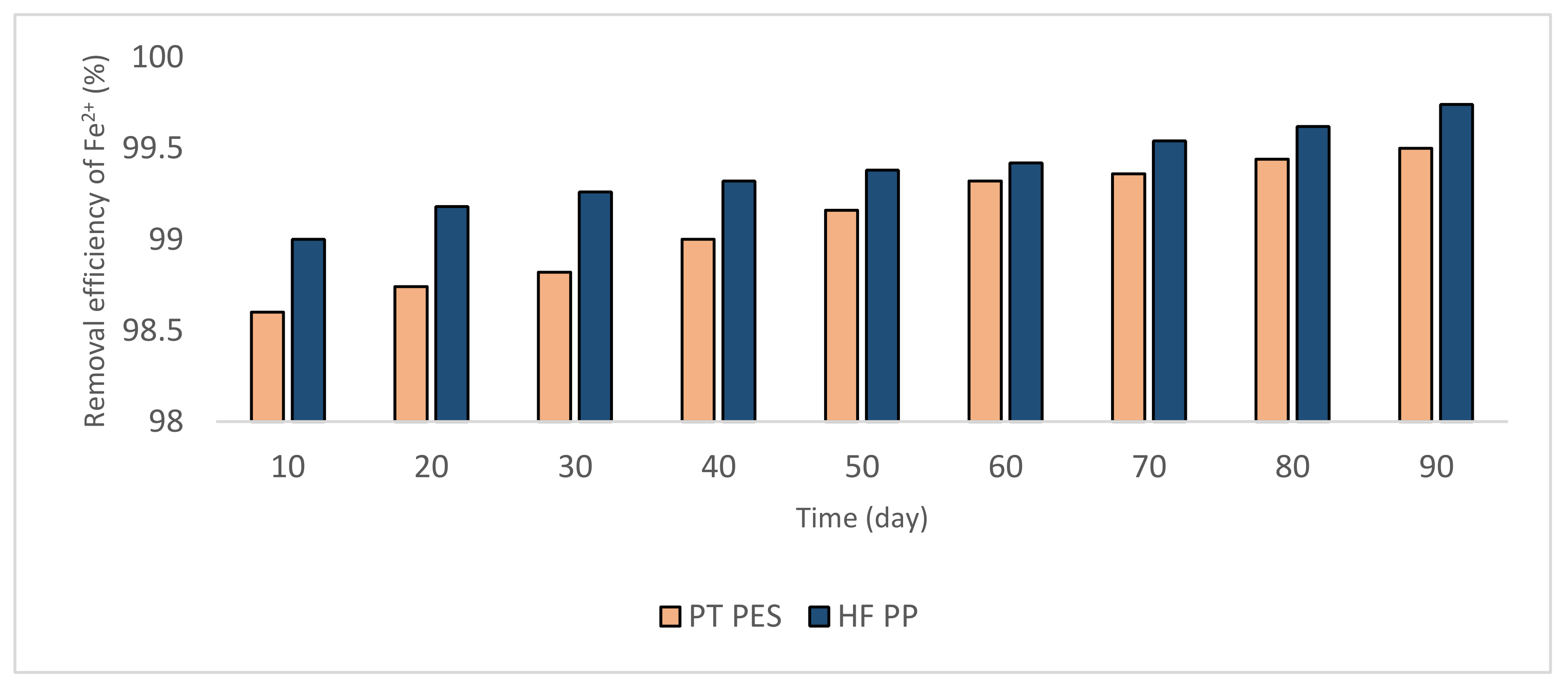

Figure 6. Removal efficiencies obtained from Fe2+ experiments (Fe 2+ = 3 mg/L, pH = 6.5, alkalinity = 2 × 10−2 eq/L).
Figure 6. Removal efficiencies obtained from Fe2+ experiments (Fe 2+ = 3 mg/L, pH = 6.5, alkalinity = 2 × 10−2 eq/L).
Polymers 13 03201 g006

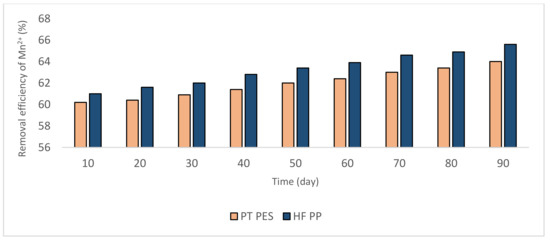

Figure 7. Removal efficiencies obtained from Mn2+ experiments (Mn2+ = 3 mg/L, pH = 9.2, alkalinity = 2 × 10−2 eq/L).

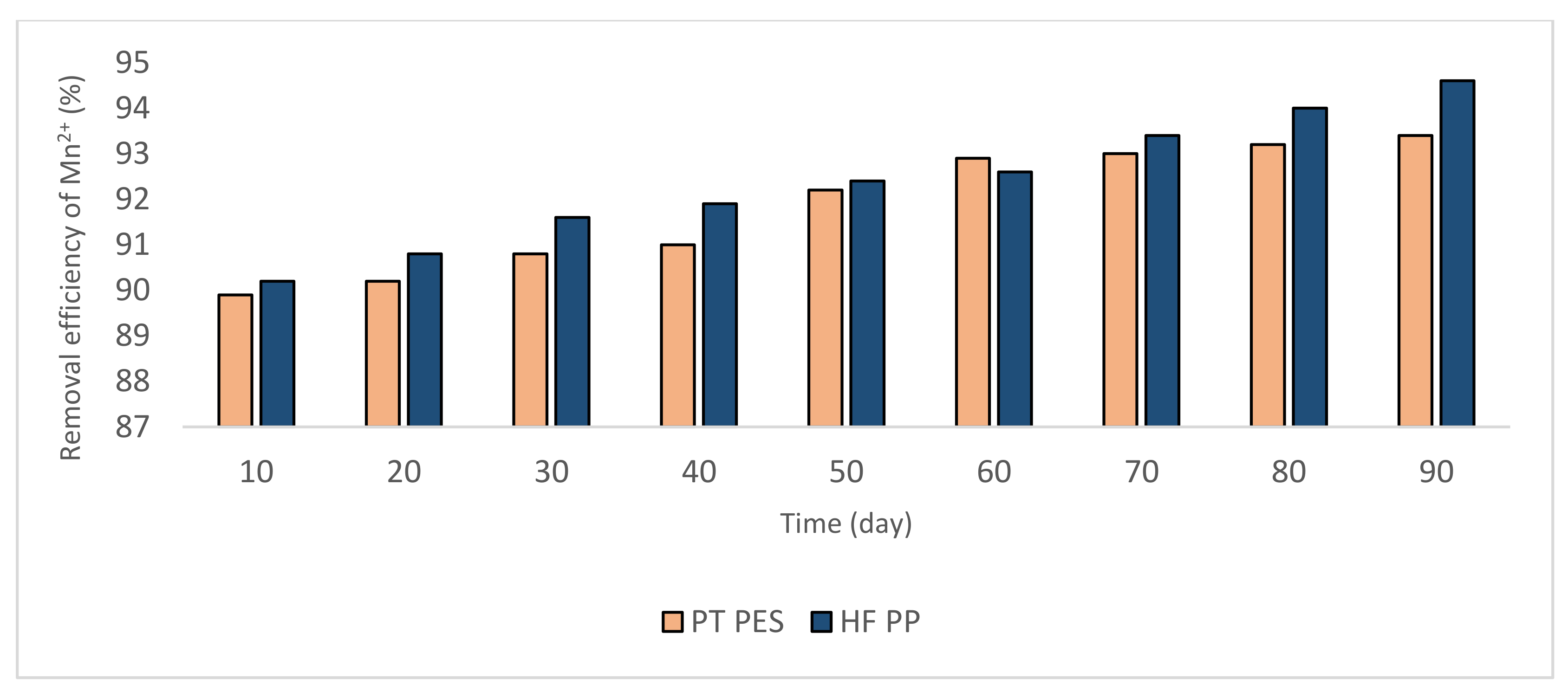

Figure 7. Removal efficiencies obtained from Mn2+ experiments (Mn2+ = 3 mg/L, pH = 9.2, alkalinity = 2 × 10−2 eq/L).
Polymers 13 03201 g007

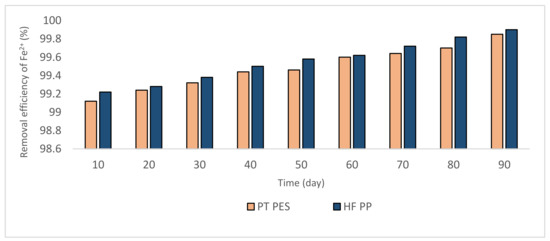

Figure 8. Fe2+ removal efficiencies obtained from Fe2+-Mn2+ experiments (Fe2+ = 3 mg/L, pH = 8.5, alkalinity = 2 × 10−2 eq/L).
Figure 8. Fe2+ removal efficiencies obtained from Fe2+-Mn2+ experiments (Fe2+ = 3 mg/L, pH = 8.5, alkalinity = 2 × 10−2 eq/L).
Polymers 13 03201 g008
Figure 9. Mn2+ removal efficiencies obtained from Fe2+-Mn2+ experiments (Mn2+ = 3 mg/L, pH = 8.5, alkalinity = 2 × 10−2 eq/L).
Figure 9. Mn2+ removal efficiencies obtained from Fe2+-Mn2+ experiments (Mn2+ = 3 mg/L, pH = 8.5, alkalinity = 2 × 10−2 eq/L).
Polymers 13 03201 g009

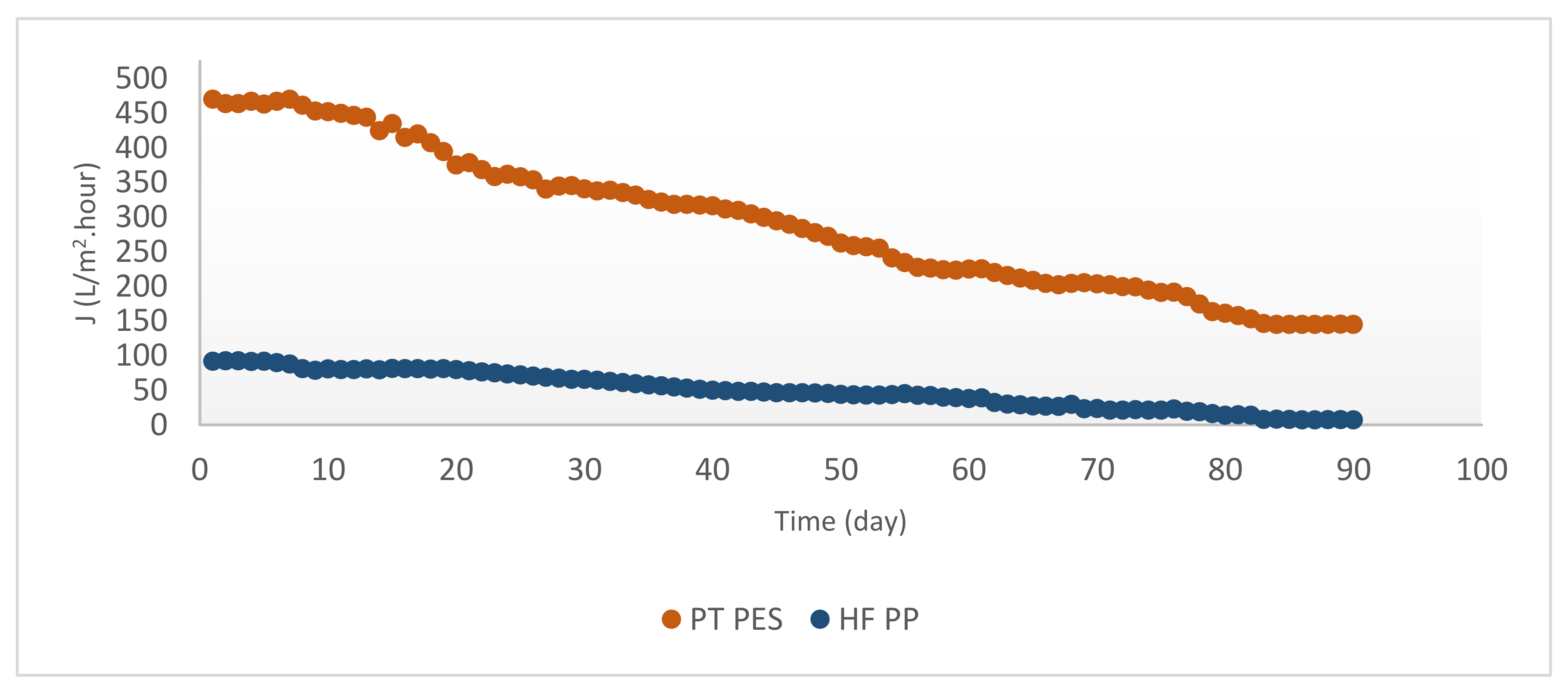

Figure 10. Flux versus time for Fe2+ removal experiments (Fe2+ = 3 mg/L, pH = 6.5, alkalinity = 2 × 10−2 eq/L).
Figure 10. Flux versus time for Fe2+ removal experiments (Fe2+ = 3 mg/L, pH = 6.5, alkalinity = 2 × 10−2 eq/L).
Polymers 13 03201 g010

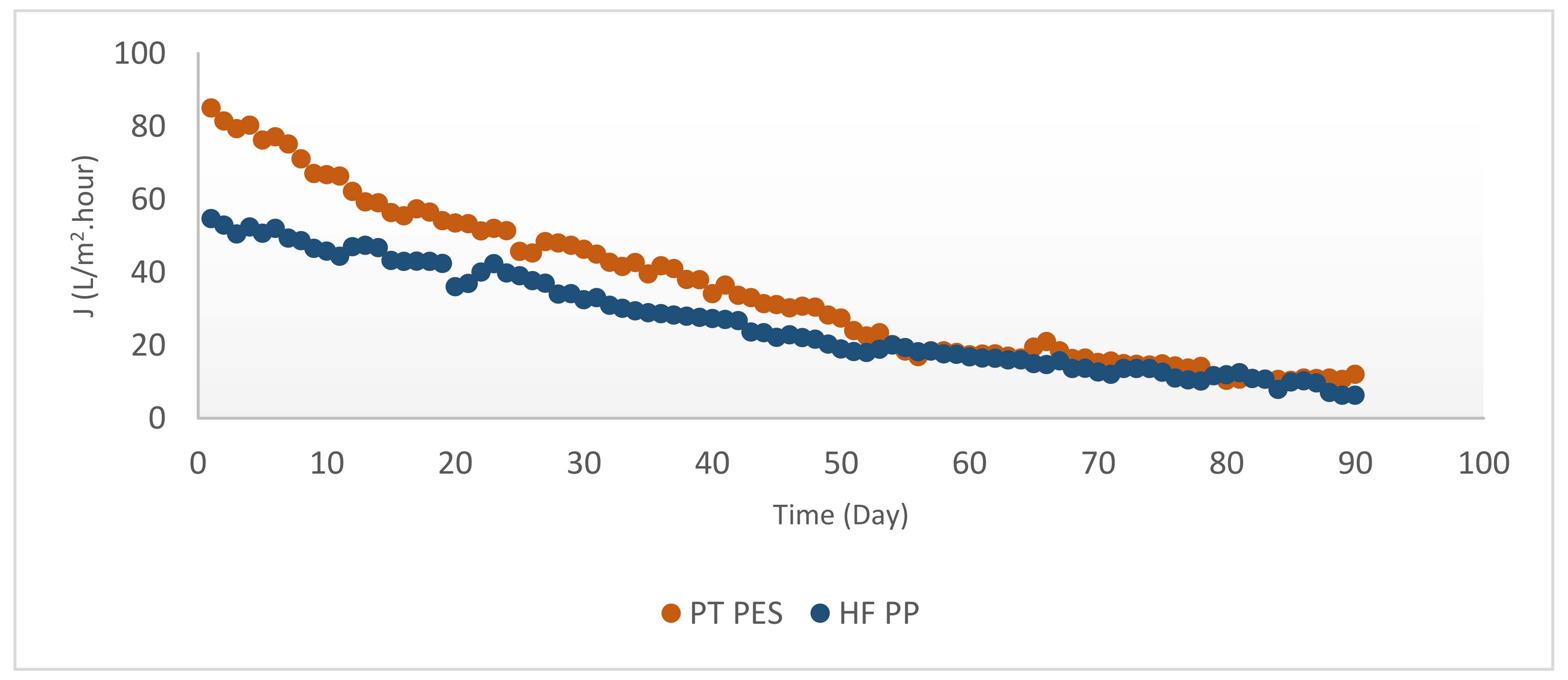

Figure 11. Flux versus time for Mn2+ removal experiments (Mn2+ = 3 mg/L, pH = 9.2, alkalinity = 2 × 10−2 eq/L).
Figure 11. Flux versus time for Mn2+ removal experiments (Mn2+ = 3 mg/L, pH = 9.2, alkalinity = 2 × 10−2 eq/L).
Polymers 13 03201 g011
Figure 12. Flux versus time for Fe2+-Mn2+ removal experiments (Fe2+ = 3 mg/L, Mn2+ = 3 mg/L, pH = 8.5, alkalinity = 2 × 10−2 eq/L).
Figure 12. Flux versus time for Fe2+-Mn2+ removal experiments (Fe2+ = 3 mg/L, Mn2+ = 3 mg/L, pH = 8.5, alkalinity = 2 × 10−2 eq/L).
Polymers 13 03201 g012

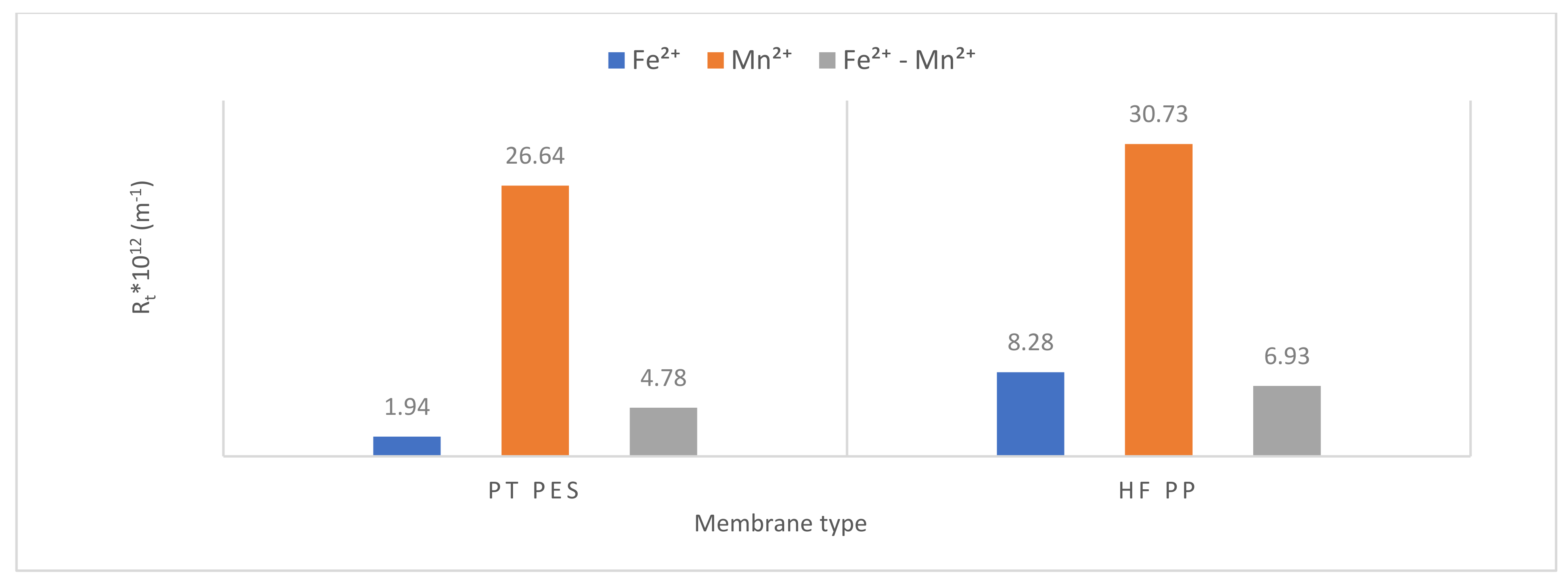

Figure 13. Overall resistance variation.
Figure 13. Overall resistance variation.
Polymers 13 03201 g013
Figure 14. Membrane resistance variation.
Figure 14. Membrane resistance variation.
Polymers 13 03201 g014

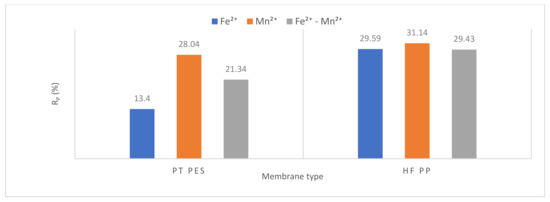

Figure 15. Pore resistance variation.
Figure 15. Pore resistance variation.
Polymers 13 03201 g015

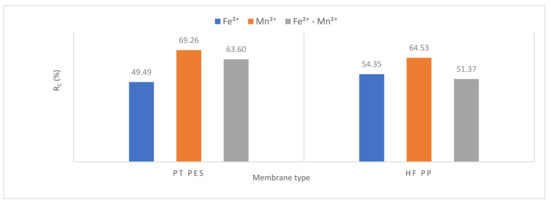

Figure 16. Cake resistance variation.
Figure 16. Cake resistance variation.
Polymers 13 03201 g016
Figure 17. FT/IR spectra of fouled and virgin PT PES membrane.
Figure 17. FT/IR spectra of fouled and virgin PT PES membrane.
Polymers 13 03201 g017

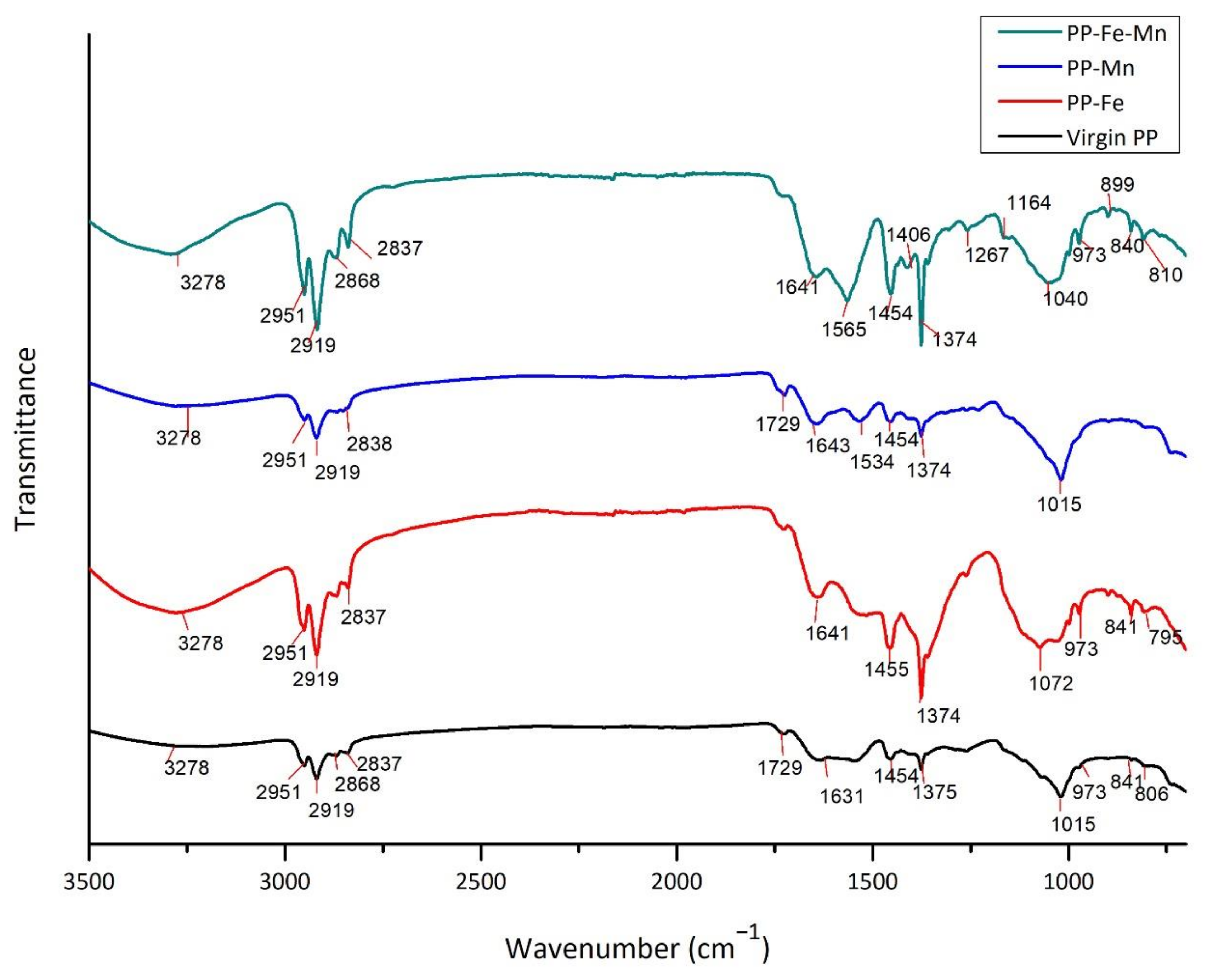

Figure 18. FT/IR spectra of fouled and virgin HF PP membrane.
Figure 18. FT/IR spectra of fouled and virgin HF PP membrane.
Polymers 13 03201 g018

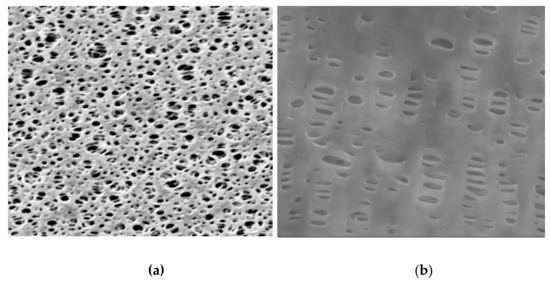

Figure 19. SEM photographs of virgin membrane (1000×): (a) PT PES membrane; (b) HF PP membrane.
Figure 19. SEM photographs of virgin membrane (1000×): (a) PT PES membrane; (b) HF PP membrane.
Polymers 13 03201 g019
Figure 20. SEM images of fouled PT PES membrane: (a) Fe2+ experiments (1000×); (b) Fe2+ experiments (5000×); (c) Mn2+ experiments (1000×); (d) Mn2+ experiments (5000×); (e) Fe2+-Mn2+ experiments (1000×); (f) Fe2+-Mn2+ experiments (5000×).
Figure 20. SEM images of fouled PT PES membrane: (a) Fe2+ experiments (1000×); (b) Fe2+ experiments (5000×); (c) Mn2+ experiments (1000×); (d) Mn2+ experiments (5000×); (e) Fe2+-Mn2+ experiments (1000×); (f) Fe2+-Mn2+ experiments (5000×).
Polymers 13 03201 g020

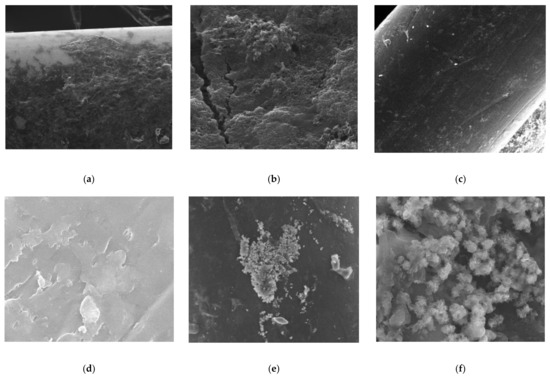

Figure 21. SEM images of fouled HF PP membranes (a) Fe2+ experiments (1000×); (b) Fe2+ experiments (5000×); (c) Mn2+ experiments (1000×); (d) Mn2+ experiments (5000×); (e) Fe2+-Mn2+ experiments (1000×); (f) Fe2+-Mn2+ experiments (5000×).
Figure 21. SEM images of fouled HF PP membranes (a) Fe2+ experiments (1000×); (b) Fe2+ experiments (5000×); (c) Mn2+ experiments (1000×); (d) Mn2+ experiments (5000×); (e) Fe2+-Mn2+ experiments (1000×); (f) Fe2+-Mn2+ experiments (5000×).
Polymers 13 03201 g021
Table 2. Properties of membranes.
Table 2. Properties of membranes.
HF PPPT PES
Membrane typeHollow Fiber-P5Flat-MP005
Surface area, cm21.16816
Membrane materialPolypropylenePolyethersulfone
Pore size0.1 μm × 0.5 μm0.05 μm
Characteristic flux216 L/m2·h-
Pure water flux-400 L/m2·h
OD/ID240/310 μm-
Bursting press>5.5 bar-
Crash pressure>3.5 bar-
Temperature-95 °C
pH-0–14
Table 3. The effect of MnO2 and Fe(OH)3 on the oxidation of Fe2+ with atmospheric oxygen (Fe2+ = 3 mg/L, pH = 6.5, alkalinity = 2 × 10−2 eq/L, temperature = 25 °C).
Table 3. The effect of MnO2 and Fe(OH)3 on the oxidation of Fe2+ with atmospheric oxygen (Fe2+ = 3 mg/L, pH = 6.5, alkalinity = 2 × 10−2 eq/L, temperature = 25 °C).
pHFe2+ (mg/L)MnO2 (mg/L)Fe(OH)3 (mg/L)k/kcat (min–1)Time (min)
6.53000.03879
6.53500.04173
6.532500.05159
6.535000.0836
6.53050.0560
6.530250.06347
6.530500.10727
Table 4. The effect of MnO2 and Fe(OH)3 on the oxidation of Mn2+ with atmospheric oxygen (Mn2+ = 3 mg/L, pH = 9.2, alkalinity = 2 × 10−2 eq/L, temperature = 25 °C).
Table 4. The effect of MnO2 and Fe(OH)3 on the oxidation of Mn2+ with atmospheric oxygen (Mn2+ = 3 mg/L, pH = 9.2, alkalinity = 2 × 10−2 eq/L, temperature = 25 °C).
pHMn2+ (mg/L)MnO2 (mg/L)Fe(OH)3 (mg/L)k/kcat (min−1)Time (min.)
9.23000.0169177
9.23500.0194150
9.232500.0265113
9.235000.0272110
9.23050.0195134
9.230250.0269111
9.230500.039276
Table 5. Initial and steady-state fluxes.
Table 5. Initial and steady-state fluxes.
Membrane TypeJWFe2+ (90 Days)Mn2+ (90 Days)Fe2+-Mn2+ (90 Days)
JdJ0JdJ0JdJ0
PT PES400148.57470.0010.8184.9660.2293.69
HF PP2169.4891.799.3754.7041.5396.85
Table 6. Resistance values.
Table 6. Resistance values.
Membrane Type (Fe2+)(Mn2+)(Fe2+-Mn2+)
Rt
×1012
Rm
×1012
(%)
Rp
×1012
(%)
Rc
×1012
(%)
Rt
×1012
Rm
×1012
(%)
Rp
×1012
(%)
Rc
×1012
(%)
Rt
×1012
Rm
×1012
(%)
Rp
×1012
(%)
Rc
×1012
(%)
PT PES 1.940.72
37.11
0.26
13.40
0.96
49.49
26.640.72
2.70
7.47
28.04
18.45
69.26
4.780.72
15.06
1.02
21.34
3.04
63.60
HFPP 8.281.33
16.06
2.45
29.59
4.50
54.35
30.731.33
4.33
9.57
31.14
19.83
64.53
6.931.33
19.20
2.04
29.43
3.56
51.37
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Türkoğlu Demirkol, G.; Çelik, S.Ö.; Güneş Durak, S.; Acarer, S.; Çetin, E.; Akarçay Demir, S.; Tüfekci, N. Effects of Fe(OH)3 and MnO2 Flocs on Iron/Manganese Removal and Fouling in Aerated Submerged Membrane Systems. Polymers 2021, 13, 3201. https://doi.org/10.3390/polym13193201

AMA Style

Türkoğlu Demirkol G, Çelik SÖ, Güneş Durak S, Acarer S, Çetin E, Akarçay Demir S, Tüfekci N. Effects of Fe(OH)3 and MnO2 Flocs on Iron/Manganese Removal and Fouling in Aerated Submerged Membrane Systems. Polymers. 2021; 13(19):3201. https://doi.org/10.3390/polym13193201

Chicago/Turabian Style

Türkoğlu Demirkol, Güler, Suna Özden Çelik, Sevgi Güneş Durak, Seren Acarer, Ender Çetin, Sultan Akarçay Demir, and Neşe Tüfekci. 2021. "Effects of Fe(OH)3 and MnO2 Flocs on Iron/Manganese Removal and Fouling in Aerated Submerged Membrane Systems" Polymers 13, no. 19: 3201. https://doi.org/10.3390/polym13193201

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
