Clay-Based Polymer Nanocomposites: Essential Work of Fracture

National Council for Science and Technology (CONACYT—CIDESI), Center for Engineering and Industrial Development, Carretera Estatal 200, km 23, Querétaro 76265, Mexico
Academic Editors: Somen K. Bhudolia and Sunil Chandrakant Joshi
Polymers 2021, 13(15), 2399; https://doi.org/10.3390/polym13152399
Received: 20 May 2021 / Revised: 13 June 2021 / Accepted: 15 June 2021 / Published: 22 July 2021
(This article belongs to the Special Issue Advanced Thermoplastic Polymers and Composites)

Abstract

This work details the general structure of the clays used as a reinforcement phase in polymer nanocomposites. Clays are formed by the molecular arrangement of atomic planes described through diagrams to improve their visualization. The molecular knowledge of clays can facilitate the selection of the polymer matrix and achieve a suitable process to obtain clay-based polymer nanocomposite systems. This work highlights the development of polymer nanocomposites using the melt intercalation method. The essential work of fracture (EWF) technique has been used to characterize the fracture behavior of materials that show ductility and where complete yielding of the ligament region occurs before the crack propagation. In this sense, the EWF technique characterizes the post-yielding fracture mechanics, determining two parameters: the specific essential work of fracture (we), related to the surface where the actual fracture process occurs, and the specific non-essential work of fracture (wp), related to the plastic work carried out in the outer zone of the fracture zone. The EWF technique has been used successfully in nano-reinforced polymers to study the influence of different variables on fracture behavior. In this work, the fundamentals of the EWF technique are described, and some examples of its application are compiled, presenting a summary of the most relevant contributions in recent years.
Keywords: EWF; polymer-layered silicates; oMMT; clay minerals; mechanical properties EWF; polymer-layered silicates; oMMT; clay minerals; mechanical properties

1. Introduction

Thermoplastic polymers are commonly reinforced with inorganic fillers to improve various properties and reduce costs. Conventional inorganic fillers include talc, calcium carbonate, silica, mica, among others. Achieving a significant improvement in the properties of the reinforced polymer often requires incorporating a relatively large amount of filler, which leads to a loss of transparency and increases the volume and density of the polymers. Depending on the dimensions of the phases involved, the particle-filled polymers are classified as microcomposites. However, the technological demand in innovation and materials engineering allows the constant development of polymers reinforced with inorganic particles to increase their mechanical resistance and integrate other functionalities such as thermal conductivity, heat capacity, thermal diffusion, and self-healing [1].
This review collects information on the influence of clay minerals on the fracture behavior of ductile nanocomposites, employing the essential work of fracture (EWF) approach and focusing on the process-properties relationship. There is extensive literature on the structure and characterization of clay minerals. However, studies on relevant aspects such as the arrangement of atomic planes, which are results of interest for the preparation of clay-based polymer nanocomposite systems, have not been published. On the other hand, the influence of clay minerals on the ductile fracture behavior of polymer nanocomposites has not been fully explored, and this is the gap that this review intends to cover.
Although vast amounts of information about clay-based polymer nanocomposite systems is available, this review aims to disseminate knowledge in a very didactic way. Therefore, it is addressed primarily at graduate students entering the exciting field of developing new clay-based polymer nanocomposite systems.

2. Clay-Based Polymer Nanocomposites

Clay-based polymer nanocomposites are often referred to as polymer layered silicates, nanostructured polymers, or simply polymer nanocomposites. These polymers are reinforced with inorganic particles containing at least one dimension in the nanometric scale (<100 nm). Compared to traditional composites (macro- or microscale), polymer nanocomposites offer the opportunity to explore new behaviors and functionalities beyond conventional polymers. Nanoparticles often strongly influence the mechanical properties of polymers in very low volume fractions due to the relatively short distance between nanoparticles, molecular compatibility, and interfacial interaction between the particles and the polymer chains.

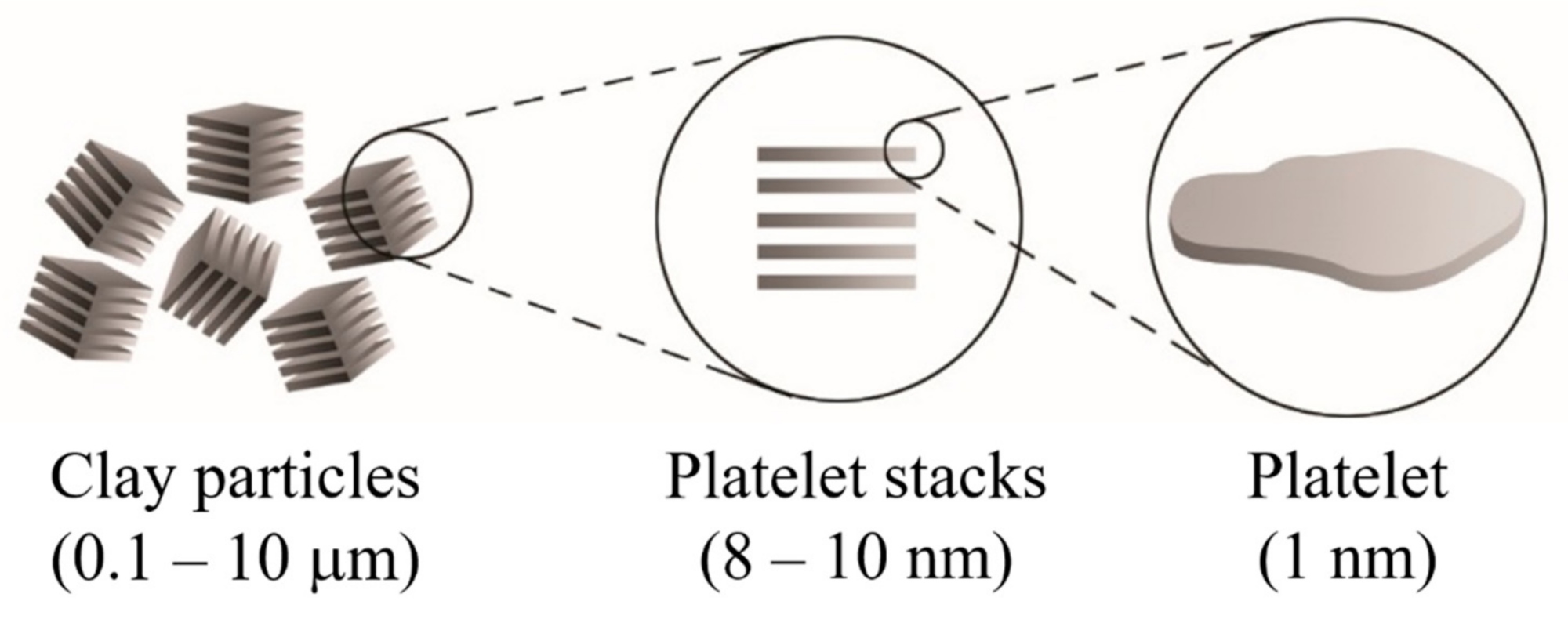

Clay minerals are known as phyllosilicates, or lamellar silicates, which are the inorganic particles most commonly used to prepare clay-based polymer nanocomposites [2,3,4]. It is necessary to highlight that the clay particles are not by themselves nanometric scale particles, but instead that they are formed by the stacking of several layers that leads to the development of irregular aggregates, as schematized in Figure 1. Each layer has a high aspect ratio between 100 and 800 nm in length and approximately 1 nm in thickness. Its uniform dispersion within the polymer matrix favors developing a very high interfacial area per unit volume, which is the primary reinforcement mechanism of clay-based polymer nanocomposites. However, the layer dispersion mechanism is complex since different aspects must be considered, and that is why the specialized literature focuses on evaluating processing conditions to achieve the maximum level of dispersion [2,5,6,7,8].
Clay layers have a molecular structure based on the stacking sequence. Interesting and complete information is available on the web page of Professor Dorronsoro Fernández from the University of Granada, Spain (Department of Soil Science and Agricultural Chemistry, https://www.edafologia.net/, last visited 12 May 2021).

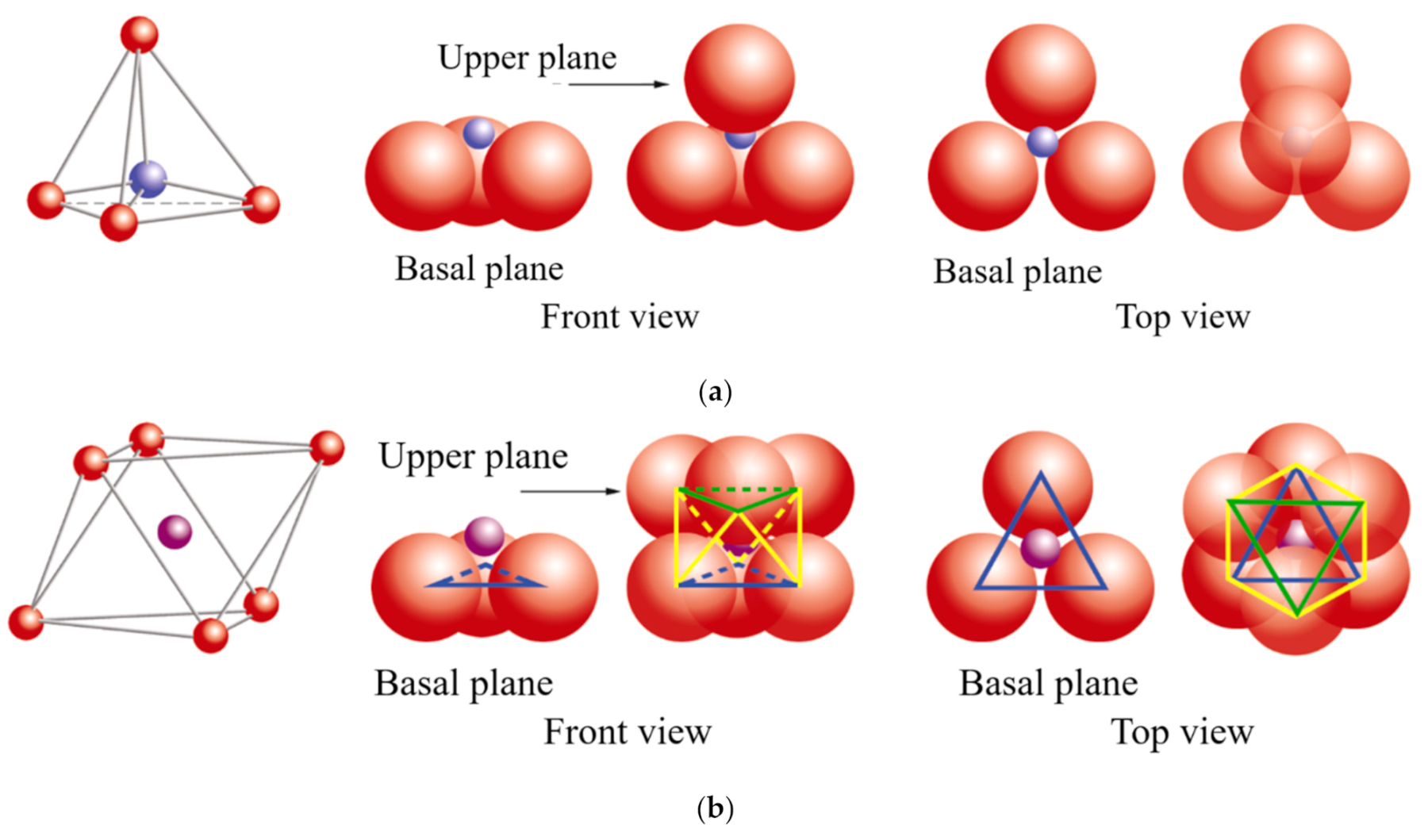

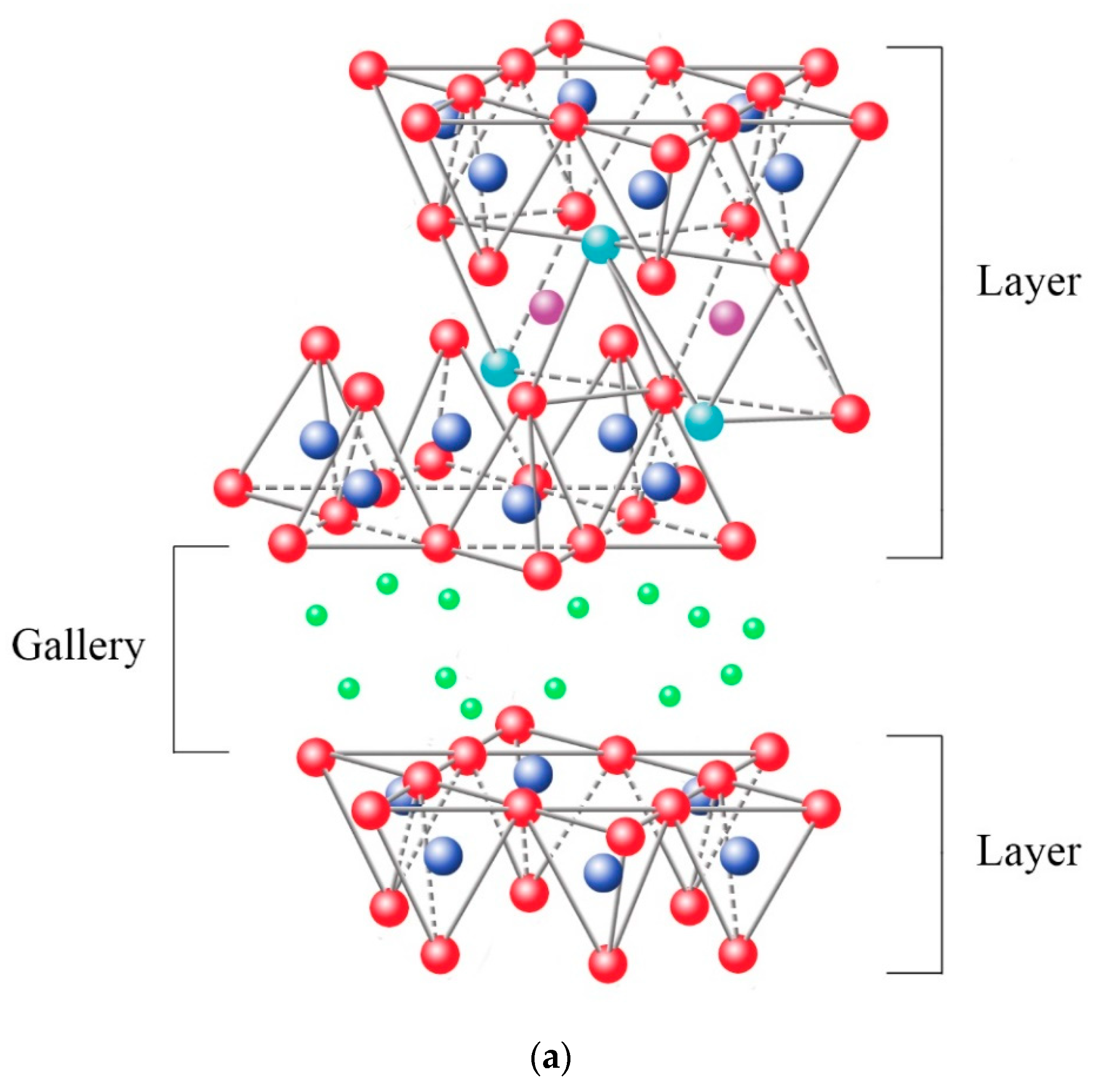

The basic compositional unit is the silicon–oxygen (Si-O) tetrahedron, as outlined in Figure 2a. It consists of one silicon cation (Si−4) surrounded by four oxygen anions (O−2). Chemically, the Si-O tetrahedron has a net electrical charge of −4, (SiO4)−4, so it is balanced by adding other cations to neutralize their charges (Figure 3a). For this, each vertex of the basal plane belongs to two tetrahedra, since each oxygen is in coordination with two silicones, forming tetrahedral layers distributed under the configuration of hexagons, as can be seen in detail in Figure 4. Sheet silicates (also called layered silicates or phyllosilicates) are obtained when three oxygens on each tetrahedron link to other tetrahedra to form tetrahedral planes.

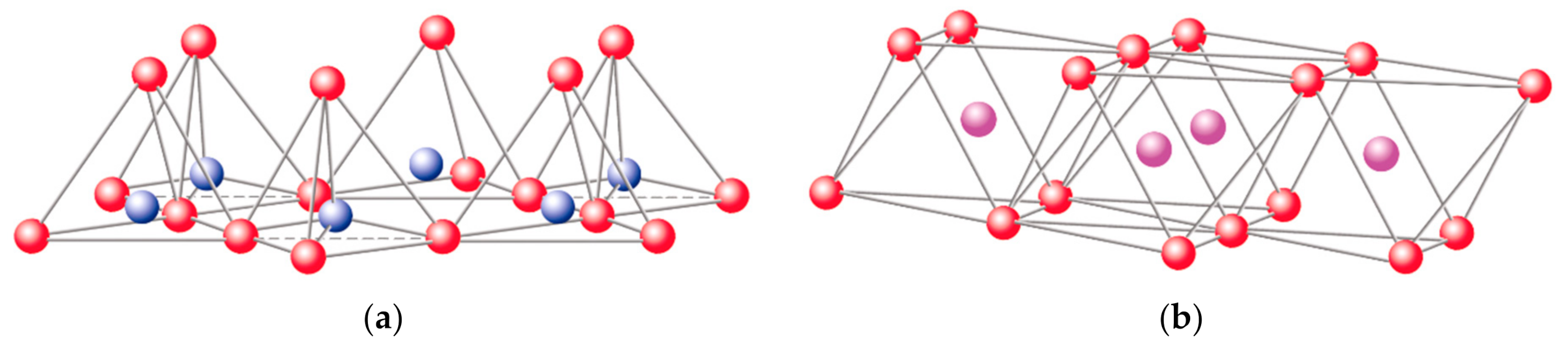

Sheet silicates are planar structures containing different kinds of layer that can accommodate cations of all sizes. Tetrahedral layers (labeled T in this work) consist primarily of SiO4 tetrahedra. Octahedral layers (labeled O in this work) contain divalent and trivalent cations (Mg2+ or Al3+) in 6-fold coordination, where each octahedron is supported on one of its faces, which represents the octahedral basal plane, as schematized in Figure 2b. Octahedral sheets are composed of individual octahedrons that share edges composed of oxygen and hydroxyl anion groups, with Mg or Al typically serving as the coordinating cation, as presented in Figure 3b. In two dimensions, anions can fit together in symmetrical patterns to form hexagonal patterns (Figure 4).

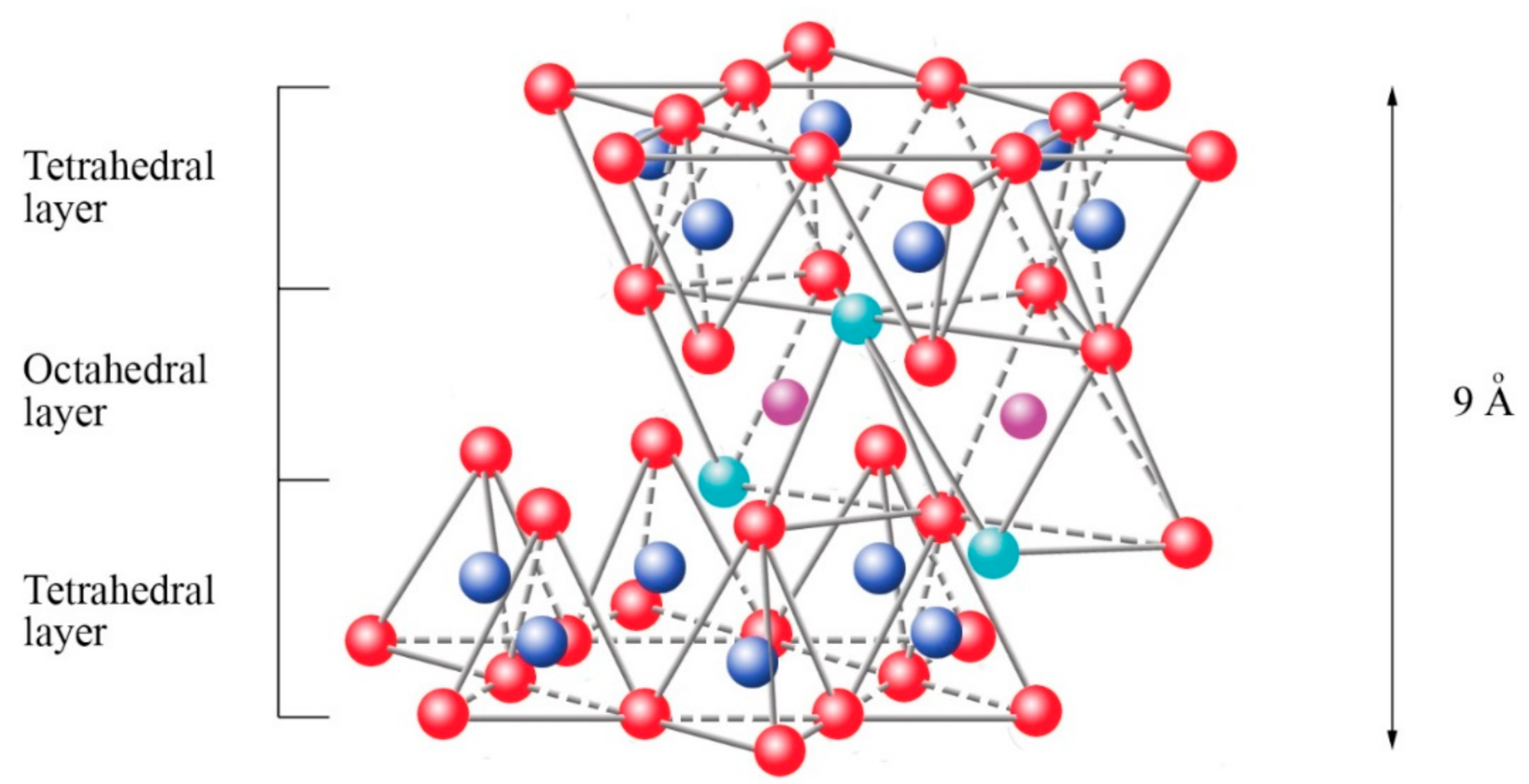

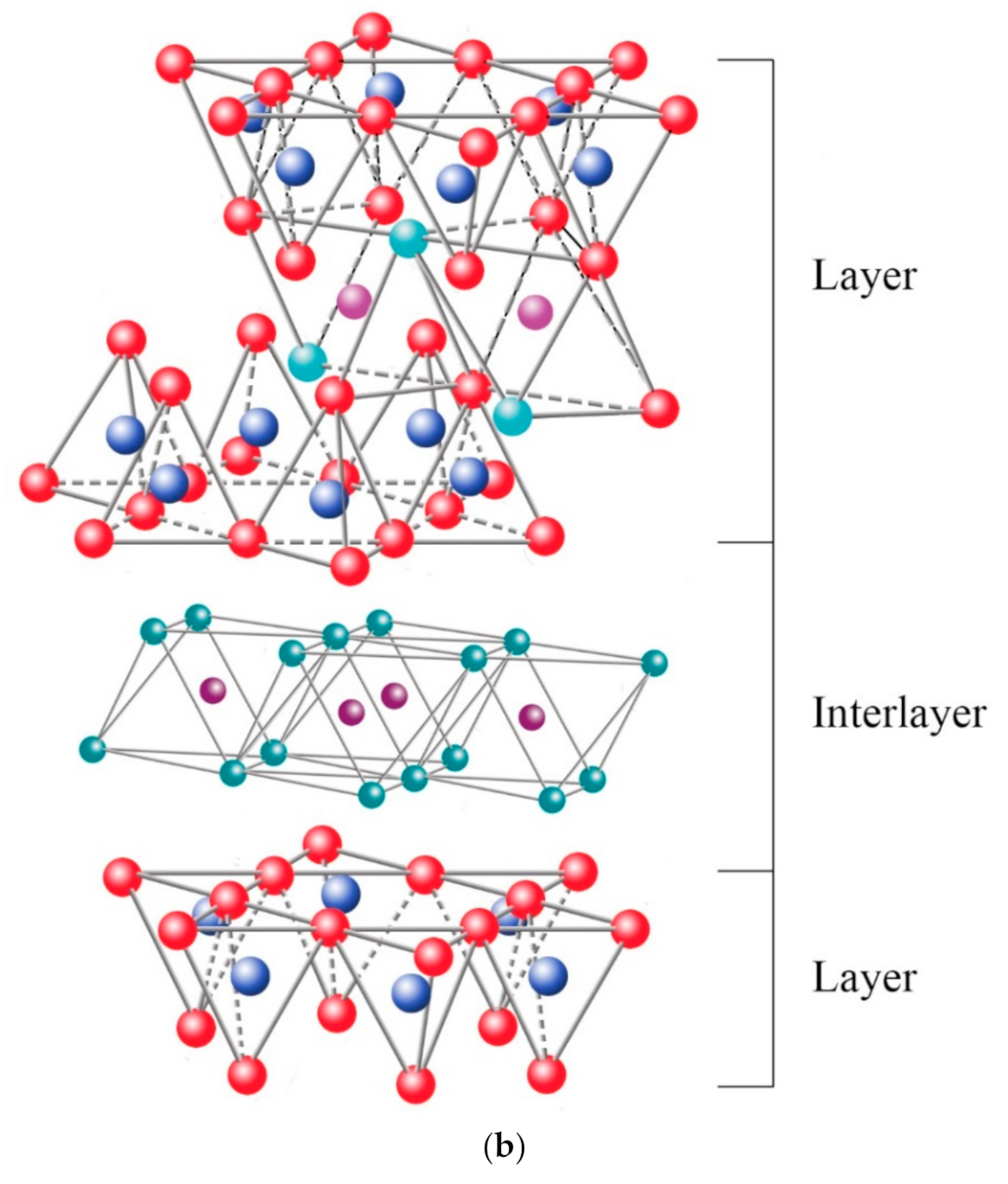

In three dimensions, tetrahedral (T) and octahedral (O) layers may stack in various ways. The arrangement of both layers can be better understood if they are represented through atomic planes, as outlined in Figure 5.

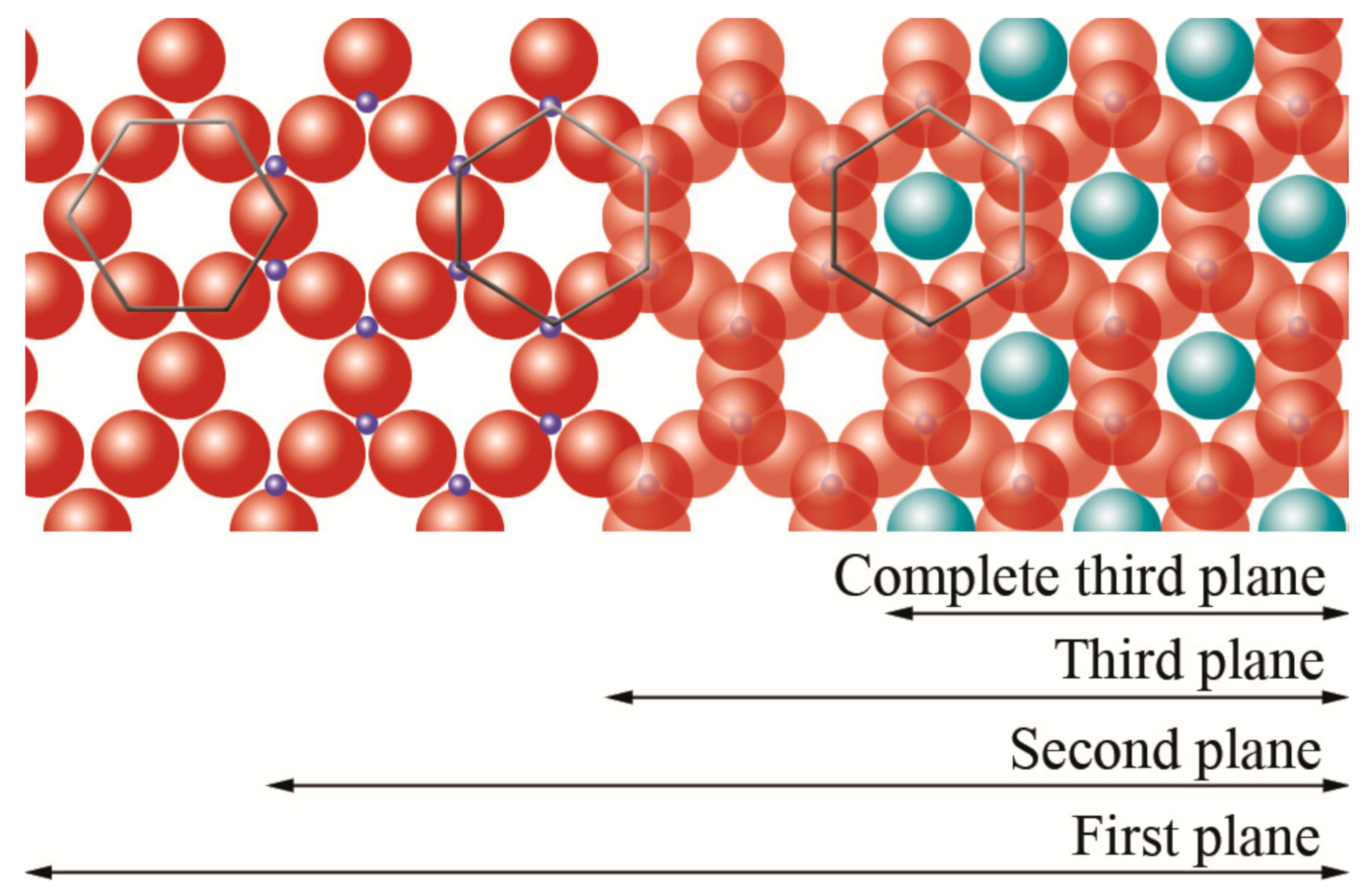

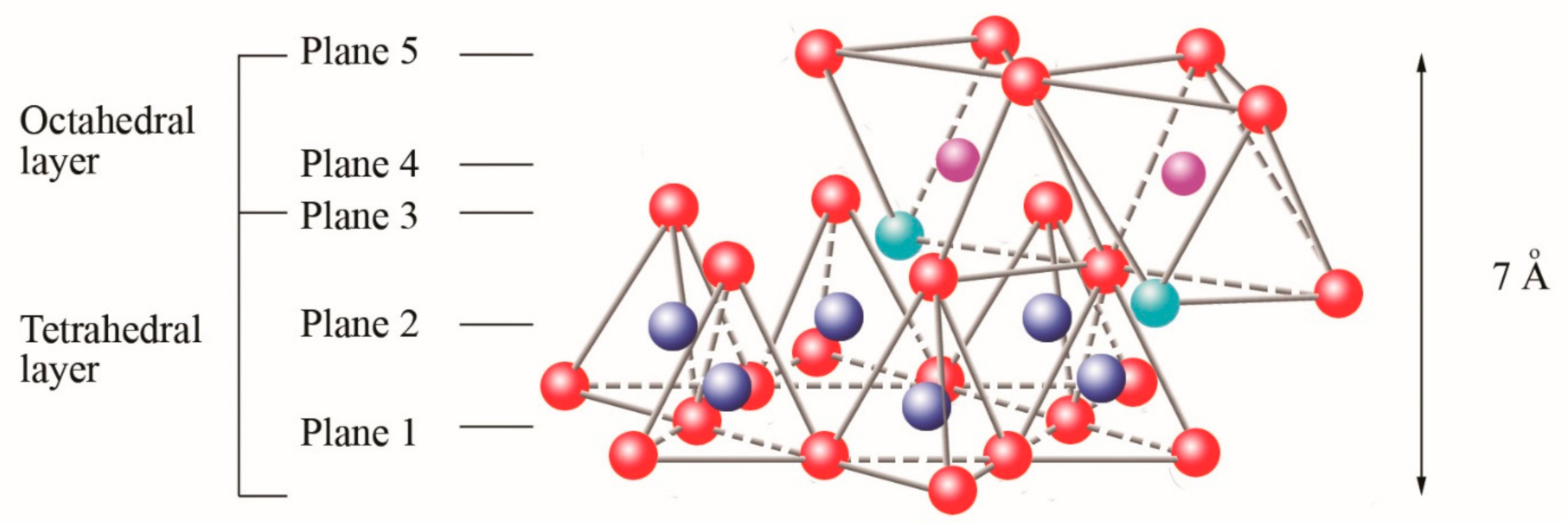

The first plane corresponds to the basal plane of the tetrahedral layer. Silicon atoms are placed in the second plane, occupying part of the space in the basal plane of each tetrahedron (Figure 4). In a third plane, the unshared oxygens (also called apical oxygen) are located just above the silicon, ending up occupying the remaining space, as depicted in Figure 4. In this way, the arrangement of these three planes constitutes the fundamental unit of the tetrahedral layers (Figure 5).
The union between tetrahedral and octahedral sheets occurs with the apical oxygen, linked to Mg2+ or octahedral Al3+. However, not all the vertices of the octahedral basal plane, formed in part by the apical oxygen, would be shared with the silicon atoms contained in the tetrahedra, so the charge balance occurs when they bind to a hydrogen atom (H), forming hydroxyl groups (OH), as shown in Figure 4 and Figure 5. Thus, the basal plane of the octahedron forms part of the superior plane of the tetrahedra and completes the third plane. It should be noted that all planes represent a hexagonal lattice, while the third plane forms a centered hexagonal lattice, as shown in Figure 4.
The fourth plane consists of the arrangement of octahedral Mg2+ or Al3+ atoms. These atoms are located in the small free spaces left by every two apical oxygens and one OH group, as shown in Figure 6.

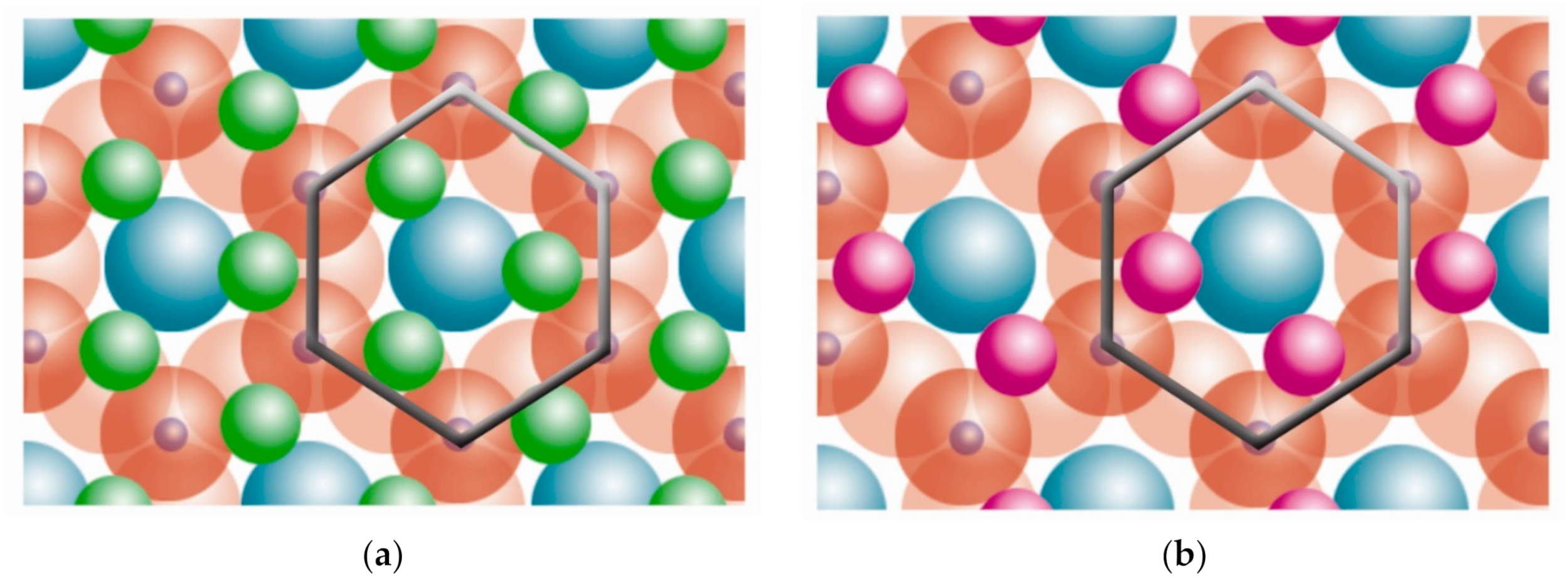

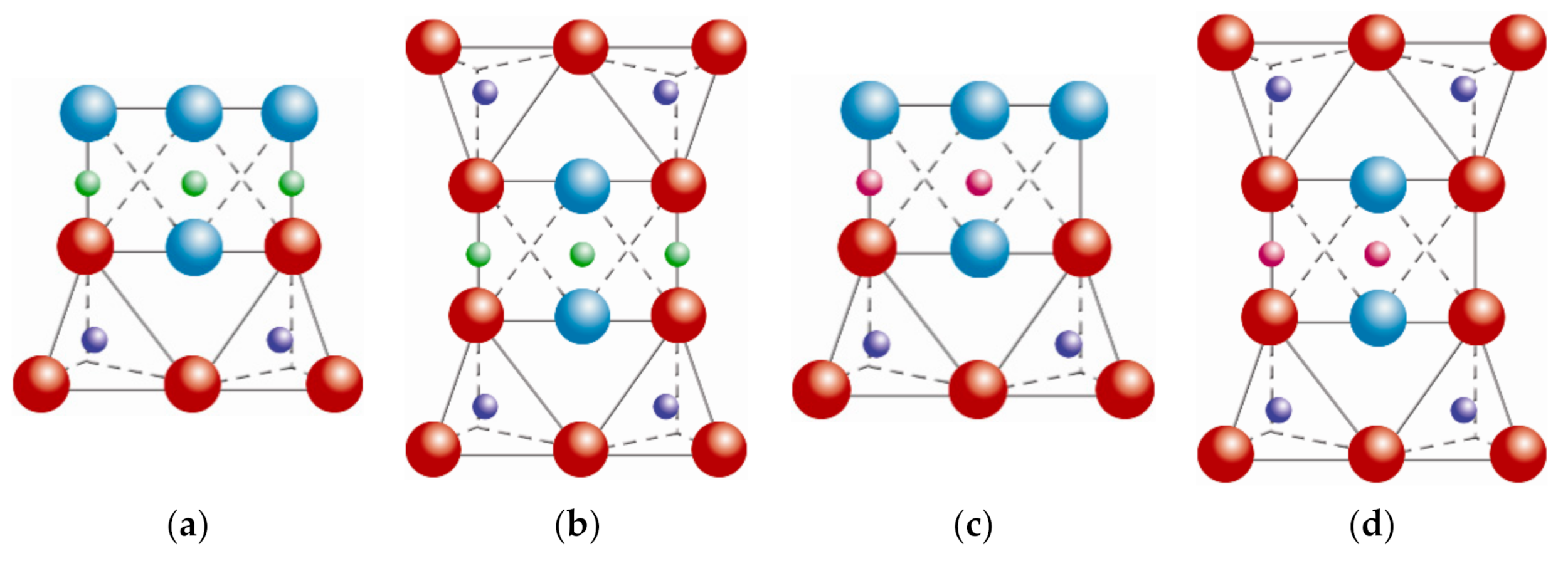

The octahedral Mg2+ covers all positions in the trioctahedral plane (Figure 6a). However, the octahedral Al3+ covers just two positions of three vacancies, and it is called the dioctahedral plane (Figure 6b). Nonetheless, this plane is within hexagonal networks.
The fifth plane corresponds to the superior plane of the octahedra (showed in Figure 5). If the structure ends in this plane, the clay has a T:O sequence (also known as 1:1 structure). However, if another tetrahedral layer is added, a sandwich-type T:O:T sequence is formed. The 1:1 sheet silicate is 7 Å thick, while the 2:1 sheet silicate is about 9 Å thick (Figure 7). Thus, the sheet silicates originate from the stacking of parallel planes with hexagonal symmetries, alternating the planes of ions (O and OH) and cations (Si4+, Al3+, and Mg2+).
Most sheet silicates are monoclinic or triclinic, and have several different polymorphs related to how T:O:T and T:O sheets stack to each other. Figure 8 shows a representative diagram of the 1:1 and 2:1 sheet silicates to better visualize the structural arrangement described. Table 1 shows the classification of clay minerals according to their structural configuration.
Montmorillonite (discovered by Damour and Salvetat in Montmorillon, France) is currently the most widely used mineral clay to prepare polymer nanocomposites. It is a smectite-type clay belonging to the 2:1 sheet silicates and is composed of aluminosilicates (Al3+). Montmorillonite clay has a high reaction capacity, exceptional resistance, and a large aspect ratio.

2.1. Cation Exchange Capacity

The ability to absorb a certain amount of cations and retain them in an exchangeable state is known as the cation exchange capacity (CEC), expressed in terms of milliequivalents per 100 g (meq/100 g) {Formatting Citation}. The charge of the layer is not locally constant as it varies from layer to layer and must instead be considered an average value over the whole crystal. The importance of knowing the CEC is that the sheets are not electrically neutral due to isomorphic substitutions, where others replace cations such as Si4+ with a lower charge (Al3+), promoting an excess of negative charge. In this case, the load balance is maintained by the presence of individual cations (as in the micas group) or hydrated cations (as in the case of vermiculites and smectites) in the interlaminar space, which is the existing space between two consecutive sheets, also known as “galleries” (Figure 9a). When the hydrated cations are ion-exchanged with organic cations such as more bulky alkylammonium, it usually results in a larger interlayer spacing.
Among the most frequent interlaminar cations are alkalines (Na+ and K+) and alkaline earth (Mg2+). The hydrated cations such as water and different polar liquids increase the interlaminar space by swelling effect. If the interlaminar cations coordinate with OH groups, an octahedral layer would be formed within the interlaminar space (as chlorites, Table 1), developing structures T:O:T:o or 2:1:1, as represented in Figure 9b. In this case, the number 2 represents the two tetrahedral layers, while 1:1 indicates that the layers of the octahedra differ from each other since the interlaminar octahedra do not share vertices with the tetrahedra.
The bonding forces that join the sheets with the interlayer are weaker than those existing between the ions of the same sheet, so the phyllosilicates have a clear parallel direction of exfoliation.

2.2. Coupling Agents

In the first instance, clay minerals can only be miscible with hydrophilic polymers. Therefore, the use of coupling agents is necessary to make both phases compatible. These agents are fundamental molecules constituted by a hydrophilic functionality (related to clays) and by an organophilic functionality (related to the polymer), which favors the molecular compatibility between the sheets of the clay and the polymer chains.
The first coupled agents used to obtain nanocomposites were amino acids [137]. However, the most popular are alkylammonium ions, since they can easily be exchanged with the cations in the galleries. The alkylammonium ions are primary alkylamines [138,139]. Its basic formula is:
C H 3 C H 2 n N H 3 +
where n represents the chain length, which ranges from 1 to 18 carbons. Lan et al. [140] highlighted that the exfoliation of the sheets is favored when ions with a chain length greater than eight carbon atoms are used, while with shorter chains, it led to the formation of agglomerated structures.

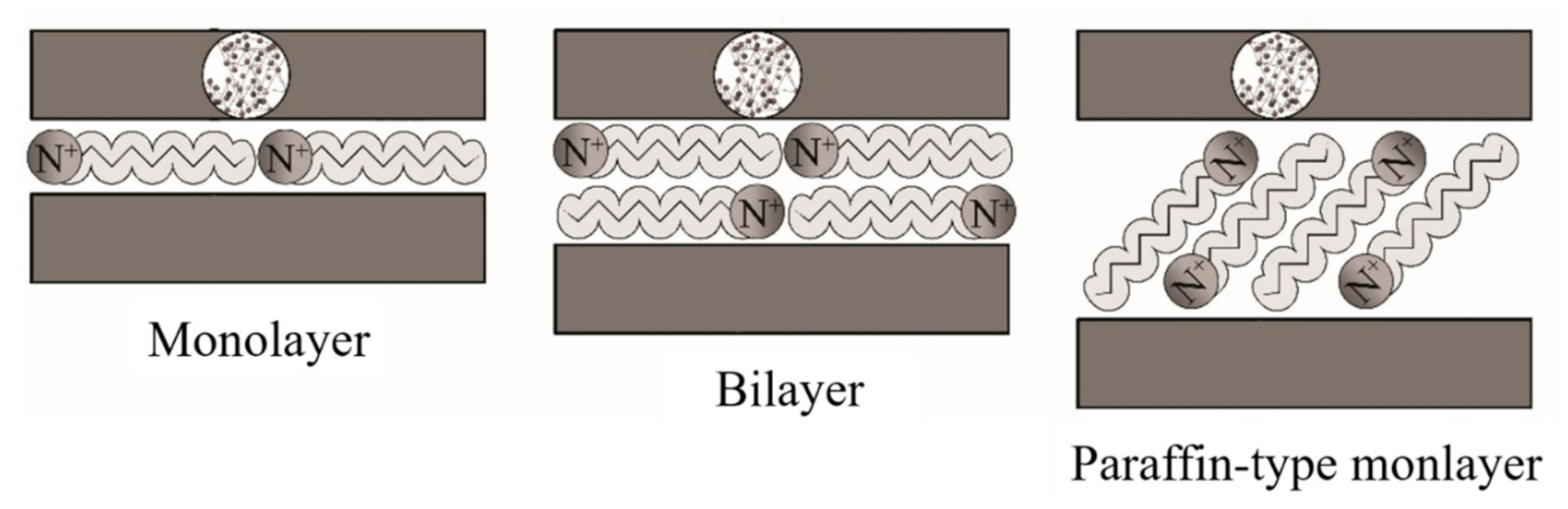

Ideally, the alkylammonium ions can be accommodated in various ways within the galleries, depending on the charge density of the clay minerals. Thus, the ions adopt monolayer, bilayer, or paraffin-like monolayers [141], as outlined in Figure 10.

2.3. Nanocomposite Structures

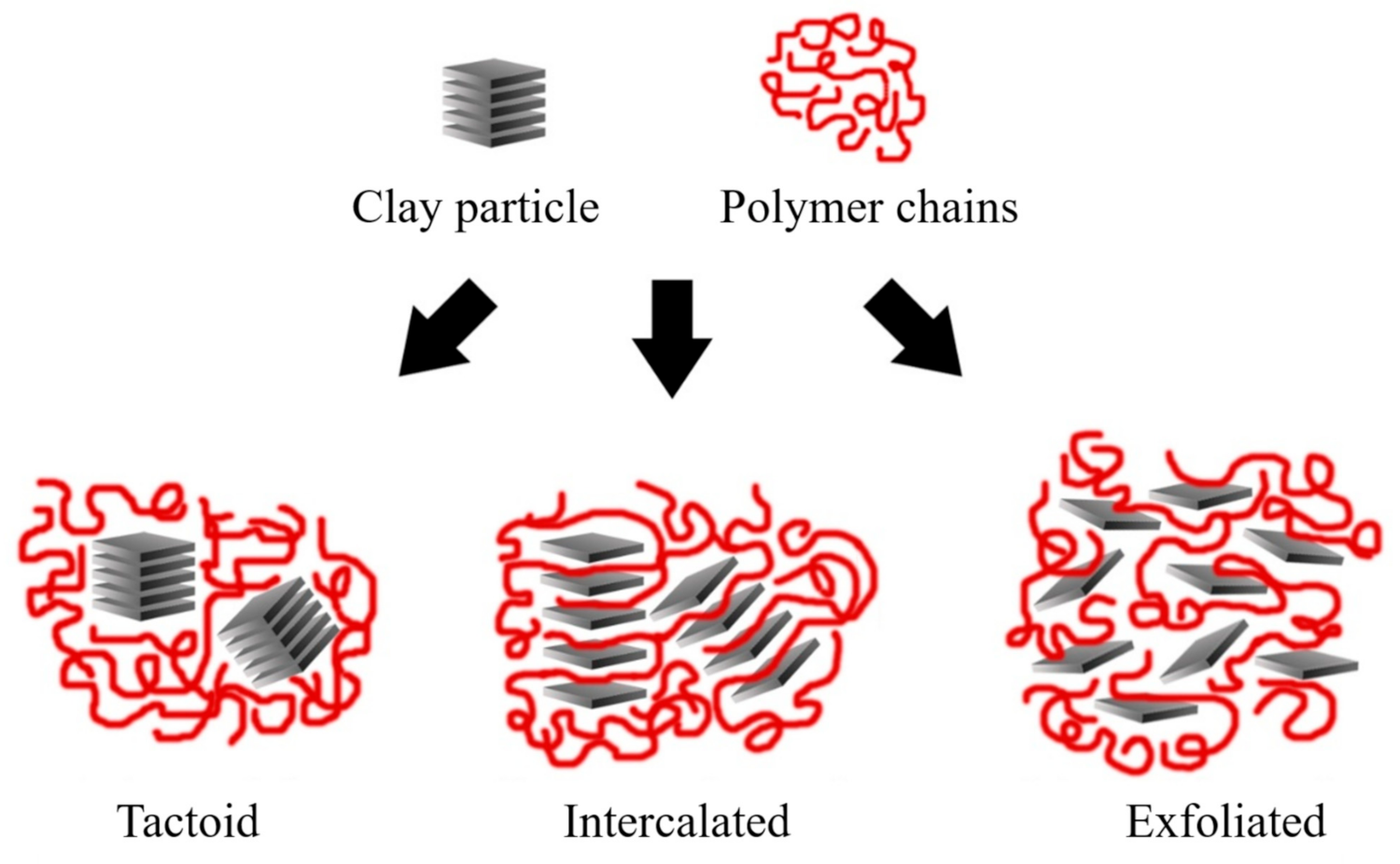

Depending on the nature of the composite constituents (layered silicate, organic cation, and polymer matrix) and the method of preparation, three main types of composite may be obtained. Thus, polymer nanocomposites can be classified according to their morphology into agglomerates, intercalated, and exfoliated structures, as represented in Figure 11.
Agglomerated composites are formed when the polymer is unable to intercalate between the sheets of clay. In this way, two separate and well-defined phases are obtained, where the sheets remain joined and aligned parallel to each other. It is common to classify the properties of these materials within the microcomposites. Some authors refer to the agglomerated composites as tactoids [2,141] or low-packing nanocomposites since there are no variations in the interlaminar space [2,6].
In the case of intercalated composites (also classified as flocculated [3]), the polymer chains are intercalated between the sheets of the clay, increasing the interlaminar space, obtaining a morphology of multiple highly ordered sheets.
Exfoliated nanocomposites contain sheets entirely separated and dispersed within the polymer matrix. This type of exfoliated structure presents relevant mechanical properties due to the high aspect ratio of single sheets. However, this structure is difficult to obtain, and three main processing strategies are commonly used.

2.4. Polymer Intercalation in Solution

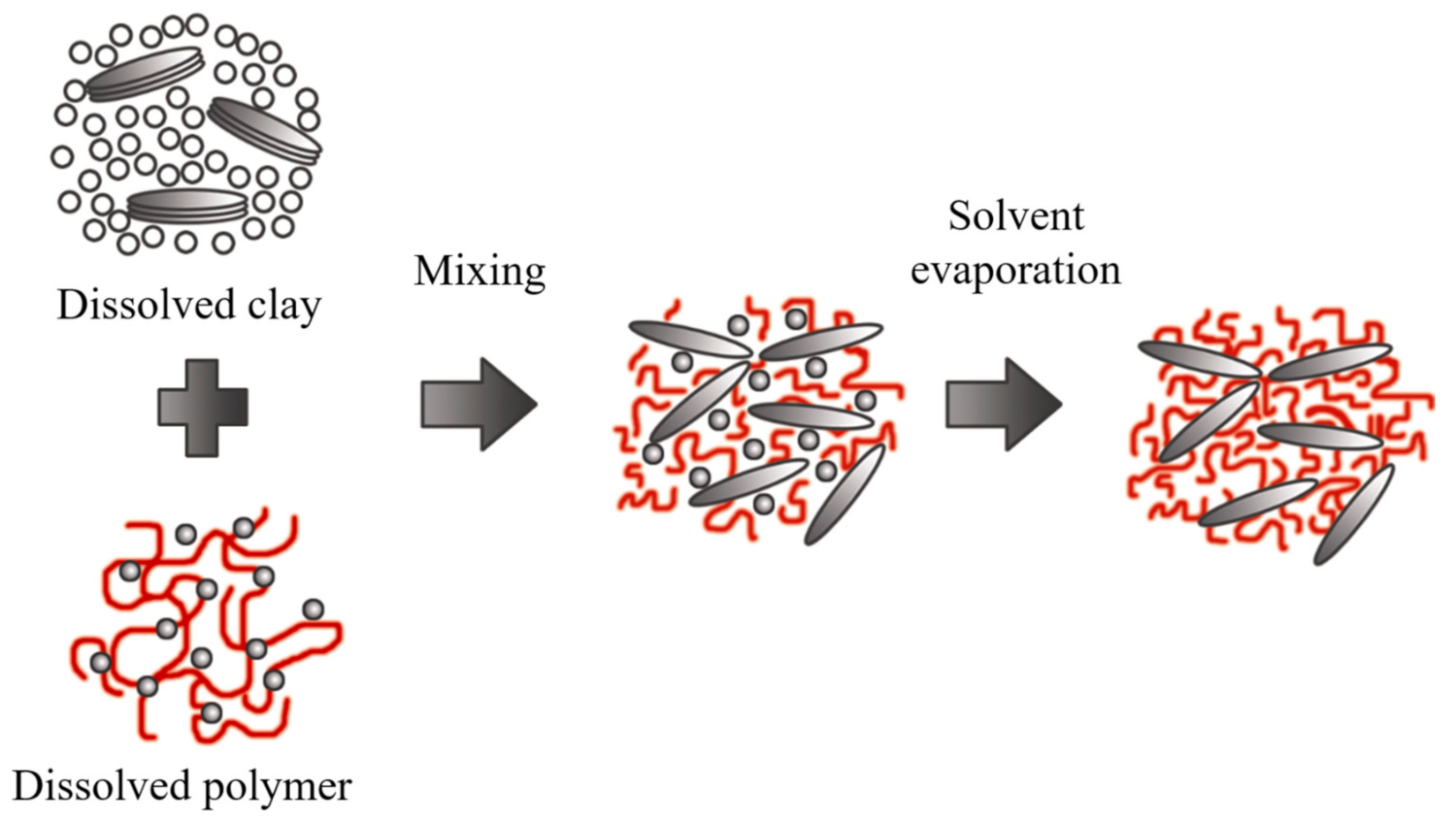

The clay mineral is suspended in a polar organic solvent such as water, toluene, ethanol, etc., forming a gel-like structure. Subsequently, the polymer is dissolved and dispersed in the same type of solution, and the reaction is initiated by mixing the solutions, where polymer chains start to fill spaces in the galleries. Then, the solvent is removed by evaporation, obtaining the nanocomposite with a multilayered structure, as outlined in Figure 12.
The nanocomposites obtained through this method are highly selective since the polymer and clay minerals possess different physical and chemical properties. The solvent is also essential because it is expensive and not environmentally friendly for large-scale production.

2.5. In Situ Polymerization

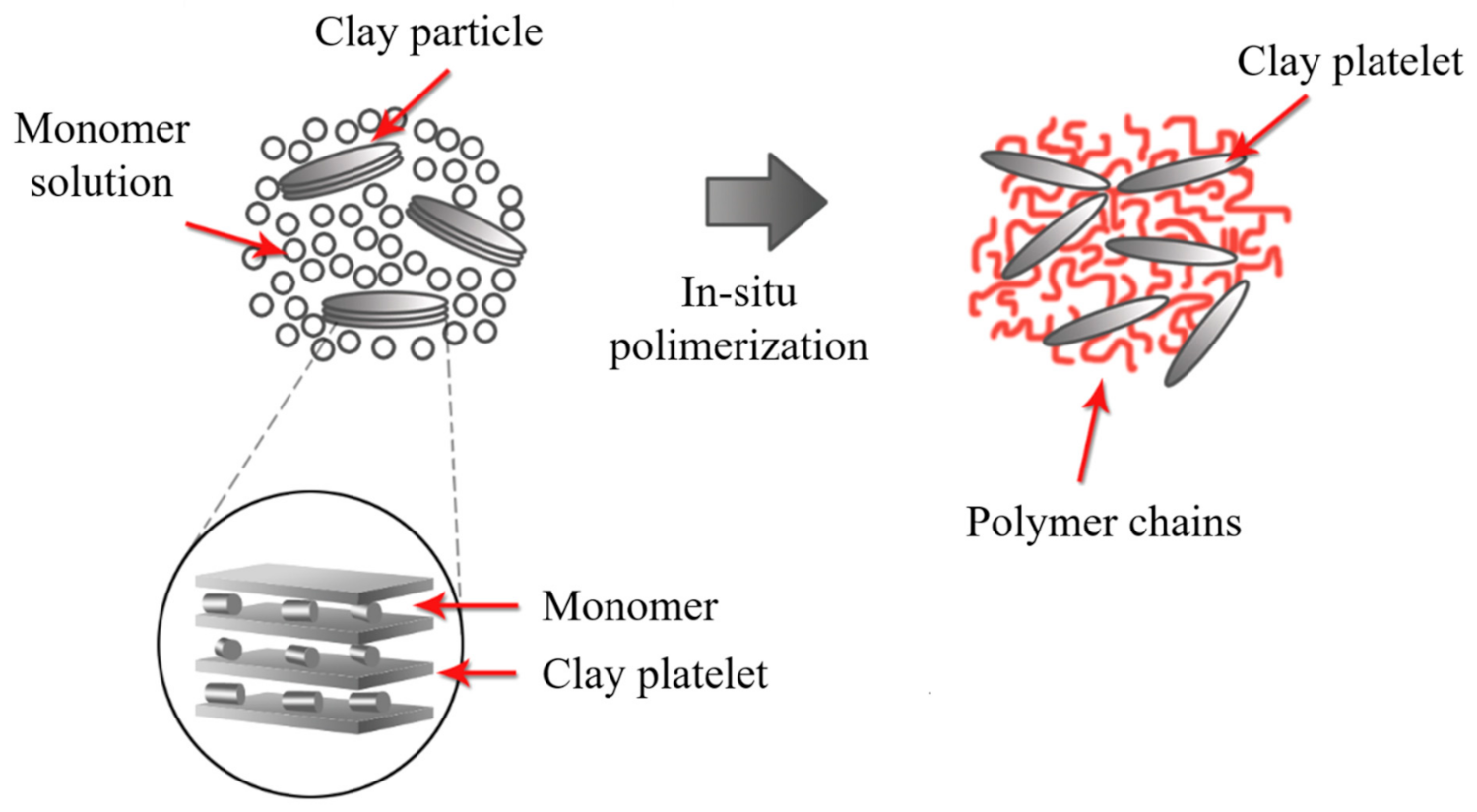

In this method, the galleries are expanded using a liquid monomer or a monomer in solution. The polymerization starts by the diffusion of an organic initiator or by catalysis through exchangeable cations (Figure 13) [145]. After polymerization termination, the solvent is evaporated, and the nanocomposite is ready for further modification. The in situ polymerization should be the best method to obtain high intermolecular distance between the clay layers. However, this method contains similar drawbacks to the solution-based method due to large-scale difficulties and environmental considerations.

2.6. Melt Blending Process

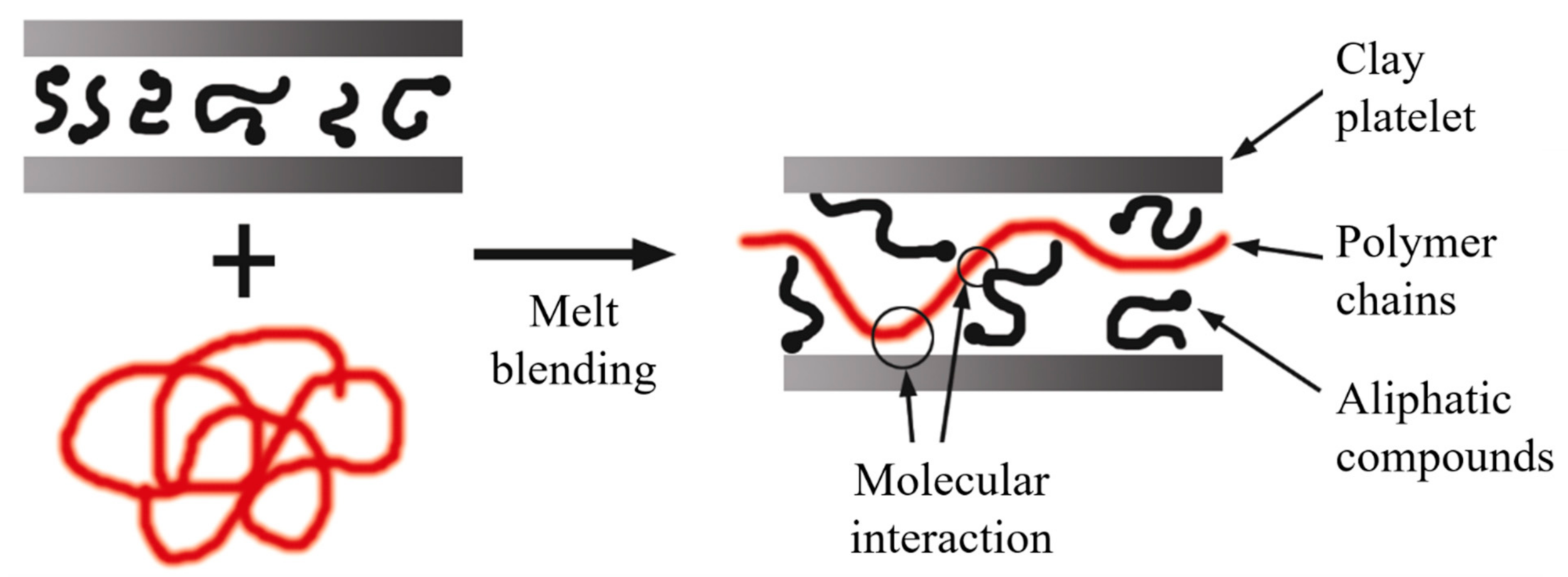

This method consists of mixing both phases (polymer and clay minerals) under the action of a high-temperature shear force. Melt intercalation is used for synthesizing thermoplastic polymer nanocomposites at a large scale. This procedure is compatible with industrial processes such as extrusion, making it more economical, convenient, and environmentally friendly because solvents are not required. However, the high temperatures during the extrusion process (up to 220 °C) can degrade the coupling agents (clay minerals modified with alkylammonium).
In a broad definition, the extrusion process refers to any transformation operation in which molten material is forced through a die to produce an article of constant cross-section and, in principle, indefinite length. In addition to plastics, many other materials are processed by extrusion, such as metals, ceramics, or food, obtaining very varied products such as aluminum or PVC window frames, pipes, pasta, etc. From a plastics point of view, extrusion is one of the essential transformation processes. The polymer is generally fed in solid form (commonly dust or pellet) in the hopper section and exits the extruder in the molten state. On some occasions, the polymer can be fed in molten form from a reactor where the extruder acts as a pump, providing the necessary pressure to pass the polymer through the nozzle. The extrusion process is frequently used to mix distinct materials, additives, and fillers to add better performance, reduce costs, and obtain multiple functionalities. These new formulations are further processed to create components or preforms using injection molding, blow molding, or thermoforming techniques.
Although there are various types of extruders, the most widely used are single-screw and twin-screw extruders. Specifically, a single-screw extruder can perform six main functions: transporting the solid material towards the melting zone, melting the polymer, pumping the melt, mixing, degassing, and forming. However, not all of the above functions necessarily take place during the operation of the extruder. According to the purpose, the extrusion process starts with the material feeding system, a melting-plasticizing system, the pumping, and a pressurization system, generating a mixing effect.
It is common to find in the literature that single-screw extruders have poor material mixing due to their design. However, it is essential to consider many other factors that affect the end product, such as the wear of extruder working parts, rotational speed, pressure, nozzle type, and many more. In addition, the extruders are not just used for mixing but also for producing various materials, e.g., direct molding at the nozzle, injection into the die, etc. Ekielski et al. [146] evaluated the wear status of the single-screw extruder working elements based on die pressure and screw load values changes. The changes to these parameters were analyzed as a frequency spectrum using wavelet analysis tools. Due to the dynamic characteristics of the process in determining natural frequencies, the authors used the Morlet wavelet transform, observing that it is possible to accurately evaluate the degree of wear of the friction elements in a single-screw extruder.
Extrusion technology is also used in the food processing industry, known as extrusion-cooking, to produce so-called engineered foods and special feed. Leszek Moscicki and Dick J. van Zuilichem detailed an interesting work related to extrusion-cooking using single-screw extrusion technology [147]. The authors mentioned that the shear exerted by the rotating screw and the additional heating of the barrel promote a rheological modification. The physical aspects such as heat transfer, mass transfer, impulse transfer, residence time, and residence time distribution have a substantial impact on the properties of food and feed during extrusion-cooking and can drastically influence the quality of the final product.
Twin-screw extruders provide a much higher degree of shear than single-screw extruders, and the screw rotation can be co-rotating or counter-rotating. Therefore, this process can be too aggressive for some applications; even so, the high shear promotes twin-screw extrusion to prepare clay-based polymer nanocomposites (Figure 14). However, the single-screw extrusion should be considered for producing starch-based bionanocomposites or other natural composites.
The literature is consistent in stating that the extrusion process leads to the development of intercalated structures. However, exfoliated structures can develop if there is high molecular compatibility between the phases, and in many instances, the use of additives is required (Figure 15).
Some authors [149,150,151] evaluated the influence of the extrusion process on the morphology of polymer nanocomposites. In this way, Dennis et al. [150] observed that a single screw extruder did not provide sufficient shear to separate or fracture the clay layers and did not offer an adequate residence time for layer dispersion. On the other hand, intercalated structures and some agglomerations are present when using a twin-screw extruder under the co-rotating configuration. By using the counter-rotating configuration, a high level of exfoliation was achieved.
Fornes et al. [151] found that the design of the extrusion screws also conditioned the morphology of the nanocomposites. The low- and medium-cut spindles developed interleaved structures, while a high-shear design obtained a high level of exfoliation.
Based on the previous studies, it is possible to consider that using a counter-rotating twin-screw extruder with high- or medium-shear screws should favor the exfoliation of the clay sheets. Nonetheless, it is important to consider that factors such as molecular compatibility and good processing conditions (dosage rate, temperature, and residence time, among others) are necessary for optimal exfoliation [152].

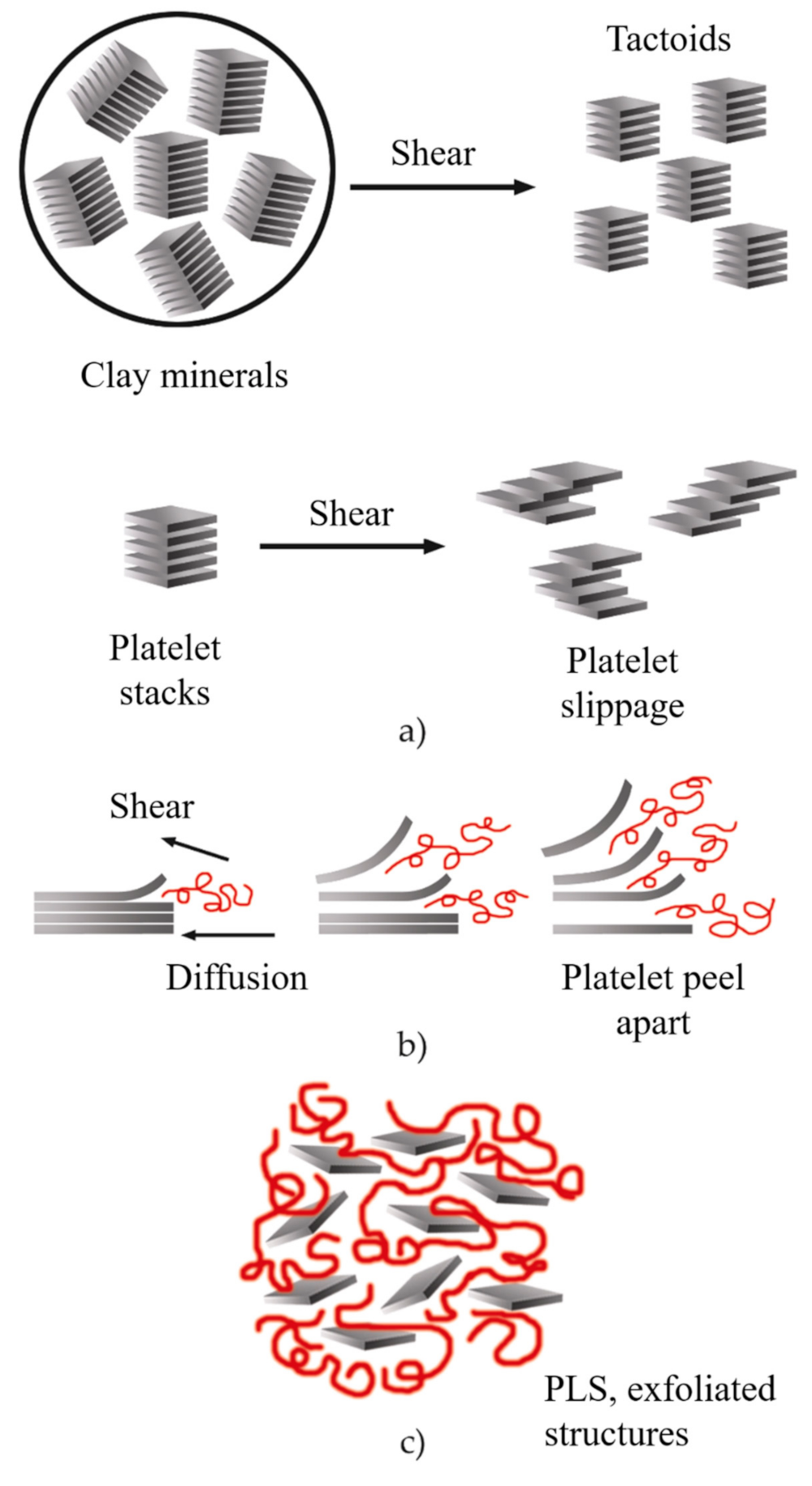

During the twin-screw extrusion process, the exfoliation mechanism begins with the fracture of the particles and the sliding of the sheets until they become stacked sheets of smaller size, as schematized in Figure 16a. This first phase requires a high shear intensity. Subsequently, the polymer is sandwiched between the sheets, taking advantage of their flexibility to increase the distance between them. This second phase requires both high shear and good molecular compatibility (Figure 16b). Finally, the exfoliated sheets are randomly dispersed within the matrix (Figure 16c), requiring adequate residence time [8,153].
It is important to note that an intense shear does not guarantee a more significant number of exfoliated sheets. Similarly, a longer residence time does not provide better dispersion. For this reason, a large number of studies have focused on developing processing conditions that allow for increasing the level of exfoliation by using the melt intercalation process [1,5,8,151,153,155].
It is possible to consider the average dimensions of each particle: length (p), thickness (tp), and aspect ratio (p/tp). Some authors [8] detailed that the increase in p can be related to the sliding of the sheets that occurred during the twin-screw extrusion process, which can be defined as effective particle length, as shown in Figure 17.
The clay-based polymer nanocomposites have gained the attention of academics and industry in recent decades. Integrating small percentages of clay minerals into the polymer matrix improves the mechanical properties compared to neat polymers. Properly dispersed and aligned clay platelets have proven to be very effective for increasing stiffness without altering the polymer density. There is extensive literature regarding the mechanical properties of polymers enhanced by low clay content, as summarized in Table 2.

3. Fracture Mechanics

Fracture mechanics is based on the need to analyze the flaws present due to a part or component’s manufacturing and machining processes. Different manufacturing processes induce failures or small internal or surface cracks, and the fracture mechanics allows for characterizing those cracks that can propagate (instability) and cause failures in the structure.
Fracture mechanics involves three complementary theories: linear elastic, elastic-plastic, and post-yielding fracture mechanics. Practically, the main difference is in the development of plastic deformations around the crack-tip of notched specimens during the fracture process, as presented in Figure 18.

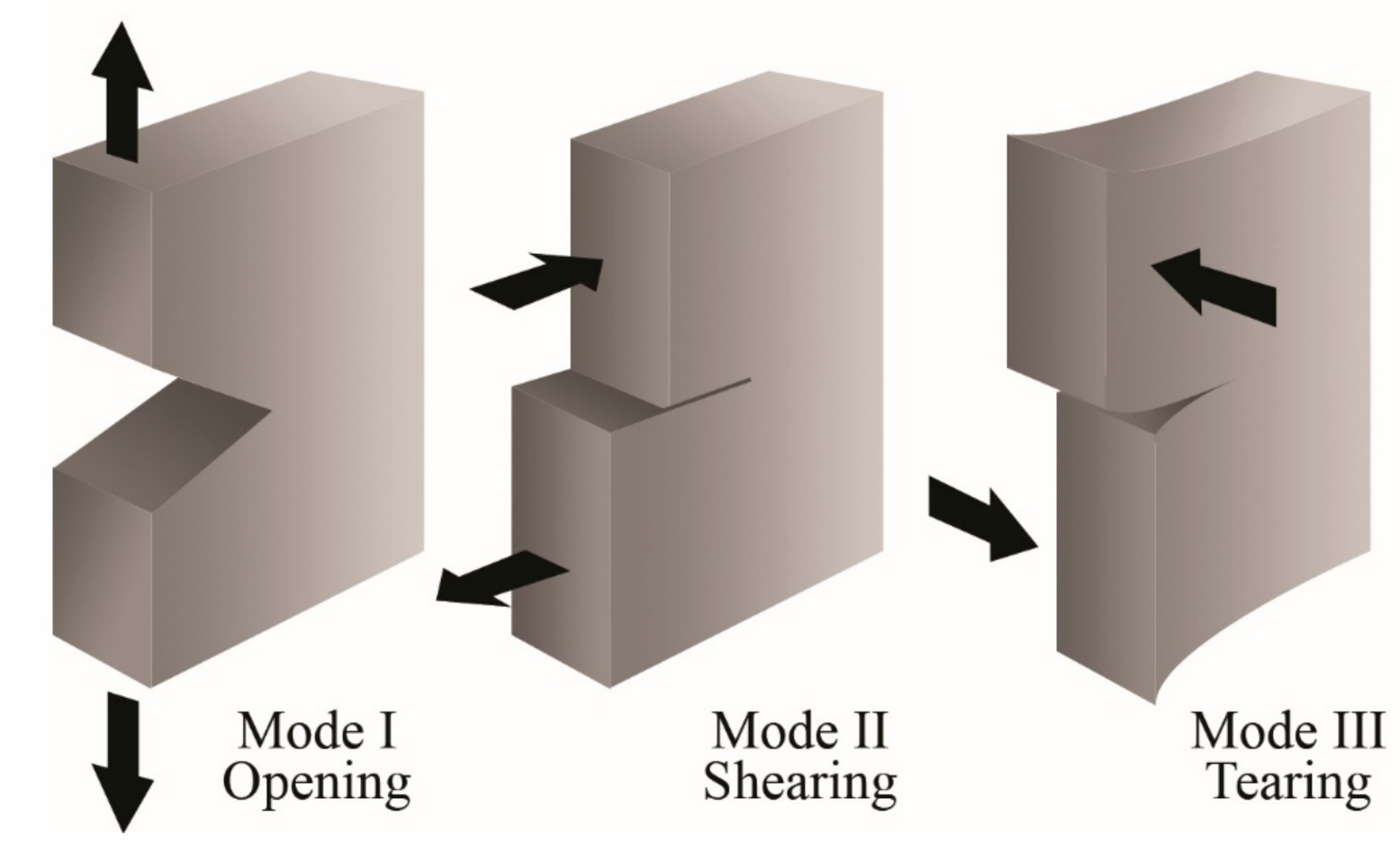

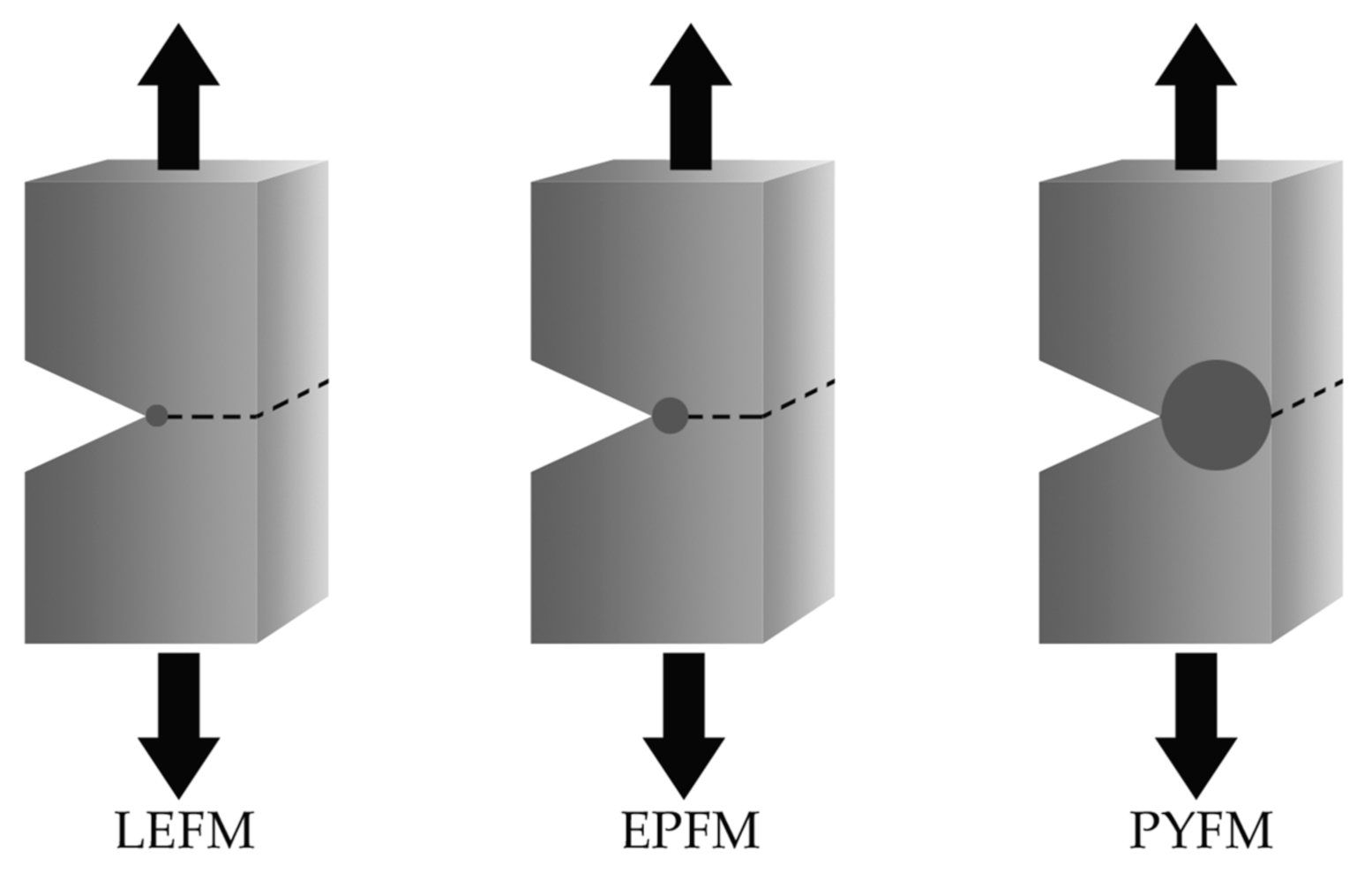

Generally, a crack in a solid body can propagate in three different ways depending on the applied load and with respect to the crack plane, as shown in Figure 19. Mode I (opening mode) represents the opening of the crack due to stresses perpendicular to the plane of the crack. Mode II (sliding mode) refers to the displacement of the crack under shear forces that act parallel to the plane of the crack and perpendicular to the crack front. Mode III (tear mode) is produced by shear forces that act perpendicular to the plane of the crack and parallel to the crack front. It is common to indicate the fracture mode employing a subscript I, II, or III.
Fracture mechanics theory is relatively new, beginning in 1913 when Charles E. Inglis [194] studied the stress behavior of plates with ellipse-shaped defects. Considering an infinite isotropic plate in uniaxial tension, Inglis proposed the linear elastic solution for the ellipse’s tension field. Later, in 1920, Griffith [195] used the work of Inglis to calculate the stress concentrations around the ellipse and to predict the resistance to fracture. However, Inglis’s solution poses a mathematical difficulty considering that the stresses approach infinity at the crack-tip in the limit of a perfectly sharp crack, which is physically impossible. Thus, Griffith proposed the energy-balance approach, which is based on balancing the reduction in potential energy during fracture with the increase in surface energy due to creating new free surfaces when a crack grows. Griffith’s theory provides excellent agreement with experimental data for brittle materials and is the fundamental base for the linear elastic fracture mechanics (LEFM) theory.
After Griffith’s work, in 1950, G. R. Irwin observed that ductile materials develop a plastic zone at the crack-tip. The plastic zone increases with the applied load and leads to the dissipation of energy in the form of heat. Therefore, a dissipative term must be added to the energy-balance relationship for brittle materials. In physical terms, ductile materials require additional energy for crack growth. Thus, Irwin extended the theory to some ductile materials through the concept of energy release rate (Gc) [196]. Subsequently, Irwin used Westergaard’s approach [197] to demonstrate that local stresses and displacements near the crack-tip had a general solution. He introduced the stress intensity factor (K), which relates the local mechanical state near to the crack-tip with macroscopic characteristics in a continuous process of stable crack growth until the onset of instability.
After the fundamentals of linear elastic fracture mechanics (LEFM) were established (around the 1960s), several scientists began to study the plasticity that developed at the crack-tip. Wells [198], in 1961, presented the concept of crack tip opening displacement (CTOD) for materials that can show some plastic deformation at the crack-tip during the fracture process. In 1968, Rice [199] developed the J-integral approach as a parameter for the characterization of the crack propagation under elastic-plastic fracture mechanics (EPFM) conditions. The J-integral initially emerged as a fracture criterion for small-scale plasticity conditions at the crack-tip. Later, it was considered a fracture criterion in large-scale plasticity for fracture initiation and stable crack growth. The J-integral approach considers the elastic and plastic parts separately to characterize near-crack-tip deformation filed in linear and non-linear elastic materials. Experimentally, the J-integral shows an energetic contour path integral, independent of the path around a crack, and it enables determining the strain energy release rate. The J-integral and CTOD are the parameters most often used to correlate mechanically short and long crack growth rates.
Broberg [200,201], in 1968, observed changes in the distribution of plastic deformation near the crack-tip in materials with considerable plastic deformation before fracture. These changes contribute to a gradually increasing screening of the energy flow through the plastic region towards the crack-tip, leading to stable crack growth accompanied by plastic collapse. Thus, Broberg established the beginning of the post-yielding fracture mechanics (PYFM) criteria based on the stable crack growth.
In 1977, Cotterell and Reddel [202] developed Broberg’s ideas and proposed the essential work of fracture (EWF) method, which allows for determining the fracture properties of ductile materials.

3.1. Essential Work of Fracture

The EWF approach considers the total energy involved during the ductile fracture process, where the plastic deformation is fully developed around the ligament region before the crack growth. The EWF consists of using deeply double notched in tension (DDENT) specimens to determine the energy absorbed by fracturing the DDENT specimens. The total fracture energy (Wf) can be separated into two terms: the essential work of fracture (We) performed in the inner fracture process zone (FPZ) and the non-essential work of fracture (Wp) performed in the outer plastic zone (OPZ):
W f = W e + W p

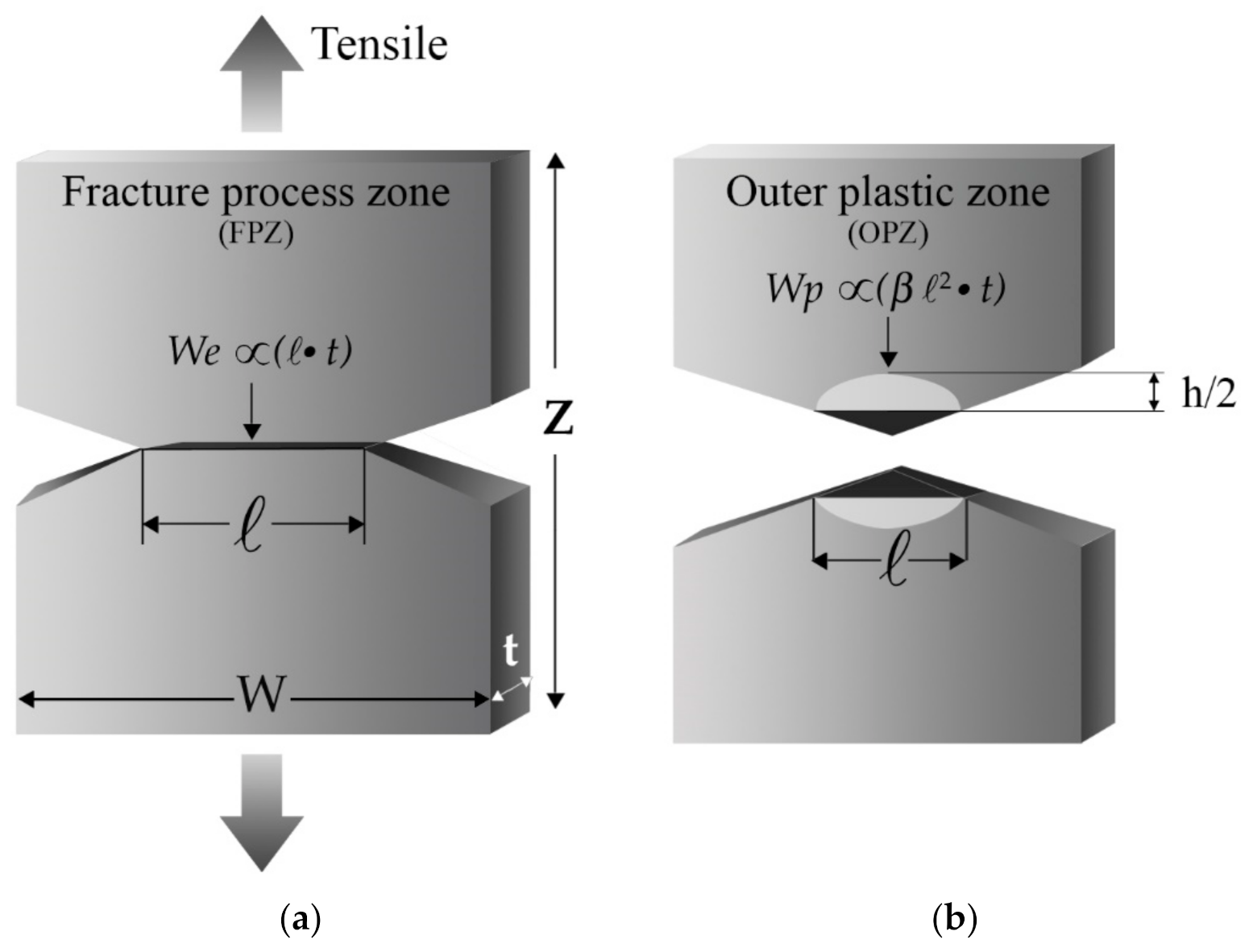

Both areas are easily identifiable, as outlined in Figure 20.
We is associated with the FPZ (where the real fracture process occurs) and represents the energy involved in creating two new surfaces during the crack propagation. This term is proportional to the ligament section · t, as depicted in Figure 20a.
The Wp term is also named “plastic work” and is related to the OPZ, where the rest of the phenomena associated with the ductile fracture, such as plastic deformation, and other dissipative processes such as shear, crazing, or cracks, occur. This term is proportional to the volume of the deformed region (Figure 20b).
The previous concepts enable rewriting the Equation (2) in the following expression:
W f = W e + W p = w e ·   t + β · w p · 2   · t
where we is the specific essential work of fracture per unit area of the ligament (·t), is the length of the ligament, t is the thickness of the specimen, β is the shape factor of the plastic zone, and wp is the specific non-essential work of fracture per unit volume (2·t). Dividing both terms of Equation (3) by the ligament section (·t), we find that the specific work of fracture work (wf) is:
w f = W f   t = w e + β w p

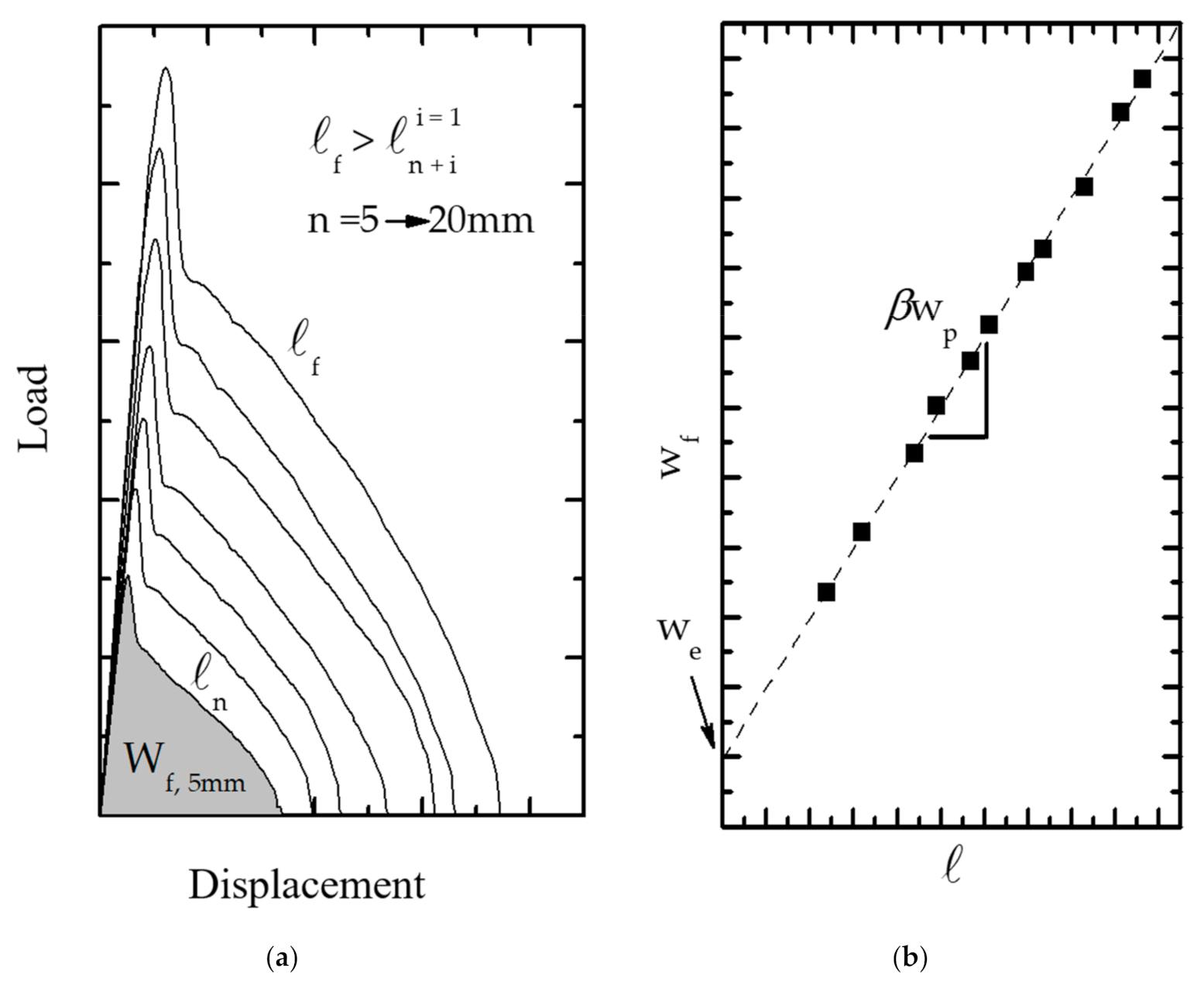

The experimental procedure consists of testing several DDENT specimens with different ligament lengths. The fracture energy (Wf) is determined as the area under the experimental load vs. displacement curves (Figure 21a).
According to Equation (4), we can calculate we and βwp terms by representing the wf values in front of . These points are subject to linear regression, where we is the intercept of the fitting line with the y-axis, while βwp is the slope of the fitting line, as presented in Figure 21b.
Theoretically, we is an intrinsic material constant that depends only on the thickness and is equivalent to JIC [203], which has been supported experimentally by different authors [204,205,206,207] and contrasted with the CTOD values [17]. However, compared to the J-integral approach, the EWF method has certain procedural advantages, such as its simplicity in experimental testing or its applicability to very thin thicknesses such as thin sheets or films [208,209].
The EWF method is currently attractive for several research projects that deal with fracture toughness for polymer materials. However, its application is limited since there are currently no mathematical models that allow the use of the data obtained by the EWF technique to simulate the fracture of ductile materials. Therefore, it is necessary to highlight the works performed by Knockaert, Pardoen, Chen, and Cotterell [207,210,211,212] in the numerical simulation for the fracture of DDENT-type specimens. Furthermore, Chen et al. [213] investigated the correlation between fracture parameters and the molecular structure of amorphous and ductile polymers.
It is also noteworthy that the application of the EWF method has been extended from Mode I to the other two crack propagation modes: shear (Mode II) [214,215] and tear (Mode III) [216,217]. Additionally, the EWF method was applied to evaluate the adhesion energy in joints [218,219].

3.1.1. Experimental Considerations for the EWF Method

In 1993, Gray [220] made the first attempt to standardize the EWF method within the technical committee number 4 of the European Structural Integrity Society (ESIS TC-4), where the following recommendations were established:
  • Under tensile load, the full ligament yielding should be reached before the crack is initiated
  • Equation (3) can be applied if the DDENT specimen is in a plane stress fracture condition, which is verified by applying Hill’s criterion [221].
  • Self-similarity of the experimental load–displacement curves for each l, which supports the development of a fracture geometry common to all DDENT specimens.
  • For materials with ductile fracture, the FPZ undergoes a necking process which then breaks into a fracture surface. So, the required conditions involve the specimen thickness (t), the width of DDENT specimen (W), and the plastic zone size (rp):
    3 5 t min W 3 o r   2 r p
    where rp is the radius of the plastic zone, which is defined as
    2 r p = π 8 E w e σ y 2
    where E and σy are the elastic modulus and the tensile strength, respectively.
In addition, the height of the plastic zone (h in Figure 20) must be measured to determine the shape factor (β), where three primary geometric forms were established: rhombus, circle, or ellipse.
This first standard protocol was revised in 1997 and later in 2001 [222], emphasizing that the similar stress condition could improve Hill’s criterion. This is verified through σmax, which must be similar in all the tested specimens, regardless of .
Despite all the reviews and work carried out by the TC-4 committee of the ESIS, some issues cause controversy, representing a challenge for research. Table 3 lists some of these topics.

3.1.2. Dimensions of the DDENT Specimen

According to the theory of the essential work of fracture, we represents the material’s toughness, and so it is independent of specimen geometry. Maspoch et al. [245] detailed the effect of the DDENT specimen dimensions by applying the EWF method testing an isotactic polypropylene (iPP). They concluded that the width of the specimen does not drastically influence the values of we or βwp, which would indicate that both fracture parameters are intrinsic properties of the material. Similarly, the length of the specimen does not seem to influence the EWF parameters. Regarding , the authors observed that the minimum length does not seem to be subject to the criterion > (3–5)t, since was valid for values between 5 and 6 mm, and independent of the specimen thickness. Finally, the thickness had a significant effect on the fracture parameters of the iPP studied, since an increase in t produced an apparent decrease in the values of we that may be related to both the morphology and the fracture mechanisms, as could be appreciated through scanning electron microscopy (SEM).

3.1.3. Use of Video Extensometer

The essential fracture work theory indicates that all the energy involved during the fracture process is absorbed in both the fracture process zone (FPZ) and the plastic zone (OPZ). However, it is possible to argue that part of the viscoelastic energy can be stored in the DDENT specimen (outside the OPZ), and is released slowly after the fracture [246]. Fung et al. [247] demonstrated that the viscoelastic energy is not included in total fracture energy and proposed to measure the plastic deformation using a videoextensometer. They found the use of videoextensometer does not significantly affect the values of we but reduces the βwp values.
Other authors detected and quantified the plastic deformations during the EWF test using a digital image correlation system (GOM-Aramis™) that allowed visualizing the field of deformations in 3D.
One of the most common interests for experimental fracture mechanics characterization is evaluating the influence of the notching quality on the fracture parameters. Martinez et al. [244] proposed a new procedure for sharpening the notches of the DDENT specimens, which was based on pulsed laser ablation in periods of femtoseconds (femtolaser). This procedure was compared to the conventional notch sharpening method by a razor blade. The results show that the radius of the bottom of the notch appears to be critical below 10 μm. However, the fracture parameters are susceptible to plastic deformation induced during notching, altering the we values.

3.1.4. Energy Partitioning

According to the EWF theory, wf considers all the energy dissipated divided by the ligament section ·t (Equation (3)), and the fracture process is related to the shape of the load–displacement curves. Therefore, it is possible to suggest the energy contribution separation in terms of fracture initiation and propagation. Mai et al. [248] partitioned the total work into two distinct parts: the energy for initiate fracture and the fracture work for crack growth, including crack propagation and necking. Karger-Kocsis et al. [249] proposed that the maximum load (Figure 22a) divides the fracture energy into two components: the yield work (Wf,y) and the necking and propagation work (Wf,n):

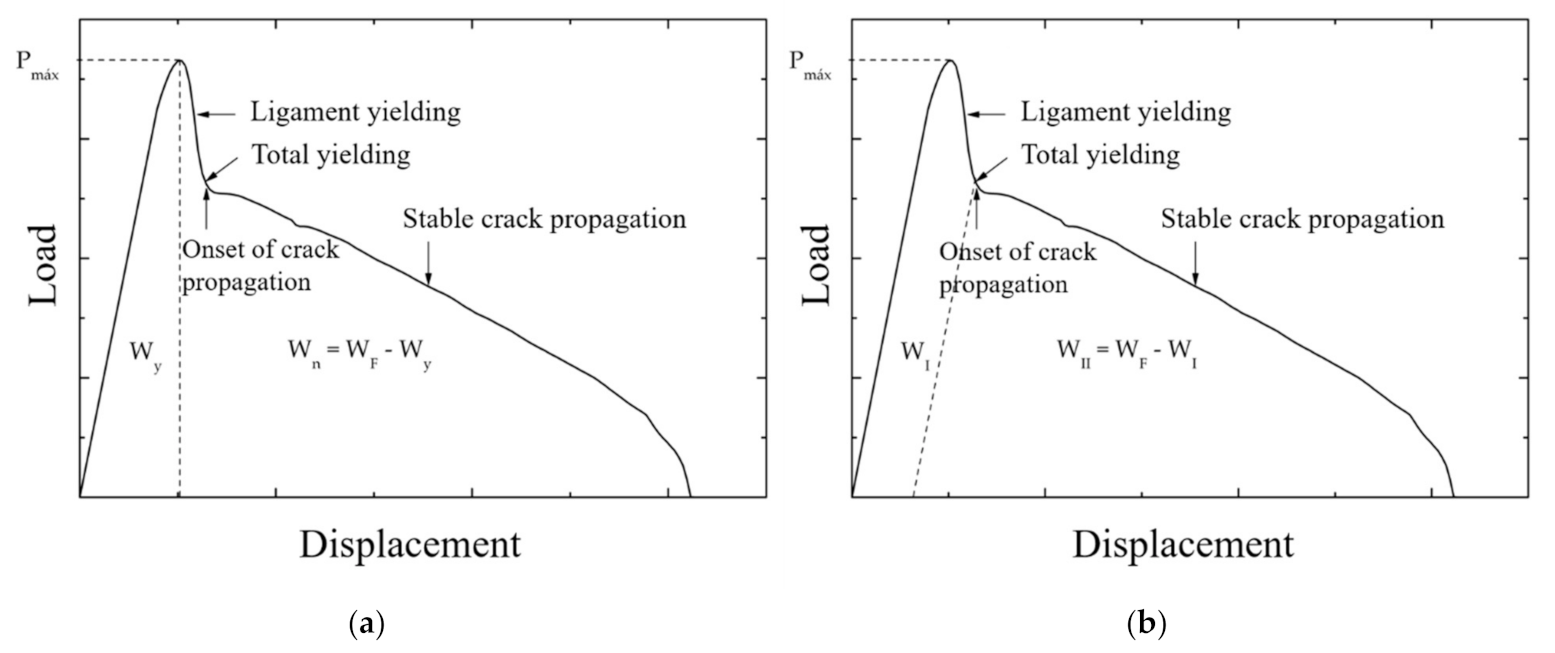

w f = w f , y + w f , n = w e , y + β w p , y · + w e , n + β w p , n ·
Ferrer-Balas et al. [250] proposed the initiation work method, limiting the partition energy at the end of necking (Figure 22b), just before starting the crack propagation. Thus, the fracture energy is separated into two terms, WI (initiation process, which refers to the full ligament yield, which is a phenomenon of plastic deformation) and WII (crack propagation and energy dissipation in the plastic zone). The elastic energy absorbed during the ligament yield is consumed during the crack propagation; hence, it is considered part of WII (propagation) and is subtracted from WI (initiation), as schematically depicted in Figure 20.
w f = w f , I + w f , I I = w e , I + β w p , I · + w e , I I + β w p , I I ·

3.1.5. Proposal for the New Shape of the Plastic Zone

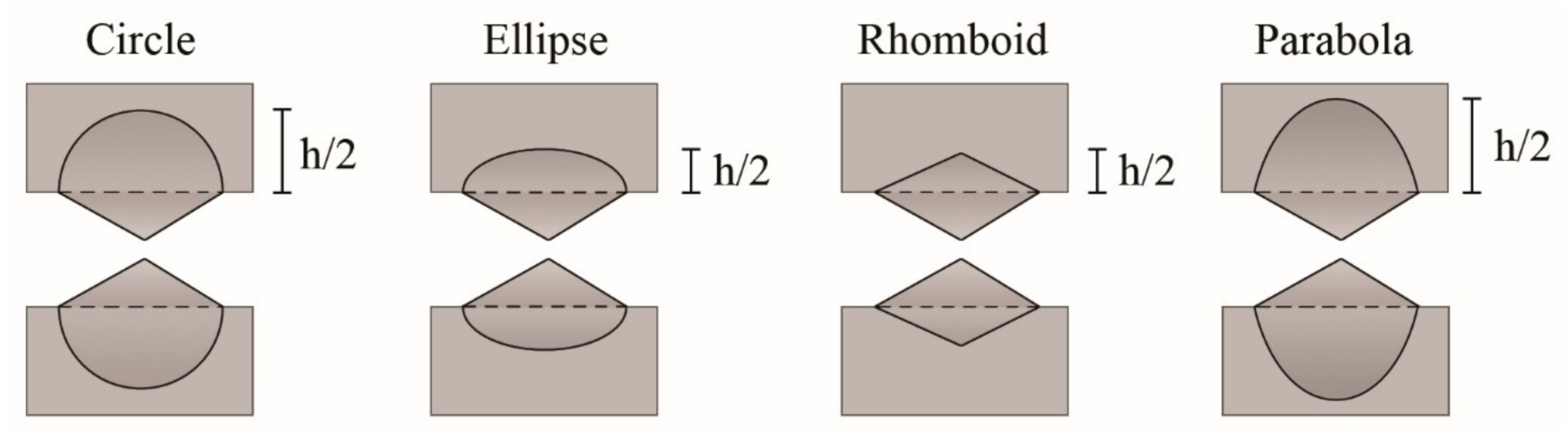

Under similar geometric and test conditions, the plastic term (βwp) can be used as a comparative parameter between different materials. The shape factor depends on the material and is related to the geometry of the plastic zone developed during the fracture of the DDENT specimens. On the other hand, the value of wp cannot be determined directly through the linear regression obtained from the graphical representation of wf vs. , which justifies the need to measure β accurately. It is common to observe that the plastic zone develops an intermediate shape between elliptical and rhomboid geometries [251], identified as the intersection between two parabolas and defined using the following equation:
h = k · β ·
where k is a constant that depends on the shape of the plastic zone and takes values of 1.27 for circular and elliptical geometries, and 2 and 1.5 for rhomboid and parabolic shapes, respectively (Figure 23).
In this way, β can be determined as the slope of the linear regression obtained by representing the total height of the plastic zone (h) versus the ligament length (), divided by the factor k.
The EWF method allows us to relate the fracture processes with distinct microstructural parameters. Thus, some studies related to complex phenomena such as aging or degradation [252,253] and the ductile–brittle transition [254,255] use the EWF approach.
The high sensitivity of the EWF method makes it of particular interest to study the processing–properties relationship to optimize the processing parameters [256], and even to evaluate the influence of annealing in different polymer systems [236,257,258]. Furthermore, the EWF technique is appropriate to study the influence of different morphological parameters such as molecular weight, anisotropy, molecular entanglement density, and crystalline structure have on the fracture toughness of films and thin sheets.
Even though the numerous published works demonstrate the satisfactory application of the EWF on ductile materials (polymers and metals included), there are still some controversies about the influence of some experimental variables such as the test speed, the DDENT specimen thickness, and the notching quality, which may limit the applicability of the EWF method.

3.2. EWF for Clay-Based Polymer Nanocomposites

Recently, the EWF method began to be used in clay-based polymer nanocomposites [188,224,259,260,261]. The high sensitivity of the EWF technique is attractive to evaluate the influence of distinct variables such as the type of organic modifier, the filler content, the platelets’ orientation, and the exfoliation degree on the fracture toughness of polymer nanocomposites. Table 4 presents a summary of the literature found for the applicability of the EWF method in polymer nanocomposites.
Polyolefins such as polypropylene and polyethylene are the most common thermoplastics for EWF evaluation. Similarly, montmorillonite is a clay mineral mainly used as a reinforcement for thermoplastic resins.
Saminathan et al. [232,233] evaluated the effect of loading rates on the EWF parameters. The PP/MMT nanocomposites were prepared by melt mixing using a twin-screw extruder. The compatibilizer was maleic anhydride grafted polypropylene (MA-g-PP). The commercial nanoclay Closite®15A was used as a nanofiller. The concentration of nanoclay was 5 wt.%, and the ratio between the nanoclay and MA-g-PP was 1:1. The nanocomposites were injection molded to obtain 1.5 mm thick plates. The EWF tests were conducted at room temperature with loading rates varying from 1 to 20 mm/min. The authors mechanically characterized the nanocomposite. The results obtained show an increase in tensile modulus, flexural modulus, yield strength by 25%, 20% and 10%, respectively, compared to pure PP. Nevertheless, the authors observed the maximum percent strain reduced by 41%. According to the EWF results, the authors revealed that the specific work of fracture increases 25% with respect to pure PP, and as the loading rate increases, the specific EWF for yielding increases, but the specific EWF for necking decreases.
Nekhlaoui et al. [259] studied the fracture of polypropylene nanocomposites. In this work, the authors compared the fracture behavior using the EWF approach in PP mixtures with and without a compatibilizer. The nanofiller percentage was 5, 10, 15, 20, 25, 30 and 35 wt.%, through the intercalation method with PP and PP–SEBS–g–MA. The DDENT specimens were obtained by injection molding with a thickness of 2 mm. The authors observed that the presence of clay particles at higher content (30 wt.%) leads to a reduction in both the essential and plastic work of fracture due to the rigid character of the clay.
The EWF approach is widely used to determine the plane stress fracture toughness of highly ductile polymers. To understand how the presence of nanofillers influences fracture toughness, Karger-Kocsis et al. [269] mixed amorphous copolyester and polypropylene block copolymer with multiwall carbon nanotube (MWCNT), graphene (GR), boehmite alumina (BA), and organoclay (oMMT) at one wt.% each. They performed the EWF test, and the data reduction occurred by energy partitioning between yielding and necking. The fracture zone showed some tearing morphology. The EWF prerequisites were not met with the nanocomposites containing MWCNT and GR, by contrast to those with BA and oMMT. Therefore, the fracture toughness of nanocomposites with homogeneous clay dispersion was properly determined using the EWF method. The authors also found that incorporating oMMT may result in an adverse effect between the we and wp terms.
Some authors [265] used the EWF method to compare the effect of the clay content and the coupling agent on the fracture toughness of polypropylene films. The authors found that the addition of mineral clay led to a considerable reduction in the we term compared with the unfilled PP, and the coupling agent did not influence the fracture parameters. However, the presence of clay promoted an appreciable increase in dissipated plastic work, regardless of the clay content.
Other authors applied the EWF method to evaluate molecular compatibility, morphology, and clay content on the fracture parameters [178,180,213,232,233,259,260,310,311].
Bureau et al. [263] discussed the failure mechanisms of polypropylene/clay nanocomposites. The fracture behavior of these nanocomposites, based on polypropylene with organo-modified clays (2 wt.%) and different coupling agents, was evaluated using the EWF procedure. The microstructure revealed an acceptable level of intercalation with partial exfoliation (<100 nm). Furthermore, the mechanical properties increased by 25–50% due to the reinforcing effect of the nanoparticles. The authors evaluated the trends observed in the specific work of fracture for the crack initiation–ligament length (we,init and βwp,init). The results show a flat slope of the we,init curve obtained for PP, which was caused by the difficulty of developing a plane stress condition in PP, and the authors considered this value a reference. The authors suggested that we,init varies considerably among the materials tested. The addition of clay to PP without coupling agents leads to a decrease in we,init by more than 75%, depending on the type of coupling agent used. The authors pointed out the quality in clay dispersion could be correlated with we,init. The nanocomposites with lower micron-scale clay particles proved to be those with the highest we,init. However, such a correlation could not be established between we,init, and surface density in sub-micron-scale clay particles. So, the authors underlined that the reinforcement or toughening effects are related to the nanoscale particles, as concluded from tensile results analysis. The authors also analyzed the fracture surfaces. They observed the fracture occurred by void initiating at larger clay particles, followed by void growth and coalescence as the surrounding matrix stretched into ligaments. Thus, toughness improvements were attributed to higher voiding stresses and improved matrix resistance attributed to finer, more oriented clay nanoparticles.
More recently, other authors applied the EWF technique on PP nanocomposites reinforced with Boehmite clay [267,268]. Pedrazzoli et al. [267] studied the influence of boehmite nanoparticles with various surface treatments on the mechanical properties and fracture behavior of polypropylene copolymer nanocomposites. The boehmite was used in pristine and surface-treated forms, adding 2.5, 5, and 10 wt.% using a co-rotating twin-screw extruder. The nanocomposites were successively blow molded to produce films with a thickness of about 0.05 mm. The authors performed an extensive morphological, rheological, thermal, and mechanical characterization. The results obtained were related to fracture behavior. Thus, the authors found that the specific EWF (we) of PP increased after incorporating boehmite. Since the crystalline morphology did not show significant changes, the reinforcing effect was mainly attributed to the nano-reinforcement. However, the increase in the filler content induces a reduction in the we values, resulting from an excessive filler content that contributes to the agglomeration of the nanoparticles. According to the authors, this effect was also reflected in the reduction in yield stress.
Regarding the treated boehmite, the nanocomposites showed an increase in resistance with low reinforcement content. However, we did not show significant variations and even decreased. The authors declared that these results are in accordance to observed by other authors [237] regarding the direct proportion between we and e0∙σy, where e0 is the ordinate intercept of extension-at-break versus ligament length linear regression plots. In addition, the authors also reported lower βwp values when compared with unfilled PP. Therefore, the nanofillers do not influence the dissipative plastic work.
Turcsán et al. [268] used the EWF procedure to determine the fracture toughness of poly (propylene-blockethylene) (EPBC)-based nanocomposites with different boehmite content (0.5, 1, 2.5, 5 wt.%) using a twin-screw extruder. The nanocomposites were compression molded to obtain sheets of 0.5 mm thickness. The degree and quality of the dispersion of the boehmite reinforcement were analyzed using transmission electron microscopy, revealing good distribution and particle agglomerations. The manuscript detailed the efforts to carry out the energy partition method, even though the authors observed that the yield is not instantaneous but develops over time due to the blunting effect. Consequently, the authors indicated that yielding and necking/tearing processes are somewhat superimposed, and only the maximum load may serve for their separation. The results show that a maximum value of we is reached with 1 wt.% of boehmite content. Higher concentrations lead to a reducing we parameter, similar to those obtained by the unreinforced EPBC.
Similarly, βwp decreases as the reinforcement content increases. The authors separated the wp values from the shape factor β, considering the plastic zone as an ellipse. The results indicate a marked reduction in wp with the filler content, while β remained practically constant, with values very similar to the unfilled EPBC. The authors concluded the dispersion and the filler content have a significant impact on the necking section. The boehmite nanoparticles did not act as a reinforcement, but it hinders the initiation and growth of cracks.
Haghnegahdar et al. [277] evaluated the fracture toughness of polypropylene (PP)/ethylene propylene diene monomer (EPDM)/graphene nanocomposites prepared by melt mixing process via an internal mixer. The authors used multi-layer graphene (MLG) and few-layer graphene (FLG) with 0.5 wt.% as reinforcement. The DDENT specimens were obtained by compression molding with a thickness of 1 mm. The essential work of fracture (EWF) method was used to describe the deformation mechanism and fracture toughness behavior of PP/EPDM and its nanocomposites based on FLG or MLG in two systems (vulcanized and un-vulcanized). The results indicate that we and βwp of the PP/EPDM fracture enhanced by dynamic vulcanization and also FLG platelets were more efficient in relation to MLG platelets. The SEM micrographs from the fractured surface and subsurface of DENT specimens in the EWF test revealed that the fracture mechanism of PP/EPDM and its nanocomposites were changed by dynamic vulcanization. In the case of vulcanized samples, the fracture toughness mechanism originated from creating cavitation in the dispersed phase, which caused the formation of nanovoids inside the EPDM droplets. This phenomenon caused the dilatation of shear bands and the development of shear yielding of PP matrix. However, in un-vulcanized specimens, the formation of that dilatation band was more prominent due to debonding of rubber droplets from the surrounding PP matrix. In the PP/EPDM nanocomposites, graphene type played a different role in the fracture toughness mechanism. The MLG acted as a suitable domain for crack initiation, which decreased the essential work of fracture. Therefore, FLG platelets hindered the crack path and prevented the crack propagation, leading to increased plastic work of fracture.

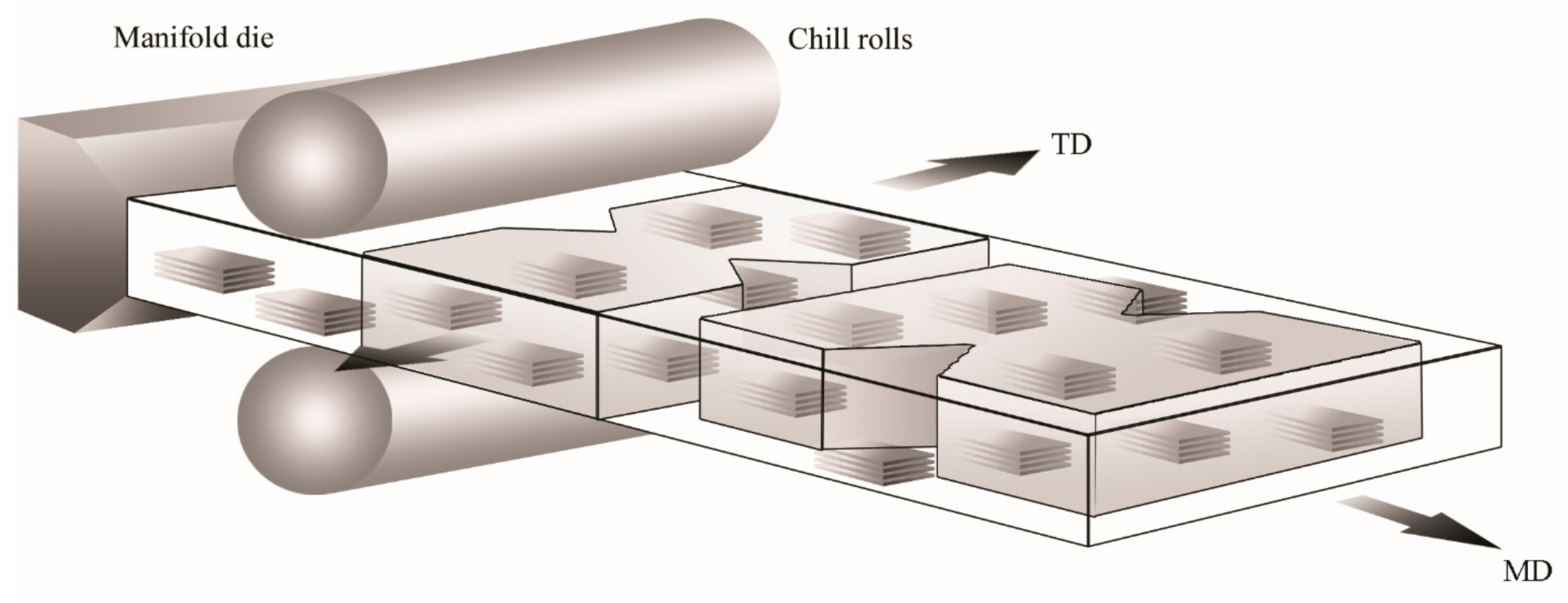

Franco-Urquiza et al. [260] evaluated the influence of oriented platelets for intercalated and exfoliated morphologies on the fracture parameters of EVOH/oMMT films through transmission electron microscopy (TEM). The observations revealed that the longitudinal axis of the whole particles was disposed parallel to the melt direction (MD). In order to evaluate the effect of the particle orientation on the fracture parameters, DDENT specimens were cut in the melt and transverse directions (TD). Considering this, the FPZ was perpendicular or parallel to the length of the whole particles, as presented in Figure 24.
The fracture surfaces of DDENT specimens in both configurations (MD and TD) showed distinct behavior related to the orientation of the oMMT particles. According to the SEM observations, the FPZ of the polymer film containing 2.5 wt.% of oMMT in MD showed a necking ligament section notoriously lower than the nanocomposites tested in TD. At higher magnifications, the fracture surfaces of the nanocomposites showed a high level of fibrillation, being more evident for the DDENT specimens tested in MD than in TD, which was attributed to the orientation of the clay particles within the polymer matrix that hinder the plastic flow during the fracture process. Regarding the fracture parameters, the results show that the clay particles act as effective reinforcement since the toughness increased in both configurations (MD and TD). However, βwp did not show an evident tendency, and it was necessary to calculate the shape factor. Thus, β increased with the clay content in MD and decreased in TD because the longest longitudinal axis was oriented parallel to the crack propagation, promoting lower stress transfer than in MD. On the other hand, wp decreased for both configurations (MD and TD) because the clay particles restrict the plastic flow during the fracture process.
Many commercial clay minerals contain organic modifiers. This modification favors molecular diffusion as long as there is an affinity between the organic modifier and the polymer chains. Franco-Urquiza et al. [281] demonstrated that molecular compatibility could dramatically influence the morphology of clay sheets (Figure 25) and their degree of exfoliation. They used two distinct organo-montmorillonite (oMMT) clays in ethylene-vinyl alcohol (EVOH) copolymer film. The affinity between EVOH and the modifier within oMMT resulted in intercalated morphology because of well-dispersed and oriented platelets due to the sliding during processing (Figure 25a). The low affinity between EVOH and organoclay led to immiscible systems with tactoids by folding the platelets from the clay stacks (Figure 25b). Both morphologies altered the mechanical parameters and the fracture behavior in different ways. The specific essential fracture work (we) was influenced by the clay content and crystallinity in both cases. The shape factor increased with the clay content, which implies that the oMMT transfers the stresses for affinity nanocomposites. In inadequate affinity systems, clay particles promoted plastic deformation at low stress levels, according to the values obtained from the specific plastic work (wp) and observations by SEM. On the other hand, it was observed that the degree of exfoliation decreased as the clay content increased, promoting the development of agglomerated particles.
Block copolymers represent a particular class of self-assembled nanostructured materials, the structure and size of whose morphology can be controlled by molecular architecture, molecular weight, and composition. Martin Ganß et al. [261] studied the influence of oligostyrene-modified montmorillonite (os-MMT) on the morphological, mechanical, and fracture behavior of styrene-butadiene-based block copolymer. They performed the EWF tests to evaluate the crack propagation using a pseudo-single specimen. TEM observations detected a high degree of exfoliation of MMT against well-distributed tactoids with gallery spacings of approximately 10 nm. The authors observed a maximum in the resistance to crack propagation at 3 wt.% of os-MMT accompanied by a change in deformation mechanism from homogenous plastic flow (drawing and micro-necking of microdomains) in the block copolymer nanocomposite (BCP-NC) with 0 to 1 wt.% of os-MMT to a craze-like deformation (microvoid formation and stretching of polymer fibrils) for the BCP-NC with 3 to 5 wt.% of os-MMT. Furthermore, above 5 wt.% os-MMT content a tough-to-brittle type transition attributed to the micro-sized aggregates combined with increased content of rigid PS phase controlling the fracture process BCP-NC with 10 wt.% nanofillers could be ascertained. The authors made an in-depth analysis of the fracture surface, and carried out the correlations between the structural attributes, mechanical behavior and the crack toughness behavior of the developed nanocomposites. They highlighted that the crack initiation behavior, characterized by the magnitude of the specific essential fracture work we, changes from being dominated by the polymeric matrix to being dominated by the nano-reinforcement close to 1 wt.%. By increasing the filler content, (3–5 wt.%), the intercalated silicate platelets favored a higher fraction of nano-confined layers in morphology and therefore improved the overall hard phase content, leading to a three-fold reduction in the value of we. However, resistance to crack propagation βwp increases. The authors attributed these results to a change in the deformation mechanism of the homogeneous plastic flow. Finally, the authors observed that higher concentrations of reinforcement, above 5 wt.%, the transition from toughness to brittle observed in the fracture behavior was attributed to the aggregates micrometers in size and the increase in the hard phase content.
Polyamides contain a repeated CO-NH group within the chain. They are well-known engineering thermoplastic materials widely used in industrial applications because of their remarkable mechanical and thermal properties. However, moisture absorption is a relevant limitation. The incorporation of nanometer-scale reinforcement improves the stiffness and toughness of PA.
Baldi et al. [277] evaluated the rubber toughening of polyamide 6 (PA6)/layered-silicate nanocomposites. Nanocomposites with different reinforcing contents were prepared by melt intercalation. For this, a 20 wt.% masterbatch was extruded, which was then diluted in PA6 matrix using a co-rotating twin-screw extruder to obtain concentrations of 4 and 6 wt.%. Three rubber contents were used (0, 5, and 10% by weight). The authors also evaluated the influence of humidity, analyzing the behavior of the various nanocomposites at three humidity levels: dry, slightly humid, and very humid. The authors found that silicate layers in the PA6 matrix strongly influenced the creep and fracture behavior of the material, increasing the elastic limit and reducing the resistance to fracture, depending on the moisture content. The addition of a rubbery phase increased the fracture strength of the nanocomposites under slightly humid conditions, providing evidence of a hardening effect. At the same time, they did not observe a significant increase in fracture toughness in the materials under dry conditions. The authors concluded that a good balance between stiffness and toughness can be obtained under certain humidity conditions, using a suitable rubber-to-silicate layer content ratio.
There is an extensive literature review regarding evaluating the EWF technique for thermoplastic polymers, especially for polyolefins, as previously indicated. However, there is a wide field of opportunities to test the fracture toughness in thermoplastic natural rubber (TPNR) reinforced with clay minerals. An extensive literature review has been carried out, and just one reference on the fracture behavior of these nanocomposites was found. TPNR is a blended material made from natural rubber (NR) and a thermoplastic, such as polypropylene, polystyrene, and polyethylenes, which provides intermediate properties between NR and plastics. Currently, TPNR is used for several industrial applications. Ahmad et al. [309] performed the analysis of the mechanical properties and fracture toughness of TPNR nanocomposites. The nanocomposites were prepared in a twin-screw extruder, varying the concentration of the MMT clay content intercalated with octadecylamine. The authors developed two nanoclay dispersion methods. In the first method, called the direct method (DM), the nanoclay was incorporated into the fused TPNR matrix. In the second method, called the indirect method (IDM), the organoclay was pre-mixed in liquid natural rubber (LNR) before mixing in extrusion. The fracture toughness was evaluated through the EWF technique using 1 mm thick sheets. The addition of optimum organoclay content led to a substantial improvement in stiffness. However, the authors note that the addition of organo-clay reduced the total work of fracture wf for both nanocomposites. The EWF results show that incorporating 4 wt.% organo-clay causes a notable reduction in βwp for IDM nanocomposites compared to the TPNR matrix. In the case of DM nanocomposites, the authors observed the same trend with the decrease in the values of both specific fracture parameters. The authors attributed these trends to the stiff nature of the clay, which prevents plastic deformation from occurring and the constrained mobility of polymer chains in the presence of organo-clay particles.
Polylactic acid, or polylactide (PLA), is a biodegradable, biocompatible, and renewable thermoplastic polyester, which is mainly derived from corn starch. PLA is classified as an aliphatic polyester because of the ester bonds that connect the monomer units. This bio thermoplastic is the most comprehensively explored biodegradable and renewable thermoplastic polyester. However, uncontrolled degradation, poor thermal properties, and brittleness are the significant drawbacks of PLA. Consequently, PLA nanocomposite systems have been widely exploited to address some of the shortcomings.
Arroyo et al. [308] investigated the processing and fracture behavior of PLA/thermoplastic starch/montmorillonite nanocomposites. Thermoplastic wheat starch (TPS) and PLA were combined with a non-organic MMT clay, using a twin-screw extrusion process to investigate the structure and properties of these nanocomposites. The method of incorporation and gelatinization of starch was based on the technique developed by Rodríguez-González and collaborators [312].
The authors also paid particular attention to moisture content to assess the degree of intercalation/exfoliation of MMT platelets. The authors evaluated the mechanical properties of these biodegradable nanocomposites and their fracture behavior using DDENT specimens and following the EWF protocol. The authors made two relevant observations. The first is that the data obtained met the criteria of self-similarity. Yield stress increased with the ligament length and the general shape of the stress–strain curves was similar. The second general observation is that all the investigated materials exhibited relatively brittle behavior. The initiation energy was significantly higher than the propagation energy, which resulted in both polymers showing a relatively small plastic term, expressed at a low coefficient of linearity. This observation allows the authors to express their questions about whether the plane stress conditions were fully developed during the EWF tests.
The results indicate that PLAg (PLA with maleic anhydride grafted) has lower we,ini and we,tot values than neat PLA, which the authors attributed to a lower molecular weight. The authors also found that the presence of TPS in PLA led to a considerable reduction in we,ini and we,tot while βwp increased dramatically. However, the presence of TPS in PLAg did not lead to such a reduction in we,ini and we,tot parameters but did lead to a similar increase in βwp values.
The clay particles showed a higher affinity with the TPS phase. The clay in the TPS phase remains in it, while the clay in the PLA phase migrates to the interface of the blend or even crosses the interface to the TPS phase. The addition of MMT clay increased the tensile modulus of the materials. This observation was most noticeable in the blend with higher TPS content because the tensile modulus of TPS is much lower than PLA. Fracture toughness and elongation at break decreased with the addition of clay. The authors concluded that clay at the interface of the mixtures could reduce the interaction between the PLA and TPS phases in compatibilized mixtures, resulting in a lower stress transfer from the PLA matrix to the disperse TPS phase.
Maspoch et al. [224] employed the EWF methodology to evaluate the ductile–brittle transition behavior of biodegradable polymers. The authors confirmed that the EWF was successfully applied in the organo-modified montmorillonite-based poly(lactic acid) films (PLA/oMMT). In order to evaluate the fracture behavior, the PLA/oMMT films were subjected to a de-aging process. According to differential scanning calorimetry (DSC) results, physical aging at 30 °C of PLA/o-MMT samples exhibited slower enthalpy relaxation kinetics than the neat PLA, which pointed to the toughening mechanisms promoted by oMMT. Similarly, Rodríguez et al. [306] used the PLA/oMMT to evaluate the specific essential work of fracture and compare it with the small punch test (SPT) methodology. The results show that the SPT is an effective tool for the mechanical characterization of these materials because it is possible to perform, from one test with a small sample, the mechanical characterization, and the fracture toughness. The straightforwardness of both the testing procedure and the preparation of the specimens facilitates the rapid characterization. However, the results also reveal that the SPT test is susceptible to prior defects and the oMMT content, allowing the applicability of the EWF method for fracture characterization in ductile materials.

4. Conclusions

This work compiles a relevant amount of information on the influence of clay minerals on the fracture behavior of ductile nanocomposites using the EWF technique. From the literature collected, some conclusions can be highlighted:
  • Although clay minerals are commonly used in the development of clay-based polymer nanocomposites, the montmorillonite clay is widely studied. Therefore, there is a wide field of research to explore with the rest of the phyllosilicates.
  • Most clay-based polymer nanocomposites are processed by twin-screw extrusion, leaving aside the use of single-screw extruders. Although the shear stress generated by the twin-screw technology is very efficient in the exfoliation and dispersion of nanoclays (especially polyamides), it promotes the degradation of both the polymer matrix and the organic compounds contained in the modified clays. However, references about processing-induced degradation and its effect on the fracture toughness of polymer nanocomposites were not found.
  • The EWF approach allows the evaluation of the fracture behavior of ductile polymers. However, most of the literature focuses on polyolefins and polyamides. One field that is currently being explored is the study of toughness in bio-based polymer nanocomposites. PLA is the most widely used material, but there are many research opportunities in evaluating the fracture behavior of green polymer nanocomposites.

Funding

This work was supported by the Secretary of Public Education (SEP) and National Council of Science and Technology (CONACYT) through the Basic Science Fund (SEP-CONACYT Ciencia Basica) (grant number 257458) and funded by CONACYT through the Institutional Fund for Regional Promotion for Scientific, Technological and Innovation Development (FORDECYT), grant number 297708. The APC was funded by FORDECYT, grant number 297708.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

This study did not report any data.

Acknowledgments

Edgar Franco conveys special appreciation to the “CONACYT Researchers Program (Catedras CONACYT)”.

Conflicts of Interest

The author declare no conflict of interest.

References

  1. Mittal, V. Polymer layered silicate nanocomposites: A review. Materials 2009, 2, 992–1057. [Google Scholar] [CrossRef]
  2. Alexandre, M.; Dubois, P. Polymer-layered silicate nanocomposites: Preparation, properties and uses of a new class of materials. Mater. Sci. Eng. R Rep. 2000, 28, 1–63. [Google Scholar] [CrossRef]
  3. Sinha Ray, S.; Okamoto, M. Polymer/layered silicate nanocomposites: A review from preparation to processing. Prog. Polym. Sci. 2003, 28, 1539–1641. [Google Scholar] [CrossRef]
  4. Minerals, S.; Page, I.; The, S.M.; Guggenheim, S.; Martin, R.T.; Alietti, A.; Drits, V.A.; Formoso, M.L.L.; Galán, E.; Köster, H.M.; et al. Clays, nanoclays, and montmorillonite minerals. Dev. Clay Sci. 2017, 148, 255–256. [Google Scholar] [CrossRef]
  5. Camargo, P.H.C.; Satyanarayana, K.G.; Wypych, F. Nanocomposites: Synthesis, structure, properties and new application opportunities. Mater. Res. 2009, 12, 1–39. [Google Scholar] [CrossRef]
  6. Giannelis, E.P. Polymer layered silicate nanocomposites. Adv. Mater. 1996, 8, 29–35. [Google Scholar] [CrossRef]
  7. Hanemann, T.; Szabó, D.V. Polymer-Nanoparticle Composites: From Synthesis to Modern Applications. Materials 2010, 3, 3468–3517. [Google Scholar] [CrossRef]
  8. Paul, D.R.; Robeson, L.M. Polymer nanotechnology: Nanocomposites. Polymer 2008, 49, 3187–3204. [Google Scholar] [CrossRef]
  9. Giannelis, E.P.; Krishnamoorti, R.; Manias, E. Polymer-Silicate Nanocomposites: Model Systems for Confined Polymers and Polymer Brushes. In BT—Polymers in Confined Environments; Granick, S., Binder, K., de Gennes, P.-G., Giannelis, E.P., Grest, G.S., Hervet, H., Krishnamoorti, R., Léger, L., Manias, E., Raphaël, E., et al., Eds.; Springer: Berlin/Heidelberg, Germany, 1999; pp. 107–147. ISBN 978-3-540-69711-4. [Google Scholar]
  10. Papp, S.; Szucs, A.; Dékány, I. Colloid synthesis of monodisperse Pd nanoparticles in layered silicates. Solid State Ion. 2001, 141–142, 17169–17211. [Google Scholar] [CrossRef]
  11. Papp, S.; Szel, J.; Dékány, I. Stabilization of rhodium nanoparticles in an aqueous medium by polymer and layered silicates. Nanotechnology 2003, 5118, 646–656. [Google Scholar]
  12. Ruiz-Hitzky, E.; Aranda, P.; Darder, M. Hybrid and Biohybrid Materials Based on Layered Clays. In Tailored Organic-Inorganic Materials; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2015; pp. 245–297. ISBN 9781118792223. [Google Scholar]
  13. Ouchiar, S.; Stoclet, G.; Cabaret, C.; Georges, E.; Smith, A.; Martias, C.; Addad, A.; Gloaguen, V. Comparison of the influence of talc and kaolinite as inorganic fillers on morphology, structure and thermomechanical properties of polylactide based composites. Appl. Clay Sci. 2015, 116–117. [Google Scholar] [CrossRef]
  14. Sleptsova, S.A.; Okhlopkova, A.A.; Kapitonova, I.V.; Lazareva, N.N.; Makarov, M.M.; Nikiforov, L.A. Spectroscopic study of tribooxidation processes in modified PTFE. J. Frict. Wear 2016, 37. [Google Scholar] [CrossRef]
  15. Iqbal, S.; Inam, F.; Iqbal, N.; Jamil, T.; Bashir, A.; Shahid, M. Thermogravimetric, differential scanning calorimetric, and experimental thermal transport study of functionalized nanokaolinite-doped elastomeric nanocomposites. J. Therm. Anal. Calorim. 2016, 125. [Google Scholar] [CrossRef]
  16. Malkappa, K.; Rao, B.N.; Jana, T. Functionalized polybutadiene diol based hydrophobic, water dispersible polyurethane nanocomposites: Role of organo-clay structure. Polymer 2016, 99. [Google Scholar] [CrossRef]
  17. Neto, J.C.M.; Kimura, S.P.R.; Adeodato, M.G.; Neto, J.E.; Do Nascimento, N.R.; Lona, L.M.F. Intercalation and exfoliation mechanism of kaolinite during the emulsion polymerization. Chem. Eng. Trans. 2017, 57. [Google Scholar] [CrossRef]
  18. Youssef, A.M.; El-Sayed, S.M. Bionanocomposites materials for food packaging applications: Concepts and future outlook. Carbohydr. Polym. 2018, 193. [Google Scholar] [CrossRef]
  19. Cabedo, L.; Plackett, D.; Giménez, E.; Lagarón, J.M. Studying the degradation of polyhydroxybutyrate-co-valerate during processing with clay-based nanofillers. J. Appl. Polym. Sci. 2009, 112. [Google Scholar] [CrossRef]
  20. Letaief, S.; Christian, D. Functionalization of the interlayer surfaces of kaolinite by alkylammonium groups from ionic liquids. Clays Clay Miner. 2009, 57. [Google Scholar] [CrossRef]
  21. Sun, D.; Li, Y.; Zhang, B.; Pan, X. Preparation and characterization of novel nanocomposites based on polyacrylonitrile/kaolinite. Compos. Sci. Technol. 2010, 70. [Google Scholar] [CrossRef]
  22. Rhim, J.W.; Park, H.M.; Ha, C.S. Bio-nanocomposites for food packaging applications. Prog. Polym. Sci. 2013, 38. [Google Scholar] [CrossRef]
  23. Weiss, S.; Hirsemann, D.; Biersack, B.; Ziadeh, M.; Müller, A.H.E.; Breu, J. Hybrid Janus particles based on polymer-modified kaolinite. Polymer 2013, 54. [Google Scholar] [CrossRef]
  24. Kirillina, I.V.; Nikiforov, L.A.; Okhlopkova, A.A.; Sleptsova, S.A.; Yoon, C.; Cho, J.H. Nanocomposites based on polytetrafluoroethylene and ultrahigh molecular weight polyethylene: A brief review. Bull. Korean Chem. Soc. 2014, 35. [Google Scholar] [CrossRef]
  25. Cui, Y.; Kumar, S.; Rao Kona, B.; Van Houcke, D. Gas barrier properties of polymer/clay nanocomposites. RSC Adv. 2015, 5. [Google Scholar] [CrossRef]
  26. Poikelispää, M.; Das, A.; Dierkes, W.; Vuorinen, J. The effect of coupling agents on silicate-based nanofillers/carbon black dual filler systems on the properties of a natural rubber/butadiene rubber compound. J. Elastomers Plast. 2015, 47. [Google Scholar] [CrossRef]
  27. Dang, W.; Lorenzelli, L.; Vinciguerra, V.; Dahiya, R. Hybrid structure of stretchable interconnect for reliable E-skin application. In Proceedings of the IEEE International Symposium on Industrial Electronics, Edinburgh, UK, 19–21 June 2017. [Google Scholar]
  28. Dolgopolov, K.N.; Lyubimov, D.N. Evaluation of tribological properties of components of polymer composite selflubricating materials. MATEC Web Conf. 2018, 226, 01005. [Google Scholar] [CrossRef]
  29. Valentin, T.M.; Dubois, E.M.; Machnicki, C.E.; Bhaskar, D.; Cui, F.R.; Wong, I.Y. 3D printed self-adhesive PEGDA-PAA hydrogels as modular components for soft actuators and microfluidics. Polym. Chem. 2019, 10. [Google Scholar] [CrossRef]
  30. Kotsilkova, R.; Petkova, V.; Pelovski, Y. Thermal analysis of polymer-silicate nanocomposites. J. Therm. Anal. Calorim. 2001, 64, 591–598. [Google Scholar] [CrossRef]
  31. Kotsilkova, R. Rheology-structure relationship of polymer/layered silicate hybrids. Mech. Time-Depend. Mater. 2002, 6. [Google Scholar] [CrossRef]
  32. Kiersnowski, A.; Serwadczak, M.; Kułaga, E.; Futoma-Kołoch, B.; Bugla-Płoskońska, G.; Kwiatkowski, R.; Doroszkiewicz, W.; Pigłowski, J. Delamination of montmorillonite in serum-A new approach to obtaining clay-based biofunctional hybrid materials. Appl. Clay Sci. 2009, 44. [Google Scholar] [CrossRef]
  33. Szczerba, M.; Środoń, J.; Skiba, M.; Derkowski, A. One-dimensional structure of exfoliated polymer-layered silicate nanocomposites: A polyvinylpyrrolidone (PVP) case study. Appl. Clay Sci. 2010, 47. [Google Scholar] [CrossRef]
  34. Lan, Y.F.; Lee, R.H.; Lin, J.J. Aqueous dispersion of conjugated polymers by colloidal clays and their film photoluminescence. J. Phys. Chem. B 2010, 114. [Google Scholar] [CrossRef] [PubMed]
  35. Tamura, K.; Yamada, H. Morphology Generation in Polymer Nanocomposites Using Various Layered Silicates. Optim. Polym. Nanocomposite Prop. 2010, 198. [Google Scholar] [CrossRef]
  36. Pascua, C.S.; Ohnuma, M.; Matsushita, Y.; Tamura, K.; Yamada, H.; Cuadros, J.; Ye, J. Synthesis of monodisperse Zn-smectite. Appl. Clay Sci. 2010, 48. [Google Scholar] [CrossRef]
  37. Chang, Y.C.; Chou, C.C.; Lin, J.J. Emulsion intercalation of smectite clays with comb-branched copolymers consisting of multiple quaternary amine salts and a poly(styrene-butadiene- styrene) backbone. Langmuir 2005, 21. [Google Scholar] [CrossRef]
  38. Dudkina, M.M.; Tenkovtsev, A.V.; Pospiech, D.; Jehnichen, D.; Häußler, L.; Leuteritz, A. Nanocomposites of NLO chromophore-modified layered silicates and polypropylene. J. Polym. Sci. Part B Polym. Phys. 2005, 43. [Google Scholar] [CrossRef]
  39. Leroux, F. Organo-modified anionic clays into polymer compared to smectite-type nanofiller: Potential applications of the nanocomposites. J. Nanosci. Nanotechnol. 2006, 6. [Google Scholar] [CrossRef]
  40. Wang, H.W.; Dong, R.X.; Liu, C.L.; Chang, H.Y. Effect of clay on properties of polyimide-clay nanocomposites. J. Appl. Polym. Sci. 2007, 104. [Google Scholar] [CrossRef]
  41. Liu, T.; Chen, B.; Evans, J.R.G. Ordered assemblies of clay nano-platelets. Bioinspir. Biomim. 2008, 3. [Google Scholar] [CrossRef]
  42. Darder, M.; Aranda, P.; Ruiz, A.I.; Fernandes, F.M.; Ruiz-Hitzky, E. Design and preparation of bionanocomposites based on layered solids with functional and structural properties. Mater. Sci. Technol. 2008, 24, 1100–1110. [Google Scholar] [CrossRef]
  43. Watanabe, H.; Matsushima, H.; Fuji, M.; Takahashi, M. Electrophoretic Deposition of Smectite Particles onto Cupper Plate. Key Eng. Mater. 2009, 412, 195–200. [Google Scholar] [CrossRef]
  44. Maiti, M.; Bhowmick, A.K. Synthesis and properties of new fluoroelastomer nanocomposites from tailored anionic layered magnesium silicates (hectorite). J. Appl. Polym. Sci. 2009, 111. [Google Scholar] [CrossRef]
  45. Suh, D.J.; Park, O.O.; Mun, J.; Yoon, C.S. Photorefractive behaviors in a polymer composite including layered silicates. Appl. Clay Sci. 2002, 21. [Google Scholar] [CrossRef]
  46. Wang, K.; Liang, S.; Du, R.; Zhang, Q.; Fu, Q. The interplay of thermodynamics and shear on the dispersion of polymer nanocomposite. Polymer 2004, 45. [Google Scholar] [CrossRef]
  47. Shi, X.; Gan, Z. Preparation and characterization of poly(propylene carbonate)/montmorillonite nanocomposites by solution intercalation. Eur. Polym. J. 2007, 43. [Google Scholar] [CrossRef]
  48. Dornelas, C.B.; Resende, D.K.; Tavares, M.I.B.; Gomes, A.S.; Cabral, L.M. Preparation and reactional evaluation of formation of PVP K-30 - Montmorillonite (natural and organophilic) by X ray diffraction. Polímeros 2008, 18. [Google Scholar] [CrossRef]
  49. Wang, C.A.; Long, B.; Lin, W.; Huang, Y.; Sun, J. Poly(amic acid)-clay nacrelike composites prepared by electrophoretic deposition. J. Mater. Res. 2008, 23. [Google Scholar] [CrossRef]
  50. Galimberti, M.; Martino, M.; Guenzi, M.; Leonardi, G.; Citterio, A. Thermal stability of ammonium salts as compatibilizers in polymer/layered silicate nanocomposites. E-Polymers 2009. [Google Scholar] [CrossRef]
  51. Buruiana, T.; Melinte, V.; Buruiana, E.C.; Mihai, A. Synthesis and characterization of polyurethane cationomer/MMT hybrid composite. Polym. Int. 2009, 58. [Google Scholar] [CrossRef]
  52. Gao, J.; Guo, N.; Liu, Y.; Li, J.; Hu, H.; Sun, L.; Zhang, X. Effect of compound technology on polyethylene/montmorillonite composites. In Proceedings of the IEEE International Conference on Properties and Applications of Dielectric Materials, Harbin, China, 19–23 July 2009. [Google Scholar]
  53. Soundararajah, Q.Y.; Karunaratne, B.S.B.; Rajapakse, R.M.G. Mechanical properties of poly(vinyl alcohol) montmorillonite nanocomposites. J. Compos. Mater. 2010, 44. [Google Scholar] [CrossRef]
  54. Chang, M.K.; Hsieh, H.H.; Li, S.J. A Study of Thermal Stability and Electromaganetic Shielding Behavior of Polyaniline-P-Toluene Sulfonic Acid/Montmorillonite Nanocomposites. Appl. Mech. Mater. 2011, 52–54, 180–185. [Google Scholar] [CrossRef]
  55. Monsiváis-Barrón, A.J.; Bonilla-Rios, J.; Ramos De Valle, L.F.; Palacios, E. Oxygen permeation properties of HDPE-layered silicate nanocomposites. Polym. Bull. 2013, 70. [Google Scholar] [CrossRef]
  56. Shiravand, F.; Hutchinson, J.M.; Calventus, Y. Influence of the isothermal cure temperature on the nanostructure and thermal properties of an epoxy layered silicate nanocomposite. Polym. Eng. Sci. 2014, 54. [Google Scholar] [CrossRef]
  57. Wooster, T.J.; Abrol, S.; MacFarlane, D.R. Cyanate ester polymerization catalysis by layered-silicates. Polymer 2004, 45. [Google Scholar] [CrossRef]
  58. Jin, X.; Hu, X.; Wang, Q.; Wang, K.; Yao, Q.; Tang, G.; Chu, P.K. Multifunctional cationic polymer decorated and drug intercalated layered silicate (NLS) for early gastric cancer prevention. Biomaterials 2014, 35. [Google Scholar] [CrossRef]
  59. Riaz, U.; Ashraf, S.M.; Verma, A. Influence of Conducting Polymer as Filler and Matrix on the Spectral, Morphological and Fluorescent Properties of Sonochemically Intercalated poly(o-phenylenediamine)/Montmorillonite Nanocomposites. Recent Pat. Nanotechnol. 2016, 10. [Google Scholar] [CrossRef]
  60. Ghosh, S.K.; Rahman, W.; Middya, T.R.; Sen, S.; Mandal, D. Improved breakdown strength and electrical energy storage performance of γ-poly(vinylidene fluoride)/unmodified montmorillonite clay nano-dielectrics. Nanotechnology 2016, 27. [Google Scholar] [CrossRef]
  61. Pu, W.F.; Yang, Y.; Yuan, C.D. Gelation performance of poly(ethylene imine) crosslinking polymer–layered silicate nanocomposite gel system for potential water-shutoff use in high-temperature reservoirs. J. Appl. Polym. Sci. 2016, 133. [Google Scholar] [CrossRef]
  62. Saldābola, R.; Merijs Meri, R.; Zicans, J.; Ivanova, T.; Berzina, R. PC/ABS Nanocomposites with Layered Silicates Obtaining, Structure and Properties. Key Eng. Mater. 2016, 721, 38–42. [Google Scholar] [CrossRef]
  63. Hernandez-Guerrero, O.; Castillo-Pérez, R.; Hernández-Vargas, M.L.; Campillo-Illanes, B.F. Study of Thermal and Mechanical Properties of Clay/Polymer Nanocomposite Synthesized Via Modified Solution Blending. MRS Adv. 2017, 2, 2757–2762. [Google Scholar] [CrossRef]
  64. El-Sheikhy, R.; Al-Shamrani, M. Interfacial bond assessment of clay-polyolefin nanocomposites CPNC on view of mechanical and fracture properties. Adv. Powder Technol. 2017, 28. [Google Scholar] [CrossRef]
  65. İlk, S.; Şener, M.; Vural, M.; Serçe, S. Chitosan/Octadecylamine-Montmorillonite Nanocomposite Containing Nigella arvensis Extract as Improved Antimicrobial Biofilm Against Foodborne Pathogens. Bionanoscience 2018, 8. [Google Scholar] [CrossRef]
  66. Ashok Gandhi, R.; Jayaseelan, V.; Raghunath, B.K.; Palanikumar, K.; Ramachandran, S. Nano indendation hardness testing of PP-CNT composites. Mater. Today Proc. 2019, 16, 1372–1377. [Google Scholar] [CrossRef]
  67. Shuai, C.; Li, Y.; Feng, P.; Yang, W.; Zhao, Z.; Liu, W. Montmorillonite reduces crystallinity of poly-l-lactic acid scaffolds to accelerate degradation. Polym. Adv. Technol. 2019, 30. [Google Scholar] [CrossRef]
  68. Chou, C.C.; Lin, J.J. One-step exfoliation of montmorillonite via phase inversion of amphiphilic copolymer emulsion. Macromolecules 2005, 38. [Google Scholar] [CrossRef]
  69. Attia, N.F.; Nour, M.; Hassan, M.; Mohamed, G.; Oh, H.; Mahmoud, M. Effect of type of organic modifier on the clay layered-based nanocomposites flammability and toxic gases emission. J. Thermoplast. Compos. Mater. 2020. [Google Scholar] [CrossRef]
  70. Zubair, M.; Ullah, A. Recent advances in protein derived bionanocomposites for food packaging applications. Crit. Rev. Food Sci. Nutr. 2020, 60. [Google Scholar] [CrossRef]
  71. Meng, N.; Zhang, M.; Ge, M.Q.; Zhou, N.; Chi, C.; Chu, X.; Sun, B.; Gao, X. Montmorillonite-lecithin-heparin/PDMS films with enhanced mechanical and antithrombogenic properties. Polym. Compos. 2020, 41. [Google Scholar] [CrossRef]
  72. Sheu, Z.; Cheng, Y.B.; Simon, G.P. Sequential and simultaneous melt intercalation of poly(ethylene oxide) and poly(methyl methacrylate) into layered silicates. Macromolecules 2005, 38. [Google Scholar] [CrossRef]
  73. Qin, H.; Zhang, S.; Liu, H.; Xie, S.; Yang, M.; Shen, D. Photo-oxidative degradation of polypropylene/montmorillonite nanocomposites. Polymer 2005, 46. [Google Scholar] [CrossRef]
  74. Rehab, A.; Salahuddin, N. Nanocomposite materials based on polyurethane intercalated into montmorillonite clay. Mater. Sci. Eng. A 2005, 399. [Google Scholar] [CrossRef]
  75. Hao, X.; Gai, G.; Liu, J.; Yang, Y.; Zhang, Y.; Nan, C.W. Flame retardancy and antidripping effect of OMT/PA nanocomposites. Mater. Chem. Phys. 2006, 96. [Google Scholar] [CrossRef]
  76. Zhu, Y.; Wang, B.; Gong, W.; Kong, L.; Jia, Q. Investigation of the hydrogen-bonding structure and miscibility for PU/EP IPN nanecomposites by PALS. Macromolecules 2006, 39. [Google Scholar] [CrossRef]
  77. Román, F.; Montserrat, S.; Hutchinson, J.M. On the effect of montmorillonite in the curing reaction of epoxy nanocomposites. J. Therm. Anal. Calorim. 2007, 87, 113–118. [Google Scholar] [CrossRef]
  78. Vasilev, A.P.; Struchkova, T.S.; Nikiforov, L.A.; Okhlopkova, A.A.; Grakovich, P.N.; Shim, E.L.; Cho, J.H. Mechanical and tribological properties of polytetrafluoroethylene composites with carbon fiber and layered silicate fillers. Molecules 2019, 24, 224. [Google Scholar] [CrossRef]
  79. Wan, Y.; Fan, Y.; Dan, J.; Hong, C.; Yang, S.; Yu, F. A review of recent advances in two-dimensional natural clay vermiculite-based nanomaterials. Mater. Res. Express 2019, 6. [Google Scholar] [CrossRef]
  80. Leont’ev, L.B.; Shapkin, N.P.; Leont’ev, A.L. Effect of the Chemical Composition and Structural Characteristics of Vermiculite-Based Tribotechnical Materials on the Operating Ability of the Coatings Formed. J. Mach. Manuf. Reliab. 2020, 49. [Google Scholar] [CrossRef]
  81. Mittal, V. High CEC generation and surface modification in mica and vermiculite minerals. Philos. Mag. 2013, 93. [Google Scholar] [CrossRef]
  82. Sleptsova, S.A.; Afanas’eva, E.S.; Grigor’eva, V.P. Structure and tribological behavior of polytetrafluoroethylene modified with layered silicates. J. Frict. Wear 2009, 30. [Google Scholar] [CrossRef]
  83. Mehrotra, V.; Giannelis, E.P. Metal-insulator molecular multilayers of electroactive polymers: Intercalation of polyaniline in mica-type layered silicates. Solid State Commun. 1991, 77. [Google Scholar] [CrossRef]
  84. Gaylarde, P.; Gaylarde, C. Deterioration of siliceous stone monuments in Latin America: Microorganisms and mechanisms. Corros. Rev. 2004, 22. [Google Scholar] [CrossRef]
  85. Heinz, H.; Koerner, H.; Anderson, K.L.; Vaia, R.A.; Farmer, B.L. Force field for mica-type silicates and dynamics of octadecylammonium chains grafted to montmorillonite. Chem. Mater. 2005, 17. [Google Scholar] [CrossRef]
  86. Zhang, X.; Lin, G.; Abou-Hussein, R.; Hassan, M.K.; Noda, I.; Mark, J.E. Some novel layered-silicate nanocomposites based on a biodegradable hydroxybutyrate copolymer. Eur. Polym. J. 2007, 43. [Google Scholar] [CrossRef]
  87. Zhang, Y.H.; Su, Q.S.; Yu, L.; Liao, L.B.; Zheng, H.; Huang, H.T.; Zhang, G.G.; Yao, Y.B.; Lau, C.; Chan, H.L.W. Preparation of Low-K Fluorinated Polyimide/Phlogopite Nanocomposites. Adv. Mater. Res. 2008, 47–50, 987–990. [Google Scholar] [CrossRef]
  88. Bae, S.H.; Yoo, S.I.; Bae, W.K.; Lee, S.; Lee, J.K.; Sohn, B.H. Single-layered films of diblock copolymer micelles containing quantum dots and fluorescent dyes and their fluorescence resonance energy transfer. Chem. Mater. 2008, 20. [Google Scholar] [CrossRef]
  89. Miwa, Y.; Drews, A.R.; Schlick, S. Unique structure and dynamics of poly(ethylene oxide) in layered silicate nanocomposites: Accelerated segmental mobility revealed by simulating ESR spectra of spin-labels, XRD, FTIR, and DSC. Macromolecules 2008, 41. [Google Scholar] [CrossRef]
  90. Fujii, K.; Ishihama, Y.; Sakuragi, T.; Ohshima, M.A.; Kurokawa, H.; Miura, H. Heterogeneous catalysts immobilizing α-diimine nickel complexes into fluorotetrasilicic mica interlayers to prepare branched polyethylene from only ethylene. Catal. Commun. 2008, 10. [Google Scholar] [CrossRef]
  91. Pacheco-Torgal, F.; Castro-Gomes, J.; Jalali, S. Tungsten mine waste geopolymeric binder: Preliminary hydration products investigations. Constr. Build. Mater. 2009, 23. [Google Scholar] [CrossRef]
  92. Cheng, H.Y.; Jiang, G.J.; Hung, J.Y. Enhanced mechanical and thermal properties of PS/mica and PMMA/mica nanocomposites by emulsion polymerization. Polym. Compos. 2009, 30. [Google Scholar] [CrossRef]
  93. Tamura, K.; Uno, H.; Yamada, H.; Umeyama, K. Layered silicate-polyamide-6 nanocomposites: Influence of silicate species on morphology and properties. J. Polym. Sci. Part B Polym. Phys. 2009, 47. [Google Scholar] [CrossRef]
  94. Herzog, E.; Caseri, W.; Suter, U.W. Adsorption of polymers with crown ether substituents on muscovite mica. Colloid Polym. Sci. 1994, 272. [Google Scholar] [CrossRef]
  95. Möller, M.W.; Handge, U.A.; Kunz, D.A.; Lunkenbein, T.; Altstädt, V.; Breu, J. Tailoring shear-stiff, mica-like nanoplatelets. ICS Nano 2010, 4, 717–724. [Google Scholar] [CrossRef]
  96. Lin, J.J.; Chan, Y.N.; Lan, Y.F. Hydrophobic modification of layered clays and compatibility for epoxy nanocomposites. Materials 2010, 3, 2588–2605. [Google Scholar] [CrossRef]
  97. Manias, E.; Heidecker, M.J.; Nakajima, H.; Costache, M.C.; Wilkie, C.A. Poly(ethylene terephthalate) nanocomposites using nanoclays modified with thermally stable surfactants. Therm. Stable Flame Retard. Polym. Nanocompos. 2011, 9780521190, 100. [Google Scholar]
  98. Schütz, M.R.; Kalo, H.; Lunkenbein, T.; Gröschel, A.H.; Müller, A.H.E.; Wilkie, C.A.; Breu, J. Shear stiff, surface modified, mica-like nanoplatelets: A novel filler for polymer nanocomposites. J. Mater. Chem. 2011, 21. [Google Scholar] [CrossRef]
  99. Fu, Y.T.; Zartman, G.D.; Yoonessi, M.; Drummy, L.F.; Heinz, H. Bending of layered silicates on the nanometer scale: Mechanism, stored energy, and curvature limits. J. Phys. Chem. C 2011, 115. [Google Scholar] [CrossRef]
  100. Ahmad Rasyid, M.F.; Hazizan, M.A.; Sharif, J.M. Influence of Organo-Clay on Mechanical and Thermal Properties of O-Muscovite/PP Layered Silicate Nanocomposite. Adv. Mater. Res. 2011, 364, 174–180. [Google Scholar] [CrossRef]
  101. Xu, X.; Ding, H.; Wang, Y.B.; Liang, Y.; Jiang, W. Preparation and Characterization of Activated Sericite Modified by Fluorosilicate. Adv. Mater. Res. 2012, 427, 70–76. [Google Scholar] [CrossRef]
  102. Wang, X.Y.; Liu, B.; Tang, Y.F.; Su, H.J.; Han, Y.; Sun, R.C. New progress on rectorite/polymer nanocomposites. Wuji Cailiao Xuebao J. Inorg. Mater. 2012, 27. [Google Scholar] [CrossRef]
  103. Kudus, M.H.A.; Akil, H.M.; Rasyid, M.F.A. Muscovite-MWCNT hybrid as a potential filler for layered silicate nanocomposite. Mater. Lett. 2012, 79. [Google Scholar] [CrossRef]
  104. Mittal, V. Surface modification of layered silicates. II. Factors affecting thermal stability. Philos. Mag. 2012, 92. [Google Scholar] [CrossRef]
  105. Olson, B.G.; Peng, Z.L.; Srithawatpong, R.; McGervey, J.D.; Ishida, H.; Jamieson, A.M.; Manias, E.; Giannelis, E.P. Free volume in layered organosilicate-polystyrene nanocomposites. Mater. Sci. Forum 1997, 255–257. [Google Scholar] [CrossRef]
  106. Livi, S.; Duchet-Rumeau, J.; Gérard, J.F. Effect of ionic liquid modified synthetic layered silicates on thermal and mechanical properties of high density polyethylene nanocomposites. Macromol. Symp. 2014, 342. [Google Scholar] [CrossRef]
  107. Omar, M.F.; Abd Wahab, N.S.; Akil, H.M.; Ahmad, Z.A.; Rasyid, M.F.A.; Noriman, N.Z. Effect of Surface Modification on Strain Rate Sensitivity of Polypropylene/Muscovite Layered Silicate Composites. Mater. Sci. Forum 2014, 803, 343–347. [Google Scholar] [CrossRef]
  108. Omar, M.F.; Jaya, H.; Akil, H.M.; Ahmad, Z.A.; Rasyid, M.F.A.; Noriman, N.Z. Effect of Organic Modification on Dynamic Compression Properties of Polypropylene/Muscovite Layered Silicate Composites. Mater. Sci. Forum 2014, 803, 282–287. [Google Scholar] [CrossRef]
  109. Ding, J.; Huang, Z.; Luo, H.; Qin, Y.; Shi, M. The role of microcrystalline muscovite to enhance thermal stability of boron-modified phenolic resin, structural and elemental studies in boron-modified phenolic resin/ microcrystalline muscovite composite. Mater. Res. Innov. 2015, 19. [Google Scholar] [CrossRef]
  110. Kovalevsky, V.; Shchiptsov, V.; Sadovnichy, R. Unique natural carbon deposits of shungite rocks of Zazhogino Ore Field, Republic of Karelia, Russia. In Proceedings of the International Multidisciplinary Scientific GeoConference Surveying Geology and Mining Ecology Management, SGEM, Albena, 30 June–6 July 2016; Volume 1. [Google Scholar]
  111. Xia, L.; Wu, H.; Guo, S.; Sun, X.; Liang, W. Enhanced sound insulation and mechanical properties of LDPE/mica composites through multilayered distribution and orientation of the mica. Compos. Part A Appl. Sci. Manuf. 2016, 81. [Google Scholar] [CrossRef]
  112. Zhang, X.; Yuan, L.; Guan, Q.; Liang, G.; Gu, A. Greatly improving energy storage density and reducing dielectric loss of carbon nanotube/cyanate ester composites through building a unique tri-layered structure with mica paper. J. Mater. Chem. A 2017, 5. [Google Scholar] [CrossRef]
  113. Michal, O.; Mentlik, V. Influence of Thermal Degradation on the Dielectric Properties of Polymer Composites. In Proceedings of the International Conference on Diagnostics in Electrical Engineering, Diagnostika, Pilsen, Czech Republic, 4–7 September 2018; pp. 1–5. [Google Scholar]
  114. Bae, H.J.; Goh, Y.; Yim, H.; Yoo, S.Y.; Choi, J.W.; Kwon, D.K. Atomically thin, large area aluminosilicate nanosheets fabricated from layered clay minerals. Mater. Chem. Phys. 2019, 221. [Google Scholar] [CrossRef]
  115. Lü, R.; Wang, Y.; Wang, J.; Ren, W.; Li, L.; Liu, S.; Chen, Z.; Li, Y.; Wang, H.; Fu, F. Soliton and bound-state soliton mode-locked fiber laser based on a MoS 2 /fluorine mica Langmuir–Blodgett film saturable absorber. Photonics Res. 2019, 7. [Google Scholar] [CrossRef]
  116. Geke, M.O.; Shelden, R.A.; Caseri, W.R.; Suter, U.W. Ion exchange of cation-terminated poly(ethylene oxide) chains on mica surfaces. J. Colloid Interface Sci. 1997, 189. [Google Scholar] [CrossRef]
  117. Mohammadi, H.; Moghbeli, M.R. Effect of ethylene-1-butene copolymer on tensile properties and toughness of polypropylene/mica/organoclay hybrid nanocomposites. J. Vinyl Addit. Technol. 2019, 25. [Google Scholar] [CrossRef]
  118. Fu, Y.; Wang, Y.; Wang, S.; Gao, Z.; Xiong, C. Enhanced breakdown strength and energy storage of PVDF-based dielectric composites by incorporating exfoliated mica nanosheets. Polym. Compos. 2019, 40. [Google Scholar] [CrossRef]
  119. Mohammadi, H.; Moghbeli, M.R. Polypropylene/organically modified-grafted mica/organoclay hybrid nanocomposites: Preparation, characterization, and mechanical properties. Polym. Compos. 2019, 40. [Google Scholar] [CrossRef]
  120. Wang, B.; Tang, M.; Wu, Y.; Chen, Y.; Jiang, C.; Zhuo, S.; Zhu, S.; Wang, C. A 2D Layered Natural Ore as a Novel Solid-State Electrolyte. ACS Appl. Energy Mater. 2019, 2. [Google Scholar] [CrossRef]
  121. Kuznetsov, V.; Ottermann, K.; Helfricht, N.; Kunz, D.; Loch, P.; Kalo, H.; Breu, J.; Papastavrou, G. Surface charge density and diffuse layer properties of highly defined 2:1 layered silicate platelets. Colloid Polym. Sci. 2020, 298. [Google Scholar] [CrossRef]
  122. Tani, M.; Fukushima, Y. Properties of organic/inorganic hybrid clay-like polymers with epoxy groups. Kobunshi Ronbunshu 2002, 59. [Google Scholar] [CrossRef]
  123. Imai, Y.; Nishimura, S.; Abe, E.; Tateyama, H.; Abiko, A.; Yamaguchi, A.; Aoyama, T.; Taguchi, H. High-modulus poly(ethylene terephthalate)/expandable fluorine mica nanocomposites with a novel reactive compatibilizer. Chem. Mater. 2002, 14. [Google Scholar] [CrossRef]
  124. Maiti, P.; Yamada, K.; Okamoto, M.; Ueda, K.; Okamoto, K. New polylactide/layered silicate nanocomposites: Role of organoclays. Chem. Mater. 2002, 14. [Google Scholar] [CrossRef]
  125. McNally, T.; Murphy, W.R.; Lew, C.Y.; Turner, R.J.; Brennan, G.P. Polyamide-12 layered silicate nanocomposites by melt blending. Polymer 2003, 44. [Google Scholar] [CrossRef]
  126. Sinha Ray, S.; Yamada, K.; Okamoto, M.; Ogami, A.; Ueda, K. New polylactide/layered silicate nanocomposites. 3. High-performance biodegradable materials. Chem. Mater. 2003, 15. [Google Scholar] [CrossRef]
  127. Bokobza, L. Elastomeric composites. I. Silicone composites. J. Appl. Polym. Sci. 2004, 93. [Google Scholar] [CrossRef]
  128. Zhang, D.; Zhou, C.H.; Lin, C.X.; Tong, D.S.; Yu, W.H. Synthesis of clay minerals. Appl. Clay Sci. 2010, 50. [Google Scholar] [CrossRef]
  129. Fukushima, K.; Wu, M.H.; Bocchini, S.; Rasyida, A.; Yang, M.C. PBAT based nanocomposites for medical and industrial applications. Mater. Sci. Eng. C 2012, 32. [Google Scholar] [CrossRef]
  130. Fukushima, K.; Tabuani, D.; Camino, G. Poly(lactic acid)/clay nanocomposites: Effect of nature and content of clay on morphology, thermal and thermo-mechanical properties. Mater. Sci. Eng. C 2012, 32. [Google Scholar] [CrossRef]
  131. Ruiz-Hitzky, E.; Darder, M.; Wicklein, B.; Fernandes, F.M.; Castro-Smirnov, F.A.; Martín del Burgo, M.A.; del Real, G.; Aranda, P. Advanced biohybrid materials based on nanoclays for biomedical applications. In Proceedings of the Nanosystems in Engineering and Medicine; Choi, S.H., Choy, J.-H., Lee, U., Varadan, V.K., Eds.; SPIE: Incheon, Korean, 2012; Volume 8548, p. 85480D. [Google Scholar]
  132. Vahabi, H.; Sonnier, R.; Otazaghine, B.; Le Saout, G.; Lopez-Cuesta, J.M. Nanocomposites of polypropylene/polyamide 6 blends based on three different nanoclays: Thermal stability and flame retardancy. Polim. Polym. 2013, 58. [Google Scholar] [CrossRef]
  133. Ruiz-Hitzky, E.; Aranda, P. Novel architectures in porous materials based on clas. J. Sol-Gel Sci. Technol. 2014, 70, 307–316. [Google Scholar] [CrossRef]
  134. Ruiz-Hitzky, E.; Darder, M.; Alcântara, A.C.S.; Wicklein, B.; Aranda, P. Recent advances on fibrous clay-based nanocomposites. Adv. Polym. Sci. 2014, 267. [Google Scholar] [CrossRef]
  135. Frindy, S.; Primo, A.; Qaiss, A.E.K.; Bouhfid, R.; Lahcini, M.; Garcia, H.; Bousmina, M.; El Kadib, A. Insightful understanding of the role of clay topology on the stability of biomimetic hybrid chitosan-clay thin films and CO2-dried porous aerogel microspheres. Carbohydr. Polym. 2016, 146. [Google Scholar] [CrossRef]
  136. Beyer, G. Nanocomposites: A new class of flame retardants for polymers. Plast. Addit. Compd. 2002, 4, 22–28. [Google Scholar] [CrossRef]
  137. Kojima, Y.; Usuki, A.; Kawasumi, M.; Okada, A.; Kurauchi, T.; Kamigaito, O. Synthesis of nylon 6–clay hybrid by montmorillonite intercalated with ϵ-caprolactam. J. Polym. Sci. Part A Polym. Chem. 1993, 31, 983–986. [Google Scholar] [CrossRef]
  138. Jordan, J.W. Organophilic Bentonites. I. Swelling in Organic Liquids. J. Phys. Colloid Chem. 1949, 53, 294–306. [Google Scholar] [CrossRef]
  139. Weiss, A. Organic Derivatives of Mica-type Layer-Silicates. Angew. Chem. Int. Ed. Engl. 1963, 2, 134–144. [Google Scholar] [CrossRef]
  140. Lan, T.; Kaviratna, P.D.; Pinnavaia, T.J. Mechanism of Clay Tactoid Exfoliation in Epoxy-Clay Nanocomposites. Chem. Mater. 1995, 7, 2144–2150. [Google Scholar] [CrossRef]
  141. Vaia, R.A.; Teukolsky, R.K.; Giannelis, E.P. Interlayer Structure and Molecular Environment of Alkylammonium Layered Silicates. Chem. Mater. 1994, 6, 1017–1022. [Google Scholar] [CrossRef]
  142. Lagaly, G. Interaction of alkylamines with different types of layered compounds. Solid State Ion. 1986, 22, 43–51. [Google Scholar] [CrossRef]
  143. Zanetti, M.; Lomakin, S.; Camino, G. Polymer layered silicate nanocomposites. Macromol. Mater. Eng. 2000, 279, 1–9. [Google Scholar] [CrossRef]
  144. Unalan, I.U.; Cerri, G.; Marcuzzo, E.; Cozzolino, C.A.; Farris, S. Nanocomposite films and coatings using inorganic nanobuilding blocks (NBB): Current applications and future opportunities in the food packaging sector. RSC Adv. 2014, 4, 29393–29428. [Google Scholar] [CrossRef]
  145. Mrah, L.; Meghabar, R. In situ polymerization of styrene–clay nanocomposites and their properties. Polym. Bull. 2020. [Google Scholar] [CrossRef]
  146. Ekielski, A.; Żelaziński, T.; Durczak, K. The use of wavelet analysis to assess the degree of wear of working elements of food extruders. Eksploat. Niezawodn. Maint. Reliab. 2017, 19, 560–564. [Google Scholar] [CrossRef]
  147. Mościcki, L.; van Zuilichem, D.J. Extrusion-Cooking and Related Technique. In Extrusion-Cooking Techniques; Wiley Online Books; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2011; pp. 1–24. ISBN 9783527634088. [Google Scholar]
  148. Vaia, R.A.; Giannelis, E.P. Lattice Model of Polymer Melt Intercalation in Organically-Modified Layered Silicates. Macromolecules 1997, 30, 7990–7999. [Google Scholar] [CrossRef]
  149. Chavarria, F.; Shah, R.K.; Hunter, D.L.; Paul, D.R. Effect of melt processing conditions on the morphology and properties of nylon 6 nanocomposites. Polym. Eng. Sci. 2007, 47, 1847–1864. [Google Scholar] [CrossRef]
  150. Dennis, H.R.; Hunter, D.L.; Chang, D.; Kim, S.; White, J.L.; Cho, J.W.; Paul, D.R. Effect of melt processing conditions on the extent of exfoliation in organoclay-based nanocomposites. Polymer 2001, 42, 9513–9522. [Google Scholar] [CrossRef]
  151. Fornes, T.D.; Paul, D.R. Modeling properties of nylon 6/clay nanocomposites using composite theories. Polymer 2003, 44, 4993–5013. [Google Scholar] [CrossRef]
  152. Lertwimolnun, W.; Vergnes, B. Influence of screw profile and extrusion conditions on the microstructure of polypropylene/organoclay nanocomposites. Polym. Eng. Sci. 2007, 47, 2100–2109. [Google Scholar] [CrossRef]
  153. Fornes, T.; Yoon, P.; Hunter, D.; Keskkula, H.; Paul, D. Effect of organoclay structure on nylon 6 nanocomposite morphology and properties. Polymer 2002, 43, 5915–5933. [Google Scholar] [CrossRef]
  154. Fornes, T.D.; Yoon, P.J.; Keskkula, H.; Paul, D.R. Nylon 6 nanocomposites: The effect of matrix molecular weight. Polymer 2001, 42, 9929–9940. [Google Scholar] [CrossRef]
  155. Cabedo, L.; Villanueva, M.P.; Lagarón, J.M.; Giménez, E. Development and characterization of unmodified kaolinite/EVOH nanocomposites by melt compounding. Appl. Clay Sci. 2017, 135, 300–306. [Google Scholar] [CrossRef]
  156. Chavarria, F.; Paul, D.R. Comparison of nanocomposites based on nylon 6 and nylon 66. Polymer 2004, 45, 8501–8515. [Google Scholar] [CrossRef]
  157. Wang, Z.; Pinnavaia, T.J. Hybrid Organic-Inorganic Nanocomposites: Exfoliation of Magadiite Nanolayers in an Elastomeric Epoxy Polymer. Chem. Mater. 1998, 10. [Google Scholar] [CrossRef]
  158. Ganguly, A.; De Sarkar, M.; Bhowmick, A.K. Thermoplastic elastomeric nanocomposites from poly[styrene-(ethylene-co- butylene)-styrene] triblock copolymer and clay: Preparation and characterization. J. Appl. Polym. Sci. 2006, 100. [Google Scholar] [CrossRef]
  159. Zhu, L.; Wool, R.P. Nanoclay reinforced bio-based elastomers: Synthesis and characterization. Polymer 2006, 47. [Google Scholar] [CrossRef]
  160. Százdi, L.; Pozsgay, A.; Pukánszky, B. Factors and processes influencing the reinforcing effect of layered silicates in polymer nanocomposites. Eur. Polym. J. 2007, 43. [Google Scholar] [CrossRef]
  161. Rehab, A.; Akelah, A.; Agag, T.; Shalaby, N. Polyurethane-nanocomposite materials via in situ polymerization into organoclay interlayers. Polym. Adv. Technol. 2007, 18. [Google Scholar] [CrossRef]
  162. Chu, D.; Nguyen, Q.; Baird, D.G. Effect of matrix molecular weight on the dispersion of nanoclay in unmodified high density polyethylene. Polym. Compos. 2007, 28. [Google Scholar] [CrossRef]
  163. Wilkinson, A.N.; Man, Z.; Stanford, J.L.; Matikainen, P.; Clemens, M.L.; Lees, G.C.; Liauw, C.M. Tensile properties of melt intercalated polyamide 6-Montmorillonite nanocomposites. Compos. Sci. Technol. 2007, 67. [Google Scholar] [CrossRef]
  164. Sarkar, M.; Dana, K.; Ghatak, S.; Banerjee, A. Polypropylene-clay composite prepared from Indian bentonite. Bull. Mater. Sci. 2008, 31. [Google Scholar] [CrossRef]
  165. Kiliaris, P.; Papaspyrides, C.D.; Pfaendner, R. Polyamide 6 filled with melamine cyanurate and layered silicates: Evaluation of flame retardancy and physical properties. Macromol. Mater. Eng. 2008, 293. [Google Scholar] [CrossRef]
  166. Zhang, Y.; Liu, W.; Han, W.; Guo, W.; Wu, C. Preparation and properties of novel natural rubber/ organo-vermiculite nanocomposites. Polym. Compos. 2009, 30. [Google Scholar] [CrossRef]
  167. Schmidt, D.F.; Giannelis, E.P. Silicate dispersion and mechanical reinforcement in polysiloxane/layered silicate nanocomposites. Chem. Mater. 2010, 22. [Google Scholar] [CrossRef]
  168. Lebaron, P.C.; Wang, Z.; Pinnavaia, T.J. Polymer-layered silicate nanocomposites: An overview. Appl. Clay Sci. 1999, 15. [Google Scholar] [CrossRef]
  169. Zhu, L.; Wool, R.P. Bio-based elastomers from soy oil and nanoclay. In Nanocomposites with Biodegradable Polymers; Oxford University Press: Oxford, UK, 2011; Volume 9780199581, pp. 189–208. [Google Scholar]
  170. Lipinska, M.; Hutchinson, J.M. Elastomeric epoxy nanocomposites: Nanostructure and properties. Compos. Sci. Technol. 2012, 72. [Google Scholar] [CrossRef]
  171. Marega, C.; Causin, V.; Saini, R.; Marigo, A.; Meera, A.P.; Thomas, S.; Devi, K.S.U. A direct SAXS approach for the determination of specific surface area of clay in polymer-layered silicate nanocomposites. J. Phys. Chem. B 2012, 116. [Google Scholar] [CrossRef]
  172. Mallakpour, S.; Dinari, M. The effects of reactive organoclay on the thermal, mechanical, and microstructural properties of polymer/layered silicate nanocomposites based on chiral poly(amide-imide)s. J. Therm. Anal. Calorim. 2013, 114. [Google Scholar] [CrossRef]
  173. Stojšic, J.; Raos, P.; Kalendova, A. A study of structure and tensile properties of polyamide 12/clay nanocomposites. Polym. Compos. 2016, 37. [Google Scholar] [CrossRef]
  174. Ghanbari, A.; Heuzey, M.C.; Carreau, P.J.; Ton-That, M.T. Morphology and gas barrier properties of polymer nanocomposites. Polym. Morphol. Princ. Charact. Process. 2016, 394–417. [Google Scholar] [CrossRef]
  175. Rahman, M.R.; Hamdan, S.B.; Hossen, M.F. The effect of clay dispersion on polypropylene nanocomposites: Physico-mechanical, thermal, morphological, and optical properties. In Silica and Clay Dispersed Polymer Nanocomposites; Elsevier: Cambridge, UK, 2018; pp. 201–257. [Google Scholar]
  176. Msekh, M.A.; Cuong, N.H.; Zi, G.; Areias, P.; Zhuang, X.; Rabczuk, T. Fracture properties prediction of clay/epoxy nanocomposites with interphase zones using a phase field model. Eng. Fract. Mech. 2018, 188. [Google Scholar] [CrossRef]
  177. Rauschendorfer, J.E.; Thien, K.M.; Denz, M.; Köster, S.; Ehlers, F.; Vana, P. Tuning the Mechanical Properties of Poly(Methyl Acrylate) via Surface-Functionalized Montmorillonite Nanosheets. Macromol. Mater. Eng. 2021, 306. [Google Scholar] [CrossRef]
  178. Chang, M.-K.; Wei, H.-L.; Wu, K.-S. The Strength and Thermal Stability of Low-Density Polyethylene Grafted Maleic Anhydride/Montmorillonite Nanocomposites. Adv. Sci. Lett. 2012, 13, 240–244. [Google Scholar] [CrossRef]
  179. Kuchta, F.D.; Lemstra, P.J.; Keller, A.; Batenburg, L.F.; Fischer, H.R. Polymer crystallization studied in confined dimensions using nanocomposites from polymers and layered minerals. Mater. Res. Soc. Symp. Proc. 2000, 628. [Google Scholar] [CrossRef]
  180. Filippone, G.; Dintcheva, N.T.; Acierno, D.; La Mantia, F.P. The role of organoclay in promoting co-continuous morphology in high-density poly(ethylene)/poly(amide) 6 blends. Polymer 2008, 49, 1312–1322. [Google Scholar] [CrossRef]
  181. Tillekeratne, M.; Jollands, M.; Cser, F.; Bhattacharya, S.N. Role of mixing parameters in the preparation of poly(ethylene vinyl acetate) nanocomposites by melt blending. J. Appl. Polym. Sci. 2006, 100, 2652–2658. [Google Scholar] [CrossRef]
  182. Liao, B.; Song, M.; Liang, H.; Pang, Y. Polymer-layered silicate nanocomposites. 1. A study of poly(ethylene oxide)/Na+-montmorillonite nanocomposites as polyelectrolytes and polyethylene-block-poly(ethylene glycol) copolymer/Na+-montmorillonite nanocomposites as fillers for reinforcement of po. Polymer 2001, 42. [Google Scholar] [CrossRef]
  183. Lim, S.K.; Lim, S.T.; Kim, H.B.; Chin, I.; Choi, H.J. Preparation and Physical Characterization of Polyepichlorohydrin Elastomer/Clay Nanocomposites. J. Macromol. Sci. Phys. 2003, 42. [Google Scholar] [CrossRef]
  184. Li, X.; Mishra, J.K.; Seul, S.D.; Kim, I.; Ha, C.S. Microstructure and properties of poly (butylene terephthalate) based nanocomposites. Compos. Interfaces 2004, 11, 335–346. [Google Scholar] [CrossRef]
  185. Ahmadi, S.J.; Huang, Y.D.; Li, W. Synthetic routes, properties and future applications of polymer-layered silicate nanocomposites. J. Mater. Sci. 2004, 39. [Google Scholar] [CrossRef]
  186. Song, L.; Hu, Y.; Tang, Y.; Zhang, R.; Chen, Z.; Fan, W. Study on the properties of flame retardant polyurethane/organoclay nanocomposite. Polym. Degrad. Stab. 2005, 87. [Google Scholar] [CrossRef]
  187. Li, J.; Zhao, L.; Guo, S. Ultrasonic preparation of polymer/layered silicate nanocomposites during extrusion. Polym. Bull. 2005, 55. [Google Scholar] [CrossRef]
  188. Chang, M.-K. Mechanical properties and thermal stability of low-density polyethylene grafted maleic anhydride/montmorillonite nanocomposites. J. Ind. Eng. Chem. 2015, 27, 96–101. [Google Scholar] [CrossRef]
  189. Sinha Ray, S.; Okamoto, M. Biodegradable polylactide and its nanocomposites: Opening a new dimension for plastics and composites. Macromol. Rapid Commun. 2003, 24. [Google Scholar] [CrossRef]
  190. Vlasveld, D.P.N.; Daud, W.; Bersee, H.E.N.; Picken, S.J. Continuous fibre composites with a nanocomposite matrix: Improvement of flexural and compressive strength at elevated temperatures. Compos. Part A Appl. Sci. Manuf. 2007, 38. [Google Scholar] [CrossRef]
  191. Akbari, B.; Bagheri, R. Deformation mechanism of epoxy/clay nanocomposite. Eur. Polym. J. 2007, 43. [Google Scholar] [CrossRef]
  192. Yamagata, S.; Iida, J.; Watari, F. FRP Esthetic Orthodontic Wire and Development of Matrix Strengthening with Poly(methyl methacrylate)/Montmorillonite Nanocomposite. In Handbook of Polymernanocomposites. Processing, Performance and Application; Springer: Berlin/Heidelberg, Germany, 2014; pp. 319–328. ISBN 9783642386497. [Google Scholar]
  193. Tasan, C.C.; Kaynak, C. Mechanical performance of resol type phenolic resin/layered silicate nanocomposites. Polym. Compos. 2009, 30. [Google Scholar] [CrossRef]
  194. Inglis, C.E. Stress in a plate due to the presence of cracks and sharp corners. Trans. R. Inst. Nav. Archit. 1913, 60, 219–241. [Google Scholar]
  195. Griffith, A.A. The Phenomena of Rupture and Flow in Solids. Philos. Trans. R. Soc. London Ser. A 1921, 221, 163–198. [Google Scholar]
  196. Irwin, G.R. Analysis of stresses and strains near the end of a crack traversing a plate. J. Appl. Mech. 1957, 24, 361–364. [Google Scholar] [CrossRef]
  197. Westergaard, H.M. Bearing Pressures and Cracks. J. Appl. Mech. 1939, 6, 49–53. [Google Scholar] [CrossRef]
  198. Wells, A.A. Application of fracture mechanics at and beyond general yielding. Br. Weld. J. 1961, 11, 563–570. [Google Scholar]
  199. Rice, J.R. A path independent integral and the approximate analysis of strain concentrations by notches and cracks. J. Appl. Mech. 1968, 35, 379–389. [Google Scholar] [CrossRef]
  200. Broberg, K.B. On stable crack growth. J. Mech. Phys. Solids 1975, 23, 443–445. [Google Scholar] [CrossRef]
  201. Broberg, K.B. Crack-Growth Criteria and Non-linear Fracture Mechanics. J. Mech. Phys. Solids 1971, 19, 407. [Google Scholar] [CrossRef]
  202. Cotterell, B.; Reddel, J.K. The Essential Work of Plane Stress Ductile Fracture. Int. J. Fract. 1977, 13, 267–277. [Google Scholar]
  203. Mai, Y.W.; Cotterell, B. The Essential Work of fracture for tearing of ductile metals. Int. J. Fract. 1984, 24, 229–236. [Google Scholar] [CrossRef]
  204. Paton, C.A.; Hashemi, S. Plane-stress essential work of ductile fracture for polycarbonate. J. Mater. Sci. 1992, 27, 2279–2290. [Google Scholar] [CrossRef]
  205. Wu, J.; Mai, Y.W. Cotterell Fracture toughness and fracture mechanisms of PBT/PC/IM blend (Part I: Fracture properties). J. Mater. Sci. 1993, 28, 3373–3384. [Google Scholar] [CrossRef]
  206. Sanchez, J.J.; Santana, O.O.; Gordillo, A.; Maspoch, M.L.; Martinez, A.B. Essential work of fracture of injection moulded samples of PET and PET/PC blends. Fract. Polym. Compos. Adhes. 2003, 32, 77–88. [Google Scholar]
  207. Pardoen, T.; Marchal, Y.; Delannay, F. Essential work of fracture compared to fracture mechanics—towards a thickness independent plane stress toughness. Eng. Fract. Mech. 2002, 69, 617–631. [Google Scholar] [CrossRef]
  208. Rae, P.J.; Brown, E.N.; Orler, E.B. The mechanical properties of poly(ether-ether-ketone) (PEEK) with emphasis on the large compressive strain response. Polymer 2007, 48, 598–615. [Google Scholar] [CrossRef]
  209. Arkhireyeva, A.; Hashemi, S. Fracture behaviour of polyethylene naphthalate (PEN). Polymer 2002, 43, 289–300. [Google Scholar] [CrossRef]
  210. Knockaert, R.; Doghri, I.; Marchal, Y.; Pardoen, T.; Delannay, F. Experimental and numerical investigation of fracture in double-edge notched steel plates. Int. J. Fract. 1996, 81, 383–399. [Google Scholar] [CrossRef]
  211. Cotterell, B.; Pardoen, T.; Atkins, A.G. Measuring toughness and the cohesive stress-displacement relationship by the essential work of fracture concept. Eng. Fract. Mech. 2005, 72, 827–848. [Google Scholar] [CrossRef]
  212. Chen, Y.H.; Mai, Y.W.; Tong, P.; Zhang, L.C. Numerical Simulation of the Essential Fracture Work Method. In Fracture of Polymers, Composites and Adhesion; Williams, J.G., Pavan, A., Eds.; Elsevier: Amsterdam, The Netherlands, 2000; Volume 27, p. 175. [Google Scholar]
  213. Chen, H.B.; Wu, J.S. Understanding the underlying physics of the essential work of fracture on the molecular level. Macromolecules 2007, 40, 4322–4326. [Google Scholar] [CrossRef]
  214. Kwon, H.J.; Jar, P.Y.B. Fracture toughness of polymers in shear mode. Polymer 2005, 46, 12480–12492. [Google Scholar] [CrossRef]
  215. Kwon, H.J.; Jar, P.Y.B. Toughness of high-density polyethylene in shear fracture. Int. J. Fract. 2007, 145, 123–133. [Google Scholar] [CrossRef]
  216. Kim, H.S.; Karger-Kocsis, J. Tearing resistance of some co-polyester sheets. Acta Mater. 2004, 52, 3123–3133. [Google Scholar] [CrossRef]
  217. Wong, J.S.S.; Ferrer-Balas, D.; Li, R.K.Y.; Mai, Y.W.; Maspoch, M.L.; Sue, H.J. On tearing of ductile polymer films using the essential work of fracture (EWF) method. Acta Mater. 2003, 51, 4929–4938. [Google Scholar] [CrossRef]
  218. Schuller, T.; Lauke, B. Finite-element simulation of interfacial crack propagation: Methods and tools for the complete failure process under large scale yielding. Eng. Fract. Mech. 2006, 73, 2252–2263. [Google Scholar] [CrossRef]
  219. Haughie, D.W.; Buckley, C.P.; Wu, J.J. The integrity of welded interfaces in ultra-high molecular weight polyethylene: Part 2 - Interface toughness. Biomaterials 2006, 27, 3875–3881. [Google Scholar] [CrossRef]
  220. Gray, A. Testing protocol for Essential Work of Fracture. ESIS-TC4 1993. [Google Scholar]
  221. Hill, R. On discontinuous plastic states, with special reference to localized necking in thin sheets. Journa Mech. Phys. Solids 1952, 1, 19–30. [Google Scholar] [CrossRef]
  222. Clutton, E.Q. ESIS TC4 experience with the essential work of fracture method. In European Structural Integrity Society; Williams, J.G., Pavan, A., Eds.; Elsevier Science, Ltd.: Oxford, LB, USA, 2000; Volume 27, pp. 187–199. [Google Scholar]
  223. Maspoch, M.L.; Gamez-Perez, J.; Gordillo, A.; Sánchez-Soto, M.; Velasco, J.I. Characterisation of injected EPBC plaques using the essential work of fracture (EWF) method. Polymer 2002, 43, 4177–4183. [Google Scholar] [CrossRef]
  224. Maspoch, M.L.; Santana, O.O.; Cailloux, J.; Franco-Urquiza, E.; Rodriguez, C.; Belzunce, J.; Martínez, A.B. Ductile-brittle transition behaviour of PLA/o-MMT films during the physical aging process. Express Polym. Lett. 2015, 9, 185–195. [Google Scholar] [CrossRef]
  225. Martínez, A.B.; Segovia, A.; Gamez-Perez, J.; Maspoch, M.L. Essential work of fracture (EWF) analysis of the tearing of a ductile polymer film. Eng. Fract. Mech. 2010, in press. [Google Scholar] [CrossRef]
  226. Pettarin, V.; Frontini, P.M.; Elicabe, G.E. Optimal ligament lengths in impact fracture toughness estimation by the essential work of fracture method. Polym. Test. 2005, 24, 189–196. [Google Scholar] [CrossRef]
  227. Tjong, S.C.; Bao, S.P. Impact fracture toughness of polyamide-6/montmorillonite nanocomposites toughened with a maleated styrene/ethylene butylene/styrene elastomer. J. Polym. Sci. Part B Polym. Phys. 2005, 43. [Google Scholar] [CrossRef]
  228. Ozkoc, G.; Bayram, G.; Bayramli, E. Impact essential work of fracture toughness of ABS/polyamide-6 blends compatibilized with olefin based copolymers. J. Mater. Sci. 2008, 43, 2642–2652. [Google Scholar] [CrossRef]
  229. Bao, S.P.; Tjong, S.C. Fracture characterization of high density polyethylene/organoclay nanocomposites toughened with SEBS-g-MA. Key Eng. Mater. 2006, 312, 187–192. [Google Scholar] [CrossRef]
  230. Fayolle, B.; Tcharkhtchi, A.; Verdu, J. Temperature and molecular weight dependence of fracture behaviour of polypropylene films. Polym. Test. 2004, 23, 939–947. [Google Scholar] [CrossRef]
  231. Wainstein, J.; Fasce, L.A.; Cassanelli, A.; Frontini, P.M. High rate toughness of ductile polymers. Eng. Fract. Mech. 2007, 74, 2070–2083. [Google Scholar] [CrossRef]
  232. Saminathan, K.; Selvakumar, P.; Bhatnagar, N. Fracture studies of polypropylene/nanoclay composite. Part I: Effect of loading rates on essential work of fracture. Polym. Test. 2008, 27, 296–307. [Google Scholar] [CrossRef]
  233. Saminathan, K.; Selvakumar, P.; Bhatnagar, N. Fracture studies of polypropylene/nanoclay composite. Part II: Failure mechanism under fracture loads. Polym. Test. 2008, 27, 453–458. [Google Scholar] [CrossRef]
  234. Santana, O.O.; Maspoch, M.L.; Martinez, A.B. Plane strain essential work of fracture in SENB geometry at low and high strain rates of PC/ABS blends. Polym. Bull. 1997, 39, 511–518. [Google Scholar] [CrossRef]
  235. Maspoch, M.L.; Gamez-Perez, J.; Karger-Kocsis, J. Effects of thickness, deformation rate and energy partitioning on the work of fracture parameters of uPVC films. Polym. Bull. 2003, 50, 279–286. [Google Scholar] [CrossRef]
  236. Arkhireyeva, A.; Hashemi, S. Effect of temperature on work of fracture parameters in poly(ether-ether ketone) (PEEK) film. Eng. Fract. Mech. 2004, 71, 789–804. [Google Scholar] [CrossRef]
  237. Arkhireyeva, A.; Hashemi, S. Combined effect of temperature and thickness on work of fracture parameters of unplasticized PVC film. Polym. Eng. Sci. 2002, 42, 504–518. [Google Scholar] [CrossRef]
  238. Korsunsky, A.M.; Kim, K. Determination of essential work of necking and tearing from a single tensile test. Int. J. Fract. 2005, 132, L37–L44. [Google Scholar] [CrossRef]
  239. Korsunsky, A.M.; Nguyen, G.D.; Houlsby, G.T. Analysis of essential work of rupture using non-local damage-plasticity modelling. Int. J. Fract. 2005, 135, L19–L26. [Google Scholar] [CrossRef]
  240. Karger-Kocsis, J.; Ferrer-Balas, D. On the plane-strain essential work of fracture of polymer sheets. Polym. Bull. 2001, 46, 507–512. [Google Scholar] [CrossRef]
  241. Kwon, H.J.; Jar, P.Y.B. New energy partitioning approach to the measurement of plane-strain fracture toughness of high-density polyethylene based on the concept of essential work of fracture. Eng. Fract. Mech. 2007, 74, 2471–2480. [Google Scholar] [CrossRef]
  242. Kwon, H.J.; Jar, R.Y.B. Application of essential work of fracture concept to toughness characterization of high-density polyethylene. Polym. Eng. Sci. 2007, 47, 1327–1337. [Google Scholar] [CrossRef]
  243. Pegoretti, A.; Ricco, T. On the essential work of fracture of neat and rubber toughened polyamide-66. Eng. Fract. Mech. 2006, 73, 2486–2502. [Google Scholar] [CrossRef]
  244. Martinez, A.B.; Segovia, A.; Gamez-Perez, J.; Maspoch, M.L. Influence of femtolaser notch sharpening technique in the determination of essential work of fracture (EWF) parameters. Eng. Fract. Mech. 2009, 76, 1247–1254. [Google Scholar] [CrossRef]
  245. Maspoch, M.L.; Ferrer, D.; Gordillo, A.; Santana, O.O. Effect of the Specimen Dimensions and the test Speed on the Fracture Toughness of iPP by the Essential Work of Fracture (EWF) Method. J. Appl. Polym. Sci. 1999, 73, 177–187. [Google Scholar] [CrossRef]
  246. Gamez-Perez, J.; Santana, O.; Martinez, A.B.; Maspoch, M.L. Use of extensometers on essential work of fracture (EWF) tests. Polym. Test. 2008, 27, 491–497. [Google Scholar] [CrossRef]
  247. Fung, K.L.; Li, R.K.Y. A study on the fracture characteristics of rubber toughened poly(ethylene terephthalate) blends. Polym. Test. 2005, 24, 863–872. [Google Scholar] [CrossRef]
  248. Mai, Y.-W.; Cotterell, B.; Horlyck, R.; Vigna, G. The essential Work of Plane Stress Ductile Fracture of Linear Polyethylenes. Polym. Eng. Sci. 1987, 27, 804. [Google Scholar] [CrossRef]
  249. Karger-Kocsis, J.; Czigány, T.; Moskala, E.J. Thickness Dependence of work of fracture Parameters of an Amorphous Copolyester. Polymer 1997, 38, 4587. [Google Scholar] [CrossRef]
  250. Ferrer-Balas, D.; Maspoch, M.L.; Martínez, A.B.; Santana, O.O. On the essential work of fracture method: Energy partitioning of the fracture process in iPP films. Polym. Bull. 1999, 42, 101–108. [Google Scholar] [CrossRef]
  251. Ferrer-Balas, D.; Maspoch, M.L.; Martinez, A.B.; Santana, O.O. Influence of annealing on the microstructural, tensile and fracture properties of polypropylene films. Polymer 2001, 42, 1697–1705. [Google Scholar] [CrossRef]
  252. Casellas, J.J.; Frontini, P.M.; Carella, J.M. Fracture characterization of low-density polyethylenes by the essential work of fracture: Changes induced by thermal treatments and testing temperature. J. Appl. Polym. Sci. 1999, 74, 781–796. [Google Scholar] [CrossRef]
  253. Ho, C.H.; Vu-Khanh, T. Physical aging and time-temperature behavior concerning fracture performance of polycarbonate. Theor. Appl. Fract. Mech. 2004, 41, 103–114. [Google Scholar] [CrossRef]
  254. Kayano, Y.; Keskkula, H.; Paul, D.R. Fracture behaviour of some rubber-toughened nylon 6 blends. Polymer 1998, 39, 2835–2845. [Google Scholar] [CrossRef]
  255. Van der Wal, A.; Mulder, J.J.; Thijs, H.A.; Gaymans, R.J. Fracture of polypropylene: 1. The effect of molecular weight and temperature at low and high test speed. Polymer 1998, 39, 5467–5475. [Google Scholar] [CrossRef]
  256. Yamakawa, R.S.; Razzinoa, C.A.; Correab, C.A.; Hage, E., Jr. Influence of notching and molding conditions on determination of EWF parameters in polyamide 6. Polym. Test. 2004, 23, 195–202. [Google Scholar] [CrossRef]
  257. Baldi, F.; Bignotti, F.; Fina, A.; Tabuani, D.; Riccò, T. Mechanical characterization of polyhedral oligomeric silsesquioxane/ polypropylene blends. J. Appl. Polym. Sci. 2007, 105. [Google Scholar] [CrossRef]
  258. Arencon, D.; Velasco, J.I.; Realinho, V.; Sanchez-Soto, M.; Gordillo, A. Fracture toughness of glass microsphere-filled polypropylene and polypropylene/poly (ethylene terephthalate-co-isophthalate) blend-matrix composites. J. Mater. Sci. 2007, 42, 19–29. [Google Scholar] [CrossRef]
  259. Nekhlaoui, S.; Essabir, H.; Bensalah, M.O.; Fassi-Fehri, O.; Qaiss, A.; Bouhfid, R. Fracture study of the composite using essential work of fracture method: PP-SEBS-g-MA/E1 clay. Mater. Des. 2014, 53. [Google Scholar] [CrossRef]
  260. Maspoch, M.L.; Franco-Urquiza, E.; Gamez-Perez, J.; Santana, O.O.; Sánchez-Soto, M. Fracture behaviour of poly[ethylene-(vinyl alcohol)]/organo-clay composites. Polym. Int. 2009, 58. [Google Scholar] [CrossRef]
  261. Ganß, M.; Staudinger, U.; Satapathy, B.K.; Leuteritz, A.; Weidisch, R. Mechanism of strengthening and toughening of a nanostructured styrene-butadiene based block copolymer by oligostyrene-modified montmorillonites. Polymer 2021, 213, 123328. [Google Scholar] [CrossRef]
  262. Bao, S.P.; Tjong, S.C. Impact essential work of fracture of polypropylene / montmorillonite nanocomposites toughened with SEBS-g-MA elastomer. Compos. Part A Appl. Sci. Manuf. 2007, 38, 378–387. [Google Scholar] [CrossRef]
  263. Bureau, M.N.; Perrin-sarazin, F. Essential work of fracture and failure mechanisms of polypropylene–clay nanocomposites. Eng. Fract. Mech. 2006, 73, 2360–2374. [Google Scholar] [CrossRef]
  264. Lim, J.W.; Hassan, A.; Rahmat, A.R.; Wahit, M.U. Mechanical behaviour and fracture toughness evaluation of rubber toughened polypropylene nanocomposites. Plast. Rubber Compos. 2006, 35, 37–46. [Google Scholar] [CrossRef]
  265. Bureau, M.N.; Perrin-Sarazin, F.; Ton-That, M.T. Polyolefin nanocomposites: Essential work of fracture analysis. Polym. Eng. Sci. 2004, 44, 1142–1151. [Google Scholar] [CrossRef]
  266. Tjong, S.C.; Ruan, Y.H. Fracture behavior of thermoplastic polyolefin/clay nanocomposites. J. Appl. Polym. Sci. 2008, 110. [Google Scholar] [CrossRef]
  267. Pedrazzoli, D.; Tuba, F.; Khumalo, V.M.; Pegoretti, A.; Karger-Kocsis, J. Mechanical and rheological response of polypropylene/boehmite nanocomposites. J. Reinf. Plast. Compos. 2014, 33. [Google Scholar] [CrossRef]
  268. Turcsán, T.; Mészáros, L.; Khumalo, V.M.; Thomann, R.; Karger-Kocsis, J. Fracture behavior of boehmite-filled polypropylene block copolymer nanocomposites as assessed by the essential work of fracture concept. J. Appl. Polym. Sci. 2014, 131. [Google Scholar] [CrossRef]
  269. Karger-Kocsis, J.; Khumalo, V.M.; Bárány, T.; Mészáros, L.; Pegoretti, A. On the toughness of thermoplastic polymer nanocomposites as assessed by the essential work of fracture (EWF) approach. Compos. Interfaces 2013, 20, 395–404. [Google Scholar] [CrossRef]
  270. Wang, L.; Xie, B.H.; Yang, W.; Yang, M.B. Grafted polyolefin-coated synthetic mica-filled polypropylene-co-ethylene composites: A study on the interfacial morphology and properties. J. Macromol. Sci. Part B Phys. 2010, 49. [Google Scholar] [CrossRef]
  271. Fu, Z.; Dai, W.; Yu, H.; Zou, X.; Chen, B. Effect of composition on fracture behavior of polypropylene-wollastonite- polyolefin elastomer system. J. Mater. Sci. 2011, 46. [Google Scholar] [CrossRef]
  272. Mouzakis, D.E.; Papanicolaou, G.C.; Giannadakis, K.; Zuburtikudis, I. On the toughness response of iPP and sPP/MWNT nanocomposites. Strain 2013, 49. [Google Scholar] [CrossRef]
  273. Das, D.; Satapathy, B.K. Designing tough and fracture resistant polypropylene/multi wall carbon nanotubes nanocomposites by controlling stereo-complexity and dispersion morphology. Mater. Des. 2014, 54. [Google Scholar] [CrossRef]
  274. Khodabandelou, M.; Razavi Aghjeh, M.K.; Mazidi, M.M. Fracture toughness and failure mechanisms in un-vulcanized and dynamically vulcanized PP/EPDM/MWCNT blend-nanocomposites. RSC Adv. 2015, 5. [Google Scholar] [CrossRef]
  275. Khodabandelou, M.; Razavi Aghjeh, M.K.; Khonakdar, H.A.; Mehrabi Mazidi, M. Effect of localization of carbon nanotubes on fracture behavior of un-vulcanized and dynamically vulcanized PP/EPDM/MWCNT blend-nanocomposites. Compos. Sci. Technol. 2017, 149. [Google Scholar] [CrossRef]
  276. Satapathy, B.K.; Ganß, M.; Weidisch, R.; Po, P.; Jehnichen, D.; Keller, T.; Jandt, K.D. Ductile-to-Semiductile Transition in PP-MWNT Nanocomposites. Macromol. Rapid Commun. 2007, 28, 834–841. [Google Scholar] [CrossRef]
  277. Haghnegahdar, M.; Naderi, G.; Ghoreishy, M.H.R. Fracture toughness and deformation mechanism of un-vulcanized and dynamically vulcanized polypropylene/ethylene propylene diene monomer/graphene nanocomposites. Compos. Sci. Technol. 2017, 141. [Google Scholar] [CrossRef]
  278. Zhang, H.; Zhang, Z.; Park, H.W.; Zhu, X. Influence of surface-modified TiO2 nanoparticles on fracture behavior of injection molded polypropylene. Front. Mater. Sci. China 2008, 2. [Google Scholar] [CrossRef]
  279. Hajibabazadeh, S.; Razavi Aghjeh, M.K.; Palahang, M. Study on the fracture toughness and deformation micro-mechanisms of PP/EPDM/SiO2 ternary blend-nanocomposites. J. Compos. Mater. 2020, 54. [Google Scholar] [CrossRef]
  280. Tjong, S.C.; Bao, S.P. Fracture toughness of high density polyethylene/SEBS-g-MA/montmorillonite nanocomposites. Compos. Sci. Technol. 2007, 67. [Google Scholar] [CrossRef]
  281. Franco-Urquiza, E.; Perez, J.G.; Sánchez-Soto, M.; Santana, O.O.; Maspoch, M.L. The effect of organo-modifier on the structure and properties of poly[ethylene-(vinyl alcohol)]/organo-modified montmorillonite composites. Polym. Int. 2010, 59. [Google Scholar] [CrossRef]
  282. Na, S.; Spatari, S.; Hsuan, Y.G. Fracture characterization of recycled high density polyethylene/nanoclay composites using the essential work of fracture concept. Polym. Eng. Sci. 2016, 56. [Google Scholar] [CrossRef]
  283. Pedrazzoli, D.; Ceccato, R.; Karger-Kocsis, J.; Pegoretti, A. Viscoelastic behaviour and fracture toughness of linear-low-density polyethylene reinforced with synthetic boehmite alumina nanoparticles. Express Polym. Lett. 2013, 7. [Google Scholar] [CrossRef]
  284. Costa, F.R.; Satapathy, B.K.; Wagenknecht, U. POLYMER Morphology and fracture behaviour of polyethylene/Mg–Al layered double hydroxide ( LDH) nanocomposites. Eur. Polym. J. 2006, 42, 2140–2152. [Google Scholar] [CrossRef]
  285. Liao, C.Z.; Bao, S.P.; Tjong, S.C. Microstructure and fracture behavior of maleated high-density polyethylene/ silicon carbide nanocomposites toughened with poly(styrene-ethylene-butylene- styrene) triblock copolymer. Adv. Polym. Technol. 2011, 30. [Google Scholar] [CrossRef]
  286. Dorigato, A.; Pegoretti, A. Fracture behaviour of linear low density polyethylene-fumed silica nanocomposites. Eng. Fract. Mech. 2012, 79. [Google Scholar] [CrossRef]
  287. Pedrazzoli, D.; Pegoretti, A.; Thomann, R.; Kristõf, J.; Karger-Kocsis, J. Toughening linear low-density polyethylene with halloysite nanotubes. Polym. Compos. 2015, 36. [Google Scholar] [CrossRef]
  288. Mohsenzadeh, M.S.; Mazinani, M.; Zebarjad, S.M. Evaluation of fracture behavior of polyethylene/CaCO3 nanocomposite using essential work of fracture (EWF) approach. Nanocomposites 2015, 1. [Google Scholar] [CrossRef]
  289. Shir Mohammadi, M.; Hammerquist, C.; Simonsen, J.; Nairn, J.A. The fracture toughness of polymer cellulose nanocomposites using the essential work of fracture method. J. Mater. Sci. 2016, 51. [Google Scholar] [CrossRef]
  290. Tjong, S.C.; Bao, S.P.; Liang, G.D. Polypropylene/montmorillonite nanocomposites toughened with SEBS-g-MA: Structure-property relationship. J. Polym. Sci. Part B Polym. Phys. 2005, 43. [Google Scholar] [CrossRef]
  291. Heidari, F.; Aghalari, M.; Chalabi Tehran, A.; Shelesh-Nezhad, K. Study on the fluidity, mechanical and fracture behavior of ABS/TPU/CNT nanocomposites. J. Thermoplast. Compos. Mater. 2020. [Google Scholar] [CrossRef]
  292. Liao, C.Z.; Tjong, S.C. Effects of carbon nanofibers on the fracture, mechanical, and thermal properties of PP/SEBS-g-MA blends. Polym. Eng. Sci. 2011, 51. [Google Scholar] [CrossRef]
  293. Baldi, F.; Bignotti, F.; Tieghi, G.; Riccò, T. Rubber toughening of polyamide 6/organoclay nanocomposites obtained by melt blending. J. Appl. Polym. Sci. 2006, 99. [Google Scholar] [CrossRef]
  294. Xu, W.; Lv, R.; Na, B.; Tian, N.; Li, Z.; Fu, Q. Micro-FTIR study of molecular orientation at crack tip in nylon 6/clay nanocomposite: Insight into fracture mechanism. J. Phys. Chem. B 2009, 113. [Google Scholar] [CrossRef]
  295. Dayma, N.; Jaggi, H.S.; Satapathy, B.K. Post-yield fracture behaviour of PA-6/LDPE-g-MA/nanoclay ternary nanocomposites: Semiductile-to-ductile transition. J. Polym. Res. 2012, 19. [Google Scholar] [CrossRef]
  296. Dayma, N.; Jaggi, H.S.; Satapathy, B.K. Post-yield crack toughness behavior of polyamide-6/polypropylene grafted maleic anhydride/nanoclay ternary nanocomposites. Mater. Des. 2013, 49. [Google Scholar] [CrossRef]
  297. González, I.; Zabaleta, A.; Eguiazábal, J.I. Toughening and brittle-tough transition in polyamide 12-organoclay/maleated styrene-ethylene-co-butylene-styrene nanocomposites. Polym. Eng. Sci. 2013, 53. [Google Scholar] [CrossRef]
  298. Dayma, N.; Kumar, S.; Das, D.; Satapathy, B.K. Melt-mixed PA-6/LDPE-g-MA/nanoclay ternary nanocomposite: Micro-mechanisms from post-yield fracture kinetics and strain field analysis. Mater. Chem. Phys. 2013, 142. [Google Scholar] [CrossRef]
  299. Nakhaei, M.R.; Naderi, G.; Reza Ghoreishy, M.H. Experimental investigation of mechanical properties, fracture mechanism and crack propagation of PA6/NBR/Clay nanocomposites. Iran. J. Polym. Sci. Technol. 2020, 33. [Google Scholar] [CrossRef]
  300. Fu, L.D.; Chen, S.; Wang, Y.J.; Wang, X.D.; Wang, X. Fracture toughness of polyamide 6/maleated ethylene-propylene-diene terpolymer rubber/nano calcium carbonate ternary composites according to essential work of fracture analysis. J. Appl. Polym. Sci. 2011, 120. [Google Scholar] [CrossRef]
  301. Prashantha, K.; Schmitt, H.; Lacrampe, M.F.; Krawczak, P. Mechanical behaviour and essential work of fracture of halloysite nanotubes filled polyamide 6 nanocomposites. Compos. Sci. Technol. 2011, 71. [Google Scholar] [CrossRef]
  302. Liao, C.Z.; Tjong, S.C. Fracture Toughness of Polyamide 6/ Maleated Styrene-Ethylene-Butylene-Styrene/Silicon Carbide Nanocomposites. Adv. Mater. Res. 2011, 275, 229–233. [Google Scholar] [CrossRef]
  303. Liao, C.Z.; Tjong, S.C. Mechanical and thermal behaviour of polyamide 6/silicon carbide nanocomposites toughened with maleated styrene-ethylene-butylene-styrene elastomer. Fatigue Fract. Eng. Mater. Struct. 2012, 35, 56–63. [Google Scholar] [CrossRef]
  304. Satapathy, B.K.; Weidisch, R.; Po, P.; Janke, A. SCIENCE AND Tough-to-brittle transition in multiwalled carbon nanotube (MWNT)/polycarbonate nanocomposites. Compos. Sci. Technol. 2007, 67, 867–879. [Google Scholar] [CrossRef]
  305. Janke, A. Crack Toughness Behaviour of Multiwalled Carbon Nanotube ( MWNT)/Polycarbonate Nanocomposites. Macromol. Rapid Commun. 2005, 1246–1252. [Google Scholar] [CrossRef]
  306. Rodríguez, C.; Arencón, D.; Belzunce, J.; Maspoch, M.L. Small punch test on the analysis of fracture behaviour of PLA-nanocomposite films. Polym. Test. 2014, 33, 21–29. [Google Scholar] [CrossRef]
  307. Tuba, F.; Khumalo, V.M.; Karger-Kocsis, J. Essential work of fracture of poly(Ïμ-caprolactone)/boehmite alumina nanocomposites: Effect of surface coating. J. Appl. Polym. Sci. 2013, 129. [Google Scholar] [CrossRef]
  308. Arroyo, O.H.; Huneault, M.A.; Favis, B.D.; Bureau, M.N. Processing and properties of PLA/Thermoplastic starch/Montmorillonite nanocomposites. Polym. Compos. 2010, 31. [Google Scholar] [CrossRef]
  309. Ahmad, S.H.; Rasid, R.; Surip, S.N.; Anuar, H.; Czigany, T.; Razak, S.B.A. Mechanical and fracture toughness behavior of TPNR nanocomposites. J. Compos. Mater. 2007, 41. [Google Scholar] [CrossRef]
  310. Penaloza, D.P. Review on the preparation and properties of clay-based nanocomposites with covalently-bound polymer architecture. Philipp. J. Sci. 2019, 148, 813–824. [Google Scholar]
  311. Peres, F.M.; Schon, C.G. Application of the essential work of fracture method in ranking the performance in service of high-density polyethylene resins employed in pressure pipes. J. Mater. Sci. 2008, 43, 1844–1850. [Google Scholar] [CrossRef]
  312. Rodriguez-Gonzalez, F.; Ramsay, B.; Favis, B. High performance LDPE/thermoplastic starch blends: A sustainable alternative to pure polyethylene. Polymer 2003, 44, 1517–1526. [Google Scholar] [CrossRef]
Figure 1. Schematic representation of the arrangement of the platelet stacks that conform to the clay particles.
Figure 1. Schematic representation of the arrangement of the platelet stacks that conform to the clay particles.
Polymers 13 02399 g001
Figure 2. Schematic representation: (a) silicon tetrahedron, (b) magnesium and/or aluminum octahedron. In both cases, a general diagram is presented, a front view and a top view. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i003 magnesium/aluminum. Adapted from https://www.edafologia.net/, last visited 12 May 2021.
Figure 2. Schematic representation: (a) silicon tetrahedron, (b) magnesium and/or aluminum octahedron. In both cases, a general diagram is presented, a front view and a top view. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i003 magnesium/aluminum. Adapted from https://www.edafologia.net/, last visited 12 May 2021.
Polymers 13 02399 g002
Figure 3. Schematic representation of the structural layers of clays: (a) silicon tetrahedron, (b) magnesium and/or aluminum octahedron. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i003 magnesium/aluminum. Adapted from https://www.edafologia.net/, last visited 12 May 2021.
Figure 3. Schematic representation of the structural layers of clays: (a) silicon tetrahedron, (b) magnesium and/or aluminum octahedron. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i003 magnesium/aluminum. Adapted from https://www.edafologia.net/, last visited 12 May 2021.
Polymers 13 02399 g003
Figure 4. Schematic representation from the top view of the planes formed by the union of tetrahedral and octahedral layers. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i004 hydroxyl groups. Adapted from https://www.edafologia.net/, last visited 12 May 2021.
Figure 4. Schematic representation from the top view of the planes formed by the union of tetrahedral and octahedral layers. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i004 hydroxyl groups. Adapted from https://www.edafologia.net/, last visited 12 May 2021.
Polymers 13 02399 g004
Figure 5. Schematic representation of the final structure corresponding to sheet 1:1. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i003 magnesium/aluminum, Polymers 13 02399 i004 hydroxyl groups. Adapted from [9].
Figure 5. Schematic representation of the final structure corresponding to sheet 1:1. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i003 magnesium/aluminum, Polymers 13 02399 i004 hydroxyl groups. Adapted from [9].
Polymers 13 02399 g005
Figure 6. Schematic representation from the top view of the planes: (a) trioctahedral, (b) dioctahedral. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i005 magnesium, Polymers 13 02399 i003 aluminum, Polymers 13 02399 i004 hydroxyl groups. Adapted from https://www.edafologia.net/, last visited 12 May 2021.
Figure 6. Schematic representation from the top view of the planes: (a) trioctahedral, (b) dioctahedral. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i005 magnesium, Polymers 13 02399 i003 aluminum, Polymers 13 02399 i004 hydroxyl groups. Adapted from https://www.edafologia.net/, last visited 12 May 2021.
Polymers 13 02399 g006
Figure 7. Schematic representation of the final structure corresponding to sheet 2:1. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i003 magnesium/aluminum, Polymers 13 02399 i004 hydroxyl groups. Adapted from https://www.edafologia.net/, last visited 12 May 2021.
Figure 7. Schematic representation of the final structure corresponding to sheet 2:1. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i003 magnesium/aluminum, Polymers 13 02399 i004 hydroxyl groups. Adapted from https://www.edafologia.net/, last visited 12 May 2021.
Polymers 13 02399 g007
Figure 8. Schematic representation of the arrangement of the atomic planes: (a) 1:1 trioctahedral sheets, (b) 2:1 trioctahedral sheets, (c) 1:1 dioctahedral sheets, (d) 2:1 dioctahedral sheets. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i003 magnesium/aluminum, Polymers 13 02399 i004 hydroxyl groups. Adapted from https://www.edafologia.net/, last visited 12 May 2021.
Figure 8. Schematic representation of the arrangement of the atomic planes: (a) 1:1 trioctahedral sheets, (b) 2:1 trioctahedral sheets, (c) 1:1 dioctahedral sheets, (d) 2:1 dioctahedral sheets. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i003 magnesium/aluminum, Polymers 13 02399 i004 hydroxyl groups. Adapted from https://www.edafologia.net/, last visited 12 May 2021.
Polymers 13 02399 g008
Figure 9. Schematic representation of the clay structure whose charge balance is maintained by: (a) interchange cations, (b) interlaminar octahedral layer. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i003 magnesium/aluminum, Polymers 13 02399 i004 hydroxyl groups. Schematic sketch based on Beyer [136] with permission from Elsevier.
Figure 9. Schematic representation of the clay structure whose charge balance is maintained by: (a) interchange cations, (b) interlaminar octahedral layer. Polymers 13 02399 i001 oxygen, Polymers 13 02399 i002 silicon, Polymers 13 02399 i003 magnesium/aluminum, Polymers 13 02399 i004 hydroxyl groups. Schematic sketch based on Beyer [136] with permission from Elsevier.
Polymers 13 02399 g009aPolymers 13 02399 g009b
Figure 10. Schematic representation of the configuration of alkylammonium ions within the galleries of clays. Schematic figure based on Lagaly [142] with permission from Elsevier.
Figure 10. Schematic representation of the configuration of alkylammonium ions within the galleries of clays. Schematic figure based on Lagaly [142] with permission from Elsevier.
Polymers 13 02399 g010
Figure 11. Schematic representation of the nanocomposite structures. Schematic figure based on Beyer [136] with permission from Elsevier.
Figure 11. Schematic representation of the nanocomposite structures. Schematic figure based on Beyer [136] with permission from Elsevier.
Polymers 13 02399 g011
Figure 12. Schematic representation of polymer intercalation in solution. Schematic figure based on Zanetti [143] with permission from John Wiley and Sons, and Unalan [144] from RSC Adv. Open Access.
Figure 12. Schematic representation of polymer intercalation in solution. Schematic figure based on Zanetti [143] with permission from John Wiley and Sons, and Unalan [144] from RSC Adv. Open Access.
Polymers 13 02399 g012
Figure 13. Schematic representation of in situ polymerization. Schematic figure based on Zanetti [143] with permission from John Wiley and Sons, and Unalan [144] from RSC Adv. Open Access.
Figure 13. Schematic representation of in situ polymerization. Schematic figure based on Zanetti [143] with permission from John Wiley and Sons, and Unalan [144] from RSC Adv. Open Access.
Polymers 13 02399 g013
Figure 14. Schematic representation of the production process using twin-screw extrusion.
Figure 14. Schematic representation of the production process using twin-screw extrusion.
Polymers 13 02399 g014
Figure 15. Schematic representation of intercalated structures for melt blending. Schematic figure based on Vaia [148] with permission from American Chemical Society, Copyright 1997.
Figure 15. Schematic representation of intercalated structures for melt blending. Schematic figure based on Vaia [148] with permission from American Chemical Society, Copyright 1997.
Polymers 13 02399 g015
Figure 16. Schematic representation of the exfoliation mechanism of the clay platelets during the twin-screw extrusion process: (a) fracture and sliding of the sheets, (b) intercalation, (c) exfoliation. Schematic figure based on Fornes [154] with permission from Elsevier.
Figure 16. Schematic representation of the exfoliation mechanism of the clay platelets during the twin-screw extrusion process: (a) fracture and sliding of the sheets, (b) intercalation, (c) exfoliation. Schematic figure based on Fornes [154] with permission from Elsevier.
Polymers 13 02399 g016
Figure 17. Schematic representation of the effective length and thickness of the clay particles present in nanocomposites with a certain degree of intercalation. Schematic figure based on Fornes [154] and Chavarria [156] with permission from Elsevier.
Figure 17. Schematic representation of the effective length and thickness of the clay particles present in nanocomposites with a certain degree of intercalation. Schematic figure based on Fornes [154] and Chavarria [156] with permission from Elsevier.
Polymers 13 02399 g017
Figure 18. Schematic representation of the three approaches to fracture mechanics: linear-elastic fracture mechanics (LEFM), elasto-plastic fracture mechanics (EPFM) and post-yield fracture mechanics (PYFM). The shaded area represents the extent of the plastic deformation that develops during the fracture process.
Figure 18. Schematic representation of the three approaches to fracture mechanics: linear-elastic fracture mechanics (LEFM), elasto-plastic fracture mechanics (EPFM) and post-yield fracture mechanics (PYFM). The shaded area represents the extent of the plastic deformation that develops during the fracture process.
Polymers 13 02399 g018
Figure 19. Schematic representation of the three modes for crack propagation.
Figure 19. Schematic representation of the three modes for crack propagation.
Polymers 13 02399 g019
Figure 20. Schematic representation of the DDENT specimen: (a) before being tensile tested and (b) after being tensile tested.
Figure 20. Schematic representation of the DDENT specimen: (a) before being tensile tested and (b) after being tensile tested.
Polymers 13 02399 g020
Figure 21. Schematic representation of the EWF fracture process: (a) the shape of the L–d curves, necessary to represent (b) wf vs. and obtain the linear regression.
Figure 21. Schematic representation of the EWF fracture process: (a) the shape of the L–d curves, necessary to represent (b) wf vs. and obtain the linear regression.
Polymers 13 02399 g021
Figure 22. Energy partitioning methods: (a) method at yield, (b) method of initiation.
Figure 22. Energy partitioning methods: (a) method at yield, (b) method of initiation.
Polymers 13 02399 g022
Figure 23. Schematic representation of the different ways in which the plastic zone can develop during the process of fracturing DDENT specimens. Schematic figure based on Ferrer-Balas [251] with permission from Elsevier.
Figure 23. Schematic representation of the different ways in which the plastic zone can develop during the process of fracturing DDENT specimens. Schematic figure based on Ferrer-Balas [251] with permission from Elsevier.
Polymers 13 02399 g023
Figure 24. Schematic representation of the cast film extrusion and the orientation of DDENT specimens in MD and TD. The figure represents the clay particle orientation and its influence on the fracture behavior.
Figure 24. Schematic representation of the cast film extrusion and the orientation of DDENT specimens in MD and TD. The figure represents the clay particle orientation and its influence on the fracture behavior.
Polymers 13 02399 g024

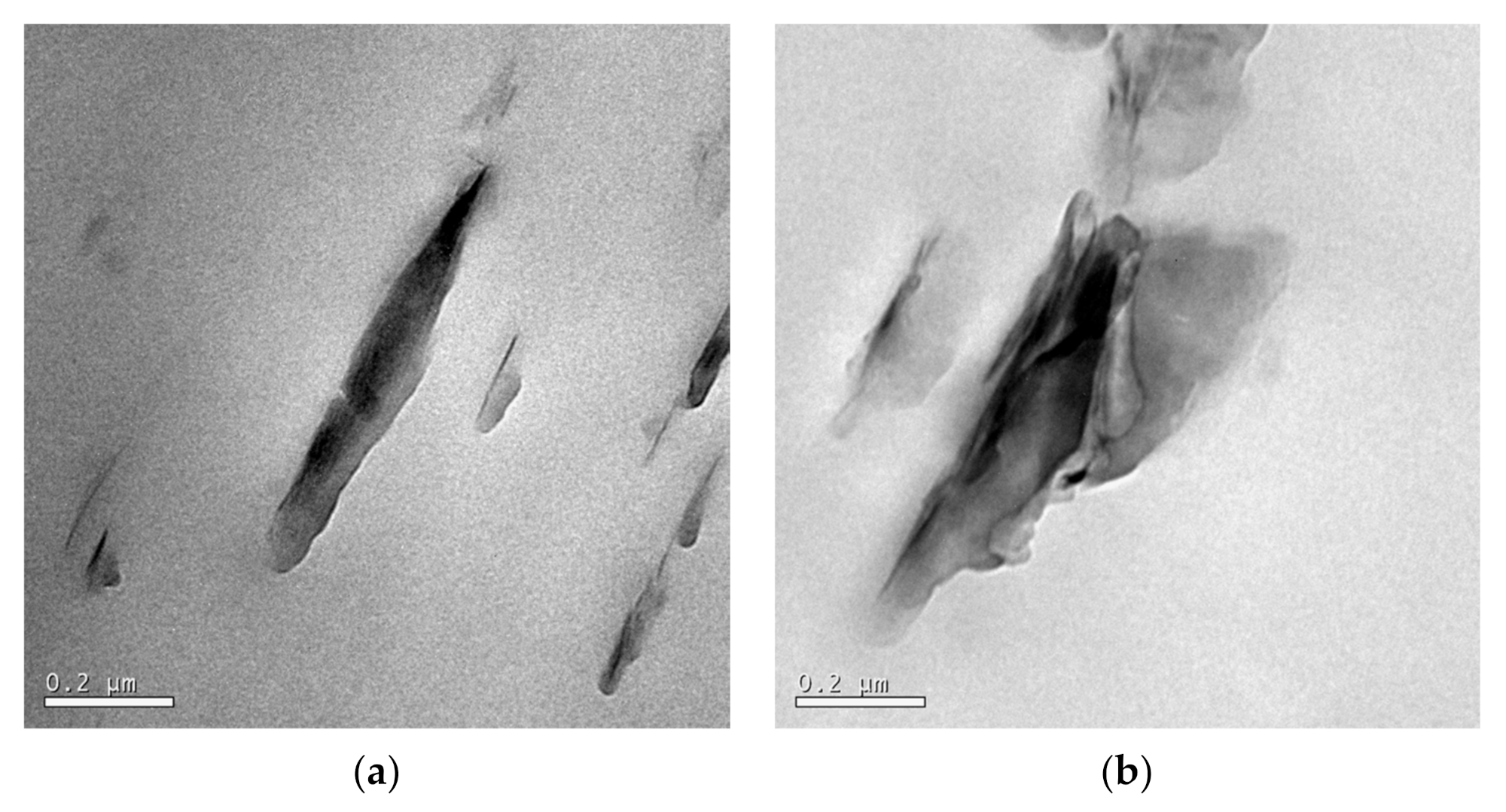

Figure 25. TEM micrographs showing distinct morphologies: (a) laminar, (b) rolled. The micrographs intend to represent the effect of molecular compatibility between polymer and organomodified clays.
Figure 25. TEM micrographs showing distinct morphologies: (a) laminar, (b) rolled. The micrographs intend to represent the effect of molecular compatibility between polymer and organomodified clays.
Polymers 13 02399 g025
Table 1. Classification of clay minerals.
Table 1. Classification of clay minerals.
StructureDioctahedralTrioctahedral
T:OKaolinite group [10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26] Serpentine group [27,28,29]
PyrophylliteTalc
T:O:TSmectite group [30,31,32,33,34,35,36,37,38,39,40,41,42,43,44]
Montmorillonite [45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77]Saponite
BeidelliteHectorite
NontroniteStevensite
Vermiculite group [14,78,79,80,81,82]
Illite
Mica group [81,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102,103,104,105,106,107,108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126]
MuscoviteBiotite
ParagonitePhlogopite
Lepidolite
T:O:T:oChlorite group [127,128,129,130,131,132,133,134,135]
PaligorskiteSepiolite
Table 2. Mechanical properties for clay-based polymer nanocomposites.
Table 2. Mechanical properties for clay-based polymer nanocomposites.
Mechanical TestReferences
Tensile[3,157,158,159,160,161,162,163,164,165,166,167,168,169,170,171,172,173,174,175,176,177,178,179,180,181,182,183,184,185,186,187]
Compression[164,181]
Bending[188,189,190,191,192,193]
Table 3. Issues related to the validity and evaluation of the EWF technique.
Table 3. Issues related to the validity and evaluation of the EWF technique.
IssuesEvaluationReferences
Tested specimensDDENT specimen dimensions.
Use of a video extensometer.
Notch sharpening.
Ligament lengths
[223,224,225,226]
Test conditionsTest rate.
Test temperature
EWF in mode III.
[208,217,227,228,229,230,231,232,233,234]
Analysis of the resultsEnergy partitioning.
Other geometries for β.
we-J0 relationship
[235,236,237,238,239,240,241,242,243,244]
Table 4. Summary of the literature regarding to the EWF method applied to polymer nanocomposites.
Table 4. Summary of the literature regarding to the EWF method applied to polymer nanocomposites.
PolymerFillerReferences
PolypropyleneMontmorillonite clay[232,259,262,263,264,265,266]
Boehmite clay[267,268,269]
mica[270]
Innosilicate[271]
Carbon nanotubes[272,273,274,275,276]
Graphene[277]
Other nanoparticles[257,278,279]
PolyethyleneMontmorillonite clay[260,280,281,282]
Boehmite[283]
Mg–Al layered double hydroxide (LDH)[284]
Other nanoparticles[285,286,287,288,289]
StyreneMontmorillonite clay[290,261]
Carbon nanotubes[291,292]
PolyamideMontmorillonite clay[227,293,294,295,296,297,298,299]
Other nanoparticles[300,301,302,303]
PolycarbonateCarbon nanotubes[304,305]
Biodegradable polymers (PLA and others)Monmorillonite clay[224,306,307,308]
Boehmite[307]
Thermoplastic natural rubber (TPNR)Montmorillonite clay[309]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
