Structure and Doping Optimization of IDT-Based Copolymers for Thermoelectrics
Previous Article in Journal
Detoxification Properties of Guanidinylated Chitosan Against Chemical Warfare Agents and Its Application to Military Protective Clothing
Open AccessArticle

Thermally Tunable Dynamic and Static Elastic Properties of Hydrogel Due to Volumetric Phase Transition

1
Department of Physics, University of North Texas, P.O. Box 311427, Denton, TX 76203, USA
2
Department of Mechanical and Energy Engineering, University of North Texas, 3940 North Elm Suite F101, Denton, TX 76207, USA
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(7), 1462; https://doi.org/10.3390/polym12071462
Received: 27 May 2020 / Revised: 24 June 2020 / Accepted: 28 June 2020 / Published: 30 June 2020
(This article belongs to the Special Issue Functional, High Modulus Polymer Based Organic/Inorganic Composites)

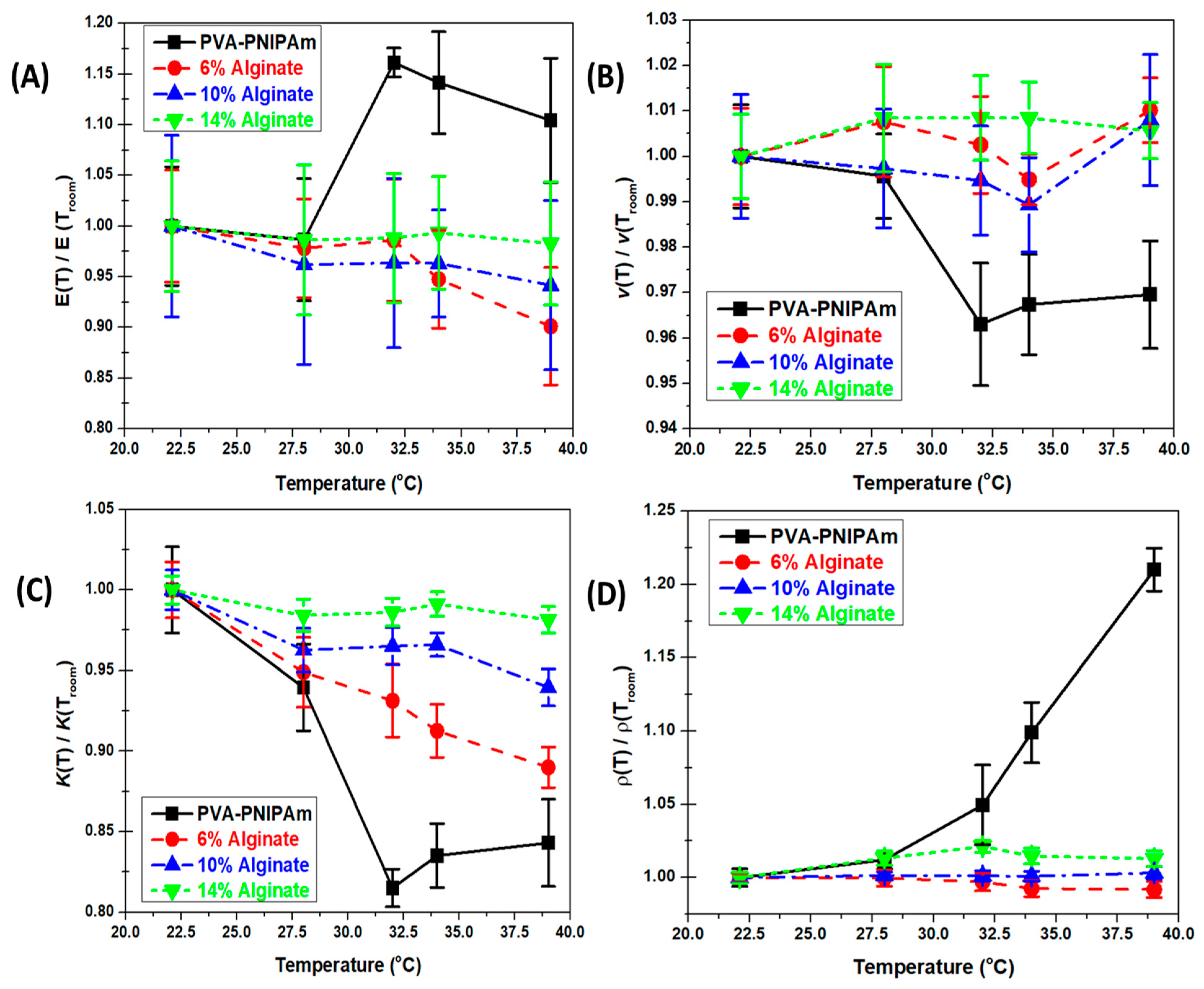

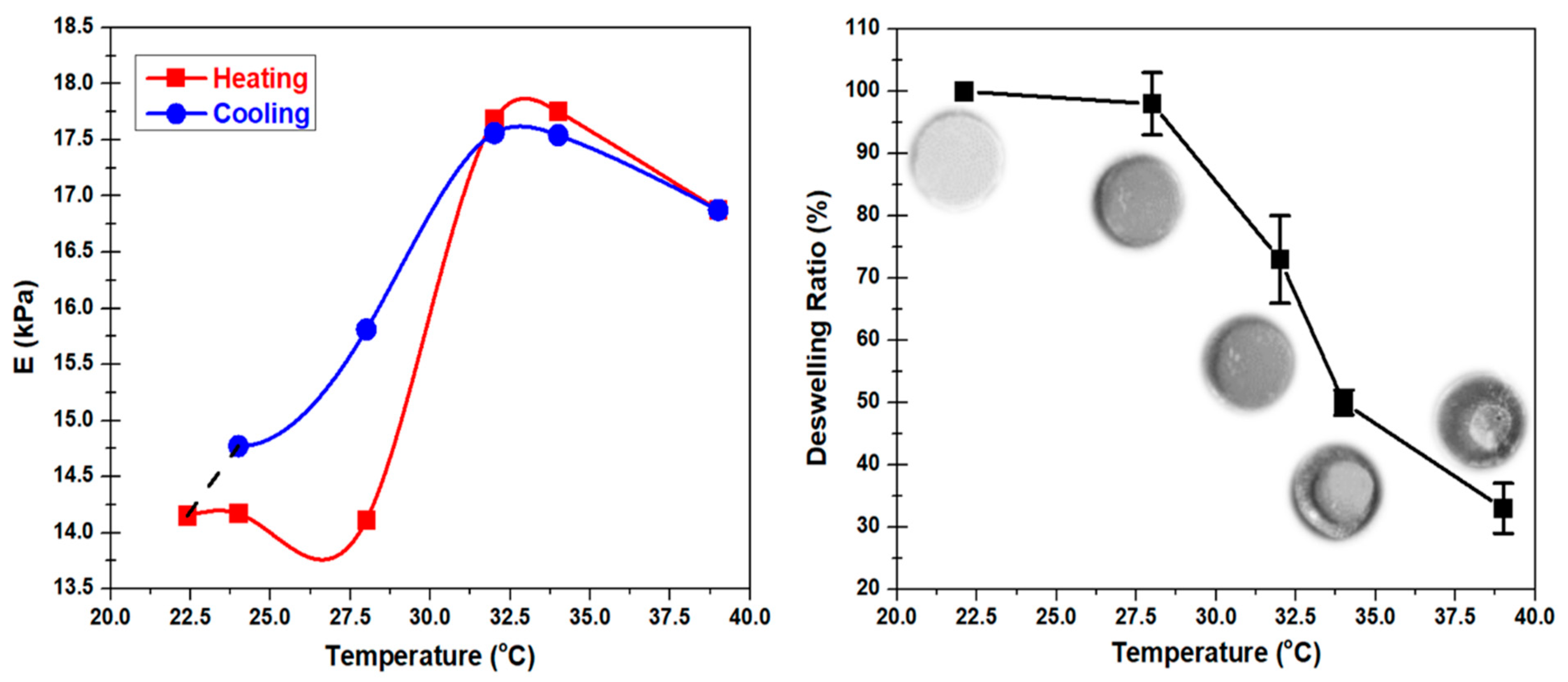

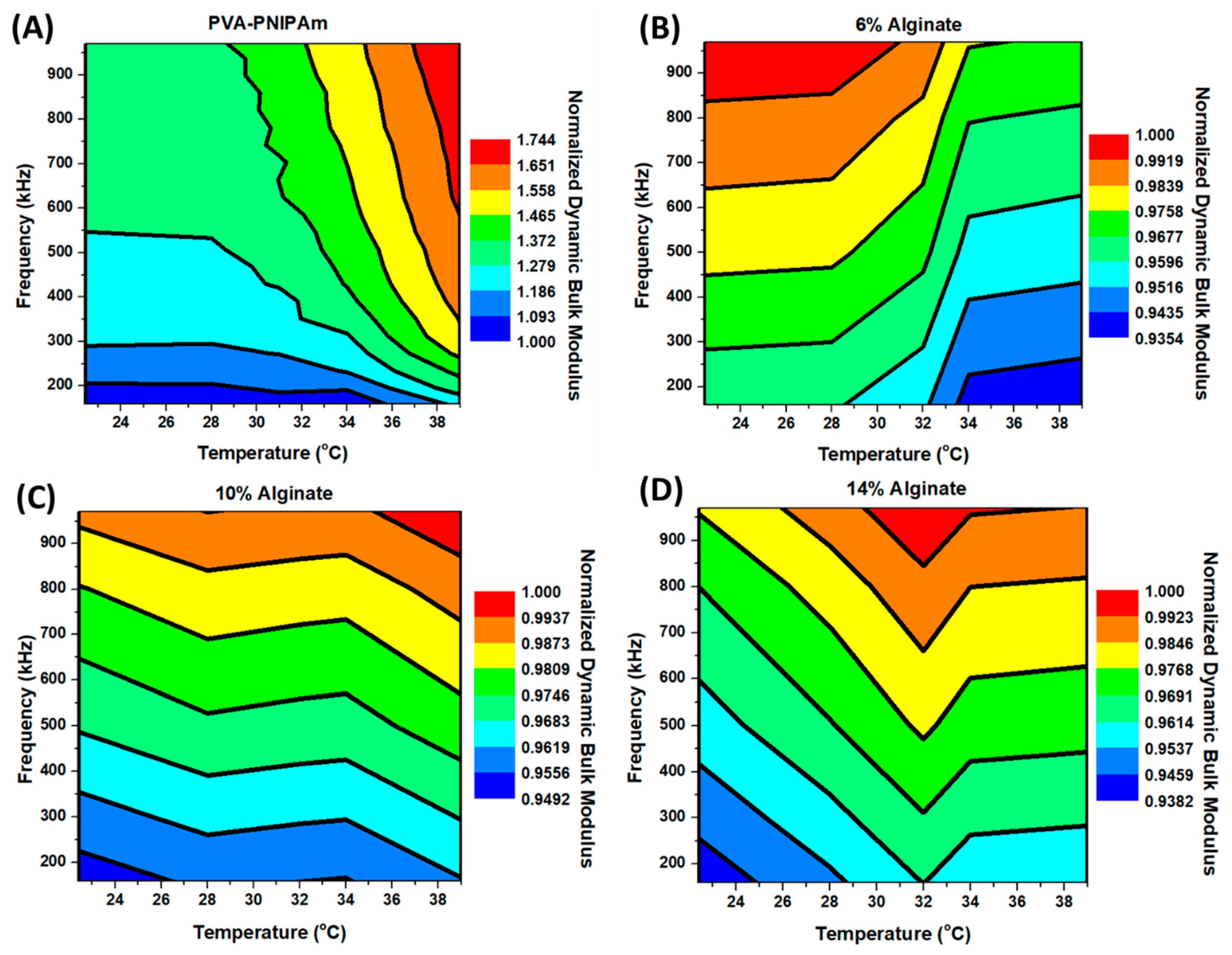

The temperature dependence of the mechanical properties of polyvinyl alcohol-based poly n-isopropyl acrylamide (PVA-PNIPAm) hydrogel was studied from the static and dynamic bulk modulus of the material. The effect of the temperature-induced volumetric phase transition on Young’s Modulus, Poisson’s ratio, and the density of PVA-PNIPAm was experimentally measured and compared with a non-thermo-responsive Alginate hydrogel as a reference. An increase in the temperature from 27.5 to 32 °C results in the conventional temperature-dependent de-swelling of the PVA-PNIPAm hydrogel volume of up to 70% at the lower critical solution temperature (LCST). However, with the increase in temperature, the PVA-PNIPAm hydrogel showed a drastic increase in Young’s Modulus and density of PVA-PNIPAm and a corresponding decrease in the Poisson’s ratio and the static bulk modulus around the LCST temperature. The dynamic bulk modulus of the PVA-PNIPAm hydrogel is highly frequency-dependent before the LCST and highly temperature-sensitive after the LCST. The dynamic elastic properties of the thermo-responsive PVA-PNIPAm hydrogel were compared and observed to be significantly different from the thermally insensitive Alginate hydrogel. View Full-Text
Keywords: mechanical properties; bulk modulus; density; deswelling ratio; Poisson’s ratio thermo-responsive; gels; polymer hydrogels; temperature sensitive; dynamic elasticity mechanical properties; bulk modulus; density; deswelling ratio; Poisson’s ratio thermo-responsive; gels; polymer hydrogels; temperature sensitive; dynamic elasticity
Show Figures

Graphical abstract

MDPI and ACS Style

Jin, Y.; Yang, T.; Ju, S.; Zhang, H.; Choi, T.-Y.; Neogi, A. Thermally Tunable Dynamic and Static Elastic Properties of Hydrogel Due to Volumetric Phase Transition. Polymers 2020, 12, 1462.
