Flax, Basalt, E-Glass FRP and Their Hybrid FRP Strengthened Wood Beams: An Experimental Study

1
Department of Organic and Wood-Based Construction Materials, Technische Universität Braunschweig, Hopfengarten 20, 38102 Braunschweig, Germany
2
Center for Light and Environmentally-friendly Structures, Fraunhofer Wilhelm-Klauditz-Institut, Bienroder Weg 54E, 38108 Braunschweig, Germany
3
Department of Engineering, University of Palermo, Viale delle Scienze, Edificio 6, 90128 Palermo, Italy
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(8), 1255; https://doi.org/10.3390/polym11081255
Received: 27 June 2019 / Revised: 20 July 2019 / Accepted: 25 July 2019 / Published: 29 July 2019
(This article belongs to the Special Issue Natural Fibres and their Composites)

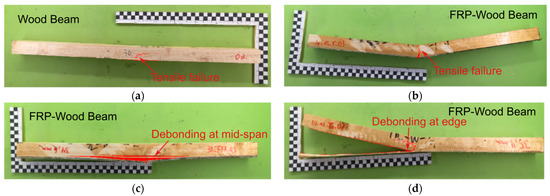

In this study, the structural behavior of small-scale wood beams externally strengthened with various fiber strengthened polymer (FRP) composites (i.e., flax FRP (FFRP), basalt FRP (BFRP), E-glass FRP (“E” stands for electrical resistance, GFRP) and their hybrid FRP composites (HFRP) with different fiber configurations) were investigated. FRP strengthened wood specimens were tested under bending and the effects of different fiber materials, thicknesses and the layer arrangements of the FRP on the flexural behavior of strengthened wood beams were discussed. The beams strengthened with flax FRP showed a higher flexural loading capacity in comparison to the beams with basalt FRP. Flax FRP provided a comparable enhancement in the maximum load with beams strengthened with glass FRP at the same number of FRP layers. In addition, all the hybrid FRPs (i.e., a combination of flax, basalt and E-glass FRP) in this study exhibited no significant enhancement in load carrying capacity but larger maximum deflection than the single type of FRP composite. It was also found that the failure modes of FRP strengthened beams changed from tensile failure to FRP debonding as their maximum bending load increased. View Full-Text
Keywords: flax FRP; basalt FRP; glass FRP; wood beam; bending; hybrid FRP flax FRP; basalt FRP; glass FRP; wood beam; bending; hybrid FRP
Show Figures

Graphical abstract

MDPI and ACS Style

Wang, B.; Bachtiar, E.V.; Yan, L.; Kasal, B.; Fiore, V. Flax, Basalt, E-Glass FRP and Their Hybrid FRP Strengthened Wood Beams: An Experimental Study. Polymers 2019, 11, 1255.
