Piezoelectric Response in Hybrid Micropillar Arrays of Poly(Vinylidene Fluoride) and Reduced Graphene Oxide

1
Physical Materials Science and Composite Materials Centre, National Research Tomsk Polytechnic University, 634050 Tomsk, Russia
2
Institute for Materials Science and Center for Nanointegration Duisburg-Essen (CENIDE), University of Duisburg-Essen, 45141 Essen, Germany
3
School of Engineering and Materials Science, Queen Mary University of London, London E1 4NS, UK
4
University of Cologne, 50923 Cologne, Germany
5
FEMTO-ST Institute, 25000 Besançon, France
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(6), 1065; https://doi.org/10.3390/polym11061065
Received: 8 May 2019 / Revised: 12 June 2019 / Accepted: 17 June 2019 / Published: 20 June 2019
(This article belongs to the Special Issue Micro- and Nano-Fabrication Approaches for Polymers)
  |
PDF [4710 KB, uploaded 20 June 2019]
  |     |

Abstract

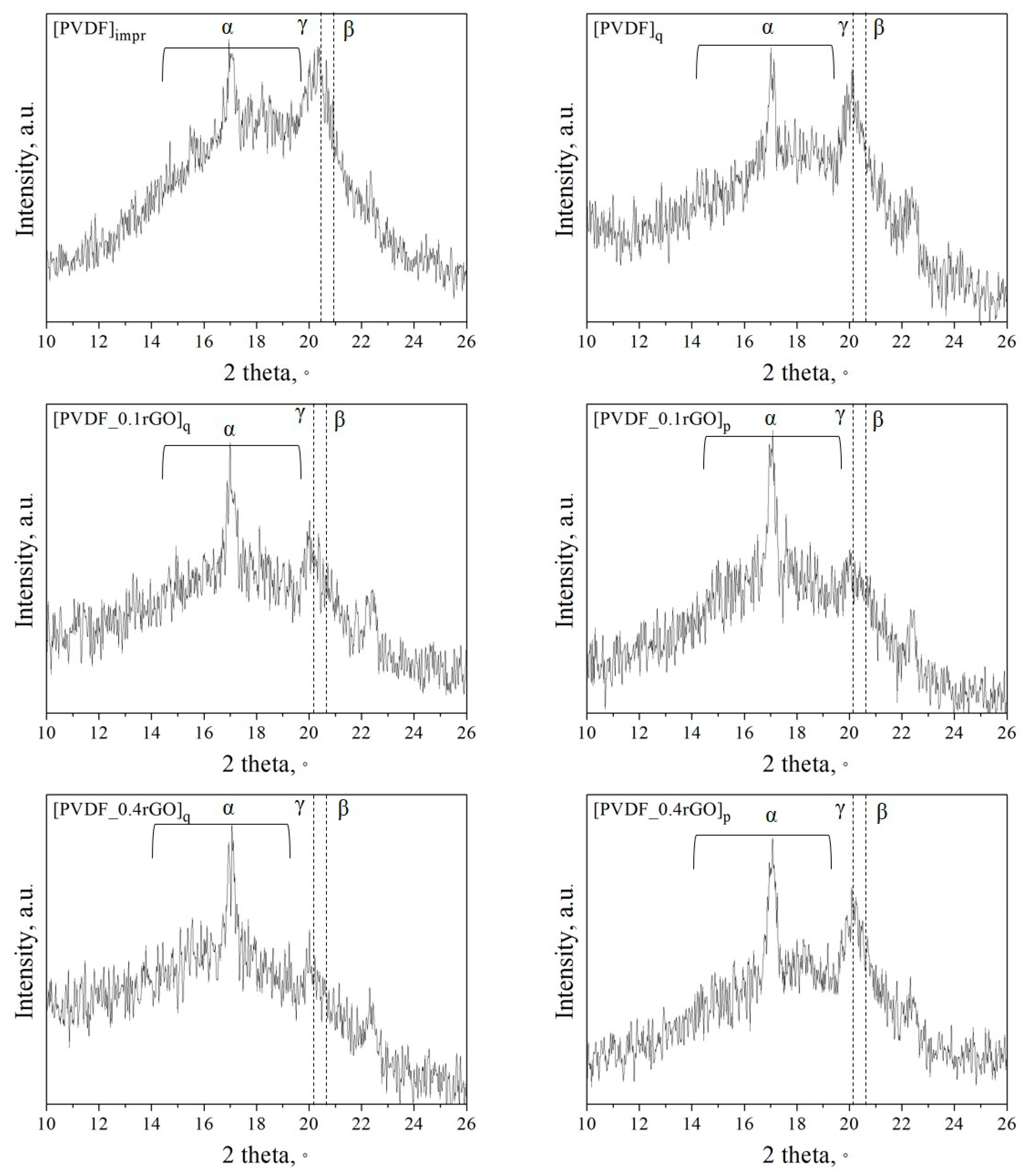

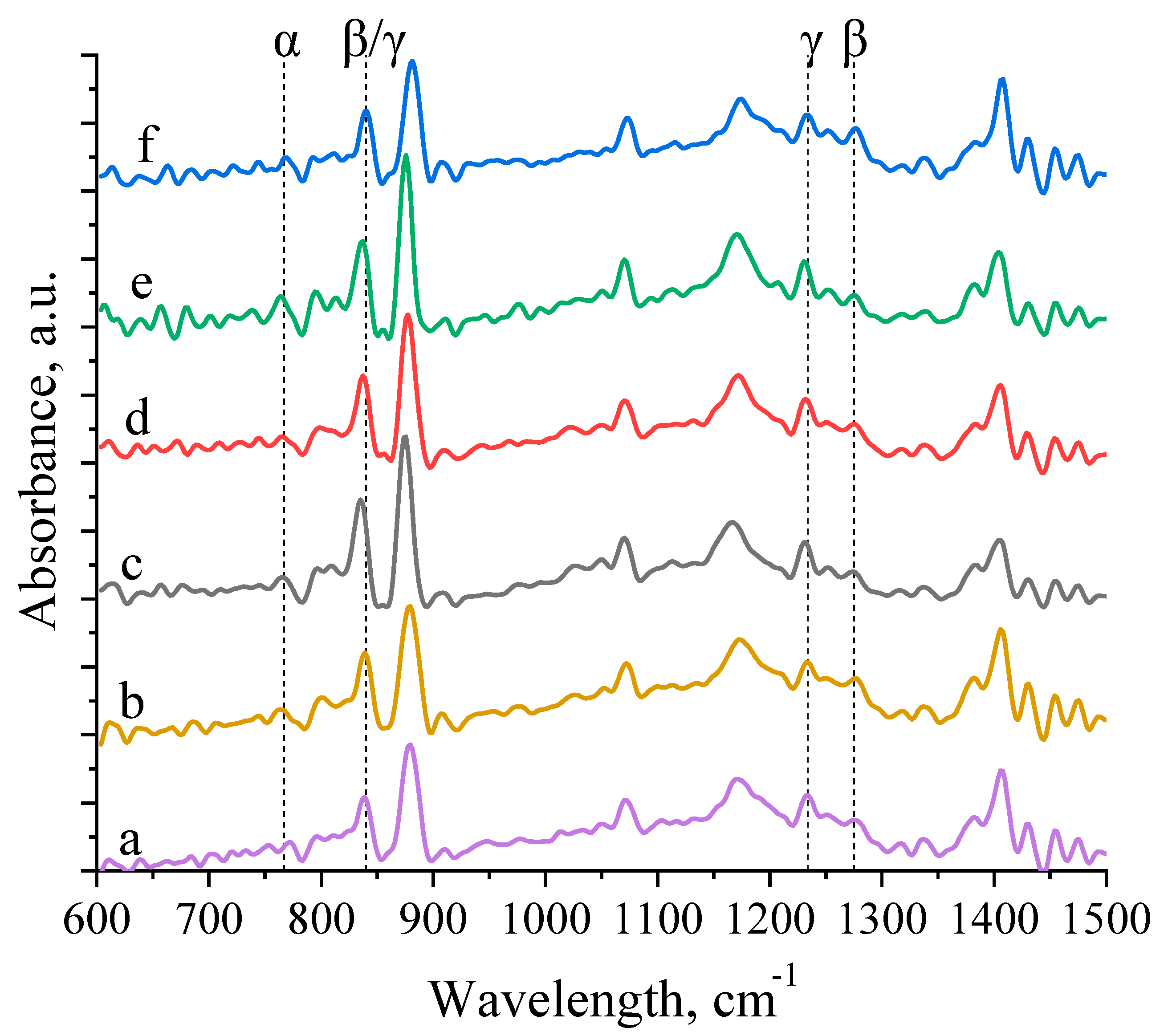

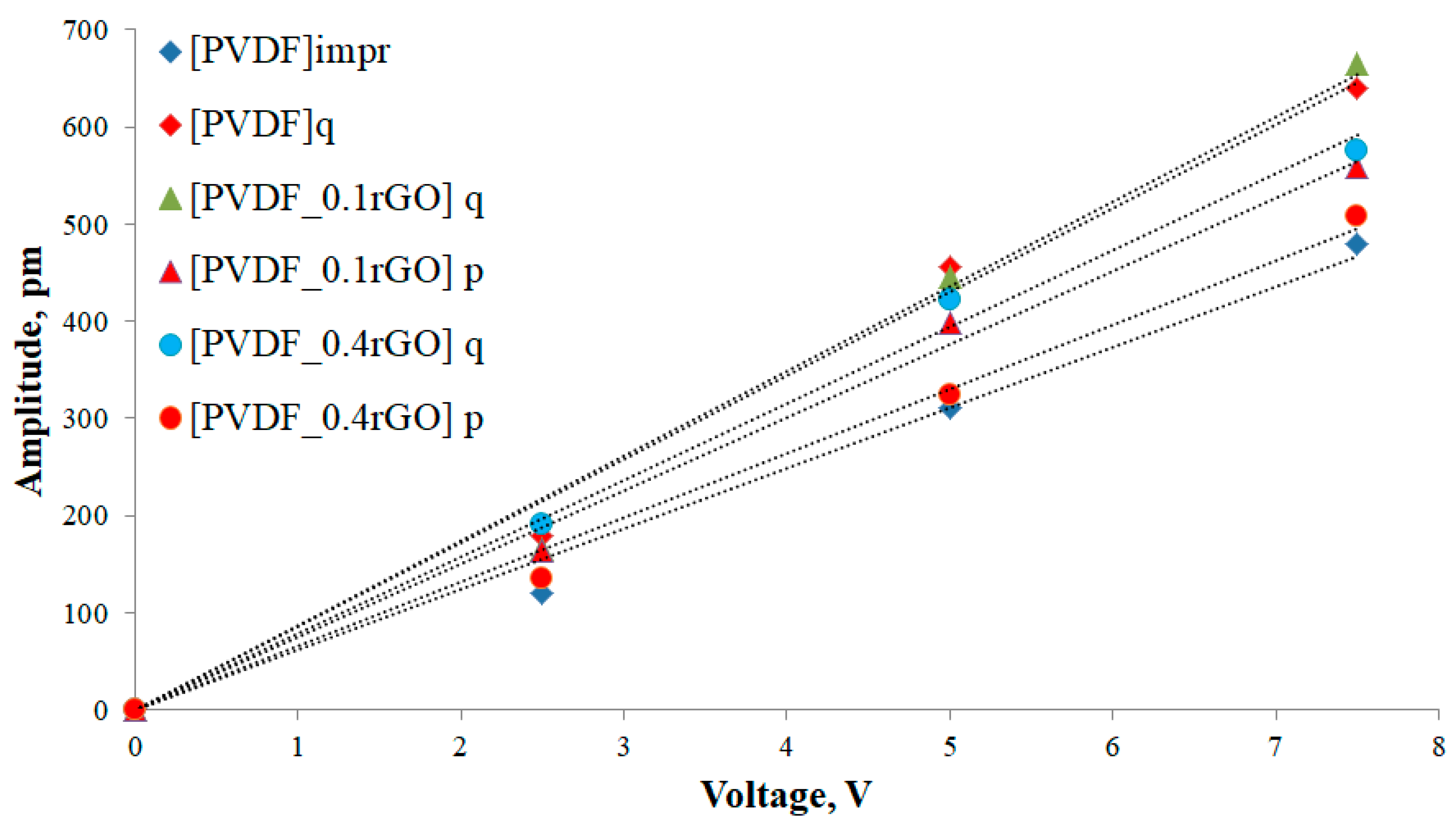

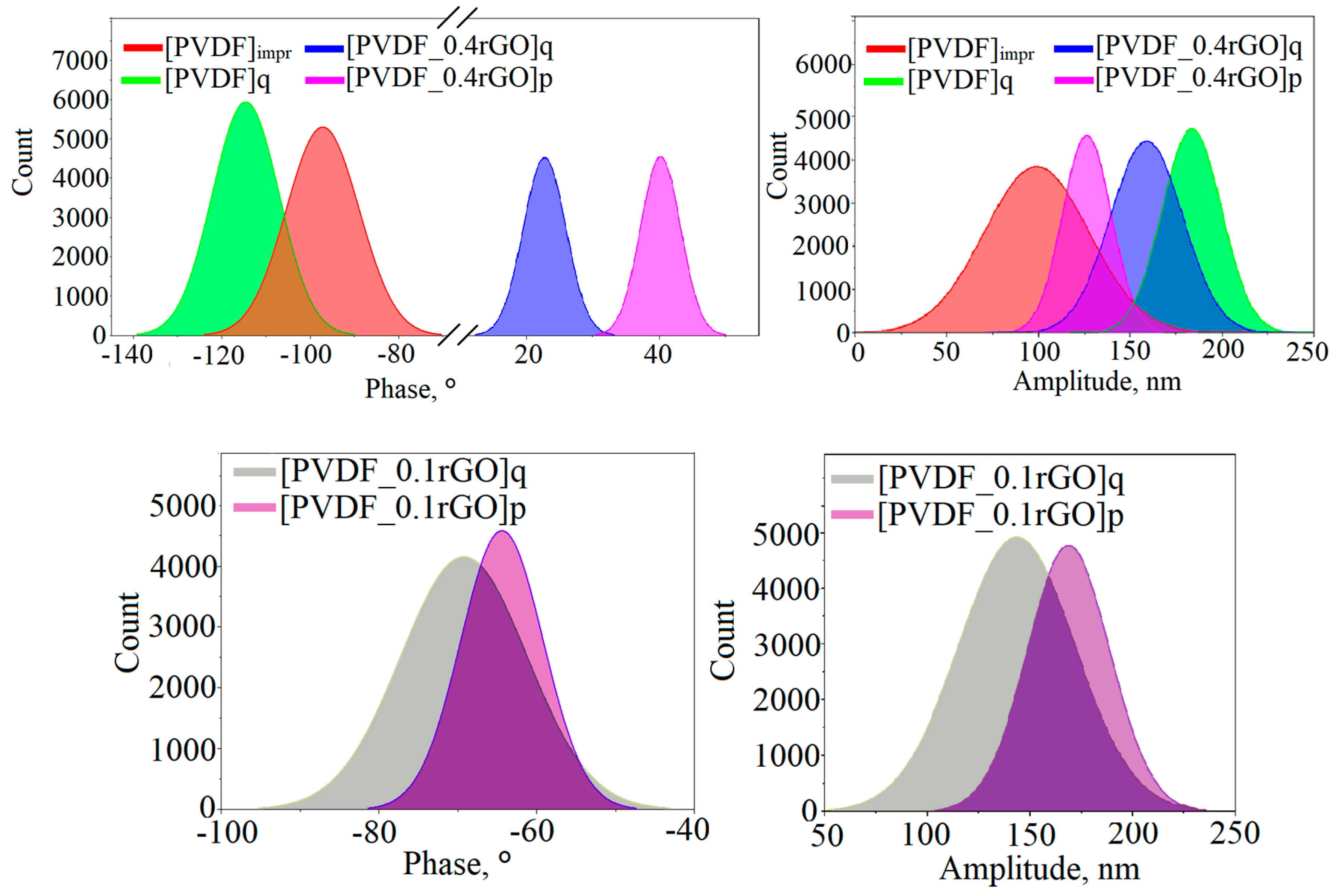

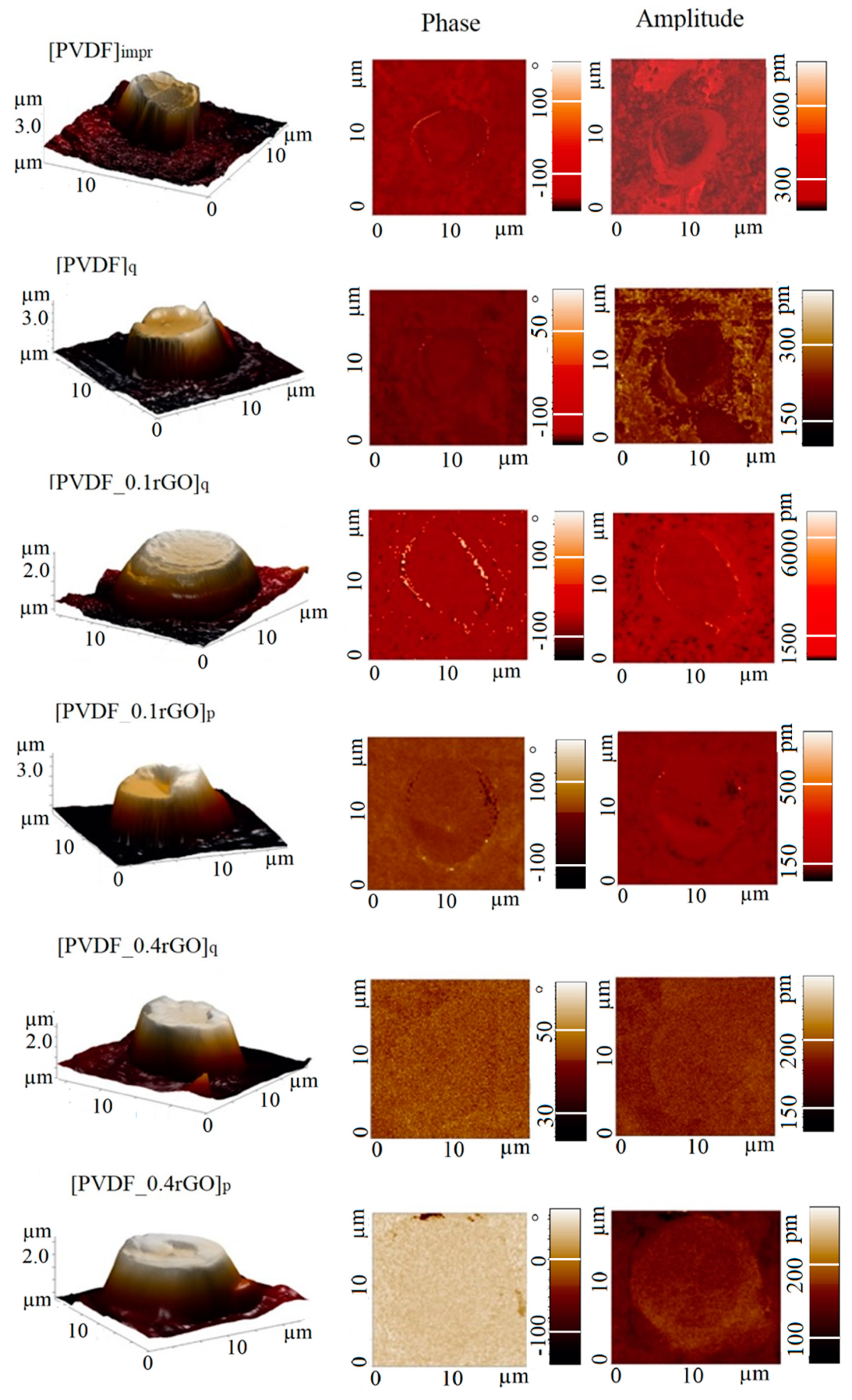

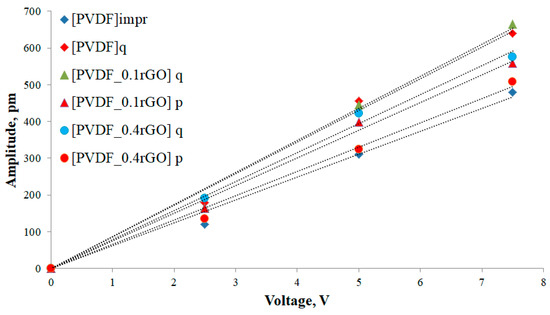

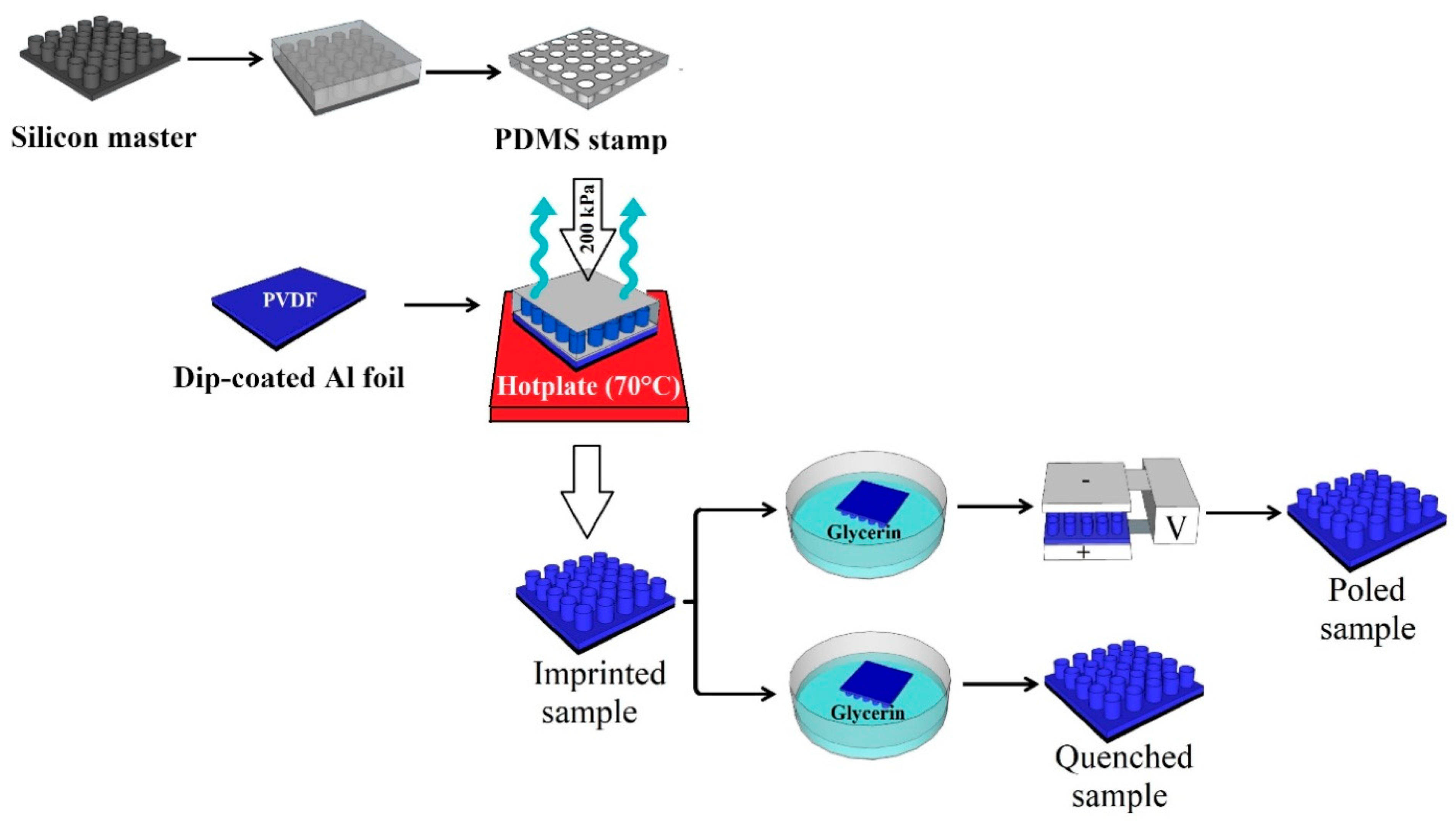

This study was dedicated to the investigation of poly(vinylidene fluoride) (PVDF) micropillar arrays obtained by soft lithography followed by phase inversion at a low temperature. Reduced graphene oxide (rGO) was incorporated into the PVDF as a nucleating filler. The piezoelectric properties of the PVDF-rGO composite micropillars were explored via piezo-response force microscopy (PFM). Fourier transform infrared spectroscopy (FTIR) and X-ray diffraction (XRD) showed that α, β, and γ phases co-existed in all studied samples, with a predominance of the γ phase. The piezoresponse force microscopy (PFM) data provided the local piezoelectric response of the PVDF micropillars, which exhibited a temperature-induced downward dipole orientation in the pristine PVDF micropillars. The addition of rGO into the PVDF matrix resulted in a change in the preferred polarization direction, and the piezo-response phase angle changed from −120° to 20°–40°. The pristine PVDF and PVDF loaded with 0.1 wt % of rGO after low-temperature quenching were found to possess a piezoelectric response of 86 and 87 pm/V respectively, which are significantly higher than the |d33eff| in the case of imprinted PVDF 64 pm/V. Thus, the addition of rGO significantly affected the domain orientation (polarization) while quenching increased the piezoelectric response. View Full-Text
Keywords: piezoelectric response; reduced graphene oxide; poly(vinylidene fluoride); hybrid film piezoelectric response; reduced graphene oxide; poly(vinylidene fluoride); hybrid film
