Article
DFT Visualization and Experimental Evidence of BHT-Mg-Catalyzed Copolymerization of Lactides, Lactones and Ethylene Phosphates
1
Chemistry Department, M.V. Lomonosov Moscow State University, 1–3 Leninskie Gory, 119991 Moscow, Russia
2
A.V. Topchiev Institute of Petrochemical Synthesis RAS, 29 Leninsky Pr., 119991 Moscow, Russia
3
Joint-stock company “Institute of petroleum refining and petrochemistry”, 12 Iniciativnaya Str., 450065 Ufa, Republic of Bashkortostan, Russia
*
Author to whom correspondence should be addressed.
Received: 13 September 2019 / Accepted: 8 October 2019 / Published: 10 October 2019

Abstract

:
Catalytic ring-opening polymerization (ROP) of cyclic esters (lactides, lactones) and cyclic ethylene phosphates is an effective way to process materials with regulated hydrophilicity and controlled biodegradability. Random copolymers of cyclic monomers of different chemical nature are highly attractive due to their high variability of characteristics. Aryloxy-alkoxy complexes of non-toxic metals such as derivatives of 2,6-di-tert-butyl-4-methylphenoxy magnesium (BHT-Mg) complexes are effective coordination catalysts for homopolymerization of all types of traditional ROP monomers. In the present paper, we report the results of density functional theory (DFT) modeling of BHT-Mg-catalyzed copolymerization for lactone/lactide, lactone/ethylene phosphate and lactide/ethylene phosphate mixtures. ε-Caprolactone (ε-CL), l-lactide (l-LA) and methyl ethylene phosphate (MeOEP) were used as examples of monomers in DFT simulations by the Gaussian-09 program package with the B3PW91/DGTZVP basis set. Both binuclear and mononuclear reaction mechanistic concepts have been applied for the calculations of the reaction profiles. The results of calculations predict the possibility of the formation of random copolymers based on l-LA/MeOEP, and substantial hindrance of copolymerization for ε-CL/l-LA and ε-CL/MeOEP pairs. From the mechanistic point of view, the formation of highly stable five-membered chelate by the products of l-LA ring-opening and high donor properties of phosphates are the key factors that rule the reactions. The results of DFT modeling have been confirmed by copolymerization experiments.
Keywords:
ring-opening polymerization; random copolymers; ethylene phosphate; lactide; caprolactone; DFT; magnesium phenoxide

1. Introduction

Biodegradable and biocompatible polymers have currently received great attention in industrial, biomedical and pharmaceutical applications [1,2,3,4,5,6,7,8]. Catalytic ring-opening polymerization of lactones, lactides, cyclic carbonates and phosphates (Scheme 1a) is the main synthetic approach to these materials with their given hydrophilicity, biodegradability and mechanical properties [2,9,10,11,12]. Metal alkoxy complexes are effective catalysts of ring-opening polymerization (ROP); the mechanistic paradigm for ROP initiated by metal alkoxides bases on “coordination-insertion” concept [13,14,15,16,17,18,19,20] (Scheme 1b). The density functional theory (DFT) modeling was successfully applied in the mechanistic study of coordination homopolymerization of lactones [21,22,23,24,25,26,27,28,29,30,31,32,33], lactides [31,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48], cyclic carbonates [30,42,49,50] and phosphates [51].
Random copolymerization of cyclic substrates with different chemical nature offer a wide array of polymer characteristics. The complexes of non-toxic metals such as Al [52,53,54,55,56,57,58,59,60,61,62,63], Zn [64,65] and Ti [66,67,68,69,70,71] have been successfully applied as a catalysts for random copolymerization of ε-caprolactone/l-lactide ((ε-CL)/l-LA) [53,54,55,56,57,58,59,60,61,62,64,65,66,67,68,70,71], ε-CL/rac-LA [69], l-LA/methyl ethylene phosphate (MeOEP) [72], rac-LA/ethyl ethylene phosphate [52] and l-LA/ethyl ethylene phosphonate [63]. To date, the formation of random copolymers has not been studied in detail from the mechanistic point of view, with the application of quantum-chemical methods [70,73].
Aryloxy complexes of Mg demonstrated high catalytic activities in ROP of different cyclic monomers [15,74,75,76]. Recently, we studied heteroleptic 2,6-di-tert-butyl-4-methylphenoxy magnesium (BHT-Mg) complexes as catalysts for the synthesis of homopolymers and block copolymers of cyclic esters and phosphates [30,31,43,51,77,78,79,80,81]. In ε-CL and LA ROP, these dimeric complexes catalyze polymerization by binuclear mechanism were closely related to the mechanism theoretically studied for di-Zn complexes [39]. The prospects of BHT-Mg complexes in the synthesis of random copolymers remain unclear. In the present paper, we report the results of DFT simulations and experimental study of BHT-Mg-catalyzed ROP in ε-CL/l-LA, ε-CL/MeOEP and l-LA/MeOEP mixtures. DFT modeling of the homopolymerization mechanisms for lactides [31,43], lactones [30,31] and ethylene phosphates [51], performed using PRIRODA software [82] at Perdew–Burke–Ernzerhof (PBE)/3ζ level of theory [83] and the Gaussian-09 program package [84] at B3PW91/DGTZVP level of theory [85,86,87,88] was the background of our research.

2. Materials and Methods

2.1. DFT Calculations

The initial Cartesian coordinates of the stationary points were generated by PRIRODA software (version 4.0, Moscow, Russia) [82] using the 3ζ basis. The final calculations (structure optimization and determination of the thermodynamic parameters) were carried out using the Gaussian 09 program (Gaussian Inc., CT, USA) [84] for the gas phase at 298.15 K. The B3PW91 functional [85,87,88] and the DGTZVP basis set [86] were used in the optimization of the molecular geometries. The choice of this functional/basis set was due to the use of B3PW91/B3PW91 in our previous work on DFT modeling of ε-CL, l-LA and MeOEP polymerization [31,51,89,90]. Transition states were found by energy scanning with sequential changing of key geometric parameters with a step of 0.01 Å, Berny optimization, and was confirmed by intrinsic reaction coordinate (IRC) method. The plots of the molecular structures, energy parameters and Cartesian coordinates for all stationary points and transition states mentioned in the article have been presented in the Supporting Information.

2.2. General Experiment Remarks

All of the synthetic and polymerization experiments were performed under a purified argon atmosphere. CH2Cl2 was washed with aqueous Na2CO3, stirred with CaCl2 powder, refluxed over CaH2 for 8 h and distilled. l-Lactide (Merck, NJ, USA) was purified by recrystallization and subsequent sublimation. ε-Caprolactone (Merck, NJ, USA) was distilled prior to use under argon over CaH2. Methyl ethylene phosphate (MeOEP) [78] and [(BHT)Mg(μ-OBn)(THF)]2 [31] were synthesized according to the literature procedures.
CDCl3 (D 99.8%, Cambridge Isotope Laboratories, Inc., MS, USA) was distilled over P2O5 and stored over 4 Å molecular sieves. The 1H (400 MHz) and 31P (162 MHz) NMR spectra were recorded on a Bruker AVANCE 400 spectrometer (Bruker, MS, USA) at 20 °C. The chemical shifts were reported in ppm relative to the solvent residual peak (δ = 7.26 ppm).

2.3. Polymerization Experiments

Polymerization was carried out at 20 °C in a 1 M solutions for each of the comonomers in CH2Cl2. A preheated glass ampoule was equipped with a magnetic stir bar and a septum and then filled with dry argon. Comonomers (10 mmol + 10 mmol) were placed into the ampule. Then, CH2Cl2 was added to achieve the required concentration. Next, 0.4 mL of a 0.25 M (100 μmol) solution of [(BHT)Mg(μ-OBn)(THF)]2 (50:1 comonomer/Mg ratio) in CH2Cl2 was injected into the stirred monomer solution at the given temperature. After a certain time period, a 5-fold excess of acetic acid was injected into the ampoule to stop the reaction. The monomer conversion was determined using 1H NMR spectroscopy by integration of the monomer and polymer resonance signals:
  • For PCL, CH2OC=O, δ = 4.2 ppm (monomer) and 4.0 ppm (polymer);
  • for PLA, CH(CH3)OC=O, δ = 5.0 ppm (monomer) and 5.1–5.2 ppm (polymer);
  • for poly(MeOEP), CH2O, δ = 4.4 ppm (monomer) and 4.2 ppm (polymer).
End-group analysis of 1H NMR spectra of polymers was used for the determination of MnNMR by comparative integration of the signals of polymer protons (see above) and aromatic protons of benzyl groups at 7.3–7.4 ppm.
Size exclusion chromatography (SEC) was performed on an Agilent PL-GPC 220 chromatograph (Agilent Technologies, CA, USA) equipped with a PLgel column, using THF (εCL, LA polymers) or DMF (MeOEP polymers) as the eluents (1 mL/min). The measurements were recorded with universal calibration according to polystyrene standards (ε-CL, LA polymers) or poly(ethylene glycol) standards (MeOEP polymers) at 40 °C.

3. Results

3.1. DFT Modeling of ε-CL/l-LA Copolymerization

As was demonstrated in our previous work [31], binuclear reaction mechanism was preferable for homopolymerization of both ε-CL and l-LA. For the simulations of ε-CL/l-LA copolymerization, we took into account the relatively high stability of binuclear chelates formed by (BHT)Mg and lactate fragments that was experimentally proved by the X-ray diffraction method [31]. To avoid unproductive increasing of the time of calculations, we used 2,6-di-tert-butylphenoxy (DBP) fragment instead of BHT to build a model of the initial binuclear complexes I-1_lc and I-1c_lc that differ by a number of coordinated ε-CL molecules (Scheme 2). The calculated free energy (G) of I-1_lc was 8 kcal/mol lover than G(I-1c_lc), and we had chosen I-1_lc as a starting stationary point in the modeling of the reaction profile.
In the transition state, TS-12_lc of ε-CL insertion stage, we noted the distinct cooperative effect (Figure 1): In contrast with mononuclear reaction mechanisms (see [31] and calculations below), the nucleophilic attack of the carbonyl C atom of ε-CL by the alkoxy group and the coordination of the endocyclic oxygen atom of ε-CL occurred simultaneously due to the presence of two Mg atoms in the catalytic center. The activation barrier of the insertion stage was relatively low, G(TS-12_lc) – G(I-1_lc) = 18.2 kcal/mol. Note that this value was substantially less than the l-LA insertion barrier calculated previously (23.5 kcal/mol, [31]). In the product of the first stage I-2_lc we observed a loss of the coordination at one of Mg atoms of the lactate fragment that was involved in the reaction with ε-CL (Figure 1b).
The limiting stage of the reaction was a formation of the ring-opening product I-3_lc. Specifically, the ring-opening of lactone cycle went easily, but the loss of the coordination of lactate oxygen atom was highly endergonic; this process was constrained by conformational transitions of the “opened” ε-CL ring. By the scanning and Berny optimization of the structures between stationary points I-2_lc and I-3_lc, we found a high-energy transition state; TS-23_lc. The value of ΔG = G(TS-23_lc) – G(I-1_lc) was too high (34.6 kcal/mol) for fast reactions at ambient conditions (for l-LA homopolymerization, the activation barrier was estimated by the value of 29 kcal/mol [31]; the ROP of l-LA goes slowly in 1 M solution and requires several hours for 100% conversion at 20 °C). The loss of the coordination of the carbonyl group of the lactate fragment (I-4_lc) followed by coordination of ε-CL molecule resulted in I-5_cl. This heteroligand complex was evidently able to catalyze ROP, but we did not see the need for further calculations tailored to the possibility of the coordination of different monomers (ε-CL or l-LA) and the nucleophilic attack by different alkoxy fragments (opened or chelate). We thought that the comparison of the activation barriers for l-LA homopolymerization [31] and for ε-CL/l-LA copolymerization in the frames of the binuclear mechanism was sufficient to draw a conclusion about the difficulty of ε-CL/l-LA random copolymerization (see Section 3 for discussion).

3.2. DFT Modeling of ε-CL/MeOEP Copolymerization

In our recent work [51], we have performed comparative DFT calculations for different mechanisms of the homopolymerization of MeOEP. The results of these calculations indicated the preference of the mononuclear mechanism of the ROP of ethylene phosphates, and this assessment was confirmed by polymerization experiments [51]. We proposed that copolymerization involving MeOEP should occur via the mononuclear reaction mechanism regardless of the type of comonomer. The mononuclear mechanism for homopolymerization of ε-CL was simulated in our previous research [31]. These mechanisms are presented in Scheme 3, the coordination number of Mg atom (CNMg) is equal to four for both ε-CL and MeOEP homopolymerization mechanisms (CC and PP sequences, respectively). For ε-CL, the stationary points and transition states (Scheme 3a) are typical for the coordination-insertion mechanism of ROP; the free energies of the transition states of the insertion and ring-opening stages (TS-12_cc and TS-34_cc, respectively) have been estimated by the value of ~15 kcal/mol. The mechanism of MeOEP ROP (Scheme 3b) differs significantly from the mechanism of the ROP of lactones by the chelate nature of the catalytic complex and by the absence of the explicit transition state of the ring-opening: The “pendulum” TS-24_pp is a transition state between orthophosphate complex I-2_pp and ring-opening product I-4_pp. The perception of such difference is important when analyzing copolymerization (see below). The values of the calculated free energies and free enthalpies for structures presented in Scheme 3 are given in Table 1.
For the analysis of ε-CL/MeOEP copolymerization, two processes should be examined in addition to mechanisms of homopolymerization of ε-CL and MeOEP. The first is the MeOEP ring-opening in the reaction complex formed by previous ε-CL ring-opening (CP sequence). We assumed that the mechanism of this reaction could be analyzed using the simple model, namely, a model of the initiation stage of MeOEP polymerization (Scheme 4a). This reaction was discussed in our previous work [51]. The second process was a coordination and ring-opening of the ε-CL molecule in the complex formed by BHT-Mg and OCH2CH2OP(OMe)2 fragment that mimics the growing polyphosphate chain (Scheme 4b).
The first process (CP sequence) should be fast; the calculated relative free energy of the pendulum transition state TS-23_cp was only 8.5 kcal/mol [51]. The second reaction, studied in this work (PC sequence), proved to be significantly hindered (Table 1). The calculated energy of the insertion transition state TS-12_pc was the highest for the sequences under study (15.4 kcal/mol); however, the free energy of the pendulum TS-24_pc was only 11.3 kcal/mol. Probably, the reaching of high-energy stationary point I-4_pc was facilitated by the strained ring-opened ε-CL fragment (see the SI for details of the molecular geometries of TS-24_pc and I-4_pc). In contrast with all other sequences, in the case of PC sequence the most hindrance occurred at the final stage, the calculated relative free energy of TS-45_pc was 23.2 kcal/mol. This value was much higher than relative free energies of other transition states for all comonomer sequences. Finally, both free energy and free enthalpy of the complex I-5_pc were highly positive relatively to I-1_pc, thus, the insertion and ring-opening of ε-CL after ethylene phosphate seems to be thermodynamically forbidden. The free energy profiles of all possible comonomer sequences for ε-CL/MeOEP copolymerization are presented in Figure 2.

3.3. DFT Modeling of l-LA/MeOEP Copolymerization

The mononuclear concept was also applied for the modeling of copolymerization of l-LA and MeOEP. Recently [31], we calculated the energy profile of homopolymerization of lactide for mononuclear mechanism (CNMg = 5), the free activation energy was estimated by the value of 18 kcal/mol. However, the reaction scheme involving stationary points and transition states with CNMg = 4 was also applicable for the modeling of l-LA polymerization [43]. In this work, we tried to refine the mononuclear mechanism of l-LA homopolymerization and used DBP-Mg complex I-1_ll (CNMg = 4) as a starting stationary point of the reaction profile (LL sequence, Scheme 5).
We made calculations for re- and si-attack of methyl lactate to the coordinated l-LA molecule and we found re-attack to be energetically preferable. For re-attack, there was no explicit insertion transition state TS-12_ll, the formation of the novel C–O bond went hand in hand with the rotation of the coordinated l-LA molecule resulting in complex I-3_ll. The relative free energy of the corresponding TS-13_LL revealed the value of 15.8 kcal/mol (Table 2). To complete the reaction profile in the framework of common ROP mechanism, we found the stationary point I-2_ll. The relative free energy of this complex was 20.3 kcal/mol, consequently, I-2_ll should be omitted from the reaction profile (Figure 3). The complex analysis of l-LA/MeOEP copolymerization should include examining of PP, LP and PL sequences in addition to LL sequence. The data for PP the sequence (Scheme 3b) [51] are duplicated in Table 2 for comparison. Calculations for LP and PL sequences were performed in accordance with Scheme 6. For the LP sequence, the calculated relative free energy of nucleophilic attack of MeOEP molecule by methyl lactate fragment (TS-12_lp) was 10.1 kcal/mol that is 6.6 kcal/mol higher than the free energy of TS-12_pp. Transition via TS-24_lp resulted in ring-opened complex I-4_pp in the same way as we found for CP and PP sequences (Scheme 4). The relative free energy of TS-24_lp was 17.9 kcal/mol. For the PL sequence, the free activation energy estimated by the value of ΔG(TS-23_pl) was 16.3 kcal/mol.
The free energy profiles of all possible comonomer sequences for l-LA/MeOEP copolymerization are presented in Figure 3. In summary, the free activation energies for all comonomer sequences discussed above did not exceeded 18 kcal/mol. Thus, all reactions may proceed at ambient conditions. However, the activation barrier of the homopolymerization of MeOEP was minimal (ΔG = 13.1 kcal/mol) which suggests the preference of poly(MeOEP) formation even in the presence of l-LA.
In recent papers [89,90] we reported the results of DFT simulations of transesterification which accompanies MeOEP homopolymerization. Obviously, such a process may occur in l-LA/MeOEP mixture—this issue is discussed in Section 3.

3.4. Copolymerization Experiments

Copolymerization experiments were performed in CH2Cl2 solutions of ε-CL/l-LA, ε-CL/MeOEP and l-LA/MeOEP mixtures of comonomers taken in 1 M concentrations ([Mon1,2]/[Mg] = 50), [(BHT)Mg(μ-OBn)(THF)]2 [31] was used as a catalyst (Table 3, runs 1–6). Comparative homopolymerization experiments using 100:1 [Mon]/[Mg] ratios under the same conditions were also performed (Table 3, runs c1–c3).
When 1:1 ε-CL/l-LA mixture was introduced into the reaction, we detected homopolymerization of l-LA with a formation of PLLA. After 10 min at 5 °C, the conversion of l-LA was 86% (Table 3, run 1a, see Figure S1 in the Supporting Information). This value was substantially higher than detected in homopolymerization of l-LA (Table 3, run c2). After 30 h of the reaction, l-LA was completely polymerized, but ε-CL did not react and remained in the reaction mixture (Table 3, run 1b, see Figure S2 in Supporting Information). This kind of catalytic behavior was earlier observed in Zn dinuclear systems [91].
Similarly, in the case of 1:1 ε-CL/MeOEP mixture we detected the fast formation of poly(MeOEP) (Table 3, run 2a, see Figure S3 in Supporting Information). The rate of the ROP was comparable with the reaction rate in homopolymerization experiment (Table 3, run c3). The polymer obtained in the presence of ε-CL after 10 min at 5 °C was moderately branched (see Figure S4 in the Supporting Information). After 48 h of the reaction, we detected 28% ε-CL conversion. The 31P NMR spectrum (see Figure S4 in Supporting Information) reflected the formation of the transesterification products via the scission of polyphosphate chain by alkoxy fragments formed by the ε-CL ring-opening. This process was very slow, and its synthetic prospects were questionable.
A qualitatively different result was obtained for 1:1 l-LA/MeOEP mixture (Table 3, run 3). After 20 min at 5 °C we detected the full conversion of MeOEP and 89% conversion of l-LA with a formation of the polymer containing considerable amount of lactide-phosphate fragments (31P NMR data, see Figure 4). After 1 h (Table 3, run 3b) the full conversion of l-LA was reached, and the rate of lactide-phosphate fragments was considerably increased.

4. Discussion

For ε-CL/l-LA mixture we detected the formation of PLLA, the polymer formed did not contain even traces of ε-CL ring-opening products. This fact can be explained by the difference in free activation energies for l-LA and ε-CL reactions with binuclear lactate complex (more than 5 kcal/mol). From the other hand, the presence of ε-CL resulted in acceleration of l-LA polymerization. It’s probably safe to assume that higher ability of ε-CL to coordinate the Mg atom can result in dissociation of bimetallic complexes with a formation of mononuclear catalytic species. These species have substantially lower activation barriers in l-LA ROP. At the same time, these species constitute stable chelate complexes containing coordinated lactate fragment that are active in l-LA ROP but less active in ε-CL ROP since the ring-opening of ε-CL results in loss of favorable lactate coordination. It’s probably safe to assume that such comparative advantage of lactate chelate coordination leads to slowing down the reaction when l-LA have almost been depleted, without involvement of ε-CL in ROP. In the absence of polymerization that maintains BHT-Mg species in active mononuclear form, these species can turn into inactive clusters. The formation of such polymetallic species by the reaction of BHT-Mg complexes with lactates in the absence of ROP monomers had been demonstrated in our recent publication [92].
When ε-CL/MeOEP mixture was introduced to polymerization, we detected the formation of poly(MeOEP). The modest reduction of the polymerization rate in the presence of ε-CL can be explained by competitive inhibition of the catalyst by reversible ε-CL coordination. MeOEP is a stronger donor in comparison with ε-CL [31], and the latter is unable to hamper the coordination and polymerization of MeOEP. However, the results of DFT modeling of ε-CL coordination and ring-opening initiated by BHT-Mg-(MeO)2P(O)OCH2CH2O species (PC sequence, see Figure 3) demonstrates inability of this reaction for the reasons of the value of the activation barrier that is 10 kcal/mol higher than for PP sequence, and an endergonic character of the reaction (G(I-5_pc)-G(I-1_pc) = 14.7 kcal/mol). Thus, DFT modeling data were in good agreement with the experimental results. The additional factor leading to inertness of ε-CL in copolymerization with MeOEP may be highly exergonic coordination of polyphosphate at Mg atom that prevent ε-CL coordination.
Promising results were obtained for the 1:1 l-LA/MeOEP mixture. The energy profiles for all possible comonomer sequences (Figure 4) indicate that the most competitive reaction pathway was a formation of poly(MeOEP). However, PL and LP sequences are not forbidden, the free activation energies for these reactions are only 3–4 kcal/mol higher relative to ΔGPP. Another important aspect of DFT modeling of l-LA/MeOEP copolymerization is a more readily l-LA polymerization initiated by phosphate (PL sequence) in comparison with l-methyl lactate-initiated process (LL sequence). Generally, the results presented in Figure 4 and in Table 2 predicted the possibility of the formation of random copolymer. The MeOEP homopolymerization profile had the lowest calculated activation barrier among four reaction sequences, and the formation of polyphosphate blocks was highly probable. In our experiments, we detected a priority in formation of oligophosphate fragments. Increasing the time of polymerization resulted in an increasing of lactide-phosphate fragments. Our assumption was that at the final stage of copolymerization BHT-Mg-lactate species that catalyze l-LA polymerization can also cut the oligophosphate fragments. To evaluate the possibility of such a transesterification process, we preformed DFT modeling of scission of the polyphosphate chain by BHT-Mg methyl lactate complex using the simple model presented in Scheme 7.
The results of DFT simulations indicate the possibility of the transesterification process. The calculated value of the activation barrier for Mg-lactate initiated scission of polyphosphate (ΔG = 17.9 kcal/mol) was not much higher than the activation energy of l-LA homopolymerization (ΔG = 15.8 kcal/mol). The comparison of these activation barriers should be done accounting the relative stability of the starting stationary points I-1: the product of the coordination of phosphate I-1_l_pp was found to be 6.4 kcal/mol more stable than I-1_ll. An additional factor facilitating the transesterification is a solution behavior of poly(MeOEP) that forms dense globule in common organic solvents [89].
In summary, it is probably safe to assume that at the beginning of l-LA/MeOEP copolymerization, the product contains long polyphosphate fragments, but after lowering MeOEP concentration, the BHT-Mg-lactate species cut the oligophosphate fragments with a formation of lactide-phosphate copolymers and BHT-Mg-phosphate catalytic species. These reactions resulted in an increase of the homogeneity of the distribution of phosphate and lactide fragments through the copolymer chain with a formation of a random copolymer.

5. Conclusions

In our research, we have analyzed the outlook for BHT-Mg catalysts in the synthesis of random copolymers from the monomers with substantially different chemical nature (lactones, lactides, cyclic phosphates). DFT modeling of the reaction profiles for ε-CL/l-LA, ε-CL/MeOEP and l-LA/MeOEP comonomer pairs predicted the possibility of random copolymerization only for l-LA/MeOEP comonomer mixture. Our estimate has been verified experimentally and confirmed by the synthesis of random l-LA/MeOEP copolymers.
DFT modeling of the transesterification in l-LA/MeOEP reaction mixture referred to the possibility of the fast break of the polyphosphate chains by BHT-Mg-lactate species. The formation of highly statistical lactide/phosphate copolymers due to fast copolymerization and transesterification processes under the mild reaction conditions opens the way to materials with regulated hydrophilicity and biodegradability that are highly promising for biomedical applications.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/11/10/1641/s1, DFT calculations data: Plots of the molecular geometries, energies and cartesian coordinates for all stationary points and transition states, 20 animation files (gif) that illustrate vibrations related to imaginary frequencies for TS discussed in the manuscript; Figure S1: 1H NMR spectrum of the probe taken from ε-CL/l-LA reaction mixture after 10 min (Table 3, run 1a), Figure S2: 1H NMR spectrum of the probe taken from ε-CL/l-LA reaction mixture after 30 h (Table 3, run 1b), Figure S3: 1H NMR spectrum of the probe taken from ε-CL/MeOEP reaction mixture after 10 min (Table 3, run 2a), Figure S4: 31P {1H} NMR spectra of the probes taken from ε-CL/l-LA reaction mixture after 10 min and 30 h (Table 3, runs 1a and 1b, respectively).

Author Contributions

Conceptualization, I.N., A.S. and P.I.; methodology, P.I.; software, S.K.; validation, A.S., M.K. and D.G.; formal analysis, P.I. and D.G.; investigation, A.S., M.K. and D.G.; resources, S.K.; writing—original draft preparation, P.I.; writing—review and editing, P.I. and I.N.; visualization, P.I.; supervision, A.S., I.N. and P.I.; project administration, A.S.; funding acquisition, A.S.

Funding

This research was funded by the Russian Science Foundation, grant number 18-73-10069, and was carried out within the State Program of TIPS RAS (in part of polymerization experiments and polymer analysis).

Acknowledgments

The authors are grateful for the exploitation of the equipment of the TIPS RAS Center of Collective Use: “New petrochemical processes, polymer composites and adhesives”.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Ulery, B.D.; Nair, L.S.; Laurencin, C.T. Biomedical applications of biodegradable polymers. J. Polym. Sci. Part B Polym. Phys. 2011, 49, 832–864. [Google Scholar] [CrossRef]
  2. Vert, M. Aliphatic Polyesters: Great Degradable Polymers That Cannot Do Everything. Biomacromolecules 2005, 6, 538–546. [Google Scholar] [CrossRef]
  3. Naira, L.S.; Laurencin, C.T. Biodegradable polymers as biomaterials. Prog. Polym. Sci. 2007, 32, 762–798. [Google Scholar] [CrossRef]
  4. Teo, A.J.T.; Mishra, A.; Park, I.; Kim, Y.-J.; Park, W.-T.; Yoon, Y.-J. Polymeric Biomaterials for Medical Implants and Devices. ACS Biomater. Sci. Eng. 2016, 2, 454–472. [Google Scholar] [CrossRef]
  5. Sheikh, Z.; Najeeb, S.; Khurshid, Z.; Verma, V.; Rashid, H.; Glogauer, M. Biodegradable Materials for Bone Repair and Tissue Engineering Applications. Materials 2015, 8, 5744–5794. [Google Scholar] [CrossRef]
  6. Bari, S.S.; Chattarjee, A.; Mishra, S. Biodegradable polymer nanocomposites: An overview. Polym. Rev. 2016, 56, 287–328. [Google Scholar] [CrossRef]
  7. Klein, R.; Wurm, F.R. Aliphatic Polyethers: Classical Polymers for the 21st Century. Macromol. Rapid Commun. 2015, 36, 1147–1165. [Google Scholar] [CrossRef]
  8. Rydz, J.; Sikorska, W.; Kyulavska, M.; Christova, D. Polyester-Based (Bio) degradable Polymers as Environmentally Friendly Materials for Sustainable Development. Int. J. Mol. Sci. 2015, 16, 564–596. [Google Scholar] [CrossRef]
  9. Pang, K.; Kotek, R.; Tonelli, A. Review of conventional and novel polymerization processes for polyesters. Prodr. Polym. Sci. 2006, 31, 10091037. [Google Scholar] [CrossRef]
  10. Stanford, M.J.; Dove, A.P. Stereocontrolled ring-opening polymerisation of lactide. Chem. Soc. Rev. 2010, 39, 486–494. [Google Scholar] [CrossRef]
  11. Dijkstra, P.J.; Du, H.; Feijen, J. Single site catalysts for stereoselective ring-opening polymerization of lactides. Polym. Chem. 2011, 2, 520527. [Google Scholar] [CrossRef]
  12. Okada, M. Chemical synthesis of biodegradable polymers. Prog. Polym. Sci. 2002, 27, 87–133. [Google Scholar] [CrossRef]
  13. Duda, A. 4.11-ROP of Cyclic Esters. Mechanisms of Ionic and Coordination Processes. In Polymer Science: A Comprehensive Reference; V. 4: Ring-Opening Polymerization and Special Polymerization Processes; Matyjaszewski, K., Möller, M., Eds.; Elsevier Science: Amsterdam, The Netherlands, 2012. [Google Scholar] [CrossRef]
  14. Wheaton, C.A.; Hayes, P.G.; Ireland, B.J. Complexes of Mg, Ca and Zn as homogeneous catalysts for lactide polymerization. Dalton Trans. 2009, 25, 4832–4846. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, H.-Y.; Mialon, L.; Abboud, K.A.; Miller, S.A. Comparative Study of Lactide Polymerization with Lithium, Sodium, Magnesium, and Calcium Complexes of BHT. Organometallics 2012, 31, 5252–5261. [Google Scholar] [CrossRef]
  16. Dagorne, S.; Fliedel, C. Organoaluminum Species in Homogeneous Polymerization Catalysis. In Modern Organoaluminum Reagents. Topics in Organometallic Chemistry; Woodward, S., Dagorne, S., Eds.; Springer: Berlin/Heidelberg, Germany, 2012; Volume 41, pp. 125–171. ISBN 978-3-642-33672-0. [Google Scholar] [CrossRef]
  17. Dagorne, S.; Normand, M.; Kirillov, E.; Carpentier, J.-F. Gallium and indium complexes for ring-opening polymerization of cyclic ethers, esters and carbonates. Coord. Chem. Rev. 2013, 257, 1869–1886. [Google Scholar] [CrossRef]
  18. Kremer, A.B.; Mehrkhodavandi, P. Dinuclear catalysts for the ring opening polymerization of lactide. Coord. Chem. Rev. 2019, 380, 35–57. [Google Scholar] [CrossRef]
  19. Sauer, A.; Kapelski, A.; Fliedel, C.; Dagorne, S.; Kol, M.; Okuda, J. Structurally well-defined group 4 metal complexes as initiators for the ring-opening polymerization of lactide monomers. Dalton Trans. 2013, 42, 9007–9023. [Google Scholar] [CrossRef]
  20. Sarazin, Y.; Carpentier, J.-F. Discrete Cationic Complexes for Ring-Opening Polymerization Catalysis of Cyclic Esters and Epoxides. Chem. Rev. 2015, 115, 3564–3614. [Google Scholar] [CrossRef]
  21. Liu, J.; Ling, J.; Li, X.; Shen, Z. Monomer insertion mechanism of ring-opening polymerization of ɛ-caprolactone with yttrium alkoxide intermediate: A DFT study. J. Mol. Catal. A Chem. 2009, 300, 5964. [Google Scholar] [CrossRef]
  22. Susperregui, N.; Kramer, M.U.; Okuda, J.; Maron, L. Theoretical Study on the Ring-Opening Polymerization of ε-Caprolactone by [YMeX(THF)5]+ with X = BH4, NMe2. Organometallics 2011, 30, 1326–1333. [Google Scholar] [CrossRef]
  23. Miranda, M.O.; DePorre, Y.; Vazquez-Lima, H.; Johnson, M.A.; Marell, D.J.; Cramer, C.J.; Tolman, W.B. Understanding the Mechanism of Polymerization of ε-Caprolactone Catalyzed by Aluminum Salen Complexes. Inorg. Chem. 2013, 52, 13692–13701. [Google Scholar] [CrossRef] [PubMed]
  24. Marlier, E.E.; Macaranas, J.A.; Marell, D.J.; Dunbar, C.R.; Johnson, M.A.; DePorre, Y.; Miranda, M.O.; Neisen, B.D.; Cramer, C.J.; Hillmyer, M.A.; et al. Mechanistic Studies of ε-Caprolactone Polymerization by (salen)AlOR Complexes and a Predictive Model for Cyclic Ester Polymerizations. ACS Catal. 2016, 6, 1215–1224. [Google Scholar] [CrossRef] [PubMed]
  25. Chang, M.-C.; Lu, W.-Y.; Chang, H.-Y.; Lai, Y.-C.; Chiang, M.Y.; Chen, H.-Y.; Chen, H.-Y. Comparative Study of Aluminum Complexes Bearing N,O- and N,S-Schiff Base in Ring-Opening Polymerization of ε-Caprolactone and l-Lactide. Inorg. Chem. 2015, 54, 1129211298. [Google Scholar] [CrossRef] [PubMed]
  26. Ding, K.; Miranda, M.O.; Moscato-Goodpaster, B.; Ajellal, N.; Breyfogle, L.E.; Hermes, E.D.; Schaller, C.P.; Roe, S.E.; Cramer, C.J.; Hillmyer, M.A.; et al. Roles of Monomer Binding and Alkoxide Nucleophilicity in Aluminum-Catalyzed Polymerization of ε-Caprolactone. Macromolecules 2012, 45, 5387–5396. [Google Scholar] [CrossRef]
  27. Kuzdrowska, M.; Annunziata, L.; Marks, S.; Schmid, M.; Jaffredo, C.G.; Roesky, P.W.; Guillaume, S.M.; Maron, L. Organometallic calcium and strontium borohydrides as initiators for the polymerization of ε-caprolactone and L-lactide: Combined experimental and computational investigations. Dalton Trans. 2013, 42, 9352–9360. [Google Scholar] [CrossRef] [PubMed]
  28. Jitonnom, J.; Molloy, R.; Punyodom, W.; Meelua, W. Theoretical Studies on Aluminum Trialkoxide-Initiated Lactone Ring-Opening Polymerizations: Roles of Alkoxide Substituent and Monomer Ring Structure. Comput. Theor. Chem. 2016, 1097, 25–32. [Google Scholar] [CrossRef]
  29. Jędrzkiewicz, D.; Kantorska, D.; Wojtaszak, J.; Ejfler, J.; Szafert, S. DFT calculations as a ligand toolbox for the synthesis of active initiators for ROP of cyclic esters. Dalton Trans. 2017, 46, 4929–4942. [Google Scholar] [CrossRef]
  30. Nifant’ev, I.E.; Ivchenko, P.V.; Shlyakhtin, A.V.; Ivanyuk, A.V. Polymerization of Trimethylene Carbonate and Lactones in the Presence of Magnesium Monoionolate: A Comparative Theoretical and Experimental Study. Polym. Sci. Ser. B 2017, 59, 147–156. [Google Scholar] [CrossRef]
  31. Nifant’ev, I.E.; Shlyakhtin, A.V.; Bagrov, V.V.; Minyaev, M.E.; Churakov, A.V.; Karchevsky, S.G.; Birin, K.P.; Ivchenko, P.V. Mono-BHT heteroleptic magnesium complexes: Synthesis, molecular structure and catalytic behavior in the ring-opening polymerization of cyclic esters. Dalton Trans. 2017, 46, 12132–12146. [Google Scholar] [CrossRef]
  32. Wei, J.; Riffel, M.N.; Diaconescu, P.L. Redox Control of Aluminum Ring-Opening Polymerization: A Combined Experimental and DFT Investigation. Macromolecules 2017, 50, 1847–1861. [Google Scholar] [CrossRef]
  33. Li, P.; Xi, Y.; Li, L.; Li, H.; Sun, W.-H.; Lei, M. A DFT study on ring-opening polymerization of ε-caprolactone initiated by Mg and Al complexes. Inorg. Chim. Acta 2018, 477, 34–39. [Google Scholar] [CrossRef]
  34. Marshall, E.L.; Gibson, V.C.; Rzepa, H.S. A Computational Analysis of the Ring-Opening Polymerization of rac-Lactide Initiated by Single-Site β-Diketiminate Metal Complexes: Defining the Mechanistic Pathway and the Origin of Stereocontrol. J. Am. Chem. Soc. 2005, 127, 6048–6051. [Google Scholar] [CrossRef] [PubMed]
  35. Tabthong, S.; Nanok, T.; Sumrit, P.; Kongsaeree, P.; Prabpai, S.; Chuawong, P.; Hormnirun, P. Bis (pyrrolidene) Schiff Base Aluminum Complexes as Isoselective-Biased Initiators for the Controlled Ring-Opening Polymerization of rac-Lactide: Experimental and Theoretical Studies. Macromolecules 2015, 48, 6846–6861. [Google Scholar] [CrossRef]
  36. Dai, Z.; Zhang, J.; Gao, Y.; Tang, N.; Huang, Y.; Wu, J. Synthesis and structures of tridentate β-diketiminato zinc phenoxides as catalysts for immortal ring-opening polymerization of L-lactide. Cat. Sci. Technol. 2013, 3, 32683277. [Google Scholar] [CrossRef]
  37. Bouyahyi, M.; Ajellal, N.; Kirillov, E.; Thomas, C.M.; Carpentier, J.-F. Exploring Electronic versus Steric Effects in Stereoselective Ring-Opening Polymerization of Lactide and β-Butyrolactone with Amino-alkoxy-bis (phenolate)–Yttrium Complexes. Chem. Eur. J. 2011, 17, 1872–1883. [Google Scholar] [CrossRef] [PubMed]
  38. Cheshmedzhieva, D.; Angelova, I.; Ilieva, S.; Georgiev, G.S.; Galabov, B. Initiation of ring-opening polymerization of lactide: The effect of metal alkoxide catalyst. Comput. Theor. Chem. 2012, 995, 8–16. [Google Scholar] [CrossRef]
  39. Fliedel, C.; Vila-Viçosa, D.; Calhorda, M.J.; Dagorne, S.; Avilés, T. Dinuclear Zinc–N-Heterocyclic Carbene Complexes for Either the Controlled Ring-Opening Polymerization of Lactide or the Controlled Degradation of Polylactide Under Mild Conditions. ChemCatChem 2014, 6, 1357–1367. [Google Scholar] [CrossRef]
  40. Jędrzkiewicz, D.; Czeluśniak, I.; Wierzejewska, M.; Szafert, S.; Ejfler, J. Well-controlled, zinc-catalyzed synthesis of low molecular weight oligolactides by ring opening reaction. J. Mol. Catal. A Chem. 2015, 396, 155163. [Google Scholar] [CrossRef]
  41. Roymuhury, S.K.; Chakraborty, D.; Ramkumar, V. Aluminium complexes bearing N,O-aminophenol ligands as efficient catalysts for the ring opening polymerization of lactide. Eur. Polym. J. 2015, 70, 203–214. [Google Scholar] [CrossRef]
  42. Liu, B.; Roisnel, T.; Maron, L.; Carpentier, J.-F.; Sarazin, Y. Discrete Divalent Rare-Earth Cationic ROP Catalysts: Ligand-Dependent Redox Behavior and Discrepancies with Alkaline-Earth Analogues in a Ligand-Assisted Activated Monomer Mechanism. Chem. Eur. J. 2013, 19, 3986–3994. [Google Scholar] [CrossRef]
  43. Ivchenko, P.V.; Shlyakhtin, A.V.; Nifant’ev, I.E. Ring-opening polymerization of glycolide and rac-lactide, catalyzed by aryloxy magnesium complexes: DFT study of reaction profile and stereocontrol mechanism. Mendeleev Commun. 2017, 27, 278–280. [Google Scholar] [CrossRef]
  44. Vogt-Geisse, S.; Matac, R.A.; Toro-Labbé, A. High level potential energy surface and mechanism of Al(CH3)2OCH3-promoted lactone polymerization: Initiation and propagation. Phys. Chem. Chem. Phys. 2017, 19, 8989–8999. [Google Scholar] [CrossRef] [PubMed]
  45. Chandanabodhi, D.; Nanok, T. A DFT study of the ring-opening polymerization mechanism of l-lactide and ε-caprolactone using aluminium salen-type initiators: Towards an understanding of their reactivities in homo- and copolymerization. Mol. Catal. 2017, 436, 145–156. [Google Scholar] [CrossRef]
  46. Robert, C.; Schmid, T.E.; Richard, V.; Haquette, P.; Raman, S.K.; Rager, M.-N.; Gauvin, R.M.; Morin, Y.; Trivelli, X.; Guérineau, V.; et al. Mechanistic Aspects of the Polymerization of Lactide Using a Highly Efficient Aluminum(III) Catalytic System. J. Am. Chem. Soc. 2017, 139, 6217–6225. [Google Scholar] [CrossRef] [PubMed]
  47. Stasiw, D.E.; Luke, A.M.; Rosen, T.; League, A.B.; Mandal, M.; Neisen, B.D.; Cramer, C.J.; Kol, M.; Tolman, W.B. Mechanism of the Polymerization of rac-Lactide by Fast Zinc Alkoxide Catalysts. Inorg. Chem. 2017, 56, 14366–14372. [Google Scholar] [CrossRef] [PubMed]
  48. Wang, Y.; Mehmood, A.; Zhao, Y.; Qu, J.; Luo, Y. Computational Studies on the Selective Polymerization of Lactide Catalyzed by Bifunctional Yttrium NHC Catalyst. Inorganics 2017, 5, 46. [Google Scholar] [CrossRef]
  49. del Rosal, I.; Brignou, P.; Guillaume, S.M.; Carpentier, J.-F.; Maron, L. DFT investigations on the ring-opening polymerization of cyclic carbonates catalyzed by zinc-{β-diiminate} complexes. Polym. Chem. 2011, 2, 2564–2573. [Google Scholar] [CrossRef]
  50. del Rosal, I.; Brignou, P.; Guillaume, S.M.; Carpentier, J.-F.; Maron, L. DFT investigations on the ring-opening polymerization of substituted cyclic carbonates catalyzed by zinc-{β-diketiminate} complexes. Polym. Chem. 2015, 6, 3336–3352. [Google Scholar] [CrossRef]
  51. Nifant’ev, I.; Shlyakhtin, A.; Kosarev, M.; Karchevsky, S.; Ivchenko, P. Mechanistic Insights of BHT-Mg-Catalyzed Ethylene Phosphate’s Coordination Ring-Opening Polymerization: DFT Modeling and Experimental Data. Polymers 2018, 10, 1105. [Google Scholar] [CrossRef]
  52. Wen, J.; Kim, G.J.A.; Leong, K.W. Poly (d,l-lactide–co-ethyl ethylene phosphate)s as new drug carriers. J. Control. Release 2006, 92, 39–48. [Google Scholar] [CrossRef]
  53. Florczak, M.; Duda, A. Effect of the Configuration of the Active Center on Comonomer Reactivities: The Case of ε-Caprolactone/l,l-Lactide Copolymerization. Angew. Chem. Int. Ed. 2008, 47, 9088–9091. [Google Scholar] [CrossRef] [PubMed]
  54. Nomura, N.; Akita, A.; Ishii, R.; Mizuno, M. Random Copolymerization of ε-Caprolactone with Lactide Using a Homosalen−Al Complex. J. Am. Chem. Soc. 2010, 132, 1750–1751. [Google Scholar] [CrossRef] [PubMed]
  55. Wang, Y.; Ma, H. Exploitation of dinuclear salan aluminum complexes for versatile copolymerization of ε-caprolactone and L-lactide. Chem. Commun. 2012, 6729–6731. [Google Scholar] [CrossRef] [PubMed]
  56. Li, G.; Lamberti, M.; Pappalardo, D.; Pellecchia, C. Random Copolymerization of ε-Caprolactone and Lactides Promoted by Pyrrolylpyridylamido Aluminum Complexes. Macromolecules 2012, 45, 8614–8620. [Google Scholar] [CrossRef]
  57. Li, L.; Liu, B.; Liu, D.; Wu, C.; Li, S.; Liu, B.; Cui, D. Copolymerization of ε-Caprolactone and l-Lactide Catalyzed by Multinuclear Aluminum Complexes: An Immortal Approach. Organometallics 2014, 33, 6474–6480. [Google Scholar] [CrossRef]
  58. Kan, C.; Ma, H. Copolymerization of L-lactide and ε-caprolactone catalyzed by mono-and dinuclear salen aluminum complexes bearing bulky 6,6′-dimethylbipheyl-bridge: Random and tapered copolymer. RSC Adv. 2016, 6, 47402–47409. [Google Scholar] [CrossRef]
  59. Pilone, A.; De Maio, N.; Press, K.; Venditto, V.; Pappalardo, D.; Mazzeo, M.; Pellecchia, C.; Kol, M.; Lamberti, M. Ring-opening homo- and co-polymerization of lactides and ε-caprolactone by salalen aluminum complexes. Dalton Trans. 2015, 44, 2157–2165. [Google Scholar] [CrossRef] [PubMed]
  60. Huang, H.-C.; Wang, B.; Zhang, Y.-P.; Li, Y.-S. Bimetallic aluminum complexes with cyclic β-ketiminato ligands: The cooperative effect improves their capability in polymerization of lactide and ε-caprolactone. Polym. Chem. 2016, 7, 5819–5827. [Google Scholar] [CrossRef]
  61. Yang, J.; Sun, Z.; Duan, R.; Li, L.; Pang, X.; Chen, X. Copolymer of lactide and ε-caprolactone catalyzed by bimetallic Schiff base aluminum complexes. Sci. China Chem. 2016, 59, 1384–1389. [Google Scholar] [CrossRef]
  62. Shi, T.; Luo, W.; Liu, S.; Li, Z. Controlled random copolymerization of rac-lactide and ɛ-caprolactone by well-designed phenoxyimine Al complexes. J. Polym. Sci. Part. A Polym. Chem. 2018, 56, 611–617. [Google Scholar] [CrossRef]
  63. Beament, J.; Wolf, T.; Markwart, J.C.; Wurm, F.R.; Jones, M.D.; Buchard, A. Copolymerization of Cyclic Phosphonate and Lactide: Synthetic Strategies toward Control of Amphiphilic Microstructure. Macromolecules 2019, 52, 1220–1226. [Google Scholar] [CrossRef]
  64. Honrado, M.; Otero, A.; Fernández-Baeza, J.; Sánchez-Barba, L.F.; Garcés, A.; Lara-Sánchez, A.; Rodríguez, A.M. Copolymerization of Cyclic Esters Controlled by Chiral NNO-Scorpionate Zinc Initiators. Organometallics 2016, 35, 189–197. [Google Scholar] [CrossRef]
  65. Lin, L.; Xu, Y.; Wang, S.; Xiao, M.; Meng, Y. Ring-opening polymerization of l-lactide and ε-caprolactone catalyzed by versatile tri-zinc complex: Synthesis of biodegradable polyester with gradient sequence structure. Eur. Polym. J. 2016, 74, 109–119. [Google Scholar] [CrossRef]
  66. Dakshinamoorthy, D.; Peruch, F. Block and random copolymerization of ε-caprolactone, L-, and rac-lactide using titanium complex derived from aminodiol ligand. J. Polym. Sci. Part. A Polym. Chem. 2012, 50, 2161–2171. [Google Scholar] [CrossRef]
  67. Piskun, Y.A.; Vasilenko, I.V.; Zaitsev, K.V.; Karlov, S.S.; Zaitseva, G.S.; Gaponik, L.V.; Kostjuk, S.V. Controlled homo and copolymerization of ε-caprolactone and d, l-lactide in the presence of TiIV complexes. Russ. Chem. Bull. 2015, 64, 181–188. [Google Scholar] [CrossRef]
  68. Lapenta, R.; Mazzeo, M.; Grisi, F. Monoamidinate titanium complexes: Highly active catalysts for the polymerization and copolymerization of L-lactide and ε-caprolactone. RSC Adv. 2015, 5, 87635–87644. [Google Scholar] [CrossRef]
  69. Gilmour, D.J.; Webster, R.L.; Perrya, M.R.; Schafer, L.L. Titanium pyridonates for the homo- and copolymerization of rac-lactide and ε-caprolactone. Dalton Trans. 2015, 44, 12411–12419. [Google Scholar] [CrossRef]
  70. Pappuru, S.; Chakraborty, D.; Sundar, J.V.; Roymuhury, S.K.; Ramkumar, V.; Subramanian, V.; Chand, D.K. Group 4 complexes of salicylbenzoxazole ligands as effective catalysts for the ring-opening polymerization of lactides, epoxides and copolymerization of ε-caprolactone with L-lactide. Polymer 2016, 102, 231–247. [Google Scholar] [CrossRef]
  71. Della Monica, F.; Luciano, E.; Buonerba, A.; Grassi, A.; Milione, S.; Capacchione, C. Poly (lactide-co-ε-caprolactone) copolymers prepared using bis-thioetherphenolate group 4 metal complexes: Synthesis, characterization and morphology. RSC Adv. 2014, 4, 51262–51267. [Google Scholar] [CrossRef]
  72. Wen, J.; Zhuo, R.-X. Preparation and characterization of poly (d,l-lactide-co-ethylene methyl phosphate). Polym. Int. 1998, 47, 503–509. [Google Scholar] [CrossRef]
  73. Wang, L.; Kefalidis, C.E.; Sinbandhit, S.; Dorcet, V.; Carpentier, J.-F.; Maron, L.; Sarazin, Y. Heteroleptic Tin (II) Initiators for the Ring-Opening (Co) Polymerization of Lactide and Trimethylene Carbonate: Mechanistic Insights from Experiments and Computations. Chem. Eur. J. 2013, 19, 13463–13478. [Google Scholar] [CrossRef] [PubMed]
  74. Fang, H.-J.; Lai, P.-S.; Chen, J.-Y.; Hsu, S.C.N.; Peng, W.-D.; Ou, S.-W.; Lai, Y.-C.; Chen, Y.-J.; Chung, H.; Chen, Y.; et al. ε-Caprolactone polymerization under air by the biocatalyst: Magnesium 2,6-di-tert-butyl-4-methylphenoxide. J. Polym. Sci. Part. A Polym. Chem. 2012, 50, 2697–2704. [Google Scholar] [CrossRef]
  75. Wilson, J.A.; Hopkins, S.A.; Wright, P.M.; Dove, A.P. ‘Immortal’ ring-opening polymerization of ω-pentadecalactone by Mg (BHT)2(THF)2. Polym. Chem. 2014, 5, 2691–2694. [Google Scholar] [CrossRef]
  76. Wilson, J.A.; Hopkins, S.A.; Wright, P.M.; Dove, A.P. Synthesis of ω-Pentadecalactone Copolymers with Independently Tunable Thermal and Degradation Behavior. Macromolecules 2015, 48, 950–958. [Google Scholar] [CrossRef]
  77. Nifant’ev, I.E.; Shlyakhtin, A.V.; Tavtorkin, A.N.; Ivchenko, P.V.; Borisov, R.S.; Churakov, A.V. Monomeric and dimeric magnesium mono-BHT complexes as effective ROP catalysts. Catal. Commun. 2016, 87, 106–111. [Google Scholar] [CrossRef]
  78. Nifant’ev, I.E.; Shlyakhtin, A.V.; Bagrov, V.V.; Komarov, P.D.; Kosarev, M.A.; Tavtorkin, A.N.; Minyaev, M.E.; Roznyatovsky, V.A.; Ivchenko, P.V. Controlled ring-opening polymerisation of cyclic phosphates, phosphonates and phosphoramidates catalysed by hereroleptic BHT-alkoxy magnesium complexes. Polym. Chem. 2017, 8, 6806–6816. [Google Scholar] [CrossRef]
  79. Minyaev, M.E.; Nifant’ev, I.E.; Shlyakhtin, A.V.; Ivchenko, P.V.; Lyssenko, K.A. Phenoxide and alkoxide complexes of Mg, Al and Zn and their use for ring-opening polymerization of ε-caprolactone with initiators of different nature. Acta Cryst. C Struct. Chem. 2018, C74, 548–557. [Google Scholar] [CrossRef]
  80. Nifant’ev, I.E.; Shlyakhtin, A.V.; Bagrov, V.V.; Komarov, P.D.; Kosarev, M.A.; Tavtorkin, A.N.; Minyaev, M.E.; Roznyatovsky, V.A.; Ivchenko, P.V. Synthesis and ring-opening polymerization of glycidyl ethylene phosphate with a formation of linear and branched polyphosphates. Mendeleev Commun. 2018, 28, 155–157. [Google Scholar] [CrossRef]
  81. Nifant’ev, I.E.; Shlyakhtin, A.V.; Bagrov, V.V.; Komarov, P.D.; Tavtorkin, A.N.; Minyaev, M.E.; Kosarev, M.A.; Ivchenko, P.V. Synthesis in aqueous media of poly(ethylene phosphoric acids) by mild thermolysis of homopolymers and block copolymers based on tert-butyl ethylene phosphate. Eur. Polym. J. 2018, 106, 249–256. [Google Scholar] [CrossRef]
  82. Laikov, D.N.; Ustynyuk, Y.A. PRIRODA-04: A quantum-chemical program suite. New possibilities in the study of molecular systems with the application of parallel computing. Russ. Chem. Bull. 2005, 54, 820–826. [Google Scholar] [CrossRef]
  83. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef] [PubMed]
  84. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 09, Revision, A.01; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  85. Sosa, C.; Andzelm, J.; Elkin, B.C.; Wimmer, E.; Dobbs, K.D.; Dixon, D.A. A local density functional study of the structure and vibrational frequencies of molecular transition-metal compounds. J. Phys. Chem. 1992, 96, 6630–6636. [Google Scholar] [CrossRef]
  86. Godbout, N.; Salahub, D.R.; Andzelm, J.; Wimmer, E. Optimization of Gaussian-type basis sets for local spin density functional calculations. Part, I. Boron through neon, optimization technique and validation. Can. J. Chem. 1992, 70, 560–571. [Google Scholar] [CrossRef]
  87. Perdew, J.P.; Wang, Y. Accurate and Simple Analytic Representation of the Electron-Gas Correlation 91 Energy. Phys. Rev. B 1992, 45, 13244–13249. [Google Scholar] [CrossRef]
  88. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef]
  89. Nifant’ev, I.E.; Shlyakhtin, A.V.; Tavtorkin, A.N.; Kosarev, M.A.; Gavrilov, D.E.; Komarov, P.D.; Ilyin, S.O.; Karchevsky, S.G.; Ivchenko, P.V. Mechanistic study of transesterification in TBD-catalyzed ring-opening polymerization of methyl ethylene phosphate. Eur. Polym. J. 2019, 118, 393–403. [Google Scholar] [CrossRef]
  90. Nifant’ev, I.E.; Shlyakhtin, A.V.; Kosarev, M.A.; Komarov, P.D.; Karchevsky, S.G.; Ivchenko, P.V. Data for theoretical study of the mechanisms of ring-opening polymerization of methyl ethylene phosphate. Data Brief. 2019, 26, 104431. [Google Scholar] [CrossRef] [PubMed]
  91. Fliedel, C.; Mameri, S.; Dagorne, S.; Avilés, T. Controlled ring-opening polymerization of trimethylene carbonate and access to PTMC-PLA block copolymers mediated by well-defined N-heterocyclic carbene zinc alkoxides. Appl. Organomet. Chem. 2014, 28, 504–511. [Google Scholar] [CrossRef]
  92. Minyaev, M.E.; Churakov, A.V.; Nifant’ev, I.E. Structural diversity of polynuclear MgxOy cores in magnesium phenoxide complexes. Acta Cryst. C Struct. Chem. 2017, 73, 854–861. [Google Scholar] [CrossRef]

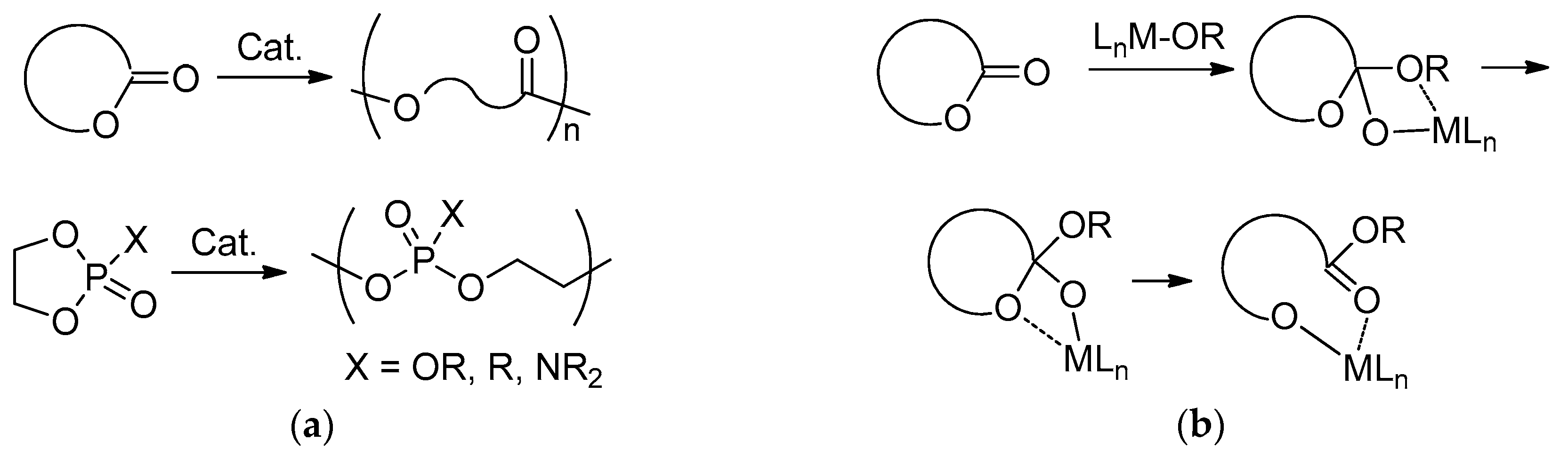

Scheme 1. (a) Ring-opening polymerization; (b) coordination-insertion mechanism of ring-opening polymerization (ROP), catalyzed by metal alkoxides.
Scheme 1. (a) Ring-opening polymerization; (b) coordination-insertion mechanism of ring-opening polymerization (ROP), catalyzed by metal alkoxides.
Polymers 11 01641 sch001
Scheme 2. Binuclear reaction mechanism proposed for ε-caprolactone/l-lactide (ε-CL/L-LA) copolymerization.
Scheme 2. Binuclear reaction mechanism proposed for ε-caprolactone/l-lactide (ε-CL/L-LA) copolymerization.
Polymers 11 01641 sch002

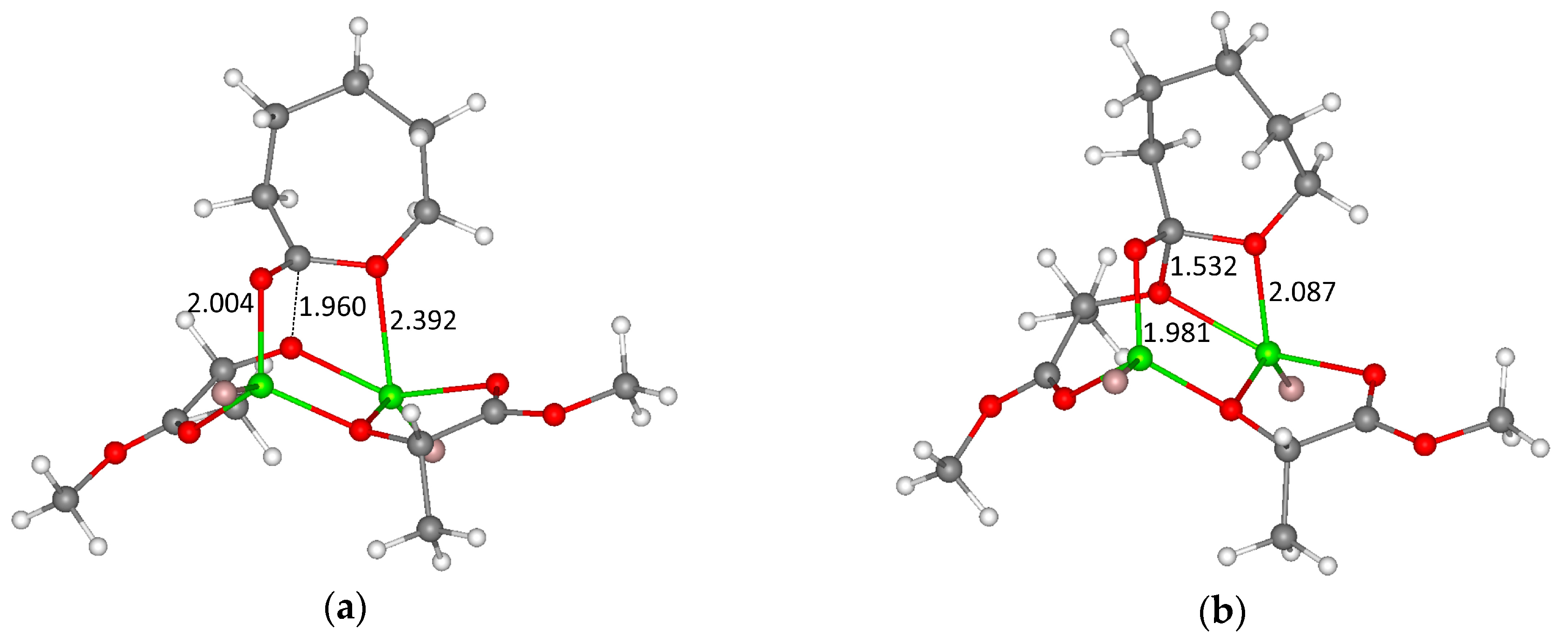

Figure 1. Calculated geometries of (a) TS-12_lc; (b) I-2_lc. The 2,6-di-tert-butylphenoxy (DBP) fragments are omitted for clarity except the oxygen atom (marked by a rose). The distances O(lactate)–C(ε-CL carbonyl C atom) and O(ε-CL)–Mg are specified (Å).
Figure 1. Calculated geometries of (a) TS-12_lc; (b) I-2_lc. The 2,6-di-tert-butylphenoxy (DBP) fragments are omitted for clarity except the oxygen atom (marked by a rose). The distances O(lactate)–C(ε-CL carbonyl C atom) and O(ε-CL)–Mg are specified (Å).
Polymers 11 01641 g001

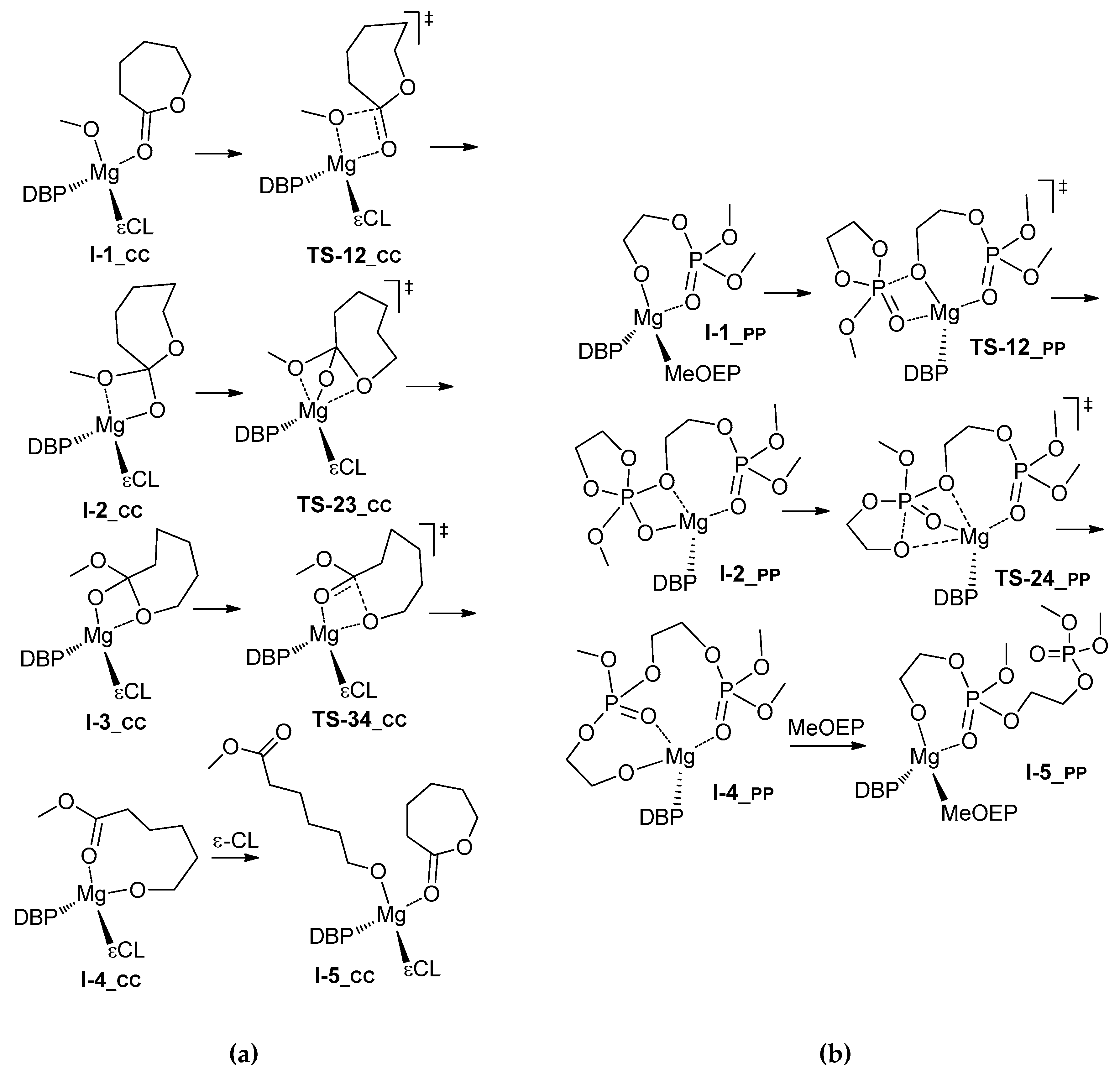

Scheme 3. Mononuclear reaction mechanisms of homopolymerization for (a) ε-CL (CC sequence) [31] and (b) MeOEP (PP sequence) [51].
Scheme 3. Mononuclear reaction mechanisms of homopolymerization for (a) ε-CL (CC sequence) [31] and (b) MeOEP (PP sequence) [51].
Polymers 11 01641 sch003
Scheme 4. Mononuclear reaction mechanisms of ε-CL/MeOEP copolymerization: (a) MeOEP in DBP-Mg-OEt complex (PC sequence), and (b) ε-CL in the DBP-Mg-phosphate complex (CP sequence).
Scheme 4. Mononuclear reaction mechanisms of ε-CL/MeOEP copolymerization: (a) MeOEP in DBP-Mg-OEt complex (PC sequence), and (b) ε-CL in the DBP-Mg-phosphate complex (CP sequence).
Polymers 11 01641 sch004

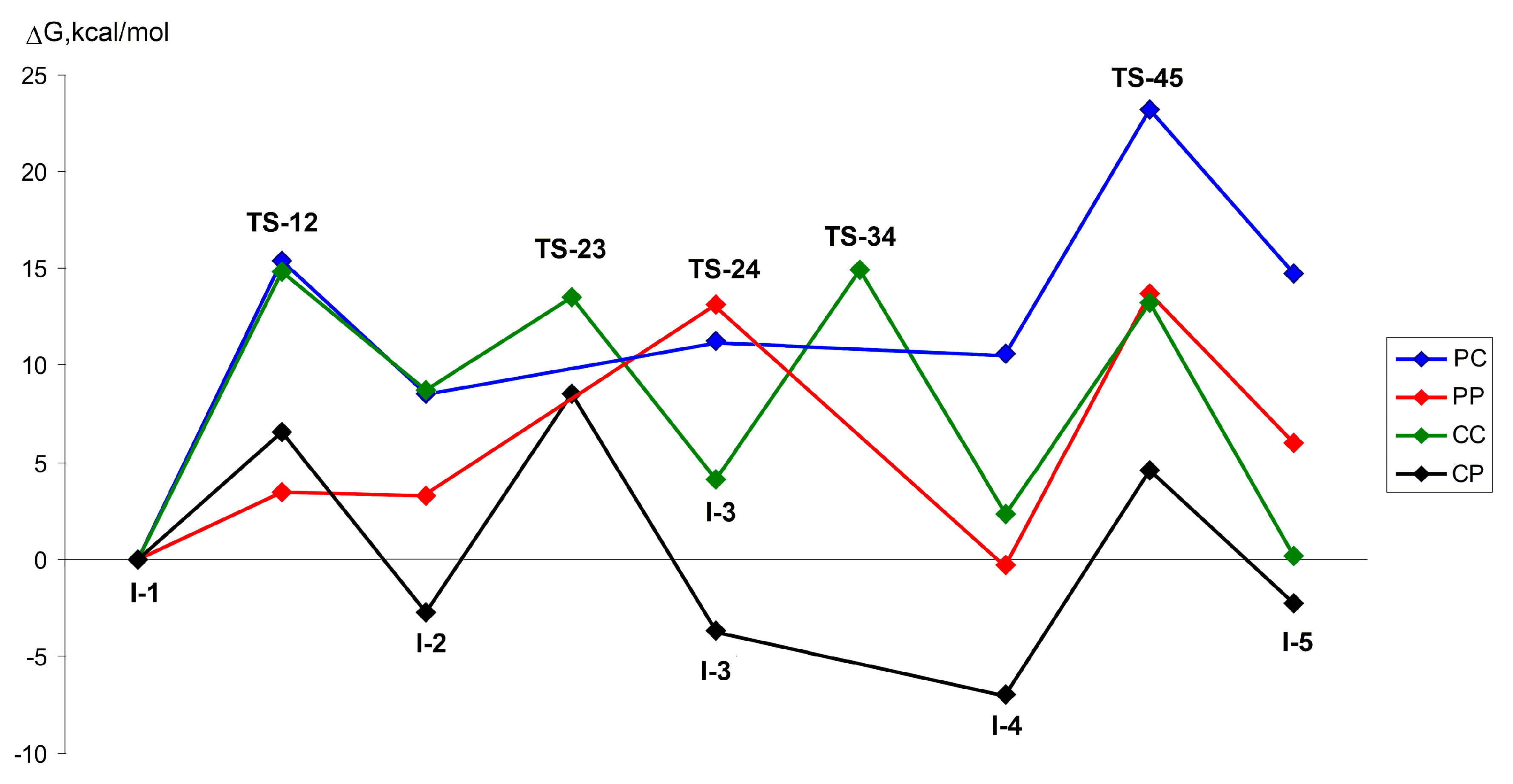

Figure 2. Calculated free energy profiles for all comonomer sequences of ε-CL/MeOEP copolymerization based on data obtained earlier [26,46] and in this work.
Figure 2. Calculated free energy profiles for all comonomer sequences of ε-CL/MeOEP copolymerization based on data obtained earlier [26,46] and in this work.
Polymers 11 01641 g002
Scheme 5. Mononuclear reaction mechanisms of l-LA homopolymerization (LL sequence, CNMg = 4).
Scheme 5. Mononuclear reaction mechanisms of l-LA homopolymerization (LL sequence, CNMg = 4).
Polymers 11 01641 sch005

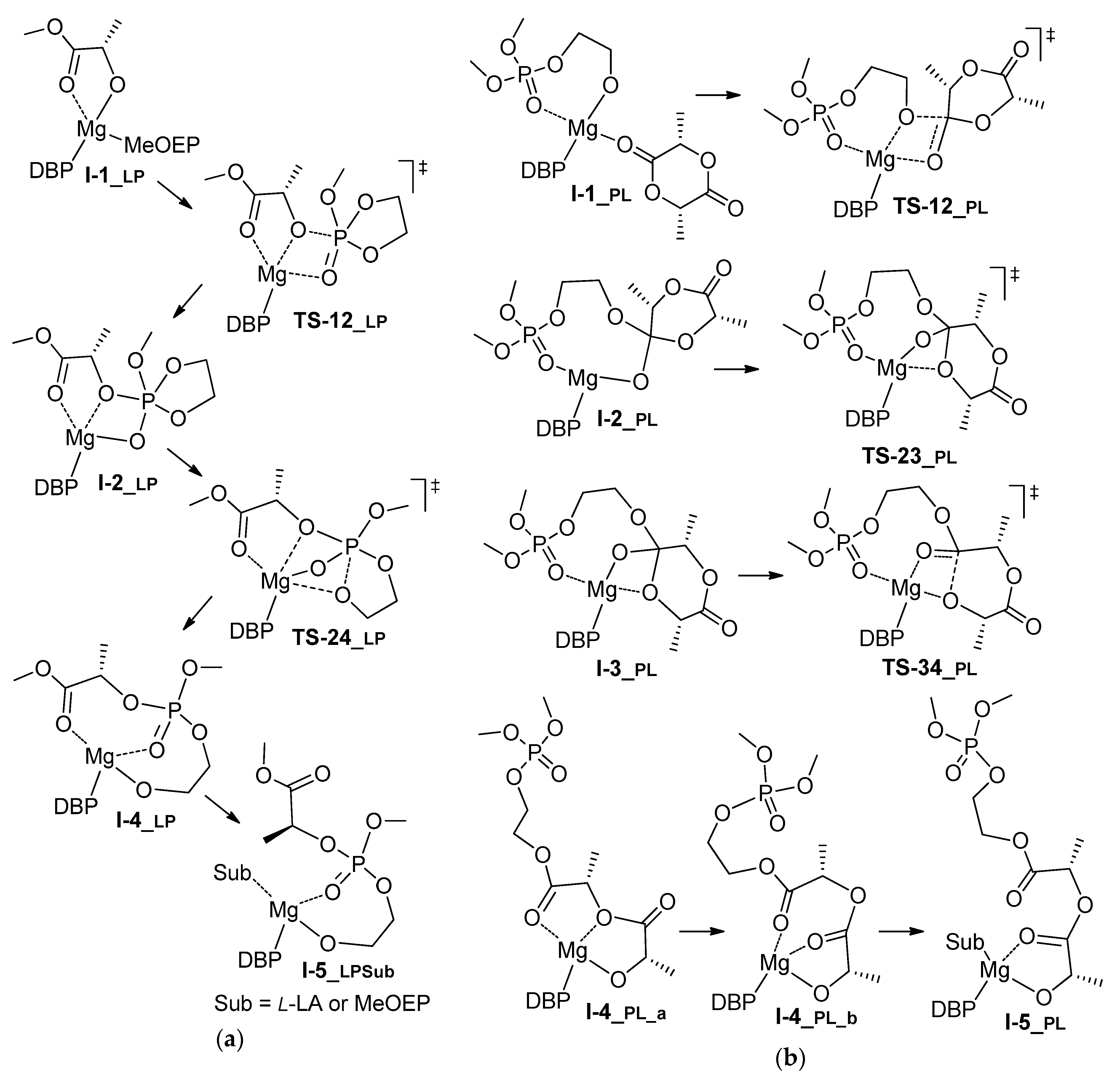

Scheme 6. Mononuclear reaction mechanisms of l-LA/MeOEP copolymerization: (a) LP sequence and (b) PL sequence.
Scheme 6. Mononuclear reaction mechanisms of l-LA/MeOEP copolymerization: (a) LP sequence and (b) PL sequence.
Polymers 11 01641 sch006

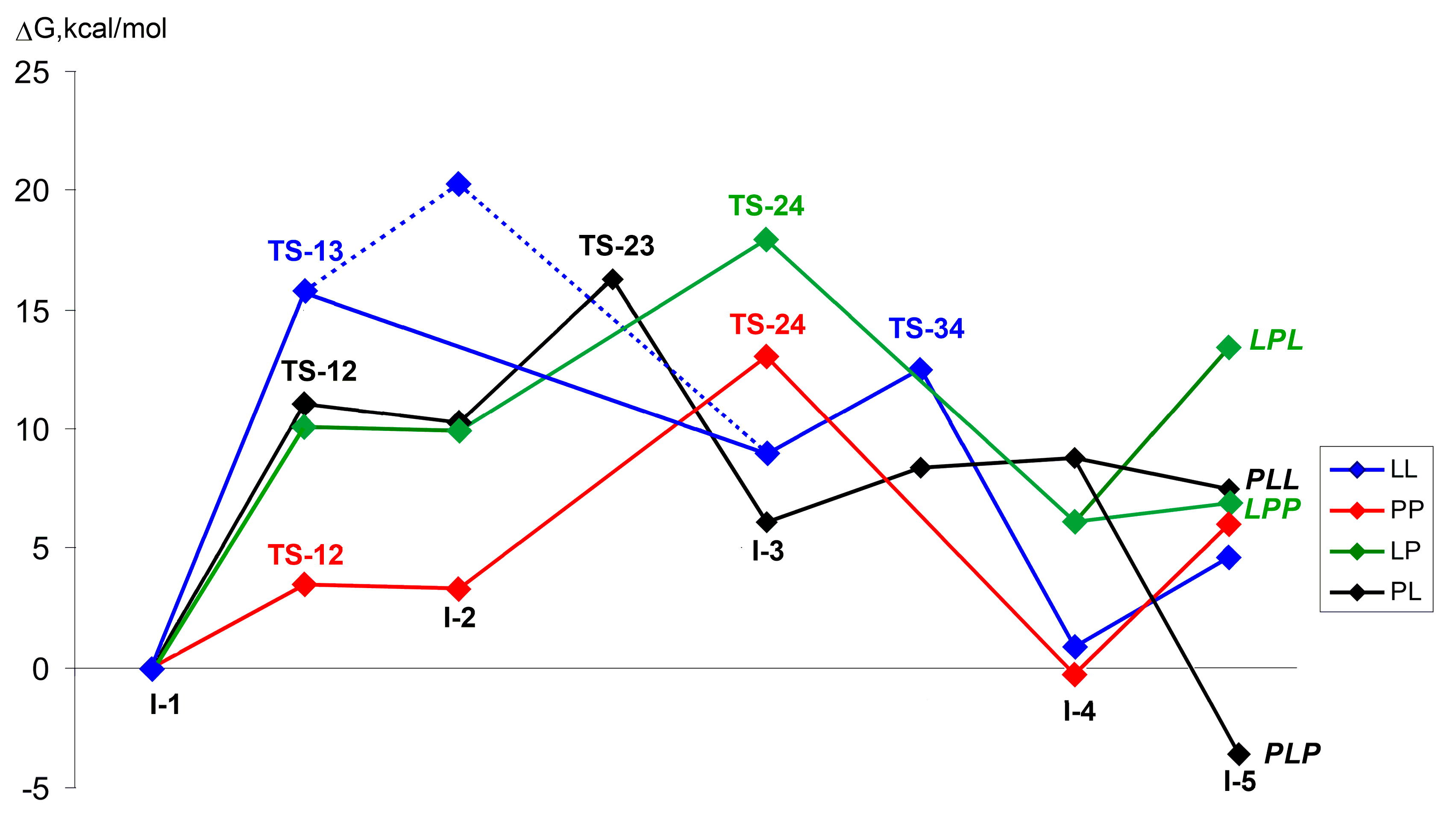

Figure 3. Calculated free energy profiles for all comonomer sequences of l-LA/MeOEP copolymerization based on data obtained earlier [51] and in this work.
Figure 3. Calculated free energy profiles for all comonomer sequences of l-LA/MeOEP copolymerization based on data obtained earlier [51] and in this work.
Polymers 11 01641 g003
Figure 4. The 31P NMR spectra of l-LA/MeOEP copolymers (Table 3, runs 3a and 3b).
Figure 4. The 31P NMR spectra of l-LA/MeOEP copolymers (Table 3, runs 3a and 3b).
Polymers 11 01641 g004

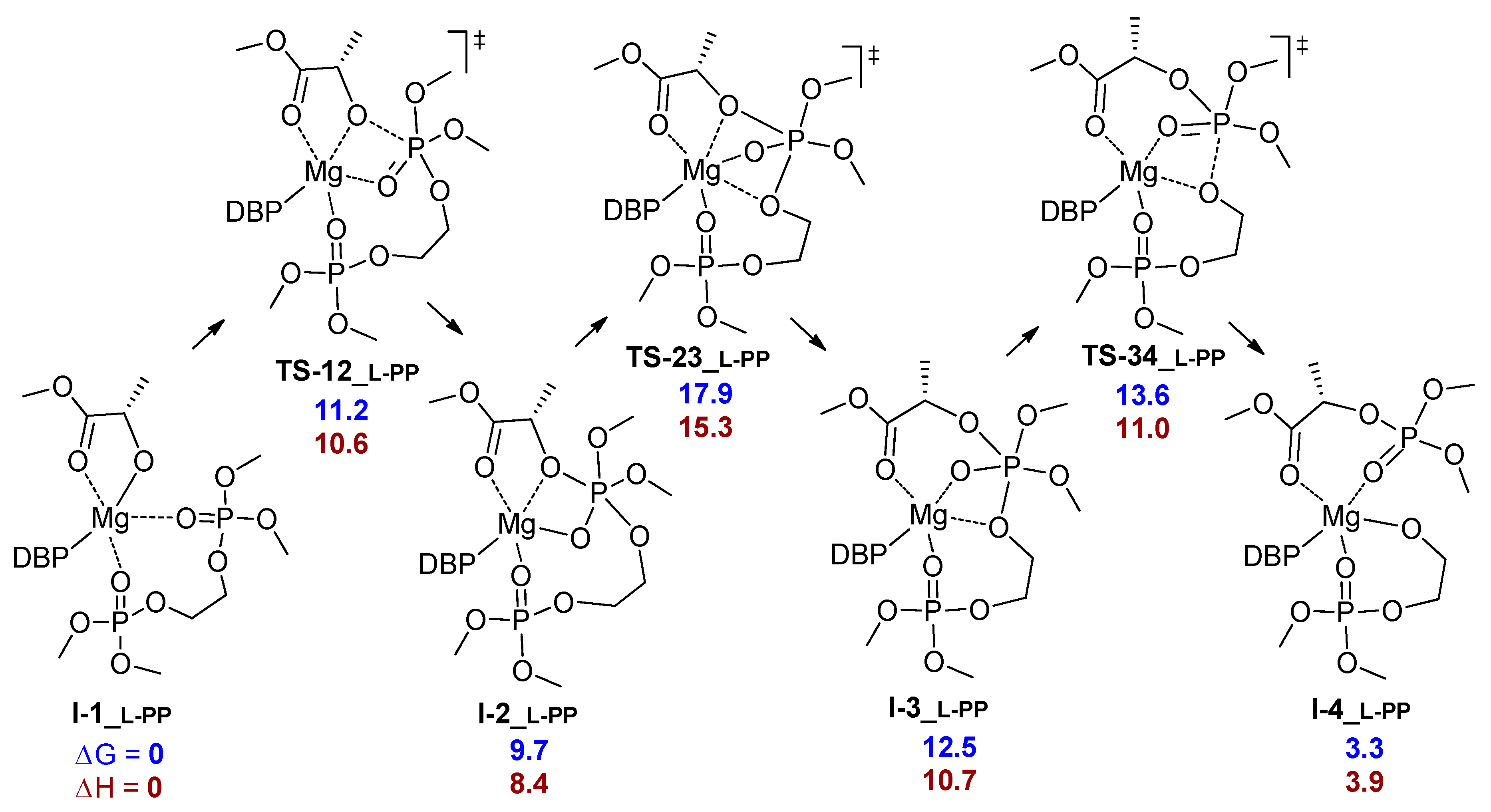

Scheme 7. Stationary points and transition states of the process modeling transesterification of polyphosphate by BHT-Mg-lactate. The values of relative free energies (blue) and free enthalpies (dark red) are also given.
Scheme 7. Stationary points and transition states of the process modeling transesterification of polyphosphate by BHT-Mg-lactate. The values of relative free energies (blue) and free enthalpies (dark red) are also given.
Polymers 11 01641 sch007
Table 1. Calculated free energies and free enthalpies (kcal/mol) of stationary points and transition states for different comonomer sequences in ε-CL/methyl ethylene phosphate (MeOEP) copolymerization. 1.
Table 1. Calculated free energies and free enthalpies (kcal/mol) of stationary points and transition states for different comonomer sequences in ε-CL/methyl ethylene phosphate (MeOEP) copolymerization. 1.
Comonomer SequenceI-1TS-12I-2TS-23I-3 or TS-24TS-34I-4TS-45I-5
PPG0.03.53.3n.d.13.1 2n.d.–0.313.76.0
H0.01.52.0n.d.9.1 2n.d.–2.113.0–3.9
CCG0.014.88.713.54.114.92.313.20.2
H0.012.85.79.00.311.20.8–0.9–8.9
CPG0.06.6–2.88.5–3.7n.d.–7.04.6–2.3
H0.03.5–6.03.6–7.1n.d.–8.9–13.3–12.4
PCG0.015.48.5n.d. 311.3 2n.d.10.623.214.7
H0.013.07.5n.d.9.2 2n.d.9.121.96.5
1 Relative to corresponding I-1. 2 TS-24. 3 Not determined.
Table 2. Calculated free energies and free enthalpies (kcal/mol) of stationary points and transition states for different comonomer sequences in l-LA/MeOEP copolymerization. 1.
Table 2. Calculated free energies and free enthalpies (kcal/mol) of stationary points and transition states for different comonomer sequences in l-LA/MeOEP copolymerization. 1.
Comonomer SequenceI-1TS-12I-2TS-23I-3 or TS-24TS-34I-4I-5
LLG0.015.8 220.3n.d.8.912.50.94.6
H0.010.1 215.7n.d.2.97.5–3.1–7.4
PPG0.03.53.3n.d.13.1 2n.d.–0.36.0
H0.01.52.0n.d.9.1 2n.d.–2.1–3.9
LPG0.010.19.9n.d.17.9 2n.d.6.113.4/6.9 4
H0.06.95.3n.d.13.5 2n.d.4.21.1/–6.1 4
PLG0.011.010.316.36.18.48.87.5/–3.7 4
H0.08.88.613.34.15.612.1–2.0/–13.3 4
1 Relative to corresponding I-1. 2 TS-13. 3 Not determined. 3 TS-24. 4 Monomer coordination, L/P.
Table 3. Polymerization experimental data for BHT-Mg catalyzed copolymerization in ε-CL/l-LA, ε-CL/MeOEP and l-LA/MeOEP mixtures. Reaction conditions: CH2Cl2, [Mon] = 1 M, [Mon]/[Mg] = 100 in homopolymerization, [Mon1,2]/[Mg] = 50 in copolymerization.
Table 3. Polymerization experimental data for BHT-Mg catalyzed copolymerization in ε-CL/l-LA, ε-CL/MeOEP and l-LA/MeOEP mixtures. Reaction conditions: CH2Cl2, [Mon] = 1 M, [Mon]/[Mg] = 100 in homopolymerization, [Mon1,2]/[Mg] = 50 in copolymerization.
RunMon1Mon2Reaction time, minReaction T, °CConv.,
Mon1/
Mon2, %
Mntheo
×103 a)
MnNMR
×103 b)
MnSEC
×103
ÐM
c1ε-CL105546.36.86.4 c)1.18 c)
c2l-LA105213.14.68.1 c)1.17 c)
c3MeOEP105>9913.913.79.8 d)1.35 d)
1aε-CLl-LA1050/866.37.08.5 c)1.31 c)
1bε-CLl-LA1800200/1007.310.310.6 c)1.28 c)
2aε-CLMeOEP1050/986.99.311.6 d)1.32 d)
2bε-CLMeOEP28802028/1008.614.115.1 d)1.48 d)
3al-LAMeOEP20589/10013.513.716.9 d)1.21 d)
3bl-LAMeOEP605100/10014.216.719.4 d)1.25 d)
M(Mon1), M(Mon2)—molecular weights of—comonomers; a) Mntheo = M(Mon1) × Conv.1 + M(Mon2) × Conv.2 + MI; MI—molecular weight of BnOH. b) Determined by the analysis of the NMR spectra of the reaction mixtures, see Section 2.3 for details. c) Determined by size exclusion chromatography (SEC) in THF vs polystyrene standards and corrected by the factors of 0.56 (εCL) and 0.58 (rac-LA). d) Determined by SEC in MeOEP polymers (DMF) vs PEG standards.

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
